This document discusses procedures for locating cable faults and types of cable testing. It describes why cable testing is important to determine the condition of power cables and systems. The main types of cable testing discussed are high voltage DC withstand testing, partial discharge testing using acoustic equipment, and dielectric response testing measuring factors like dissipation factor, DC leakage current, and recovery voltage. The document also outlines procedures for locating cable faults, including fault indication, insulation testing, cable route tracing, and precise fault location. Various cable testing methods and their purposes are explained.

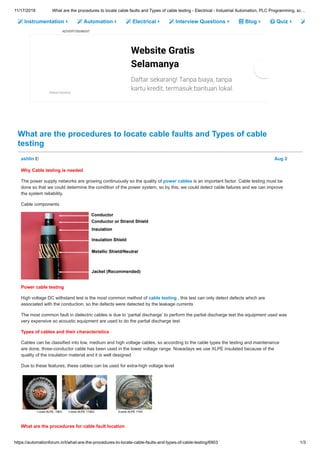

1. 11/17/2019 What are the procedures to locate cable faults and Types of cable testing - Electrical - Industrial Automation, PLC Programming, sc…
https://automationforum.in/t/what-are-the-procedures-to-locate-cable-faults-and-types-of-cable-testing/6903 1/3
Instrumentation Automation Electrical Interview Questions Blog Quiz
ADVERTISEMENT
What are the procedures to locate cable faults and Types of cable
testing
Website Gratis
Selamanya
Daftar sekarang! Tanpa biaya, tanpa
kartu kredit, termasuk bantuan lokal.Sitebeat Indonesia
ashlin Aug 2
Why Cable testing is needed
The power supply networks are growing continuously so the quality of power cables is an important factor. Cable testing must be
done so that we could determine the condition of the power system, so by this, we could detect cable failures and we can improve
the system reliability.
Cable components
Power cable testing
High voltage DC withstand test is the most common method of cable testing , this test can only detect defects which are
associated with the conduction, so the defects were detected by the leakage currents
The most common fault in dielectric cables is due to ‘partial discharge’ to perform the partial discharge test the equipment used was
very expensive so acoustic equipment are used to do the partial discharge test
Types of cables and their characteristics
Cables can be classified into low, medium and high voltage cables, so according to the cable types the testing and maintenance
are done, three-conductor cable has been used in the lower voltage range. Nowadays we use XLPE insulated because of the
quality of the insulation material and it is well designed
Due to these features, these cables can be used for extra-high voltage level
What are the procedures for cable fault location

2. 11/17/2019 What are the procedures to locate cable faults and Types of cable testing - Electrical - Industrial Automation, PLC Programming, sc…
https://automationforum.in/t/what-are-the-procedures-to-locate-cable-faults-and-types-of-cable-testing/6903 2/3
These are the following steps to locate the cable faults
Fault indication
Disconnecting and Earthing
Fault analyses and insulation test
Cable fault Pre location
Cable route tracing
Precise cable fault location
Cable identification
Fault marking and repair
Cable testing and diagnosis
Cable testing
Installation acceptance and maintenance test
Installation test is a test which is done after cable installation but it is done before the application of joints or terminations
Acceptance test is also a field test which is conducted after cable installation, which is inclusive of terminations and joints
before the cable system is commissioned
Maintenance test this test is done during the operation life of the cable system
Thermal imaging camera is used for maintenance testing and a Megger for DC high pot testing
Withstand test
This type of test involves the application of a voltage at a nominal level or higher than the prescribed period of time. By doing this
test we could determine the cable’s ability to withstand voltage without insulation breakdown
Dielectric response
This kind of test is done to determine the cables dielectric response to the applied electric field, it can be done by measuring
properties such as recovery voltage DC leakage current, dissipation factor
This can be done by applying AC or DAC voltage for a prescribed period at a frequency of 20 – 300 Hz
Advantages
An overall assessment of the cable can be done
Has the ability to detect the degree of water treeing and conductive type defects
Dielectric response – Dissipation factor
This could determine the loss factor of cables insulation, the loss factor will increase with age, so dissipation factor or Tan delta
measurement can be used to determine the cable condition
Dielectric response – DC leakage current
During this test, a DC voltage lower than the withstand voltage is applied between the conductor and the insulation shield. So the
leakage current through the cable insulation can be measured
While testing extruded cable system HVDC must not be used leakage current measurement will only take place when the applied
voltage reached its steady-state value
Dielectric Response – Recovery voltage

3. 11/17/2019 What are the procedures to locate cable faults and Types of cable testing - Electrical - Industrial Automation, PLC Programming, sc…
https://automationforum.in/t/what-are-the-procedures-to-locate-cable-faults-and-types-of-cable-testing/6903 3/3
ADVERTISEMENT
Automation Forum
This is a technical
networking group for people
in industrial automation and
process controls to
exchange information to
advance their careers and
professional knowledge
base.
Instruments
Pressure
Level
Flow
Temperature
Control
Automation
Networking
PLC
Knowledge Base
Analytic Instrument
Calibration
Electrical
Valves
Interview Question
Instrumentation
Automation
Electrical
Questions
Test Your Knowledge
Instrumentation
Control System
Quiz Collection
Calibration
Be Connected
Facebook
Telegram
LinkedIn
Twitter
Privacy Terms of service About
What is Tan delta test and how can it prevent the damages in power system
**What is underground wiring and laying of underground cables**
What is a power cable ? Types of cables
DC voltage is used to charge the cable for a specified time in this test, after that the cable will be discharged to ground through a
resistor for short time and then the open circuit voltage is recorded and plotted against time
It is used to determine the level of water tree degradation in extruded insulation
Partial discharge - Acoustic measurements
When a partial discharge occurs energy is released which produces a mechanical wave so the place in which partial discharge
occurs acts like an acoustic wave source
Time-domain Reflectometry
This method uses changes in impedance of cable to determine cable imperfections such as faults, open connections, poor neutral,
lossy connections, and water ingress
