Problem Solving with Algorithms and Data Structure - Graphs
- 1. Problem Solving with Algorithms and Data Structure — Graph Bruce Tsai
- 3. Graph A set of objects where some pairs of objects are connected by links road map airline flights internet connection skill tree Tree is special kind of graph Vertex (node) Edge (arc) 3
- 4. Goal Represent problem in form of graph Use graph algorithms to solve problem 4
- 5. (Undirected) Graph G = (V, E) V = {v_1, v_2, v_3, v_4, v_5, v_6} E = {(v_1, v_2), (v_1, v_5), (v_2, v_3), (v_2, v_5), (v_3, v_4), (v_4, v_5), (v_4, v_6)} (v_1, v_5) == (v_5, v_1) 5
- 6. Directed Graph D = (V, A) V = {v_0, v_1, v_2, v_3, v_4, v_5} A = {(v_0, v_1), (v_0, v_5), (v_1, v_2), (v_2, v_3), (v_3, v_5), (v_3, v_4), (v_4, v_0), (v_5, v_2), (v_5, v_4)} 6
- 7. Attributed Graph Attribute Characters of graph vertices or edges weight, color, anything you want 7
- 8. Path and Cycle Path Sequence of vertices that are connected by edges [v_1, v_5, v_4, v_6] Cycle A path that starts and ends at same vertex [v_2, v_3, v_4, v_5, v_2] 8
- 13. Word Ladder Problem Make change occur gradually by changing one letter at a time FOOL -> POOL -> POLL -> POLE -> PALE -> SALE -> SAGE 13
- 18. Breadth First Search (BFS) 18
- 20. Discussion Question - BFS [1] [1, 2, 3, 6] [2, 3, 6] [3, 6, 4] [6, 4, 5] [4, 5] [5] 1 2 3 4 5 6 20

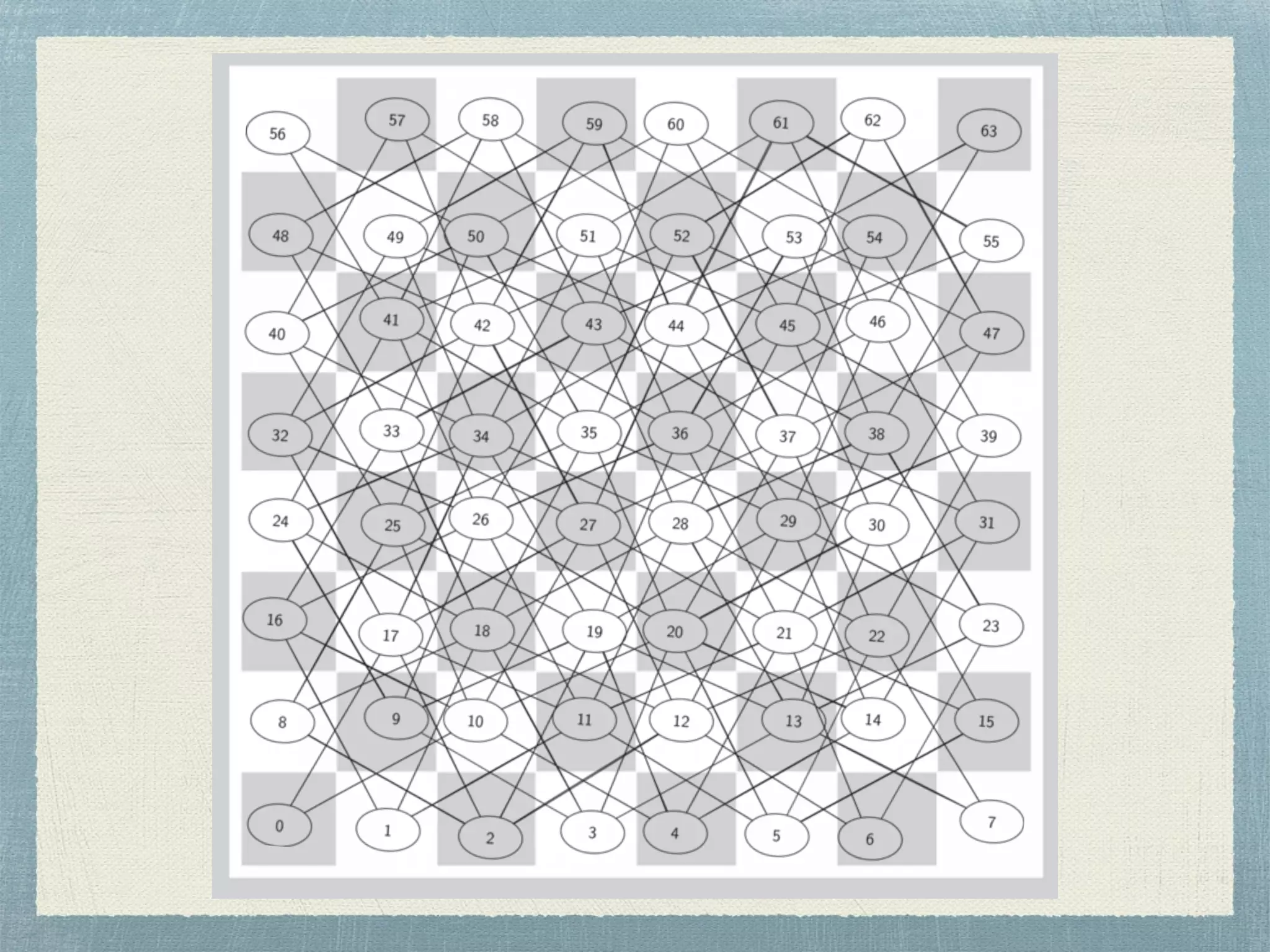

- 24. Knight Graph 24
- 27. Knight’s Tour 27

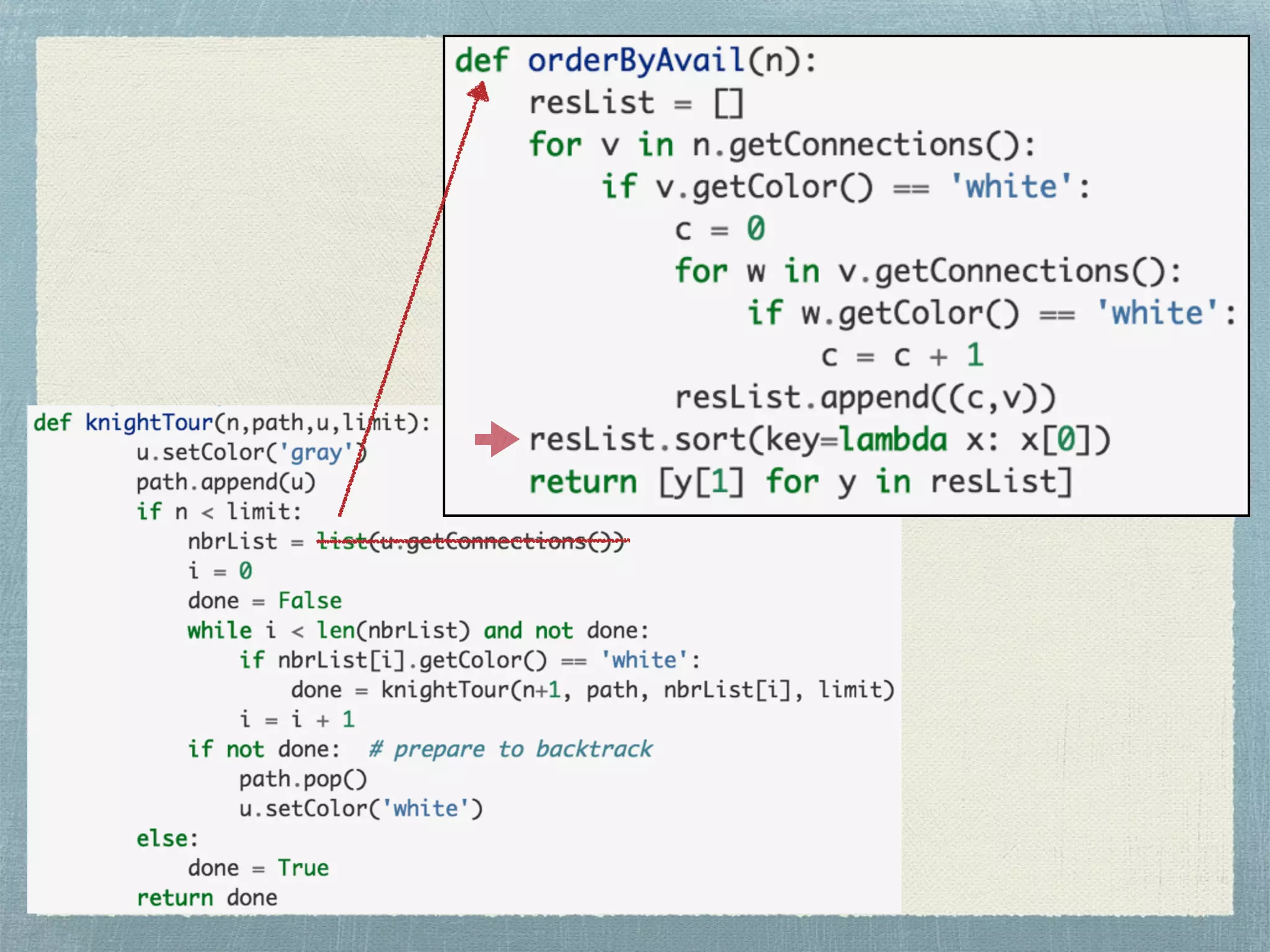

- 28. Choose Better Next Vertex Visit hard-to-reach corners early Use the middle square to hop across board only when necessary 28
- 30. General Depth First Search (DFS) Knight’s Tour is special case of depth first search create the depth first tree General depth first search is to search as deeply as possible 30

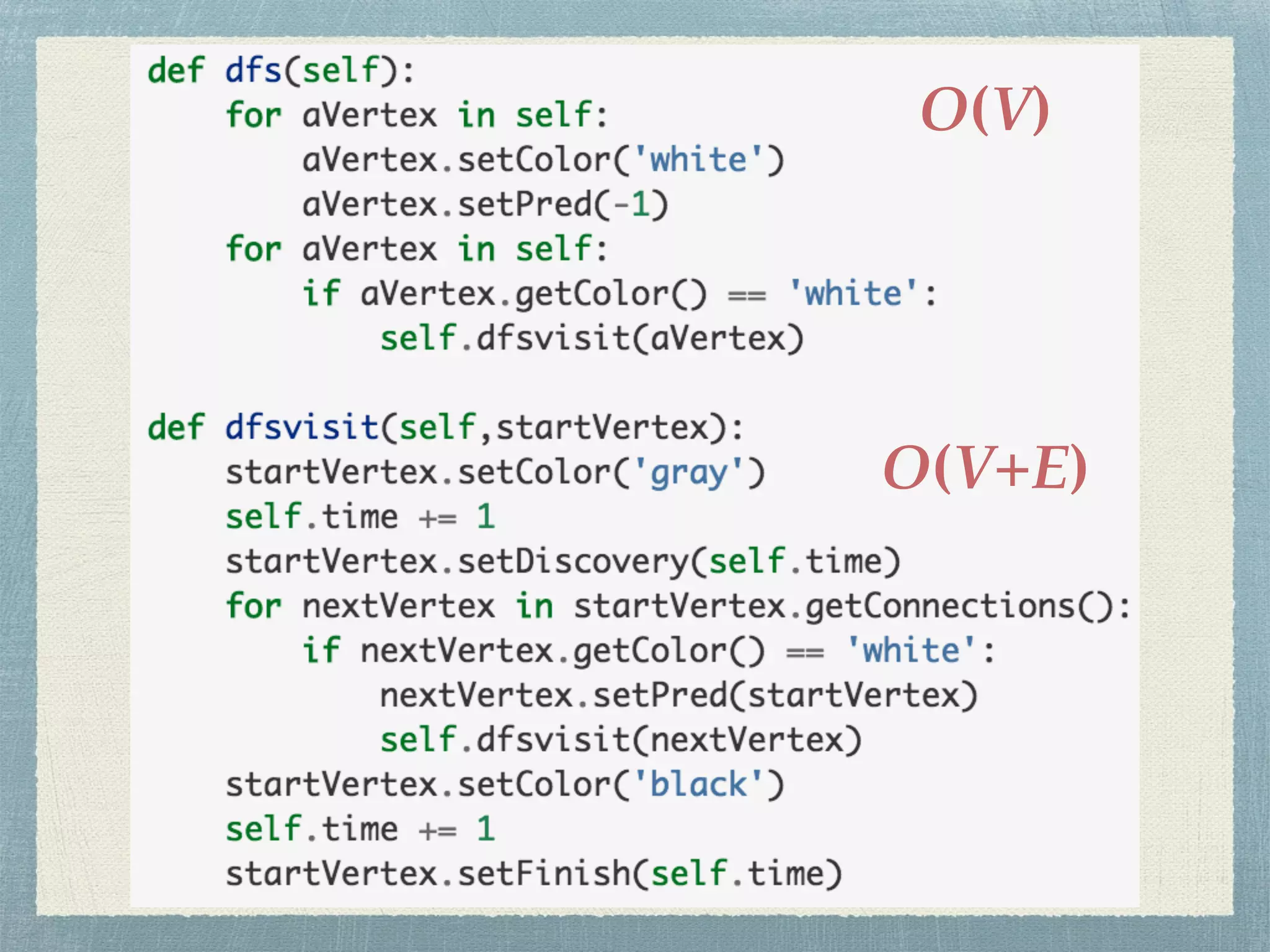

- 31. O(V+E) O(V)
- 32. queue stack
- 34. P versus NP problem P: questions for which some algorithms can provide an answer in polynomial time NP: questions for which an answer can be verified in polynomial time Subset sum problem {-7, -3, -2, 5, 8} -> {-3, -2, 5} 34

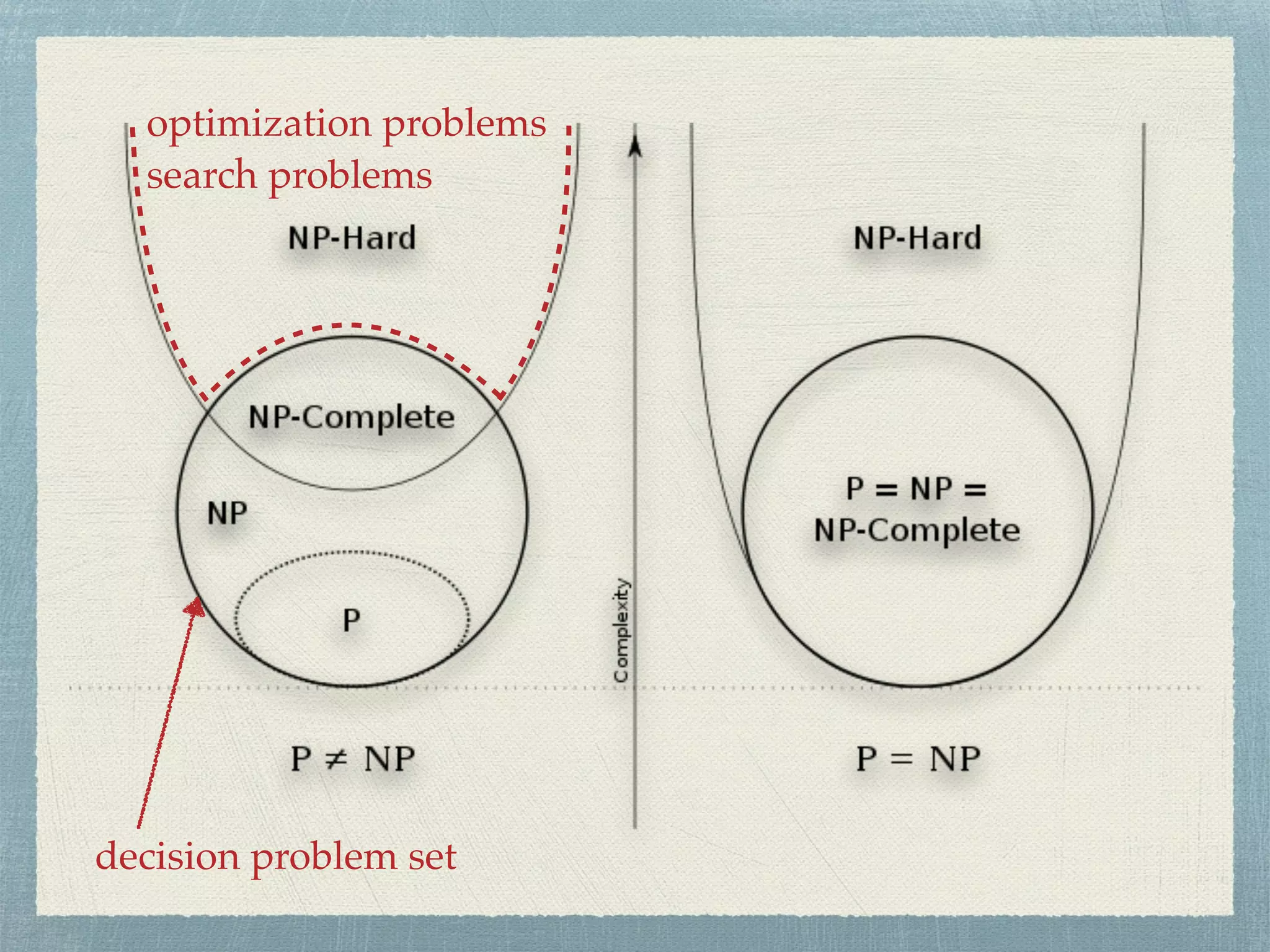

- 35. decision problem set optimization problems search problems

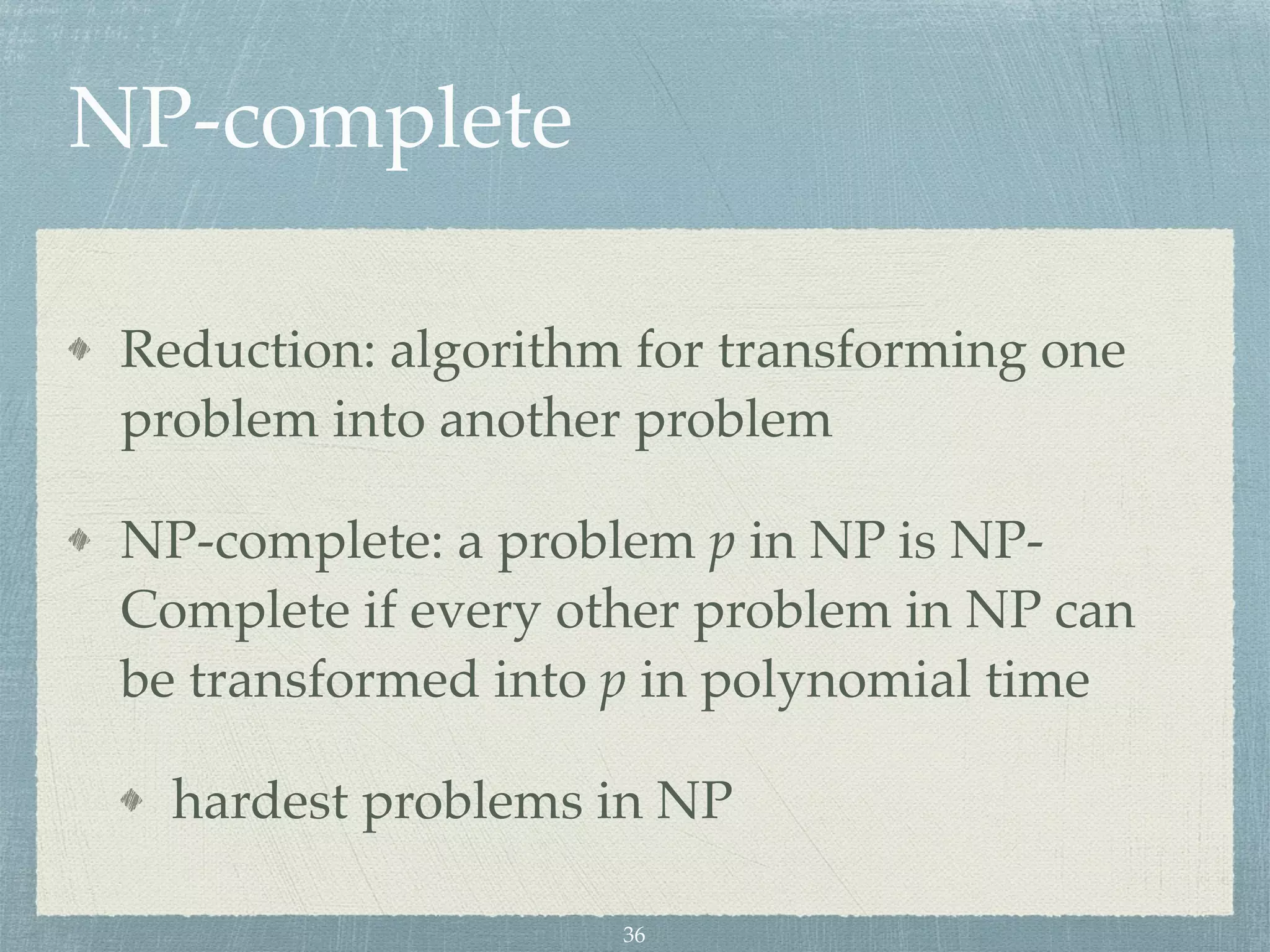

- 36. NP-complete Reduction: algorithm for transforming one problem into another problem NP-complete: a problem p in NP is NP- Complete if every other problem in NP can be transformed into p in polynomial time hardest problems in NP 36

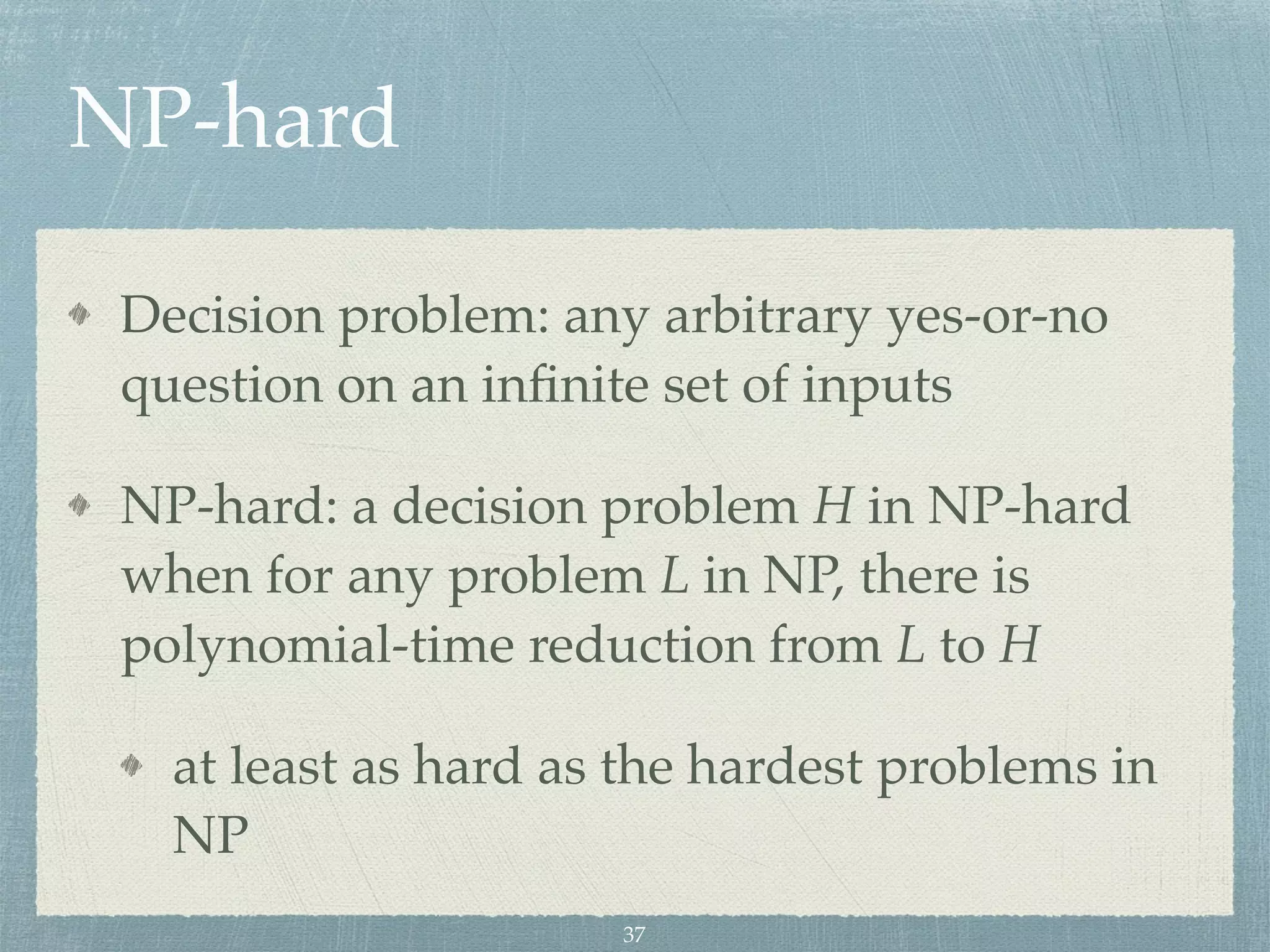

- 37. NP-hard Decision problem: any arbitrary yes-or-no question on an infinite set of inputs NP-hard: a decision problem H in NP-hard when for any problem L in NP, there is polynomial-time reduction from L to H at least as hard as the hardest problems in NP 37

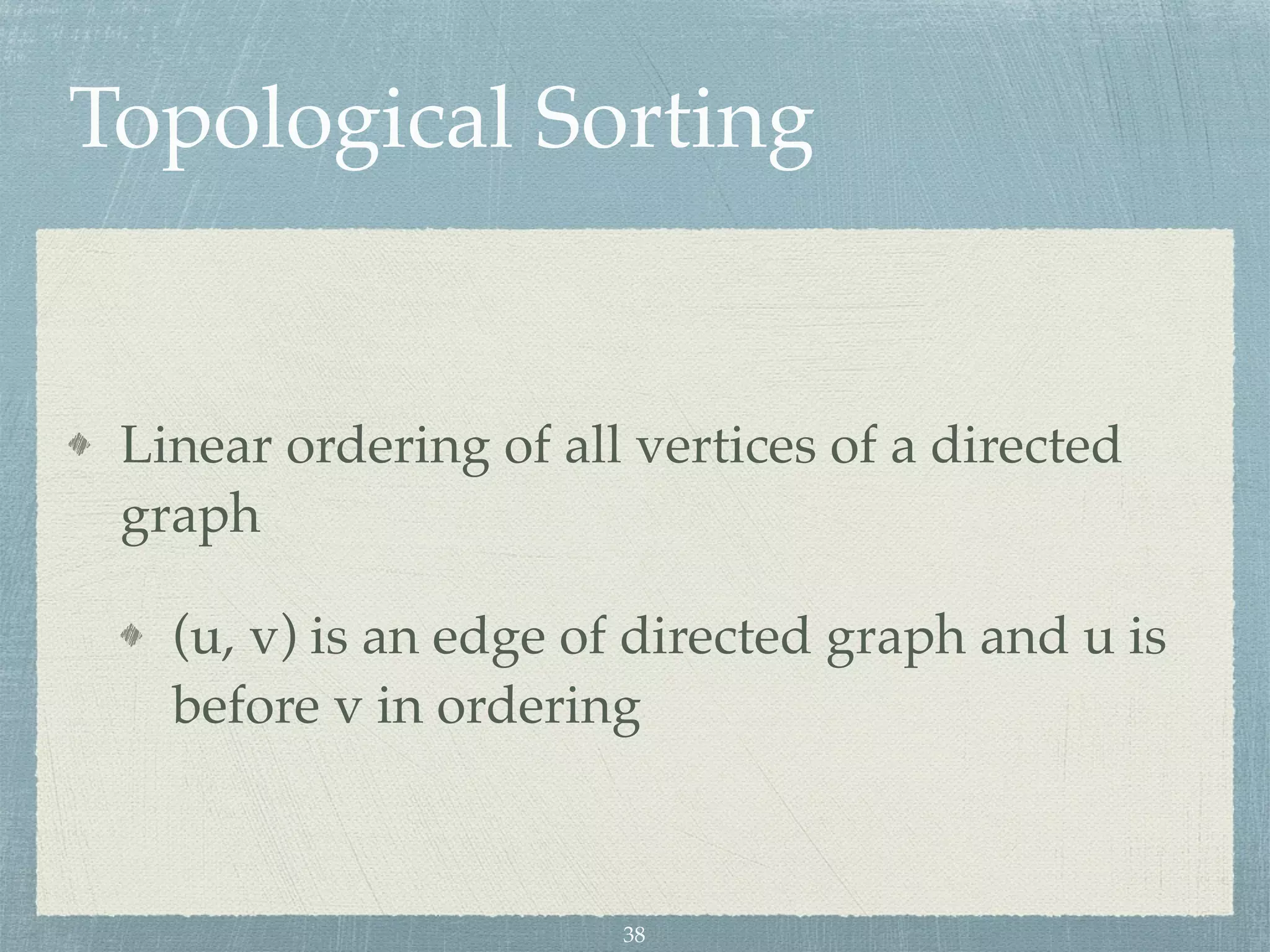

- 38. Topological Sorting Linear ordering of all vertices of a directed graph (u, v) is an edge of directed graph and u is before v in ordering 38
- 40. Start and Finish Time
- 41. Implementation 1. Call dfs(g) 2. Store vertices based on decreasing order of finish time 3. Return the ordered list 41
- 42. Lemma A directed graph G is acyclic if and only if a depth-first search of G yields no back edges. Back edge: edge (u, v) connecting vertex u to an ancestor v in depth-first tree (v ↝ u → v) =>: back edge exists then cycle exists <=: cycle exists then back edge exists 42
- 43. Proof of Implementation For any pair of distinct vertices u, v ∈ V, if there is an edge in G from u to v, then f[v] < f[u]. Consider edge (u, v) explored by DFS, v cannot be gray since then that edge would be back edge. Therefore v must be white or black. If v is white, v is descendant of u, and so f[v] < f[u] If v is black, it has already been finished, so that f[v] < f[u] 43
- 44. Strongly Connected Components G = (V, E) and C ⊂ V such that ∀ (v_i, v_j) ∈ C, path v_i to v_j and path v_j to v_i both exist C is strongly connected components (SCC) 44

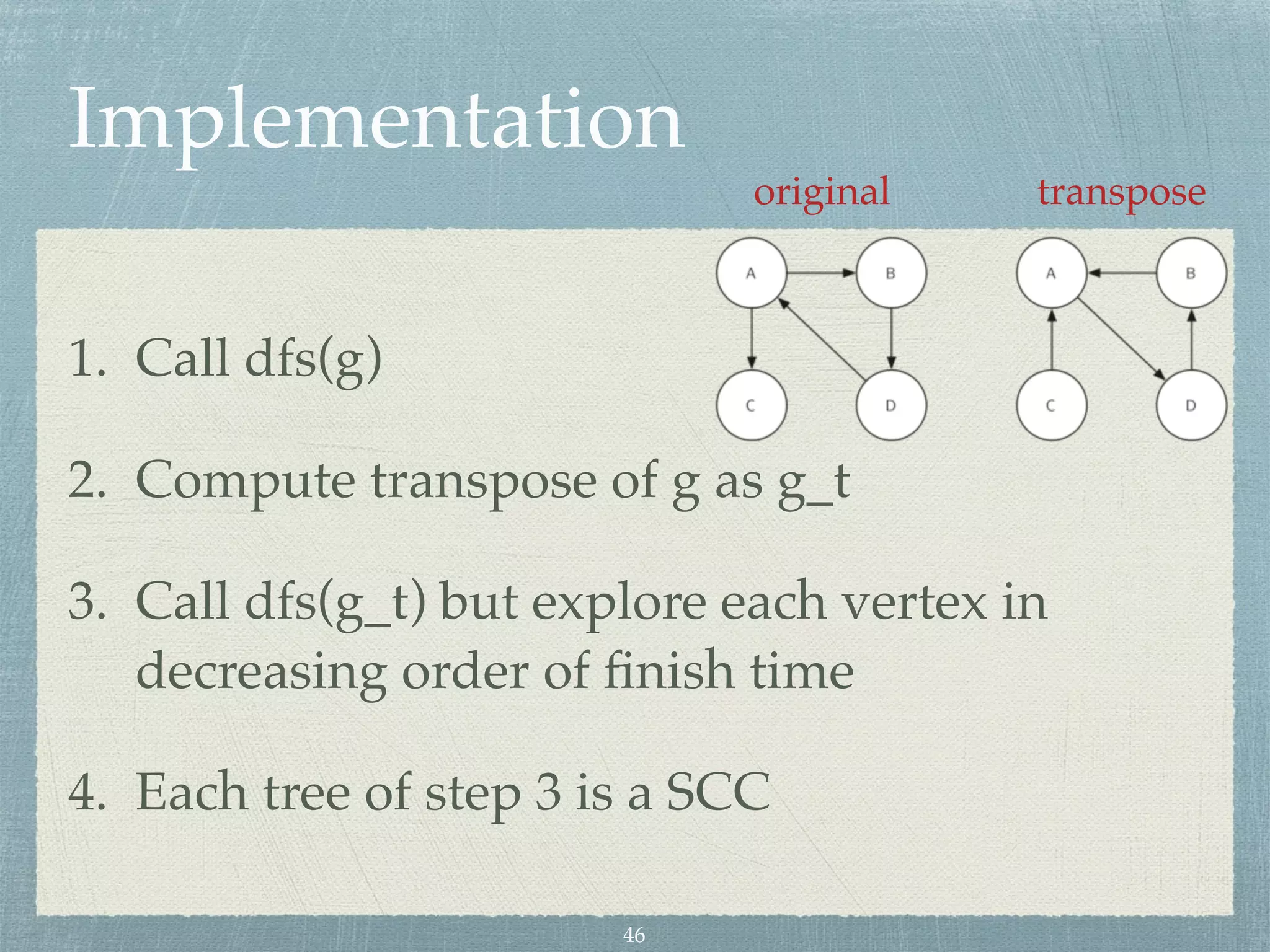

- 46. Implementation 1. Call dfs(g) 2. Compute transpose of g as g_t 3. Call dfs(g_t) but explore each vertex in decreasing order of finish time 4. Each tree of step 3 is a SCC original transpose 46
- 47. dfs(g)
- 48. dfs(g_t)
- 49. Lemma Let C and C’ be distinct SCCs in directed graph G = (V, E), let u, v ∈ C, let u’, v’ ∈ C’, and suppose that there is a path u ↝ u’ in G. Then there cannot also be a path v’ ↝ v in G. if v’ ↝ v exists then both u ↝ u’ ↝ v’ and v’ ↝ v ↝ u exist C and C’ are not distinct SCCs 49

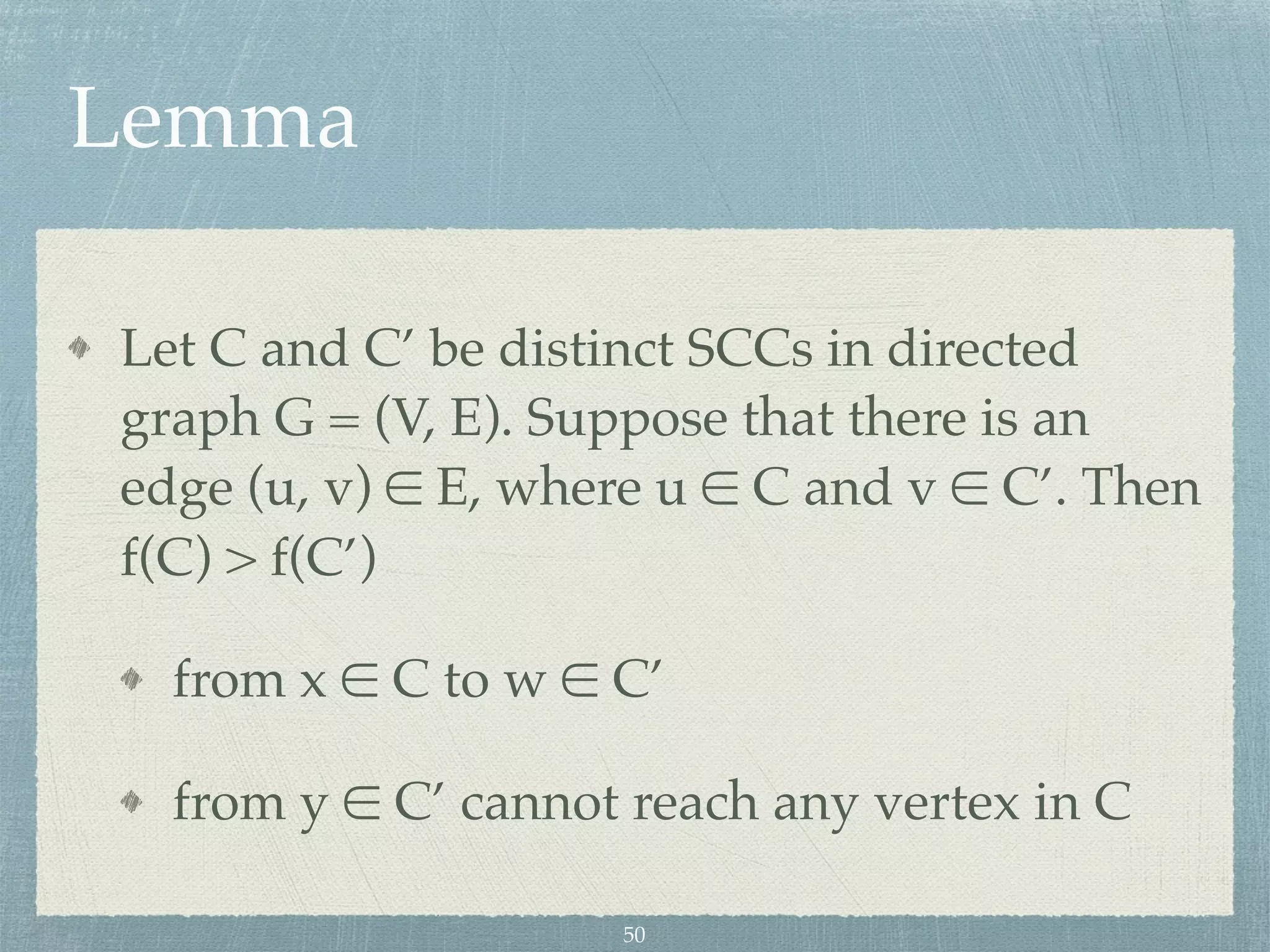

- 50. Lemma Let C and C’ be distinct SCCs in directed graph G = (V, E). Suppose that there is an edge (u, v) ∈ E, where u ∈ C and v ∈ C’. Then f(C) > f(C’) from x ∈ C to w ∈ C’ from y ∈ C’ cannot reach any vertex in C 50
- 51. Corollary Let C and C’ be distinct SCCs in directed graph G = (V, E). Suppose that there is an edge (u, v) ∈ ET, where u ∈ C and v ∈ C’. Then f(C) < f(C’). (v, u) ∈ E then f(C’) < f(C) 51

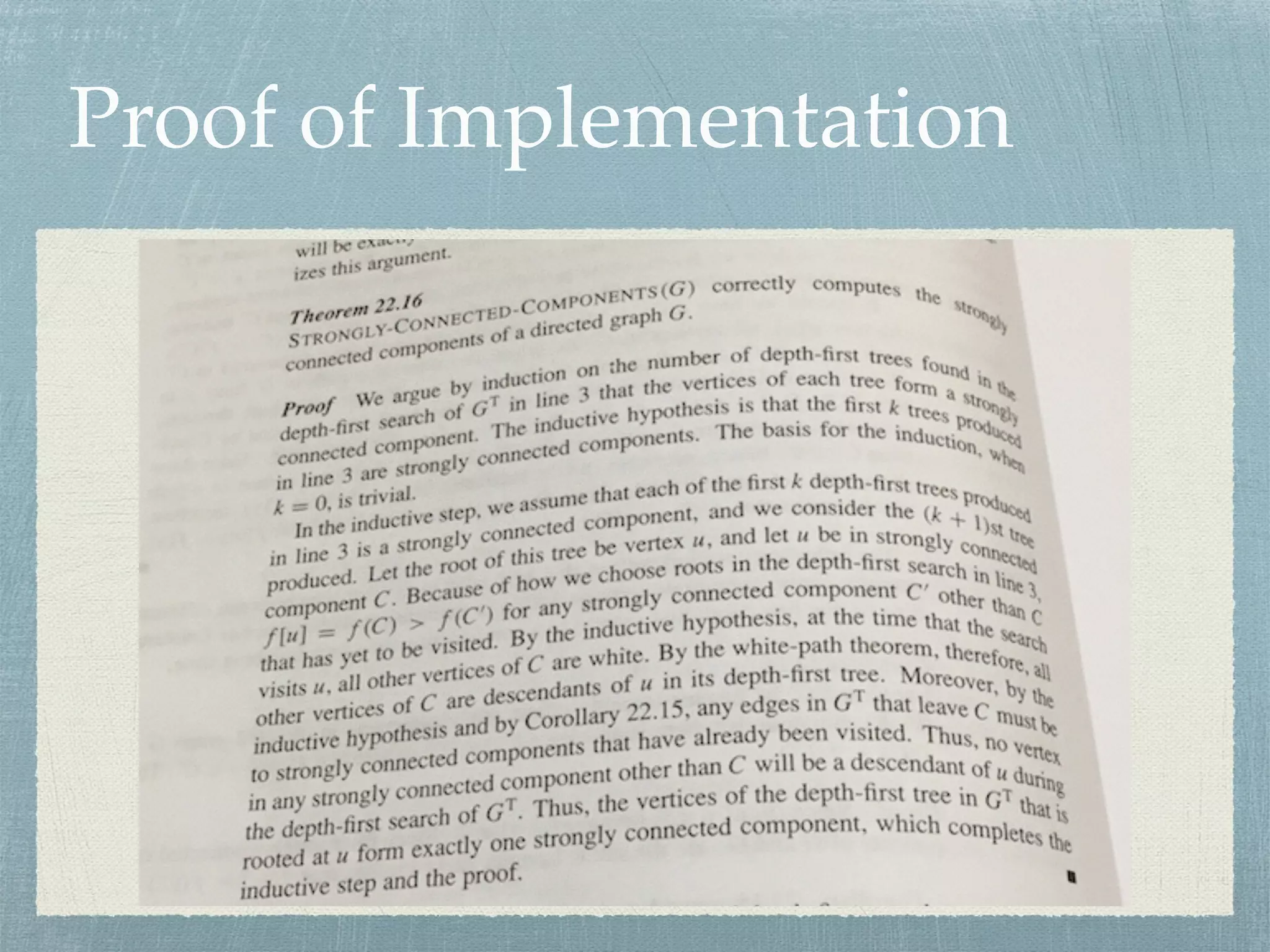

- 53. Shortest Path Problem Find the path with the smallest total weight along which to route any given message 53

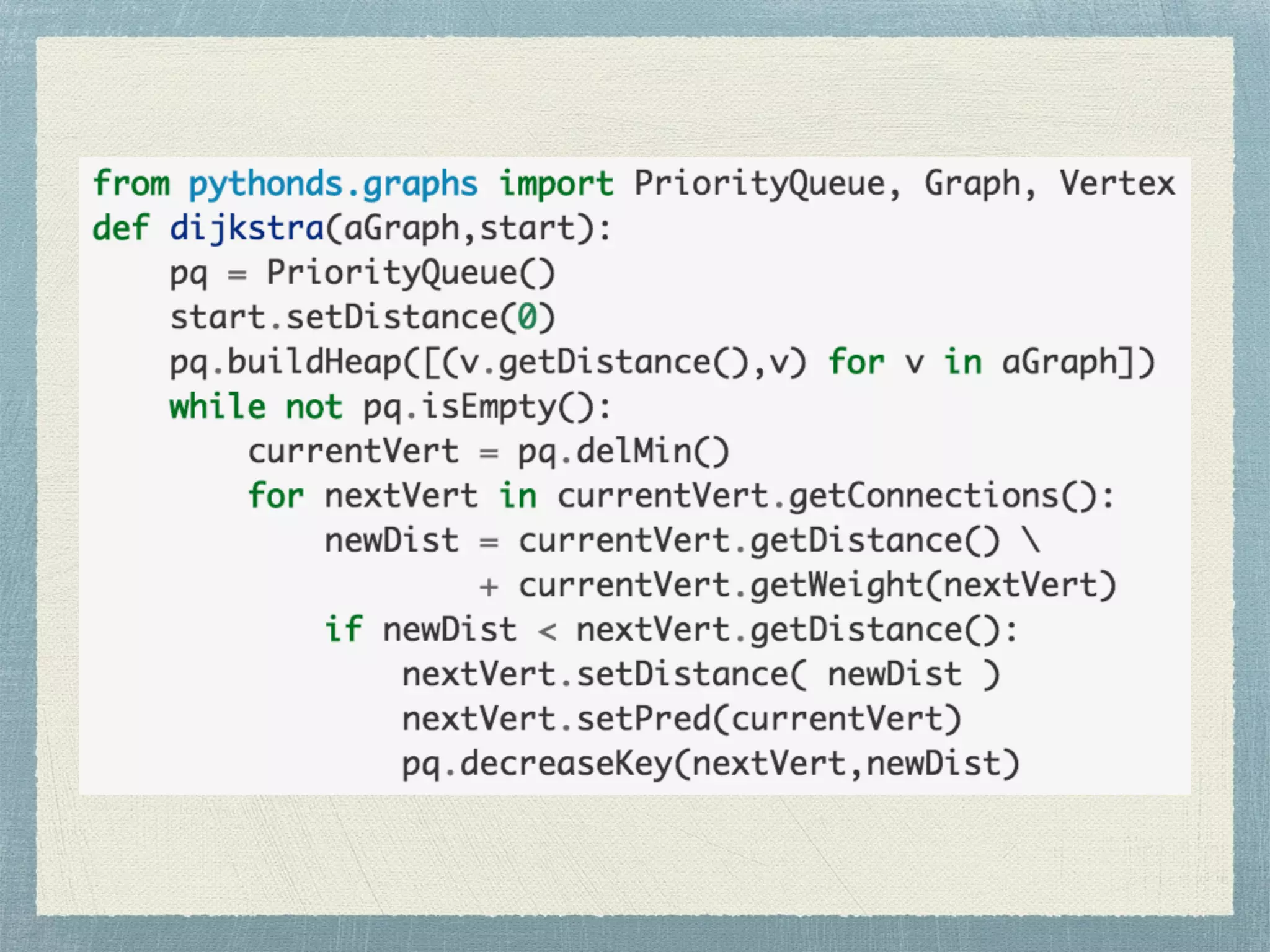

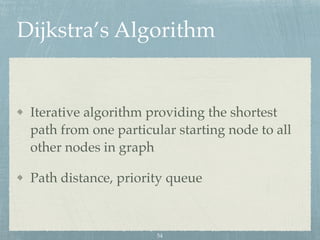

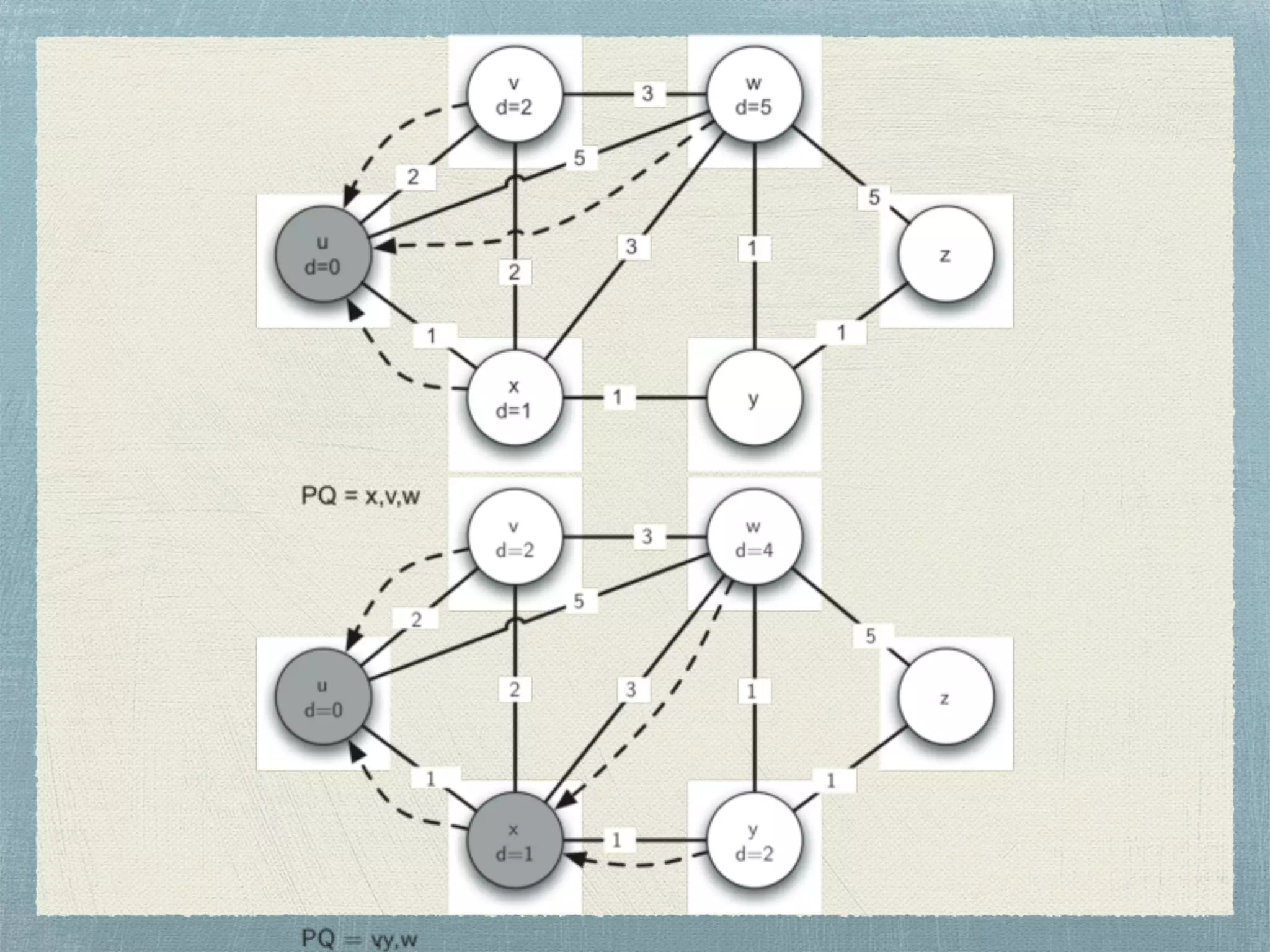

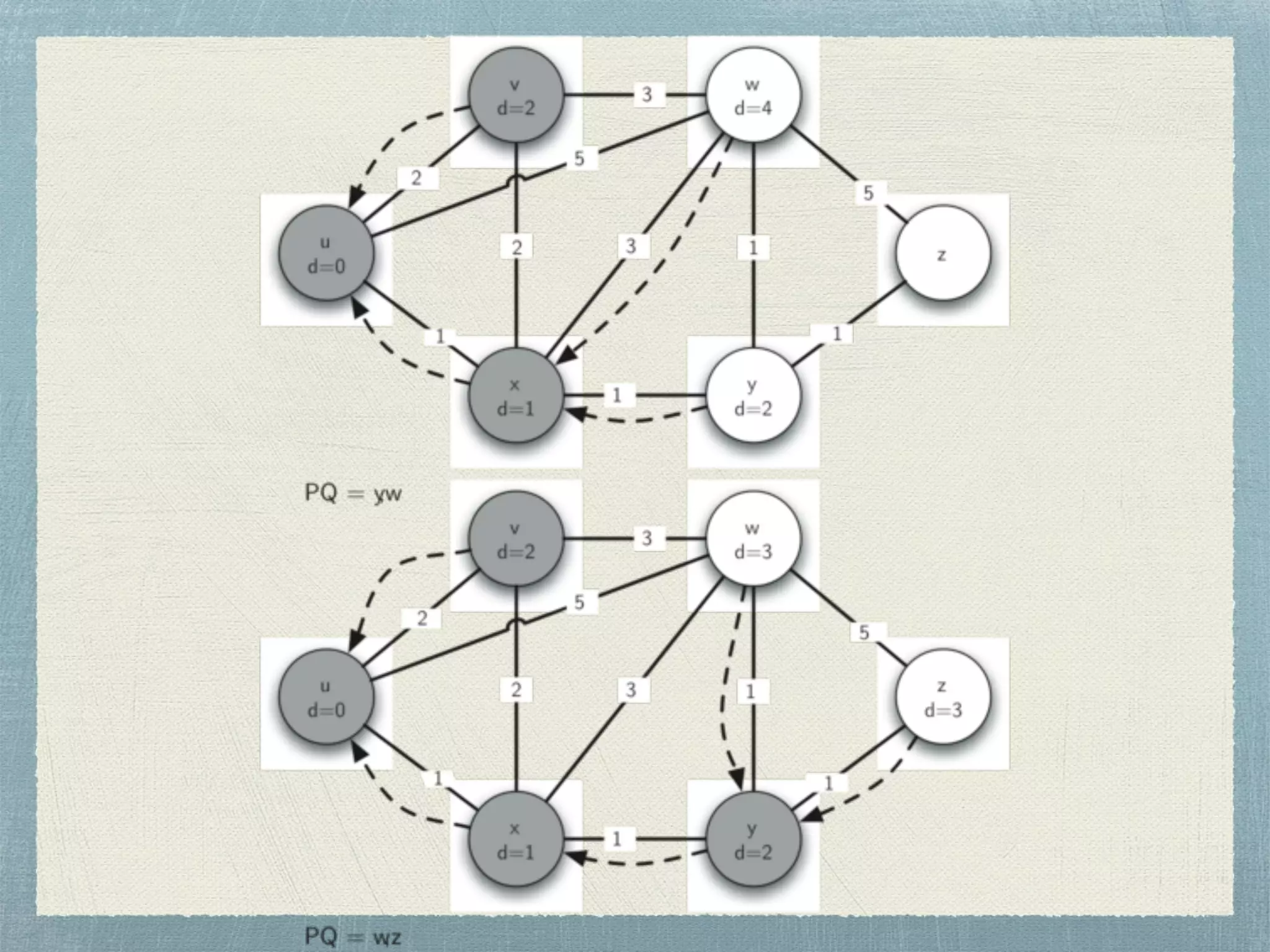

- 54. Dijkstra’s Algorithm Iterative algorithm providing the shortest path from one particular starting node to all other nodes in graph Path distance, priority queue 54

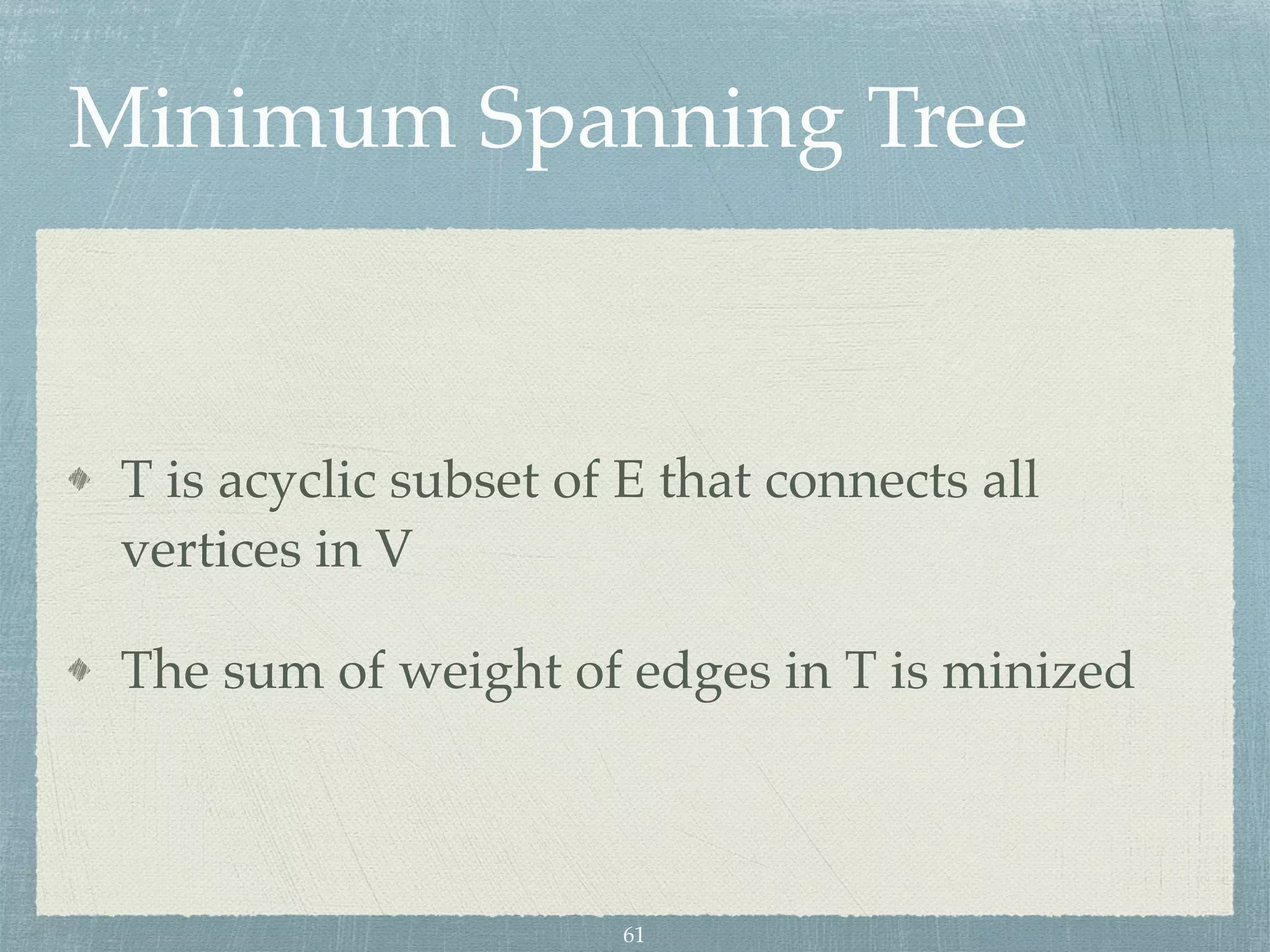

- 61. Minimum Spanning Tree T is acyclic subset of E that connects all vertices in V The sum of weight of edges in T is minized 61

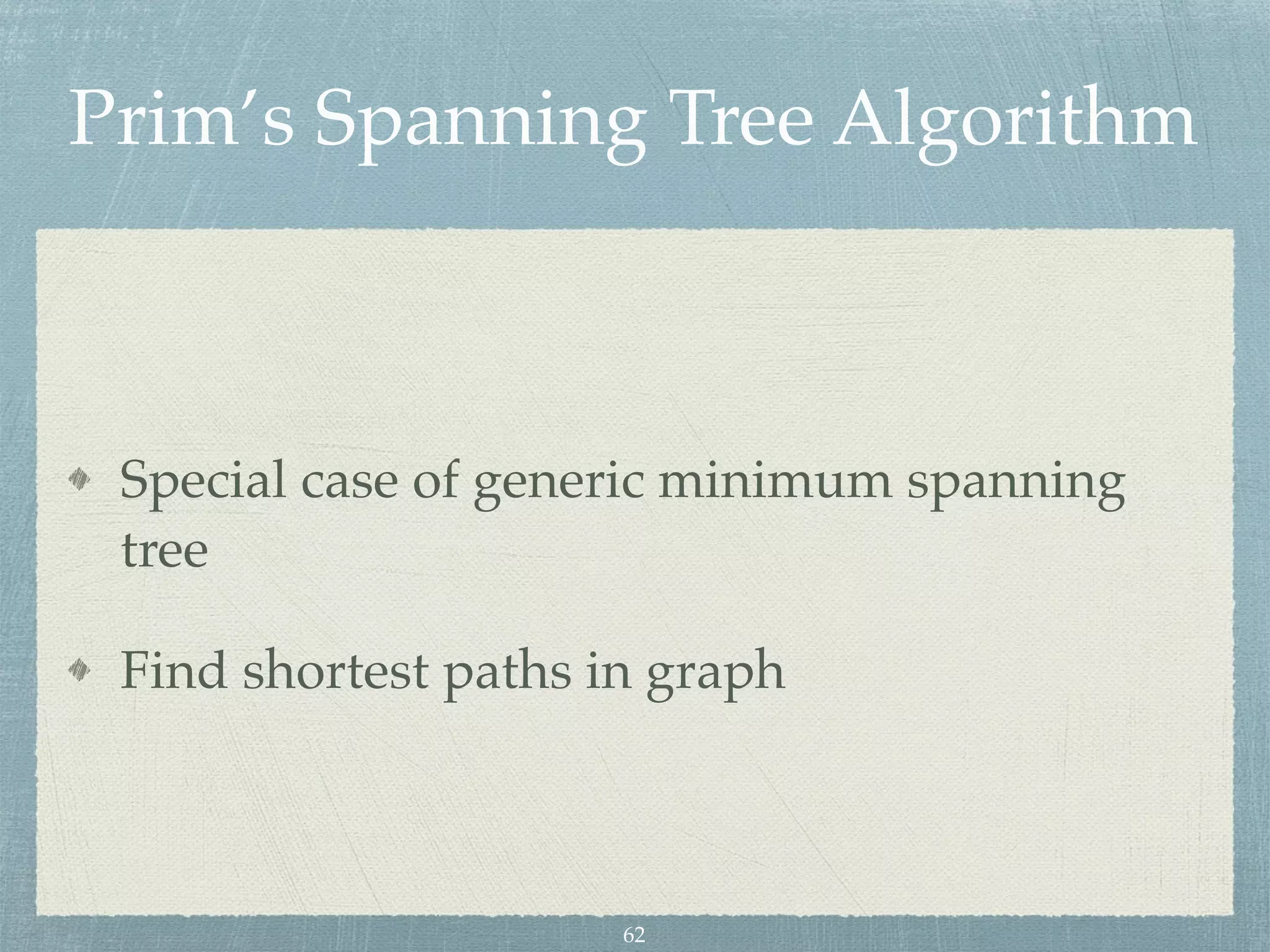

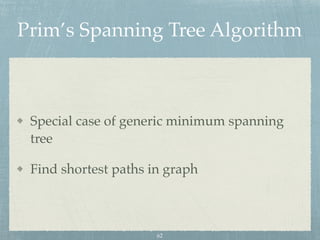

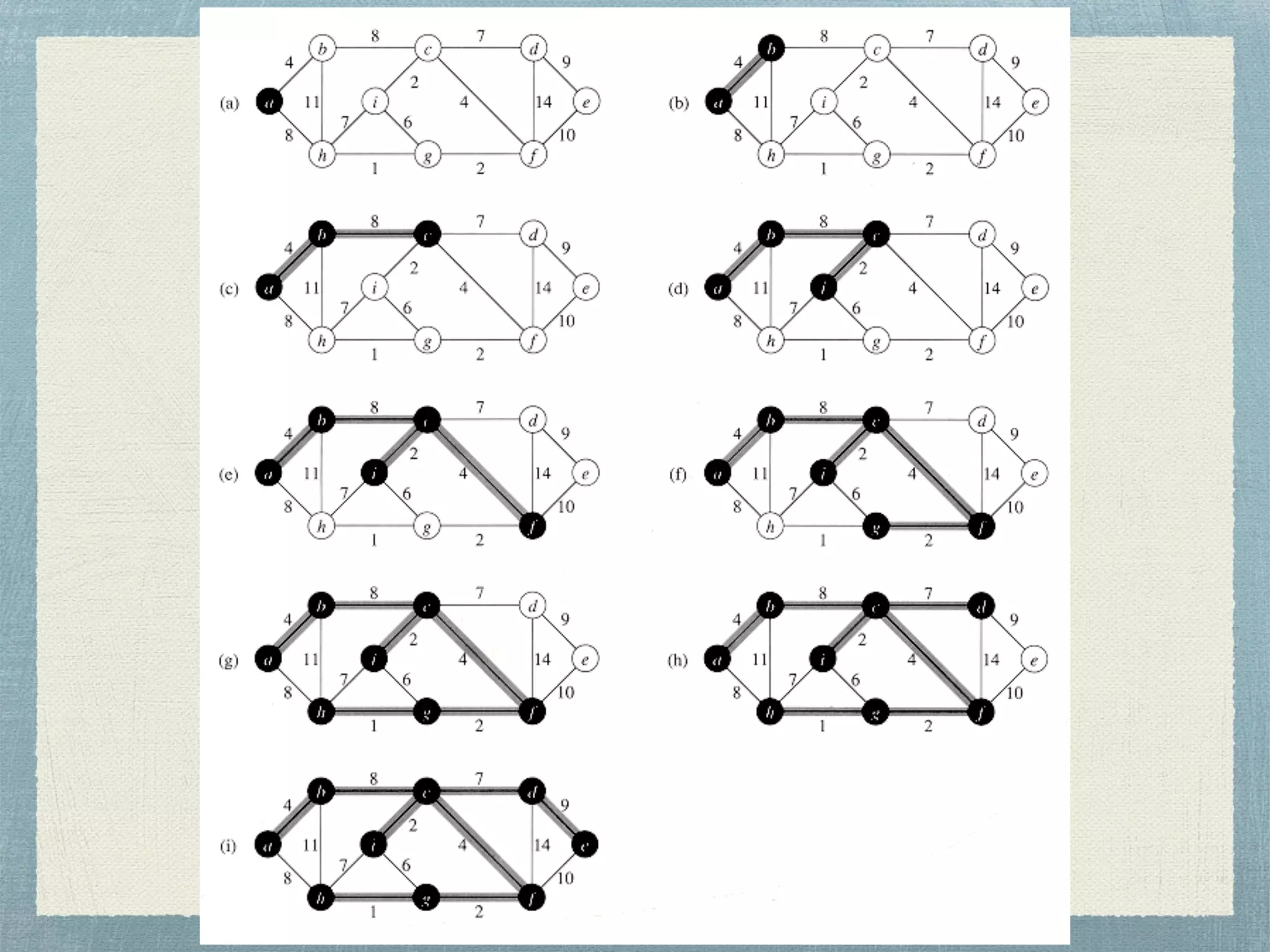

- 62. Prim’s Spanning Tree Algorithm Special case of generic minimum spanning tree Find shortest paths in graph 62

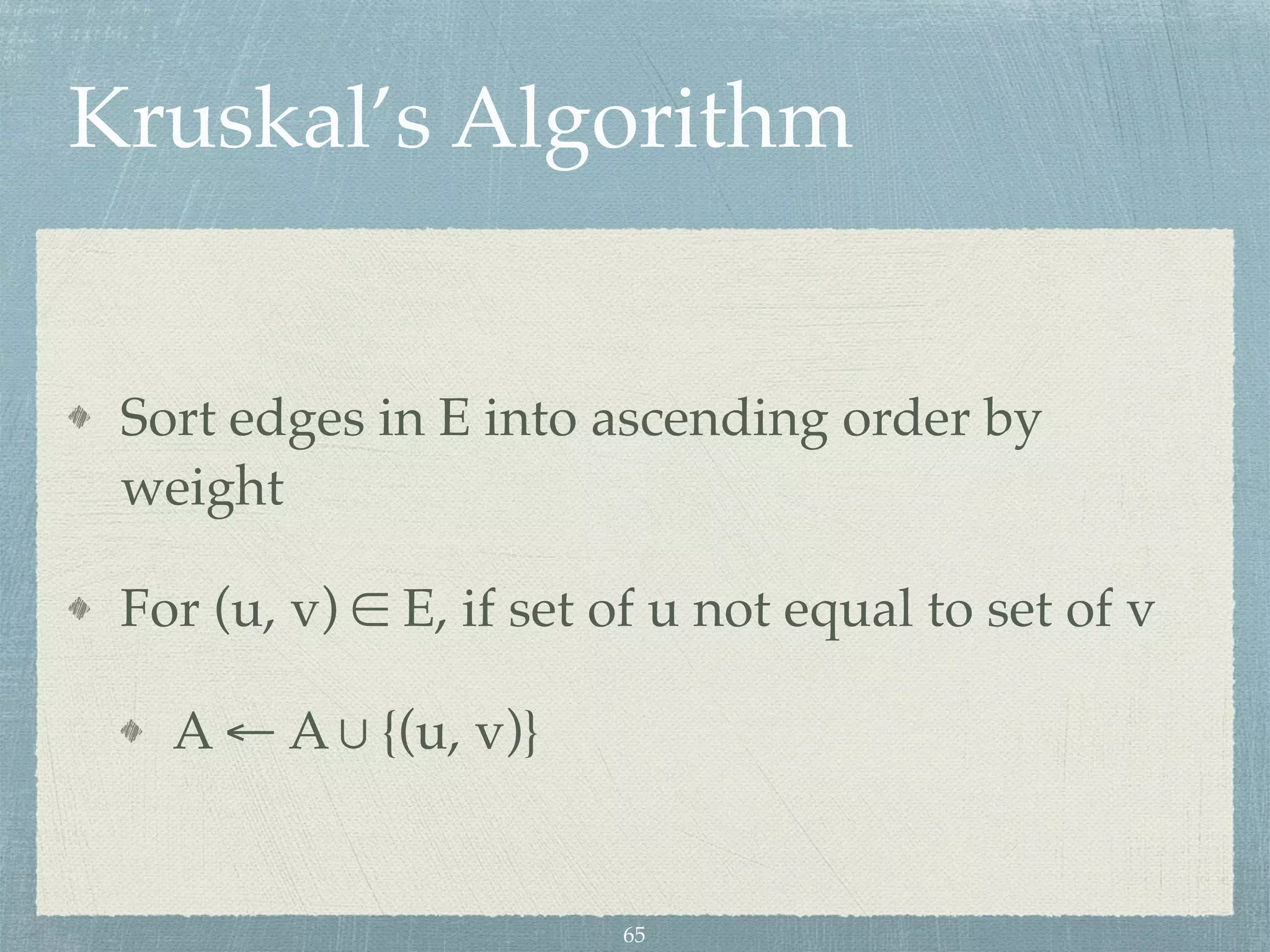

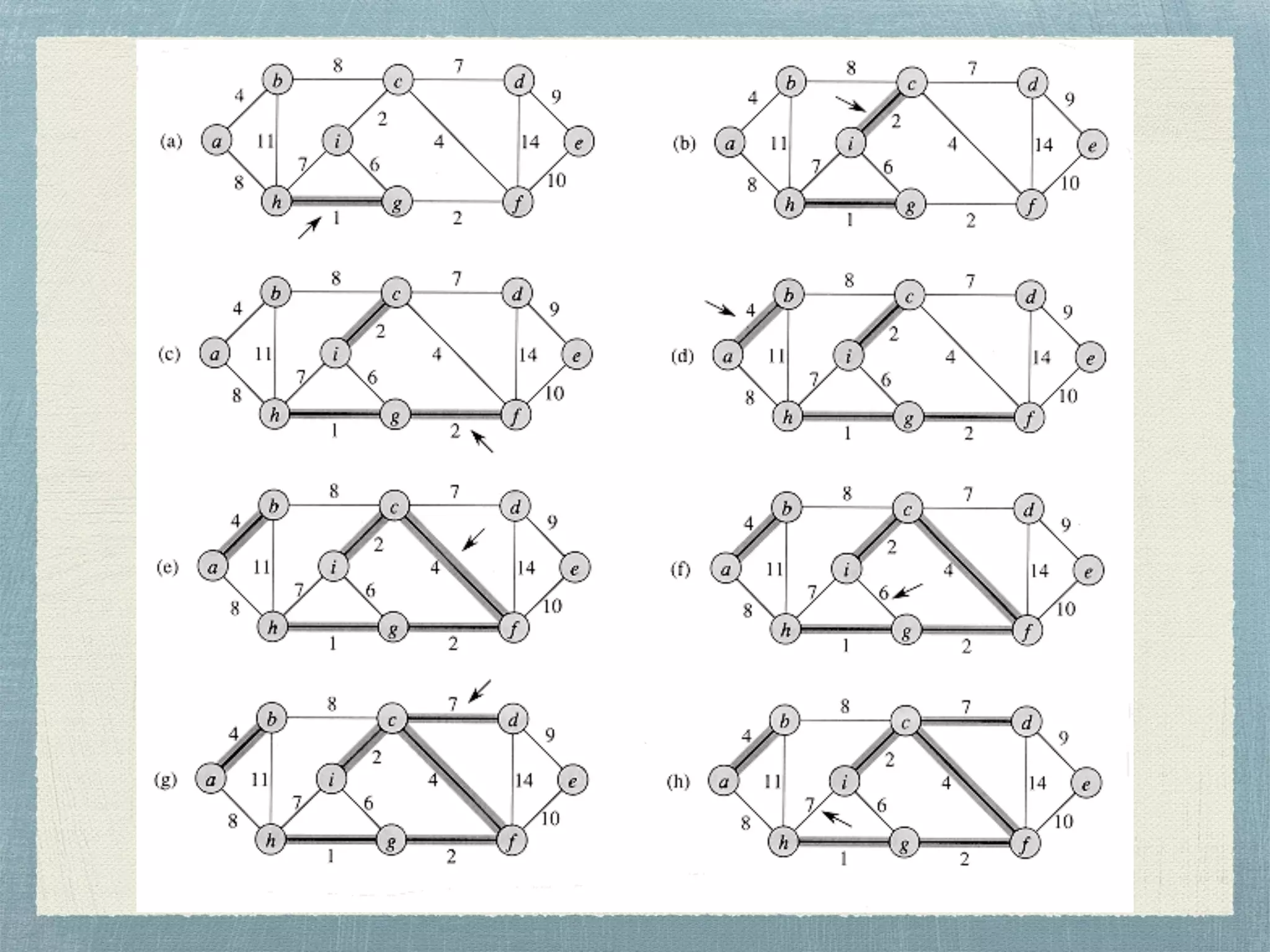

- 65. Kruskal’s Algorithm Sort edges in E into ascending order by weight For (u, v) ∈ E, if set of u not equal to set of v A ← A ∪ {(u, v)} 65
