What is WAP?
- 1. Presentation on WAP …Keerti Sharma August 2002

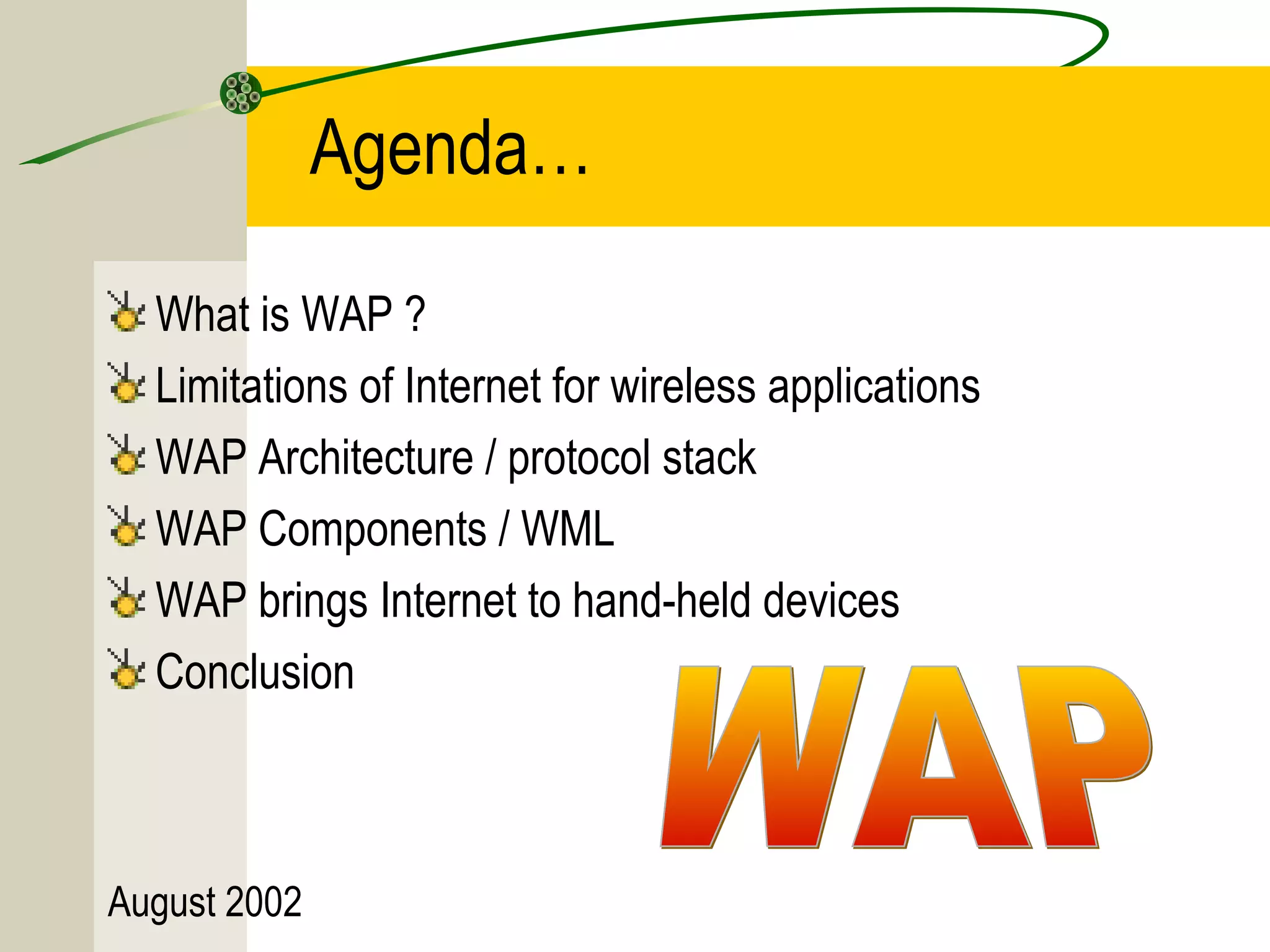

- 2. August 2002 Agenda… What is WAP ? Limitations of Internet for wireless applications WAP Architecture / protocol stack WAP Components / WML WAP brings Internet to hand-held devices Conclusion

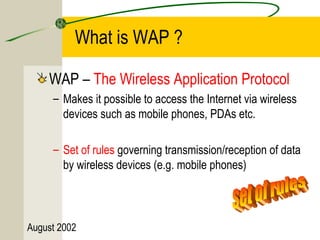

- 3. What is WAP? WAP – The Wireless Application Protocol – Makes it possible to access the Internet via wireless devices such as mobile phones, PDAs etc. – Set of rules governing transmission/reception of data by wireless devices (e.g. mobile phones) August 2002

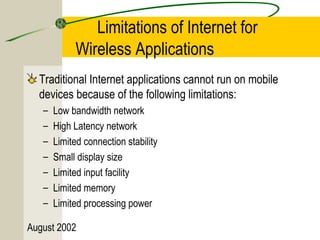

- 4. Limitations of Internetfor Wireless Applications Traditional Internet applications cannot run on mobile devices because of the following limitations: – Low bandwidth network – High Latency network – Limited connection stability – Small display size – Limited input facility – Limited memory – Limited processing power August 2002

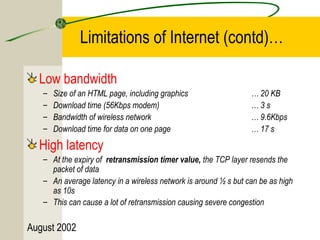

- 5. August 2002 Limitationsof Internet (contd)… Low bandwidth – Size of an HTML page, including graphics … 20 KB – Download time (56Kbps modem) … 3 s – Bandwidth of wireless network … 9.6Kbps – Download time for data on one page … 17 s High latency – At the expiry of retransmission timer value, the TCP layer resends the packet of data – An average latency in a wireless network is around ½ s but can be as high as 10s – This can cause a lot of retransmission causing severe congestion

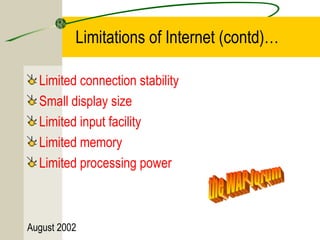

- 6. Limitations of Internet(contd)… Limited connection stability Small display size Limited input facility Limited memory Limited processing power August 2002

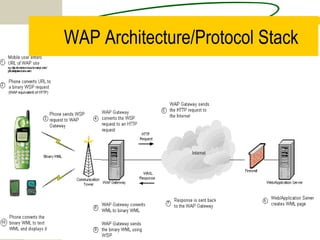

- 7. WAP Architecture/Protocol Stack August 2002

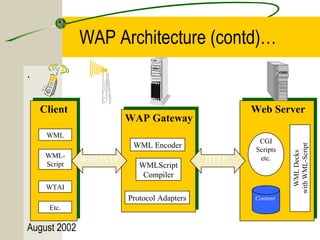

- 8. August 2002 WAPArchitecture (contd)… . Web Server CGI Scripts etc. Content WML Decks with WML-Script WAP Gateway WML Encoder WMLScript Compiler Protocol Adapters Client WML WML-Script WTAI Etc. WSP/WTP HTTP

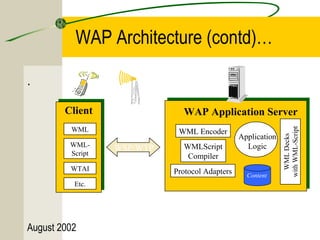

- 9. WAP Architecture (contd)… . August 2002 WAP Application Server Application Logic Content WML Decks with WML-Script WML Encoder WMLScript Compiler Protocol Adapters Client WML WML-Script WTAI Etc. WSP/WTP

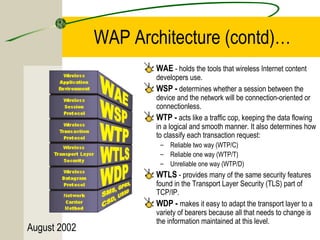

- 10. August 2002 WAPArchitecture (contd)… WAE - holds the tools that wireless Internet content developers use. WSP - determines whether a session between the device and the network will be connection-oriented or connectionless. WTP - acts like a traffic cop, keeping the data flowing in a logical and smooth manner. It also determines how to classify each transaction request: – Reliable two way (WTP/C) – Reliable one way (WTP/T) – Unreliable one way (WTP/D) WTLS - provides many of the same security features found in the Transport Layer Security (TLS) part of TCP/IP. WDP - makes it easy to adapt the transport layer to a variety of bearers because all that needs to change is the information maintained at this level.

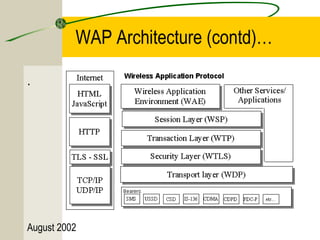

- 11. WAP Architecture (contd)… . August 2002

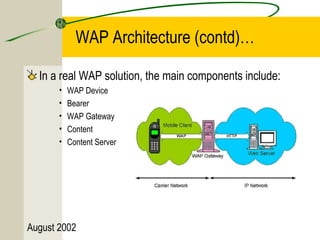

- 12. WAP Architecture (contd)… In a real WAP solution, the main components include: • WAP Device • Bearer • WAP Gateway • Content • Content Server August 2002

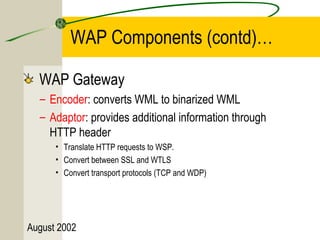

- 13. WAP Components (contd)… WAP Gateway – Encoder: converts WML to binarized WML – Adaptor: provides additional information through HTTP header • Translate HTTP requests to WSP. • Convert between SSL and WTLS • Convert transport protocols (TCP and WDP) August 2002

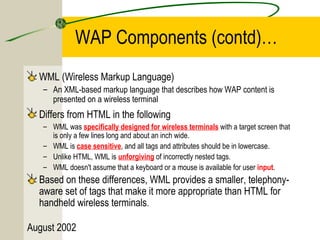

- 14. WAP Components (contd)… WML (Wireless Markup Language) – An XML-based markup language that describes how WAP content is presented on a wireless terminal Differs from HTML in the following – WML was specifically designed for wireless terminals with a target screen that is only a few lines long and about an inch wide. – WML is case sensitive, and all tags and attributes should be in lowercase. – Unlike HTML, WML is unforgiving of incorrectly nested tags. – WML doesn't assume that a keyboard or a mouse is available for user input. Based on these differences, WML provides a smaller, telephony-aware set of tags that make it more appropriate than HTML for handheld wireless terminals. August 2002

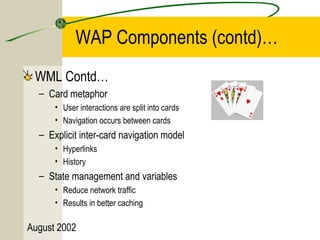

- 15. WAP Components (contd)… WML Contd… – Card metaphor • User interactions are split into cards • Navigation occurs between cards – Explicit inter-card navigation model • Hyperlinks • History – State management and variables • Reduce network traffic • Results in better caching August 2002

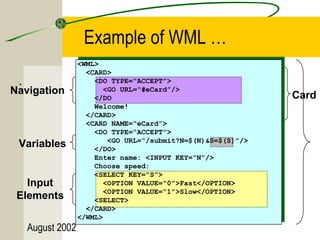

- 16. Navigation Variables August2002 Example of WML … . Card Input Elements <WML> <CARD> <DO TYPE=“ACCEPT”> <GO URL=“#eCard”/> </DO Welcome! </CARD> <CARD NAME=“eCard”> <DO TYPE=“ACCEPT”> <GO URL=“/submit?N=$(N)&S=$(S)”/> </DO> Enter name: <INPUT KEY=“N”/> Choose speed: <SELECT KEY=“S”> <OPTION VALUE=“0”>Fast</OPTION> <OPTION VALUE=“1”>Slow</OPTION> <SELECT> </CARD> </WML>

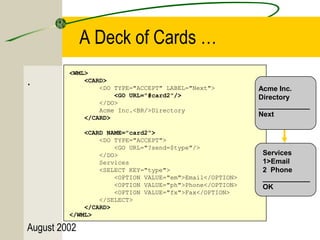

- 17. August 2002 ADeck of Cards … . <WML> <CARD> <DO TYPE="ACCEPT" LABEL="Next"> <GO URL="#card2"/> </DO> Acme Inc.<BR/>Directory </CARD> <CARD NAME="card2"> <DO TYPE="ACCEPT"> <GO URL="?send=$type"/> </DO> Services <SELECT KEY="type"> <OPTION VALUE="em">Email</OPTION> <OPTION VALUE="ph">Phone</OPTION> <OPTION VALUE="fx">Fax</OPTION> </SELECT> </CARD> </WML> Acme Inc. Directory _____________ Next Services 1>Email 2 Phone ____________ OK

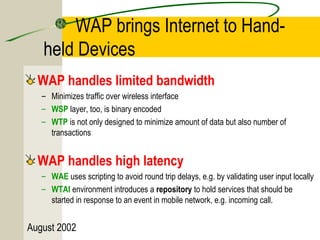

- 18. WAP brings Internetto Hand-held Devices WAP handles limited bandwidth – Minimizes traffic over wireless interface – WSP layer, too, is binary encoded – WTP is not only designed to minimize amount of data but also number of transactions WAP handles high latency – WAE uses scripting to avoid round trip delays, e.g. by validating user input locally – WTAI environment introduces a repository to hold services that should be started in response to an event in mobile network, e.g. incoming call. August 2002

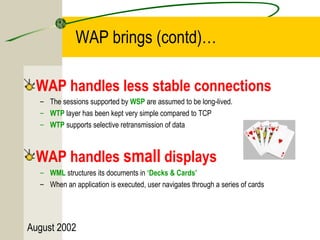

- 19. WAP brings (contd)… WAP handles less stable connections – The sessions supported by WSP are assumed to be long-lived. – WTP layer has been kept very simple compared to TCP – WTP supports selective retransmission of data WAP handles small displays – WML structures its documents in ‘Decks & Cards’ – When an application is executed, user navigates through a series of cards August 2002

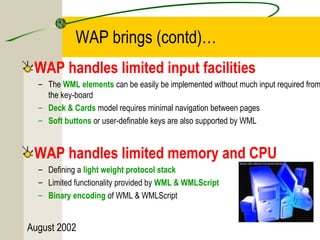

- 20. WAP brings (contd)… WAP handles limited input facilities – The WML elements can be easily be implemented without much input required from the key-board – Deck & Cards model requires minimal navigation between pages – Soft buttons or user-definable keys are also supported by WML WAP handles limited memory and CPU – Defining a light weight protocol stack – Limited functionality provided by WML & WMLScript – Binary encoding of WML & WMLScript August 2002
- 21. Conclusion WAP providesa “microbrowser” optimized for wireless devices – Requires minimal RAM, ROM, Display, CPU and keys WAP Offers Bearer Independence – Allows Applications developed once to work across all networks – Protects the Carrier’s investment in wireless data as networks evolve – Enables Mobile Device Manufacturers to use common code across products WAP Offers Device Independence – Allows applications developed once to work across devices from small handsets to powerful PDAs – Promotes consistent user experience across all of a carrier’s handset offerings – Encourages a wealth of applications for handset manufacturers August 2002

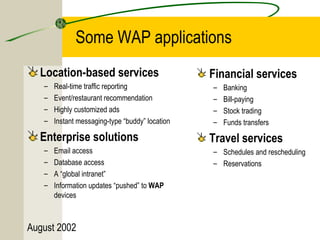

- 22. Some WAP applications Location-based services – Real-time traffic reporting – Event/restaurant recommendation – Highly customized ads – Instant messaging-type “buddy” location Enterprise solutions – Email access – Database access – A “global intranet” – Information updates “pushed” to WAP devices August 2002 Financial services – Banking – Bill-paying – Stock trading – Funds transfers Travel services – Schedules and rescheduling – Reservations
- 23. Some known WAPServices 123Jump (http://www.123jump.com) A selection of stock data & news, all via WAP Ajaxo (http://www.ajaxo.com) A WAP service for wireless stock trading from any WAP enabled device 2PL WorldWide Hotel Guide (http://wap.2pl.com) A hotel guide, accessible in multiple languages via WAP enabled device Traffic Maps (http://www.webraska.com) A French service that monitors and shows latest traffic news via maps August 2002
- 24.

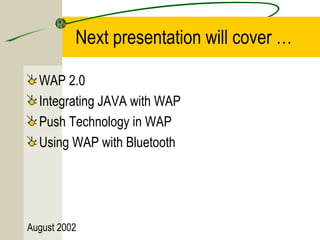

- 25. Next presentation willcover … WAP 2.0 Integrating JAVA with WAP Push Technology in WAP Using WAP with Bluetooth August 2002

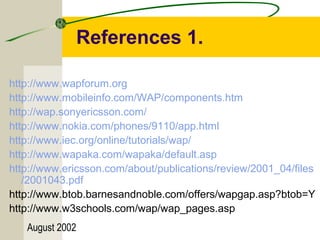

- 26. References 1. http://www.wapforum.org http://www.mobileinfo.com/WAP/components.htm http://wap.sonyericsson.com/ http://www.nokia.com/phones/9110/app.html http://www.iec.org/online/tutorials/wap/ http://www.wapaka.com/wapaka/default.asp http://www.ericsson.com/about/publications/review/2001_04/files /2001043.pdf http://www.btob.barnesandnoble.com/offers/wapgap.asp?btob=Y http://www.w3schools.com/wap/wap_pages.asp August 2002

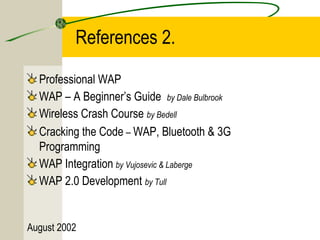

- 27. References 2. ProfessionalWAP WAP – A Beginner’s Guide by Dale Bulbrook Wireless Crash Course by Bedell Cracking the Code – WAP, Bluetooth & 3G Programming WAP Integration by Vujosevic & Laberge WAP 2.0 Development by Tull August 2002
Editor's Notes
- #3 How is WAP different from Internet? WAP is a standardized technology for cross-platform, distributed computing, very similar to Internet’s combination of HTTP and HTML except that it includes one vital feature… Optimization for low-display capability, low-memory and low bandwidth devices such as PDA, mobile phones etc.
