Foundation Fieldbus (FF) is one of the leading fieldbuses in Process Automation. Its sophisticated architecture is tailor-made for today's automation systems. Its unique set of features allows for the implementation of true distributed control. The Foundation Fieldbus includes an H1 protocol based on IEC 61158-2 physical layer specification as well as an HSE standard for communication over Ethernet/IP. These features and the possibility for distributed control make the Foundation Fieldbus unique for process control application. The main aim of this workshop is to give you a clear understanding of Foundation Fieldbus and to enable you to specify and design systems using this technology. There has been a surge of interest in Foundation Fieldbus due to the tremendous benefits it provides. This workshop aims to break down the terminology and jargon barriers and to explain Foundation Fieldbus in a simple and understandable way; thus enabling you to apply the technology effectively. MORE INFORMATION: http://www.idc-online.com/content/practical-use-and-understanding-foundation-fieldbus-engineers-and-technicians-24

1. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Practical Use & Understanding of Foundation
FieldBus for Engineers & Technicians

2. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare

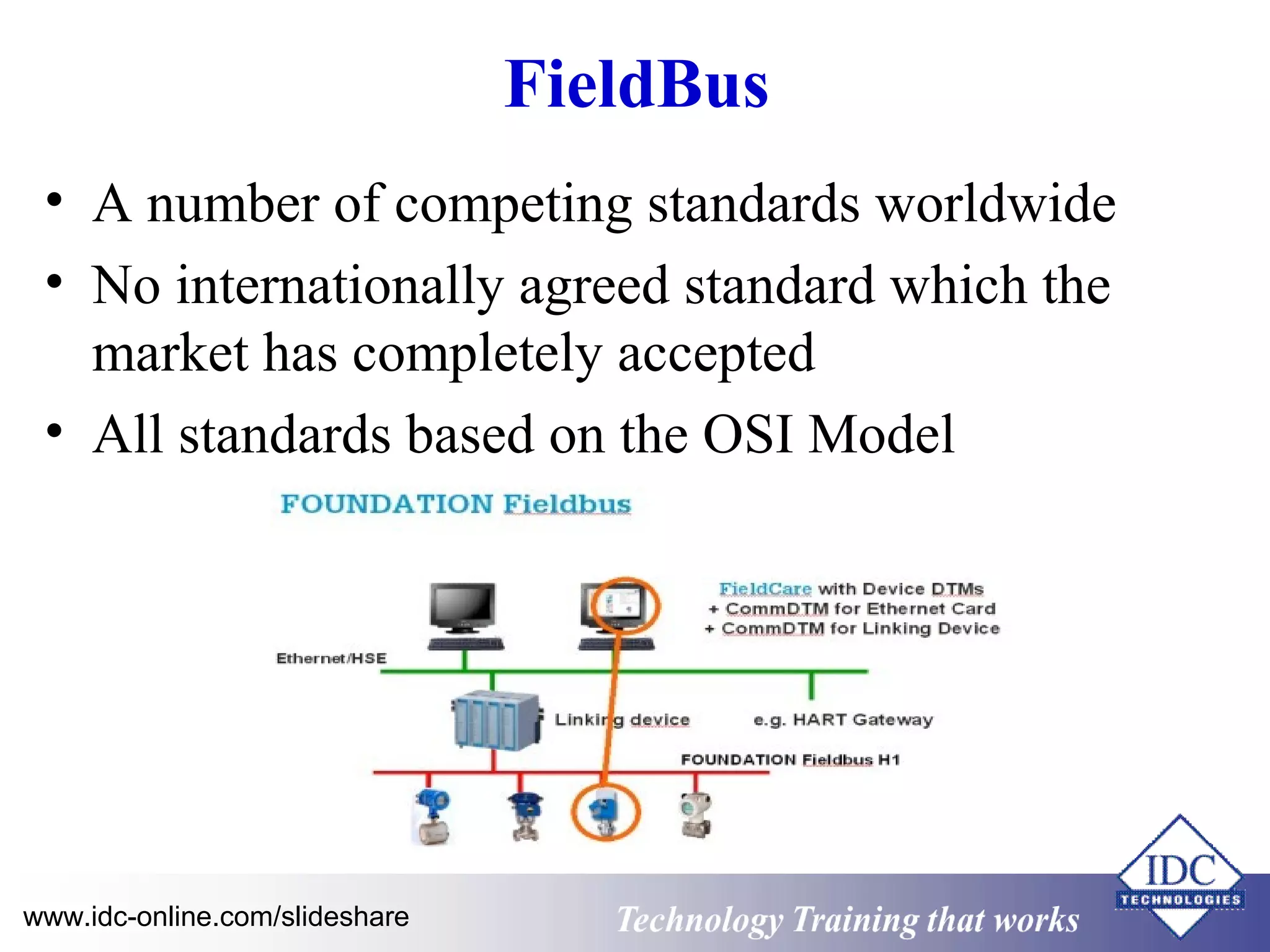

FieldBus
• A number of competing standards worldwide
• No internationally agreed standard which the
market has completely accepted
• All standards based on the OSI Model

3. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Existing Plant Scenario
Control Room Bus
Plant Bus
Plant
Interface
& Local
Controllers
Terminal
Boxes
Plant
Instrument Room
Central Control Room
From Other
Instrument
Rooms
P T

4. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Existing 4-20mA to Fieldbus
Field
Devices
Optional

5. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare

6. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
New FieldBus Approach

7. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Soft PLC System

8. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
What is FieldBus?
• A smart instrument based system
• Digital data communications
• An internationally and market accepted standard to effectively
replace the ‘old’ 4-20mA standard

9. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Real Benefits
• Greatly reduced wiring costs
• Reduced installation and start-up time
• Improved on-line monitoring and diagnostics
• Easier change-out and expansion of devices
• Improved local intelligence in the devices
• Improved interoperability between manufacturers

10. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Competing Requirements
• A single bus system seems to be technically
possible...
but what happens if the bus fails?
• Simple field devices require simple ON/OFF
status and are real time (m.secs response)
• PLC’s to SCADA systems require large messages
and update times of 10-100 m.secs

11. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Sensorbus
• Seriplex
• ASI
• INTERBUSLoop
Devicebus
• Device Net
• SDS
• Profibus DP
• LONWorks
• INTERBUS-S
Fieldbus
• IEC/ISA SP50
• Fieldbus Foundation
• Profibus PA
• HART
Type of
Devices
Type of
Control
Another way of looking at the industrial
networks
Process
Control
Logic
Control
Low-end
bit
Midrange
byte
High-end
block
Simple Devices Complex Devices©Smar

12. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Bit Oriented Systems
• Binary type switches such as Proximity
sensors/contact closures/float switches
• Example:
Actuator Sensor Interface (ASI)

13. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Message Oriented Systems
• Message oriented systems - PC’s to PLC’s in
uploading system or device configuration
information
• Messages greater than 16 bytes in length
• Examples:
• Interbus-S; Profibus; Foundation Fieldbus

14. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
FIELDBUS FOUNDATION
AN ASSOCIATION OF OVER 140
MEMBER COMPANIES THAT ACCOUNTS
FOR OVER 90% OF THE WORLD
SUPPLY OF INSTRUMENTATION
AND CONTROL PRODUCTS

15. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
PARTIAL LIST OF MEMBER COMPANIES
ABB Ltd.
Allen-Bradley Co., Inc.
Apparatebau Hundsbach
Automation Research Institue of
Ministry of Metallurgical Industry
Bailey Controls
Bailey Japan
Beamex
Beldon Wire and Cable
Bently Nevada Corporation
Borst Automation
BP Oil - Alliance Refinery
Bray International, Inc.
Brooks Instrument
Caltex Services
Chevron Research and Technology Co.
Chiyoda Corporation
Danfoss A/S
digi table thielen
DKK Corporation
DuPont Engineering Co.
EMCO
Endress + Hauser GmbH + Co.
Exxon Research & Engineering Co.
Fieldbus International (FINT)
Fisher Controls International, Inc.
Fisher-Rosemount Systems Inc.
Fraunhofer Institute IITB
Fuji Electric Co., Ltd.
GATX Terminals
Glaxo Incorporated
Groupe Schneider
GSC Precision Controls Division of DA-Tech
Hartmann & Braun AG
Hitachi
Honeywell Inc.
Instituto de Investigaciones Electricas
Johnson Yokogawa Corp.
K.K. Codix
K-Patents
Keystone Controls
Kimray
Knick Elektronische Meßgeräte GmbH & Co.
Koso Service Co., Ltd.
KROHNE Messtechnik GmbH & Co. KG
Kurihara Kogyo Co., Ltd.
M-System Co., Ltd.
Magnetrol International, Inc.
Masoneilan-Dresser Industries
Measurement Technology, Ltd. (MTL)

16. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
Rosemount Inc.
Saab Tank Control
Servomex
Shell Oil Company
SHIMADZU CORPORATION
SHIP STAR Associates, Inc.
Siebe ECD
Siemens Industrial Automation, Inc.
Simrad Albatross
SMAR
Softing
SRC NIITEPLOPRIBOR
StoneL Corporation
The Foxboro Company
Tokyo Keiso Co., Ltd.
Toshiba Corporation
Valmet Automation Inc.
VALTEK International
VEGA Grieshaber
Vinson Supply
WorldFIP Europe
Yamaha Corporation
Yamatake-Honeywell Co., Ltd.
Yokogawa Electric Corporation
Mettler-Toledo
Micro Motion, Inc.
Milltronics, Ltd.
Mitsubishi Electric Corporation
Monsanto Company
Motoyama Eng. Works, Ltd.
Nagano Keiki Seisakusho Ltd.
National Instruments Corp.
NEC Corporation
Neles-Jamesbury
NEMA
Niigata Masoneilan Co., Ltd.
Ohkura Electric Co., Ltd.
Oval Engineering Co., Ltd.
Pacific Avionics Corporation
Pepperl + Fuchs
PMV, Palmstiernas Instruments AB
Politecnico di Torino-Dai
Presys Instrumentos E Sistemas Ltda.
R. Stahl Schältgeraete GmbH & Co.
Ramsey Technology, Inc.
Relcom Inc.
Ronan Engineering Company
Rosemount Analytical Inc.
PARTIAL LIST OF MEMBER COMPANIES - CONTINUED

17. Technology Training that worksTechnology Training that Workswww.idc-online.com/slideshare
