1. March 25, 2006 Reconfigurable Computing Dr. Partha Pratim Das Head of Engineering, Interra Systems (India) Pvt. Ltd. Emerging Architectures for Embedded Systems
2.
3.
4.

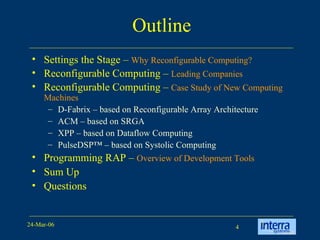

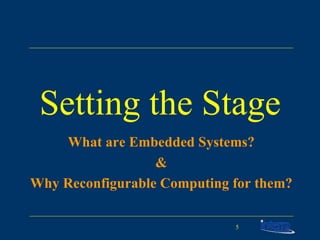

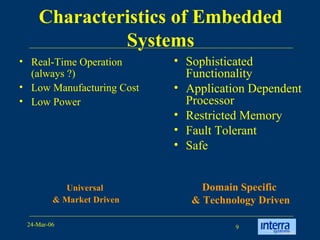

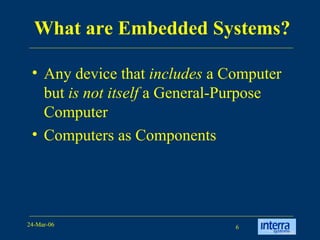

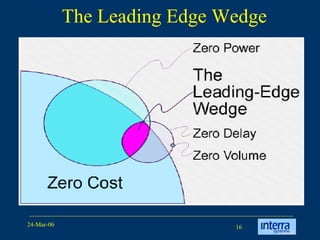

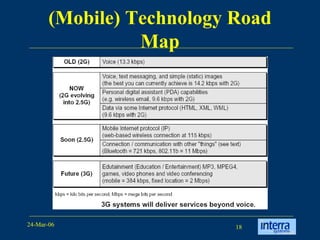

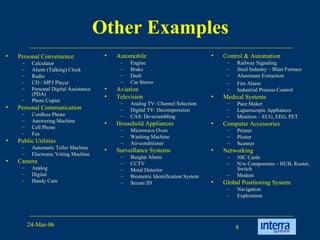

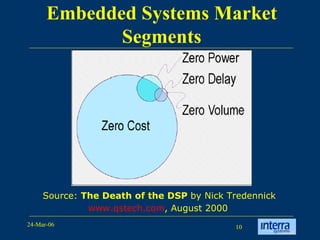

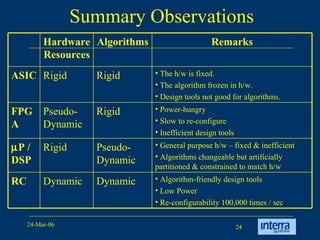

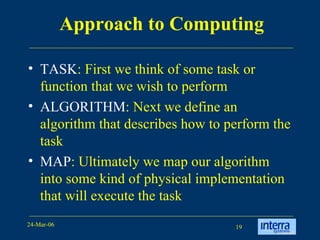

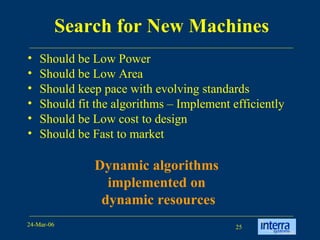

5. Setting the Stage What are Embedded Systems? & Why Reconfigurable Computing for them?

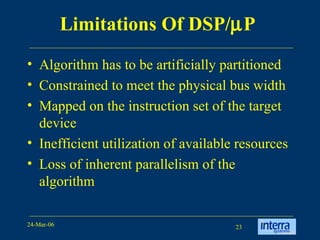

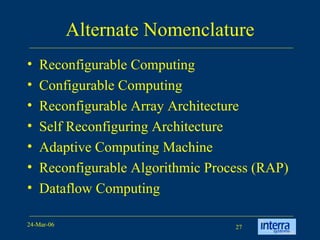

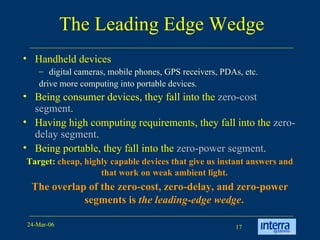

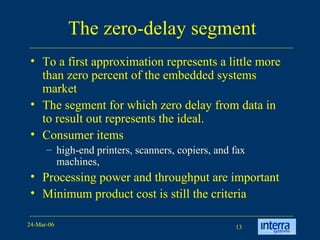

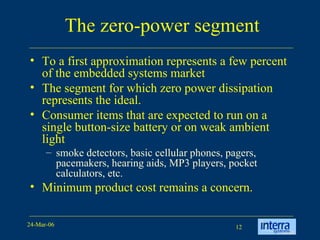

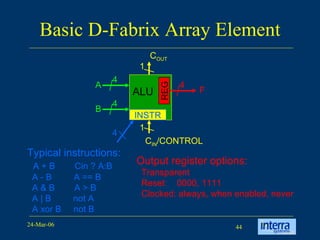

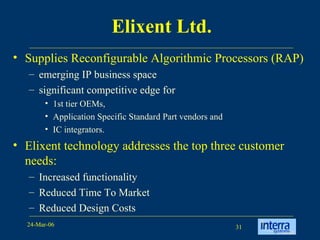

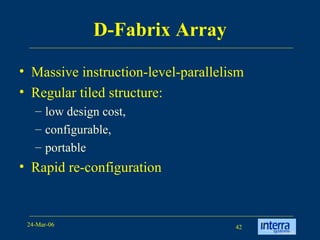

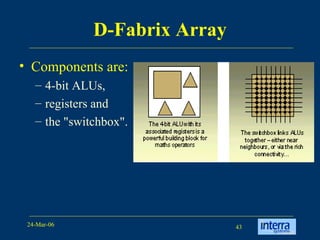

44. Basic D-Fabrix Array Element ALU 4 4 1 Typical instructions: A + B Cin ? A:B A - B A == B A & B A > B A | B not A A xor B not B INSTR 4 A B C IN /CONTROL C OUT 1 4 F Output register options: Transparent Reset: 0000, 1111 Clocked: always, when enabled, never REG

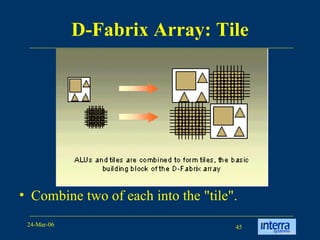

45.
46.

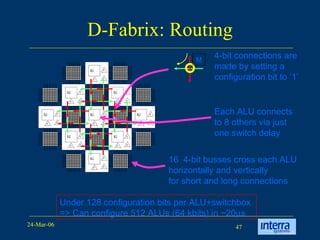

47. D-Fabrix: Routing 16 4-bit busses cross each ALU horizontally and vertically for short and long connections M 4-bit connections are made by setting a configuration bit to ‘1’ Each ALU connects to 8 others via just one switch delay Under 128 configuration bits per ALU+switchbox => Can configure 512 ALUs (64 kbits) in ~20 s

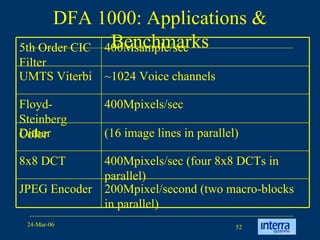

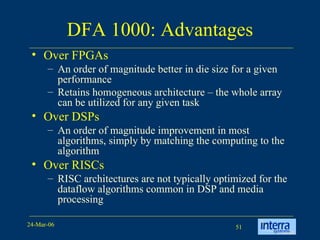

52. DFA 1000: Applications & Benchmarks 200Mpixel/second (two macro-blocks in parallel) JPEG Encoder 400Mpixels/sec (four 8x8 DCTs in parallel) 8x8 DCT (16 image lines in parallel) Dither 400Mpixels/sec Floyd-Steinberg Color ~1024 Voice channels UMTS Viterbi 400Msample/sec 5th Order CIC Filter

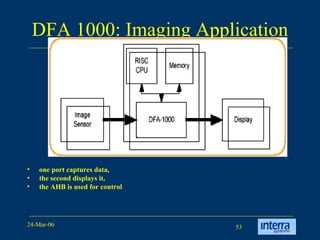

53.
54.

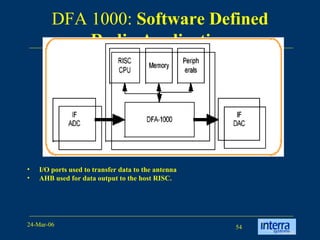

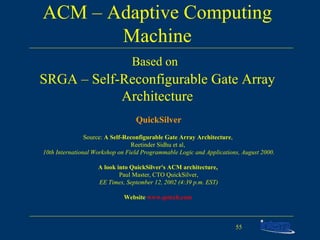

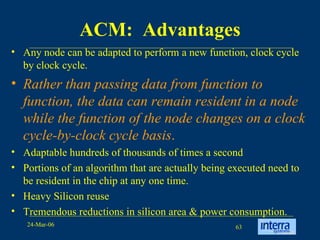

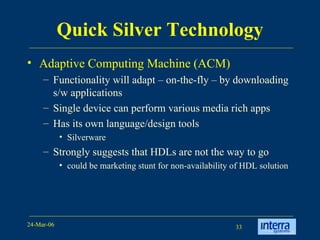

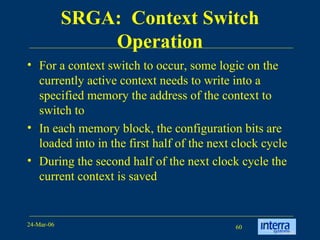

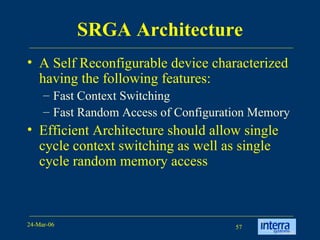

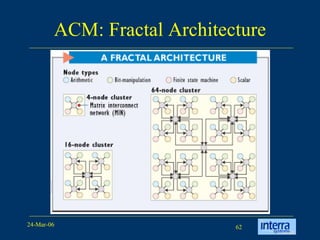

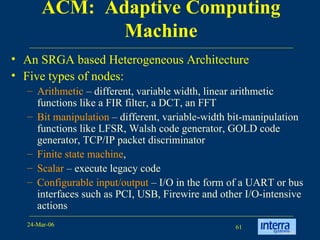

55. ACM – Adaptive Computing Machine Based on SRGA – Self-Reconfigurable Gate Array Architecture QuickSilver Source: A Self-Reconfigurable Gate Array Architecture , Reetinder Sidhu et al, 10th International Workshop on Field Programmable Logic and Applications, August 2000 . A look into QuickSilver's ACM architecture, Paul Master, CTO QuickSilver, EE Times, September 12, 2002 (4:39 p.m. EST) Website www.qstech.com

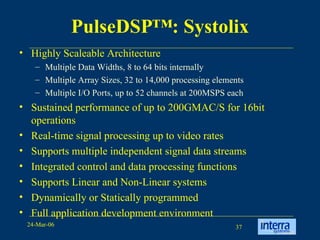

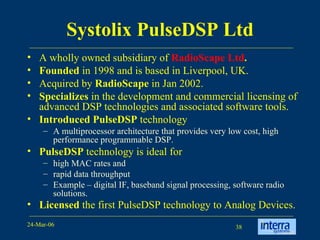

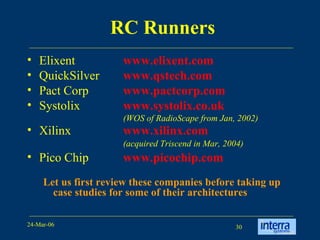

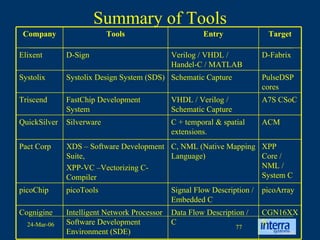

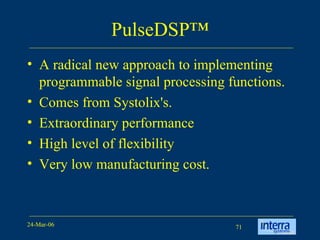

[20060325] Changed: Systolix www.systolix.co.uk RadioScape (www.radioscape.com) acquires Systolix: http://www.electronicstalk.com/news/rab/rab109.html [20051023] Dropped: Triscend www.triscend.com This has got acquired by Xilinx in Mar, 2003. Refer: http://www.xilinx.com/prs_rls/xil_corp/0435_triscend_acquisition.htm Xilinx’s solutions in Reconfigurable space is given in: http://www.xilinx.com/products/design_resources/config_sol/grouping/fpga_config.htm [20051024] Dropped: Cognigine www.cognigine.com Cannot find this website in the Internet. There are many references to their work – but all dates to early 2000s only.

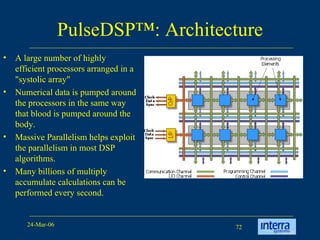

RadioScape uses Systolix's DSP expertise to expand its licensable intellectual property portfolio for Layer-1 wireless baseband development. http://www.electronicstalk.com/news/rab/rab109.html

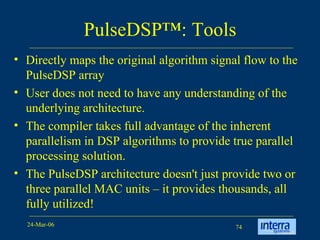

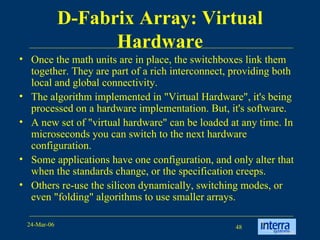

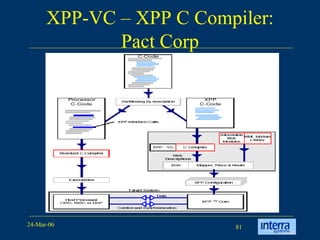

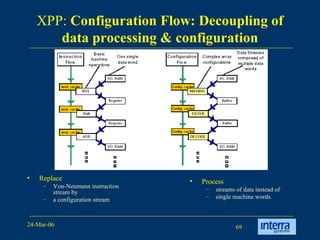

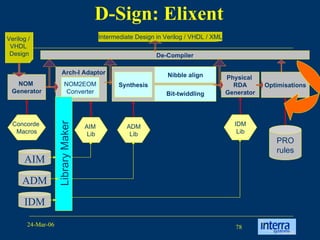

With this platform in place, algorithms are mapped onto the array. This is done by drawing the signal flow across the array - describing it in an HDL such as Verilog, or a higher-level language like Handel-C - or Matlab. Need an 8-bit adder? Use two ALUs. 32-bit adder? 8 ALUs. Perhaps an Add/Compare/Select (ACS) unit? Again, just a few ALUs.
