The document discusses the integration of High Speed Ethernet (HSE) with Fieldbus technology, highlighting its advantages such as higher bandwidth and seamless connectivity with standard IT infrastructures. It includes details on system components, protocols, and the architecture necessary for effective implementation. Additionally, the document outlines device classification for purchasing HSE systems, focusing on functionalities and networking capabilities.

1. HSE Fieldbus

2. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 2

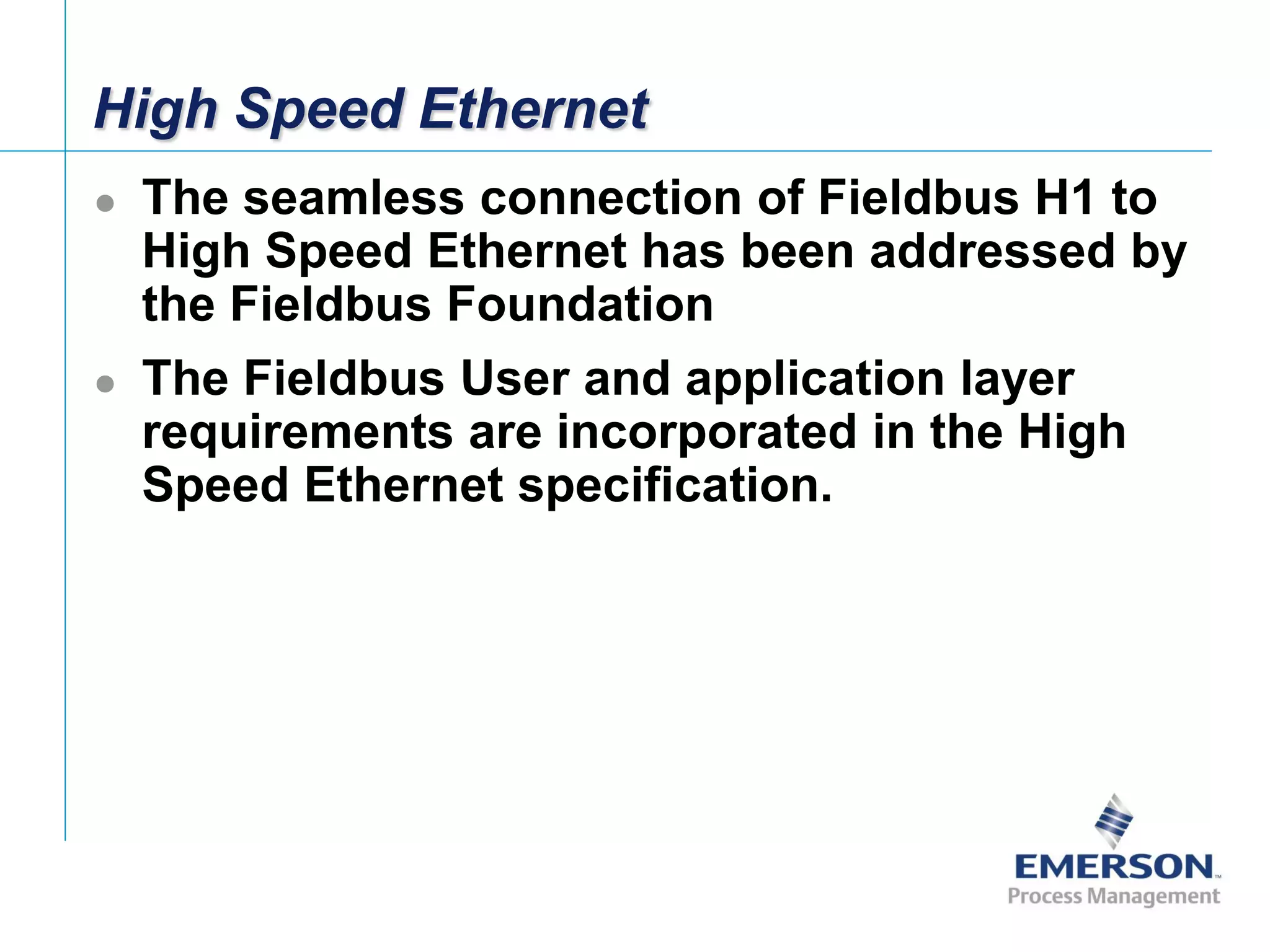

High Speed Ethernet
 The seamless connection of Fieldbus H1 to
High Speed Ethernet has been addressed by
the Fieldbus Foundation
 The Fieldbus User and application layer
requirements are incorporated in the High
Speed Ethernet specification.

3. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 3

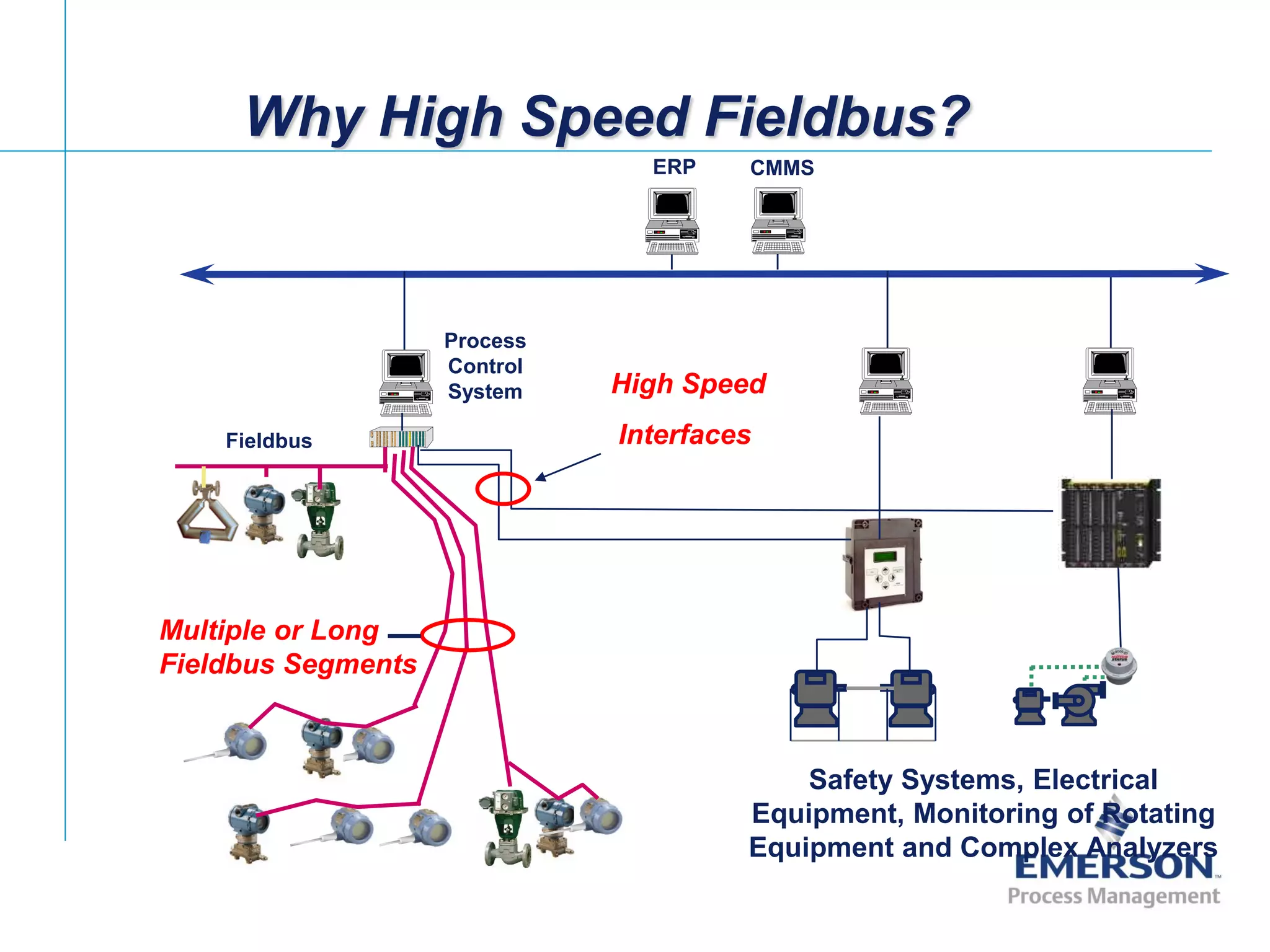

Why High Speed Fieldbus?
Fieldbus
CMMSERP
Process
Control
System
Safety Systems, Electrical
Equipment, Monitoring of Rotating
Equipment and Complex Analyzers
Multiple or Long
Fieldbus Segments
High Speed
Interfaces

4. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 5
DCS

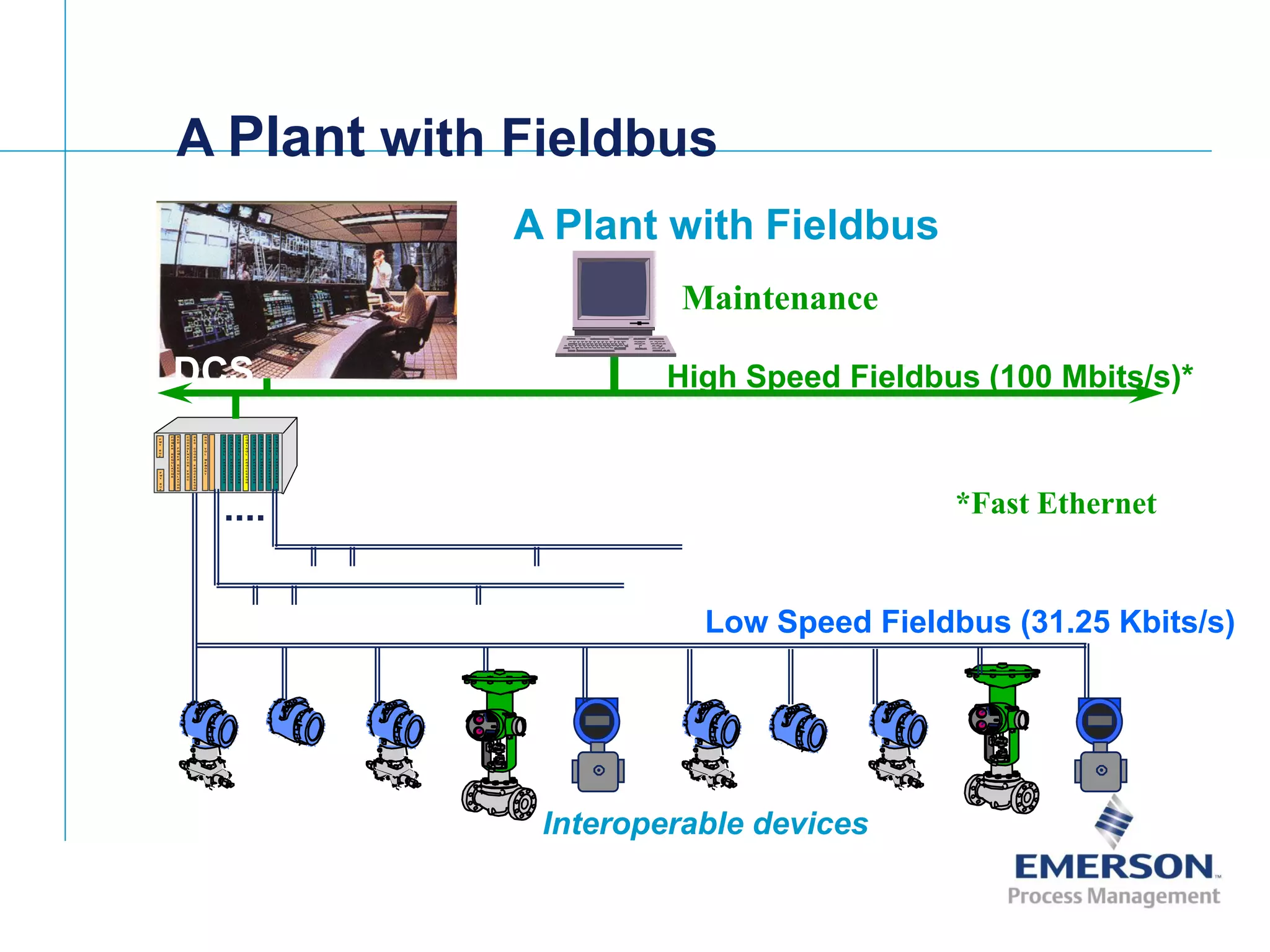

A Plant with Fieldbus
High Speed Fieldbus (100 Mbits/s)*
Low Speed Fieldbus (31.25 Kbits/s)
*Fast Ethernet
Maintenance
A Plant with Fieldbus
Interoperable devices

5. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 6

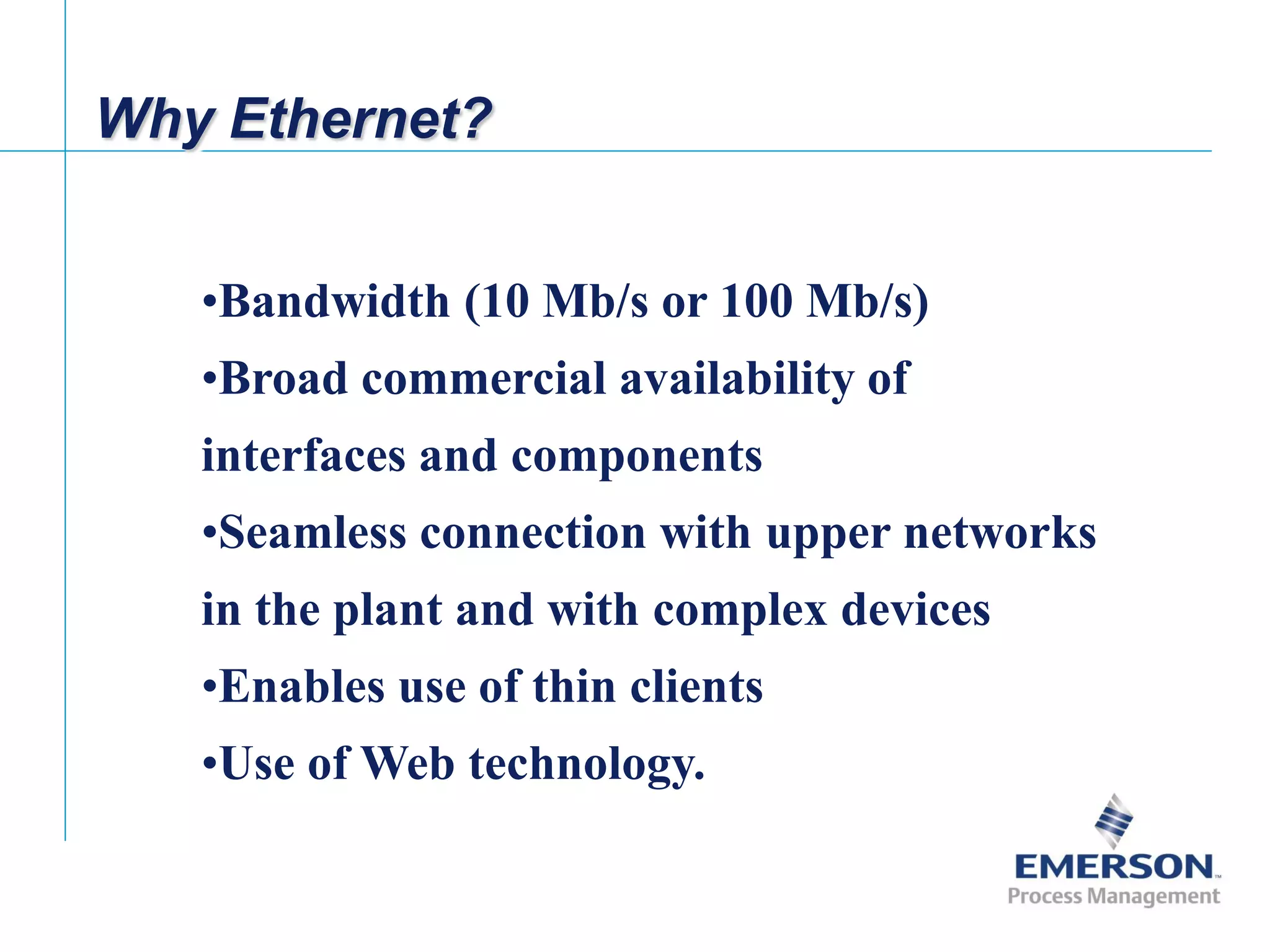

Why Ethernet?
•Bandwidth (10 Mb/s or 100 Mb/s)
•Broad commercial availability of
interfaces and components
•Seamless connection with upper networks
in the plant and with complex devices
•Enables use of thin clients
•Use of Web technology.

6. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 7

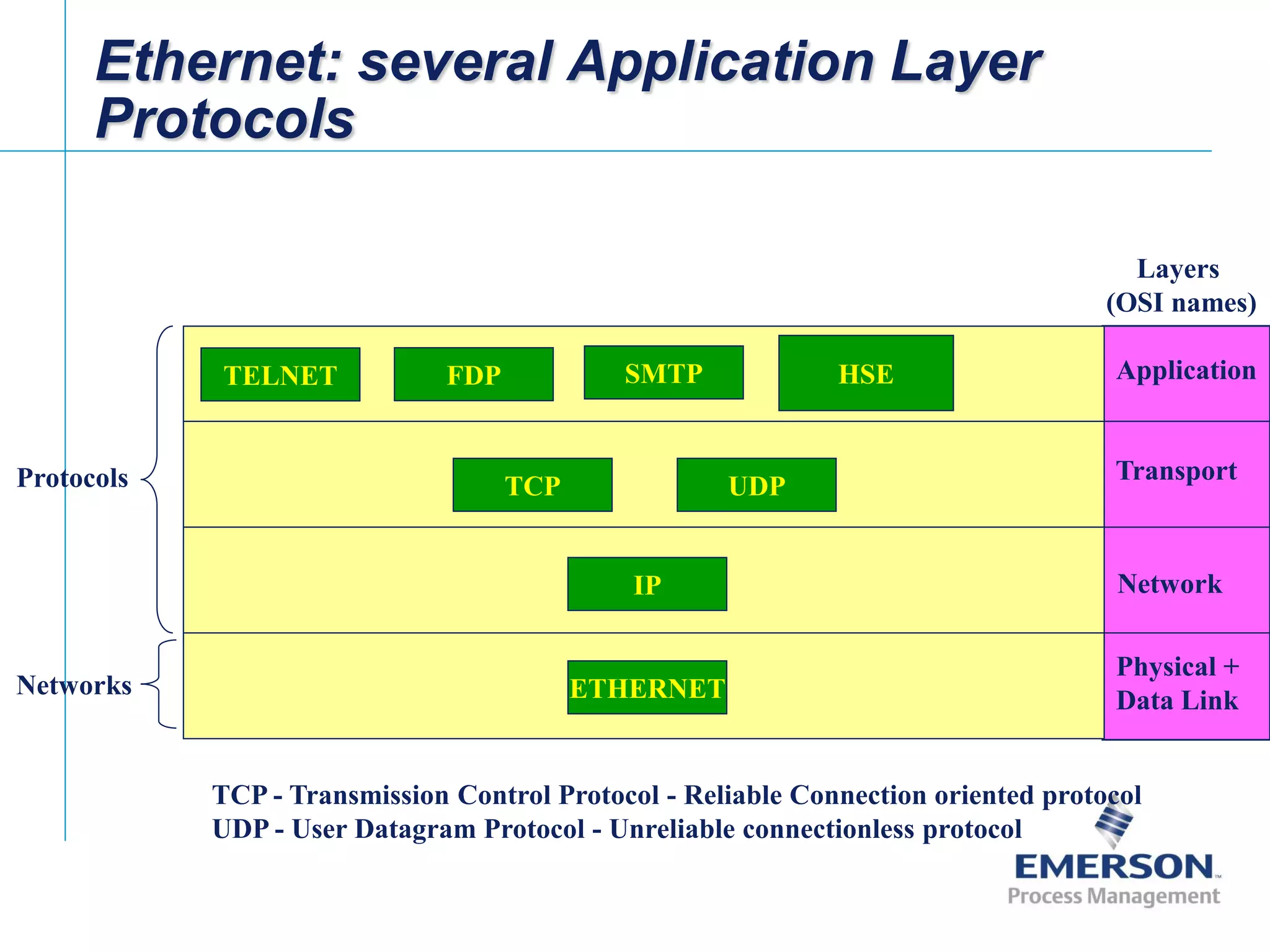

Ethernet: several Application Layer
Protocols
Protocols
Networks
Application
Transport
Network
Physical +
Data LinkETHERNET
TCP
HSE
UDP
IP
TELNET SMTPFDP
Layers
(OSI names)
TCP - Transmission Control Protocol - Reliable Connection oriented protocol
UDP - User Datagram Protocol - Unreliable connectionless protocol

7. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 8

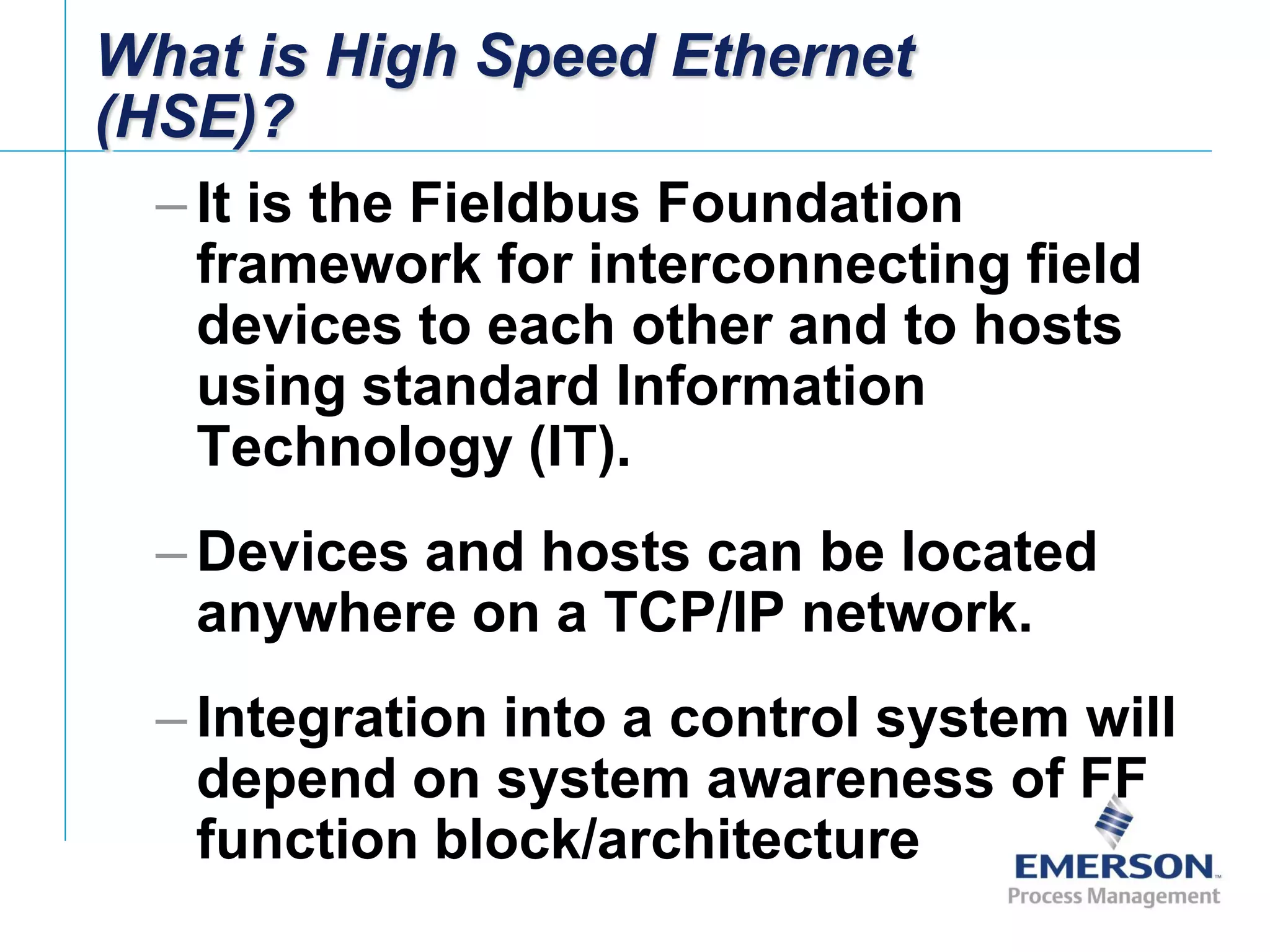

What is High Speed Ethernet
(HSE)?
– It is the Fieldbus Foundation
framework for interconnecting field
devices to each other and to hosts
using standard Information
Technology (IT).
– Devices and hosts can be located
anywhere on a TCP/IP network.
– Integration into a control system will
depend on system awareness of FF
function block/architecture

8. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 9

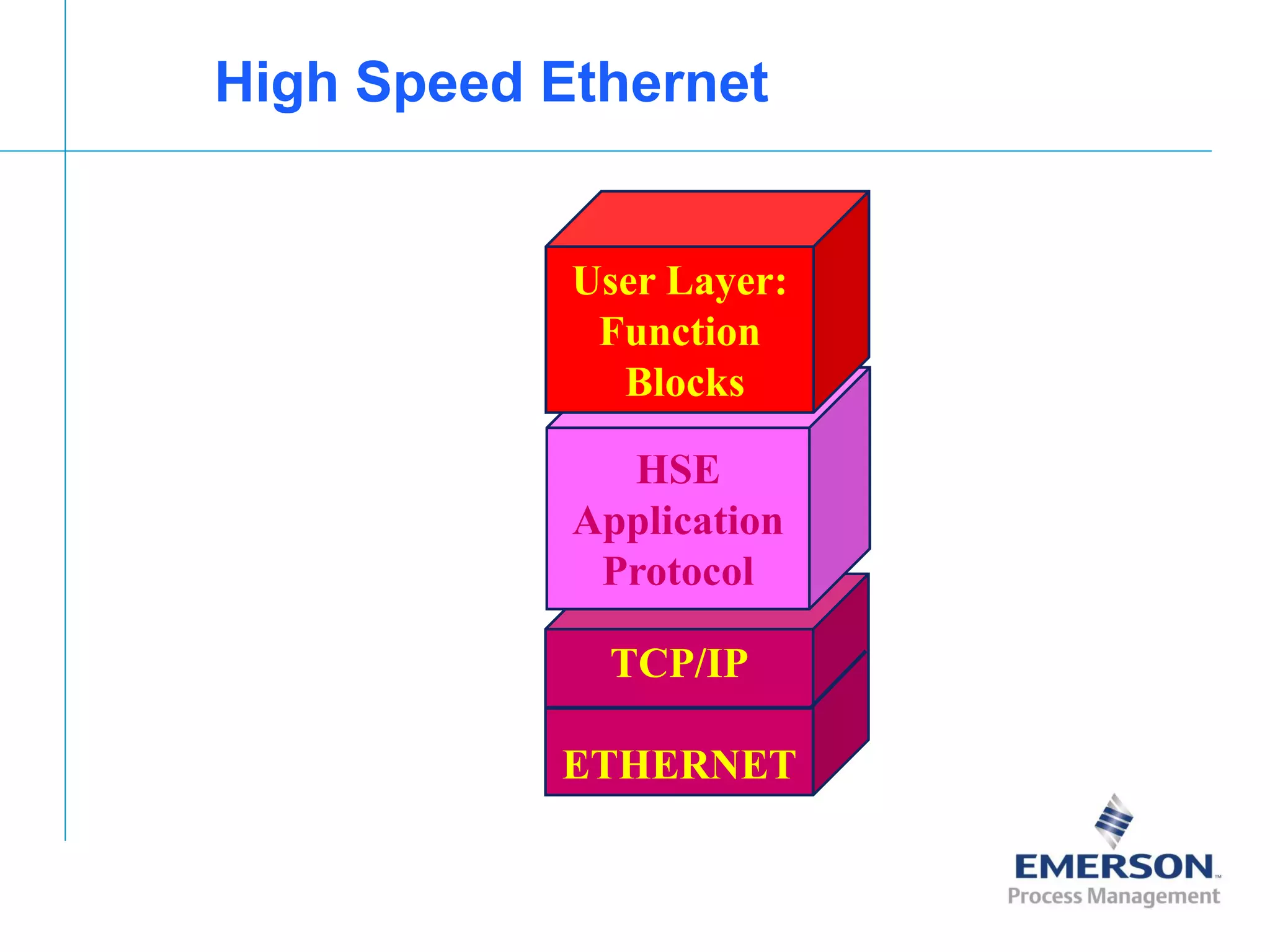

High Speed Ethernet
TCP/IP
ETHERNET
HSE
Application
Protocol
User Layer:
Function
Blocks

9. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 10

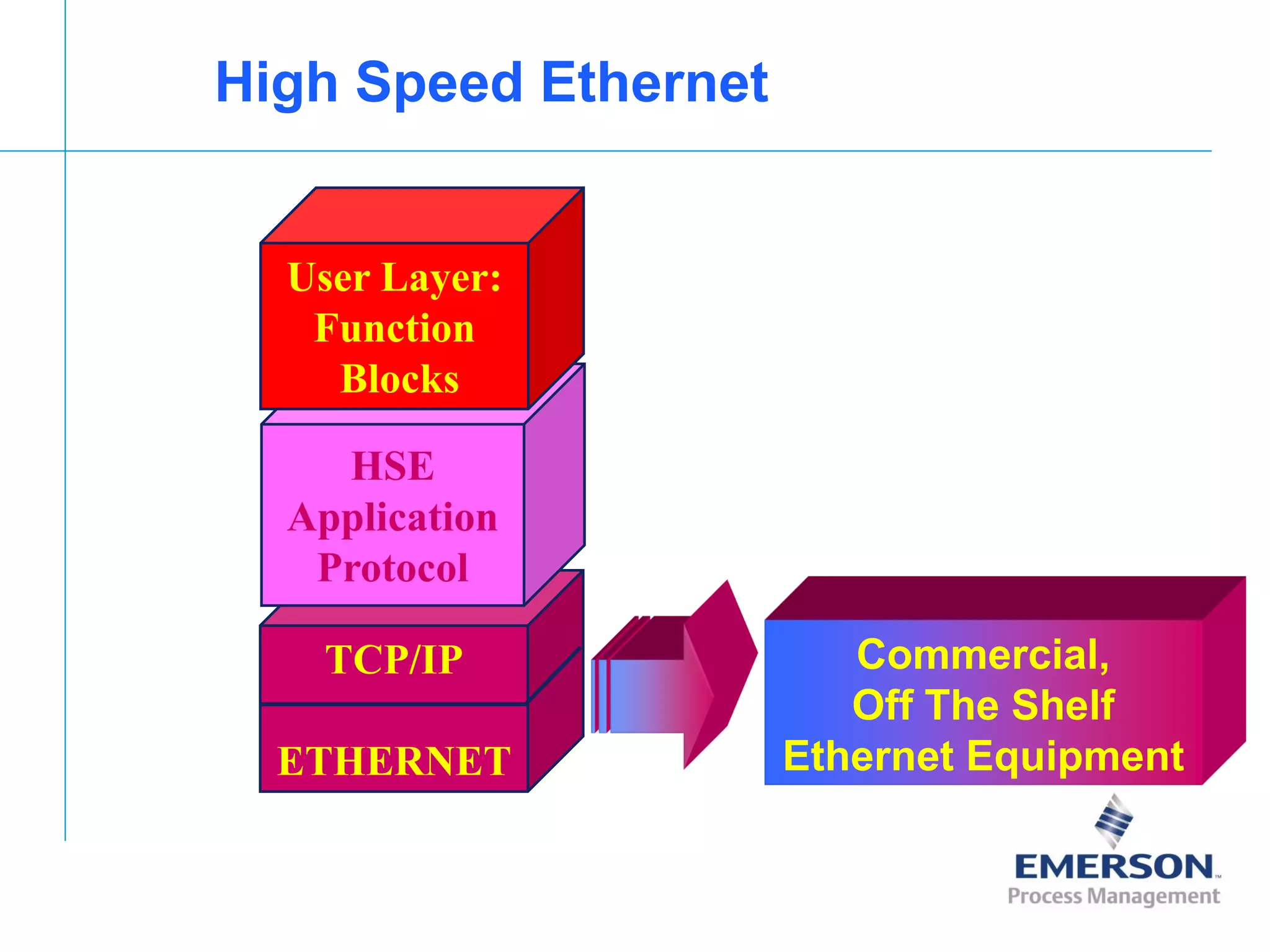

High Speed Ethernet
TCP/IP
ETHERNET
HSE
Application
Protocol
User Layer:
Function
Blocks
Commercial,
Off The Shelf
Ethernet Equipment

10. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 11
High Speed Ethernet
TCP/IP
ETHERNET
HSE
Application
Protocol
User Layer:
Function
Blocks

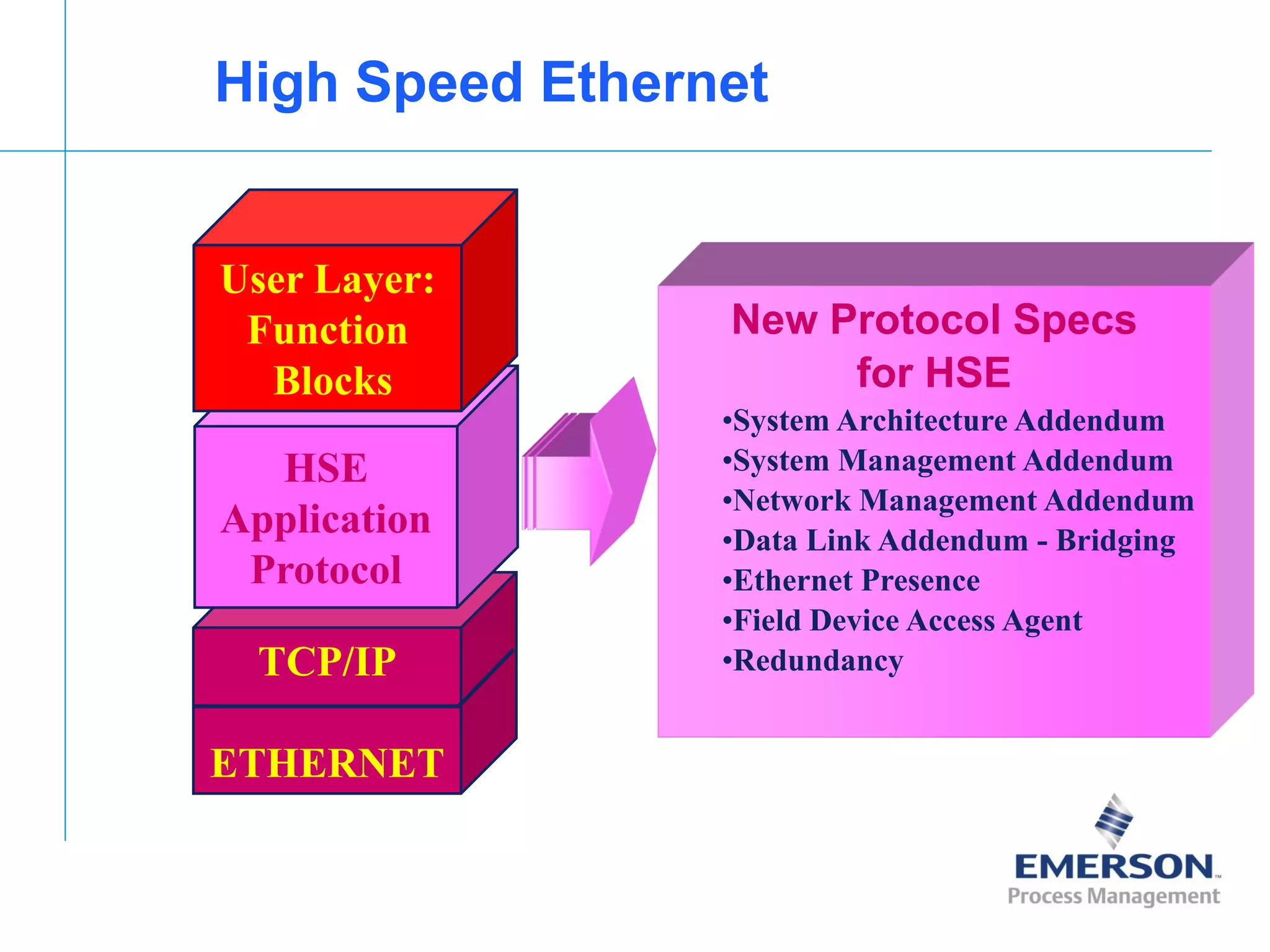

New Protocol Specs
for HSE
•System Architecture Addendum
•System Management Addendum
•Network Management Addendum
•Data Link Addendum - Bridging
•Ethernet Presence
•Field Device Access Agent
•Redundancy

11. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 12
High Speed Ethernet
TCP/IP
ETHERNET
HSE
Application
Protocol
User Layer:
Function
Blocks

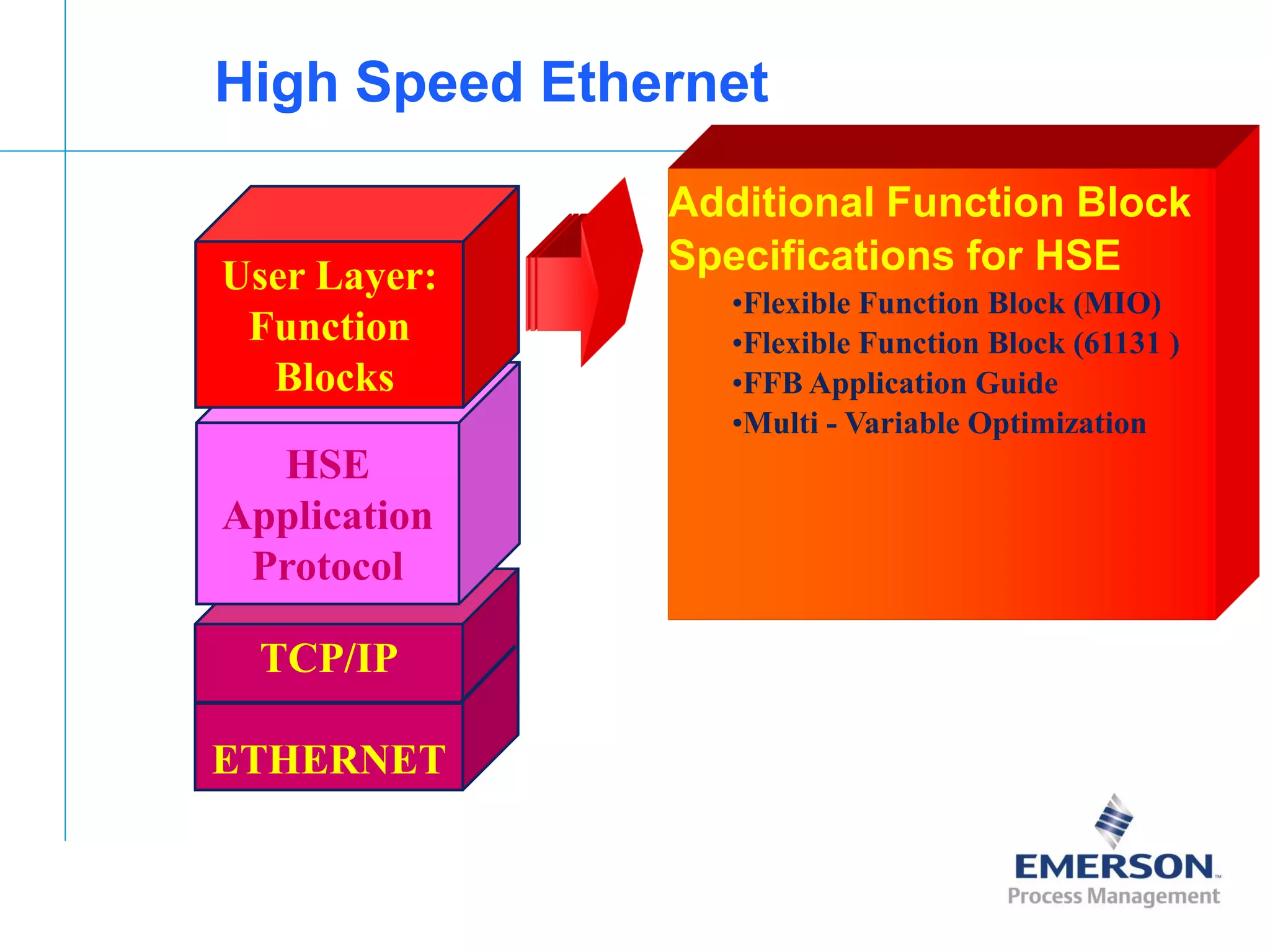

Additional Function Block
Specifications for HSE
•Flexible Function Block (MIO)
•Flexible Function Block (61131 )
•FFB Application Guide
•Multi - Variable Optimization

12. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 13

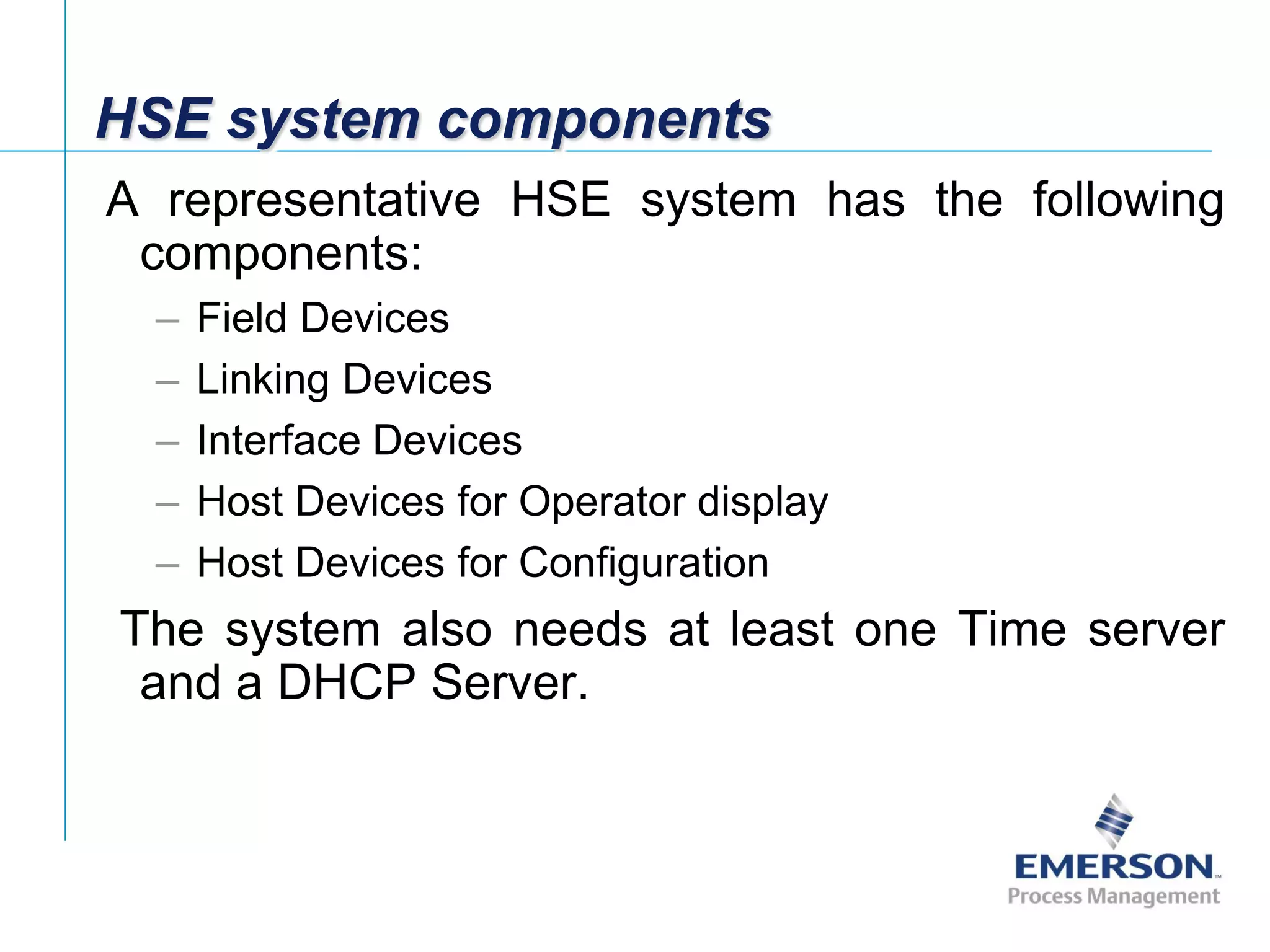

HSE system components
A representative HSE system has the following
components:
– Field Devices
– Linking Devices
– Interface Devices
– Host Devices for Operator display
– Host Devices for Configuration
The system also needs at least one Time server
and a DHCP Server.

13. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 14

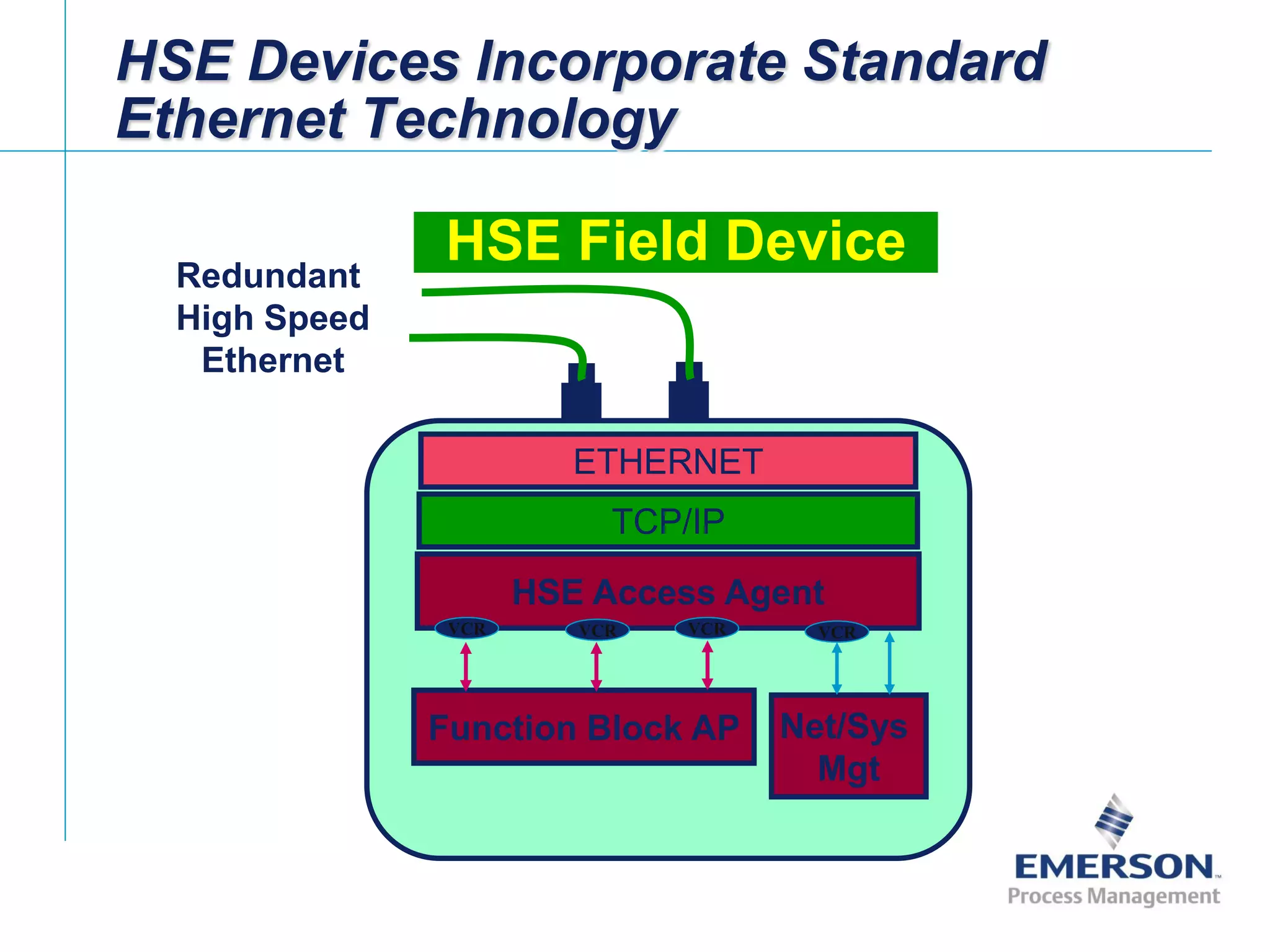

HSE Devices Incorporate Standard
Ethernet Technology
HSE Access Agent
Redundant
High Speed
Ethernet
TCP/IP
Net/Sys
Mgt
Function Block AP
VCR VCR VCR VCR
HSE Field Device
ETHERNET

14. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 15

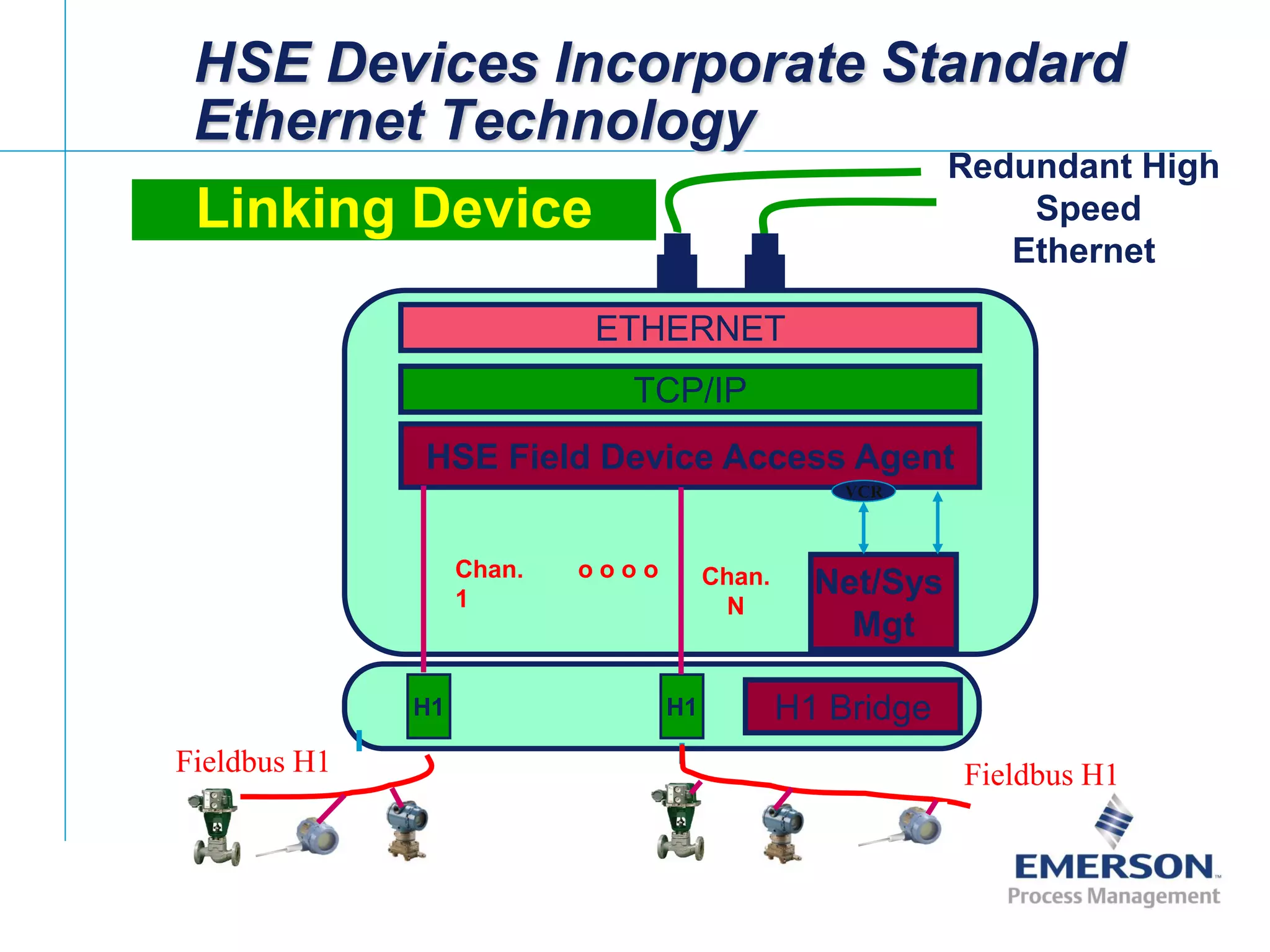

HSE Devices Incorporate Standard
Ethernet Technology
Redundant High
Speed
Ethernet
HSE Field Device Access Agent
H1 H1
Chan. o o o o
1
Chan.
N
TCP/IP
H1 Bridge
Net/Sys
Mgt
VCR
ETHERNET
Linking Device
Fieldbus H1Fieldbus H1

15. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 16

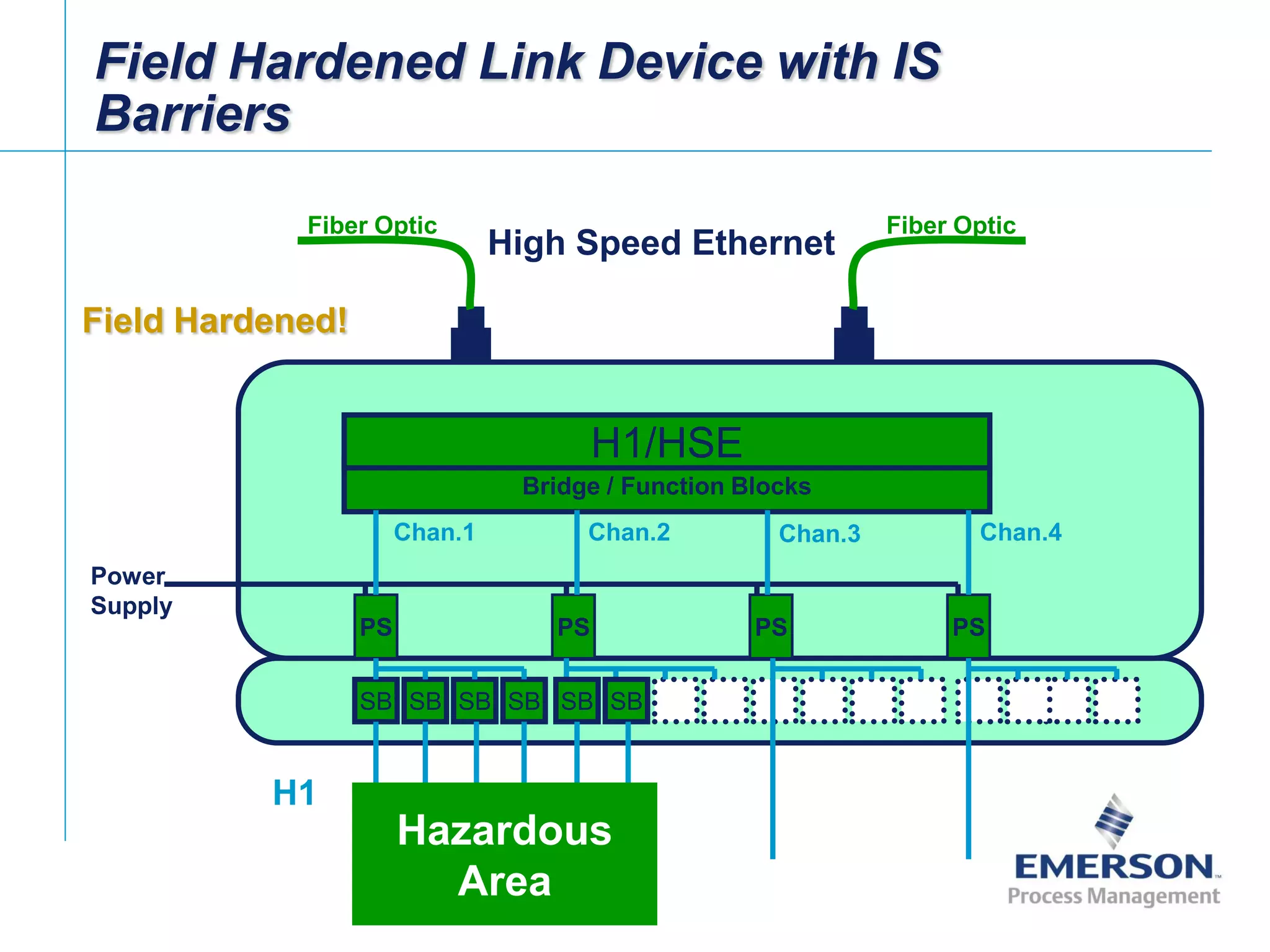

Field Hardened Link Device with IS
Barriers
Bridge / Function Blocks
PS PS PS PS
SB SB SB SB
Power
Supply
Chan.1 Chan.2 Chan.3 Chan.4
H1/HSE
Fiber OpticFiber Optic
H1
SB SB
Hazardous
Area
High Speed Ethernet
Field Hardened!

16. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 17

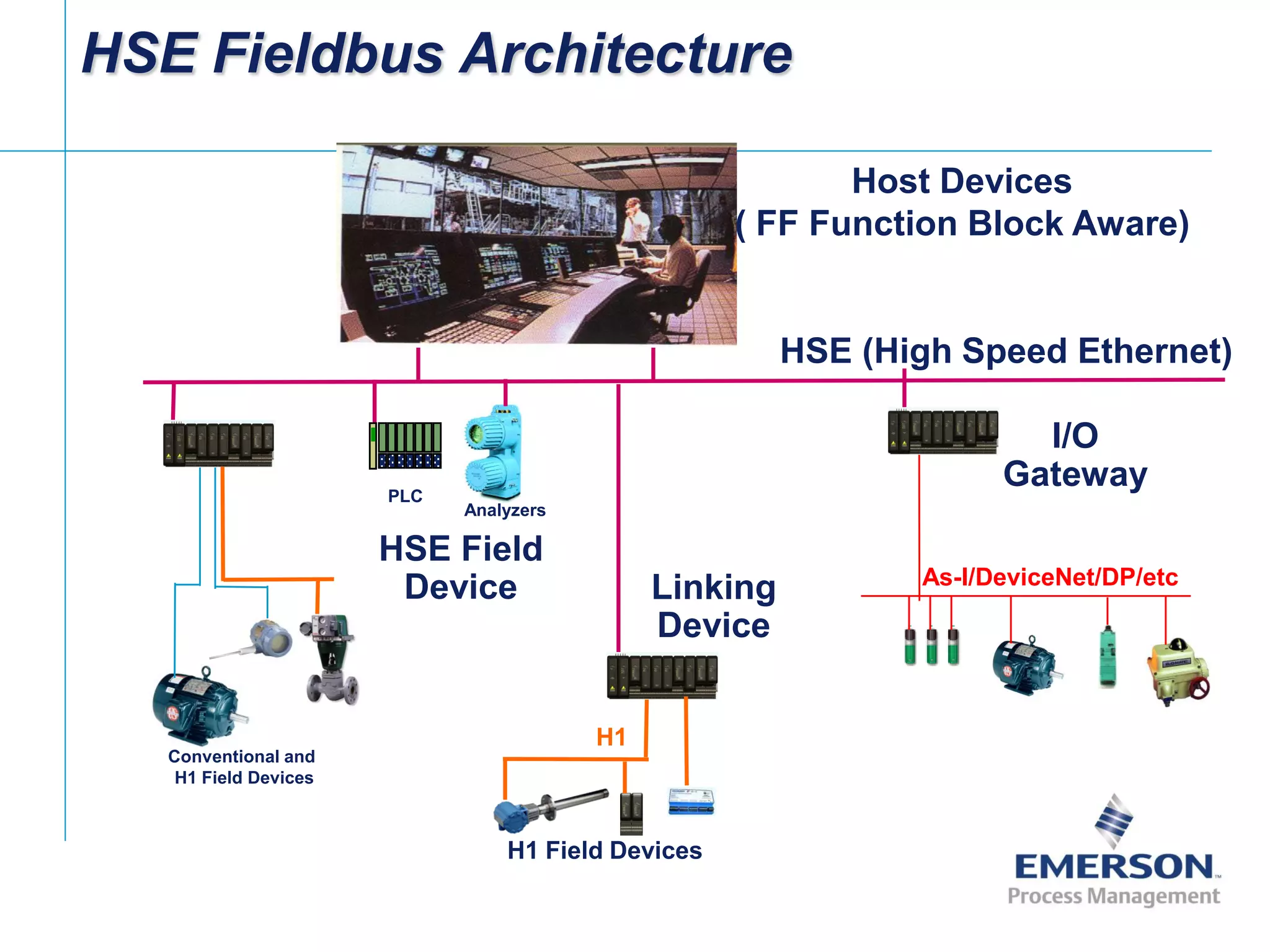

HSE Fieldbus Architecture
Conventional and
H1 Field Devices
H1
As-I/DeviceNet/DP/etc
HSE (High Speed Ethernet)
HSE Field
Device Linking
Device
H1 Field Devices
Host Devices
( FF Function Block Aware)
PLC
I/O
Gateway
Analyzers

17. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 18

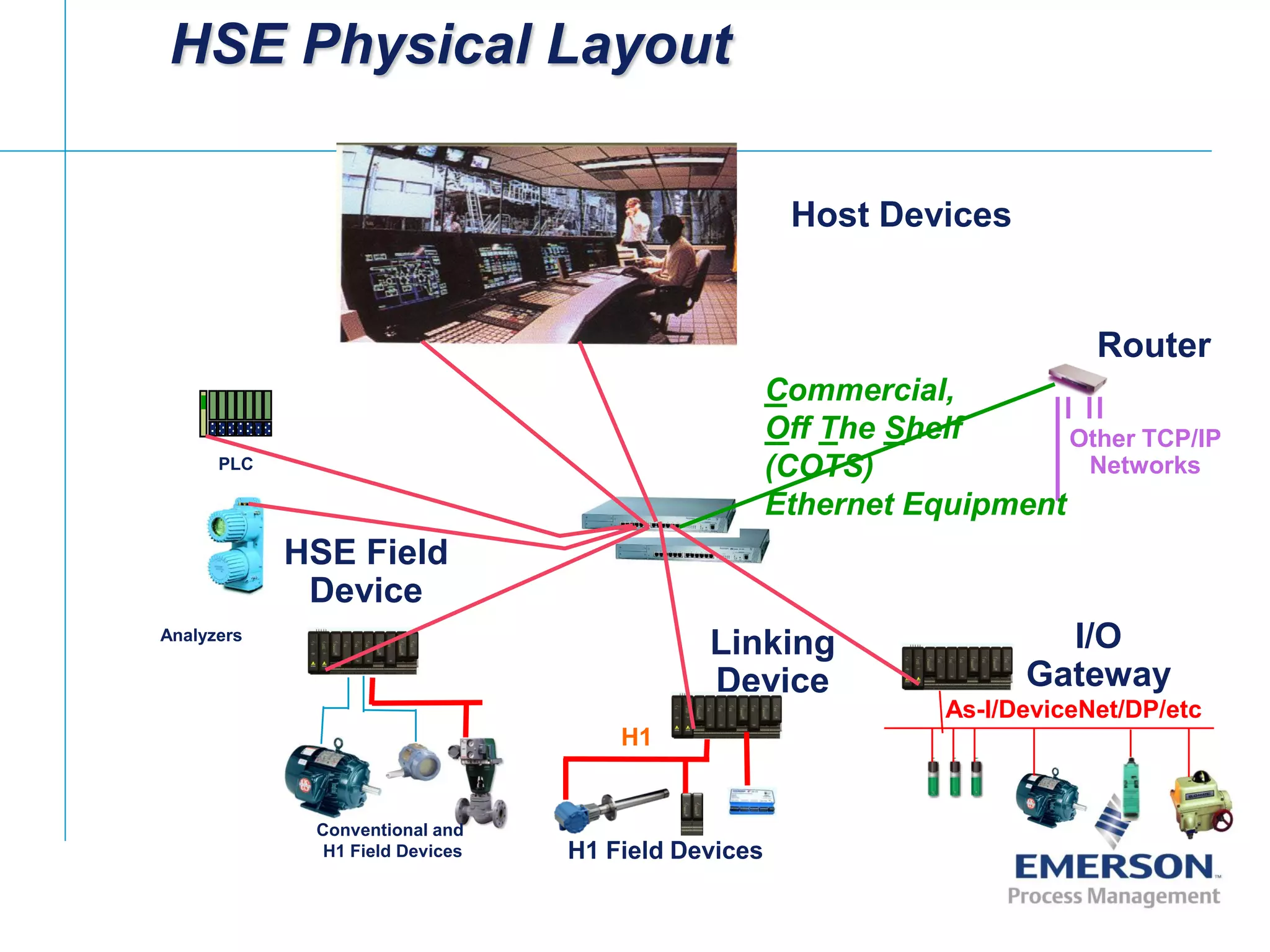

HSE Physical Layout
Conventional and
H1 Field Devices
As-I/DeviceNet/DP/etc
HSE Field
Device
Host Devices
PLC
I/O
Gateway
Analyzers
H1
Linking
Device
H1 Field Devices
Router
Other TCP/IP
Networks
Commercial,
Off The Shelf
(COTS)
Ethernet Equipment

18. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 19
Alert
Function
Block
Trend
Object
Function
Block
Alert
Function
Block
Trend
Object
Function
Block

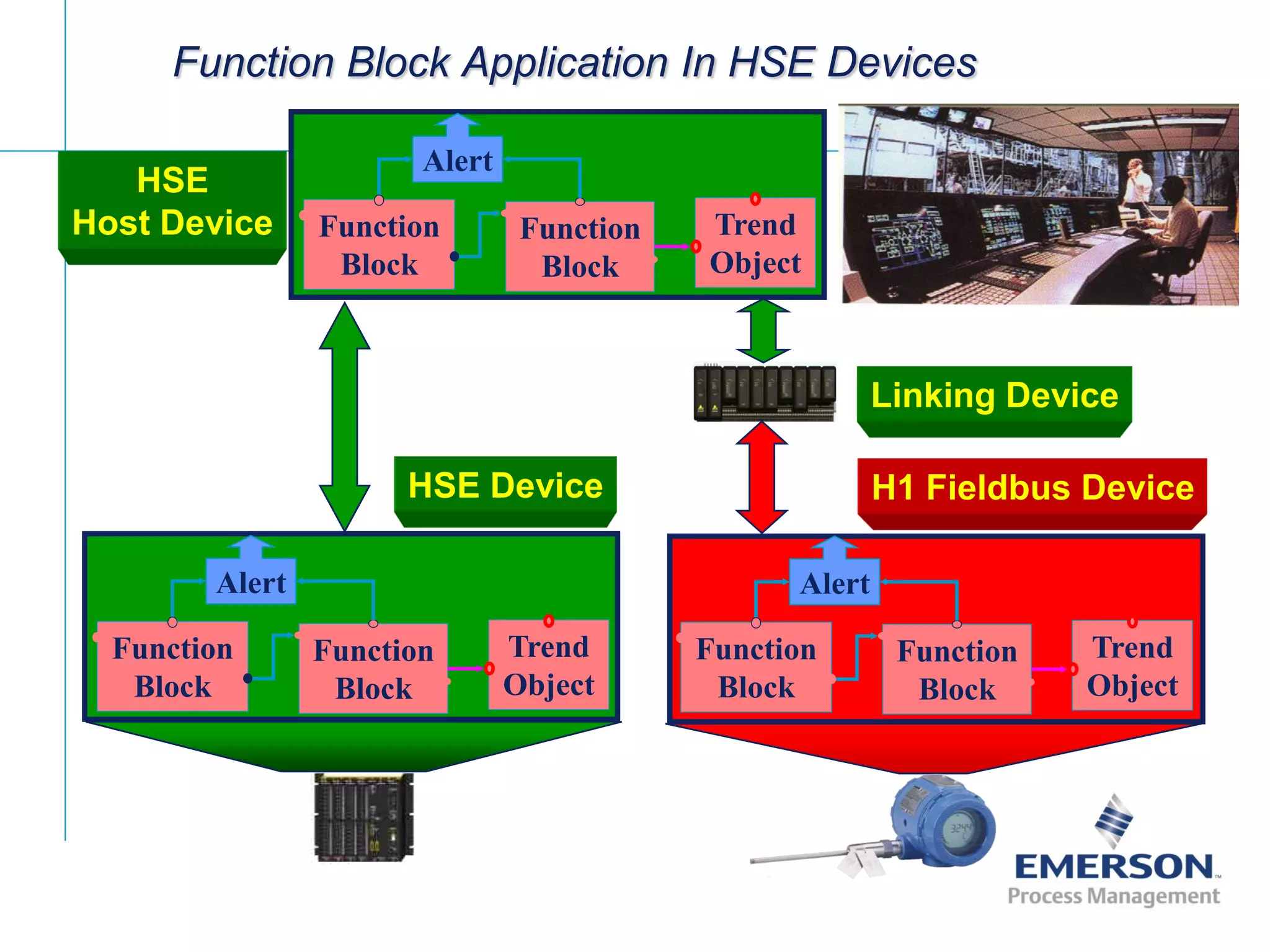

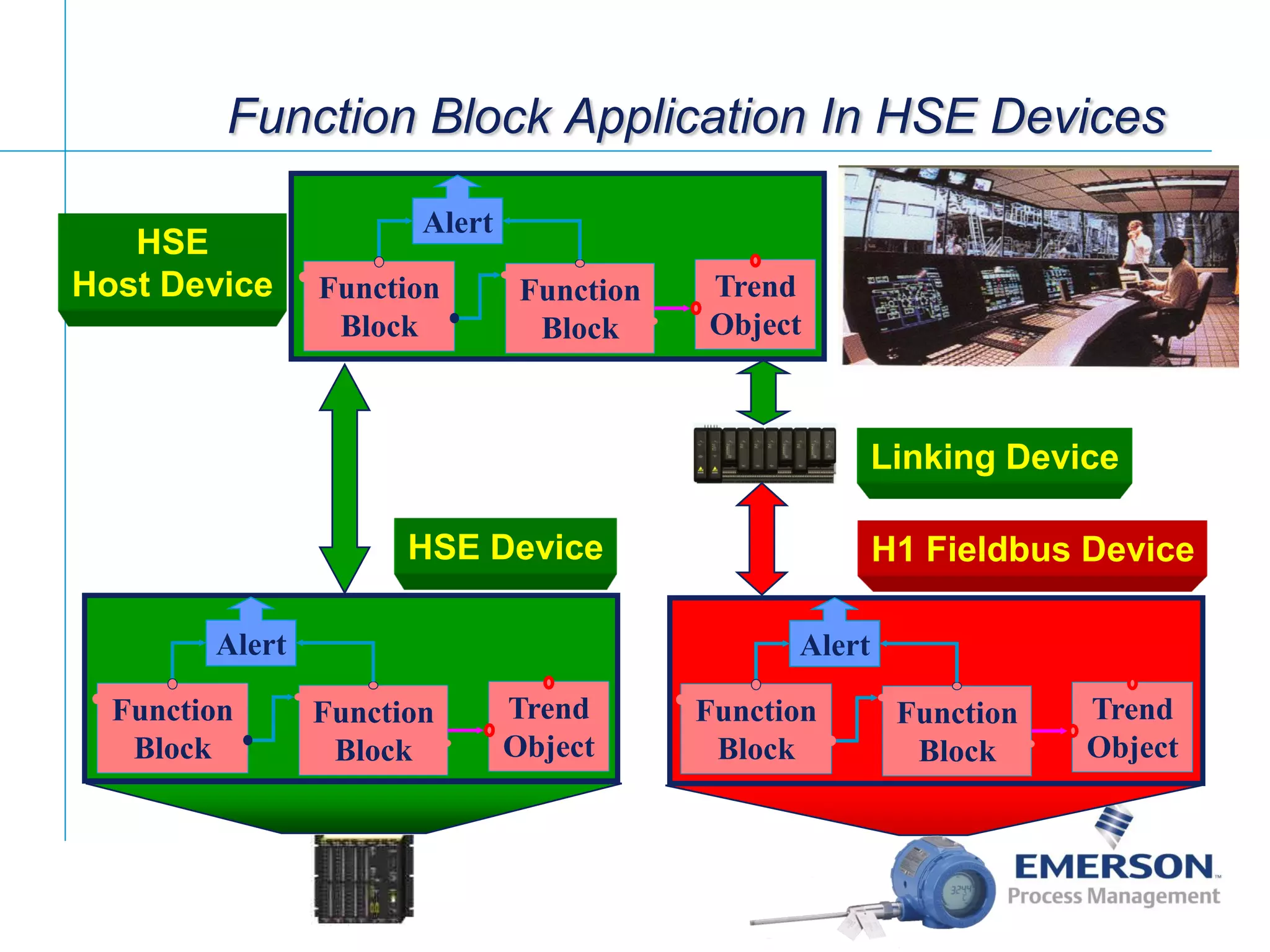

Function Block Application In HSE Devices
H1 Fieldbus DeviceHSE Device
Linking Device
Alert
Function
Block
Trend
Object
Function
Block
HSE
Host Device

19. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 20

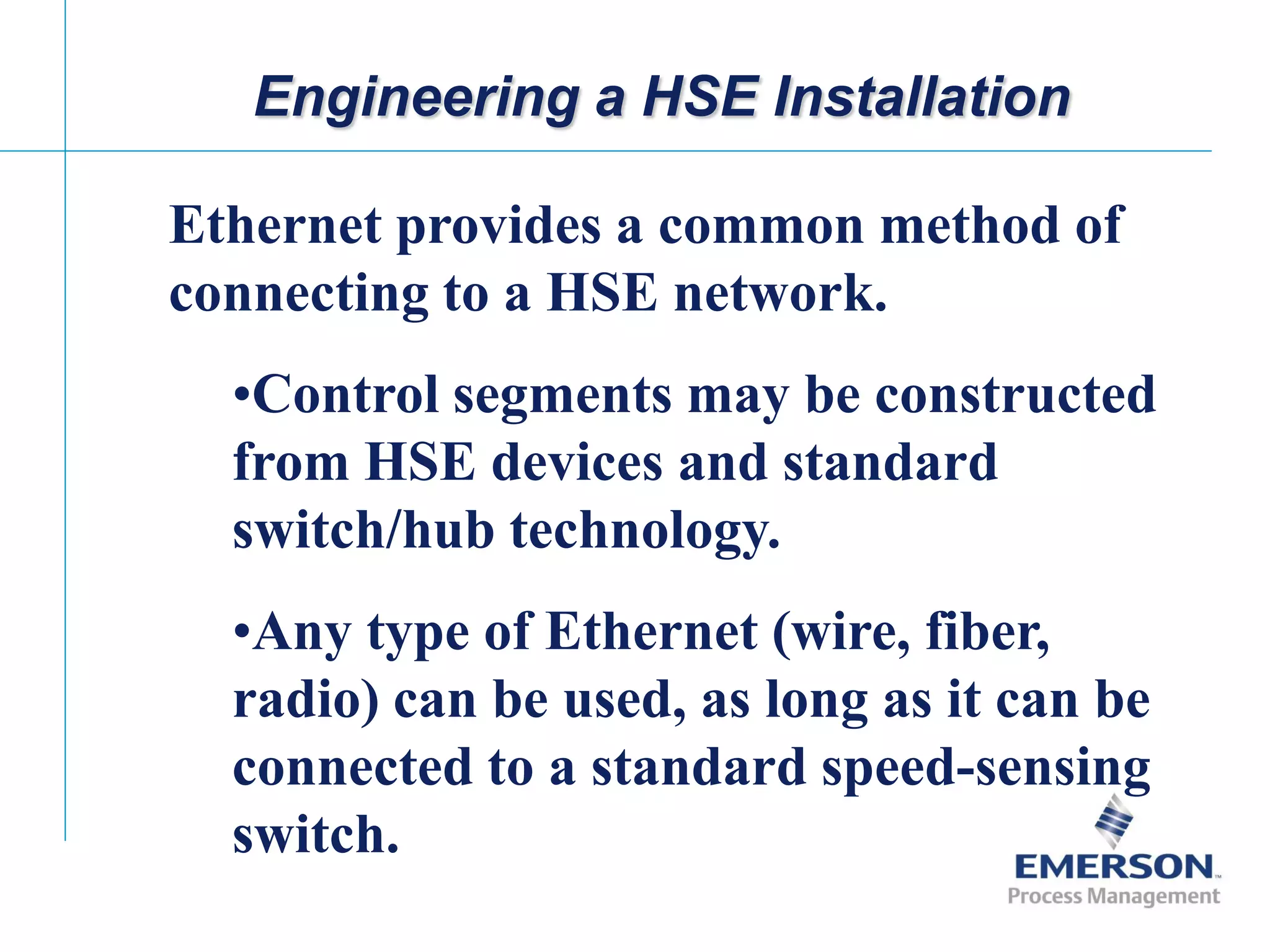

Engineering a HSE Installation
Ethernet provides a common method of
connecting to a HSE network.
•Control segments may be constructed
from HSE devices and standard
switch/hub technology.
•Any type of Ethernet (wire, fiber,
radio) can be used, as long as it can be
connected to a standard speed-sensing
switch.

20. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 21
H1
H1 Field Devices

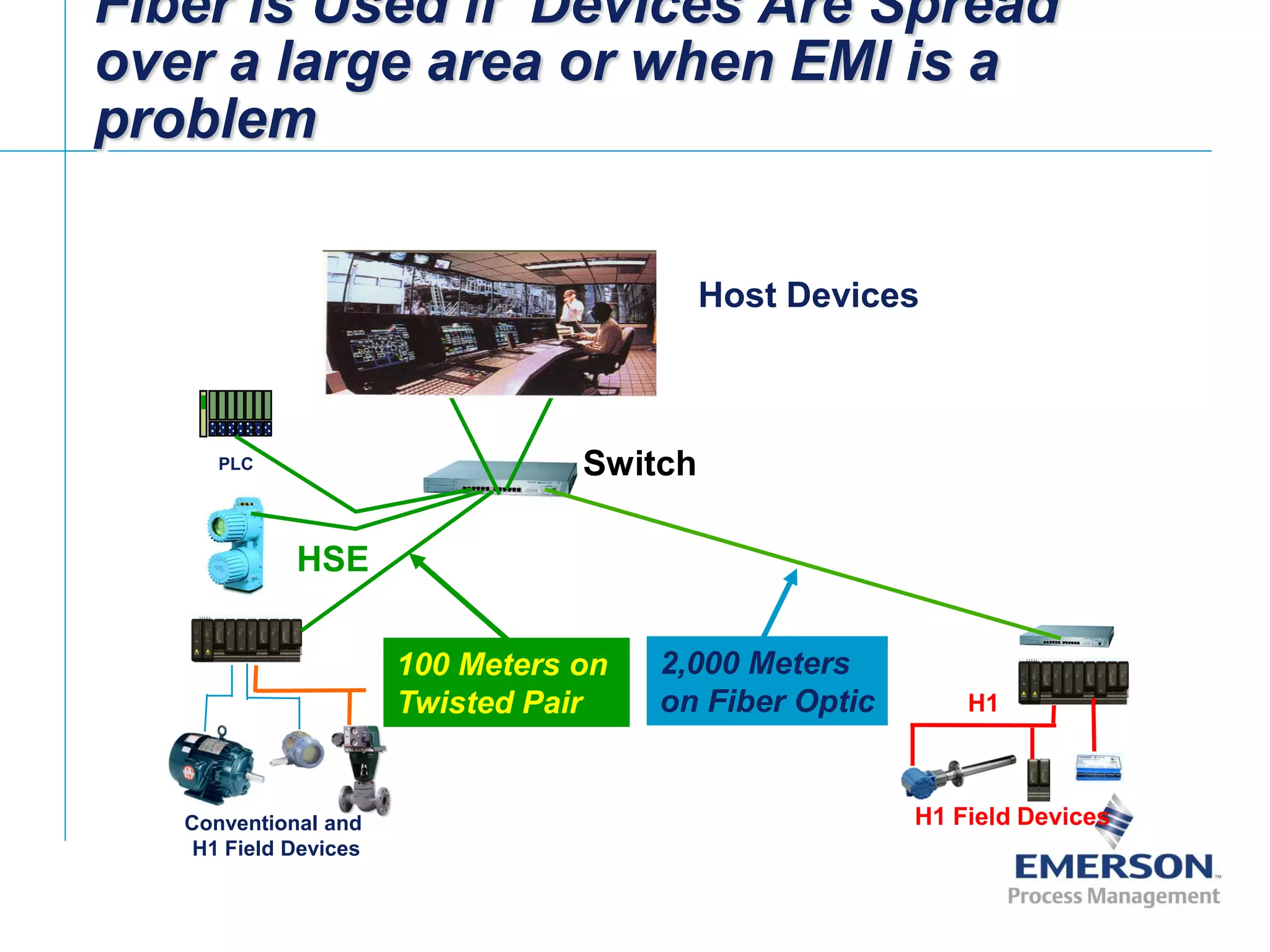

Fiber is Used if Devices Are Spread
over a large area or when EMI is a
problem
Conventional and
H1 Field Devices
HSE
Host Devices
PLC Switch
100 Meters on
Twisted Pair
2,000 Meters
on Fiber Optic

21. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 22

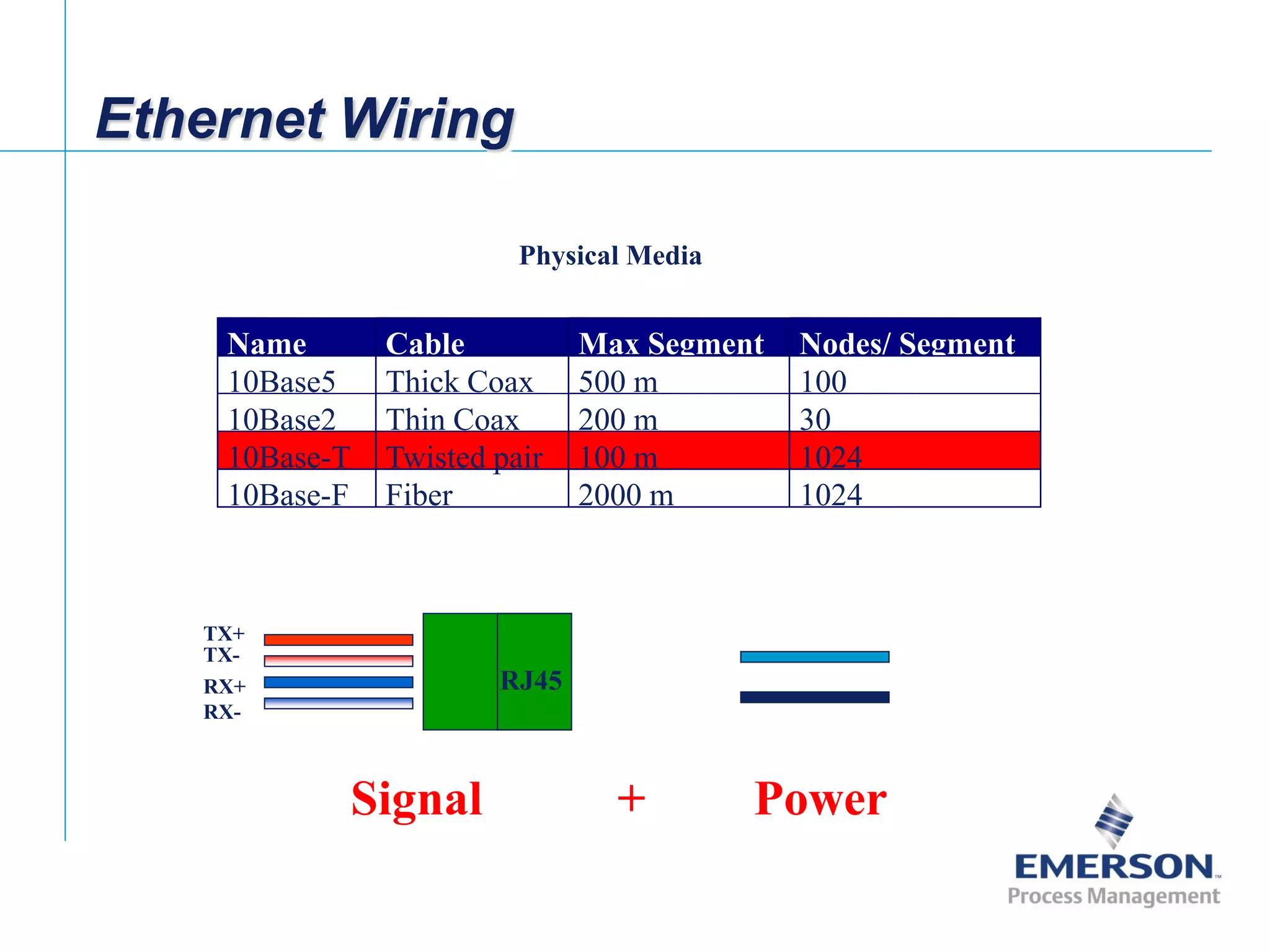

Ethernet Wiring
Name Cable Max Segment Nodes/ Segment
10Base5 Thick Coax 500 m 100
10Base2 Thin Coax 200 m 30
10Base-T Twisted pair 100 m 1024
10Base-F Fiber 2000 m 1024
Physical Media
TX+
TX-
RX+
RX-
RJ45
Signal Power+

22. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 23
May be part of link
device hardware

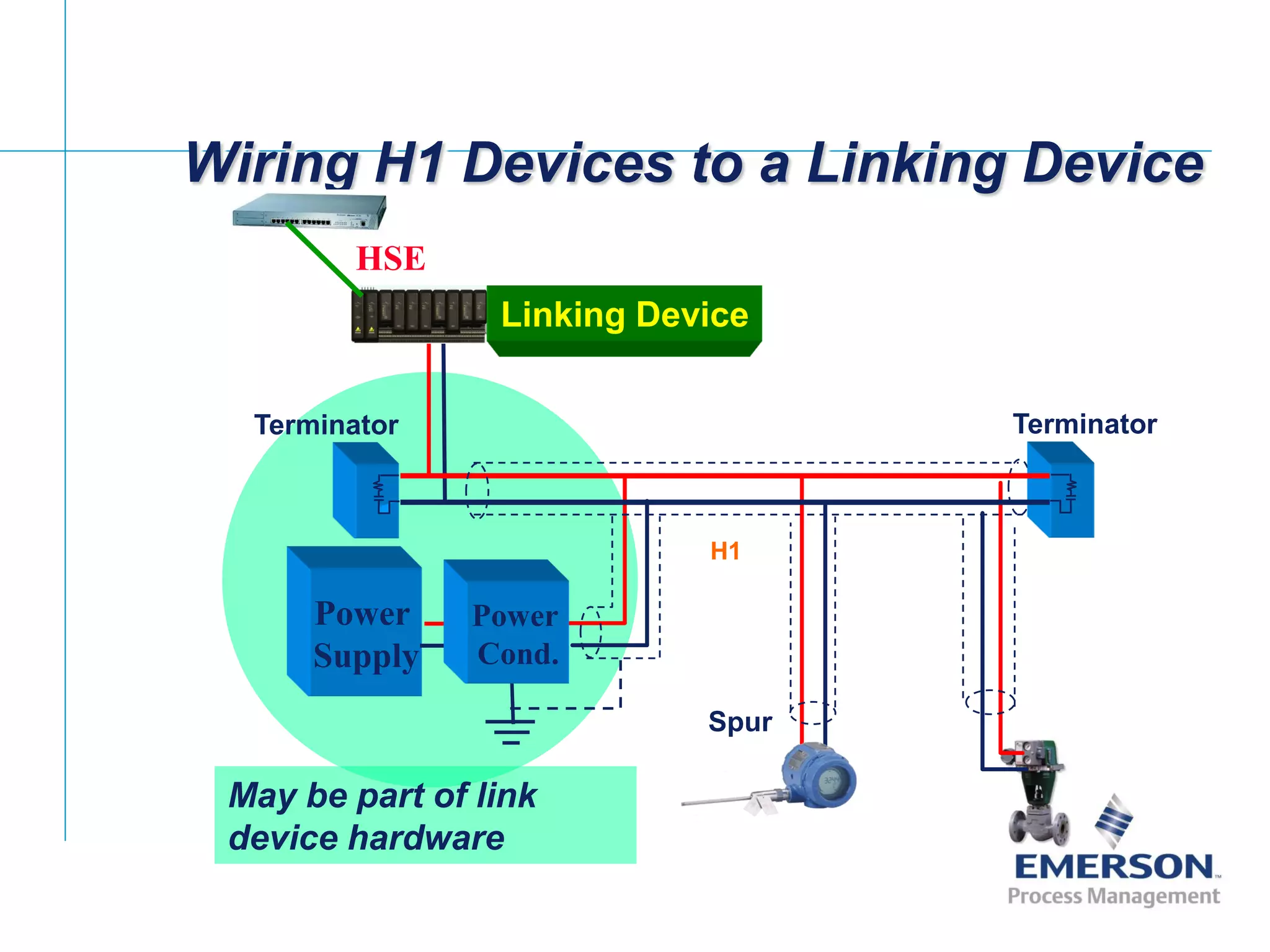

Wiring H1 Devices to a Linking Device
H1
Power
Supply
Terminator Terminator
Spur
Linking Device
Power
Cond.
HSE

23. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 24

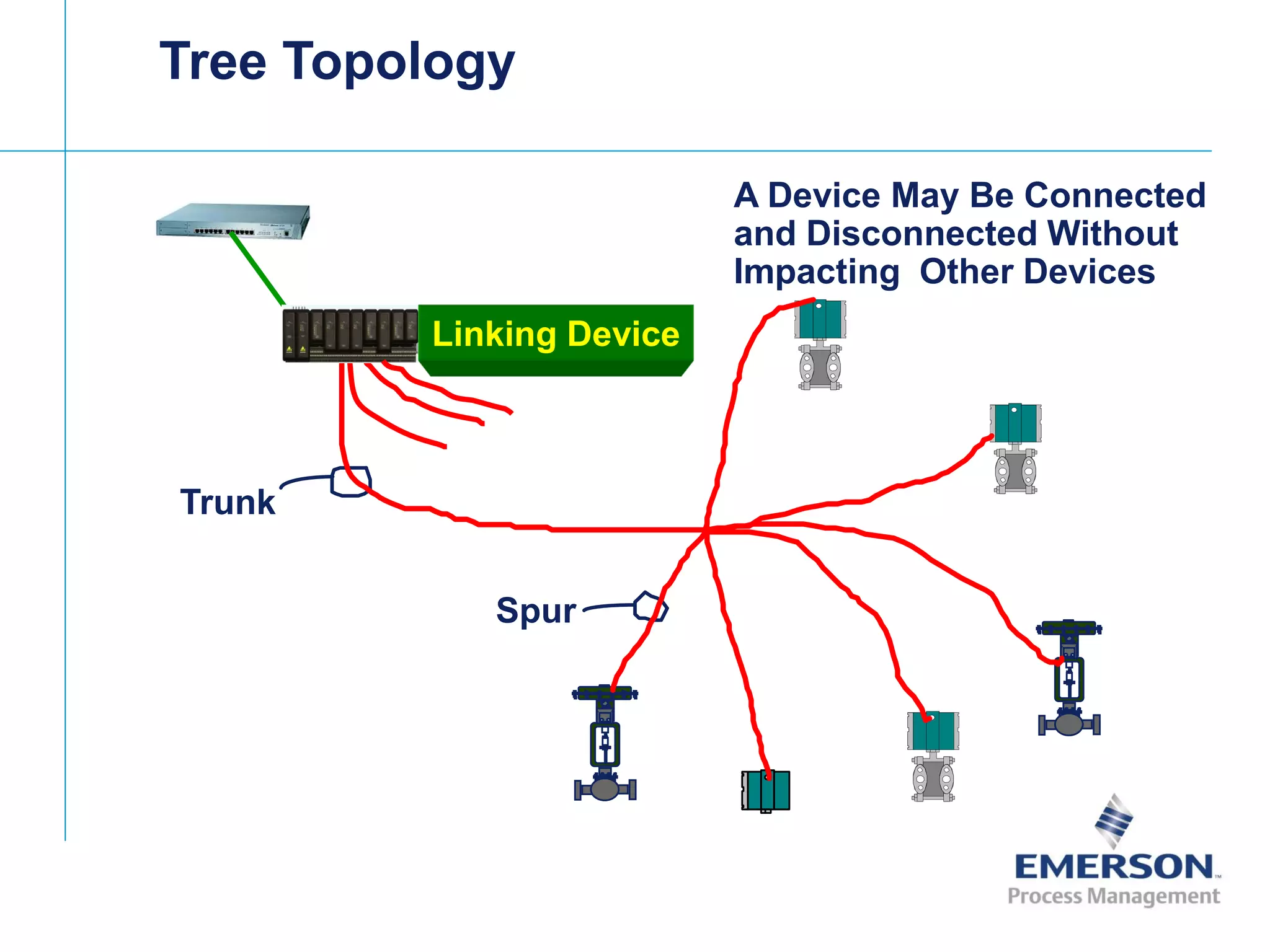

Tree Topology
A Device May Be Connected
and Disconnected Without
Impacting Other Devices
Trunk
Spur
Linking Device

24. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 25

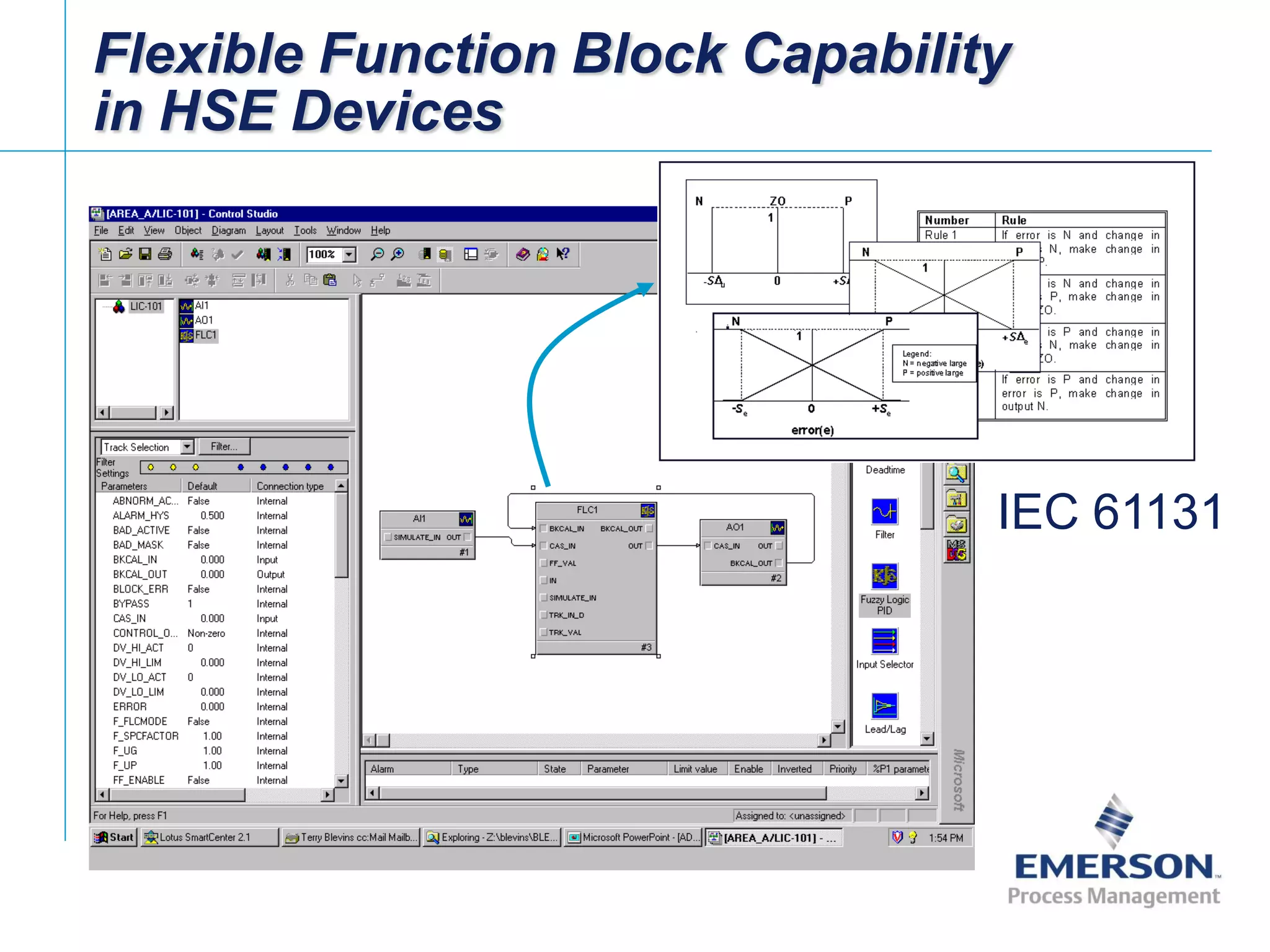

Flexible Function Block Capability
in HSE Devices
IEC 61131

25. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 26

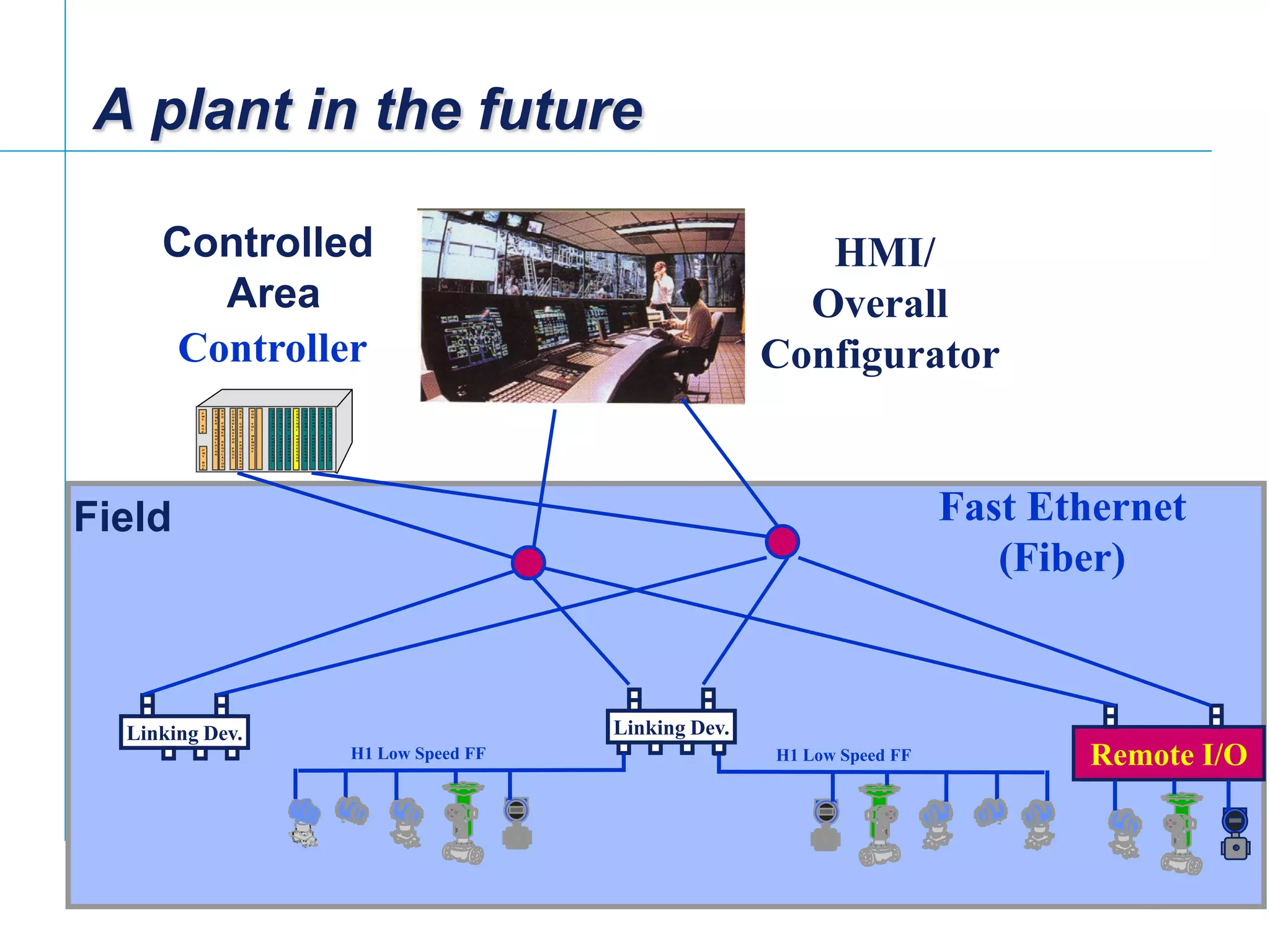

A plant in the future
HMI/
Overall
Configurator
H1 Low Speed FF H1 Low Speed FF
Linking Dev.Linking Dev.
Remote I/O
Fast Ethernet
(Fiber)
Controller
Field
Controlled
Area

26. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 27

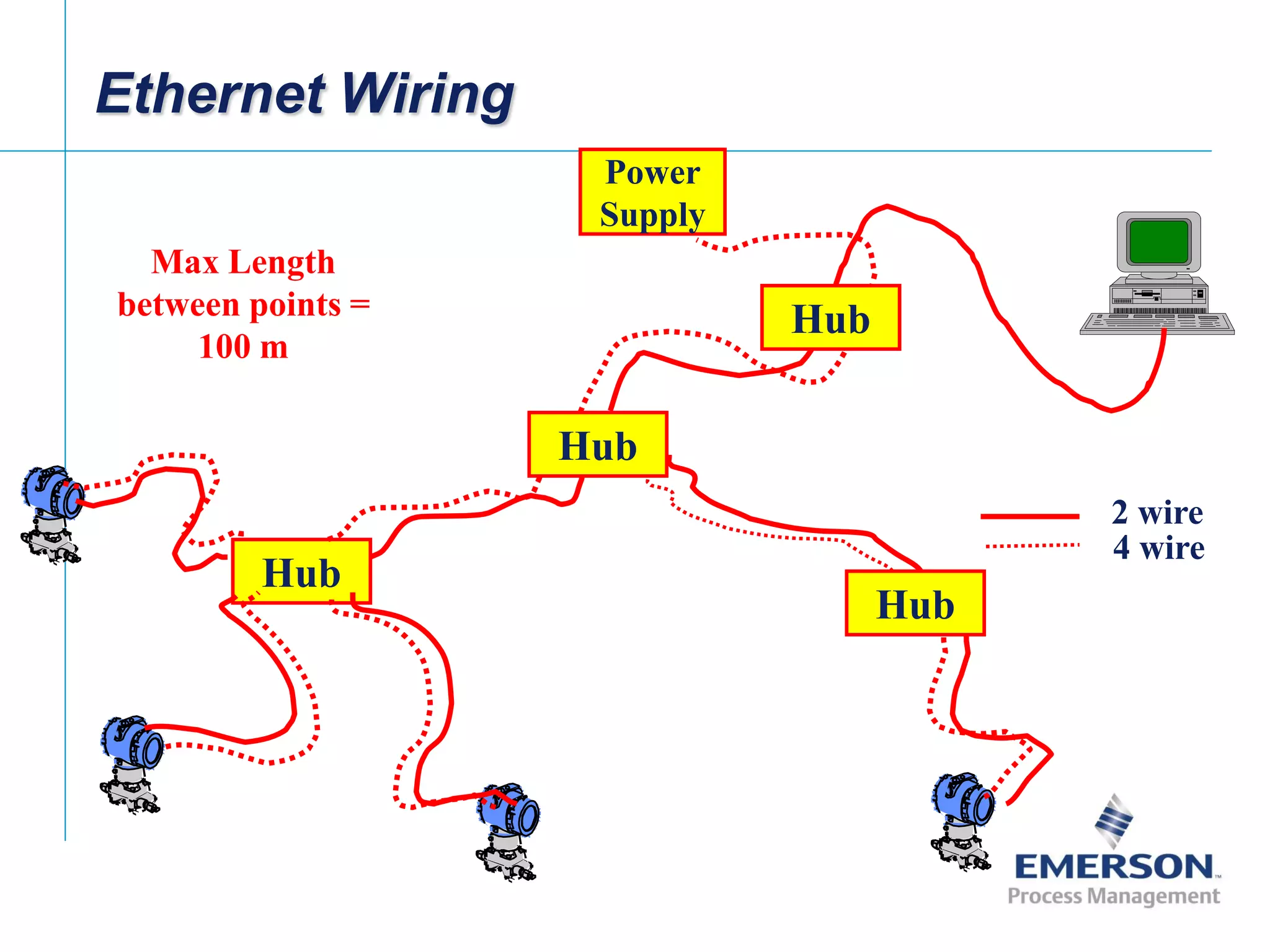

Ethernet Wiring
Hub
Hub
Hub
Max Length
between points =
100 m
Power
Supply
2 wire
4 wire
Hub

27. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 28
Alert
Function
Block
Trend
Object
Function
Block
Alert
Function
Block
Trend
Object
Function
Block
Function Block Application In HSE Devices
H1 Fieldbus DeviceHSE Device
Linking Device
Alert
Function
Block
Trend
Object
Function
Block
HSE
Host Device

28. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 29

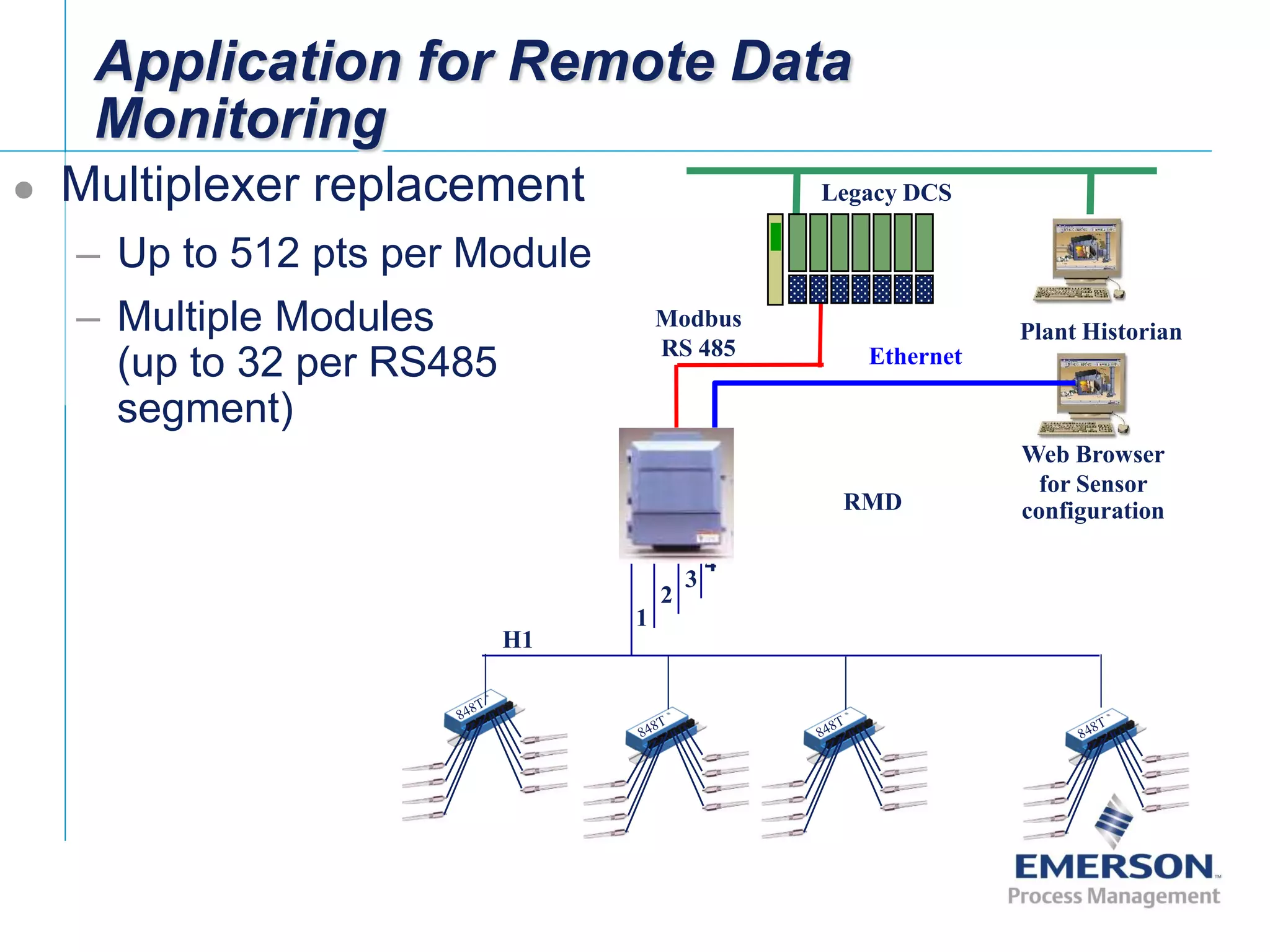

RMD
 Multiplexer replacement
– Up to 512 pts per Module
– Multiple Modules
(up to 32 per RS485
segment)
Application for Remote Data
Monitoring
H1
Legacy DCS
Modbus
RS 485
Plant Historian
1
2
3
4
Web Browser
for Sensor
configuration
Ethernet

29. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 30

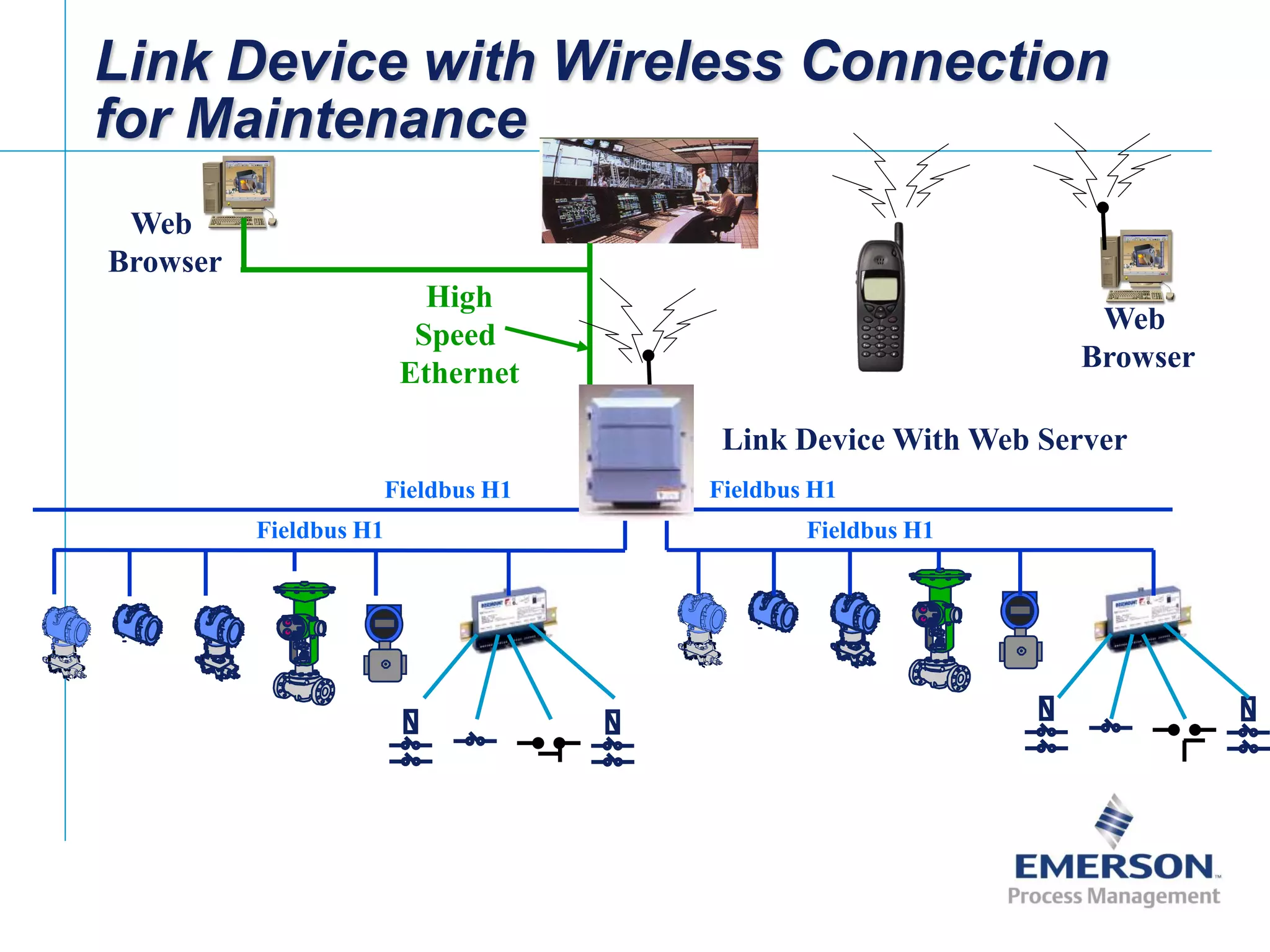

Link Device with Wireless Connection
for Maintenance
Fieldbus H1 Fieldbus H1
Fieldbus H1 Fieldbus H1
Link Device With Web Server
High
Speed
Ethernet
Web
Browser
Web
Browser

30. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 31

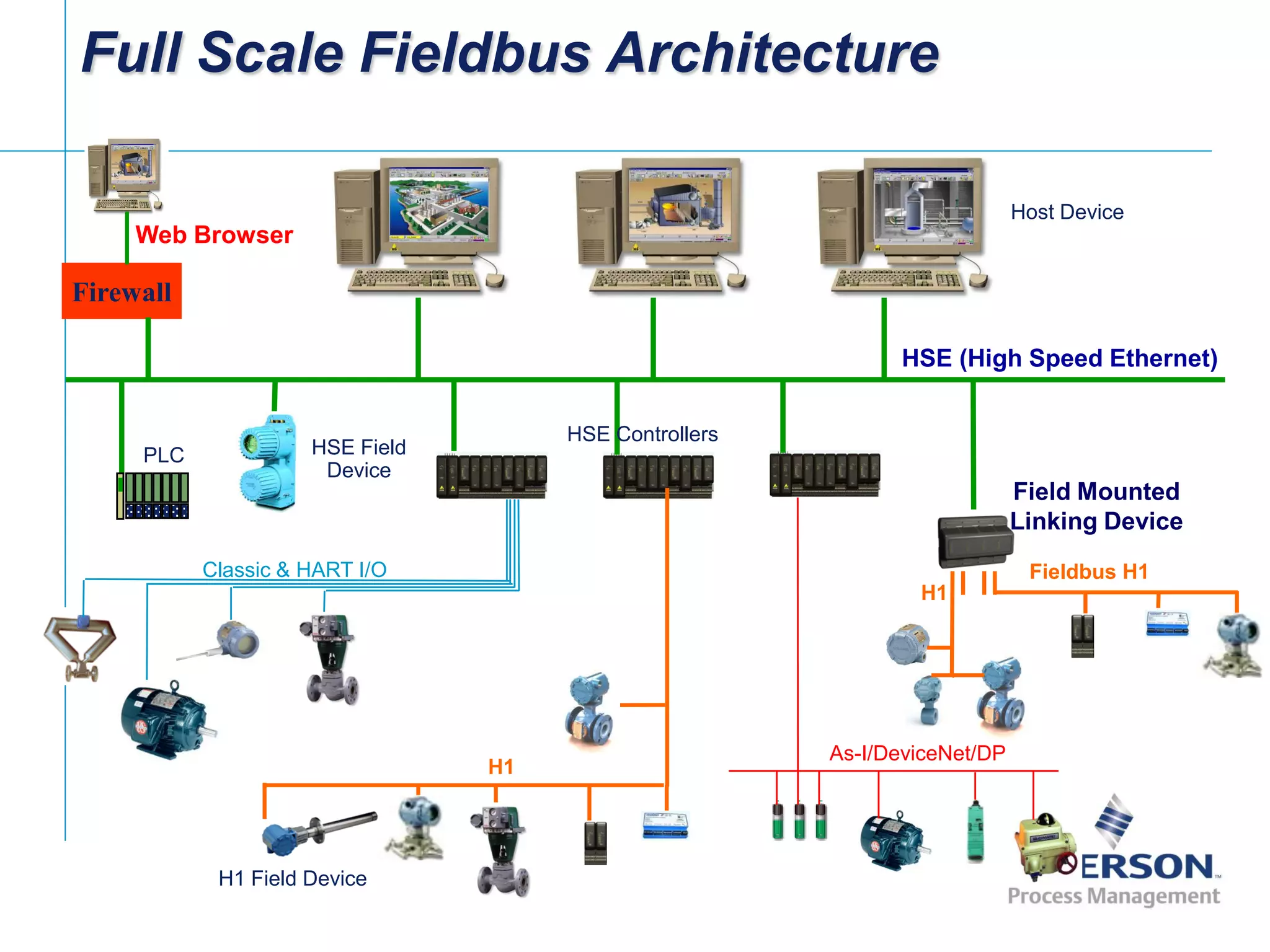

Full Scale Fieldbus Architecture
Classic & HART I/O
H1
As-I/DeviceNet/DP
HSE (High Speed Ethernet)
HSE Field
Device
HSE Controllers
H1 Field Device
Field Mounted
Linking Device
Host Device
PLC
Fieldbus H1
H1
Firewall
Web Browser

31. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 32
61131
Programming
Tool
Device.
ddl
Tokenizer
Symbol.
txt
Device.
ffo
FF Config
Tool

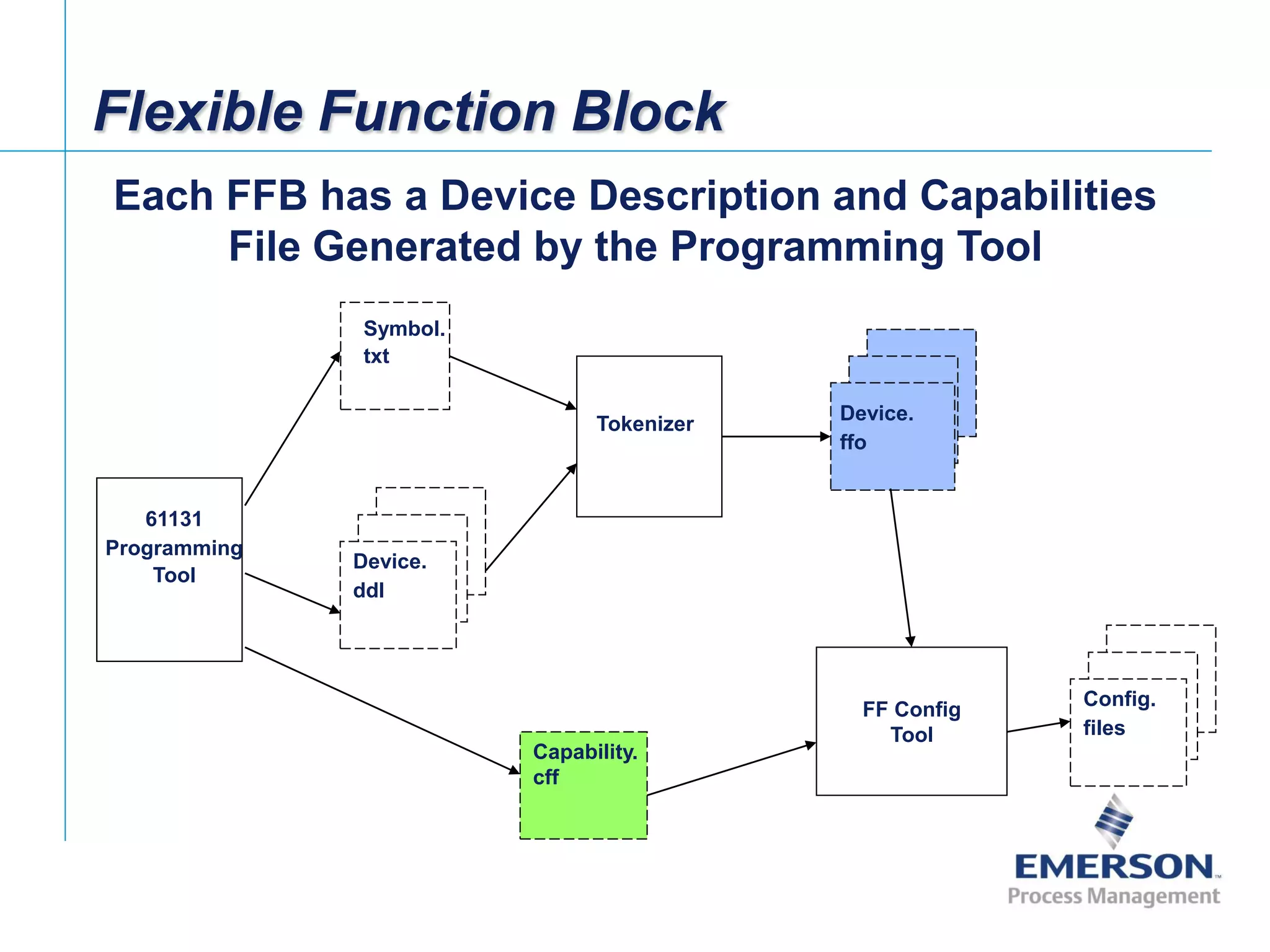

Each FFB has a Device Description and Capabilities
File Generated by the Programming Tool
Flexible Function Block
Capability.
cff
Config.
files

32. [File Name or Event]
Emerson Confidential
27-Jun-01, Slide 33

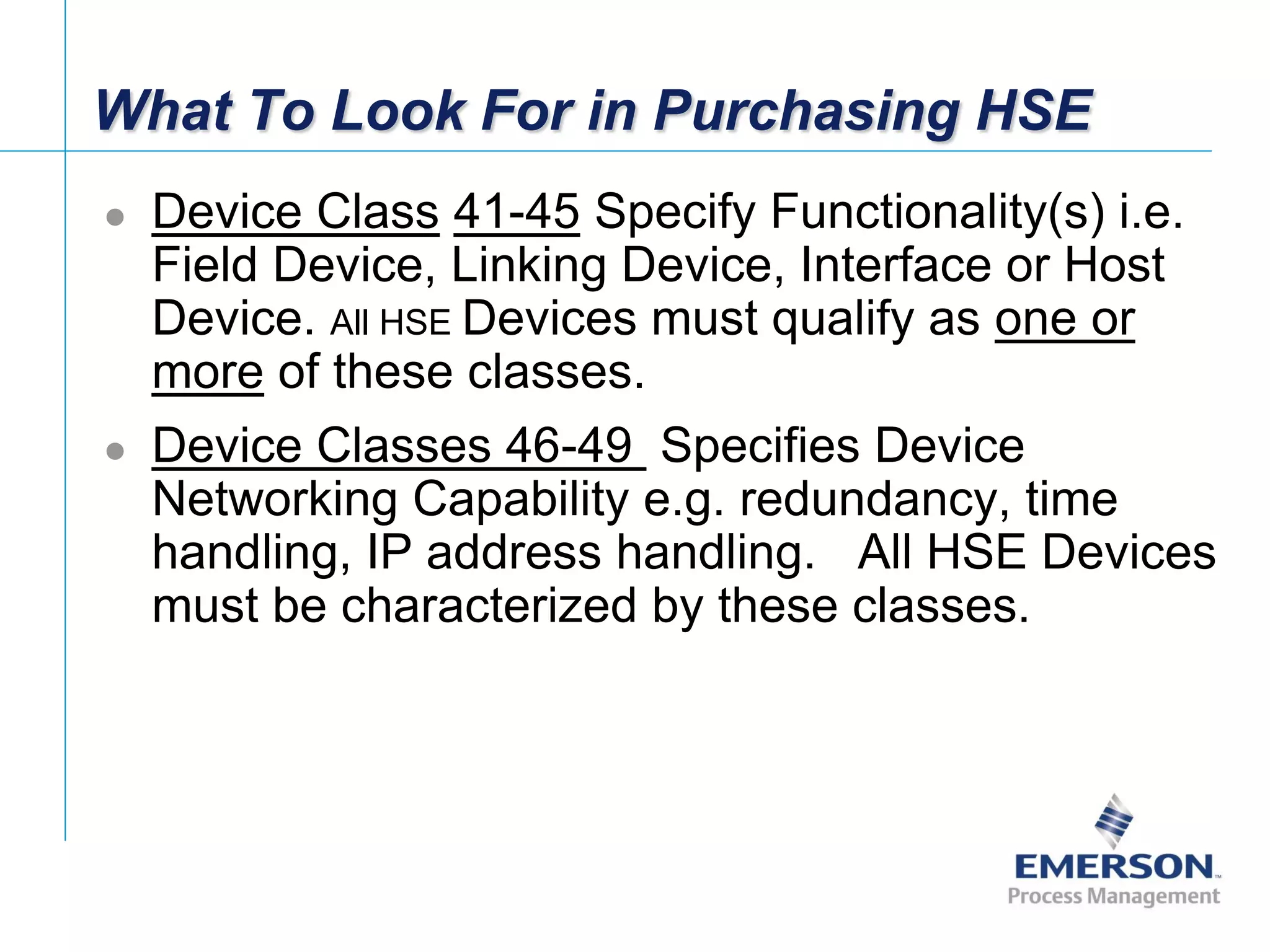

What To Look For in Purchasing HSE
 Device Class 41-45 Specify Functionality(s) i.e.
Field Device, Linking Device, Interface or Host
Device. All HSE Devices must qualify as one or
more of these classes.
 Device Classes 46-49 Specifies Device
Networking Capability e.g. redundancy, time
handling, IP address handling. All HSE Devices
must be characterized by these classes.
