This document discusses oxidation in semiconductor device fabrication. It describes oxidation as the process of converting silicon into silicon dioxide, which can occur through dry oxidation using oxygen or wet oxidation using water/steam at high temperatures from 900-1200°C. The key functions of the resulting silicon dioxide layer include acting as a diffusion mask, providing surface passivation and insulation, and enabling device isolation in integrated circuits. The document also classifies oxidation as either diffusion limited or reaction controlled depending on oxide thickness and oxidation time.

1. Oxidation in
Semiconductor Device
Fabrication
Arpan Deyasi
Dept of ECE, RCCIIT, Kolkata, India
2/3/2021 Arpan Deyasi, RCCIIT 1

2. Oxidation
Oxidation is a process which converts silicon
on the wafer into silicon dioxide (SiO2)
Specifically, it means the substance that gives
away electrons is oxidized
2/3/2021 2
Arpan Deyasi, RCCIIT

3. Types of Oxidation
Dry oxidation – Si reacts with O2 to form SiO2
Si (s) + O2 (g) SiO2 (s)
Wet oxidation – Si reacts with water/steamto form SiO2
Si (s) + 2H2O (g) SiO2 (s) + 2H2 (g)
2/3/2021 3
Arpan Deyasi, RCCIIT

4. Dry and wet oxidation need high temperature (900 –
1200 °C) for growth, though the kinetics are different,
which is why this process is called thermal oxidation
Thermal Oxidation
In both cases. Si is
consumed from the surface
of the substrate
2/3/2021 4
Arpan Deyasi, RCCIIT

5. Characteristic of the dry oxidation:
 slow growth of oxide
 high density
 high breakdown voltage
Characteristics if wet oxidation:
 fast growth even on low temperatures
 less quality than dry oxides
Characteristics of Oxidation
2/3/2021 5
Arpan Deyasi, RCCIIT

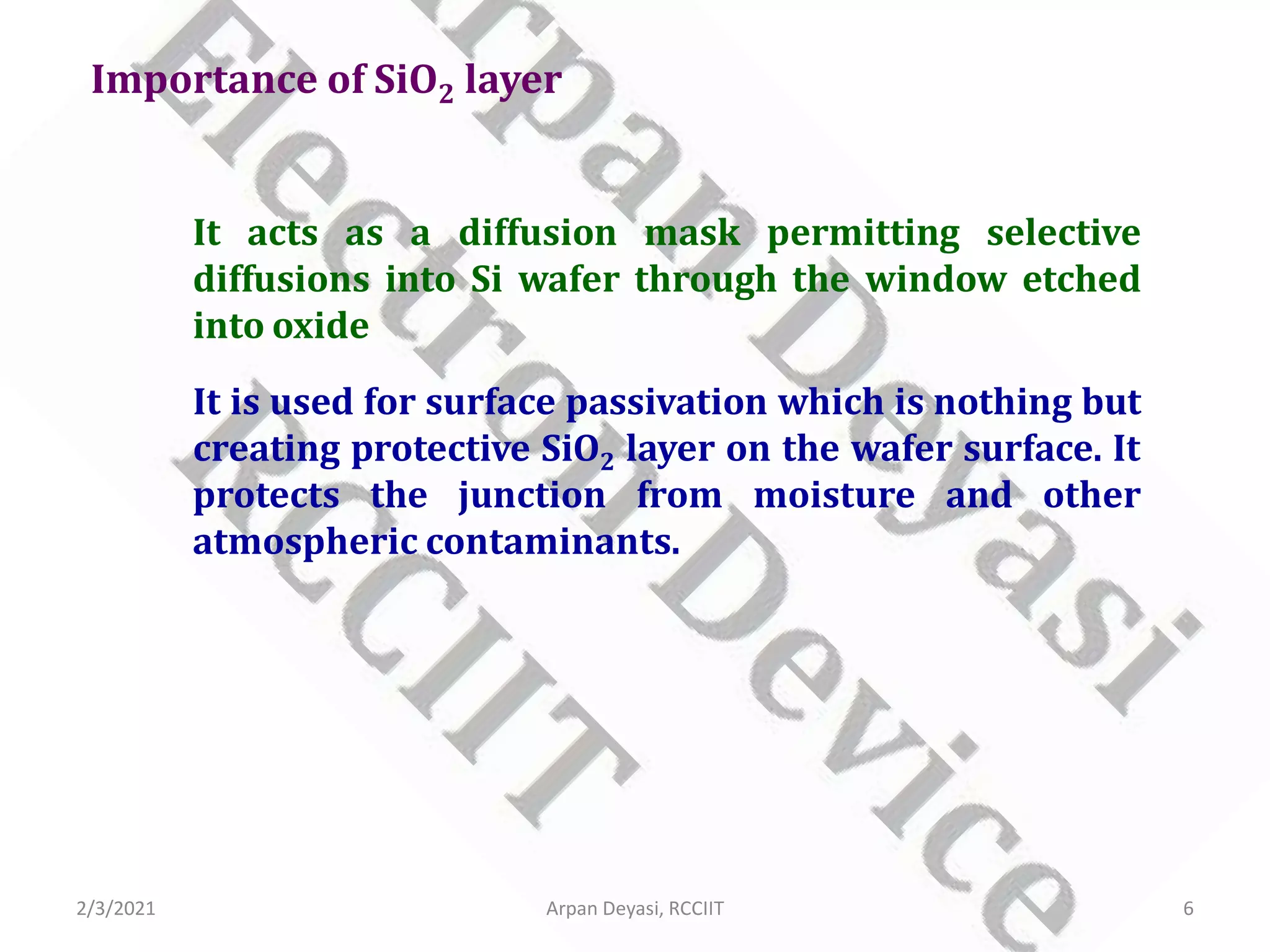

6. Importance of SiO2 layer
It acts as a diffusion mask permitting selective
diffusions into Si wafer through the window etched
into oxide
It is used for surface passivation which is nothing but
creating protective SiO2 layer on the wafer surface. It
protects the junction from moisture and other
atmospheric contaminants.
2/3/2021 6
Arpan Deyasi, RCCIIT

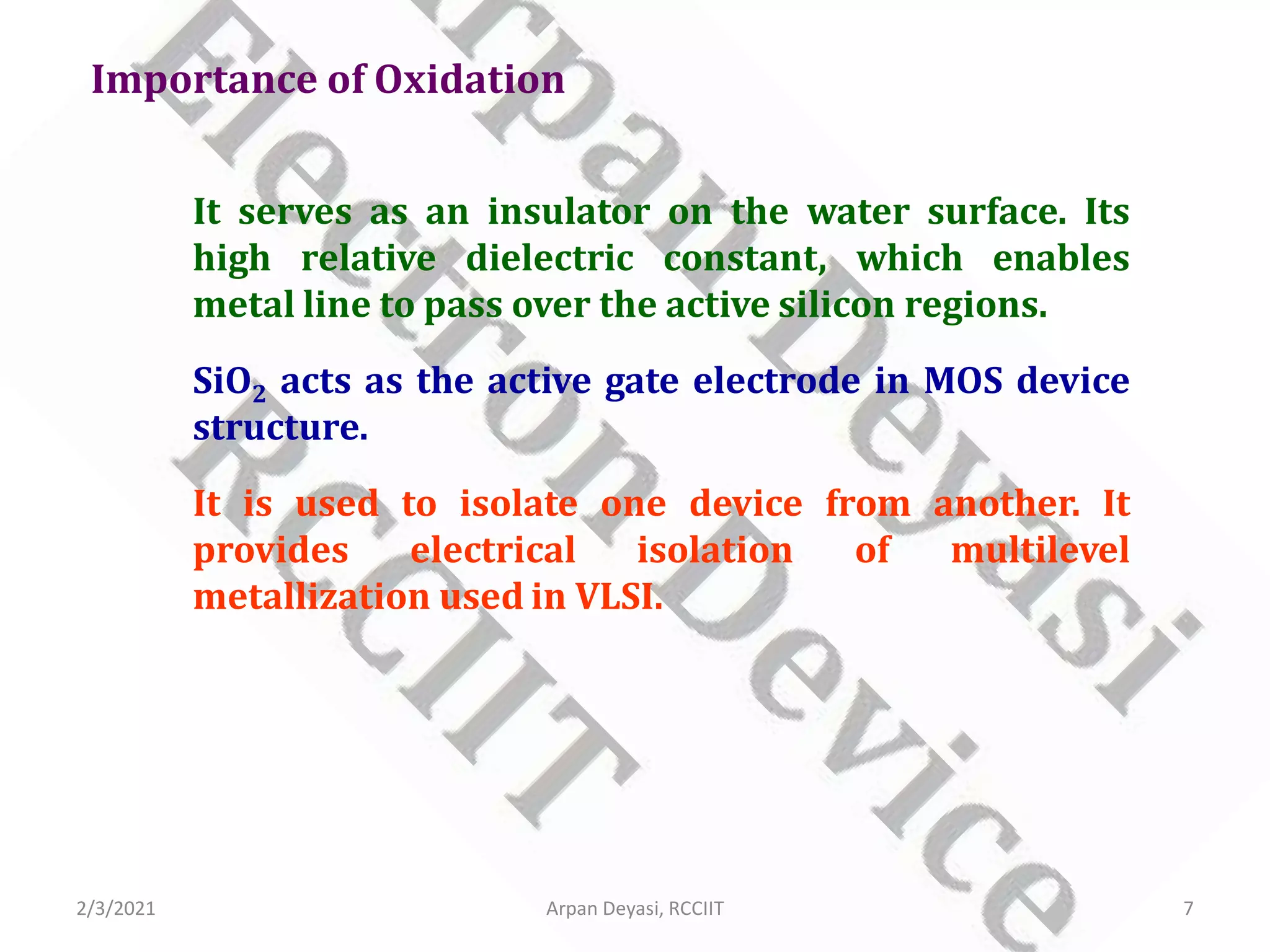

7. It serves as an insulator on the water surface. Its
high relative dielectric constant, which enables
metal line to pass over the active silicon regions.
SiO2 acts as the active gate electrode in MOS device
structure.
It is used to isolate one device from another. It
provides electrical isolation of multilevel
metallization used in VLSI.
Importance of Oxidation
2/3/2021 7
Arpan Deyasi, RCCIIT

8. Classification of Oxidation: time-dependent
I. Diffusion limited case:
supply of the oxidizing species to the Si-SiO2
interface is the rate limiting step
This determines the growth rate of the oxide layer.
The diffusion limiting case occurs when there is a
thick oxide layer, or at long oxidation time
2/3/2021 8
Arpan Deyasi, RCCIIT

9. Classification of Oxidation: time-dependent
If diffusivity is large or if the oxide thickness
is small, growth is controlled by the formation
of the oxide layer
The diffusion limiting case occurs when there
is a thin oxide layer, or at short oxidation time
II. Reaction Controlled case:
2/3/2021 9
Arpan Deyasi, RCCIIT
