IC Fabrication and Technologies Presented by: Dr. Vasudeva Bevara Assistant Professor Department of ECE 10-10-2023 1

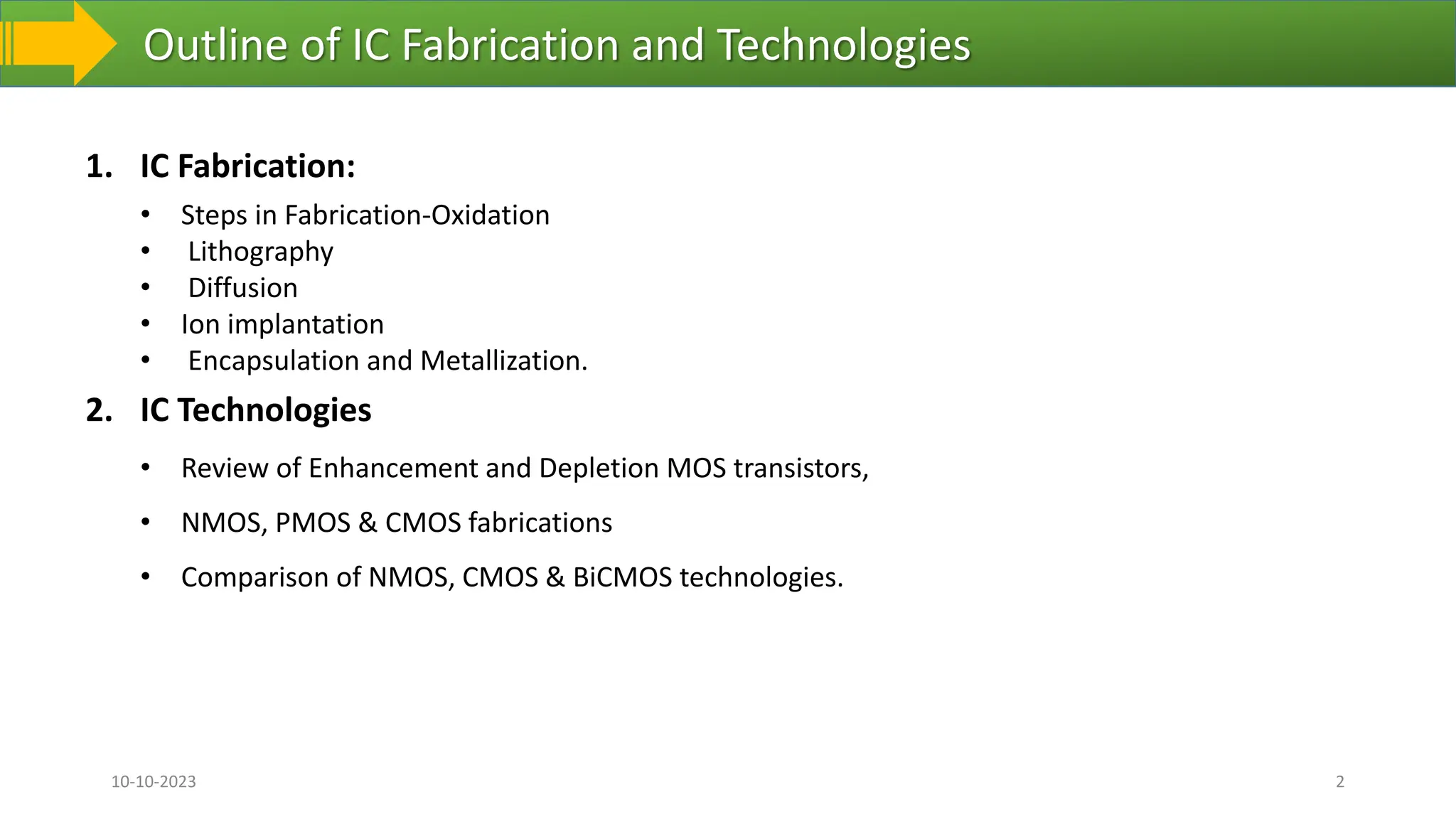

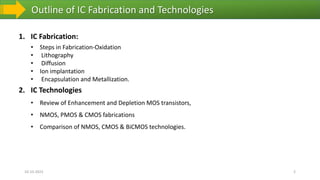

Outline of IC Fabrication and Technologies 1. IC Fabrication: • Steps in Fabrication-Oxidation • Lithography • Diffusion • Ion implantation • Encapsulation and Metallization. 2. IC Technologies • Review of Enhancement and Depletion MOS transistors, • NMOS, PMOS & CMOS fabrications • Comparison of NMOS, CMOS & BiCMOS technologies. 10-10-2023 2

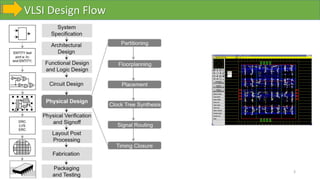

VLSI Design Flow 10-10-2023 3
Transistors inside IC 10-10-2023 4
IC Fabrication Process- Video from Intel 10-10-2023 5
Fabrication Processes The basic fabrication processes of the Integrated Circuits 10-10-2023 6 • Fabrication is the process of constructing an industrial product. We can also define it as a set of methods to manufacture an electronic device or product. • For example, silicon semiconductor chips, etc. In the case of metals, fabrication is a process used to convert the raw materials into the finished product.
Wafer Preparation 10-10-2023 7 • The wafer preparation is the first step for IC fabrication. It involves cutting, shaping, and polishing the wafer material to make it suitable for further fabrication. Some wafers are modified because of their sharp edges, irregular surface, and shape to convert them to the required wafer. • A wafer is a thin material used for making various Integrated circuits and transistors. Wafer acts as a base for such devices. The material of a wafer is the semiconductor, especially crystalline silicon. The silicon crystals used for the wafer manufacturing are highly pure. The process of extracting pure metal from the melt is known as a boule. The impurities are further added to the molten state of the material in a specific amount to make it n-type or p- type.

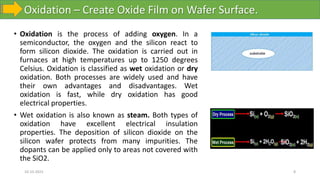

Oxidation – Create Oxide Film on Wafer Surface. 10-10-2023 8 • Oxidation is the process of adding oxygen. In a semiconductor, the oxygen and the silicon react to form silicon dioxide. The oxidation is carried out in furnaces at high temperatures up to 1250 degrees Celsius. Oxidation is classified as wet oxidation or dry oxidation. Both processes are widely used and have their own advantages and disadvantages. Wet oxidation is fast, while dry oxidation has good electrical properties. • Wet oxidation is also known as steam. Both types of oxidation have excellent electrical insulation properties. The deposition of silicon dioxide on the silicon wafer protects from many impurities. The dopants can be applied only to areas not covered with the SiO2.

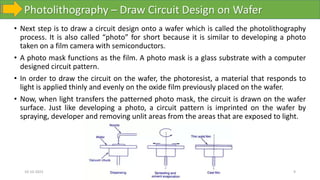

Photolithography – Draw Circuit Design on Wafer 10-10-2023 9 • Next step is to draw a circuit design onto a wafer which is called the photolithography process. It is also called “photo” for short because it is similar to developing a photo taken on a film camera with semiconductors. • A photo mask functions as the film. A photo mask is a glass substrate with a computer designed circuit pattern. • In order to draw the circuit on the wafer, the photoresist, a material that responds to light is applied thinly and evenly on the oxide film previously placed on the wafer. • Now, when light transfers the patterned photo mask, the circuit is drawn on the wafer surface. Just like developing a photo, a circuit pattern is imprinted on the wafer by spraying, developer and removing unlit areas from the areas that are exposed to light.
Diffusion 10-10-2023 10 • Diffusion is a process of adding impurities atoms from a region with high concentration to a region of low concentration. The dopants or impurity atoms are added to the silicon (semiconductor material), which changes its resistivity. The process of diffusion is highly dependent on the temperature. The high doping concentration improves the conductivity of a metal. • The dopants can be of any state, solid, liquid, or gas. The preferred dopants are pentavalent impurities or n-type, such as antimony, phosphorous pentoxide, and arsine (gas). The trivalent impurities or p-type are gallium, indium, boron, etc. • The diffusion cannot be used at the later stages. It is because the number of layers formed at the successive stages of the fabrication process might not be able to resist such high temperatures. For example, • The boron or indium (trivalent impurities) diffusion on the n-type substrate forms a p-n junction. • Diffusion is also a part of the process used to fill the lattice gap in the solids.
Etching – Remove Unnecessary Materials 10-10-2023 11 • Now it is time to remove unnecessary materials from the wafer surface so that only the design pattern remains. • This is done using a liquid or gas etching technique. All unnecessary materials are selectively removed to draw the desired design. • Wet Etching: When chemical solutions are used for etching, it is called wet etching. • Dry Etching: When gas or plasma is used, it is called dry etching.

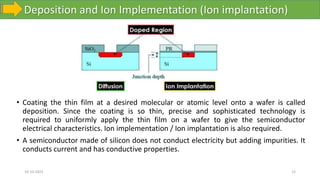

Deposition and Ion Implementation (Ion implantation) 10-10-2023 12 • Coating the thin film at a desired molecular or atomic level onto a wafer is called deposition. Since the coating is so thin, precise and sophisticated technology is required to uniformly apply the thin film on a wafer to give the semiconductor electrical characteristics. Ion implementation / Ion implantation is also required. • A semiconductor made of silicon does not conduct electricity but adding impurities. It conducts current and has conductive properties.
Encapsulation 10-10-2023 13 • The “encapsulation process”, which encapsulates packages, is a step where a semiconductor chip is wrapped with a certain material to protect it from the external environment. • It is also a step that reveals the characteristics of “light, thin, short, and small”, which packages aim for.

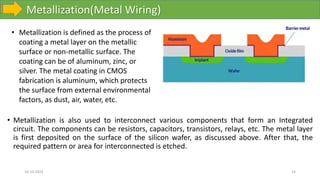

Metallization(Metal Wiring) 10-10-2023 14 • Metallization is also used to interconnect various components that form an Integrated circuit. The components can be resistors, capacitors, transistors, relays, etc. The metal layer is first deposited on the surface of the silicon wafer, as discussed above. After that, the required pattern or area for interconnected is etched. • Metallization is defined as the process of coating a metal layer on the metallic surface or non-metallic surface. The coating can be of aluminum, zinc, or silver. The metal coating in CMOS fabrication is aluminum, which protects the surface from external environmental factors, as dust, air, water, etc.

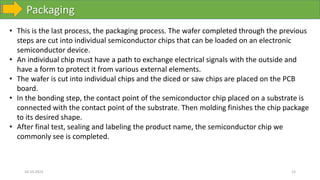

Packaging 10-10-2023 15 • This is the last process, the packaging process. The wafer completed through the previous steps are cut into individual semiconductor chips that can be loaded on an electronic semiconductor device. • An individual chip must have a path to exchange electrical signals with the outside and have a form to protect it from various external elements. • The wafer is cut into individual chips and the diced or saw chips are placed on the PCB board. • In the bonding step, the contact point of the semiconductor chip placed on a substrate is connected with the contact point of the substrate. Then molding finishes the chip package to its desired shape. • After final test, sealing and labeling the product name, the semiconductor chip we commonly see is completed.

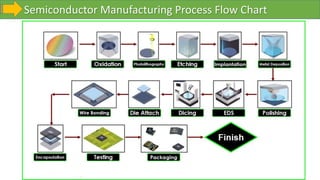

Semiconductor Manufacturing Process Flow Chart 10-10-2023 16

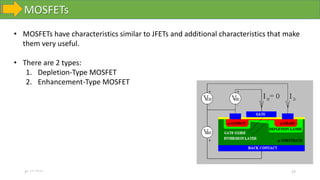

MOSFETs 10-10-2023 17 • MOSFETs have characteristics similar to JFETs and additional characteristics that make them very useful. • There are 2 types: 1. Depletion-Type MOSFET 2. Enhancement-Type MOSFET

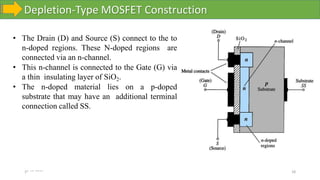

Depletion-Type MOSFET Construction 10-10-2023 18 • The Drain (D) and Source (S) connect to the to n-doped regions. These N-doped regions are connected via an n-channel. • This n-channel is connected to the Gate (G) via a thin insulating layer of SiO2. • The n-doped material lies on a p-doped substrate that may have an additional terminal connection called SS.

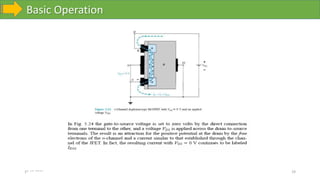

Basic Operation 10-10-2023 19

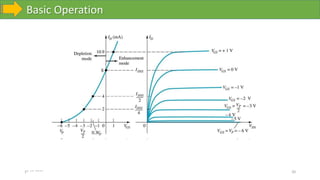

Basic Operation 10-10-2023 20

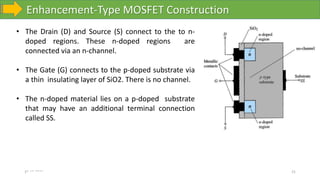

Enhancement-Type MOSFET Construction 10-10-2023 21 • The Drain (D) and Source (S) connect to the to n- doped regions. These n-doped regions are connected via an n-channel. • The Gate (G) connects to the p-doped substrate via a thin insulating layer of SiO2. There is no channel. • The n-doped material lies on a p-doped substrate that may have an additional terminal connection called SS.

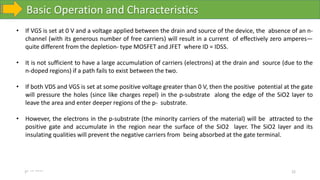

Basic Operation and Characteristics 10-10-2023 22 • If VGS is set at 0 V and a voltage applied between the drain and source of the device, the absence of an n- channel (with its generous number of free carriers) will result in a current of effectively zero amperes— quite different from the depletion- type MOSFET and JFET where ID = IDSS. • It is not sufficient to have a large accumulation of carriers (electrons) at the drain and source (due to the n-doped regions) if a path fails to exist between the two. • If both VDS and VGS is set at some positive voltage greater than 0 V, then the positive potential at the gate will pressure the holes (since like charges repel) in the p-substrate along the edge of the SiO2 layer to leave the area and enter deeper regions of the p- substrate. • However, the electrons in the p-substrate (the minority carriers of the material) will be attracted to the positive gate and accumulate in the region near the surface of the SiO2 layer. The SiO2 layer and its insulating qualities will prevent the negative carriers from being absorbed at the gate terminal.

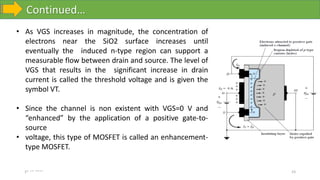

Continued… 10-10-2023 23 • As VGS increases in magnitude, the concentration of electrons near the SiO2 surface increases until eventually the induced n-type region can support a measurable flow between drain and source. The level of VGS that results in the significant increase in drain current is called the threshold voltage and is given the symbol VT. • Since the channel is non existent with VGS=0 V and “enhanced” by the application of a positive gate-to- source • voltage, this type of MOSFET is called an enhancement- type MOSFET.

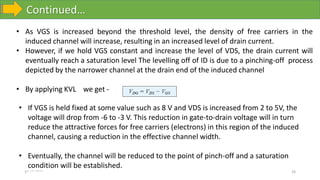

Continued… 10-10-2023 24 • As VGS is increased beyond the threshold level, the density of free carriers in the induced channel will increase, resulting in an increased level of drain current. • However, if we hold VGS constant and increase the level of VDS, the drain current will eventually reach a saturation level The levelling off of ID is due to a pinching-off process depicted by the narrower channel at the drain end of the induced channel • By applying KVL we get - • If VGS is held fixed at some value such as 8 V and VDS is increased from 2 to 5V, the voltage will drop from -6 to -3 V. This reduction in gate-to-drain voltage will in turn reduce the attractive forces for free carriers (electrons) in this region of the induced channel, causing a reduction in the effective channel width. • Eventually, the channel will be reduced to the point of pinch-off and a saturation condition will be established.

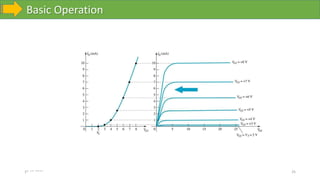

Basic Operation 10-10-2023 25
MOSFET symbols 10-10-2023 26

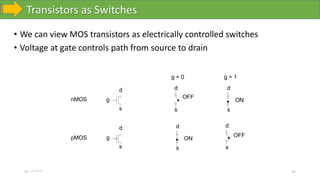

Transistors as Switches 10-10-2023 27 • We can view MOS transistors as electrically controlled switches • Voltage at gate controls path from source to drain g s d g = 0 s d g = 1 s d g s d s d s d nMOS pMOS OFF ON ON OFF

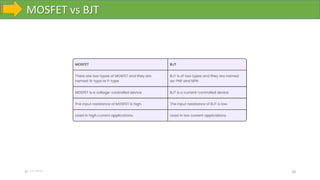

MOSFET vs BJT 10-10-2023 28

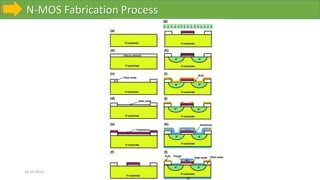

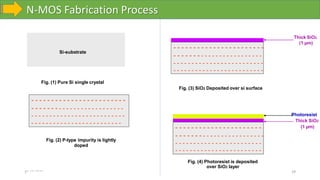

N-MOS Fabrication Process 10-10-2023 29 Fig. (1) Pure Si single crystal Si-substrate Fig. (2) P-type impurity is lightly doped - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Fig. (3) SiO2 Deposited over si surface Fig. (4) Photoresist is deposited over SiO2 layer Photoresist Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
N-MOS Fabrication Process 10-10-2023 Mask-1 is used to expose the SiO2 where S, D and G is to be formed. Fig. (5) Photoresist layer is exposed to UV Light through a mask - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Mask-1 Photoresist Thick SiO2 (1 µm) UV Light

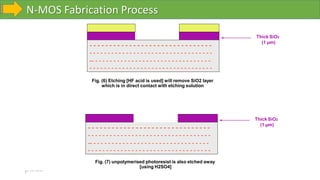

N-MOS Fabrication Process 10-10-2023 Fig. (6) Etching [HF acid is used] will remove SiO2 layer which is in direct contact with etching solution Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Fig. (7) unpolymerised photoresist is also etched away [using H2SO4] - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm)

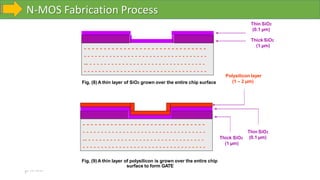

N-MOS Fabrication Process 10-10-2023 Fig. (8) A thin layer of SiO2 grown over the entire chip surface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thin SiO2 (0.1 µm) Thick SiO2 (1 µm) Fig. (9) A thin layer of polysilicon is grown over the entire chip surface to form GATE Thick SiO2 (1 µm) Thin SiO2 (0.1 µm) Polysilicon layer (1 – 2 µm) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
N-MOS Fabrication Process 10-10-2023 Fig. (10) A layer of photoresist is grown over polysilicon layer Thick SiO2 (1 µm) Thin SiO2 (0.1 µm) Polysilicon layer Photoresist - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

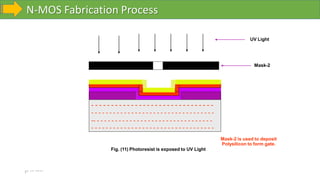

N-MOS Fabrication Process 10-10-2023 Mask-2 is used to deposit Polysilicon to form gate. Fig. (11) Photoresist is exposed to UV Light UV Light Mask-2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
N-MOS Fabrication Process 10-10-2023 Fig. (12) Etching will remove that portion of Thin SiO2 which is not exposed to UV light Thick SiO2 (1 µm) Thin SiO2 (0.1 µm) Polysilicon - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

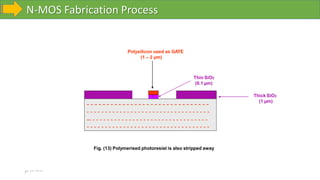

N-MOS Fabrication Process 10-10-2023 Fig. (13) Polymerised photoresist is also stripped away Thick SiO2 (1 µm) Thin SiO2 (0.1 µm) Polysilicon used as GATE (1 – 2 µm) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

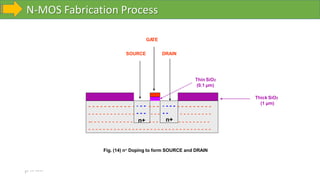

N-MOS Fabrication Process 10-10-2023 Fig. (14) n+ Doping to form SOURCE and DRAIN - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) Thin SiO2 (0.1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - GA TE - - - - - - n+ SOURCE DRAIN

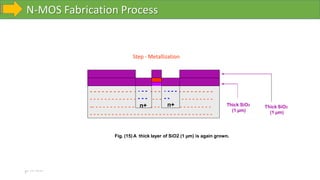

N-MOS Fabrication Process 10-10-2023 Fig. (15) A thick layer of SiO2 (1 µm) is again grown. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Step - Metallization

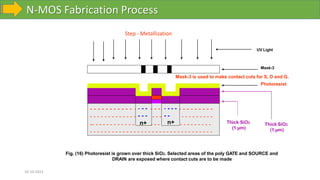

N-MOS Fabrication Process 10-10-2023 Fig. (16) Photoresist is grown over thick SiO2. Selected areas of the poly GATE and SOURCE and DRAIN are exposed where contact cuts are to be made - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Mask-3 Mask-3 is used to make contact cuts for S, D and G. Photoresist UV Light Step - Metallization

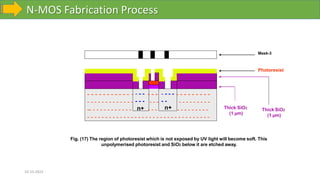

N-MOS Fabrication Process 10-10-2023 Fig. (17) The region of photoresist which is not exposed by UV light will become soft. This unpolymerised photoresist and SiO2 below it are etched away. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Mask-3 Photoresist

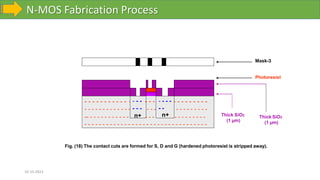

N-MOS Fabrication Process 10-10-2023 Fig. (18) The contact cuts are formed for S, D and G (hardened photoresist is stripped away). - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Mask-3 Photoresist

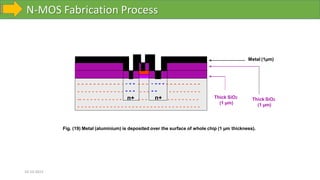

N-MOS Fabrication Process 10-10-2023 Fig. (19) Metal (aluminium) is deposited over the surface of whole chip (1 µm thickness). - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) -- - - - - - - - - - - - n+ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - n+ Thick SiO2 (1 µm) Metal (1µm)

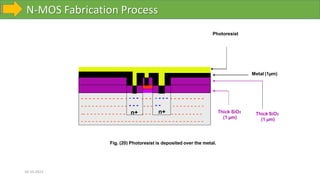

N-MOS Fabrication Process 10-10-2023 Fig. (20) Photoresist is deposited over the metal. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Metal (1µm) Photoresist
N-MOS Fabrication Process 10-10-2023 Mask-4 is used to deposit metal in contact cuts of S, D and G. Fig. (21) UV Light is passed through Mask-4 (with a aim of removing all metal other than metal in contact-cuts). - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Mask-4 Photoresist Metal (1µm) UV Light

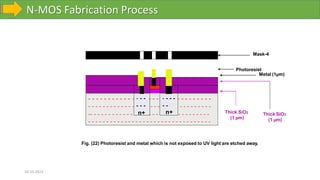

N-MOS Fabrication Process 10-10-2023 Fig. (22) Photoresist and metal which is not exposed to UV light are etched away. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Thick SiO2 (1 µm) - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ Thick SiO2 (1 µm) Mask-4 Photoresist Metal (1µm)

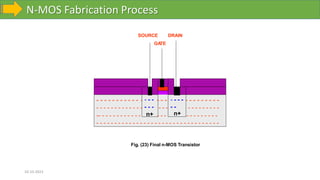

N-MOS Fabrication Process 10-10-2023 Fig. (23) Final n-MOS Transistor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - n+ - - - - - - - - - n+ SOURCE DRAIN GA TE
N-MOS Fabrication Process 10-10-2023
P-MOS Fabrication Process 10-10-2023

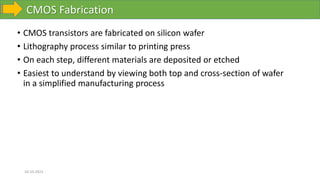

CMOS Fabrication 10-10-2023 • CMOS transistors are fabricated on silicon wafer • Lithography process similar to printing press • On each step, different materials are deposited or etched • Easiest to understand by viewing both top and cross-section of wafer in a simplified manufacturing process

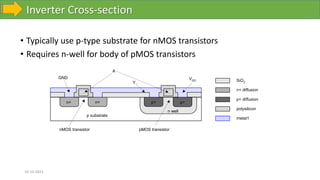

Inverter Cross-section 10-10-2023 • Typically use p-type substrate for nMOS transistors • Requires n-well for body of pMOS transistors n+ p substrate p+ n well A Y GND VDD n+ p+ SiO2 n+ diffusion p+ diffusion polysilicon metal1 nMOS transistor pMOS transistor

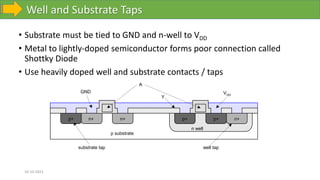

Well and Substrate Taps 10-10-2023 • Substrate must be tied to GND and n-well to VDD • Metal to lightly-doped semiconductor forms poor connection called Shottky Diode • Use heavily doped well and substrate contacts / taps n+ p substrate p+ n well A Y GND VDD n+ p+ substrate tap well tap n+ p+

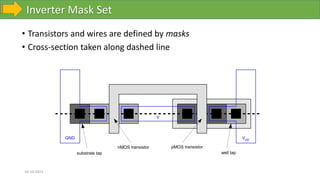

Inverter Mask Set 10-10-2023 • Transistors and wires are defined by masks • Cross-section taken along dashed line GND VDD Y A substrate tap well tap nMOS transistor pMOS transistor

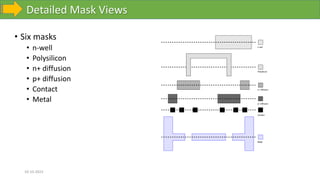

Detailed Mask Views 10-10-2023 • Six masks • n-well • Polysilicon • n+ diffusion • p+ diffusion • Contact • Metal Metal Polysilicon Contact n+ Diffusion p+ Diffusion n well

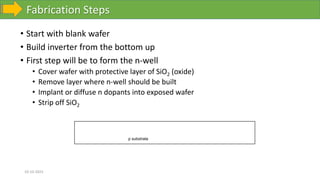

Fabrication Steps 10-10-2023 • Start with blank wafer • Build inverter from the bottom up • First step will be to form the n-well • Cover wafer with protective layer of SiO2 (oxide) • Remove layer where n-well should be built • Implant or diffuse n dopants into exposed wafer • Strip off SiO2 p substrate
Oxidation 10-10-2023 • Grow SiO2 on top of Si wafer • 900 – 1200 C with H2O or O2 in oxidation furnace p substrate SiO2

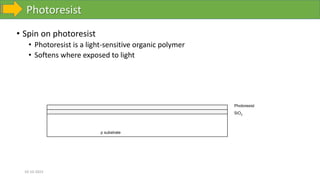

Photoresist 10-10-2023 • Spin on photoresist • Photoresist is a light-sensitive organic polymer • Softens where exposed to light p substrate SiO2 Photoresist
Lithography 10-10-2023 • Expose photoresist through n-well mask • Strip off exposed photoresist p substrate SiO2 Photoresist

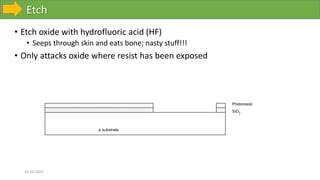

Etch 10-10-2023 • Etch oxide with hydrofluoric acid (HF) • Seeps through skin and eats bone; nasty stuff!!! • Only attacks oxide where resist has been exposed p substrate SiO2 Photoresist

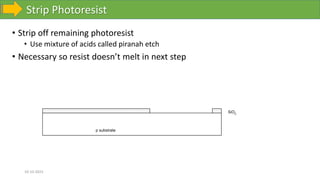

Strip Photoresist 10-10-2023 • Strip off remaining photoresist • Use mixture of acids called piranah etch • Necessary so resist doesn’t melt in next step p substrate SiO2

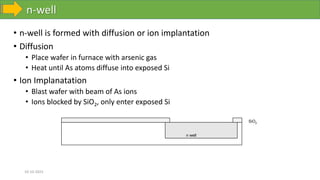

n-well 10-10-2023 • n-well is formed with diffusion or ion implantation • Diffusion • Place wafer in furnace with arsenic gas • Heat until As atoms diffuse into exposed Si • Ion Implanatation • Blast wafer with beam of As ions • Ions blocked by SiO2, only enter exposed Si n well SiO2

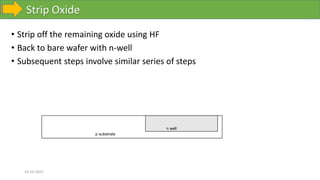

Strip Oxide 10-10-2023 • Strip off the remaining oxide using HF • Back to bare wafer with n-well • Subsequent steps involve similar series of steps p substrate n well
Polysilicon 10-10-2023 • Deposit very thin layer of gate oxide • < 20 Å (6-7 atomic layers) • Chemical Vapor Deposition (CVD) of silicon layer • Place wafer in furnace with Silane gas (SiH4) • Forms many small crystals called polysilicon • Heavily doped to be good conductor Thin gate oxide Polysilicon p substrate n well

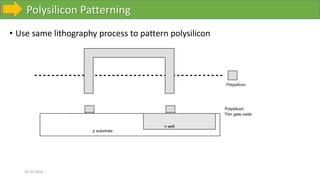

Polysilicon Patterning 10-10-2023 • Use same lithography process to pattern polysilicon Polysilicon p substrate Thin gate oxide Polysilicon n well

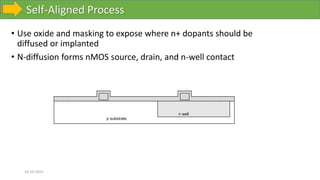

Self-Aligned Process 10-10-2023 • Use oxide and masking to expose where n+ dopants should be diffused or implanted • N-diffusion forms nMOS source, drain, and n-well contact p substrate n well

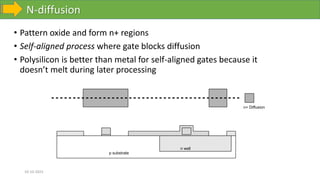

N-diffusion 10-10-2023 • Pattern oxide and form n+ regions • Self-aligned process where gate blocks diffusion • Polysilicon is better than metal for self-aligned gates because it doesn’t melt during later processing p substrate n well n+ Diffusion

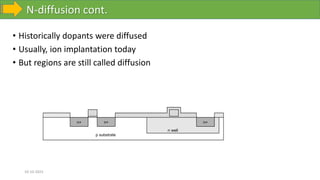

N-diffusion cont. 10-10-2023 • Historically dopants were diffused • Usually, ion implantation today • But regions are still called diffusion n well p substrate n+ n+ n+

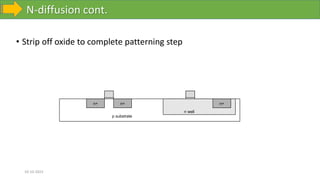

N-diffusion cont. 10-10-2023 • Strip off oxide to complete patterning step n well p substrate n+ n+ n+

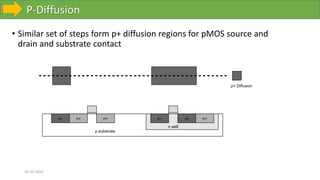

P-Diffusion 10-10-2023 • Similar set of steps form p+ diffusion regions for pMOS source and drain and substrate contact p+ Diffusion p substrate n well n+ n+ n+ p+ p+ p+

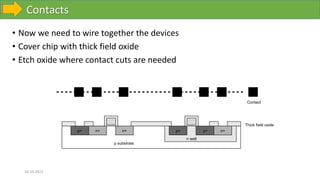

Contacts 10-10-2023 • Now we need to wire together the devices • Cover chip with thick field oxide • Etch oxide where contact cuts are needed p substrate Thick field oxide n well n+ n+ n+ p+ p+ p+ Contact

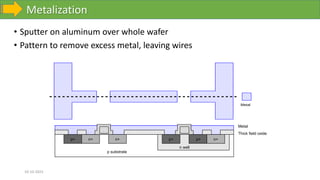

Metalization 10-10-2023 • Sputter on aluminum over whole wafer • Pattern to remove excess metal, leaving wires p substrate Metal Thick field oxide n well n+ n+ n+ p+ p+ p+ Metal

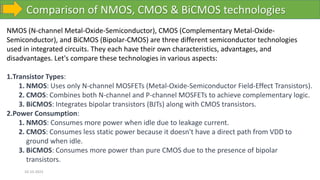

Comparison of NMOS, CMOS & BiCMOS technologies 10-10-2023 NMOS (N-channel Metal-Oxide-Semiconductor), CMOS (Complementary Metal-Oxide- Semiconductor), and BiCMOS (Bipolar-CMOS) are three different semiconductor technologies used in integrated circuits. They each have their own characteristics, advantages, and disadvantages. Let's compare these technologies in various aspects: 1.Transistor Types: 1. NMOS: Uses only N-channel MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). 2. CMOS: Combines both N-channel and P-channel MOSFETs to achieve complementary logic. 3. BiCMOS: Integrates bipolar transistors (BJTs) along with CMOS transistors. 2.Power Consumption: 1. NMOS: Consumes more power when idle due to leakage current. 2. CMOS: Consumes less static power because it doesn't have a direct path from VDD to ground when idle. 3. BiCMOS: Consumes more power than pure CMOS due to the presence of bipolar transistors.

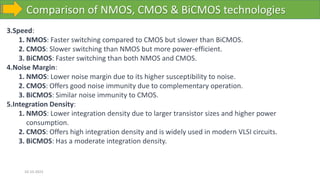

Comparison of NMOS, CMOS & BiCMOS technologies 10-10-2023 3.Speed: 1. NMOS: Faster switching compared to CMOS but slower than BiCMOS. 2. CMOS: Slower switching than NMOS but more power-efficient. 3. BiCMOS: Faster switching than both NMOS and CMOS. 4.Noise Margin: 1. NMOS: Lower noise margin due to its higher susceptibility to noise. 2. CMOS: Offers good noise immunity due to complementary operation. 3. BiCMOS: Similar noise immunity to CMOS. 5.Integration Density: 1. NMOS: Lower integration density due to larger transistor sizes and higher power consumption. 2. CMOS: Offers high integration density and is widely used in modern VLSI circuits. 3. BiCMOS: Has a moderate integration density.

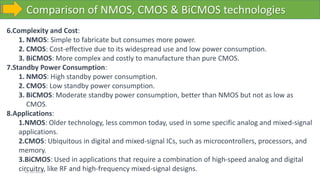

Comparison of NMOS, CMOS & BiCMOS technologies 10-10-2023 6.Complexity and Cost: 1. NMOS: Simple to fabricate but consumes more power. 2. CMOS: Cost-effective due to its widespread use and low power consumption. 3. BiCMOS: More complex and costly to manufacture than pure CMOS. 7.Standby Power Consumption: 1. NMOS: High standby power consumption. 2. CMOS: Low standby power consumption. 3. BiCMOS: Moderate standby power consumption, better than NMOS but not as low as CMOS. 8.Applications: 1.NMOS: Older technology, less common today, used in some specific analog and mixed-signal applications. 2.CMOS: Ubiquitous in digital and mixed-signal ICs, such as microcontrollers, processors, and memory. 3.BiCMOS: Used in applications that require a combination of high-speed analog and digital circuitry, like RF and high-frequency mixed-signal designs.
10/10/2023 74
