Oscillating magnetic field for food processing
Department of agriculture and food engineering
IIT Kharagpur
Praveen Kumar
Introduction
• The utilization of oscillating magnetic field to inactivate
microorganisms.
• OMF has the potential to improve the quality and shelf life
compared to other conventional process.
• OMF effects the microorganisms, cell membranes, malignant
cells and the potential application of magnetic field for food
preservation.
• OMF of intensity of 5 to 50 telsa (T) and frequency of 5 to 500
kHz was applied and reduced the number of microorganisms
by at least 2-log cycles.
• Magnetic fields increase DNA synthesis .

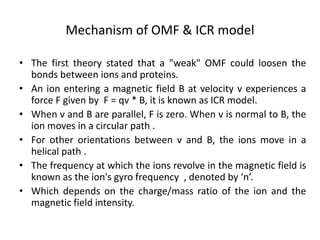

Mechanism of OMF & ICR model
• The first theory stated that a "weak" OMF could loosen the
bonds between ions and proteins.
• An ion entering a magnetic field B at velocity v experiences a
force F given by F = qv * B, it is known as ICR model.
• When v and B are parallel, F is zero. When v is normal to B, the
ion moves in a circular path .
• For other orientations between v and B, the ions move in a
helical path .
• The frequency at which the ions revolve in the magnetic field is
known as the ion's gyro frequency , denoted by ‘n’.
• Which depends on the charge/mass ratio of the ion and the
magnetic field intensity.

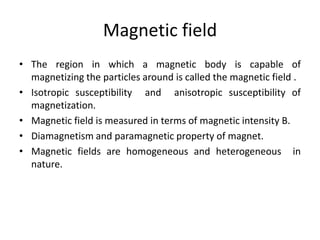

Magnetic field
• The region in which a magnetic body is capable of
magnetizing the particles around is called the magnetic field .
• Isotropic susceptibility and anisotropic susceptibility of
magnetization.
• Magnetic field is measured in terms of magnetic intensity B.
• Diamagnetism and paramagnetic property of magnet.
• Magnetic fields are homogeneous and heterogeneous in
nature.

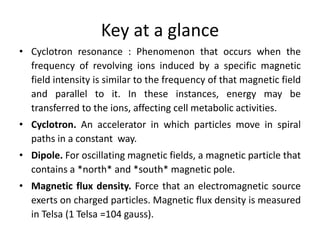

Key at a glance
• Cyclotron resonance : Phenomenon that occurs when the
frequency of revolving ions induced by a specific magnetic
field intensity is similar to the frequency of that magnetic field
and parallel to it. In these instances, energy may be
transferred to the ions, affecting cell metabolic activities.
• Cyclotron. An accelerator in which particles move in spiral
paths in a constant way.
• Dipole. For oscillating magnetic fields, a magnetic particle that
contains a *north* and *south* magnetic pole.

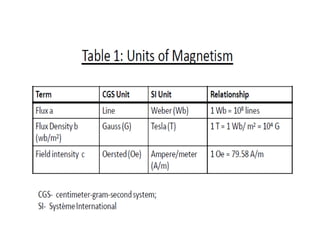

• Magnetic flux density. Force that an electromagnetic source
exerts on charged particles. Magnetic flux density is measured
in Telsa (1 Telsa =104 gauss).
Key at a glance
• Oscillating magnetic field: Fields generated with
electromagnets of alternating current. The intensity varies
periodically according to the frequency and type of wave in
the magnet.
• Sinusoidal Wave: A mode of propagation of the magnetic
field.
• Static magnetic field: Magnetic fields with a constant strength
over time.
• Telsa: Unit to express magnetic flux density (B). 1 Telsa (T) =
104 gauss.

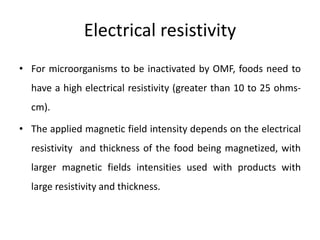

Electrical resistivity
• For microorganisms to be inactivated by OMF, foods need to
have a high electrical resistivity (greater than 10 to 25 ohms-
cm).
• The applied magnetic field intensity depends on the electrical
resistivity and thickness of the food being magnetized, with
larger magnetic fields intensities used with products with
large resistivity and thickness.

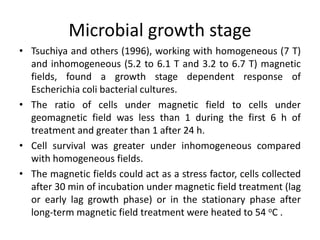

Microbial growth stage
• Tsuchiya and others (1996), working with homogeneous (7 T)
and inhomogeneous (5.2 to 6.1 T and 3.2 to 6.7 T) magnetic
fields, found a growth stage dependent response of
Escherichia coli bacterial cultures.
• The ratio of cells under magnetic field to cells under
geomagnetic field was less than 1 during the first 6 h of
treatment and greater than 1 after 24 h.
• Cell survival was greater under inhomogeneous compared
with homogeneous fields.
• The magnetic fields could act as a stress factor, cells collected
after 30 min of incubation under magnetic field treatment (lag
or early lag growth phase) or in the stationary phase after
long-term magnetic field treatment were heated to 54 oC .
Process Deactivation
• Data acquisition systems must be installed in the processing
area to monitor and control the power source, number of
pulses, and frequencies applied to the food.
• Food composition, temperature, size of unit, among other
factors also would require control and monitoring to assure
constant treatments.
• Any deviation from the specified conditions such as
temperature changes must be continuously recorded and
appropriate responses must be taken.

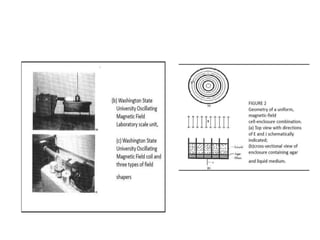

Generation of high intensity magnetic
fields
• Magnetic fields are usually generated by supplying current to
electric coils .
• The inactivation of microorganisms requires magnetic flux
densities of 5 to 50 telsa(T).
• OMFs of this density can be generated by using following
methods :
- superconducting coils
- coils that produce DC fields
- coils energized by the discharge of energy stored in
capacitor .

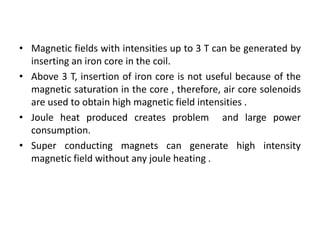

• Magnetic fields with intensities up to 3 T can be generated by
inserting an iron core in the coil.
• Above 3 T, insertion of iron core is not useful because of the
magnetic saturation in the core , therefore, air core solenoids
are used to obtain high magnetic field intensities .
• Joule heat produced creates problem and large power
consumption.
• Super conducting magnets can generate high intensity
magnetic field without any joule heating .
Circuit for magneform 7000 series coil

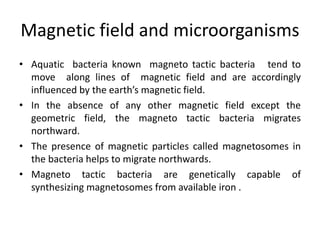

Magnetic field and microorganisms
• Aquatic bacteria known magneto tactic bacteria tend to
move along lines of magnetic field and are accordingly
influenced by the earth’s magnetic field.
• In the absence of any other magnetic field except the
geometric field, the magneto tactic bacteria migrates
northward.
• The presence of magnetic particles called magnetosomes in
the bacteria helps to migrate northwards.
• Magneto tactic bacteria are genetically capable of
synthesizing magnetosomes from available iron .

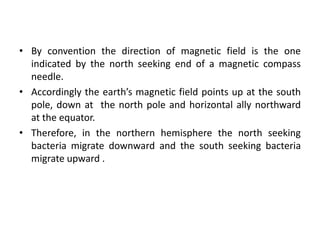

• By convention the direction of magnetic field is the one
indicated by the north seeking end of a magnetic compass
needle.
• Accordingly the earth’s magnetic field points up at the south
pole, down at the north pole and horizontal ally northward
at the equator.
• Therefore, in the northern hemisphere the north seeking
bacteria migrate downward and the south seeking bacteria
migrate upward .

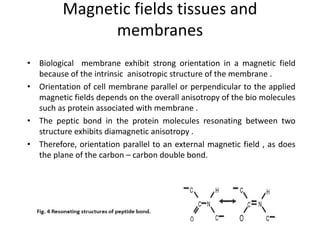

Magnetic fields tissues and
membranes
• Biological membrane exhibit strong orientation in a magnetic field
because of the intrinsic anisotropic structure of the membrane .
• Orientation of cell membrane parallel or perpendicular to the applied
magnetic fields depends on the overall anisotropy of the bio molecules
such as protein associated with membrane .
• The peptic bond in the protein molecules resonating between two
structure exhibits diamagnetic anisotropy .
• Therefore, orientation parallel to an external magnetic field , as does
the plane of the carbon – carbon double bond.

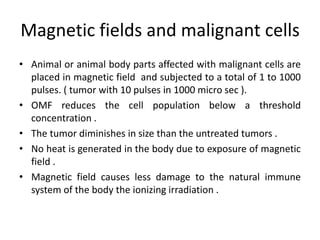

Magnetic fields and malignant cells
• Animal or animal body parts affected with malignant cells are
placed in magnetic field and subjected to a total of 1 to 1000
pulses. ( tumor with 10 pulses in 1000 micro sec ).
• OMF reduces the cell population below a threshold
concentration .
• The tumor diminishes in size than the untreated tumors .
• No heat is generated in the body due to exposure of magnetic
field .
• Magnetic field causes less damage to the natural immune
system of the body the ionizing irradiation .

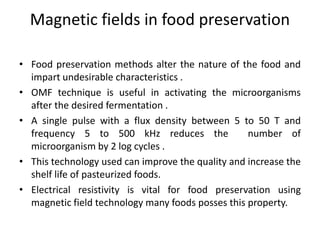

Magnetic fields in food preservation
• Food preservation methods alter the nature of the food and
impart undesirable characteristics .
• OMF technique is useful in activating the microorganisms
after the desired fermentation .
• A single pulse with a flux density between 5 to 50 T and
frequency 5 to 500 kHz reduces the number of
microorganism by 2 log cycles .
• This technology used can improve the quality and increase the
shelf life of pasteurized foods.
• Electrical resistivity is vital for food preservation using
magnetic field technology many foods posses this property.

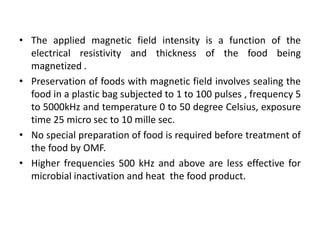

• The applied magnetic field intensity is a function of the
electrical resistivity and thickness of the food being
magnetized .
• Preservation of foods with magnetic field involves sealing the
food in a plastic bag subjected to 1 to 100 pulses , frequency 5
to 5000kHz and temperature 0 to 50 degree Celsius, exposure
time 25 micro sec to 10 mille sec.
• No special preparation of food is required before treatment of
the food by OMF.
• Higher frequencies 500 kHz and above are less effective for
microbial inactivation and heat the food product.

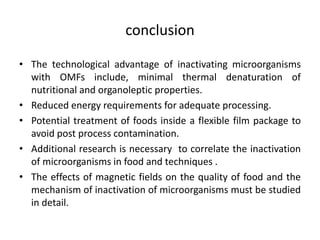

conclusion
• The technological advantage of inactivating microorganisms
with OMFs include, minimal thermal denaturation of
nutritional and organoleptic properties.
• Reduced energy requirements for adequate processing.
• Potential treatment of foods inside a flexible film package to
avoid post process contamination.
• Additional research is necessary to correlate the inactivation
of microorganisms in food and techniques .
• The effects of magnetic fields on the quality of food and the
mechanism of inactivation of microorganisms must be studied
in detail.
References
• Barbosa-Cánovas, G.V., Pothakamury, U.R., and Barry, G.S. 1994. State of the art
technologies for the stabilization of foods by non-thermal processes: physical
methods. In: Barbosa-Cánovas, G.V., and Welti-Chanes, J.(eds.), Food Preservation
by Moisture control. Lancaster, Technomic Publishing.pp. 423-532.
• Barbosa-Cánovas, G.V., Gomorra-Nieto, M.M., and Swanson, B.G. 1998.
Nonthermal electrical methods in food preservation. Food Sci. Int. 4(5):363-370.
• Coughlan, A., Hall, N. 1990. How magnetic field can influence your ions? New
Scientist. 8(4):30
• Frankel, R. B. and Liburdy, R. P. 1995. Biological effects of static magnetic fields. In
Handbook of Biological Effects of Electromagnetic Fields. Polk, C. and Postow, E.
(Ed). 2nd Ed. CRC Press. Boca Raton, FL
• Gerencser, V.F., Barnothy, M.F., and Barnothy, J.M. 1962. Inhibition of bacterial
growth by magnetic fields. Nature, 196:539-541.
• Gersdorf, R., deBoer, F.R., Wolfrat, J.C., Muller, F.A., Roeland, L.W. 1983. The high
magnetic facility of the University of Amsterdam, high field magnetism.
Proceedings International symposium on High Field Magnetism. Osaka, Japan. 277-
287
• Hofmann, G.A. 1985. Deactivation of microorganisms by an oscillating magnetic
field. U.S. Patent 4,524,079.
• Kimball, G.C. 1937. The growth of yeast on a magnetic fields. J. Bacteriol. 35:109-
122.
Thank you

More Related Content

What's hot

Ohmic heating
Ohmic heatingOhmic heating
Ohmic heating
Ashish Niroula

Ultrasound in food preservation
Ultrasound in food preservationUltrasound in food preservation
Ultrasound in food preservation
Maya Sharma

Hurdle technology for food preservation
Hurdle technology for food preservationHurdle technology for food preservation
Hurdle technology for food preservation
Deepak Verma

Pulsed electric field
Pulsed electric fieldPulsed electric field
Pulsed electric field
trish070892

Microwave processing
Microwave processingMicrowave processing
Microwave processing
RuchikaZalpouri

Pulsed light pptt
Pulsed light ppttPulsed light pptt
Pulsed light pptt
harikrishnan773

Non thermal process in preservation of food
Non thermal process in preservation of foodNon thermal process in preservation of food
Non thermal process in preservation of food
Gazanfar Abass

Microwave heating
Microwave heatingMicrowave heating
Microwave heating
PrathameshPawale

Pulsed Electric Field For Food Processing Technology
Pulsed Electric Field For Food Processing TechnologyPulsed Electric Field For Food Processing Technology
Pulsed Electric Field For Food Processing Technology
Dinindu Madhuka

Ultrasonication processing of fruits and vegetables
Ultrasonication processing of fruits and vegetables Ultrasonication processing of fruits and vegetables
Ultrasonication processing of fruits and vegetables
Gundewadi

Pulse Electric Field - PEF
Pulse Electric Field - PEFPulse Electric Field - PEF
Pulse Electric Field - PEF
Anoop Jain

Irradiation preservation of foods
Irradiation preservation of foodsIrradiation preservation of foods
Irradiation preservation of foods
nooshin noshirvani

Ohmic heating
Ohmic heatingOhmic heating
Ohmic heating
saikrishna1295

microwave in food
microwave in foodmicrowave in food
microwave in food
Nivedha Mohanan

Dough rheology
Dough rheologyDough rheology
Dough rheology
ponrajan

Ohmic heating
Ohmic heatingOhmic heating
Ohmic heating
Hammad Shafiq

Ultra High Temperature Processing of Food Products
Ultra High Temperature Processing of Food ProductsUltra High Temperature Processing of Food Products
Ultra High Temperature Processing of Food Products
Sourabh Bhartia

Thermal and non-thermal food preservation technologies.pptx
Thermal and non-thermal food preservation technologies.pptxThermal and non-thermal food preservation technologies.pptx
Thermal and non-thermal food preservation technologies.pptx
VAIBHAV PATIL

Hurdle technology
Hurdle technologyHurdle technology
Hurdle technology
Kulwinder Verma

Blanching of Food
Blanching of FoodBlanching of Food
Blanching of Food
Mahmudul Hasan


What's hot (20)

Ohmic heating
Ohmic heatingOhmic heating
Ohmic heating

Ultrasound in food preservation
Ultrasound in food preservationUltrasound in food preservation
Ultrasound in food preservation

Hurdle technology for food preservation
Hurdle technology for food preservationHurdle technology for food preservation
Hurdle technology for food preservation

Pulsed electric field
Pulsed electric fieldPulsed electric field
Pulsed electric field

Microwave processing
Microwave processingMicrowave processing
Microwave processing

Pulsed light pptt
Pulsed light ppttPulsed light pptt
Pulsed light pptt

Non thermal process in preservation of food
Non thermal process in preservation of foodNon thermal process in preservation of food
Non thermal process in preservation of food

Microwave heating
Microwave heatingMicrowave heating
Microwave heating

Pulsed Electric Field For Food Processing Technology
Pulsed Electric Field For Food Processing TechnologyPulsed Electric Field For Food Processing Technology
Pulsed Electric Field For Food Processing Technology

Ultrasonication processing of fruits and vegetables
Ultrasonication processing of fruits and vegetables Ultrasonication processing of fruits and vegetables
Ultrasonication processing of fruits and vegetables

Pulse Electric Field - PEF
Pulse Electric Field - PEFPulse Electric Field - PEF
Pulse Electric Field - PEF

Irradiation preservation of foods
Irradiation preservation of foodsIrradiation preservation of foods
Irradiation preservation of foods

Ohmic heating
Ohmic heatingOhmic heating
Ohmic heating

microwave in food
microwave in foodmicrowave in food
microwave in food

Dough rheology
Dough rheologyDough rheology
Dough rheology

Ohmic heating
Ohmic heatingOhmic heating
Ohmic heating

Ultra High Temperature Processing of Food Products
Ultra High Temperature Processing of Food ProductsUltra High Temperature Processing of Food Products
Ultra High Temperature Processing of Food Products

Thermal and non-thermal food preservation technologies.pptx
Thermal and non-thermal food preservation technologies.pptxThermal and non-thermal food preservation technologies.pptx
Thermal and non-thermal food preservation technologies.pptx

Hurdle technology
Hurdle technologyHurdle technology
Hurdle technology

Blanching of Food
Blanching of FoodBlanching of Food
Blanching of Food


Similar to Oscillating magnetic field for food processing

Pulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptxPulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptx
Maduni3

Pulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptxPulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptx
Maduni3

superparamagnetism and its biological applications
superparamagnetism  and its biological applicationssuperparamagnetism  and its biological applications
superparamagnetism and its biological applications
udhay roopavath

Microwave Food Processing.pptx
Microwave Food Processing.pptxMicrowave Food Processing.pptx
Microwave Food Processing.pptx
Maduni3

oscillating magnetic field 1.pptx
oscillating magnetic field 1.pptxoscillating magnetic field 1.pptx
oscillating magnetic field 1.pptx
NikunjChand1

Ultrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdfUltrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdf
DHARMENDRAYADAV807034

magnetic nano particles in bio medical applications
magnetic nano particles in bio medical applicationsmagnetic nano particles in bio medical applications
magnetic nano particles in bio medical applications
hassan7777777

Mangnetotherapy
MangnetotherapyMangnetotherapy
Mangnetotherapy
Nidhil Narayanan

Tecniche
TecnicheTecniche
Coblation in ent
Coblation in entCoblation in ent
Coblation in ent
Dr. Pruthvi Raj S

Principles Of Radiofrequency And Its ENT Applications
Principles Of Radiofrequency And Its ENT ApplicationsPrinciples Of Radiofrequency And Its ENT Applications
Principles Of Radiofrequency And Its ENT Applications
Dr.Juveria Majeed

Nanoknife
NanoknifeNanoknife
Nmr instrumentation Naveen Balaji
Nmr instrumentation Naveen BalajiNmr instrumentation Naveen Balaji
Nmr instrumentation Naveen Balaji
Naveen Balaji

Atomic force microscopy measurements of bacterial adhesion and biofilm format...
Atomic force microscopy measurements of bacterial adhesion and biofilm format...Atomic force microscopy measurements of bacterial adhesion and biofilm format...
Atomic force microscopy measurements of bacterial adhesion and biofilm format...
Jingyi Kan

Mri
MriMri
Ir spectroscopy
Ir spectroscopyIr spectroscopy
Ir spectroscopy
Devipriya Viswambharan

Ultrasonic
UltrasonicUltrasonic
Ultrasonic
Dhrupal Patel

Ultrasonic.sahilpatil.firstyeardeploma.pptx
Ultrasonic.sahilpatil.firstyeardeploma.pptxUltrasonic.sahilpatil.firstyeardeploma.pptx
Ultrasonic.sahilpatil.firstyeardeploma.pptx
sahilpatil26122006

B.tech sem i engineering physics u v chapter 2-ultrasonic waves
B.tech sem i engineering physics u v chapter 2-ultrasonic wavesB.tech sem i engineering physics u v chapter 2-ultrasonic waves
B.tech sem i engineering physics u v chapter 2-ultrasonic waves
Rai University

Microwave heating
Microwave heating Microwave heating
Microwave heating
PRATIKKUNWAR5


Similar to Oscillating magnetic field for food processing (20)

Pulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptxPulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptx

Pulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptxPulsed Electric Fields for Food Processing Technology-ppt.pptx
Pulsed Electric Fields for Food Processing Technology-ppt.pptx

superparamagnetism and its biological applications
superparamagnetism  and its biological applicationssuperparamagnetism  and its biological applications
superparamagnetism and its biological applications

Microwave Food Processing.pptx
Microwave Food Processing.pptxMicrowave Food Processing.pptx
Microwave Food Processing.pptx

oscillating magnetic field 1.pptx
oscillating magnetic field 1.pptxoscillating magnetic field 1.pptx
oscillating magnetic field 1.pptx

Ultrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdfUltrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdf

magnetic nano particles in bio medical applications
magnetic nano particles in bio medical applicationsmagnetic nano particles in bio medical applications
magnetic nano particles in bio medical applications

Mangnetotherapy
MangnetotherapyMangnetotherapy
Mangnetotherapy

Tecniche
TecnicheTecniche
Tecniche

Coblation in ent
Coblation in entCoblation in ent
Coblation in ent

Principles Of Radiofrequency And Its ENT Applications
Principles Of Radiofrequency And Its ENT ApplicationsPrinciples Of Radiofrequency And Its ENT Applications
Principles Of Radiofrequency And Its ENT Applications

Nanoknife
NanoknifeNanoknife
Nanoknife

Nmr instrumentation Naveen Balaji
Nmr instrumentation Naveen BalajiNmr instrumentation Naveen Balaji
Nmr instrumentation Naveen Balaji

Atomic force microscopy measurements of bacterial adhesion and biofilm format...
Atomic force microscopy measurements of bacterial adhesion and biofilm format...Atomic force microscopy measurements of bacterial adhesion and biofilm format...
Atomic force microscopy measurements of bacterial adhesion and biofilm format...

Mri
MriMri
Mri

Ir spectroscopy
Ir spectroscopyIr spectroscopy
Ir spectroscopy

Ultrasonic
UltrasonicUltrasonic
Ultrasonic

Ultrasonic.sahilpatil.firstyeardeploma.pptx
Ultrasonic.sahilpatil.firstyeardeploma.pptxUltrasonic.sahilpatil.firstyeardeploma.pptx
Ultrasonic.sahilpatil.firstyeardeploma.pptx

B.tech sem i engineering physics u v chapter 2-ultrasonic waves
B.tech sem i engineering physics u v chapter 2-ultrasonic wavesB.tech sem i engineering physics u v chapter 2-ultrasonic waves
B.tech sem i engineering physics u v chapter 2-ultrasonic waves

Microwave heating
Microwave heating Microwave heating
Microwave heating


More from Maya Sharma

Protected cultivation:Green house
Protected cultivation:Green houseProtected cultivation:Green house
Protected cultivation:Green house
Maya Sharma

Drying process for grain
Drying process for grainDrying process for grain
Drying process for grain
Maya Sharma

Waste management from fermentation industries
Waste management from fermentation industriesWaste management from fermentation industries
Waste management from fermentation industries
Maya Sharma

Size reduction particle charactrisation
Size reduction particle charactrisationSize reduction particle charactrisation
Size reduction particle charactrisation
Maya Sharma

Post harvest handling and preservation of fresh fish and seafood
Post harvest handling and preservation of fresh fish and seafoodPost harvest handling and preservation of fresh fish and seafood
Post harvest handling and preservation of fresh fish and seafood
Maya Sharma

Non thermal processing by combined techniques
Non thermal processing by combined techniquesNon thermal processing by combined techniques
Non thermal processing by combined techniques
Maya Sharma

Non thermal plasma as a new food preservation method
Non thermal plasma as a new food preservation methodNon thermal plasma as a new food preservation method
Non thermal plasma as a new food preservation method
Maya Sharma

Application of ultrafiltration in lactose separation
Application of ultrafiltration in lactose separationApplication of ultrafiltration in lactose separation
Application of ultrafiltration in lactose separation
Maya Sharma

Packaging for non thermal processed food
Packaging for non thermal processed foodPackaging for non thermal processed food
Packaging for non thermal processed food
Maya Sharma

Impact of non thermal processing technologies on quality of fruit juices
Impact of non thermal processing technologies on quality of fruit juicesImpact of non thermal processing technologies on quality of fruit juices
Impact of non thermal processing technologies on quality of fruit juices
Maya Sharma

Osmotic dehydration of fruits
Osmotic dehydration of fruitsOsmotic dehydration of fruits
Osmotic dehydration of fruits
Maya Sharma

Controlled atmosphere and modified atmosphere storage
Controlled atmosphere and modified atmosphere storageControlled atmosphere and modified atmosphere storage
Controlled atmosphere and modified atmosphere storage
Maya Sharma

Dense phase carbon dioxide processing (DPCD) for preservation of liquid food
Dense phase carbon dioxide processing (DPCD) for preservation of liquid foodDense phase carbon dioxide processing (DPCD) for preservation of liquid food
Dense phase carbon dioxide processing (DPCD) for preservation of liquid food
Maya Sharma

Membrane filtration technology in food engg.
Membrane filtration technology in food engg.Membrane filtration technology in food engg.
Membrane filtration technology in food engg.
Maya Sharma

Effect of non thermal processing methods on microwrganisms
Effect of non thermal processing methods on microwrganismsEffect of non thermal processing methods on microwrganisms
Effect of non thermal processing methods on microwrganisms
Maya Sharma

Application of high hydrostatic pressure
Application of high hydrostatic pressureApplication of high hydrostatic pressure
Application of high hydrostatic pressure
Maya Sharma

Effect of high pressure processing on protein and starch
Effect of high pressure processing on protein and starchEffect of high pressure processing on protein and starch
Effect of high pressure processing on protein and starch
Maya Sharma

High pressure processing of foods
High pressure processing of foodsHigh pressure processing of foods
High pressure processing of foods
Maya Sharma

Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...
Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...
Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...
Maya Sharma

pulse electric field for food processing technology
pulse electric field for food processing technologypulse electric field for food processing technology
pulse electric field for food processing technology
Maya Sharma


More from Maya Sharma (20)

Protected cultivation:Green house
Protected cultivation:Green houseProtected cultivation:Green house
Protected cultivation:Green house

Drying process for grain
Drying process for grainDrying process for grain
Drying process for grain

Waste management from fermentation industries
Waste management from fermentation industriesWaste management from fermentation industries
Waste management from fermentation industries

Size reduction particle charactrisation
Size reduction particle charactrisationSize reduction particle charactrisation
Size reduction particle charactrisation

Post harvest handling and preservation of fresh fish and seafood
Post harvest handling and preservation of fresh fish and seafoodPost harvest handling and preservation of fresh fish and seafood
Post harvest handling and preservation of fresh fish and seafood

Non thermal processing by combined techniques
Non thermal processing by combined techniquesNon thermal processing by combined techniques
Non thermal processing by combined techniques

Non thermal plasma as a new food preservation method
Non thermal plasma as a new food preservation methodNon thermal plasma as a new food preservation method
Non thermal plasma as a new food preservation method

Application of ultrafiltration in lactose separation
Application of ultrafiltration in lactose separationApplication of ultrafiltration in lactose separation
Application of ultrafiltration in lactose separation

Packaging for non thermal processed food
Packaging for non thermal processed foodPackaging for non thermal processed food
Packaging for non thermal processed food

Impact of non thermal processing technologies on quality of fruit juices
Impact of non thermal processing technologies on quality of fruit juicesImpact of non thermal processing technologies on quality of fruit juices
Impact of non thermal processing technologies on quality of fruit juices

Osmotic dehydration of fruits
Osmotic dehydration of fruitsOsmotic dehydration of fruits
Osmotic dehydration of fruits

Controlled atmosphere and modified atmosphere storage
Controlled atmosphere and modified atmosphere storageControlled atmosphere and modified atmosphere storage
Controlled atmosphere and modified atmosphere storage

Dense phase carbon dioxide processing (DPCD) for preservation of liquid food
Dense phase carbon dioxide processing (DPCD) for preservation of liquid foodDense phase carbon dioxide processing (DPCD) for preservation of liquid food
Dense phase carbon dioxide processing (DPCD) for preservation of liquid food

Membrane filtration technology in food engg.
Membrane filtration technology in food engg.Membrane filtration technology in food engg.
Membrane filtration technology in food engg.

Effect of non thermal processing methods on microwrganisms
Effect of non thermal processing methods on microwrganismsEffect of non thermal processing methods on microwrganisms
Effect of non thermal processing methods on microwrganisms

Application of high hydrostatic pressure
Application of high hydrostatic pressureApplication of high hydrostatic pressure
Application of high hydrostatic pressure

Effect of high pressure processing on protein and starch
Effect of high pressure processing on protein and starchEffect of high pressure processing on protein and starch
Effect of high pressure processing on protein and starch

High pressure processing of foods
High pressure processing of foodsHigh pressure processing of foods
High pressure processing of foods

Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...
Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...
Ultravoilet radiation as a non-thermal treatment for inactivation of microorg...

pulse electric field for food processing technology
pulse electric field for food processing technologypulse electric field for food processing technology
pulse electric field for food processing technology


Recently uploaded

spirit beverages ppt without graphics.pptx
spirit beverages ppt without graphics.pptxspirit beverages ppt without graphics.pptx
spirit beverages ppt without graphics.pptx
Madan Karki

5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
ihlasbinance2003

6th International Conference on Machine Learning & Applications (CMLA 2024)
6th International Conference on Machine Learning & Applications (CMLA 2024)6th International Conference on Machine Learning & Applications (CMLA 2024)
6th International Conference on Machine Learning & Applications (CMLA 2024)
ClaraZara1

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
IJECEIAES

Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdfIron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
RadiNasr

14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application
SyedAbiiAzazi1

Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
University of Maribor

Technical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prismsTechnical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prisms
heavyhaig

Manufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptxManufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptx
Madan Karki

KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsKuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
Victor Morales

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
gerogepatton

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
Hitesh Mohapatra

ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
Mukeshwaran Balu

22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt
KrishnaveniKrishnara1

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring
IJECEIAES

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Christina Lin

A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMSA SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
IJNSA Journal

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
VICTOR MAESTRE RAMIREZ

Question paper of renewable energy sources
Question paper of renewable energy sourcesQuestion paper of renewable energy sources
Question paper of renewable energy sources
mahammadsalmanmech


Recently uploaded (20)

spirit beverages ppt without graphics.pptx
spirit beverages ppt without graphics.pptxspirit beverages ppt without graphics.pptx
spirit beverages ppt without graphics.pptx

5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...
5214-1693458878915-Unit 6 2023 to 2024 academic year assignment (AutoRecovere...

6th International Conference on Machine Learning & Applications (CMLA 2024)
6th International Conference on Machine Learning & Applications (CMLA 2024)6th International Conference on Machine Learning & Applications (CMLA 2024)
6th International Conference on Machine Learning & Applications (CMLA 2024)

Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...Electric vehicle and photovoltaic advanced roles in enhancing the financial p...
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...

Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdfIron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf

14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application

Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...

Technical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prismsTechnical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prisms

Manufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptxManufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptx

KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsKuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content

ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...

22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt22CYT12-Unit-V-E Waste and its Management.ppt
22CYT12-Unit-V-E Waste and its Management.ppt

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines

A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMSA SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS
A SYSTEMATIC RISK ASSESSMENT APPROACH FOR SECURING THE SMART IRRIGATION SYSTEMS

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member

Question paper of renewable energy sources
Question paper of renewable energy sourcesQuestion paper of renewable energy sources
Question paper of renewable energy sources


Oscillating magnetic field for food processing

  • 1. Oscillating magnetic field for food processing Department of agriculture and food engineering IIT Kharagpur Praveen Kumar
  • 2. Introduction • The utilization of oscillating magnetic field to inactivate microorganisms. • OMF has the potential to improve the quality and shelf life compared to other conventional process. • OMF effects the microorganisms, cell membranes, malignant cells and the potential application of magnetic field for food preservation. • OMF of intensity of 5 to 50 telsa (T) and frequency of 5 to 500 kHz was applied and reduced the number of microorganisms by at least 2-log cycles. • Magnetic fields increase DNA synthesis .
  • 3. Mechanism of OMF & ICR model • The first theory stated that a "weak" OMF could loosen the bonds between ions and proteins. • An ion entering a magnetic field B at velocity v experiences a force F given by F = qv * B, it is known as ICR model. • When v and B are parallel, F is zero. When v is normal to B, the ion moves in a circular path . • For other orientations between v and B, the ions move in a helical path . • The frequency at which the ions revolve in the magnetic field is known as the ion's gyro frequency , denoted by ‘n’. • Which depends on the charge/mass ratio of the ion and the magnetic field intensity.
  • 4.
  • 5.
  • 6.
  • 7. Magnetic field • The region in which a magnetic body is capable of magnetizing the particles around is called the magnetic field . • Isotropic susceptibility and anisotropic susceptibility of magnetization. • Magnetic field is measured in terms of magnetic intensity B. • Diamagnetism and paramagnetic property of magnet. • Magnetic fields are homogeneous and heterogeneous in nature.
  • 8.
  • 9. Key at a glance • Cyclotron resonance : Phenomenon that occurs when the frequency of revolving ions induced by a specific magnetic field intensity is similar to the frequency of that magnetic field and parallel to it. In these instances, energy may be transferred to the ions, affecting cell metabolic activities. • Cyclotron. An accelerator in which particles move in spiral paths in a constant way. • Dipole. For oscillating magnetic fields, a magnetic particle that contains a *north* and *south* magnetic pole. • Magnetic flux density. Force that an electromagnetic source exerts on charged particles. Magnetic flux density is measured in Telsa (1 Telsa =104 gauss).
  • 10. Key at a glance • Oscillating magnetic field: Fields generated with electromagnets of alternating current. The intensity varies periodically according to the frequency and type of wave in the magnet. • Sinusoidal Wave: A mode of propagation of the magnetic field. • Static magnetic field: Magnetic fields with a constant strength over time. • Telsa: Unit to express magnetic flux density (B). 1 Telsa (T) = 104 gauss.
  • 11. Electrical resistivity • For microorganisms to be inactivated by OMF, foods need to have a high electrical resistivity (greater than 10 to 25 ohms- cm). • The applied magnetic field intensity depends on the electrical resistivity and thickness of the food being magnetized, with larger magnetic fields intensities used with products with large resistivity and thickness.
  • 12. Microbial growth stage • Tsuchiya and others (1996), working with homogeneous (7 T) and inhomogeneous (5.2 to 6.1 T and 3.2 to 6.7 T) magnetic fields, found a growth stage dependent response of Escherichia coli bacterial cultures. • The ratio of cells under magnetic field to cells under geomagnetic field was less than 1 during the first 6 h of treatment and greater than 1 after 24 h. • Cell survival was greater under inhomogeneous compared with homogeneous fields. • The magnetic fields could act as a stress factor, cells collected after 30 min of incubation under magnetic field treatment (lag or early lag growth phase) or in the stationary phase after long-term magnetic field treatment were heated to 54 oC .
  • 13. Process Deactivation • Data acquisition systems must be installed in the processing area to monitor and control the power source, number of pulses, and frequencies applied to the food. • Food composition, temperature, size of unit, among other factors also would require control and monitoring to assure constant treatments. • Any deviation from the specified conditions such as temperature changes must be continuously recorded and appropriate responses must be taken.
  • 14. Generation of high intensity magnetic fields • Magnetic fields are usually generated by supplying current to electric coils . • The inactivation of microorganisms requires magnetic flux densities of 5 to 50 telsa(T). • OMFs of this density can be generated by using following methods : - superconducting coils - coils that produce DC fields - coils energized by the discharge of energy stored in capacitor .
  • 15. • Magnetic fields with intensities up to 3 T can be generated by inserting an iron core in the coil. • Above 3 T, insertion of iron core is not useful because of the magnetic saturation in the core , therefore, air core solenoids are used to obtain high magnetic field intensities . • Joule heat produced creates problem and large power consumption. • Super conducting magnets can generate high intensity magnetic field without any joule heating .
  • 16. Circuit for magneform 7000 series coil
  • 17.
  • 18. Magnetic field and microorganisms • Aquatic bacteria known magneto tactic bacteria tend to move along lines of magnetic field and are accordingly influenced by the earth’s magnetic field. • In the absence of any other magnetic field except the geometric field, the magneto tactic bacteria migrates northward. • The presence of magnetic particles called magnetosomes in the bacteria helps to migrate northwards. • Magneto tactic bacteria are genetically capable of synthesizing magnetosomes from available iron .
  • 19. • By convention the direction of magnetic field is the one indicated by the north seeking end of a magnetic compass needle. • Accordingly the earth’s magnetic field points up at the south pole, down at the north pole and horizontal ally northward at the equator. • Therefore, in the northern hemisphere the north seeking bacteria migrate downward and the south seeking bacteria migrate upward .
  • 20.
  • 21. Magnetic fields tissues and membranes • Biological membrane exhibit strong orientation in a magnetic field because of the intrinsic anisotropic structure of the membrane . • Orientation of cell membrane parallel or perpendicular to the applied magnetic fields depends on the overall anisotropy of the bio molecules such as protein associated with membrane . • The peptic bond in the protein molecules resonating between two structure exhibits diamagnetic anisotropy . • Therefore, orientation parallel to an external magnetic field , as does the plane of the carbon – carbon double bond.
  • 22. Magnetic fields and malignant cells • Animal or animal body parts affected with malignant cells are placed in magnetic field and subjected to a total of 1 to 1000 pulses. ( tumor with 10 pulses in 1000 micro sec ). • OMF reduces the cell population below a threshold concentration . • The tumor diminishes in size than the untreated tumors . • No heat is generated in the body due to exposure of magnetic field . • Magnetic field causes less damage to the natural immune system of the body the ionizing irradiation .
  • 23. Magnetic fields in food preservation • Food preservation methods alter the nature of the food and impart undesirable characteristics . • OMF technique is useful in activating the microorganisms after the desired fermentation . • A single pulse with a flux density between 5 to 50 T and frequency 5 to 500 kHz reduces the number of microorganism by 2 log cycles . • This technology used can improve the quality and increase the shelf life of pasteurized foods. • Electrical resistivity is vital for food preservation using magnetic field technology many foods posses this property.
  • 24. • The applied magnetic field intensity is a function of the electrical resistivity and thickness of the food being magnetized . • Preservation of foods with magnetic field involves sealing the food in a plastic bag subjected to 1 to 100 pulses , frequency 5 to 5000kHz and temperature 0 to 50 degree Celsius, exposure time 25 micro sec to 10 mille sec. • No special preparation of food is required before treatment of the food by OMF. • Higher frequencies 500 kHz and above are less effective for microbial inactivation and heat the food product.
  • 25. conclusion • The technological advantage of inactivating microorganisms with OMFs include, minimal thermal denaturation of nutritional and organoleptic properties. • Reduced energy requirements for adequate processing. • Potential treatment of foods inside a flexible film package to avoid post process contamination. • Additional research is necessary to correlate the inactivation of microorganisms in food and techniques . • The effects of magnetic fields on the quality of food and the mechanism of inactivation of microorganisms must be studied in detail.
  • 26. References • Barbosa-Cánovas, G.V., Pothakamury, U.R., and Barry, G.S. 1994. State of the art technologies for the stabilization of foods by non-thermal processes: physical methods. In: Barbosa-Cánovas, G.V., and Welti-Chanes, J.(eds.), Food Preservation by Moisture control. Lancaster, Technomic Publishing.pp. 423-532. • Barbosa-Cánovas, G.V., Gomorra-Nieto, M.M., and Swanson, B.G. 1998. Nonthermal electrical methods in food preservation. Food Sci. Int. 4(5):363-370. • Coughlan, A., Hall, N. 1990. How magnetic field can influence your ions? New Scientist. 8(4):30 • Frankel, R. B. and Liburdy, R. P. 1995. Biological effects of static magnetic fields. In Handbook of Biological Effects of Electromagnetic Fields. Polk, C. and Postow, E. (Ed). 2nd Ed. CRC Press. Boca Raton, FL • Gerencser, V.F., Barnothy, M.F., and Barnothy, J.M. 1962. Inhibition of bacterial growth by magnetic fields. Nature, 196:539-541. • Gersdorf, R., deBoer, F.R., Wolfrat, J.C., Muller, F.A., Roeland, L.W. 1983. The high magnetic facility of the University of Amsterdam, high field magnetism. Proceedings International symposium on High Field Magnetism. Osaka, Japan. 277- 287 • Hofmann, G.A. 1985. Deactivation of microorganisms by an oscillating magnetic field. U.S. Patent 4,524,079. • Kimball, G.C. 1937. The growth of yeast on a magnetic fields. J. Bacteriol. 35:109- 122.
