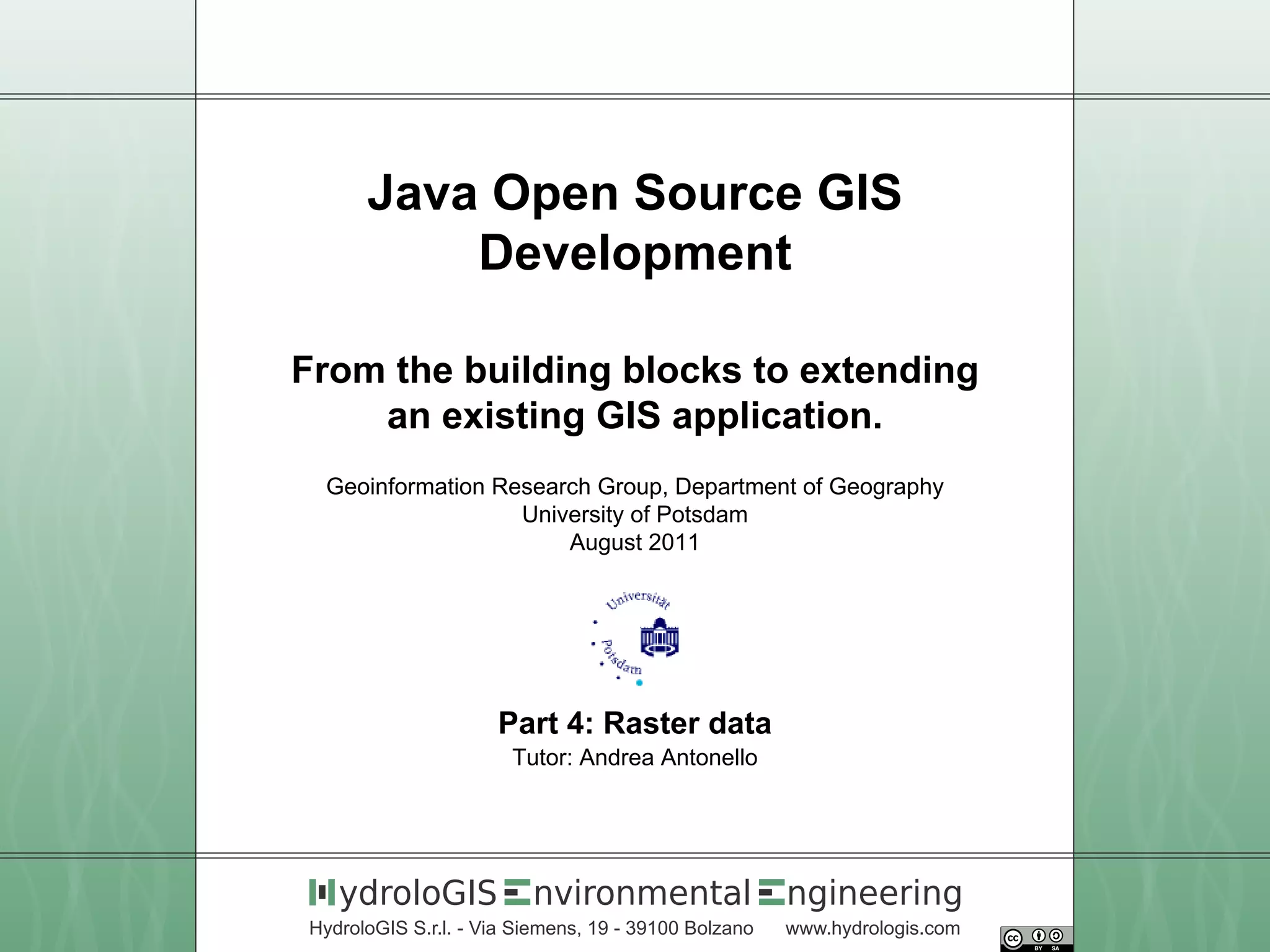

1. Java Open Source GIS
Development
From the building blocks to extending
an existing GIS application.
Geoinformation Research Group, Department of Geography
University of Potsdam
August 2011
Part 4: Raster data
Tutor: Andrea Antonello
ydroloGIS nvironmental ngineering
HydroloGIS S.r.l. - Via Siemens, 19 - 39100 Bolzano www.hydrologis.com

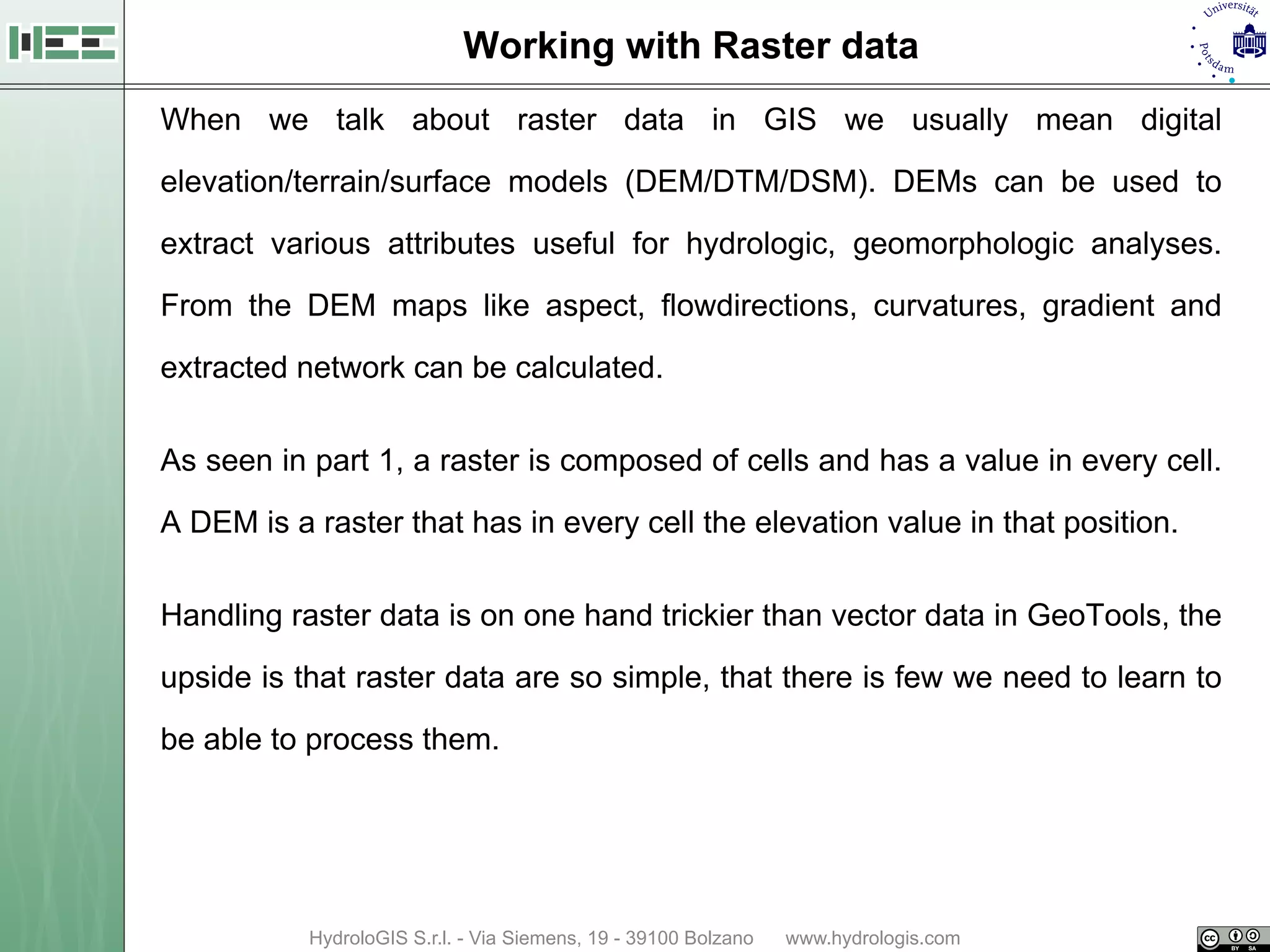

2. Working with Raster data
When we talk about raster data in GIS we usually mean digital
elevation/terrain/surface models (DEM/DTM/DSM). DEMs can be used to
extract various attributes useful for hydrologic, geomorphologic analyses.
From the DEM maps like aspect, flowdirections, curvatures, gradient and
extracted network can be calculated.
As seen in part 1, a raster is composed of cells and has a value in every cell.
A DEM is a raster that has in every cell the elevation value in that position.
Handling raster data is on one hand trickier than vector data in GeoTools, the
upside is that raster data are so simple, that there is few we need to learn to
be able to process them.

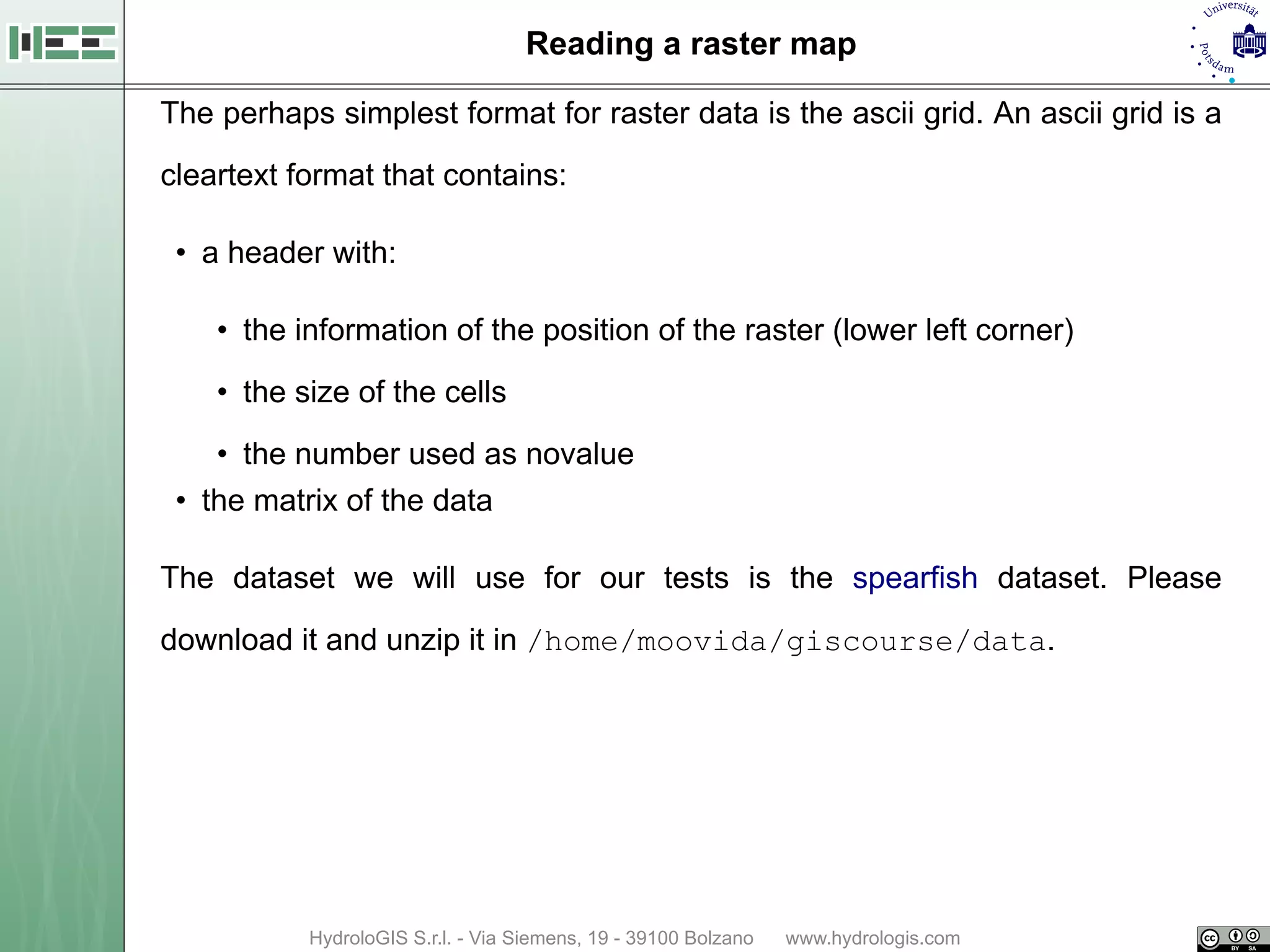

3. Reading a raster map
The perhaps simplest format for raster data is the ascii grid. An ascii grid is a
cleartext format that contains:
• a header with:
• the information of the position of the raster (lower left corner)
• the size of the cells
• the number used as novalue
• the matrix of the data
The dataset we will use for our tests is the spearfish dataset. Please
download it and unzip it in /home/moovida/giscourse/data.

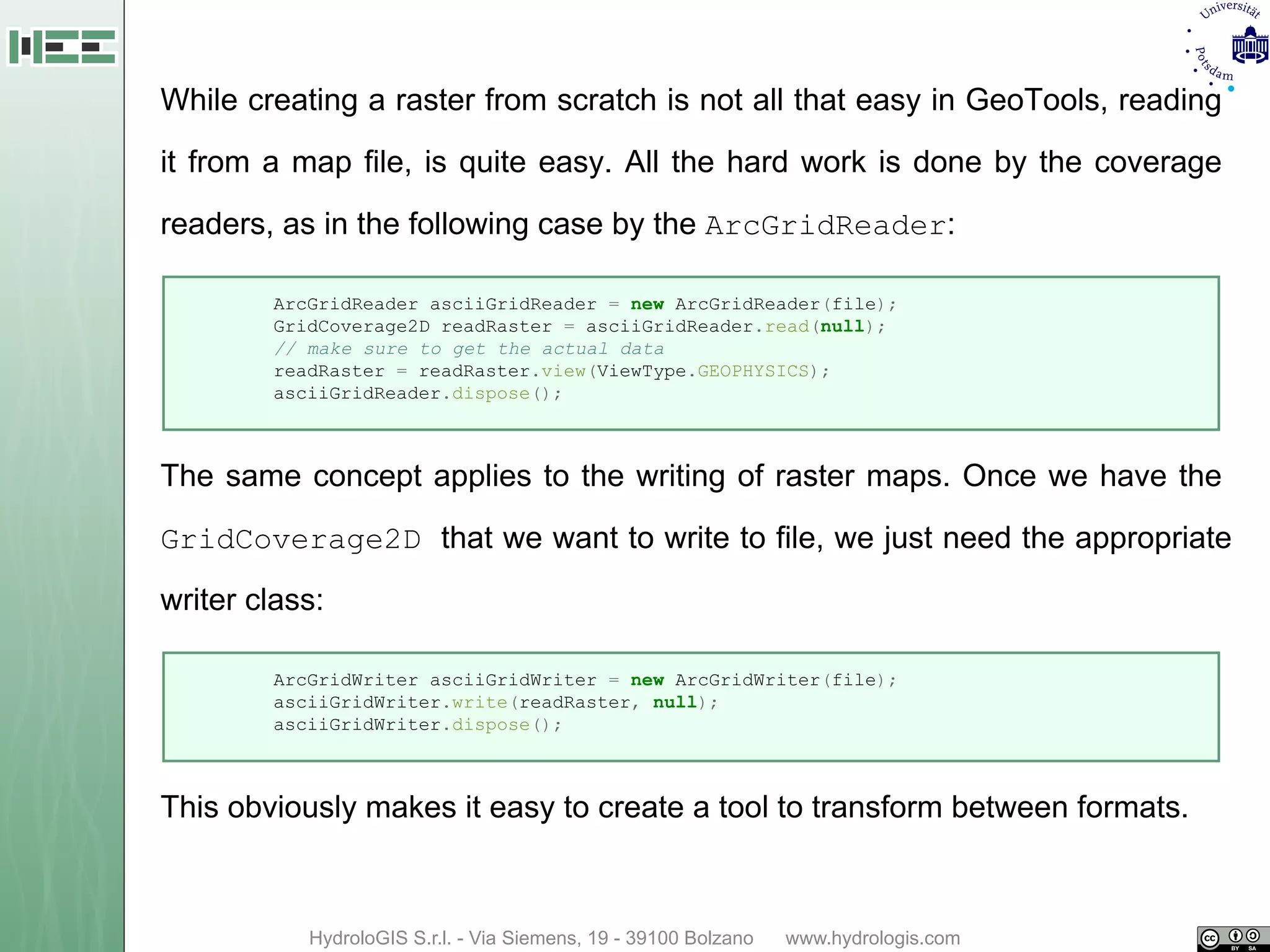

4. While creating a raster from scratch is not all that easy in GeoTools, reading
it from a map file, is quite easy. All the hard work is done by the coverage
readers, as in the following case by the ArcGridReader:
ArcGridReader asciiGridReader = new ArcGridReader(file);
GridCoverage2D readRaster = asciiGridReader.read(null);
// make sure to get the actual data
readRaster = readRaster.view(ViewType.GEOPHYSICS);
asciiGridReader.dispose();
The same concept applies to the writing of raster maps. Once we have the
GridCoverage2D that we want to write to file, we just need the appropriate
writer class:
ArcGridWriter asciiGridWriter = new ArcGridWriter(file);
asciiGridWriter.write(readRaster, null);
asciiGridWriter.dispose();
This obviously makes it easy to create a tool to transform between formats.

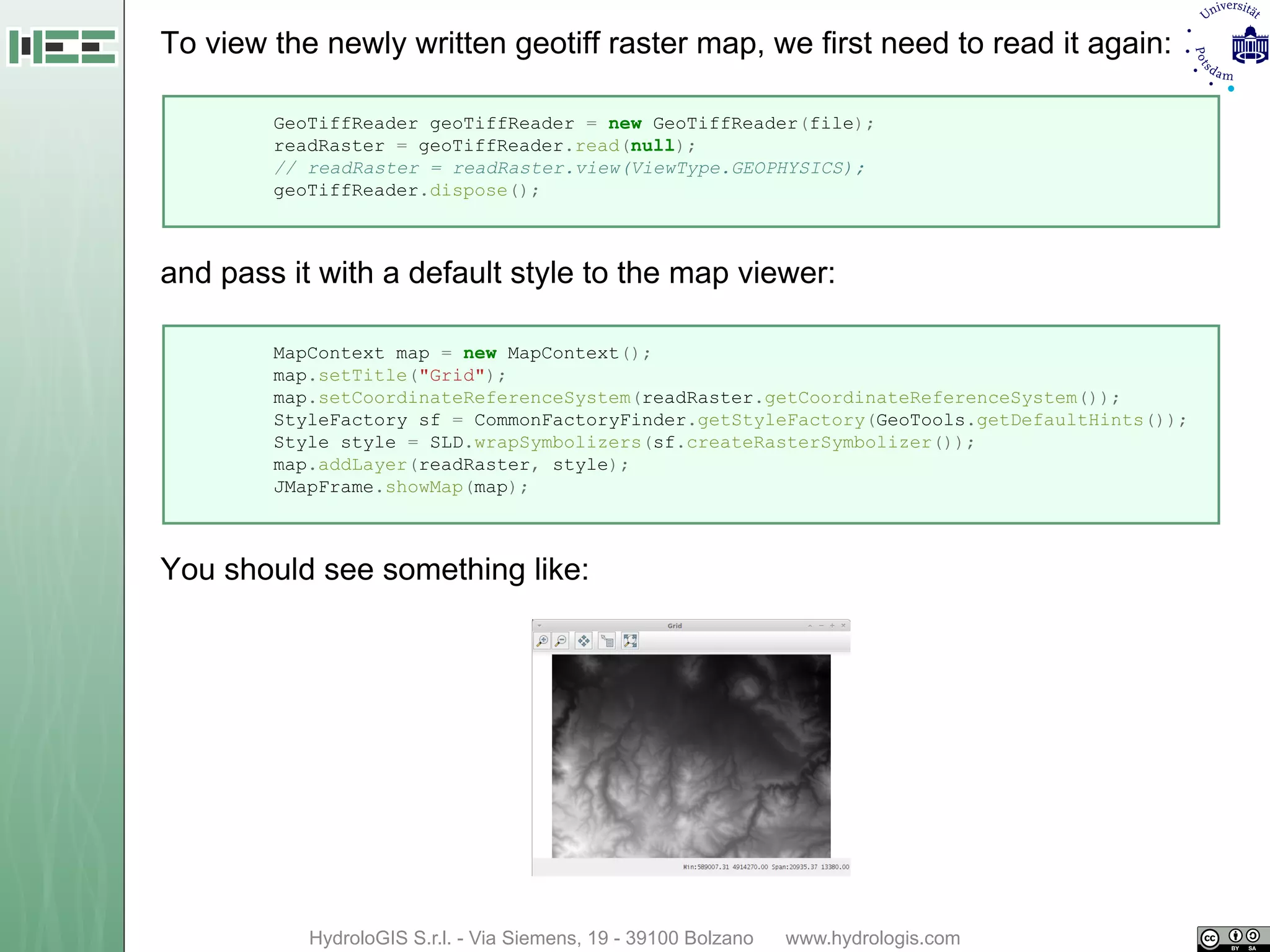

5. To view the newly written geotiff raster map, we first need to read it again:
GeoTiffReader geoTiffReader = new GeoTiffReader(file);
readRaster = geoTiffReader.read(null);
// readRaster = readRaster.view(ViewType.GEOPHYSICS);
geoTiffReader.dispose();
and pass it with a default style to the map viewer:
MapContext map = new MapContext();
map.setTitle("Grid");
map.setCoordinateReferenceSystem(readRaster.getCoordinateReferenceSystem());
StyleFactory sf = CommonFactoryFinder.getStyleFactory(GeoTools.getDefaultHints());
Style style = SLD.wrapSymbolizers(sf.createRasterSymbolizer());
map.addLayer(readRaster, style);
JMapFrame.showMap(map);
You should see something like:

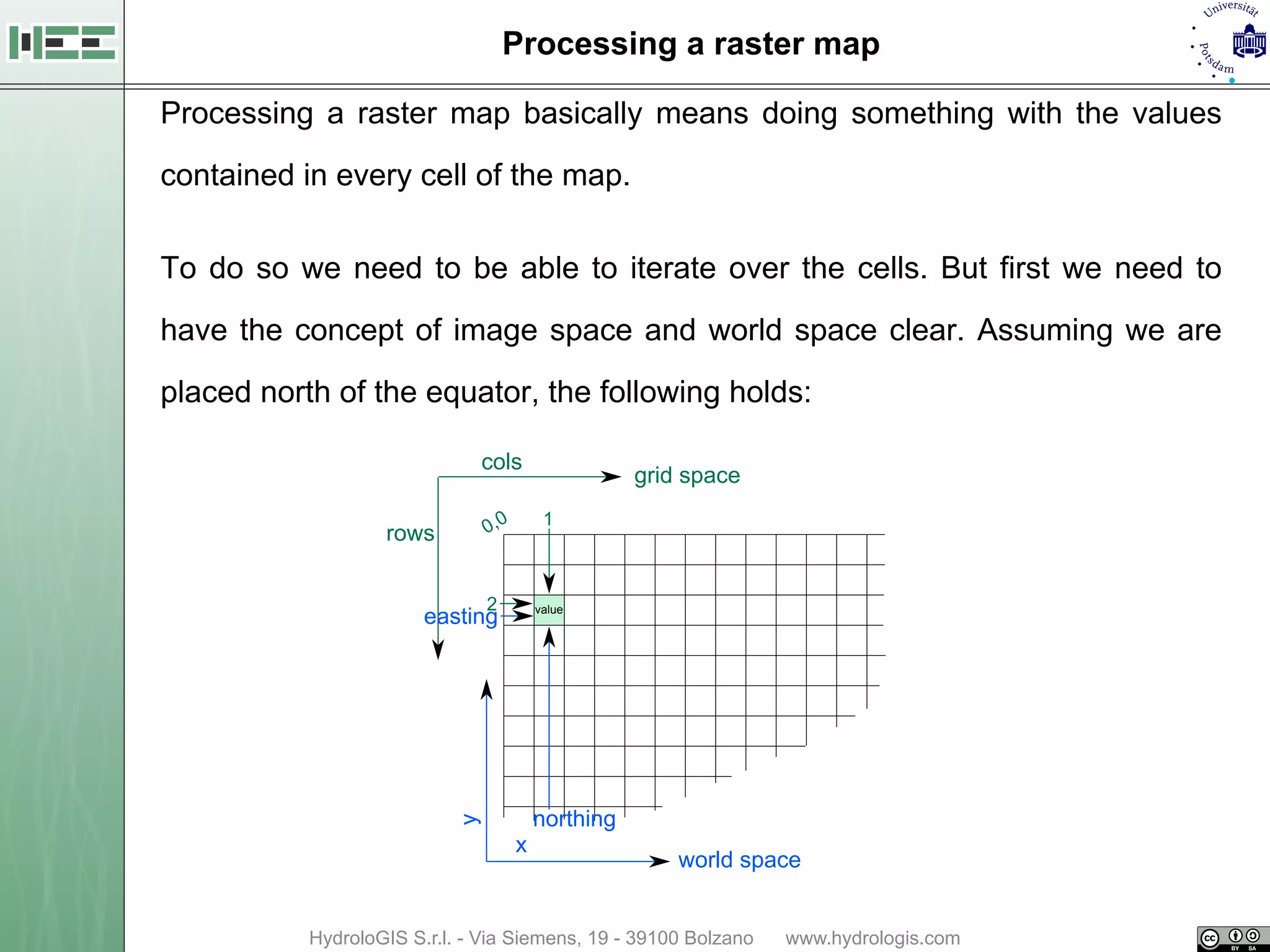

6. Processing a raster map
Processing a raster map basically means doing something with the values
contained in every cell of the map.
To do so we need to be able to iterate over the cells. But first we need to
have the concept of image space and world space clear. Assuming we are
placed north of the equator, the following holds:
cols
grid space
0,0 1
rows
2 value
easting
northing
y
x
world space

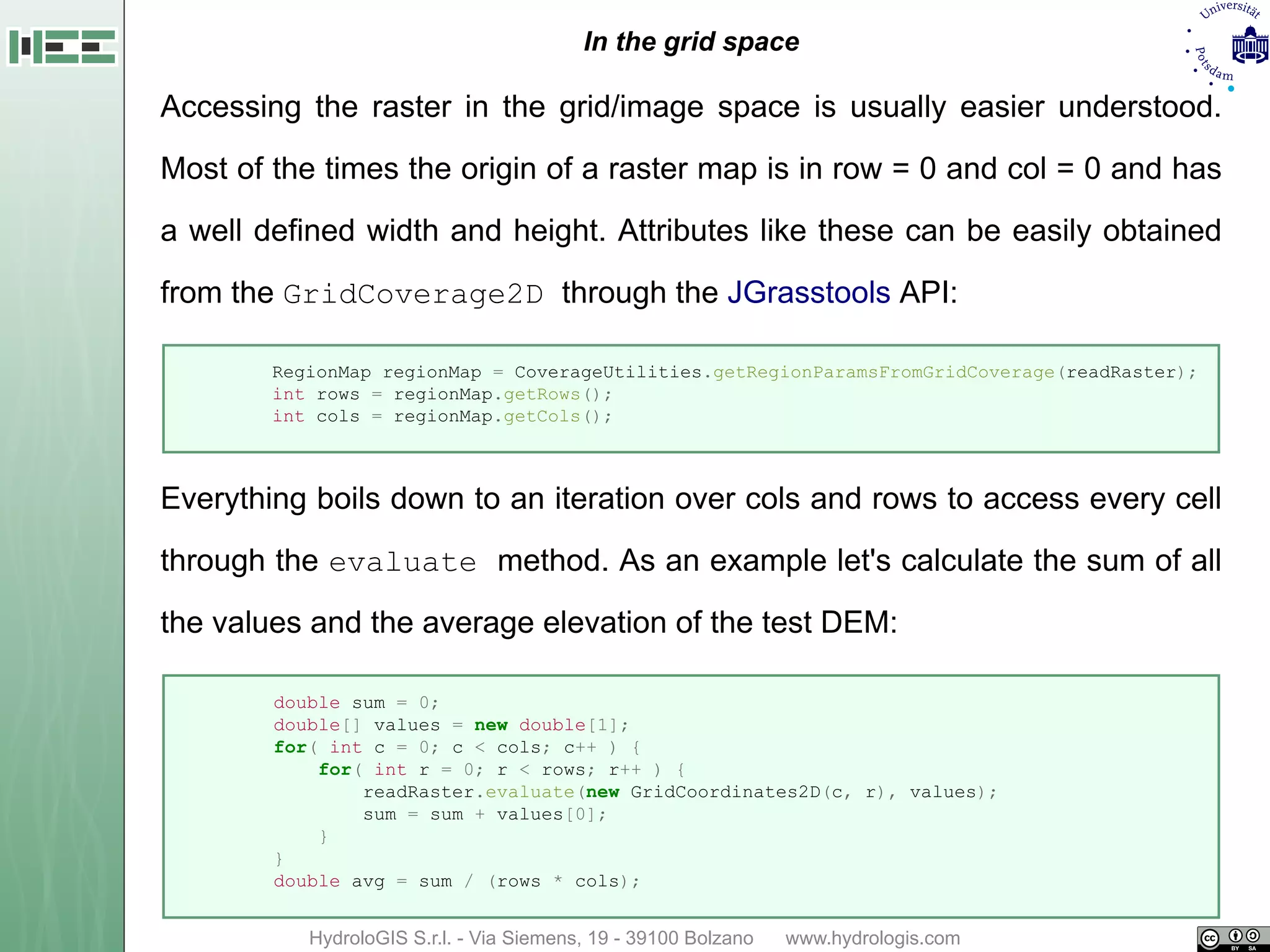

7. In the grid space
Accessing the raster in the grid/image space is usually easier understood.
Most of the times the origin of a raster map is in row = 0 and col = 0 and has
a well defined width and height. Attributes like these can be easily obtained
from the GridCoverage2D through the JGrasstools API:
RegionMap regionMap = CoverageUtilities.getRegionParamsFromGridCoverage(readRaster);
int rows = regionMap.getRows();
int cols = regionMap.getCols();
Everything boils down to an iteration over cols and rows to access every cell
through the evaluate method. As an example let's calculate the sum of all
the values and the average elevation of the test DEM:
double sum = 0;
double[] values = new double[1];
for( int c = 0; c < cols; c++ ) {
for( int r = 0; r < rows; r++ ) {
readRaster.evaluate(new GridCoordinates2D(c, r), values);
sum = sum + values[0];
}
}
double avg = sum / (rows * cols);

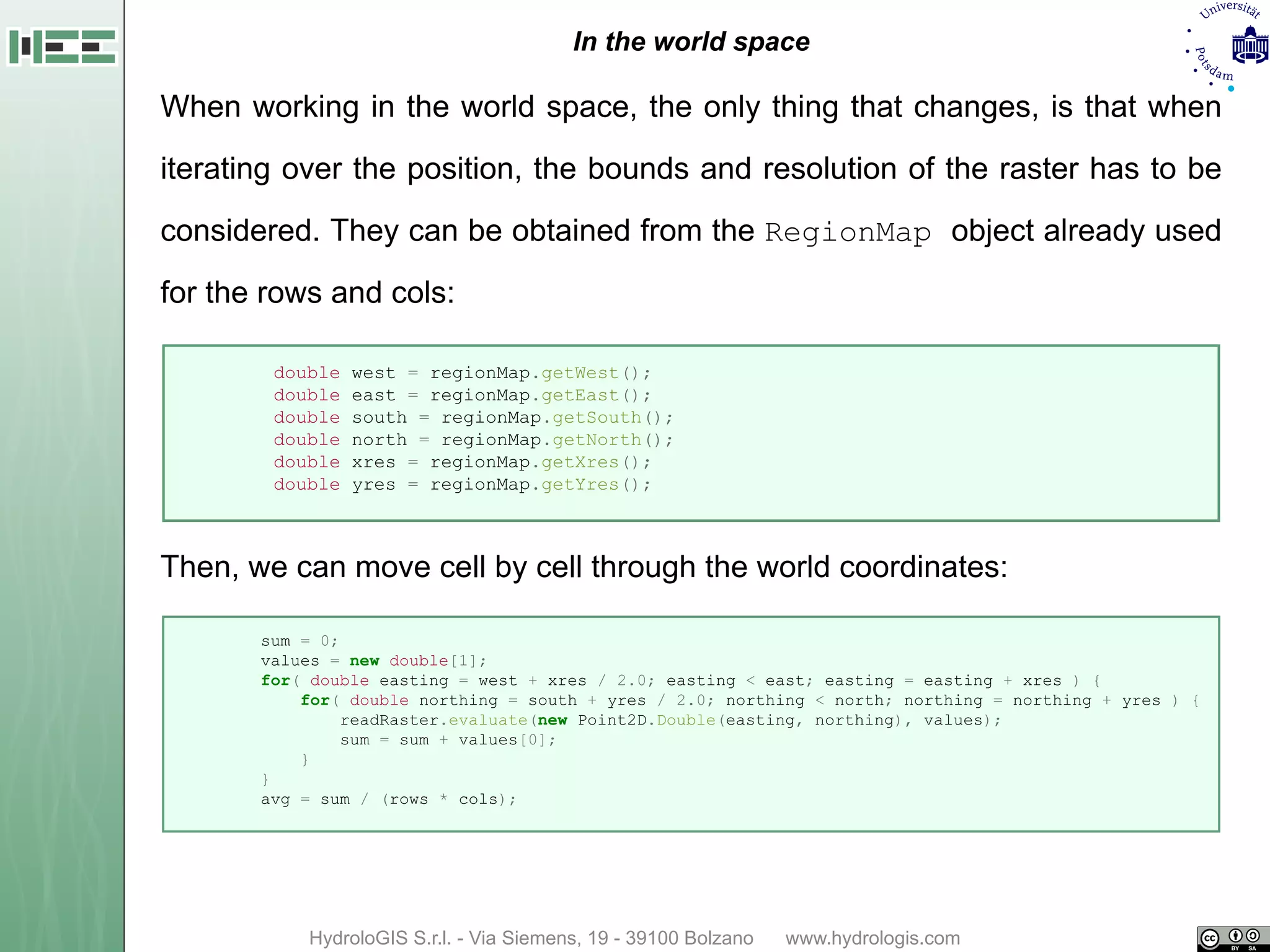

8. In the world space
When working in the world space, the only thing that changes, is that when
iterating over the position, the bounds and resolution of the raster has to be
considered. They can be obtained from the RegionMap object already used
for the rows and cols:
double west = regionMap.getWest();
double east = regionMap.getEast();
double south = regionMap.getSouth();
double north = regionMap.getNorth();
double xres = regionMap.getXres();
double yres = regionMap.getYres();
Then, we can move cell by cell through the world coordinates:
sum = 0;
values = new double[1];
for( double easting = west + xres / 2.0; easting < east; easting = easting + xres ) {
for( double northing = south + yres / 2.0; northing < north; northing = northing + yres ) {
readRaster.evaluate(new Point2D.Double(easting, northing), values);
sum = sum + values[0];
}
}
avg = sum / (rows * cols);

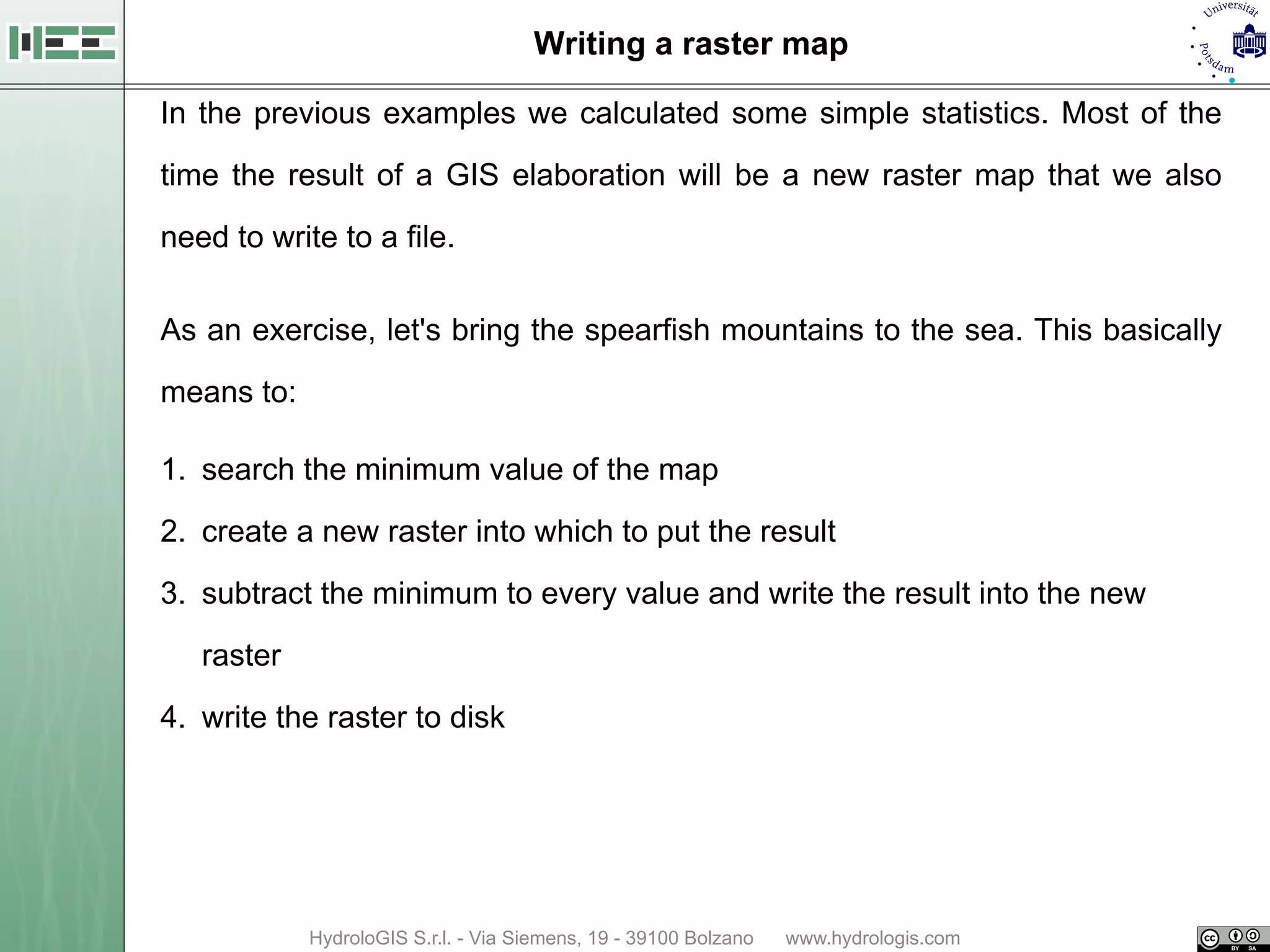

9. Writing a raster map
In the previous examples we calculated some simple statistics. Most of the
time the result of a GIS elaboration will be a new raster map that we also
need to write to a file.
As an exercise, let's bring the spearfish mountains to the sea. This basically
means to:
1. search the minimum value of the map
2. create a new raster into which to put the result
3. subtract the minimum to every value and write the result into the new
raster
4. write the raster to disk

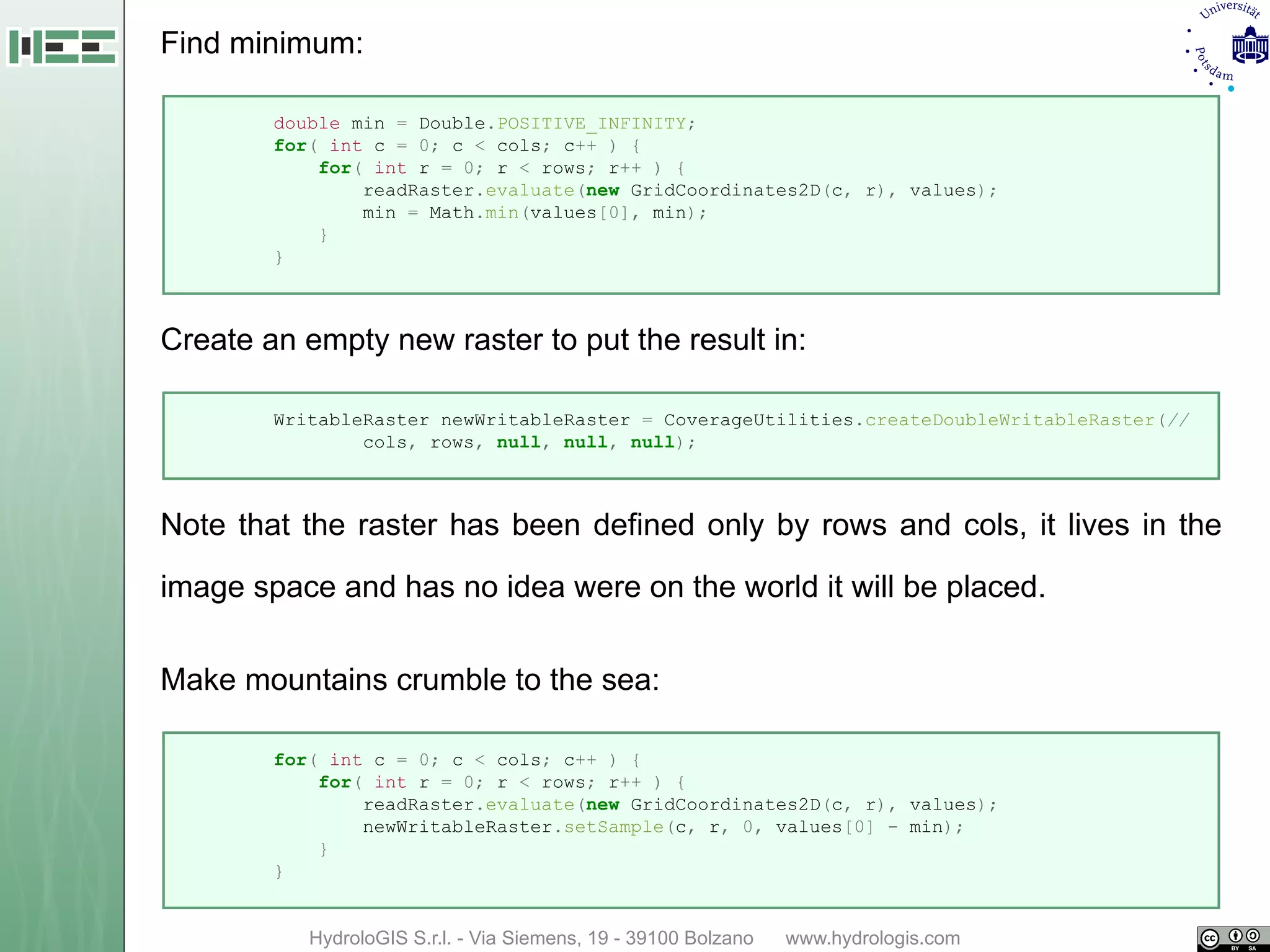

10. Find minimum:
double min = Double.POSITIVE_INFINITY;
for( int c = 0; c < cols; c++ ) {
for( int r = 0; r < rows; r++ ) {
readRaster.evaluate(new GridCoordinates2D(c, r), values);
min = Math.min(values[0], min);
}
}
Create an empty new raster to put the result in:
WritableRaster newWritableRaster = CoverageUtilities.createDoubleWritableRaster(//
cols, rows, null, null, null);
Note that the raster has been defined only by rows and cols, it lives in the
image space and has no idea were on the world it will be placed.
Make mountains crumble to the sea:
for( int c = 0; c < cols; c++ ) {
for( int r = 0; r < rows; r++ ) {
readRaster.evaluate(new GridCoordinates2D(c, r), values);
newWritableRaster.setSample(c, r, 0, values[0] - min);
}
}

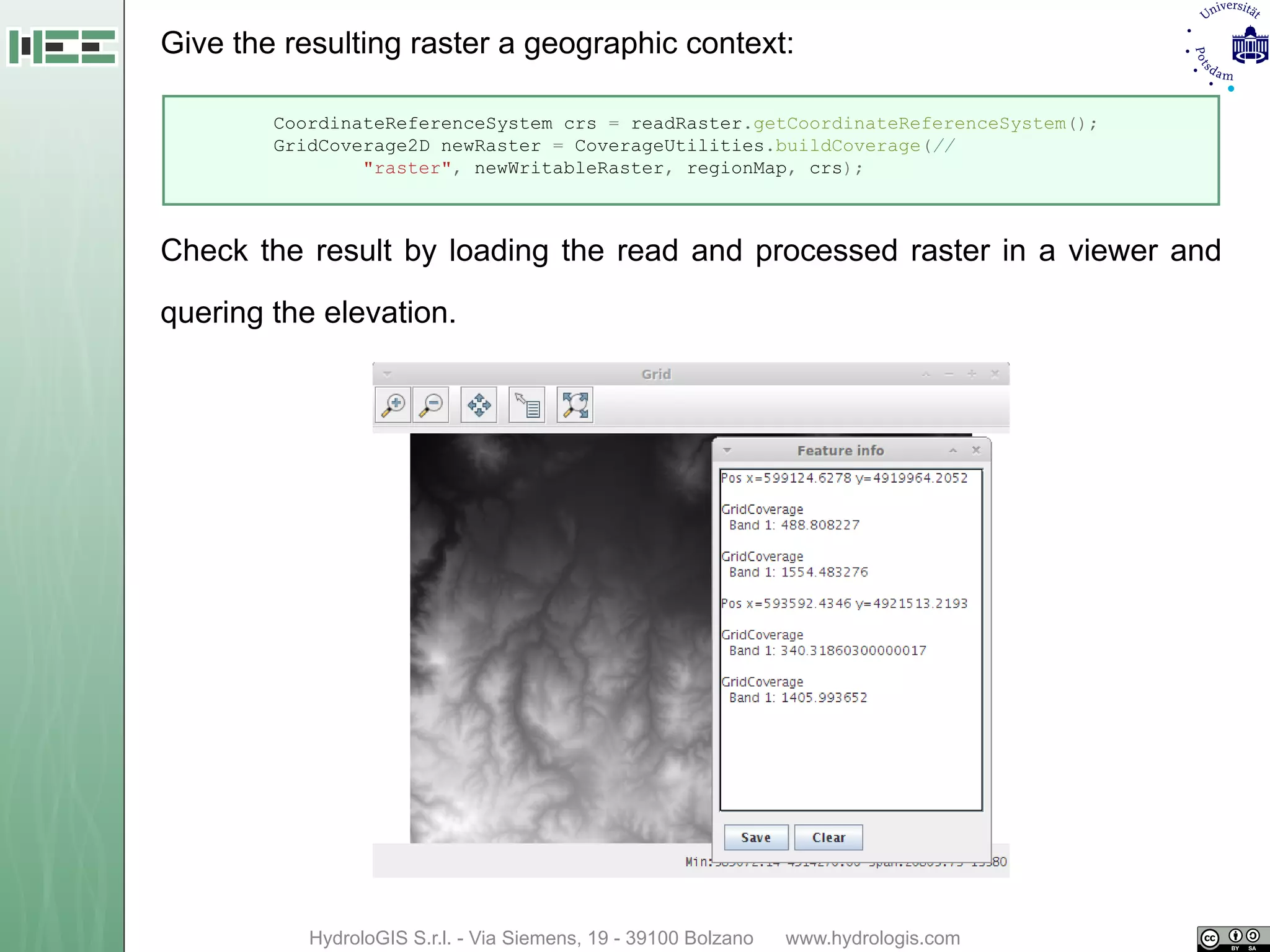

11. Give the resulting raster a geographic context:
CoordinateReferenceSystem crs = readRaster.getCoordinateReferenceSystem();
GridCoverage2D newRaster = CoverageUtilities.buildCoverage(//
"raster", newWritableRaster, regionMap, crs);
Check the result by loading the read and processed raster in a viewer and
quering the elevation.

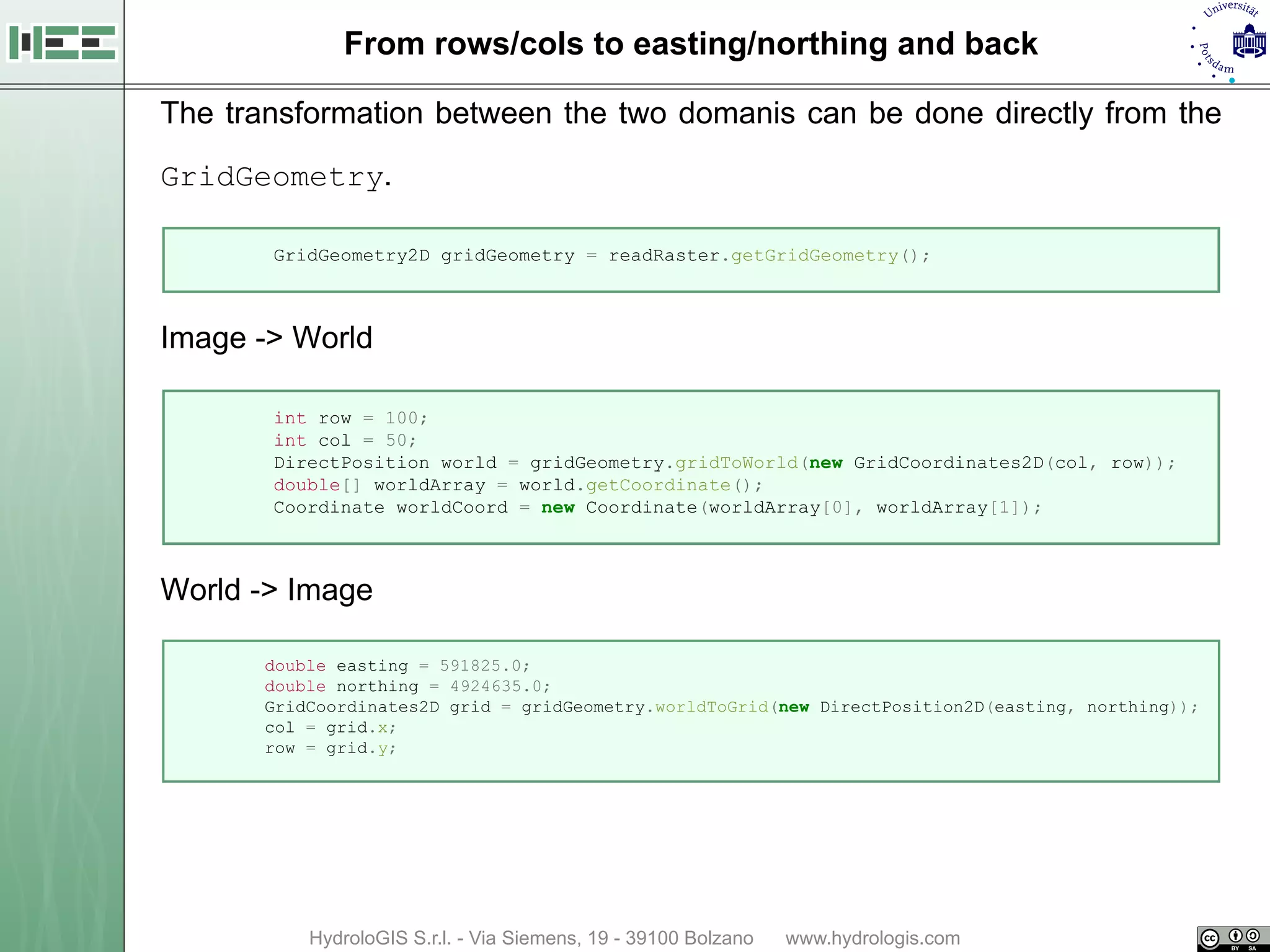

12. From rows/cols to easting/northing and back
The transformation between the two domanis can be done directly from the
GridGeometry.
GridGeometry2D gridGeometry = readRaster.getGridGeometry();
Image -> World
int row = 100;
int col = 50;
DirectPosition world = gridGeometry.gridToWorld(new GridCoordinates2D(col, row));
double[] worldArray = world.getCoordinate();
Coordinate worldCoord = new Coordinate(worldArray[0], worldArray[1]);
World -> Image
double easting = 591825.0;
double northing = 4924635.0;
GridCoordinates2D grid = gridGeometry.worldToGrid(new DirectPosition2D(easting, northing));
col = grid.x;
row = grid.y;

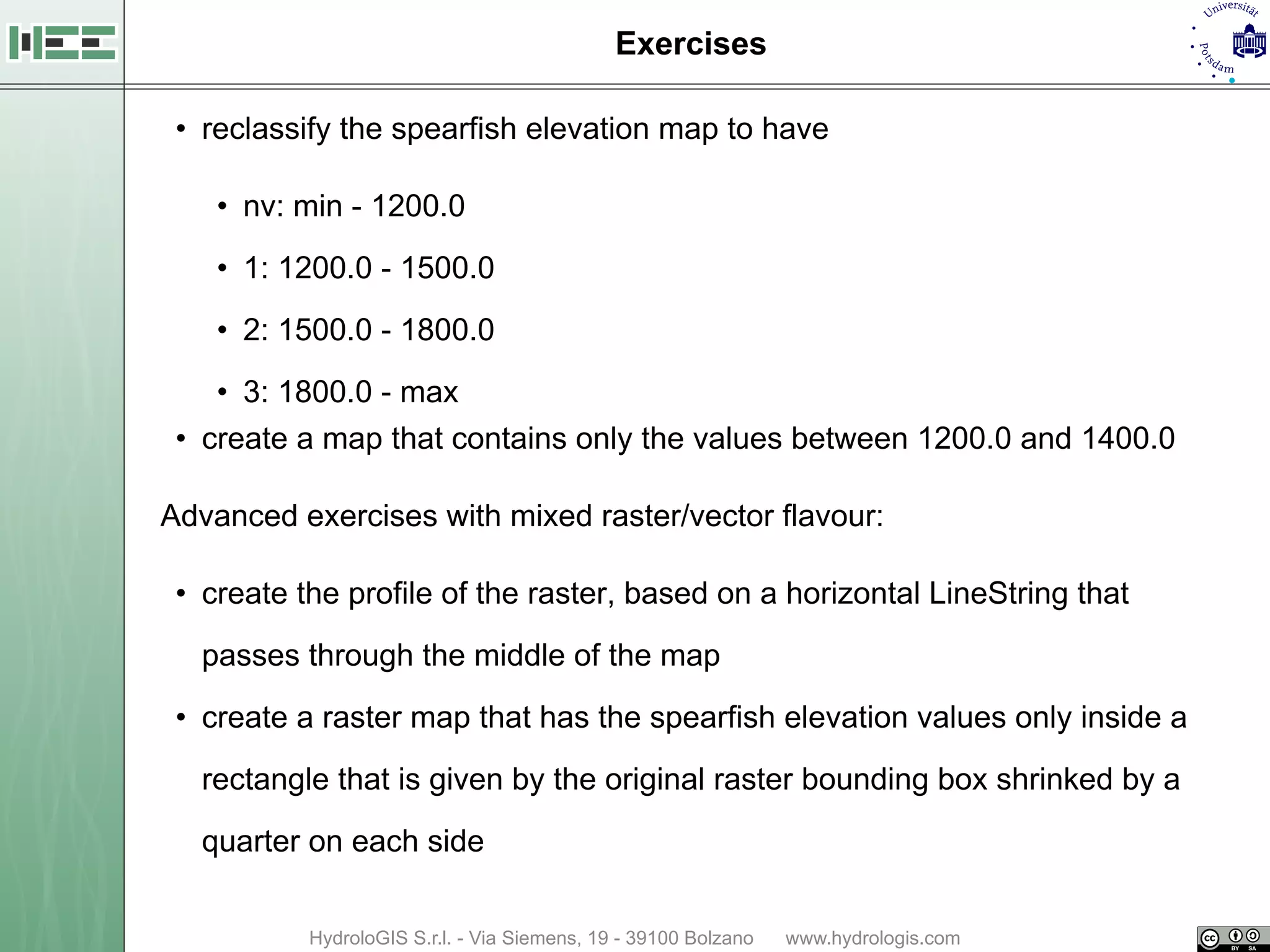

13. Exercises
• reclassify the spearfish elevation map to have
• nv: min - 1200.0
• 1: 1200.0 - 1500.0
• 2: 1500.0 - 1800.0
• 3: 1800.0 - max
• create a map that contains only the values between 1200.0 and 1400.0
Advanced exercises with mixed raster/vector flavour:
• create the profile of the raster, based on a horizontal LineString that
passes through the middle of the map
• create a raster map that has the spearfish elevation values only inside a
rectangle that is given by the original raster bounding box shrinked by a
quarter on each side

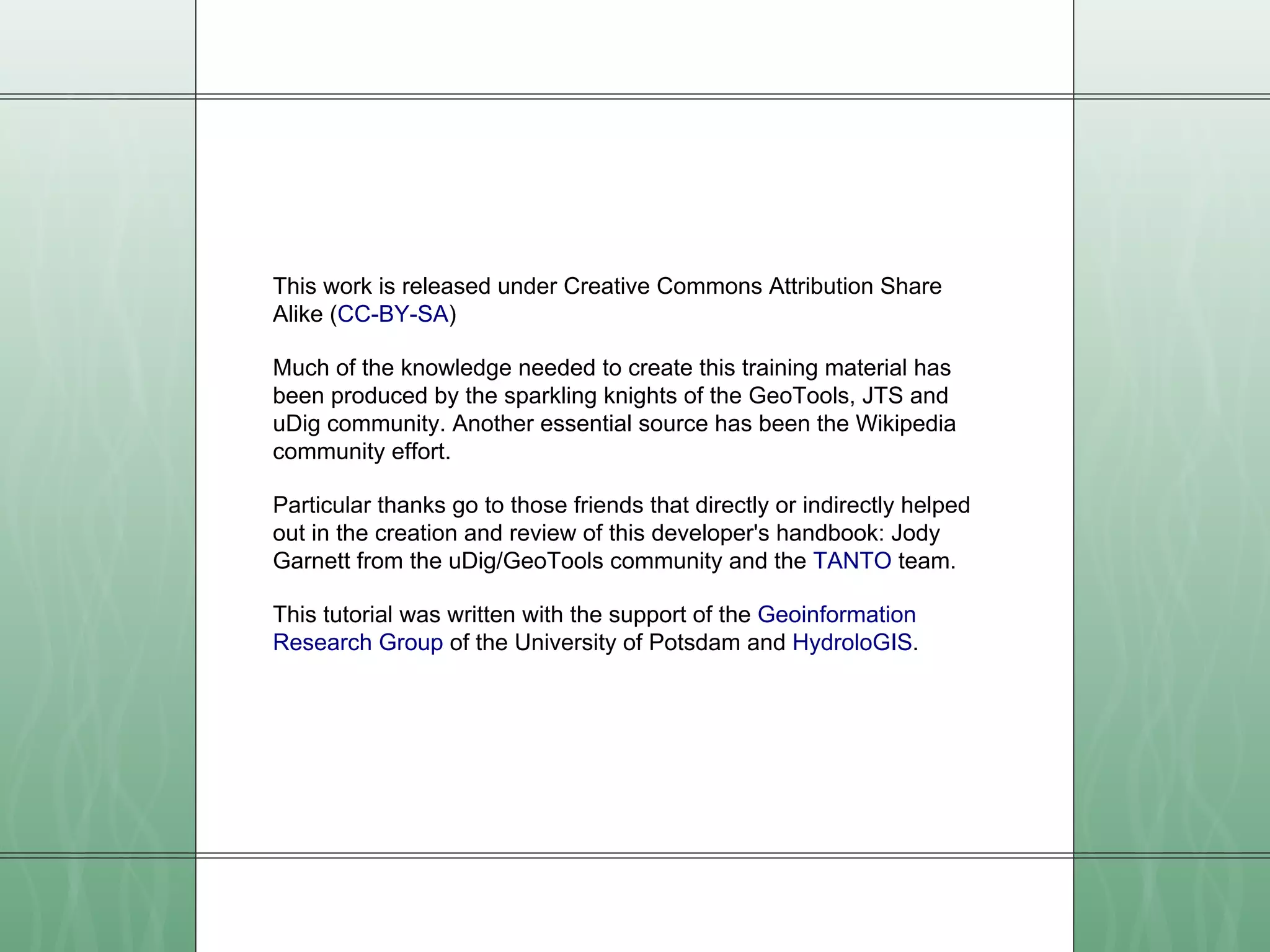

14. This work is released under Creative Commons Attribution Share
Alike (CC-BY-SA)
Much of the knowledge needed to create this training material has
been produced by the sparkling knights of the GeoTools, JTS and
uDig community. Another essential source has been the Wikipedia
community effort.
Particular thanks go to those friends that directly or indirectly helped
out in the creation and review of this developer's handbook: Jody
Garnett from the uDig/GeoTools community and the TANTO team.
This tutorial was written with the support of the Geoinformation
Research Group of the University of Potsdam and HydroloGIS.
