This slide deck explains a bit how to deal best with state in scalable systems, i.e. pushing it to the system boundaries (client, data store) and trying to avoid state in-between. Then it picks arbitrarily two scenarios - one in the frontend part and one in the backend part of a system and shows concrete techniques to deal with them. In the frontend part is examined how to deal with session state of servlet containers in scalable scenarios and introduces the concept of a shared session cache layer. Also an example implementation using Redis is shown. In the backend part it is examined how to deal with potential data inconsistencies that can occur if maximum availability of the data store is required and eventual consistency is used. The normal way is to resolve inconsistencies manually implementing business specific logic or - even worse - asking the user to resolve it. A pure technical solution called CRDTs (Conflict-free Replicated Data Types) is then shown. CRDTs, based on sound mathematical concepts, are self-stabilizing data structures that offer a generic way to resolve inconsistencies in an eventual consistent data store. Besides some theory also some examples are shown to provide a feeling how CRDTs feel in practice.

1. No stress with state
Hands-on tips for scalable applications
Uwe Friedrichsen, codecentric AG, 2014

2. @ufried
Uwe Friedrichsen | uwe.friedrichsen@codecentric.de | http://slideshare.net/ufried | http://ufried.tumblr.com

3. A word about scalability ...

4. Your system is only scalable
if you can easily scale up
and down

5. State in scalable systems

6. State is the enemy of
scalable applications

7. State …
• … avoids load distribution
• … requires replication
• … makes systems brittle
• … makes scaling down hard

8. General design rule
• Move state either to the frontend and/or to the backend
• Make everything else stateless
• Use caches if that’s too slow (but be aware of their tradeoffs)
Frontend
Client
Backend
Store
Application
Stateful
Stateful
Stateless

9. Frontend client state examples
• Cookies (fondly handcrafted)
• Play framework
• JavaScript client
• HTML5 storage

10. And what if we are bound to
a web framework that
heavily uses session state?

11. Standard session state handling
• Sticky Sessions
• Session Replication

12. Sticky Sessions
Load
Balancer
Session
Node
4711
2
0815
4
…
…
Session: 4711
Node: 2

13. Sticky Sessions
Load
Balancer
Session
Node
4711
2
0815
4
…
…
Session: 4711
Problem: Node is down
✖
New Node: 4
Node 4 does not
know session 4711

14. Sticky Sessions
Load
Balancer
Session
Node
4711
2
0815
4
…
…
Problem: Load is unequally distributed

15. Sticky Sessions
Load
Balancer
Session
Node
4711
2
0815
4
…
…
Problem: Scale down
#Sessions: 1
#Sessions: 1
#Sessions: 1
#Sessions: 1
#Sessions: 1
Cannot shut down node
without losing session

16. Session Replication
Load
Balancer
Request
Arbitrary
node
Session replication

17. But what if we really
need to scale?

18. Lazy session replication
leaves you with inconsistencies
Load
Balancer
Eager session replication
does not scale well

19. What we really want
• Scaling (up) behavior of sticky sessions
• Node independence of session replication
à Isolated nodes with shared session cache

20. Isolated nodes with shared session cache
Load
Balancer
Request
Arbitrary
node
Application nodes
Cache nodes

21. Isolated nodes with shared session cache
• Easy load distribution
• Easy up- and down-scaling
• Tolerant against node failures
• Independent scaling of application and cache nodes

22. But isn’t that way too slow?

23. Scalability vs. Latency
You need to give up some latency for an individual user
to provide acceptable latency for many users
Latencydistribution
Not scalable
Acceptable latency
Single user
Many users
Scalable
Acceptable latency
Latencydistribution
Single user
Many users

24. And how do I implement it?

25. Interception points
• StandardSession (Tomcat)
• HttpSessionAttributeListener (JEE)
• Valve (Tomcat)
• Filter (JEE)
• SessionManager (ManagerBase, Tomcat)

26. Available libraries
• For Redis
• For MemCached
• For MongoDB
• For Cassandra
• …

27. Example library
• Redis Session Manager for Apache Tomcat
https://github.com/jcoleman/tomcat-redis-session-manager
• A bit outdated, but easy to use
• Usage
• Install and start Redis
• Copy tomcat-redis-session-manager.jar and
jedis-<version>.jar to Tomcat lib directory
• Update Tomcat configuration
• Restart Tomcat

28. context.xml
<Context>
...
<Valve className="com.radiadesign.catalina.session.RedisSessionHandlerValve" />
<Manager className="com.radiadesign.catalina.session.RedisSessionManager"
host="localhost”
port="6379"
database="0”
maxInactiveInterval="60" />
</Context>

29. Tradeoffs
• Easy to set up and use
• No code required, only configuration
• Works smoothly
• Not best for web frameworks
that store lots of session state
• Does not work well with AJAX
• Does not work with single page applications
à Another reason to prefer ROCA style?

30. General design rule
• Move state either to the frontend and/or to the backend
• Make everything else stateless
• Use caches if that’s too slow (but be aware of their tradeoffs)
Frontend
Client
Backend
Store
Application
Stateful
Stateful
Stateless

31. Challenges of scalable datastores
• Requires relaxed consistency guarantees
• Leads to (temporal) anomalies and inconsistencies
short-term due to replication or long-term due to partitioning
It might happen. Thus, it will happen!

32. C
Consistency
A
Availability
P
Partition Tolerance
Strict Consistency
ACID / 2PC
Strong Consistency
Quorum R&W / Paxos
Eventual Consistency
CRDT / Gossip / Hinted Handoff

33. Strict Consistency (CA)
• Great programming model
no anomalies or inconsistencies need to be considered
• Does not scale well
best for single node databases
„We know ACID – It works!“
„We know 2PC – It sucks!“
Use for moderate data amounts

34. And what if I need more data?
• Distributed datastore
• Partition tolerance is a must
• Need to give up strict consistency (CP or AP)

35. Strong Consistency (CP)
• Majority based consistency model
can tolerate up to N nodes failing out of 2N+1 nodes
• Good programming model
Single-copy consistency
• Trades consistency for availability
in case of partitioning
Paxos (for sequential consistency)
Quorum-based reads & writes

36. And what if I need more availability?
• Need to give up strong consistency (CP)
• Relax required consistency properties even more
• Leads to eventual consistency (AP)

37. Eventual Consistency (AP)
• Gives up some consistency guarantees
no sequential consistency, anomalies become visible
• Maximum availability possible
can tolerate up to N-1 nodes failing out of N nodes
• Challenging programming model
anomalies usually need to be resolved explicitly
Gossip / Hinted Handoffs
CRDT

38. Conflict-free Replicated Data Types
• Eventually consistent, self-stabilizing data structures
• Designed for maximum availability
• Tolerates up to N-1 out of N nodes failing
State-based CRDT: Convergent Replicated Data Type (CvRDT)
Operation-based CRDT: Commutative Replicated Data Type (CmRDT)

39. A bit of theory first ...

40. Convergent Replicated Data Type
State-based CRDT – CvRDT
• All replicas (usually) connected
• Exchange state between replicas, calculate new state on target replica
• State transfer at least once over eventually-reliable channels
• Set of possible states form a Semilattice
• Partially ordered set of elements where all subsets have a Least Upper Bound (LUB)
• All state changes advance upwards with respect to the partial order

41. Commutative Replicated Data Type
Operation-based CRDT - CmRDT
• All replicas (usually) connected
• Exchange update operations between replicas, apply on target replica
• Reliable broadcast with ordering guarantee for non-concurrent
updates
• Concurrent updates must be commutative

42. That‘s been enough theory ...

43. Counter

44. Op-based Counter
Data
Integer i
Init
i ≔ 0
Query
return i
Operations
increment(): i ≔ i + 1
decrement(): i ≔ i - 1

45. State-based G-Counter (grow only)
(Naïve approach)
Data
Integer i
Init
i ≔ 0
Query
return i
Update
increment(): i ≔ i + 1
Merge( j)
i ≔ max(i, j)

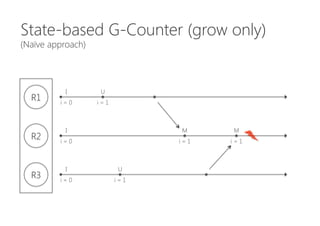

46. State-based G-Counter (grow only)
(Naïve approach)
R1
R3
R2
i = 1
U
i = 1
U
i = 0
i = 0
i = 0
I
I
I
M
i = 1
i = 1
M

47. State-based G-Counter (grow only)
(Vector-based approach)
Data
Integer V[] / one element per replica set
Init
V ≔ [0, 0, ... , 0]
Query
return ∑i V[i]
Update
increment(): V[i] ≔ V[i] + 1 / i is replica set number
Merge(V‘)
∀i ∈ [0, n-1] : V[i] ≔ max(V[i], V‘[i])

48. State-based G-Counter (grow only)
(Vector-based approach)
R1
R3
R2
V = [1, 0, 0]
U
V = [0, 0, 0]
I
I
I
V = [0, 0, 0]
V = [0, 0, 0]
U
V = [0, 0, 1]
M
V = [1, 0, 0]
M
V = [1, 0, 1]

49. State-based PN-Counter (pos./neg.)
• Simple vector approach as with G-Counter does not work
• Violates monotonicity requirement of semilattice
• Need to use two vectors
• Vector P to track incements
• Vector N to track decrements
• Query result is ∑i P[i] – N[i]

50. State-based PN-Counter (pos./neg.)
Data
Integer P[], N[] / one element per replica set
Init
P ≔ [0, 0, ... , 0], N ≔ [0, 0, ... , 0]
Query
Return ∑i P[i] – N[i]
Update
increment(): P[i] ≔ P[i] + 1 / i is replica set number
decrement(): N[i] ≔ N[i] + 1 / i is replica set number
Merge(P‘, N‘)
∀i ∈ [0, n-1] : P[i] ≔ max(P[i], P‘[i])
∀i ∈ [0, n-1] : N[i] ≔ max(N[i], N‘[i])

51. Non-negative Counter
Problem: How to check a global invariant with local information only?
• Approach 1: Only dec if local state is > 0
• Concurrent decs could still lead to negative value
• Approach 2: Externalize negative values as 0
• inc(negative value) == noop(), violates counter semantics
• Approach 3: Local invariant – only allow dec if P[i] - N[i] > 0
• Works, but may be too strong limitation
• Approach 4: Synchronize
• Works, but violates assumptions and prerequisites of CRDTs

52. More datatypes
• Register
• Set
• Dictionary (Map)
• Tree
• Graph
• Array
• List
plus several representations for each datatype

53. Limitations of CRDTs
• Very weak consistency guarantees
Strives for „quiescent consistency“
• Eventually consistent
Not suitable for high-volume ID generator or alike
• Not easy to understand and model
• Not all data structures representable
Use if availability is extremely important

54. Further reading on CRDTs
1. Shapiro et al., Conflict-free Replicated Data
Types, Inria Research report, 2011
2. Shapiro et al., A comprehensive study of
Convergent and Commutative Replicated
Data Types,
Inria Research report, 2011
3. Basho Tag Archives: CRDT,
https://basho.com/tag/crdt/
4. Leslie Lamport,
Time, clocks, and the ordering of events in a
distributed system,
Communications of the ACM (1978)

55. Wrap-up
• Scalability means scaling up and down
• State is the enemy of scalability
• Move state to the frontend and backend
• Shared session state layer
• CRDTs
The best way to deal with state is to avoid it
