1. MAXIME LEMAITRE – 07/04/2015
What is Performance ?
Performance is a feature

2. Agenda
• Introduction
• Common Principles
• Maths
• Performance testing principles
• Being Performance minded
• Conclusion

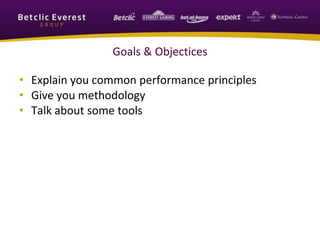

3. Goals & Objectices
• Explain you common performance principles
• Give you methodology
• Talk about some tools

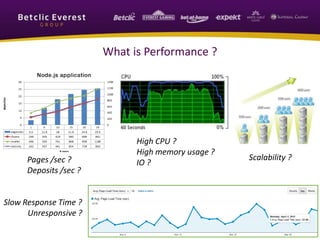

4. What is Performance ?
High CPU ?
High memory usage ?
IO ?
Slow Response Time ?
Unresponsive ?
Scalability ?Pages /sec ?
Deposits /sec ?

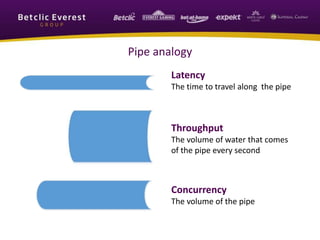

5. Pipe analogy
Latency
The time to travel along the pipe
Throughput
The volume of water that comes
of the pipe every second
Concurrency
The volume of the pipe

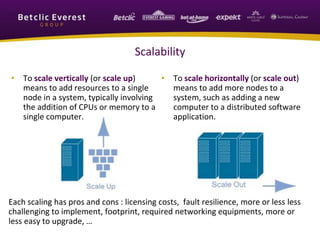

6. Scalability
• To scale vertically (or scale up)
means to add resources to a single
node in a system, typically involving
the addition of CPUs or memory to a
single computer.
• To scale horizontally (or scale out)
means to add more nodes to a
system, such as adding a new
computer to a distributed software
application.
Each scaling has pros and cons : licensing costs, fault resilience, more or less less
challenging to implement, footprint, required networking equipments, more or
less easy to upgrade, …

7. Common Scalability problems
Why building highly scalable applications is so hard ? Because ALL applications
have a Primary Bottleneck

9. Big-O Notation
Big-O notation is a relative representation of the
complexity of an algorithm.
• relative: you can only compare apples to apples. You can't compare an algorithm
to do arithmetic multiplication to an algorithm that sorts a list of integers. But a
comparison of two algorithms to do arithmetic operations (one multiplication, one
addition) will tell you something meaningful;
• representation: Big-O (in its simplest form) reduces the comparison between
algorithms to a single variable. That variable is chosen based on observations or
assumptions. For example, sorting algorithms are typically compared based on
comparison operations (comparing two nodes to determine their relative
ordering). This assumes that comparison is expensive. But what if comparison is
cheap but swapping is expensive? It changes the comparison; and
• complexity: if it takes me one second to sort 10,000 elements how long will it take
me to sort one million? Complexity in this instance is a relative measure to
something else.

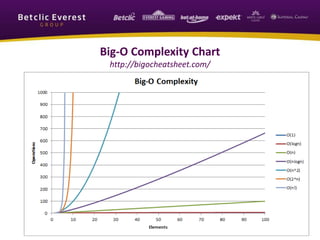

10. Big-O Complexity Chart
http://bigocheatsheet.com/

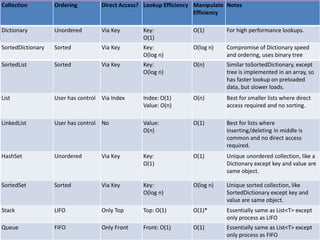

11. Collection Ordering Direct Access? Lookup Efficiency Manipulate
Efficiency
Notes
Dictionary Unordered Via Key Key:
O(1)
O(1) For high performance lookups.
SortedDictionary Sorted Via Key Key:
O(log n)
O(log n) Compromise of Dictionary speed
and ordering, uses binary tree
SortedList Sorted Via Key Key:
O(log n)
O(n) Similar toSortedDictionary, except
tree is implemented in an array, so
has faster lookup on preloaded
data, but slower loads.
List User has control Via Index Index: O(1)
Value: O(n)
O(n) Best for smaller lists where direct
access required and no sorting.
LinkedList User has control No Value:
O(n)
O(1) Best for lists where
inserting/deleting in middle is
common and no direct access
required.
HashSet Unordered Via Key Key:
O(1)
O(1) Unique unordered collection, like a
Dictionary except key and value are
same object.
SortedSet Sorted Via Key Key:
O(log n)
O(log n) Unique sorted collection, like
SortedDictionary except key and
value are same object.
Stack LIFO Only Top Top: O(1) O(1)* Essentially same as List<T> except
only process as LIFO
Queue FIFO Only Front Front: O(1) O(1) Essentially same as List<T> except
only process as FIFO

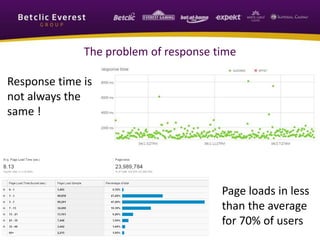

12. The problem of response time
Response time is
not always the
same !
Page loads in less
than the average
for 70% of users

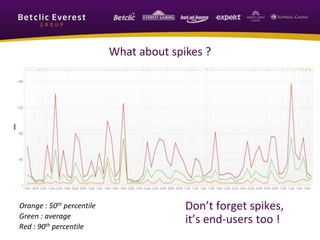

13. What about spikes ?
Orange : 50th percentile
Green : average
Red : 90th percentile
Don’t forget spikes,
it’s end-users too !

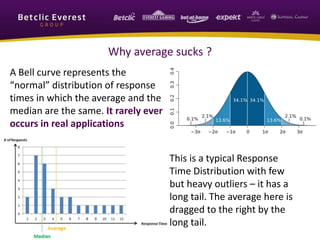

14. Why average sucks ?
A Bell curve represents the
“normal” distribution of response
times in which the average and the
median are the same. It rarely ever
occurs in real applications
This is a typical Response
Time Distribution with few
but heavy outliers – it has a
long tail. The average here is
dragged to the right by the
long tail.

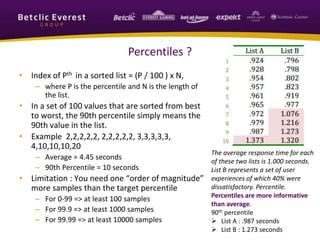

15. Percentiles ?
• Index of Pth in a sorted list = (P / 100 ) x N,
– where P is the percentile and N is the length of
the list.
• In a set of 100 values that are sorted from best
to worst, the 90th percentile simply means the
90th value in the list.
• Example 2,2,2,2,2, 2,2,2,2,2, 3,3,3,3,3,
4,10,10,10,20
– Average = 4.45 seconds
– 90th Percentile = 10 seconds
• Limitation : You need one “order of magnitude”
more samples than the target percentile
– For 0-99 => at least 100 samples
– For 99.9 => at least 1000 samples
– For 99.99 => at least 10000 samples
The average response time for each
of these two lists is 1.000 seconds.
List B represents a set of user
experiences of which 40% were
dissatisfactory. Percentile.
Percentiles are more informative
than average.
90th percentile
 List A : .987 seconds
 List B : 1.273 seconds

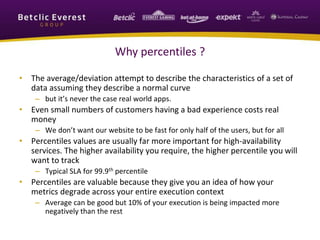

16. Why percentiles ?
• The average/deviation attempt to describe the characteristics of a set of
data assuming they describe a normal curve
– but it’s never the case real world apps.
• Even small numbers of customers having a bad experience costs real
money
– We don’t want our website to be fast for only half of the users, but for all
• Percentiles values are usually far more important for high-availability
services. The higher availability you require, the higher percentile you will
want to track
– Typical SLA for 99.9th percentile
• Percentiles are valuable because they give you an idea of how your
metrics degrade across your entire execution context
– Average can be good but 10% of your execution is being impacted more
negatively than the rest

17. Performance Testing Principles

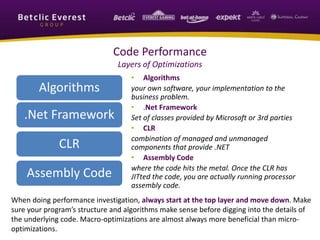

18. Code Performance
Layers of Optimizations
Algorithms
.Net Framework
CLR
Assembly Code
• Algorithms
your own software, your implementation to the
business problem.
• .Net Framework
Set of classes provided by Microsoft or 3rd parties
• CLR
combination of managed and unmanaged
components that provide .NET
• Assembly Code
where the code hits the metal. Once the CLR has
JITted the code, you are actually running processor
assembly code.
When doing performance investigation, always start at the top layer and move down. Make
sure your program’s structure and algorithms make sense before digging into the details of
the underlying code. Macro-optimizations are almost always more beneficial than micro-
optimizations.

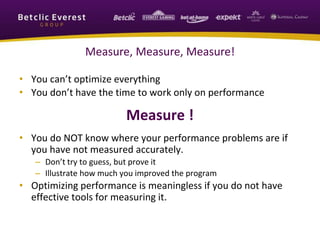

19. Measure, Measure, Measure!
• You can’t optimize everything
• You don’t have the time to work only on performance
Measure !
• You do NOT know where your performance problems are if
you have not measured accurately.
– Don’t try to guess, but prove it
– Illustrate how much you improved the program
• Optimizing performance is meaningless if you do not have
effective tools for measuring it.

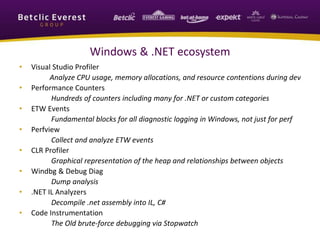

20. Windows & .NET ecosystem
• Visual Studio Profiler
Analyze CPU usage, memory allocations, and resource contentions during dev
• Performance Counters
Hundreds of counters including many for .NET or custom categories
• ETW Events
Fundamental blocks for all diagnostic logging in Windows, not just for perf
• Perfview
Collect and analyze ETW events
• CLR Profiler
Graphical representation of the heap and relationships between objects
• Windbg & Debug Diag
Dump analysis
• .NET IL Analyzers
Decompile .net assembly into IL, C#
• Code Instrumentation
The Old brute-force debugging via Stopwatch

21. The art of benchmarking
http://mattwarren.org/2014/09/19/the-art-of-benchmarking/
• Benchmarking is hard, it’s very easy to end up “not measuring, what you think you
are measuring”
• Pitfalls : Cold-start, Dynamic selection of benchmarks, Loop optimizations, Dead-
code elimination, Constant foldings, Non-throughput measures, Synchronize
iterations, Multi-threaded sharing, Multi-threaded setup/teardown, False-sharing,
Asymmetric benchmarks, Inlining
More infos
https://groups.google.com/fo
rum/#!msg/mechanical-
sympathy/m4opvy4xq3U/7lY
8x8SvHgwJ

22. Why Load testing ?
Its great if your site performs
well for a single user. . .
But how will it do when a
storm of users hits?

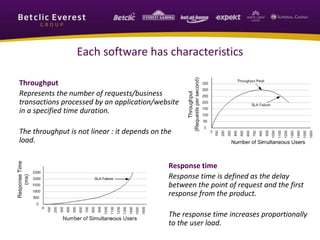

23. Each software has characteristics
Throughput
Represents the number of requests/business
transactions processed by an application/website
in a specified time duration.
The throughput is not linear : it depends on the
load.
Response time
Response time is defined as the delay
between the point of request and the first
response from the product.
The response time increases proportionally
to the user load.

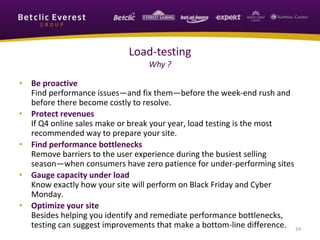

24. • Be proactive
Find performance issues—and fix them—before the week-end rush and
before there become costly to resolve.
• Protect revenues
If Q4 online sales make or break your year, load testing is the most
recommended way to prepare your site.
• Find performance bottlenecks
Remove barriers to the user experience during the busiest selling
season—when consumers have zero patience for under-performing sites
• Gauge capacity under load
Know exactly how your site will perform on Black Friday and Cyber
Monday.
• Optimize your site
Besides helping you identify and remediate performance bottlenecks,
testing can suggest improvements that make a bottom-line difference. 24
Load-testing
Why ?

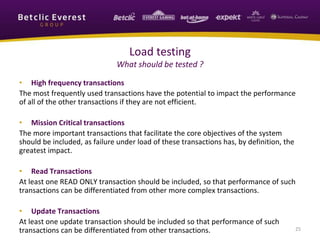

25. • High frequency transactions
The most frequently used transactions have the potential to impact the performance
of all of the other transactions if they are not efficient.
• Mission Critical transactions
The more important transactions that facilitate the core objectives of the system
should be included, as failure under load of these transactions has, by definition, the
greatest impact.
• Read Transactions
At least one READ ONLY transaction should be included, so that performance of such
transactions can be differentiated from other more complex transactions.
• Update Transactions
At least one update transaction should be included so that performance of such
transactions can be differentiated from other transactions. 25
Load testing
What should be tested ?

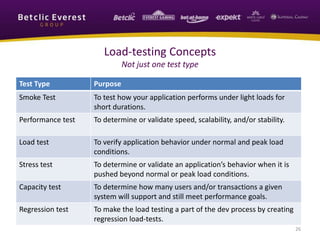

26. Test Type Purpose
Smoke Test To test how your application performs under light loads for
short durations.
Performance test To determine or validate speed, scalability, and/or stability.
Load test To verify application behavior under normal and peak load
conditions.
Stress test To determine or validate an application’s behavior when it is
pushed beyond normal or peak load conditions.
Capacity test To determine how many users and/or transactions a given
system will support and still meet performance goals.
Regression test To make the load testing a part of the dev process by creating
regression load-tests.
26
Load-testing Concepts
Not just one test type

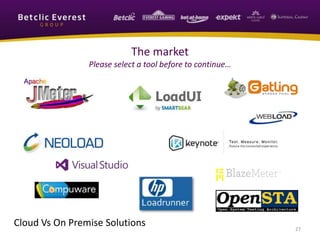

27. 27
The market
Please select a tool before to continue…
27
Cloud Vs On Premise Solutions

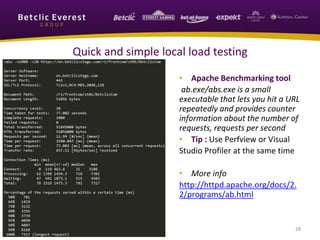

28. 28
Quick and simple local load testing
• Apache Benchmarking tool
ab.exe/abs.exe is a small
executable that lets you hit a URL
repeatedly and provides counter
information about the number of
requests, requests per second
• Tip : Use Perfview or Visual
Studio Profiler at the same time
• More info
http://httpd.apache.org/docs/2.
2/programs/ab.html

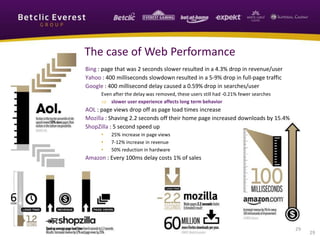

29. The case of Web Performance
29
Bing : page that was 2 seconds slower resulted in a 4.3% drop in revenue/user
Yahoo : 400 milliseconds slowdown resulted in a 5-9% drop in full-page traffic
Google : 400 millisecond delay caused a 0.59% drop in searches/user
Even after the delay was removed, these users still had -0.21% fewer searches
 slower user experience affects long term behavior
AOL : page views drop off as page load times increase
Mozilla : Shaving 2.2 seconds off their home page increased downloads by 15.4%
ShopZilla : 5 second speed up
• 25% increase in page views
• 7-12% increase in revenue
• 50% reduction in hardware
Amazon : Every 100ms delay costs 1% of sales
29

30. Web Performance Optimization
where to start ?
80-90% of the end-user response time is spent on the frontend !

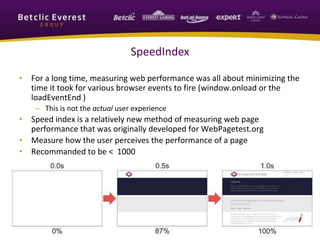

31. SpeedIndex
• For a long time, measuring web performance was all about minimizing the
time it took for various browser events to fire (window.onload or the
loadEventEnd )
– This is not the actual user experience
• Speed index is a relatively new method of measuring web page
performance that was originally developed for WebPagetest.org
• Measure how the user perceives the performance of a page
• Recommanded to be < 1000

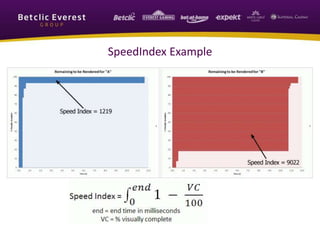

32. SpeedIndex Example

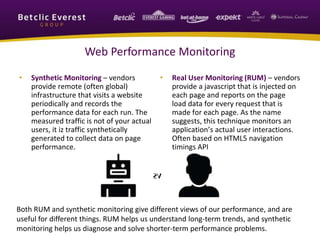

33. Web Performance Monitoring
• Synthetic Monitoring – vendors
provide remote (often global)
infrastructure that visits a website
periodically and records the
performance data for each run. The
measured traffic is not of your actual
users, it iz traffic synthetically
generated to collect data on page
performance.
• Real User Monitoring (RUM) – vendors
provide a javascript that is injected on
each page and reports on the page
load data for every request that is
made for each page. As the name
suggests, this technique monitors an
application’s actual user interactions.
Often based on HTML5 navigation
timings API
Both RUM and synthetic monitoring give different views of our performance, and are
useful for different things. RUM helps us understand long-term trends, and synthetic
monitoring helps us diagnose and solve shorter-term performance problems.

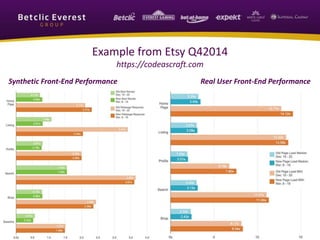

34. Example from Etsy Q42014
https://codeascraft.com
Synthetic Front-End Performance Real User Front-End Performance

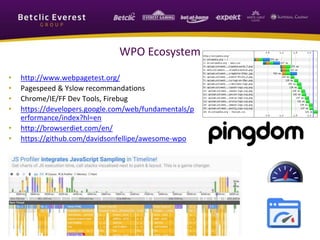

35. WPO Ecosystem
• http://www.webpagetest.org/
• Pagespeed & Yslow recommandations
• Chrome/IE/FF Dev Tools, Firebug
• https://developers.google.com/web/fundamentals/p
erformance/index?hl=en
• http://browserdiet.com/en/
• https://github.com/davidsonfellipe/awesome-wpo

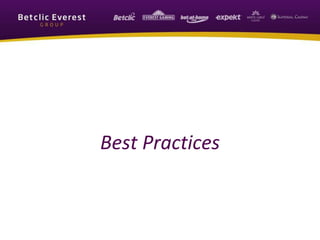

36. Best Practices

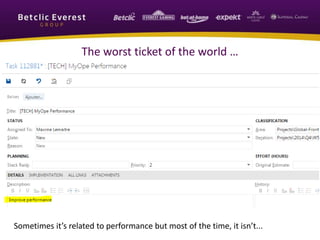

37. The worst ticket of the world …
Sometimes it’s related to performance but most of the time, it isn’t...

38. Investigating performance issues …

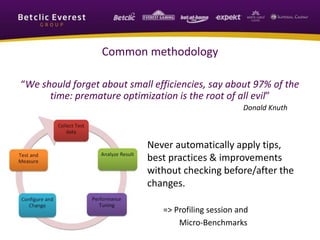

39. Common methodology
“We should forget about small efficiencies, say about 97% of the
time: premature optimization is the root of all evil”
Donald Knuth
Never automatically apply tips,
best practices & improvements
without checking before/after the
changes.
=> Profiling session and
Micro-Benchmarks

40. Performance evolution over time
• In each release, we
– Add new features
– Update existing features
– Remove dead code
– Do refactoring
– Integrate new devs & juniors
– Update technical components & dependencies
– Create bugs
– …
• Performance regression is expected over time
– Don’t wait perf issue, be pro-active

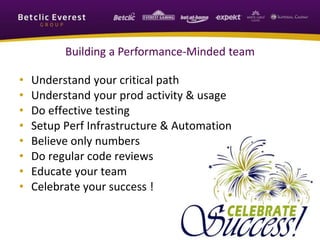

41. Building a Performance-Minded team
• Understand your critical path
• Understand your prod activity & usage
• Do effective testing
• Setup Perf Infrastructure & Automation
• Believe only numbers
• Do regular code reviews
• Educate your team
• Celebrate your success !

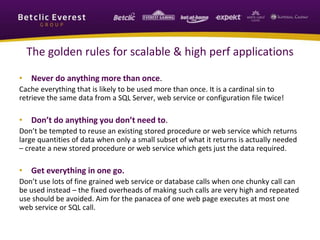

42. The golden rules for scalable & high perf applications
• Never do anything more than once.
Cache everything that is likely to be used more than once. It is a cardinal sin to
retrieve the same data from a SQL Server, web service or configuration file twice!
• Don’t do anything you don’t need to.
Don’t be tempted to reuse an existing stored procedure or web service which returns
large quantities of data when only a small subset of what it returns is actually needed
– create a new stored procedure or web service which gets just the data required.
• Get everything in one go.
Don’t use lots of fine grained web service or database calls when one chunky call can
be used instead – the fixed overheads of making such calls are very high and repeated
use should be avoided. Aim for the panacea of one web page executes at most one
web service or SQL call.

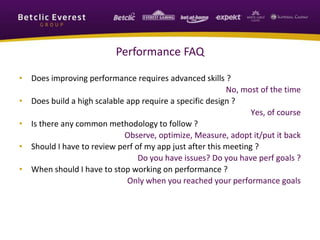

43. Performance FAQ
• Does improving performance requires advanced skills ?
No, most of the time
• Does build a high scalable app require a specific design ?
Yes, of course
• Is there any common methodology to follow ?
Observe, optimize, Measure, adopt it/put it back
• Should I have to review perf of my app just after this meeting ?
Do you have issues? Do you have perf goals ?
• When should I have to stop working on performance ?
Only when you reached your performance goals

44. To be continued …

45. Questions

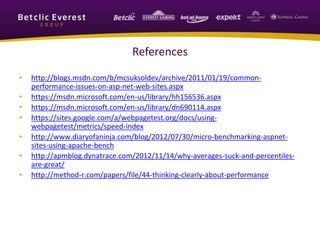

46. References
• http://blogs.msdn.com/b/mcsuksoldev/archive/2011/01/19/common-
performance-issues-on-asp-net-web-sites.aspx
• https://msdn.microsoft.com/en-us/library/hh156536.aspx
• https://msdn.microsoft.com/en-us/library/dn690114.aspx
• https://sites.google.com/a/webpagetest.org/docs/using-
webpagetest/metrics/speed-index
• http://www.diaryofaninja.com/blog/2012/07/30/micro-benchmarking-aspnet-
sites-using-apache-bench
• http://apmblog.dynatrace.com/2012/11/14/why-averages-suck-and-percentiles-
are-great/
• http://method-r.com/papers/file/44-thinking-clearly-about-performance

47. About Us
• Betclic Everest Group, one of the world leaders in online
gaming, has a unique portfolio comprising various
complementary international brands: Betclic, Everest
Poker/Casino, Bet-at-home, Expekt, Imperial Casino, Monte-
Carlo Casino…
• Through our brands, Betclic Everest Group places expertise,
technological know-how and security at the heart of our
strategy to deliver an on-line gaming offer attuned to the
passion of our players. We want our brands to be easy to use
for every gamer around the world. We’re building our
company to make that happen.
• Active in 100 countries with more than 12 million customers
worldwide, the Group is committed to promoting secure and
responsible gaming and is a member of several international
professional associations including the EGBA (European
Gaming and Betting Association) and the ESSA (European
Sports Security Association).

48. We want our Sports betting, Poker, Horse racing and
Casino & Games brands to be easy to use for every
gamer around the world. Code with us to make that
happen.
Look at all the challenges we offer HERE
Check our Employer Page
Follow us on LinkedIn
WE’RE HIRING !
