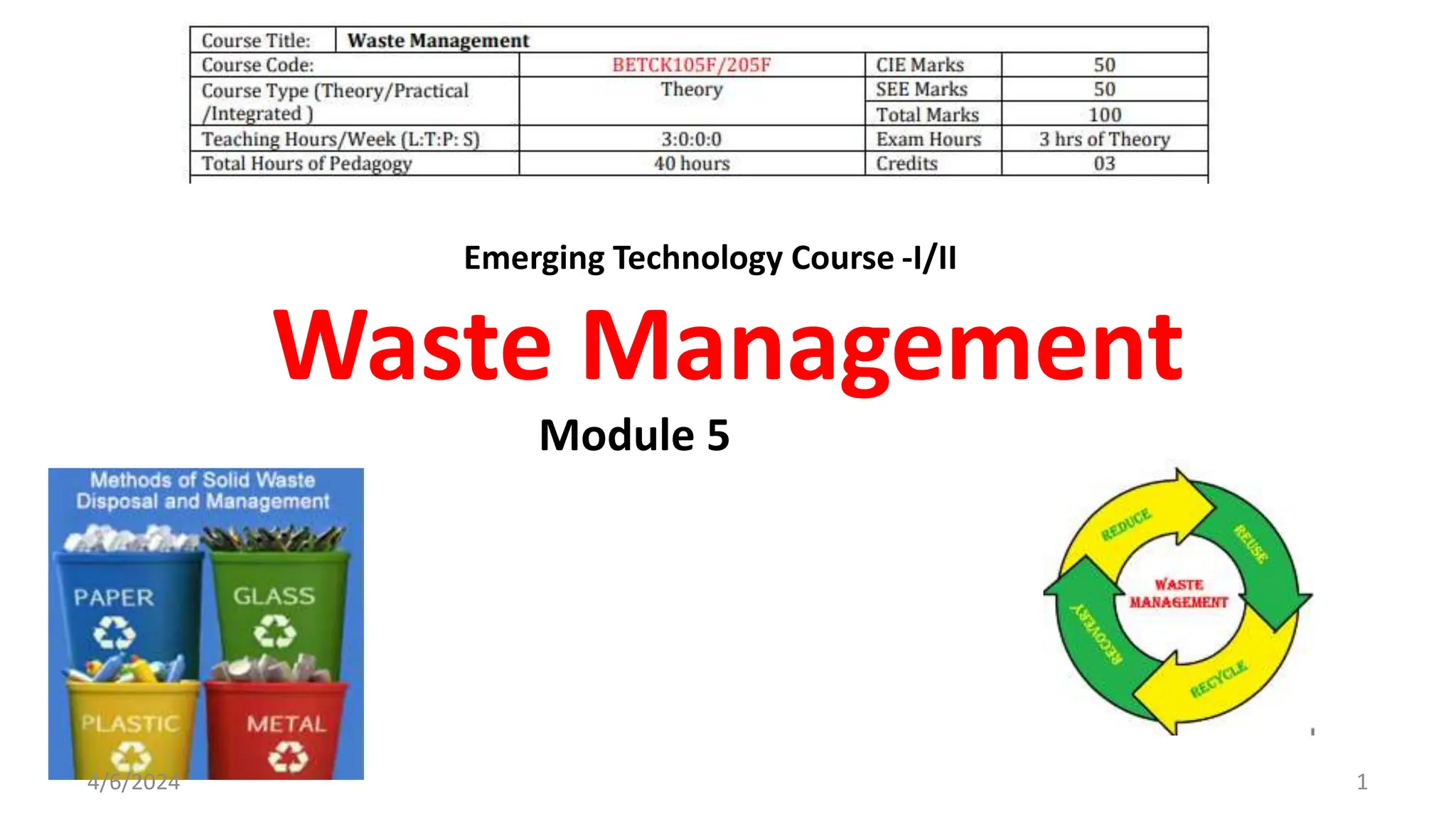

waste management

1. Waste Management
Emerging Technology Course -I/II
Module 5
4/6/2024 1

2. Syllabus Content
Identification and classification of hazardous
waste, hazardous waste treatment, pollution
prevention and wasteminimization, hazardous
wastes management in India. E-waste recycling.
8 Hours
4/6/2024 2

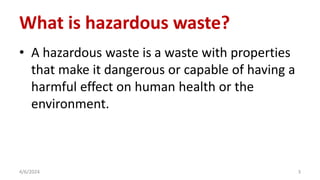

3. What is hazardous waste?
• A hazardous waste is a waste with properties
that make it dangerous or capable of having a
harmful effect on human health or the
environment.
4/6/2024 3

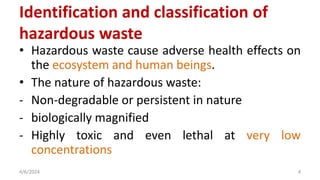

4. Identification and classification of
hazardous waste
• Hazardous waste cause adverse health effects on
the ecosystem and human beings.
• The nature of hazardous waste:
- Non-degradable or persistent in nature
- biologically magnified
- Highly toxic and even lethal at very low
concentrations
4/6/2024 4

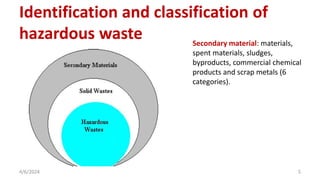

5. 4/6/2024 5
Identification and classification of
hazardous waste Secondary material: materials,
spent materials, sludges,
byproducts, commercial chemical
products and scrap metals (6
categories).

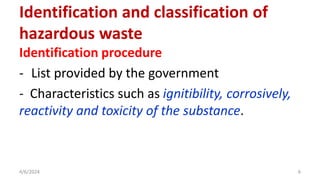

6. Identification procedure
- List provided by the government
- Characteristics such as ignitibility, corrosively,
reactivity and toxicity of the substance.
4/6/2024 6
Identification and classification of
hazardous waste

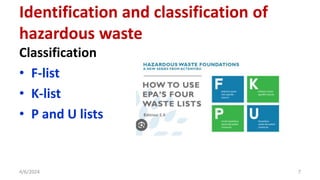

7. Classification
• F-list
• K-list
• P and U lists
4/6/2024 7
Identification and classification of
hazardous waste

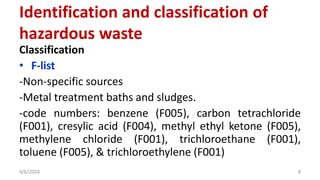

8. Classification
• F-list
-Non-specific sources
-Metal treatment baths and sludges.
-code numbers: benzene (F005), carbon tetrachloride
(F001), cresylic acid (F004), methyl ethyl ketone (F005),
methylene chloride (F001), trichloroethane (F001),
toluene (F005), & trichloroethylene (F001)
4/6/2024 8
Identification and classification of
hazardous waste

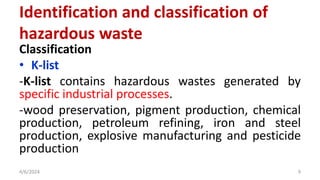

9. Classification
• K-list
-K-list contains hazardous wastes generated by
specific industrial processes.
-wood preservation, pigment production, chemical
production, petroleum refining, iron and steel
production, explosive manufacturing and pesticide
production
4/6/2024 9
Identification and classification of
hazardous waste

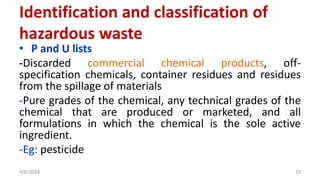

10. • P and U lists
-Discarded commercial chemical products, off-
specification chemicals, container residues and residues
from the spillage of materials
-Pure grades of the chemical, any technical grades of the
chemical that are produced or marketed, and all
formulations in which the chemical is the sole active
ingredient.
-Eg: pesticide
4/6/2024 10
Identification and classification of
hazardous waste

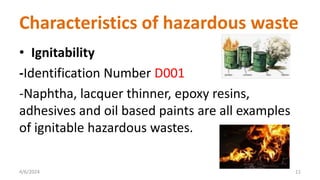

11. Characteristics of hazardous waste
• Ignitability
-Identification Number D001
-Naphtha, lacquer thinner, epoxy resins,
adhesives and oil based paints are all examples
of ignitable hazardous wastes.
4/6/2024 11

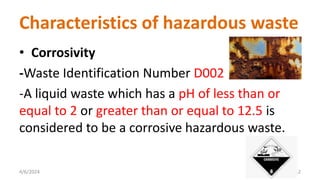

12. • Corrosivity
-Waste Identification Number D002
-A liquid waste which has a pH of less than or
equal to 2 or greater than or equal to 12.5 is
considered to be a corrosive hazardous waste.
4/6/2024 12
Characteristics of hazardous waste

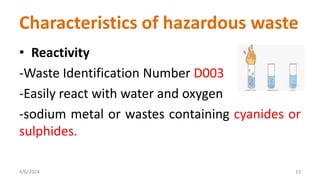

13. • Reactivity
-Waste Identification Number D003
-Easily react with water and oxygen
-sodium metal or wastes containing cyanides or
sulphides.
4/6/2024 13
Characteristics of hazardous waste

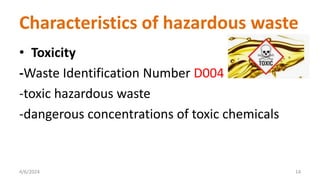

14. • Toxicity
-Waste Identification Number D004
-toxic hazardous waste
-dangerous concentrations of toxic chemicals
4/6/2024 14
Characteristics of hazardous waste

15. • Radioactive substance
-Persist long period
-Half life period
-Source: Nuclear reactor
4/6/2024 15

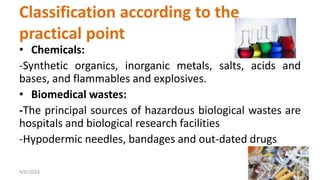

Classification according to the
practical point

16. • Chemicals:
-Synthetic organics, inorganic metals, salts, acids and
bases, and flammables and explosives.
• Biomedical wastes:
-The principal sources of hazardous biological wastes are
hospitals and biological research facilities
-Hypodermic needles, bandages and out-dated drugs
4/6/2024 16
Classification according to the
practical point

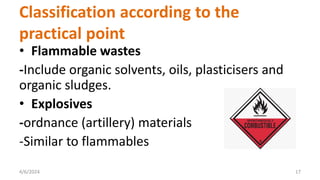

17. • Flammable wastes
-Include organic solvents, oils, plasticisers and
organic sludges.
• Explosives
-ordnance (artillery) materials
-Similar to flammables
4/6/2024 17
Classification according to the
practical point

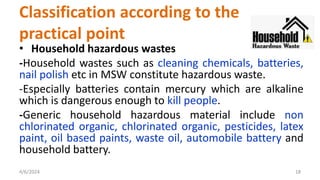

18. • Household hazardous wastes
-Household wastes such as cleaning chemicals, batteries,
nail polish etc in MSW constitute hazardous waste.
-Especially batteries contain mercury which are alkaline
which is dangerous enough to kill people.
-Generic household hazardous material include non
chlorinated organic, chlorinated organic, pesticides, latex
paint, oil based paints, waste oil, automobile battery and
household battery.
4/6/2024 18
Classification according to the
practical point

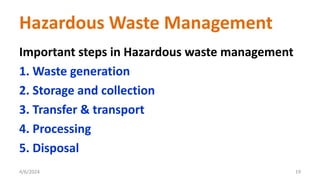

19. Important steps in Hazardous waste management
1. Waste generation
2. Storage and collection
3. Transfer & transport
4. Processing
5. Disposal
4/6/2024 19
Hazardous Waste Management

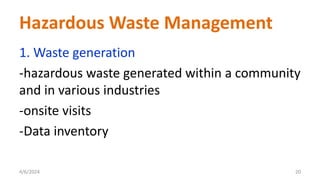

20. 1. Waste generation
-hazardous waste generated within a community
and in various industries
-onsite visits
-Data inventory
4/6/2024 20
Hazardous Waste Management

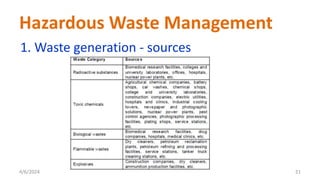

21. 1. Waste generation - sources
4/6/2024 21
Hazardous Waste Management

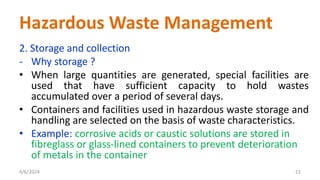

22. 2. Storage and collection
- Why storage ?
• When large quantities are generated, special facilities are
used that have sufficient capacity to hold wastes
accumulated over a period of several days.
• Containers and facilities used in hazardous waste storage and
handling are selected on the basis of waste characteristics.
• Example: corrosive acids or caustic solutions are stored in
fibreglass or glass-lined containers to prevent deterioration
of metals in the container
4/6/2024 22
Hazardous Waste Management

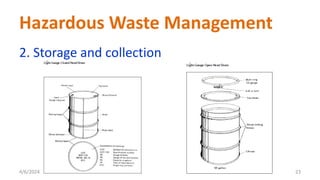

23. 2. Storage and collection
4/6/2024 23
Hazardous Waste Management

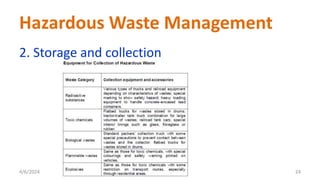

24. 2. Storage and collection
4/6/2024 24
Hazardous Waste Management

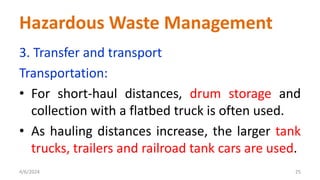

25. 3. Transfer and transport
Transportation:
• For short-haul distances, drum storage and
collection with a flatbed truck is often used.
• As hauling distances increase, the larger tank
trucks, trailers and railroad tank cars are used.
4/6/2024 25
Hazardous Waste Management

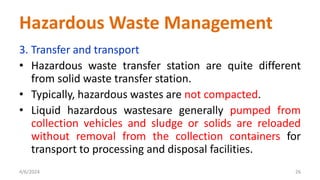

26. 3. Transfer and transport
• Hazardous waste transfer station are quite different
from solid waste transfer station.
• Typically, hazardous wastes are not compacted.
• Liquid hazardous wastesare generally pumped from
collection vehicles and sludge or solids are reloaded
without removal from the collection containers for
transport to processing and disposal facilities.
4/6/2024 26
Hazardous Waste Management

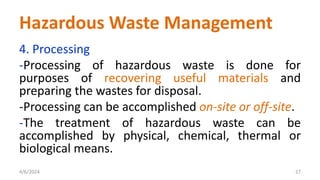

27. 4. Processing
-Processing of hazardous waste is done for
purposes of recovering useful materials and
preparing the wastes for disposal.
-Processing can be accomplished on-site or off-site.
-The treatment of hazardous waste can be
accomplished by physical, chemical, thermal or
biological means.
4/6/2024 27
Hazardous Waste Management

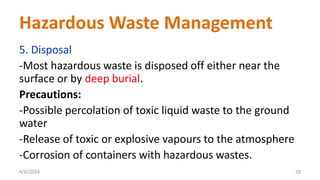

28. 5. Disposal
-Most hazardous waste is disposed off either near the
surface or by deep burial.
Precautions:
-Possible percolation of toxic liquid waste to the ground
water
-Release of toxic or explosive vapours to the atmosphere
-Corrosion of containers with hazardous wastes.
4/6/2024 28
Hazardous Waste Management

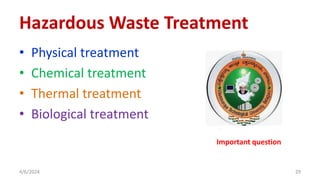

29. Hazardous Waste Treatment
• Physical treatment
• Chemical treatment
• Thermal treatment
• Biological treatment
4/6/2024 29
Important question

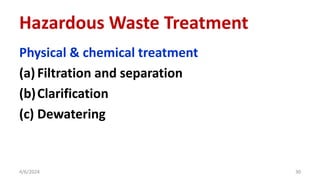

30. Physical & chemical treatment
(a)Filtration and separation
(b)Clarification
(c) Dewatering
4/6/2024 30
Hazardous Waste Treatment

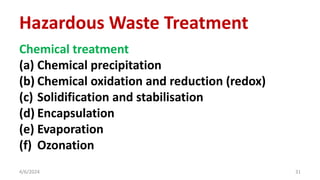

31. Chemical treatment
(a) Chemical precipitation
(b) Chemical oxidation and reduction (redox)
(c) Solidification and stabilisation
(d) Encapsulation
(e) Evaporation
(f) Ozonation
4/6/2024 31
Hazardous Waste Treatment

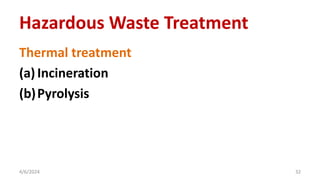

32. Thermal treatment
(a)Incineration
(b)Pyrolysis
4/6/2024 32
Hazardous Waste Treatment

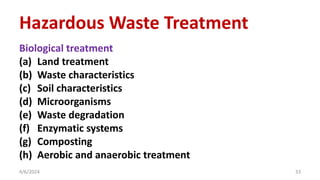

33. Biological treatment
(a) Land treatment
(b) Waste characteristics
(c) Soil characteristics
(d) Microorganisms
(e) Waste degradation
(f) Enzymatic systems
(g) Composting
(h) Aerobic and anaerobic treatment
4/6/2024 33
Hazardous Waste Treatment

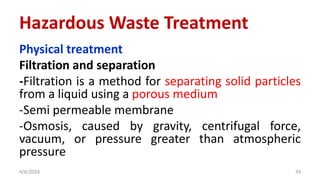

34. Physical treatment
Filtration and separation
-Filtration is a method for separating solid particles
from a liquid using a porous medium
-Semi permeable membrane
-Osmosis, caused by gravity, centrifugal force,
vacuum, or pressure greater than atmospheric
pressure
4/6/2024 34
Hazardous Waste Treatment

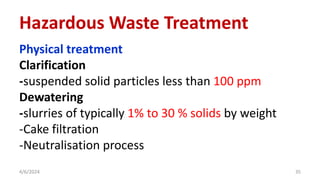

35. Physical treatment
Clarification
-suspended solid particles less than 100 ppm
Dewatering
-slurries of typically 1% to 30 % solids by weight
-Cake filtration
-Neutralisation process
4/6/2024 35
Hazardous Waste Treatment

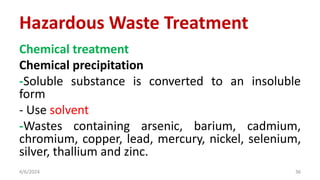

36. Chemical treatment
Chemical precipitation
-Soluble substance is converted to an insoluble
form
- Use solvent
-Wastes containing arsenic, barium, cadmium,
chromium, copper, lead, mercury, nickel, selenium,
silver, thallium and zinc.
4/6/2024 36
Hazardous Waste Treatment

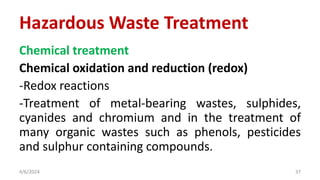

37. Chemical treatment
Chemical oxidation and reduction (redox)
-Redox reactions
-Treatment of metal-bearing wastes, sulphides,
cyanides and chromium and in the treatment of
many organic wastes such as phenols, pesticides
and sulphur containing compounds.
4/6/2024 37
Hazardous Waste Treatment

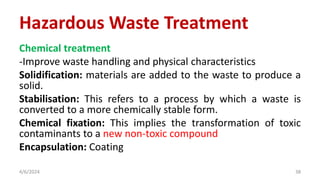

38. Chemical treatment
-Improve waste handling and physical characteristics
Solidification: materials are added to the waste to produce a
solid.
Stabilisation: This refers to a process by which a waste is
converted to a more chemically stable form.
Chemical fixation: This implies the transformation of toxic
contaminants to a new non-toxic compound
Encapsulation: Coating
4/6/2024 38
Hazardous Waste Treatment

39. Chemical treatment
• Evaporation: Evaporation is defined as the
conversion of a liquid from a solution or slurry
into vapour.
• Ozonation: Ozone is a relatively unstable gas
consisting of three oxygen atoms per molecule
(O3) and is one of the strongest oxidising agents
4/6/2024 39
Hazardous Waste Treatment

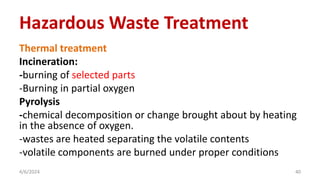

40. Thermal treatment
Incineration:
-burning of selected parts
-Burning in partial oxygen
Pyrolysis
-chemical decomposition or change brought about by heating
in the absence of oxygen.
-wastes are heated separating the volatile contents
-volatile components are burned under proper conditions
4/6/2024 40
Hazardous Waste Treatment

41. Biological treatment
• Land treatment: land cultivation, land farming, land
application and sludge spreading.
• Waste characteristics: Biodegradable wastes are
suitable for land treatment.Radioactive wastes, highly
volatile, reactive, flammable liquids and inorganic
wastes such as heavy metals, acids and bases, cyanides
and ammonia are not considered for land treatment.
4/6/2024 41
Hazardous Waste Treatment

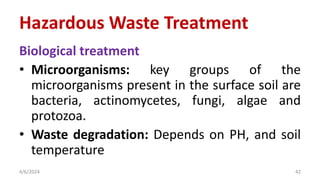

42. Biological treatment
• Microorganisms: key groups of the
microorganisms present in the surface soil are
bacteria, actinomycetes, fungi, algae and
protozoa.
• Waste degradation: Depends on PH, and soil
temperature
4/6/2024 42
Hazardous Waste Treatment

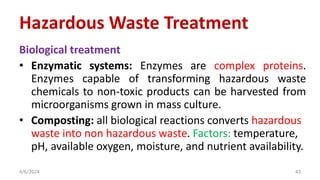

43. Biological treatment
• Enzymatic systems: Enzymes are complex proteins.
Enzymes capable of transforming hazardous waste
chemicals to non-toxic products can be harvested from
microorganisms grown in mass culture.
• Composting: all biological reactions converts hazardous
waste into non hazardous waste. Factors: temperature,
pH, available oxygen, moisture, and nutrient availability.
4/6/2024 43
Hazardous Waste Treatment

44. Biological treatment
• Aerobic and anaerobic treatment:
-In aerobic treatment, under proper conditions,
microorganisms grow.
- Anaerobic treatment is a sequential biologically
destructive process in which hydrocarbons are converted,
in the absence of free oxygen, from complex to simpler
molecules, and ultimately to carbon dioxide and
methane.
4/6/2024 44
Hazardous Waste Treatment

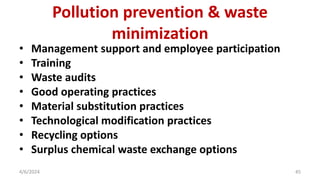

45. Pollution prevention & waste
minimization
• Management support and employee participation
• Training
• Waste audits
• Good operating practices
• Material substitution practices
• Technological modification practices
• Recycling options
• Surplus chemical waste exchange options
4/6/2024 45

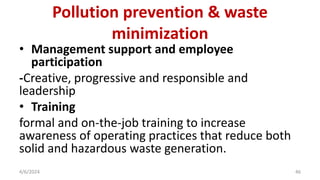

46. • Management support and employee
participation
-Creative, progressive and responsible and
leadership
• Training
formal and on-the-job training to increase
awareness of operating practices that reduce both
solid and hazardous waste generation.
4/6/2024 46
Pollution prevention & waste
minimization

47. • Waste audits
The audit programme includes the identification of
hazardous wastes and their sources, prioritisation of
various waste reduction actions to be undertaken,
evaluation of some technically, economically and
ecologically feasible approaches to waste minimisation
and pollution prevention, development of an economic
comparison of waste minimisation and pollution
prevention options and evaluation of their results.
4/6/2024 47
Pollution prevention & waste
minimization

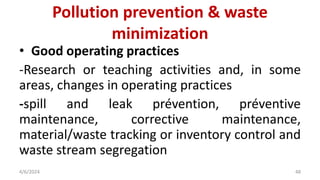

48. • Good operating practices
-Research or teaching activities and, in some
areas, changes in operating practices
-spill and leak prévention, préventive
maintenance, corrective maintenance,
material/waste tracking or inventory control and
waste stream segregation
4/6/2024 48
Pollution prevention & waste
minimization

49. • Material substitution practices
-To find substitute materials, which are less
hazardous than those currently utilised.
• Technological modification practices
-Low cost to the replacement of process
equipment involving large capital expenditures.
4/6/2024 49
Pollution prevention & waste
minimization

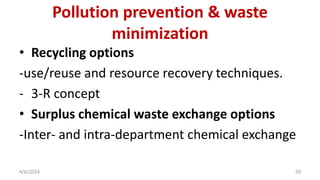

50. • Recycling options
-use/reuse and resource recovery techniques.
- 3-R concept
• Surplus chemical waste exchange options
-Inter- and intra-department chemical exchange
4/6/2024 50
Pollution prevention & waste
minimization

51. HAZARDOUS WASTES MANAGEMENT IN
INDIA
• The Indian chemical industry, which accounts for
about 13% of the total industrial production all
over the world.
• There are 13,011 industrial units located in 340
districts, out of which 11,038 units have been
granted authorization for multiple disposal
practices encompassing incineration, storage land
disposal and other disposal options.
4/6/2024 51

52. • Small and medium sized enterprises (SMEs)
are the major sources of hazardous wastes.
• And, the States of Andhra Pradesh, Assam,
Gujarat, Karnataka, Kerala, Madhya Pradesh,
Maharashtra, Orissa, Rajasthan and Tamil
Nadu generate the majority of all hazardous
wastes
4/6/2024 52
HAZARDOUS WASTES MANAGEMENT IN
INDIA

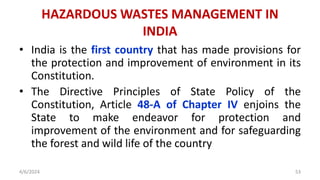

53. • India is the first country that has made provisions for
the protection and improvement of environment in its
Constitution.
• The Directive Principles of State Policy of the
Constitution, Article 48-A of Chapter IV enjoins the
State to make endeavor for protection and
improvement of the environment and for safeguarding
the forest and wild life of the country
4/6/2024 53
HAZARDOUS WASTES MANAGEMENT IN
INDIA

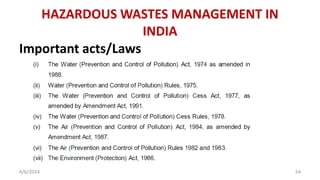

54. Important acts/Laws
4/6/2024 54
HAZARDOUS WASTES MANAGEMENT IN
INDIA

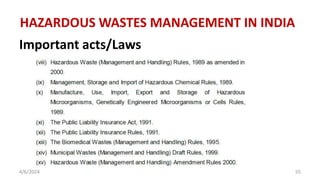

55. Important acts/Laws
4/6/2024 55
HAZARDOUS WASTES MANAGEMENT IN INDIA

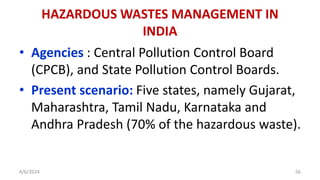

56. • Agencies : Central Pollution Control Board
(CPCB), and State Pollution Control Boards.
• Present scenario: Five states, namely Gujarat,
Maharashtra, Tamil Nadu, Karnataka and
Andhra Pradesh (70% of the hazardous waste).
4/6/2024 56
HAZARDOUS WASTES MANAGEMENT IN
INDIA

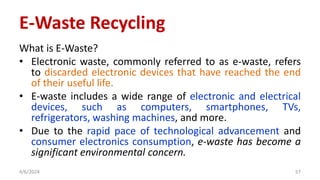

57. E-Waste Recycling
What is E-Waste?
• Electronic waste, commonly referred to as e-waste, refers
to discarded electronic devices that have reached the end
of their useful life.
• E-waste includes a wide range of electronic and electrical
devices, such as computers, smartphones, TVs,
refrigerators, washing machines, and more.
• Due to the rapid pace of technological advancement and
consumer electronics consumption, e-waste has become a
significant environmental concern.
4/6/2024 57

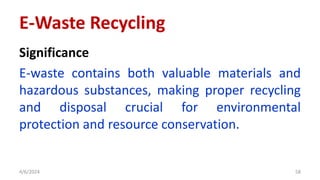

58. Significance
E-waste contains both valuable materials and
hazardous substances, making proper recycling
and disposal crucial for environmental
protection and resource conservation.
4/6/2024 58
E-Waste Recycling

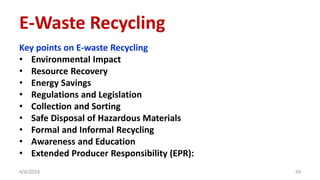

59. Key points on E-waste Recycling
• Environmental Impact
• Resource Recovery
• Energy Savings
• Regulations and Legislation
• Collection and Sorting
• Safe Disposal of Hazardous Materials
• Formal and Informal Recycling
• Awareness and Education
• Extended Producer Responsibility (EPR):
4/6/2024 59
E-Waste Recycling

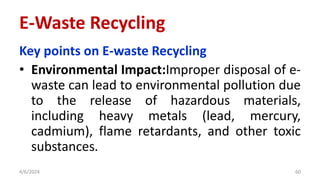

60. Key points on E-waste Recycling
• Environmental Impact:Improper disposal of e-
waste can lead to environmental pollution due
to the release of hazardous materials,
including heavy metals (lead, mercury,
cadmium), flame retardants, and other toxic
substances.
4/6/2024 60
E-Waste Recycling

61. • Resource Recovery:E-waste recycling is essential
for recovering valuable materials, including
precious metals like gold, silver, and copper.
• Energy Savings:Recycling e-waste requires less
energy compared to extracting and processing raw
materials. Recycling also reduces greenhouse gas
emissions associated with mining and
manufacturing.
4/6/2024 61
E-Waste Recycling

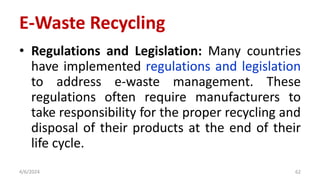

62. • Regulations and Legislation: Many countries
have implemented regulations and legislation
to address e-waste management. These
regulations often require manufacturers to
take responsibility for the proper recycling and
disposal of their products at the end of their
life cycle.
4/6/2024 62
E-Waste Recycling

63. • Collection and Sorting: E-waste recycling involves
collecting and sorting discarded electronic
devices.
• Safe Disposal of Hazardous Materials: Hazardous
components of e-waste, such as batteries and
certain electronic components, require special
handling and disposal to prevent environmental
contamination.
4/6/2024 63
E-Waste Recycling

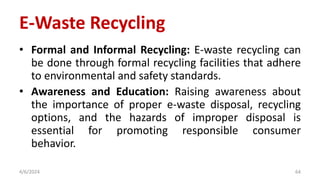

64. • Formal and Informal Recycling: E-waste recycling can
be done through formal recycling facilities that adhere
to environmental and safety standards.
• Awareness and Education: Raising awareness about
the importance of proper e-waste disposal, recycling
options, and the hazards of improper disposal is
essential for promoting responsible consumer
behavior.
4/6/2024 64
E-Waste Recycling

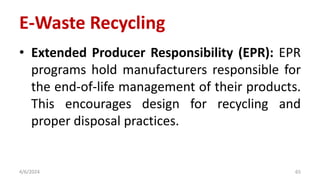

65. • Extended Producer Responsibility (EPR): EPR
programs hold manufacturers responsible for
the end-of-life management of their products.
This encourages design for recycling and
proper disposal practices.
4/6/2024 65
E-Waste Recycling

66. 4/6/2024 66
Thank You
