This document summarizes a tender proposal for a two-storey semi-detached house located in Lot SDB-20, Mukim Ayer Panas, Daerah Jasin, Hang Tuah Jaya, Melaka Bandaraya Bersejarah. It includes details on the project team such as architects, engineers, and quantity surveyors. Floor plans, elevations, and tender documents such as forms of tender, contract, instructions to tenderers, bills of quantities, and specifications are provided to facilitate the tendering process.

1. PROJECT :
ONE UNIT SEMI-D DOUBLE STOREY (CORNER LOT)
ALWIN NG 0323596
JASON WONG 0327650
KAM PEI CHI 0327295
KENNETH TAN 0322482
LEE FONG YEN 0321976
LEE LIN HUI 0322797
LEONG LI JING 0323628
LEONG MIN HUI 0327596

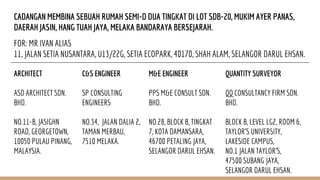

2. CADANGAN MEMBINA SEBUAH RUMAH SEMI-D DUA TINGKAT DI LOT SDB-20, MUKIM AYER PANAS,
DAERAH JASIN, HANG TUAH JAYA, MELAKA BANDARAYA BERSEJARAH.
FOR: MR IVAN ALIAS
11, JALAN SETIA NUSANTARA, U13/22G, SETIA ECOPARK, 40170, SHAH ALAM, SELANGOR DARUL EHSAN.
ARCHITECT
ASD ARCHITECT SDN.
BHD.
NO.11-B, JASIGHN
ROAD, GEORGETOWN,
10050 PULAU PINANG,
MALAYSIA.
C&S ENGINEER
SP CONSULTING
ENGINEERS
NO.34, JALAN DALIA 2,
TAMAN MERBAU,
7510 MELAKA.
M&E ENGINEER
PPS M&E CONSULT SDN.
BHD.
NO.28, BLOCK B, TINGKAT
7, KOTA DAMANSARA,
46700 PETALING JAYA,
SELANGOR DARUL EHSAN.
QUANTITY SURVEYOR
QQ CONSULTANCY FIRM SDN.
BHD.
BLOCK B, LEVEL LG2, ROOM 6,
TAYLOR’S UNIVERSITY,
LAKESIDE CAMPUS,
NO.1 JALAN TAYLOR’S,
47500 SUBANG JAYA,
SELANGOR DARUL EHSAN.

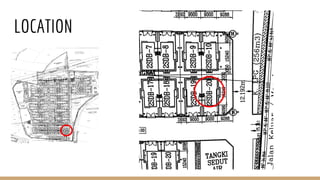

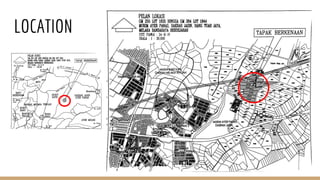

3. LOCATION

4. LOCATION

5. LOCATION

6. LOCATION

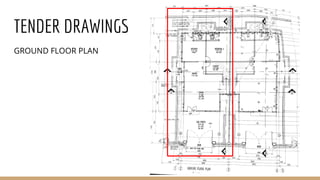

7. TENDER DRAWINGS
GROUND FLOOR PLAN

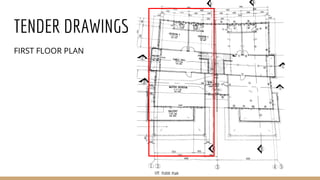

8. TENDER DRAWINGS
FIRST FLOOR PLAN

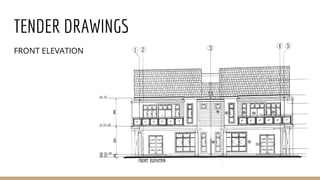

9. TENDER DRAWINGS
FRONT ELEVATION

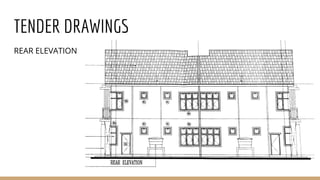

10. TENDER DRAWINGS
REAR ELEVATION

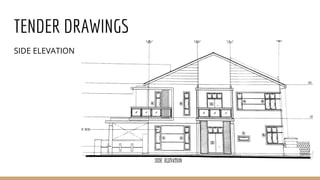

11. TENDER DRAWINGS
SIDE ELEVATION

12. TENDER
DOCUMENTS

13. FORM OF TENDER
● Latest return time and
date
● Date, name and address.
● Tender reference number.
● Price for which they are
to do the works
● Date until which the
price remains valid
● Acceptance of terms and
conditions
● Signature and tenderer
details.
● Period of time allocated
for the works

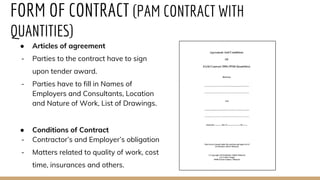

14. FORM OF CONTRACT (PAM CONTRACT WITH
QUANTITIES)
● Articles of agreement
- Parties to the contract have to sign
upon tender award.
- Parties have to fill in Names of
Employers and Consultants, Location
and Nature of Work, List of Drawings.
● Conditions of Contract
- Contractor’s and Employer’s obligation
- Matters related to quality of work, cost
time, insurances and others.

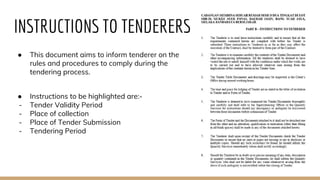

15. INSTRUCTIONS TO TENDERERS
● This document aims to inform tenderer on the
rules and procedures to comply during the
tendering process.
● Instructions to be highlighted are:-
- Tender Validity Period
- Place of collection
- Place of Tender Submission
- Tendering Period

16. CONDITIONS OF TENDERING
● This part of the contract states the conditions
that need to be complied with by the
tenderer during the submission of tender.
● Conditions that should be taken note of are:-
- Tender deposit: In cash/Banker’s Cheque
made payable to Quantity Surveyor
- Tender bond: In the form of Bank Guarantee
or Banker’s Cheque made payable to
employer.
- Tender Validity Period: 90 Days from the final
closing date of tender

17. FINAL SUMMARY OF TENDER
● Is a part for the collection of all
priced bills for all sections of the
project
● So that tenderer can insert the
sectional summary to arrive at a
total amount which ultimately
becomes the “ tender amount”.
● Needed to be sign by the tenderer
and employer representative.

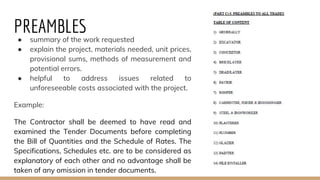

18. PREAMBLES● summary of the work requested
● explain the project, materials needed, unit prices,
provisional sums, methods of measurement and
potential errors.
● helpful to address issues related to
unforeseeable costs associated with the project.
Example:
The Contractor shall be deemed to have read and
examined the Tender Documents before completing
the Bill of Quantities and the Schedule of Rates. The
Specifications, Schedules etc. are to be considered as
explanatory of each other and no advantage shall be
taken of any omission in tender documents.

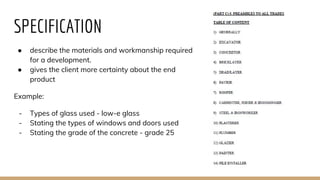

19. SPECIFICATION
● describe the materials and workmanship required
for a development.
● gives the client more certainty about the end
product
Example:
- Types of glass used - low-e glass
- Stating the types of windows and doors used
- Stating the grade of the concrete - grade 25

20. BILLS OF
QUANTITIES

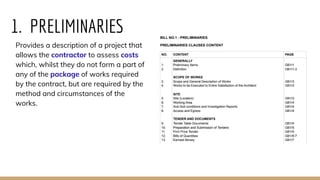

21. 1. PRELIMINARIES
Provides a description of a project that
allows the contractor to assess costs
which, whilst they do not form a part of
any of the package of works required
by the contract, but are required by the
method and circumstances of the
works.

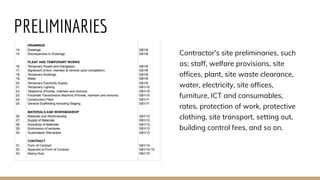

22. PRELIMINARIES
Contractor's site preliminaries, such
as; staff, welfare provisions, site
offices, plant, site waste clearance,
water, electricity, site offices,
furniture, ICT and consumables,
rates, protection of work, protective
clothing, site transport, setting out,
building control fees, and so on.

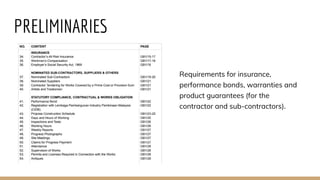

23. PRELIMINARIES
Requirements for insurance,
performance bonds, warranties and
product guarantees (for the
contractor and sub-contractors).

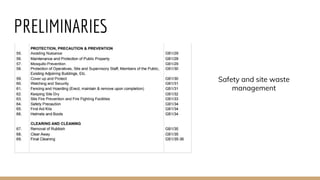

24. PRELIMINARIES
Safety and site waste
management

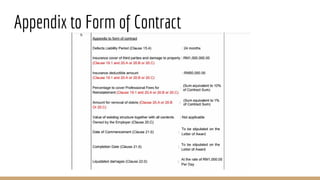

25. Appendix to Form of Contract

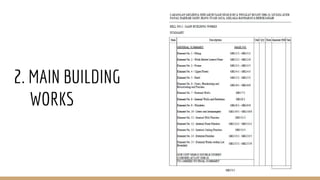

27. 2. MAIN BUILDING
WORKS

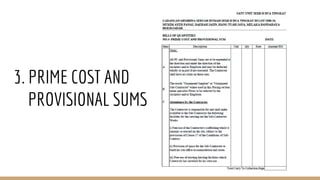

28. 3. PRIME COST AND
PROVISIONAL SUMS

29. 3. PRIME COST AND
PROVISIONAL SUMS

30. APPENDIXES

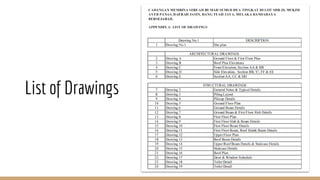

31. List of Drawings

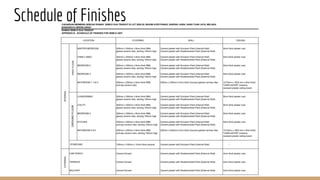

32. Schedule of Finishes
GROUNDFLOOR

33. FLOOR FINISHES - Ground Floor
200mm x 200mm x 8mm
MML Matt Ceramic Tiles
300mm x 300mm x 8mm
MML Glazed Ceramic Tiles
200mm x 200mm x 8mm
MML Matt Ceramic Tiles
100mm x 100mm x 10mm
Timber Parquet
Cement Render

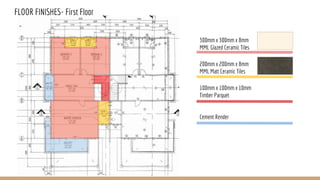

34. FLOOR FINISHES- First Floor
100mm x 100mm x 10mm
Timber Parquet
Cement Render
200mm x 200mm x 8mm
MML Matt Ceramic Tiles
300mm x 300mm x 8mm
MML Glazed Ceramic Tiles

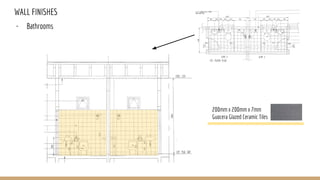

35. WALL FINISHES
- Bathrooms
200mm x 200mm x 7mm
Guocera Glazed Ceramic Tiles

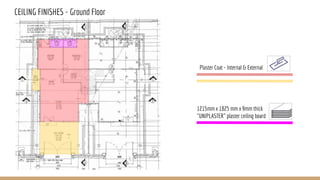

36. CEILING FINISHES - Ground Floor
1215mm x 1825 mm x 9mm thick
"UNIPLASTER" plaster ceiling board
Plaster Coat - Internal & External

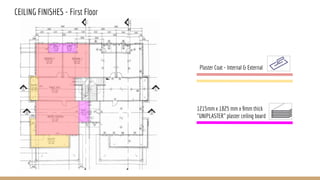

37. CEILING FINISHES - First Floor
1215mm x 1825 mm x 9mm thick
"UNIPLASTER" plaster ceiling board
Plaster Coat - Internal & External

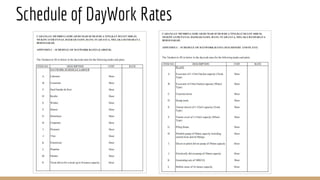

38. Schedule of DayWork Rates

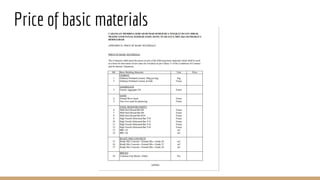

39. Price of basic materials

40. FORM OF BANK GUARANTEE FOR EARNEST
MONEY
- Standard form with pre-determined wordings
- A bank guarantee may take the form of a performance
bond or a form of letter of credit.
- Banks generally require that bank guarantees which
take the form of a performance bond include a clause
which allows the bank to pay out the bond even though
there may have been no default under the contract with
the project owner

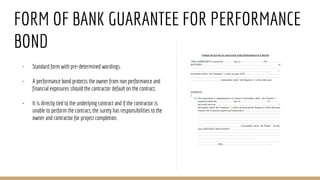

41. FORM OF BANK GUARANTEE FOR PERFORMANCE
BOND
- Standard form with pre-determined wordings.
- A performance bond protects the owner from non performance and
financial exposures should the contractor default on the contract.
- It is directly tied to the underlying contract and if the contractor is
unable to perform the contract, the surety has responsibilities to the
owner and contractor for project completion.

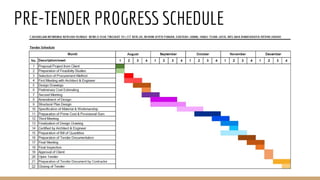

42. PRE-TENDER PROGRESS SCHEDULE

43. THANK YOU!
