- 1. TENDER DOCUMENTATION Group 2 Group Members: YONGSEEN YEE 0315883 TEE SIN YI 0315689 LEE PEI GIE 0315653 KHOO XIN YEE 0316180 LEONG CHEE MUN 0316256 TAY SY MIN 0320813

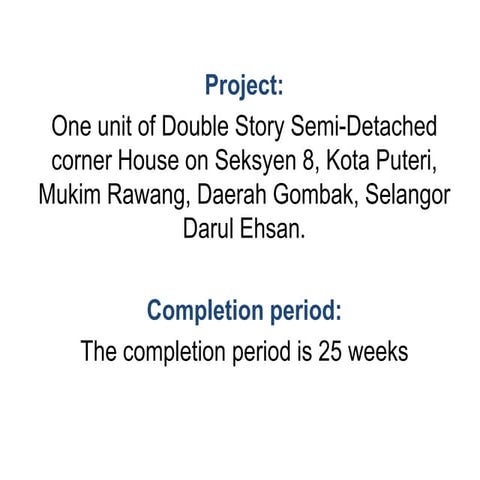

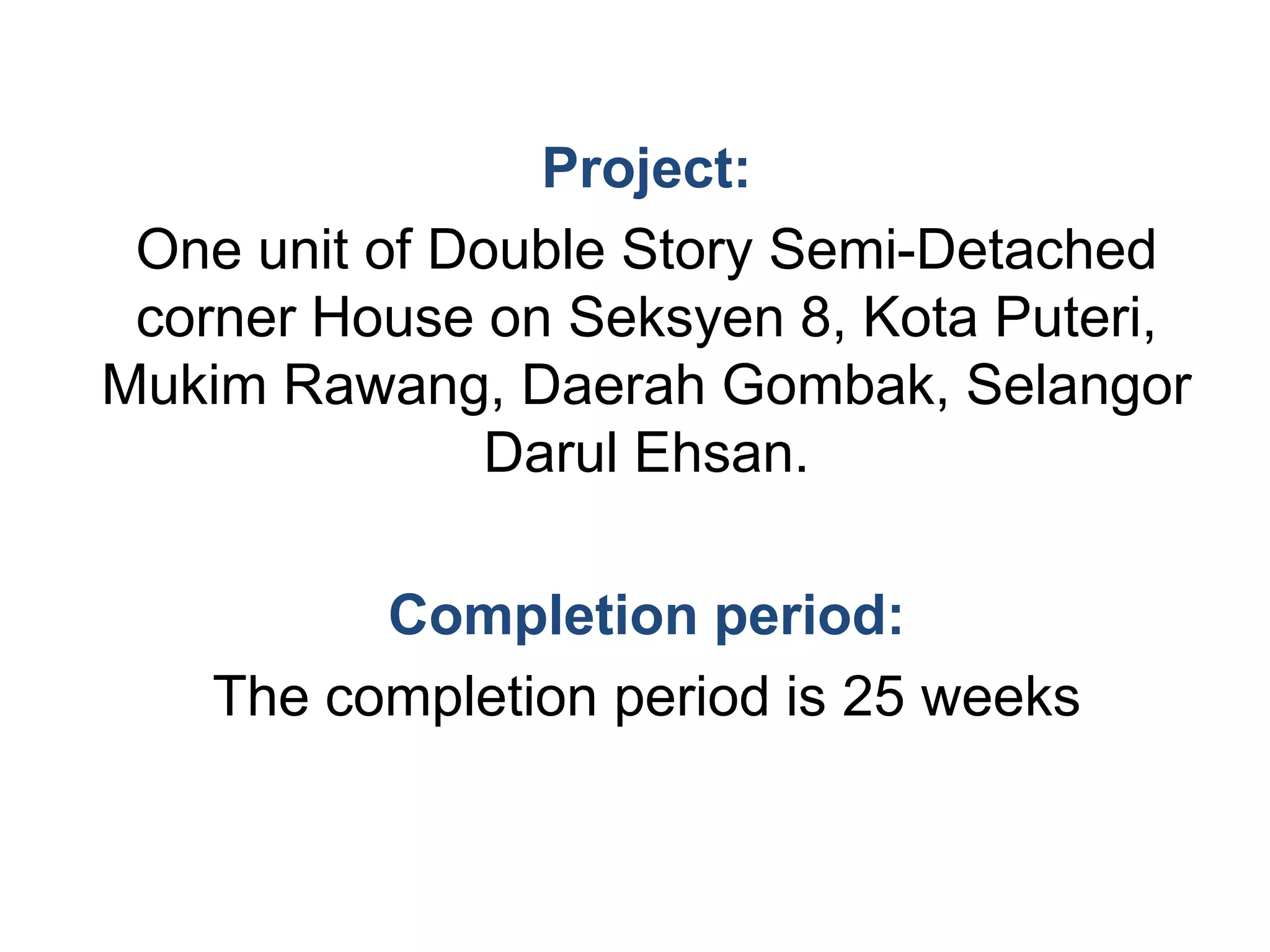

- 2. Project: One unit ofDouble Story Semi-Detached corner House on Seksyen 8, Kota Puteri, Mukim Rawang, Daerah Gombak, Selangor Darul Ehsan. Completion period: The completion period is 25 weeks

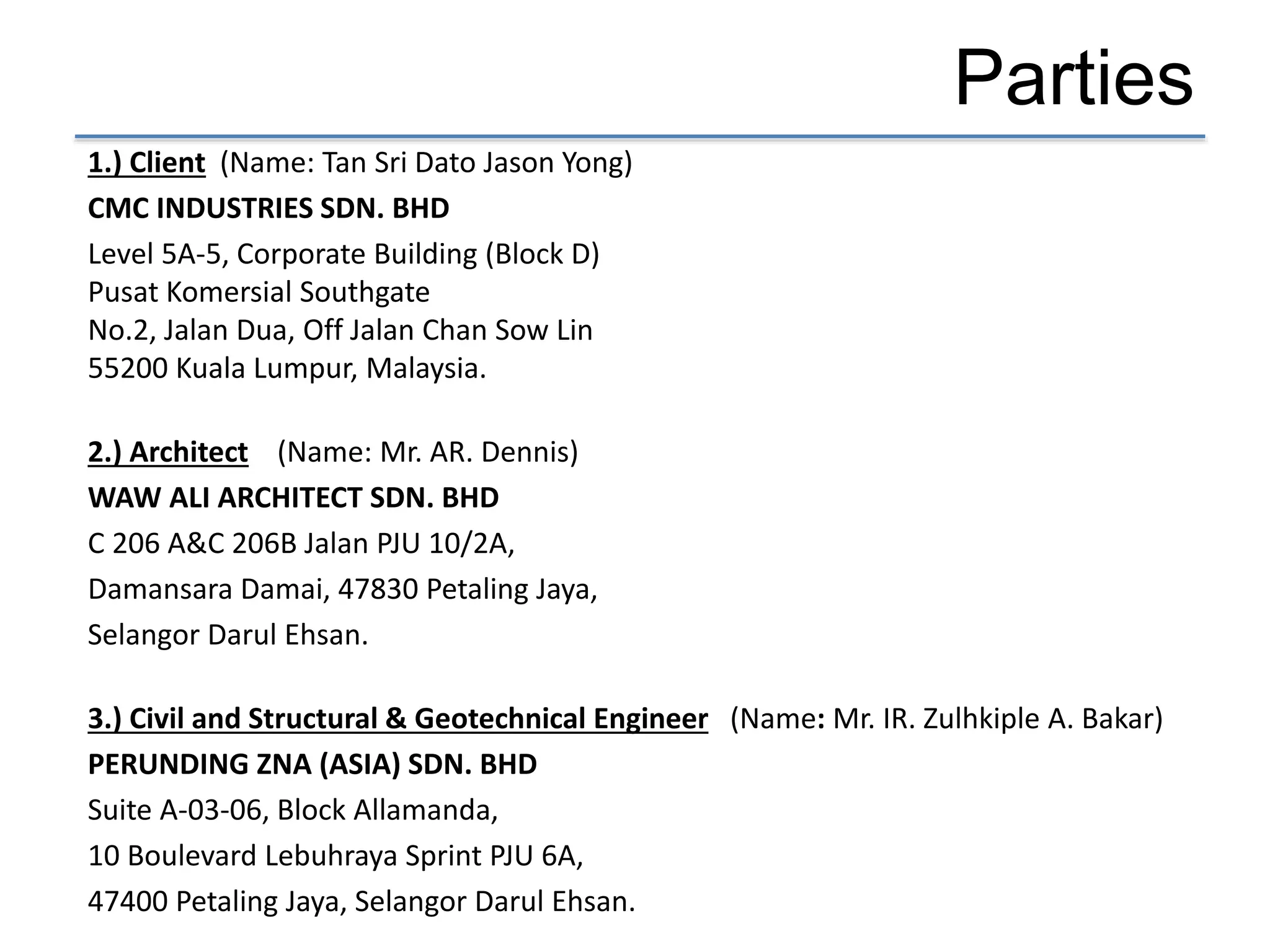

- 3. Parties 1.) Client (Name:Tan Sri Dato Jason Yong) CMC INDUSTRIES SDN. BHD Level 5A-5, Corporate Building (Block D) Pusat Komersial Southgate No.2, Jalan Dua, Off Jalan Chan Sow Lin 55200 Kuala Lumpur, Malaysia. 2.) Architect (Name: Mr. AR. Dennis) WAW ALI ARCHITECT SDN. BHD C 206 A&C 206B Jalan PJU 10/2A, Damansara Damai, 47830 Petaling Jaya, Selangor Darul Ehsan. 3.) Civil and Structural & Geotechnical Engineer (Name: Mr. IR. Zulhkiple A. Bakar) PERUNDING ZNA (ASIA) SDN. BHD Suite A-03-06, Block Allamanda, 10 Boulevard Lebuhraya Sprint PJU 6A, 47400 Petaling Jaya, Selangor Darul Ehsan.

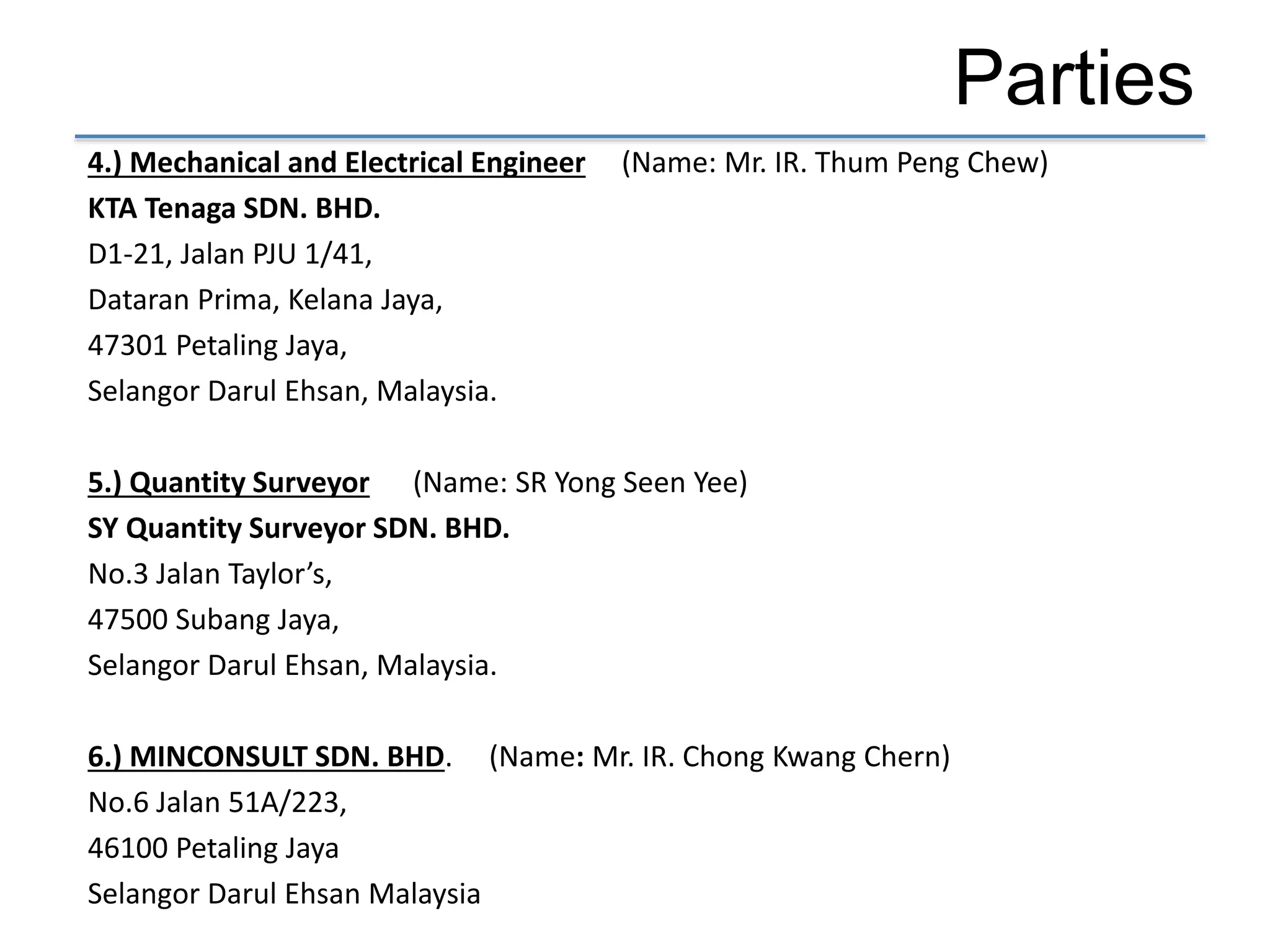

- 4. Parties 4.) Mechanical andElectrical Engineer (Name: Mr. IR. Thum Peng Chew) KTA Tenaga SDN. BHD. D1-21, Jalan PJU 1/41, Dataran Prima, Kelana Jaya, 47301 Petaling Jaya, Selangor Darul Ehsan, Malaysia. 5.) Quantity Surveyor (Name: SR Yong Seen Yee) SY Quantity Surveyor SDN. BHD. No.3 Jalan Taylor’s, 47500 Subang Jaya, Selangor Darul Ehsan, Malaysia. 6.) MINCONSULT SDN. BHD. (Name: Mr. IR. Chong Kwang Chern) No.6 Jalan 51A/223, 46100 Petaling Jaya Selangor Darul Ehsan Malaysia
- 5. COMPONENTS IN TENDER DOCUMENTS •Form of Tender • Instruction To Tenderers • Conditions of Tendering • Final Summary of Tender • Preambles • Specifications • Bills of Quantities • Preliminaries • Main Building Works • External Works • PC and Provisional Sums • Drawings • Schedule of Finishes • Schedule of Work Rates • Prices of Basic Materials • Form of Bank Guarantee For Earnest Money • Form of Bank Guarantee for Performance Bond

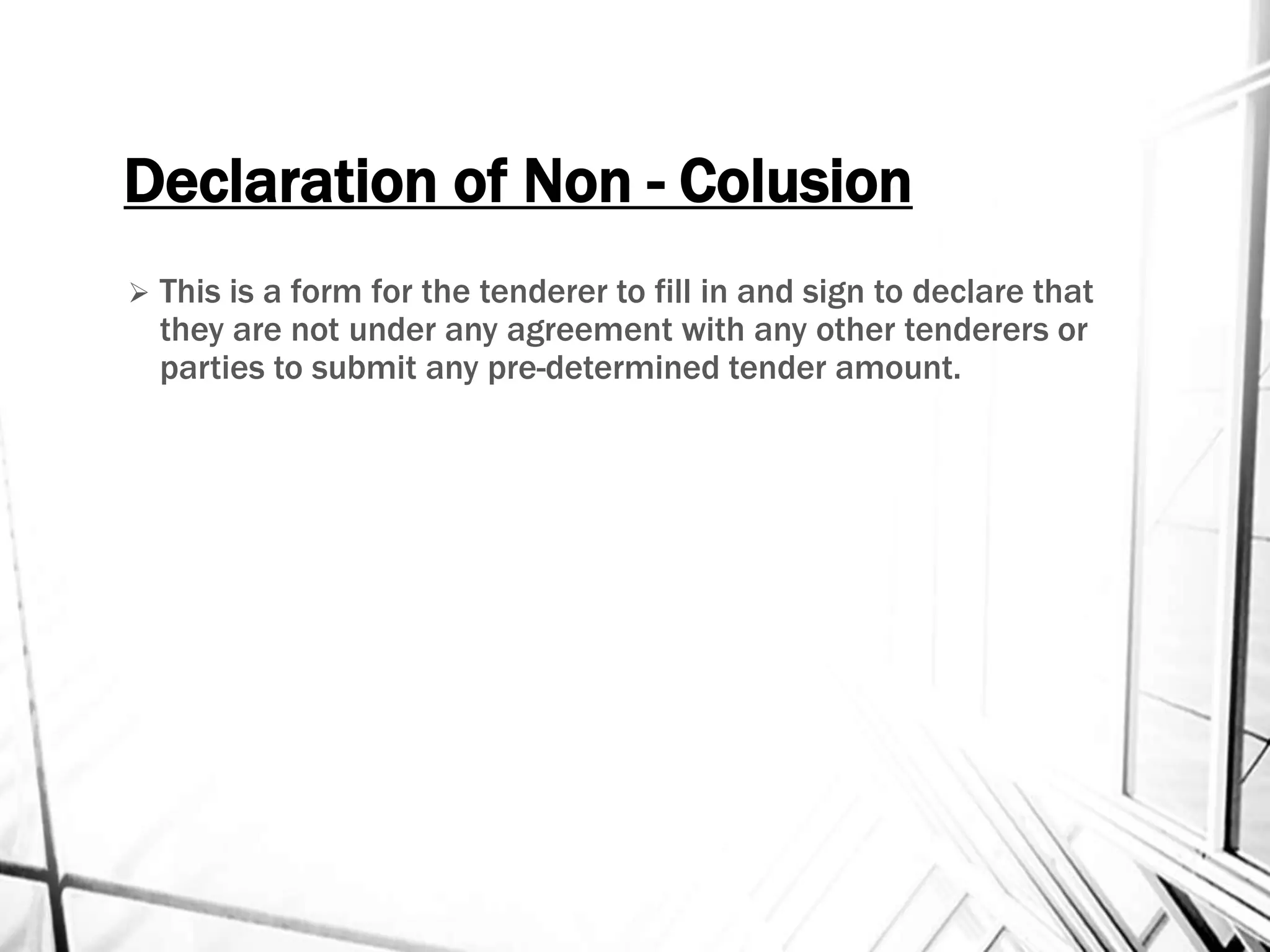

- 6. Declaration of Non- Colusion This is a form for the tenderer to fill in and sign to declare that they are not under any agreement with any other tenderers or parties to submit any pre-determined tender amount.
- 7. Preliminaries Explain thescope of work of the overall project, client requirements and any relevant works which not highlighted in other section. Example: • Temporary power • Temporary water supply • Temporary facilities • Temporary hoarding • Guard house • Insurance

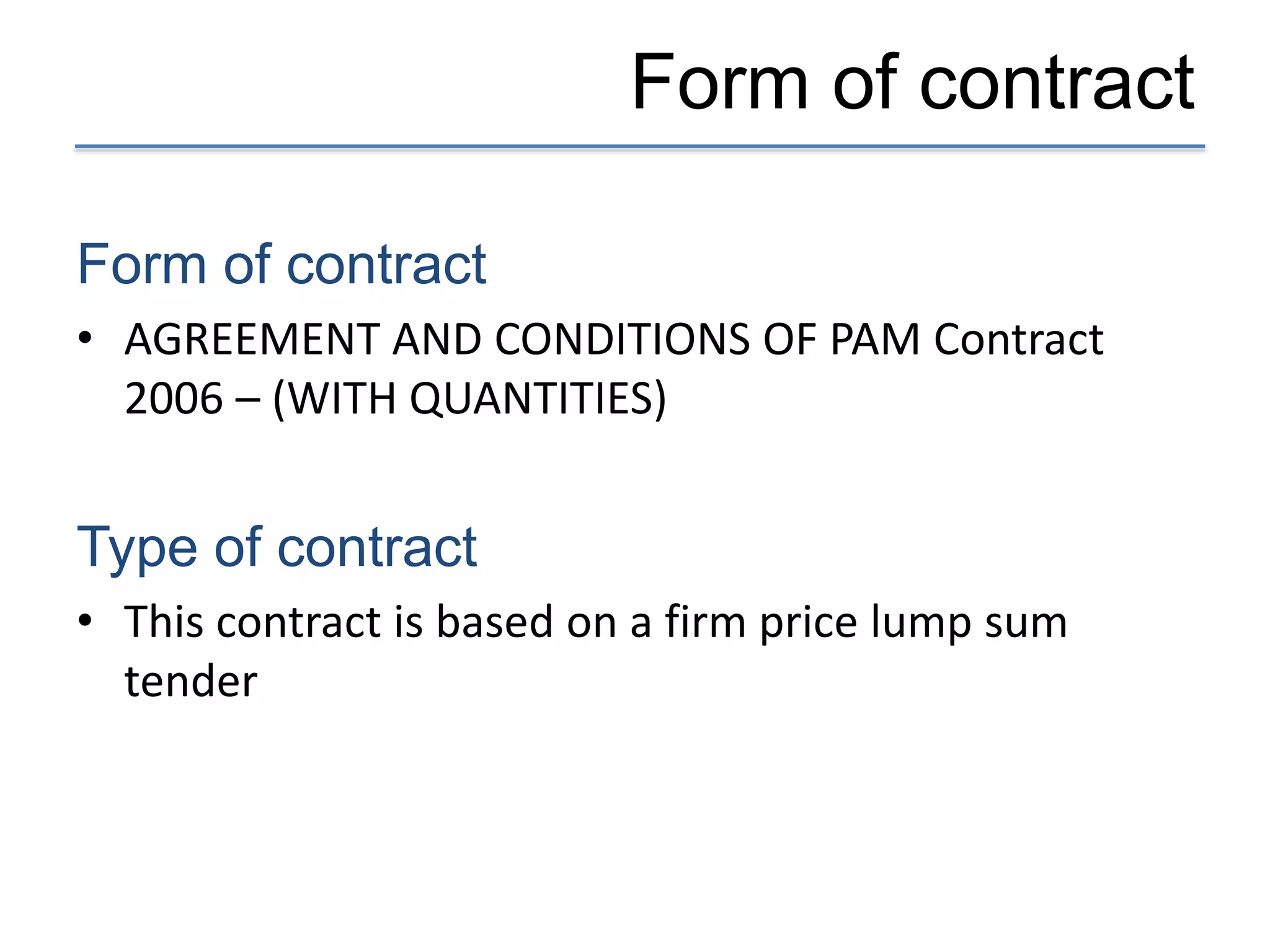

- 8. Form of contract Formof contract • AGREEMENT AND CONDITIONS OF PAM Contract 2006 – (WITH QUANTITIES) Type of contract • This contract is based on a firm price lump sum tender

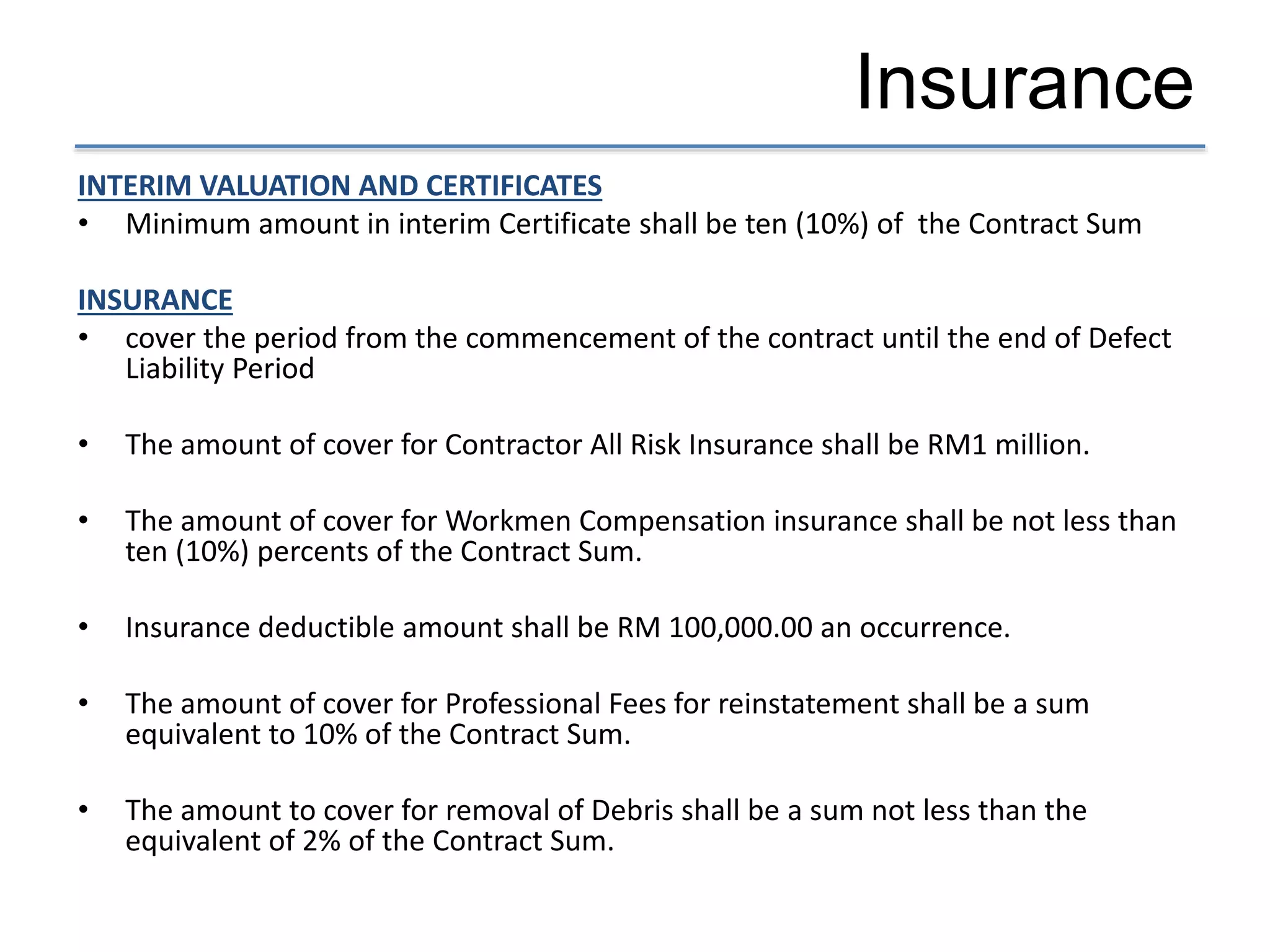

- 9. Insurance INTERIM VALUATION ANDCERTIFICATES • Minimum amount in interim Certificate shall be ten (10%) of the Contract Sum INSURANCE • cover the period from the commencement of the contract until the end of Defect Liability Period • The amount of cover for Contractor All Risk Insurance shall be RM1 million. • The amount of cover for Workmen Compensation insurance shall be not less than ten (10%) percents of the Contract Sum. • Insurance deductible amount shall be RM 100,000.00 an occurrence. • The amount of cover for Professional Fees for reinstatement shall be a sum equivalent to 10% of the Contract Sum. • The amount to cover for removal of Debris shall be a sum not less than the equivalent of 2% of the Contract Sum.

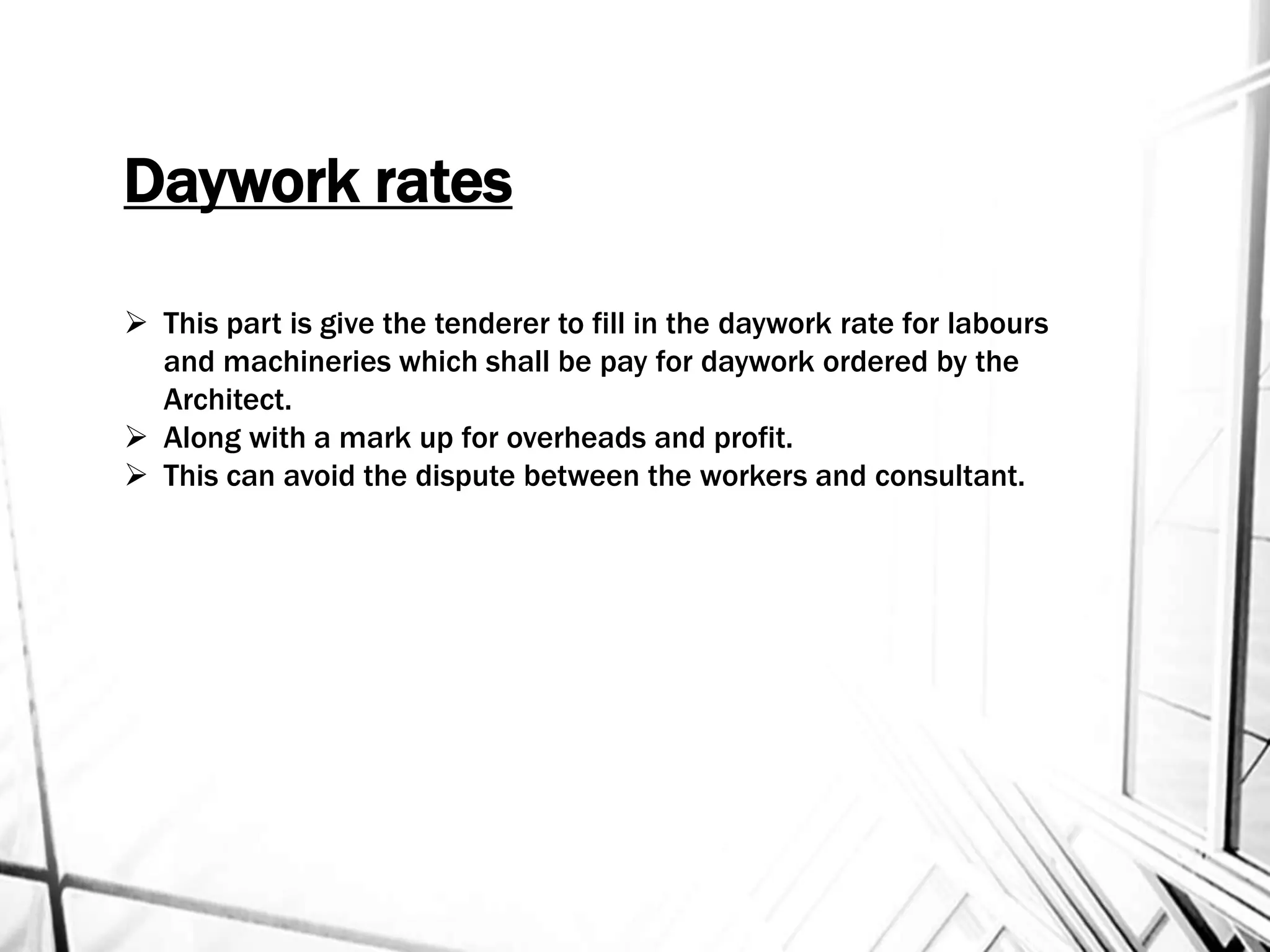

- 10. Daywork rates Thispart is give the tenderer to fill in the daywork rate for labours and machineries which shall be pay for daywork ordered by the Architect. Along with a mark up for overheads and profit. This can avoid the dispute between the workers and consultant.

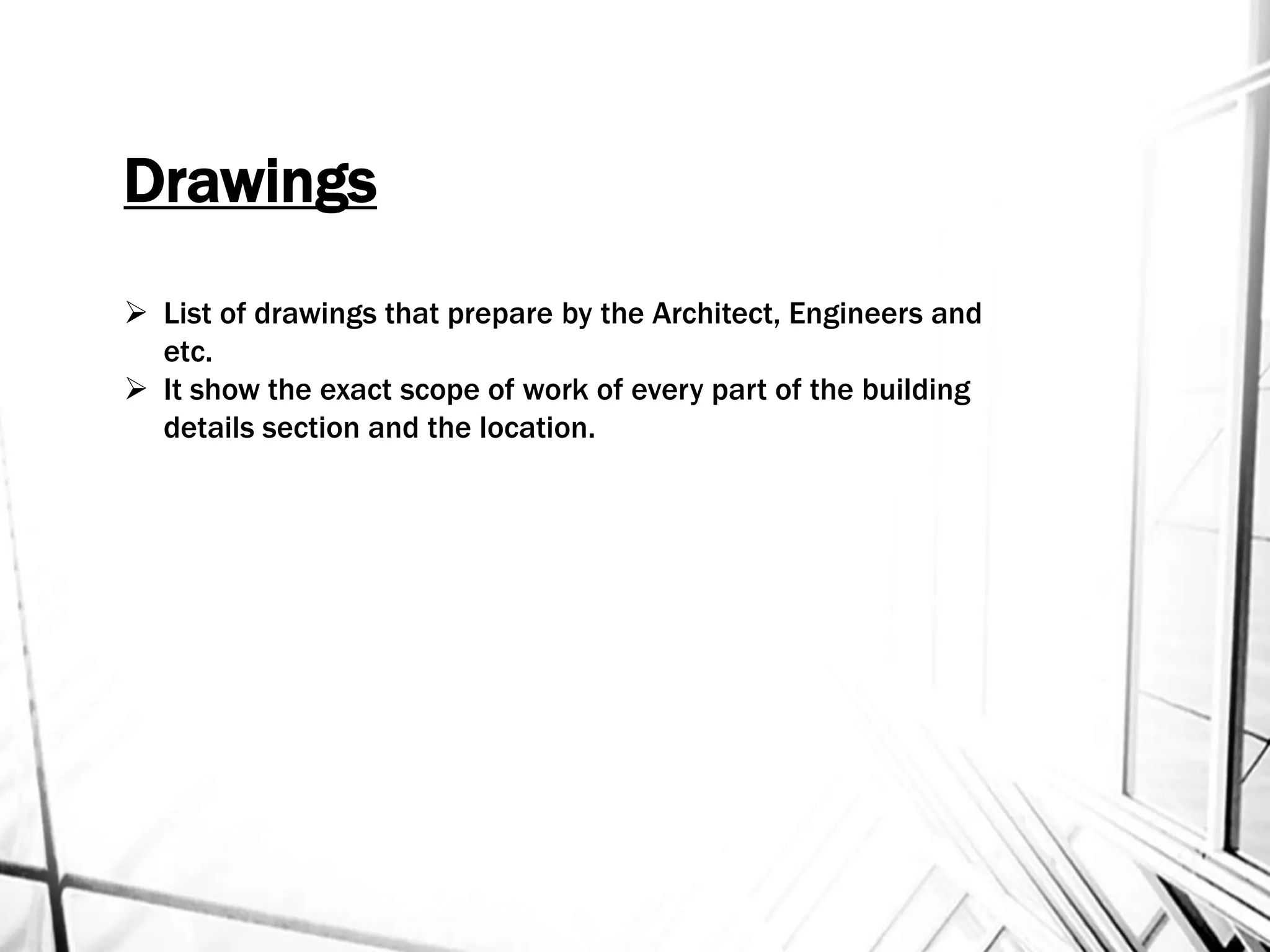

- 11. Drawings List ofdrawings that prepare by the Architect, Engineers and etc. It show the exact scope of work of every part of the building details section and the location.

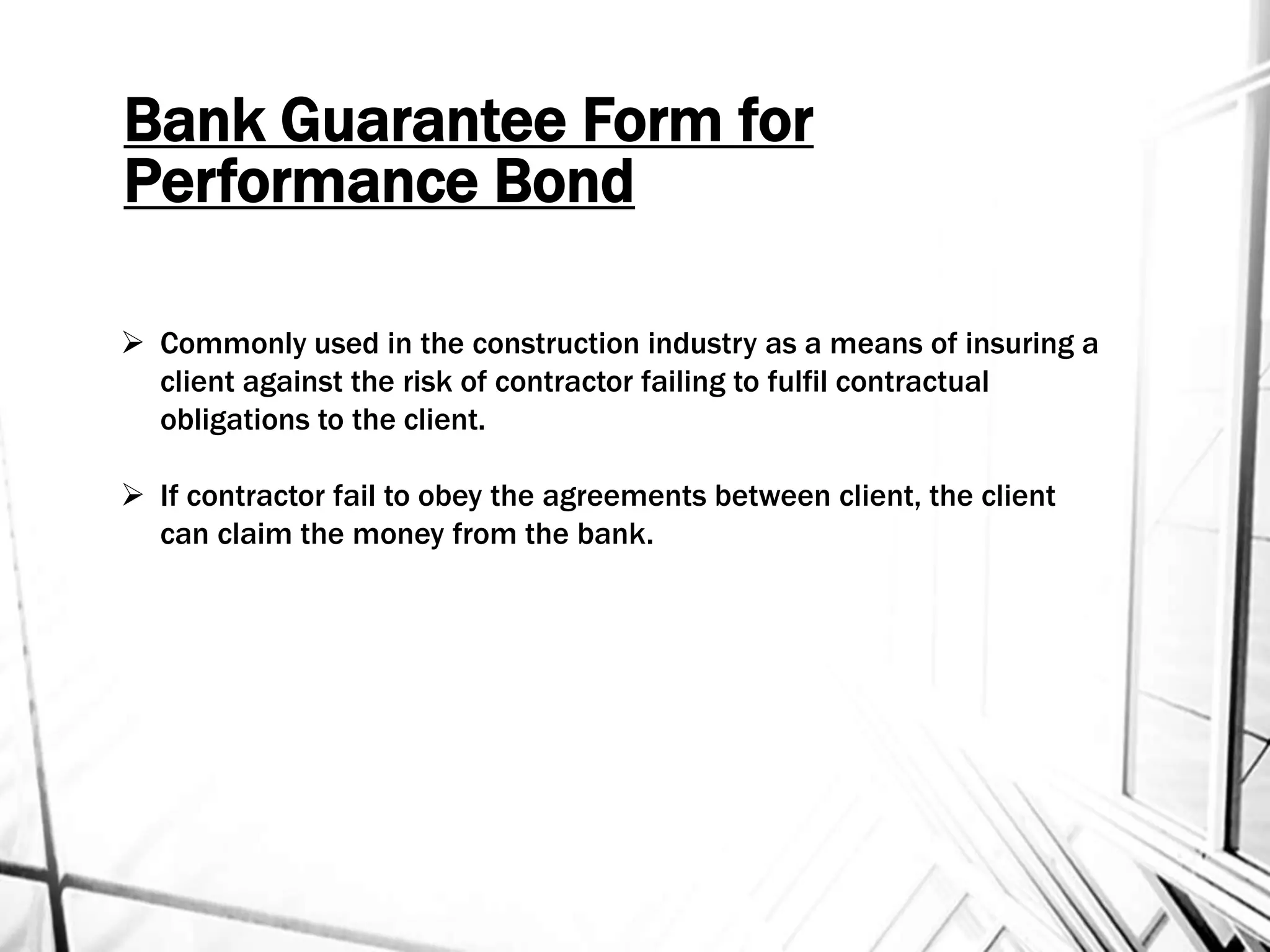

- 12. Bank Guarantee Formfor Performance Bond Commonly used in the construction industry as a means of insuring a client against the risk of contractor failing to fulfil contractual obligations to the client. If contractor fail to obey the agreements between client, the client can claim the money from the bank.

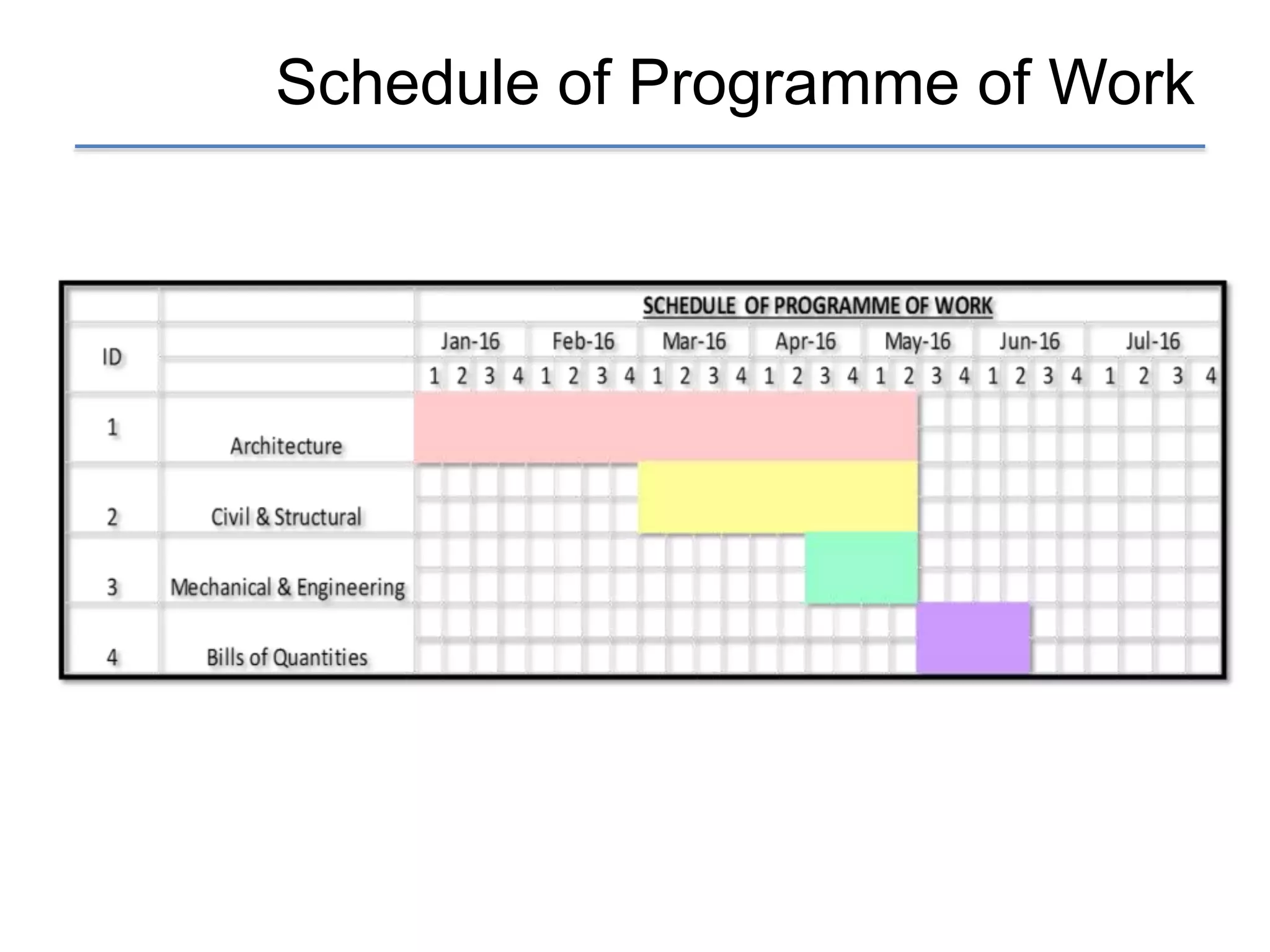

- 13. Schedule of Programmeof Work
- 14.

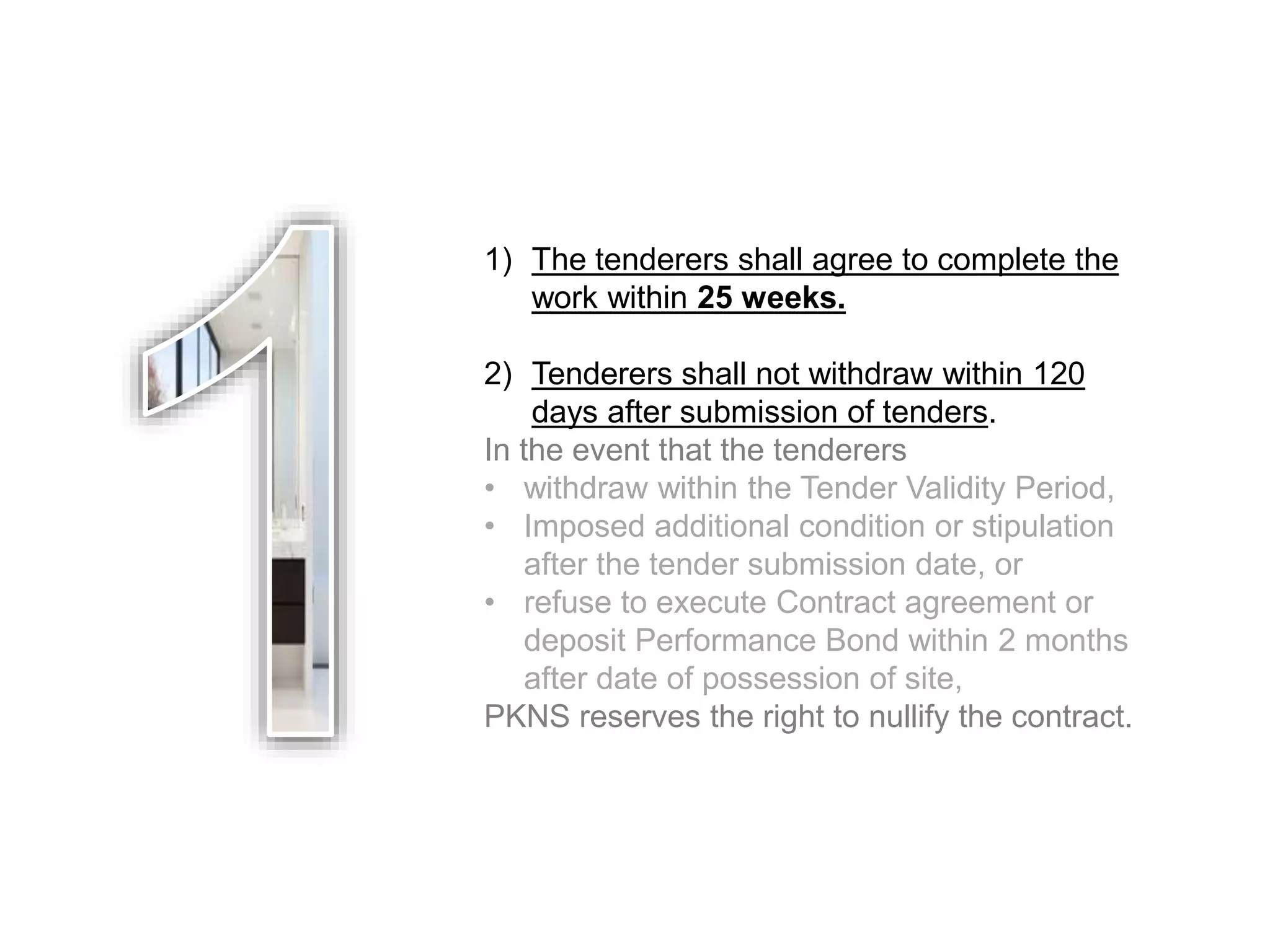

- 15. 1) The tenderersshall agree to complete the work within 25 weeks. 2) Tenderers shall not withdraw within 120 days after submission of tenders. In the event that the tenderers • withdraw within the Tender Validity Period, • Imposed additional condition or stipulation after the tender submission date, or • refuse to execute Contract agreement or deposit Performance Bond within 2 months after date of possession of site, PKNS reserves the right to nullify the contract.
- 16.

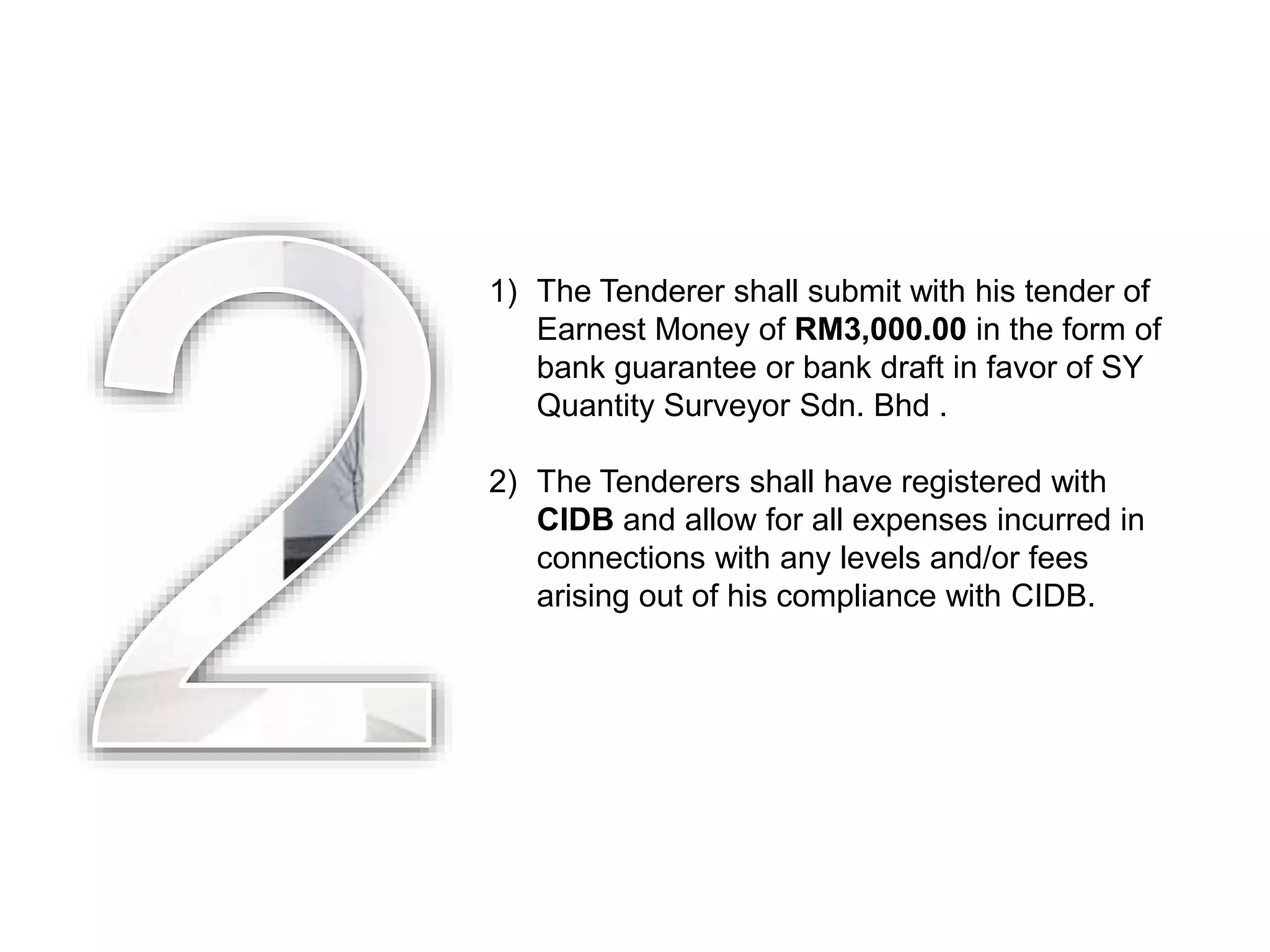

- 17. 1) The Tenderershall submit with his tender of Earnest Money of RM3,000.00 in the form of bank guarantee or bank draft in favor of SY Quantity Surveyor Sdn. Bhd . 2) The Tenderers shall have registered with CIDB and allow for all expenses incurred in connections with any levels and/or fees arising out of his compliance with CIDB.
- 18.

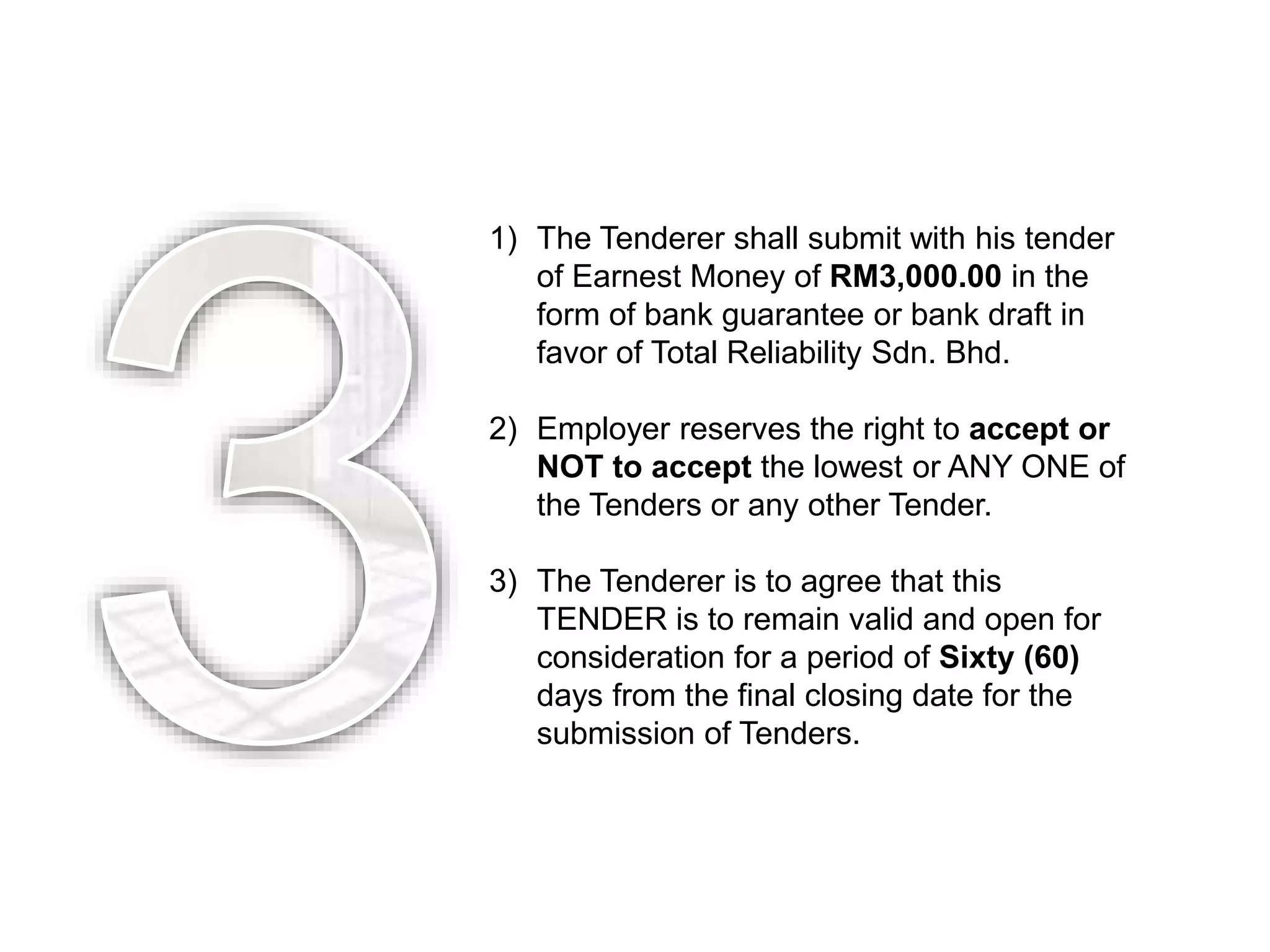

- 19. 1) The Tenderershall submit with his tender of Earnest Money of RM3,000.00 in the form of bank guarantee or bank draft in favor of Total Reliability Sdn. Bhd. 2) Employer reserves the right to accept or NOT to accept the lowest or ANY ONE of the Tenders or any other Tender. 3) The Tenderer is to agree that this TENDER is to remain valid and open for consideration for a period of Sixty (60) days from the final closing date for the submission of Tenders.
- 20.

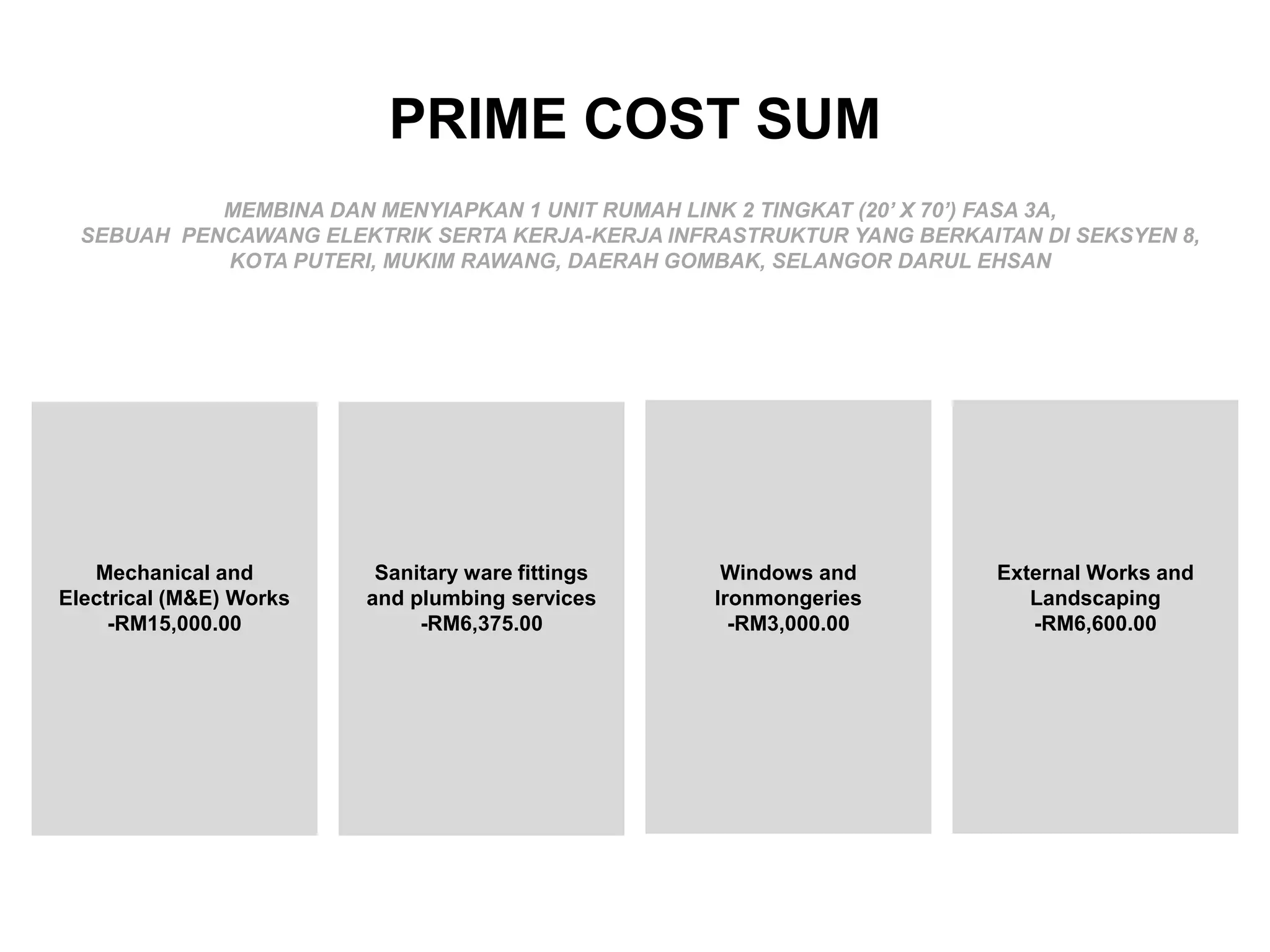

- 21. PRIME COST SUM MEMBINADAN MENYIAPKAN 1 UNIT RUMAH LINK 2 TINGKAT (20’ X 70’) FASA 3A, SEBUAH PENCAWANG ELEKTRIK SERTA KERJA-KERJA INFRASTRUKTUR YANG BERKAITAN DI SEKSYEN 8, KOTA PUTERI, MUKIM RAWANG, DAERAH GOMBAK, SELANGOR DARUL EHSAN Mechanical and Electrical (M&E) Works -RM15,000.00 Sanitary ware fittings and plumbing services -RM6,375.00 Windows and Ironmongeries -RM3,000.00 External Works and Landscaping -RM6,600.00

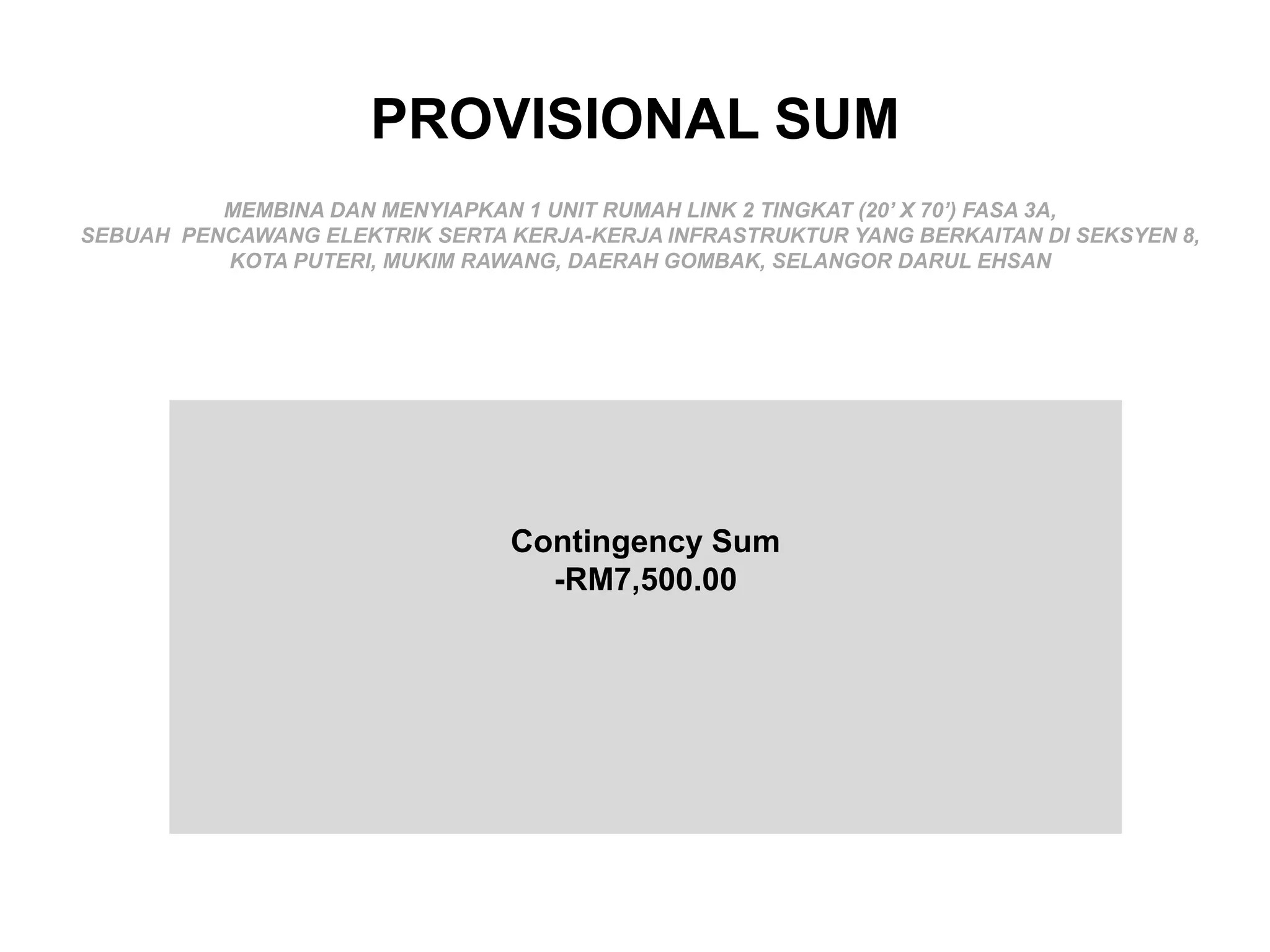

- 22. PROVISIONAL SUM MEMBINA DANMENYIAPKAN 1 UNIT RUMAH LINK 2 TINGKAT (20’ X 70’) FASA 3A, SEBUAH PENCAWANG ELEKTRIK SERTA KERJA-KERJA INFRASTRUKTUR YANG BERKAITAN DI SEKSYEN 8, KOTA PUTERI, MUKIM RAWANG, DAERAH GOMBAK, SELANGOR DARUL EHSAN Contingency Sum -RM7,500.00

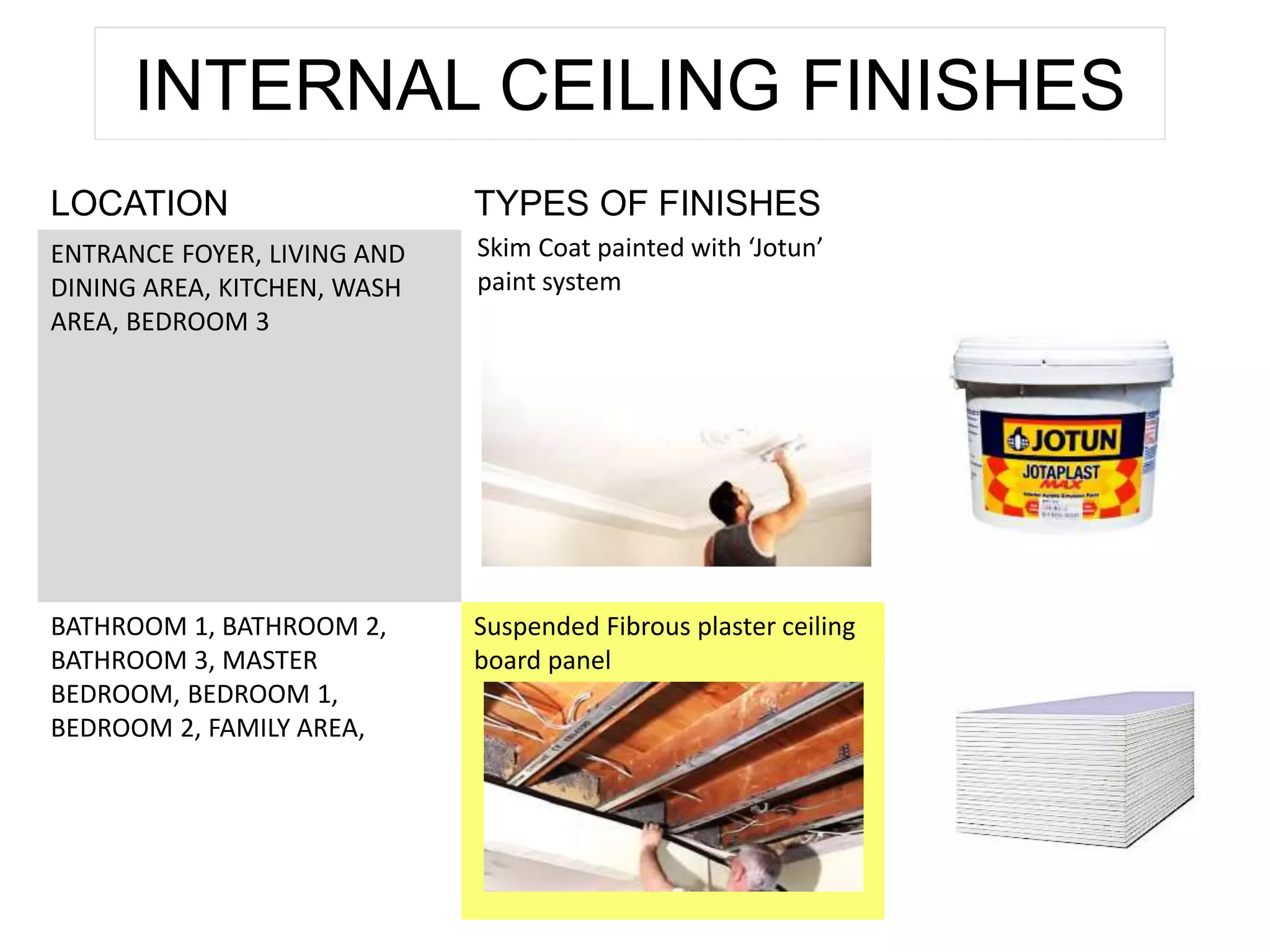

- 23. INTERNAL CEILING FINISHES LOCATIONTYPES OF FINISHES ENTRANCE FOYER, LIVING AND DINING AREA, KITCHEN, WASH AREA, BEDROOM 3 Skim Coat painted with ‘Jotun’ paint system BATHROOM 1, BATHROOM 2, BATHROOM 3, MASTER BEDROOM, BEDROOM 1, BEDROOM 2, FAMILY AREA, Suspended Fibrous plaster ceiling board panel

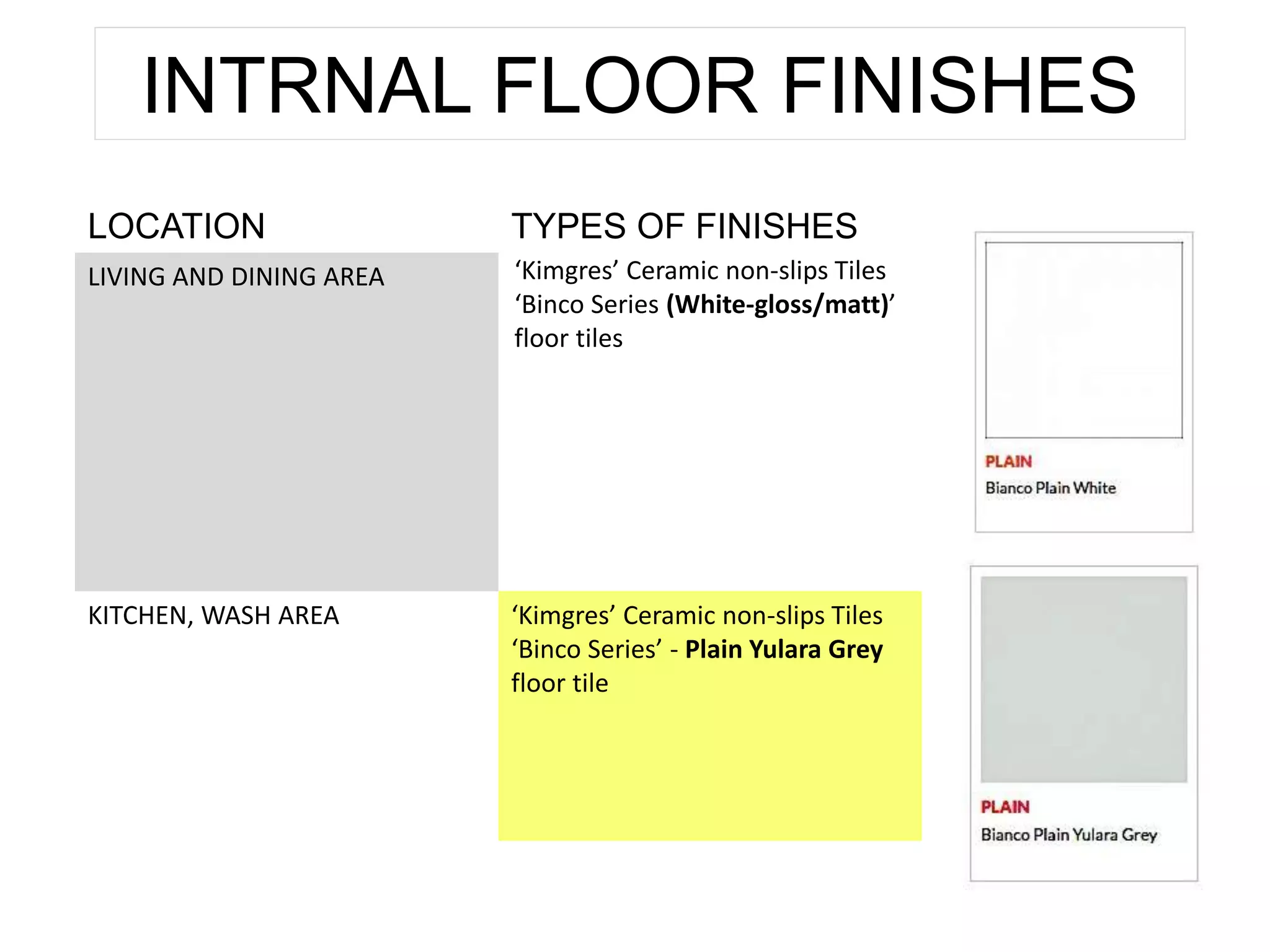

- 24. INTRNAL FLOOR FINISHES LOCATIONTYPES OF FINISHES LIVING AND DINING AREA ‘Kimgres’ Ceramic non-slips Tiles ‘Binco Series (White-gloss/matt)’ floor tiles KITCHEN, WASH AREA ‘Kimgres’ Ceramic non-slips Tiles ‘Binco Series’ - Plain Yulara Grey floor tile

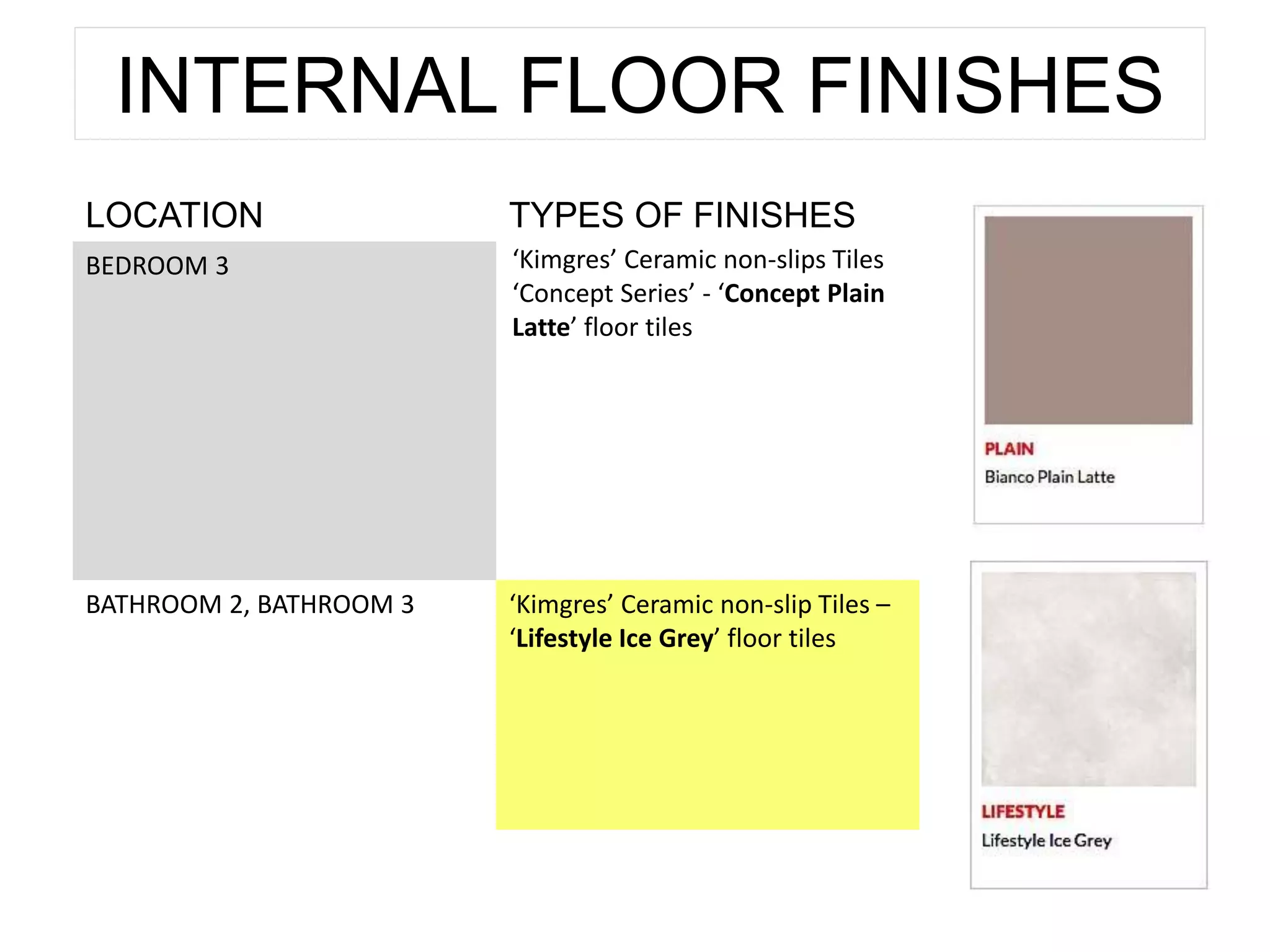

- 25. INTERNAL FLOOR FINISHES LOCATIONTYPES OF FINISHES BEDROOM 3 ‘Kimgres’ Ceramic non-slips Tiles ‘Concept Series’ - ‘Concept Plain Latte’ floor tiles BATHROOM 2, BATHROOM 3 ‘Kimgres’ Ceramic non-slip Tiles – ‘Lifestyle Ice Grey’ floor tiles

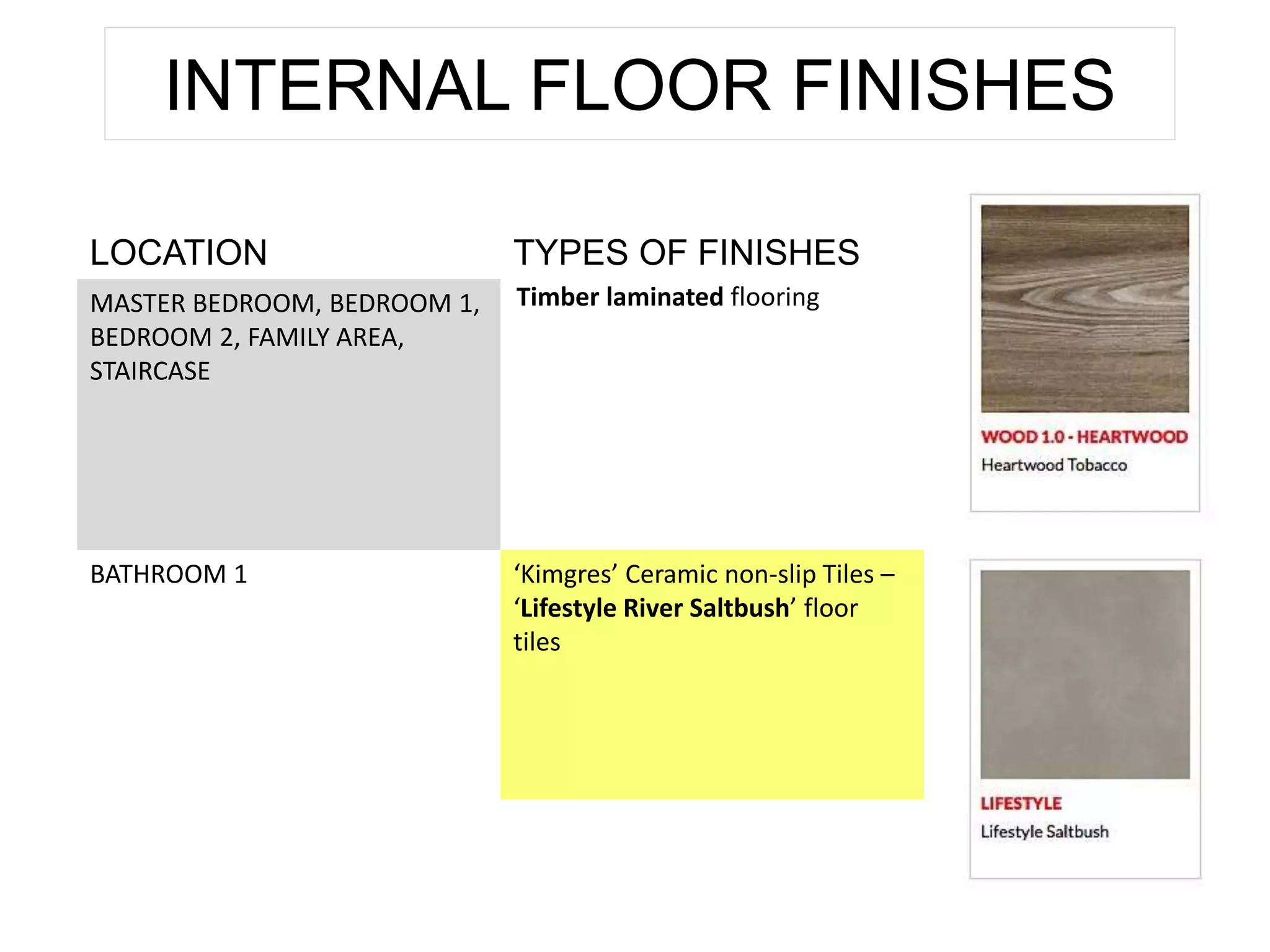

- 26. INTERNAL FLOOR FINISHES LOCATIONTYPES OF FINISHES MASTER BEDROOM, BEDROOM 1, BEDROOM 2, FAMILY AREA, STAIRCASE Timber laminated flooring BATHROOM 1 ‘Kimgres’ Ceramic non-slip Tiles – ‘Lifestyle River Saltbush’ floor tiles

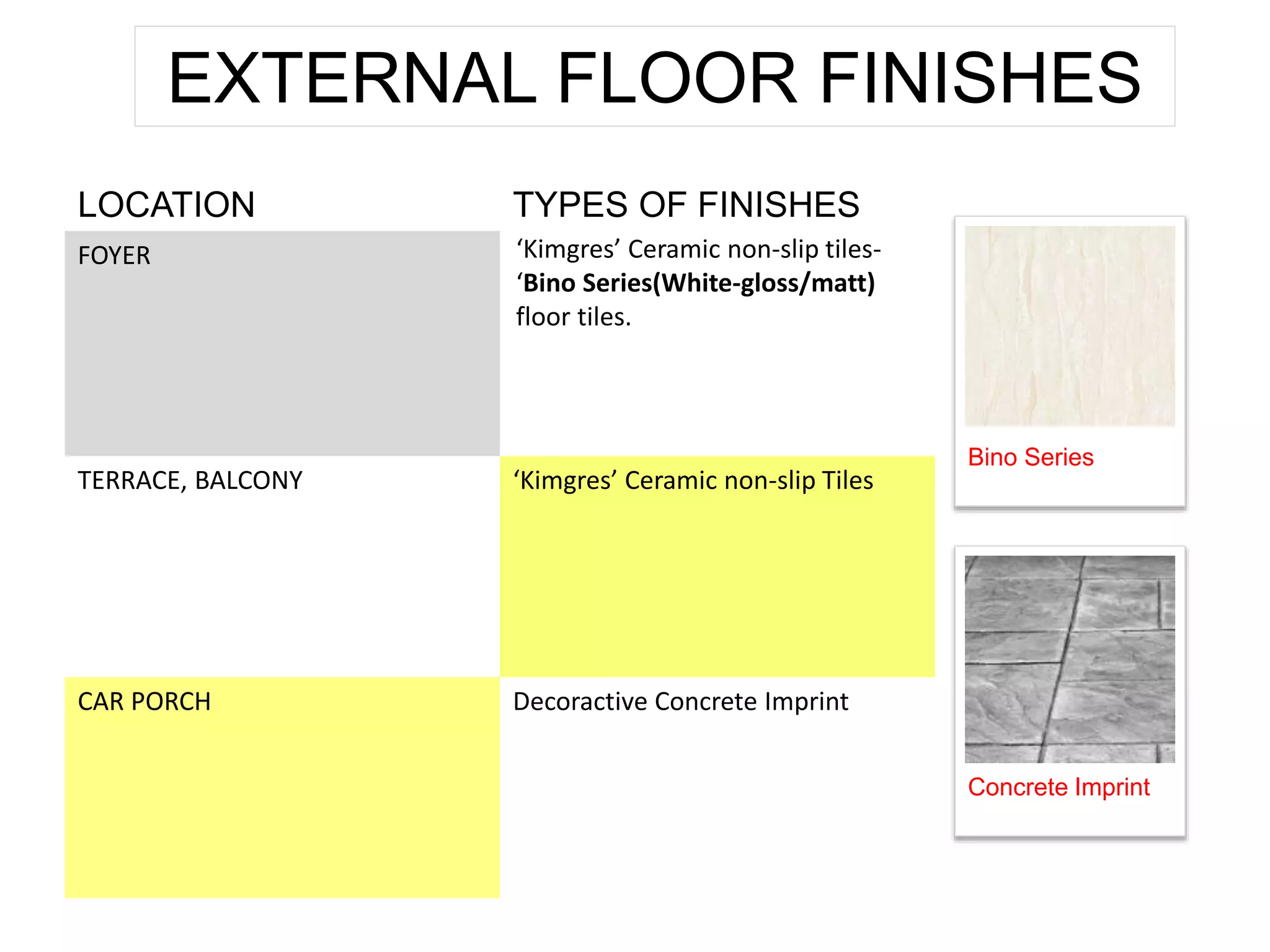

- 27. EXTERNAL FLOOR FINISHES LOCATIONTYPES OF FINISHES FOYER ‘Kimgres’ Ceramic non-slip tiles- ‘Bino Series(White-gloss/matt) floor tiles. TERRACE, BALCONY ‘Kimgres’ Ceramic non-slip Tiles CAR PORCH Decoractive Concrete Imprint Bino Series Concrete Imprint

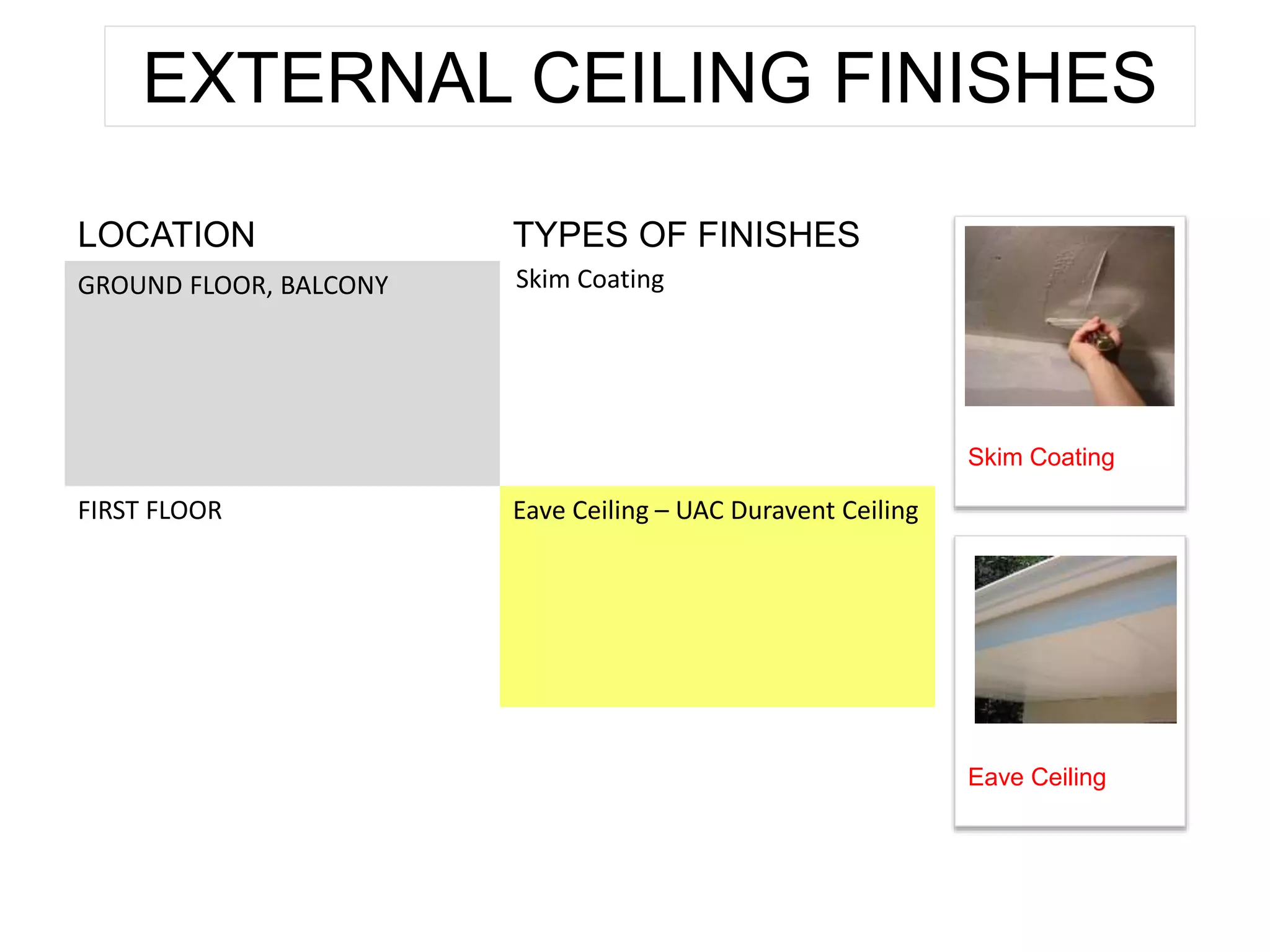

- 28. EXTERNAL CEILING FINISHES LOCATIONTYPES OF FINISHES GROUND FLOOR, BALCONY Skim Coating FIRST FLOOR Eave Ceiling – UAC Duravent Ceiling Skim Coating Eave Ceiling

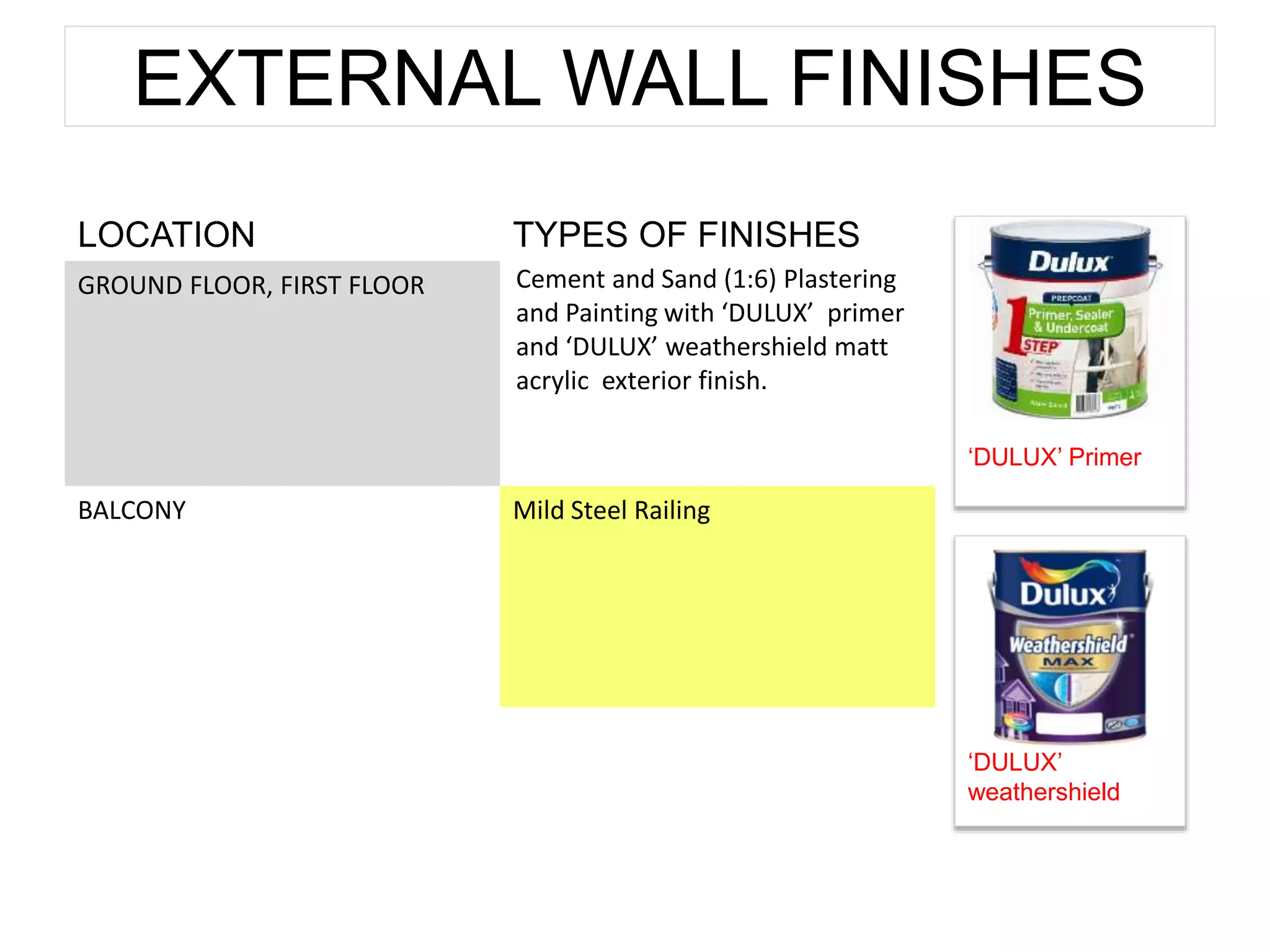

- 29. EXTERNAL WALL FINISHES LOCATIONTYPES OF FINISHES GROUND FLOOR, FIRST FLOOR Cement and Sand (1:6) Plastering and Painting with ‘DULUX’ primer and ‘DULUX’ weathershield matt acrylic exterior finish. BALCONY Mild Steel Railing ‘DULUX’ Primer ‘DULUX’ weathershield
- 30.

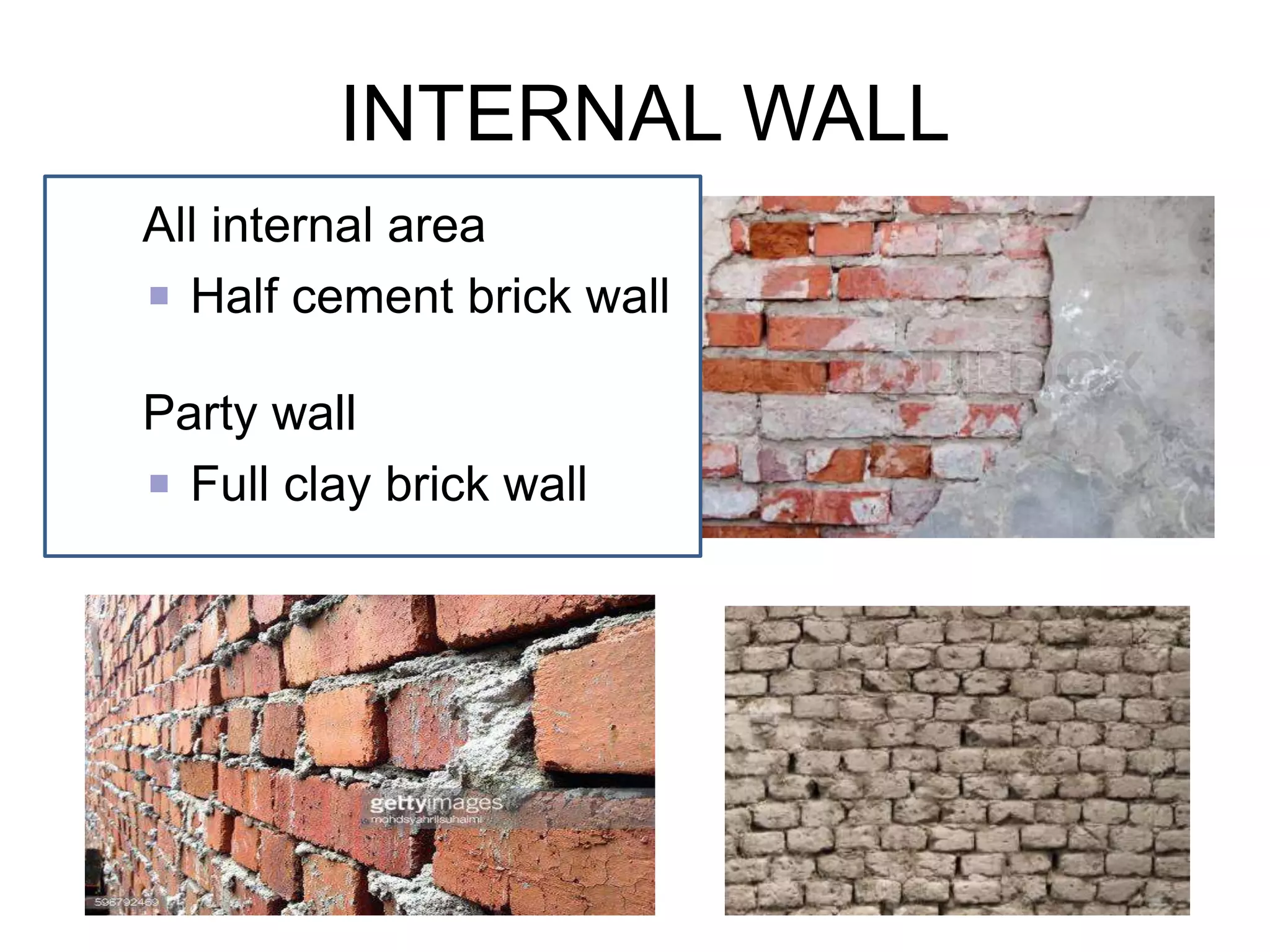

- 31. INTERNAL WALL All internalarea Half cement brick wall Party wall Full clay brick wall
- 32.

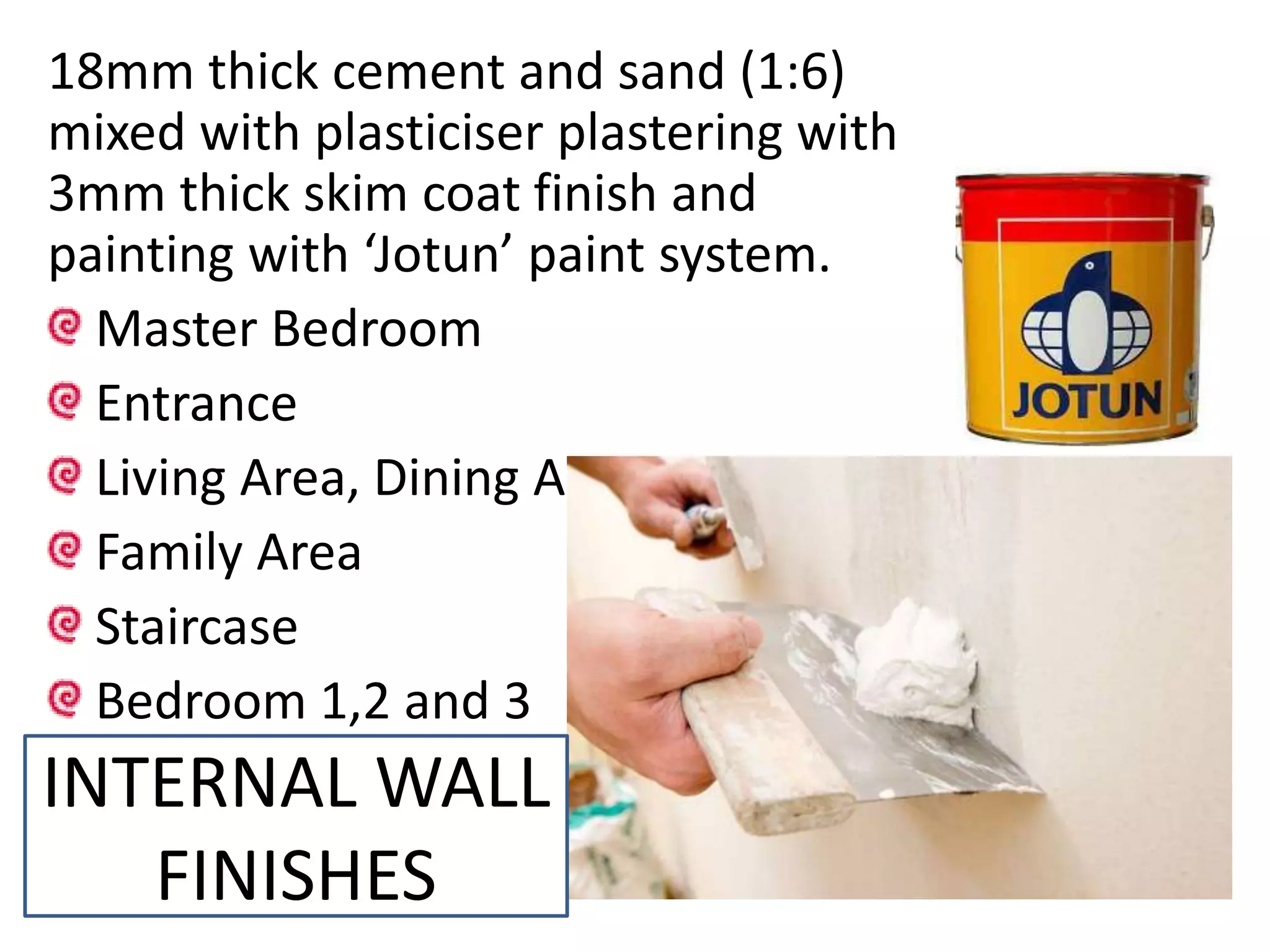

- 33. 18mm thick cementand sand (1:6) mixed with plasticiser plastering with 3mm thick skim coat finish and painting with ‘Jotun’ paint system. Master Bedroom Entrance Living Area, Dining Area Family Area Staircase Bedroom 1,2 and 3 INTERNAL WALL FINISHES

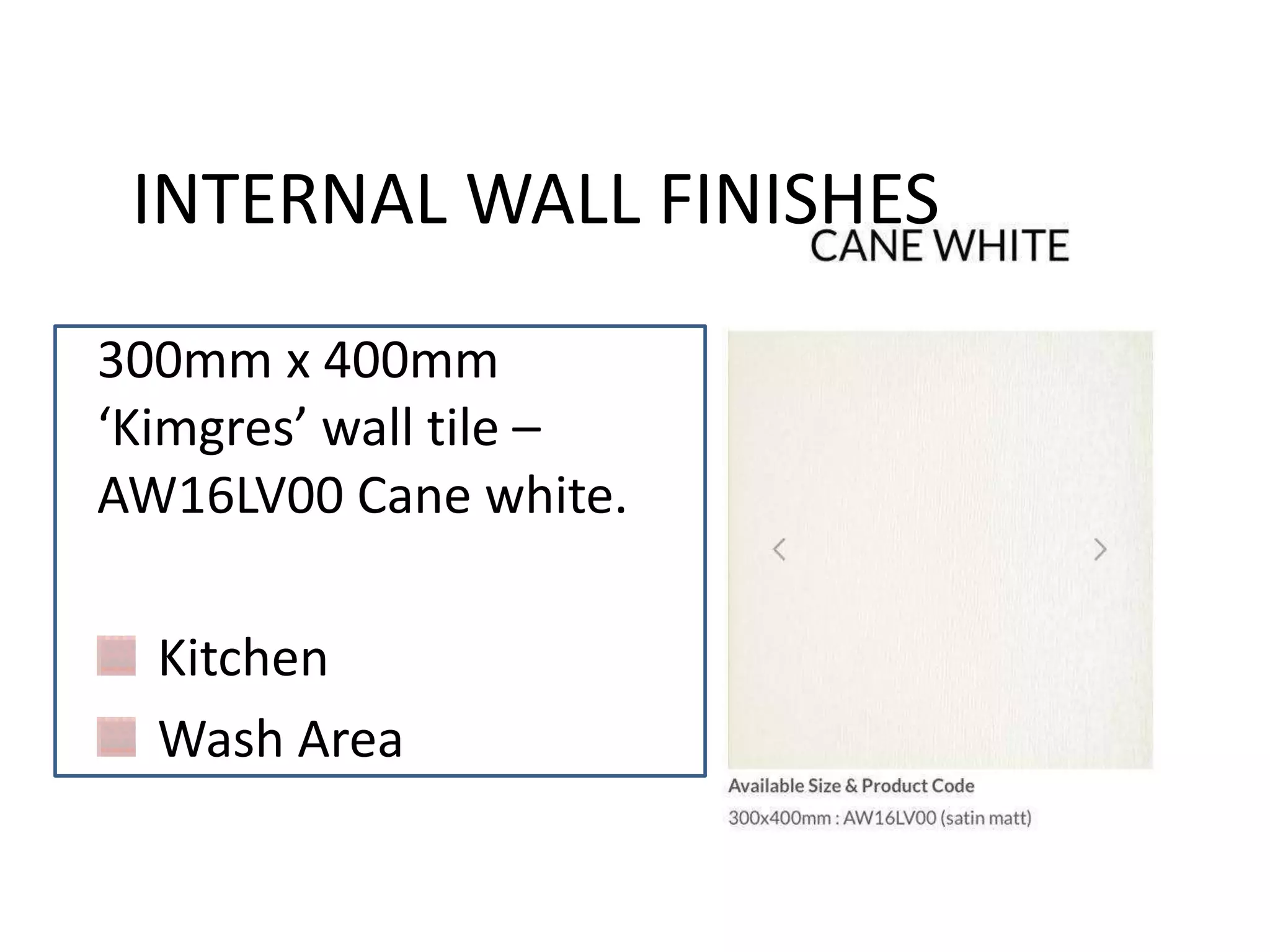

- 34. 300mm x 400mm ‘Kimgres’wall tile – AW16LV00 Cane white. Kitchen Wash Area INTERNAL WALL FINISHES

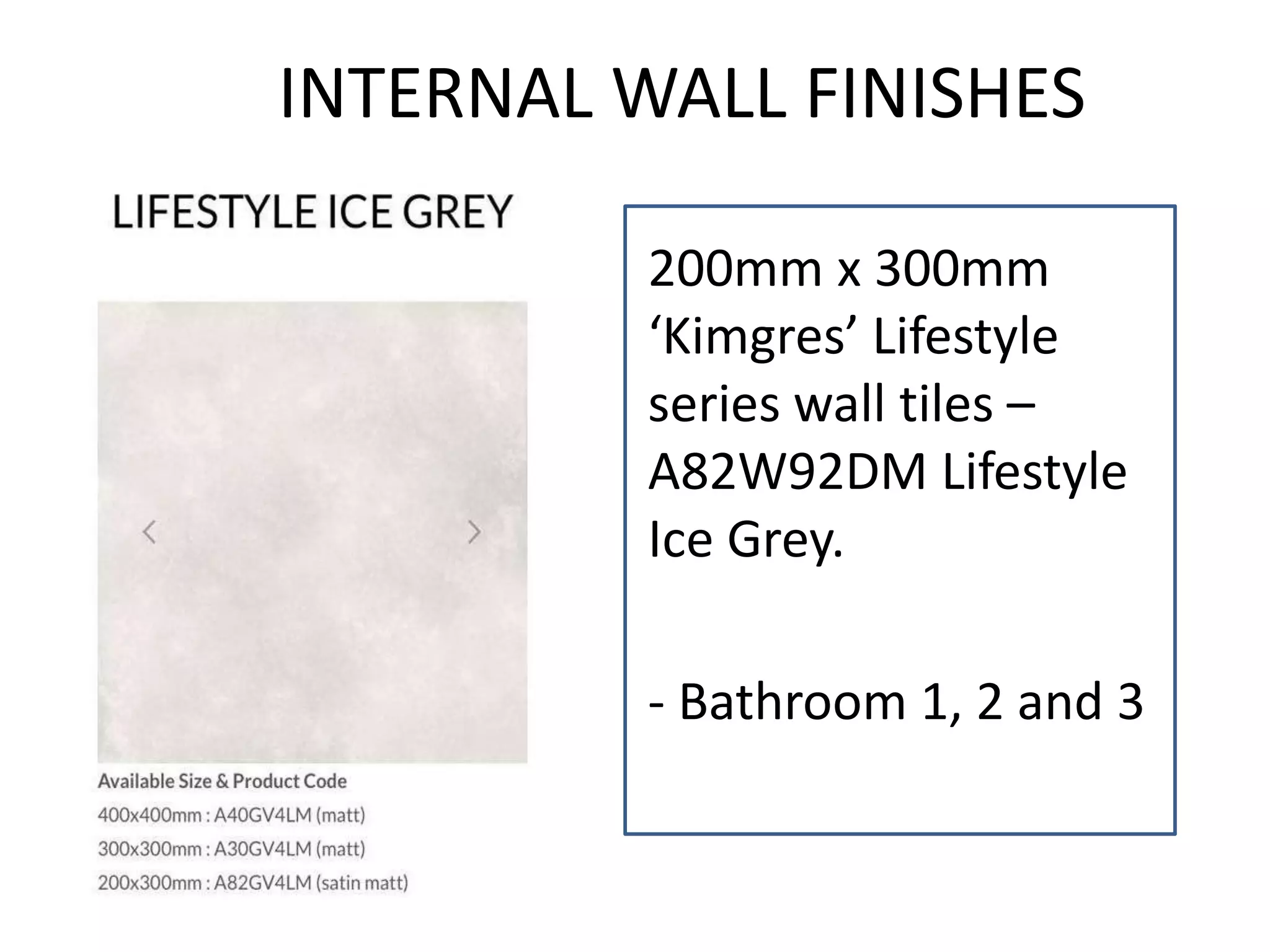

- 35. INTERNAL WALL FINISHES 200mmx 300mm ‘Kimgres’ Lifestyle series wall tiles – A82W92DM Lifestyle Ice Grey. - Bathroom 1, 2 and 3
- 36.

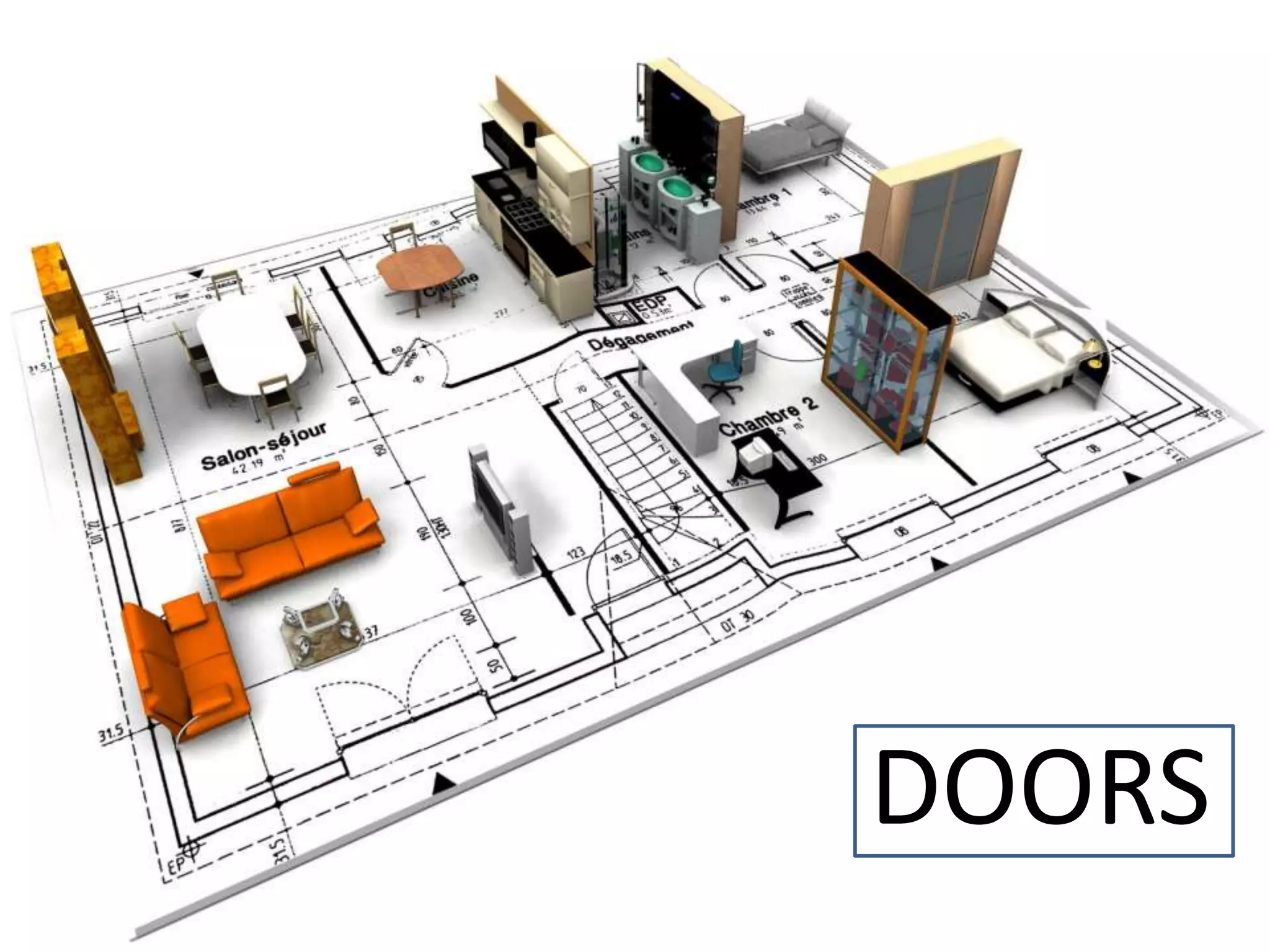

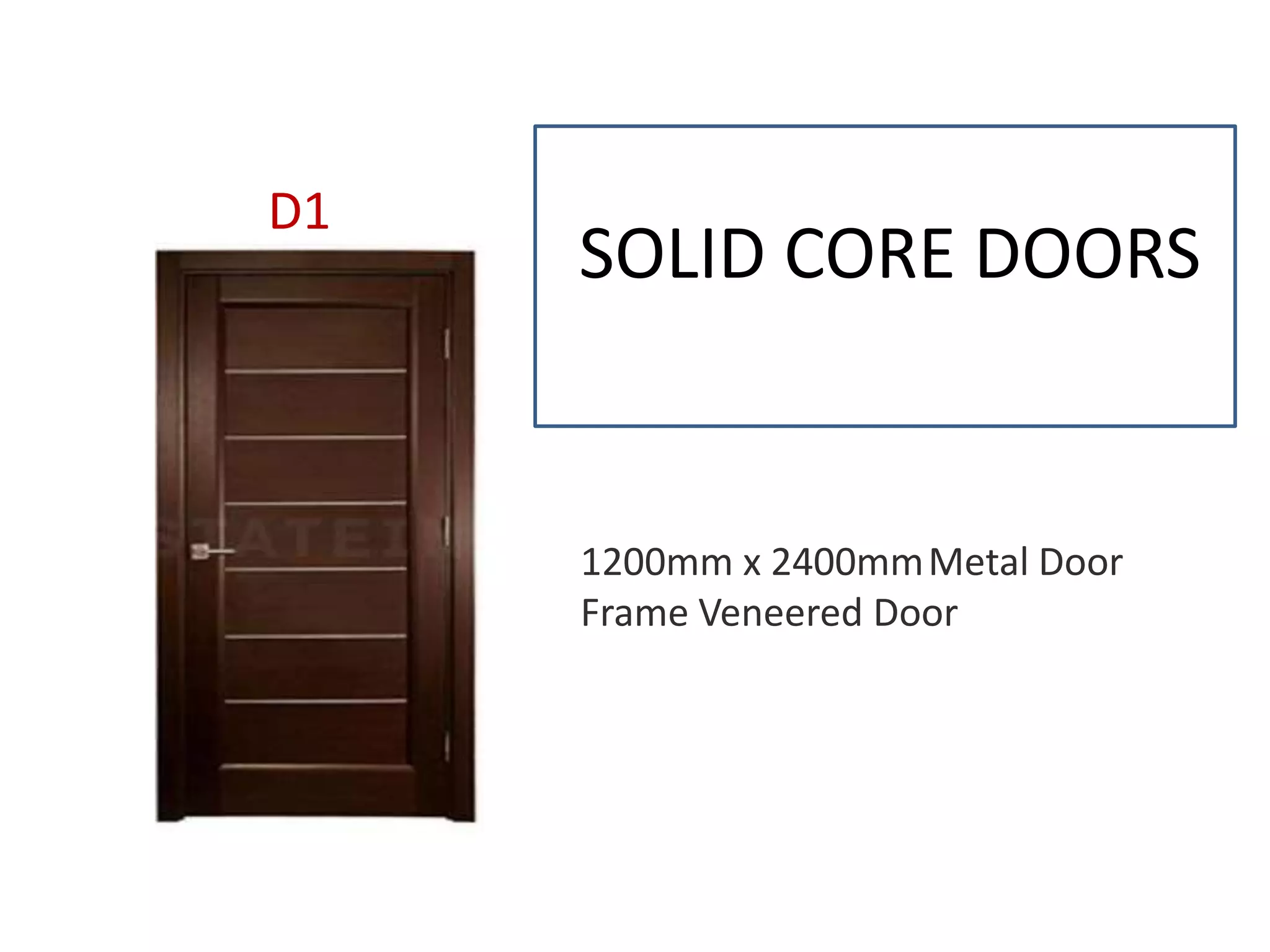

- 37. SOLID CORE DOORS D1 1200mmx 2400mmMetal Door Frame Veneered Door

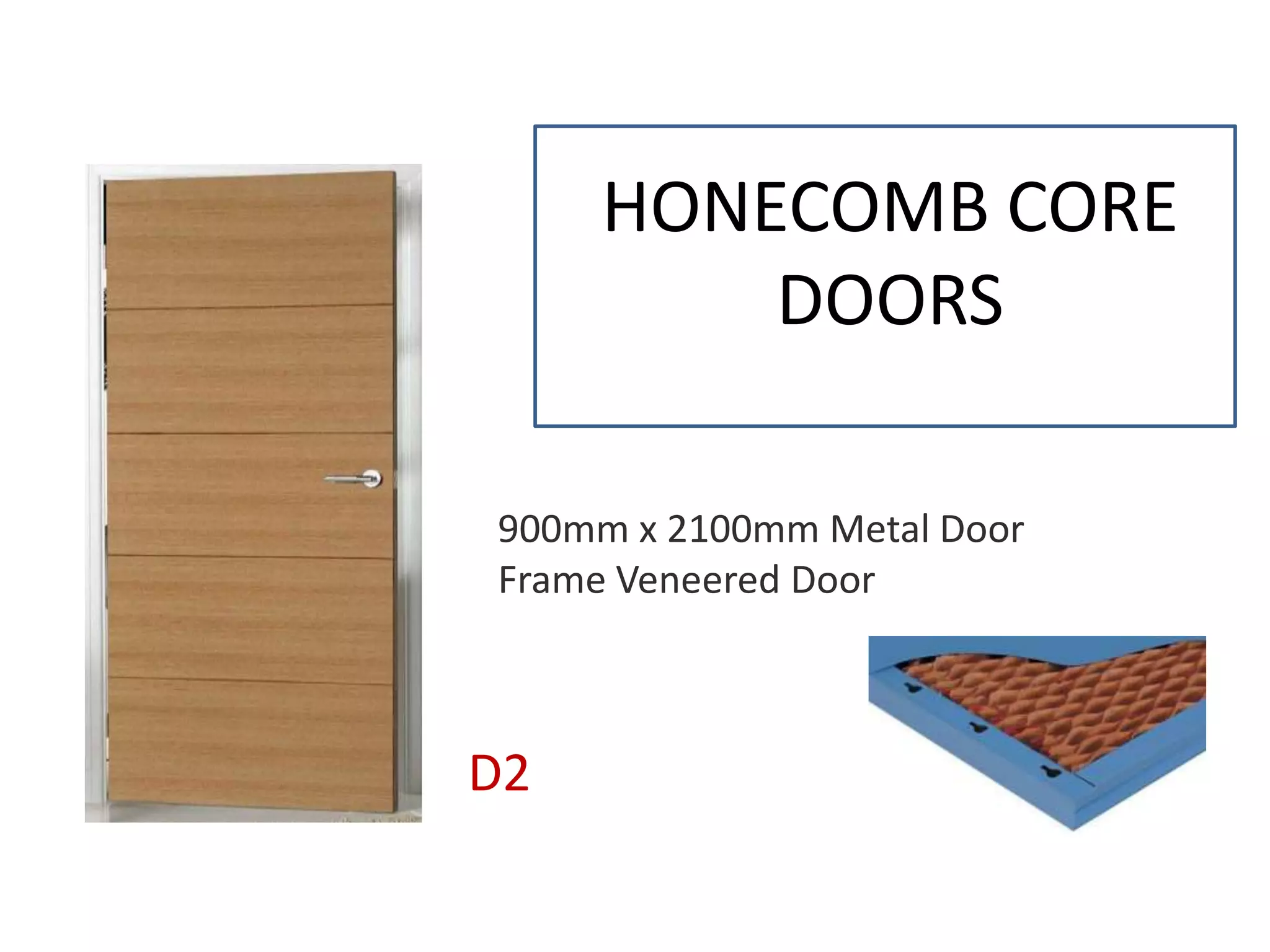

- 38. HONECOMB CORE DOORS D2 900mm x2100mm Metal Door Frame Veneered Door

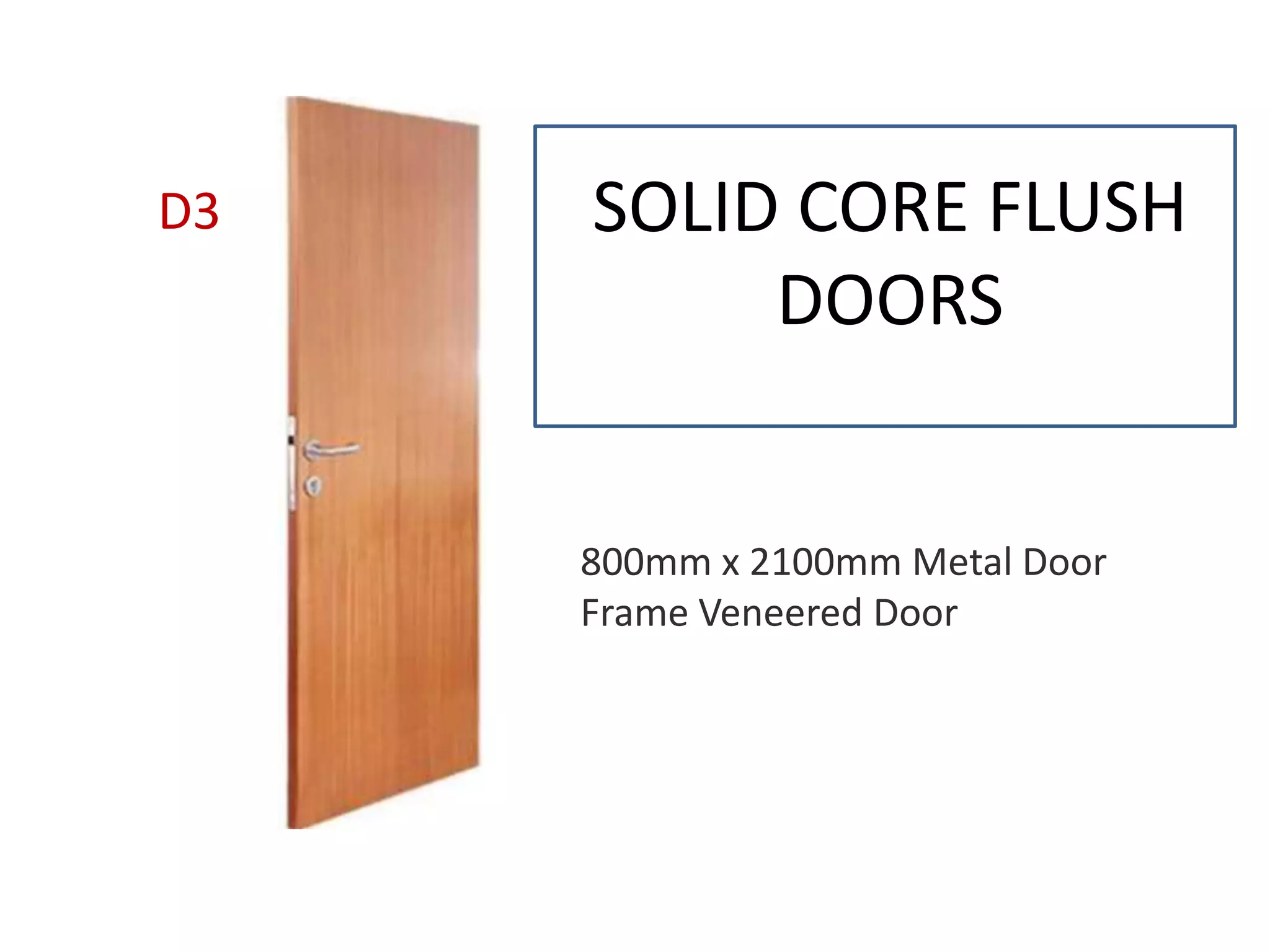

- 39. SOLID CORE FLUSH DOORS D3 800mmx 2100mm Metal Door Frame Veneered Door

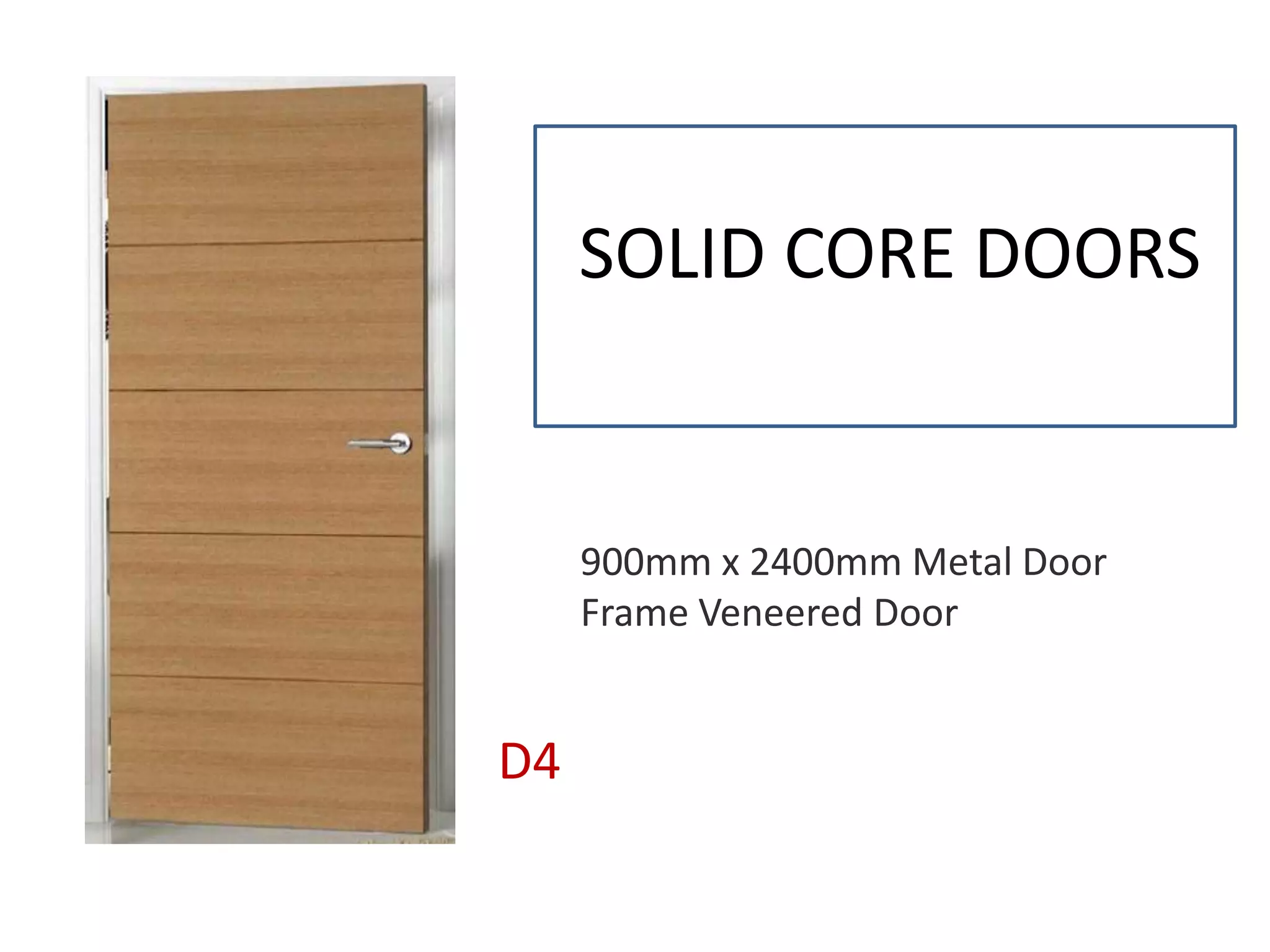

- 40. SOLID CORE DOORS D4 900mmx 2400mm Metal Door Frame Veneered Door

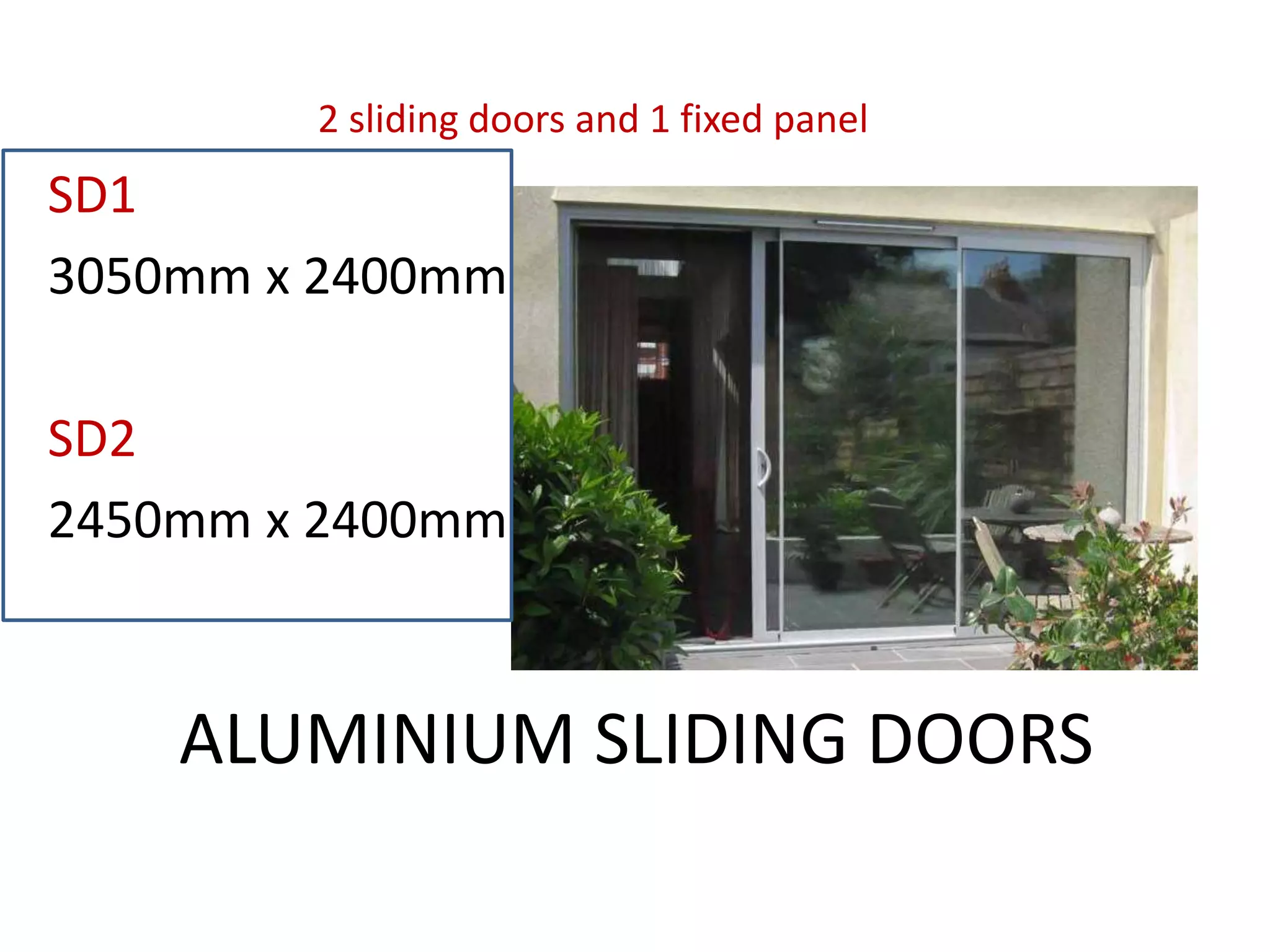

- 41. ALUMINIUM SLIDING DOORS SD1 3050mmx 2400mm SD2 2450mm x 2400mm 2 sliding doors and 1 fixed panel

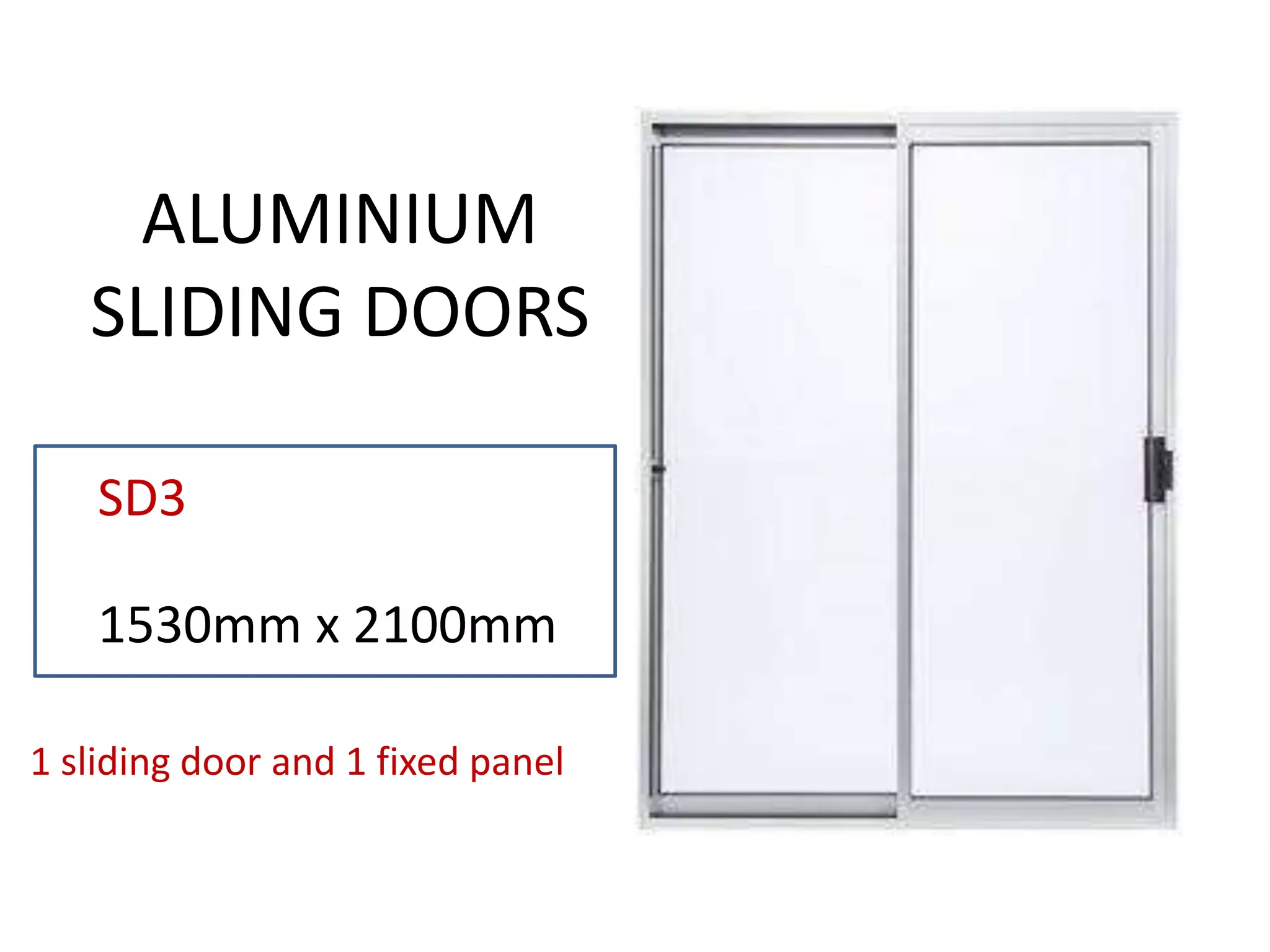

- 42. SD3 1530mm x 2100mm ALUMINIUM SLIDINGDOORS 1 sliding door and 1 fixed panel

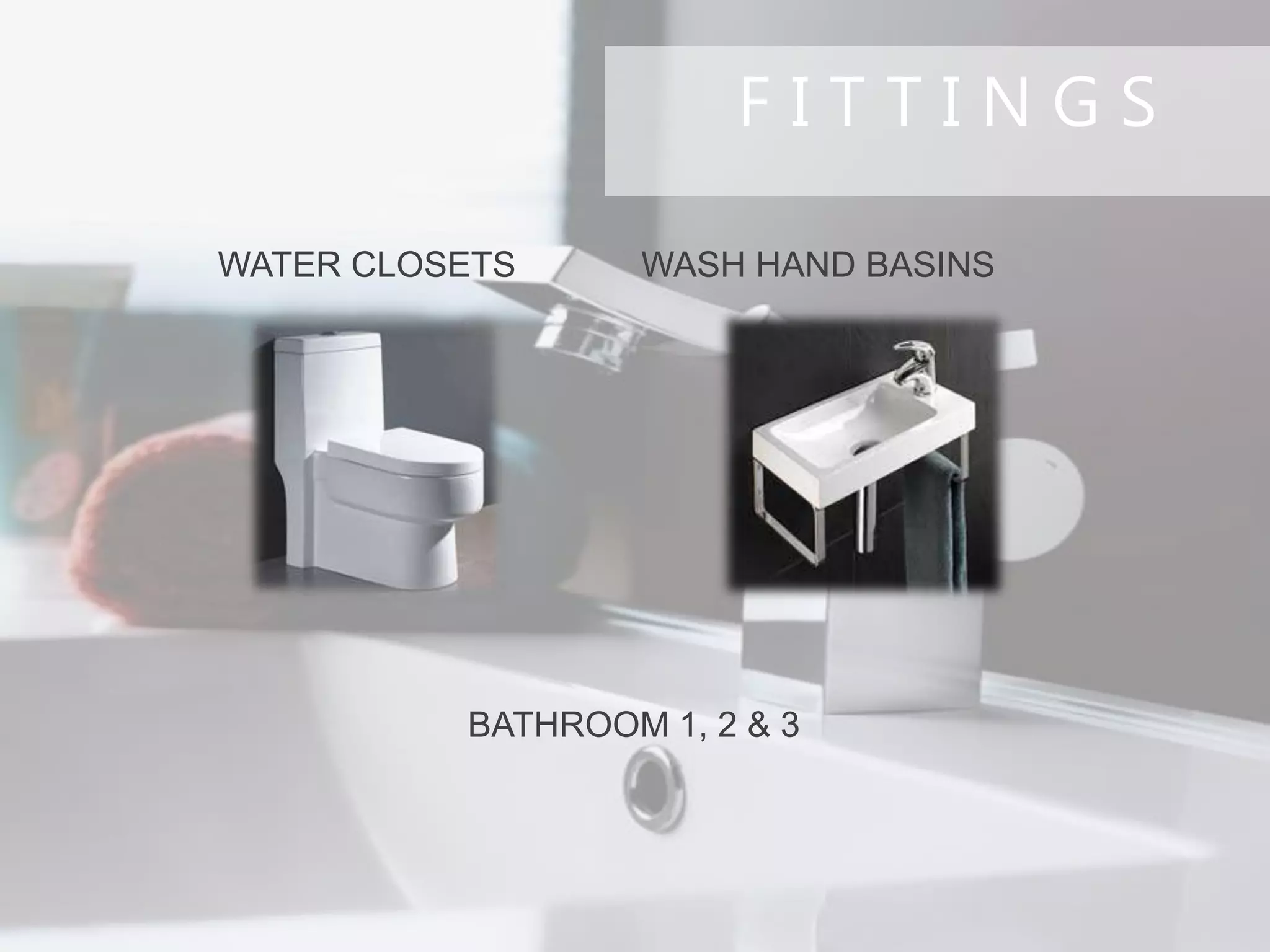

- 43. F I TT I N G S WATER CLOSETS WASH HAND BASINS BATHROOM 1, 2 & 3

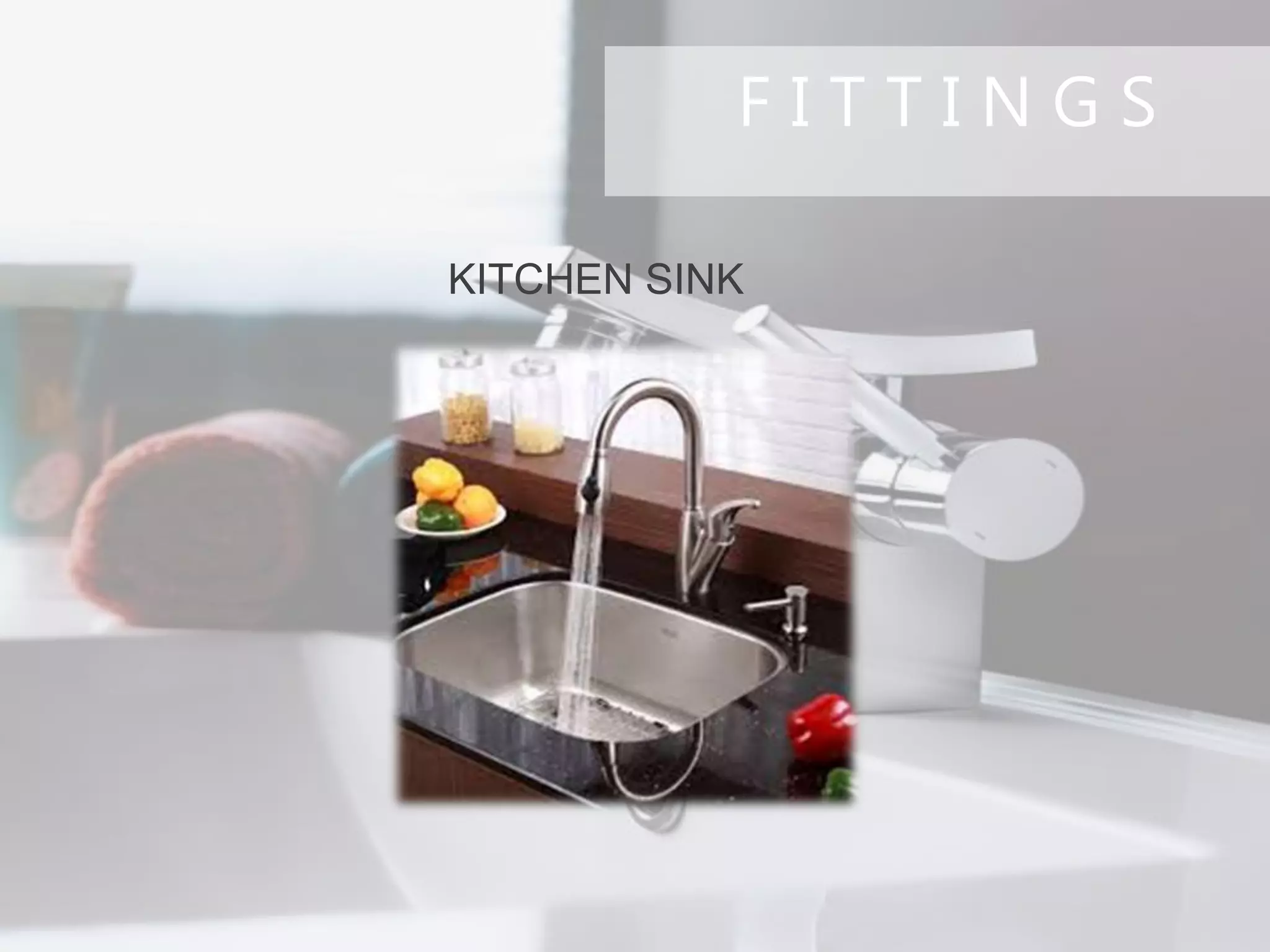

- 44. F I TT I N G S KITCHEN SINK

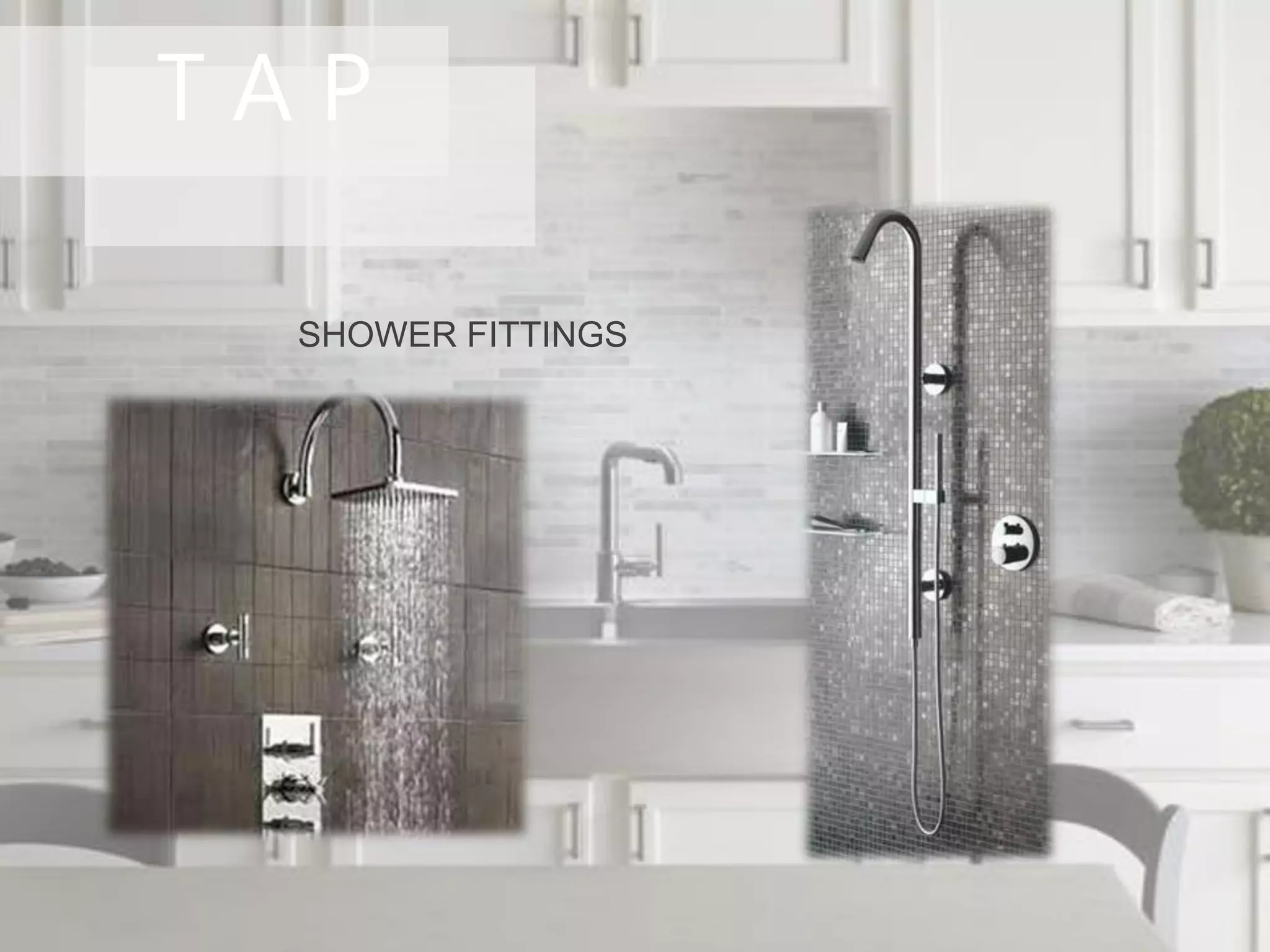

- 45. T A P SHOWERFITTINGS

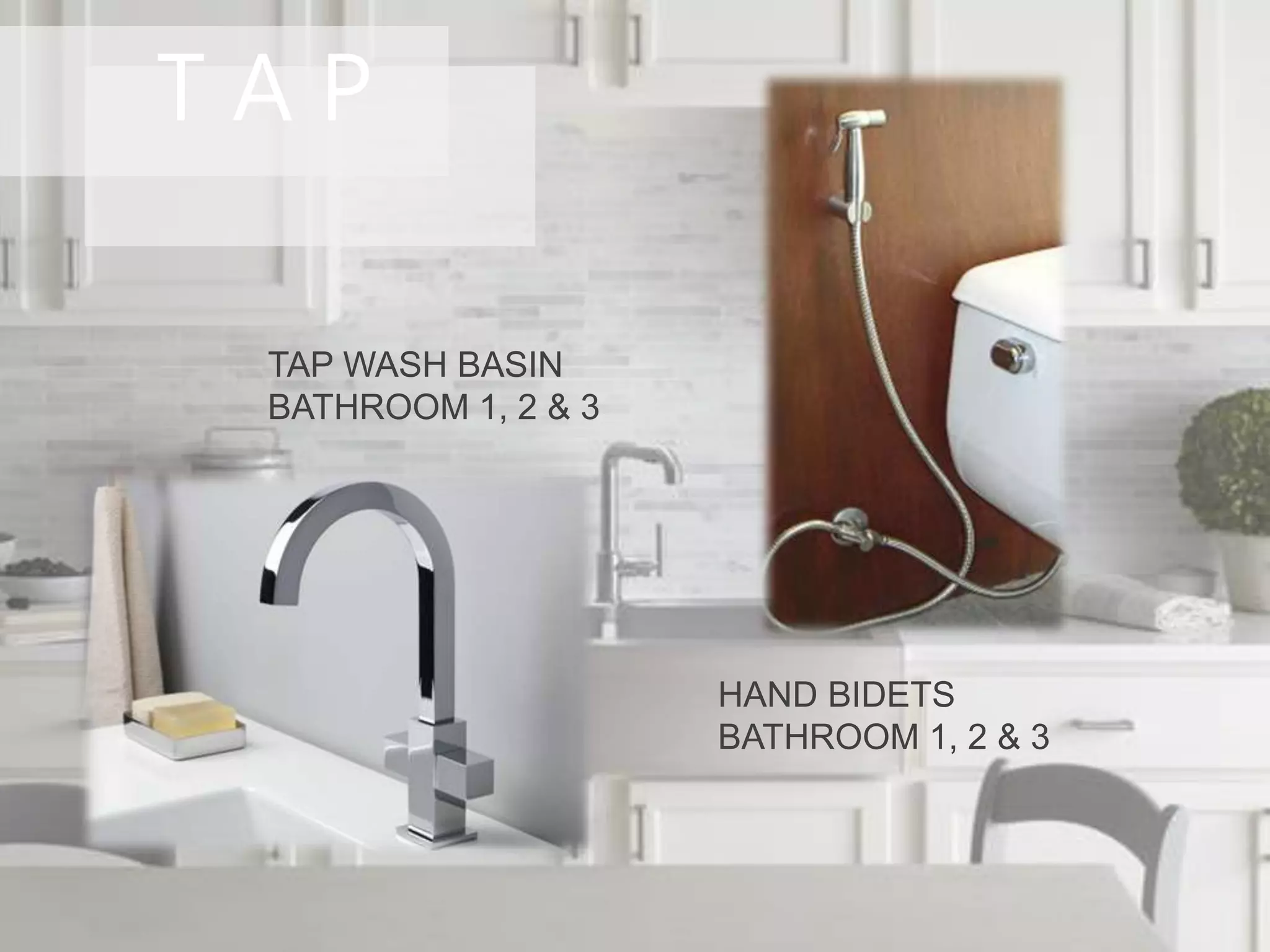

- 46. T A P HANDBIDETS BATHROOM 1, 2 & 3 TAP WASH BASIN BATHROOM 1, 2 & 3

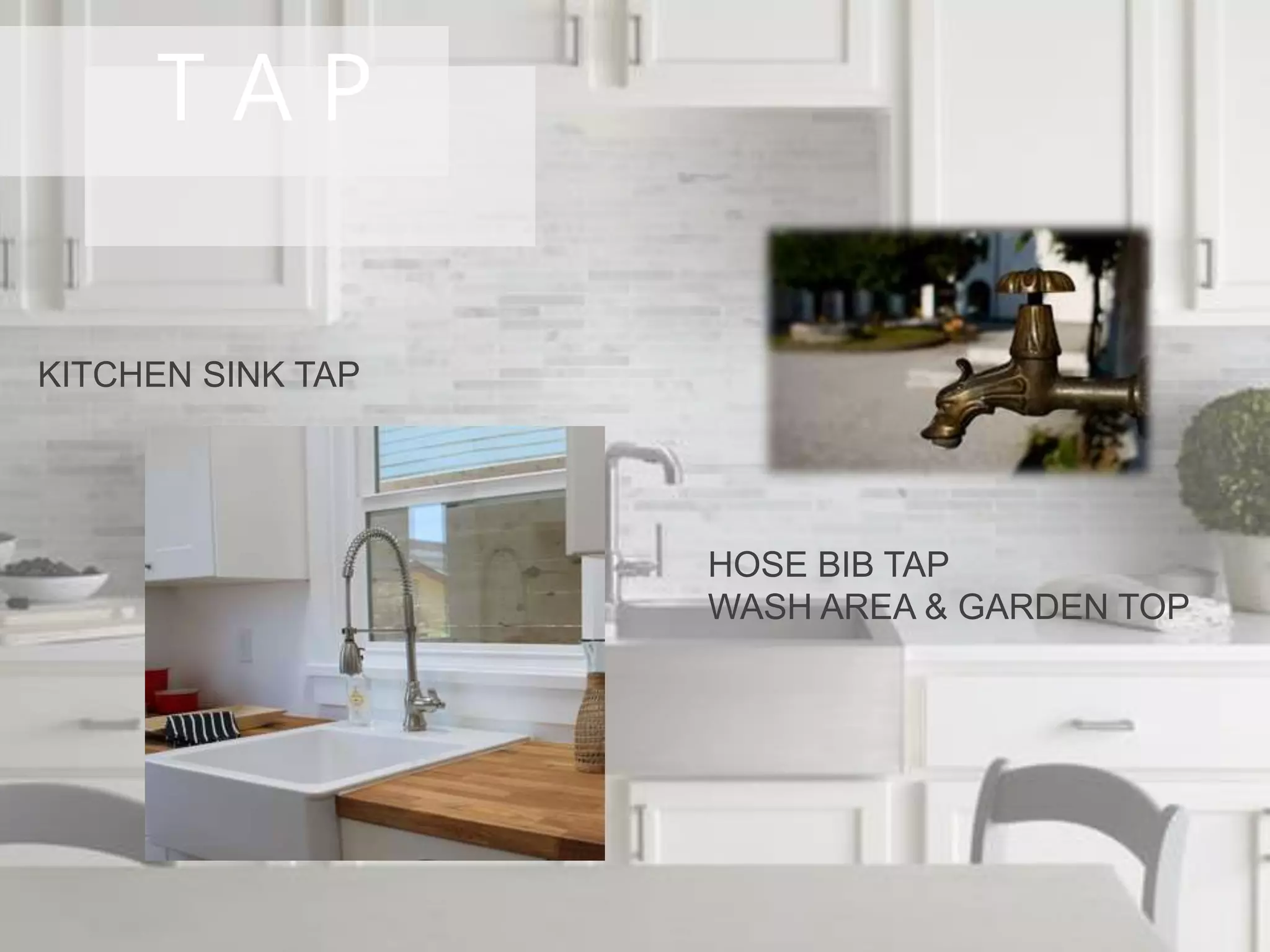

- 47. T A P KITCHENSINK TAP HOSE BIB TAP WASH AREA & GARDEN TOP

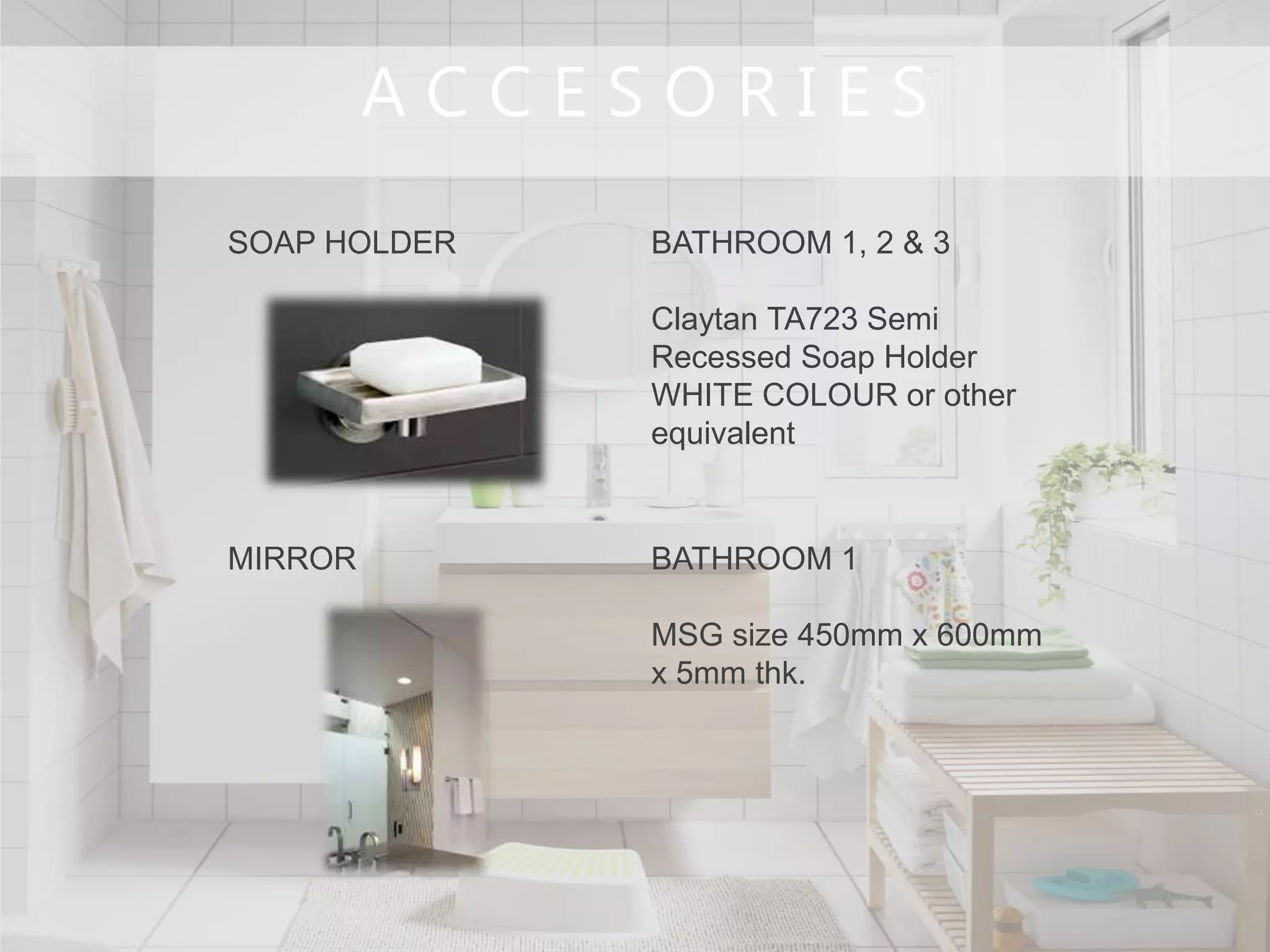

- 48. A C CE S O R I E S SOAP HOLDER BATHROOM 1, 2 & 3 Claytan TA723 Semi Recessed Soap Holder WHITE COLOUR or other equivalent MIRROR BATHROOM 1 MSG size 450mm x 600mm x 5mm thk.

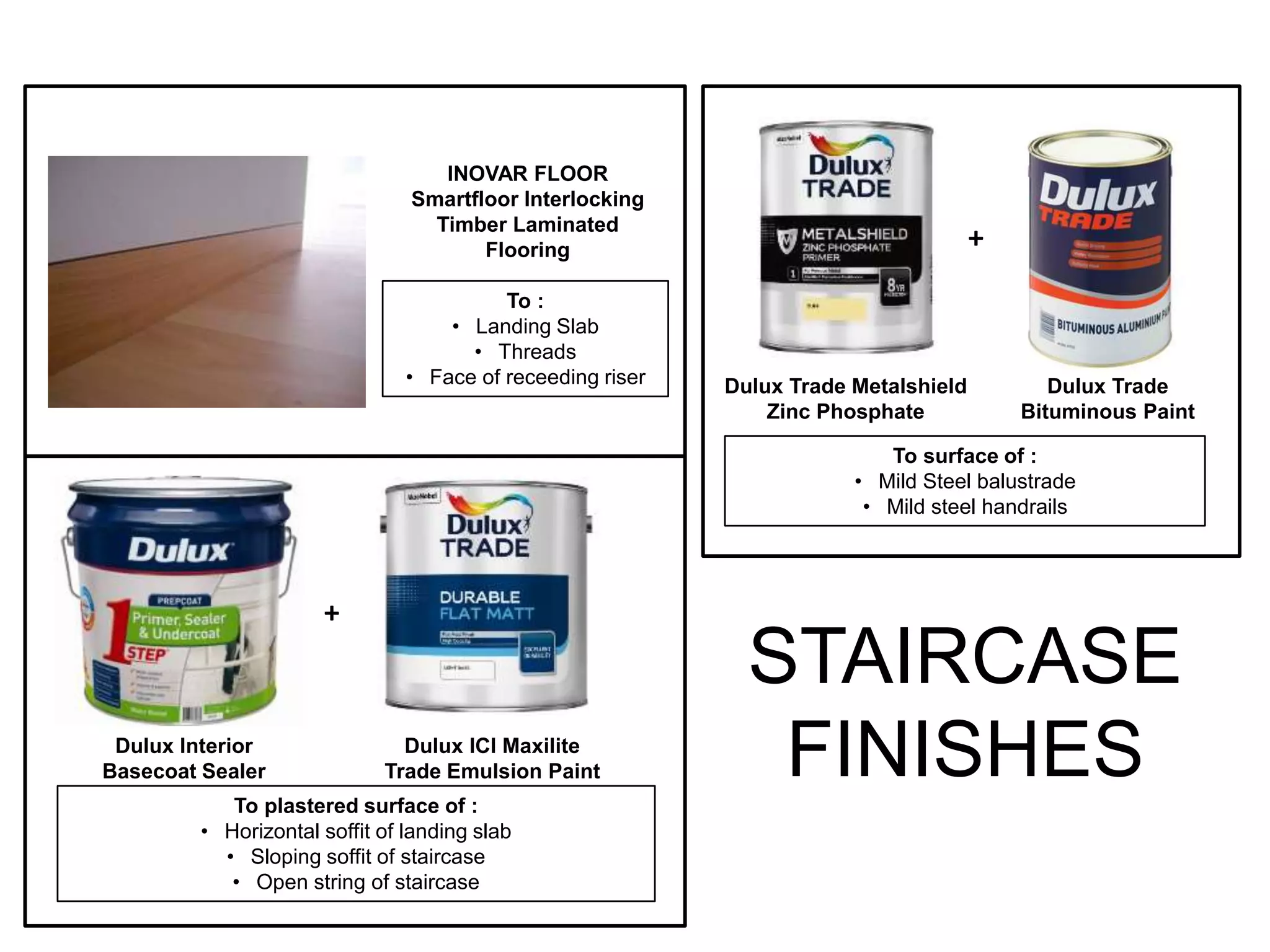

- 49. Dulux Interior Basecoat Sealer + DuluxICI Maxilite Trade Emulsion Paint To plastered surface of : • Horizontal soffit of landing slab • Sloping soffit of staircase • Open string of staircase + Dulux Trade Metalshield Zinc Phosphate Dulux Trade Bituminous Paint To surface of : • Mild Steel balustrade • Mild steel handrails INOVAR FLOOR Smartfloor Interlocking Timber Laminated Flooring To : • Landing Slab • Threads • Face of receeding riser STAIRCASE FINISHES

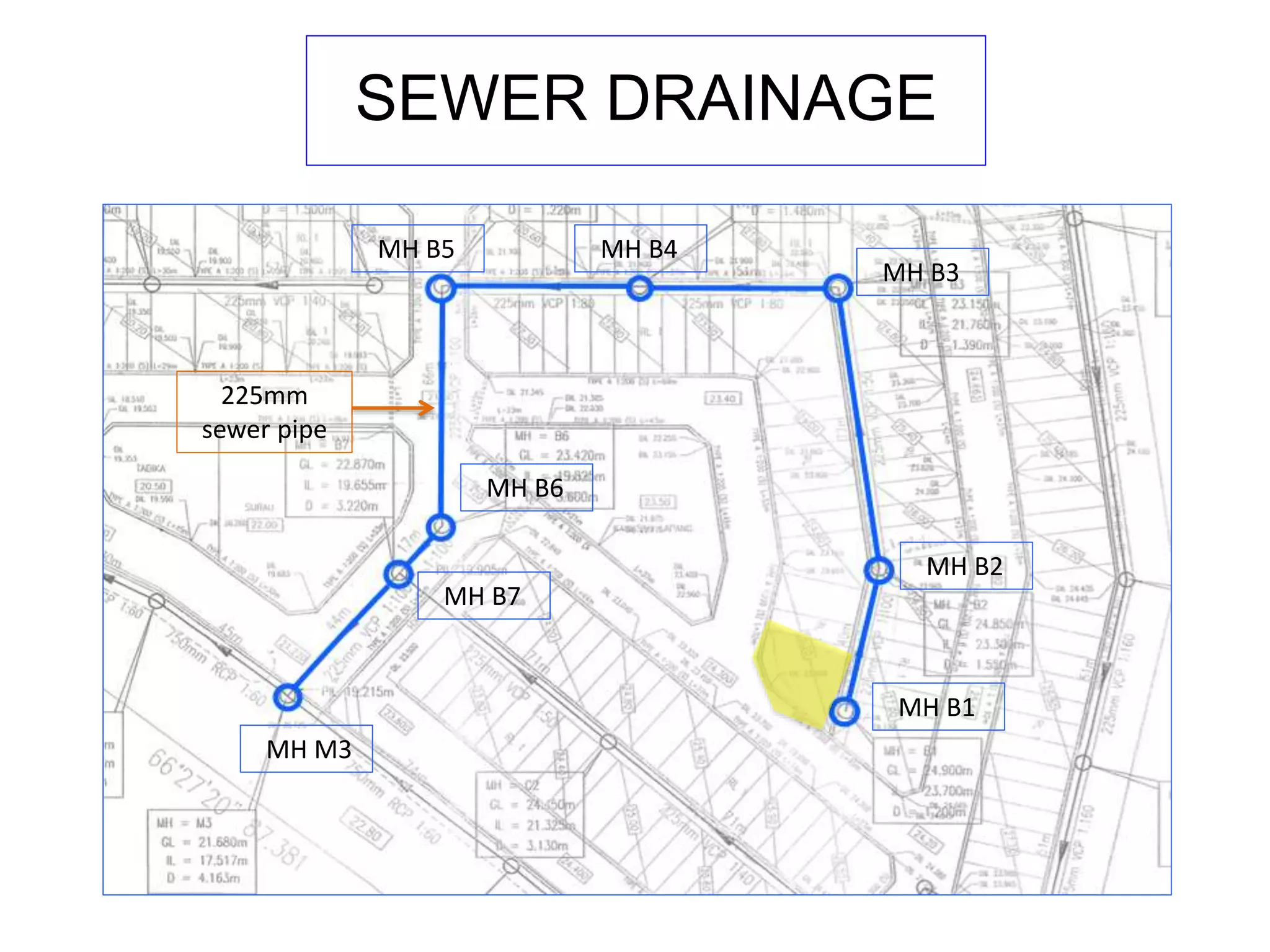

- 50. SEWER DRAINAGE MH B1 MHB2 MH B3 MH B4MH B5 MH B6 MH B7 MH M3 225mm sewer pipe

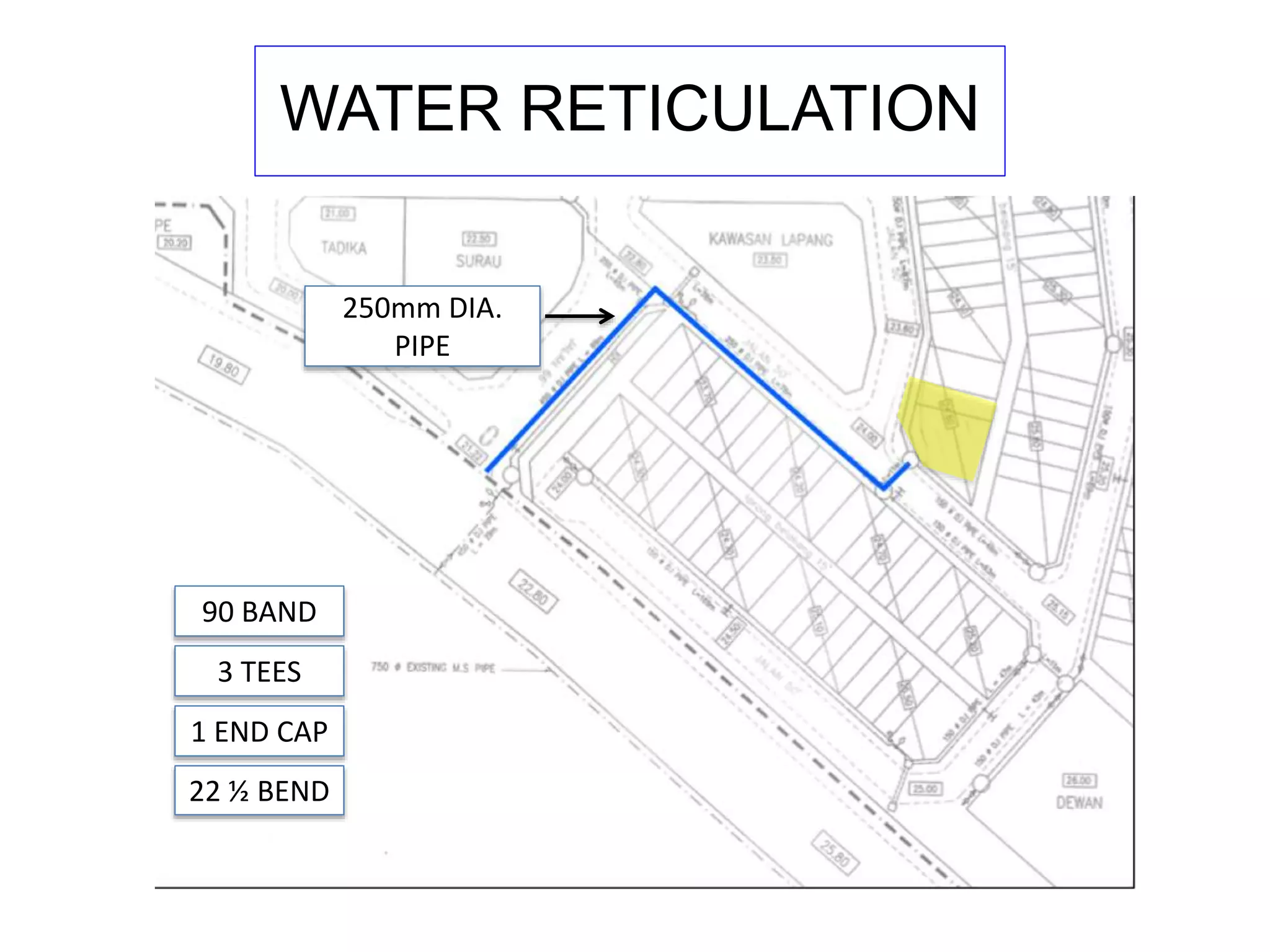

- 51. WATER RETICULATION 90 BAND 3TEES 250mm DIA. PIPE 1 END CAP 22 ½ BEND

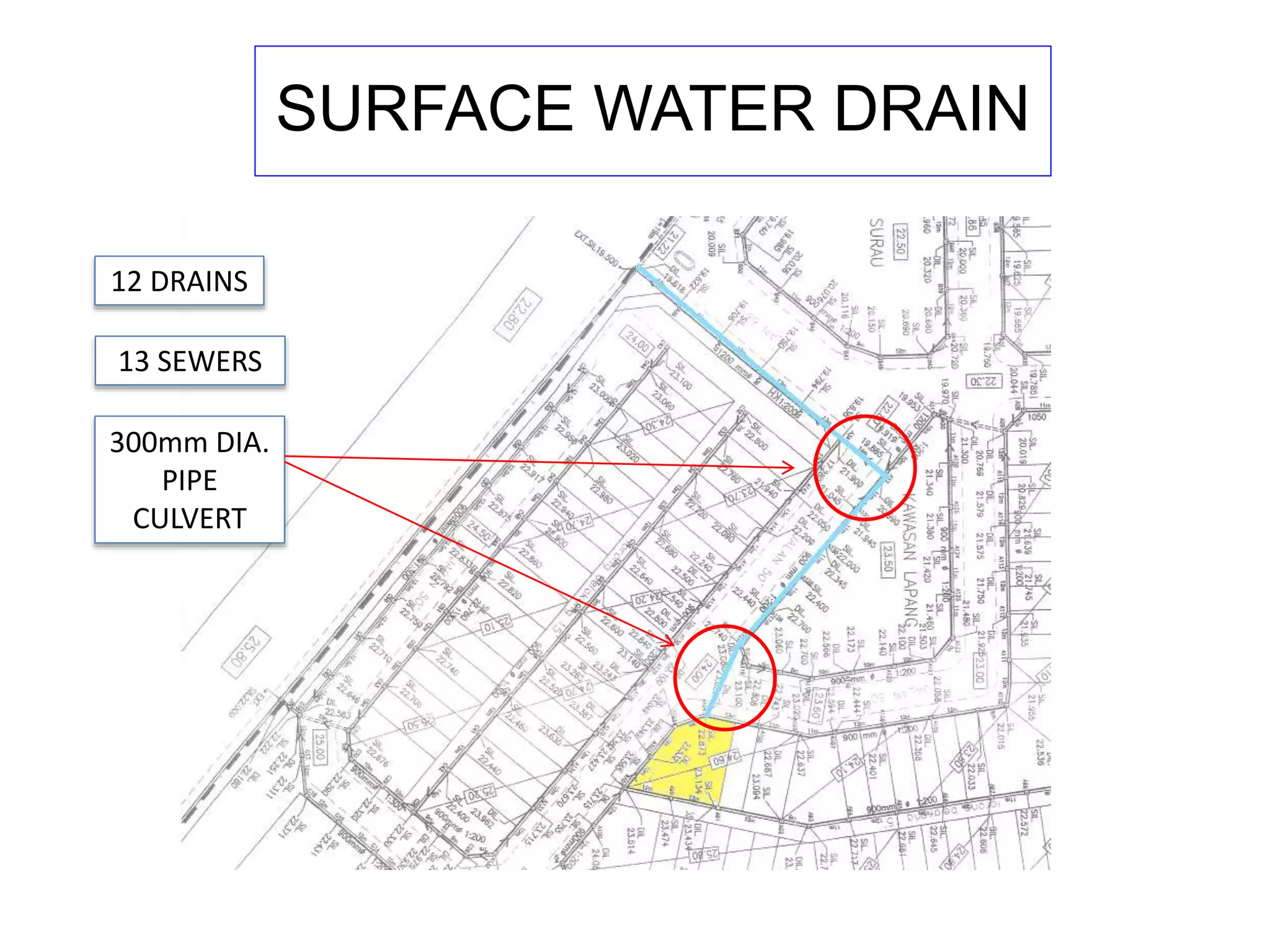

- 52. SURFACE WATER DRAIN 12DRAINS 13 SEWERS 300mm DIA. PIPE CULVERT
- 53.
