This document outlines the proposed construction of a double storey terrace house on a corner lot in Kuching, Sarawak. The project involves building a single unit house designed by Design Network Architects. ESWEL ENGINEERS SDN BHD will serve as the civil and structural engineer, and Oompa Loompa SDN BHD will be the quantity surveyor. The document provides details on the scope of works, plans and elevations, tendering process, and proposed finishes for the house.

1. project for
Double Storey Terrace House
Copyright © Oompa Loompa SDN.BHD. All rights reserved.
Darren
Wilson
Enoch
Hasif
Cromwell
Pui Sun
Chloe

2. PROPOSED PROJECT

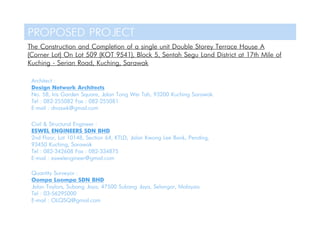

The Construction and Completion of a single unit Double Storey Terrace House A
(Corner Lot) On Lot 509 (KOT 9541), Block 5, Sentah Segu Land District at 17th Mile of
Kuching - Serian Road, Kuching, Sarawak
Architect :
Design Network Architects
No. 58, Iris Garden Square, Jalan Tong Wei Tah, 93200 Kuching Sarawak.
Tel : 082-255082 Fax : 082-255081
E-mail : dnaswk@gmail.com
Civil & Structural Engineer :
ESWEL ENGINEERS SDN BHD
2nd Floor, Lot 10148, Section 64, KTLD, Jalan Kwong Lee Bank, Pending,
93450 Kuching, Sarawak
Tel : 082-342608 Fax : 082-334875
E-mail : eswelengineer@gmail.com
Quantity Surveyor :
Oompa Loompa SDN BHD
Jalan Taylors, Subang Jaya, 47500 Subang Jaya, Selangor, Malaysia
Tel : 03-56295000
E-mail : OLQSQ@gmail.com

3. Scope of workSCOPE OF WORKS

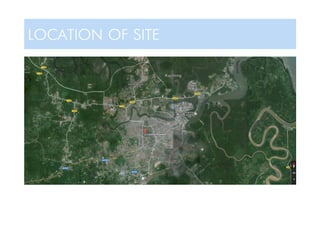

4. LOCATION OF SITE

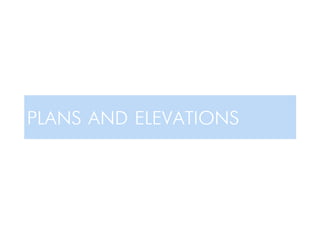

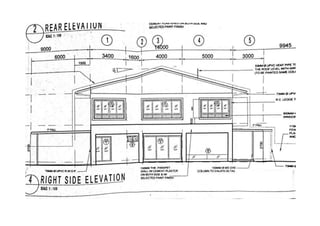

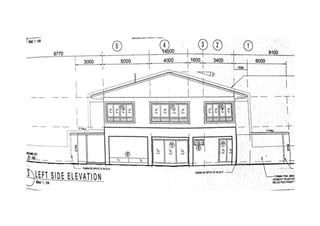

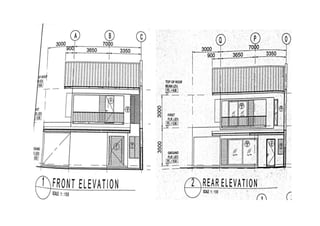

5. PLANS AND ELEVATIONS

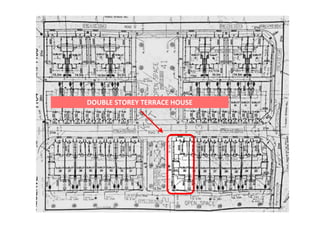

6. DOUBLE STOREY TERRACE HOUSE

10. TENDER DOCUMENTATION

11. TENDER FORM

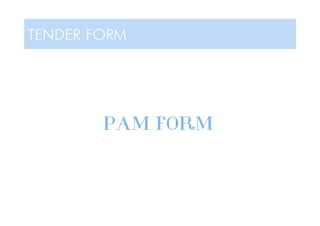

PAM FORM
-

12. Formally known as the PAM Contracts 2006

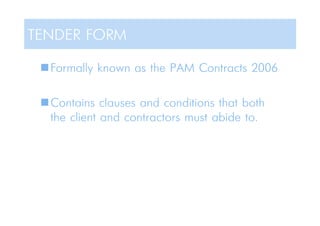

Contains clauses and conditions that both
the client and contractors must abide to.
TENDER FORM

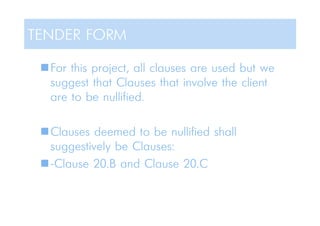

13. For this project, all clauses are used but we
suggest that Clauses that involve the client
are to be nullified.
Clauses deemed to be nullified shall
suggestively be Clauses:
-Clause 20.B and Clause 20.C
TENDER FORM

14. TENDERING METHOD
SELECTIVE
- -

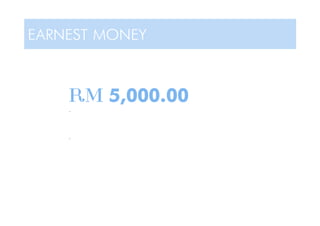

15. RM 5,000.00
-
-
EARNEST MONEY

16. PERFORMANCE BOND
5% of contract sum
-
-

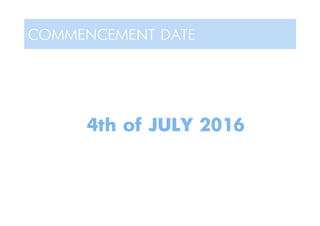

17. COMMENCEMENT DATE
4th of JULY 2016

19. COMPLETION DATE
30th of JUNE 2017

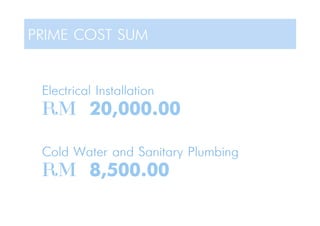

20. PRIME COST SUM
Electrical Installation
RM 20,000.00
Cold Water and Sanitary Plumbing
RM 8,500.00

21. PROVISIONAL SUM

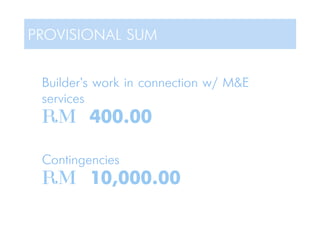

Builder's work in connection w/ M&E
services
RM 400.00
Contingencies
RM 10,000.00

22. Liquidated and Ascertained Damages

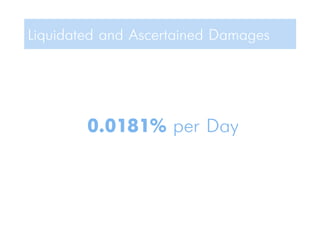

0.0181% per Day

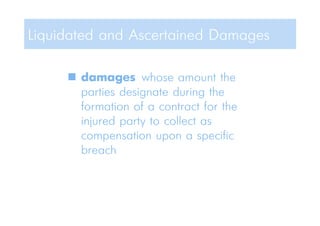

23.  damages whose amount the
parties designate during the
formation of a contract for the
injured party to collect as
compensation upon a specific
breach
Liquidated and Ascertained Damages

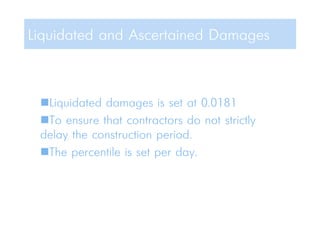

24. Liquidated damages is set at 0.0181
To ensure that contractors do not strictly
delay the construction period.
The percentile is set per day.
Liquidated and Ascertained Damages

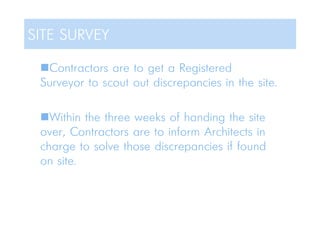

25. Contractors are to get a Registered
Surveyor to scout out discrepancies in the site.
Within the three weeks of handing the site
over, Contractors are to inform Architects in
charge to solve those discrepancies if found
on site.
SITE SURVEY

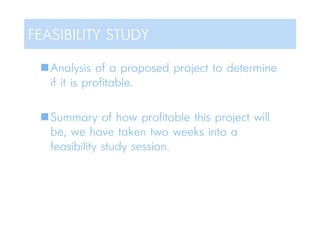

26. Analysis of a proposed project to determine
if it is profitable.
Summary of how profitable this project will
be, we have taken two weeks into a
feasibility study session.
FEASIBILITY STUDY

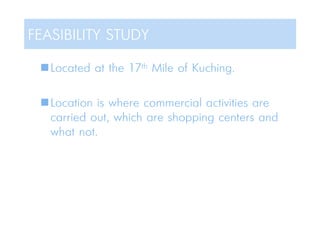

27. Located at the 17th Mile of Kuching.
Location is where commercial activities are
carried out, which are shopping centers and
what not.
FEASIBILITY STUDY

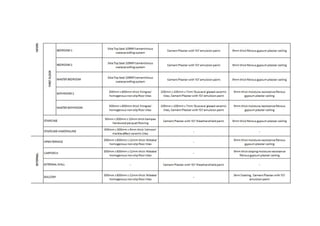

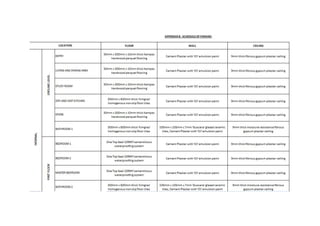

28. FINISHES

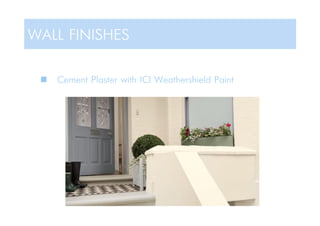

31.  Cement Plaster with ICI Weathershield Paint
WALL FINISHES

32.  Cement Plaster with 'ICI' Weathershield paint ( all
rooms)
WALL FINISHES

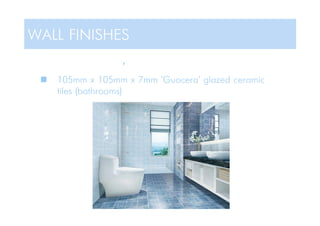

33. ’
 105mm x 105mm x 7mm 'Guocera' glazed ceramic
tiles (bathrooms)
WALL FINISHES

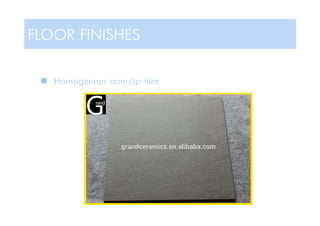

34.  Homogenous non-slip tiles
FLOOR FINISHES

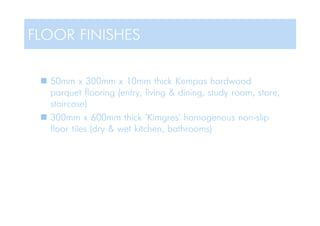

35.  50mm x 300mm x 10mm thick Kempas hardwood
parquet flooring (entry, living & dining, study room, store,
staircase)
 300mm x 600mm thick 'Kimgres' homogenous non-slip
floor tiles (dry & wet kitchen, bathrooms)
FLOOR FINISHES

36.  Skim Coating, Cement Plaster with 'ICI' emulsion paint
(balcony)
 9mm thick sloping moisture resistance fibrous gypsum
plaster ceiling
CEILING FINISHES

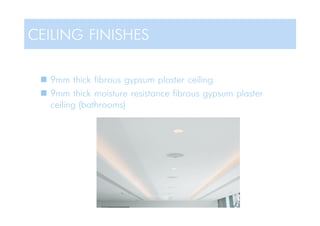

37.  9mm thick fibrous gypsum plaster ceiling
 9mm thick moisture resistance fibrous gypsum plaster
ceiling (bathrooms)
CEILING FINISHES

38.  50mm x 300mm x 10mm thick Kempas hardwood
parquet flooring
 38mm x 50mm hardwood timber (handrailing)
STAIRCASE FINISHES

39.  Washdown water closet
 Wall hang basin
 Single bow kitchen bow
 Bib tap
SANITARY FITTINGS

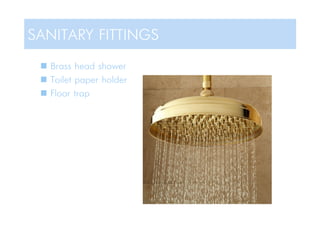

40.  Brass head shower
 Toilet paper holder
 Floor trap
SANITARY FITTINGS

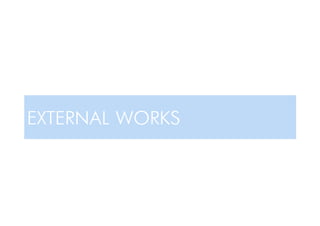

41. EXTERNAL WORKS

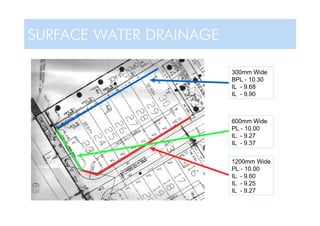

42. 1200mm Wide
PL - 10.00
IL - 9.60
IL - 9.25
IL - 9.27
600mm Wide
PL - 10.00
IL - 9.27
IL - 9.37
300mm Wide
BPL - 10.30
IL - 9.68
IL - 9.90
SURFACE WATER DRAINAGE

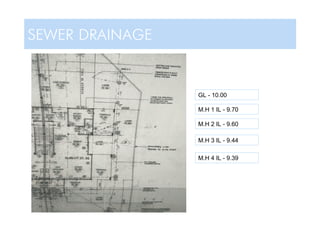

43. SEWER DRAINAGE
M.H 1 IL - 9.70
M.H 2 IL - 9.60
M.H 3 IL - 9.44
M.H 4 IL - 9.39
GL - 10.00

44. ROAD AND PAVEMENT

45. WATER RETICULATION
