Ray Optics
                 Light is an electromagnetic wave phenomenon described by
                 the same principles that govern all forms of electromagnetic
                 radiation. Electromagnetic radiation propagates in the form of
                 two mutually coupled vector waves, an electric – field wave and
a magnetic – field wave. Nevertheless, it is possible to describe many optical
phenomena using a scalar wave theory in which light is described by a single
scalar wave function. This approximate way of treating light is called wave op-
tics, or simply wave optics.
In free space, light waves travel with a constant speed                           .
The range of optical wavelengths contains three bands – ultraviolet (10 to 390
nm), visible (390 to 760 nm), and infrared (760 nm to 1 mm). The corres-
ponding range of optical frequencies stretches from
          .
  When light waves propagate through and around objects whose dimensions
are much greater than the wavelength, the wave nature of light is not readily
discerned, so that its behavior can be adequately described by rays obeying a
set of geometrical rules. This model of light is called ray optics. Strictly speak-
ing, ray optics is the limit of optics when the wavelength is infinitesimally
short. However, the wavelength need not actually be equal to zero for the ray
– optics theory to be useful. As long as the light waves propagate through and
round objects whose dimensions are much greater than the wavelength, the
ray theory suffices for describing most phenomena. Because the wavelength
of visible light is much shorter than the dimensions of the visible objects en-
countered in our daily lives, manifestation of the wave nature of light are not
apparent without careful observation.
 Ray optics is the simplest theory of light. Light is described by rays that travel
in different optical media in accordance with a set of geometrical rules. Ray
optics is therefore called Geometrical optics. Ray optics is an approximate
theory. Although it adequately describes most of our daily experiences with
light, there are many phenomena that ray optics does not adequately describe.
Ray optics is concerned with the location and direction of light rays. It is there-
fore useful in studying image formation – the collection of rays from each

                                        1
point of an object and their redirection by an optical component onto a cor-
responding point of an image. Ray optics permits us to determine conditions
under which light is guided within a given medium, such as a glass fiber. In
isotropic media, optical rays point in the direction of the flow of optical ener-
gy. Ray bundles can be constructed in which the density of rays is proportion-
al to the density of light energy. When light is generated isotropically from a
point source, for example, the energy associated with the rays in a given cone
is proportional to the solid angle of the cone. Rays must be traced through an
optical system to determine the optical energy crossing a given area.
Optical components are often centered about an optical axis, around which
the rays travel at different inclinations. Rays that make small angles (such that
          ) with the optical axis of a mirror or a lens are called paraxial rays.
In the paraxial approximation, where only paraxial rays are considered, a
spherical mirror, for example, has a focusing property like that of the parabo-
loidal mirror and an imaging property like that of elliptical mirror. The body
of rules that results from this approximation forms paraxial optics, also
called first – order optics or Gaussian optics.
 The change in the position and inclination of a paraxial ray as it travels
through an optical system can be efficiently described by the use of a
                          . This algebraic tool is called matrix optics.
SPHERICAL BOUNDARIES AND LENSES - IMAGE FORMATION
The refraction of rays from a spherical boundary of radius R between two me-
dia of refractive indices n1 and n2 can be examined. By convention, R is posi-
tive for a convex boundary and negative for a concave boundary. By using
Snell’s law, and considering only paraxial rays making small angles with the
axis of the system so that            , the following properties may be shown to
hold:
     A ray making an angle with the z axis and meeting the boundary at a
        point of height y (see figure 1-a) refracts and changes direction so that
        the refracted ray makes an angle with the z axis,


     All paraxial rays originating from a point              in the z=z1 plane
      meet at a point               in the z=z2 plane, where:

                                        2
And


      The z=z1 and z=z2 planes are said to be conjugate planes. Every point in
      the first plane has a corresponding point (image) in the second with
      magnification                         Negative magnification means that the
      image is inverted. By convention, P1 is measured in a coordinate sys-
      tem pointing to the left and P2 in a coordinate system pointing to the
      right (e.g., if P2 lies to the left of the boundary, then z2 would be nega-
      tive).




                 Figure 1: Refraction at a convex spherical boundary (R>0)

      It is worth to indicate here that the image formation properties de-
      scribed above are approximate. They hold only for paraxial rays. Rays


                                            3
of large angles do not obey these paraxial laws; the deviation results in
       image distortion called aberration.
 A spherical lens is bounded by two spherical surfaces. It is, therefore, defined
completely by the radii of curvatures R1 and R2 of
its two surfaces, its thickness , and the refractive
index n of its material (figure 2). A glass lens in air
can be regarded as a combination of two spherical
boundaries, air – to – glass and glass– to – air.
A ray crossing the first surface at height y and an-
gle    with the z axis (figure 3-a) is traced by ap-
plying equation 1 at the first surface to obtain the
inclination angle of the refracted ray, which is ex-
tended until it meets the second surface. Then eq- Figure 2: A biconvex spherical lens
uation 1 is used once more with
   replacing     to obtain the in-
clination angle      of the ray af-
ter refraction from the second
surface. The results are in gen-
eral complicated. When the lens
is thin, however, it can be as-
sumed that the incident ray
emerges from the lens at about                                 a

the same height y at which it en-
ters.
 Under this assumption, the fol-
lowing relations follow:
     The angles of the re-
       fracted and incident rays
       are related by:


Where f, the focal length, is giv-                             b

en by:                                   Figure 3: (a) Ray bending by a thin lens. (b) Image forma-
                                                   tion by a thin lens


                                         4
 All rays originating from a point                                meet at a point
                 (figure 3-b), where:


       And


This means that each point in the z=z1 plane is imaged onto a corresponding
point in the z=z2 plane with a magnification factor          The focal length f of
a lens therefore, completely determines its effect on paraxial rays.
As indicated earlier, P1 and P2 are measured in coordinate system pointing to
the left and right, respectively, and the radii of curvatures R1 and R2 are posi-
tive for convex surfaces and negative for concave surfaces. For the biconvex
lens shown in figure 2, R1 is positive and R2 is negative, so that the two terms
of equation 5 add and provide a positive f.

                               Matrix Optics
Matrix optics is a technique for tracing paraxial rays. The rays are assumed to
travel only within a single angle, so that the formalism is applicable to systems
with planar geometry and to meridional rays in circularly symmetric systems.
A ray is described by its
position and its angle with
respect to the optical axis.
These variables are altered                                                            axis
as the ray travels through
the system. In the paraxial
approximation, the posi-
tion and angle at the input Figure 4: A ray is characterized by its coordinate and its angle
and output planes of an
optical system are related by two linear algebraic equations. As a result, the
optical system is described by a        matrix called the ray – transfer matrix.
The convenience of using matrix methods lies in the fact that the ray – trans-
fer matrix of a cascade of optical components (or systems) is the product of
the ray transfer matrices of the individual components (or systems). Matrix

                                             5
optics therefore provides a formal mechanism for describing complex systems
in the paraxial approximation.
The Ray – Transfer Matrix
Consider a circularly symmetric optical system formed by refracting and re-
flecting surfaces all centered about the same axis (optical axis). The z axis lies
along the optical axis and points in the general direction in which the rays tra-
vel. Consider rays in a plane containing the optical axis; say the y-z plane. We
proceed to trace a ray as it travels through the system, i.e., as it crosses the
transverse planes at different axial distances. A ray crossing the transverse
plane at z is completely characterized by the coordinate y of its crossing point
and the angle (figure 4).
An optical system is a set of optical components placed between two trans-
verse planes at z1 and z2, referred to as the input and output planes, respec-

       y
                              Input
                              plane

                                           1
                                                                             Output
                                                                             plane
                                                                                          2


                              y1                                              y2

                                                                                                     Optical
                              Z1                                             Z2               z       axis


                                                  Optical
                                                  system

   Figure 5: A ray enters an optical system at position       and angle   and leaves at position   and angle   .

tively. The system is characterized completely by its effect on an incoming
ray of arbitrary position and direction         . It steers the ray so that it has
new position and direction          at the output plane (figure 5).
In the paraxial approximation, when all angles are sufficiently small so that
          , the relation between        and            is linear and can generally
be written in the form:




                                                          6
Where A,B,C and D are real numbers. Equations 1 and 2 may be conveniently
written in matrix form as:


The matrix M whose elements are A, B, C, D, characterizes the optical system
completely since it permits            to be determined for any            . It is
known as the ray – transfer matrix.
It is handy to note that all ABCD matrices, for individual elements or a compli-
cated optical system, have the property:


This relation can be utilized as a check on one’s calculation after multiplying
together a long chain of      matrices.
                 Matrices of Simple Optical Components
Free – Space Propagation Since rays travel in free space along straight lines, a
ray traversing a distance d is altered in accordance with                   and
        . The ray – transfer matrix is therefore:




                      d

Refraction at a Planar Boundary
At a planar boundary between two media of refractive indices n1 and n2, the
ray angle changes in accordance with Snell’s law                   . In the
paraxial approximation,             . The posi-
tion of the ray is not altered,      . The ray –
transfer matrix is:

                                                               n1      n2



                                        7
Refraction at a Spherical Boundary
The relation between and           for paraxial rays at a spherical boundary be-
tween two media is provided by equation 1. The ray height is not altered,
        . the ray – transfer matrix is:


                                      R
    Convex, R > 0;     n1        n2
    concave, R < 0


Transmission through a thin lens
The relation between and           for paraxial rays transmitted through a thin
         lens of focal length f is given in equation 5. Since the height remains
unchanged,




                            f
           Convex, f> 0 ; concave, f< 0

Reflection from a planar mirror
Upon reflection from a planar mirror, the ray position is not altered,
           . Adopting the convention that the z axis points in the general direc-
tion of travel of the rays, i.e., toward the mirror for the incident rays and away
from it for the reflected rays, thus , its concluded that               . The ray –
transfer matrix is, therefore, the identity matrix:


      z
                                          z


                                              8
Reflection from a spherical mirror
Using equation 1, and the convention that the z axis follows the general direc-
tion of the rays as they reflect from mirrors, one can similarly obtain:




            -R


         Concave, R< 0; convex, R>0
Note the similarity between the ray – transfer matrices of a spherical mirror
and a thin lens. A mirror with radius of curvature R bends rays in a manner
that is identical to that of a thin lens with focal length     .
            MATRICES OF CASCADE OPTICAL COMPONENTS
The ray transfer matrix of an optical system composed of a cascade of optical
components whose ray - transfer matrices are M1, M2,…., MN is equivalent to a
single optical component of ray – transfer matrix M. Thus:

   M1             M2                     MN            M= MN…….M2 M1
                            ….
Note the order of multiplication: The matrix of the system that is crossed by
the rays first is placed to the right, so that it operates on the column matrix of
the incident ray first.
Examples:
   1. A Set of Parallel Transparent Plates: consider a set of N parallel planar
      transparent plates of refractive indices                 and thicknesses
                       placed in air (n=1) normal to the z axis. Show that the
      ray – transfer matrix is:




                                        9
Note that the order of placing the plates does not affect the overall ray – trans-
fer matrix. What is the ray – transfer matrix of an inhomogeneous transparent
plate of thickness do and refractive index n (z)?
Since the ray – transfer matrix of the free space is given by:


Here, the light propagates in a transparent plate of thickness d and refractive
index n. Thus, the distance of propagation of the light in each plate is equal to
the ratio of the optical path to the refractive index of the medium, i.e.,


The ray – transfer matrix of the given optical system is:




In the inhomogeneous medium, the refractive index is function of position
(i.e., it does not have the same value in the various parts of the medium).
Therefore, the ray – transfer matrix of an inhomogeneous transparent plate of
thickness do and refractive index n (z) can be given as follows:




   2. A Gap Followed by a Thin Lens: show that the ray – transfer matrix of a
      distance d of free space followed by a lens of focal length f is :




                                        10
3. Imaging With a Thin Lens: Derive an expression for the ray – transfer
      matrix of a system composed of free space /thin lens/free space, as illu-
      strated in the figure. Show that if the imaging condition
                             is satisfied, all rays originating from a single point
      in the input plane reach the output plane at a single point y2, regardless
      of their angles. Also show that if d2=f, all parallel incident rays are fo-
      cused by the lens onto a single point in the output plane.




To determine the ray – transfer matrix of the thin lens, we refer to the follow-
ing figure.
For thin biconvex lens:



For the above condition to be met (i.e.,
       ), the constant A must be equal
to 1 and B must be equal to 0.
For ray:




                                        11
For    ray:




Therefore, the ray – transfer matrix of the thin biconvex lens will be:



If d2=f=image distance, then the ray transfer matrix of the optical system will
be:
    4. Imaging With a Thick Lens: consider a glass lens of refractive index n,
       and two spherical surfaces of equal radii of curvatures R (figure 5). De-
       termine the ray – transfer matrix of the system between the two planes
       at distance d1 and d2 from the vertices of the lens. The lens is placed in
       air (refractive index =1). Show that the system is an imaging system (i.e.,
       the input and output planes are conjugate)if:


       Where:



And:




                                       12
The points F1 and F2 are known as the front and back focal points, respective-
ly. The points P1 and P2 are known as the first and second principal points,
respectively. The radii of curvatures of the lens’s two spherical surfaces R1
and R2 are taken positive for spherical surface facing to the right (R1) and neg-




Figure 5: Imaging with a thick lens. P1 and P2 are the principal points and F1 and F2 are the focal points.

ative for spherical surface facing to the left (R2). Show the importance of these
points by tracing of rays that are incident parallel to the optical axis.
The ray – transfer matrix of the system between the two planes at distance d1
and d2 from the vertices of the lens is given by:



The ray – transfer matrix of the thick lens is equal to the product of the ray –
transfer matrices of two refracting surfaces of the lens and the distance doptical
traversed by light. Thus:




    1. Ray – Transfer Matrix of a Lens System: Determine the ray – transfer
       matrix for an optical system made of a thin convex lens of focal length f

                                                     13
and a thin concave lens of focal length –f separated by a distance f. Dis-
       cuss the imaging properties of this composite lens.
       The ray – transfer matrix of the current optical system will be:




To demonstrate the imaging properties of such optical system we will consid-
er the following input matrix:
                                                  +f                 -f

When the above Mststem matrix works on
Minput the output will be:
Output=matrix of the system * the input
                                                                             d=f




This means that the image is real, inverted (due to the minus sign), and minia-
ture.
References
1. D. C. O’Shea, Elements of Modern Optical Design, Wiley, New York, 1985.
2. R. Kingslake, Optical System Design, Academic Press, New York, 1983.
3. Matrix Method in Optics, , Wiley, New York, 1978.




                                                 14

More Related Content

What's hot

Diffraction
DiffractionDiffraction
Diffraction
Zeeshan Khalid

Ph 101-1
Ph 101-1Ph 101-1
Ph 101-1
Chandan Singh

semiconductor diode laser.pptx
semiconductor diode laser.pptxsemiconductor diode laser.pptx
semiconductor diode laser.pptx
NagasaiT

Cardinal points,thin lenses and thick lenses
Cardinal points,thin lenses and thick lensesCardinal points,thin lenses and thick lenses
Cardinal points,thin lenses and thick lenses
Raju Kaiti

Powerpoint slides
Powerpoint slidesPowerpoint slides
Powerpoint slides
ranjithkumarbs

Nonlinear Optical Materials
Nonlinear Optical MaterialsNonlinear Optical Materials
Nonlinear Optical Materials
krishslide

Types of polarisation
Types of polarisationTypes of polarisation
Types of polarisation
vaani pathak

Wave optics
Wave opticsWave optics
Wave optics
Trilok Akhani

coherence of light
coherence of lightcoherence of light
coherence of light
Ramir Angeles

Unit 6
Unit 6Unit 6
Unit 6
mrecedu

Polarization and its Application
Polarization and its ApplicationPolarization and its Application
Polarization and its Application
Tariq Al Fayad

Apps of thin films
Apps of thin filmsApps of thin films
Apps of thin films
Aneetta Davis

quarter wave plate
quarter wave plate quarter wave plate
quarter wave plate
salmansmd

Polarisation of light by Dr. Vishal Jain
Polarisation of light by Dr. Vishal JainPolarisation of light by Dr. Vishal Jain
Polarisation of light by Dr. Vishal Jain
Dr. Vishal Jain

CIRCULAR AND ELLIPTICAL POLARIZER
CIRCULAR AND ELLIPTICAL POLARIZERCIRCULAR AND ELLIPTICAL POLARIZER
CIRCULAR AND ELLIPTICAL POLARIZER
Rai Saheb Bhanwar Singh College Nasrullaganj

coherence optical fibre unit iii
coherence optical fibre unit iiicoherence optical fibre unit iii
coherence optical fibre unit iii
Dr. Vishal Jain

Magneto optic devices
Magneto optic devicesMagneto optic devices
Magneto optic devices
vijayakumar sivaji

Polarization of light class note
Polarization of light class notePolarization of light class note
Polarization of light class note
Olbira Dufera

Magneto optic effect
Magneto optic effectMagneto optic effect
Magneto optic effect
Amer Ghazi Attari

POLARIZATION
POLARIZATIONPOLARIZATION
POLARIZATION
KANNAN


What's hot (20)

Diffraction
DiffractionDiffraction
Diffraction

Ph 101-1
Ph 101-1Ph 101-1
Ph 101-1

semiconductor diode laser.pptx
semiconductor diode laser.pptxsemiconductor diode laser.pptx
semiconductor diode laser.pptx

Cardinal points,thin lenses and thick lenses
Cardinal points,thin lenses and thick lensesCardinal points,thin lenses and thick lenses
Cardinal points,thin lenses and thick lenses

Powerpoint slides
Powerpoint slidesPowerpoint slides
Powerpoint slides

Nonlinear Optical Materials
Nonlinear Optical MaterialsNonlinear Optical Materials
Nonlinear Optical Materials

Types of polarisation
Types of polarisationTypes of polarisation
Types of polarisation

Wave optics
Wave opticsWave optics
Wave optics

coherence of light
coherence of lightcoherence of light
coherence of light

Unit 6
Unit 6Unit 6
Unit 6

Polarization and its Application
Polarization and its ApplicationPolarization and its Application
Polarization and its Application

Apps of thin films
Apps of thin filmsApps of thin films
Apps of thin films

quarter wave plate
quarter wave plate quarter wave plate
quarter wave plate

Polarisation of light by Dr. Vishal Jain
Polarisation of light by Dr. Vishal JainPolarisation of light by Dr. Vishal Jain
Polarisation of light by Dr. Vishal Jain

CIRCULAR AND ELLIPTICAL POLARIZER
CIRCULAR AND ELLIPTICAL POLARIZERCIRCULAR AND ELLIPTICAL POLARIZER
CIRCULAR AND ELLIPTICAL POLARIZER

coherence optical fibre unit iii
coherence optical fibre unit iiicoherence optical fibre unit iii
coherence optical fibre unit iii

Magneto optic devices
Magneto optic devicesMagneto optic devices
Magneto optic devices

Polarization of light class note
Polarization of light class notePolarization of light class note
Polarization of light class note

Magneto optic effect
Magneto optic effectMagneto optic effect
Magneto optic effect

POLARIZATION
POLARIZATIONPOLARIZATION
POLARIZATION


Viewers also liked

Thin lenses
Thin lensesThin lenses
Thin lenses
TeeS4

Final exam optics lab 2012 group a
Final exam optics lab 2012 group aFinal exam optics lab 2012 group a
Final exam optics lab 2012 group a
Qahtan Al-zaidi

Lens
LensLens
Tutorial solutions 2010
Tutorial solutions 2010Tutorial solutions 2010
Tutorial solutions 2010
Sufi Sulaiman

Photonics
Photonics Photonics
Photonics
Qahtan Al-zaidi

Oral examination of Ph.D. student on Tuesday Jan.13, 2009
Oral examination of Ph.D. student  on Tuesday  Jan.13, 2009Oral examination of Ph.D. student  on Tuesday  Jan.13, 2009
Oral examination of Ph.D. student on Tuesday Jan.13, 2009
Qahtan Al-zaidi

Laser tutorial 3 december 11, 2012
Laser tutorial 3  december 11, 2012Laser tutorial 3  december 11, 2012
Laser tutorial 3 december 11, 2012
Qahtan Al-zaidi

Learning object 8
Learning object 8 Learning object 8
Learning object 8
Xena Jays

[0821 박민근] 렌즈 플레어(lens flare)
[0821 박민근] 렌즈 플레어(lens flare)[0821 박민근] 렌즈 플레어(lens flare)
[0821 박민근] 렌즈 플레어(lens flare)
MinGeun Park

Topic 1 shm
Topic 1 shmTopic 1 shm
Topic 1 shm
Gabriel O'Brien

Matrices in-pediatric-restorative-dentistry
Matrices in-pediatric-restorative-dentistryMatrices in-pediatric-restorative-dentistry
Matrices in-pediatric-restorative-dentistry
Yahya Almoussawy

6m optics
6m optics6m optics
geometrical Optics
geometrical Opticsgeometrical Optics
geometrical Optics
Mae William- Ganaca

[Electricity and Magnetism] Electrodynamics
[Electricity and Magnetism] Electrodynamics[Electricity and Magnetism] Electrodynamics
[Electricity and Magnetism] Electrodynamics
Manmohan Dash

Chapter 2 geometrical_optics_a
Chapter 2 geometrical_optics_aChapter 2 geometrical_optics_a
Chapter 2 geometrical_optics_a
Gabriel O'Brien

Optics tutorial 1st year physics classes 2013-2014 { Problems n Solutions}
Optics tutorial   1st year physics classes  2013-2014 { Problems n Solutions}Optics tutorial   1st year physics classes  2013-2014 { Problems n Solutions}
Optics tutorial 1st year physics classes 2013-2014 { Problems n Solutions}
QahtannRose

Introduction to light
Introduction to lightIntroduction to light
Introduction to light
hanisah_abdullah

Refractive optics
Refractive opticsRefractive optics
Refractive optics
Michael Duplessie

Chapter 2 geometrical_optics_b
Chapter 2 geometrical_optics_bChapter 2 geometrical_optics_b
Chapter 2 geometrical_optics_b
Gabriel O'Brien

Wa 3
Wa 3Wa 3

Viewers also liked (20)

Thin lenses
Thin lensesThin lenses
Thin lenses

Final exam optics lab 2012 group a
Final exam optics lab 2012 group aFinal exam optics lab 2012 group a
Final exam optics lab 2012 group a

Lens
LensLens
Lens

Tutorial solutions 2010
Tutorial solutions 2010Tutorial solutions 2010
Tutorial solutions 2010

Photonics
Photonics Photonics
Photonics

Oral examination of Ph.D. student on Tuesday Jan.13, 2009
Oral examination of Ph.D. student  on Tuesday  Jan.13, 2009Oral examination of Ph.D. student  on Tuesday  Jan.13, 2009
Oral examination of Ph.D. student on Tuesday Jan.13, 2009

Laser tutorial 3 december 11, 2012
Laser tutorial 3  december 11, 2012Laser tutorial 3  december 11, 2012
Laser tutorial 3 december 11, 2012

Learning object 8
Learning object 8 Learning object 8
Learning object 8

[0821 박민근] 렌즈 플레어(lens flare)
[0821 박민근] 렌즈 플레어(lens flare)[0821 박민근] 렌즈 플레어(lens flare)
[0821 박민근] 렌즈 플레어(lens flare)

Topic 1 shm
Topic 1 shmTopic 1 shm
Topic 1 shm

Matrices in-pediatric-restorative-dentistry
Matrices in-pediatric-restorative-dentistryMatrices in-pediatric-restorative-dentistry
Matrices in-pediatric-restorative-dentistry

6m optics
6m optics6m optics
6m optics

geometrical Optics
geometrical Opticsgeometrical Optics
geometrical Optics

[Electricity and Magnetism] Electrodynamics
[Electricity and Magnetism] Electrodynamics[Electricity and Magnetism] Electrodynamics
[Electricity and Magnetism] Electrodynamics

Chapter 2 geometrical_optics_a
Chapter 2 geometrical_optics_aChapter 2 geometrical_optics_a
Chapter 2 geometrical_optics_a

Optics tutorial 1st year physics classes 2013-2014 { Problems n Solutions}
Optics tutorial   1st year physics classes  2013-2014 { Problems n Solutions}Optics tutorial   1st year physics classes  2013-2014 { Problems n Solutions}
Optics tutorial 1st year physics classes 2013-2014 { Problems n Solutions}

Introduction to light
Introduction to lightIntroduction to light
Introduction to light

Refractive optics
Refractive opticsRefractive optics
Refractive optics

Chapter 2 geometrical_optics_b
Chapter 2 geometrical_optics_bChapter 2 geometrical_optics_b
Chapter 2 geometrical_optics_b

Wa 3
Wa 3Wa 3
Wa 3


Similar to Matrix optics

Lecture 9a 2013_
Lecture 9a 2013_Lecture 9a 2013_
Lecture 9a 2013_
Gabriel O'Brien

Two_variations_on_the_periscope_theorem.pdf
Two_variations_on_the_periscope_theorem.pdfTwo_variations_on_the_periscope_theorem.pdf
Two_variations_on_the_periscope_theorem.pdf
IbrahimHabib26

Optical aberrations
Optical aberrationsOptical aberrations
Optical aberrations
Solo Hermelin

Gravitational lensing for interstellar power transmission
Gravitational lensing for interstellar power transmissionGravitational lensing for interstellar power transmission
Gravitational lensing for interstellar power transmission
Sérgio Sacani

Optics basics concepts
Optics basics conceptsOptics basics concepts
Optics basics concepts
Anisur Rahman

Dr Md Anisur Rahman Optics basics concepts
Dr Md Anisur Rahman Optics basics conceptsDr Md Anisur Rahman Optics basics concepts
Dr Md Anisur Rahman Optics basics concepts
Anisur Rahman

Computer Vision: Shape from Specularities and Motion
Computer Vision: Shape from Specularities and MotionComputer Vision: Shape from Specularities and Motion
Computer Vision: Shape from Specularities and Motion
Damian T. Gordon

Polarization by reflection at a dielectric and verifying fresnel’s equations
Polarization by reflection at a dielectric and verifying fresnel’s equationsPolarization by reflection at a dielectric and verifying fresnel’s equations
Polarization by reflection at a dielectric and verifying fresnel’s equations
Qahtan Al-zaidi

BRAGG’S EQUATION MILLER INDICES POWDER DIFFRACTION METHOD
BRAGG’S EQUATION MILLER INDICES POWDER  DIFFRACTION METHODBRAGG’S EQUATION MILLER INDICES POWDER  DIFFRACTION METHOD
BRAGG’S EQUATION MILLER INDICES POWDER DIFFRACTION METHOD
nivedithag131

Lens lect 01
Lens lect 01Lens lect 01
Lens lect 01
omersise

Method for measuring or investigation of fiber structure
Method for measuring or investigation of fiber structureMethod for measuring or investigation of fiber structure
Method for measuring or investigation of fiber structure
Shawan Roy

experimental stress analysis-Chapter 3
experimental stress analysis-Chapter 3experimental stress analysis-Chapter 3
experimental stress analysis-Chapter 3
MAHESH HUDALI

Wave Optics
Wave OpticsWave Optics
Wave Optics
Dr. Vishal Jain

Interference of Light, Diffraction of Light
Interference of Light, Diffraction of LightInterference of Light, Diffraction of Light
Interference of Light, Diffraction of Light
Dr. Vishal Jain

Measure the refractive index of air using a Michelson interferometer.
Measure the refractive index of air using a Michelson interferometer.Measure the refractive index of air using a Michelson interferometer.
Measure the refractive index of air using a Michelson interferometer.
UCP

Light_Refraction By Praveen Sir.ppt for 10th standard
Light_Refraction  By Praveen Sir.ppt for 10th standardLight_Refraction  By Praveen Sir.ppt for 10th standard
Light_Refraction By Praveen Sir.ppt for 10th standard
GenesisofKnowledge

Optical Fibers: Structures, Waveguiding & Fabrication.pptx
Optical Fibers: Structures, Waveguiding & Fabrication.pptxOptical Fibers: Structures, Waveguiding & Fabrication.pptx
Optical Fibers: Structures, Waveguiding & Fabrication.pptx
vasuhisrinivasan

Polarization of Light
Polarization of LightPolarization of Light
Polarization of Light
Dinesh Dinesh

unit2 interference &amp; diffraction
unit2 interference &amp; diffractionunit2 interference &amp; diffraction
unit2 interference &amp; diffraction
nitw

Laws of reflection
Laws of reflectionLaws of reflection
Laws of reflection
LABISHETTY CHARAN


Similar to Matrix optics (20)

Lecture 9a 2013_
Lecture 9a 2013_Lecture 9a 2013_
Lecture 9a 2013_

Two_variations_on_the_periscope_theorem.pdf
Two_variations_on_the_periscope_theorem.pdfTwo_variations_on_the_periscope_theorem.pdf
Two_variations_on_the_periscope_theorem.pdf

Optical aberrations
Optical aberrationsOptical aberrations
Optical aberrations

Gravitational lensing for interstellar power transmission
Gravitational lensing for interstellar power transmissionGravitational lensing for interstellar power transmission
Gravitational lensing for interstellar power transmission

Optics basics concepts
Optics basics conceptsOptics basics concepts
Optics basics concepts

Dr Md Anisur Rahman Optics basics concepts
Dr Md Anisur Rahman Optics basics conceptsDr Md Anisur Rahman Optics basics concepts
Dr Md Anisur Rahman Optics basics concepts

Computer Vision: Shape from Specularities and Motion
Computer Vision: Shape from Specularities and MotionComputer Vision: Shape from Specularities and Motion
Computer Vision: Shape from Specularities and Motion

Polarization by reflection at a dielectric and verifying fresnel’s equations
Polarization by reflection at a dielectric and verifying fresnel’s equationsPolarization by reflection at a dielectric and verifying fresnel’s equations
Polarization by reflection at a dielectric and verifying fresnel’s equations

BRAGG’S EQUATION MILLER INDICES POWDER DIFFRACTION METHOD
BRAGG’S EQUATION MILLER INDICES POWDER  DIFFRACTION METHODBRAGG’S EQUATION MILLER INDICES POWDER  DIFFRACTION METHOD
BRAGG’S EQUATION MILLER INDICES POWDER DIFFRACTION METHOD

Lens lect 01
Lens lect 01Lens lect 01
Lens lect 01

Method for measuring or investigation of fiber structure
Method for measuring or investigation of fiber structureMethod for measuring or investigation of fiber structure
Method for measuring or investigation of fiber structure

experimental stress analysis-Chapter 3
experimental stress analysis-Chapter 3experimental stress analysis-Chapter 3
experimental stress analysis-Chapter 3

Wave Optics
Wave OpticsWave Optics
Wave Optics

Interference of Light, Diffraction of Light
Interference of Light, Diffraction of LightInterference of Light, Diffraction of Light
Interference of Light, Diffraction of Light

Measure the refractive index of air using a Michelson interferometer.
Measure the refractive index of air using a Michelson interferometer.Measure the refractive index of air using a Michelson interferometer.
Measure the refractive index of air using a Michelson interferometer.

Light_Refraction By Praveen Sir.ppt for 10th standard
Light_Refraction  By Praveen Sir.ppt for 10th standardLight_Refraction  By Praveen Sir.ppt for 10th standard
Light_Refraction By Praveen Sir.ppt for 10th standard

Optical Fibers: Structures, Waveguiding & Fabrication.pptx
Optical Fibers: Structures, Waveguiding & Fabrication.pptxOptical Fibers: Structures, Waveguiding & Fabrication.pptx
Optical Fibers: Structures, Waveguiding & Fabrication.pptx

Polarization of Light
Polarization of LightPolarization of Light
Polarization of Light

unit2 interference &amp; diffraction
unit2 interference &amp; diffractionunit2 interference &amp; diffraction
unit2 interference &amp; diffraction

Laws of reflection
Laws of reflectionLaws of reflection
Laws of reflection


More from Qahtan Al-zaidi

2nd semester exam april 2, 2013
2nd semester exam april 2, 20132nd semester exam april 2, 2013
2nd semester exam april 2, 2013
Qahtan Al-zaidi

2nd semester 3rd class a optics lab exam 2013
2nd semester 3rd class a optics lab exam 20132nd semester 3rd class a optics lab exam 2013
2nd semester 3rd class a optics lab exam 2013
Qahtan Al-zaidi

Abbe refractometer
Abbe refractometerAbbe refractometer
Abbe refractometer
Qahtan Al-zaidi

Newton's rings
Newton's ringsNewton's rings
Newton's rings
Qahtan Al-zaidi

Air wedge interference
Air   wedge interference Air   wedge interference
Air wedge interference
Qahtan Al-zaidi

Diffraction at a slit and heisenberg
Diffraction at a slit and heisenbergDiffraction at a slit and heisenberg
Diffraction at a slit and heisenberg
Qahtan Al-zaidi

Improvement of ZnO and SnO2 Hydrogen GAs Sensors
Improvement of ZnO and SnO2 Hydrogen GAs Sensors Improvement of ZnO and SnO2 Hydrogen GAs Sensors
Improvement of ZnO and SnO2 Hydrogen GAs Sensors
Qahtan Al-zaidi

Improvement of ZnO and SnO2 hydrogen gas sensors
Improvement of ZnO and SnO2 hydrogen gas sensorsImprovement of ZnO and SnO2 hydrogen gas sensors
Improvement of ZnO and SnO2 hydrogen gas sensors
Qahtan Al-zaidi


More from Qahtan Al-zaidi (8)

2nd semester exam april 2, 2013
2nd semester exam april 2, 20132nd semester exam april 2, 2013
2nd semester exam april 2, 2013

2nd semester 3rd class a optics lab exam 2013
2nd semester 3rd class a optics lab exam 20132nd semester 3rd class a optics lab exam 2013
2nd semester 3rd class a optics lab exam 2013

Abbe refractometer
Abbe refractometerAbbe refractometer
Abbe refractometer

Newton's rings
Newton's ringsNewton's rings
Newton's rings

Air wedge interference
Air   wedge interference Air   wedge interference
Air wedge interference

Diffraction at a slit and heisenberg
Diffraction at a slit and heisenbergDiffraction at a slit and heisenberg
Diffraction at a slit and heisenberg

Improvement of ZnO and SnO2 Hydrogen GAs Sensors
Improvement of ZnO and SnO2 Hydrogen GAs Sensors Improvement of ZnO and SnO2 Hydrogen GAs Sensors
Improvement of ZnO and SnO2 Hydrogen GAs Sensors

Improvement of ZnO and SnO2 hydrogen gas sensors
Improvement of ZnO and SnO2 hydrogen gas sensorsImprovement of ZnO and SnO2 hydrogen gas sensors
Improvement of ZnO and SnO2 hydrogen gas sensors


Recently uploaded

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW
Murugan Solaiyappan

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George

SD_Integrating 21st Century Skills in Classroom-based Assessment.pptx
SD_Integrating 21st Century Skills in Classroom-based Assessment.pptxSD_Integrating 21st Century Skills in Classroom-based Assessment.pptx
SD_Integrating 21st Century Skills in Classroom-based Assessment.pptx
elwoodprias1

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides
Celine George

CTD Punjab Police Past Papers MCQs PPSC PDF
CTD Punjab Police Past Papers MCQs PPSC PDFCTD Punjab Police Past Papers MCQs PPSC PDF
CTD Punjab Police Past Papers MCQs PPSC PDF
hammadmughal76316

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
thanhluan21

New Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 SlidesNew Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 Slides
Celine George

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V
DrRavindrakshirsagar1

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx
AntonioJarligoCompra

modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025
NurFitriah45

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17
Celine George

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17
Celine George

View Inheritance in Odoo 17 - Odoo 17 Slides
View Inheritance in Odoo 17 - Odoo 17  SlidesView Inheritance in Odoo 17 - Odoo 17  Slides
View Inheritance in Odoo 17 - Odoo 17 Slides
Celine George

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning
Celine George

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection


Recently uploaded (20)

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17

SD_Integrating 21st Century Skills in Classroom-based Assessment.pptx
SD_Integrating 21st Century Skills in Classroom-based Assessment.pptxSD_Integrating 21st Century Skills in Classroom-based Assessment.pptx
SD_Integrating 21st Century Skills in Classroom-based Assessment.pptx

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides

CTD Punjab Police Past Papers MCQs PPSC PDF
CTD Punjab Police Past Papers MCQs PPSC PDFCTD Punjab Police Past Papers MCQs PPSC PDF
CTD Punjab Police Past Papers MCQs PPSC PDF

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...

New Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 SlidesNew Features in Odoo 17 Sign - Odoo 17 Slides
New Features in Odoo 17 Sign - Odoo 17 Slides

formative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.Vformative Evaluation By Dr.Kshirsagar R.V
formative Evaluation By Dr.Kshirsagar R.V

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx

modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17

View Inheritance in Odoo 17 - Odoo 17 Slides
View Inheritance in Odoo 17 - Odoo 17  SlidesView Inheritance in Odoo 17 - Odoo 17  Slides
View Inheritance in Odoo 17 - Odoo 17 Slides

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...


Matrix optics

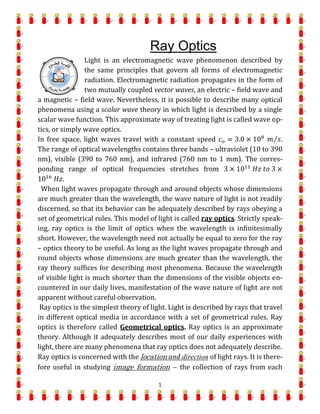

  • 1. Ray Optics Light is an electromagnetic wave phenomenon described by the same principles that govern all forms of electromagnetic radiation. Electromagnetic radiation propagates in the form of two mutually coupled vector waves, an electric – field wave and a magnetic – field wave. Nevertheless, it is possible to describe many optical phenomena using a scalar wave theory in which light is described by a single scalar wave function. This approximate way of treating light is called wave op- tics, or simply wave optics. In free space, light waves travel with a constant speed . The range of optical wavelengths contains three bands – ultraviolet (10 to 390 nm), visible (390 to 760 nm), and infrared (760 nm to 1 mm). The corres- ponding range of optical frequencies stretches from . When light waves propagate through and around objects whose dimensions are much greater than the wavelength, the wave nature of light is not readily discerned, so that its behavior can be adequately described by rays obeying a set of geometrical rules. This model of light is called ray optics. Strictly speak- ing, ray optics is the limit of optics when the wavelength is infinitesimally short. However, the wavelength need not actually be equal to zero for the ray – optics theory to be useful. As long as the light waves propagate through and round objects whose dimensions are much greater than the wavelength, the ray theory suffices for describing most phenomena. Because the wavelength of visible light is much shorter than the dimensions of the visible objects en- countered in our daily lives, manifestation of the wave nature of light are not apparent without careful observation. Ray optics is the simplest theory of light. Light is described by rays that travel in different optical media in accordance with a set of geometrical rules. Ray optics is therefore called Geometrical optics. Ray optics is an approximate theory. Although it adequately describes most of our daily experiences with light, there are many phenomena that ray optics does not adequately describe. Ray optics is concerned with the location and direction of light rays. It is there- fore useful in studying image formation – the collection of rays from each 1
  • 2. point of an object and their redirection by an optical component onto a cor- responding point of an image. Ray optics permits us to determine conditions under which light is guided within a given medium, such as a glass fiber. In isotropic media, optical rays point in the direction of the flow of optical ener- gy. Ray bundles can be constructed in which the density of rays is proportion- al to the density of light energy. When light is generated isotropically from a point source, for example, the energy associated with the rays in a given cone is proportional to the solid angle of the cone. Rays must be traced through an optical system to determine the optical energy crossing a given area. Optical components are often centered about an optical axis, around which the rays travel at different inclinations. Rays that make small angles (such that ) with the optical axis of a mirror or a lens are called paraxial rays. In the paraxial approximation, where only paraxial rays are considered, a spherical mirror, for example, has a focusing property like that of the parabo- loidal mirror and an imaging property like that of elliptical mirror. The body of rules that results from this approximation forms paraxial optics, also called first – order optics or Gaussian optics. The change in the position and inclination of a paraxial ray as it travels through an optical system can be efficiently described by the use of a . This algebraic tool is called matrix optics. SPHERICAL BOUNDARIES AND LENSES - IMAGE FORMATION The refraction of rays from a spherical boundary of radius R between two me- dia of refractive indices n1 and n2 can be examined. By convention, R is posi- tive for a convex boundary and negative for a concave boundary. By using Snell’s law, and considering only paraxial rays making small angles with the axis of the system so that , the following properties may be shown to hold:  A ray making an angle with the z axis and meeting the boundary at a point of height y (see figure 1-a) refracts and changes direction so that the refracted ray makes an angle with the z axis,  All paraxial rays originating from a point in the z=z1 plane meet at a point in the z=z2 plane, where: 2
  • 3. And The z=z1 and z=z2 planes are said to be conjugate planes. Every point in the first plane has a corresponding point (image) in the second with magnification Negative magnification means that the image is inverted. By convention, P1 is measured in a coordinate sys- tem pointing to the left and P2 in a coordinate system pointing to the right (e.g., if P2 lies to the left of the boundary, then z2 would be nega- tive). Figure 1: Refraction at a convex spherical boundary (R>0) It is worth to indicate here that the image formation properties de- scribed above are approximate. They hold only for paraxial rays. Rays 3
  • 4. of large angles do not obey these paraxial laws; the deviation results in image distortion called aberration. A spherical lens is bounded by two spherical surfaces. It is, therefore, defined completely by the radii of curvatures R1 and R2 of its two surfaces, its thickness , and the refractive index n of its material (figure 2). A glass lens in air can be regarded as a combination of two spherical boundaries, air – to – glass and glass– to – air. A ray crossing the first surface at height y and an- gle with the z axis (figure 3-a) is traced by ap- plying equation 1 at the first surface to obtain the inclination angle of the refracted ray, which is ex- tended until it meets the second surface. Then eq- Figure 2: A biconvex spherical lens uation 1 is used once more with replacing to obtain the in- clination angle of the ray af- ter refraction from the second surface. The results are in gen- eral complicated. When the lens is thin, however, it can be as- sumed that the incident ray emerges from the lens at about a the same height y at which it en- ters. Under this assumption, the fol- lowing relations follow:  The angles of the re- fracted and incident rays are related by: Where f, the focal length, is giv- b en by: Figure 3: (a) Ray bending by a thin lens. (b) Image forma- tion by a thin lens 4
  • 5.  All rays originating from a point meet at a point (figure 3-b), where: And This means that each point in the z=z1 plane is imaged onto a corresponding point in the z=z2 plane with a magnification factor The focal length f of a lens therefore, completely determines its effect on paraxial rays. As indicated earlier, P1 and P2 are measured in coordinate system pointing to the left and right, respectively, and the radii of curvatures R1 and R2 are posi- tive for convex surfaces and negative for concave surfaces. For the biconvex lens shown in figure 2, R1 is positive and R2 is negative, so that the two terms of equation 5 add and provide a positive f. Matrix Optics Matrix optics is a technique for tracing paraxial rays. The rays are assumed to travel only within a single angle, so that the formalism is applicable to systems with planar geometry and to meridional rays in circularly symmetric systems. A ray is described by its position and its angle with respect to the optical axis. These variables are altered axis as the ray travels through the system. In the paraxial approximation, the posi- tion and angle at the input Figure 4: A ray is characterized by its coordinate and its angle and output planes of an optical system are related by two linear algebraic equations. As a result, the optical system is described by a matrix called the ray – transfer matrix. The convenience of using matrix methods lies in the fact that the ray – trans- fer matrix of a cascade of optical components (or systems) is the product of the ray transfer matrices of the individual components (or systems). Matrix 5
  • 6. optics therefore provides a formal mechanism for describing complex systems in the paraxial approximation. The Ray – Transfer Matrix Consider a circularly symmetric optical system formed by refracting and re- flecting surfaces all centered about the same axis (optical axis). The z axis lies along the optical axis and points in the general direction in which the rays tra- vel. Consider rays in a plane containing the optical axis; say the y-z plane. We proceed to trace a ray as it travels through the system, i.e., as it crosses the transverse planes at different axial distances. A ray crossing the transverse plane at z is completely characterized by the coordinate y of its crossing point and the angle (figure 4). An optical system is a set of optical components placed between two trans- verse planes at z1 and z2, referred to as the input and output planes, respec- y Input plane 1 Output plane 2 y1 y2 Optical Z1 Z2 z axis Optical system Figure 5: A ray enters an optical system at position and angle and leaves at position and angle . tively. The system is characterized completely by its effect on an incoming ray of arbitrary position and direction . It steers the ray so that it has new position and direction at the output plane (figure 5). In the paraxial approximation, when all angles are sufficiently small so that , the relation between and is linear and can generally be written in the form: 6
  • 7. Where A,B,C and D are real numbers. Equations 1 and 2 may be conveniently written in matrix form as: The matrix M whose elements are A, B, C, D, characterizes the optical system completely since it permits to be determined for any . It is known as the ray – transfer matrix. It is handy to note that all ABCD matrices, for individual elements or a compli- cated optical system, have the property: This relation can be utilized as a check on one’s calculation after multiplying together a long chain of matrices. Matrices of Simple Optical Components Free – Space Propagation Since rays travel in free space along straight lines, a ray traversing a distance d is altered in accordance with and . The ray – transfer matrix is therefore: d Refraction at a Planar Boundary At a planar boundary between two media of refractive indices n1 and n2, the ray angle changes in accordance with Snell’s law . In the paraxial approximation, . The posi- tion of the ray is not altered, . The ray – transfer matrix is: n1 n2 7
  • 8. Refraction at a Spherical Boundary The relation between and for paraxial rays at a spherical boundary be- tween two media is provided by equation 1. The ray height is not altered, . the ray – transfer matrix is: R Convex, R > 0; n1 n2 concave, R < 0 Transmission through a thin lens The relation between and for paraxial rays transmitted through a thin lens of focal length f is given in equation 5. Since the height remains unchanged, f Convex, f> 0 ; concave, f< 0 Reflection from a planar mirror Upon reflection from a planar mirror, the ray position is not altered, . Adopting the convention that the z axis points in the general direc- tion of travel of the rays, i.e., toward the mirror for the incident rays and away from it for the reflected rays, thus , its concluded that . The ray – transfer matrix is, therefore, the identity matrix: z z 8
  • 9. Reflection from a spherical mirror Using equation 1, and the convention that the z axis follows the general direc- tion of the rays as they reflect from mirrors, one can similarly obtain: -R Concave, R< 0; convex, R>0 Note the similarity between the ray – transfer matrices of a spherical mirror and a thin lens. A mirror with radius of curvature R bends rays in a manner that is identical to that of a thin lens with focal length . MATRICES OF CASCADE OPTICAL COMPONENTS The ray transfer matrix of an optical system composed of a cascade of optical components whose ray - transfer matrices are M1, M2,…., MN is equivalent to a single optical component of ray – transfer matrix M. Thus: M1 M2 MN M= MN…….M2 M1 …. Note the order of multiplication: The matrix of the system that is crossed by the rays first is placed to the right, so that it operates on the column matrix of the incident ray first. Examples: 1. A Set of Parallel Transparent Plates: consider a set of N parallel planar transparent plates of refractive indices and thicknesses placed in air (n=1) normal to the z axis. Show that the ray – transfer matrix is: 9
  • 10. Note that the order of placing the plates does not affect the overall ray – trans- fer matrix. What is the ray – transfer matrix of an inhomogeneous transparent plate of thickness do and refractive index n (z)? Since the ray – transfer matrix of the free space is given by: Here, the light propagates in a transparent plate of thickness d and refractive index n. Thus, the distance of propagation of the light in each plate is equal to the ratio of the optical path to the refractive index of the medium, i.e., The ray – transfer matrix of the given optical system is: In the inhomogeneous medium, the refractive index is function of position (i.e., it does not have the same value in the various parts of the medium). Therefore, the ray – transfer matrix of an inhomogeneous transparent plate of thickness do and refractive index n (z) can be given as follows: 2. A Gap Followed by a Thin Lens: show that the ray – transfer matrix of a distance d of free space followed by a lens of focal length f is : 10
  • 11. 3. Imaging With a Thin Lens: Derive an expression for the ray – transfer matrix of a system composed of free space /thin lens/free space, as illu- strated in the figure. Show that if the imaging condition is satisfied, all rays originating from a single point in the input plane reach the output plane at a single point y2, regardless of their angles. Also show that if d2=f, all parallel incident rays are fo- cused by the lens onto a single point in the output plane. To determine the ray – transfer matrix of the thin lens, we refer to the follow- ing figure. For thin biconvex lens: For the above condition to be met (i.e., ), the constant A must be equal to 1 and B must be equal to 0. For ray: 11
  • 12. For ray: Therefore, the ray – transfer matrix of the thin biconvex lens will be: If d2=f=image distance, then the ray transfer matrix of the optical system will be: 4. Imaging With a Thick Lens: consider a glass lens of refractive index n, and two spherical surfaces of equal radii of curvatures R (figure 5). De- termine the ray – transfer matrix of the system between the two planes at distance d1 and d2 from the vertices of the lens. The lens is placed in air (refractive index =1). Show that the system is an imaging system (i.e., the input and output planes are conjugate)if: Where: And: 12
  • 13. The points F1 and F2 are known as the front and back focal points, respective- ly. The points P1 and P2 are known as the first and second principal points, respectively. The radii of curvatures of the lens’s two spherical surfaces R1 and R2 are taken positive for spherical surface facing to the right (R1) and neg- Figure 5: Imaging with a thick lens. P1 and P2 are the principal points and F1 and F2 are the focal points. ative for spherical surface facing to the left (R2). Show the importance of these points by tracing of rays that are incident parallel to the optical axis. The ray – transfer matrix of the system between the two planes at distance d1 and d2 from the vertices of the lens is given by: The ray – transfer matrix of the thick lens is equal to the product of the ray – transfer matrices of two refracting surfaces of the lens and the distance doptical traversed by light. Thus: 1. Ray – Transfer Matrix of a Lens System: Determine the ray – transfer matrix for an optical system made of a thin convex lens of focal length f 13
  • 14. and a thin concave lens of focal length –f separated by a distance f. Dis- cuss the imaging properties of this composite lens. The ray – transfer matrix of the current optical system will be: To demonstrate the imaging properties of such optical system we will consid- er the following input matrix: +f -f When the above Mststem matrix works on Minput the output will be: Output=matrix of the system * the input d=f This means that the image is real, inverted (due to the minus sign), and minia- ture. References 1. D. C. O’Shea, Elements of Modern Optical Design, Wiley, New York, 1985. 2. R. Kingslake, Optical System Design, Academic Press, New York, 1983. 3. Matrix Method in Optics, , Wiley, New York, 1978. 14
