1. Thin Lenses
By: Emily Earls
T’Aundrai Smith

2. Objectives
•
•
Compare diverging and converging lenses
Relate concepts to eyeglasses and contact
lenses
•
Describe the positioning of lenses in
compound microscopes and telescopes

3. Introductory
At the end of this lesson, students should be
able to tell the difference between converging
and diverging lenses. Understand the purpose
in eyeglasses and contact lenses and what is
different about them. Also, know what the
lenses are for in compound microscopes and
telescopes.

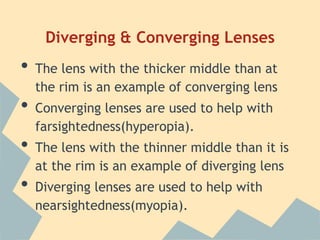

4. Diverging & Converging Lenses
•
•
•
•
The lens with the thicker middle than at
the rim is an example of converging lens
Converging lenses are used to help with
farsightedness(hyperopia).
The lens with the thinner middle than it is
at the rim is an example of diverging lens
Diverging lenses are used to help with
nearsightedness(myopia).

6. Ray Diagrams
•
•
•
Ray diagrams for concave lenses inside and
outside the focal point give similar results; an
erect virtual image smaller than the object
Ray diagrams for convex lenses outside the
focal point give similar results; a real
inverted image
Ray diagrams inside the focal point gives a
virtual erect image that will be formed

7. •
Real inverted image
•
Virtual erect image

8. Positioning of Lenses in a Compound
Microscope
•
•
A compound microscope has two types of
lenses. It has objective lenses and an ocular
lens.
The objective lenses are located in the
rotating nosepiece, near the object being
magnified.
Objective Lens
•
Ocular Lens
The ocular lens is located in
the part you look through,
which magnifies the image.

9. Positioning of Lenses in a Telescope
•
•
A telescope has two lenses: an objective lens and an
eyepiece lens.
The objective lens is located at the end of the telescope,
and it collects light from a distance and then it brings
that image into focus.
● The eyepiece lens takes that
focus and magnifies it to make
the image or object look bigger
to the retina.

10. Eyeglasses vs. Contact Lenses
•
Eyeglasses are a frame that holds two pieces of glass
or plastic, which have been ground into lenses to
correct refractive errors
•
•
Contact lenses are worn directly on the cornea of the
eye
Eyeglasses and Contacts help with sight by adding or
subtracting focusing power to the eye’s cornea and lens
