Mat lab for bplc
•Download as DOCX, PDF•
0 likes•394 views
The document describes using MATLAB to simulate and analyze the transfer function of a powerline channel between two access points. It obtains the attenuation in signal strength versus frequency and phase distortion versus frequency. It then calculates the impulse response of the powerline channel by taking the inverse Fourier transform of the transfer function.
Report
Share
Report
Share

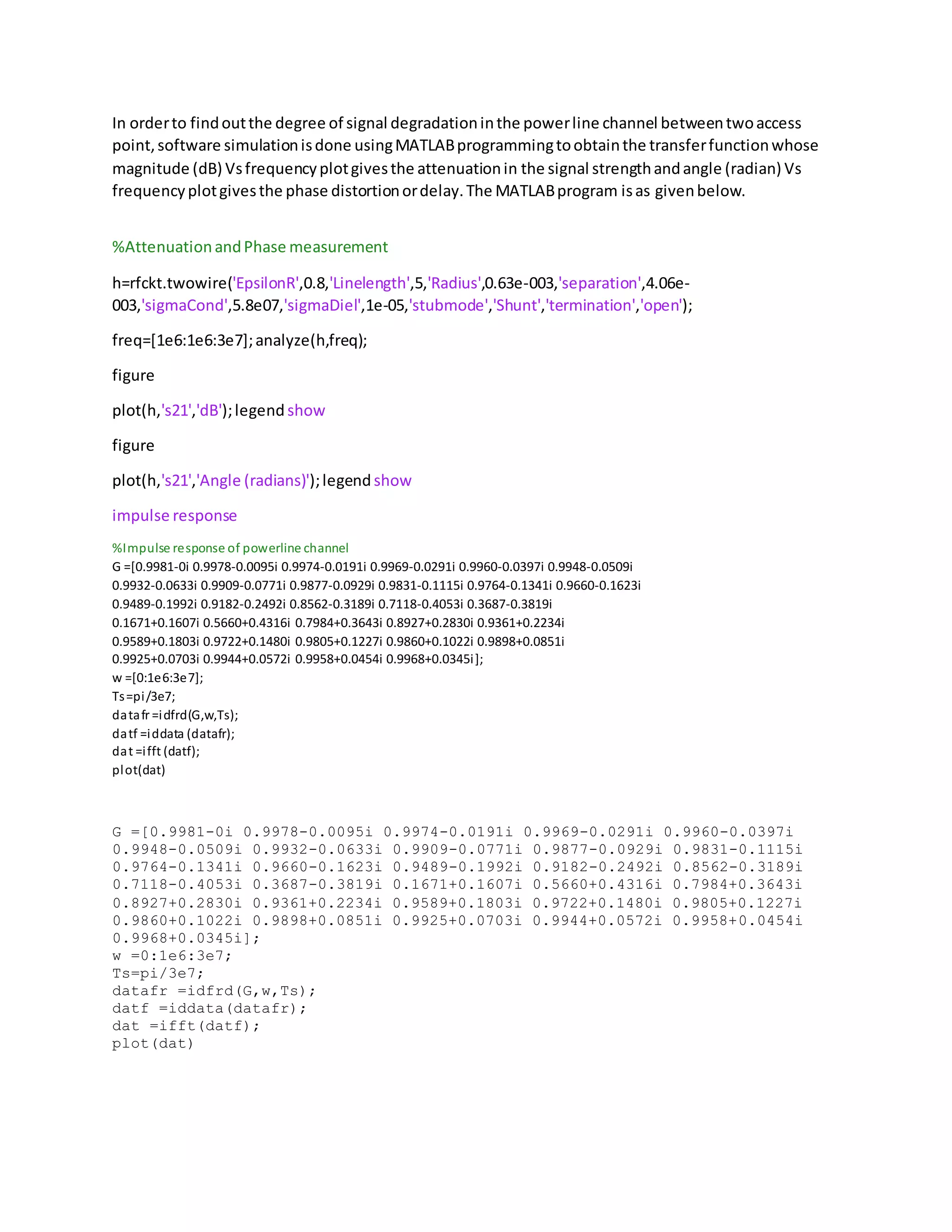

![In orderto findoutthe degree of signal degradationinthe powerline channel betweentwoaccess
point,software simulationisdone usingMATLABprogrammingtoobtainthe transferfunctionwhose
magnitude (dB) Vsfrequencyplotgivesthe attenuationin the signal strengthandangle (radian) Vs
frequencyplotgivesthe phase distortionordelay.The MATLABprogram isas givenbelow.
%AttenuationandPhase measurement
h=rfckt.twowire('EpsilonR',0.8,'Linelength',5,'Radius',0.63e-003,'separation',4.06e-
003,'sigmaCond',5.8e07,'sigmaDiel',1e-05,'stubmode','Shunt','termination','open');
freq=[1e6:1e6:3e7];analyze(h,freq);
figure
plot(h,'s21','dB');legend show
figure
plot(h,'s21','Angle (radians)');legend show
impulse response
%Impulse response of powerline channel
G =[0.9981-0i 0.9978-0.0095i 0.9974-0.0191i 0.9969-0.0291i 0.9960-0.0397i 0.9948-0.0509i
0.9932-0.0633i 0.9909-0.0771i 0.9877-0.0929i 0.9831-0.1115i 0.9764-0.1341i 0.9660-0.1623i
0.9489-0.1992i 0.9182-0.2492i 0.8562-0.3189i 0.7118-0.4053i 0.3687-0.3819i
0.1671+0.1607i 0.5660+0.4316i 0.7984+0.3643i 0.8927+0.2830i 0.9361+0.2234i
0.9589+0.1803i 0.9722+0.1480i 0.9805+0.1227i 0.9860+0.1022i 0.9898+0.0851i
0.9925+0.0703i 0.9944+0.0572i 0.9958+0.0454i 0.9968+0.0345i];
w =[0:1e6:3e7];
Ts=pi/3e7;
datafr =idfrd(G,w,Ts);
datf =iddata (datafr);
dat =ifft (datf);
plot(dat)
G =[0.9981-0i 0.9978-0.0095i 0.9974-0.0191i 0.9969-0.0291i 0.9960-0.0397i
0.9948-0.0509i 0.9932-0.0633i 0.9909-0.0771i 0.9877-0.0929i 0.9831-0.1115i
0.9764-0.1341i 0.9660-0.1623i 0.9489-0.1992i 0.9182-0.2492i 0.8562-0.3189i
0.7118-0.4053i 0.3687-0.3819i 0.1671+0.1607i 0.5660+0.4316i 0.7984+0.3643i
0.8927+0.2830i 0.9361+0.2234i 0.9589+0.1803i 0.9722+0.1480i 0.9805+0.1227i
0.9860+0.1022i 0.9898+0.0851i 0.9925+0.0703i 0.9944+0.0572i 0.9958+0.0454i
0.9968+0.0345i];
w =0:1e6:3e7;
Ts=pi/3e7;
datafr =idfrd(G,w,Ts);
datf =iddata(datafr);
dat =ifft(datf);
plot(dat)](https://image.slidesharecdn.com/matlab-150518140520-lva1-app6892/85/Mat-lab-for-bplc-1-320.jpg)
