1. GSM,GPRS,UMTS,HSDPA and
HSUPA Protocols and Call flow
By
Kiran Koona

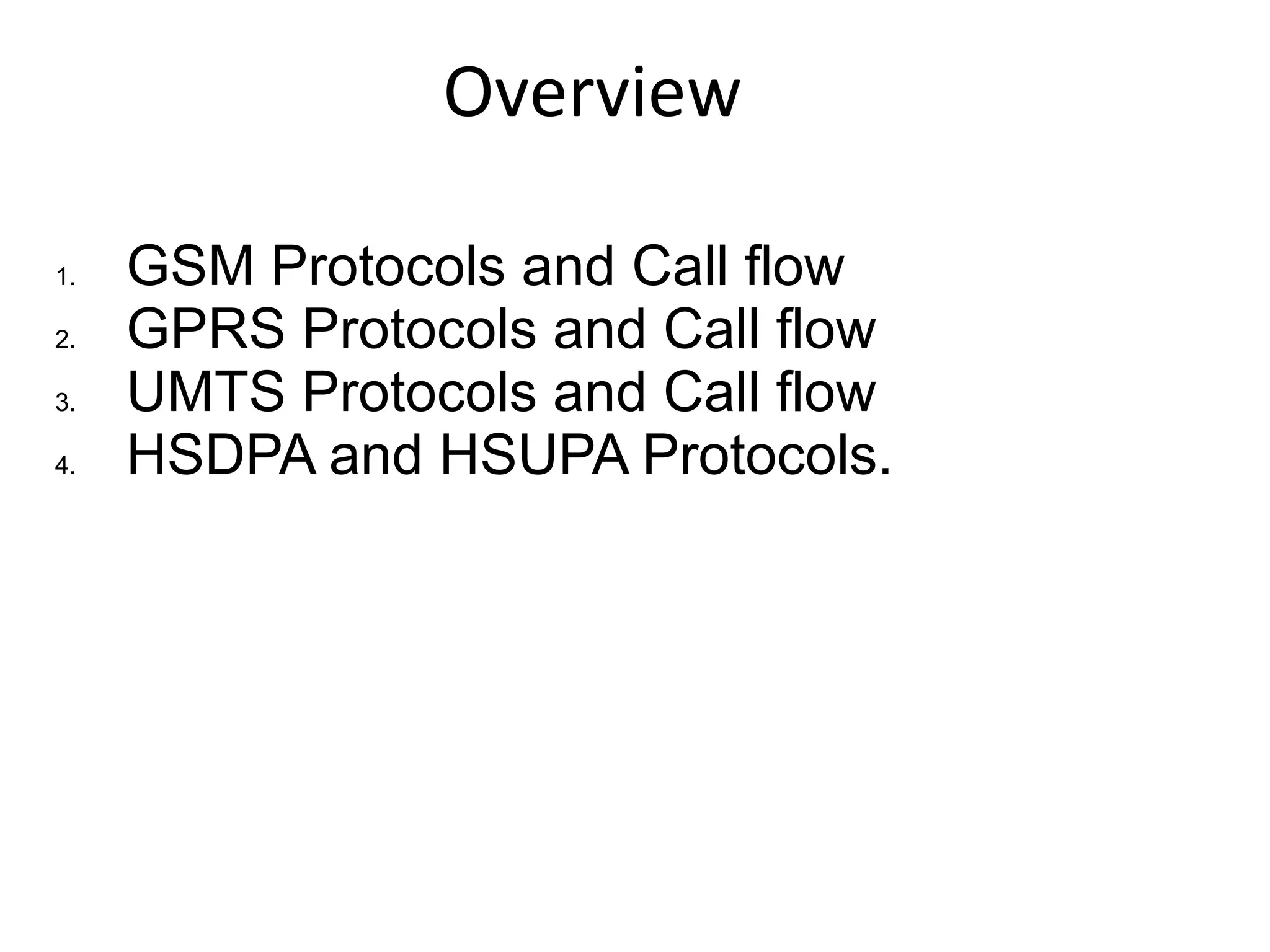

2. Overview
1. GSM Protocols and Call flow
2. GPRS Protocols and Call flow
3. UMTS Protocols and Call flow
4. HSDPA and HSUPA Protocols.

3. GSM

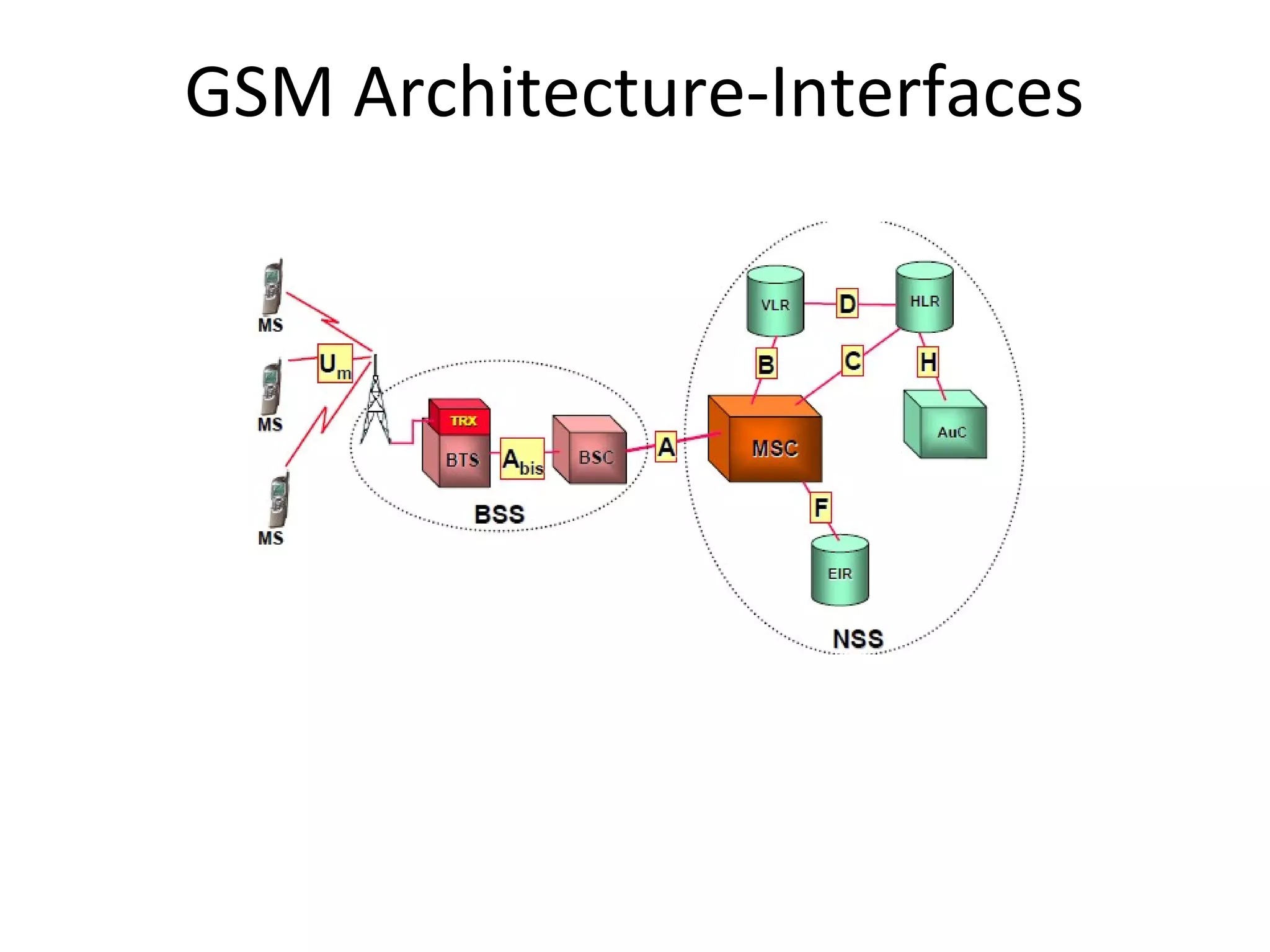

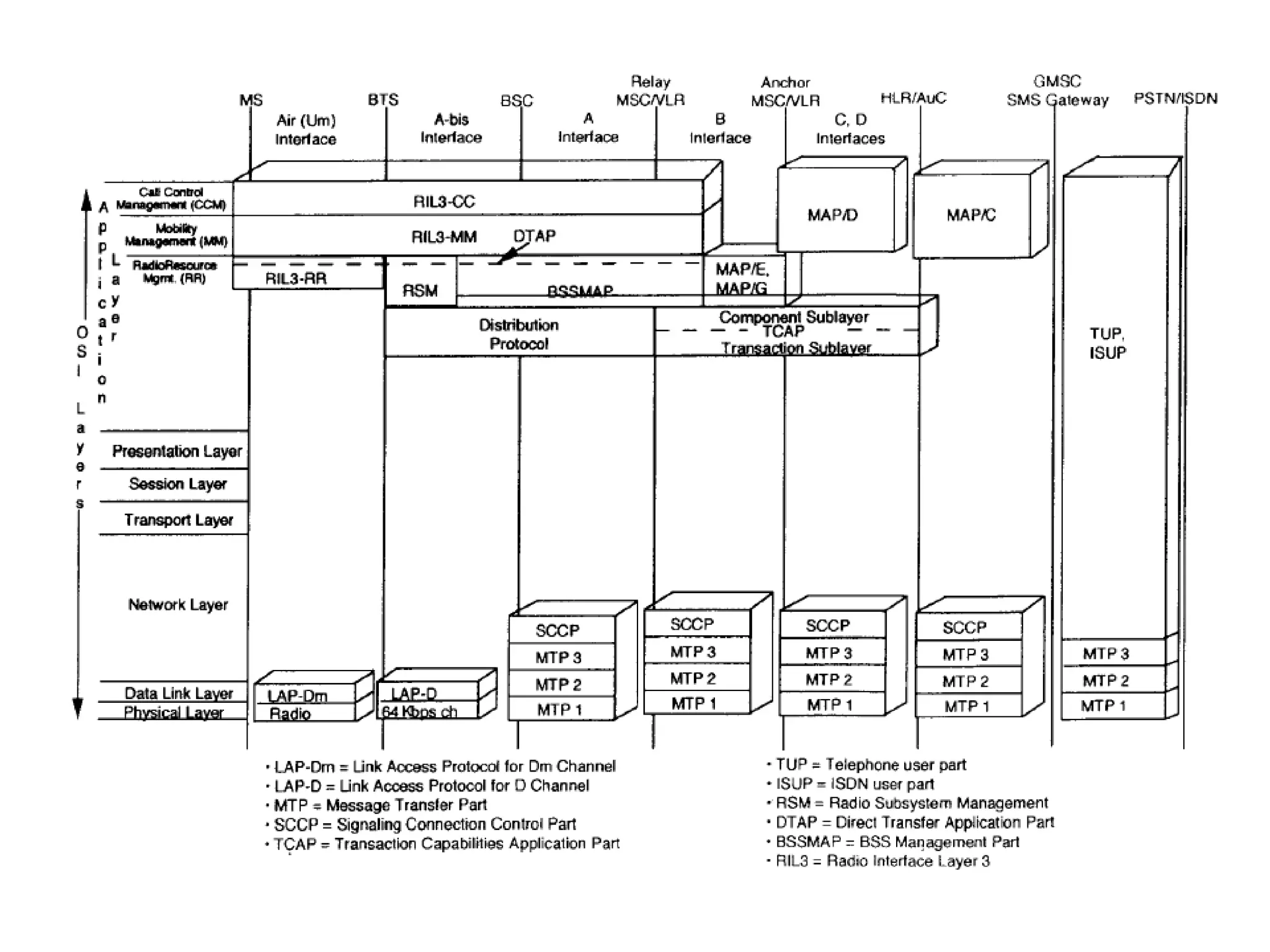

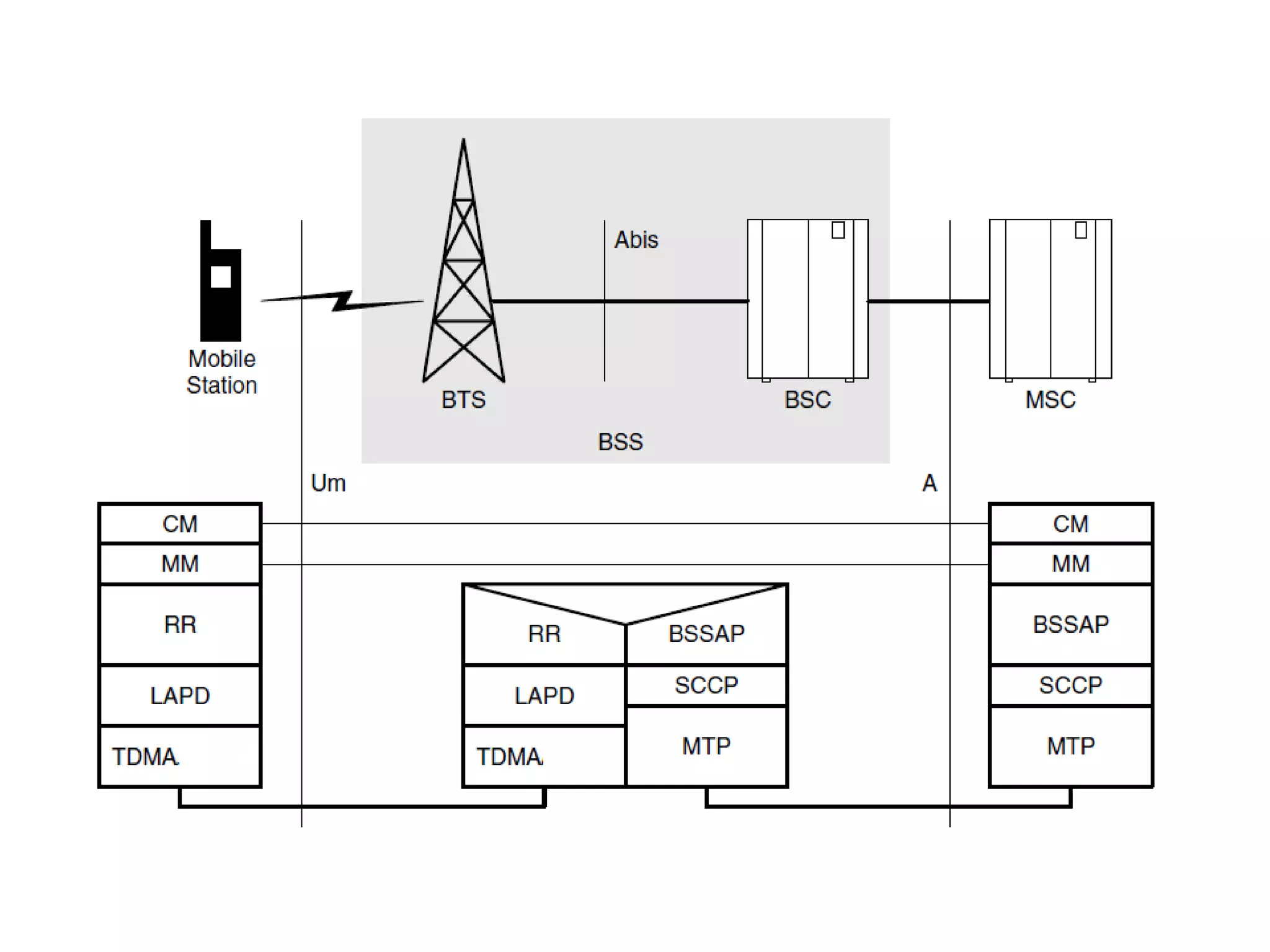

4. GSM Architecture-Interfaces

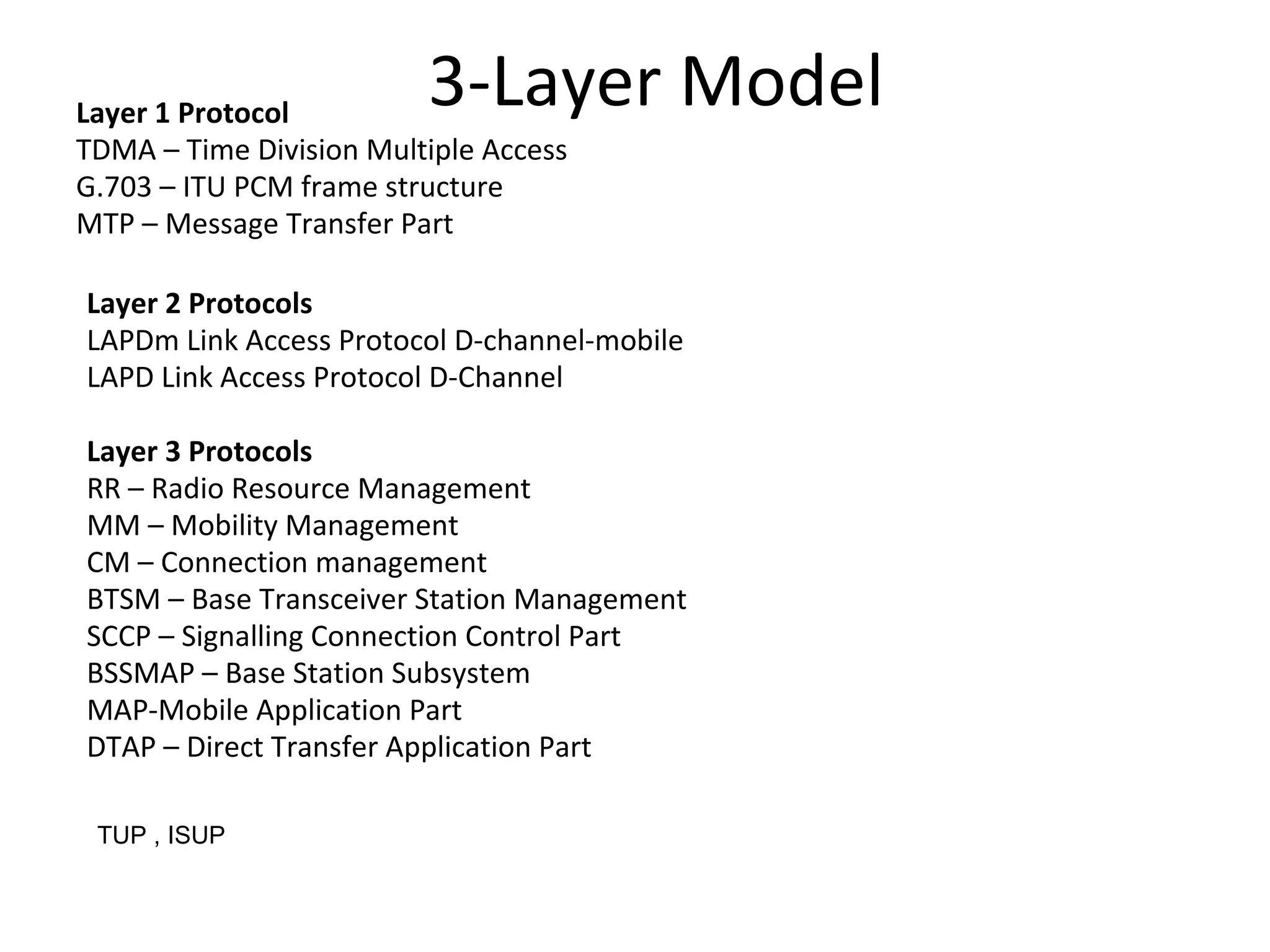

7. Layer 1 Protocol
3-Layer Model
TDMA – Time Division Multiple Access
G.703 – ITU PCM frame structure
MTP – Message Transfer Part
Layer 2 Protocols
LAPDm Link Access Protocol D-channel-mobile
LAPD Link Access Protocol D-Channel
Layer 3 Protocols
RR – Radio Resource Management
MM – Mobility Management
CM – Connection management
BTSM – Base Transceiver Station Management
SCCP – Signalling Connection Control Part
BSSMAP – Base Station Subsystem
MAP-Mobile Application Part
DTAP – Direct Transfer Application Part
TUP , ISUP

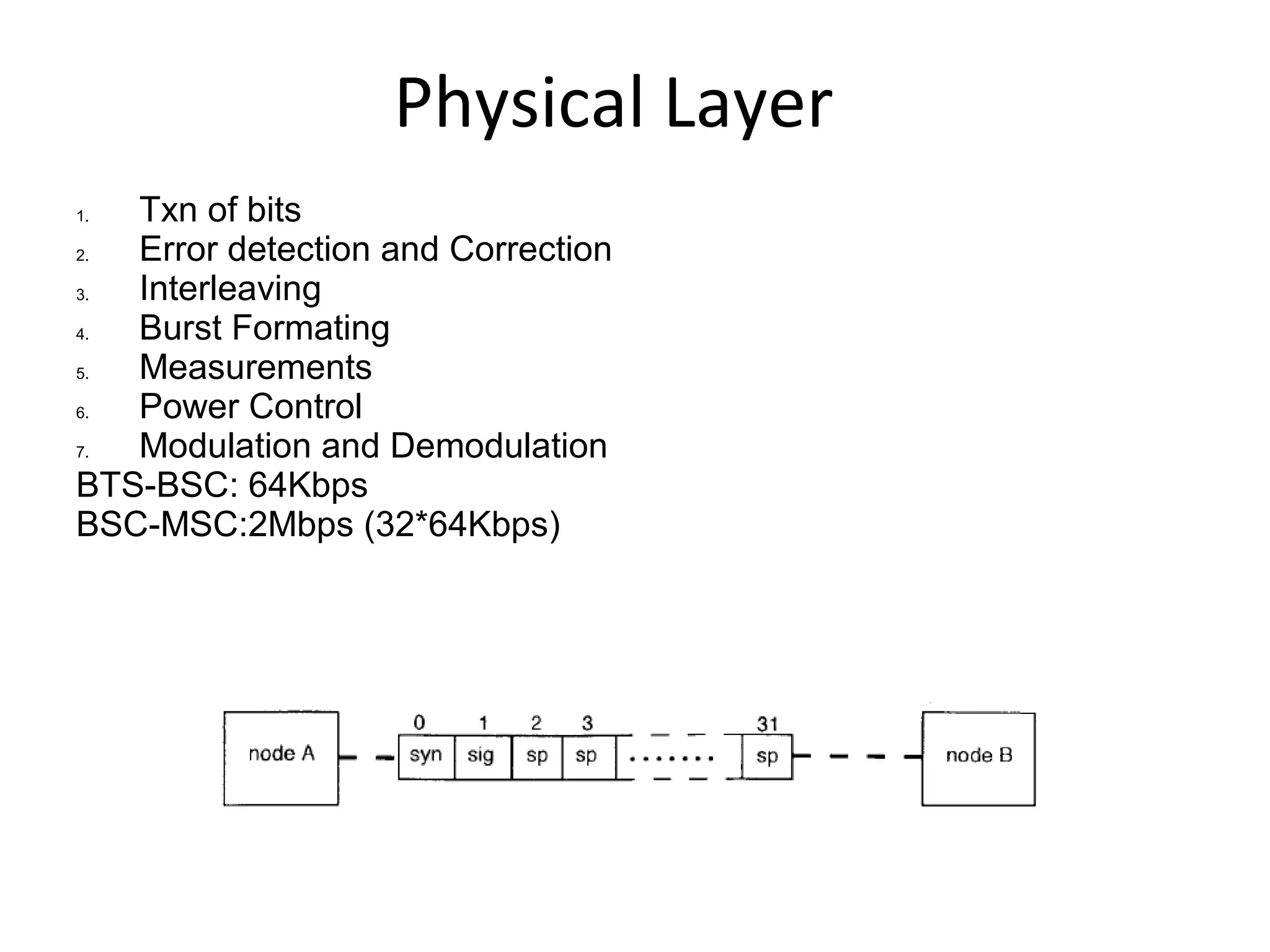

8. Physical Layer
1. Txn of bits
2. Error detection and Correction
3. Interleaving
4. Burst Formating
5. Measurements
6. Power Control
7. Modulation and Demodulation
BTS-BSC: 64Kbps
BSC-MSC:2Mbps (32*64Kbps)

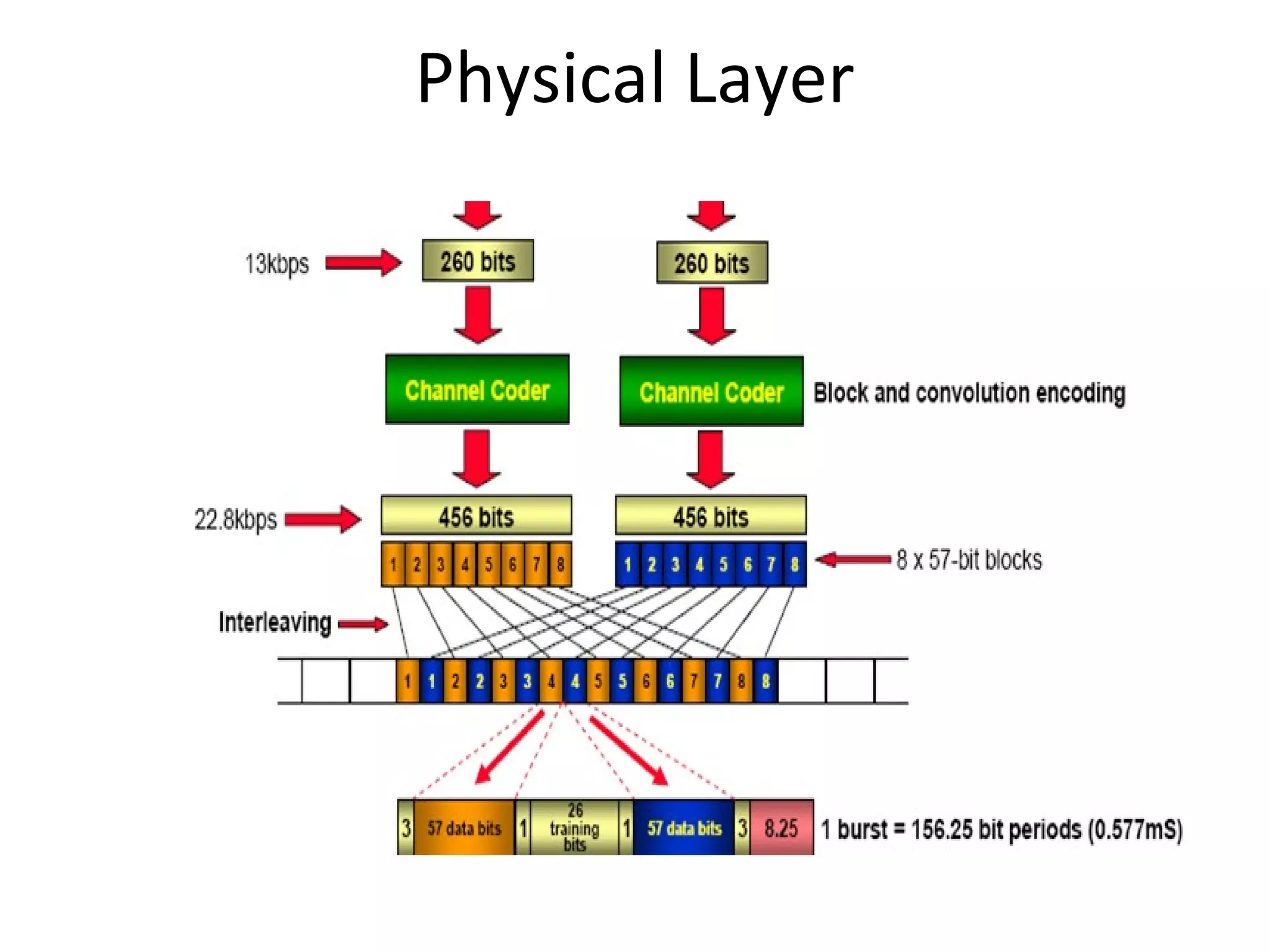

9. Physical Layer

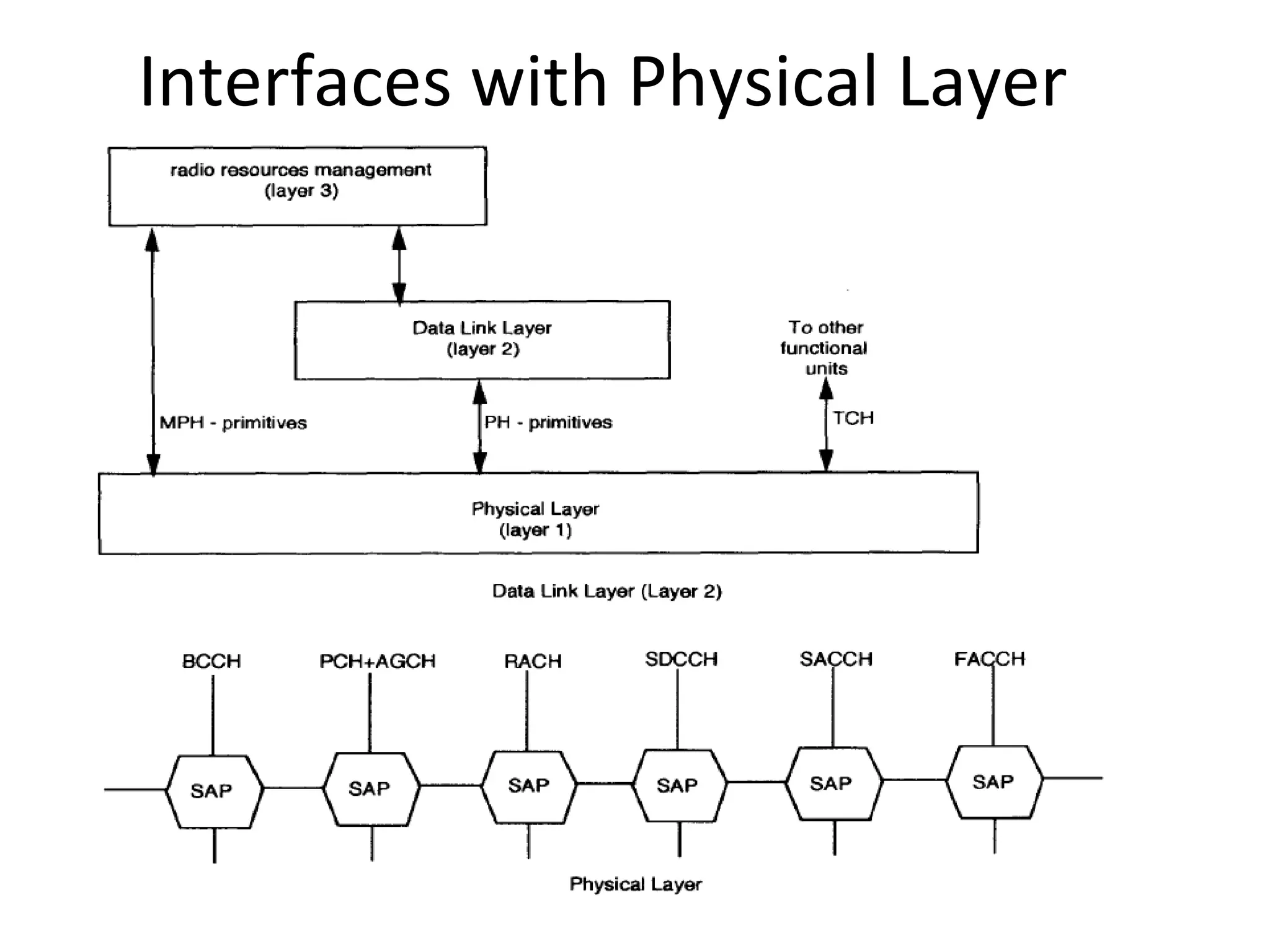

10. Interfaces with Physical Layer

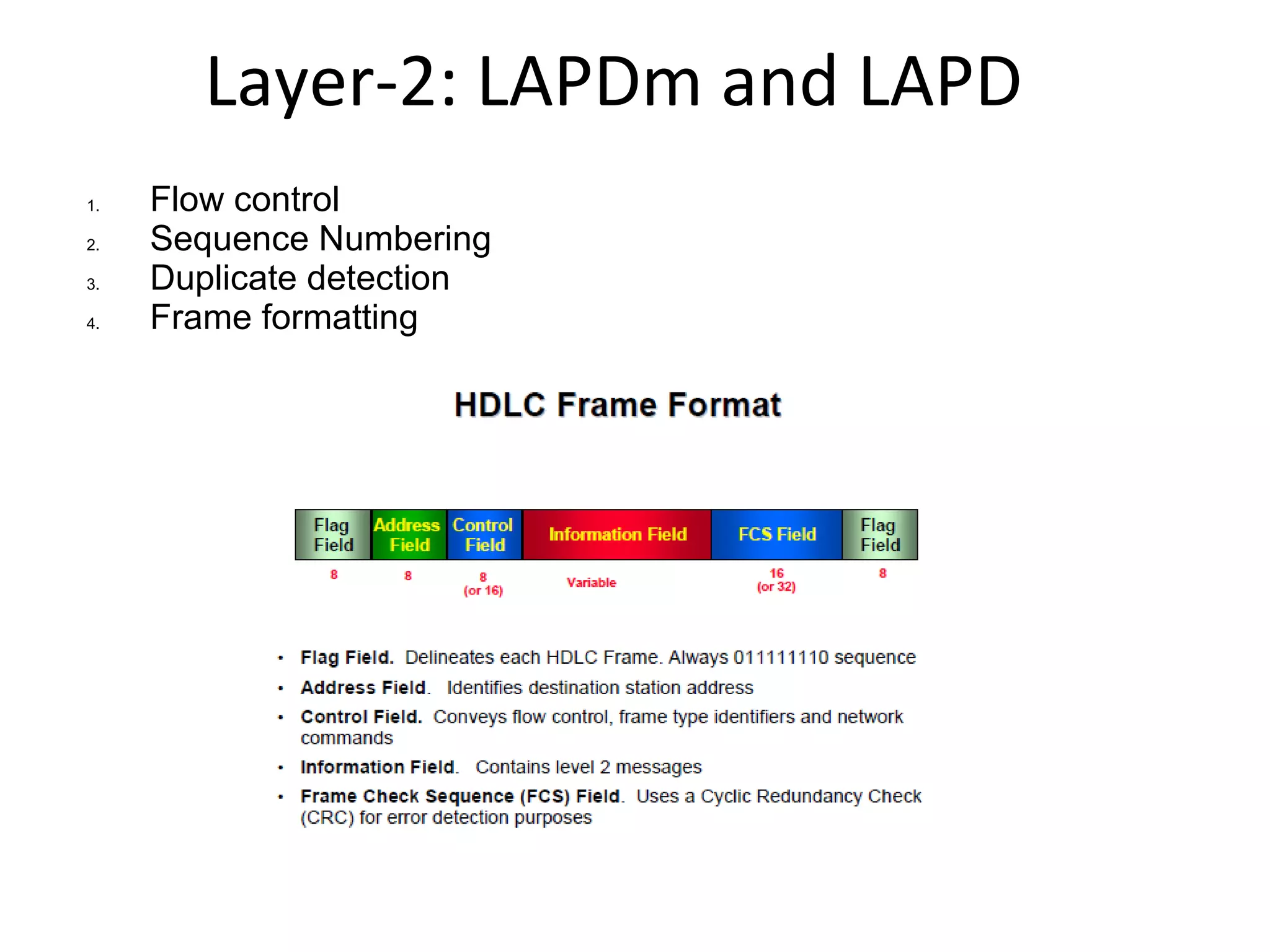

11. Layer-2: LAPDm and LAPD
1. Flow control
2. Sequence Numbering
3. Duplicate detection
4. Frame formatting

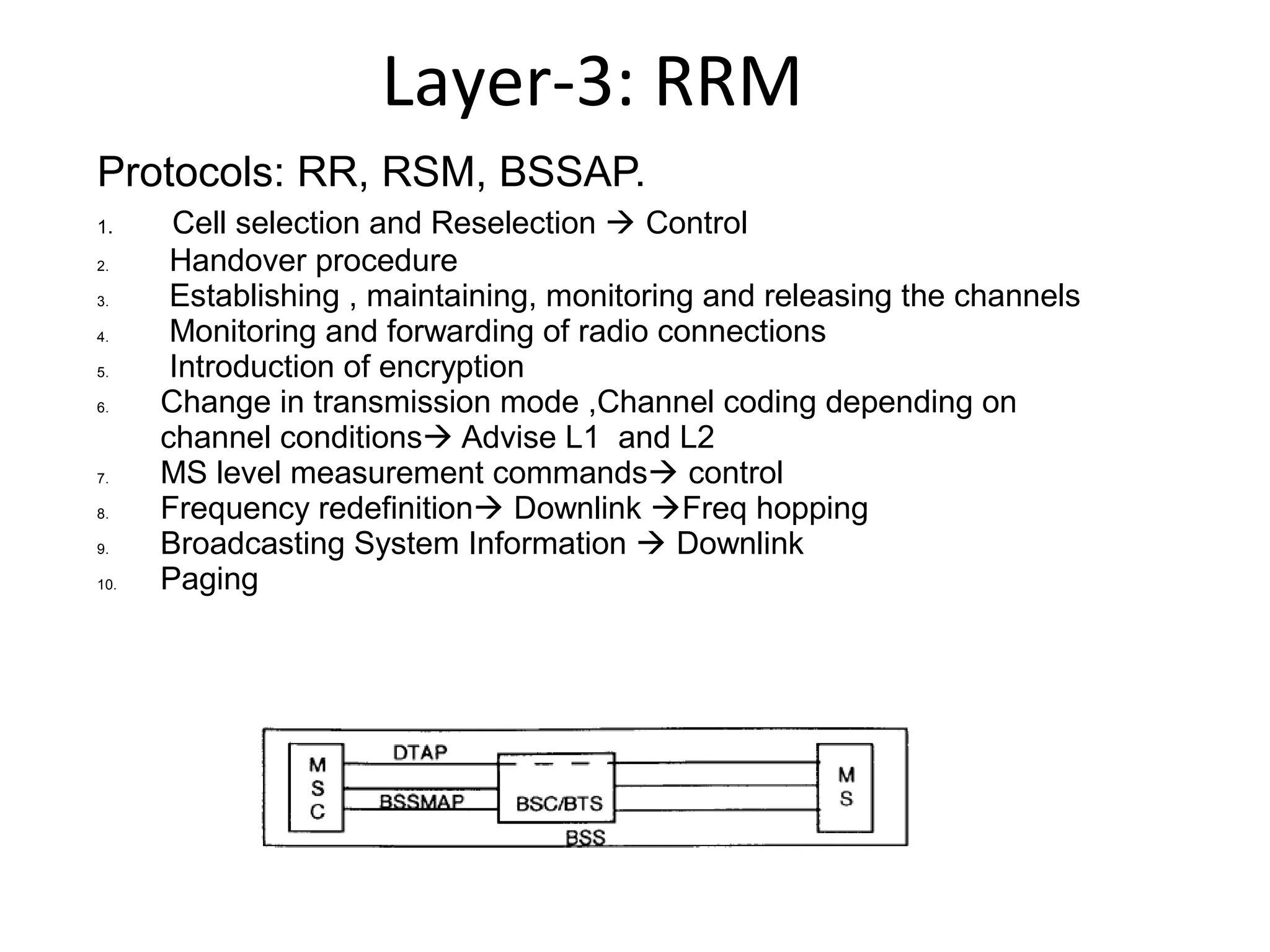

12. Layer-3: RRM
Protocols: RR, RSM, BSSAP.
1. Cell selection and Reselection  Control
2. Handover procedure
3. Establishing , maintaining, monitoring and releasing the channels
4. Monitoring and forwarding of radio connections
5. Introduction of encryption
6. Change in transmission mode ,Channel coding depending on
channel conditions Advise L1 and L2
7. MS level measurement commands control
8. Frequency redefinition Downlink Freq hopping
9. Broadcasting System Information  Downlink
10. Paging

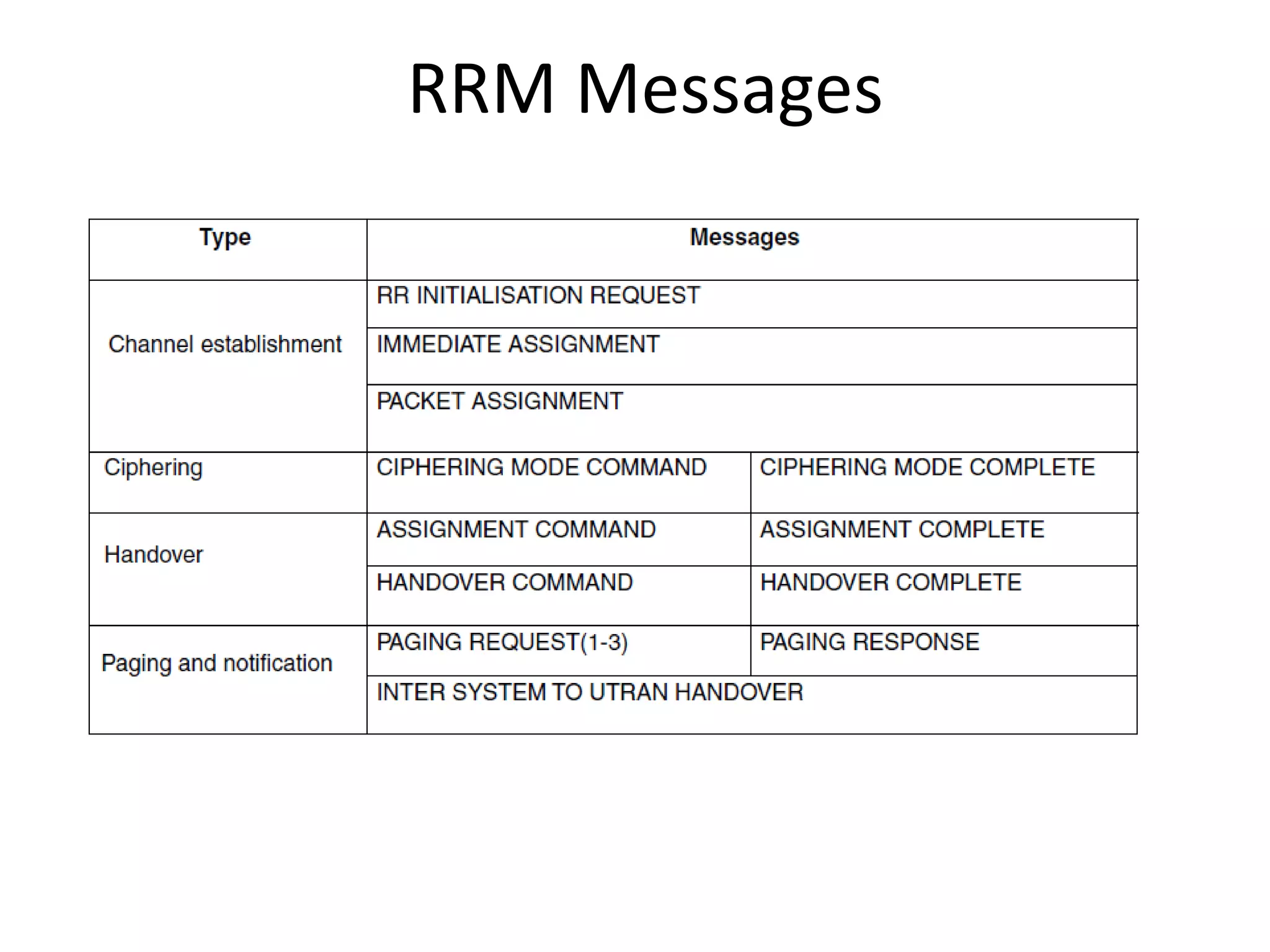

13. RRM Messages

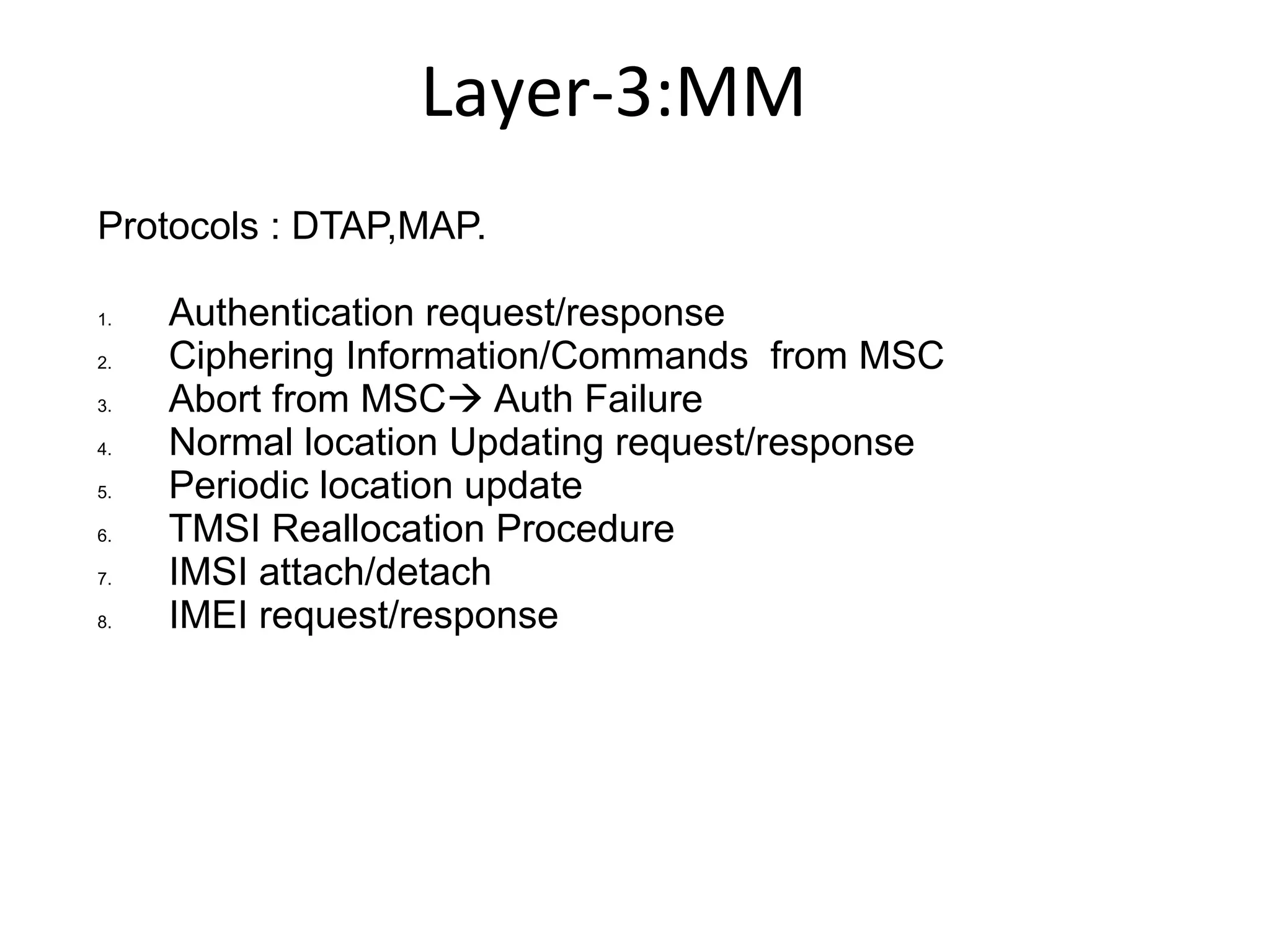

14. Layer-3:MM
Protocols : DTAP,MAP.
1. Authentication request/response
2. Ciphering Information/Commands from MSC
3. Abort from MSC Auth Failure
4. Normal location Updating request/response
5. Periodic location update
6. TMSI Reallocation Procedure
7. IMSI attach/detach
8. IMEI request/response

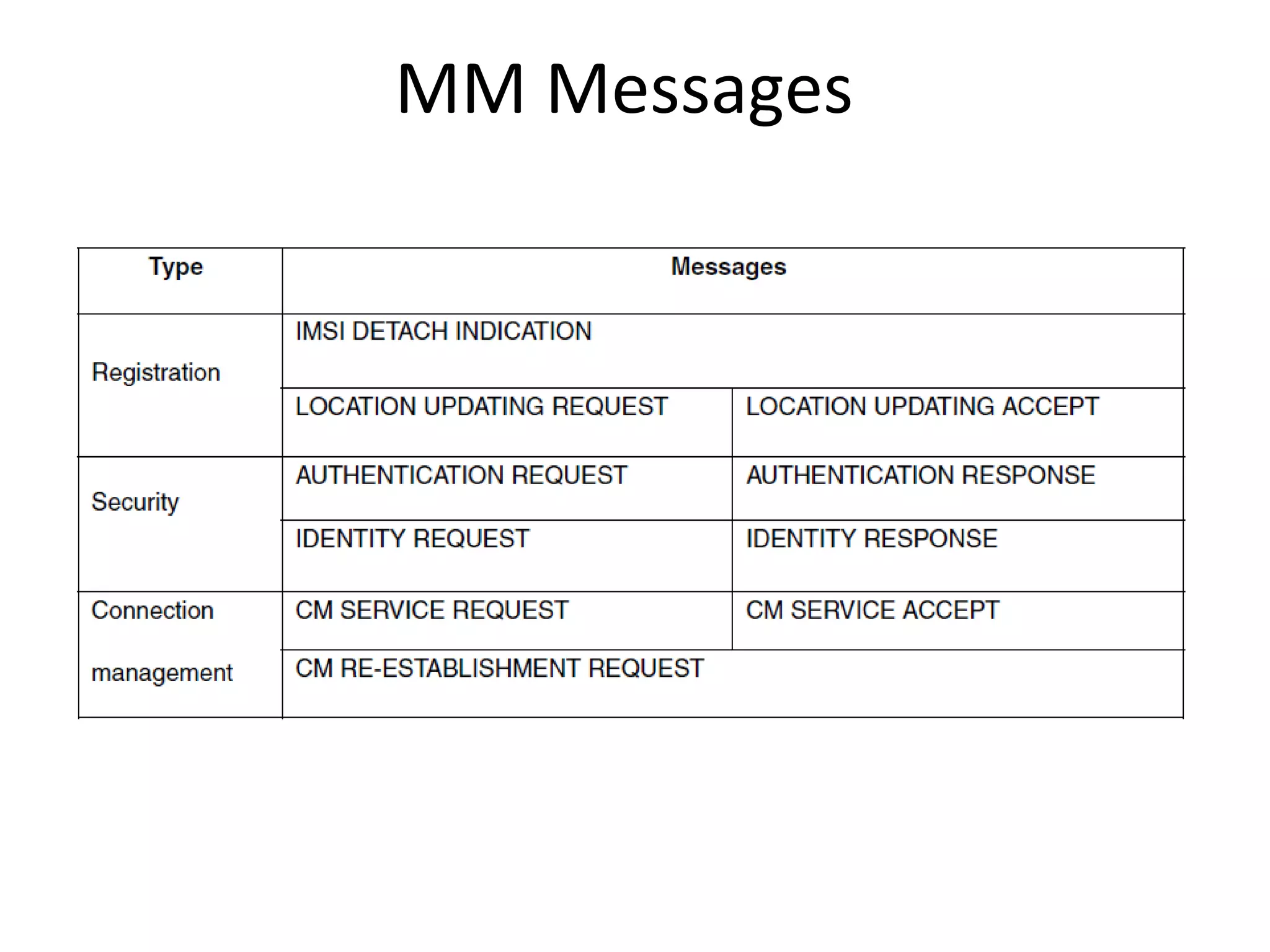

15. MM Messages

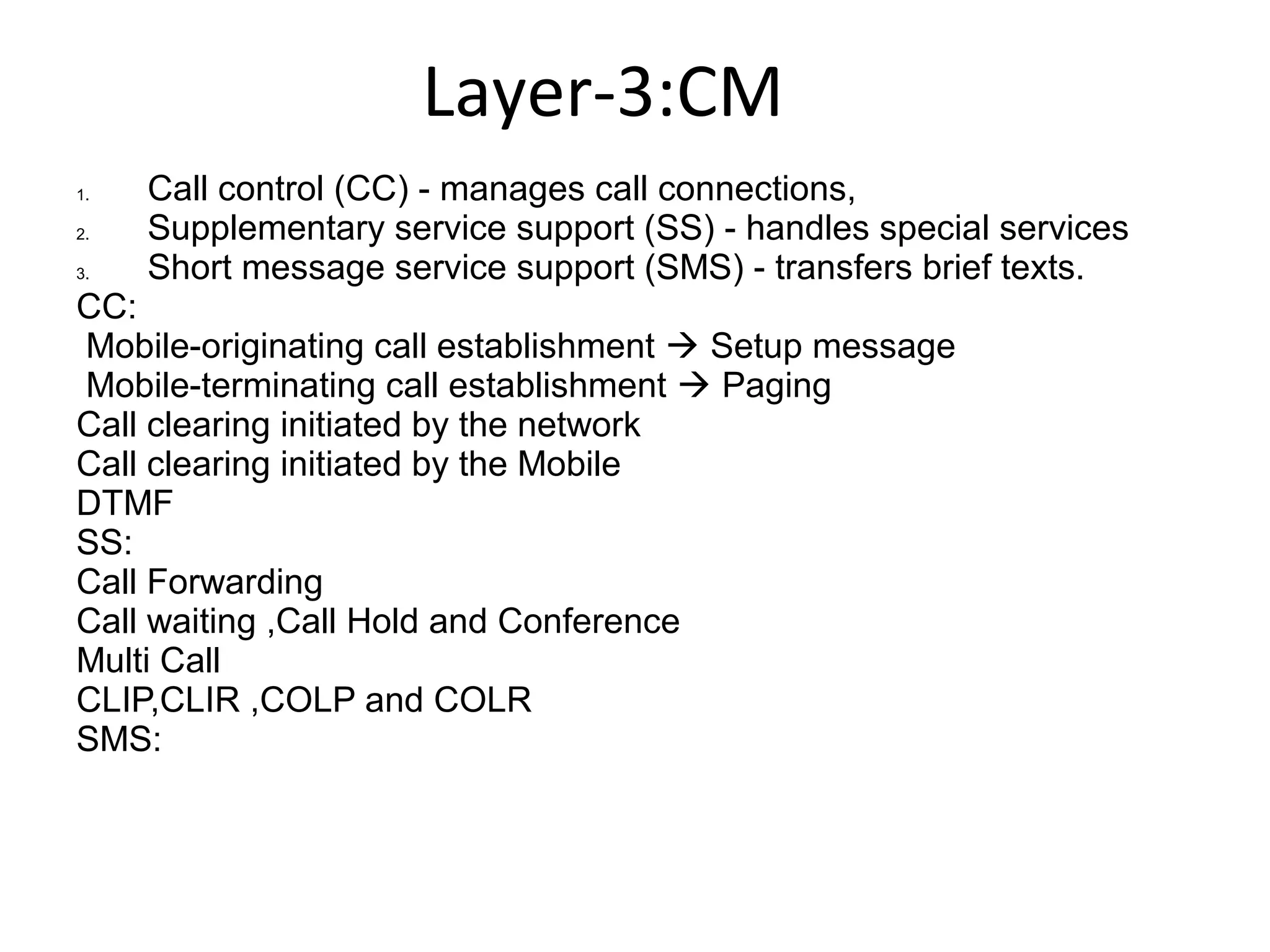

16. Layer-3:CM
1. Call control (CC) - manages call connections,
2. Supplementary service support (SS) - handles special services
3. Short message service support (SMS) - transfers brief texts.
CC:
Mobile-originating call establishment  Setup message
Mobile-terminating call establishment  Paging
Call clearing initiated by the network
Call clearing initiated by the Mobile
DTMF
SS:
Call Forwarding
Call waiting ,Call Hold and Conference
Multi Call
CLIP,CLIR ,COLP and COLR
SMS:

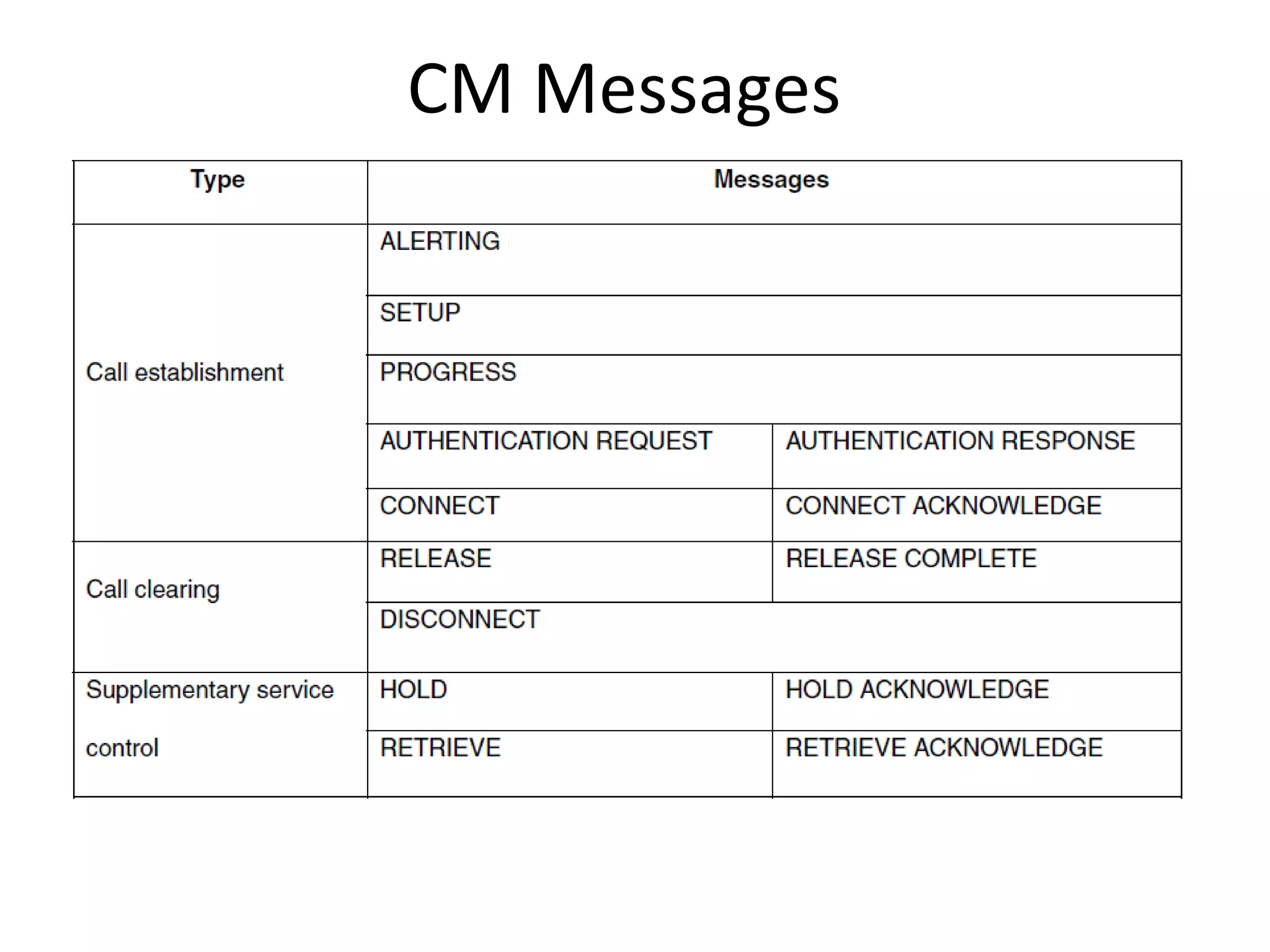

17. CM Messages

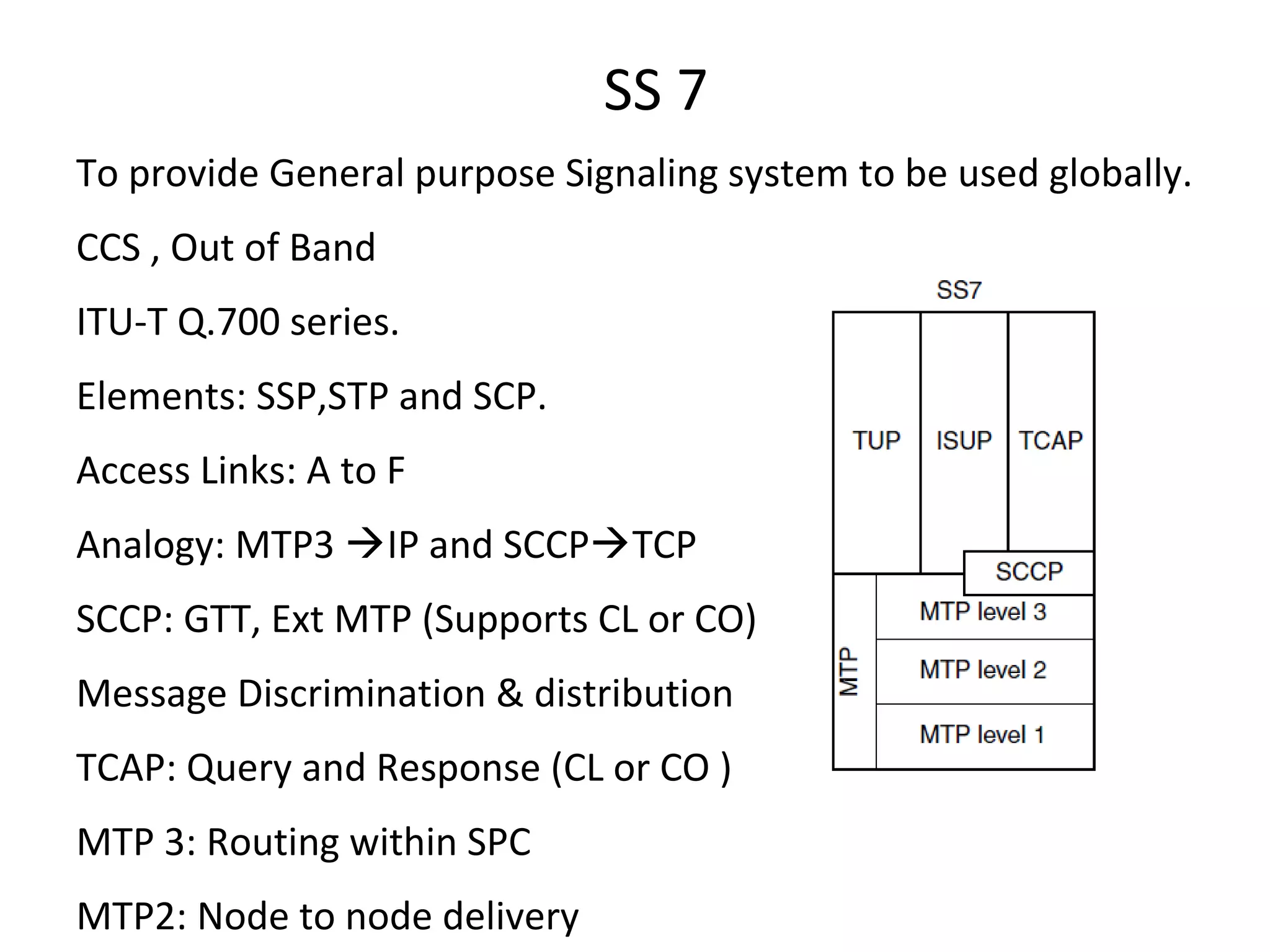

18. SS 7
To provide General purpose Signaling system to be used globally.
CCS , Out of Band
ITU-T Q.700 series.
Elements: SSP,STP and SCP.
Access Links: A to F
Analogy: MTP3 IP and SCCPTCP
SCCP: GTT, Ext MTP (Supports CL or CO)
Message Discrimination & distribution
TCAP: Query and Response (CL or CO )
MTP 3: Routing within SPC
MTP2: Node to node delivery

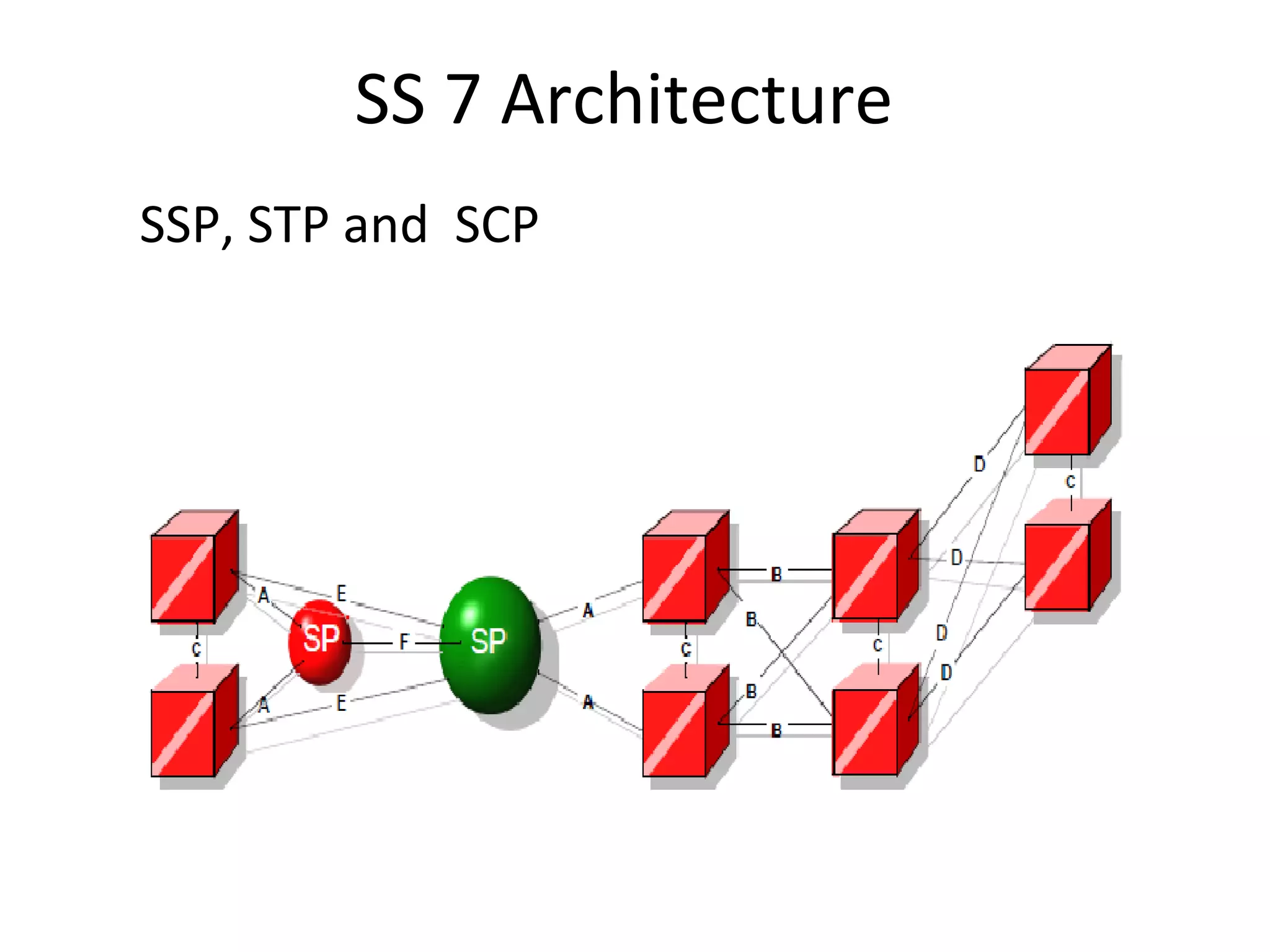

19. SS 7 Architecture
SSP, STP and SCP

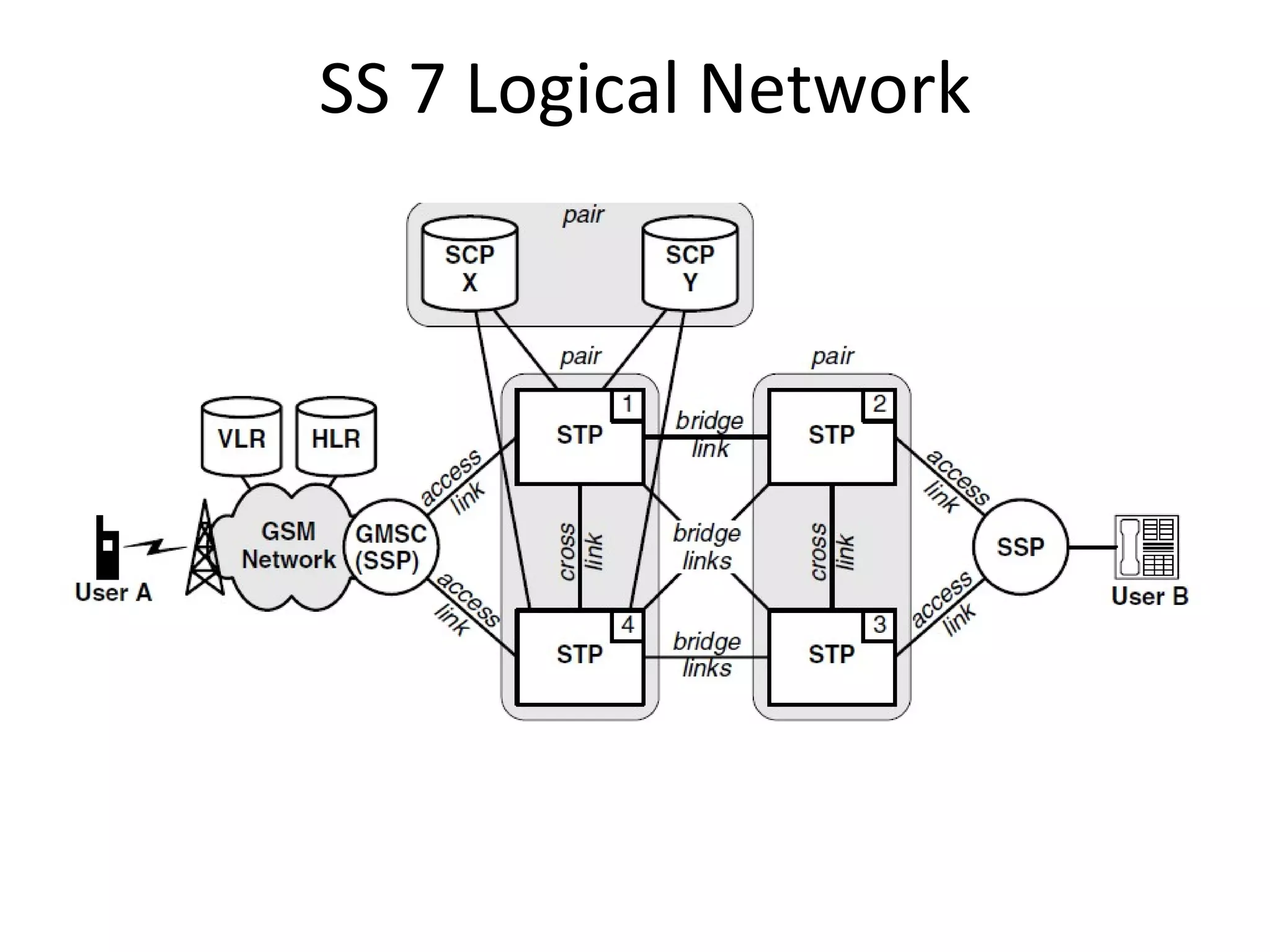

20. SS 7 Logical Network

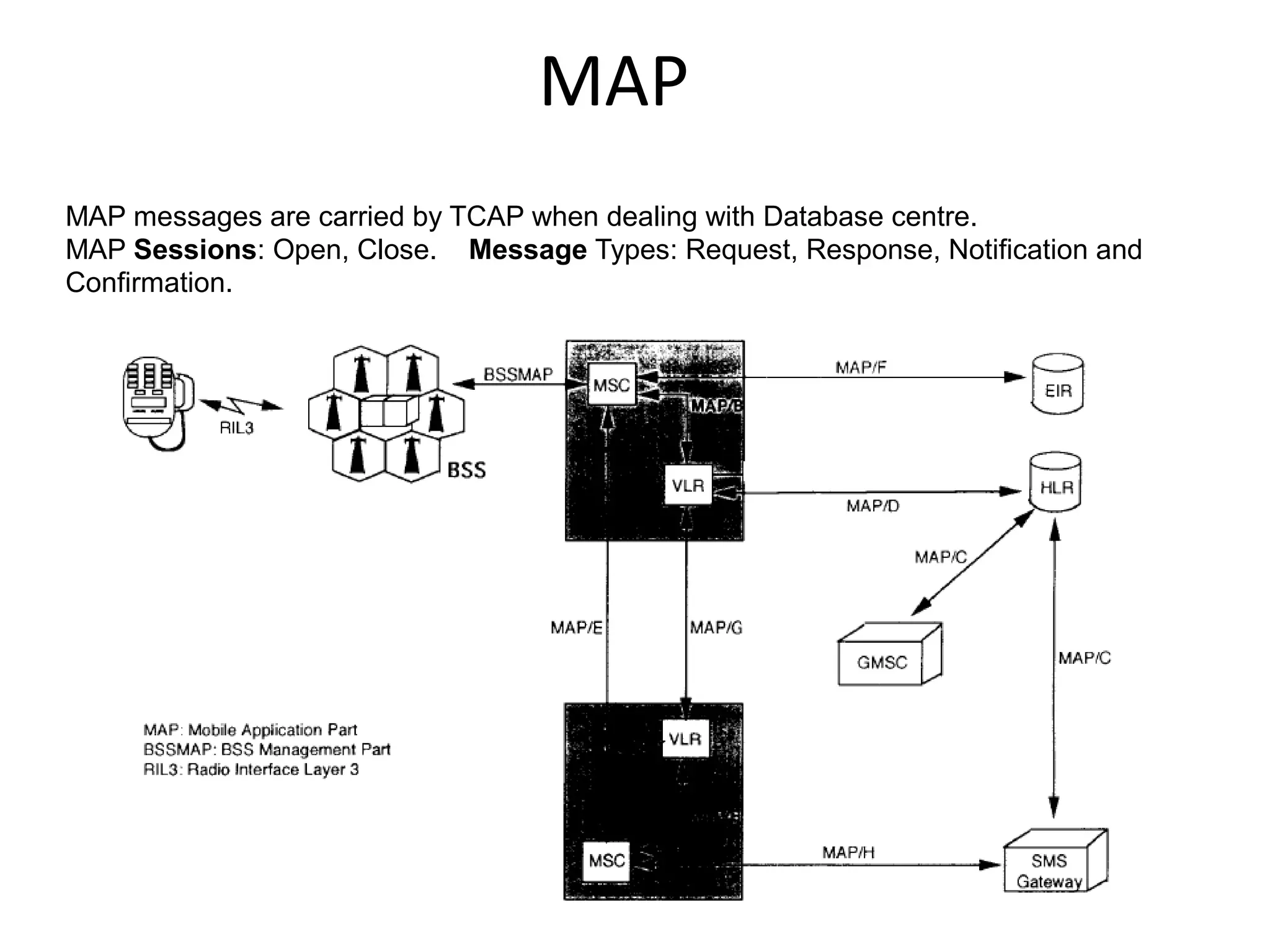

21. MAP
MAP messages are carried by TCAP when dealing with Database centre.
MAP Sessions: Open, Close. Message Types: Request, Response, Notification and
Confirmation.

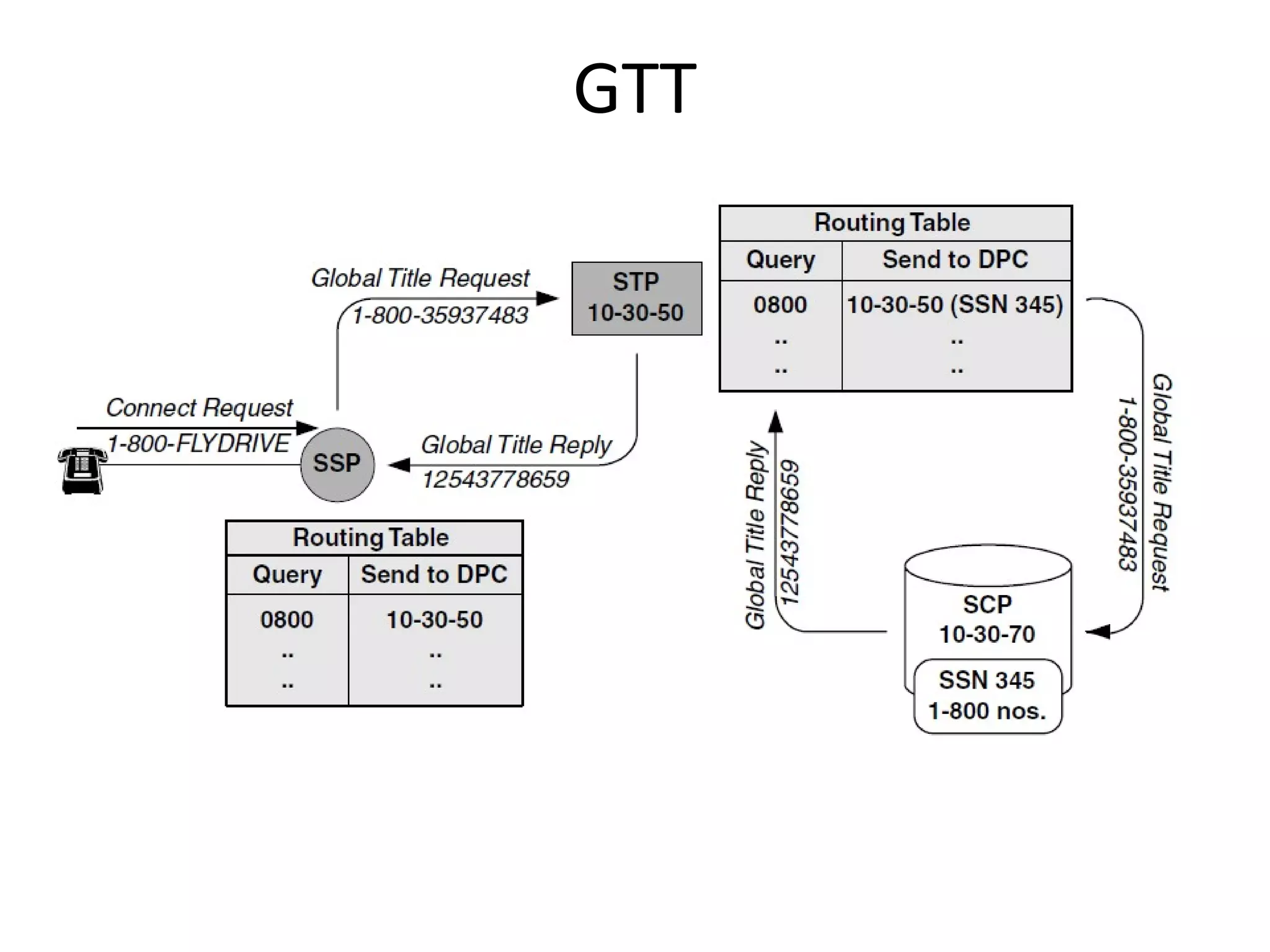

22. GTT

23. GSM Call flow

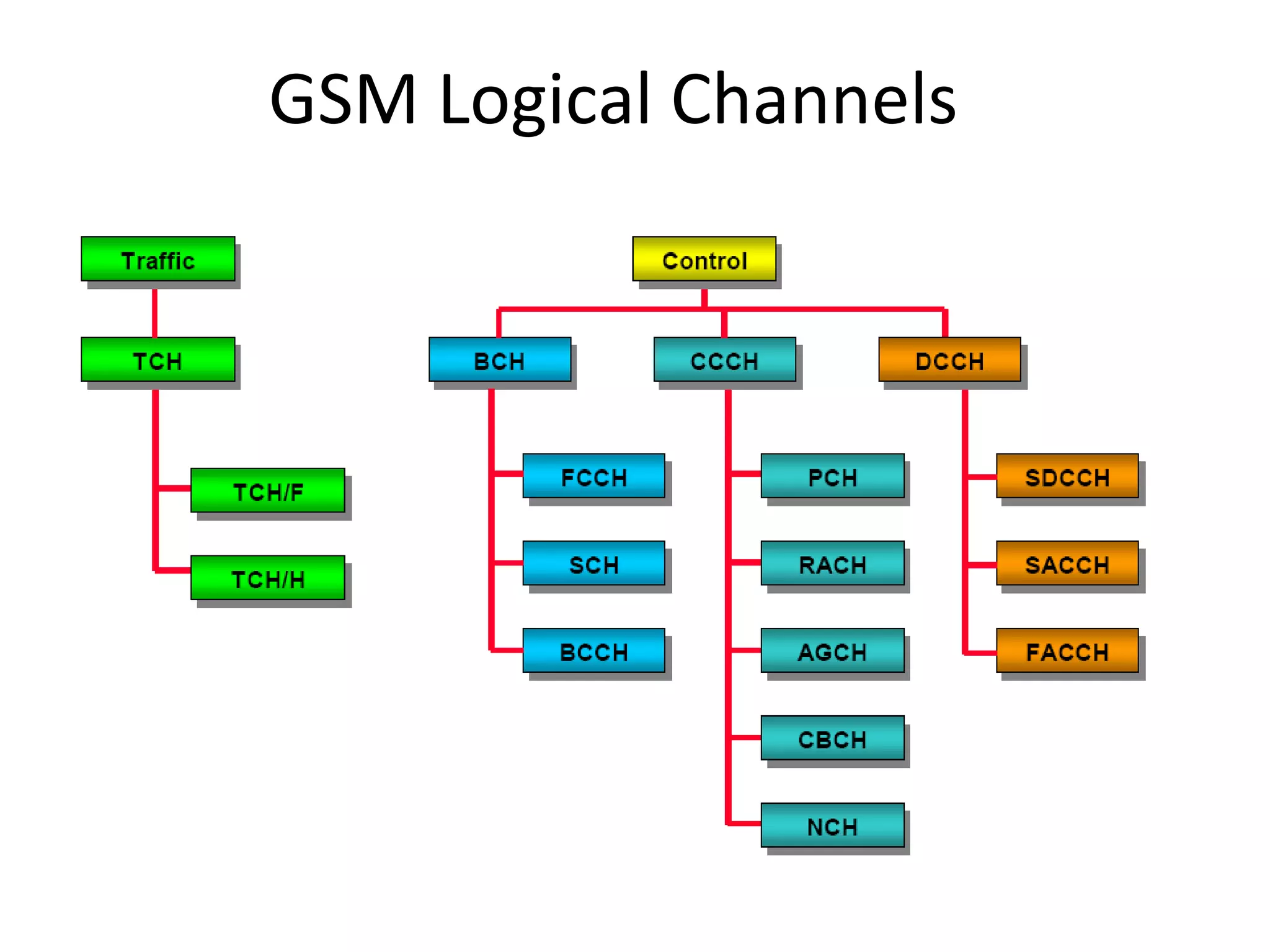

24. GSM Logical Channels

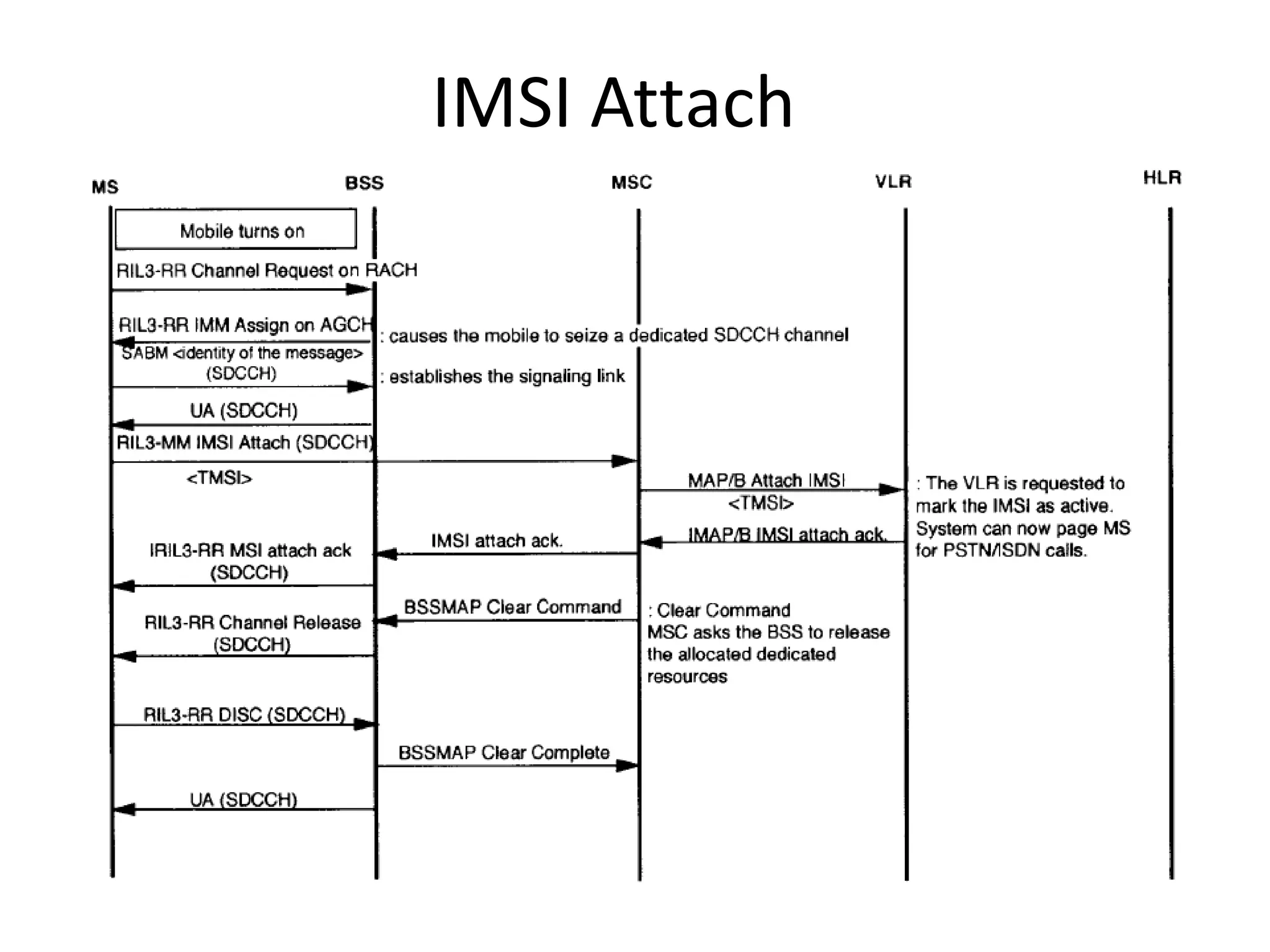

25. IMSI Attach

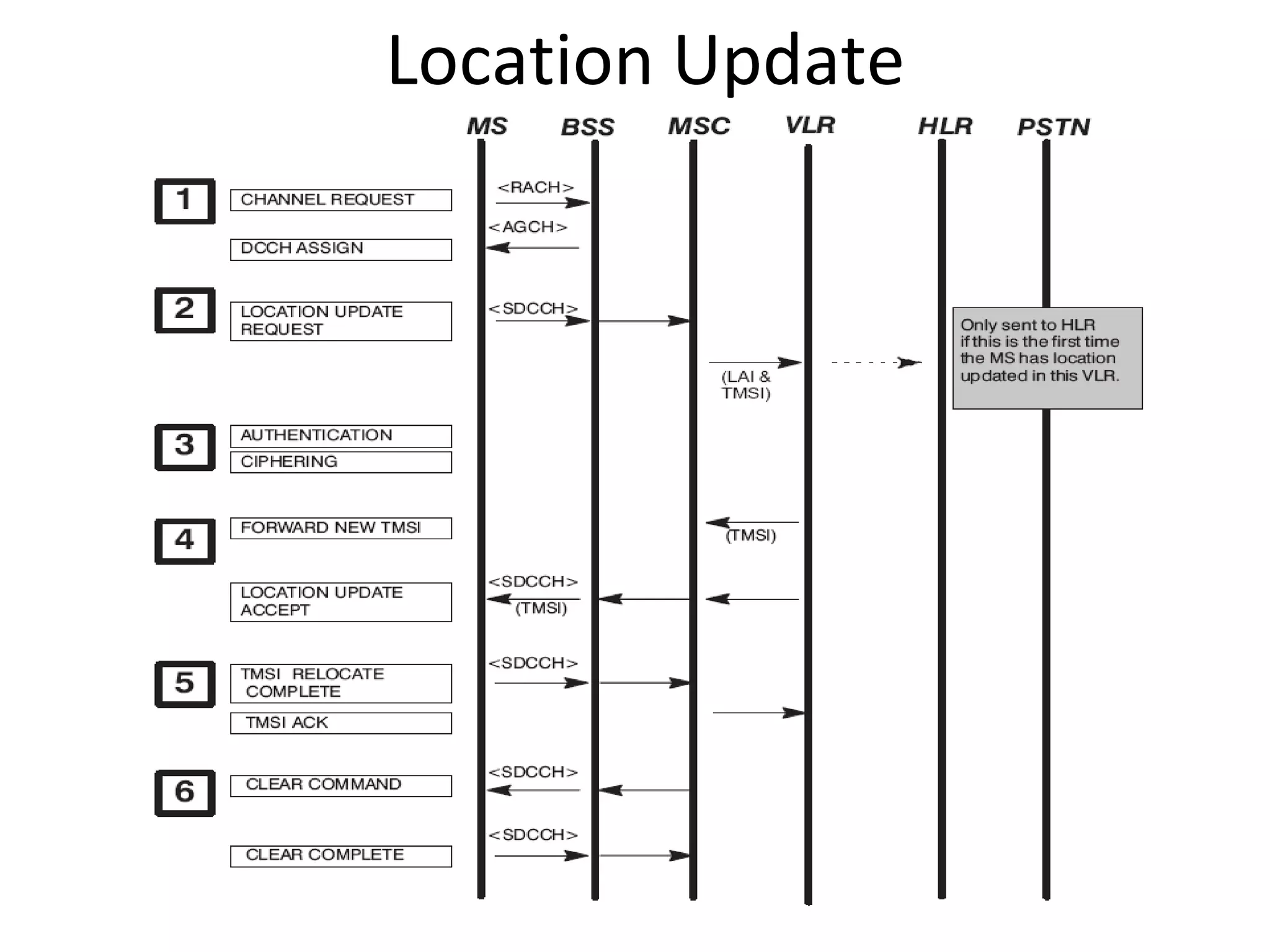

26. Location Update

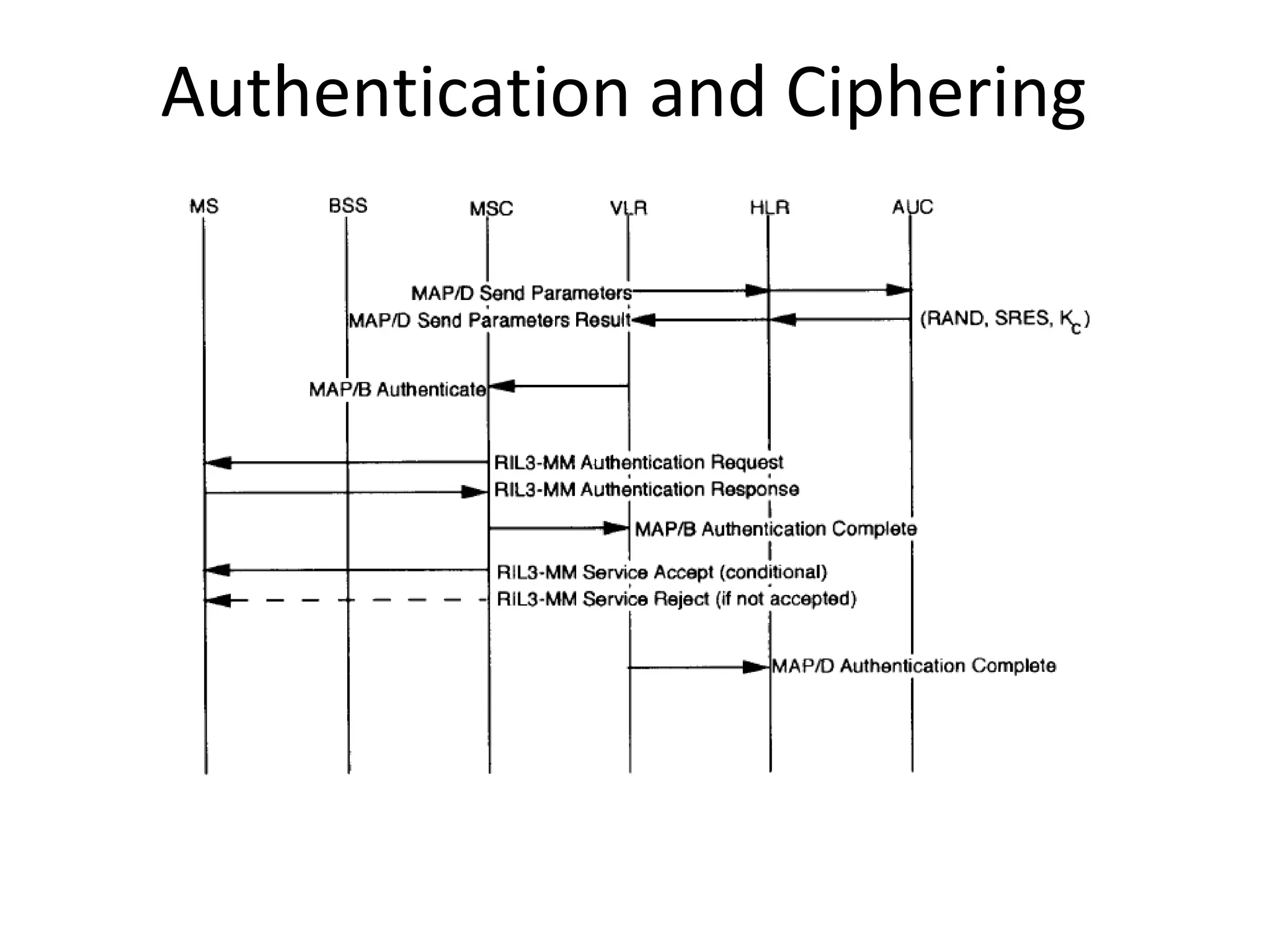

27. Authentication and Ciphering

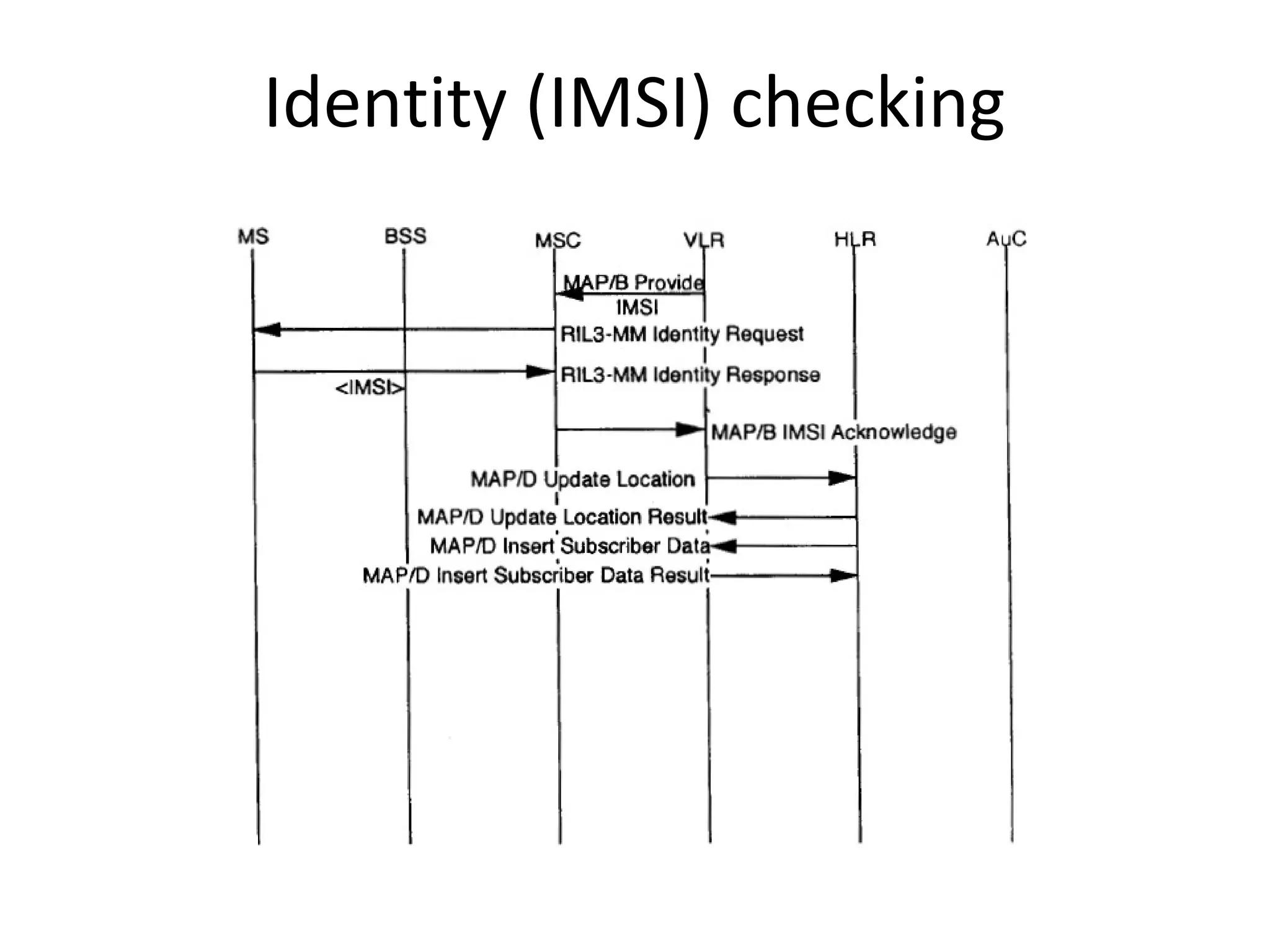

28. Identity (IMSI) checking

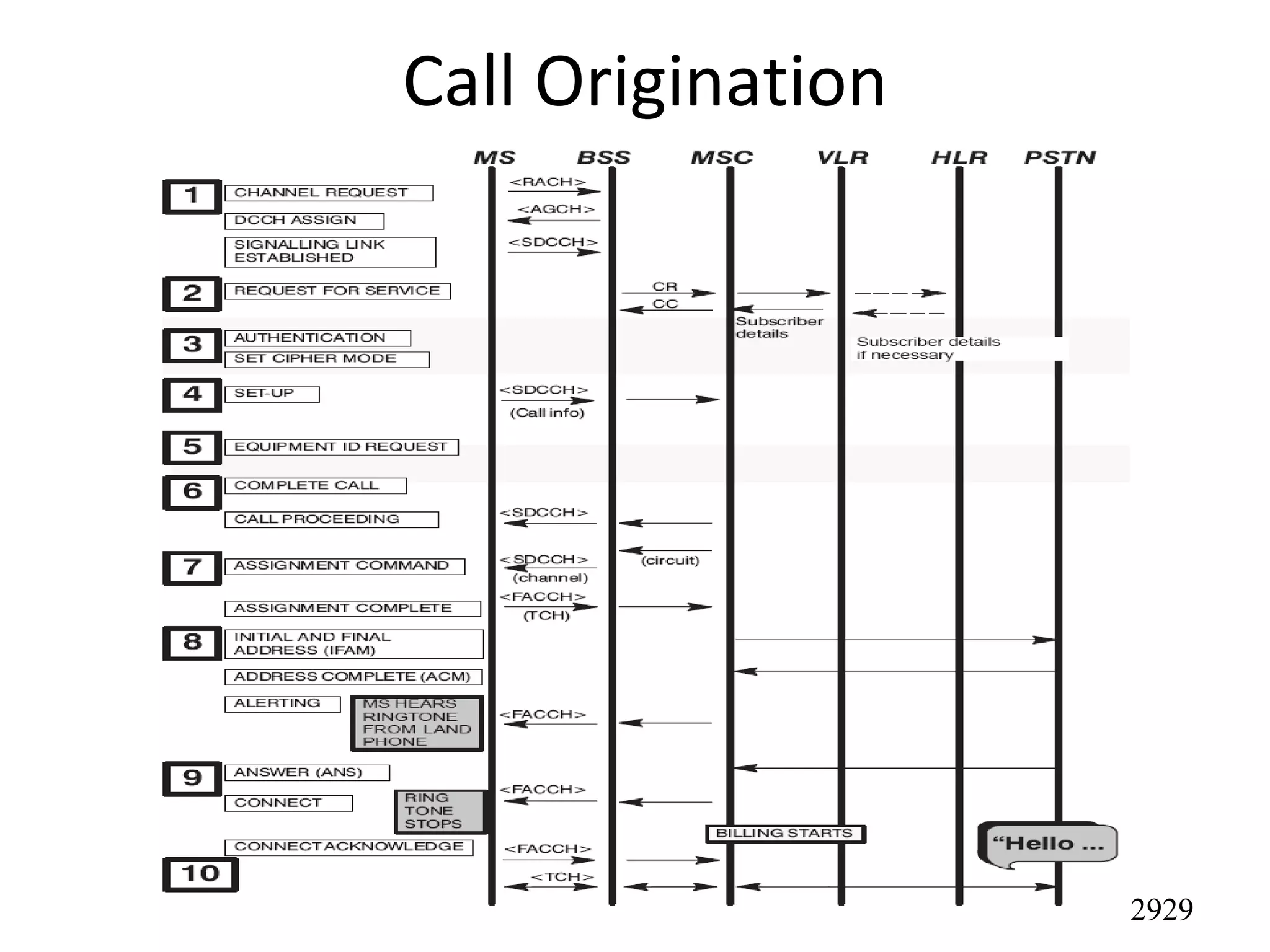

29. Call Origination
2929

30. Call Clearing

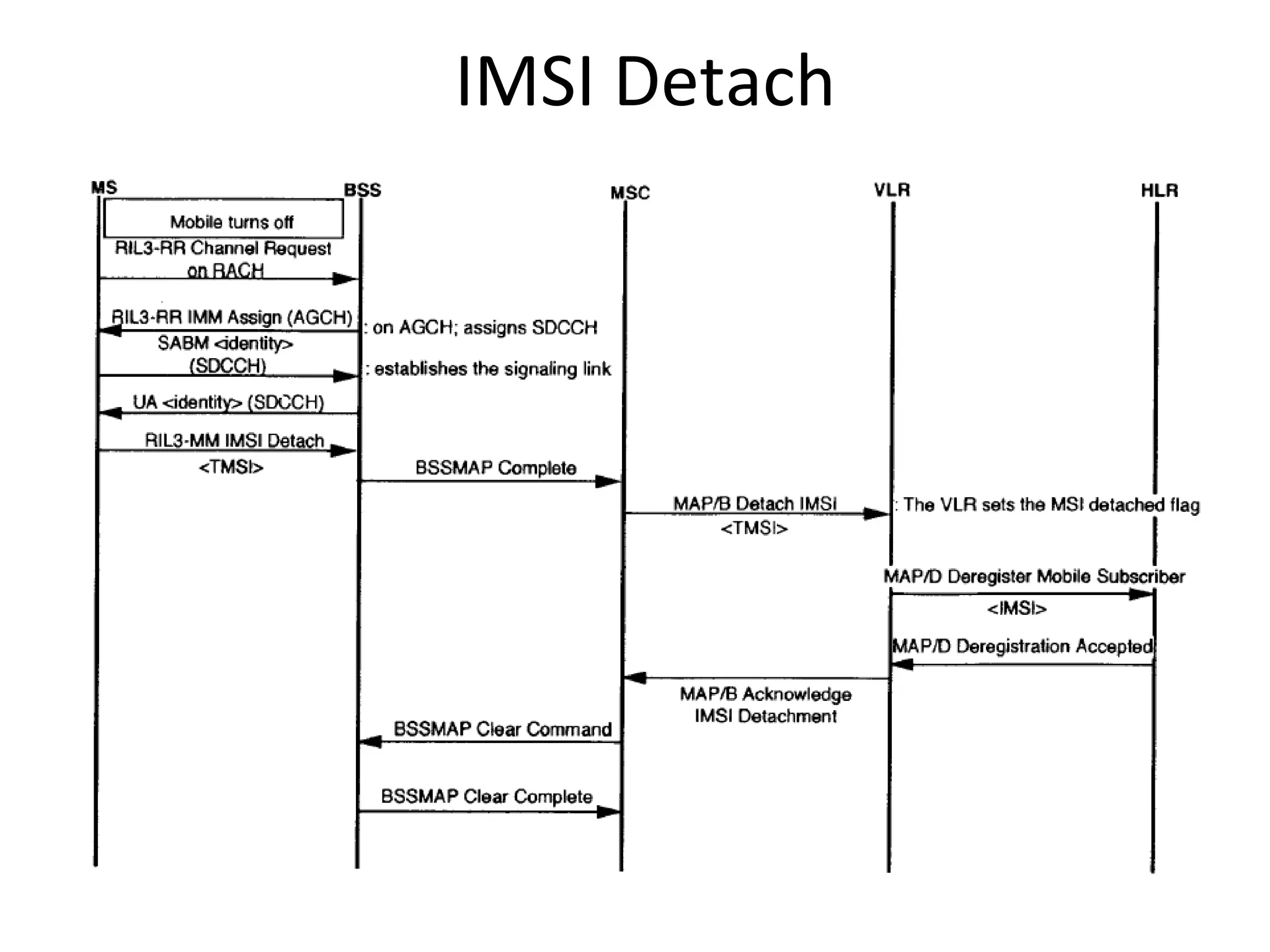

31. IMSI Detach

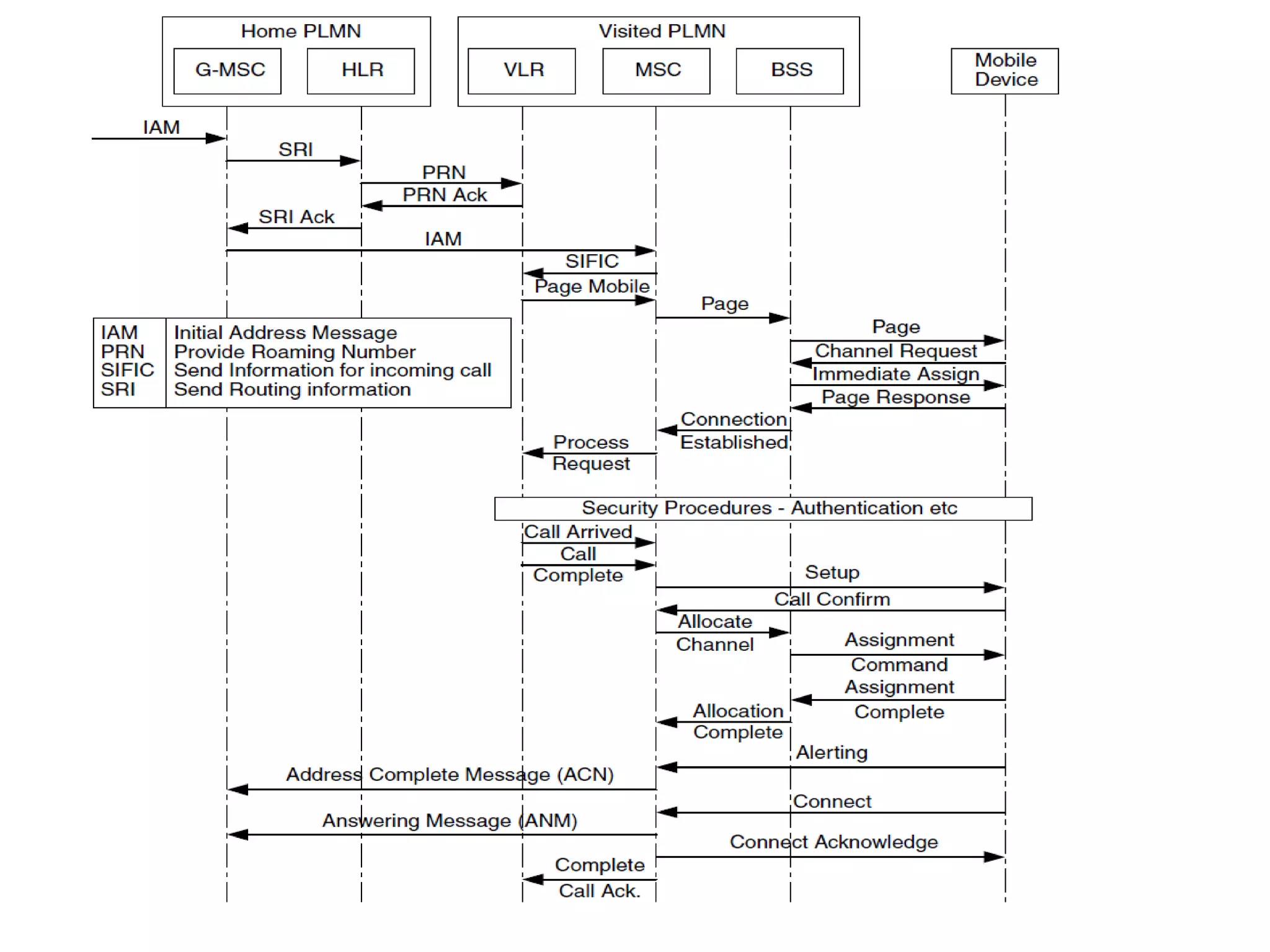

32. MSRN Usage
Our HLR Knows where our Customer is,
Only our GMSC can inquire our HLR

34. GPRS

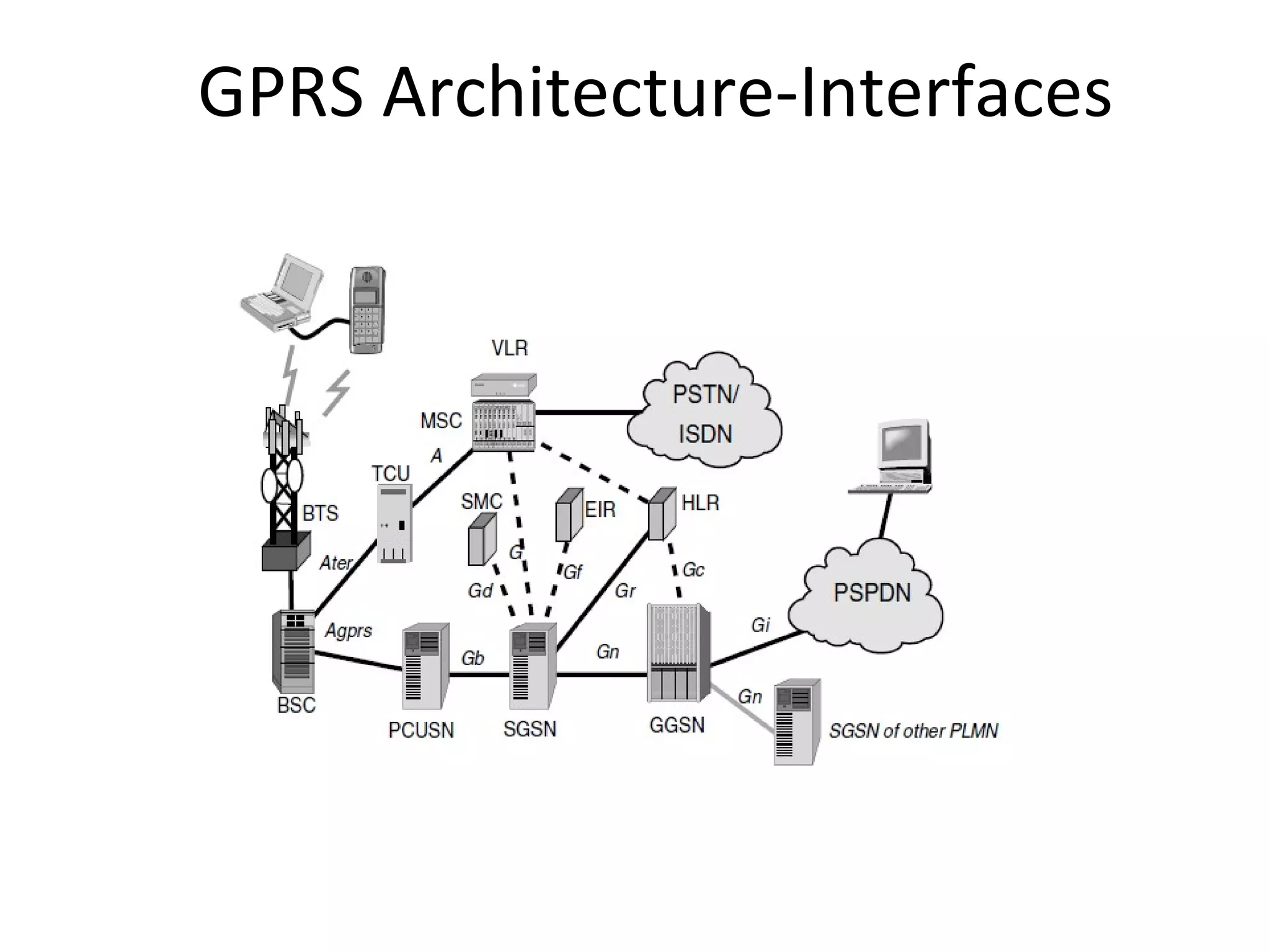

35. GPRS Architecture-Interfaces

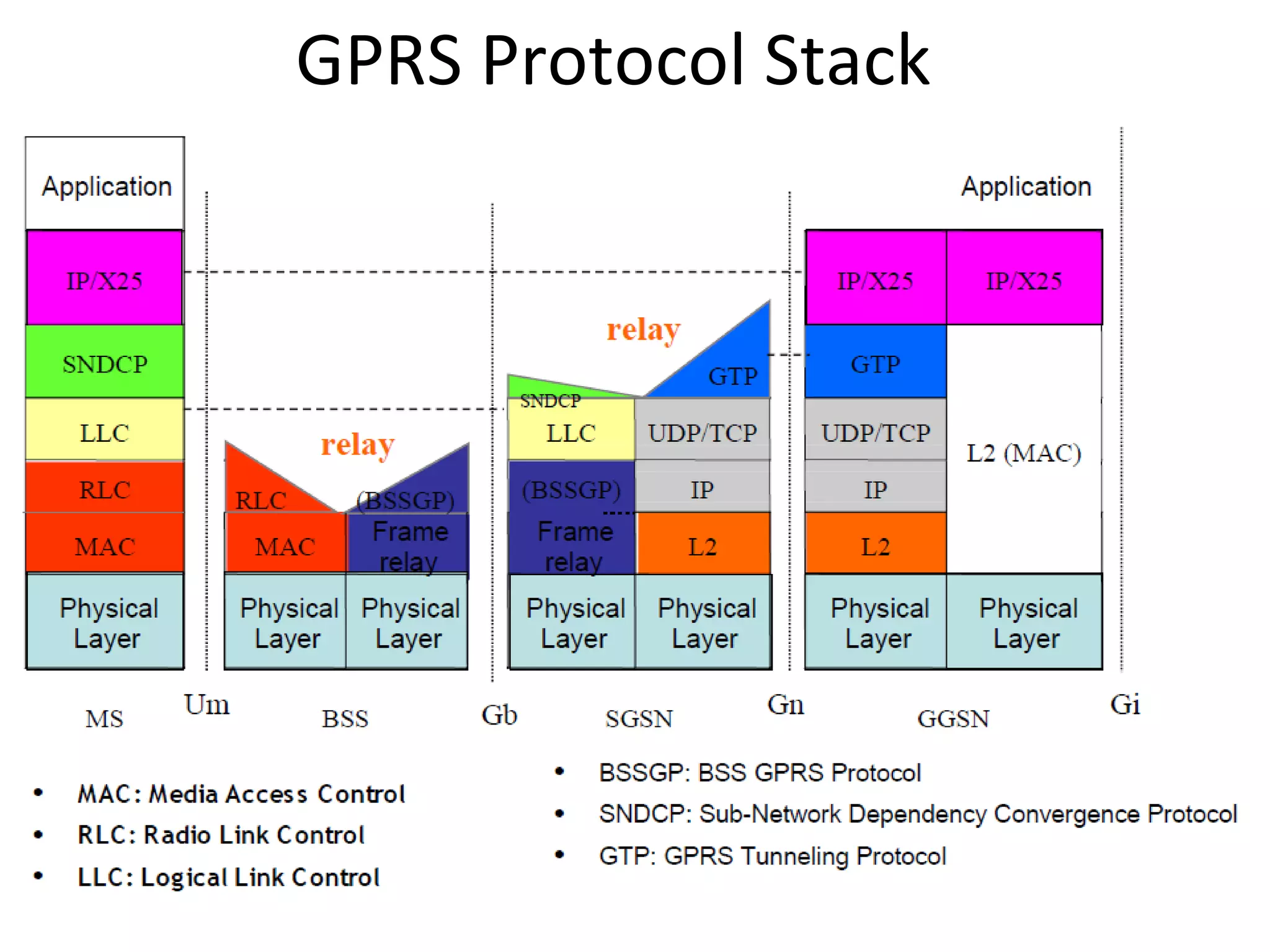

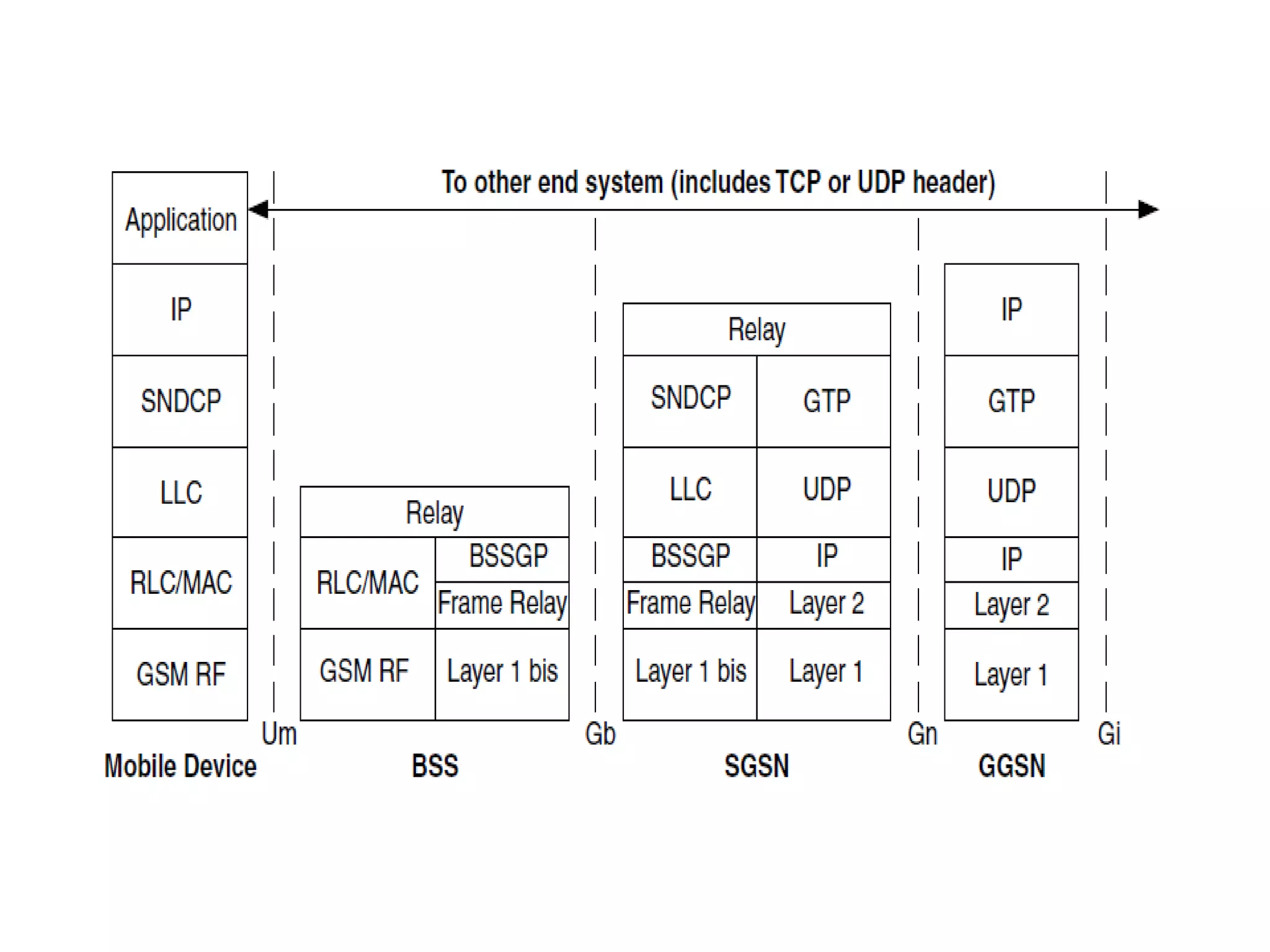

36. GPRS Protocol Stack

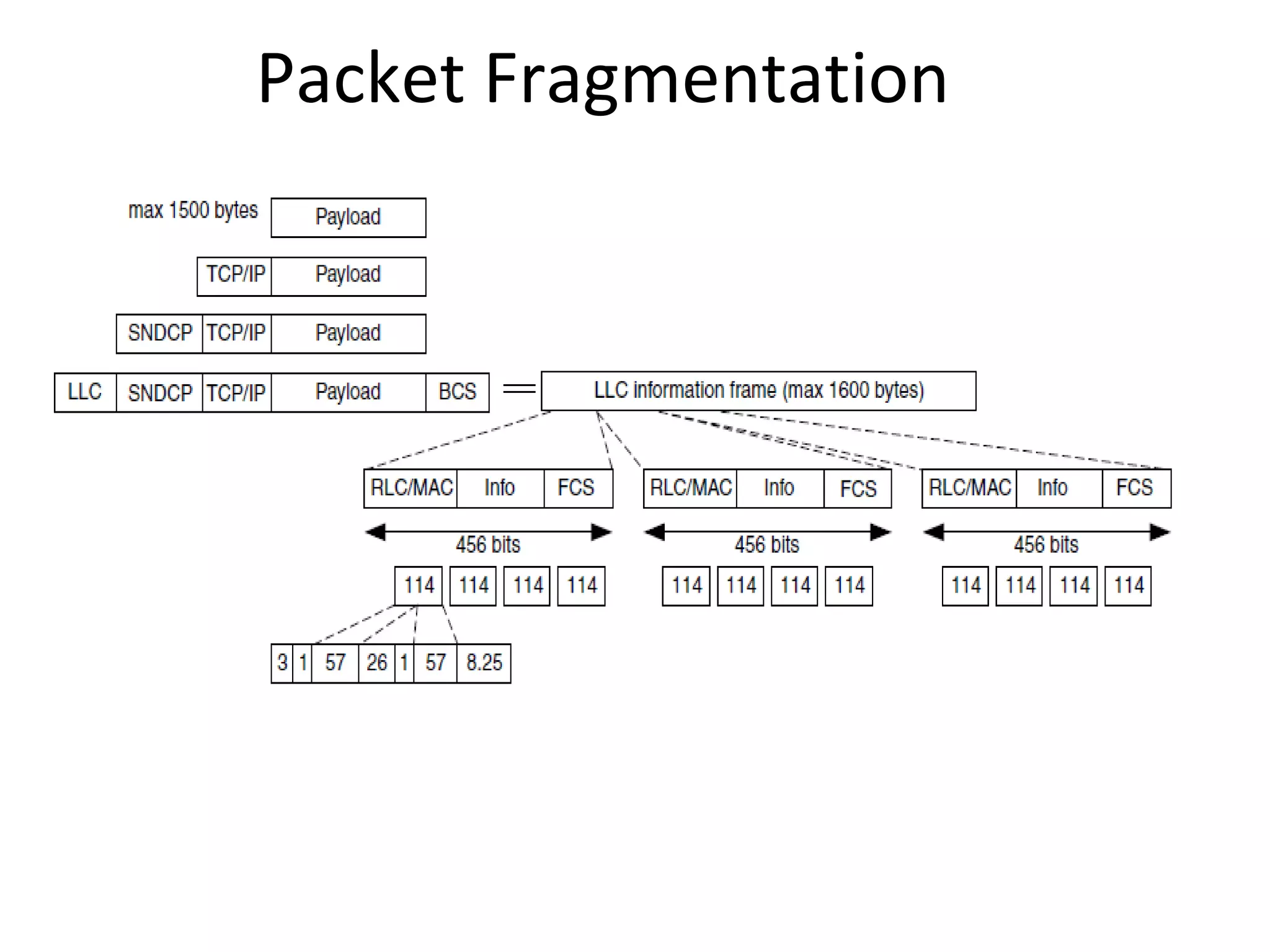

38. Packet Fragmentation

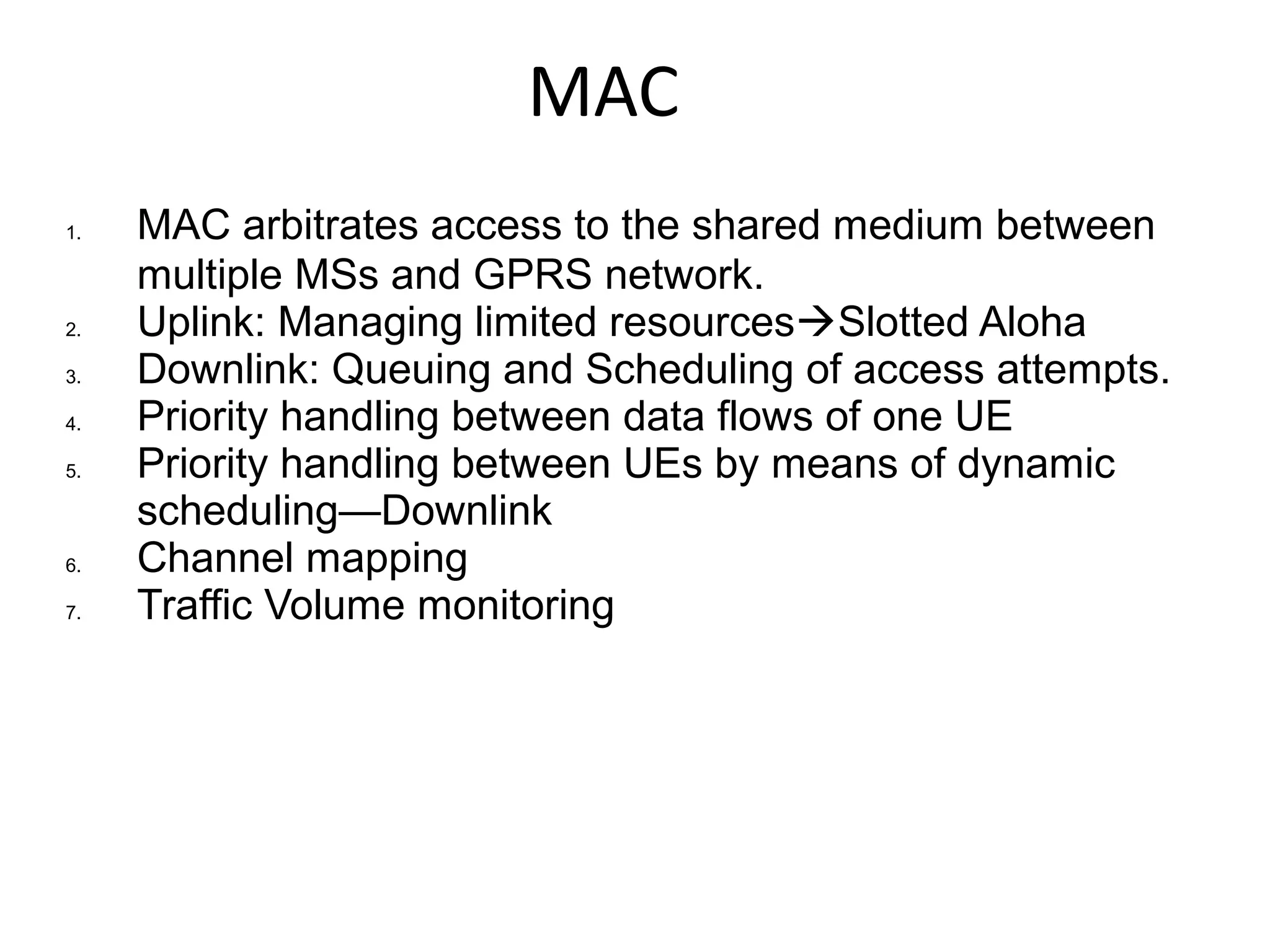

39. MAC
1. MAC arbitrates access to the shared medium between
multiple MSs and GPRS network.
2. Uplink: Managing limited resourcesSlotted Aloha
3. Downlink: Queuing and Scheduling of access attempts.
4. Priority handling between data flows of one UE
5. Priority handling between UEs by means of dynamic
scheduling—Downlink
6. Channel mapping
7. Traffic Volume monitoring

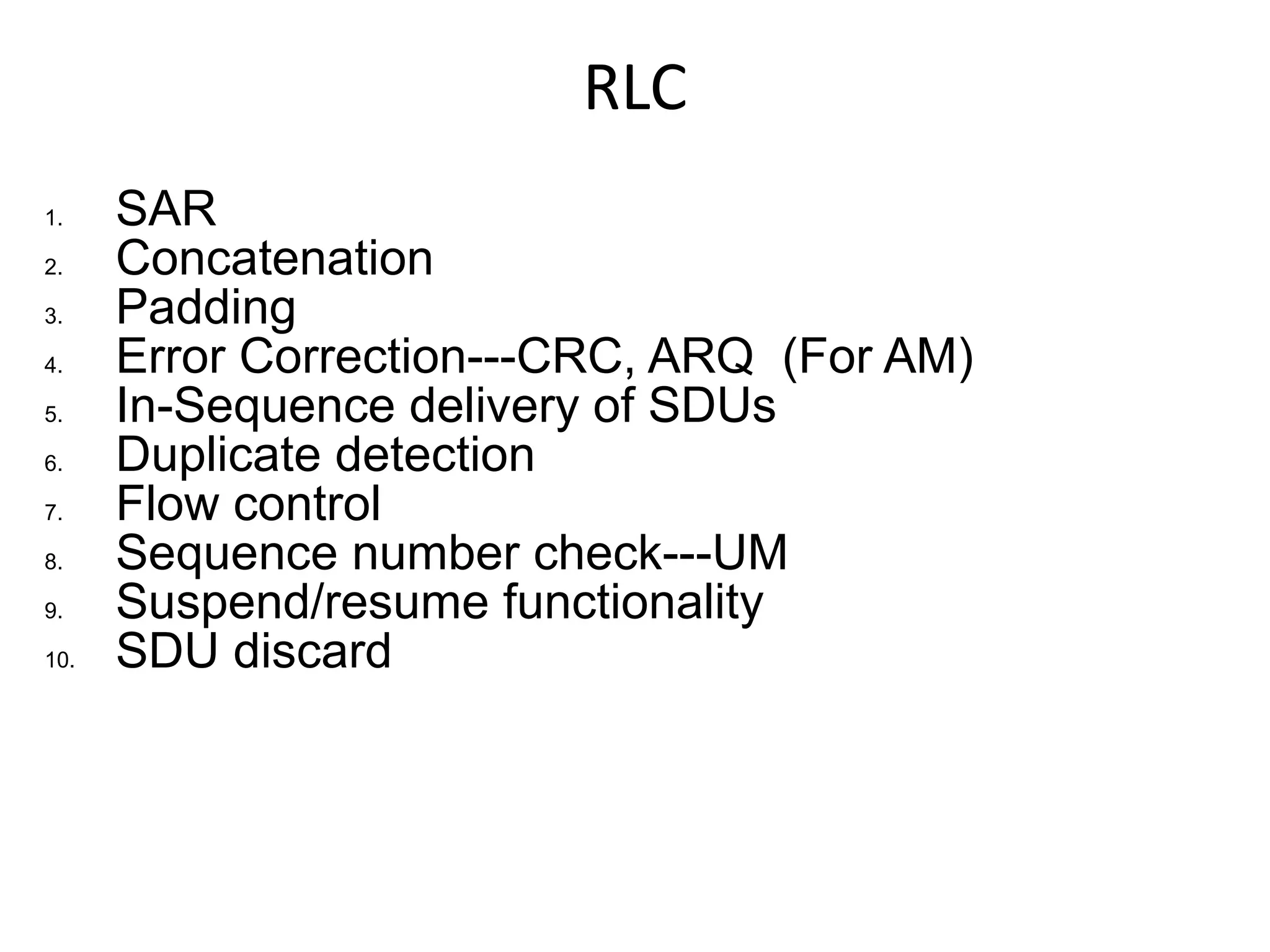

40. RLC
1. SAR
2. Concatenation
3. Padding
4. Error Correction---CRC, ARQ (For AM)
5. In-Sequence delivery of SDUs
6. Duplicate detection
7. Flow control
8. Sequence number check---UM
9. Suspend/resume functionality
10. SDU discard

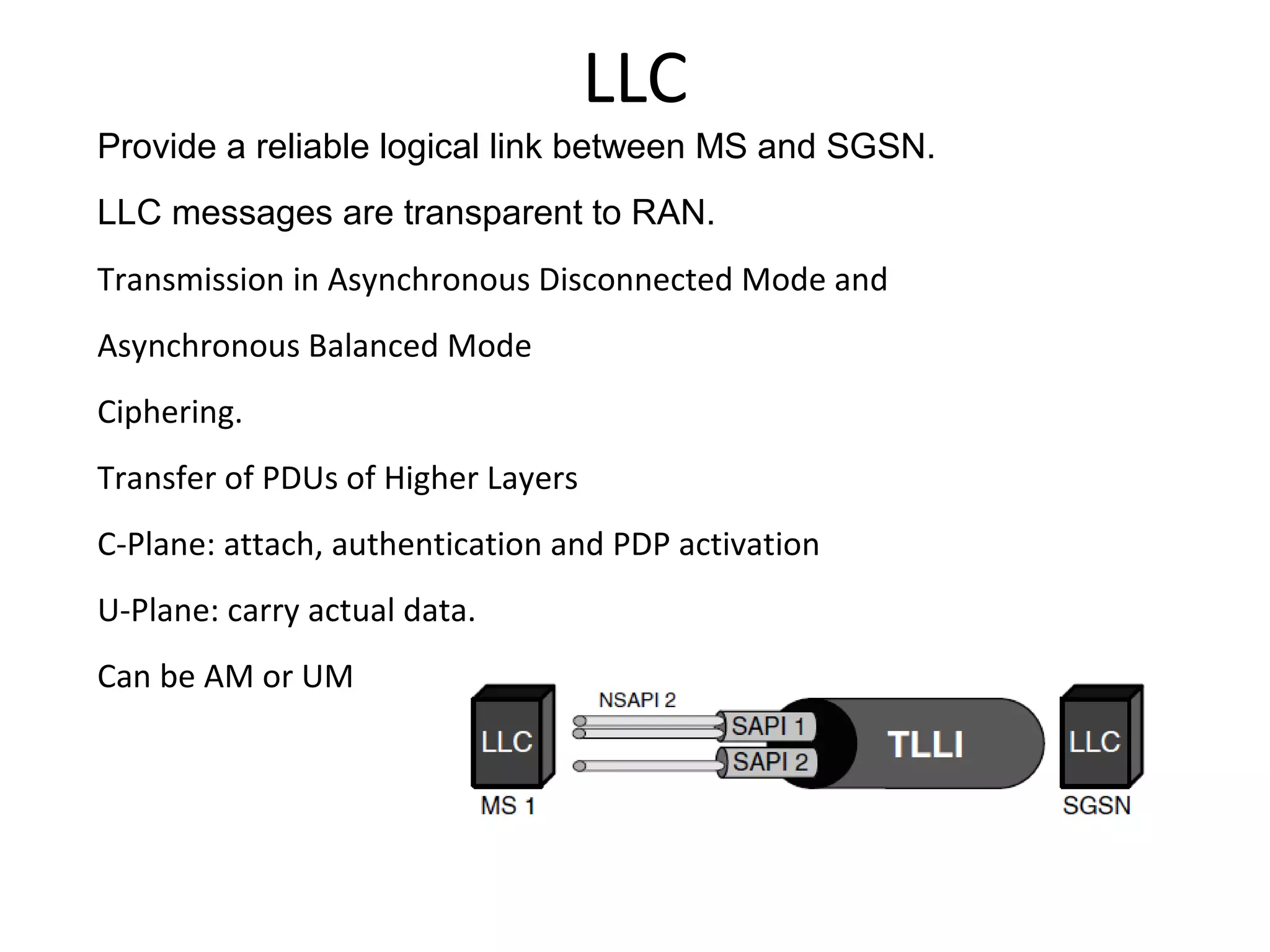

41. LLC
Provide a reliable logical link between MS and SGSN.
LLC messages are transparent to RAN.
Transmission in Asynchronous Disconnected Mode and
Asynchronous Balanced Mode
Ciphering.
Transfer of PDUs of Higher Layers
C-Plane: attach, authentication and PDP activation
U-Plane: carry actual data.
Can be AM or UM

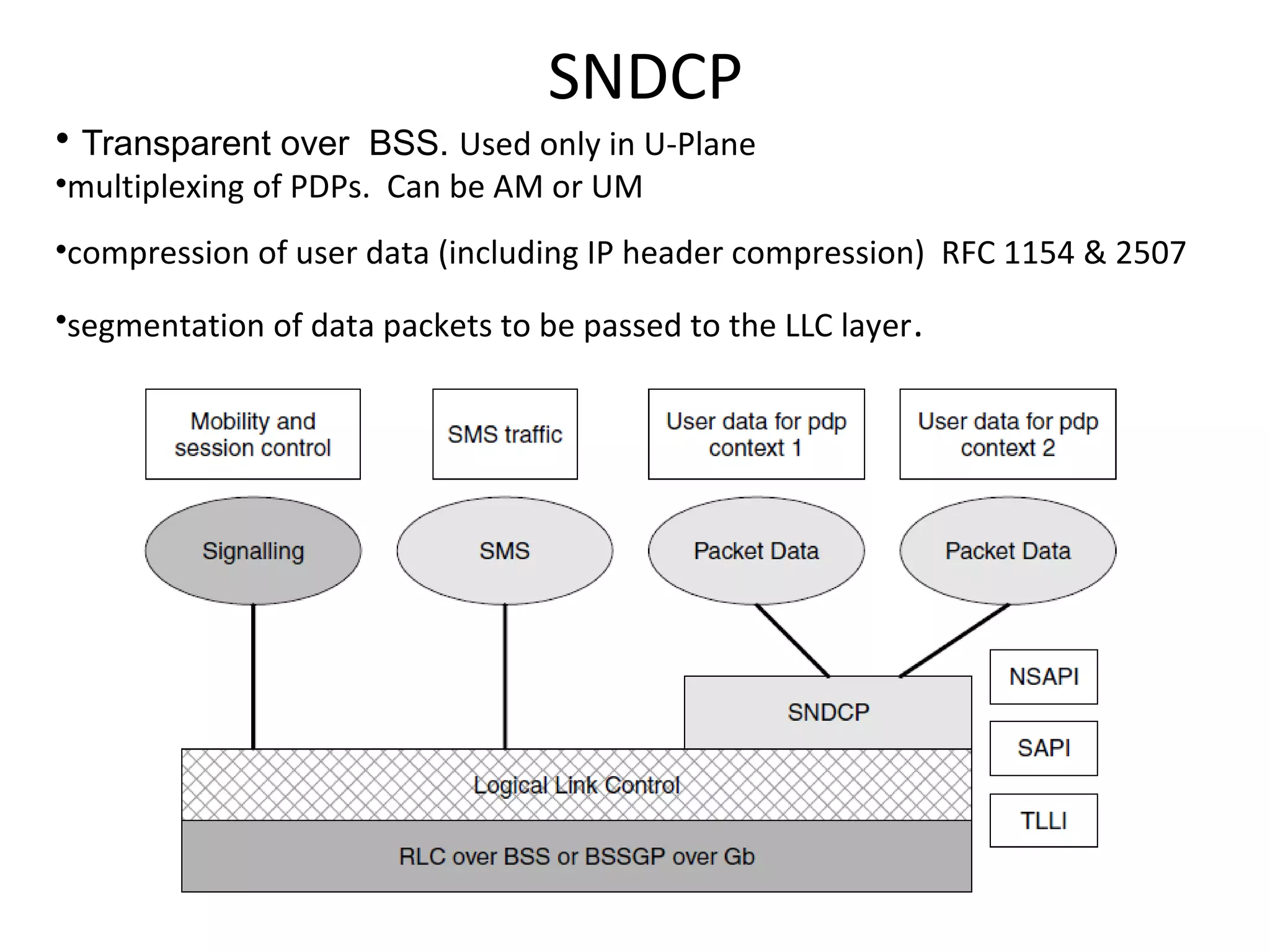

42. SNDCP
• Transparent over BSS. Used only in U-Plane
•multiplexing of PDPs. Can be AM or UM
•compression of user data (including IP header compression) RFC 1154 & 2507
•segmentation of data packets to be passed to the LLC layer .

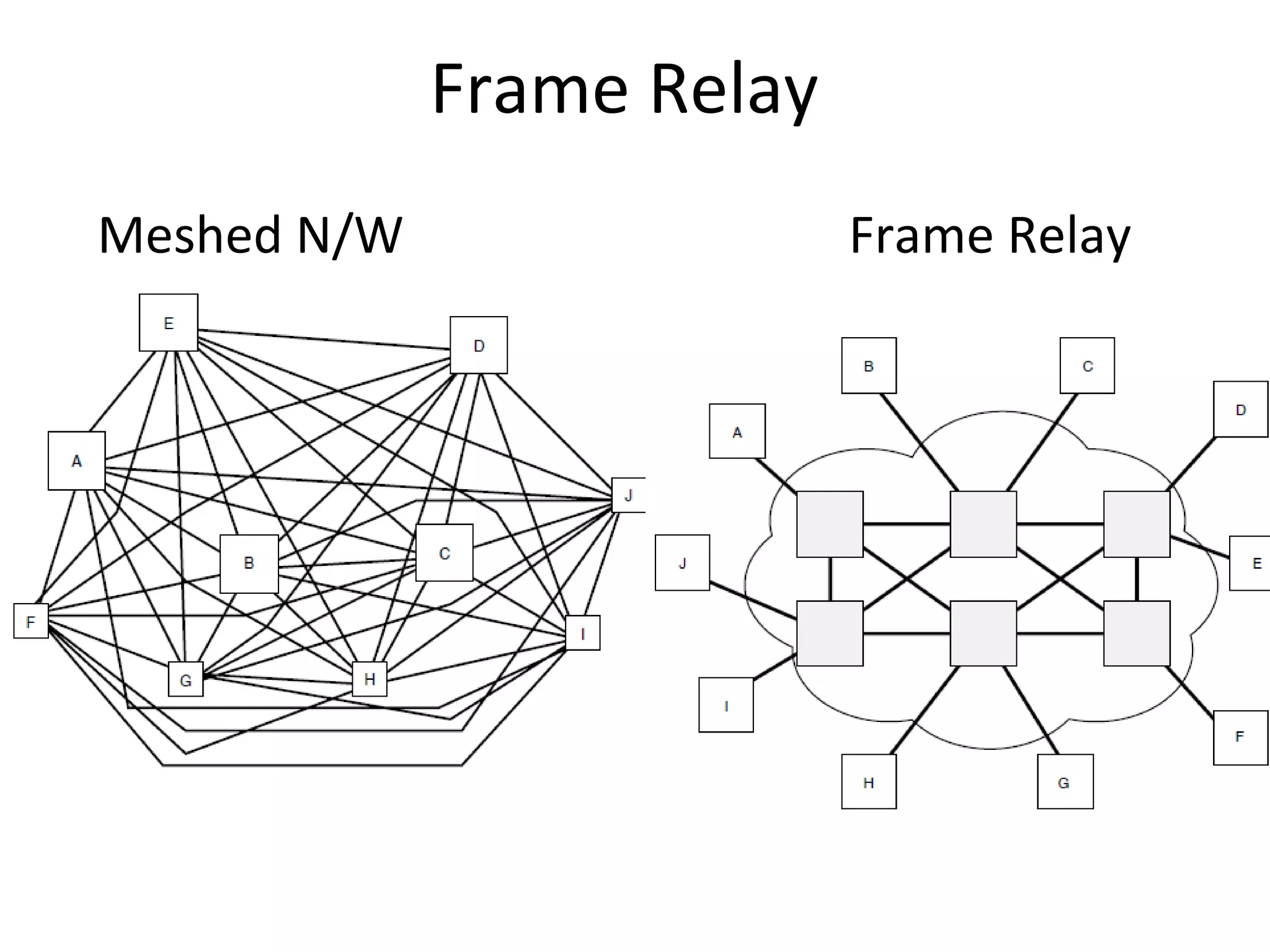

43. Frame Relay
Meshed N/W Frame Relay

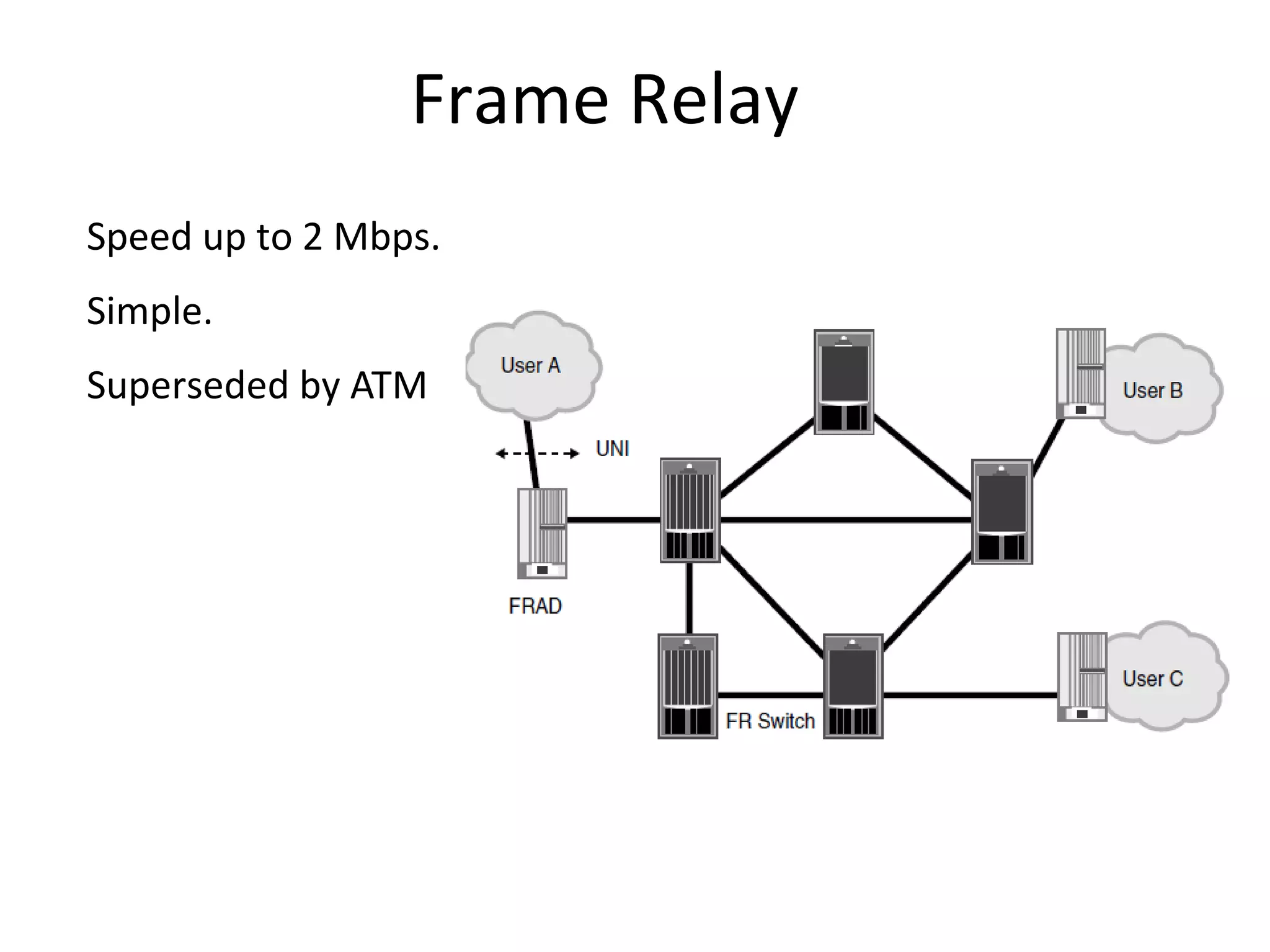

44. Frame Relay
Speed up to 2 Mbps.
Simple.
Superseded by ATM

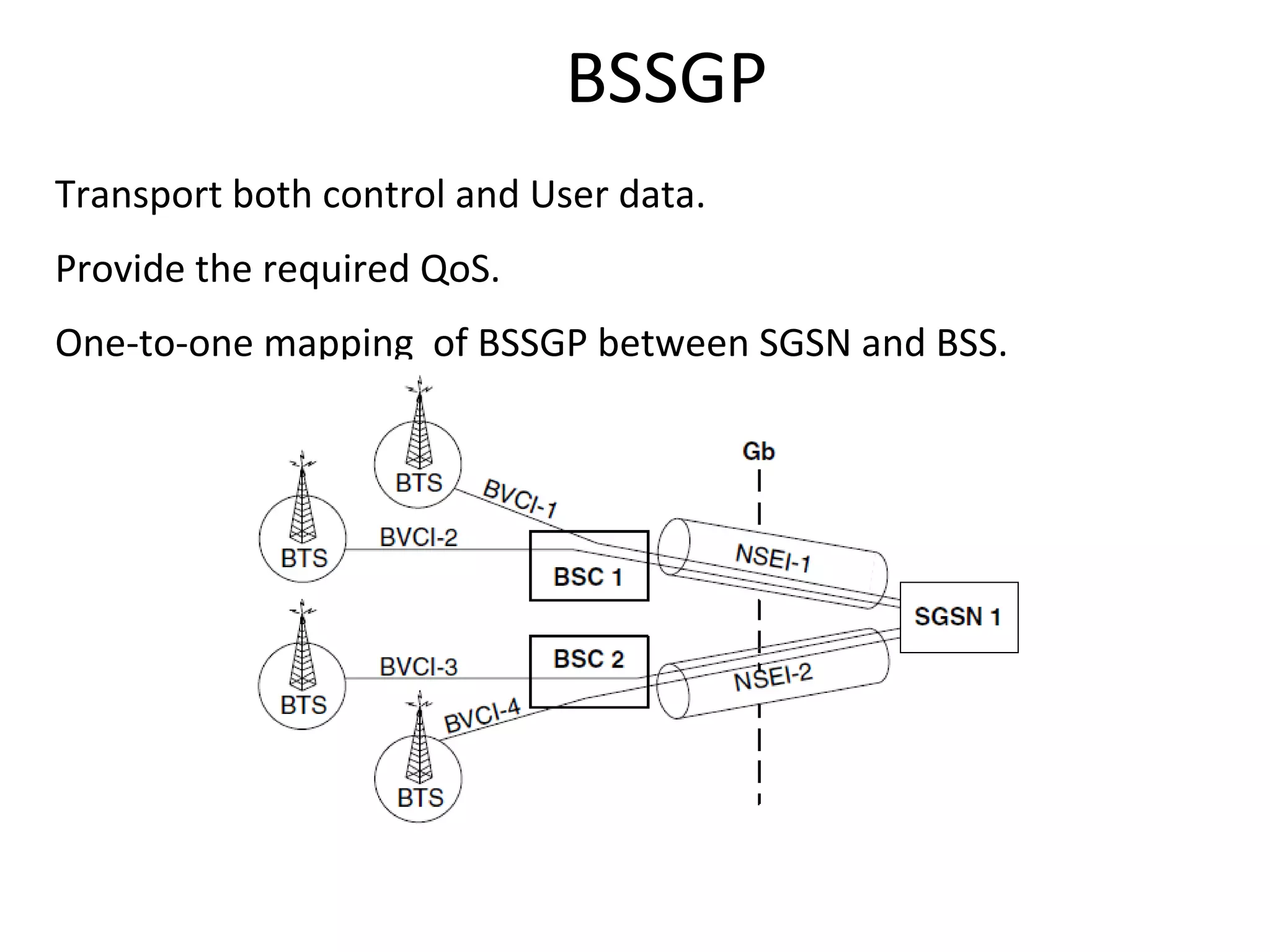

45. BSSGP
Transport both control and User data.
Provide the required QoS.
One-to-one mapping of BSSGP between SGSN and BSS.

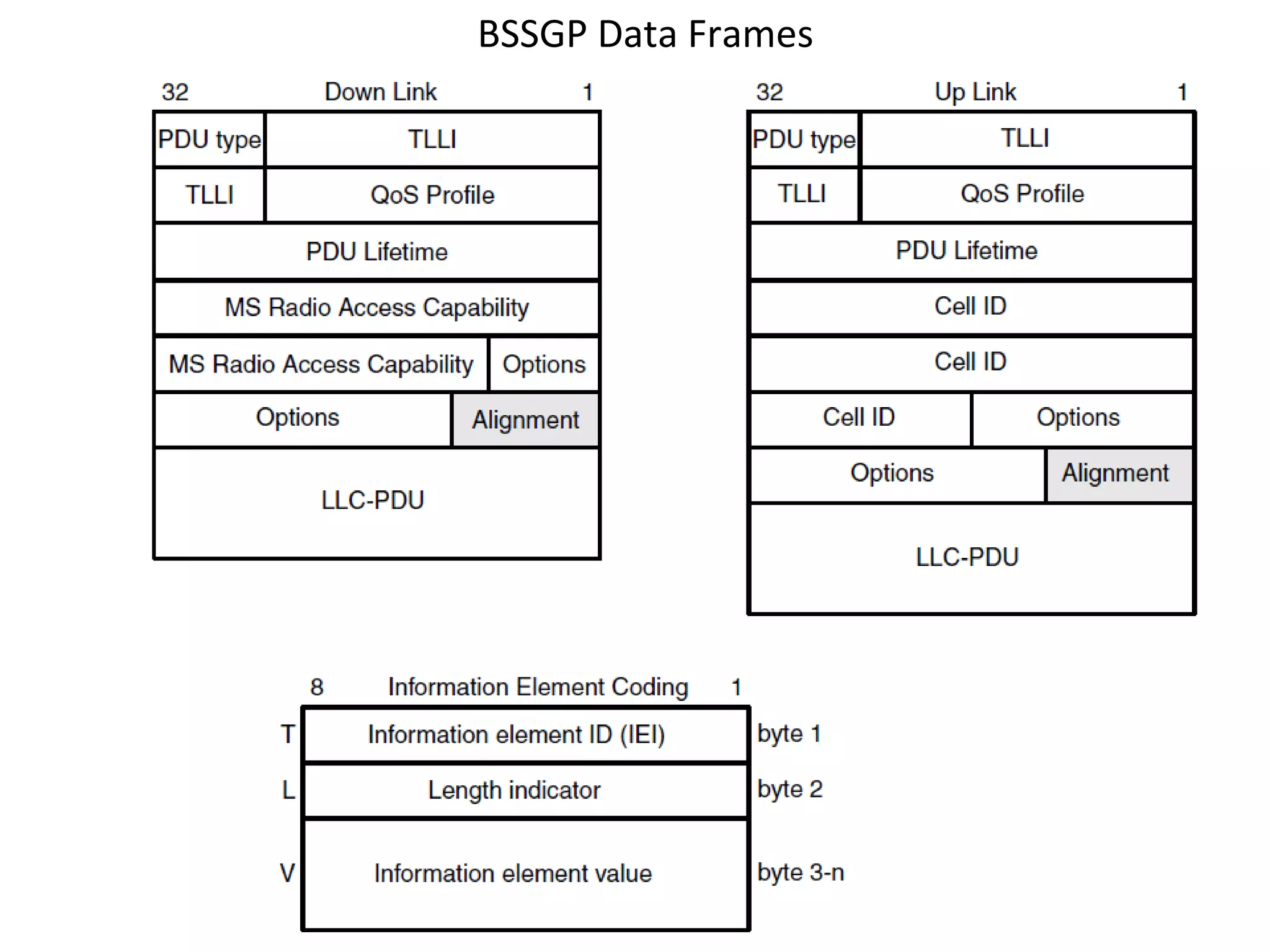

46. BSSGP Data Frames

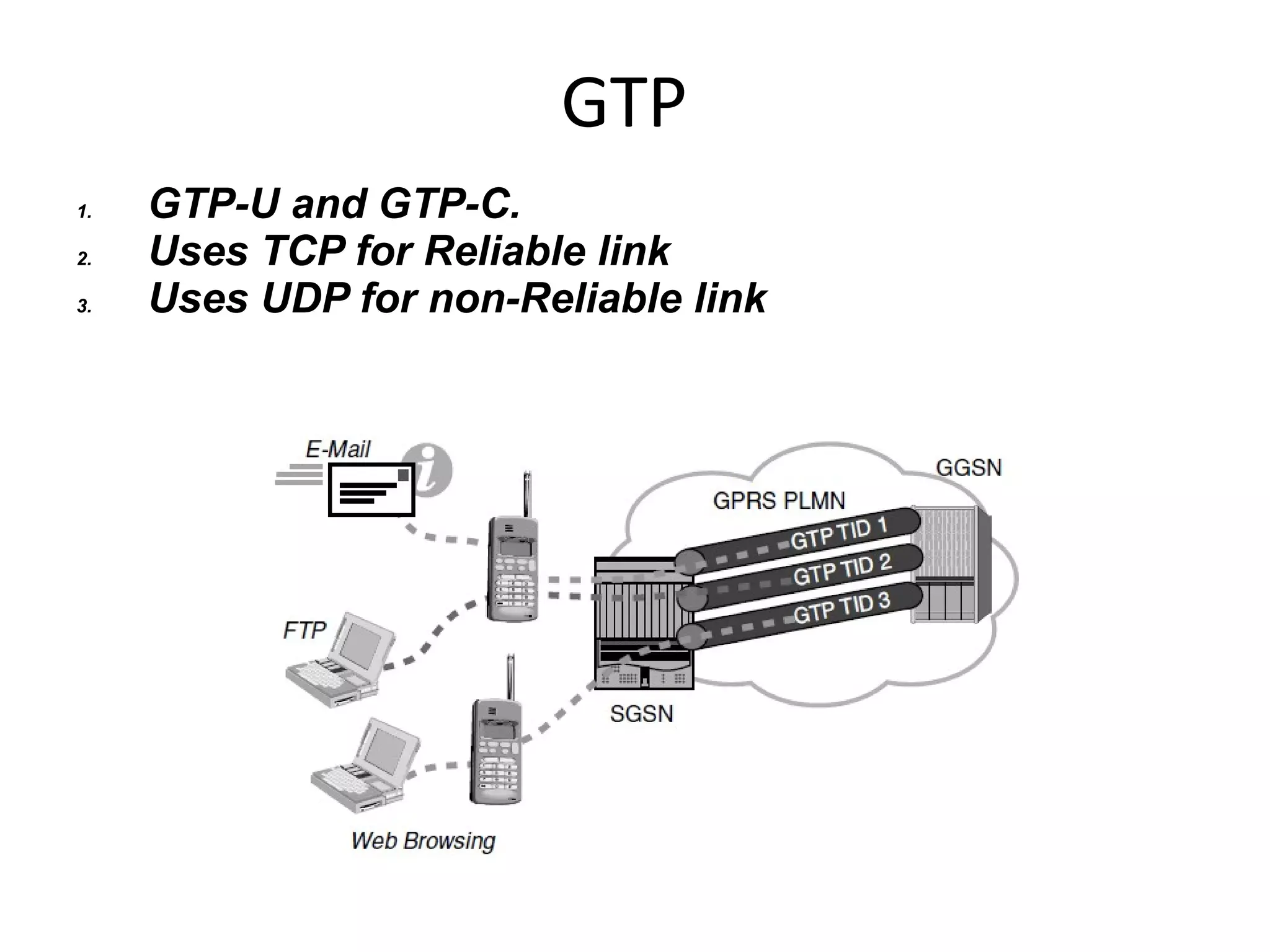

47. GTP
1. GTP-U and GTP-C.
2. Uses TCP for Reliable link
3. Uses UDP for non-Reliable link

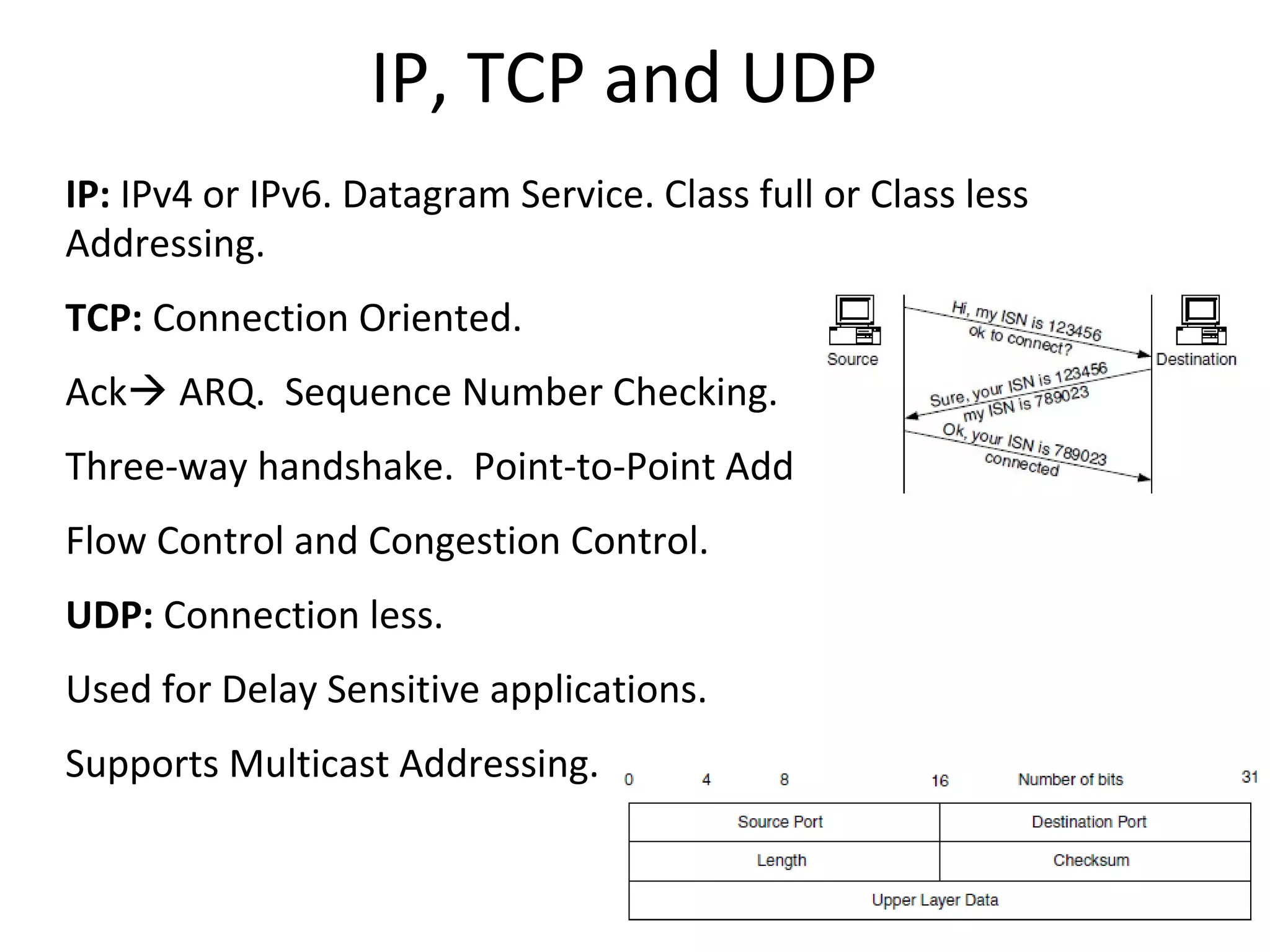

48. IP, TCP and UDP
IP: IPv4 or IPv6. Datagram Service. Class full or Class less
Addressing.
TCP: Connection Oriented.
Ack ARQ. Sequence Number Checking.
Three-way handshake. Point-to-Point Add
Flow Control and Congestion Control.
UDP: Connection less.
Used for Delay Sensitive applications.
Supports Multicast Addressing.

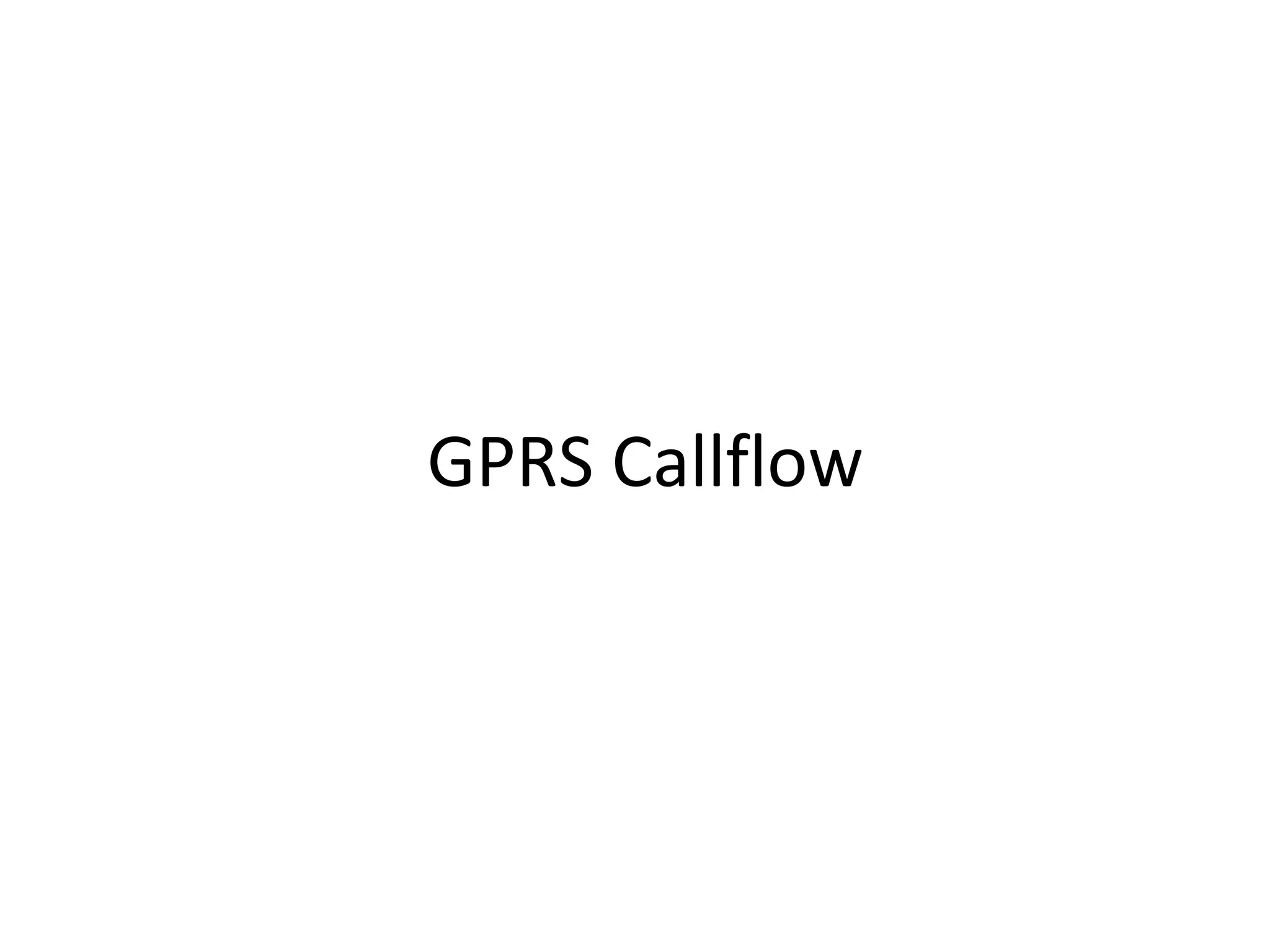

49. GPRS Callflow

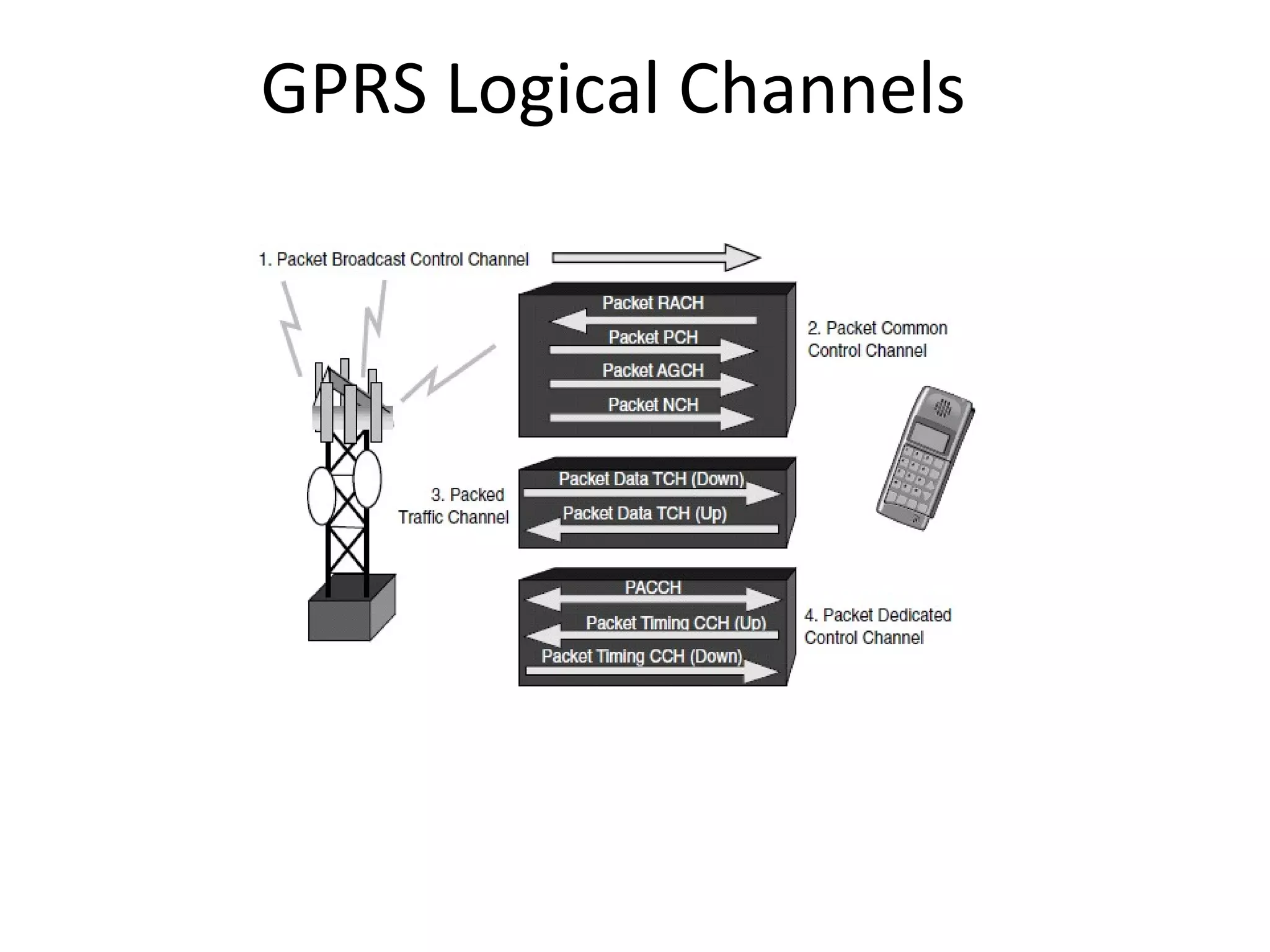

50. GPRS Logical Channels

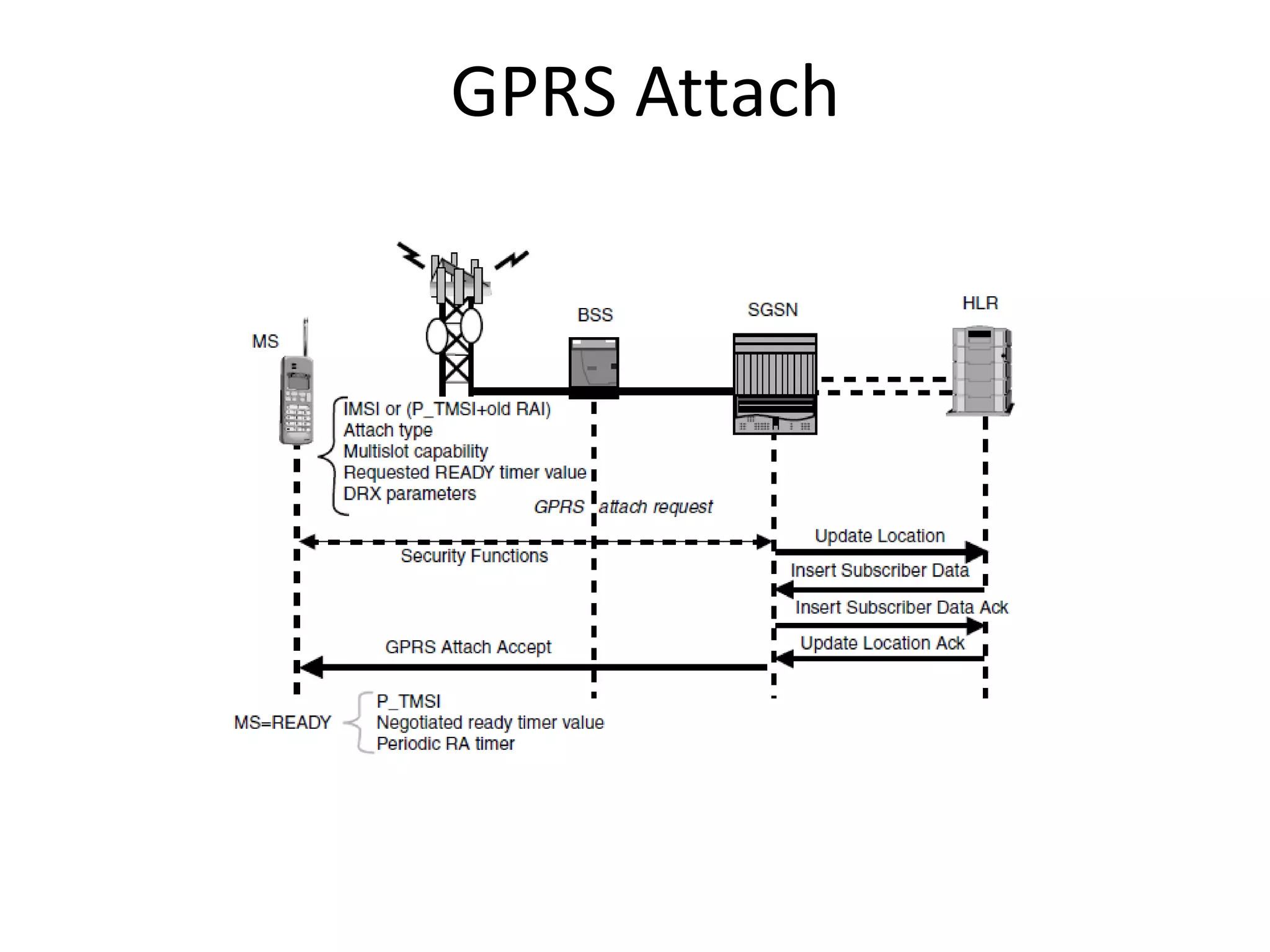

51. GPRS Attach

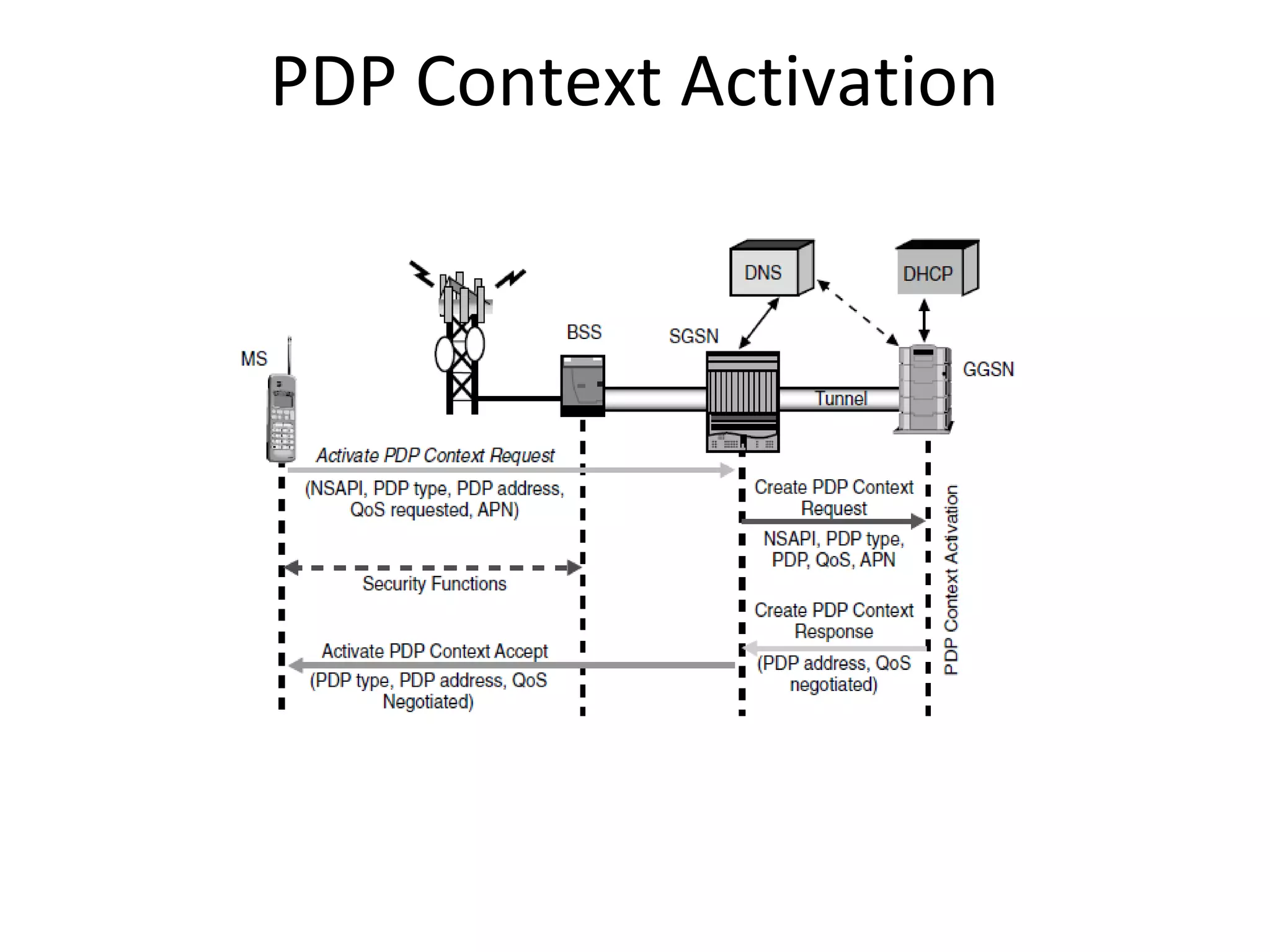

52. PDP Context Activation

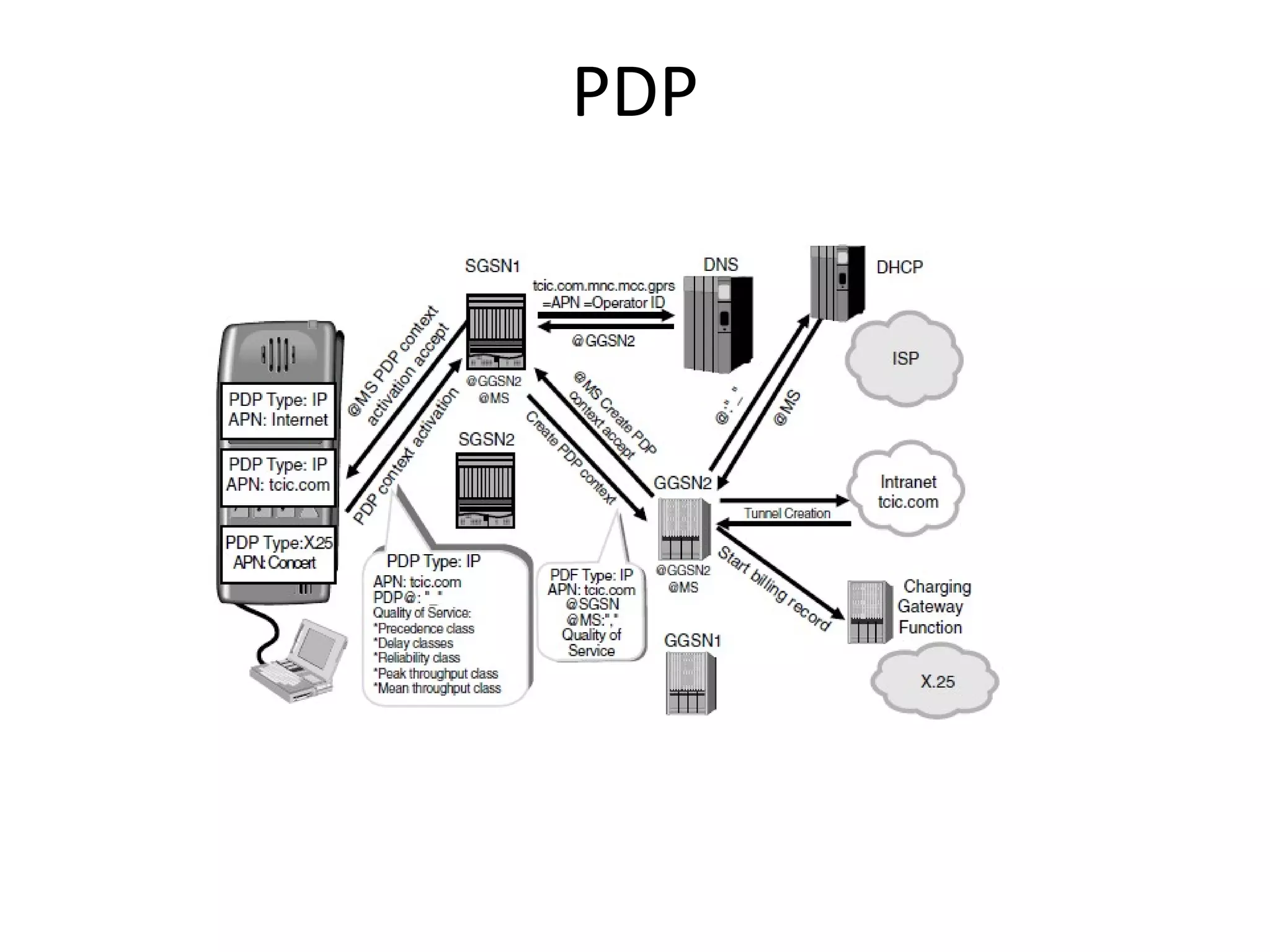

53. PDP

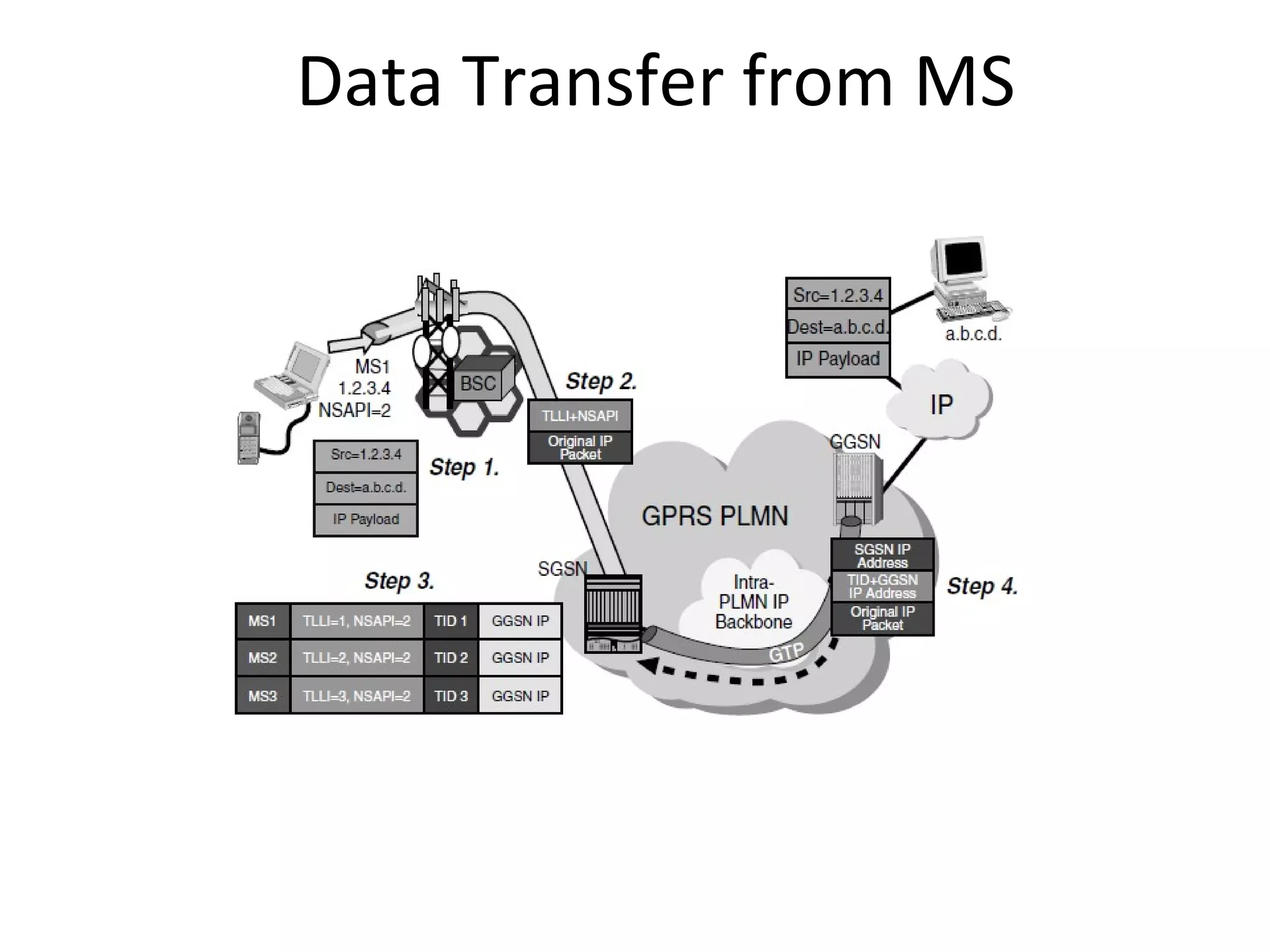

54. Data Transfer from MS

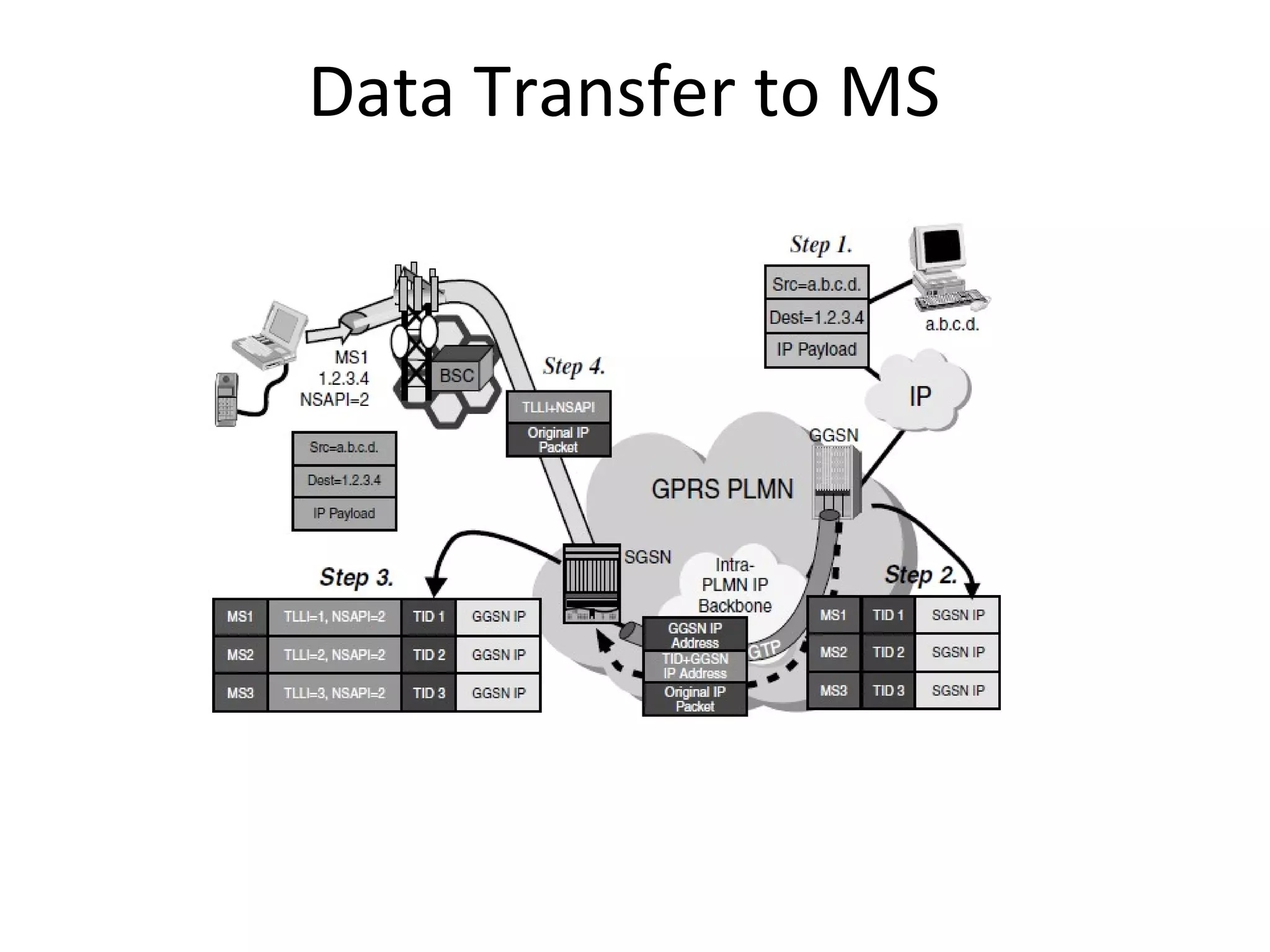

55. Data Transfer to MS

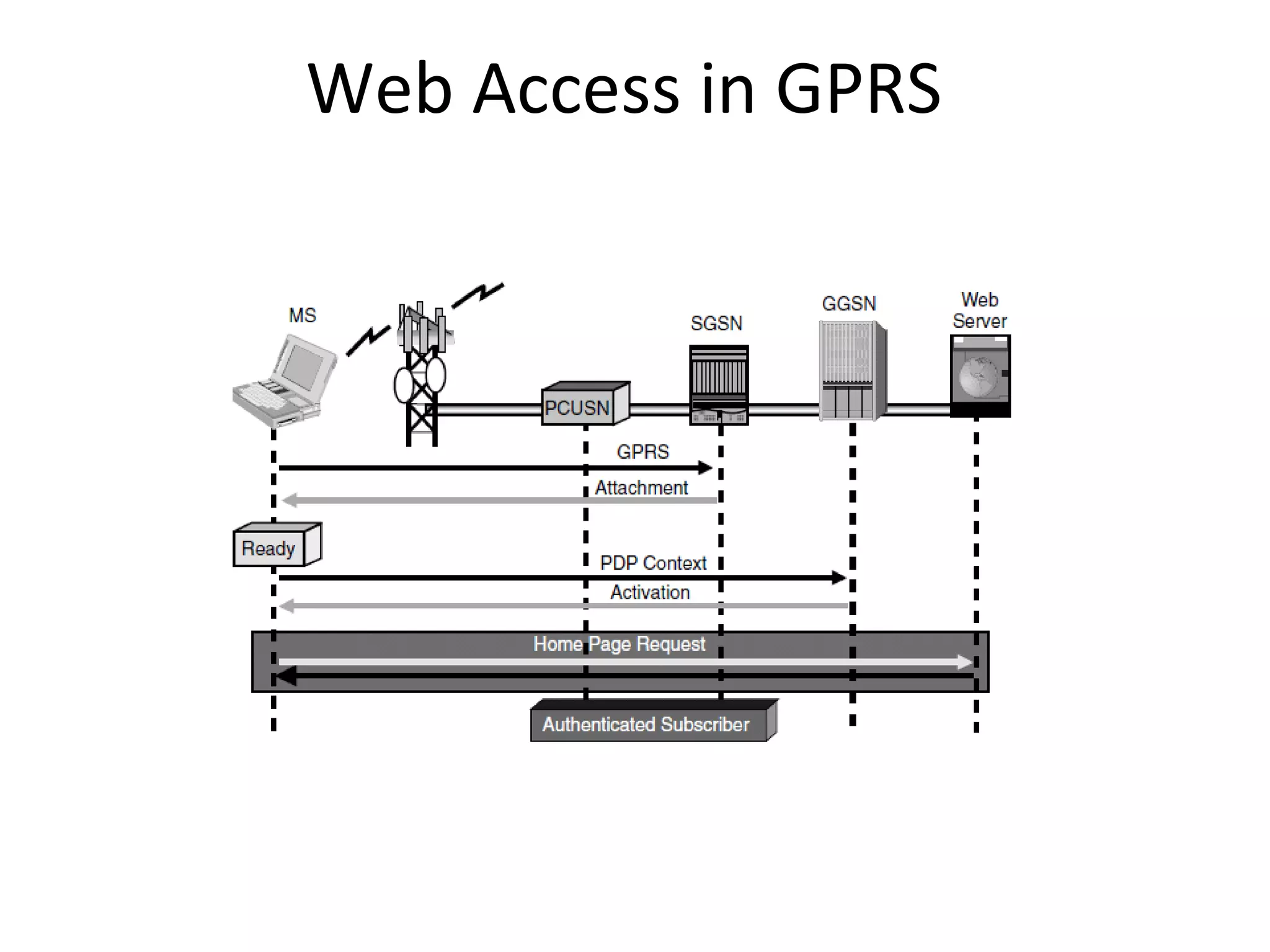

56. Web Access in GPRS

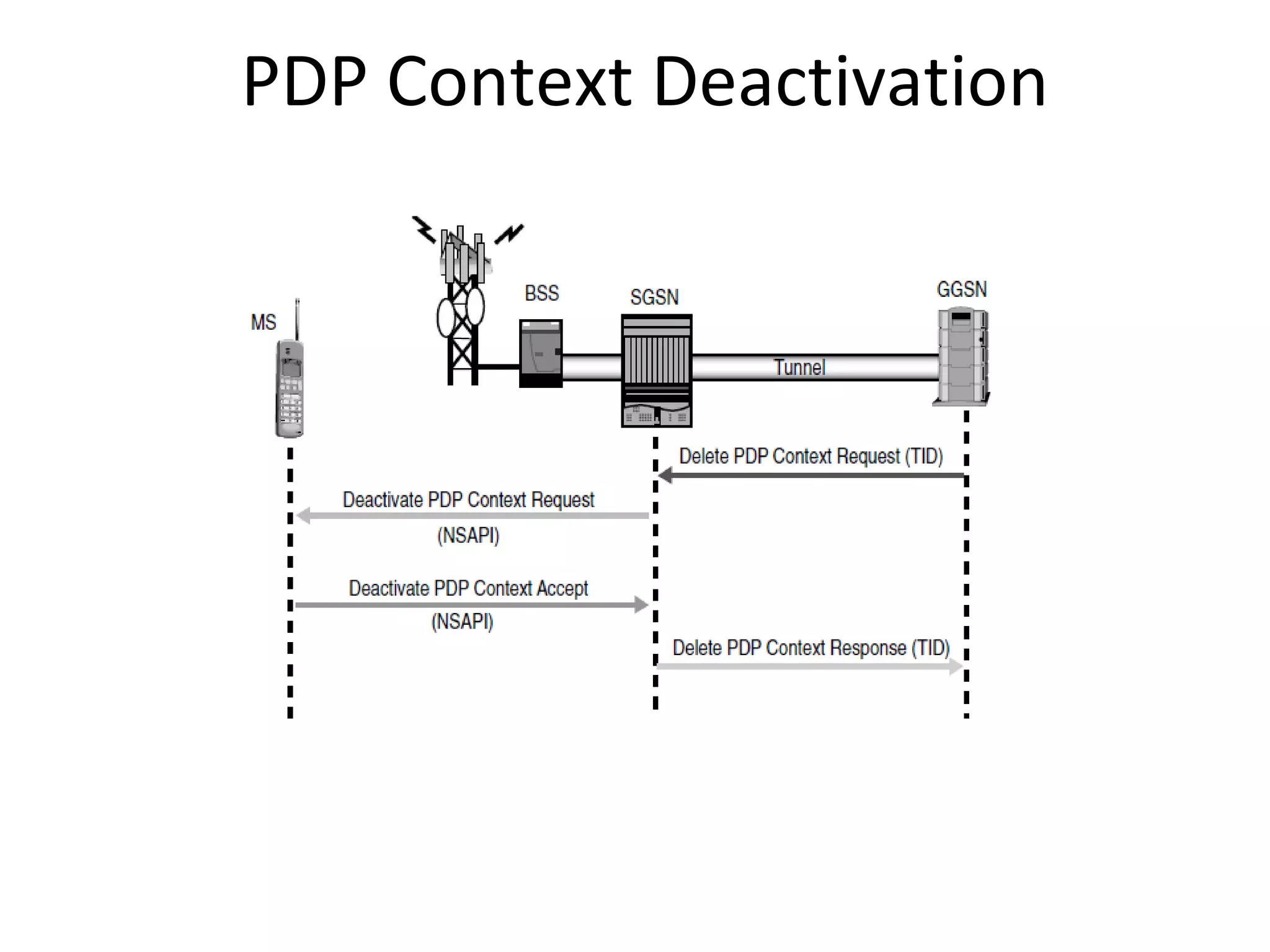

57. PDP Context Deactivation

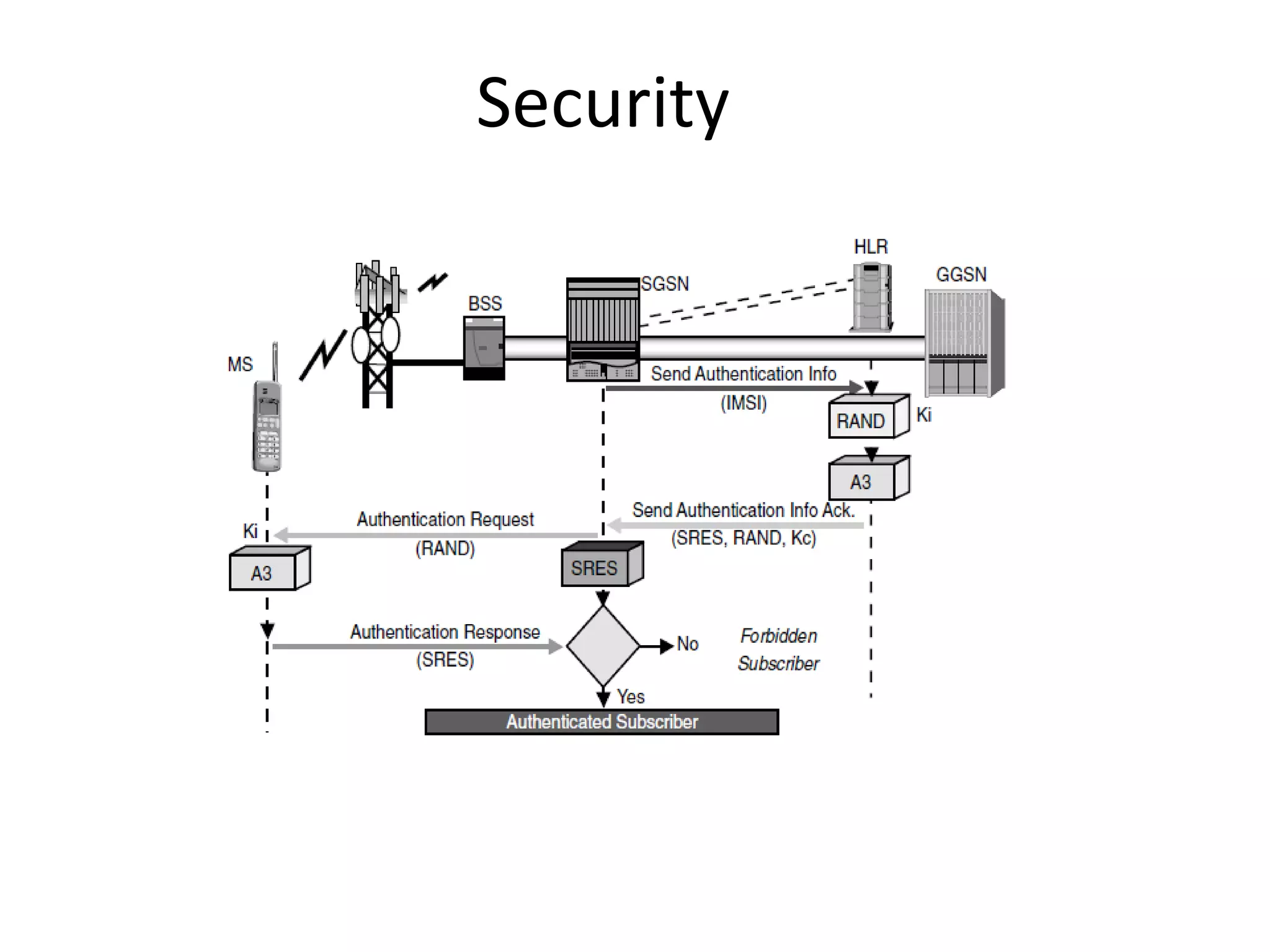

58. Security

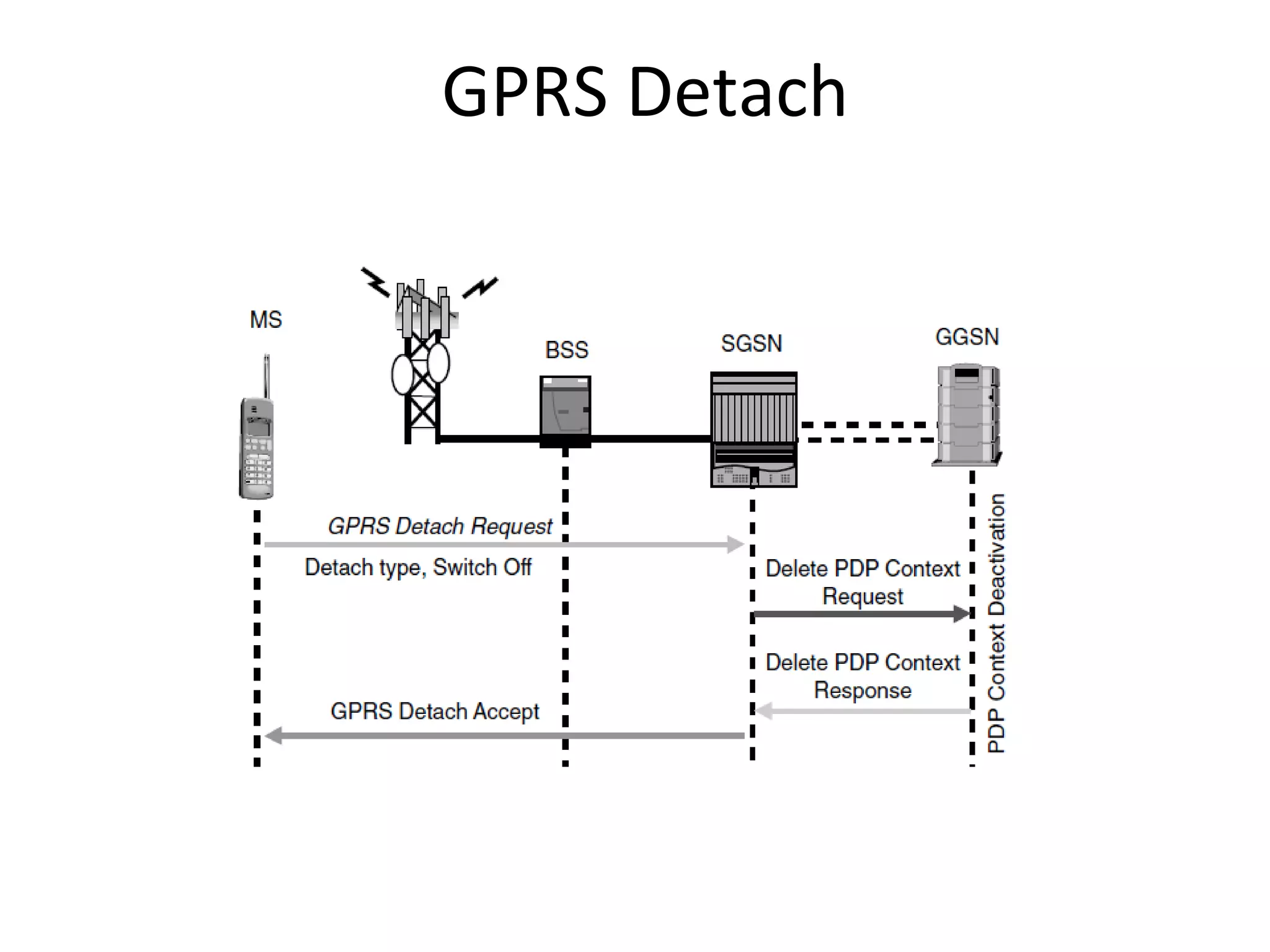

59. GPRS Detach

60. UMTS

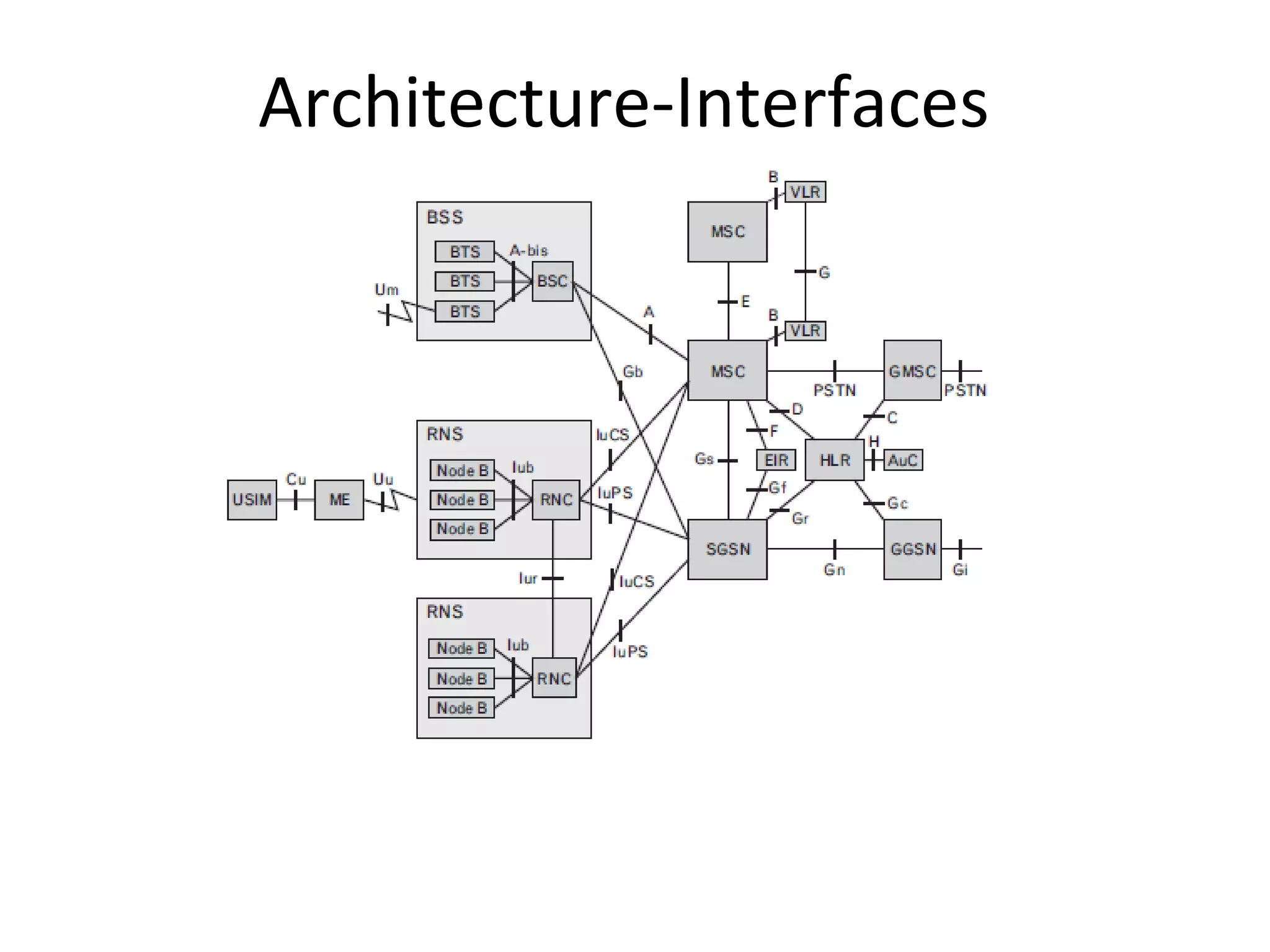

61. Architecture-Interfaces

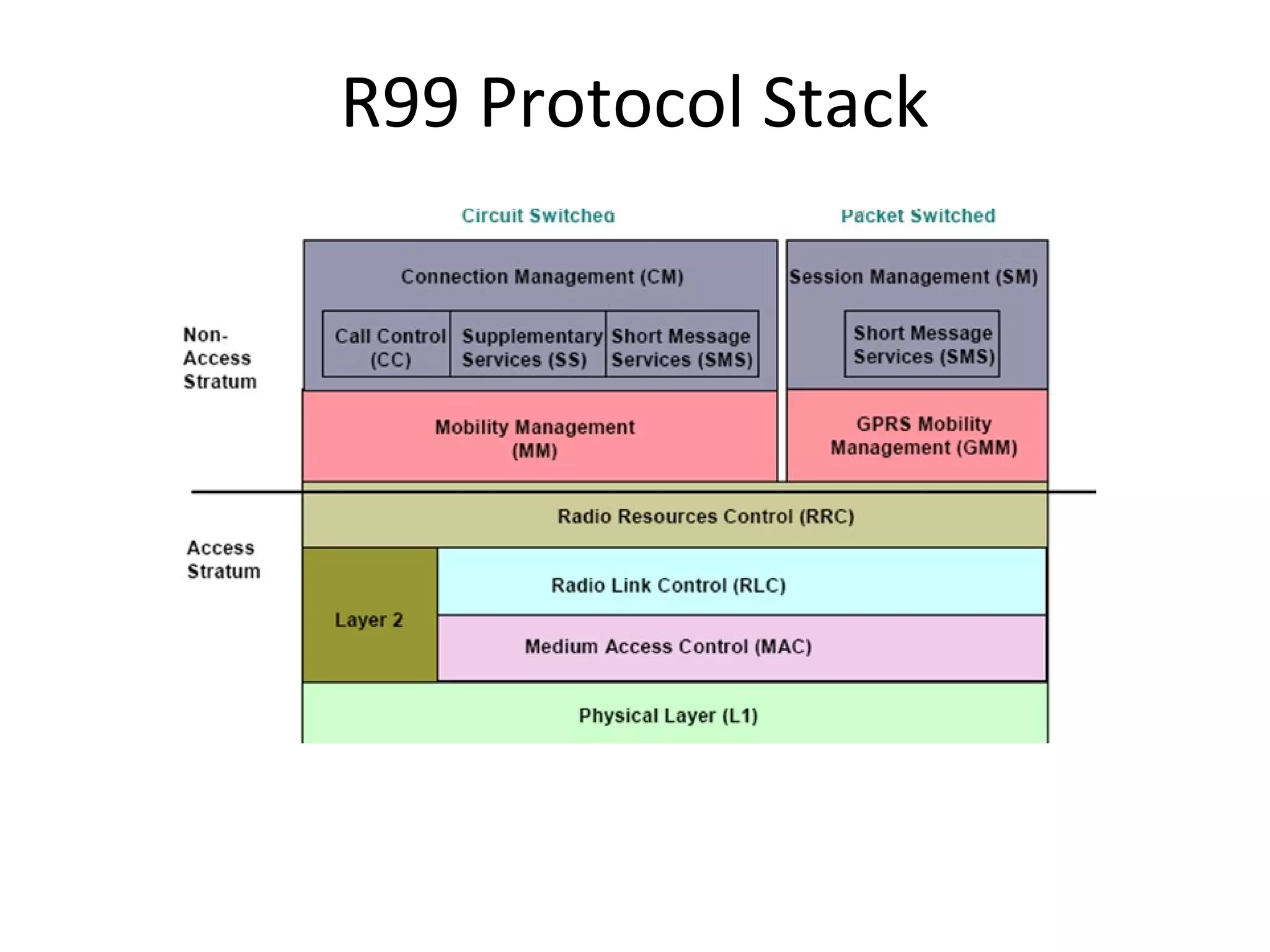

62. R99 Protocol Stack

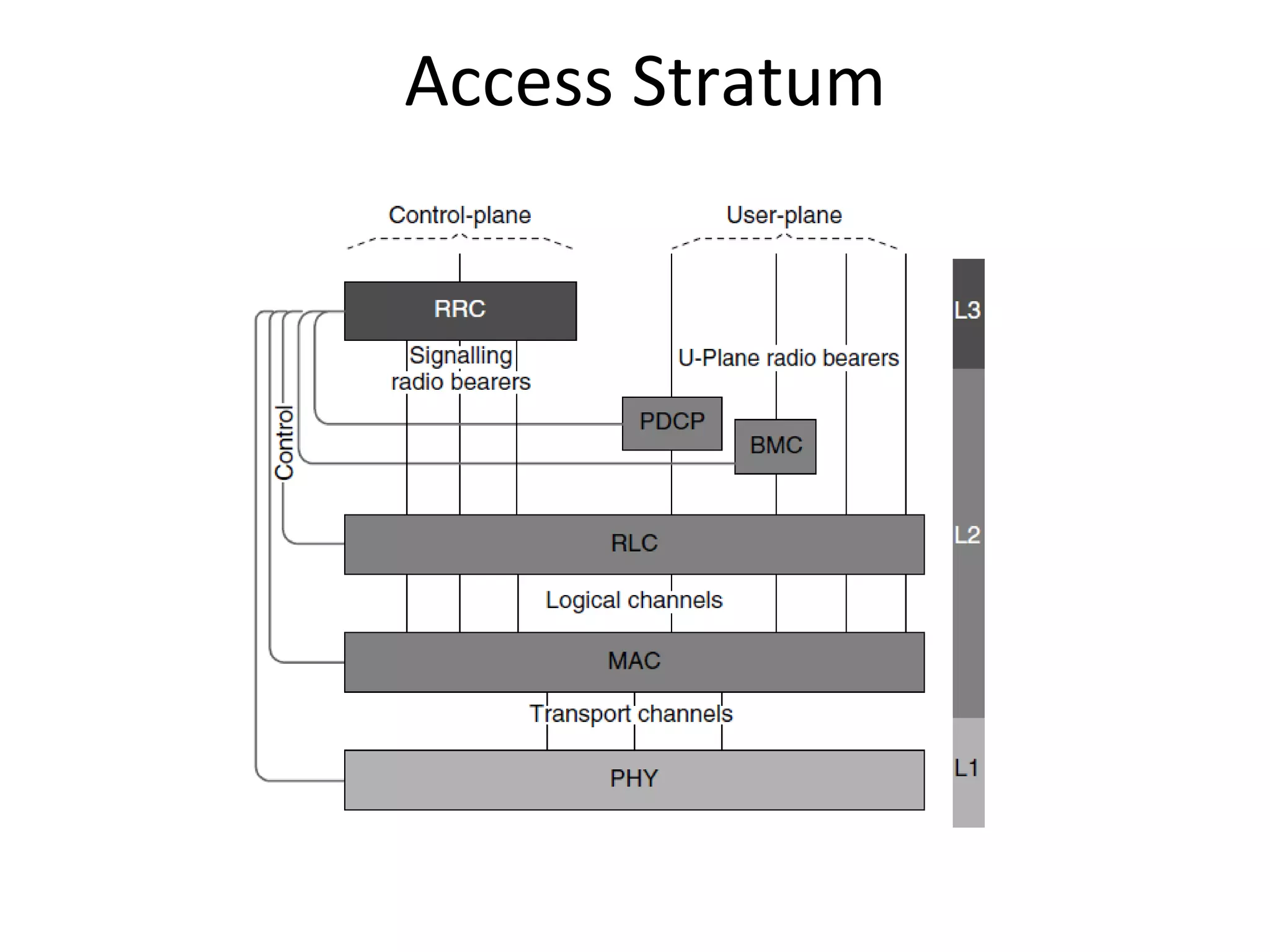

63. Access Stratum

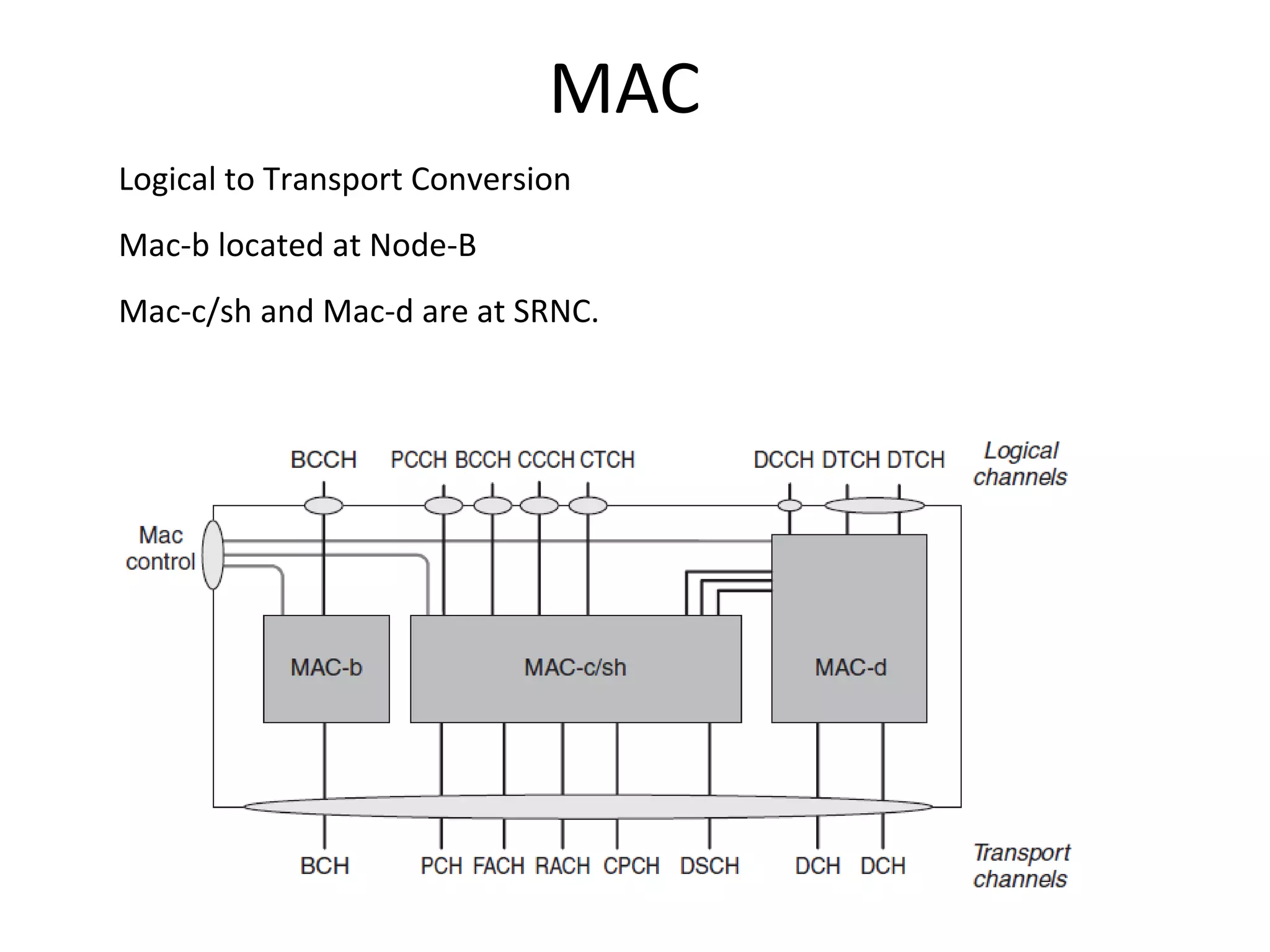

64. MAC
Logical to Transport Conversion
Mac-b located at Node-B
Mac-c/sh and Mac-d are at SRNC.

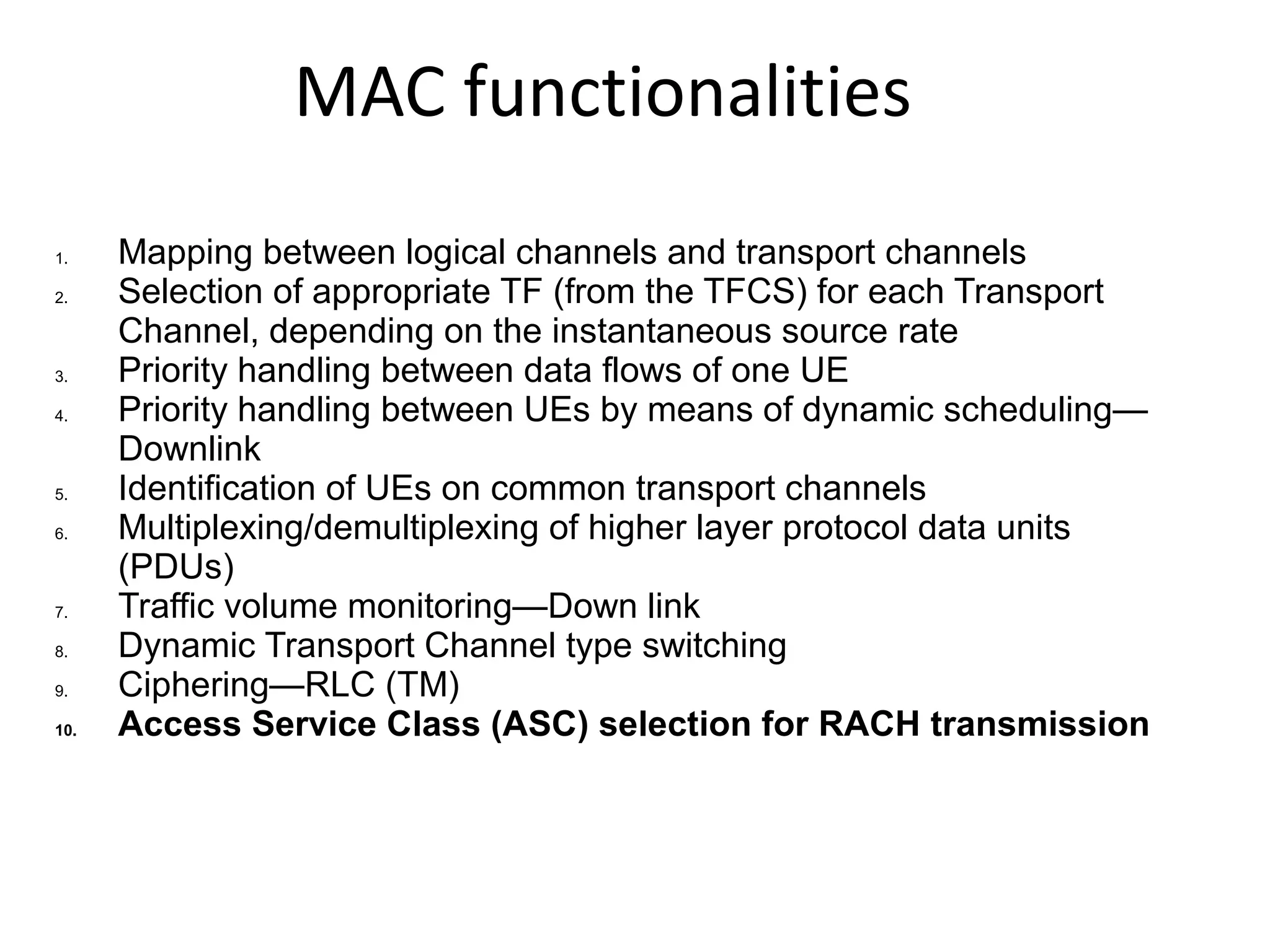

65. MAC functionalities
1. Mapping between logical channels and transport channels
2. Selection of appropriate TF (from the TFCS) for each Transport
Channel, depending on the instantaneous source rate
3. Priority handling between data flows of one UE
4. Priority handling between UEs by means of dynamic scheduling—
Downlink
5. Identification of UEs on common transport channels
6. Multiplexing/demultiplexing of higher layer protocol data units
(PDUs)
7. Traffic volume monitoring—Down link
8. Dynamic Transport Channel type switching
9. Ciphering—RLC (TM)
10. Access Service Class (ASC) selection for RACH transmission

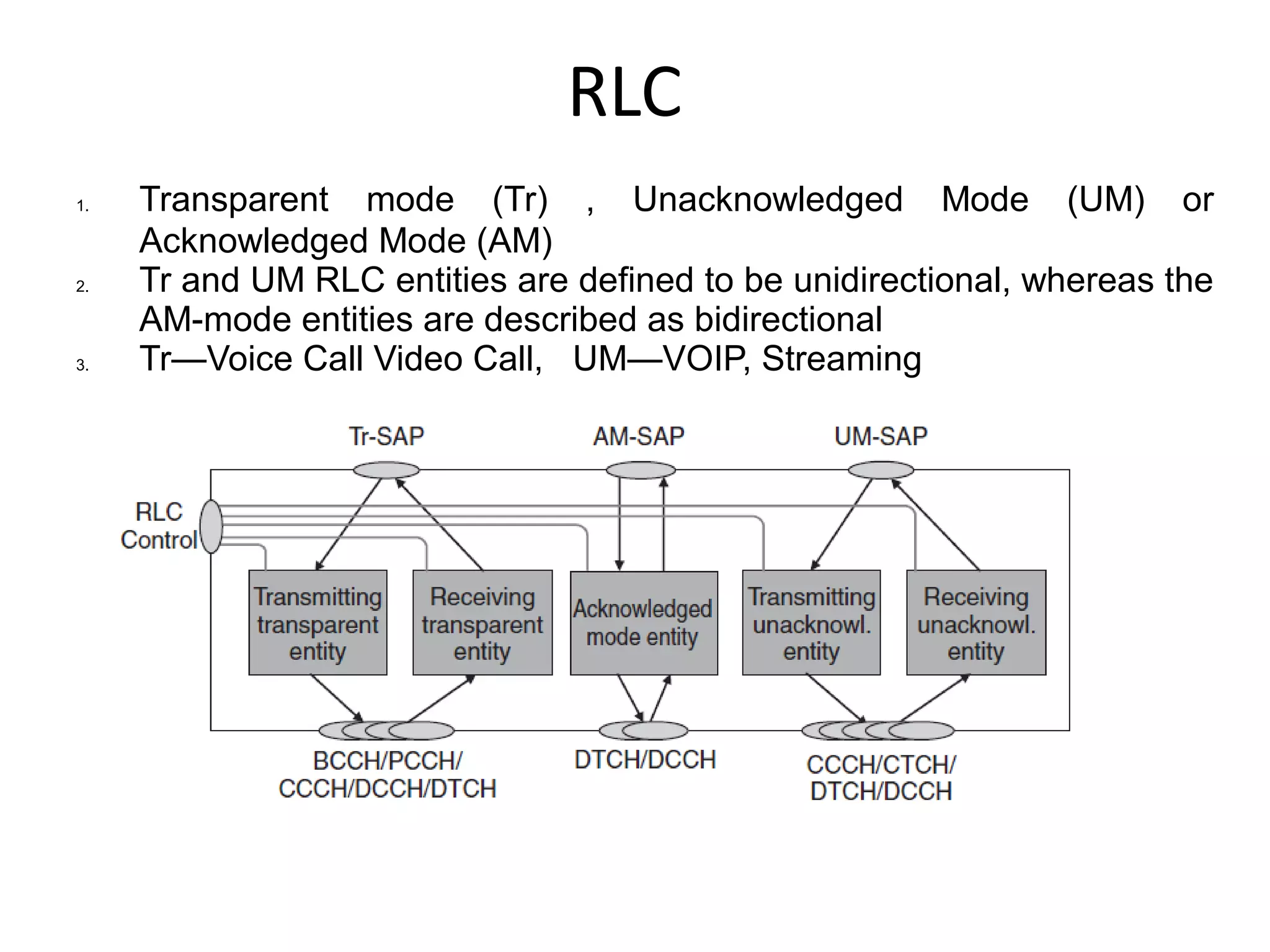

66. RLC
1. Transparent mode (Tr) , Unacknowledged Mode (UM) or
Acknowledged Mode (AM)
2. Tr and UM RLC entities are defined to be unidirectional, whereas the
AM-mode entities are described as bidirectional
3. Tr—Voice Call Video Call, UM—VOIP, Streaming

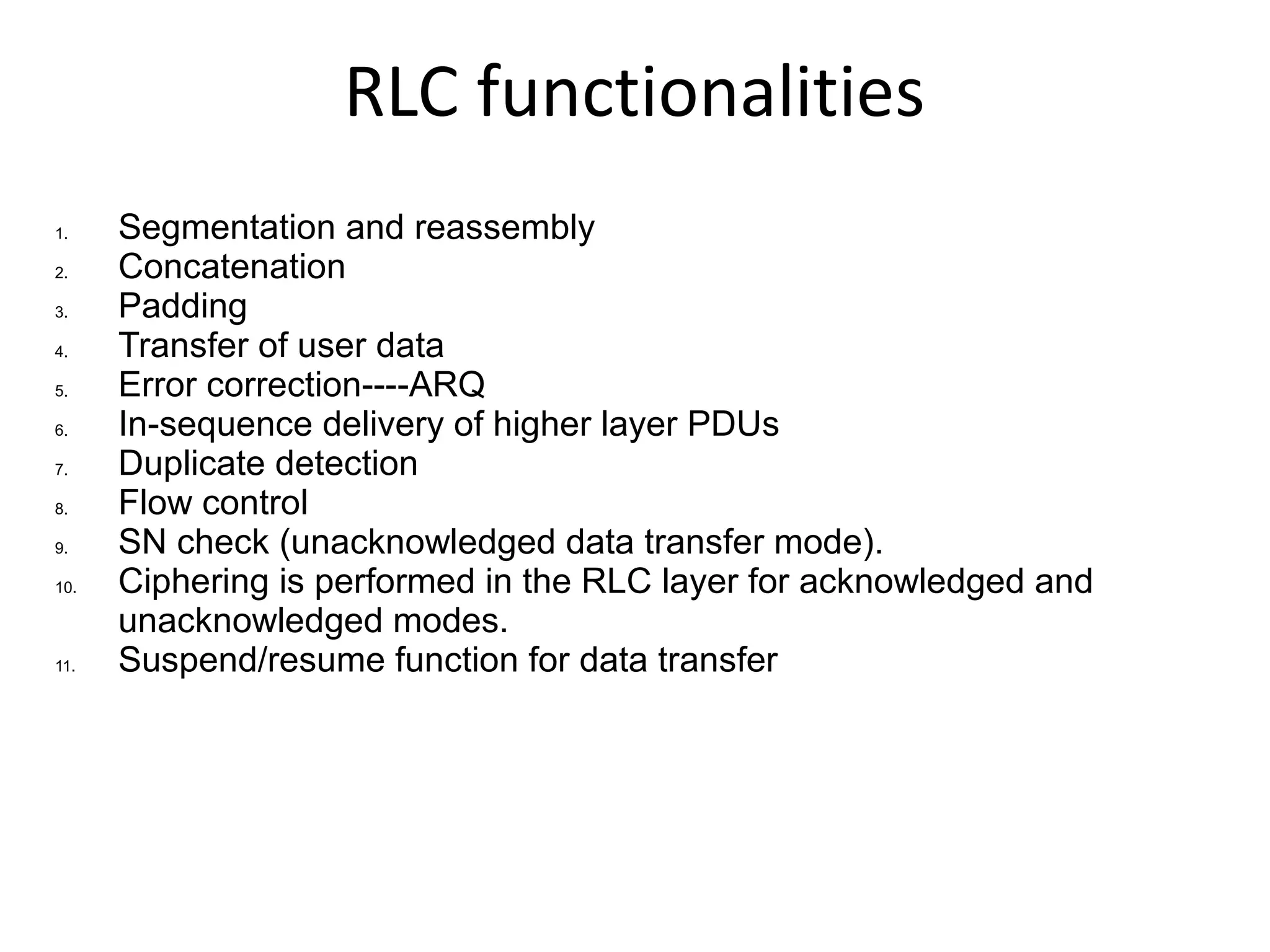

67. RLC functionalities
1. Segmentation and reassembly
2. Concatenation
3. Padding
4. Transfer of user data
5. Error correction----ARQ
6. In-sequence delivery of higher layer PDUs
7. Duplicate detection
8. Flow control
9. SN check (unacknowledged data transfer mode).
10. Ciphering is performed in the RLC layer for acknowledged and
unacknowledged modes.
11. Suspend/resume function for data transfer

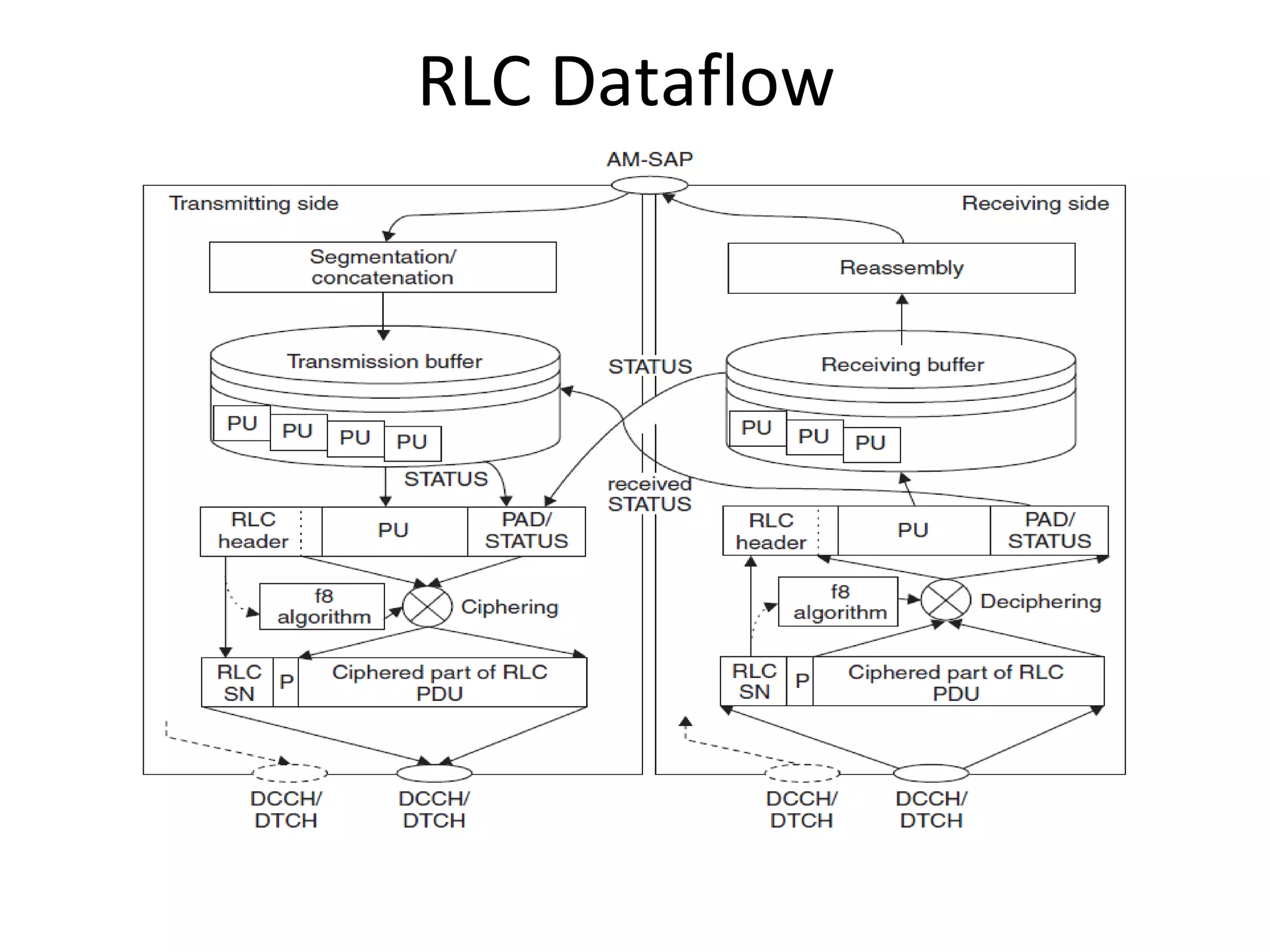

68. RLC Dataflow

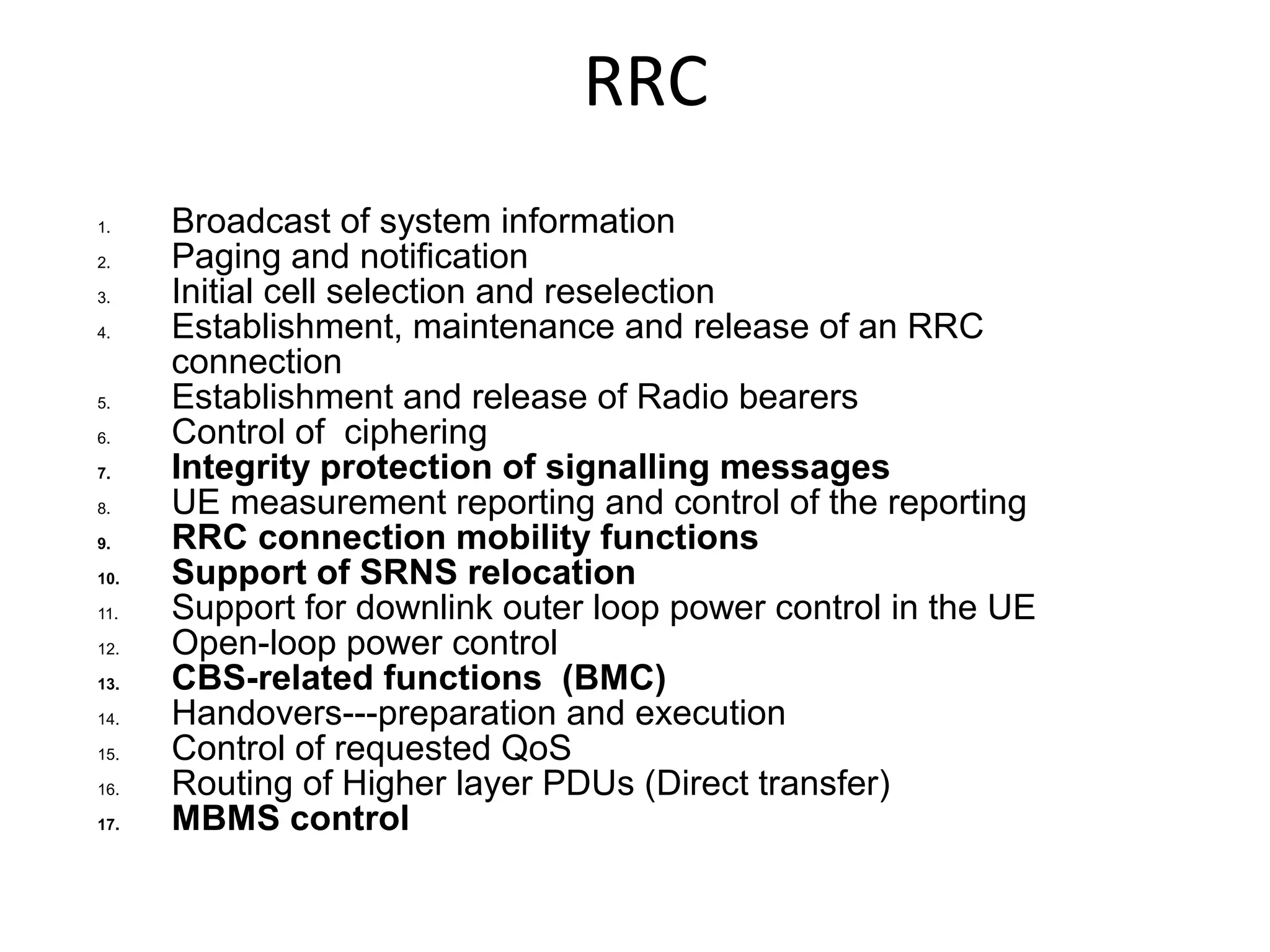

69. RRC
1. Broadcast of system information
2. Paging and notification
3. Initial cell selection and reselection
4. Establishment, maintenance and release of an RRC
connection
5. Establishment and release of Radio bearers
6. Control of ciphering
7. Integrity protection of signalling messages
8. UE measurement reporting and control of the reporting
9. RRC connection mobility functions
10. Support of SRNS relocation
11. Support for downlink outer loop power control in the UE
12. Open-loop power control
13. CBS-related functions (BMC)
14. Handovers---preparation and execution
15. Control of requested QoS
16. Routing of Higher layer PDUs (Direct transfer)
17. MBMS control

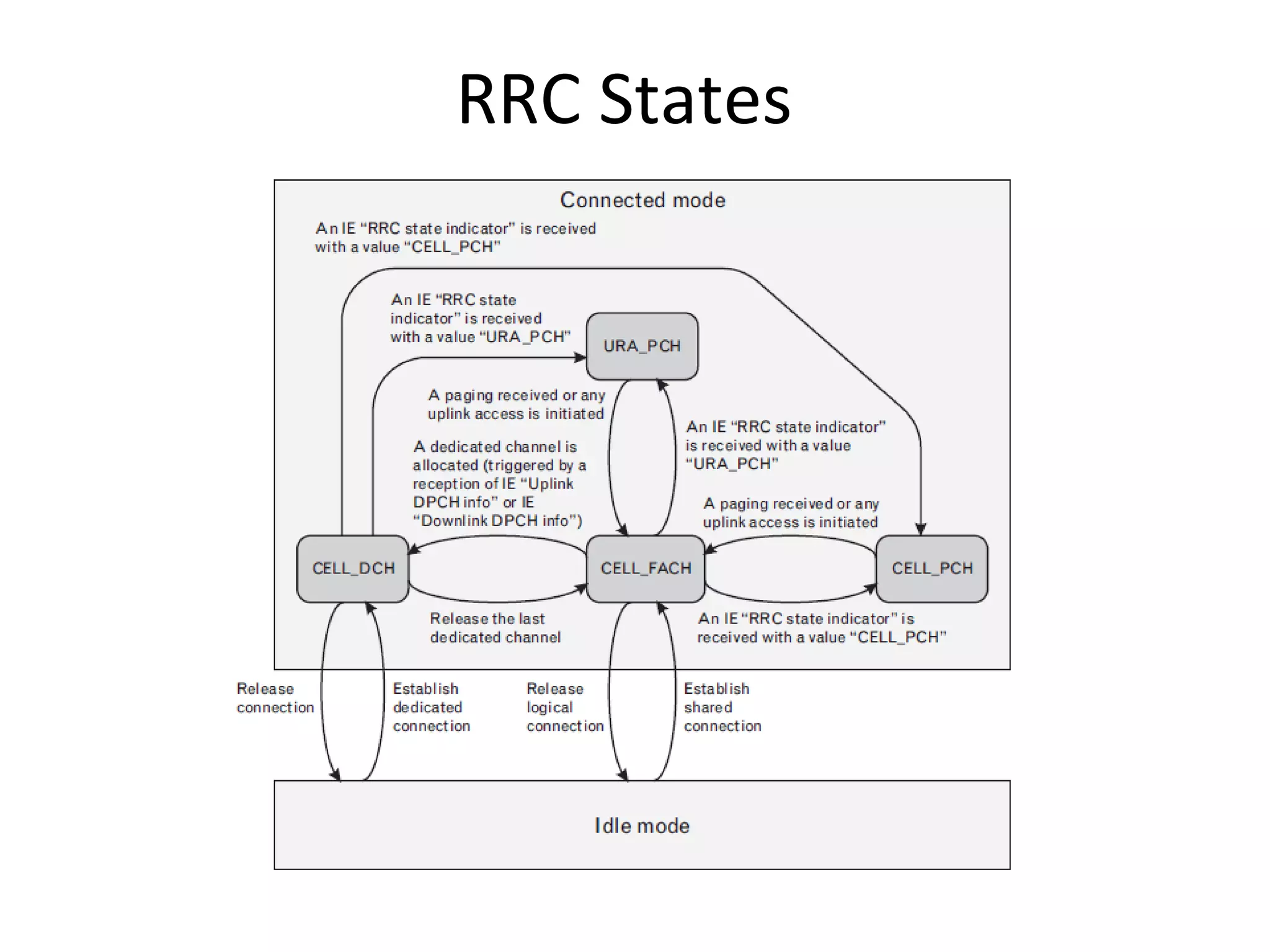

70. RRC States

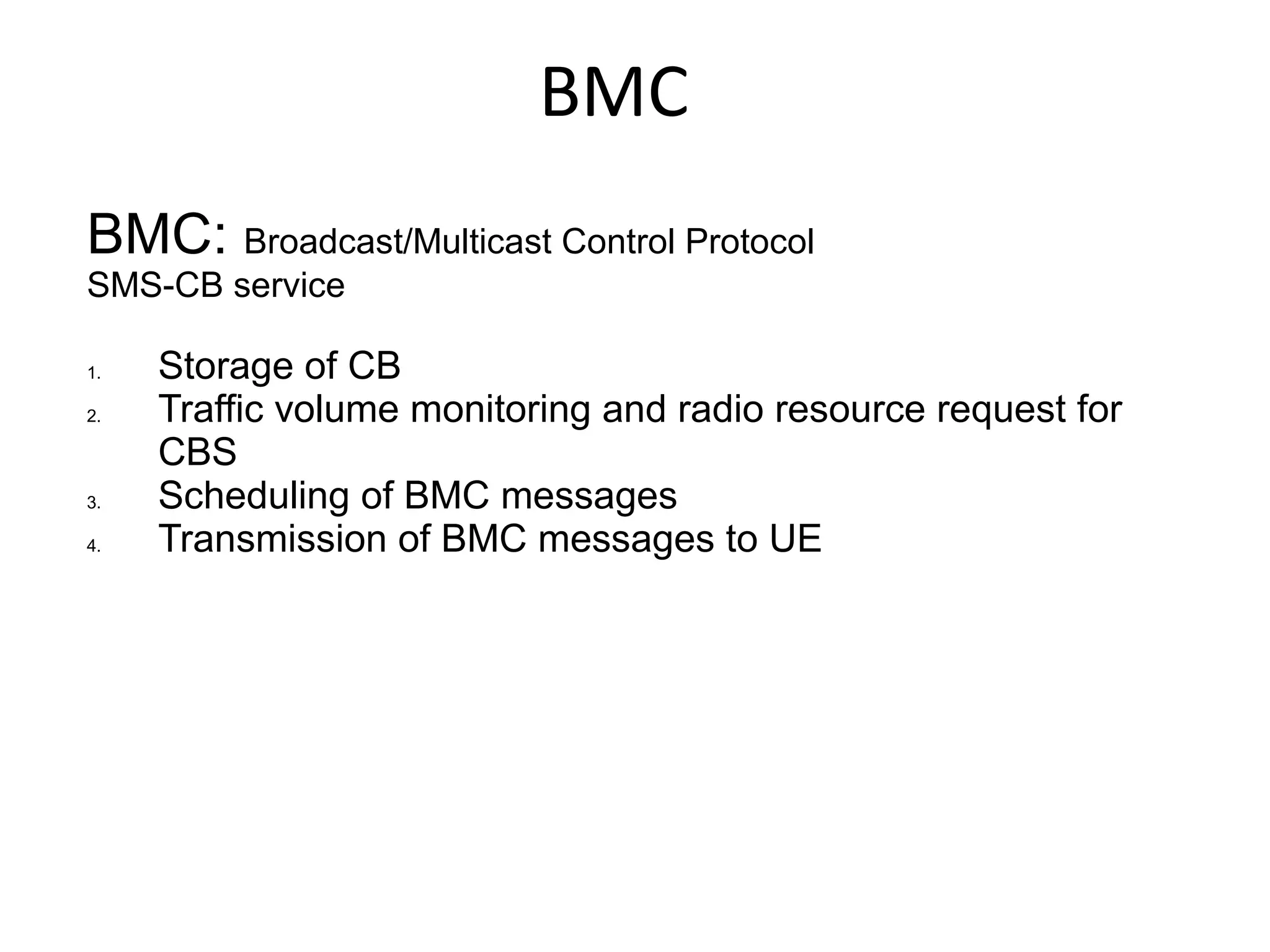

71. BMC
BMC: Broadcast/Multicast Control Protocol
SMS-CB service
1. Storage of CB
2. Traffic volume monitoring and radio resource request for
CBS
3. Scheduling of BMC messages
4. Transmission of BMC messages to UE

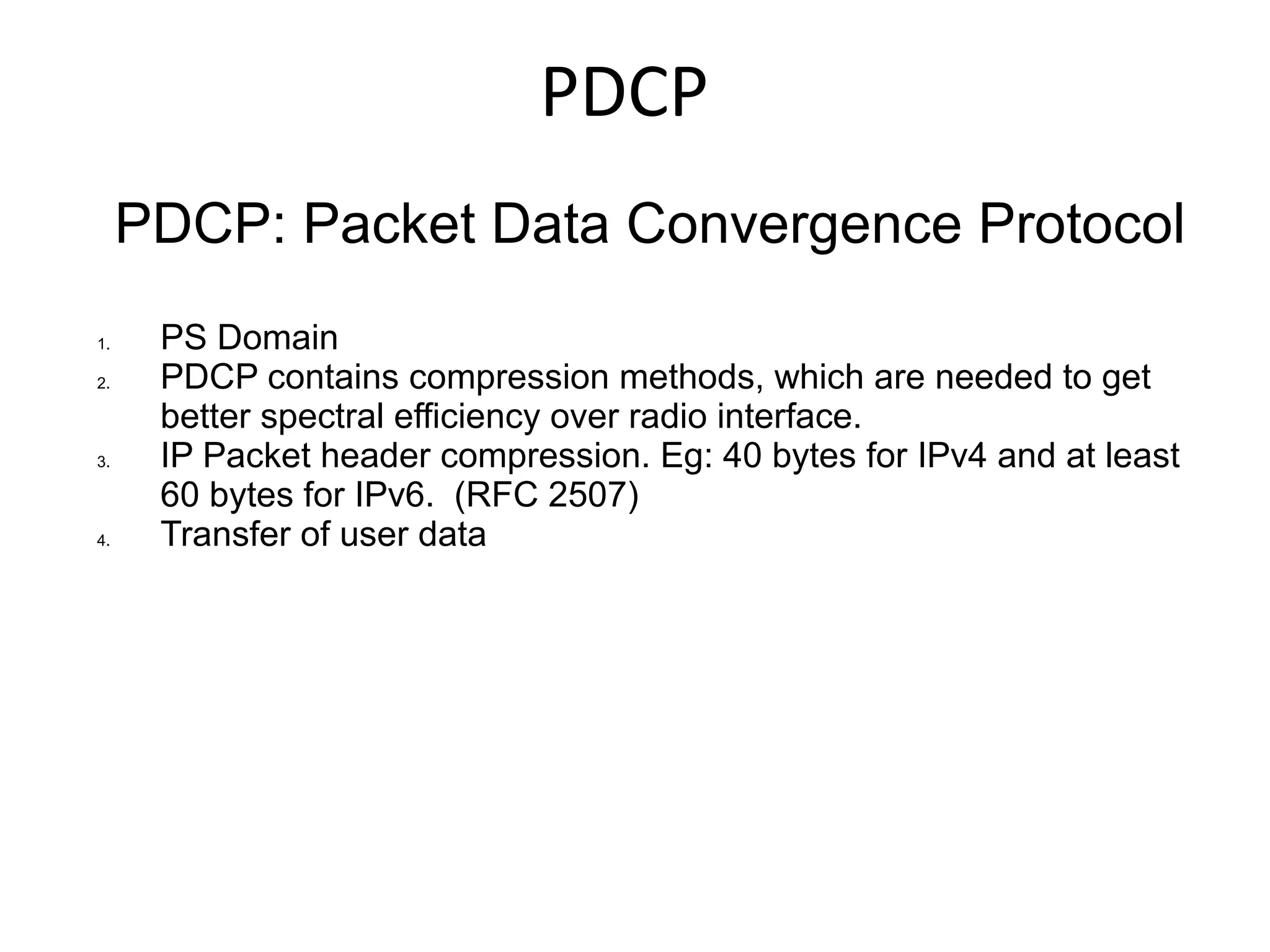

72. PDCP
PDCP: Packet Data Convergence Protocol
1. PS Domain
2. PDCP contains compression methods, which are needed to get
better spectral efficiency over radio interface.
3. IP Packet header compression. Eg: 40 bytes for IPv4 and at least
60 bytes for IPv6. (RFC 2507)
4. Transfer of user data

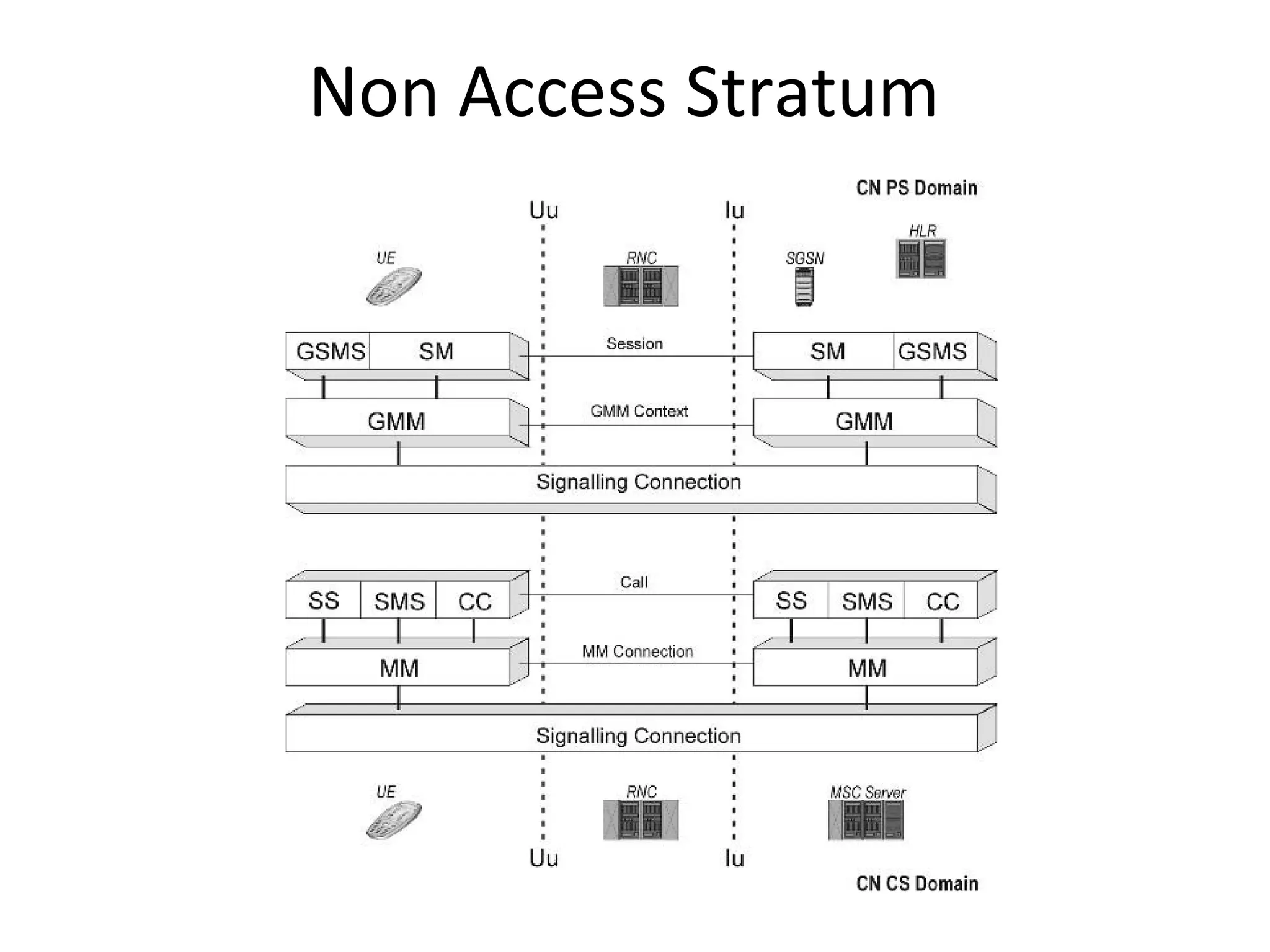

73. Non Access Stratum

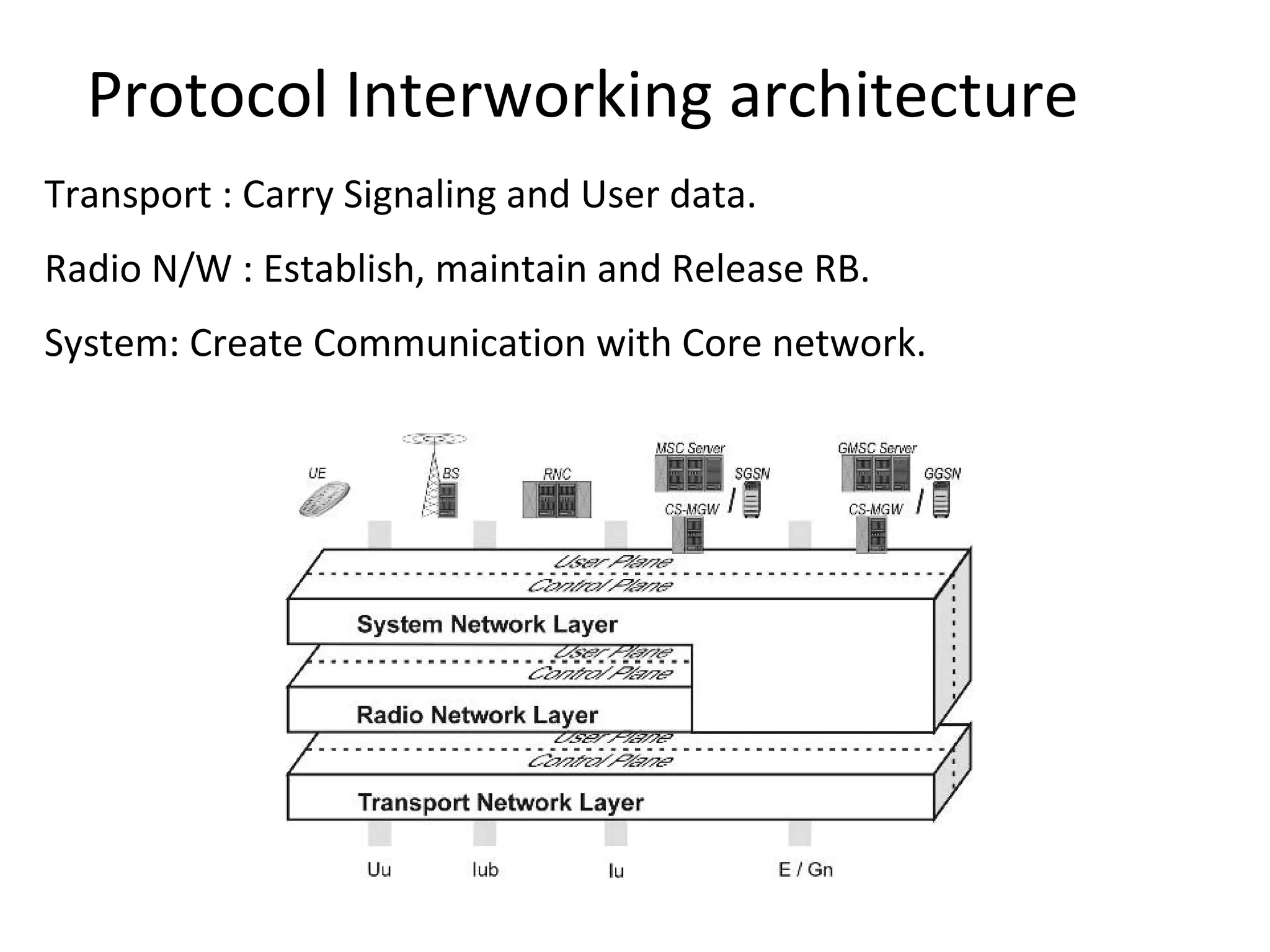

74. Protocol Interworking architecture
Transport : Carry Signaling and User data.
Radio N/W : Establish, maintain and Release RB.
System: Create Communication with Core network.

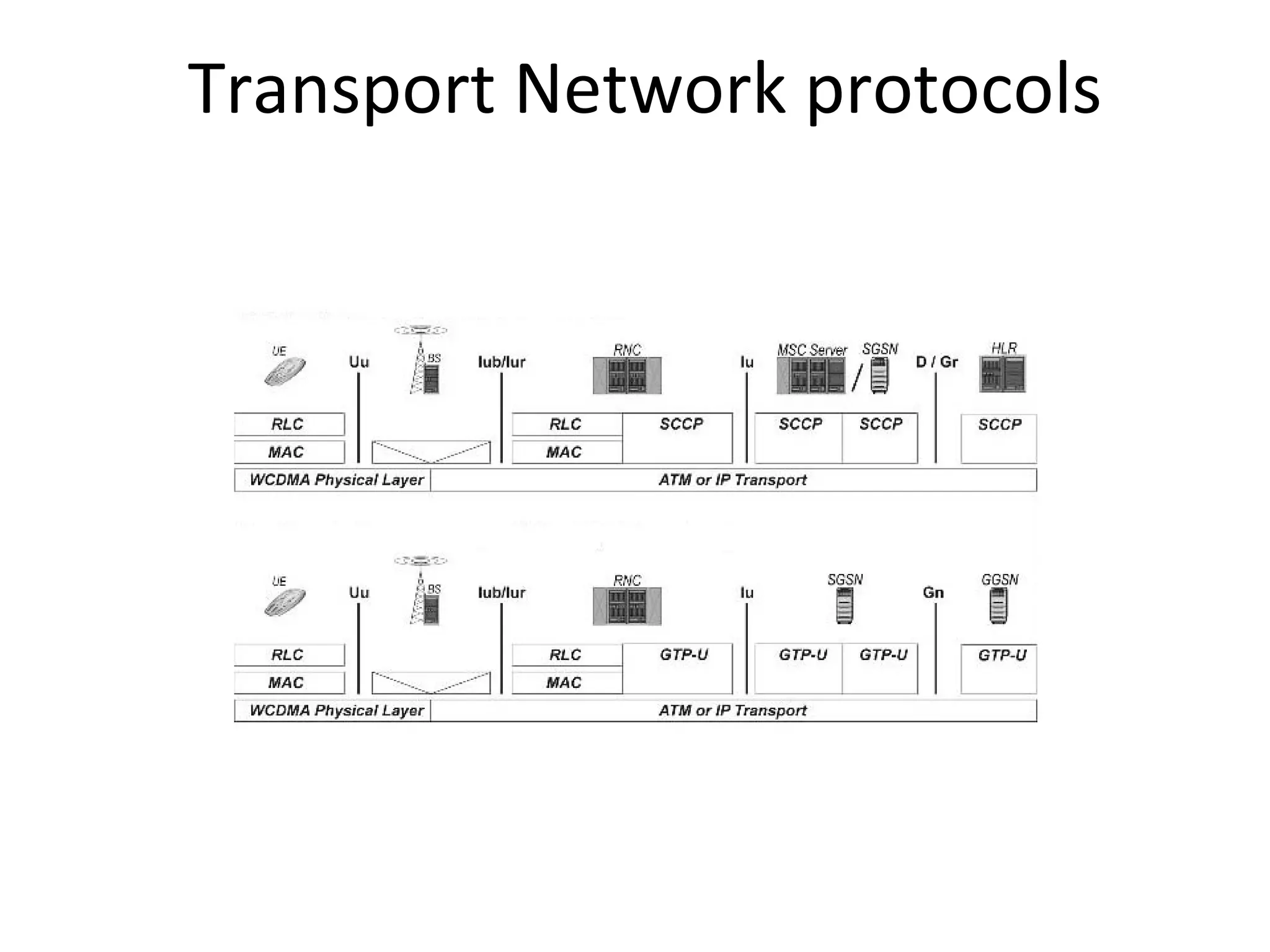

75. Transport Network protocols

76. Radio network protocols

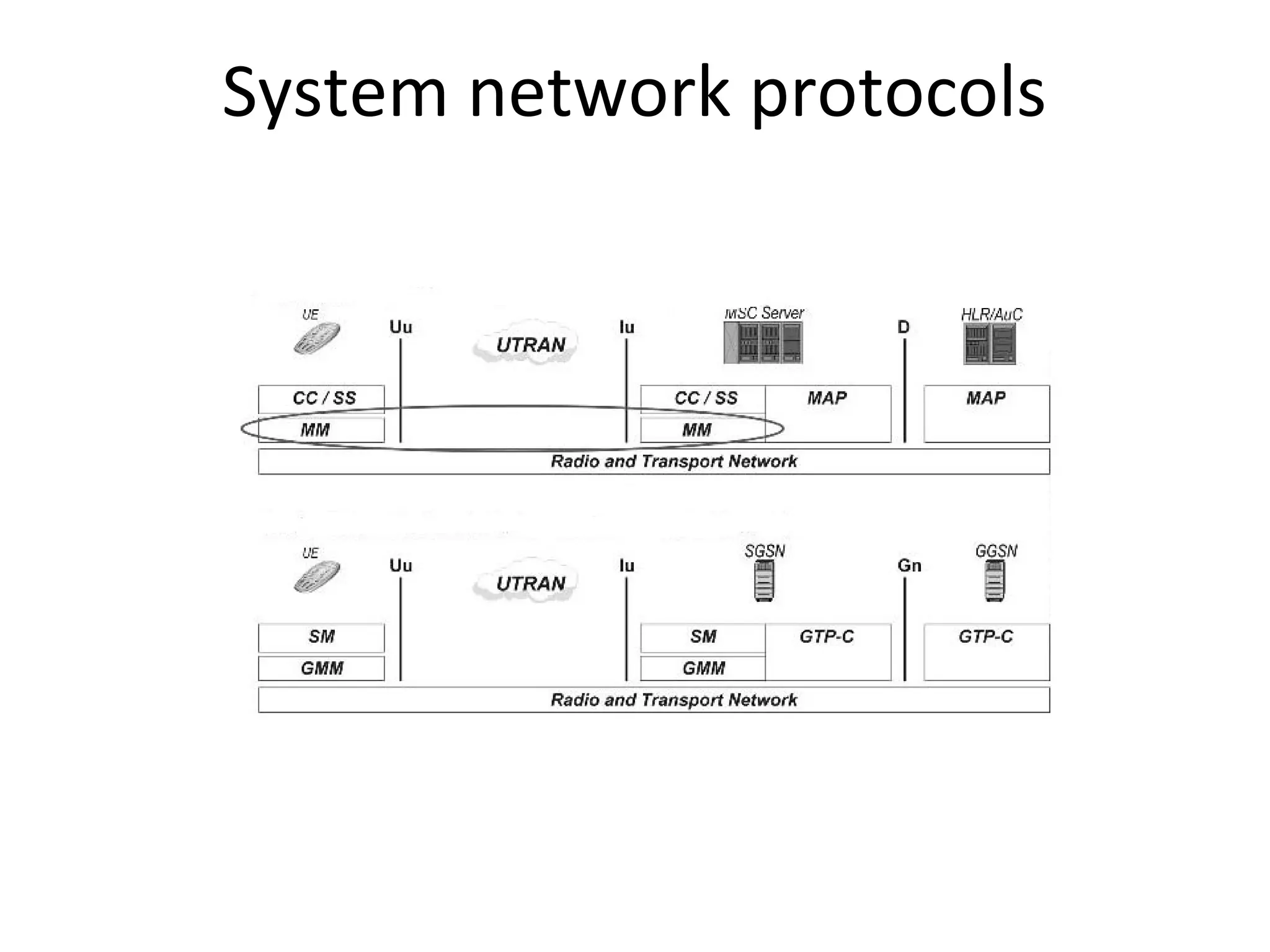

77. System network protocols

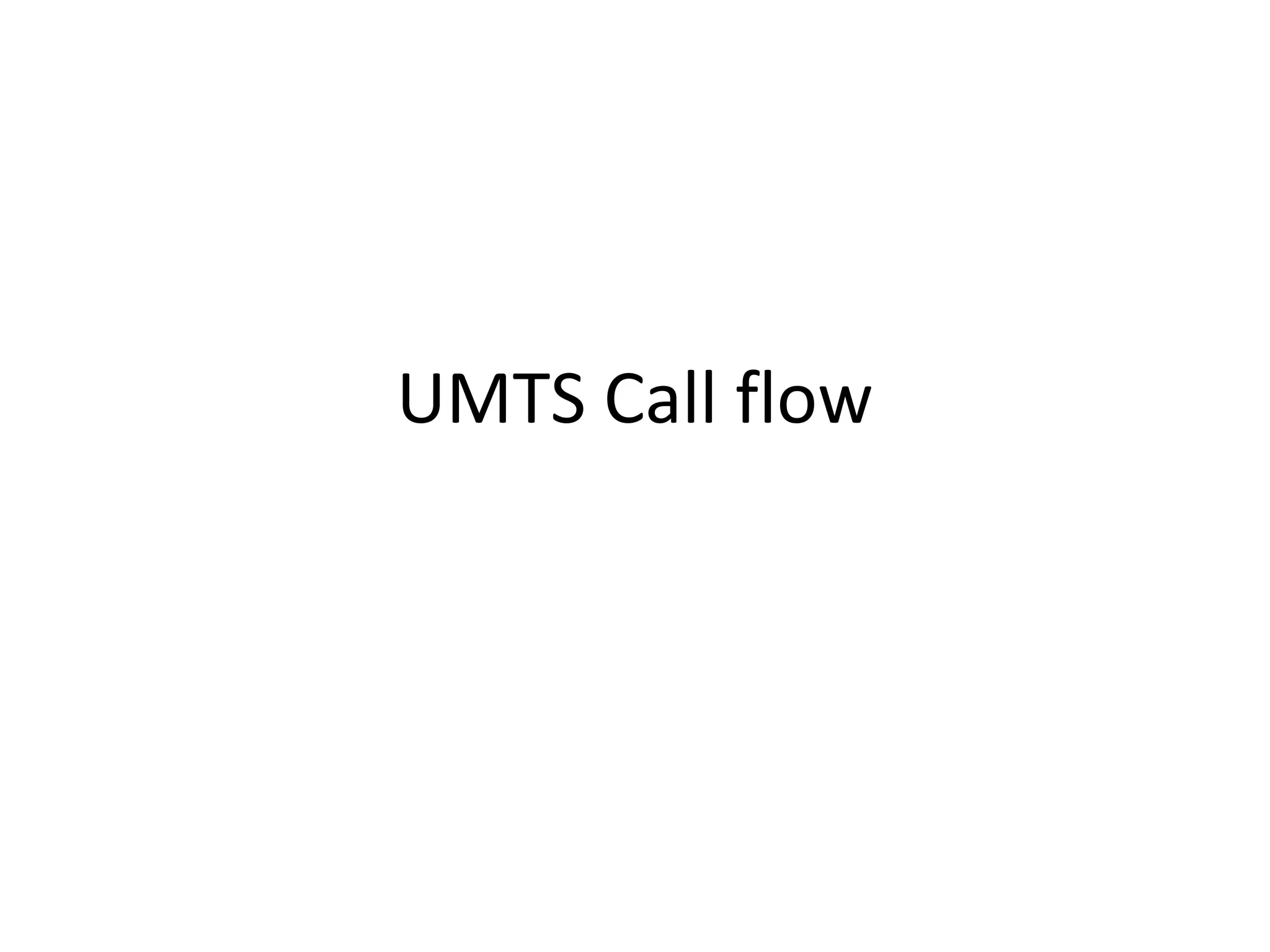

78. UMTS Call flow

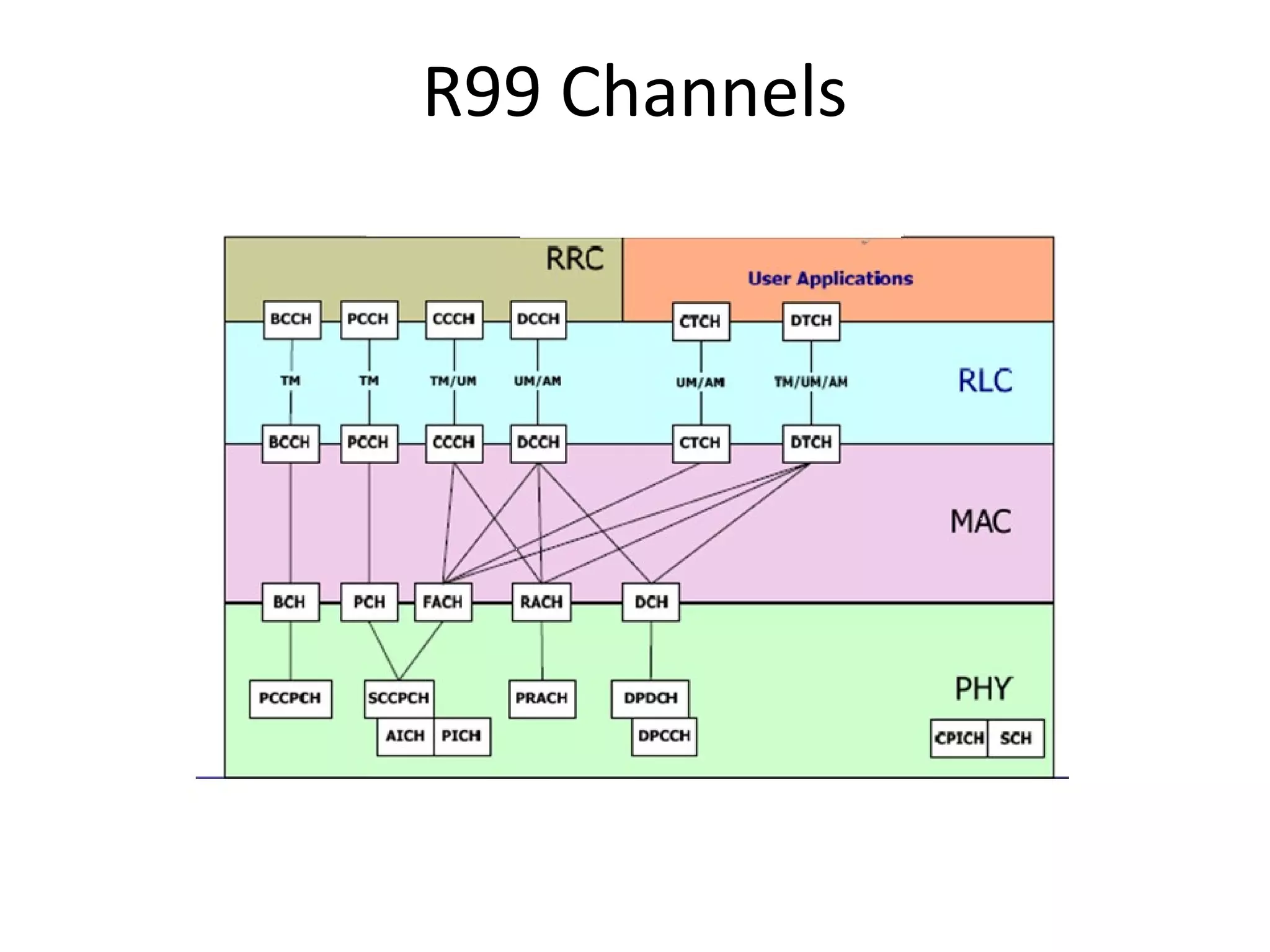

79. R99 Channels

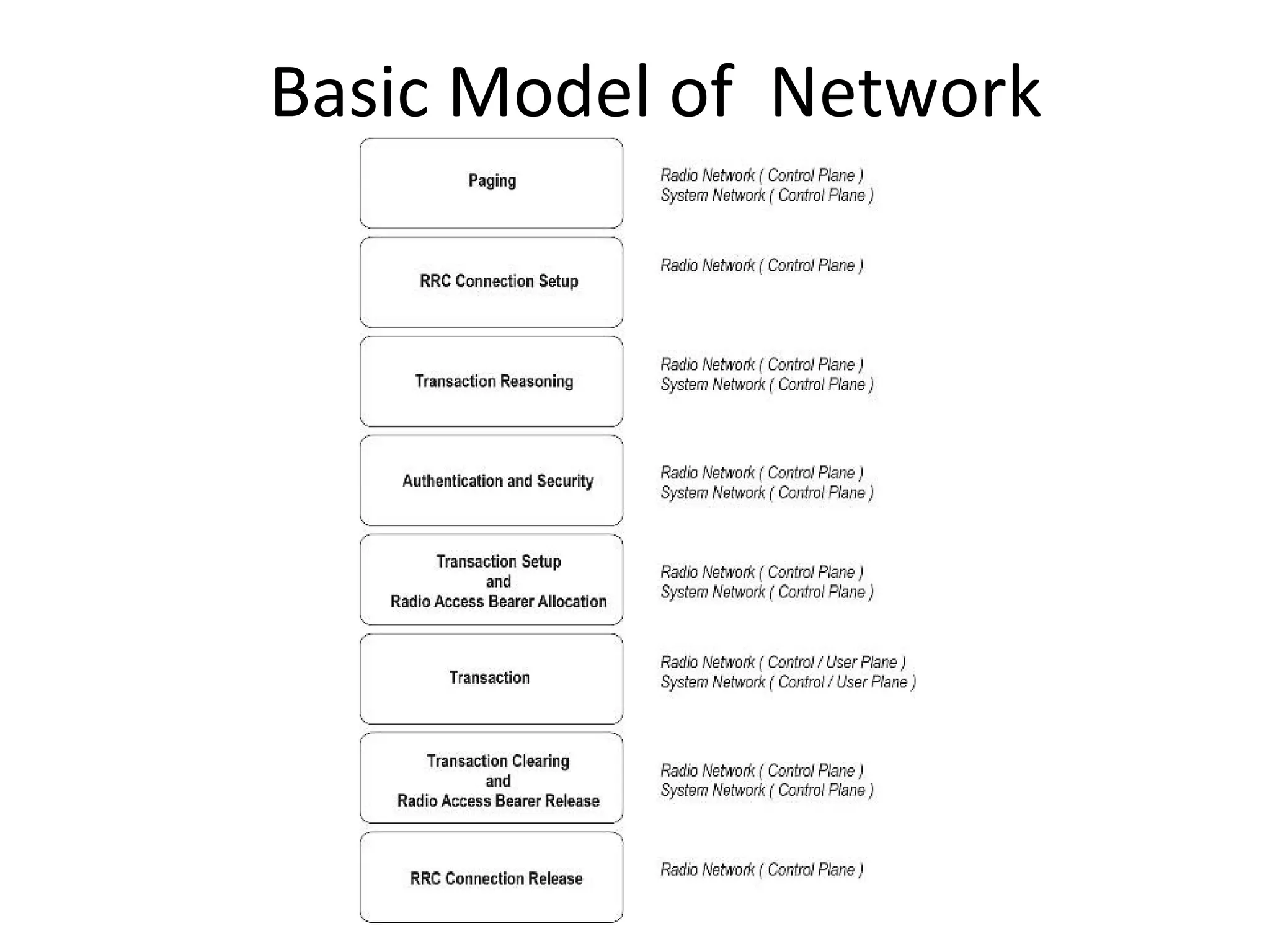

80. Basic Model of Network
transactions

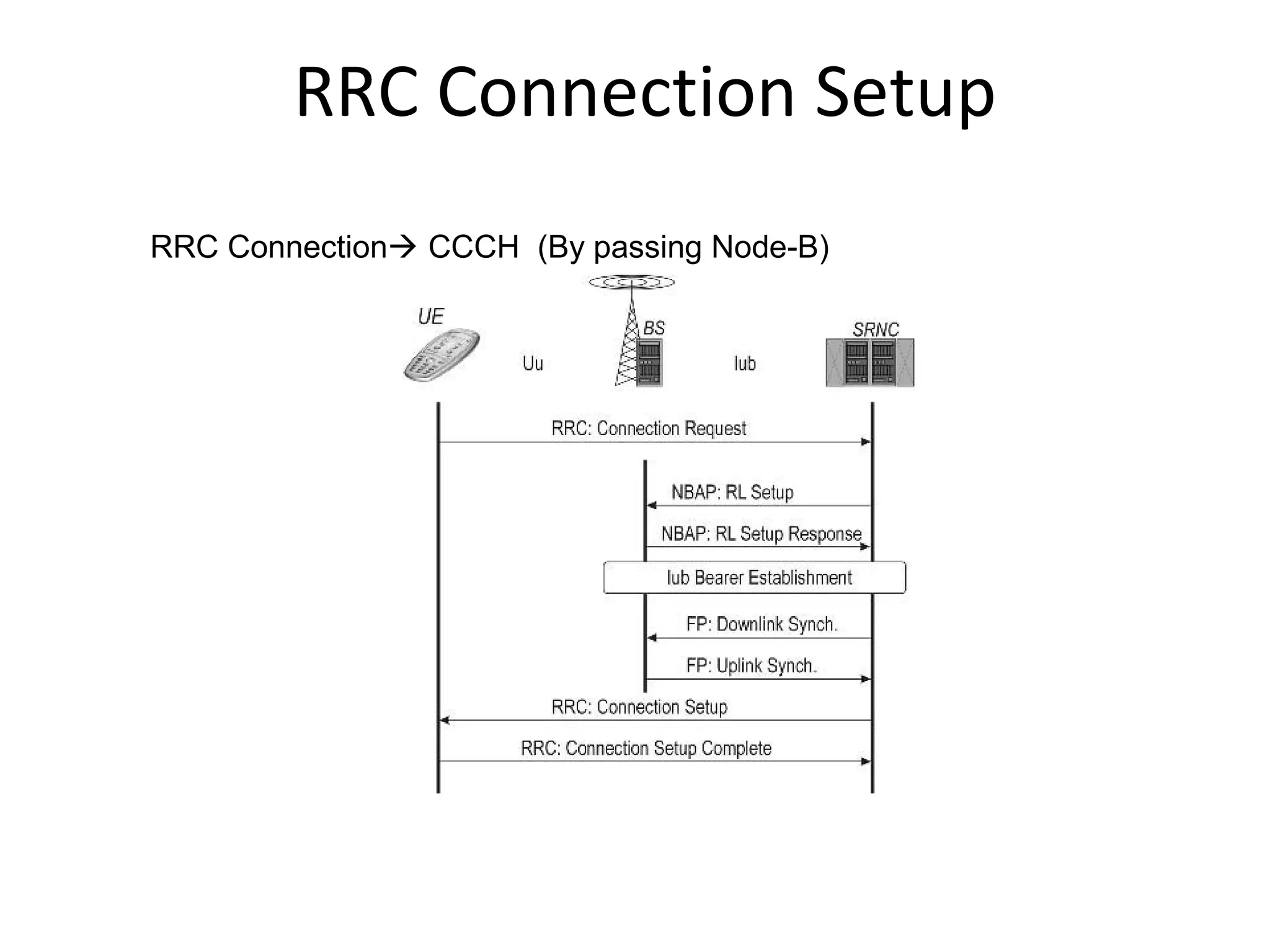

81. RRC Connection Setup
RRC Connection CCCH (By passing Node-B)

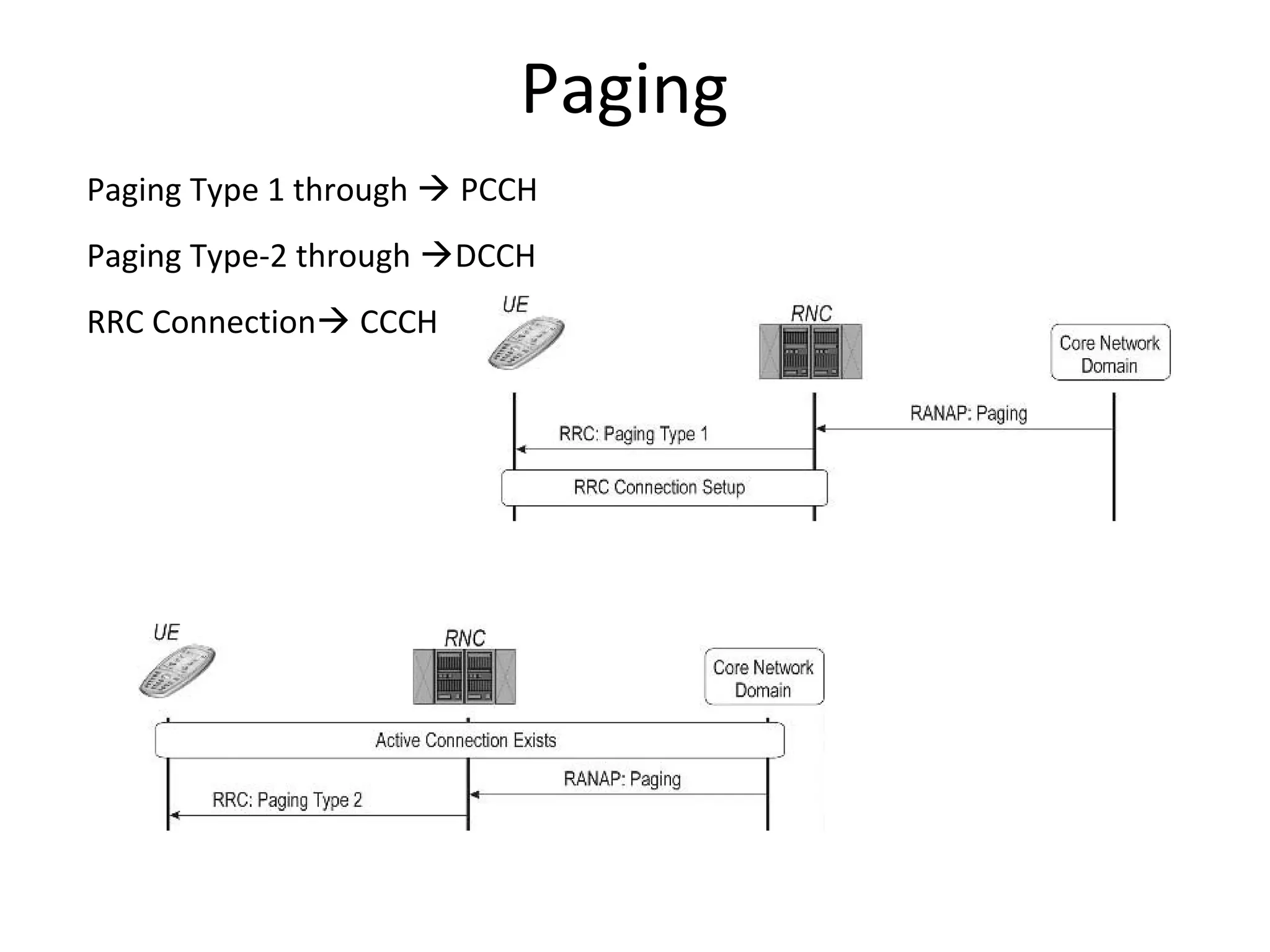

82. Paging
Paging Type 1 through  PCCH
Paging Type-2 through DCCH
RRC Connection CCCH

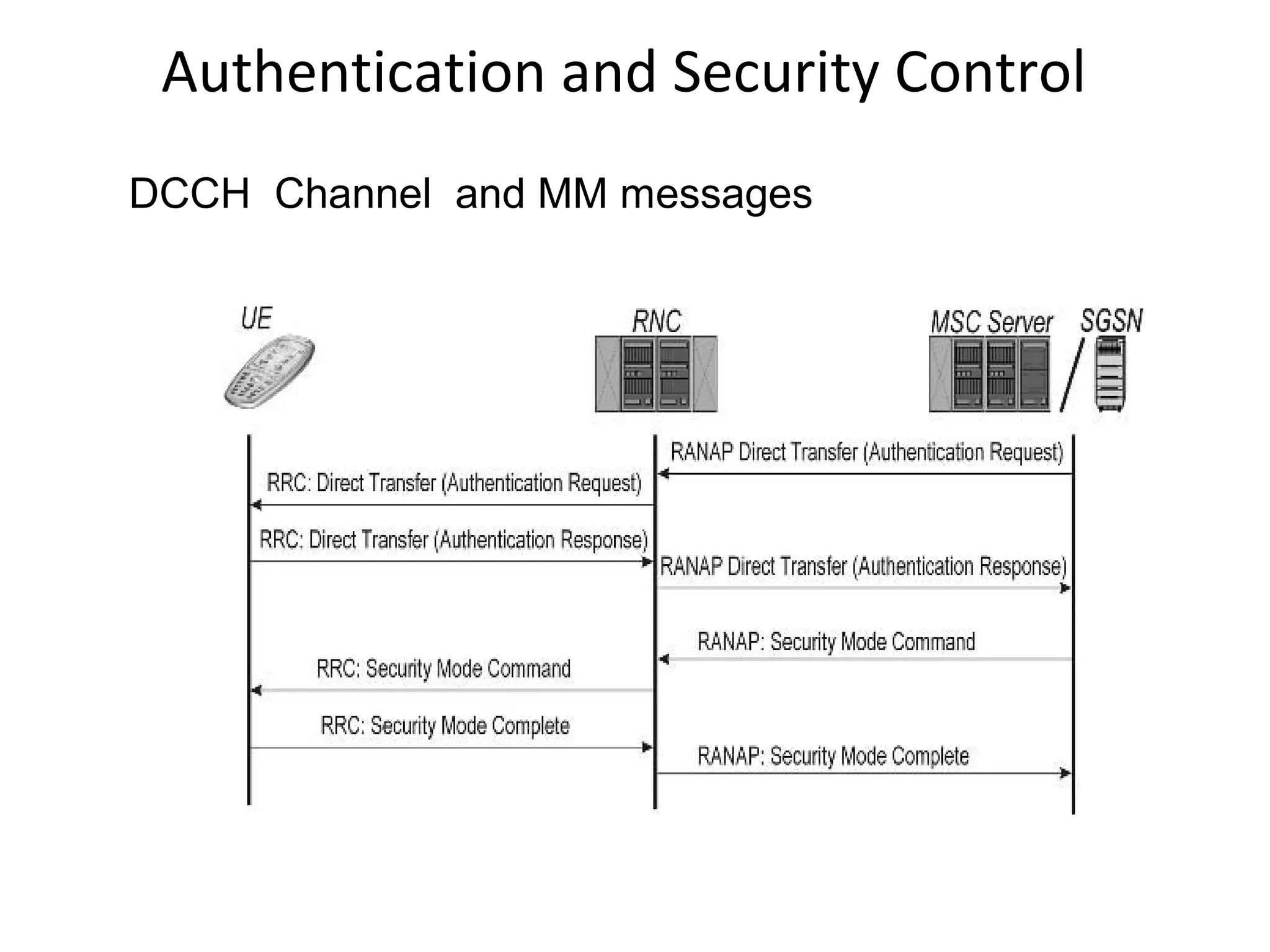

83. Authentication and Security Control
DCCH Channel and MM messages

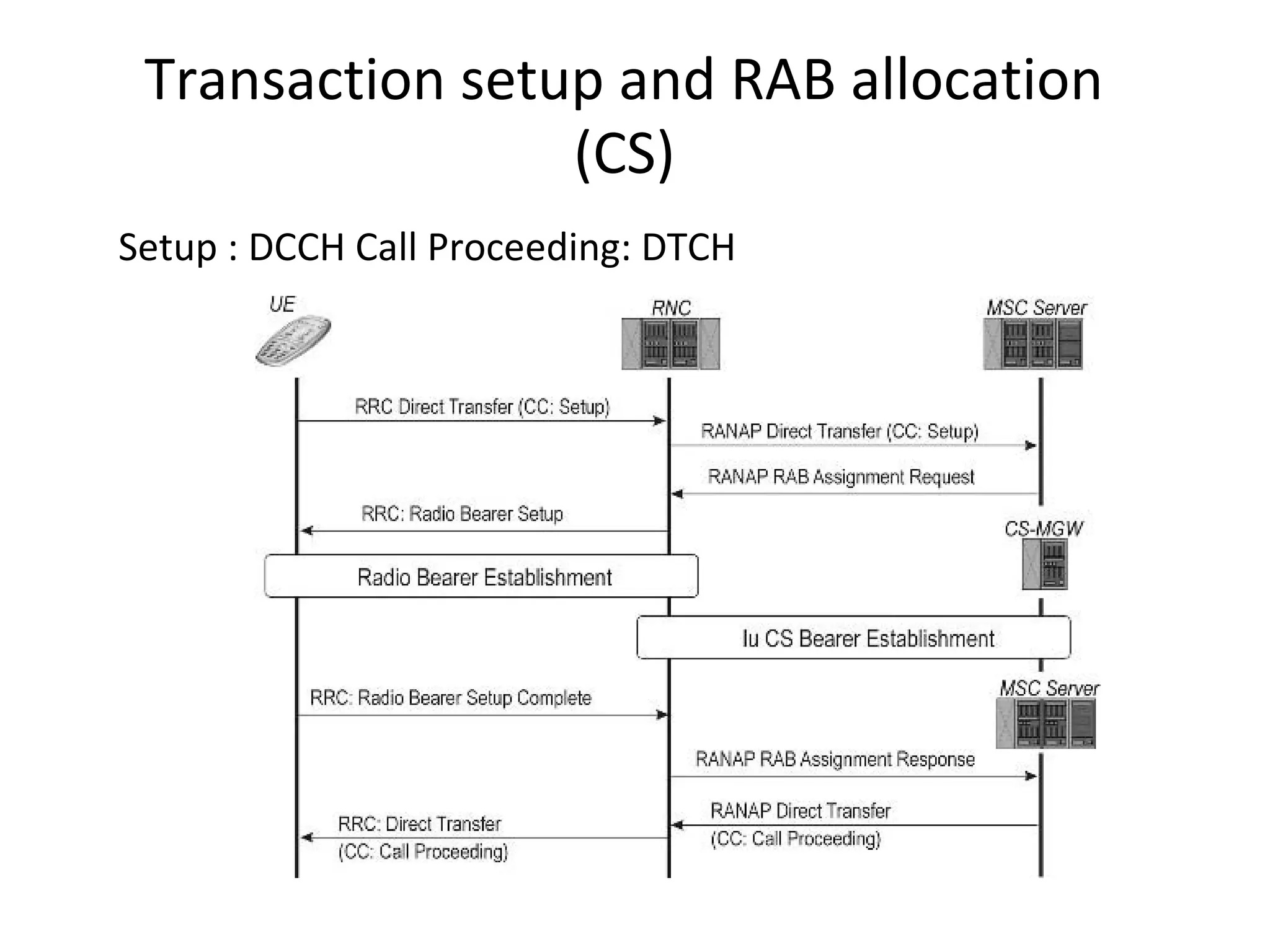

84. Transaction setup and RAB allocation
(CS)
Setup : DCCH Call Proceeding: DTCH

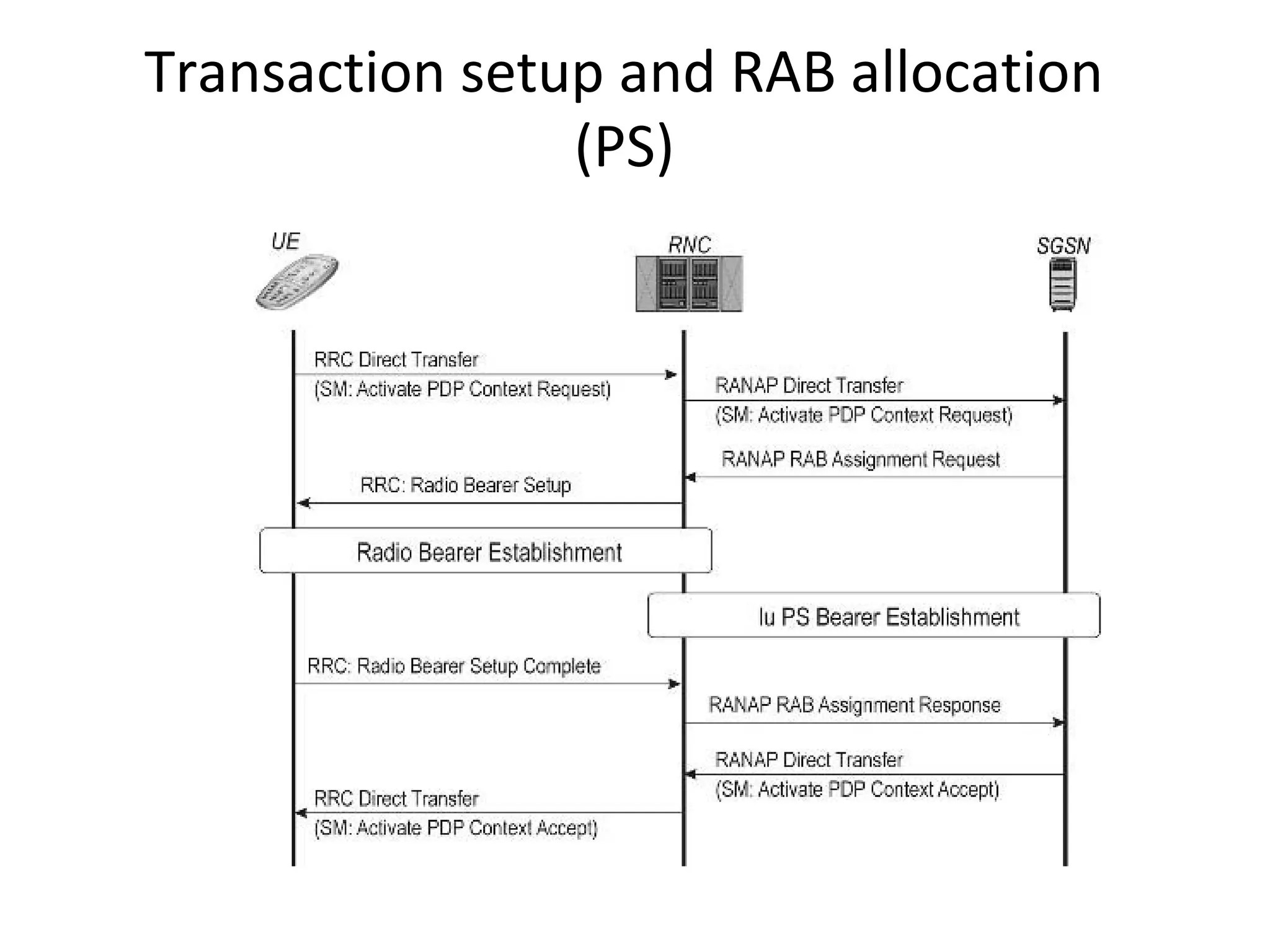

85. Transaction setup and RAB allocation
(PS)

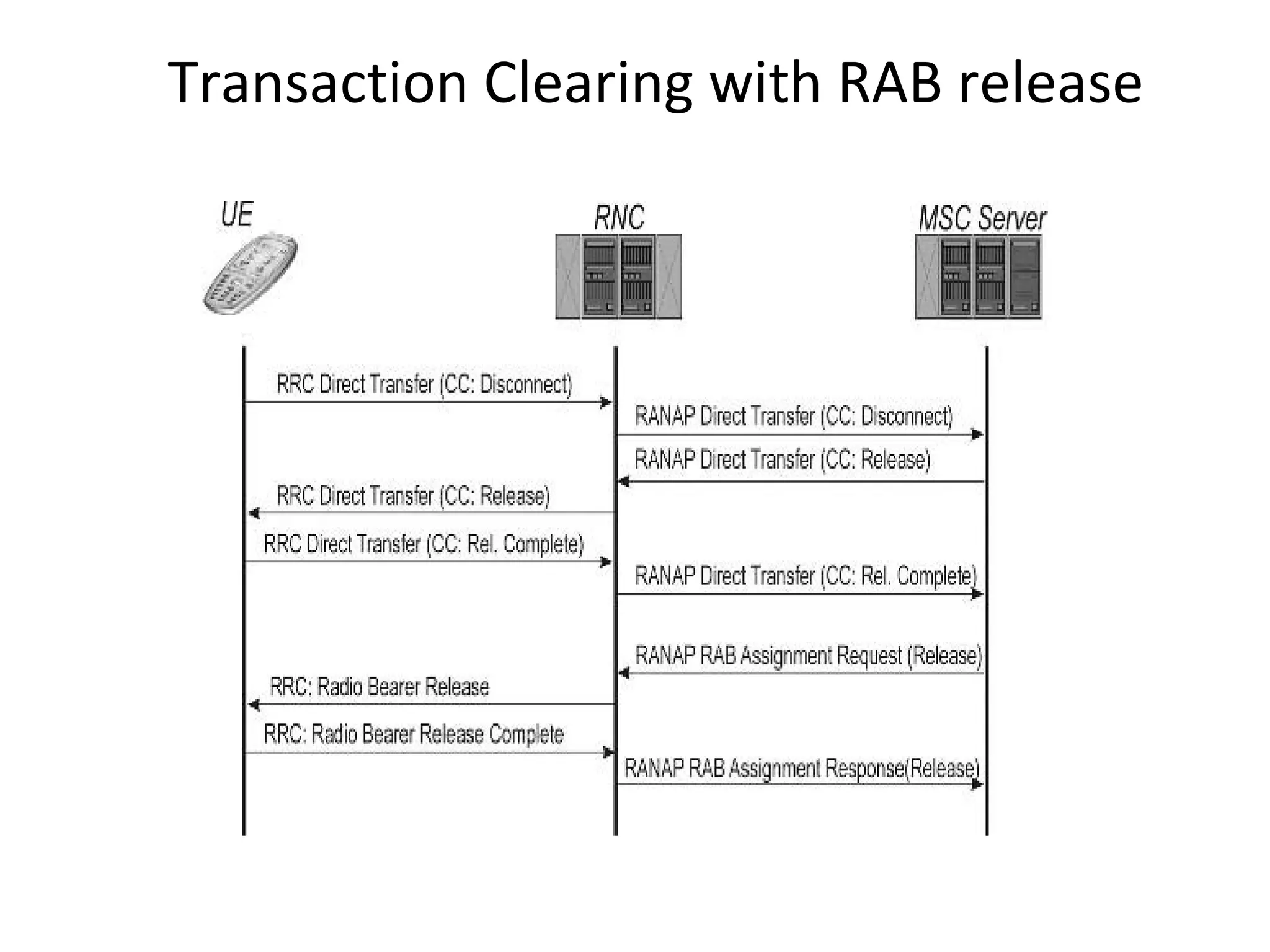

86. Transaction Clearing with RAB release

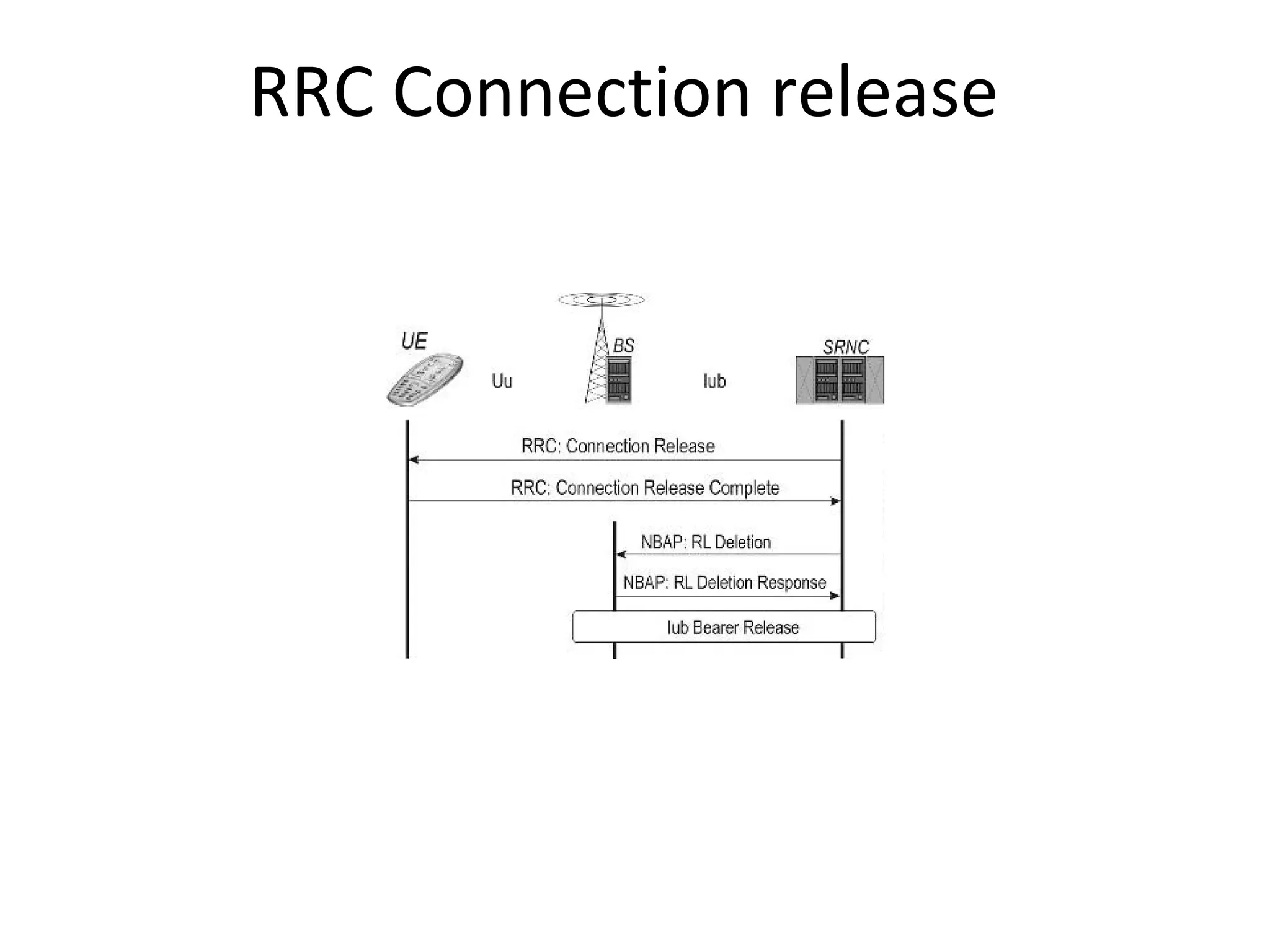

87. RRC Connection release

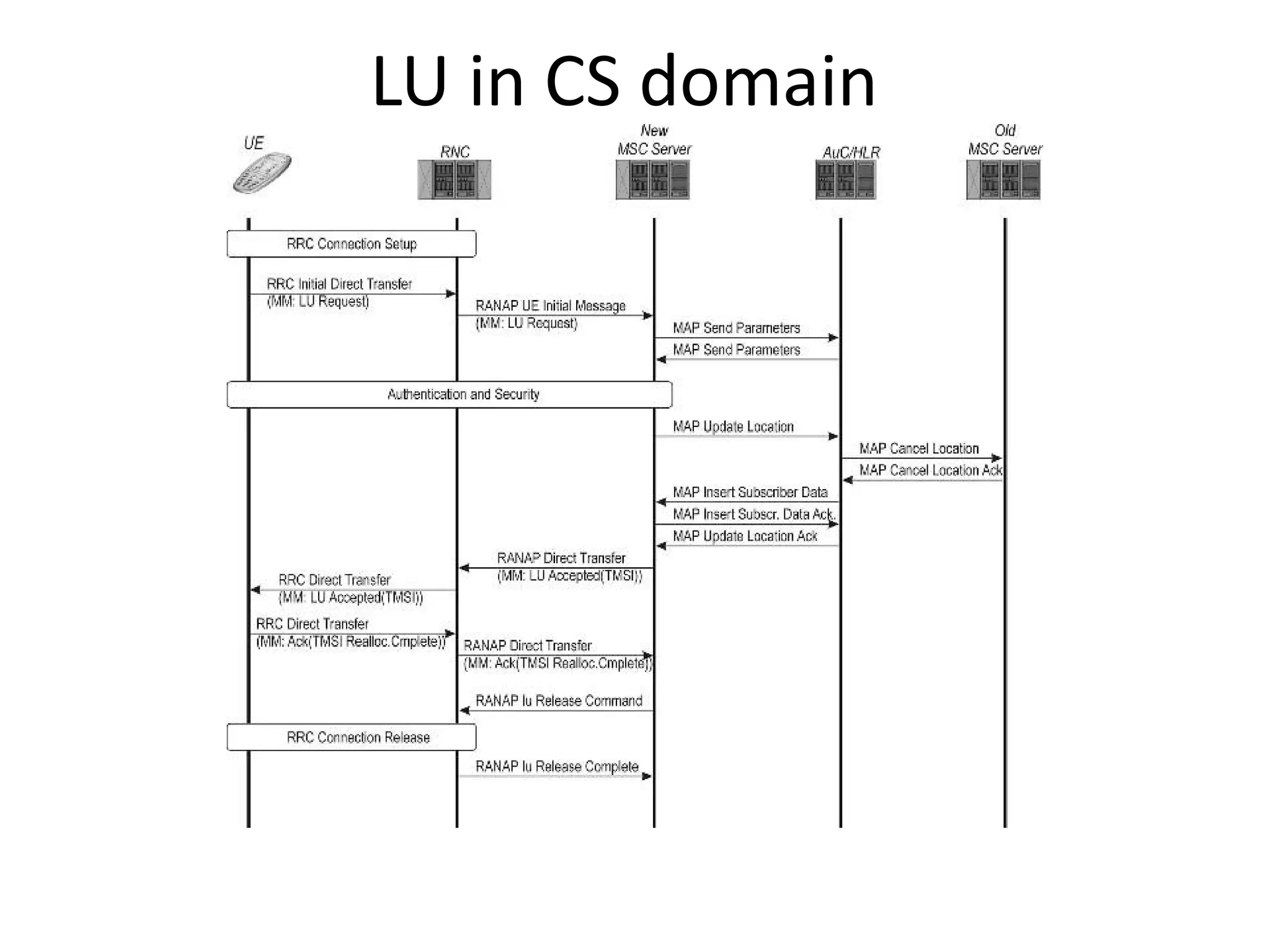

88. LU in CS domain

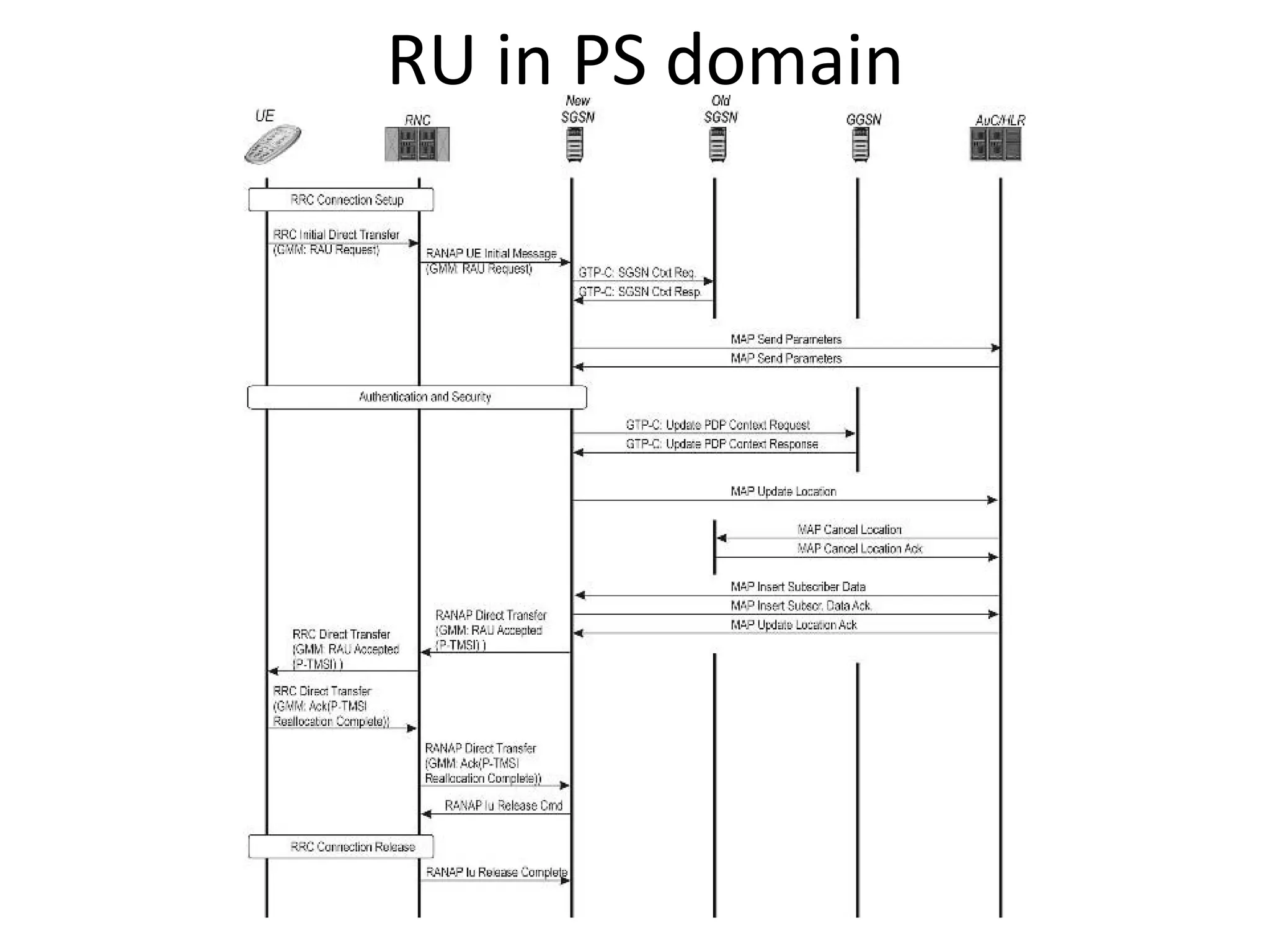

89. RU in PS domain

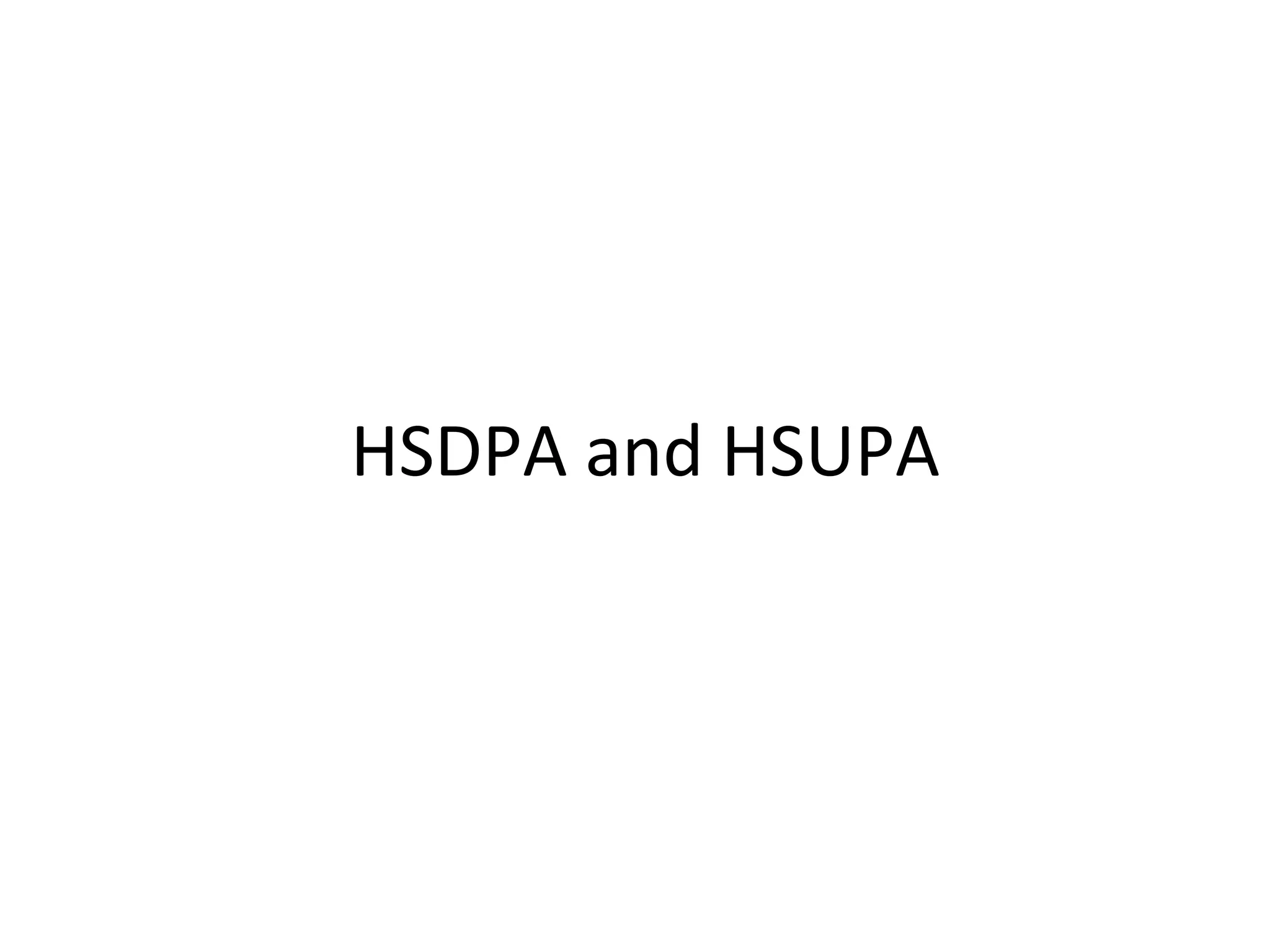

90. HSDPA and HSUPA

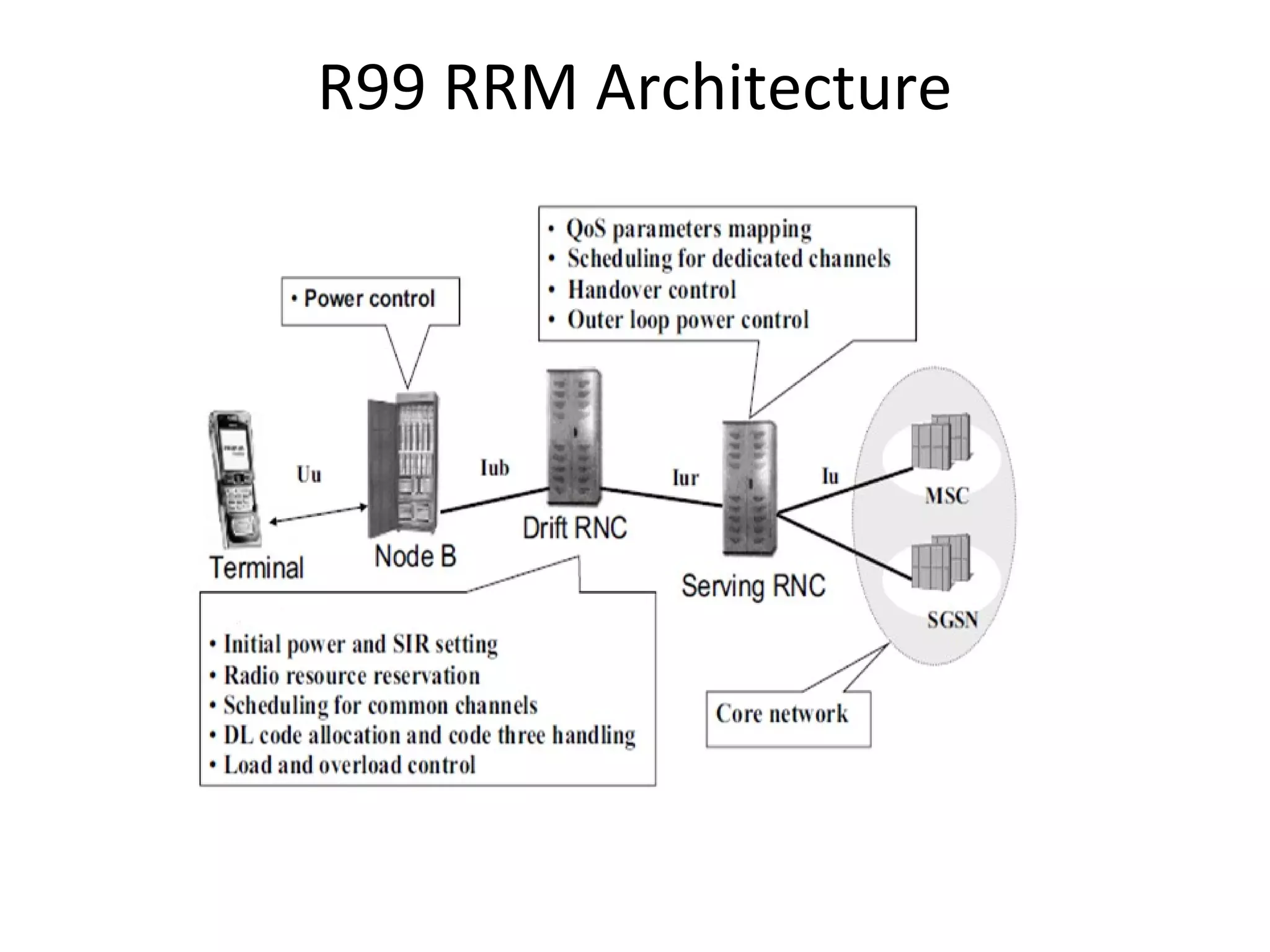

91. R99 RRM Architecture

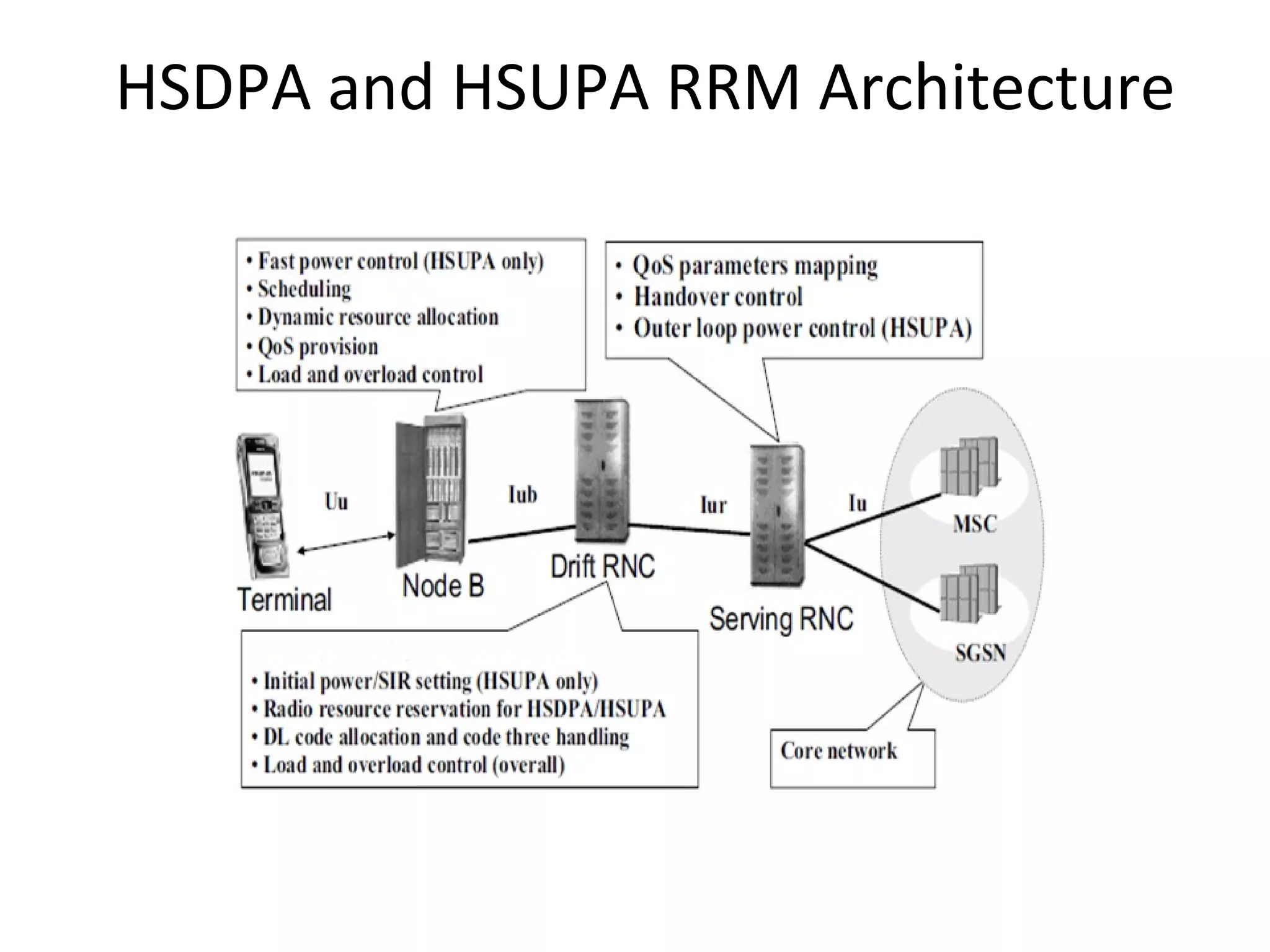

92. HSDPA and HSUPA RRM Architecture

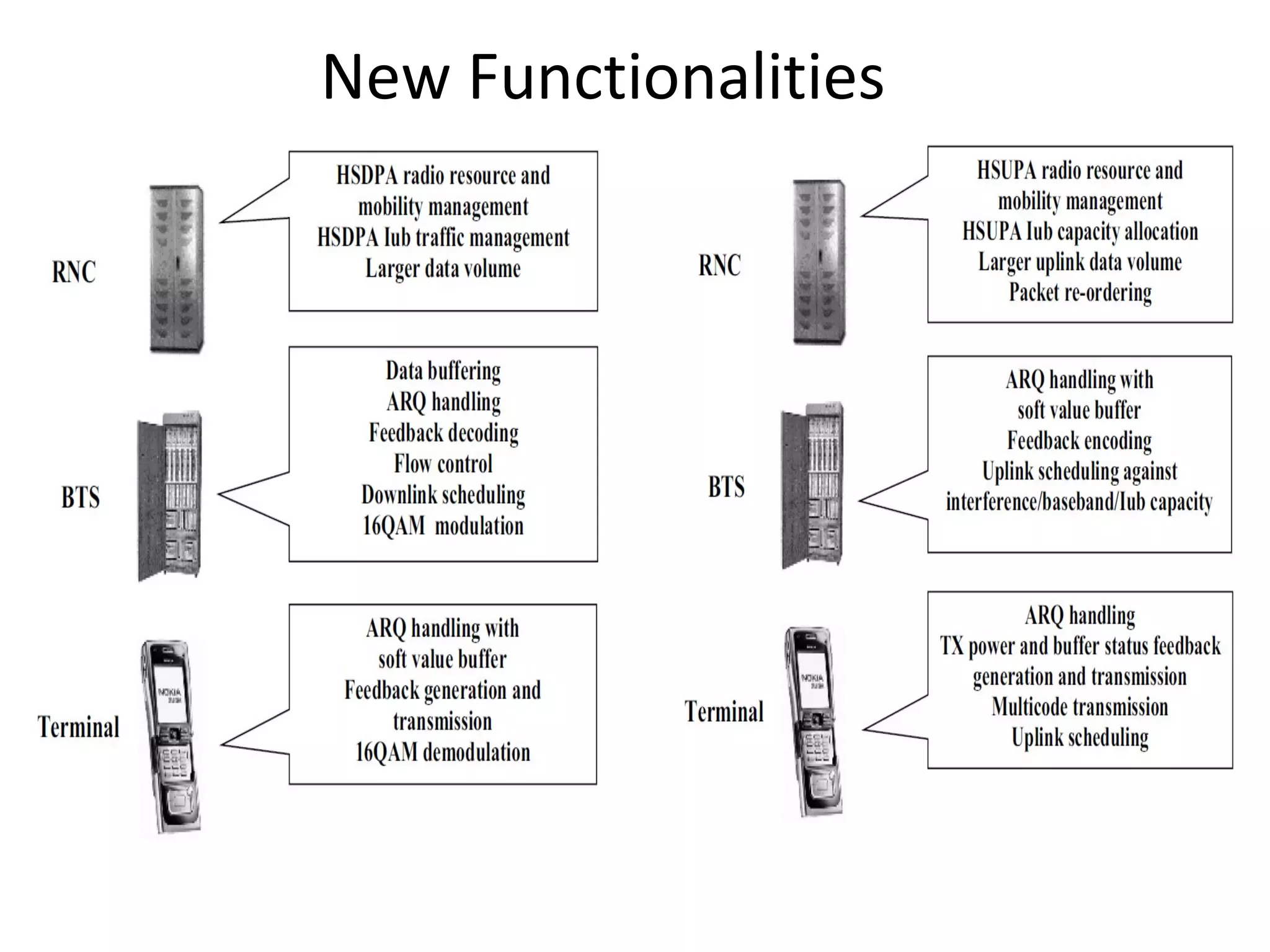

93. New Functionalities

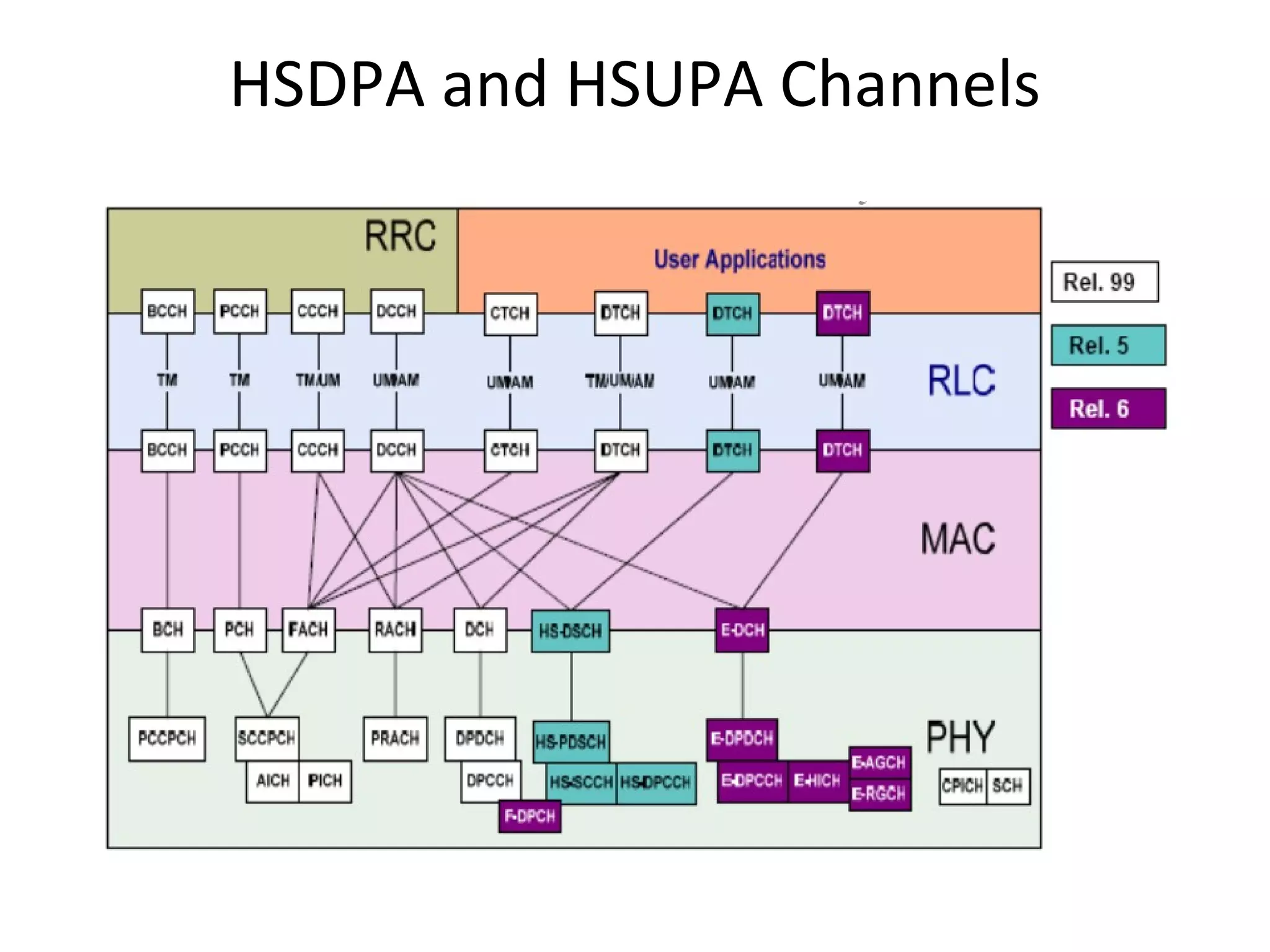

94. HSDPA and HSUPA Channels

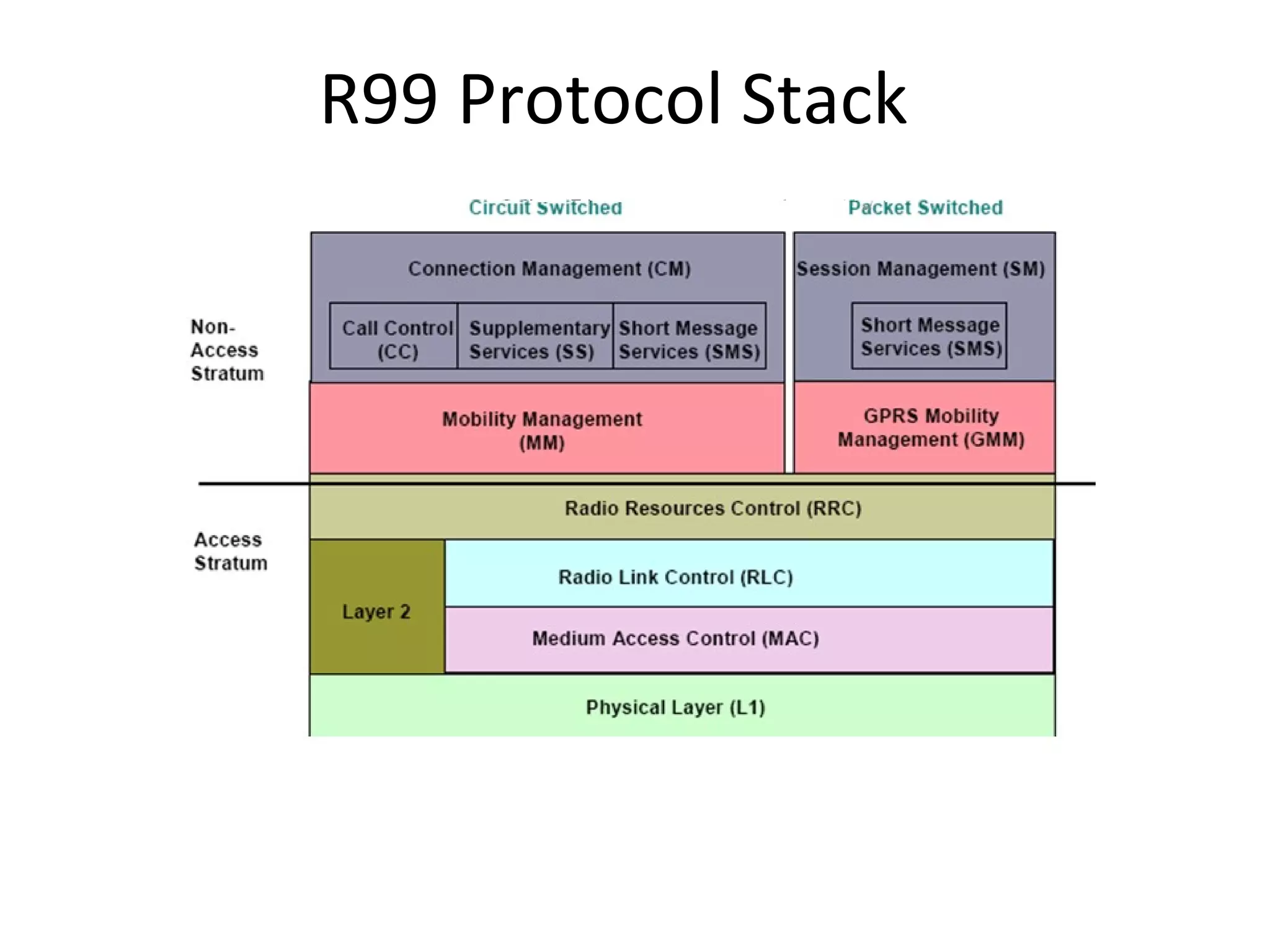

95. R99 Protocol Stack

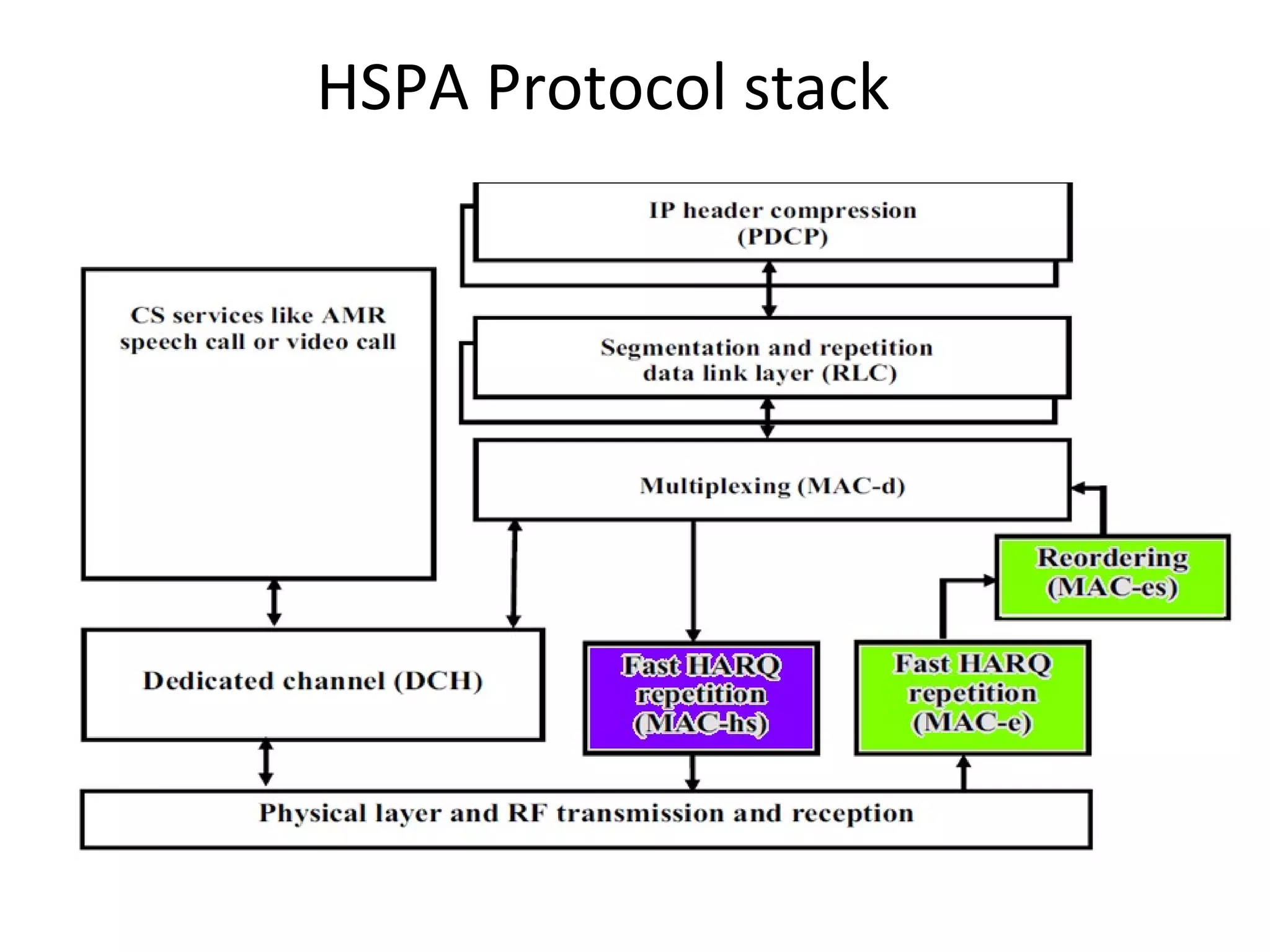

96. HSPA Protocol stack

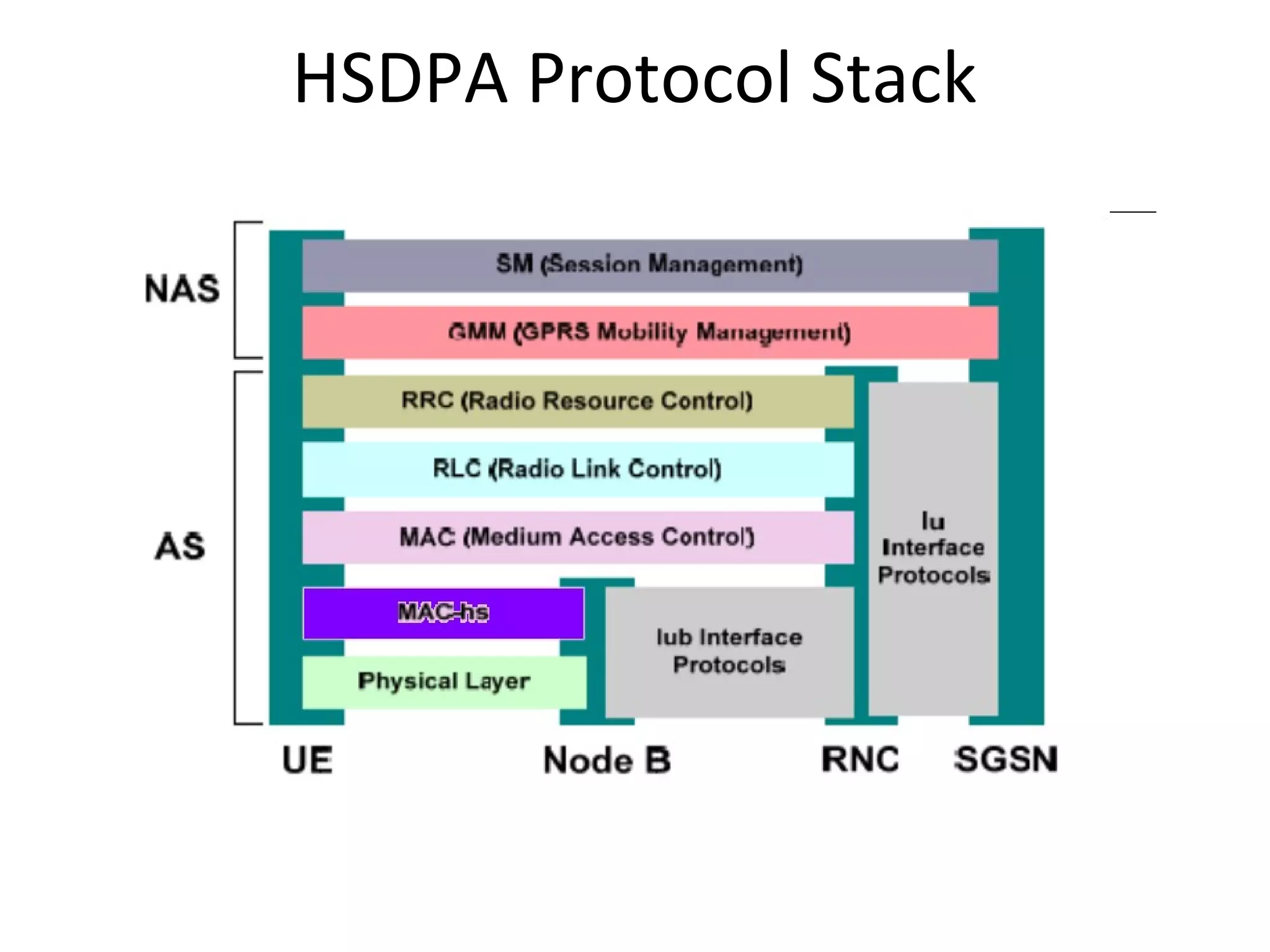

97. HSDPA Protocol Stack

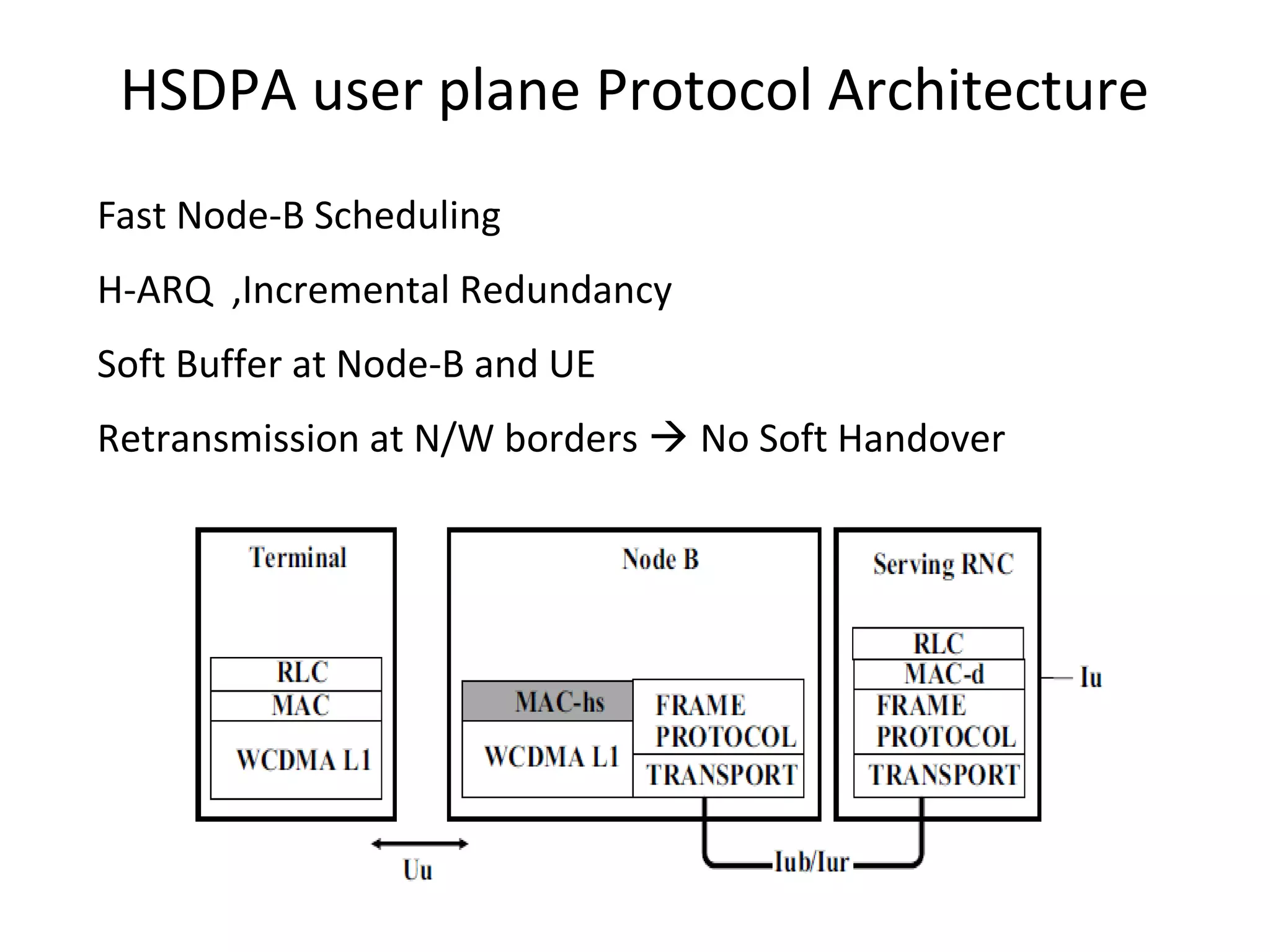

98. HSDPA user plane Protocol Architecture
Fast Node-B Scheduling
H-ARQ ,Incremental Redundancy
Soft Buffer at Node-B and UE
Retransmission at N/W borders  No Soft Handover

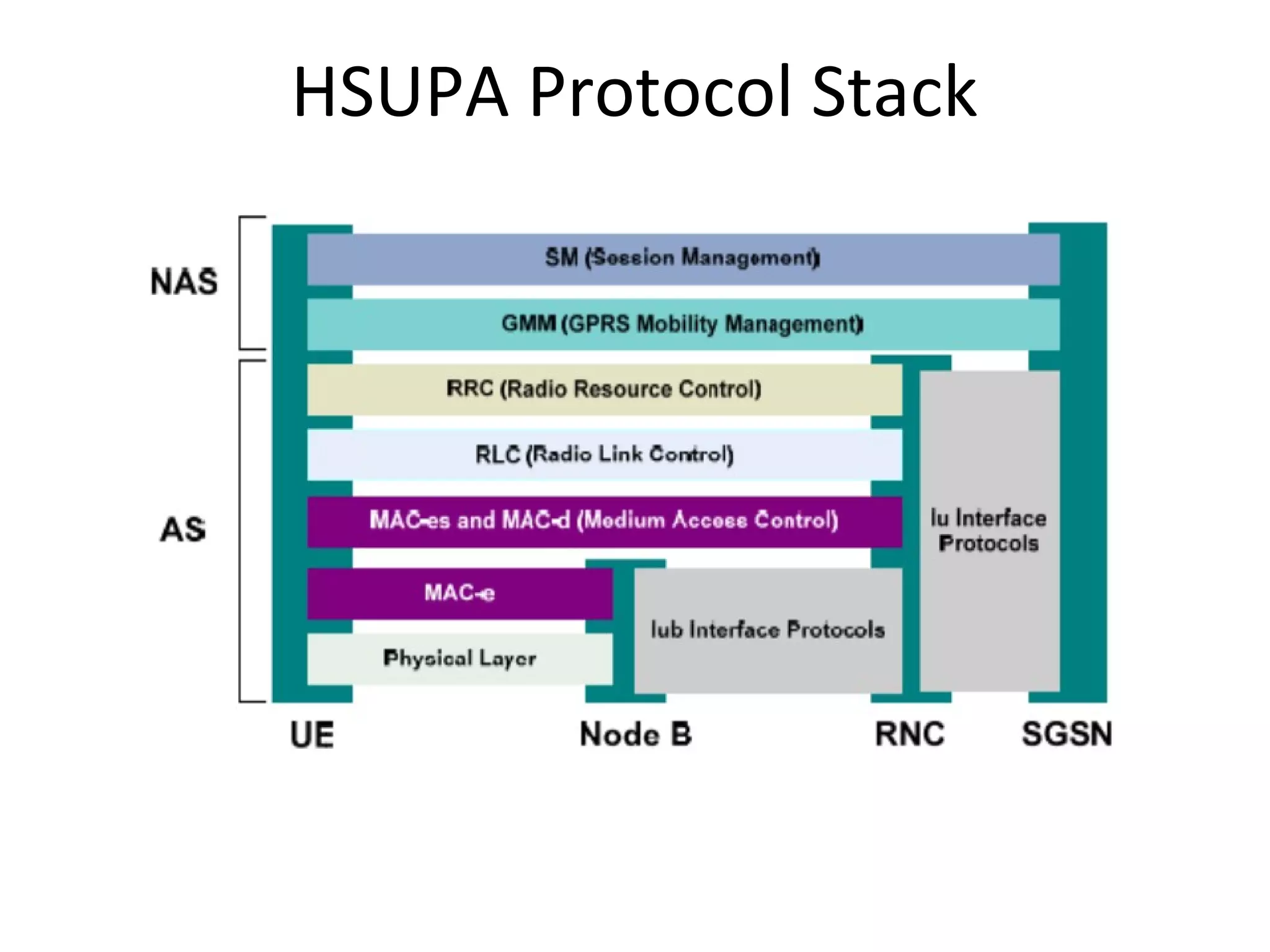

99. HSUPA Protocol Stack

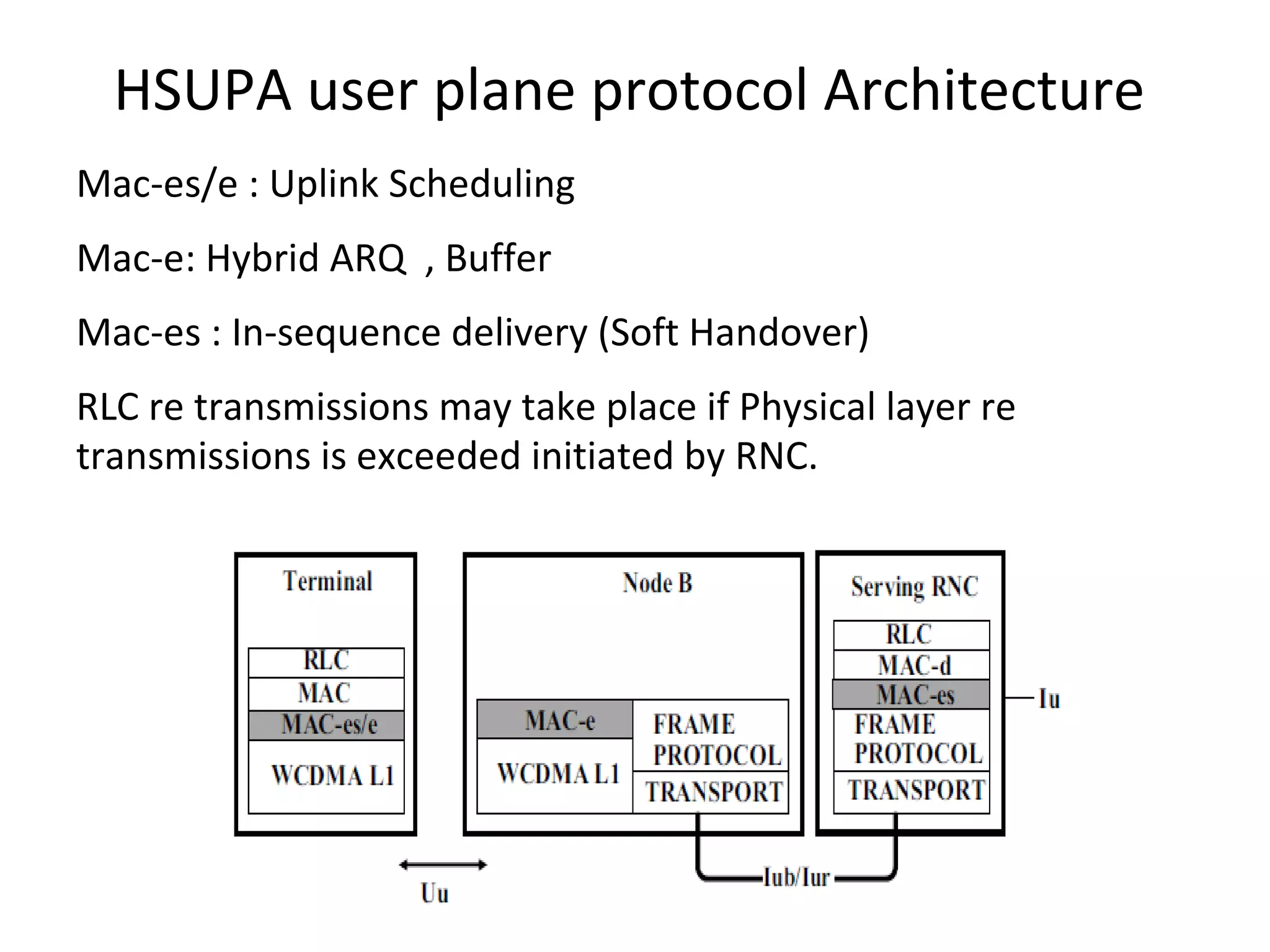

100. HSUPA user plane protocol Architecture
Mac-es/e : Uplink Scheduling
Mac-e: Hybrid ARQ , Buffer
Mac-es : In-sequence delivery (Soft Handover)
RLC re transmissions may take place if Physical layer re
transmissions is exceeded initiated by RNC.

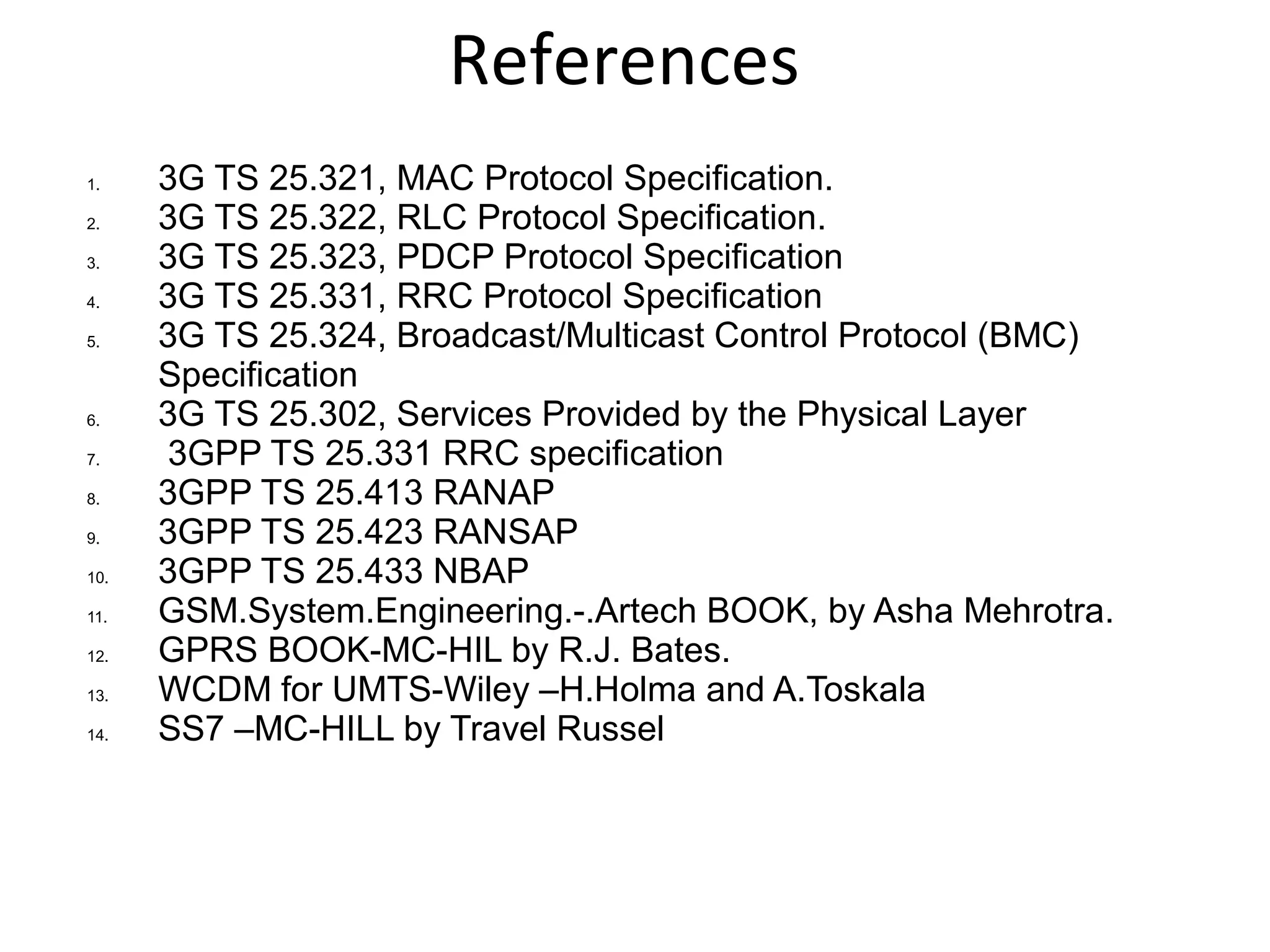

101. References
1. 3G TS 25.321, MAC Protocol Specification.
2. 3G TS 25.322, RLC Protocol Specification.
3. 3G TS 25.323, PDCP Protocol Specification
4. 3G TS 25.331, RRC Protocol Specification
5. 3G TS 25.324, Broadcast/Multicast Control Protocol (BMC)
Specification
6. 3G TS 25.302, Services Provided by the Physical Layer
7. 3GPP TS 25.331 RRC specification
8. 3GPP TS 25.413 RANAP
9. 3GPP TS 25.423 RANSAP
10. 3GPP TS 25.433 NBAP
11. GSM.System.Engineering.-.Artech BOOK, by Asha Mehrotra.
12. GPRS BOOK-MC-HIL by R.J. Bates.
13. WCDM for UMTS-Wiley –H.Holma and A.Toskala
14. SS7 –MC-HILL by Travel Russel

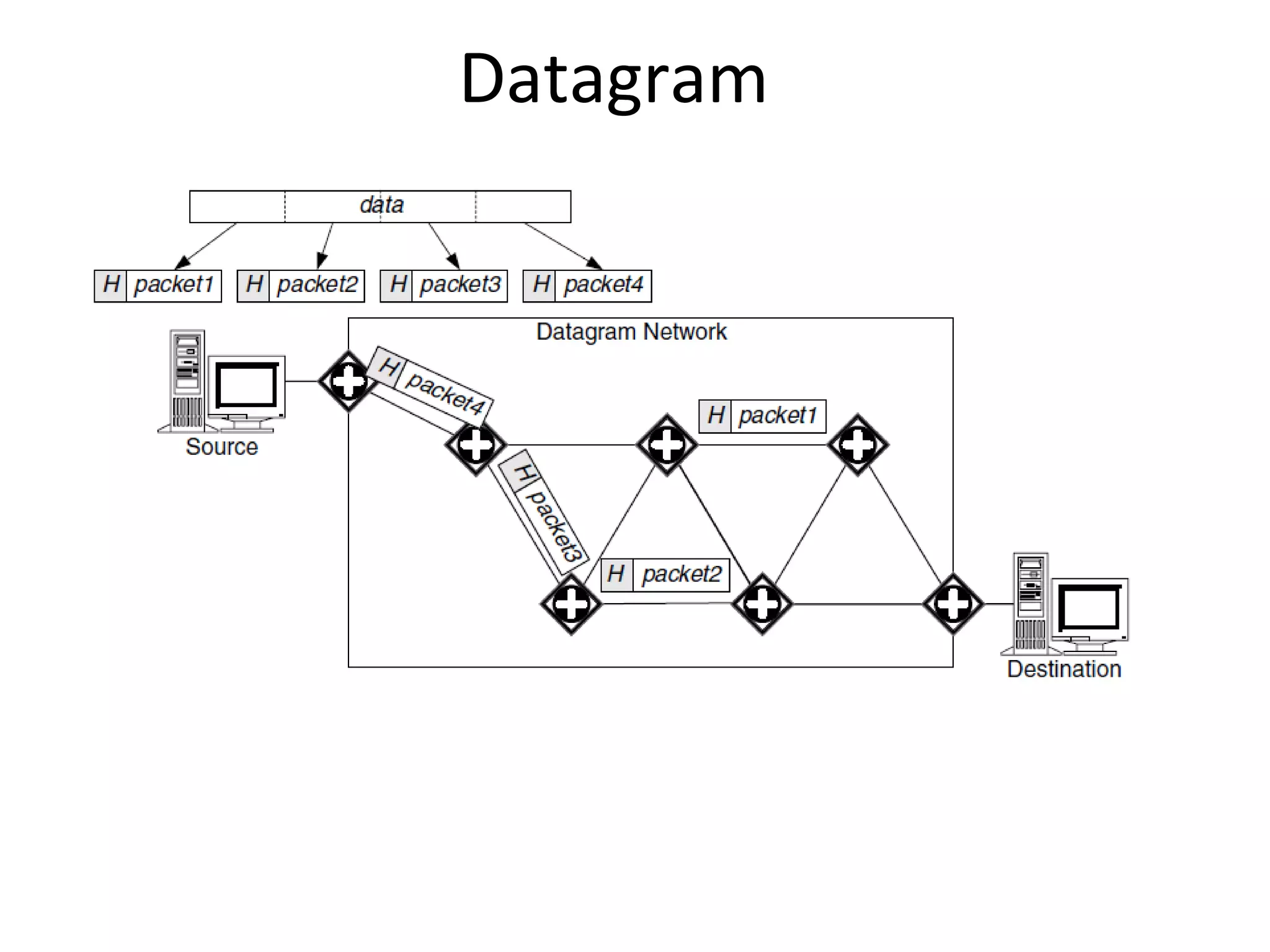

102. Datagram

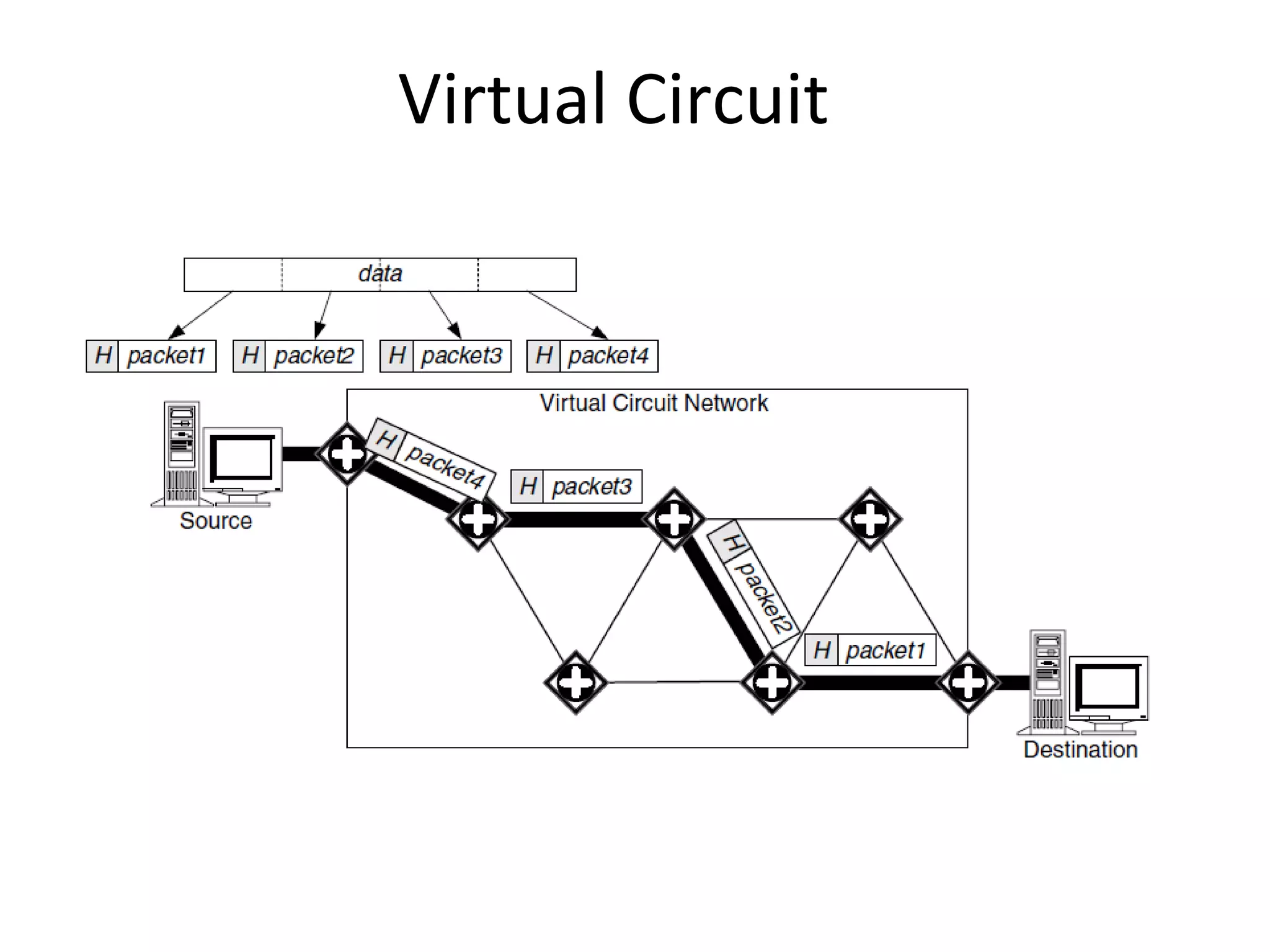

103. Virtual Circuit
