This document proposes a linear programming (LP) based approach for solving maximum a posteriori (MAP) estimation problems on factor graphs that contain multiple-degree non-indicator functions. It presents an existing LP method for problems with single-degree functions, then introduces a transformation to handle multiple-degree functions by introducing auxiliary variables. This allows applying the existing LP method. As an example, it applies this to maximum likelihood decoding for the Gaussian multiple access channel. Simulation results demonstrate the LP approach decodes correctly with polynomial complexity.

1. A Note on Linear Programming Based Communication
Receivers
Shunsuke Horii, Tota Suko, Toshiyasu Matsushima, Shigeichi Hirasawa
Waseda University, Japan
September 15, 2011
1 / 23

2. Outline
1 Motivation
2 Problem description and preliminary materials
3 Review early study
4 Our proposition
5 Summary and future plans
2 / 23

3. Motivation
Problem: MAP estimation problems on graphical models
Ex: MAP (ML) decoding problem of binary linear codes
Linear Programming based decoding algorithm is attracting.
[Feldman et al. 2005]
Extension of LP decoding to other problems
decoding for q-ary linear codes [Flanagan et al. 2008]
application to Partial-Response (PR) channel [Taghavi et al. 2007]
MAP estimation problems on factor graphs which don’t have
multiple-degree non-indicator functions [Flanagan 2010]
Our research
.
LP based inference algorithm for MAP estimation problems on factor
graphs which have multiple-degree non-indicator functions
include decoding problems of linear codes over multiple-access
channels
3 / 23

4. Comparison to early studies
Inference algorithm based on the LP relaxation
Classify the problems by the functions in the factor graphs
Indicator function: takes value only in {0, 1}
Non-indicator function: other than indicator functions
(take value in R+ )
Multiple-degree non-indicator function: Non-indicator function which
has more than one argument
!"#$%&'(&")*'!"#$'+,-.)-/01/(&//'2%203213#"$%&'4,2#.%25'
6B,&'&/5/"&#*:!
!"#$%&'(&")*'!"#$%&#'+,-.)-/01/(&//'2%203213#"$%&'4,2#.%25'
6!-"2"("2'7898:!
";/#%132(')&%<-/+'%4'<32"&='-32/"&'#%1/5'6!/-1+"2'/$'"->'788?:'
";/#%132(')&%<-/+'%4'@0"&='-32/"&'#%1/5'6!-"2"("2'/$'"->'788A:'
";/#%132(')&%<-/+'%4'-32/"&'#%1/5'%C/&'DE'F*"22/-'6G"(*"C3'/$'"->'788H:'
";/#%132(')&%<-/+'%4'-32/"&'#%1/5'%C/&'+,-.)-/0"##/55'#*"22/-'
4 / 23

5. Problem description
x = (x1 , x2 , · · · , xN ), xn ∈ Xn (finite set)
∏
X = N Xn (Cartesian product)
n=1
Problem: find x ∈ X which maximizes g(x)
∏
g(x) = fa (xa )
a∈A
A: discrete index set
xa : argument of a function fa { }
xa = (xa1 , xa2 , · · · , xaN (a) ), N (a) = a1 , a2 , · · · , a|N (a)|
Assumption: range of fa is R+ (non-negative real number)
Generally, it’s a computationally hard problem.
(needs O(2N ) computation when |Xn | = 2)
5 / 23

6. Factor graph
Factor graph [F. R. Kschischang et al. 2001]
A bipartite graph which expresses the structure of a factorization of a
product of functions
variable nodes: represent the variables {xn }n=1,2,··· ,N
factor nodes: represent the functions {fa }a∈A
.
edge-connections: variable node xn and factor node fa is connected
iff xn is an argument of fa
Example: g(x , x , x , x ) = f (x , x )f (x , x , x )f (x , x )
1 2 3 4 A 1 2 B 2 3 4 C 2 4
.
6 / 23

7. Classify the problems
We classify the functions {fa }a∈A into two classes, indicator functions and
non-indicator functions
{ }
fIj j∈J : indicator functions in {fa }a∈A
{fRl }l∈L : non-indicator functions in {fa }a∈A
Then the factorization is reduced to
∏ ∏
g(x) = fIj (xIj ) fRl (xRl )
j∈J l∈L
7 / 23

8. Example: Factor graph for binary linear codes
ML decoding:
∏
N ∏
M
ˆ
x = arg max p(y|x) = arg max p(yn |xn ) fIm (xN (m) )
x∈C x∈{0,1}N n=1 m=1
y: received word, C: binary linear code, N (m) = {n : Hn,m = 1},
H = {Hn,m } ∈ {0, 1}M ×N : Parity check matrix
{ ∑
1 if n∈N (m) xn = 0 mod 2
fIm (xN (m) ) =
0 otherwise
p(yn |xn )
!"#$%#&'()*"+,-.#(/"#0!
%#&'()*"+,-.#(/"#0!
fIm (xN (m) )
8 / 23

9. Flanagan’s work
LP relaxation for the problem to find the x that maximizes g(x)
For the case that every non-indicator function has only one argument
 
∏ ∏
x∗ = arg max  fIj (xIj ) fRl (xl )
x∈X
j∈J l∈L
∑
= arg max log fRl (xl )
x∈Q
l∈L
Q
where { is defined as follows:
}
Qj = xj : fIj (xj ) = 1 , Q = {x : xj ∈ Qj ∀j ∈ J }
9 / 23

10. Flanagan’s work
Define the vector (mapping):
τn (xn ) = (τn:1 (xn ), τn:2 (xn ), · · · , τn:|Xn | (xn )) ∈ {0, 1}|Xn | , where
{
1 if xn = α
τn:α (xn ) =
0 otherwise
Ex.) Xn = {1, 2, 3}, then τn (2) = (τn:1 (2), τn:2 (2), τn:3 (2)) = (0, 1, 0)
Let τ (x) = (τ1 (x1 ), τ2 (x2 ), · · · , τN (xN )).
Define the λl:α = log fRl (α) for all α ∈ Xl , then
∑
x∗ = arg max log fRl (xl )
x∈Q
l∈L
∑∑
= arg max λl:α τl:α (xl )
x∈Q
l∈L α∈Xl
10 / 23

11. Flanagan’s work
{ }
Define the polytope Pj = τ (x) : fIj (xIj = 1) and
(∩ )
P = conv j∈J Pj (conv(·): convex hull of a set), then
∑∑ ∑∑
max λl:α τl:α (xl ) = max λl:α τl:α
x∈Q τ ∈P
l∈L α∈Xl l∈L α∈Xl
where τ is the variable that takes its value in the range of τ (x) and τl:α is
an element of τ .
LP relaxed problem is derived as follows:
∑∑
max λl:α τl:α
τ ∈P
˜
l∈L α∈Xl
˜ ∩
where P = j∈J conv(Pj ). is the relaxed polytope.
See [Flanagan, 2010] for detail.
11 / 23

12. Aim of our research
We can’t apply Flanagan’s result if the factor graph has some
non-indicator functions that have more than one argument. (We call
these functions multiple-degree non-indicator function)
Some problems have such functions (Ex. Decoding problem over
multiple-access channel)
Our Proposition
LP relaxation for the problem the objective function of which has some
multiple-degree non-indicator functions.
12 / 23

13. Our Proposition
Original problem:
∏ ∏
arg max fIj (xIj ) fRl (xRl )
x
j∈J l∈L
Introduce auxiliary variables and functions:
Wl = Xl1 × Xl2 × · · · × Xl|N (l)|
wl : variable which takes its value in Wl
w = (wl )l∈L
{
1 if wl = xRl
fIl (wl , xRl ) =
0 otherwise.
c.f. fIl is an Indicator function.
13 / 23

14. Our Proposition
Problem translation:
∏ ∏
g(x) = fIj (xIj ) fRl (xRl )
j∈J l∈L
∏ ∏ ∏
g (x, w) = fIj (xIj ) fIl (wl , xRl ) fRl (wl )
j∈J l∈L l∈Rl
If we regard wl as ’one’ variable which takes value in Wl , the function fRl
has only one argument.
Theorem
Let (x∗ , w∗ ) maximizes the function g , then x∗ maximizes the function g.
The problem is reduced to the problem to find the maximizer of g .
The function g doesn’t have any multi-degree non-indicator
functions.
⇒ We can use Flanagan’s result.
14 / 23

15. Application to Gaussian-MAC
Gaussian-Multiple Access Channel model:
ak : amplitude of user k
Gaussian noise
ǫ ∼ N (0, σ 2 I)
xK ∈ CK 1 − 2xK
aK (1 − 2xK )
Maximum Likelihood decoding rule:
(x1 , x2 , · · · , xK ) = arg
ˆ ˆ ˆ max Pr(y|x1 , x2 , · · · , xK )
x1 ∈C1 ,x2 ∈C2 ,··· ,xK ∈CK
Likelihood function:
∏
N
Pr(y|x1 , x2 , · · · , xK ) = Pr(yn |x1,n , x2,n , · · · , xK,n )
n=1
N : codeword length,xk,n : n − th symbol of user k’s codeword
15 / 23

16. Factor graph for MAC
Pr(yn |x1,n , x2,n , · · · , xK,n )
Non-Indicator(
!"#$%&'#
xK,1 xK,2 xK,N
Indicator
!"#$%&'#
user 1’s code constraint
{ ∑ }
1 (yn − K (1 − 2xk,n ))2
Pr(yn |x1,n , x2,n , · · · , xK,n ) = exp − k=1
2πσ 2 2σ 2
16 / 23

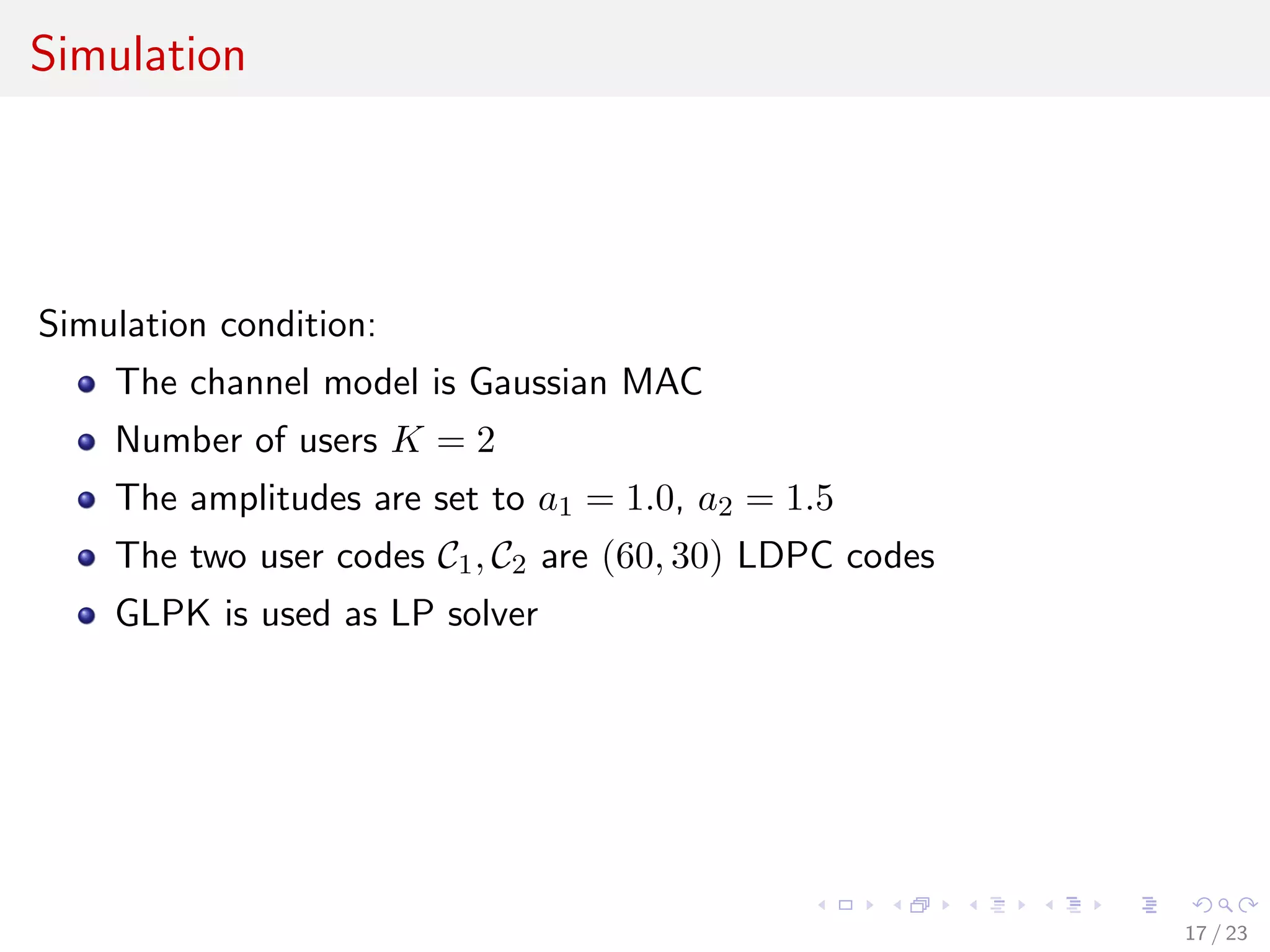

17. Simulation
Simulation condition:
The channel model is Gaussian MAC
Number of users K = 2
The amplitudes are set to a1 = 1.0, a2 = 1.5
The two user codes C1 , C2 are (60, 30) LDPC codes
GLPK is used as LP solver
17 / 23

18. Simulation
Simulation result:
18 / 23

19. Conclusion
Summary:
We proposed LP based inference algorithm for MAP estimation
problems on factor graphs which have multiple-degree non-indicator
functions.
As an example, we proposed LP based decoding algorithm for
Multiple-Access channels.
Future works:
Improve the inference algorithms by using the combinatorial
optimization algorithms.
Application to problems other than Multiple-Access channel.
19 / 23

20. Appendix
Another simulation result:
20 / 23

21. Appendix
Average decoding time (ms):
(60,30) LDPC codes, Eb/N0=6.0dB
SP(T1 = T2 = 10) SP(T1 = T2 = 20) LP
0.0520 0.1762 0.1403
(100,50) LDPC codes, Eb/N0=6.0dB
SP(T1 = T2 = 20) SP(T1 = T2 = 30) LP
0.2818 0.6259 0.4235
21 / 23

22. Appendix
Computational Complexity:
Computational complexity of LP is polynomial order of the number of
variables and constraints.
For MAC problem:
Number of variables: O(N 2K )
∑ (k)
Number of constraints: O(N K + k Mk 2dmax )
(k)
(dmax :Maximum row hamming weight of H (k) )
For Gaussian MAC problem:1
Number of variables: O(N K 2 )
∑ (k)
Number of constraints: O(N K 2 + k Mk 2dmax )
1
S. Horii, T. Matsushima, S. Hirasawa, “A Note on the Linear Programming
Decoding of Binary Linear Codes for Multiple-Access Channel,” IEICE Trans.
Fundamentals, Vol.E94-A, No.6, pp.1230-1237.
22 / 23

23. Appendix
Proof of Theorem
∏ ∏
g(x) = fIj (xIj ) fRl (xRl )
j∈J l∈L
∏ ∏ ∏
g (x, w) = fIj (xIj ) fIl (wl , xRl ) fRl (wl )
j∈J l∈L l∈Rl
Theorem
Let (x∗ , w∗ ) maximizes the function g , then x∗ maximizes the function g.
Proof: Assume that there exists x such that g(x ) > g(x∗ ).
( )
Let wl = xl1 , xl2 , · · · , xl|N (l)| .
Then it holds that f (xRl , wl ) = 1 for all l ∈ L.
Then, .
g (x , w ) = g(x ) > g(x∗ ) = g(x∗ , w∗ )
It contradicts to the assumption that (x∗ , w∗ ) maximizes g ..
23 / 23
