LFSR

•Download as PPT, PDF•
•
CVR college of Engineering
CVR college of Engineering

This document presents a mini project on linear feedback shift registers (LFSRs). It describes how an 8-bit LFSR works using 8 D-flip flops connected in a chain with outputs XORed together. The LFSR generates a pseudo-random sequence that repeats after 255 cycles. It discusses the circuit, working, and timing diagrams of the 8-bit LFSR. Applications mentioned include random number generation, error detection/correction, and implementing cyclic redundancy checks for data transmission.

EducationTechnologyArt & Photos
1 of 16
A mini project on Linear Feedback Shift Register By Arpith (09B81A0410) Himaja (09B81A0429) Kishore (09B81A0432

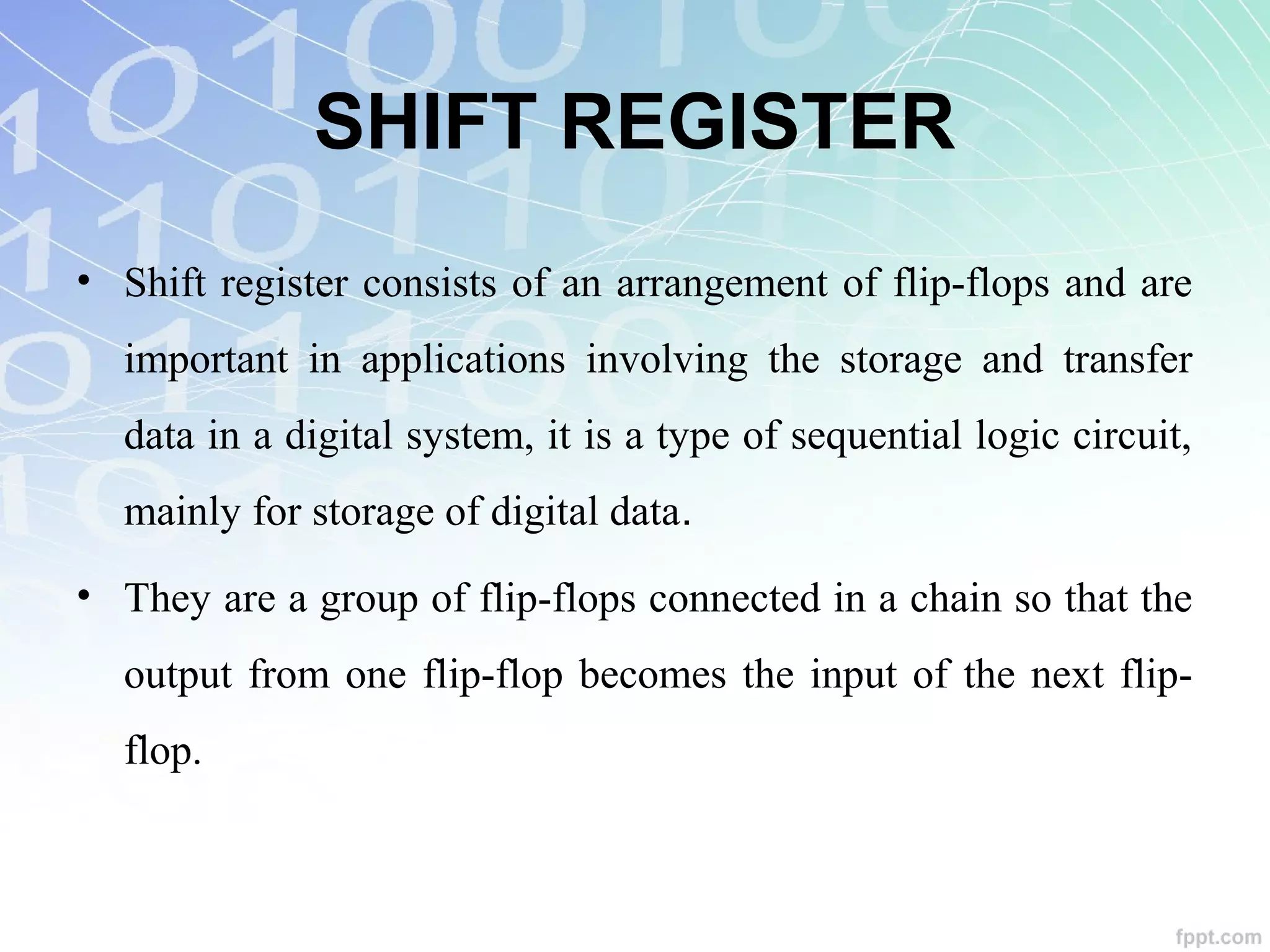

SHIFT REGISTER • Shift register consists of an arrangement of flip-flops and are important in applications involving the storage and transfer data in a digital system, it is a type of sequential logic circuit, mainly for storage of digital data. • They are a group of flip-flops connected in a chain so that the output from one flip-flop becomes the input of the next flip- flop.
CONTENTS • WHAT IS LFSR? • SHIFT REGISTER • 8 BIT LINEAR FEEDBACK SHIFT REGISTER (LFSR) • Circuit of 8-bit LFSR • Working of 8-bit LFSR • TIMING DIAGRAMS • APPLICATIONS • IMPLEMENTATION AS CYCLIC REDUNDANCY CHECK • DATA TRANSMISSON • CRC ENCODING (USING LFSR) • CRC DECODING (USING LFSR) • TIMING DIAGRAMS • Conclusion

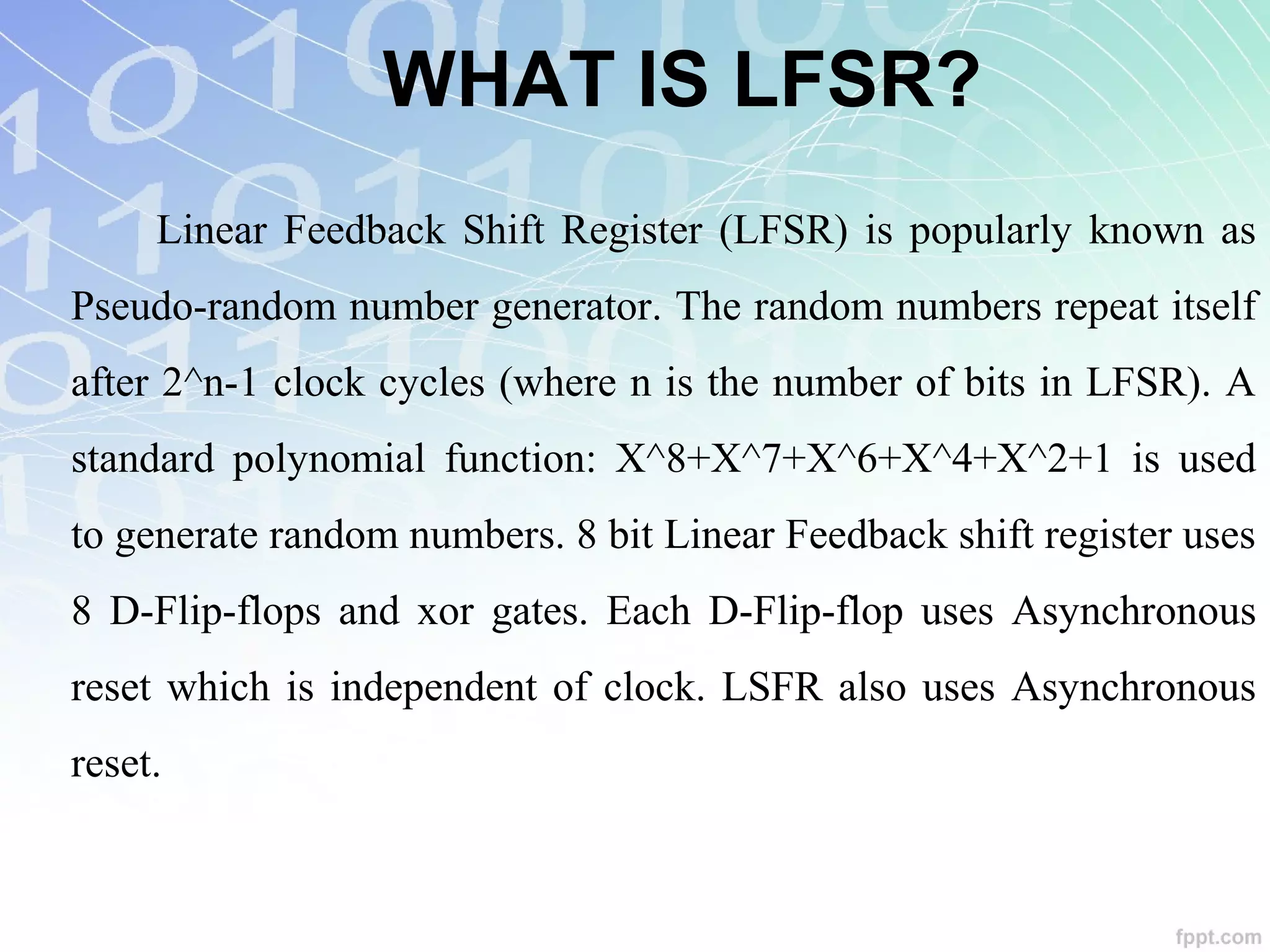

WHAT IS LFSR? Linear Feedback Shift Register (LFSR) is popularly known as Pseudo-random number generator. The random numbers repeat itself after 2^n-1 clock cycles (where n is the number of bits in LFSR). A standard polynomial function: X^8+X^7+X^6+X^4+X^2+1 is used to generate random numbers. 8 bit Linear Feedback shift register uses 8 D-Flip-flops and xor gates. Each D-Flip-flop uses Asynchronous reset which is independent of clock. LSFR also uses Asynchronous reset.

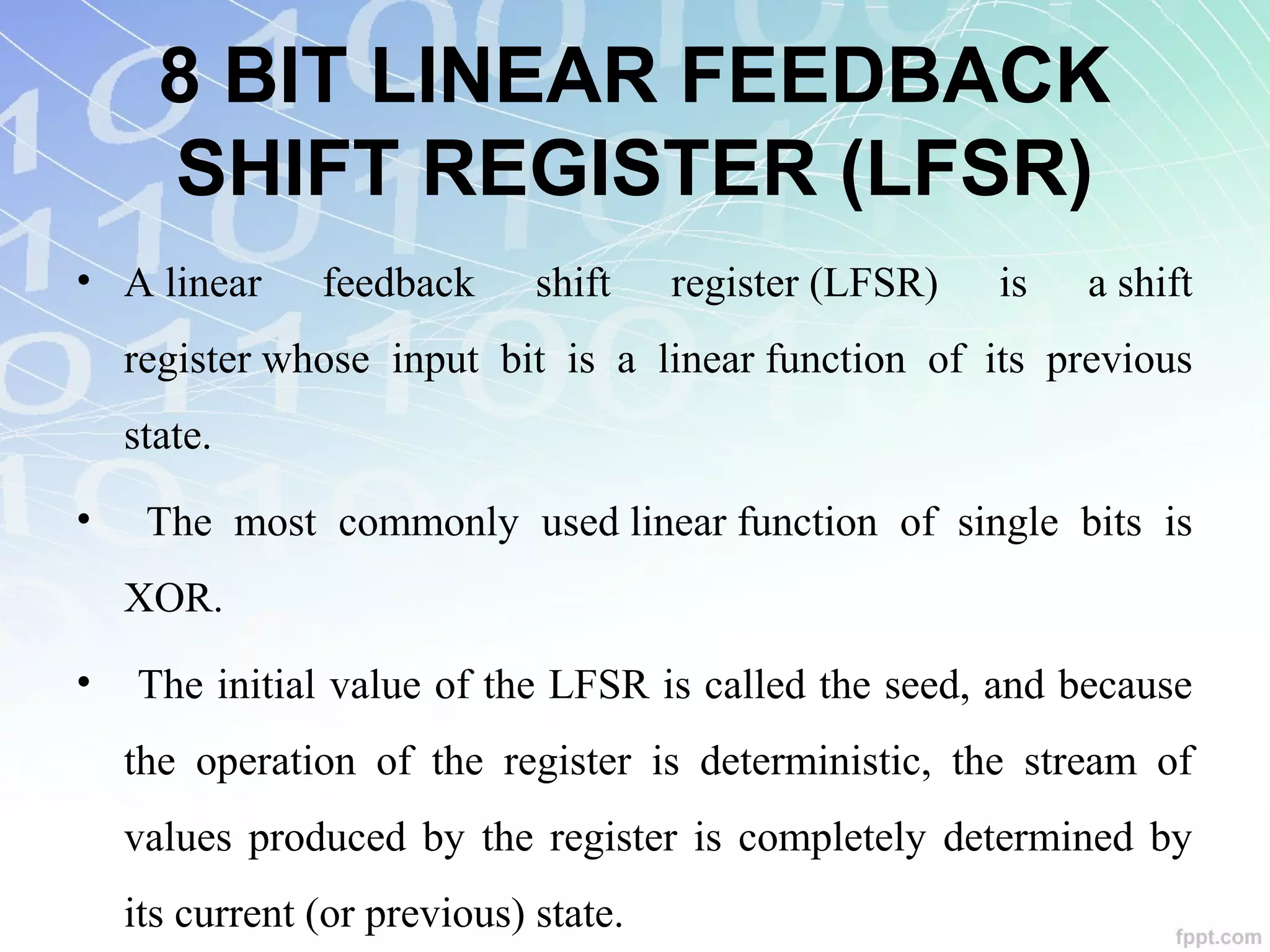

8 BIT LINEAR FEEDBACK SHIFT REGISTER (LFSR) • A linear  feedback  shift  register (LFSR)  is  a shift  register whose  input  bit  is  a  linear function  of  its  previous  state.  •   The  most  commonly  used linear function  of  single  bits  is  XOR. •  The initial value of the LFSR is called the seed, and because  the  operation  of  the  register  is  deterministic,  the  stream  of  values produced by the register is completely determined by  its current (or previous) state.
Circuit of 8-bit LFSR

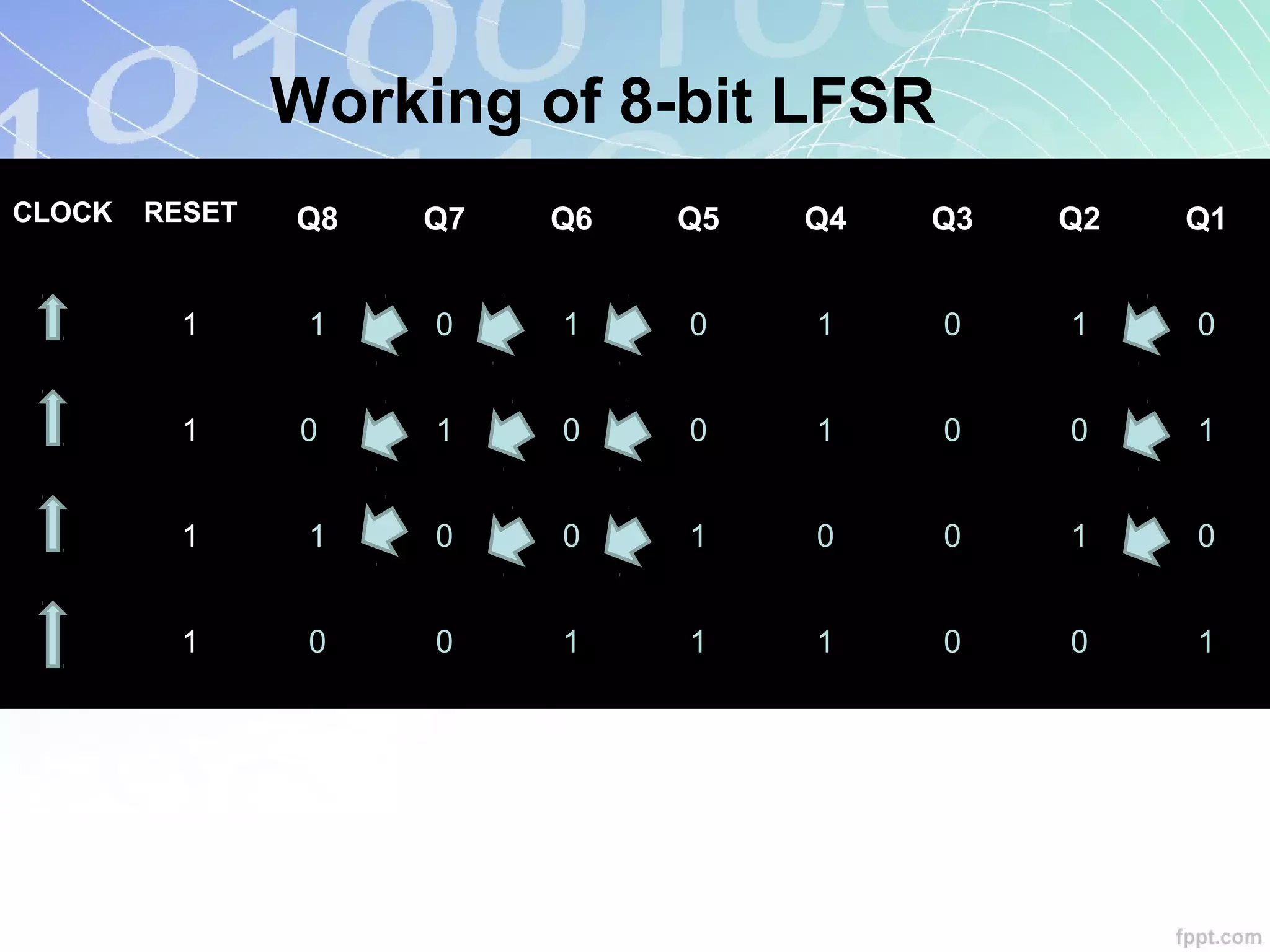

CLOCK RESET Q8 Q7 Q6 Q5 Q4 Q3 Q2 Q1 1 1 0 1 0 1 0 1 0 1 00 1 0 0 1 0 0 1 1 1 0 0 1 0 0 1 0 1 0 0 1 1 1 0 0 1 Working of 8-bit LFSR

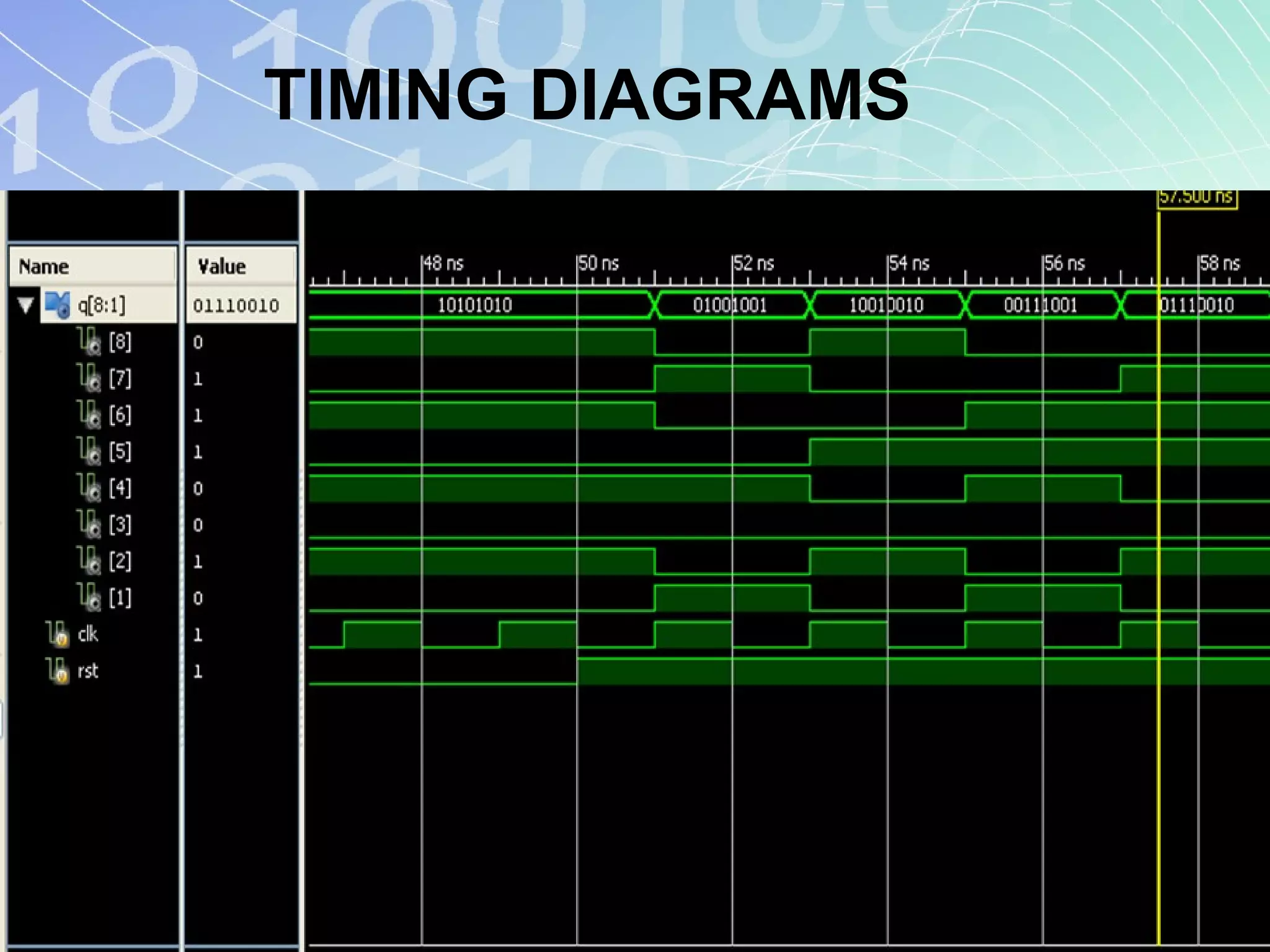

TIMING DIAGRAMS

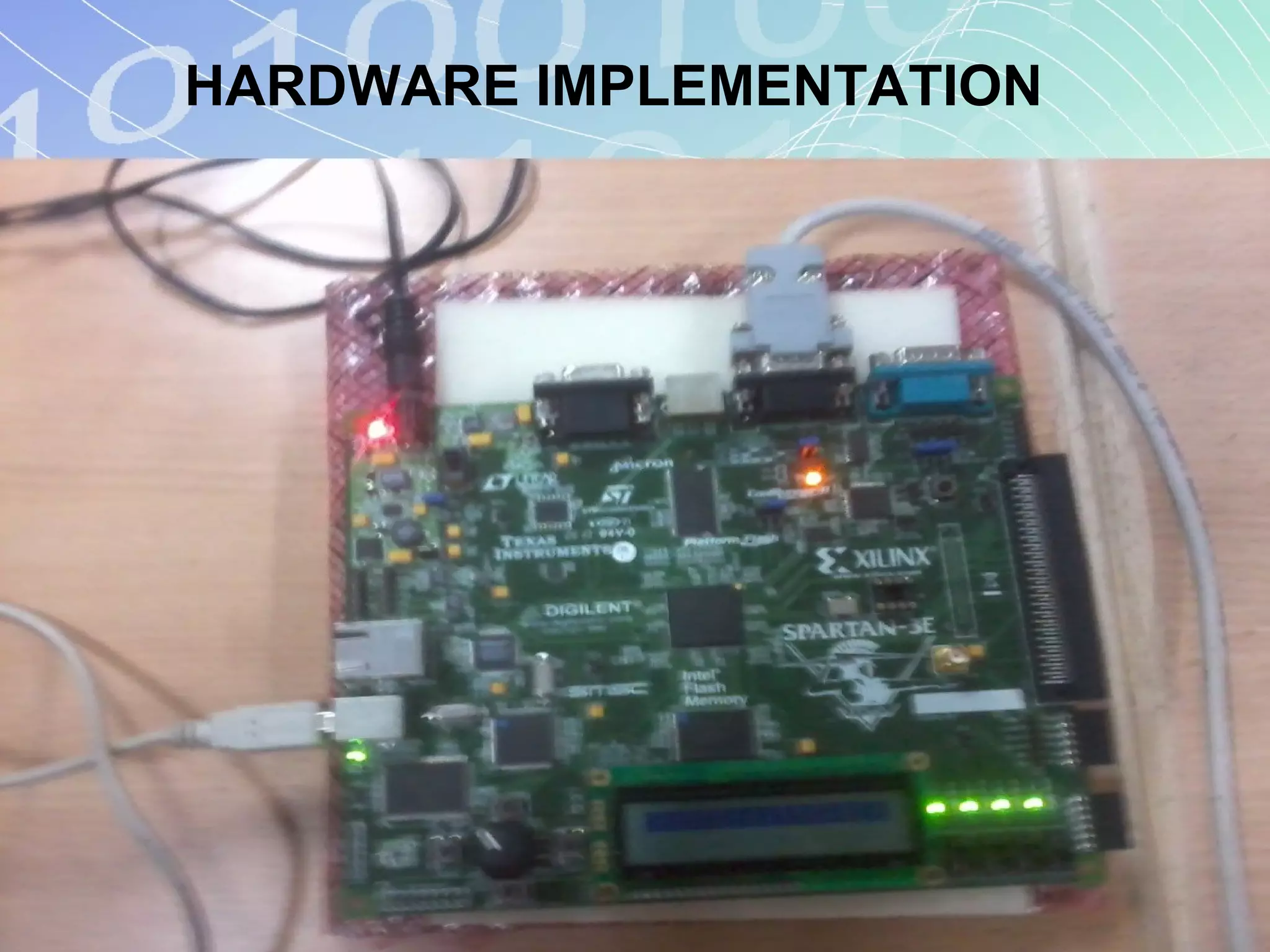

HARDWARE IMPLEMENTATION

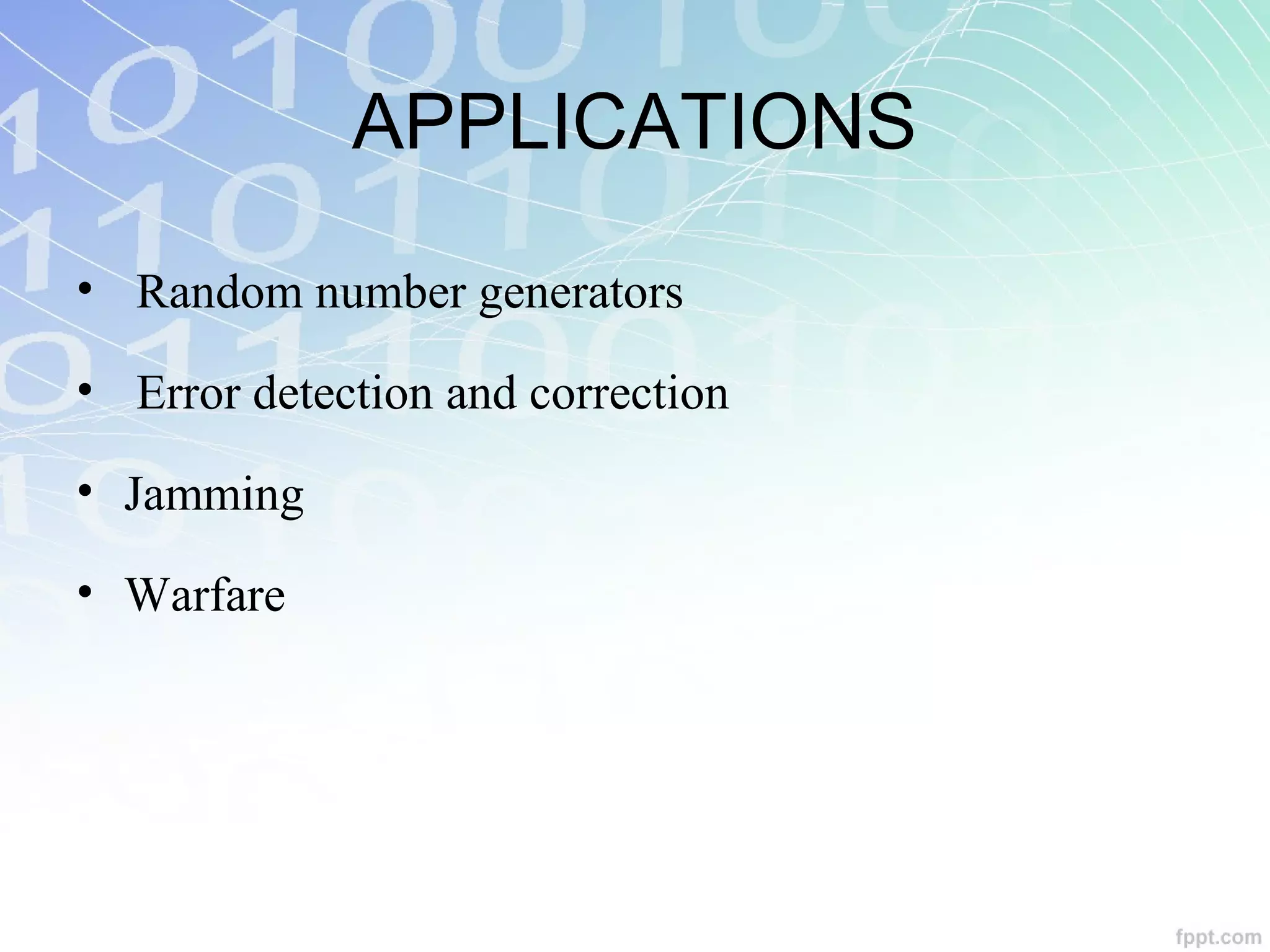

APPLICATIONS • Random number generators • Error detection and correction • Jamming • Warfare

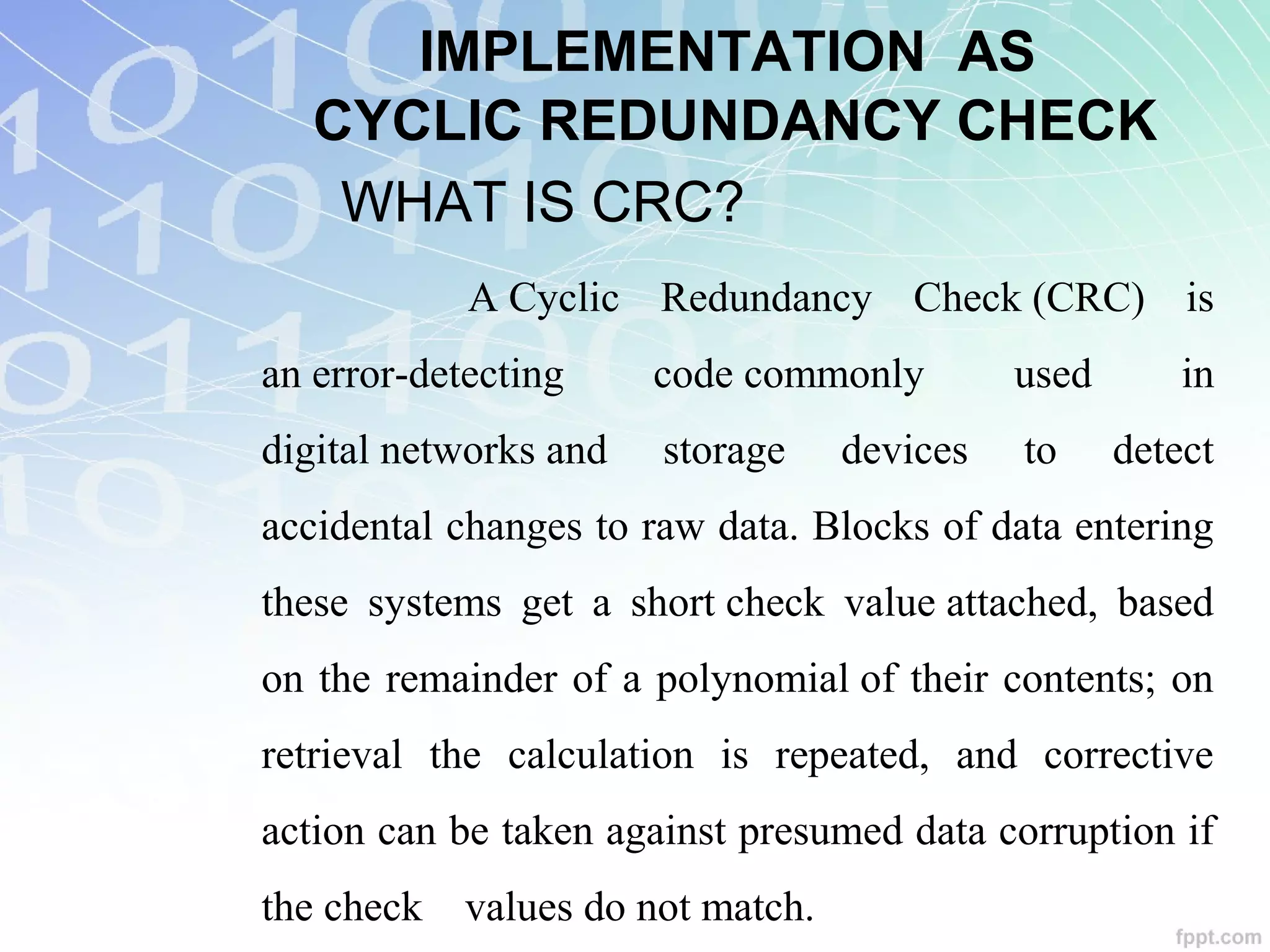

IMPLEMENTATION AS CYCLIC REDUNDANCY CHECK WHAT IS CRC? A Cyclic Redundancy Check (CRC) is an error-detecting code commonly used in digital networks and storage devices to detect accidental changes to raw data. Blocks of data entering these systems get a short check value attached, based on the remainder of a polynomial of their contents; on retrieval the calculation is repeated, and corrective action can be taken against presumed data corruption if the check values do not match.

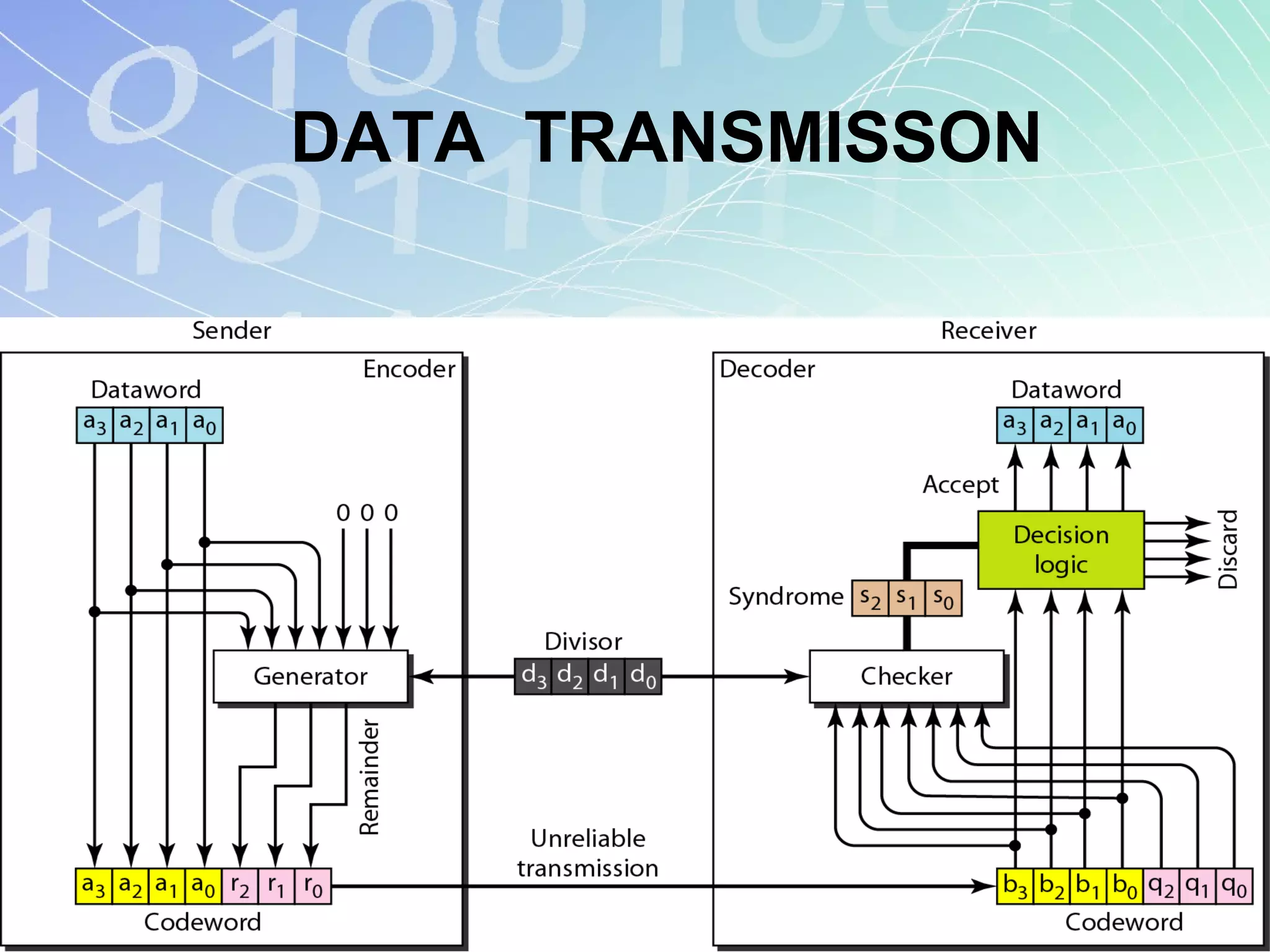

DATA TRANSMISSON
CRC ENCODING (USING LFSR) 1 0 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 0 0 1 0 0 0 0 0 0 1 0 1 1 0 0 1 0 0 0 0 0 1 0 1 1 0 0 1 0 0 0 0 1 0 1 1 0 0 1 0 0 0 0 0 1 0 1 0 1 0 0 0 0 1 0 1 0 1 0 0 0 0 0 1 1 0 0 0 0 0 Message sent: 1 1 0 0 0 0 0 1 0 1 1 0 0 0 1 0 1 0 1 0 1 0 10110011010

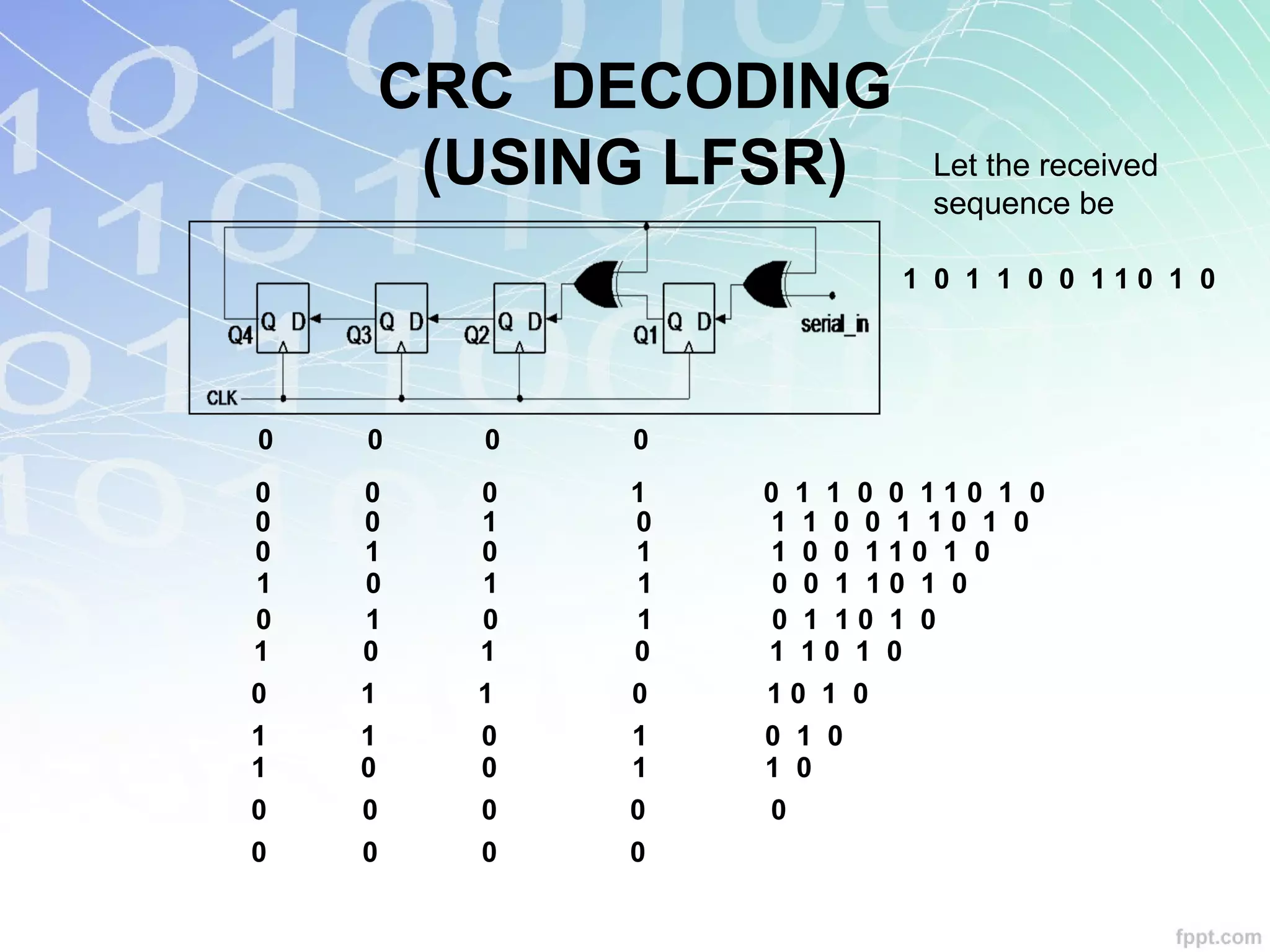

CRC DECODING (USING LFSR) 1 0 1 1 0 0 1 1 0 1 0 0 0 0 0 0 0 0 1 0 1 1 0 0 1 1 0 1 0 0 0 1 0 1 1 0 0 1 1 0 1 0 0 1 0 1 1 0 0 1 1 0 1 0 1 0 1 1 0 0 1 1 0 1 0 0 1 0 1 0 1 1 0 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 0 1 0 1 1 0 1 0 1 0 1 0 0 1 1 0 0 0 0 0 0 0 0 0 0 Let the received sequence be

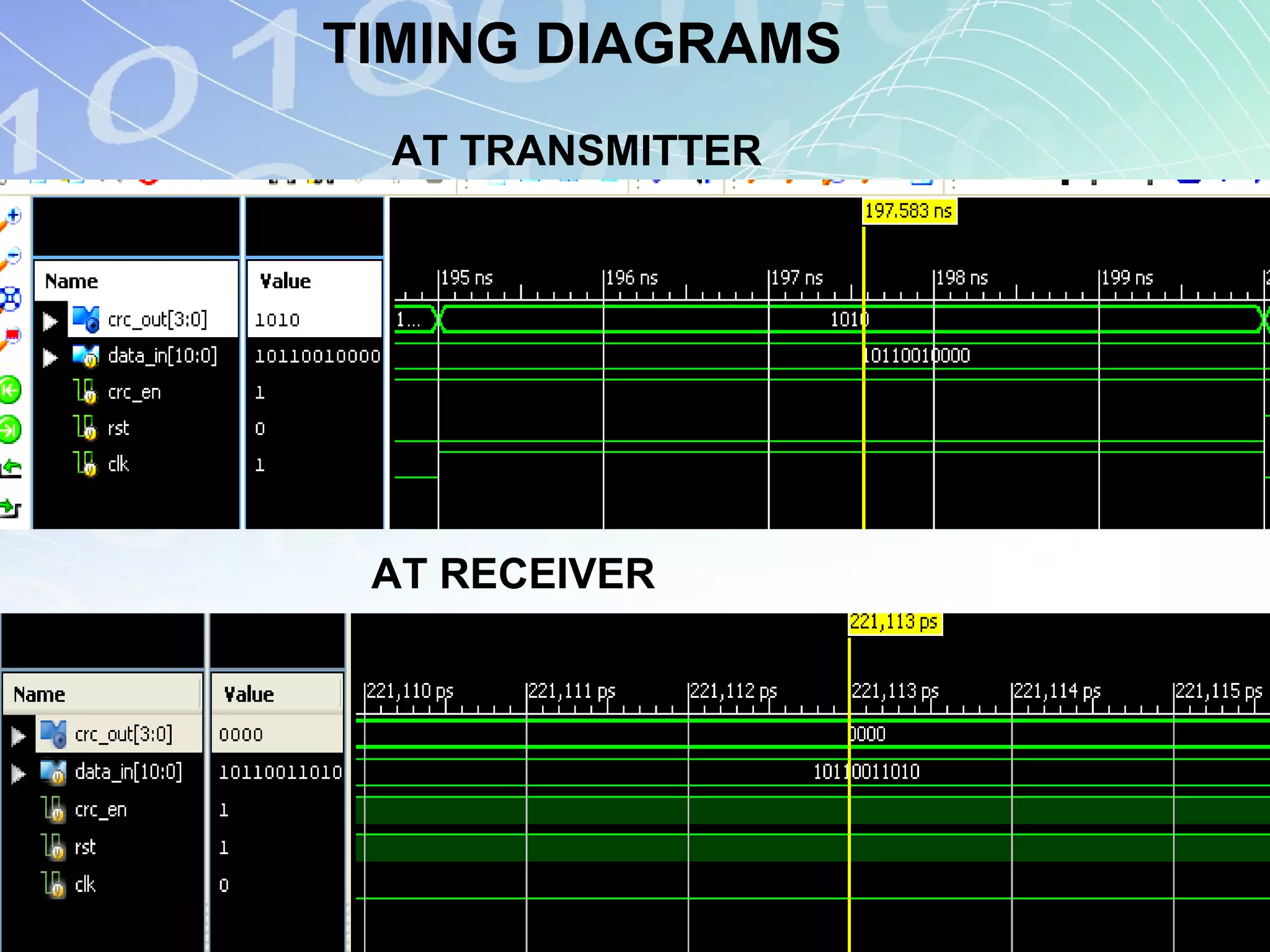

TIMING DIAGRAMS AT TRANSMITTER AT RECEIVER
Conclusion • LFSR’s are n-bit counters exhibiting pseudo-random behaviour. These are built from a small number of xor gates and hence require very less hardware. • This can be used as a fast counter, if the particular sequence of count values is not important. • A traditional application for LFSRs is in cyclic redundancy check (CRC)calculations, which can be used to detect errors in data communications. The stream of data bits being transmitted is used to modify the values fed back into an LFSR .
