1. LATE RESPONSES
BY: Syed Irshad Murtaza
The Aga Khan University Hospital Karachi
Neurophysiology Dept
Date: 02-07-2013

2. Introduction to late responses
• Nerve conduction studies are basically performed to
study the distal segment involvement. The late
responses are preformed to study the more proximal
segment involvement(plexus and roots). There are 3
different late responses:
1.F wave response
2.H reflex &
3- The axon reflex.
Out of these late responses H reflex and F wave are
preformed to study the proximal regions of nerves.

3. Introduction to F-wave Response
• The name F wave is derived from the first time in
the intrinsic muscles of foot by Magladery and
McDougal in 1950.
The F-wave is a long latency muscle action
potential seen after supramaximal stimulation to
a nerve.
• It results from antidromic stimulation of motor
neurons involving conduction to and from spinal
cord and occurs at the interface between
peripheral and central nervous system.

4. Cont’d
• The afferent and efferent for F waves are alpha
motor neurons. They are produced at the
supramaximal stimulus.
• It is generally accepted that the F-wave is
elicited when the stimulus travels
antidromically along the motor fibers and
reaches the anterior horn cell at a critical time
to depolarize it.

5. Mechanism of F-response

6. Variability of F-wave Response
• The F-wave is a variable response and is obtained
infrequently after nerve stimulation.
• So each f- response varies slightly in latency,
configuration and amplitude because a different
population of anterior horn cells is activated with
each stimulation.
• At least ten trains of F-waves should be obtained
and the shortest latency F-wave among them is
used.

7. F-Response

8. Characteristics of f-wave
• The properties of F waves are as follows:
• a). Latency
• b). Chronodispersion
• c). Amplitude
• d). Persistence
• e). F-Estimation
• f). F wave ratio

9. Characteristics of F-Wave
Latency:
In the upper extremity, the F response usually occurs at a latency of
25 to 32 ms while in the lower extremity, the F response usually occurs
at a latency of 45 to 56 ms.
Chronodispersion:
The chronodispersion is basically the maximal F-response latency minus
minimal F response latency.
Normal chronodispersion is up to 4 ms in the upper extremities and up
to 6 ms in the lower extremities. F responses can be obtained from
any motor nerve.
Amplitude:
The F response is actually a small CMAP, representing 1% to 5%
of the muscle fibers.

10. Cont’d
Persistency:
Normal F wave persistence usually is 80% to 100% and
always above 50%.
F-Estimate:
The F estimate takes into account the distal motor
latency, the conduction velocity, and the patient‘s
limb length to determine whether a prolonged F
response is truly due to a lesion of the proximal nerve
segment or merely reflects an abnormal distal motor
latency or conduction velocity or an unusually tall
patient.
F estimate = (2D/CV) x 10 + 1 ms + DL

11. How to elicit F-Response
F responses may be absent in sleeping or sedated
patients. In these situations, absent or impersistent
F responses are not necessarily a sign of pathology.
If F responses are not obtained, first ensure that the
nerve has been stimulated supramaximally.
Second, the Jendrassik (reinforcement) maneuver
Can be of help in "priming" the anterior horn cells.
The patient can be asked to make a fist with the
contralateral hand or clench the teeth prior to each
stimulation. This maneuver often will elicit an F
response where one was not present at rest.

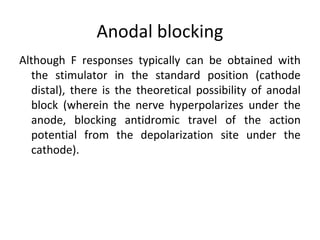

12. Anodal blocking
Although F responses typically can be obtained with
the stimulator in the standard position (cathode
distal), there is the theoretical possibility of anodal
block (wherein the nerve hyperpolarizes under the
anode, blocking antidromic travel of the action
potential from the depolarization site under the
cathode).

13. MACHINE SETTINGS FOR F-RESPONSE
Several adjustments must be made to the EMG
machine to record F responses, however. The gain
should be increased to 200uV (because the amplitude
of the F response is quite low), and the sweep
speed should be increased to 5 or 10 ms, depending
on the length of the nerve being studied.
Supramaximal simulation must always
be used, and often it is advisable to turn the
stimulator around so that the cathode is more
proximal.

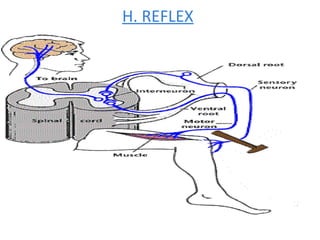

14. H. REFLEX

15. Introduction to H-Reflex
• The H-reflex is the electrical equivalent of the
monosynaptic stretch reflex and is normally
obtained in only a few muscles.
• The H (Hoffmann's) reflex, named after
German neurologist Johann Hoffmann
• who first evoked the response in 1918.

16. G1
G2
G2
G3
G3

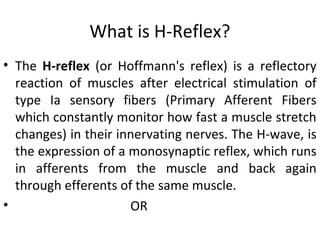

17. What is H-Reflex?
• The H-reflex (or Hoffmann's reflex) is a reflectory
reaction of muscles after electrical stimulation of
type Ia sensory fibers (Primary Afferent Fibers
which constantly monitor how fast a muscle stretch
changes) in their innervating nerves. The H-wave, is
the expression of a monosynaptic reflex, which runs
in afferents from the muscle and back again
through efferents of the same muscle.
• OR

18. H-reflex Definition
• It is elicited by selectively stimulating
the sensory Ia fibres (Primary
Afferent Fibers which constantly
monitor how fast a muscle stretch
changes) of the posterior tibial or
median nerve.

19. Cont’d
• The stimulus travels along the Ia fibers,
through the dorsal root ganglion, and is
transmitted across the central synapse to
the anterior horn cell which fires it down
along the alpha (large lower motor neurons
of the brainstem and spinal cord) motor
axon to the muscle.

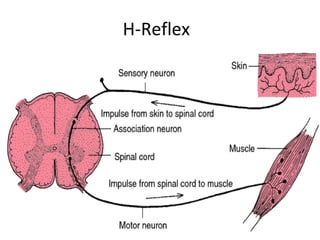

20. H-Reflex
•

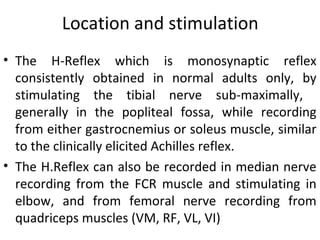

21. Location and stimulation
• The H-Reflex which is monosynaptic reflex
consistently obtained in normal adults only, by
stimulating the tibial nerve sub-maximally,
generally in the popliteal fossa, while recording
from either gastrocnemius or soleus muscle, similar
to the clinically elicited Achilles reflex.
• The H.Reflex can also be recorded in median nerve
recording from the FCR muscle and stimulating in
elbow, and from femoral nerve recording from
quadriceps muscles (VM, RF, VL, VI)

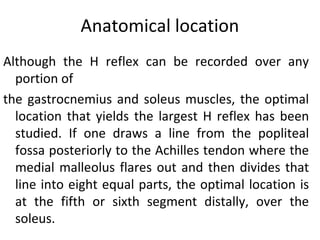

22. Anatomical location
Although the H reflex can be recorded over any
portion of
the gastrocnemius and soleus muscles, the optimal
location that yields the largest H reflex has been
studied. If one draws a line from the popliteal
fossa posteriorly to the Achilles tendon where the
medial malleolus flares out and then divides that
line into eight equal parts, the optimal location is
at the fifth or sixth segment distally, over the
soleus.

23. Anatomical localization of H.Reflex

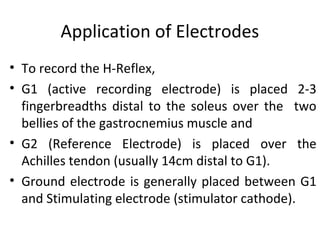

24. Application of Electrodes
• To record the H-Reflex,
• G1 (active recording electrode) is placed 2-3
fingerbreadths distal to the soleus over the two
bellies of the gastrocnemius muscle and
• G2 (Reference Electrode) is placed over the
Achilles tendon (usually 14cm distal to G1).
• Ground electrode is generally placed between G1
and Stimulating electrode (stimulator cathode).

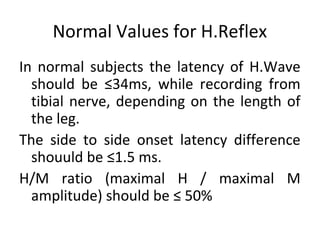

25. Normal Values for H.Reflex
In normal subjects the latency of H.Wave
should be ≤34ms, while recording from
tibial nerve, depending on the length of
the leg.
The side to side onset latency difference
shouuld be ≤1.5 ms.
H/M ratio (maximal H / maximal M
amplitude) should be ≤ 50%

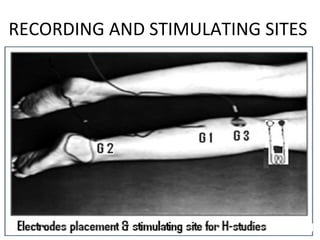

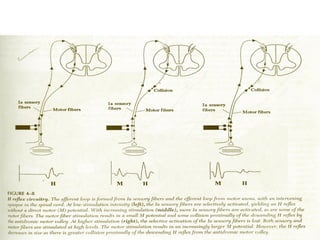

26. RECORDING AND STIMULATING SITES

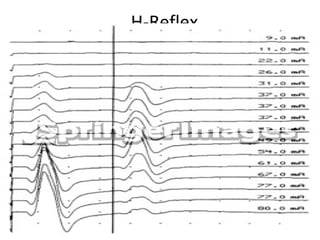

29. H-Reflex

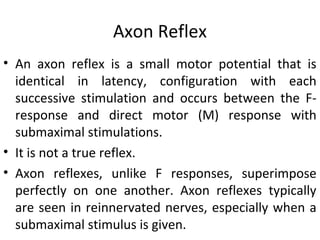

30. Axon Reflex
• An axon reflex is a small motor potential that is
identical in latency, configuration with each
successive stimulation and occurs between the F-
response and direct motor (M) response with
submaximal stimulations.
• It is not a true reflex.
• Axon reflexes, unlike F responses, superimpose
perfectly on one another. Axon reflexes typically
are seen in reinnervated nerves, especially when a
submaximal stimulus is given.

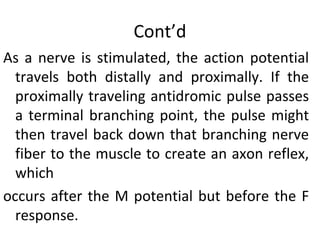

31. Cont’d
As a nerve is stimulated, the action potential
travels both distally and proximally. If the
proximally traveling antidromic pulse passes
a terminal branching point, the pulse might
then travel back down that branching nerve
fiber to the muscle to create an axon reflex,
which
occurs after the M potential but before the F
response.

32. Axon response

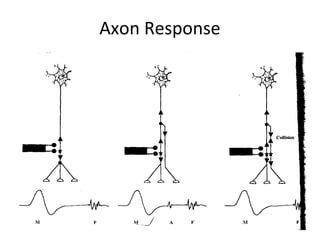

33. Axon Response

34. QUESTIONS:
• 1. In severe C5, C6 radiculopathy, what would be the F.response if
recording from APB? (Normal, Abnormal)
• 2. In sever T1 radiculopathy what would be the F-response if
recorded from Ulnar nerve ? (Normal, Abnormal)
• 3. In radiculopathy of L5, S1 the f-response of tibial nerve recorded
from (AH) will be? (normal, Abnormal)
• 4. Radiculopathy that involves S2,S3 only, the f-response would be
_____ if recorded from EDB? (Normal, Abnormal)
• 5. Which of the following radiculopathies does H.Reflex help in the
most? (L4, L5, S1, S2)
• 6. H.Reflex is elicited by_____technique(Orthrodomic, antidromic)
• 7. Axon Reflex (A.Response) is a____response (Normal, Abnormal)
• 8. Axon reflex is a sign of? Denervation,Reinnervation,Demyelination
