IRJET- Prediction of CBR Value by using Index Properties of Soil

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 06 Issue: 07 | July 2019 www.irjet.net p-ISSN: 2395-0072
© 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 3740

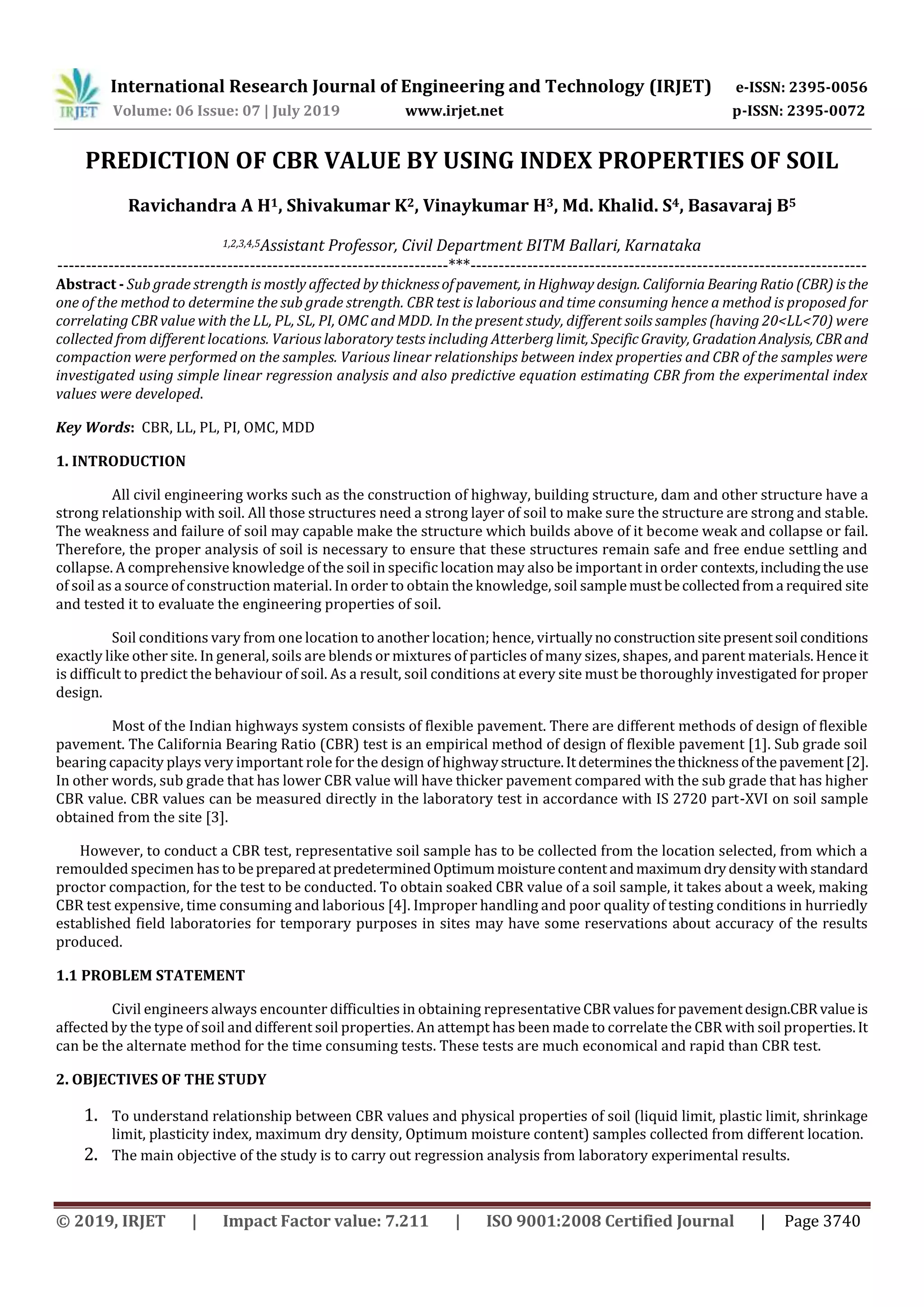

PREDICTION OF CBR VALUE BY USING INDEX PROPERTIES OF SOIL
Ravichandra A H1, Shivakumar K2, Vinaykumar H3, Md. Khalid. S4, Basavaraj B5
1,2,3,4,5Assistant Professor, Civil Department BITM Ballari, Karnataka
---------------------------------------------------------------------***----------------------------------------------------------------------
Abstract - Sub grade strength is mostly affected by thicknessofpavement, inHighway design. California BearingRatio (CBR)isthe
one of the method to determine the sub grade strength. CBR test is laborious and time consuming hence a method is proposed for
correlating CBR value with the LL, PL, SL, PI, OMC and MDD. In the present study, different soils samples (having 20<LL<70) were
collected from different locations. Various laboratory tests including Atterberg limit, SpecificGravity, GradationAnalysis, CBRand
compaction were performed on the samples. Various linear relationships between index properties and CBR of the samples were
investigated using simple linear regression analysis and also predictive equation estimating CBR from the experimental index
values were developed.
Key Words: CBR, LL, PL, PI, OMC, MDD
1. INTRODUCTION
All civil engineering works such as the construction of highway, building structure, dam and other structure have a
strong relationship with soil. All those structures need a strong layer of soil to make sure the structure are strong and stable.
The weakness and failure of soil may capable make the structure which builds above of it become weak and collapse or fail.
Therefore, the proper analysis of soil is necessary to ensure that these structures remain safe and free endue settling and
collapse. A comprehensive knowledge of the soil in specific location may also be important in order contexts,includingtheuse
of soil as a source of construction material. In order to obtain the knowledge, soil samplemustbecollectedfroma required site
and tested it to evaluate the engineering properties of soil.
Soil conditions vary from one location to another location; hence, virtuallynoconstructionsitepresentsoil conditions
exactly like other site. In general, soils are blends or mixtures of particles of many sizes, shapes, and parent materials.Henceit
is difficult to predict the behaviour of soil. As a result, soil conditions at every site must be thoroughly investigated for proper
design.
Most of the Indian highways system consists of flexible pavement. There are different methods of design of flexible
pavement. The California Bearing Ratio (CBR) test is an empirical method of design of flexible pavement [1]. Sub grade soil
bearing capacity plays very important role for the design of highwaystructure.Itdeterminesthethicknessofthepavement[2].
In other words, sub grade that has lower CBR value will have thicker pavement compared with the sub grade that has higher
CBR value. CBR values can be measured directly in the laboratory test in accordance with IS 2720 part-XVI on soil sample
obtained from the site [3].
However, to conduct a CBR test, representative soil sample has to be collected from the location selected, from which a
remoulded specimen has to bepreparedatpredeterminedOptimummoisturecontent andmaximumdrydensitywithstandard
proctor compaction, for the test to be conducted. To obtain soaked CBR value of a soil sample, it takes about a week, making
CBR test expensive, time consuming and laborious [4]. Improper handling and poor quality of testing conditions in hurriedly
established field laboratories for temporary purposes in sites may have some reservations about accuracy of the results
produced.
1.1 PROBLEM STATEMENT
Civil engineers always encounter difficulties in obtaining representative CBRvaluesforpavementdesign.CBRvalueis
affected by the type of soil and different soil properties. An attempt has been made to correlate the CBR with soil properties.It
can be the alternate method for the time consuming tests. These tests are much economical and rapid than CBR test.
2. OBJECTIVES OF THE STUDY
1. To understand relationship between CBR values and physical properties of soil (liquid limit, plastic limit, shrinkage
limit, plasticity index, maximum dry density, Optimum moisture content) samples collected from different location.
2. The main objective of the study is to carry out regression analysis from laboratory experimental results.

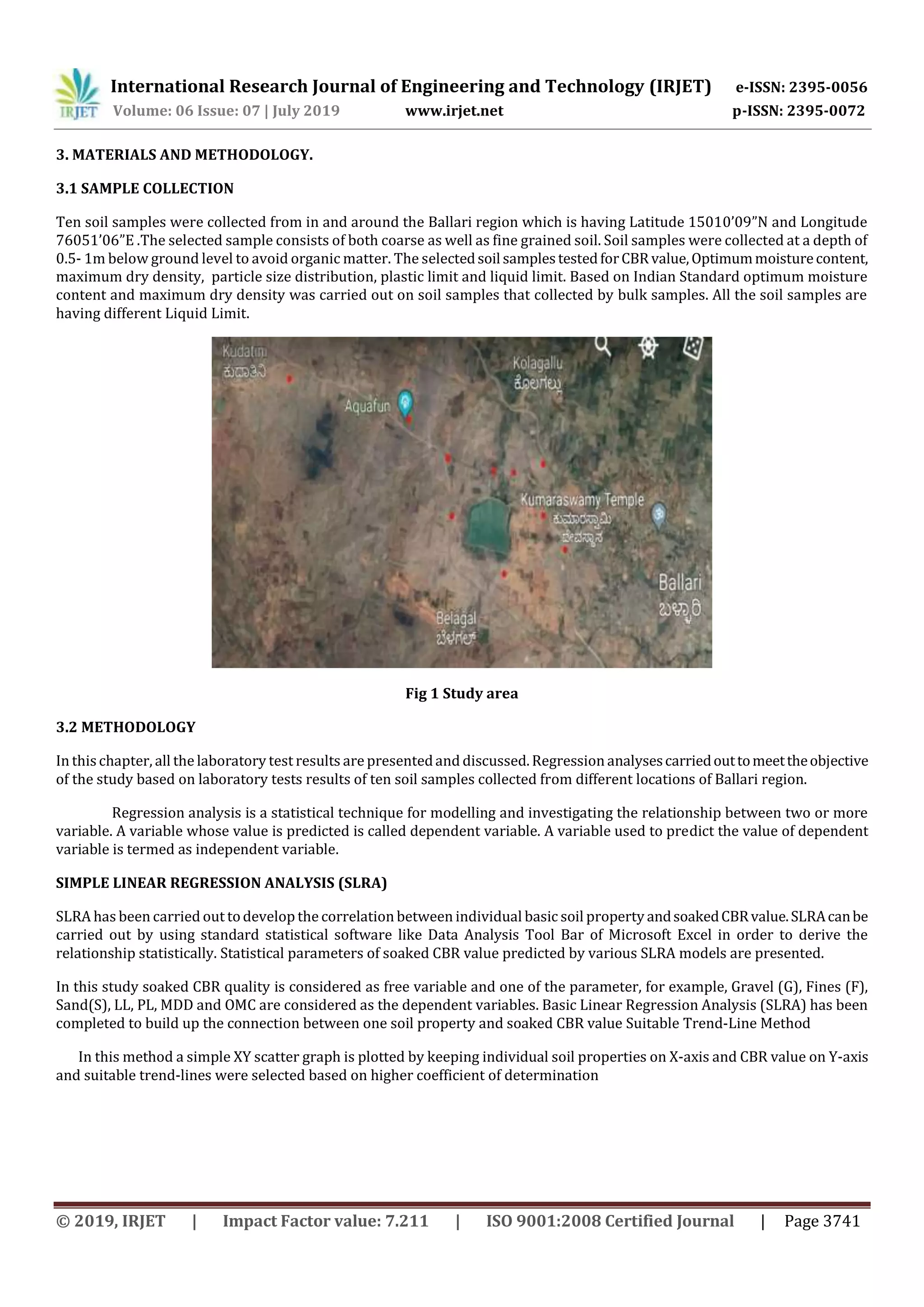

3. MATERIALS AND METHODOLOGY.
3.1 SAMPLE COLLECTION
Ten soil samples were collected from in and around the Ballari region which is having Latitude 15010’09”N and Longitude
76051’06”E .The selected sample consists of both coarse as well as fine grained soil. Soil samples were collected at a depth of
0.5- 1m below ground level to avoid organic matter. The selectedsoil samplestestedforCBRvalue,Optimummoisturecontent,
maximum dry density, particle size distribution, plastic limit and liquid limit. Based on Indian Standard optimum moisture
content and maximum dry density was carried out on soil samples that collected by bulk samples. All the soil samples are
having different Liquid Limit.
Fig 1 Study area
3.2 METHODOLOGY
In thischapter, all the laboratory test results are presentedand discussed. Regression analysescarriedouttomeettheobjective
of the study based on laboratory tests results of ten soil samples collected from different locations of Ballari region.
Regression analysis is a statistical technique for modelling and investigating the relationship between two or more
variable. A variable whose value is predicted is called dependent variable. A variable used to predict the value of dependent
variable is termed as independent variable.
SIMPLE LINEAR REGRESSION ANALYSIS (SLRA)
SLRA has been carried out todevelop the correlation between individual basic soil property andsoakedCBRvalue.SLRAcanbe
carried out by using standard statistical software like Data Analysis Tool Bar of Microsoft Excel in order to derive the
relationship statistically. Statistical parameters of soaked CBR value predicted by various SLRA models are presented.
In this study soaked CBR quality is considered as free variable and one of the parameter, for example, Gravel (G), Fines (F),
Sand(S), LL, PL, MDD and OMC are considered as the dependent variables. Basic Linear Regression Analysis (SLRA) has been
completed to build up the connection between one soil property and soaked CBR value Suitable Trend-Line Method
In this method a simple XY scatter graph is plotted by keeping individual soil properties on X-axis and CBR value on Y-axis
and suitable trend-lines were selected based on higher coefficient of determination

RESULTS AND DISCUSSION
4.1 RESULTS OF INDEX PROPERTIES OF THE SOIL
Table 1 Experimental results or Laboratory Test Results
CORREALTION BETWEEN DIFFERENT PROPERTIES OF THE SOIL
4.1 Correlation between CBR and Liquid limit
Fig-2 Correlation b/w CBR and liquid limit
The variation between soaked CBR and liquid limit is shown in fig 2 and the suitable trend line obtained is exponential
equation 4.2.1
Sl No Description Sample Number
1 2 3 4 5
1 Sieve Analysis
Gravel (%) 27.73 1.86 0 2 5.23
Coarse Sand (%) 36.55 0.76 5.3 8 12.64
Medium Sand (%) 7.25 30 6.62 4 25.1
Fine Sand (%) 8.51 19.69 2.96 15.73 14.98
Coarse Grained Soil (%) 80.04 52.31 14.88 29.73 57.95
Fine Grained Soil (%) 19.96 47.69 85.12 70.27 42.05
2 Atterberg limits
Liquid Limit (%) 29 43.5 78 72.5 47
Shrinkage Limit (%) 6.25 9.6 16.23 20.02 17.85
Plasticity Index (%) 11 25.36 35 44.5 25.5
3 Compaction Characteristics
Optimum Moisture Content (%) 12.6 20 29.8 28.6 20
Maximum Dry Density (kN/m3) 22 17 14.2 14.5 16.6
4 Specific Gravity 2.59 2.63 2.82 2.8 2.5
5 Void Ratio 0.177 0.547 0.986 0.931 0.506
6 Soaked CBR (%) 9.2 3.33 0.48 1.33 3.16

The variation between soaked CBR and plasticity index is shown in fig 4.1 and the suitable trend line obtainedisexponential
equation 4.2.1
𝐶𝐵𝑅 = 35.23𝑒−0.05𝐿𝐿
Determination coefficient obtained is 0.955 and predicted CBR value is compared with laboratory CBR value
Determination coefficient obtained is 0.955 and predicted CBR value is compared with laboratory CBR value
Table-2 Comparison of lab CBR value with predicted CBR obtained by equation
Fig-3: Predicted CBR from equation-4.2.1 and laboratory CBR.
4.2 Correlation between CBR and Plasticity Index.
Fig-4 Relation between CBR with Plasticity Index
Sample no Liquidlimit
(%)
Lab soaked
CBR (%)
CBR obtained from
equation
Difference
CBR
%
Difference
1 29 9.2 7.98 -1.22 13.29
2 43.5 3.33 3.86 0.53 16.03
3 78 0.48 0.69 0.21 43.42
4 72.5 1.33 0.91 -0.42 31.85
5 47 3.16 3.24 0.08 2.64
6 59 2.26 1.78 -0.48 21.24
7 28 8.24 8.39 0.15 1.78
8 28.7 8.24 8.10 -0.14 1.72
9 29.6 8.17 7.72 -0.45 5.48
10 36 5.44 5.62 0.18 3.34

The variation between soaked CBR and Plasticity Index is shown in fig 4.3 and the suitable trend line obtained is logarithmic
equation
𝐶𝐵𝑅 = 18.66𝑒−0.06P ----(4.2.2)
Determination coefficient 0.866 and predicted CBR value is compared with laboratory CBR
Value in table No-3 and variation is plotted in fig-5
Table-3 Comparison of lab CBR value with predicted CBR obtained by equation-4.2. 2
Fig-5 Predicted CBR from equation-4.2.2 and laboratory CBR.
4.3 Correlation between CBR and Optimum Moisture Content
Fig-6 Relation between CBR with optimum moisture content
Sample no
OMC (%) Lab soaked
CBR (%)
CBR obtained from
equation
Difference
CBR
%
Difference
1 12.6 9.2 10.07 0.87 9.46
2 20 3.33 3.32 -0.01 0.34
3 29.8 0.48 0.76 0.28 58.97
4 28.6 1.33 0.91 -0.42 31.31
5 20 3.16 3.32 0.16 5.03
6 25 2.26 1.57 -0.69 30.63
7 13.2 8.24 9.20 0.96 11.70
8 13 8.24 9.48 1.24 15.10
9 14.11 8.17 8.03 -0.14 1.72
10 17 5.44 5.20 -0.24 4.32

The variation between soaked CBR and optimum moisturecontent isshowninfig4.5andthesuitabletrendlineobtainedisliner
equation
𝐶𝐵𝑅 = -0.464x+13.87 ----- (4.2.3)
Determination coefficient is 0.924 and predicted CBR value is compared with laboratory
CBR value in table No-4.5 and variation is plotted in fig-4.6.
Table-4 Comparison of lab CBR value with predicted CBR obtained by equation-4.2.3
Fig-7 Predicted CBR from equation-4.2.3 and laboratory CBR
4.2.4 Correlation between CBR and Maximum Dry Density
Fig 8. Relation between CBR with Maximum dry density.
Sample no Plasticity index
(%)
Lab soaked
CBR (%)
CBR obtained from
equation
Difference
CBR
%
Difference
1 11 9.2 8.80 -0.40 4.34
2 25.36 3.33 3.60 0.27 8.03
3 35 0.48 1.59 1.11 31.29
4 44.5 1.33 0.09 -1.24 92.92
5 25.5 3.16 3.56 0.40 12.75
6 37 2.26 1.24 -1.02 44.96
7 13.2 8.24 8.45 -0.65 7.88
8 12.34 8.24 8.89 -0.65 7.88
9 11.4 8.17 8.58 0.41 5.00
10 19 5.44 5.40 -0.04 0.81

The variation between soaked CBR and Maximum Dry Density is shown in fig 4.7 and the suitable trend line obtained is liner
equation
𝐶𝐵𝑅 = 1.193𝑀𝐷𝐷 − 16.19 ----- (4.2.4)
Determination coefficient is 0.967 and predicted CBR value is compared with laboratory
CBR value in table-4.6 and variation is plotted in fig-4.8
Table-5 Comparison of lab CBR value with predicted CBR obtained by equation-4.2.4
Fig-9 Predicted CBR from equation-4.3.4 and laboratory CBR.
5. CONCLUSIONS
Based on above test results and discussions the following conclusions may be made
From regression method CBR can be predicted using soil properties.
MDD is considered as higher priority for predicting soaked CBR value followed by PI, LL and OMC, based on assessmentfactor
R2=0.95.
The model generated using Liquid limit also provides good result with R2=0.941 as the test requires small quantity of sample
and less time consuming.
REFERENCES
[1] Dilip Kumar Talukdar. “A Study of correlation between California BearingRatio(CBR)valueswithotherproperties ofsoil”.
International Journal of Emerging Technology and Advanced Engineering, volume 4 (2014). pp. 559-562.
Sample no Maximum dry density
(kN/m3)
Lab soaked CBR
(%)
CBR obtained
from equation
Difference
CBR
%
Difference
1 22 9.2 10.59 1.39 15.13
2 17 3.33 4.41 1.08 32.49
3 14.2 0.48 0.95 0.47 98.17
4 14.5 1.33 1.32 -0.01 0.60
5 16.6 3.16 3.92 0.76 23.97
6 15.4 2.26 2.43 0.17 7.72
7 19.7 8.24 7.75 -0.49 5.96
8 20.4 8.24 8.61 0.37 4.54
9 20.2 8.17 8.37 0.20 2.41
10 17.5 5.44 5.03 -0.41 7.54

[2] Soewignjo Agus NUGROHO, AndyHENDRI,RahayuNINGSIH.“CorrelationbetweenIndexpropertiesandCaliforniaBearing
Ratio test of Pekanbaru Soils with and without Soaked”. Canadian Journal on Environmental, Construction and Civil
Engineering, Vol. 3(2012), No.1. pp. 7-16.
[3] Patel.Rashmi S. and Desai.M.D. “CBR Predicted by Index properties for Alluvial soils of SouthGujarat”.IndianGeotechnical
Conference (2010). pp. 79-82.
[4] Ramasubbarao, G.V. and Siva Sankar, G. “Predicting Soaked CBR value of fine grained soils using index and compaction
characteristics”, Jordan Journal of Civil Engineering, volume 7(2013), No.3. pp. 354-360.
[5] B.C. Chattopadhyay and J. Maity. “Prediction of CBR of different groups of Alluvial soils for design of flexible pavement”.
Proceedings of the International Symposium on Engineering under Uncertainty: Safety Assessment and Management
(ISEUSAM). pp. 833-847.
[6] Danistan Joseph, C. Vipulanandan. “Correlation between california bearing ratio (cbr) and soil parameters”. Centre for
Innovative Grouting Material and Technology (2010). pp. 1-2.
[7] J. Danistan and C, Vipulanandan. “Relationship between CBR values (un-soaked) and undrainedshearstrengthofartificial
CH soils”. Centre for Innovative Grouting Material and Technology (2009). pp. 1-2.
[8] Venkatasubramanian. C, Dhinakaran.G. “ANN model for predicting CBR from index properties of soils”. International
journal of civil and structural engineering, Volume 2(2011), No 2. pp. 605-611.
[9] Afeez Adefemi Bello. “Regression analysis between properties of subgrade lateritic soil”, Department of Civil
Engineering, Osun State University, PMB 4494, Osogbo.
[10] Saxena Anil Kumar et.al. “Application of Machine Learning Techniques to Predict Soaked CBR Of remoulded soils”.
International Journal of Engineering Research & Technology (2013), Vol. 2, Issue 6. pp. 3019-3024.
