- 1. An Introduction to Robots and Robotics Presented By Dr. ANKITENDRAN MISHRA Indian Institute of Technology (B.H.U.), Varanasi
- 2. Points to Ponder • What is a robot? • What is robotics? • How can we teach a robot to perform a particular task? • What are possible applications of robot? • Can human be replaced?? 2
- 3. Introduction 3 • Robot – machine that look like a human being • Robot- word forced labour • Coined in 1921 Karel Capek in Rossum’s Universal Robots • Def: Robot Institute of America • Reprogrammable • Multifunctional • Manipulator (means robot with one fixed base) designed to move materials, parts or tools through variable programmed motions for the performance of a variety of task.
- 4. Evolution of Robots • In 1954 • 1956- Joseph Engelberger – Unimation. • 2015 Sophia (humanoid) – HongKong - Intelligent and emotional • Started late in India-1979-80’s. • Robotics is a science which deals with the issues related to design, manufacturing and usage of robots. • In robotics we try to copy 3 H’s- • Hand- manipulators, • Head- intelligence, and • Heart-emotions of human being. 4

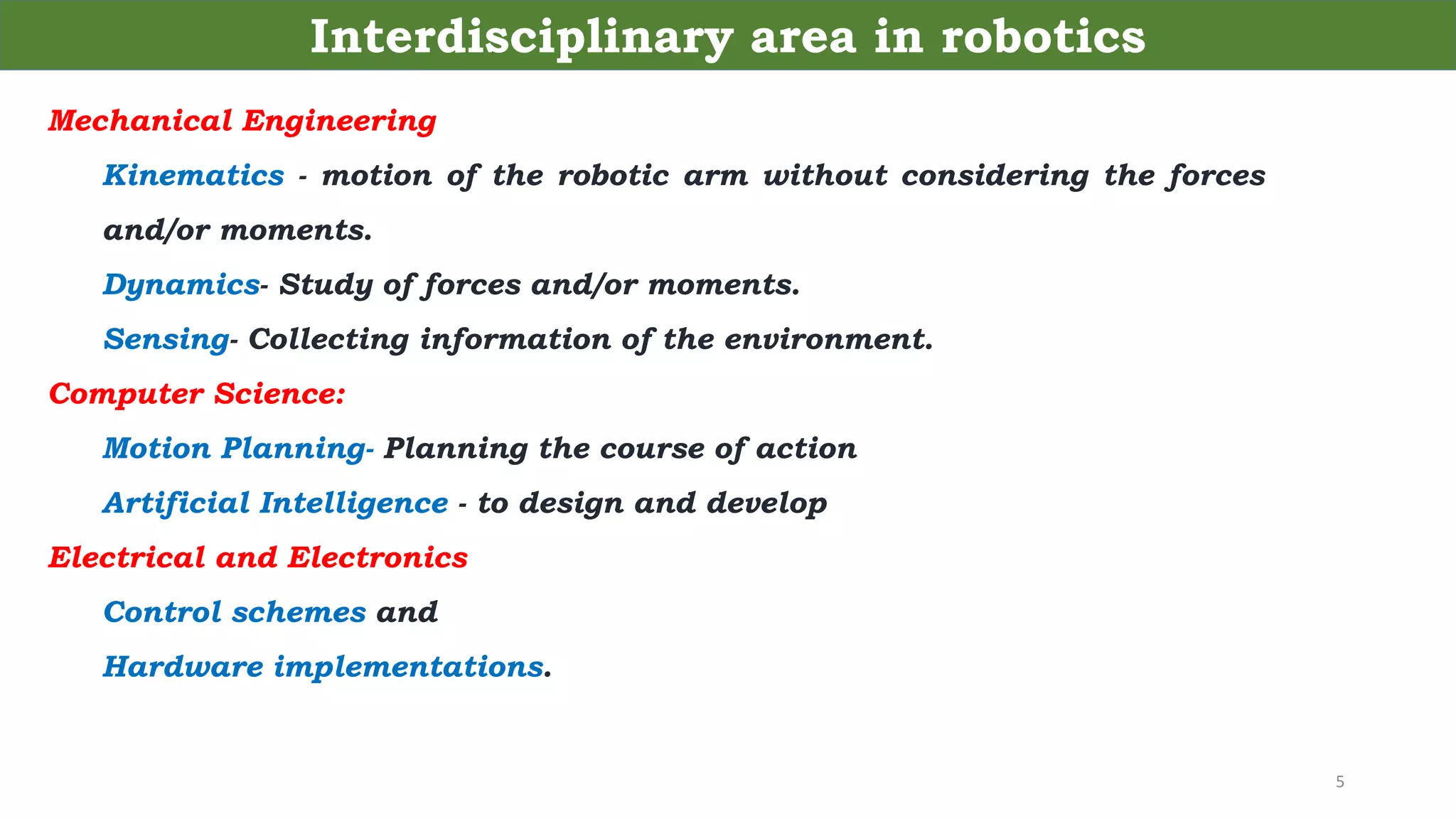

- 5. Mechanical Engineering Kinematics - motion of the robotic arm without considering the forces and/or moments. Dynamics- Study of forces and/or moments. Sensing- Collecting information of the environment. Computer Science: Motion Planning- Planning the course of action Artificial Intelligence - to design and develop Electrical and Electronics Control schemes and Hardware implementations. 5 Interdisciplinary area in robotics

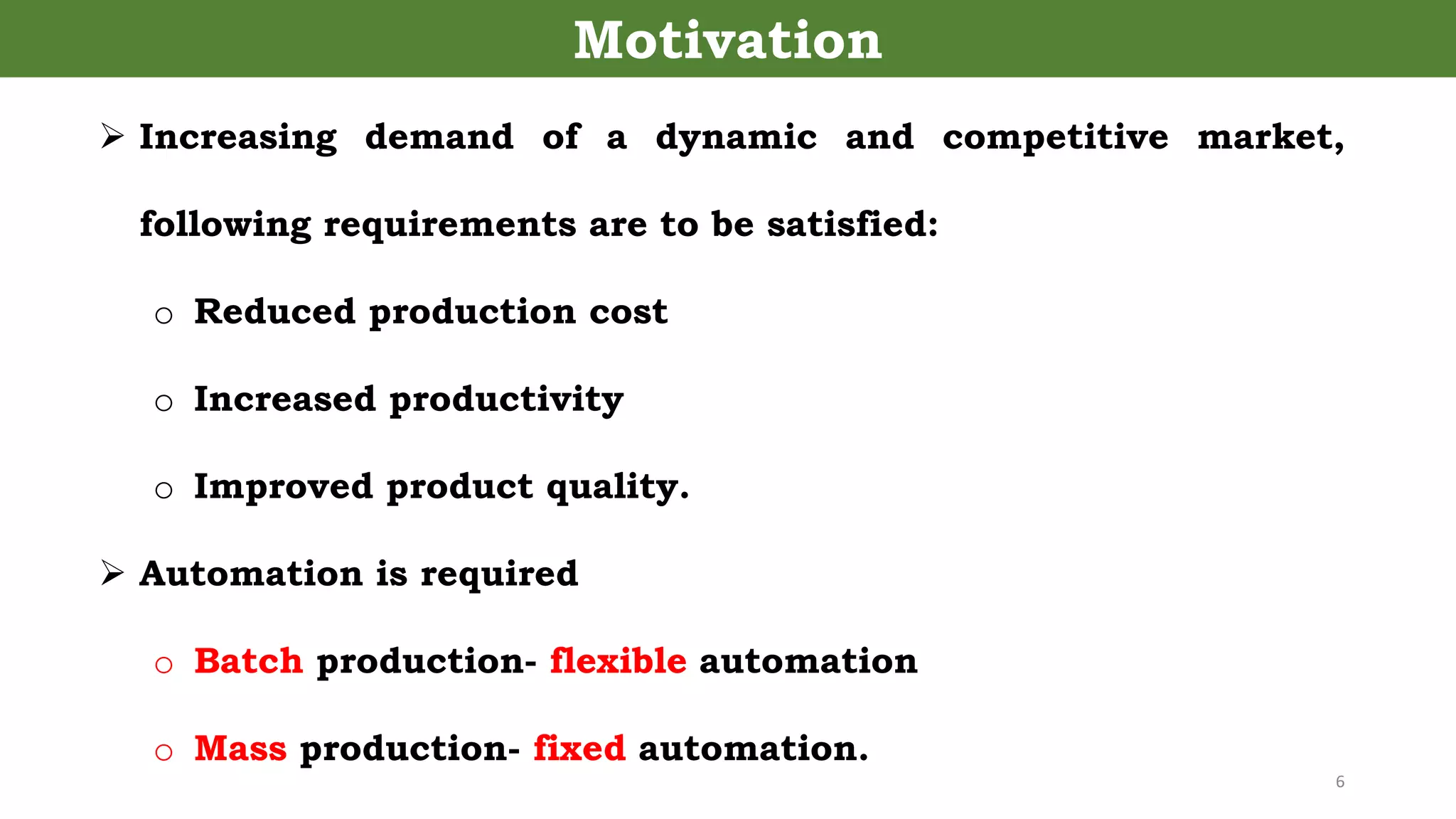

- 6. Motivation Increasing demand of a dynamic and competitive market, following requirements are to be satisfied: o Reduced production cost o Increased productivity o Improved product quality. Automation is required o Batch production- flexible automation o Mass production- fixed automation. 6
- 7. • Base • Links and Joints • End Effector/ gripper • Wrist • Driver/Actuator • Controllers and • Sensors 7 Robot Anatomy

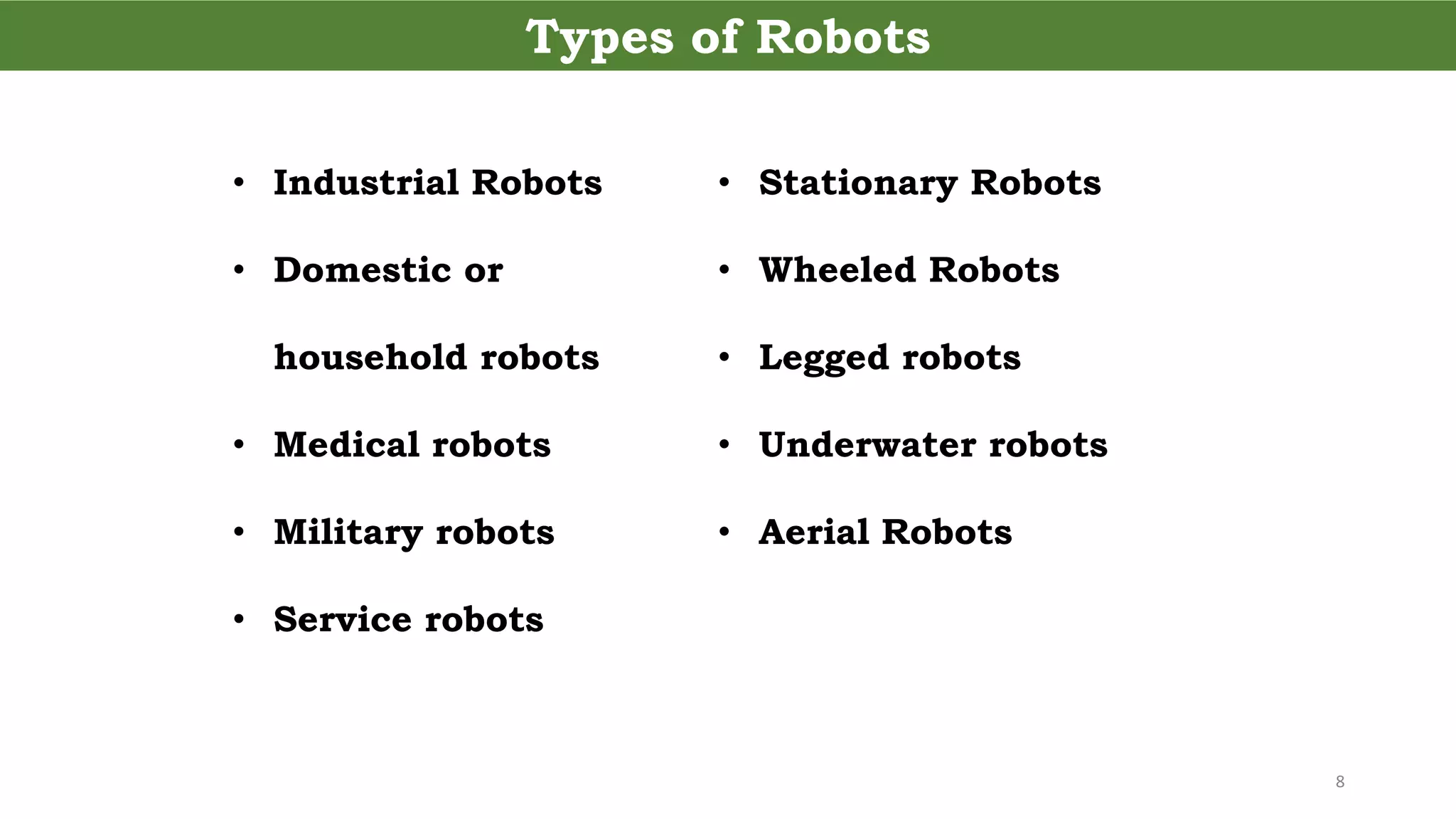

- 8. Types of Robots 8 • Industrial Robots • Domestic or household robots • Medical robots • Military robots • Service robots • Stationary Robots • Wheeled Robots • Legged robots • Underwater robots • Aerial Robots
- 9. 9 • a robotic manipulator is a kinematic chain • i.e. an assembly of pairs of rigid bodies that can move respect to one another via a mechanical constraint • the rigid bodies are called links • the mechanical constraints are called joints Robotic Manipulators

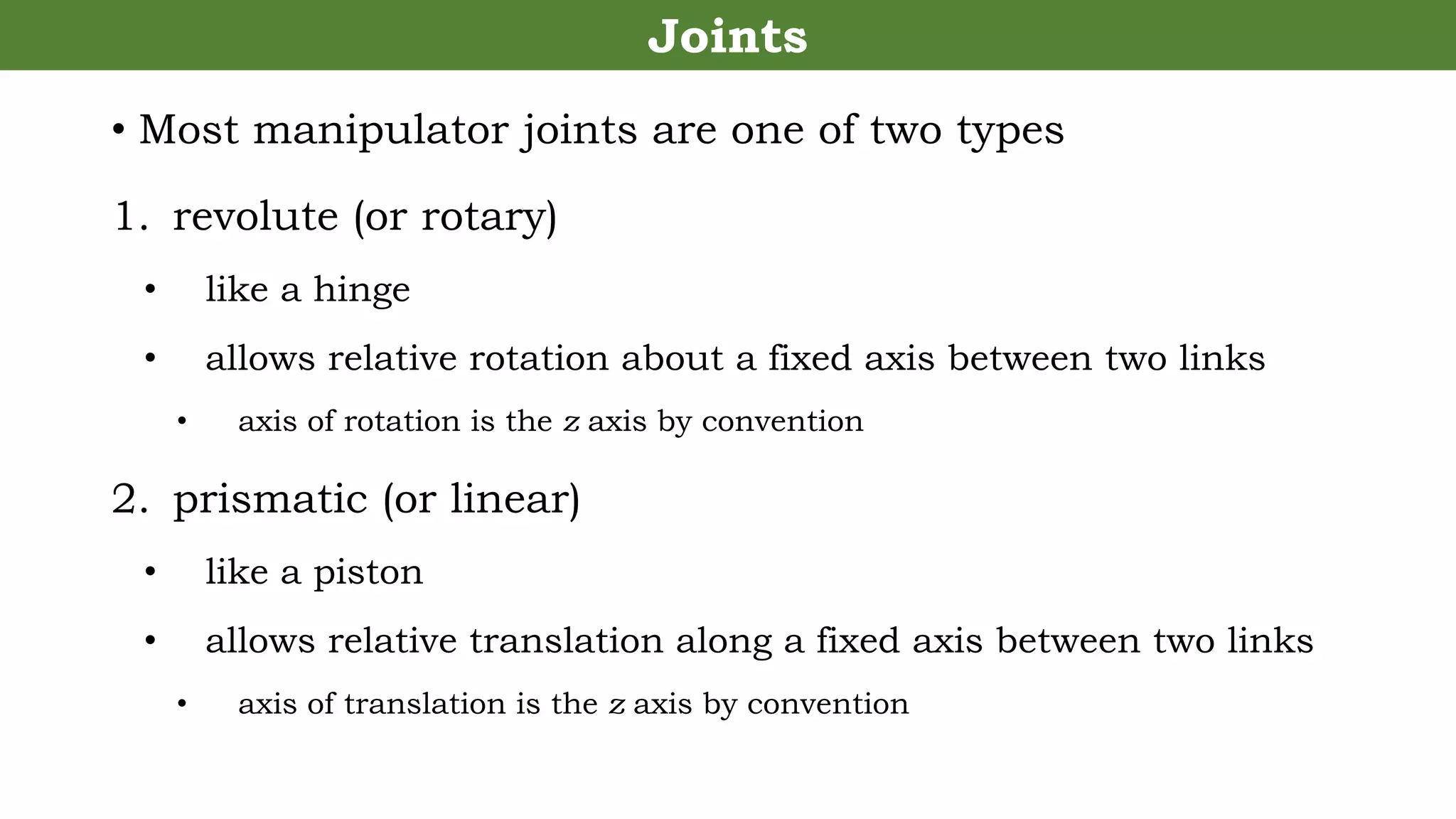

- 10. • Most manipulator joints are one of two types 1. revolute (or rotary) • like a hinge • allows relative rotation about a fixed axis between two links • axis of rotation is the z axis by convention 2. prismatic (or linear) • like a piston • allows relative translation along a fixed axis between two links • axis of translation is the z axis by convention Joints

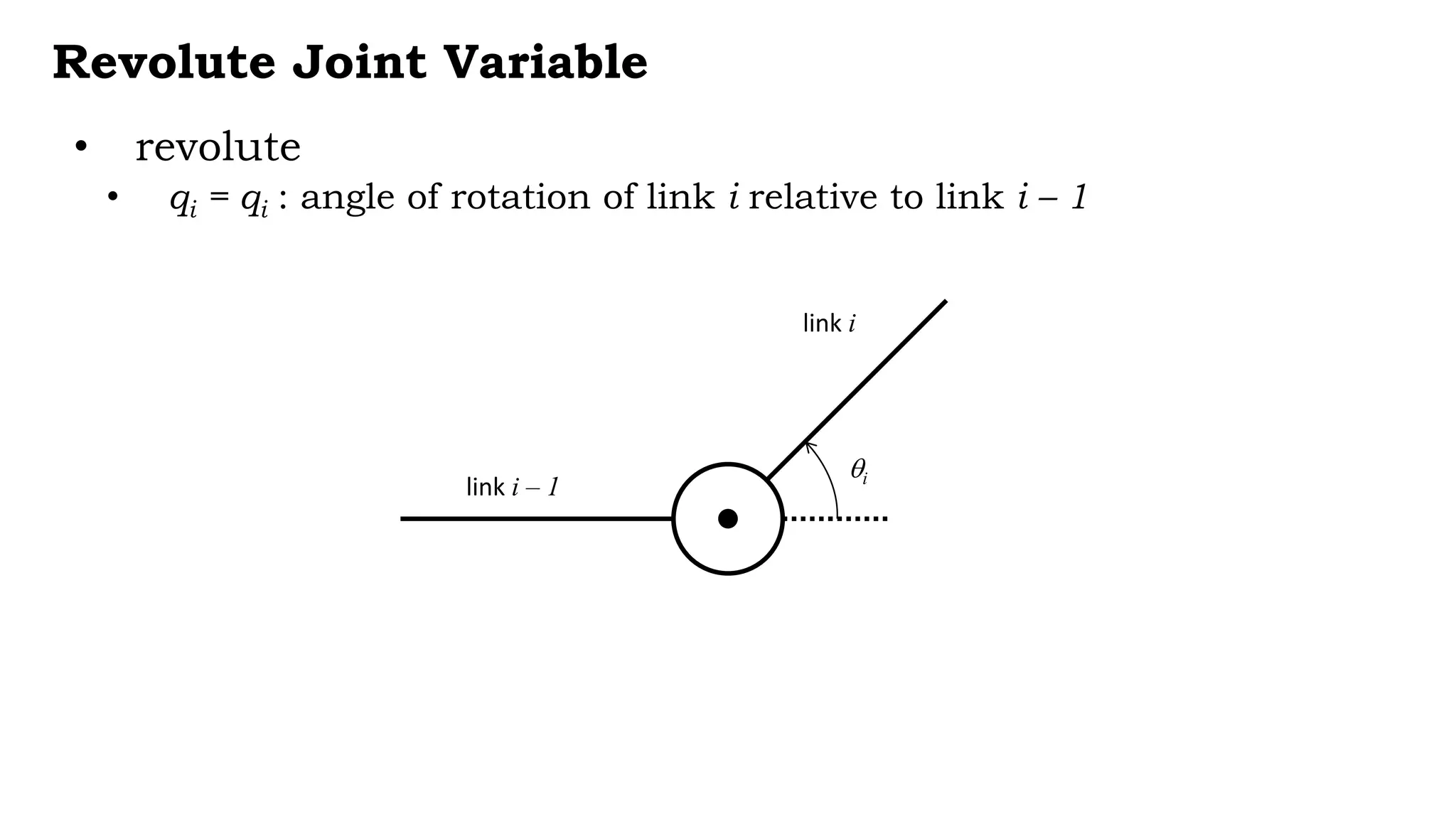

- 11. Revolute Joint Variable • revolute • qi = qi : angle of rotation of link i relative to link i – 1 link i – 1 link i qi

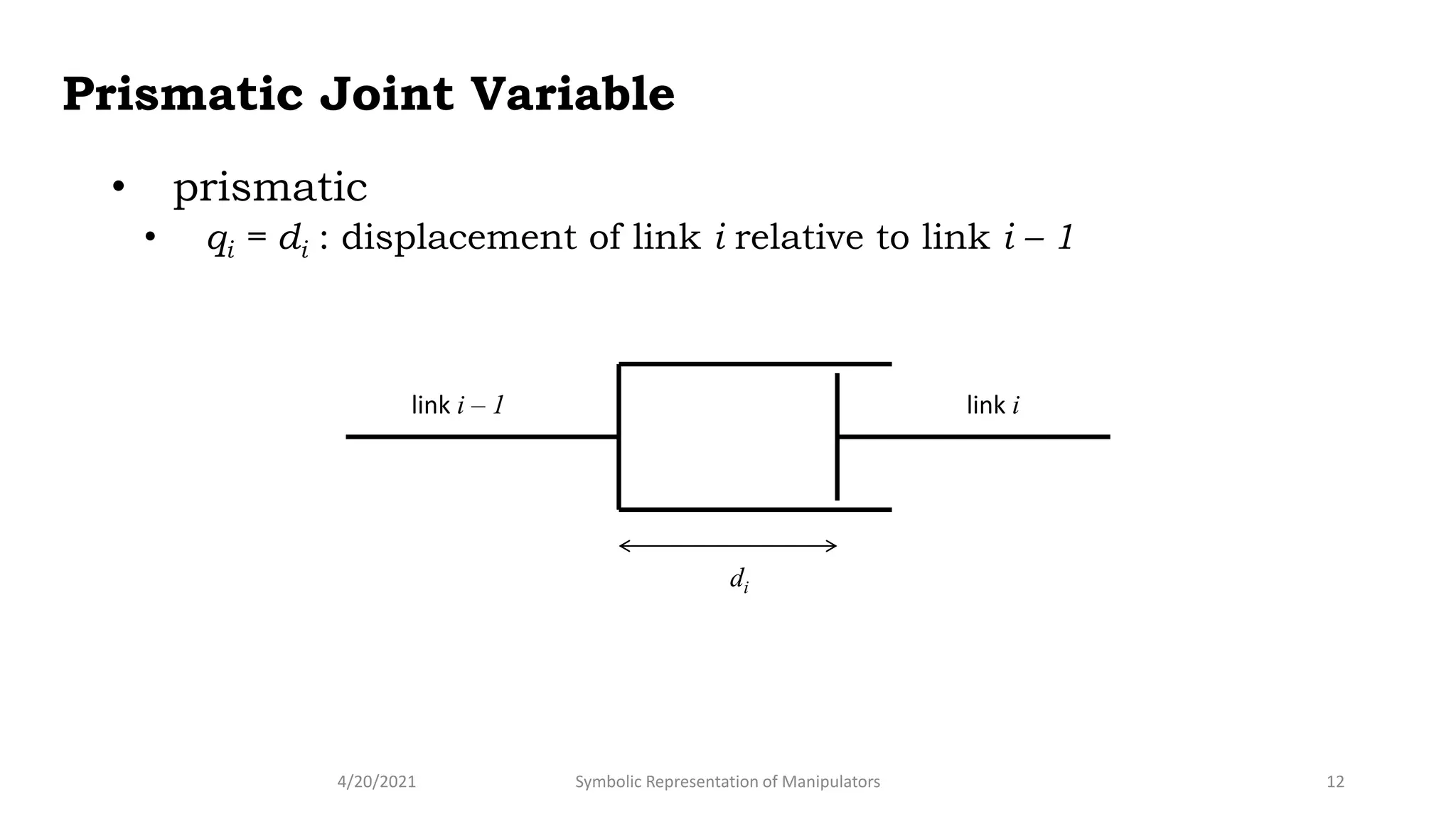

- 12. Prismatic Joint Variable 4/20/2021 12 Symbolic Representation of Manipulators • prismatic • qi = di : displacement of link i relative to link i – 1 link i – 1 link i di

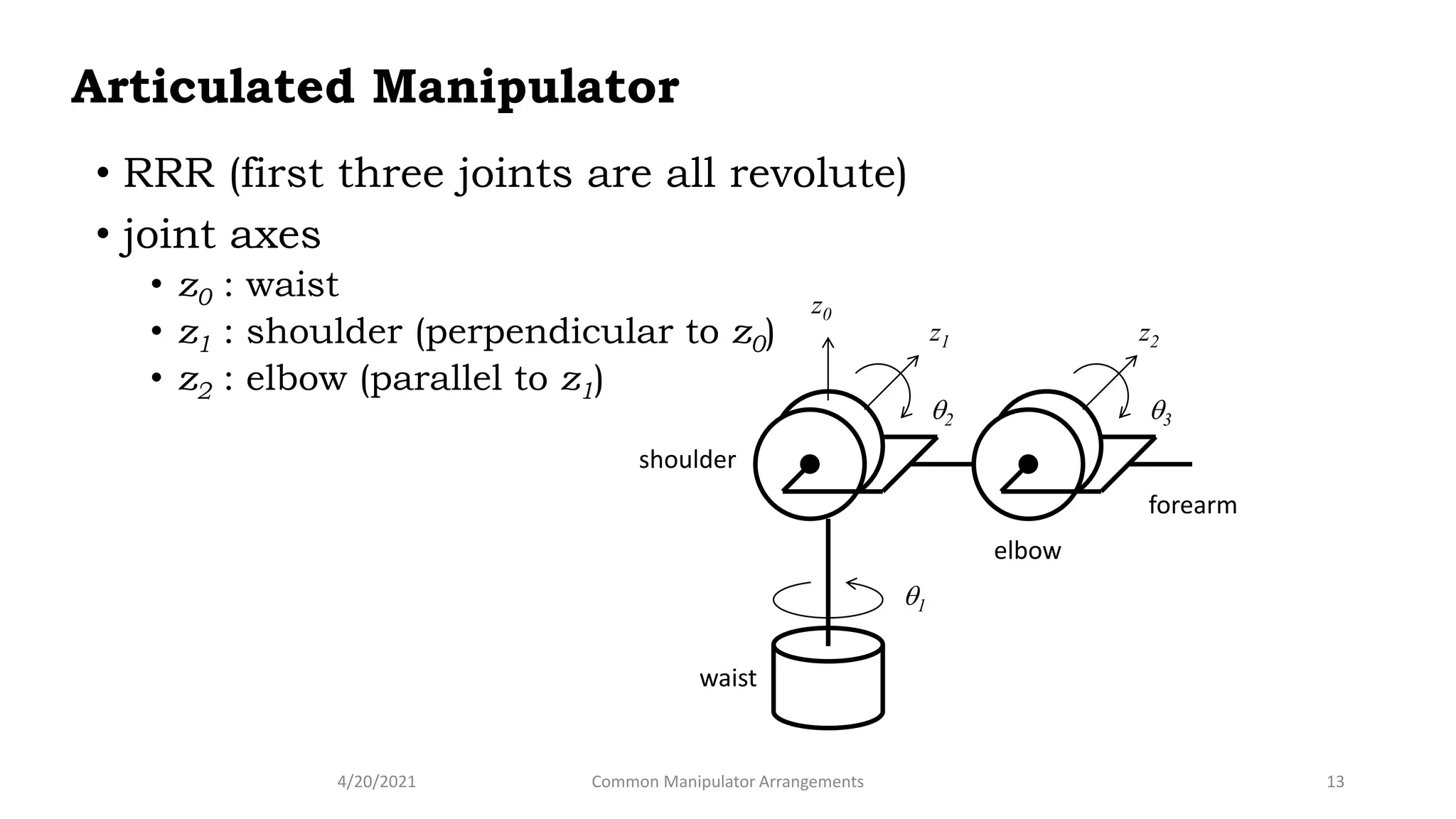

- 13. Articulated Manipulator 4/20/2021 13 • RRR (first three joints are all revolute) • joint axes • z0 : waist • z1 : shoulder (perpendicular to z0) • z2 : elbow (parallel to z1) Common Manipulator Arrangements z0 z1 z2 waist shoulder elbow forearm q1 q2 q3

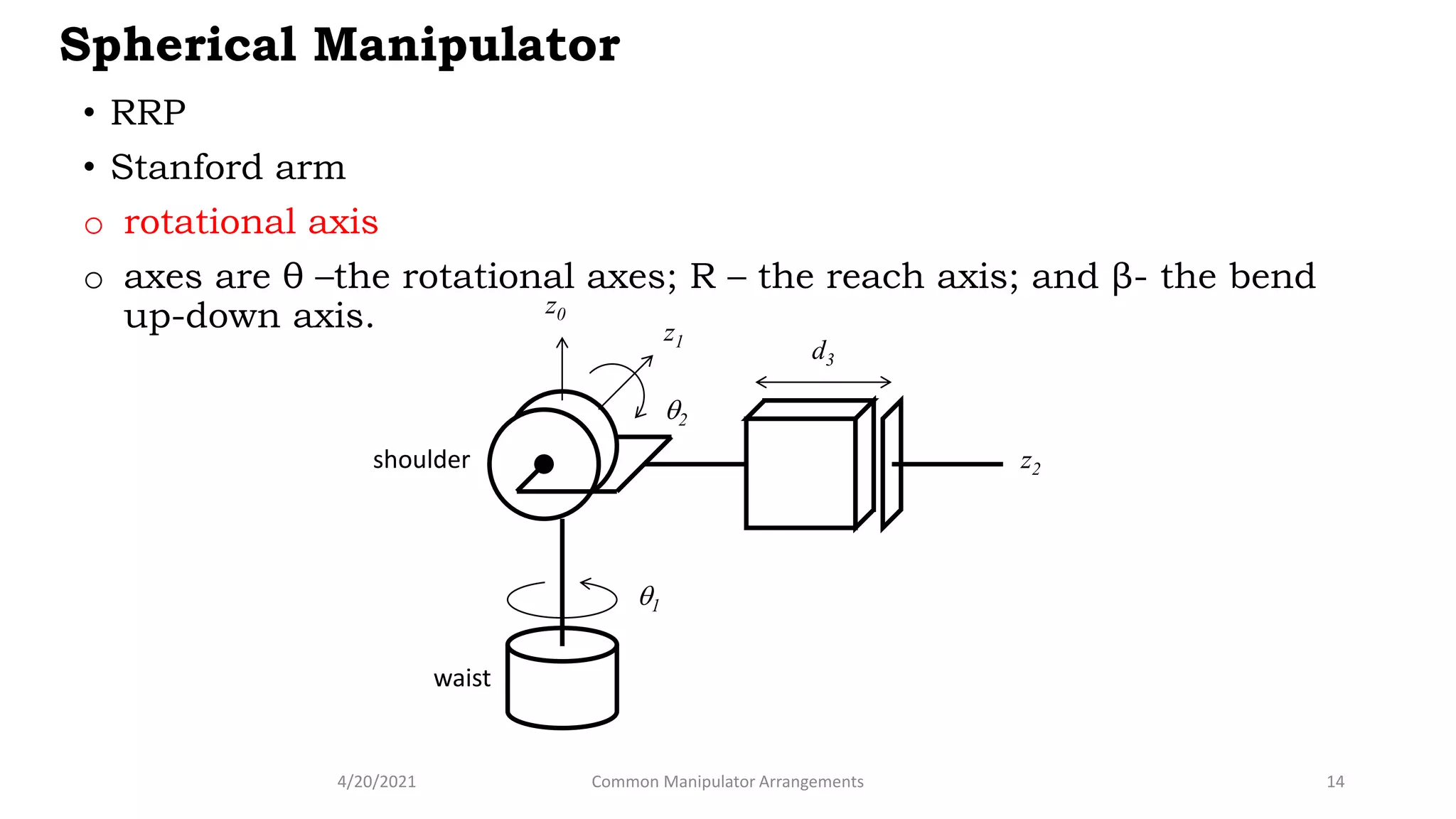

- 14. Spherical Manipulator 4/20/2021 14 • RRP • Stanford arm o rotational axis o axes are θ –the rotational axes; R – the reach axis; and β- the bend up-down axis. Common Manipulator Arrangements z0 z1 z2 waist shoulder q1 q2 d3

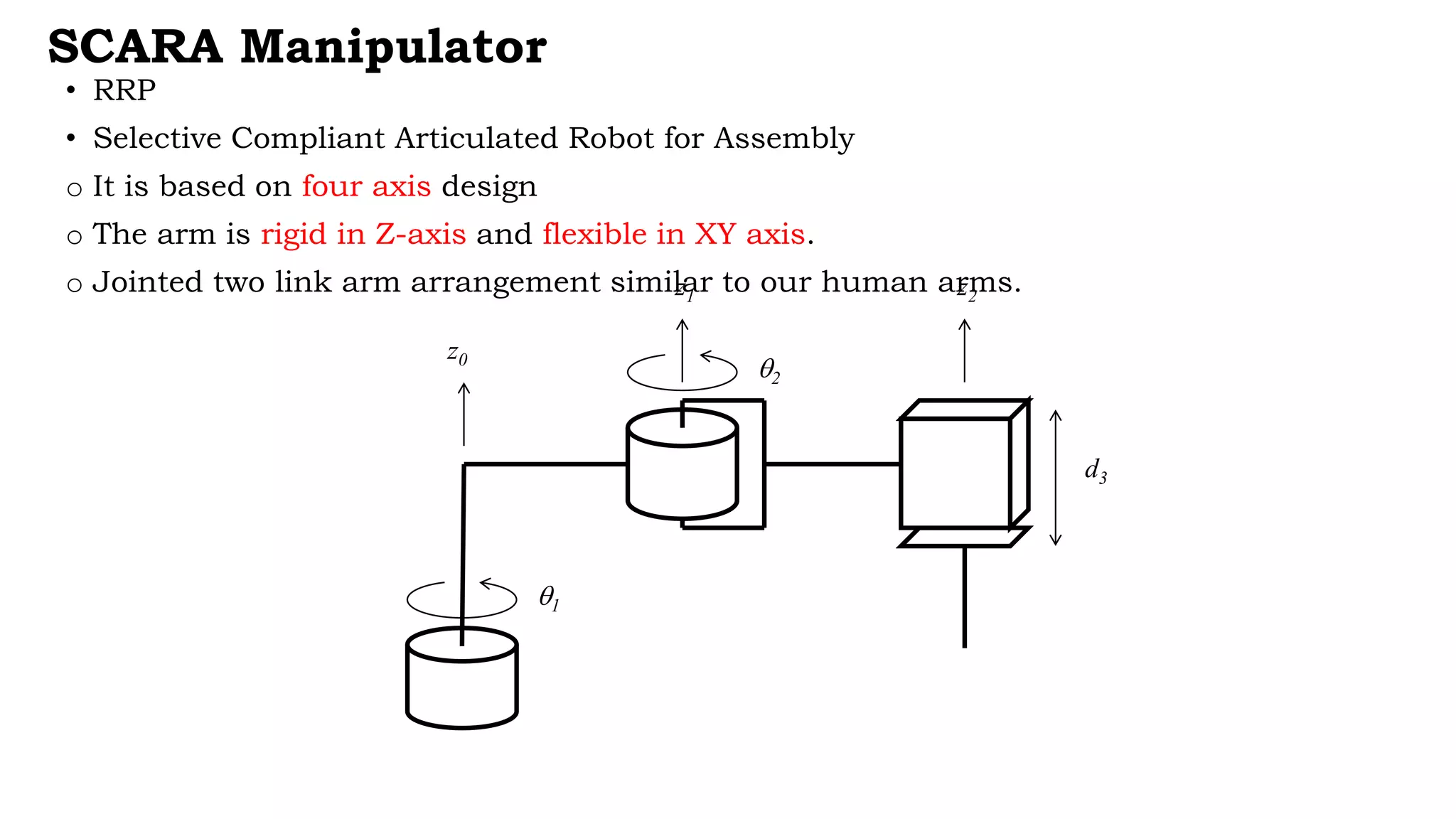

- 15. SCARA Manipulator • RRP • Selective Compliant Articulated Robot for Assembly o It is based on four axis design o The arm is rigid in Z-axis and flexible in XY axis. o Jointed two link arm arrangement similar to our human arms. z0 z1 z2 q1 q2 d3
- 16. Kinematics of Robotics • Object location and motion • Transformation matrix • Homogeneous transformation • Forward Kinematics • Inverse Kinematics • Differential relationships 16

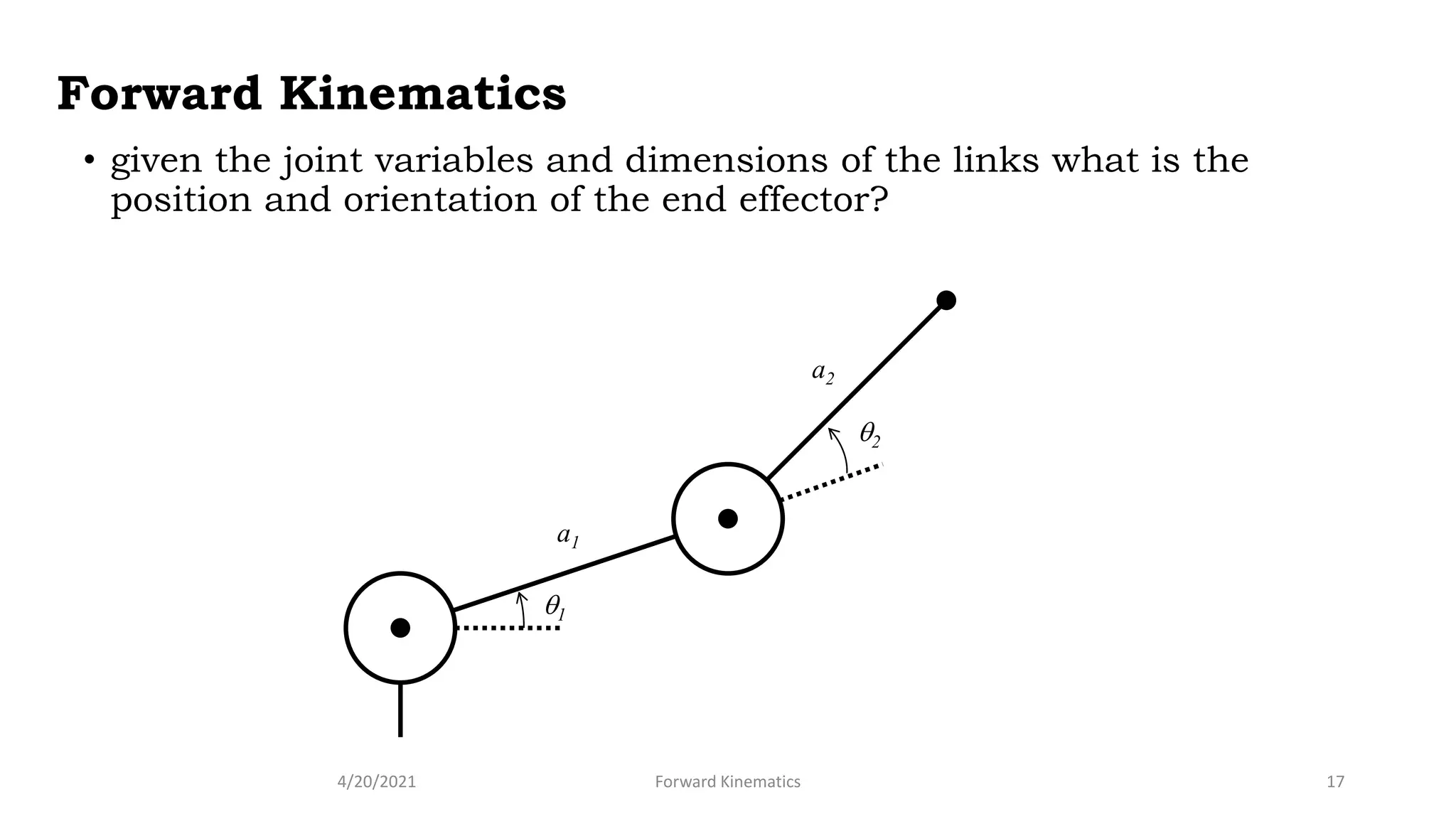

- 17. Forward Kinematics 4/20/2021 17 • given the joint variables and dimensions of the links what is the position and orientation of the end effector? Forward Kinematics q2 q1 a1 a2

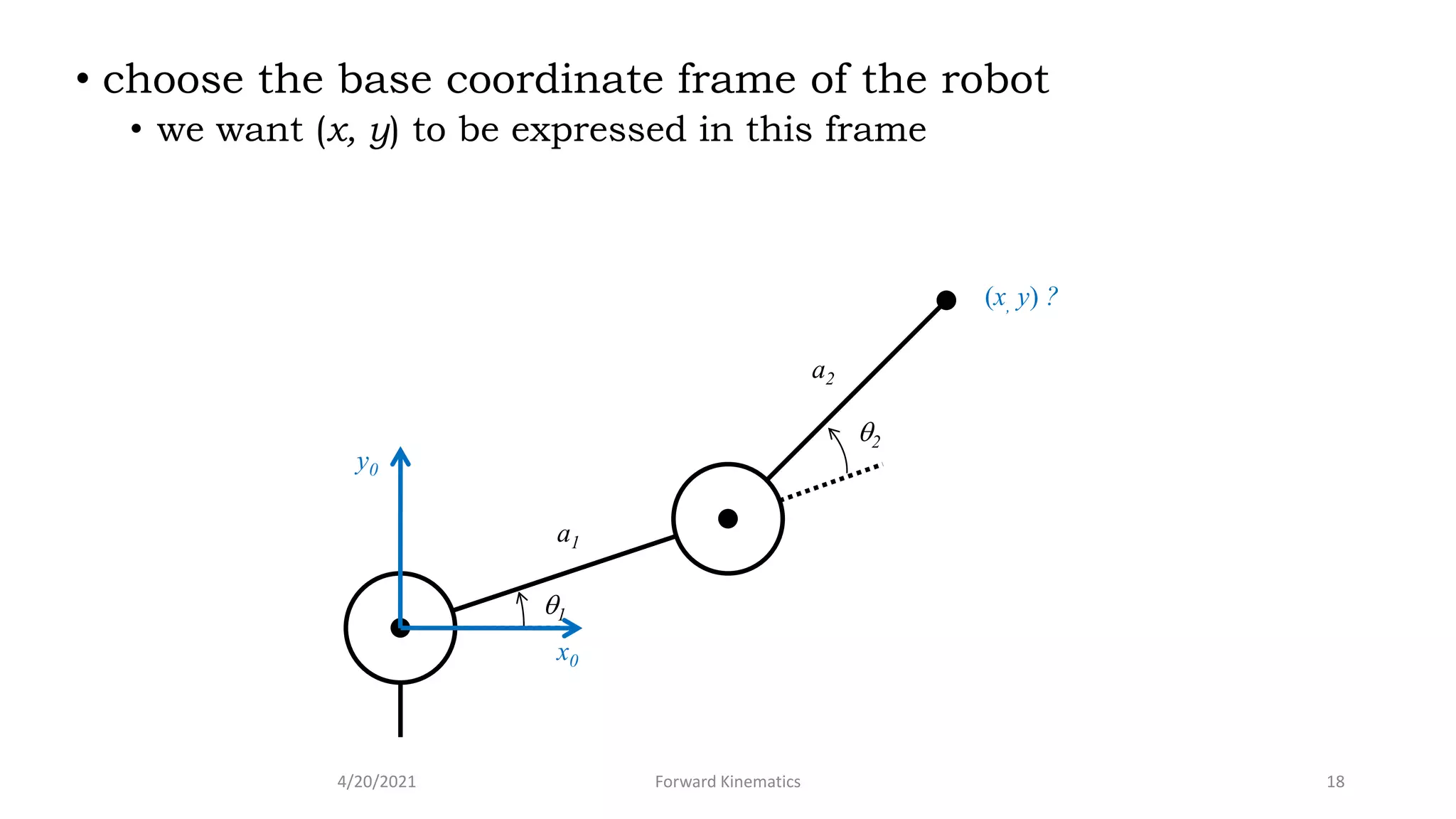

- 18. 4/20/2021 18 • choose the base coordinate frame of the robot • we want (x, y) to be expressed in this frame Forward Kinematics q2 q1 a1 a2 (x, y) ? x0 y0

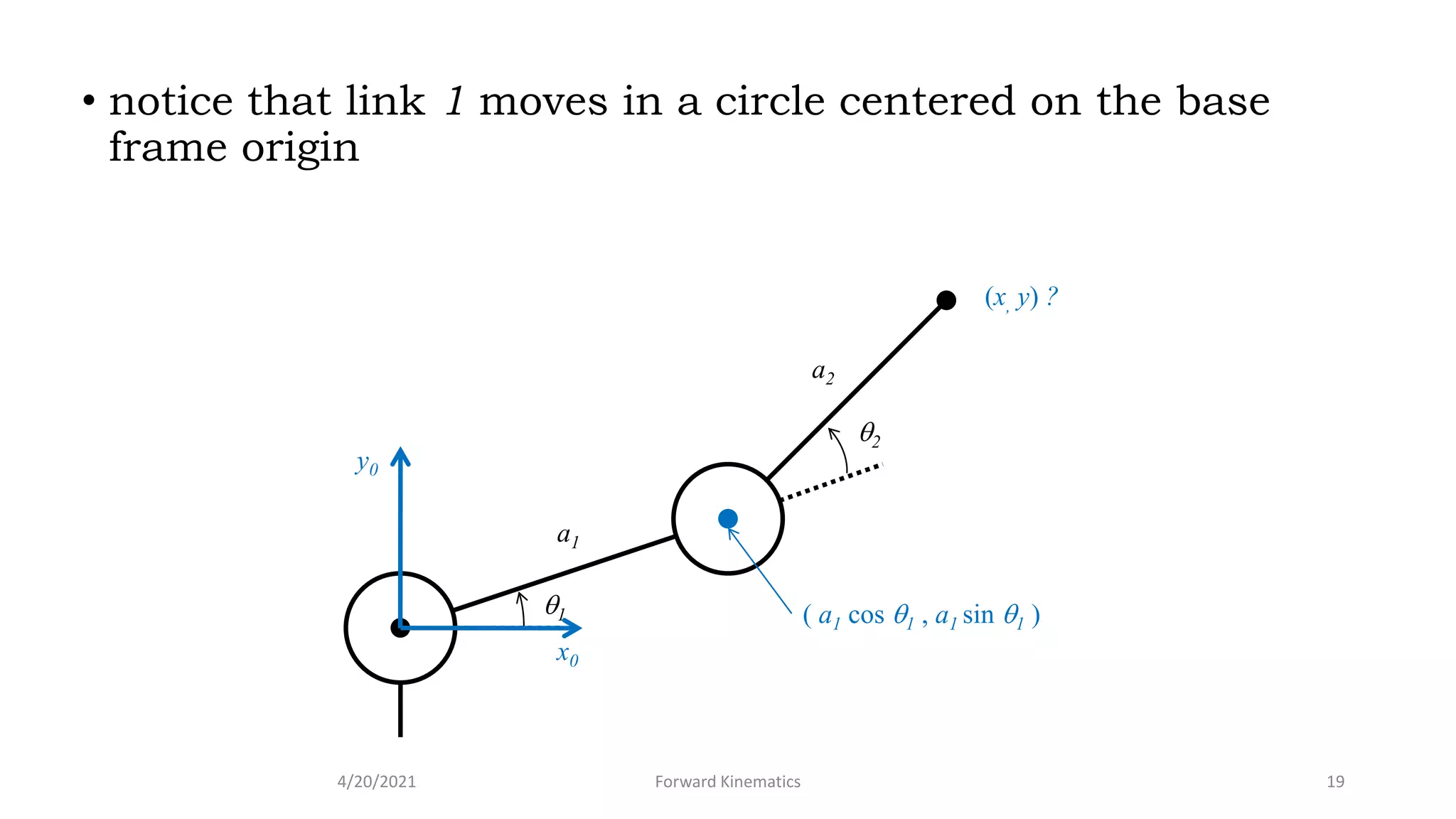

- 19. 4/20/2021 19 • notice that link 1 moves in a circle centered on the base frame origin Forward Kinematics q2 q1 a1 a2 (x, y) ? x0 y0 ( a1 cos q1 , a1 sin q1 )

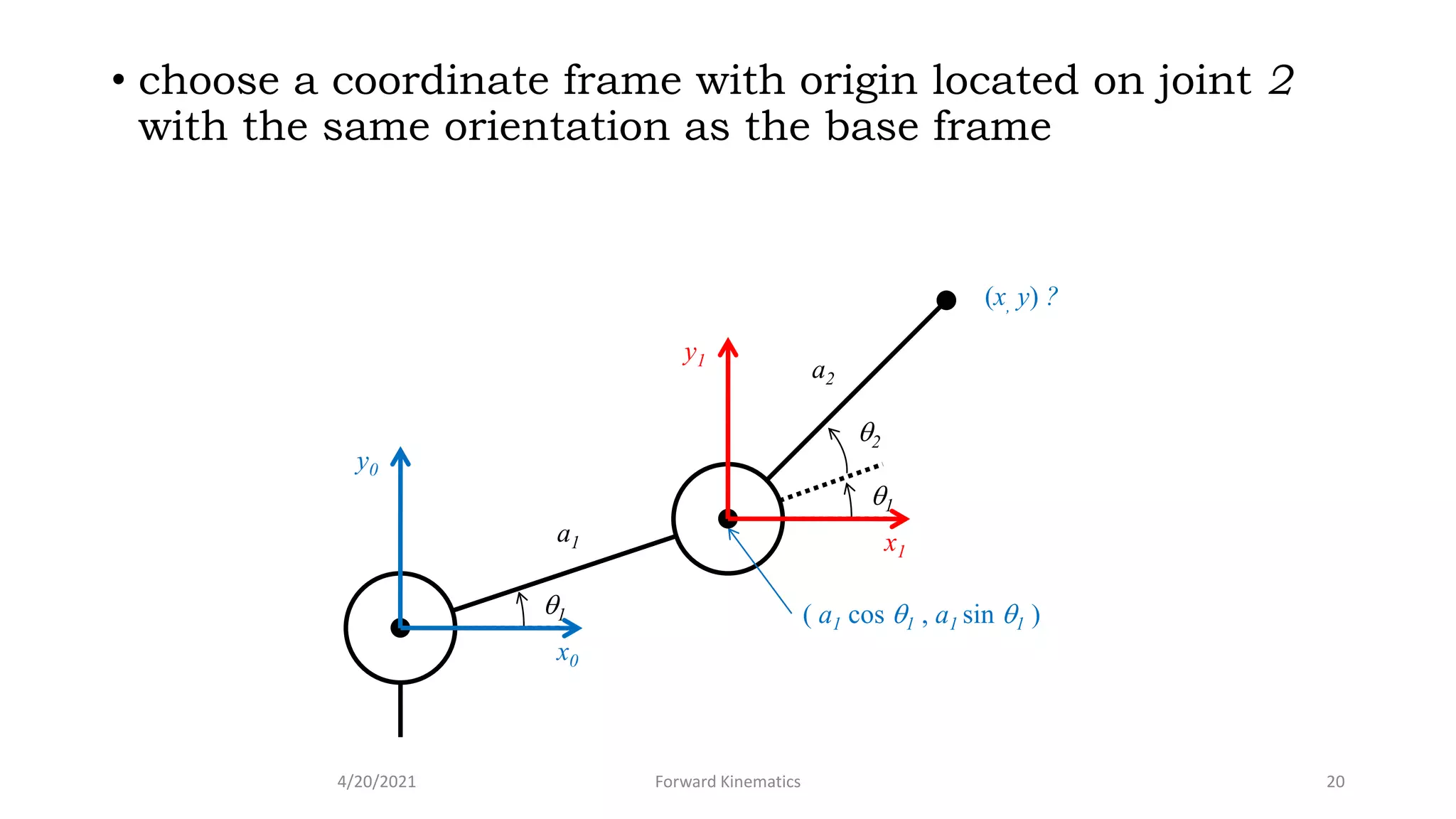

- 20. 4/20/2021 20 • choose a coordinate frame with origin located on joint 2 with the same orientation as the base frame Forward Kinematics q2 q1 a1 a2 (x, y) ? x0 y0 ( a1 cos q1 , a1 sin q1 ) q1 x1 y1

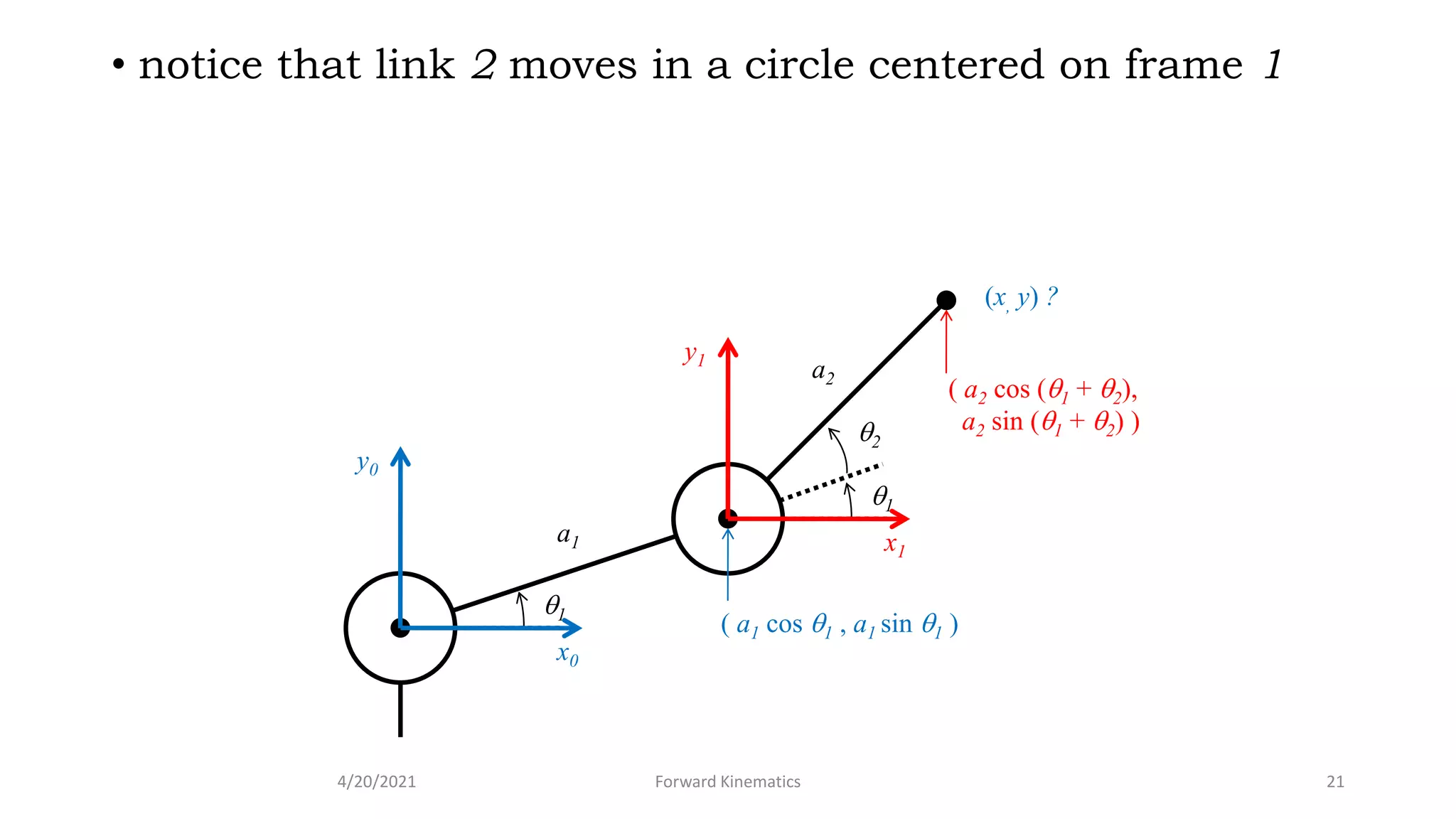

- 21. 4/20/2021 21 • notice that link 2 moves in a circle centered on frame 1 Forward Kinematics q2 q1 a1 a2 (x, y) ? x0 y0 ( a1 cos q1 , a1 sin q1 ) q1 x1 y1 ( a2 cos (q1 + q2), a2 sin (q1 + q2) )

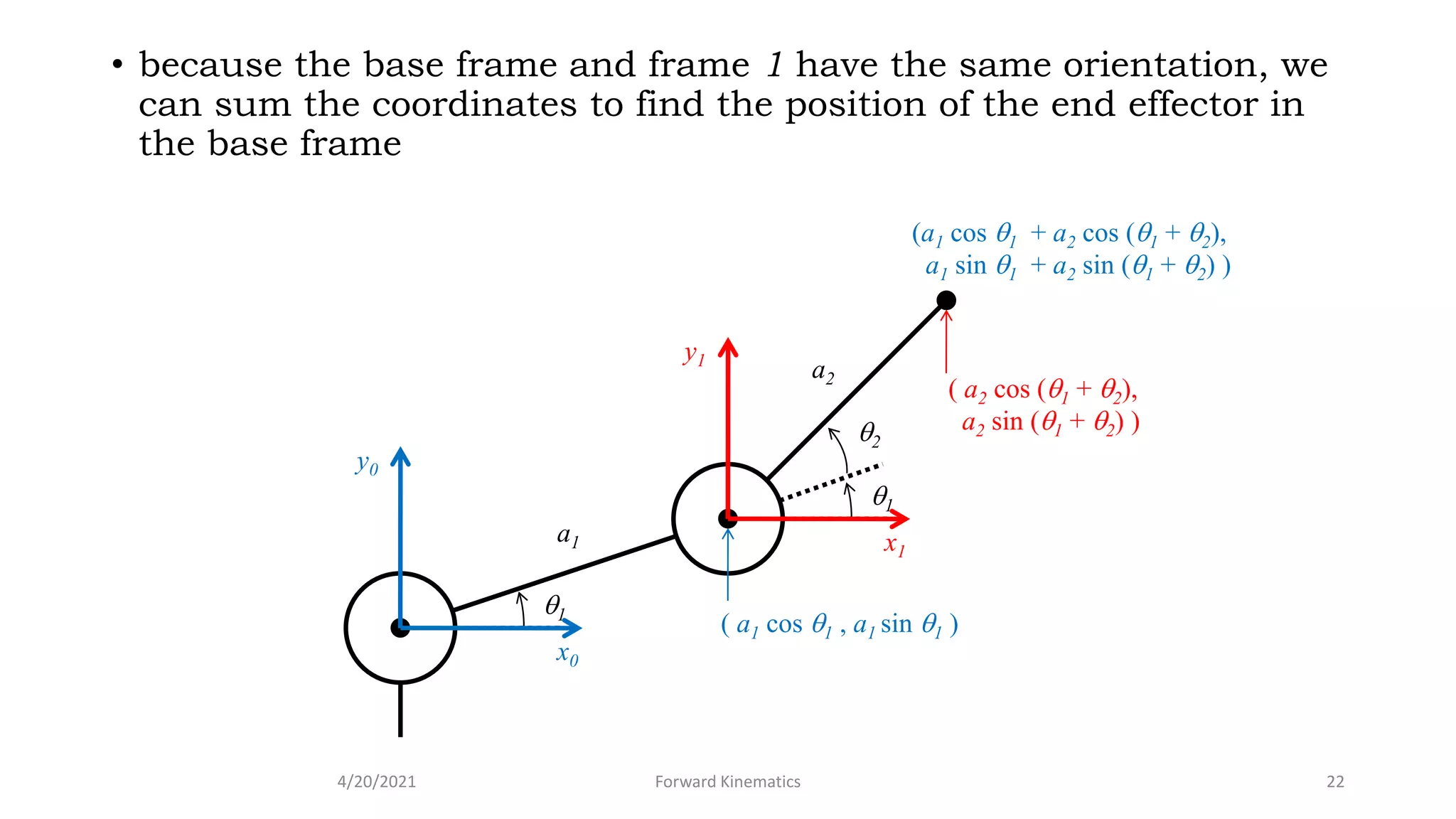

- 22. 4/20/2021 22 • because the base frame and frame 1 have the same orientation, we can sum the coordinates to find the position of the end effector in the base frame Forward Kinematics q2 q1 a1 a2 x0 y0 ( a1 cos q1 , a1 sin q1 ) q1 x1 y1 ( a2 cos (q1 + q2), a2 sin (q1 + q2) ) (a1 cos q1 + a2 cos (q1 + q2), a1 sin q1 + a2 sin (q1 + q2) )

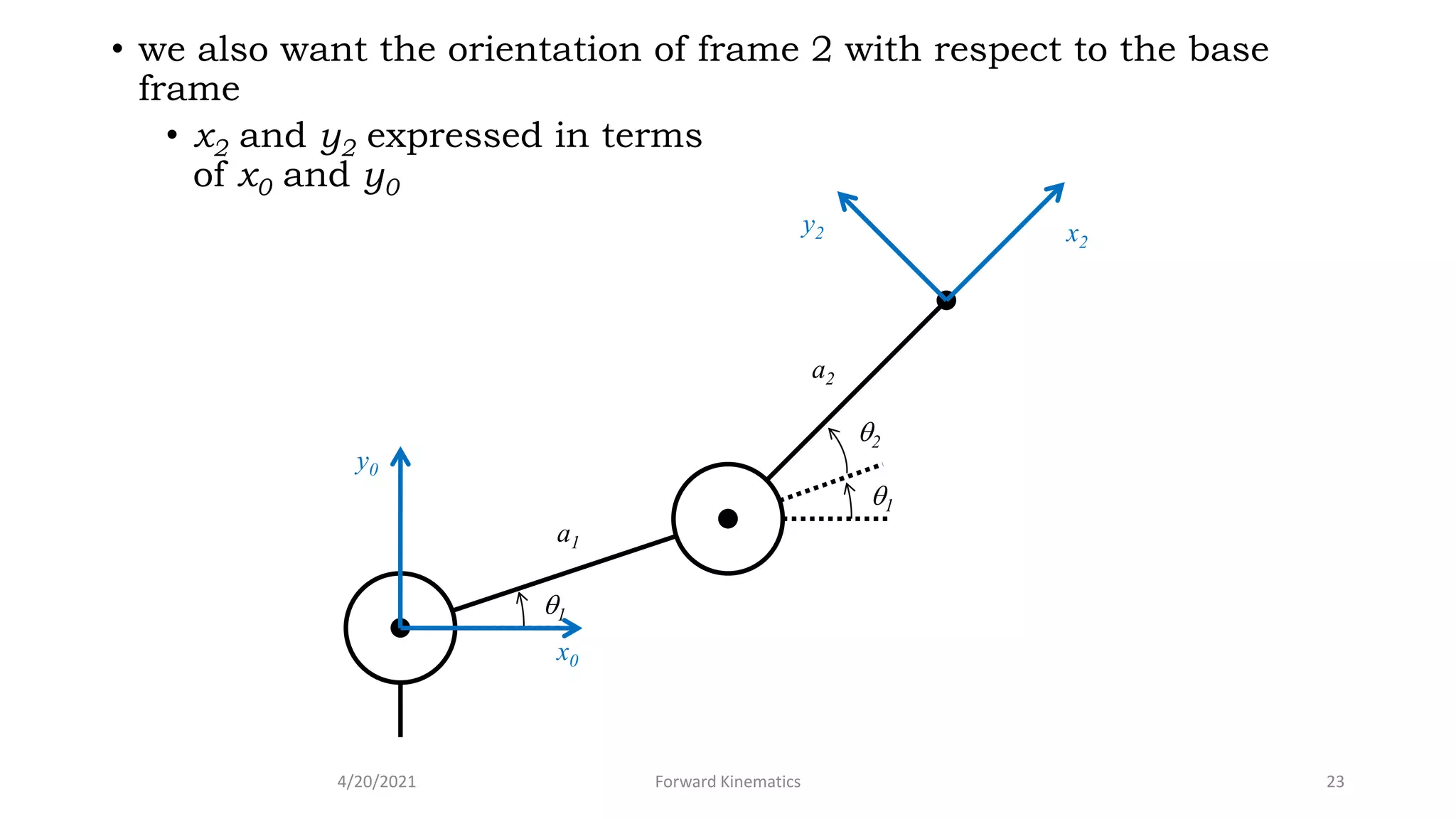

- 23. 4/20/2021 23 • we also want the orientation of frame 2 with respect to the base frame • x2 and y2 expressed in terms of x0 and y0 Forward Kinematics q2 q1 a1 a2 x0 y0 q1 x2 y2

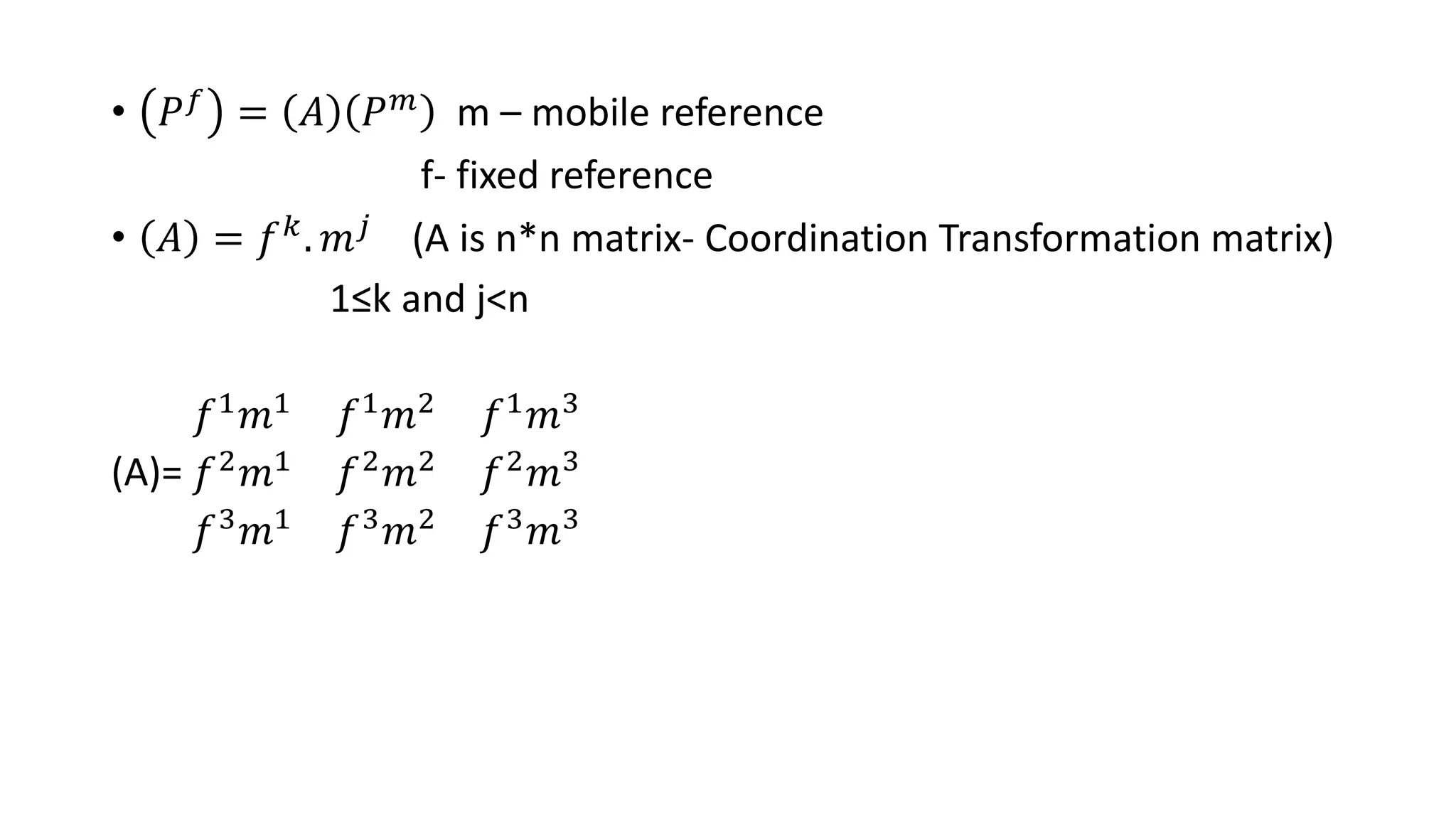

- 24. • 𝑃𝑓 = 𝐴 𝑃𝑚 m – mobile reference f- fixed reference • 𝐴 = 𝑓𝑘 . 𝑚𝑗 (A is n*n matrix- Coordination Transformation matrix) 1≤k and j<n (A)= 𝑓1𝑚1 𝑓1𝑚2 𝑓1𝑚3 𝑓2𝑚1 𝑓2𝑚2 𝑓2𝑚3 𝑓3 𝑚1 𝑓3 𝑚2 𝑓3 𝑚3

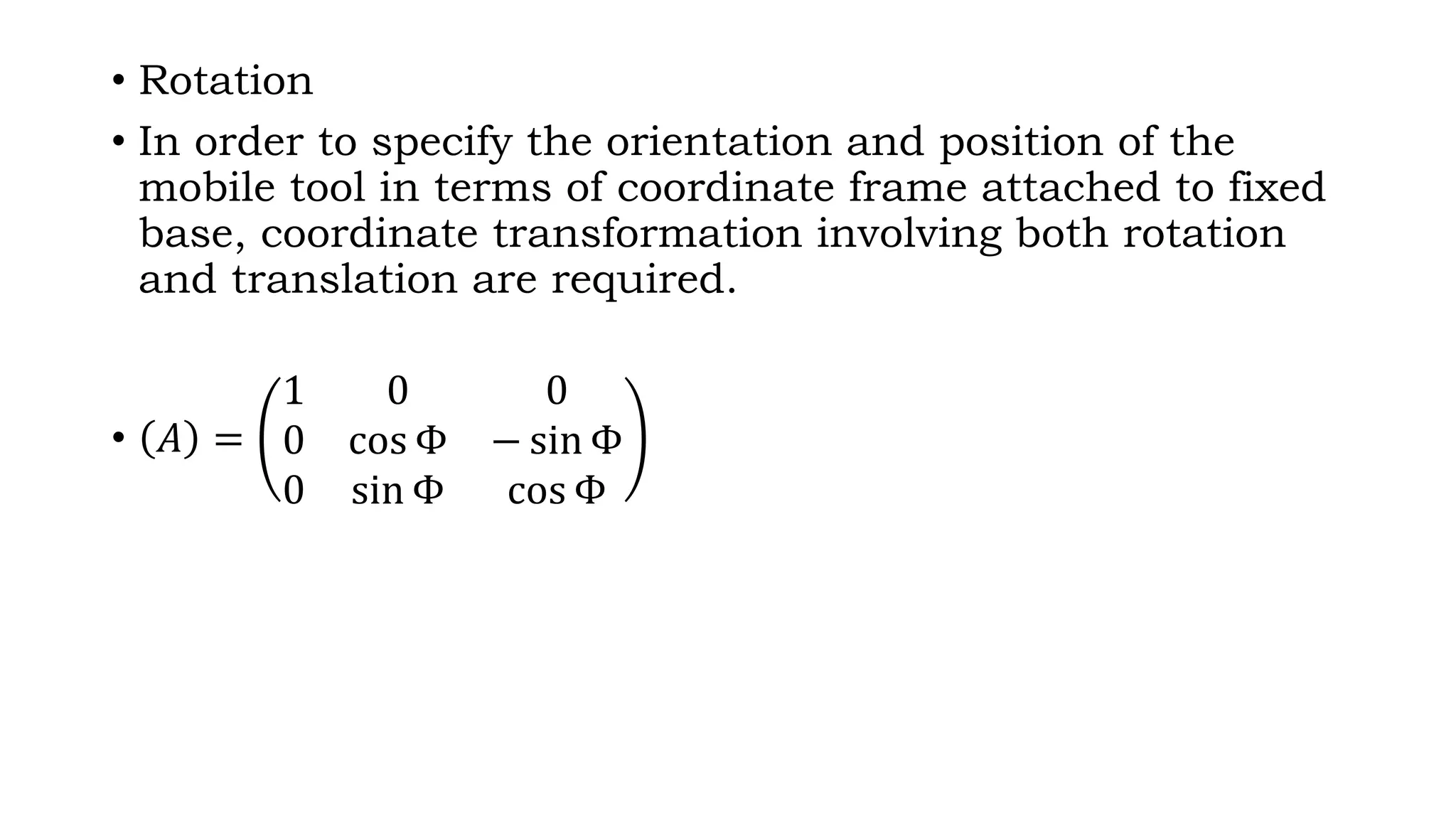

- 25. • Rotation • In order to specify the orientation and position of the mobile tool in terms of coordinate frame attached to fixed base, coordinate transformation involving both rotation and translation are required. • 𝐴 = 1 0 0 0 cos Φ − sin Φ 0 sin Φ cos Φ

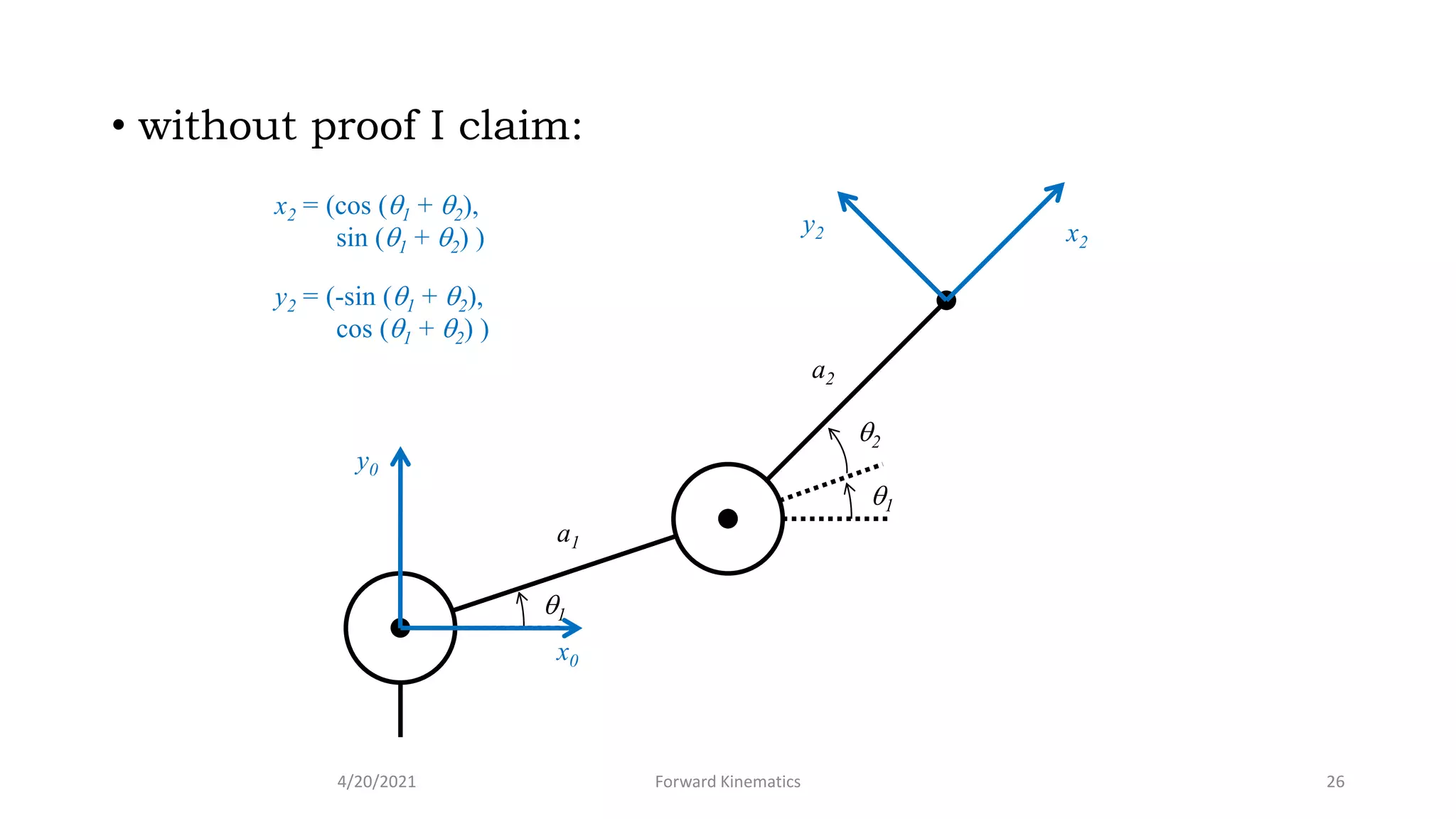

- 26. 4/20/2021 26 • without proof I claim: Forward Kinematics q2 q1 a1 a2 x0 y0 q1 x2 = (cos (q1 + q2), sin (q1 + q2) ) y2 = (-sin (q1 + q2), cos (q1 + q2) ) x2 y2
- 27. I Welcome your Suggestions
