- 1. S Introduction to BSV An approach to understand the complexity Prepared by Anis Suzanna Binti Mohamad Optometrist Ophthalmology Department, Hospital Sultanah Bahiyah

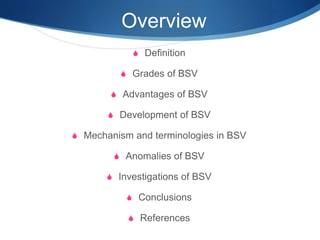

- 2. Overview S Definition S Grades of BSV S Advantages of BSV S Development of BSV S Mechanism and terminologies in BSV S Anomalies of BSV S Investigations of BSV S Conclusions S References
- 3. Definition S State of simultaneous vision which is achieved by coordinated use of both eyes so that separate and slight dissimilar images arising in each eye appreciated as single image by process of fusion. (Acc. to Romano & Romano)

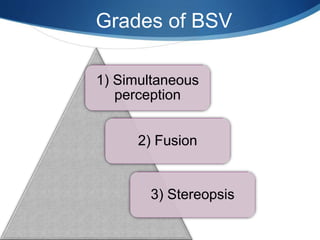

- 4. Grades of BSV 1) Simultaneous perception 2) Fusion 3) Stereopsis

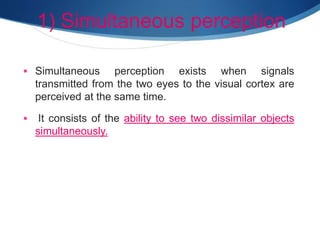

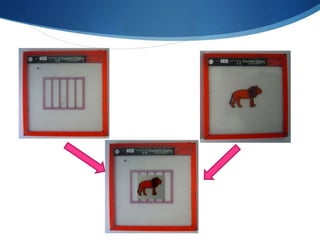

- 5. 1) Simultaneous perception Simultaneous perception exists when signals transmitted from the two eyes to the visual cortex are perceived at the same time. It consists of the ability to see two dissimilar objects simultaneously.

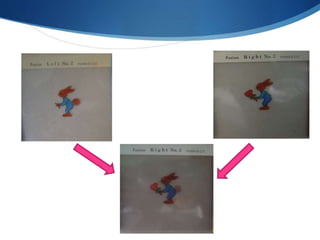

- 7. 2) Fusion S Defined as the cortical unification of visual objects into a single percept that is made possible by the simultaneous stimulation of corresponding retinal areas. S In simple words, it is the ability to superimpose two incomplete but similar images to form one complete image.

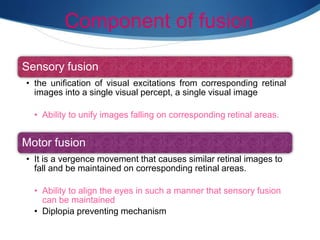

- 9. Component of fusion Sensory fusion • the unification of visual excitations from corresponding retinal images into a single visual percept, a single visual image • Ability to unify images falling on corresponding retinal areas. Motor fusion • It is a vergence movement that causes similar retinal images to fall and be maintained on corresponding retinal areas. • Ability to align the eyes in such a manner that sensory fusion can be maintained • Diplopia preventing mechanism

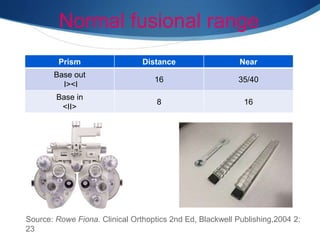

- 10. Normal fusional range Prism Distance Near Base out I><I 16 35/40 Base in <II> 8 16 Source: Rowe Fiona. Clinical Orthoptics 2nd Ed, Blackwell Publishing,2004 2: 23

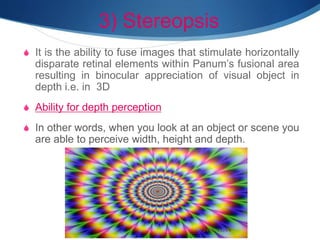

- 11. 3) Stereopsis S It is the ability to fuse images that stimulate horizontally disparate retinal elements within Panum’s fusional area resulting in binocular appreciation of visual object in depth i.e. in 3D S Ability for depth perception S In other words, when you look at an object or scene you are able to perceive width, height and depth.
- 12. How it occurs? S Retinal disparity (Fixation disparity) is the basis of 3 D perception S Stereopsis occurs when • Retinal disparity is large enough to simple fusion but small enough to cause diplopia

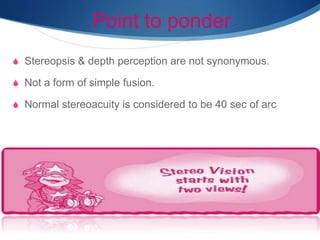

- 13. Point to ponder S Stereopsis & depth perception are not synonymous. S Not a form of simple fusion. S Normal stereoacuity is considered to be 40 sec of arc

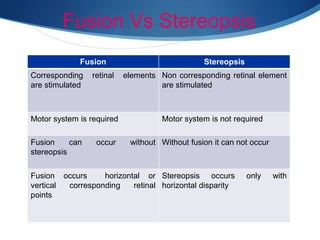

- 14. Fusion Vs Stereopsis Fusion Stereopsis Corresponding retinal elements are stimulated Non corresponding retinal element are stimulated Motor system is required Motor system is not required Fusion can occur without stereopsis Without fusion it can not occur Fusion occurs horizontal or vertical corresponding retinal points Stereopsis occurs only with horizontal disparity

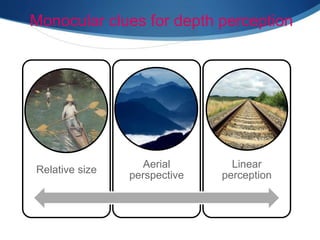

- 15. Monocular clues for depth perception Relative size Aerial perspective Linear perception

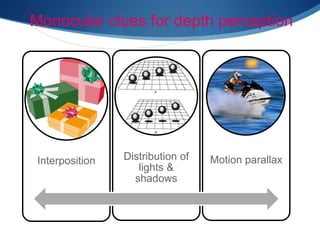

- 16. Monocular clues for depth perception Interposition Distribution of lights & shadows Motion parallax
- 17. Advantages of having BSV • Stereopsis. • Binocular summation. – vision shaper, clearer & more sensitive • Larger field of view. • Spare eye. • Compensation of blind spot.
- 18. Development of BSV S Basic visual functions are innate and therefore present at birth. S Their coordination, maturation and refinement take place during early postnatal period.
- 19. BSV milestones • no bifoveal fixation. Monocular fixation is present at birth, but poor.At birth • infant begins to make movements, turning his eyes to fixate an object2-3 weeks • can sustain monocular fixation of large near objects 4-5 weeks • fixation alternates rapidly between two eyes & child begins to fixate binocularly with conjugate pursuit movements which are saccadic initially but become smooth and gliding by 3- 5mts of age. 6 weeks • conjugate movements and disjugate vergence movements. 3-6 months • fusional movements are firmly established. 1 year • adult level of visual acuity is reached. 2-3 years
- 20. Maturation of binocular function At birth- eyes act as 2 independent sense organs. Foveas are not formed until the 3rd month. By trial and error the child learns that, when the image of an object is brought on to the 2 foveae simultaneously, the image is most detailed. Hence visual axes are oriented in such a way that each fovea is directed at the object of regard.

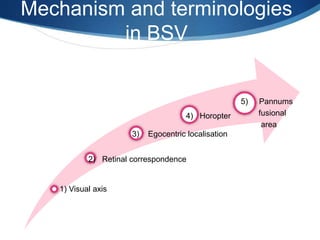

- 21. Mechanism and terminologies in BSV 1) Visual axis 2) Retinal correspondence 3) Egocentric localisation 4) Horopter 5) Pannums fusional area

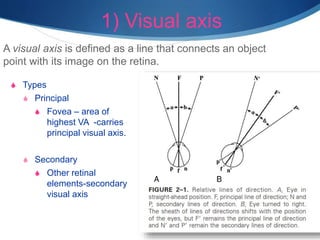

- 22. 1) Visual axis S Types S Principal S Fovea – area of highest VA -carries principal visual axis. S Secondary S Other retinal elements-secondary visual axis A visual axis is defined as a line that connects an object point with its image on the retina.

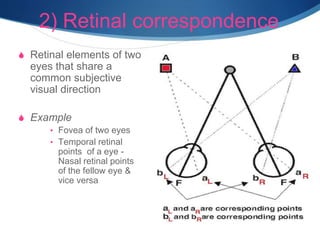

- 23. 2) Retinal correspondence S Retinal elements of two eyes that share a common subjective visual direction S Example • Fovea of two eyes • Temporal retinal points of a eye - Nasal retinal points of the fellow eye & vice versa
- 24. Continue…. Types of retinal correspondence Normal retinal correspondence (NRC) Abnormal retinal correspondence (ARC) Paradoxical ARC occurs when angle of anomaly > angle of strabismus Unharmonius ARC Occurs when angle of anamoly< angle of strabismus Harmonious ARC Occurs when angle of anamoly= angle of strabismus Millodot: Dictionary of Optometry and Visual Science, 7th edition. © 2009 Butterworth-Heinemann

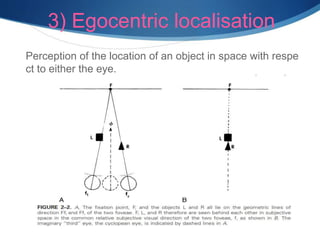

- 25. 3) Egocentric localisation Perception of the location of an object in space with respe ct to either the eye.

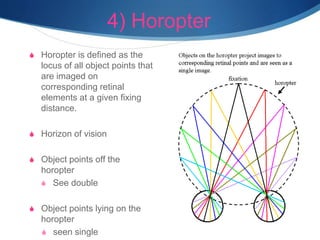

- 26. 4) Horopter S Horopter is defined as the locus of all object points that are imaged on corresponding retinal elements at a given fixing distance. S Horizon of vision S Object points off the horopter S See double S Object points lying on the horopter S seen single

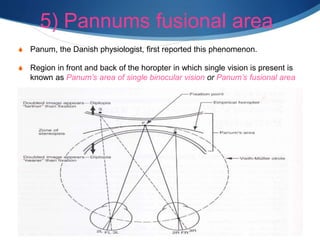

- 27. 5) Pannums fusional area S Panum, the Danish physiologist, first reported this phenomenon. S Region in front and back of the horopter in which single vision is present is known as Panum’s area of single binocular vision or Panum’s fusional area

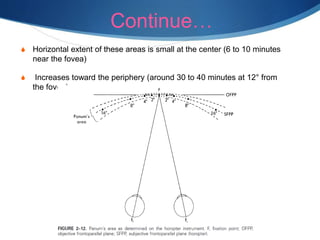

- 28. Continue… S Horizontal extent of these areas is small at the center (6 to 10 minutes near the fovea) S Increases toward the periphery (around 30 to 40 minutes at 12° from the fovea)

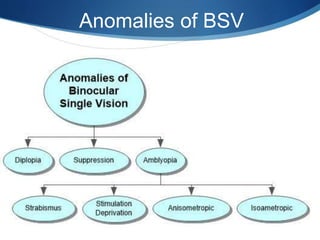

- 29. Anomalies of BSV
- 31. Investigations of BSV S All the tests are aimed at assessing the presence or absence of: S Normal or abnormal retinal correspondence S Suppression S Simultaneous perception S Fusion with some amplitude S Stereopsis S Before any test is undertaken it is essential to assess the: S visual acuity S fixation in the squinting eye S direction and size of deviation

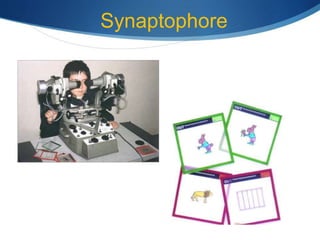

- 32. Synaptophore

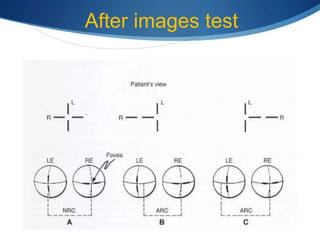

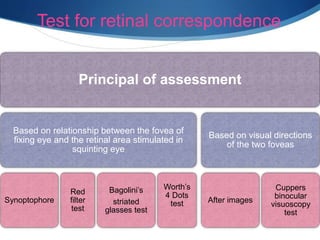

- 33. Test for retinal correspondence Principal of assessment Based on relationship between the fovea of fixing eye and the retinal area stimulated in squinting eye Synoptophore Red filter test Bagolini’s striated glasses test Worth’s 4 Dots test Based on visual directions of the two foveas After images Cuppers binocular visuoscopy test

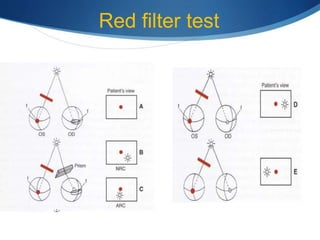

- 34. Red filter test
- 35. Bagolini’s striated glassess test

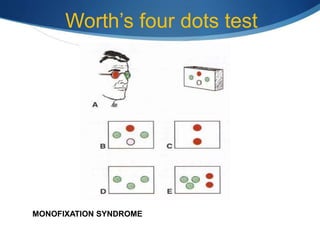

- 36. Worth’s four dots test MONOFIXATION SYNDROME

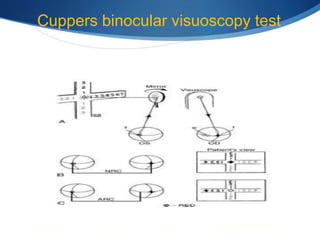

- 38. Cuppers binocular visuoscopy test

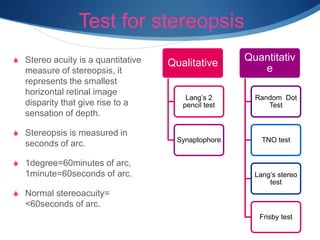

- 39. Test for stereopsis S Stereo acuity is a quantitative measure of stereopsis, it represents the smallest horizontal retinal image disparity that give rise to a sensation of depth. S Stereopsis is measured in seconds of arc. S 1degree=60minutes of arc, 1minute=60seconds of arc. S Normal stereoacuity= <60seconds of arc. Qualitative Lang’s 2 pencil test Synaptophore Quantitativ e Random Dot Test TNO test Lang’s stereo test Frisby test

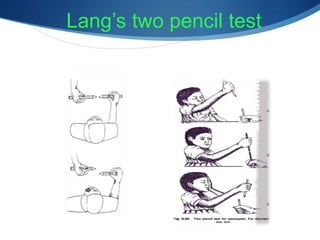

- 40. Lang’s two pencil test
- 41. Random Dot Test
- 42. TNO test

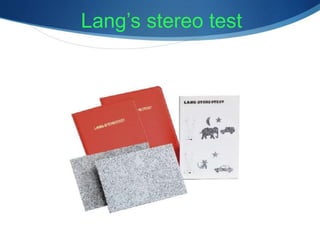

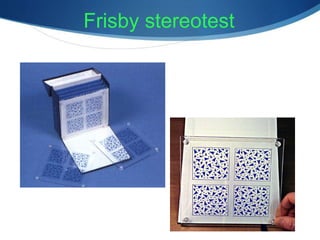

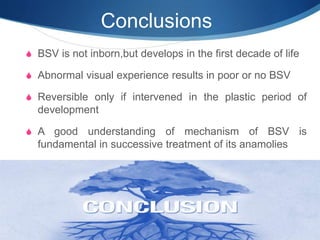

- 45. Conclusions S BSV is not inborn,but develops in the first decade of life S Abnormal visual experience results in poor or no BSV S Reversible only if intervened in the plastic period of development S A good understanding of mechanism of BSV is fundamental in successive treatment of its anamolies

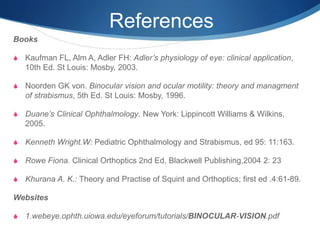

- 46. References Books S Kaufman FL, Alm A, Adler FH: Adler’s physiology of eye: clinical application, 10th Ed. St Louis: Mosby, 2003. S Noorden GK von. Binocular vision and ocular motility: theory and managment of strabismus, 5th Ed. St Louis: Mosby, 1996. S Duane’s Clinical Ophthalmology. New York: Lippincott Williams & Wilkins, 2005. S Kenneth Wright.W: Pediatric Ophthalmology and Strabismus, ed 95: 11:163. S Rowe Fiona. Clinical Orthoptics 2nd Ed, Blackwell Publishing,2004 2: 23 S Khurana A. K.: Theory and Practise of Squint and Orthoptics; first ed .4:61-89. Websites S 1.webeye.ophth.uiowa.edu/eyeforum/tutorials/BINOCULAR-VISION.pdf
