The Hess chart provides information about eye movements and deviations in different gazes. Key features include the size and shape of the fields, positions of the central dots indicating deviations, and displacements showing underactions and overactions. Together these can indicate the affected eye and muscle(s), type of strabismus, whether it is recent or longstanding, and help make a diagnosis such as thyroid eye disease or cranial nerve palsy. Hess charts are useful for monitoring changes over time both clinically and following strabismus surgery.

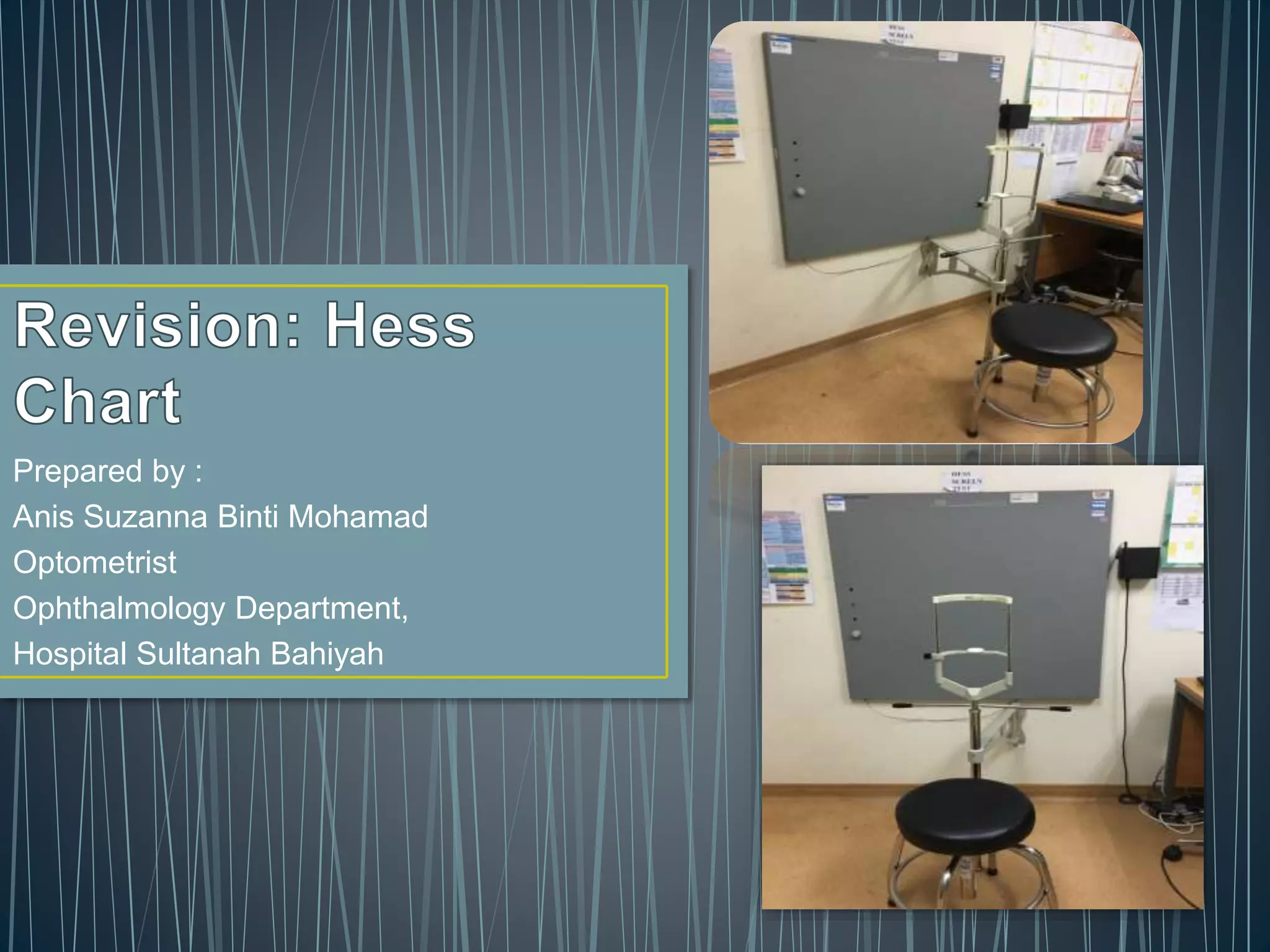

1. Prepared by :
Anis Suzanna Binti Mohamad
Optometrist
Ophthalmology Department,
Hospital Sultanah Bahiyah

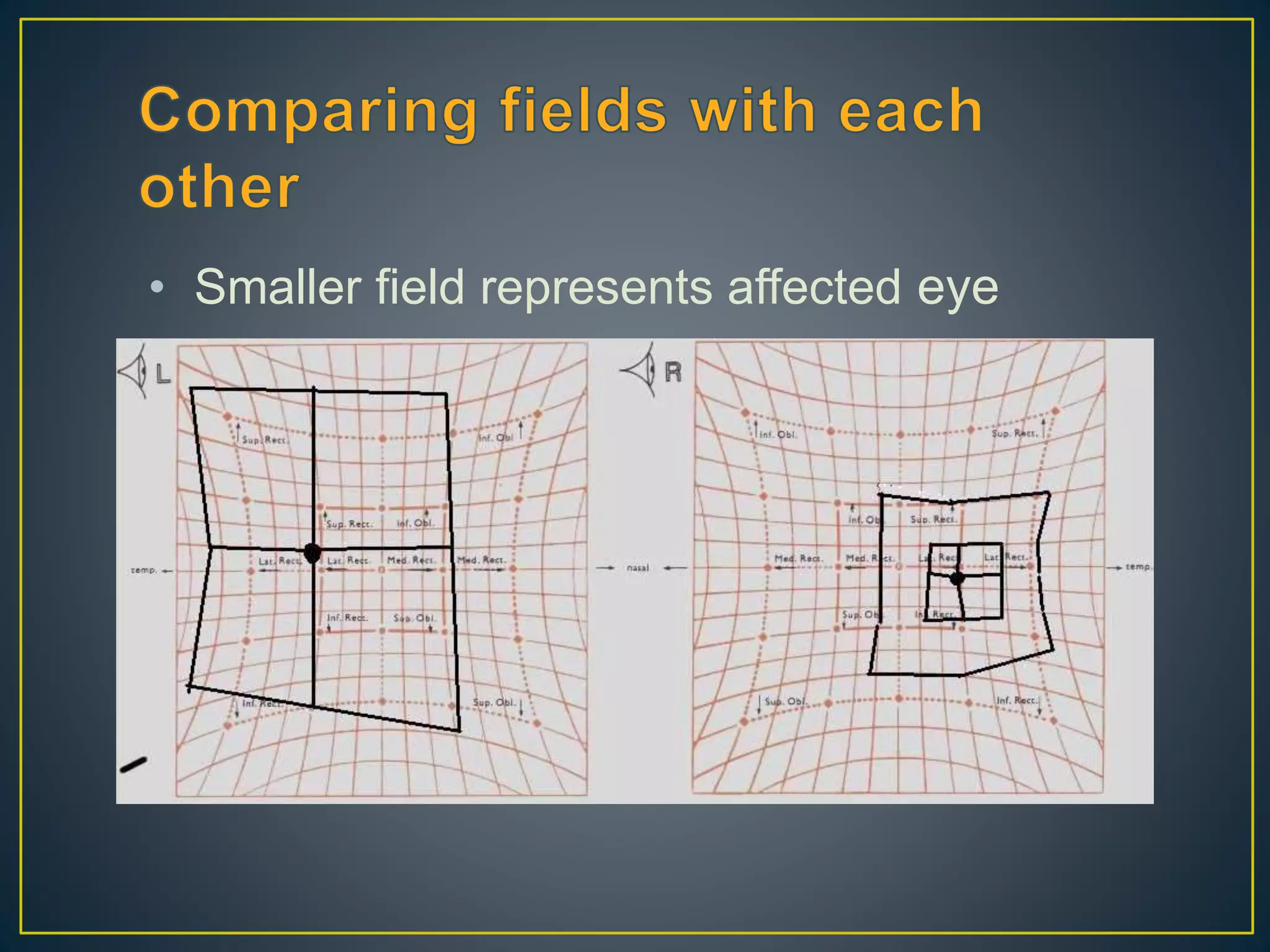

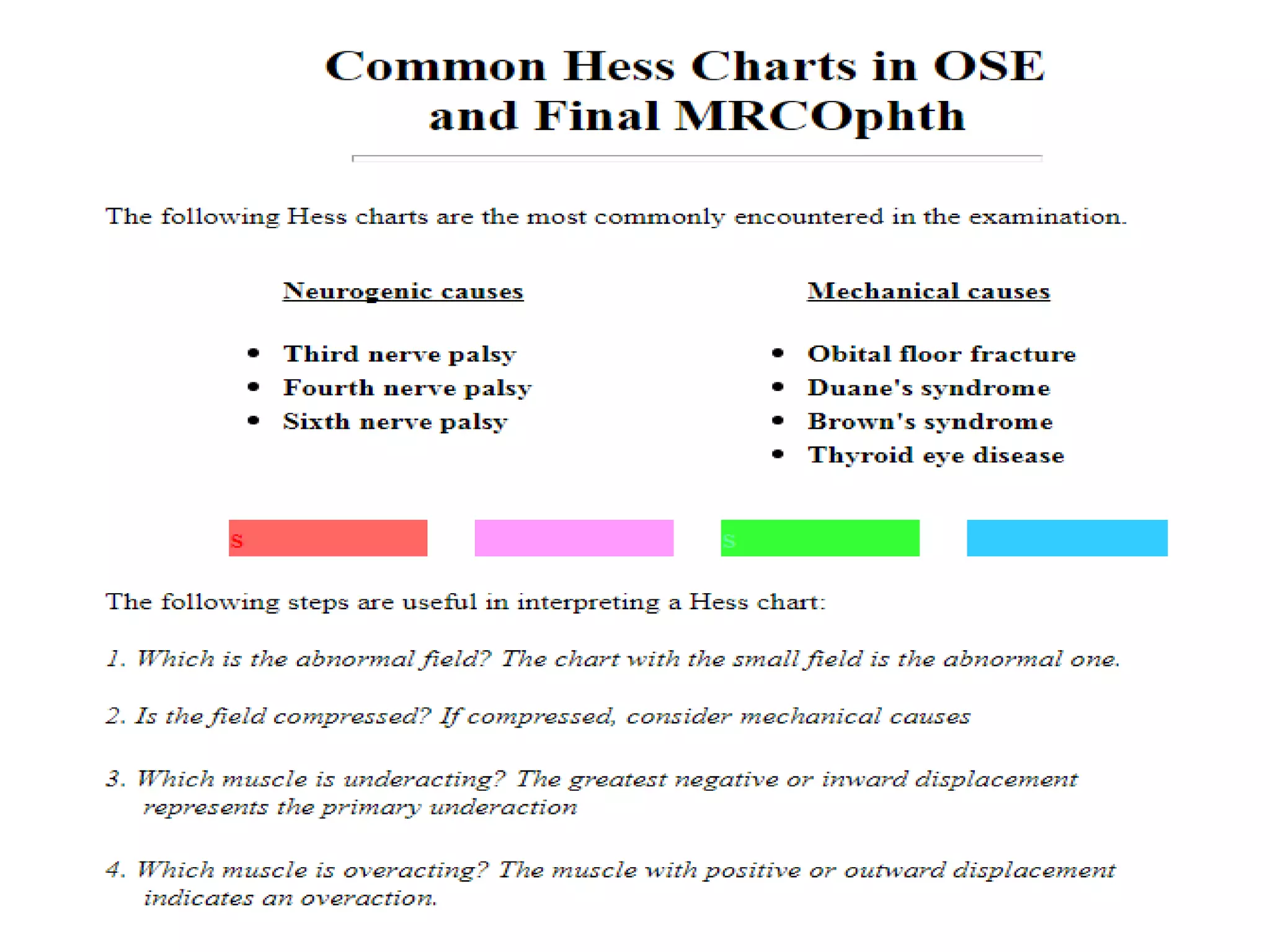

5. • Smaller field represents affected eye
• Incomitance suggests recent onset

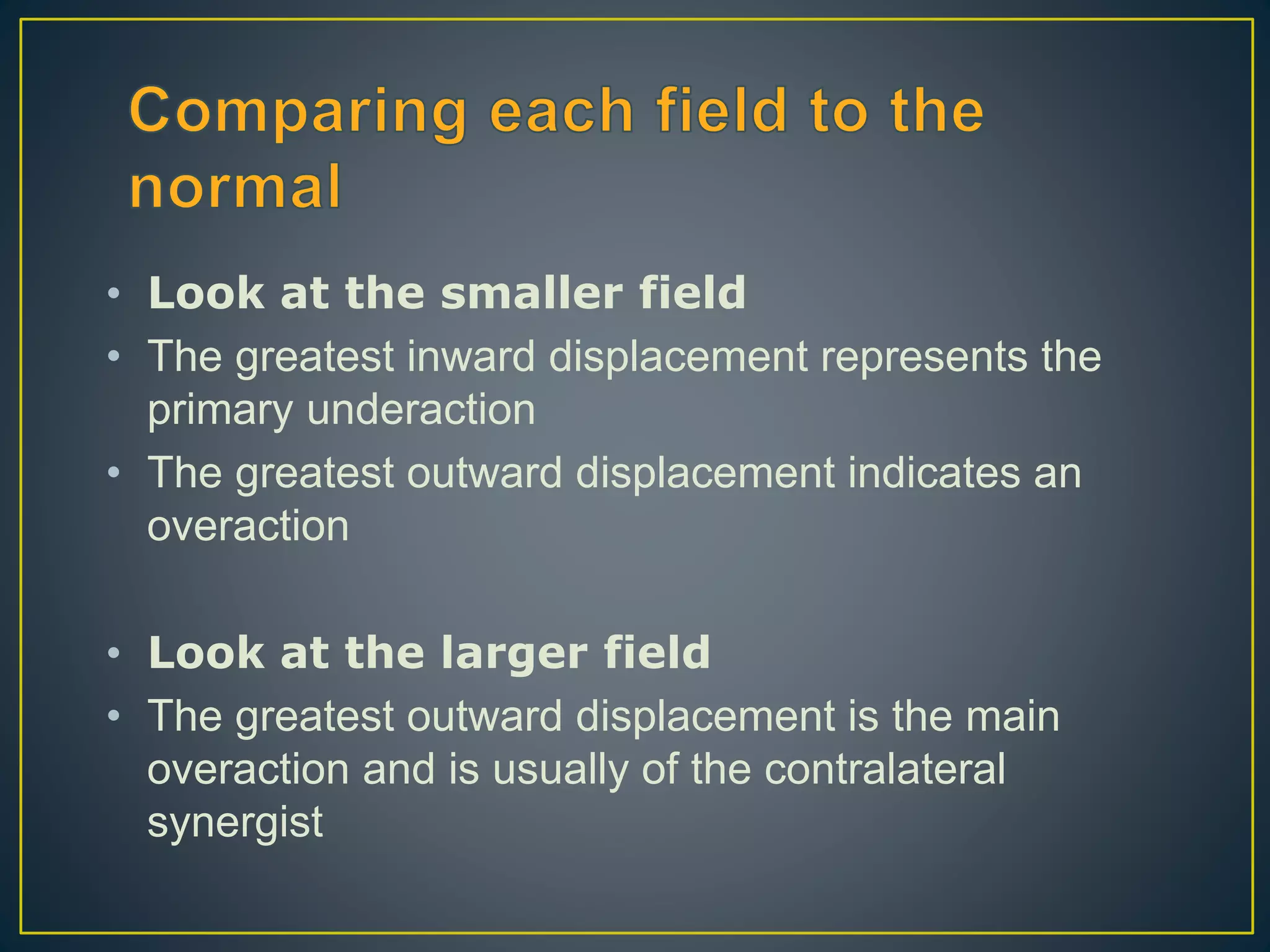

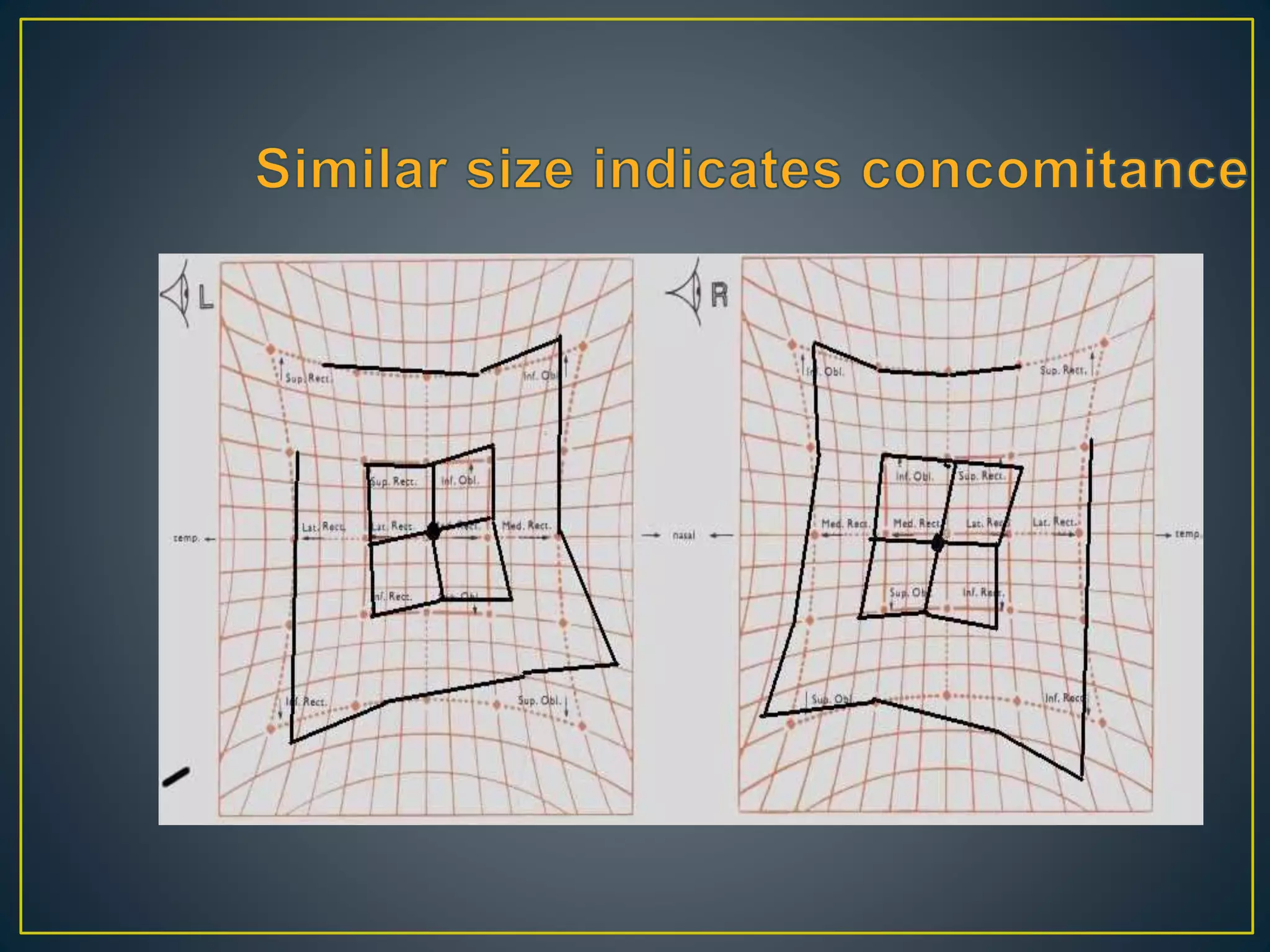

7. • Look at the smaller field
• The greatest inward displacement represents the
primary underaction
• The greatest outward displacement indicates an
overaction
• Look at the larger field
• The greatest outward displacement is the main
overaction and is usually of the contralateral
synergist

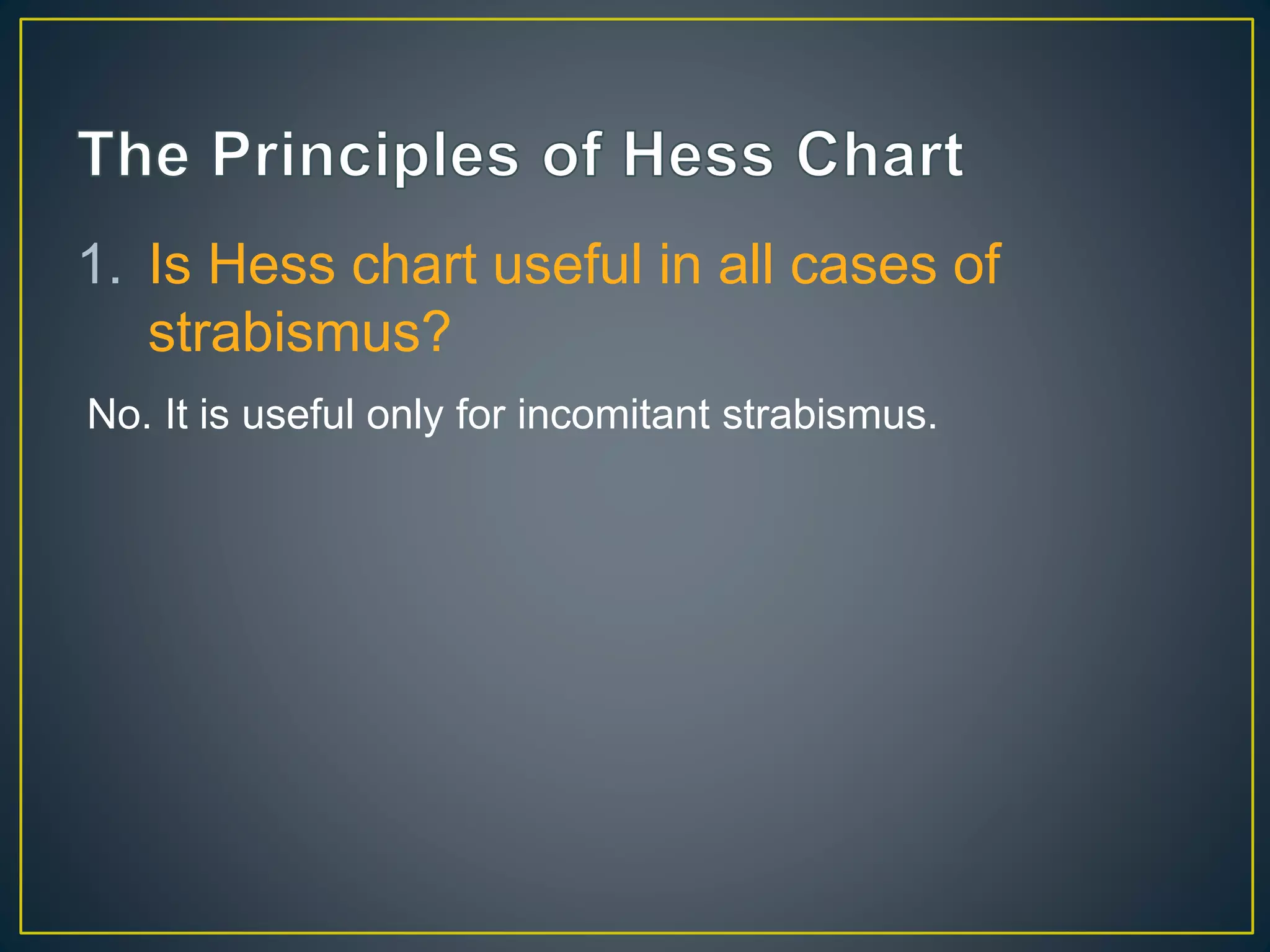

8. 1. Is Hess chart useful in all cases of
strabismus?
No. It is useful only for incomitant strabismus.

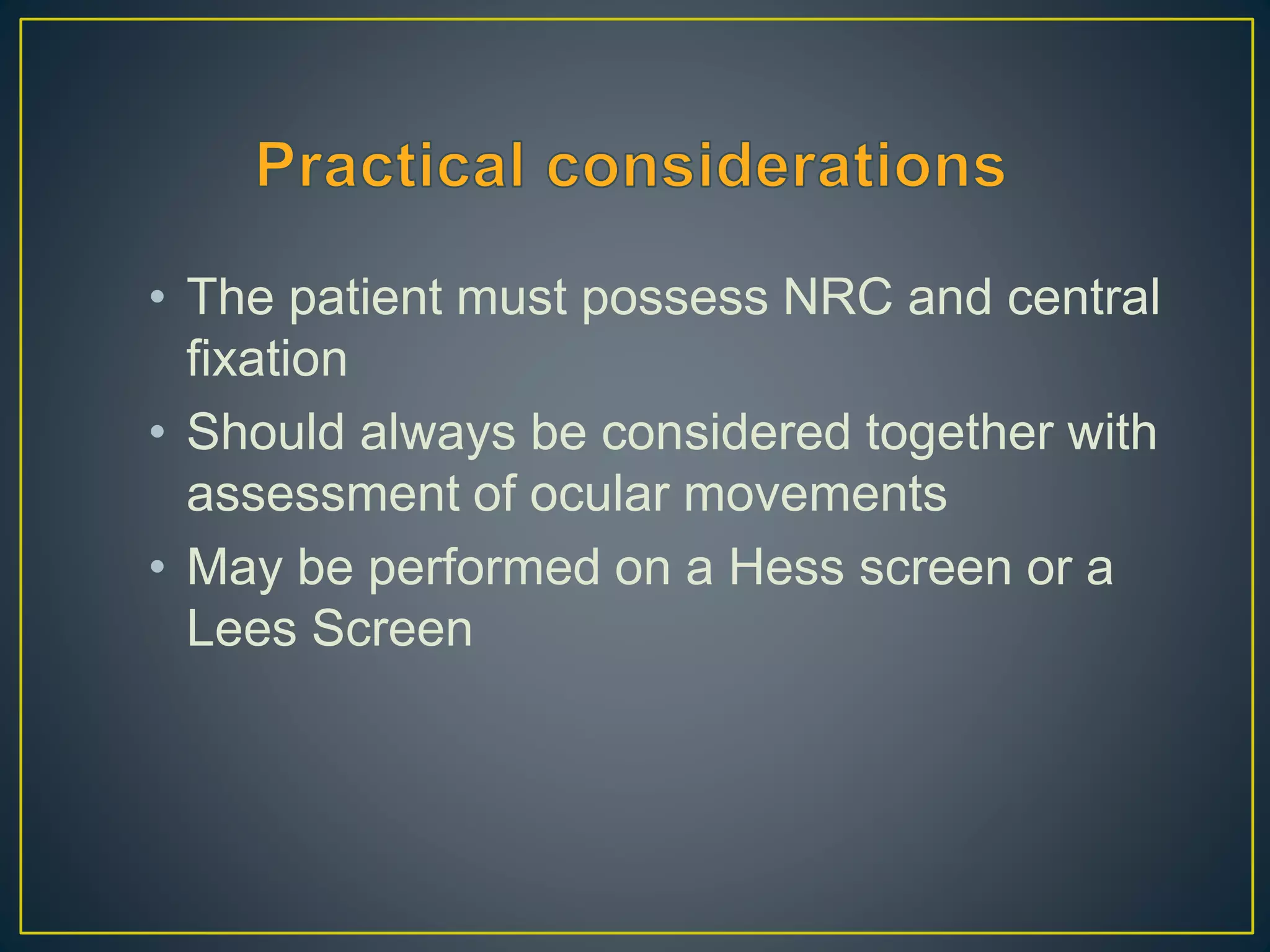

9. • The patient must possess NRC and central
fixation
• Should always be considered together with
assessment of ocular movements
• May be performed on a Hess screen or a
Lees Screen

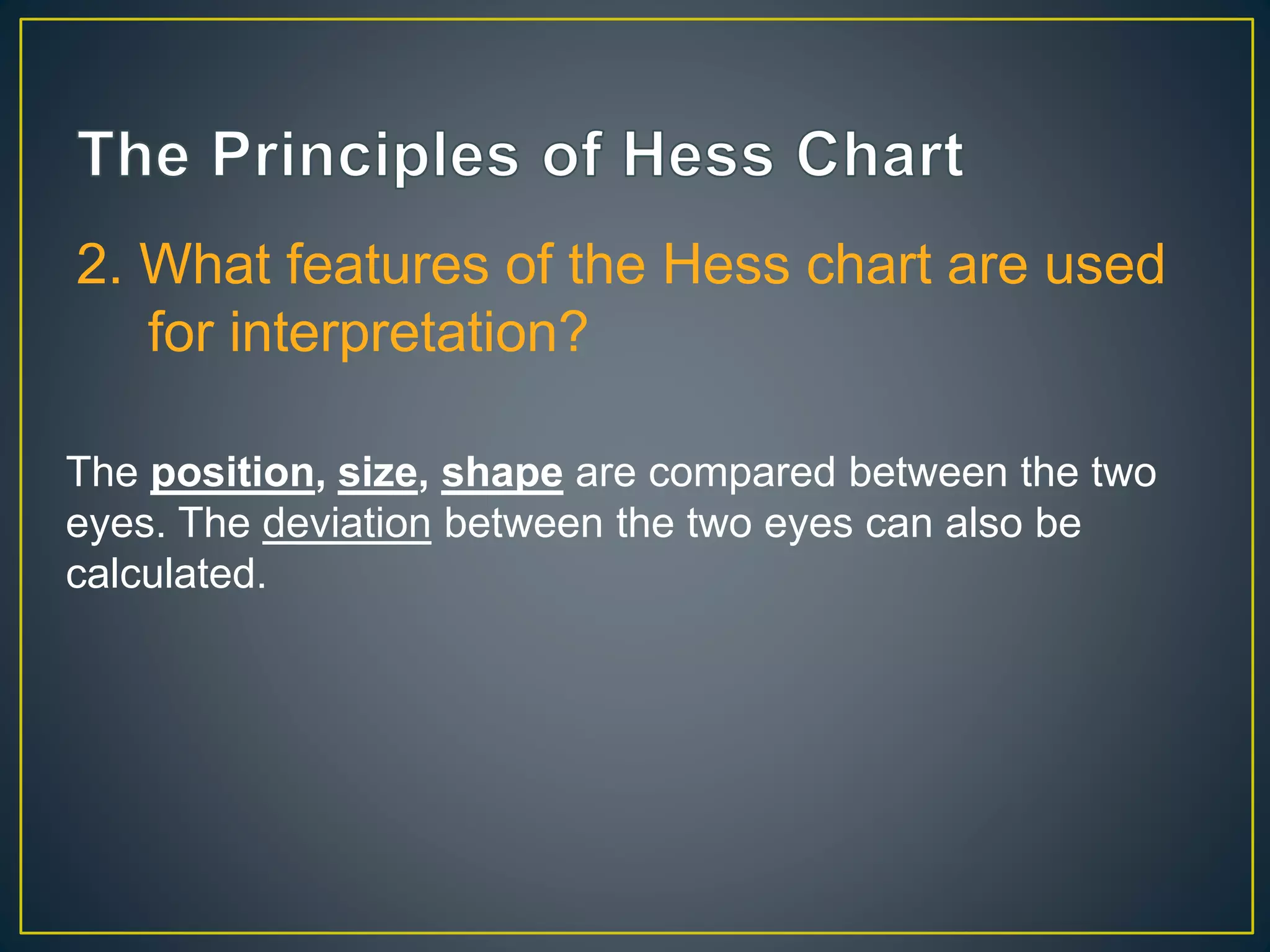

10. 2. What features of the Hess chart are used
for interpretation?
The position, size, shape are compared between the two
eyes. The deviation between the two eyes can also be
calculated.

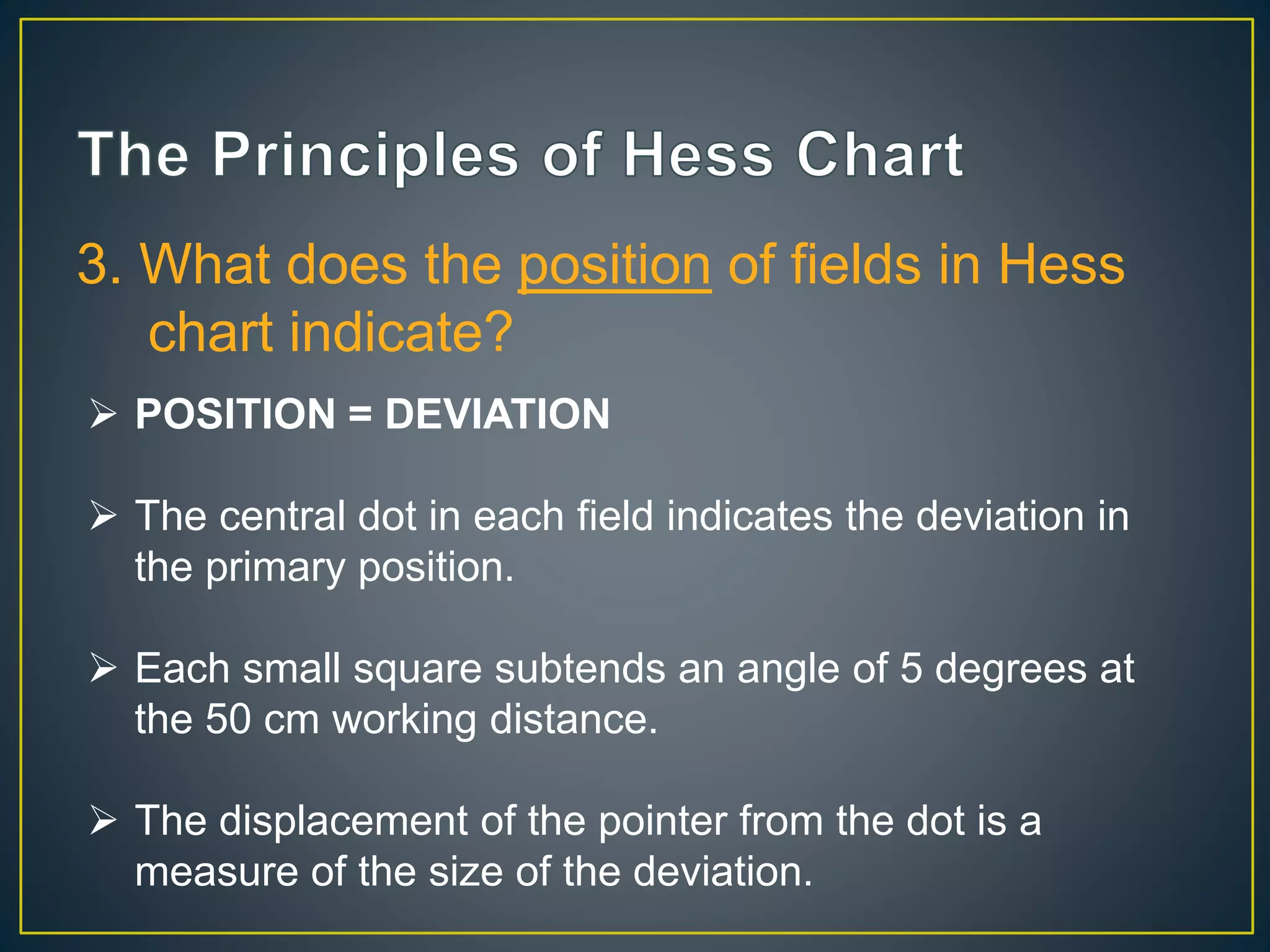

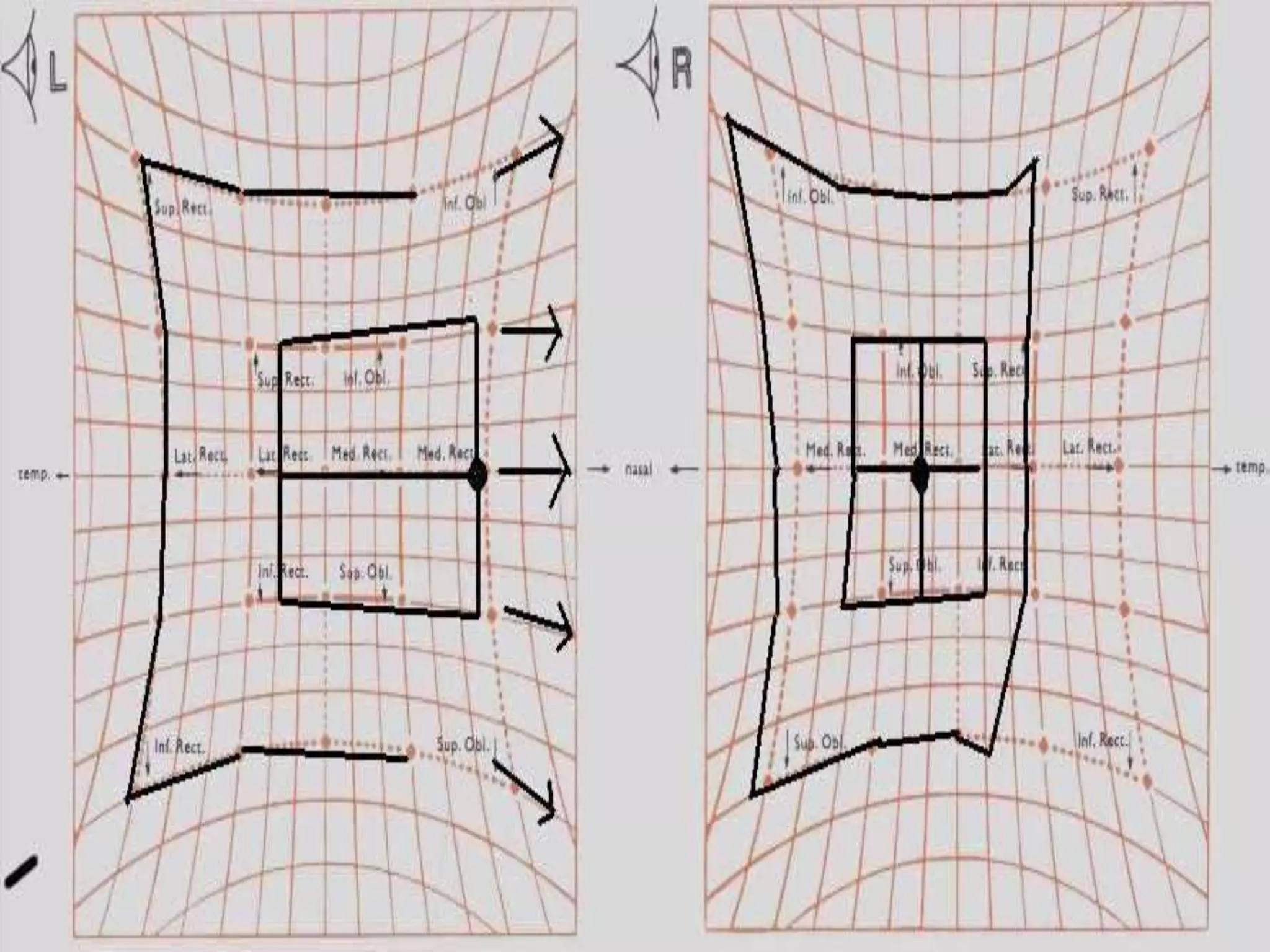

11. 3. What does the position of fields in Hess
chart indicate?
 POSITION = DEVIATION
 The central dot in each field indicates the deviation in
the primary position.
 Each small square subtends an angle of 5 degrees at
the 50 cm working distance.
 The displacement of the pointer from the dot is a
measure of the size of the deviation.

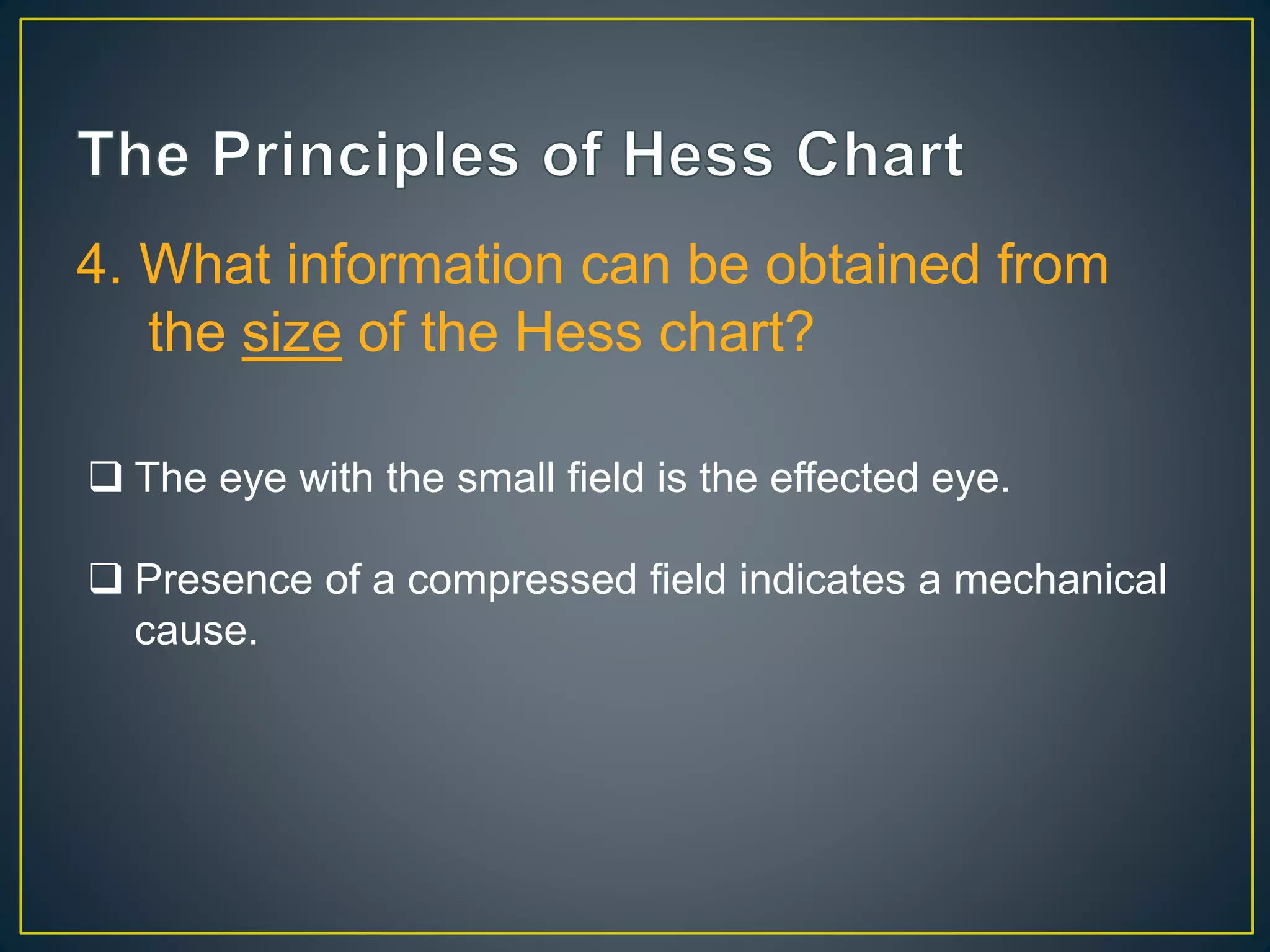

13. 4. What information can be obtained from
the size of the Hess chart?
 The eye with the small field is the effected eye.
 Presence of a compressed field indicates a mechanical
cause.

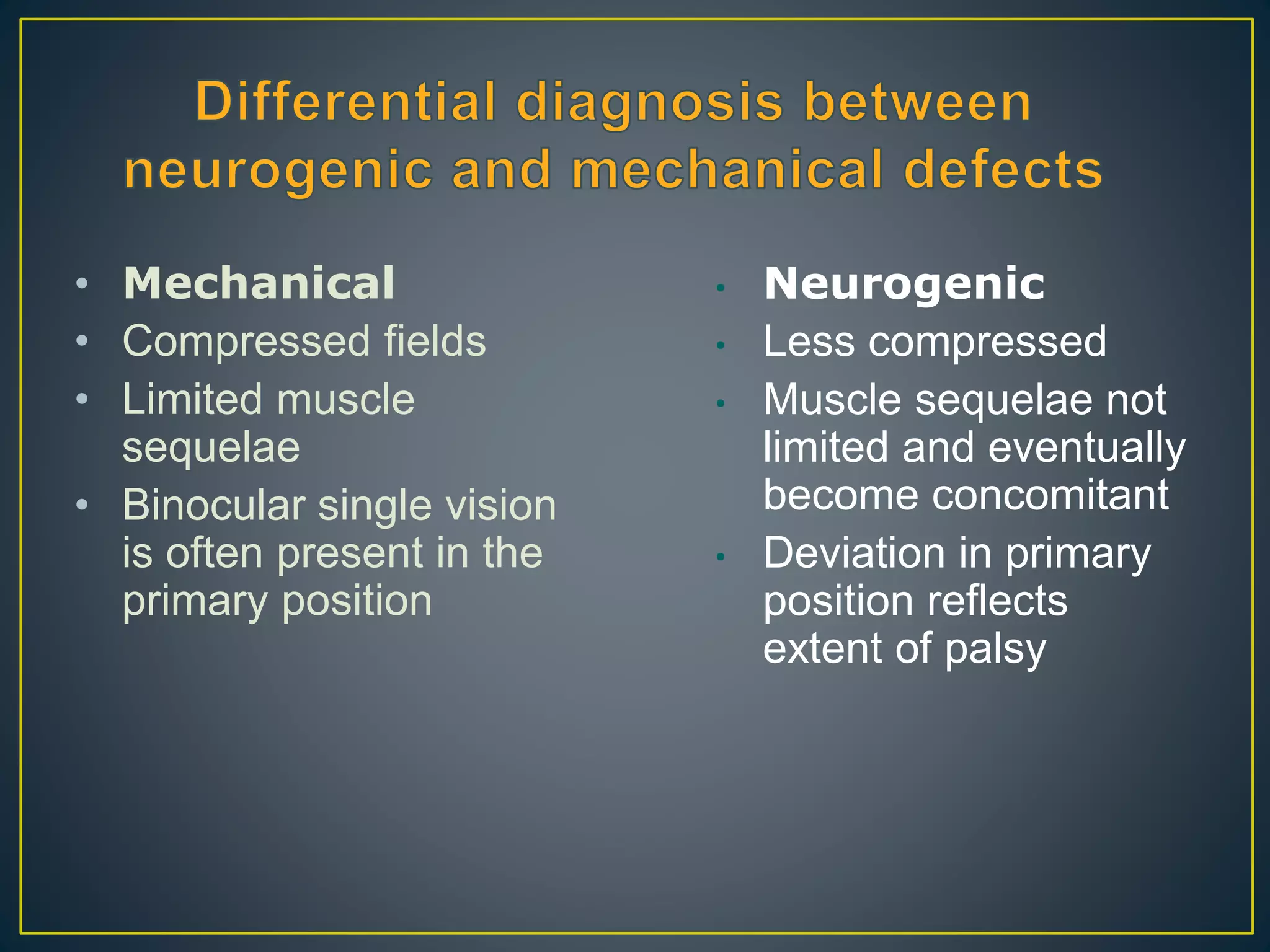

14. • Mechanical
• Compressed fields
• Limited muscle
sequelae
• Binocular single vision
is often present in the
primary position
• Neurogenic
• Less compressed
• Muscle sequelae not
limited and eventually
become concomitant
• Deviation in primary
position reflects
extent of palsy

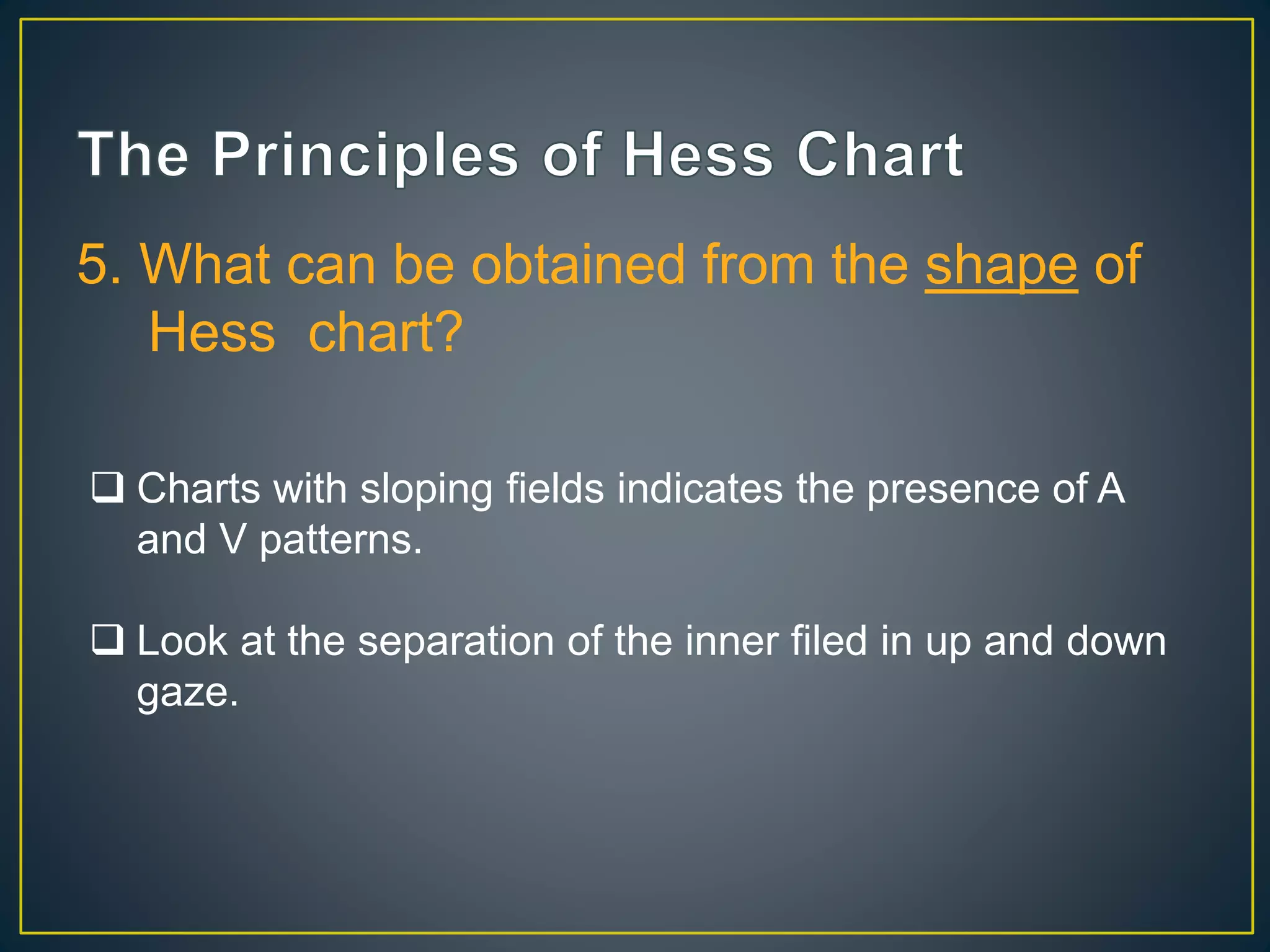

15. 5. What can be obtained from the shape of
Hess chart?
 Charts with sloping fields indicates the presence of A
and V patterns.
 Look at the separation of the inner filed in up and down
gaze.

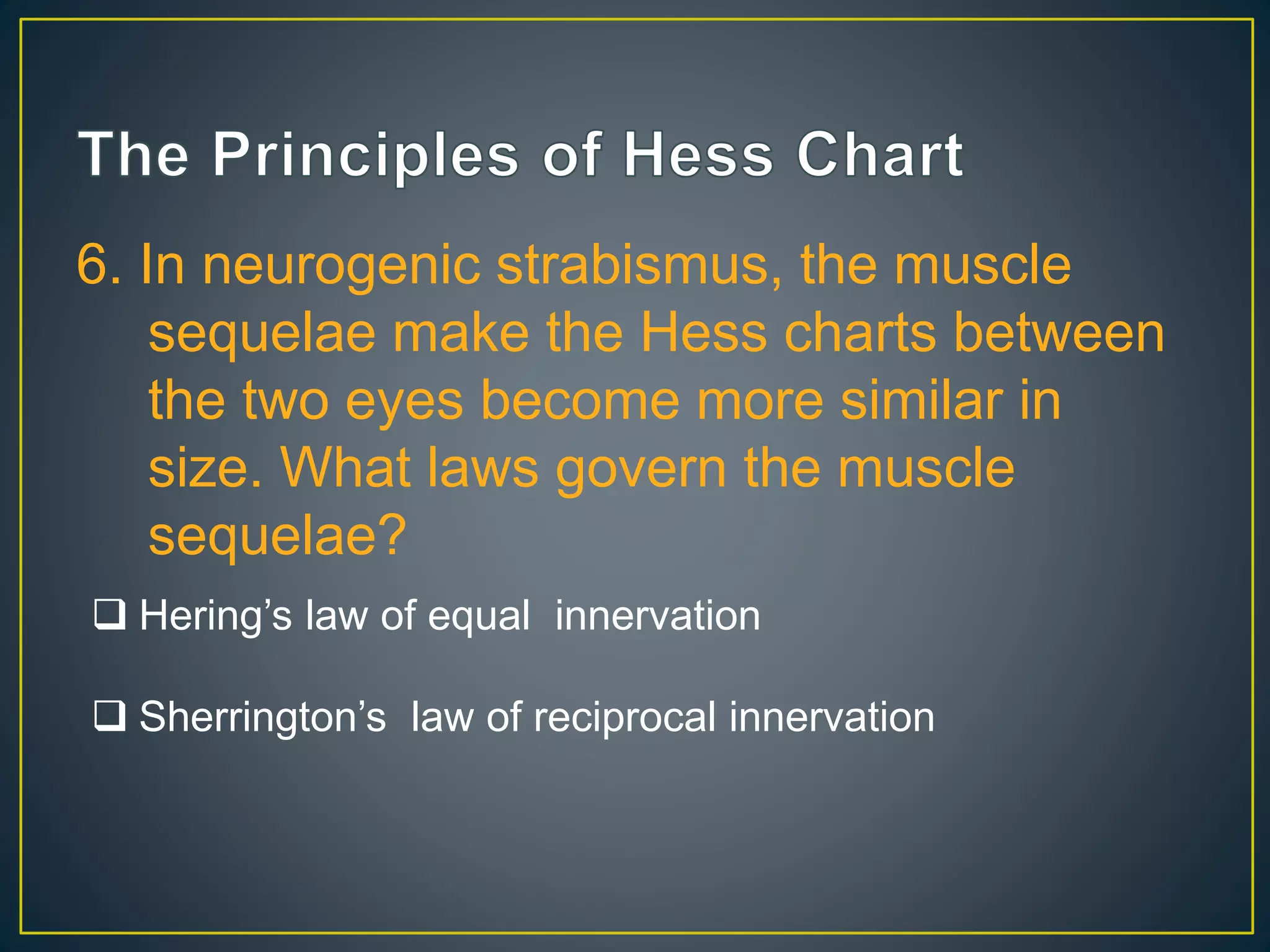

16. 6. In neurogenic strabismus, the muscle
sequelae make the Hess charts between
the two eyes become more similar in
size. What laws govern the muscle
sequelae?
 Hering’s law of equal innervation
 Sherrington’s law of reciprocal innervation

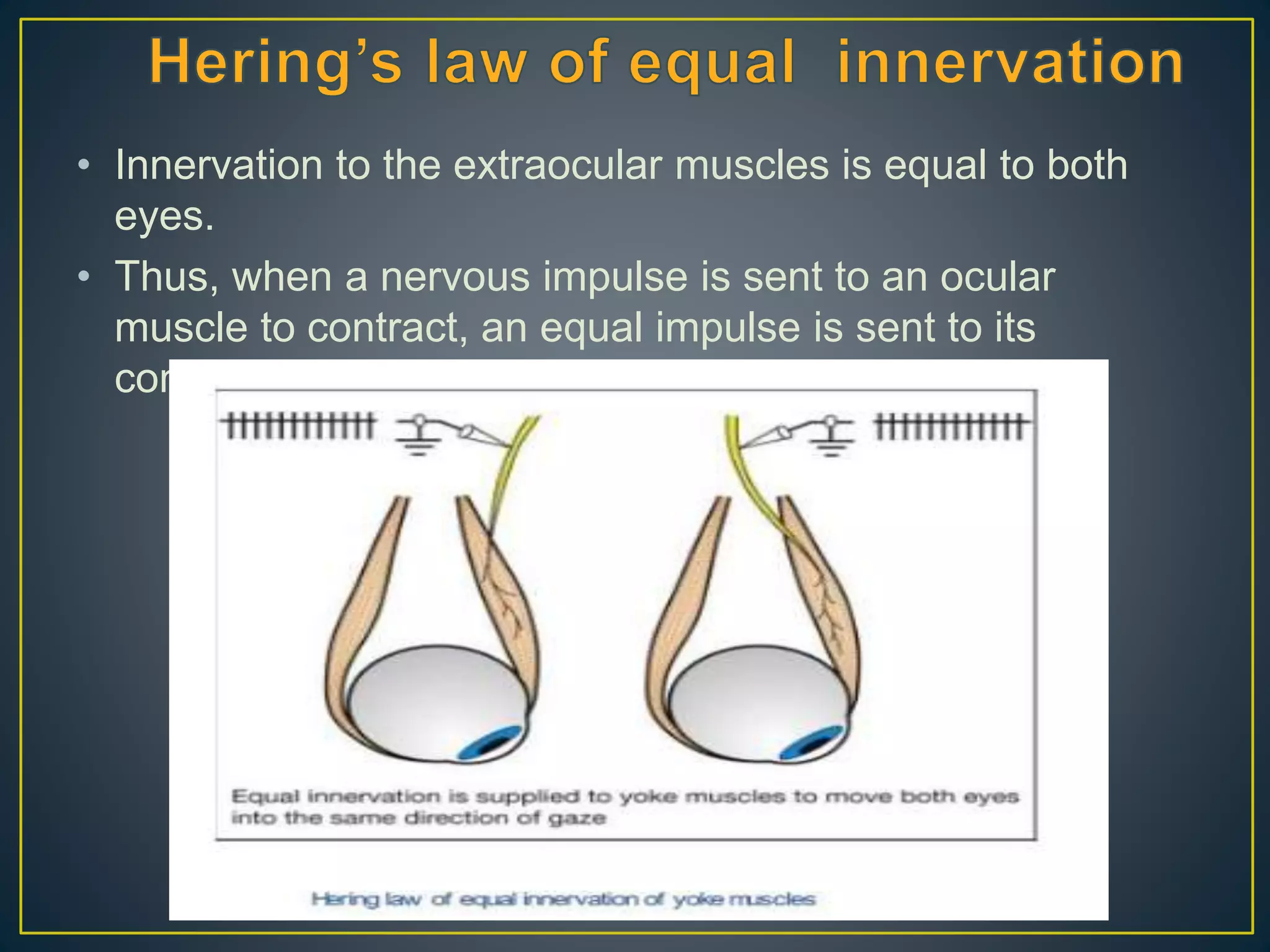

17. • Innervation to the extraocular muscles is equal to both
eyes.
• Thus, when a nervous impulse is sent to an ocular
muscle to contract, an equal impulse is sent to its
contralateral synergist to contract.

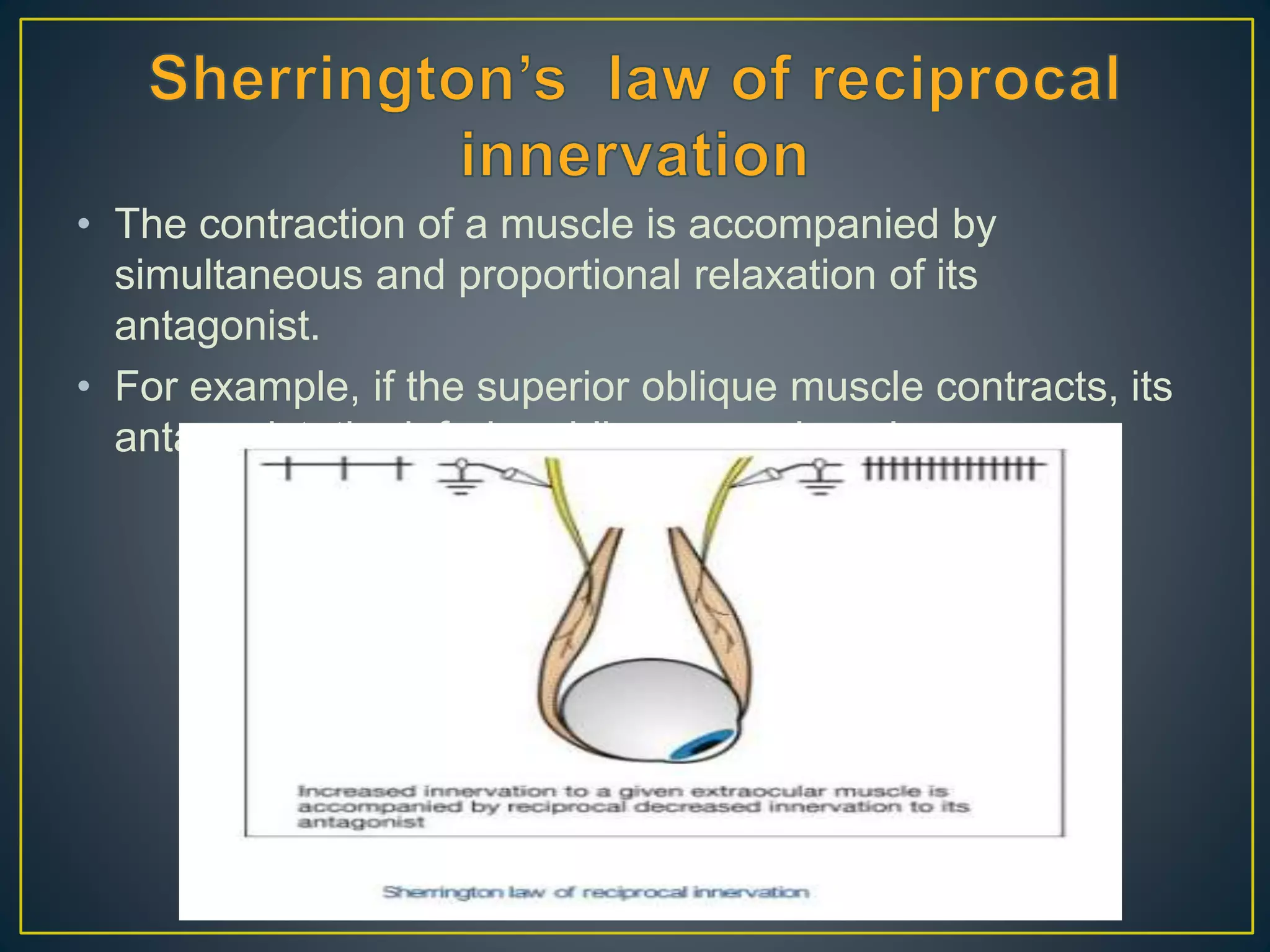

18. • The contraction of a muscle is accompanied by
simultaneous and proportional relaxation of its
antagonist.
• For example, if the superior oblique muscle contracts, its
antagonist, the inferior oblique muscle, relaxes.

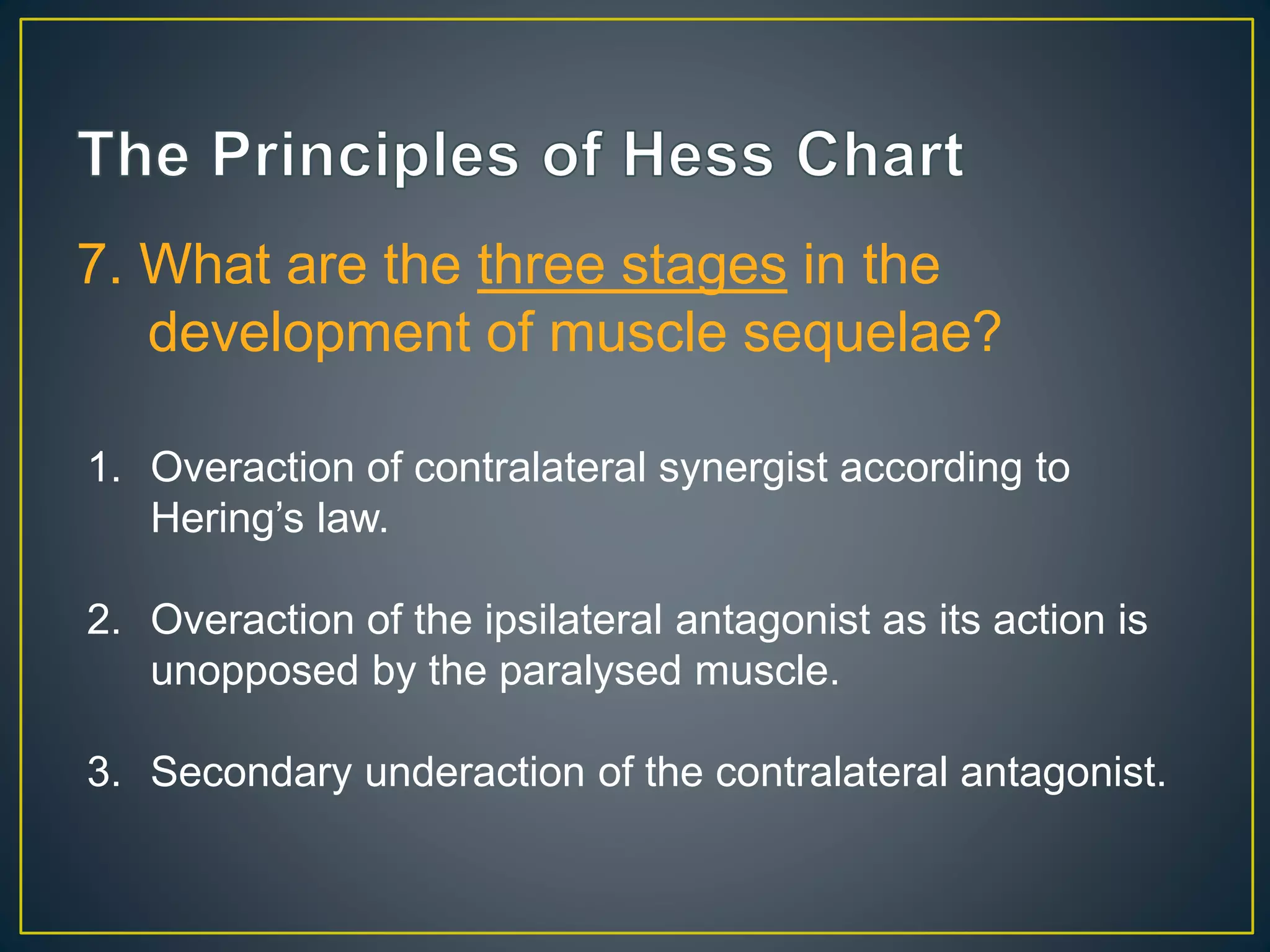

19. 7. What are the three stages in the
development of muscle sequelae?
1. Overaction of contralateral synergist according to
Hering’s law.
2. Overaction of the ipsilateral antagonist as its action is
unopposed by the paralysed muscle.
3. Secondary underaction of the contralateral antagonist.

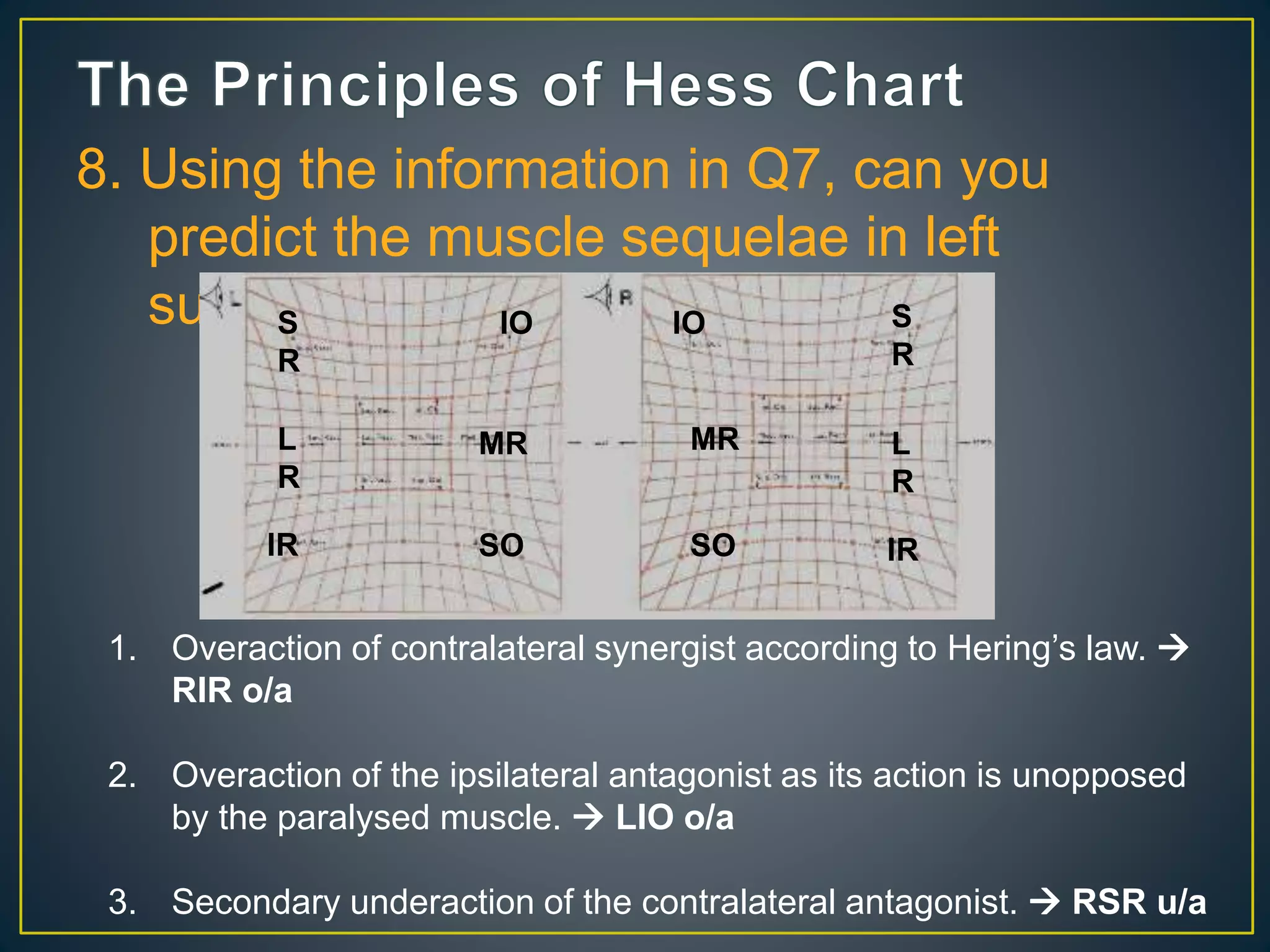

20. 8. Using the information in Q7, can you
predict the muscle sequelae in left
superior oblique?
1. Overaction of contralateral synergist according to Hering’s law. 
RIR o/a
2. Overaction of the ipsilateral antagonist as its action is unopposed
by the paralysed muscle.  LIO o/a
3. Secondary underaction of the contralateral antagonist.  RSR u/a
S
R
L
R
IR
IO
MR
SO
IO S
R
MR
SO IR
L
R

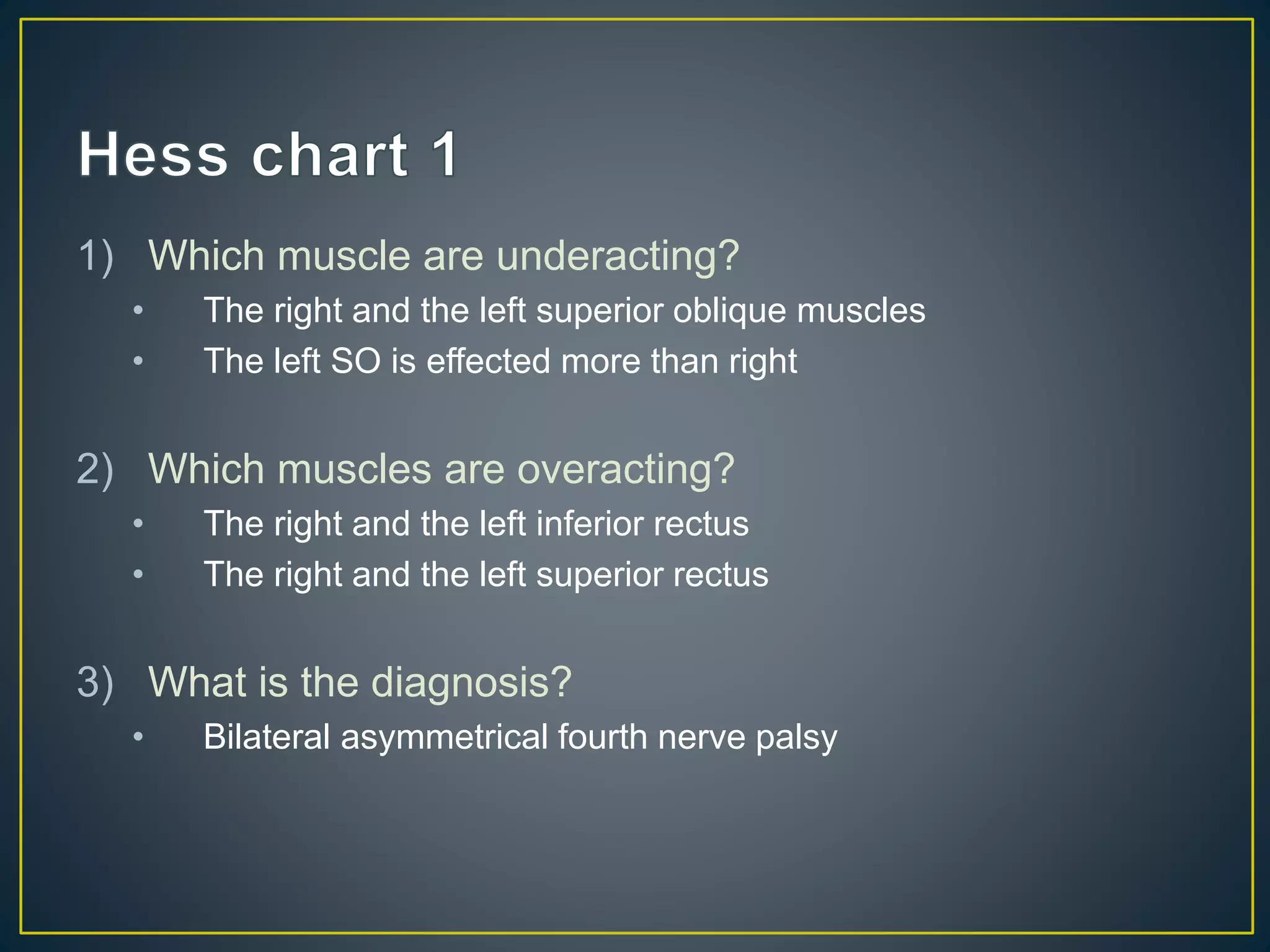

23. 1) Which muscle are underacting?
• The right and the left superior oblique muscles
• The left SO is effected more than right
2) Which muscles are overacting?
• The right and the left inferior rectus
• The right and the left superior rectus
3) What is the diagnosis?
• Bilateral asymmetrical fourth nerve palsy

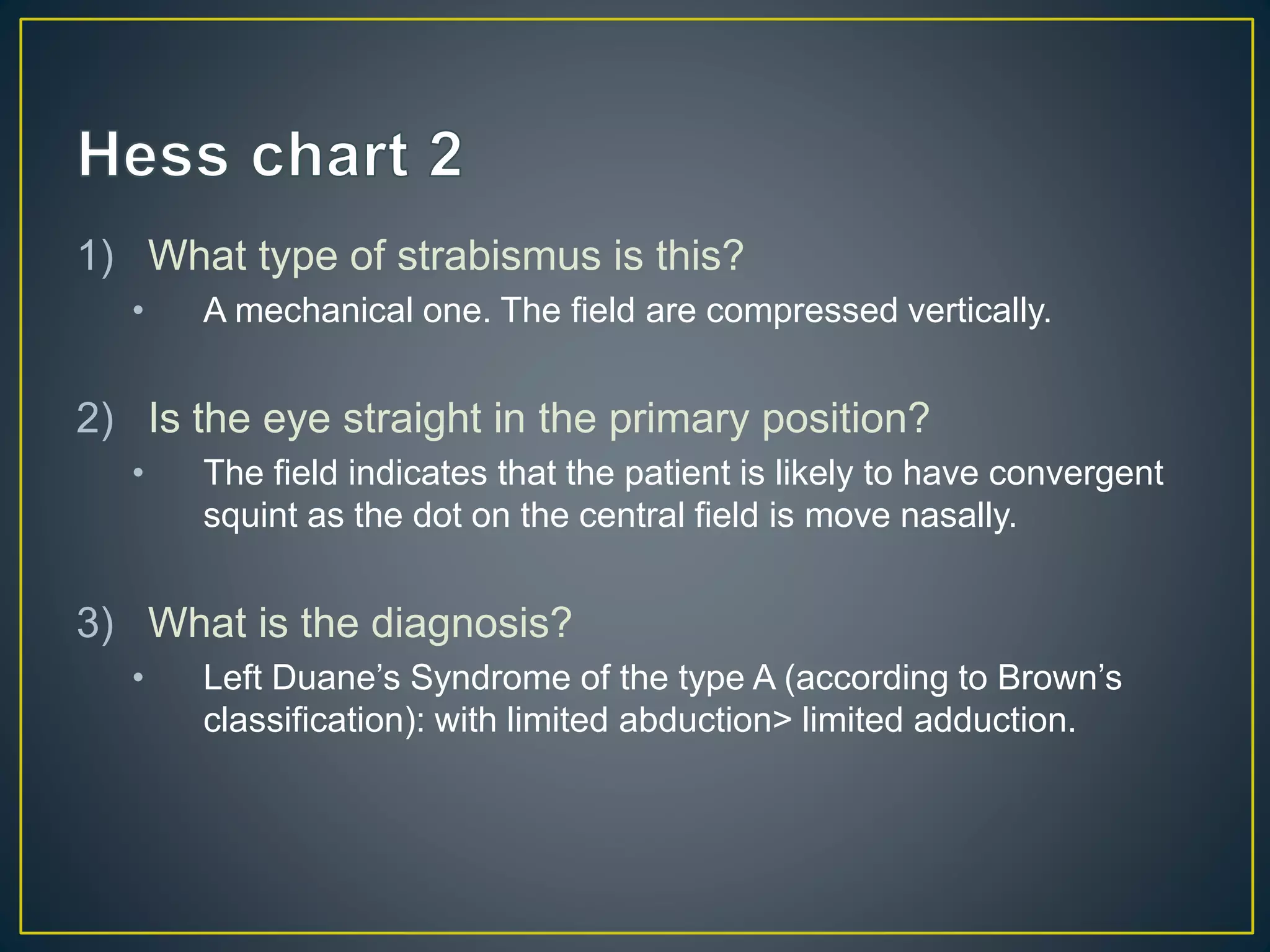

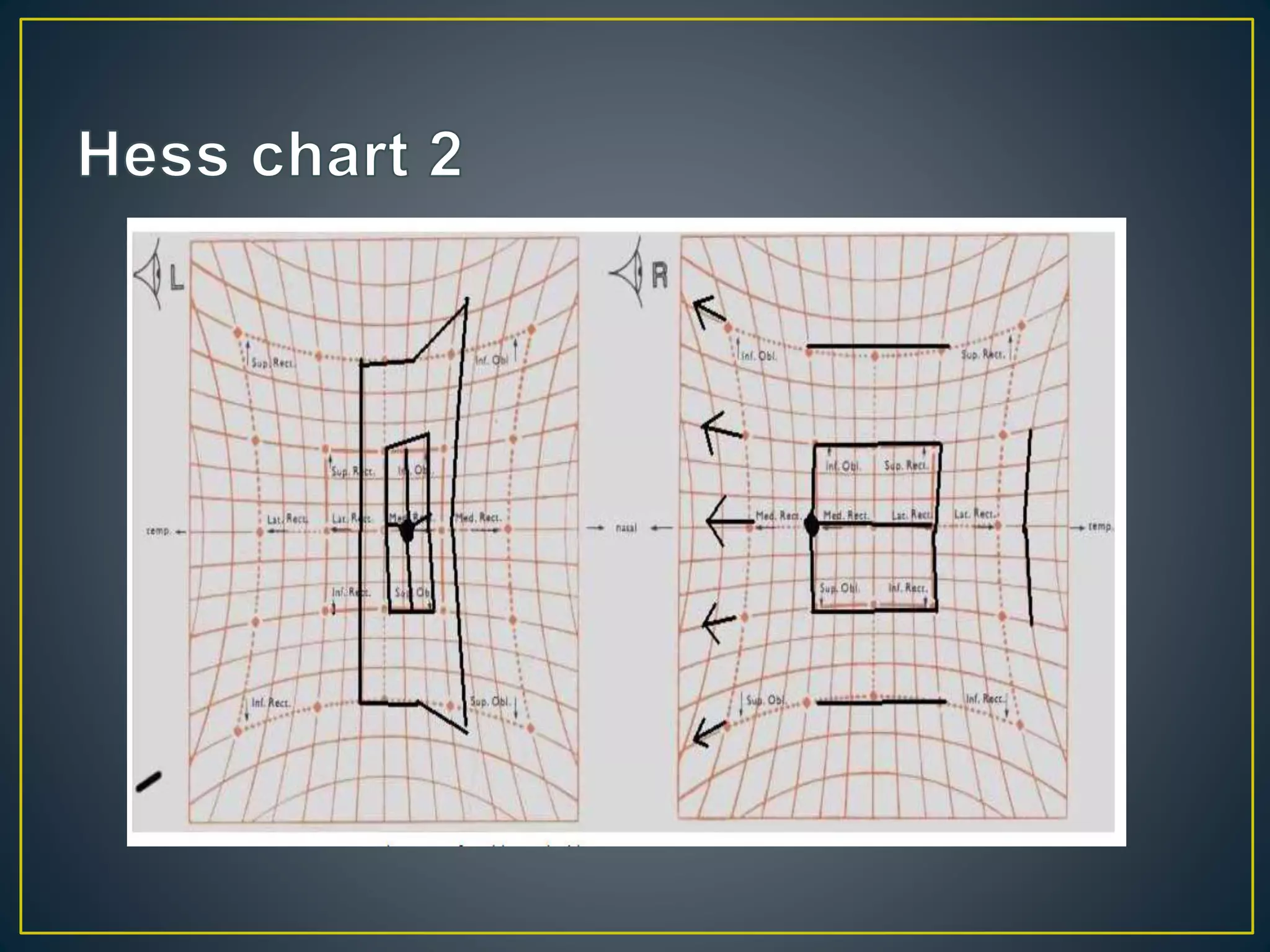

25. 1) What type of strabismus is this?
• A mechanical one. The field are compressed vertically.
2) Is the eye straight in the primary position?
• The field indicates that the patient is likely to have convergent
squint as the dot on the central field is move nasally.
3) What is the diagnosis?
• Left Duane’s Syndrome of the type A (according to Brown’s
classification): with limited abduction> limited adduction.

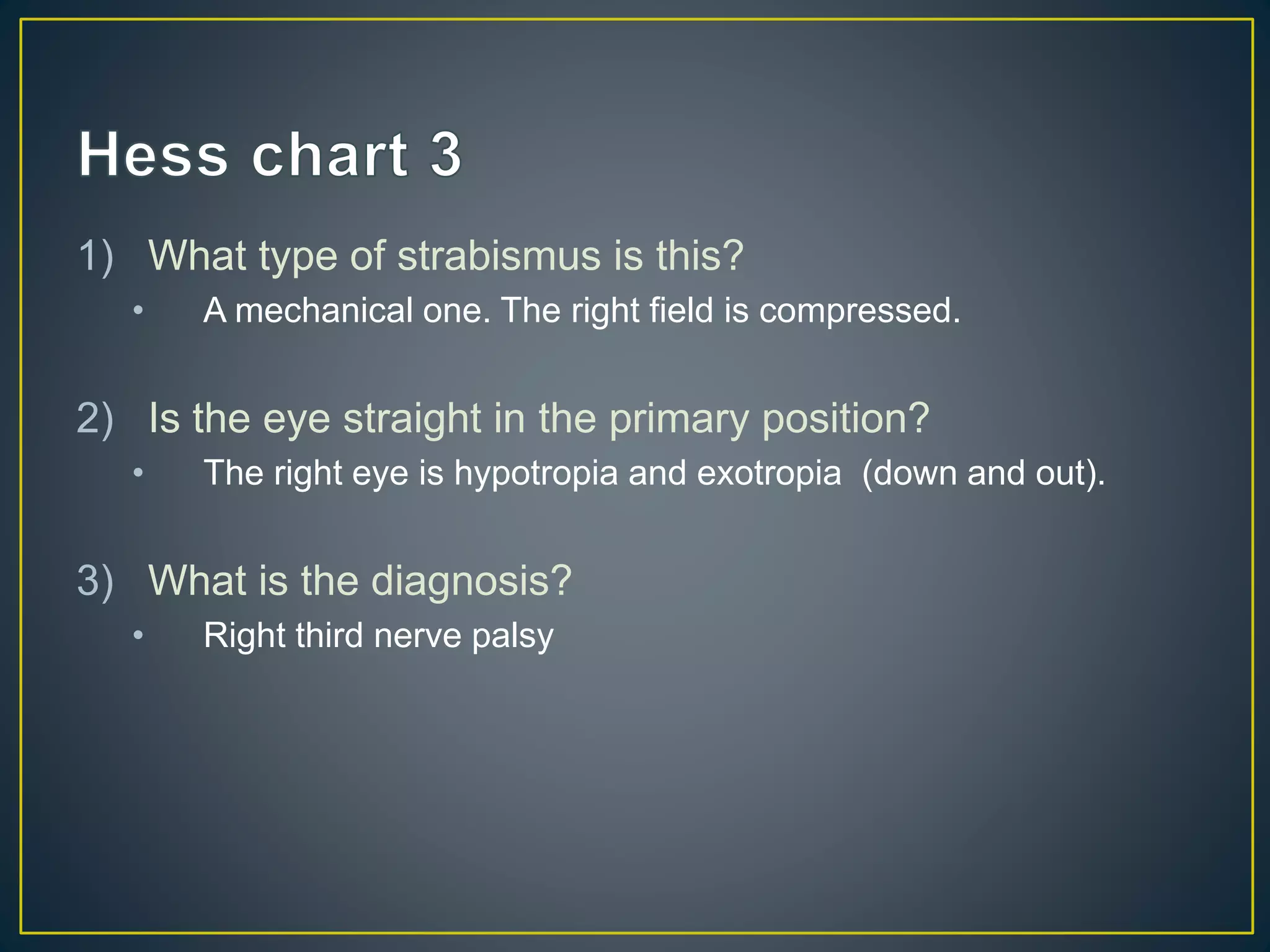

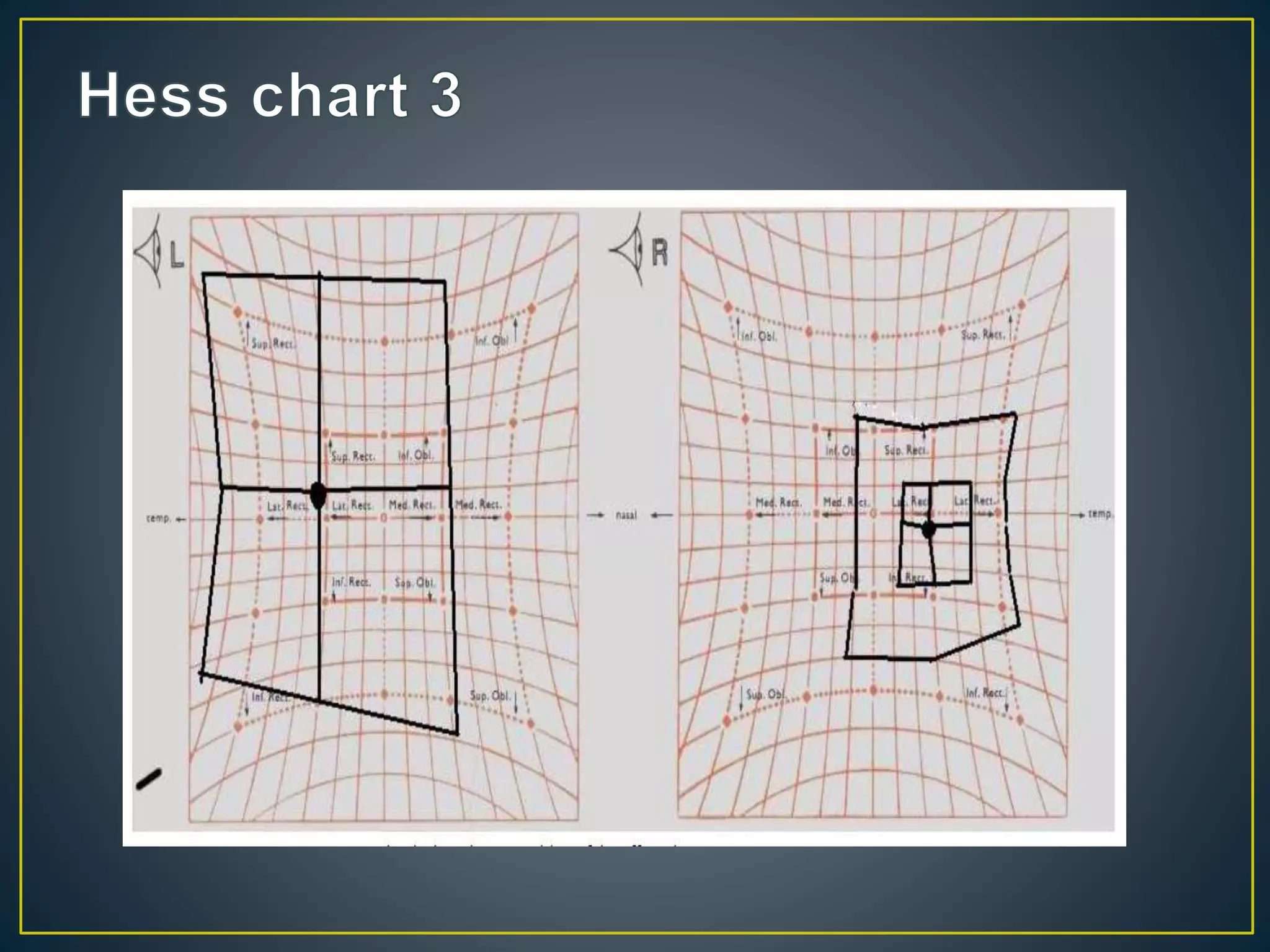

27. 1) What type of strabismus is this?
• A mechanical one. The right field is compressed.
2) Is the eye straight in the primary position?
• The right eye is hypotropia and exotropia (down and out).
3) What is the diagnosis?
• Right third nerve palsy

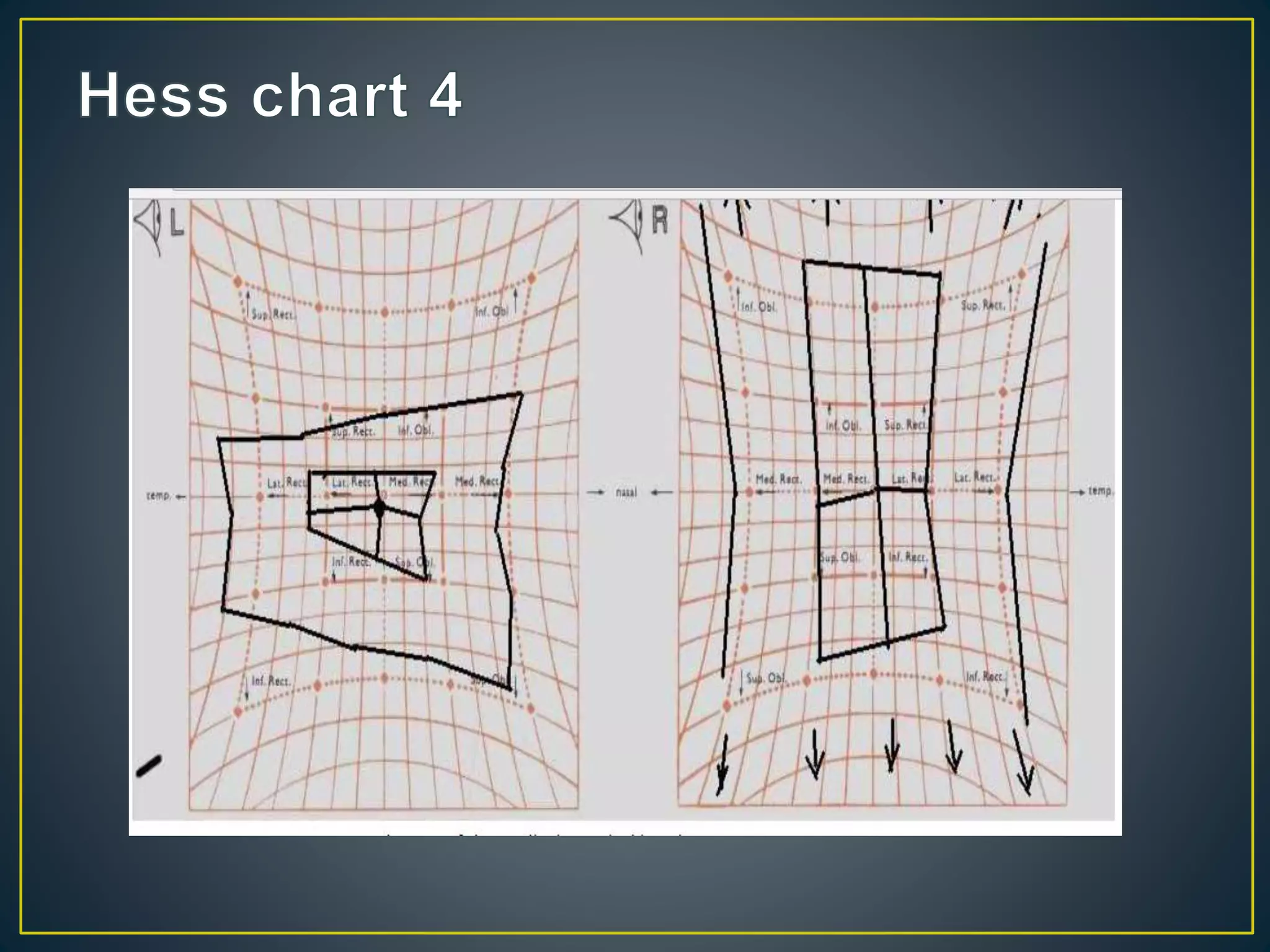

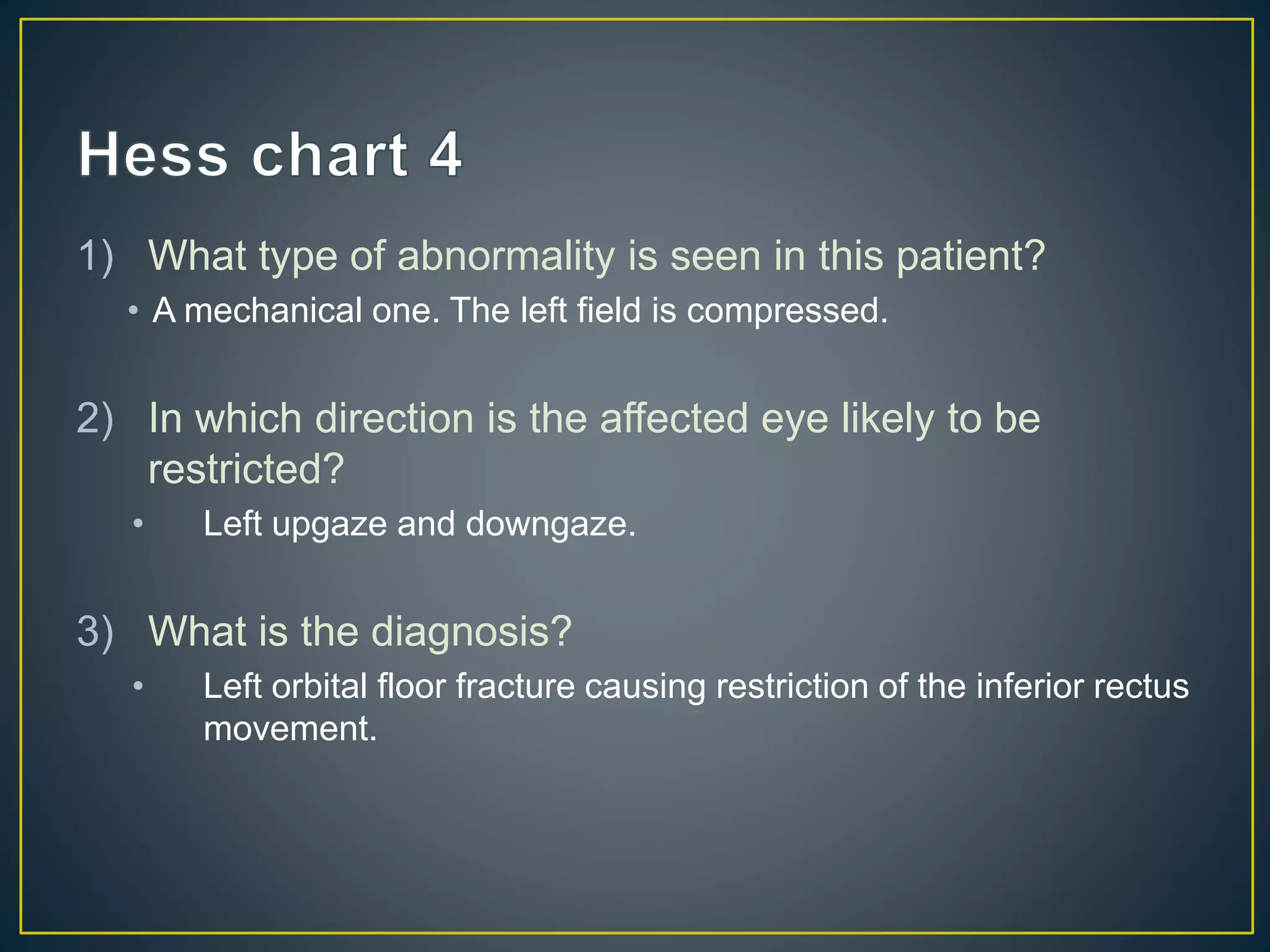

29. 1) What type of abnormality is seen in this patient?
• A mechanical one. The left field is compressed.
2) In which direction is the affected eye likely to be
restricted?
• Left upgaze and downgaze.
3) What is the diagnosis?
• Left orbital floor fracture causing restriction of the inferior rectus
movement.

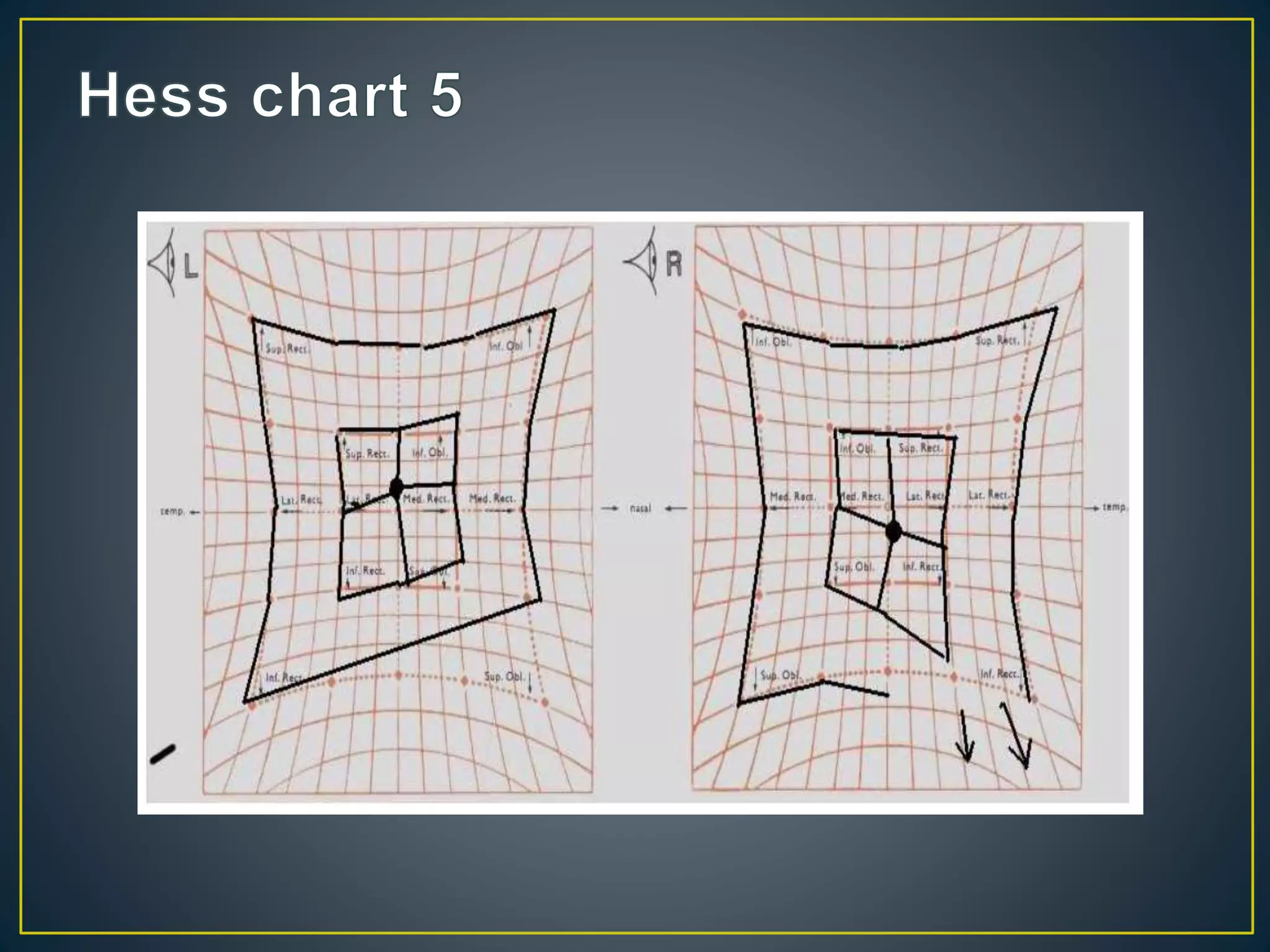

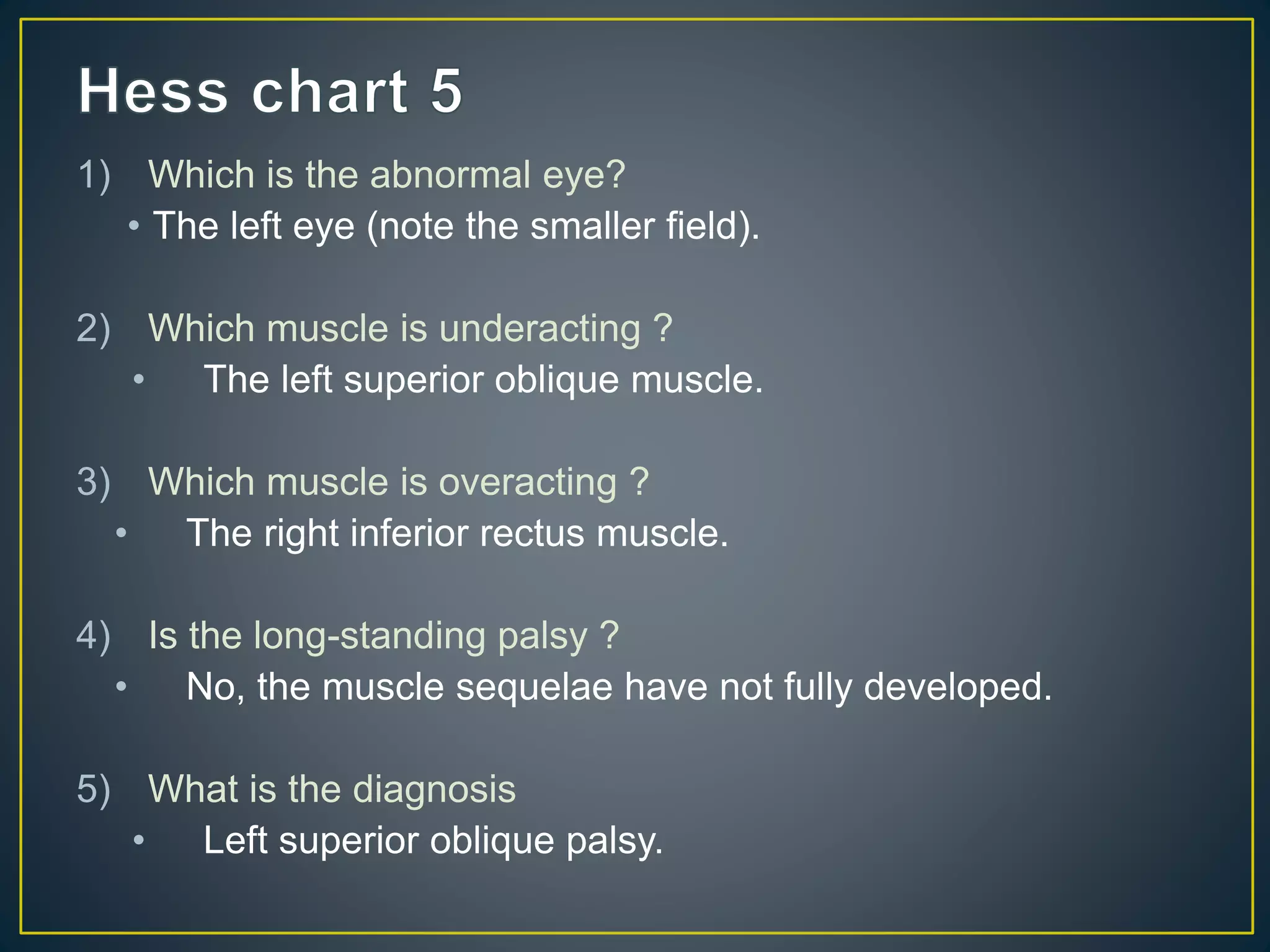

31. 1) Which is the abnormal eye?
• The left eye (note the smaller field).
2) Which muscle is underacting ?
• The left superior oblique muscle.
3) Which muscle is overacting ?
• The right inferior rectus muscle.
4) Is the long-standing palsy ?
• No, the muscle sequelae have not fully developed.
5) What is the diagnosis
• Left superior oblique palsy.

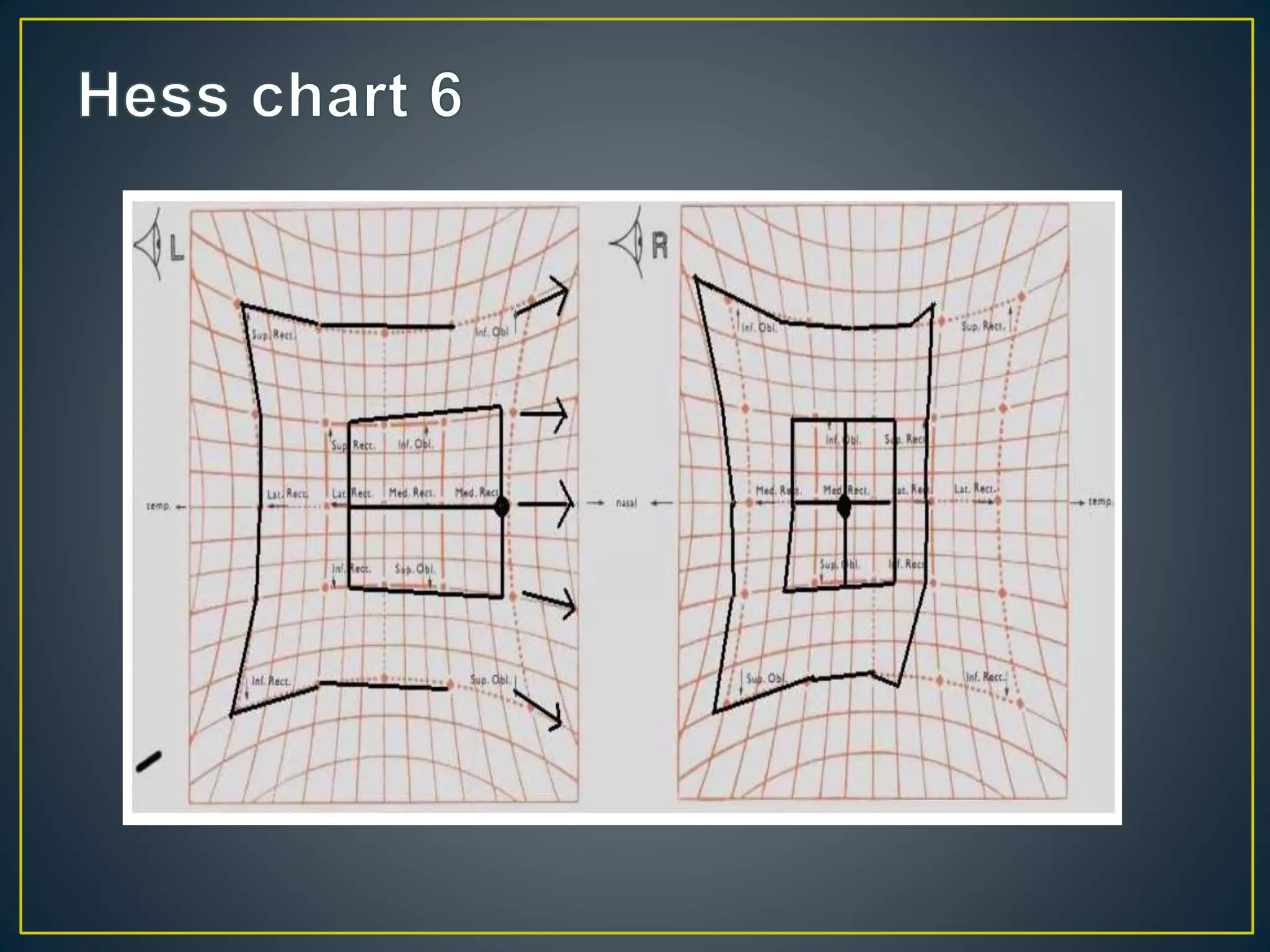

33. 1) Which is the abnormal eye?
• The right eye (note the smaller field).
2) Which muscle is underacting ?
• The right lateral rectus muscle.
3) Which muscle is overacting ?
• The left medial rectus muscle.
1) What is the diagnosis
• Right sixth nerve palsy.

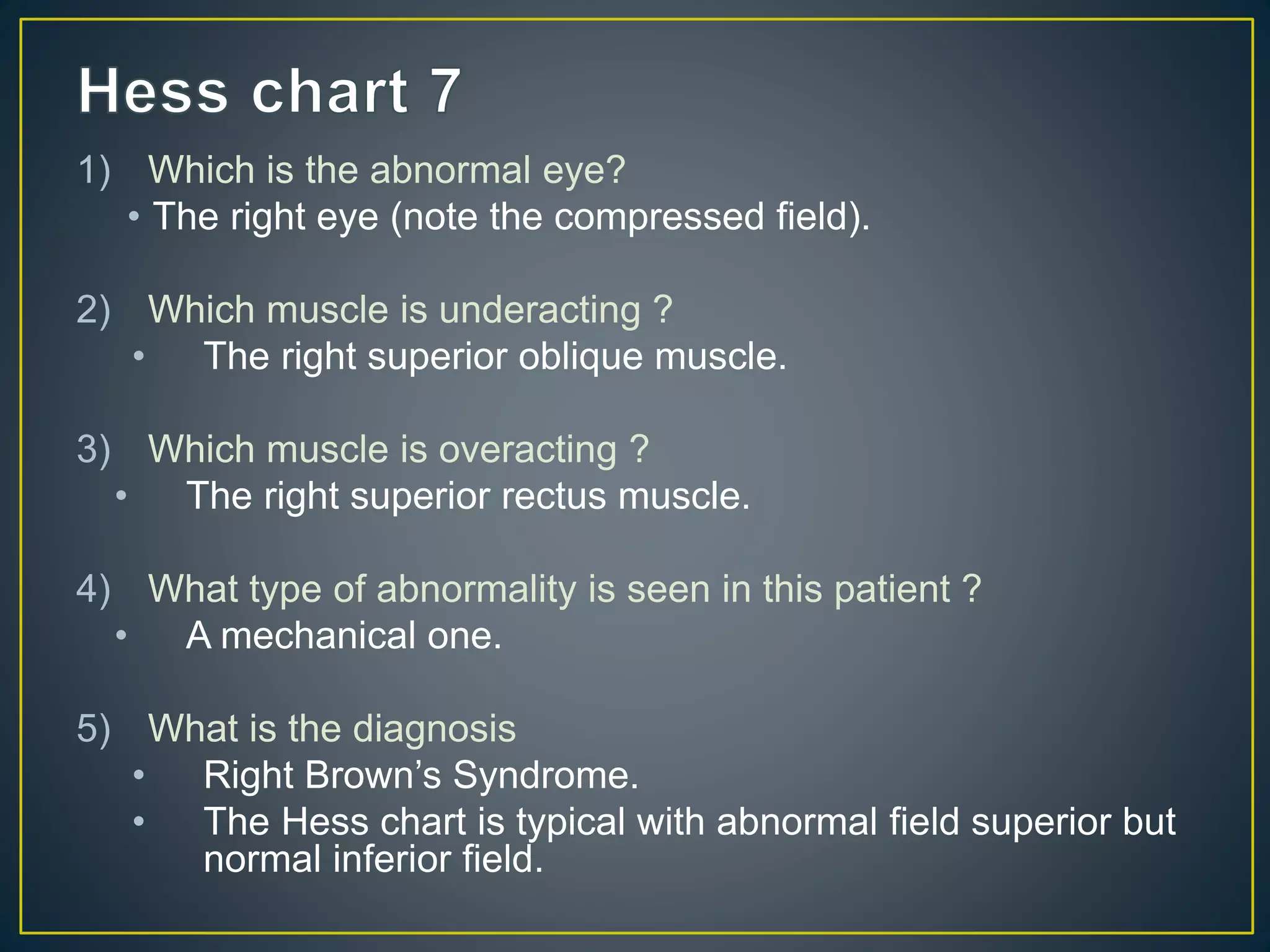

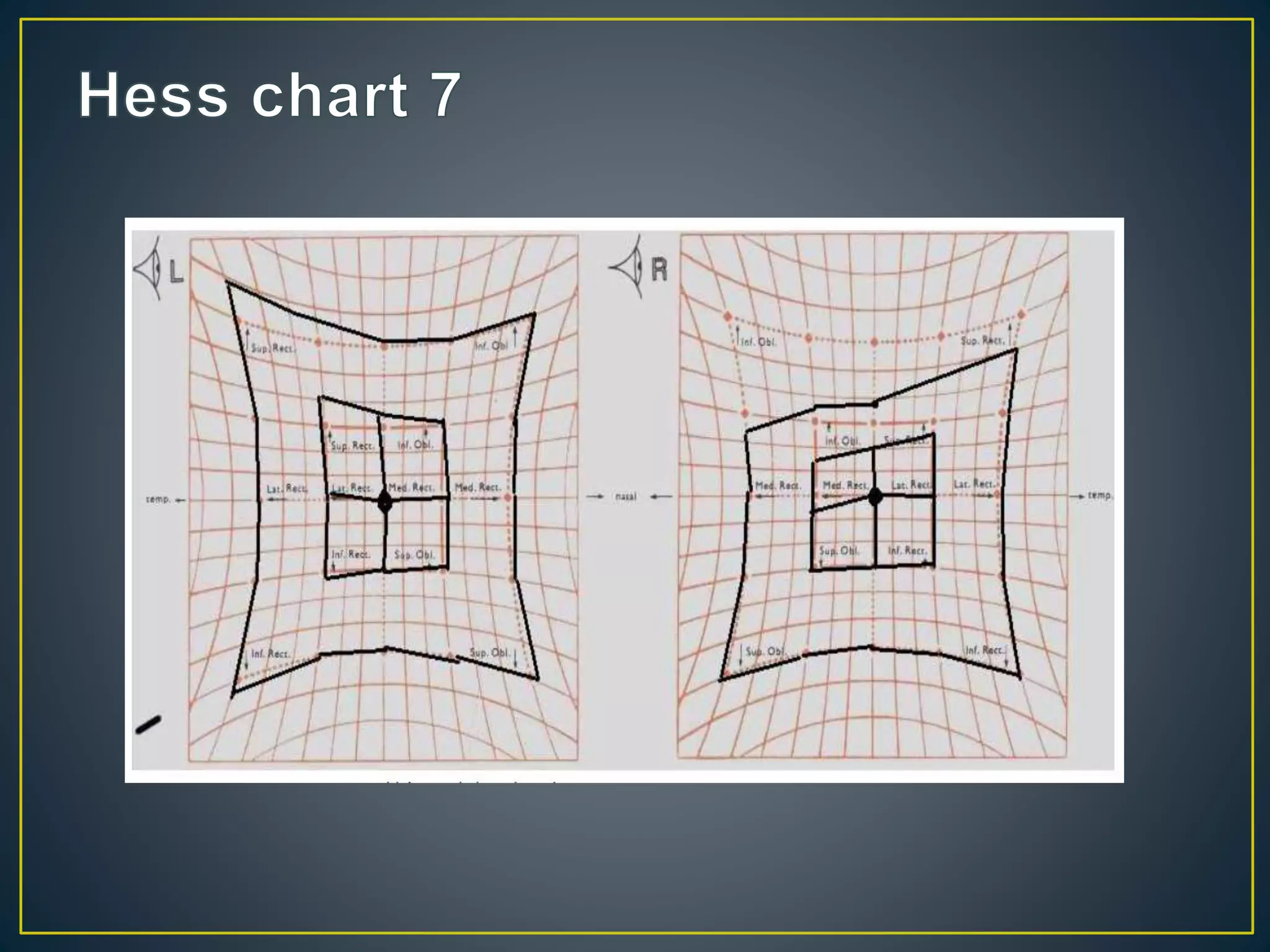

35. 1) Which is the abnormal eye?
• The right eye (note the compressed field).
2) Which muscle is underacting ?
• The right superior oblique muscle.
3) Which muscle is overacting ?
• The right superior rectus muscle.
4) What type of abnormality is seen in this patient ?
• A mechanical one.
5) What is the diagnosis
• Right Brown’s Syndrome.
• The Hess chart is typical with abnormal field superior but
normal inferior field.

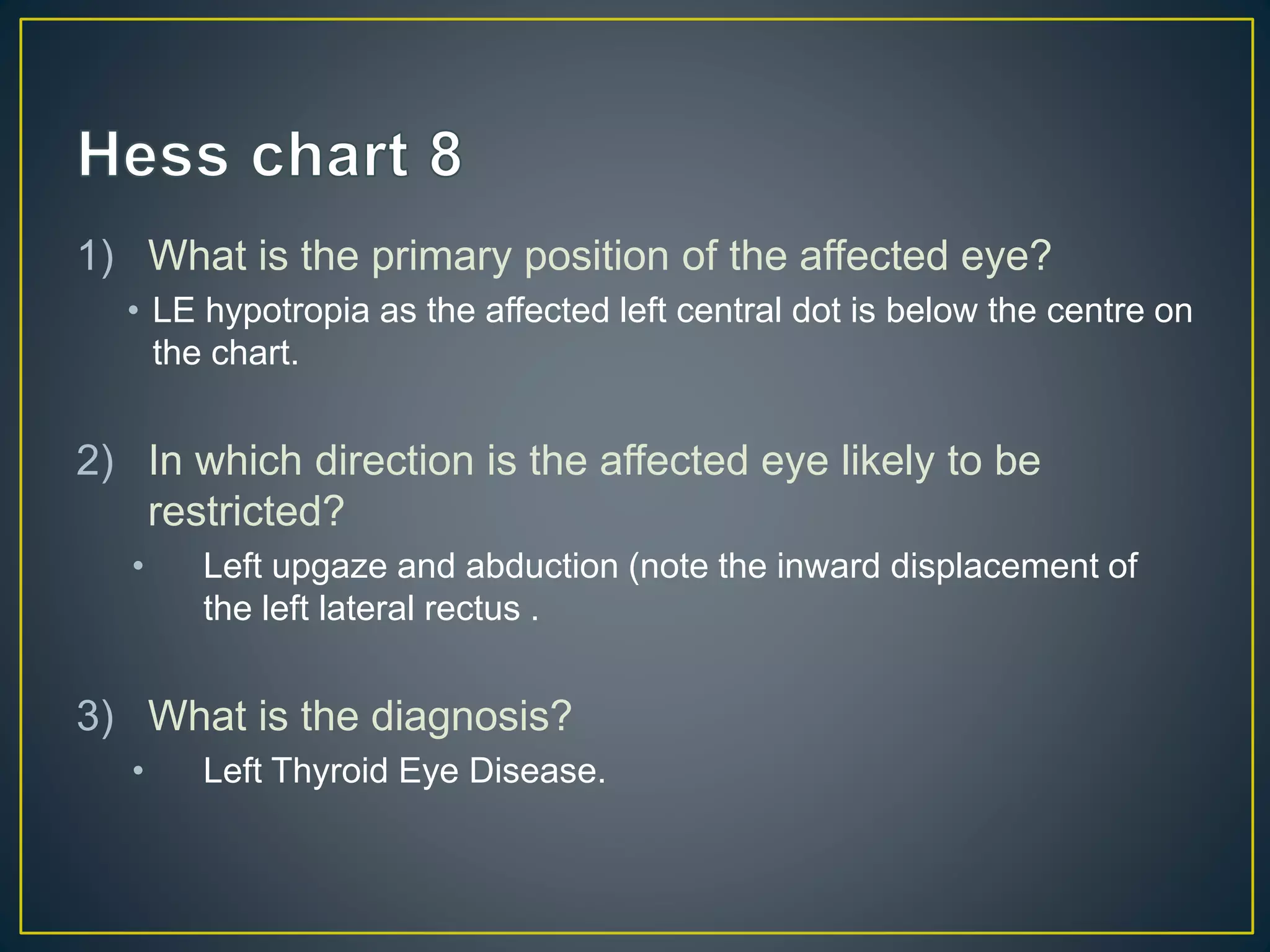

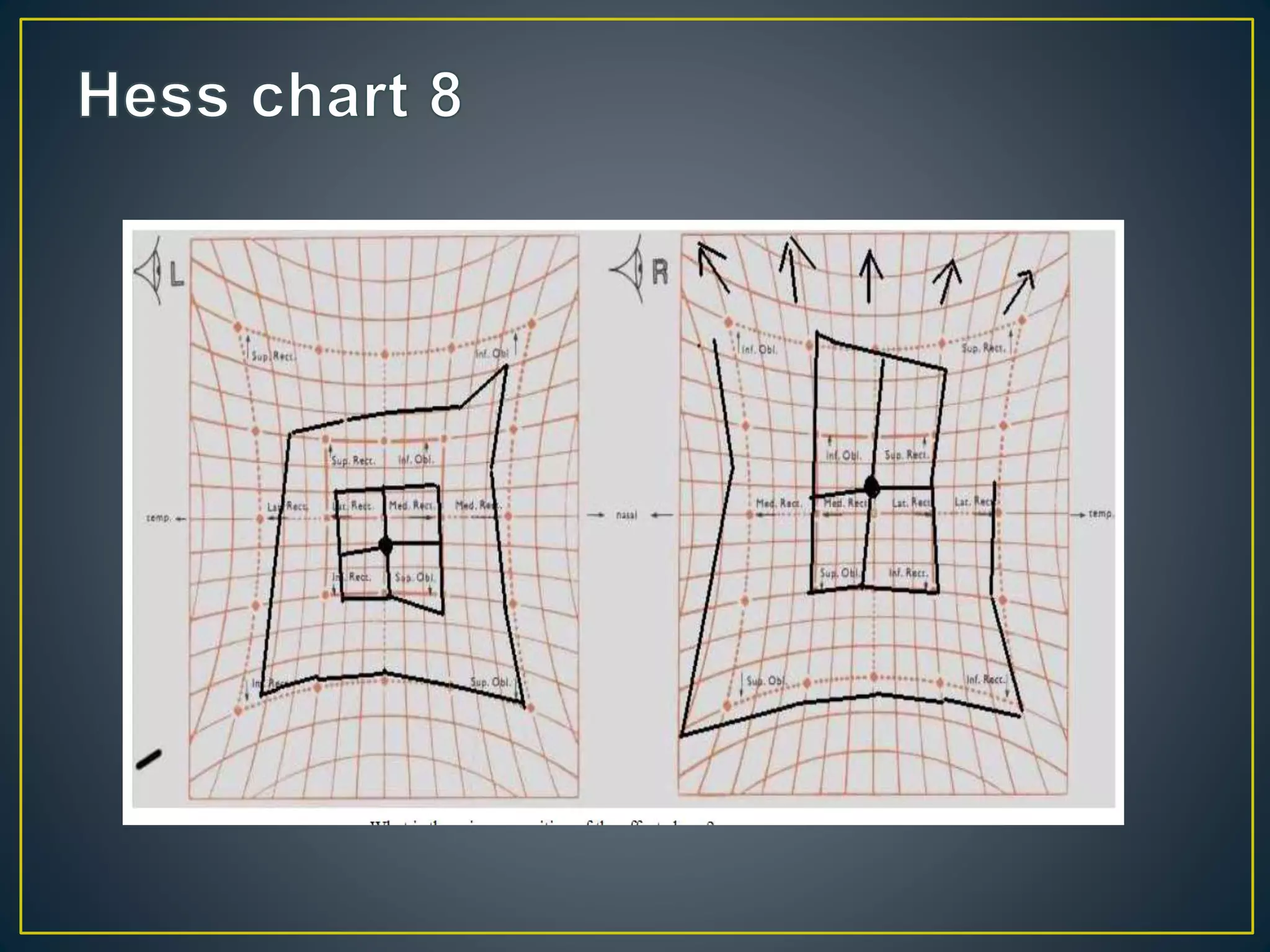

37. 1) What is the primary position of the affected eye?
• LE hypotropia as the affected left central dot is below the centre on
the chart.
2) In which direction is the affected eye likely to be
restricted?
• Left upgaze and abduction (note the inward displacement of
the left lateral rectus .
3) What is the diagnosis?
• Left Thyroid Eye Disease.

39. • Underactions and overactions
• Affected eye
• A or V Patterns
• Type of deviation in primary position
• Size of deviation – each box = 5°
• Muscle sequelae
• Differential diagnosis between recent and
longstanding
• Differential diagnosis between neurogenic and
mechanical defects

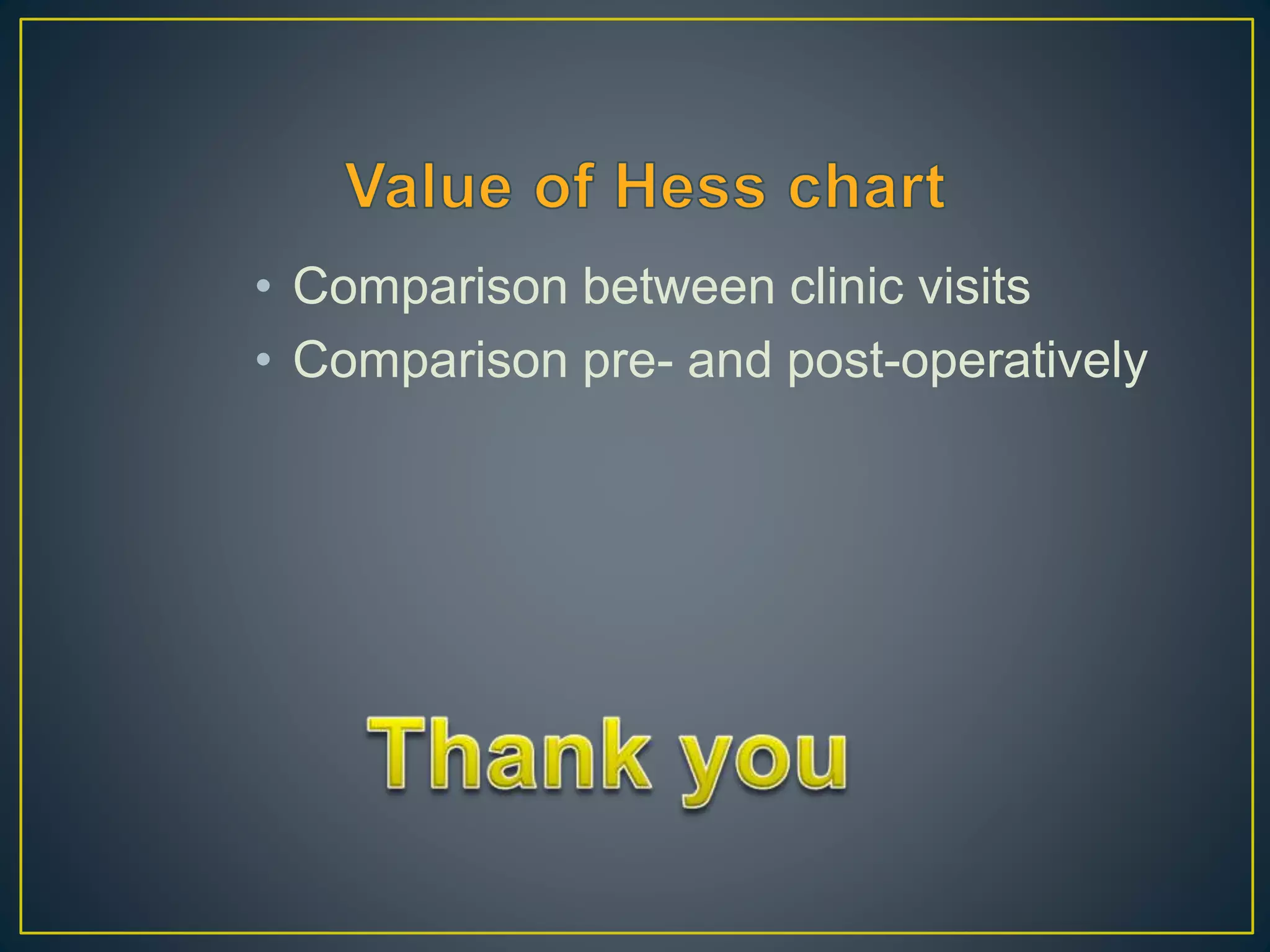

40. • Comparison between clinic visits
• Comparison pre- and post-operatively
