This document discusses computer interconnection structures and components. It summarizes that a computer consists of modules like the CPU, memory, and I/O that communicate with each other. The connections between these modules is called the interconnection structure. The design of this structure depends on the exchanges needed between the modules. It then provides more details on the memory module, I/O module, and CPU and how they are connected and transfer data and instructions through the bus interconnection.

1. By
Ms.V.VENNILA,MCA.,M.Phil.,
Assistant Professor,
Bon Secours College for Women
Thanjavur.

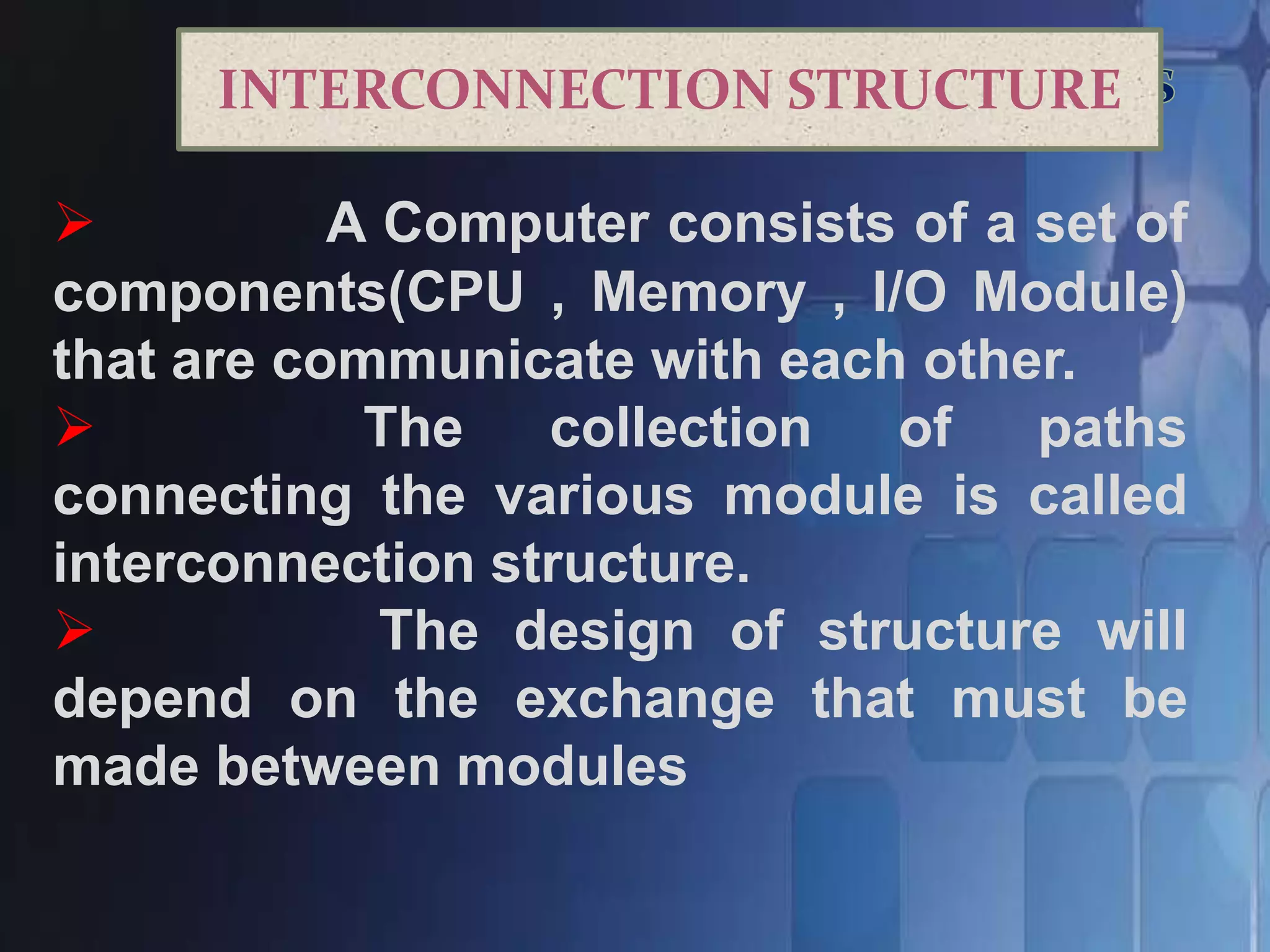

2.  A Computer consists of a set of
components(CPU , Memory , I/O Module)
that are communicate with each other.
 The collection of paths
connecting the various module is called
interconnection structure.
 The design of structure will
depend on the exchange that must be
made between modules
INTERCONNECTION STRUCTURE

3. MEMORY MODULE
• Memory module consists of
n words equal length is assigned as
unique numerical address
Memory N
words
0
.
.
.
n-1
READ
WRITE
ADDRESS
INTERNAL DATA
EXTERNALDATA
DATA

4. • It is internal part of a
computer that perform read and
write operation.
I/O
Module
M Ports
Read
Write
Address
Internal Data
ExternalData
Internal Data
External Data
Instruction Signal

5. • The processor read and write the
data by processing the instruction.
• After processing , it use control
signal to control overall computer system.
CPU
Instruction
Data
Interrupt
Signal
Address
Control Signal
Data

8. Bus interconnection is
important component of
computer: architecture. It is a
communication channel. It
connects various components of
computer to communicate with
each other.
BUS INTERCONNECTION
