Pune generates over 1600 tons of solid waste per day. It has implemented an integrated solid waste management system that focuses on source segregation, door-to-door collection, transportation, processing and scientific disposal. Key aspects include partnering with waste picker organizations, operating decentralized biogas plants, constructing a 300 TPD bio-CNG plant, and a 300 TPD waste-to-energy plant utilizing pyrolysis gasification. The goal is to attain better service delivery, enhance infrastructure, achieve financial sustainability, and eventually make Pune a zero garbage city.

1. Integrated Solid Waste Management of
PMC

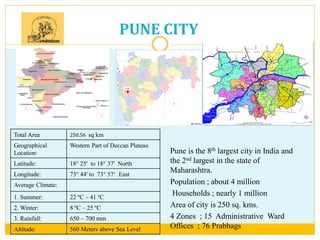

2. PUNE CITY
 Pune is the 8th largest city in India and
the 2nd largest in the state of
Maharashtra.
 Population ; about 4 million
 Households ; nearly 1 million
 Area of city is 250 sq. kms.
 4 Zones ; 15 Administrative Ward
Offices ; 76 Prabhags
Total Area 250.56 sq km
Geographical
Location:
Western Part of Deccan Plateau
Latitude: 18° 25' to 18° 37' North
Longitude: 73° 44' to 73° 57‘ East
Average Climate:
1. Summer: 22 ºC – 41 ºC
2. Winter: 8 ºC – 25 ºC
3. Rainfall: 650 – 700 mm
Altitude: 560 Meters above Sea Level

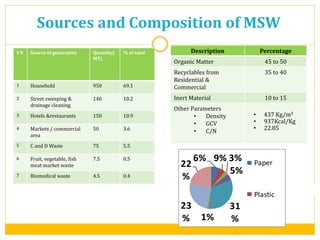

3. -3-
6% 9% 3%
5%
31
%1%
23
%
22
%
Paper
Plastic
S N Source of generation Quantity(
MT)
% of total
1 Household 950 69.1
2 Street sweeping &
drainage cleaning
140 10.2
3 Hotels &restaurants 150 10.9
4 Markets / commercial
area
50 3.6
5 C and D Waste 75 5.5
6 Fruit, vegetable, fish
meat market waste
7.5 0.5
7 Biomedical waste 4.5 0.4
Sources and Composition of MSW
Description Percentage
Organic Matter 45 to 50
Recyclables from
Residential &
Commercial
35 to 40
Inert Material 10 to 15
Other Parameters
• Density
• GCV
• C/N
• 437 Kg/m3
• 937Kcal/Kg
• 22.85

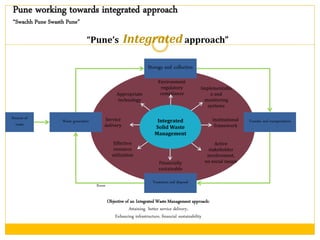

4. Pune working towards integrated approach
“Swachh Pune Swasth Pune”
“Pune’s Integrated approach”
Waste generation
Storage and collection
Transfer and transportation
Treatment and disposal
Reuse
Sources of
waste
Appropriate
technology
Environment
regulatory
compliance
Implementatio
n and
monitoring
systems
Active
stakeholder
involvement,
no social issuesFinancially
sustainable
Effective
resource
utilization
Service
delivery
Institutional
framework
Integrated
Solid Waste
Management
Objective of an Integrated Waste Management approach:
Attaining better service delivery,
Enhancing infrastructure, financial sustainability

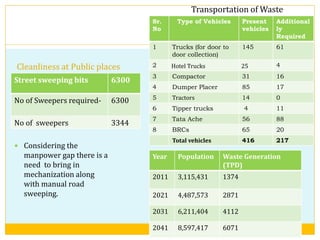

5. Cleanliness at Public places
Transportation of Waste
 Considering the
manpower gap there is a
need to bring in
mechanization along
with manual road
sweeping.
Street sweeping bits 6300
No of Sweepers required- 6300
No of sweepers 3344
Year Population Waste Generation
(TPD)
2011 3,115,431 1374
2021 4,487,573 2871
2031 6,211,404 4112
2041 8,597,417 6071
Sr.
No
Type of Vehicles Present
vehicles
Additional
ly
Required
1 Trucks (for door to
door collection)
145 61
2 Hotel Trucks 25 4
3 Compactor 31 16
4 Dumper Placer 85 17
5 Tractors 14 0
6 Tipper trucks 4 11
7 Tata Ache 56 88
8 BRCs 65 20
Total vehicles 416 217

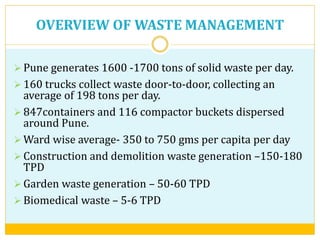

6. OVERVIEW OF WASTE MANAGEMENT
 Pune generates 1600 -1700 tons of solid waste per day.
 160 trucks collect waste door-to-door, collecting an
average of 198 tons per day.
 847containers and 116 compactor buckets dispersed
around Pune.
 Ward wise average- 350 to 750 gms per capita per day
 Construction and demolition waste generation –150-180
TPD
 Garden waste generation – 50-60 TPD
 Biomedical waste – 5-6 TPD

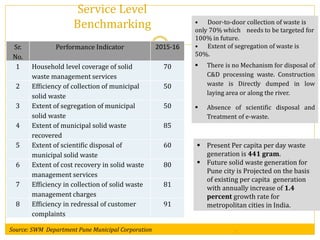

7. Service Level
Benchmarking
-7-Source: SWM Department Pune Municipal Corporation
• Door-to-door collection of waste is
only 70% which needs to be targeted for
100% in future.
• Extent of segregation of waste is
50%.
 There is no Mechanism for disposal of
C&D processing waste. Construction
waste is Directly dumped in low
laying area or along the river.
 Absence of scientific disposal and
Treatment of e-waste.
 Present Per capita per day waste
generation is 441 gram.
 Future solid waste generation for
Pune city is Projected on the basis
of existing per capita generation
with annually increase of 1.4
percent growth rate for
metropolitan cities in India.
Sr.
No.
Performance Indicator 2015-16
1 Household level coverage of solid
waste management services
70
2 Efficiency of collection of municipal
solid waste
50
3 Extent of segregation of municipal
solid waste
50
4 Extent of municipal solid waste
recovered
85
5 Extent of scientific disposal of
municipal solid waste
60
6 Extent of cost recovery in solid waste
management services
80
7 Efficiency in collection of solid waste
management charges
81
8 Efficiency in redressal of customer
complaints
91

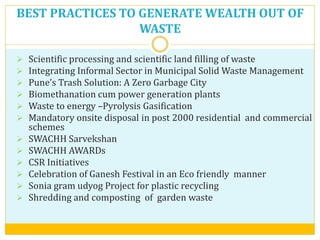

8. BEST PRACTICES TO GENERATE WEALTH OUT OF
WASTE
 Scientific processing and scientific land filling of waste
 Integrating Informal Sector in Municipal Solid Waste Management
 Pune’s Trash Solution: A Zero Garbage City
 Biomethanation cum power generation plants

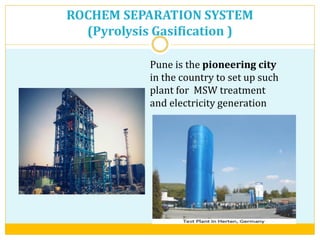

 Waste to energy –Pyrolysis Gasification
 Mandatory onsite disposal in post 2000 residential and commercial
schemes
 SWACHH Sarvekshan
 SWACHH AWARDs
 CSR Initiatives

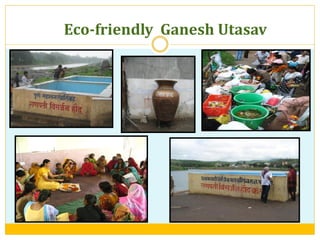

 Celebration of Ganesh Festival in an Eco friendly manner
 Sonia gram udyog Project for plastic recycling
 Shredding and composting of garden waste

9. Integrating Informal Sector – SWaCH Model
 Pune city’s efforts to partner with waste pickers
organizations to provide better service – 2300
wastepickers cover about 0.4 Million Households
 PMC pays for management and equipment cost
 Health insurance provided by PMC
 Recent MOU – 7000 WPs will cater services to the entire
city.

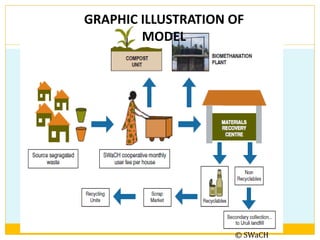

10. GRAPHIC ILLUSTRATION OF
MODEL
© SWaCH

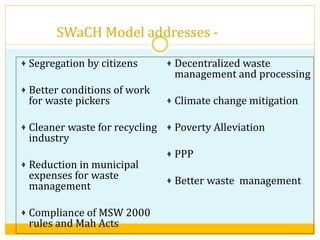

11. SWaCH Model addresses -
Segregation by citizens
Better conditions of work
for waste pickers
Cleaner waste for recycling
industry
Reduction in municipal
expenses for waste
management
Compliance of MSW 2000
rules and Mah Acts
Decentralized waste
management and processing
Climate change mitigation
Poverty Alleviation
PPP
Better waste management

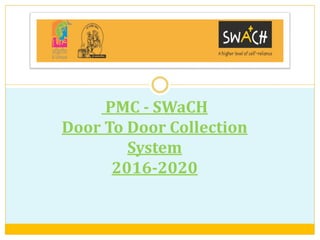

12. PMC - SWaCH
Door To Door Collection
System
2016-2020

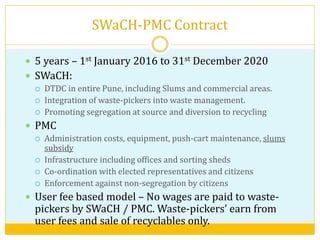

13. SWaCH-PMC Contract
 5 years – 1st January 2016 to 31st December 2020
 SWaCH:
 DTDC in entire Pune, including Slums and commercial areas.
 Integration of waste-pickers into waste management.
 Promoting segregation at source and diversion to recycling
 PMC
 Administration costs, equipment, push-cart maintenance, slums
subsidy
 Infrastructure including offices and sorting sheds
 Co-ordination with elected representatives and citizens
 Enforcement against non-segregation by citizens
 User fee based model – No wages are paid to waste-
pickers by SWaCH / PMC. Waste-pickers’ earn from
user fees and sale of recyclables only.

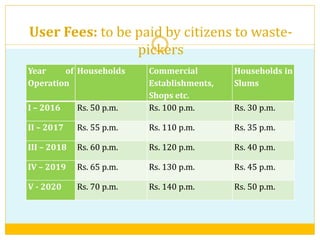

14. User Fees: to be paid by citizens to waste-
pickers
Year of
Operation
Households Commercial
Establishments,
Shops etc.
Households in
Slums
I – 2016 Rs. 50 p.m. Rs. 100 p.m. Rs. 30 p.m.
II – 2017 Rs. 55 p.m. Rs. 110 p.m. Rs. 35 p.m.
III – 2018 Rs. 60 p.m. Rs. 120 p.m. Rs. 40 p.m.
IV – 2019 Rs. 65 p.m. Rs. 130 p.m. Rs. 45 p.m.
V - 2020 Rs. 70 p.m. Rs. 140 p.m. Rs. 50 p.m.

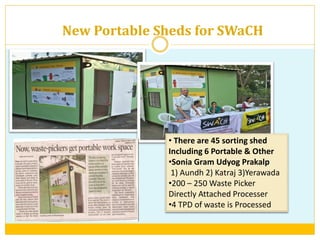

15. New Portable Sheds for SWaCH
• There are 45 sorting shed
Including 6 Portable & Other
•Sonia Gram Udyog Prakalp
1) Aundh 2) Katraj 3)Yerawada
•200 – 250 Waste Picker
Directly Attached Processer
•4 TPD of waste is Processed

16. 1. Segregation at
Source
2. Doorstep collection of
Segregated Waste
3. Further sorting and
segregation of dry waste
and linkage with scrap
dealers
4. Organic waste to
biogas or other
processing plant
5. Systems for
handling specialized
waste (C&D, E Waste,
Garden Waste)
Zero Garbage Model

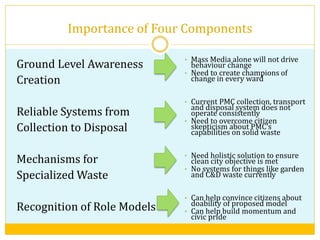

17. Ground Level Awareness
Creation
Reliable Systems from
Collection to Disposal
Mechanisms for
Specialized Waste
Recognition of Role Models
Importance of Four Components
• Mass Media alone will not drive
behaviour change
• Need to create champions of
change in every ward
• Current PMC collection, transport
and disposal system does not
operate consistently
• Need to overcome citizen
skepticism about PMC’s
capabilities on solid waste
• Need holistic solution to ensure
clean city objective is met
• No systems for things like garden
and C&D waste currently
• Can help convince citizens about
doability of proposed model
• Can help build momentum and
civic pride

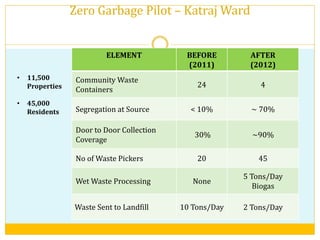

18. • 11,500
Properties
• 45,000
Residents
ELEMENT BEFORE
(2011)
AFTER
(2012)
Community Waste
Containers
24 4
Segregation at Source < 10% ~ 70%
Door to Door Collection
Coverage
30% ~90%
No of Waste Pickers 20 45
Wet Waste Processing None
5 Tons/Day
Biogas
Waste Sent to Landfill 10 Tons/Day 2 Tons/Day
Zero Garbage Pilot – Katraj Ward

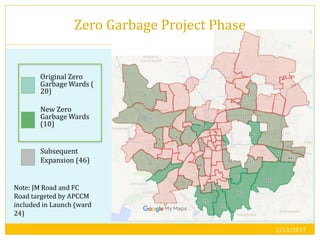

19. Original Zero
Garbage Wards (
20)
New Zero
Garbage Wards
(10)
Subsequent
Expansion (46)
Note: JM Road and FC
Road targeted by APCCM
included in Launch (ward
24)
2/13/2017
19
Zero Garbage Project Phase

20. 49%
62%
66%
74%
80%
85%
0
50,000
100,000
150,000
200,000
250,000
Feb-13
Mar-13
Apr-13
May-13
Jun-13
Jul-13
Aug-13
Sep-13
Oct-13
Nov-13
Dec-13
Jan-14
Feb-14
Mar-14
Apr-14
May-14
Jun-14
Jul-14
Aug-14
Sep-14
Oct-14
Nov-14
Dec-14
No.ofhouseholds-------->
Month --------------------->

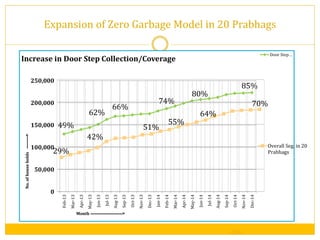

Increase in Door Step Collection/Coverage
Door Step…
29%
42%
51%
55%
64%
70%
Overall Seg. in 20
Prabhags
Expansion of Zero Garbage Model in 20 Prabhags
-20-

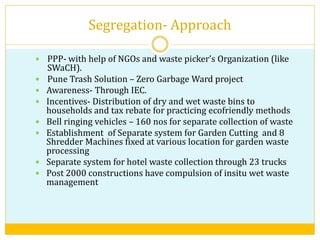

21. Segregation- Approach
 PPP- with help of NGOs and waste picker’s Organization (like
SWaCH).
 Pune Trash Solution – Zero Garbage Ward project
 Awareness- Through IEC.
 Incentives- Distribution of dry and wet waste bins to
households and tax rebate for practicing ecofriendly methods
 Bell ringing vehicles – 160 nos for separate collection of waste
 Establishment of Separate system for Garden Cutting and 8
Shredder Machines fixed at various location for garden waste
processing
 Separate system for hotel waste collection through 23 trucks
 Post 2000 constructions have compulsion of insitu wet waste
management

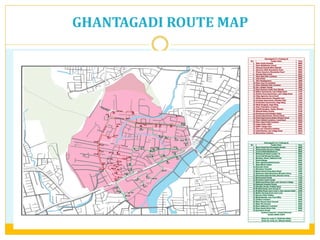

22. GHANTAGADI ROUTE MAP

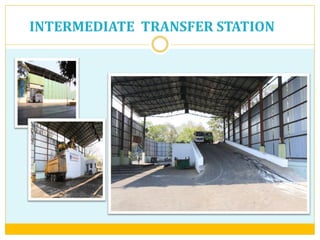

23. INTERMEDIATE TRANSFER STATION

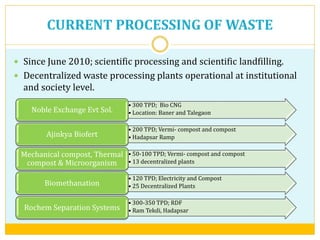

24. CURRENT PROCESSING OF WASTE
 Since June 2010; scientific processing and scientific landfilling.
 Decentralized waste processing plants operational at institutional
and society level.

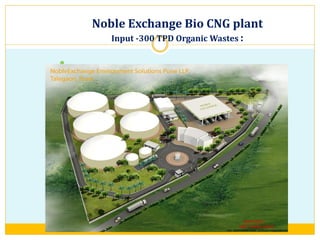

• 300 TPD; Bio CNG
• Location: Baner and TalegaonNoble Exchange Evt Sol.
• 200 TPD; Vermi- compost and compost
• Hadapsar RampAjinkya Biofert
• 50-100 TPD; Vermi- compost and compost
• 13 decentralized plants
Mechanical compost, Thermal
compost & Microorganism
• 120 TPD; Electricity and Compost

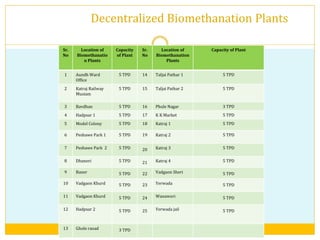

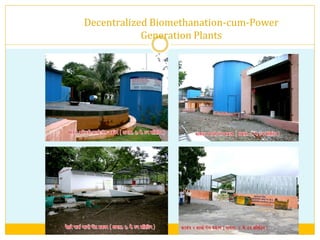

• 25 Decentralized PlantsBiomethanation

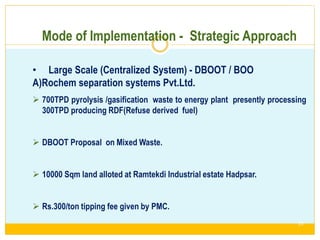

• 300-350 TPD; RDF
• Ram Tekdi, HadapsarRochem Separation Systems

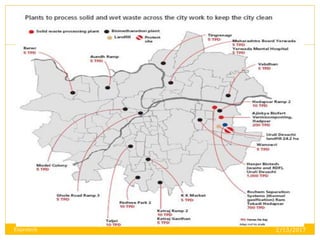

25. 2/13/2017Enprotech
25

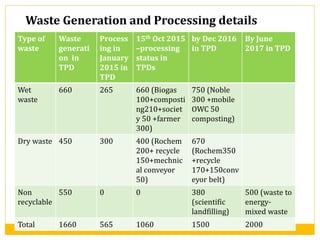

26. Waste Generation and Processing details
Type of
waste
Waste
generati
on in
TPD
Process
ing in
January
2015 in
TPD
15th Oct 2015
–processing
status in
TPDs
by Dec 2016
in TPD
By June
2017 in TPD
Wet
waste
660 265 660 (Biogas
100+composti
ng210+societ
y 50 +farmer
300)
750 (Noble
300 +mobile
OWC 50
composting)
Dry waste 450 300 400 (Rochem
200+ recycle
150+mechnic
al conveyor
50)
670
(Rochem350
+recycle
170+150conv
eyor belt)
Non
recyclable
550 0 0 380
(scientific
landfilling)
500 (waste to
energy-
mixed waste
Total 1660 565 1060 1500 2000

27. Decentralized Biomethanation Plants
Sr.
No
Location of
Biomethanatio
n Plants
Capacity
of Plant
Sr.
No
Location of
Biomethanation
Plants
Capacity of Plant
1 Aundh Ward
Office
5 TPD 14 Taljai Pathar 1 5 TPD
2 Katraj Railway
Musiam
5 TPD 15 Taljai Pathar 2 5 TPD
3 Bavdhan 5 TPD 16 Phule Nagar 3 TPD
4 Hadpsar 1 5 TPD 17 K K Market 5 TPD
5 Model Colony 5 TPD 18 Katraj 1 5 TPD
6 Peshawe Park 1 5 TPD 19 Katraj 2 5 TPD
7 Peshawe Park 2 5 TPD 20 Katraj 3 5 TPD
8 Dhanori 5 TPD 21 Katraj 4 5 TPD
9 Baner 5 TPD 22 Vadgaon Sheri 5 TPD
10 Vadgaon Khurd 5 TPD 23 Yerwada 5 TPD
11 Vadgaon Khurd 5 TPD 24 Wanawori 5 TPD
12 Hadpsar 2 5 TPD 25 Yerwada jail 5 TPD
13 Ghole raoad 3 TPD

28. Decentralized Biomethanation-cum-Power
Generation Plants

29. 
Noble Exchange Bio CNG plant
Input -300 TPD Organic Wastes :

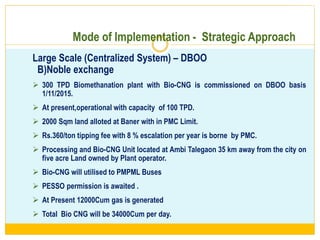

30. Mode of Implementation - Strategic Approach
Large Scale (Centralized System) – DBOO
B)Noble exchange
 300 TPD Biomethanation plant with Bio-CNG is commissioned on DBOO basis
1/11/2015.
 At present,operational with capacity of 100 TPD.
 2000 Sqm land alloted at Baner with in PMC Limit.
 Rs.360/ton tipping fee with 8 % escalation per year is borne by PMC.
 Processing and Bio-CNG Unit located at Ambi Talegaon 35 km away from the city on
five acre Land owned by Plant operator.
 Bio-CNG will utilised to PMPML Buses
 PESSO permission is awaited .
 At Present 12000Cum gas is generated
 Total Bio CNG will be 34000Cum per day.
2/13/20
17

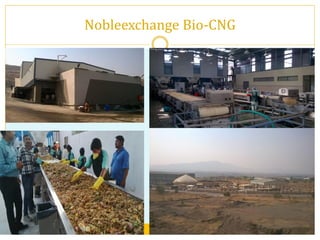

31. Nobleexchange Bio-CNG

32. ROCHEM SEPARATION SYSTEM
(Pyrolysis Gasification )
Pune is the pioneering city
in the country to set up such
plant for MSW treatment
and electricity generation

33. Mode of Implementation - Strategic Approach
• Large Scale (Centralized System) - DBOOT / BOO
A)Rochem separation systems Pvt.Ltd.
 700TPD pyrolysis /gasification waste to energy plant presently processing
300TPD producing RDF(Refuse derived fuel)
 DBOOT Proposal on Mixed Waste.
 10000 Sqm land alloted at Ramtekdi Industrial estate Hadpsar.
 Rs.300/ton tipping fee given by PMC.
2/13/20
17
33

34. POTENTIAL USING DIFFERENT TECHNOGIES
 Combined treatment for sewage and organic waste
 Vehicle fuel generation from biogas
 Compression of Biogas.
 Research on ethanol production from biomass / garden
waste.

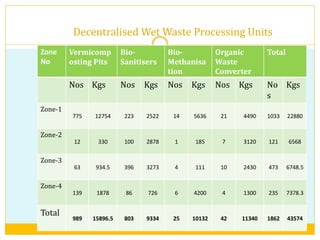

35. Zone
No
Vermicomp
osting Pits
Bio-
Sanitisers
Bio-
Methanisa
tion
Organic
Waste
Converter
Total
Nos Kgs Nos Kgs Nos Kgs Nos Kgs No
s
Kgs
Zone-1
775 12754 223 2522 14 5636 21 4490 1033 22880
Zone-2
12 330 100 2878 1 185 7 3120 121 6568
Zone-3
63 934.5 396 3273 4 111 10 2430 473 6748.5
Zone-4
139 1878 86 726 6 4200 4 1300 235 7378.3
Total
989 15896.5 803 9334 25 10132 42 11340 1862 43574
Decentralised Wet Waste Processing Units

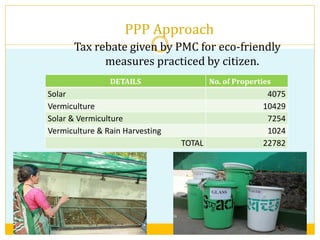

36. PPP Approach
Tax rebate given by PMC for eco-friendly
measures practiced by citizen.
DETAILS No. of Properties
Solar 4075
Vermiculture 10429
Solar & Vermiculture 7254
Vermiculture & Rain Harvesting 1024
TOTAL 22782

37. Eco-friendly Ganesh Utasav

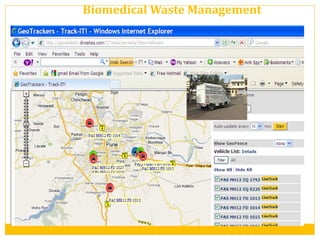

38. Biomedical Waste Management

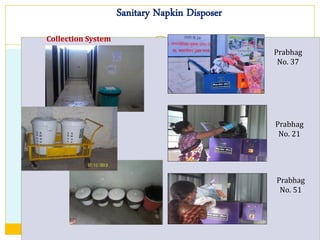

39. Sanitary Napkin Disposer
Collection System
Prabhag
No. 37
Prabhag
No. 21
Prabhag
No. 51

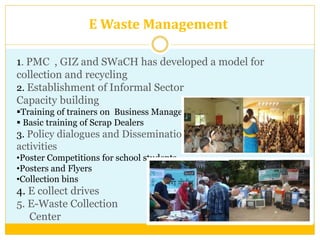

40. E Waste Management
1. PMC , GIZ and SWaCH has developed a model for
collection and recycling
2. Establishment of Informal Sector
Capacity building
Training of trainers on Business Management Practices
 Basic training of Scrap Dealers
3. Policy dialogues and Dissemination
activities
•Poster Competitions for school students
•Posters and Flyers
•Collection bins
4. E collect drives
5. E-Waste Collection
Center

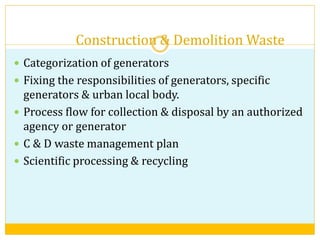

41. Construction & Demolition Waste
 Categorization of generators
 Fixing the responsibilities of generators, specific
generators & urban local body.
 Process flow for collection & disposal by an authorized
agency or generator
 C & D waste management plan
 Scientific processing & recycling

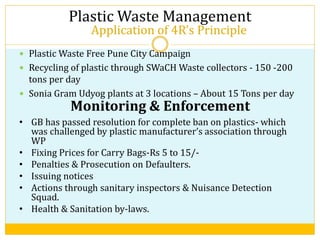

42. Application of 4R’s Principle
 Plastic Waste Free Pune City Campaign
 Recycling of plastic through SWaCH Waste collectors - 150 -200
tons per day
 Sonia Gram Udyog plants at 3 locations – About 15 Tons per day
Plastic Waste Management
Monitoring & Enforcement
• GB has passed resolution for complete ban on plastics- which
was challenged by plastic manufacturer’s association through
WP
• Fixing Prices for Carry Bags-Rs 5 to 15/-
• Penalties & Prosecution on Defaulters.
• Issuing notices
• Actions through sanitary inspectors & Nuisance Detection
Squad.
• Health & Sanitation by-laws.

43. Behavioral Change Communication
Central level
 Making short films for
theater.
 Arches & Standees.
 Puppet shows
 Informative CD’s for
Societies.
 Mohalla Committee
meetings.
Local level
 Meetings with hotel
owners, citizens
 Training of scrap shop
owners for E-Waste.
 School Training
Programme.
 Mohalla committee
meetings in Ward Office on
every last Thursday.
 Student Rally
 Cleanliness Drives by
School & College Students.

44. SWACHH SURVEKSHAN

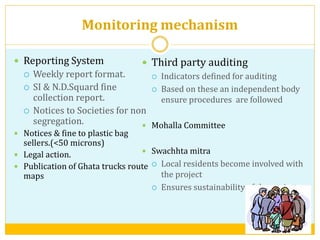

45. Monitoring mechanism
 Third party auditing
 Indicators defined for auditing
 Based on these an independent body
ensure procedures are followed
 Mohalla Committee
 Swachhta mitra
 Local residents become involved with
the project
 Ensures sustainability of the project
 Reporting System
 Weekly report format.
 SI & N.D.Squard fine
collection report.
 Notices to Societies for non
segregation.
 Notices & fine to plastic bag
sellers.(<50 microns)
 Legal action.
 Publication of Ghata trucks route
maps

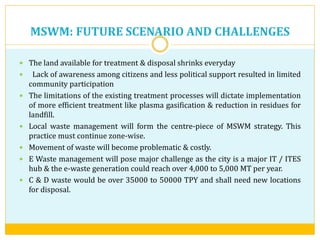

46. MSWM: FUTURE SCENARIO AND CHALLENGES
 The land available for treatment & disposal shrinks everyday
 Lack of awareness among citizens and less political support resulted in limited
community participation
 The limitations of the existing treatment processes will dictate implementation
of more efficient treatment like plasma gasification & reduction in residues for
landfill.
 Local waste management will form the centre-piece of MSWM strategy. This
practice must continue zone-wise.
 Movement of waste will become problematic & costly.
 E Waste management will pose major challenge as the city is a major IT / ITES
hub & the e-waste generation could reach over 4,000 to 5,000 MT per year.
 C & D waste would be over 35000 to 50000 TPY and shall need new locations
for disposal.

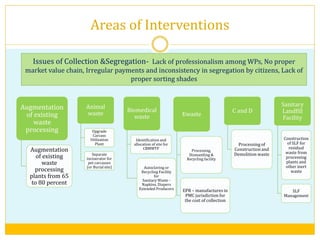

47. Areas of Interventions
Augmentation
of existing
waste
processing
Augmentation
of existing
waste
processing
plants from 65
to 80 percent
Animal
waste
Upgrade
Carcass
Utilization
Plant
Separate
incinerator for
pet carcasses
(or Burial site)
Biomedical
waste
Identification and
allocation of site for
CBMWTF
Autoclaving or
Recycling Facility
for
Sanitary Waste -
Napkins, Diapers
Extended Producers
Ewaste
Processing,
Dismantling &
Recycling facility
EPR – manufactures in
PMC jurisdiction for
the cost of collection
C and D
Processing of
Construction and
Demolition waste
Sanitary
Landfill
Facility
Construction
of SLF for
residual
waste from
processing
plants and
other inert
waste
SLF
Management
Issues of Collection &Segregation- Lack of professionalism among WPs, No proper
market value chain, Irregular payments and inconsistency in segregation by citizens, Lack of
proper sorting shades

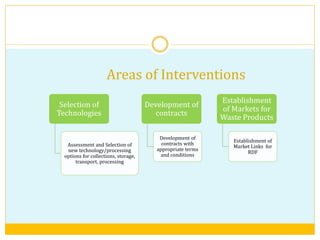

48. Areas of Interventions
Selection of
Technologies
Assessment and Selection of
new technology/processing
options for collections, storage,
transport, processing
Development of
contracts
Development of
contracts with
appropriate terms
and conditions
Establishment
of Markets for
Waste Products
Establishment of
Market Links for
RDF

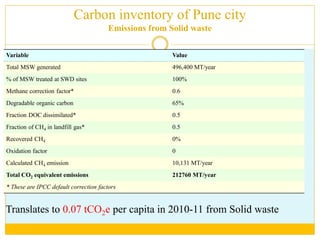

49. Carbon inventory of Pune city
Emissions from Solid waste
Translates to 0.07 tCO2e per capita in 2010-11 from Solid waste
Variable Value
Total MSW generated 496,400 MT/year
% of MSW treated at SWD sites 100%
Methane correction factor* 0.6
Degradable organic carbon 65%
Fraction DOC dissimilated* 0.5
Fraction of CH4 in landfill gas* 0.5
Recovered CH4 0%
Oxidation factor 0
Calculated CH4 emission 10,131 MT/year
Total CO2 equivalent emissions 212760 MT/year
* These are IPCC default correction factors

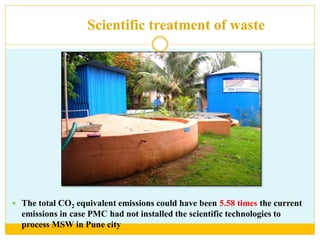

50. Scientific treatment of waste
 The total CO2 equivalent emissions could have been 5.58 times the current
emissions in case PMC had not installed the scientific technologies to
process MSW in Pune city

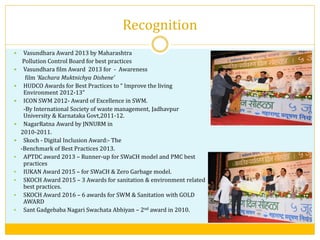

51. Recognition
 Vasundhara Award 2013 by Maharashtra
Pollution Control Board for best practices
 Vasundhara film Award 2013 for - Awareness
film ‘Kachara Muktnichya Dishene’
 HUDCO Awards for Best Practices to “ Improve the living
Environment 2012-13”
 ICON SWM 2012- Award of Excellence in SWM.
-By International Society of waste management, Jadhavpur
University & Karnataka Govt,2011-12.
 NagarRatna Award by JNNURM in
2010-2011.
 Skoch - Digital Inclusion Award:- The
-Benchmark of Best Practices 2013.
 APTDC award 2013 – Runner-up for SWaCH model and PMC best
practices
 IUKAN Award 2015 – for SWaCH & Zero Garbage model.
 SKOCH Award 2015 – 3 Awards for sanitation & environment related
best practices.
 SKOCH Award 2016 – 6 awards for SWM & Sanitation with GOLD
AWARD
 Sant Gadgebaba Nagari Swachata Abhiyan – 2nd award in 2010.

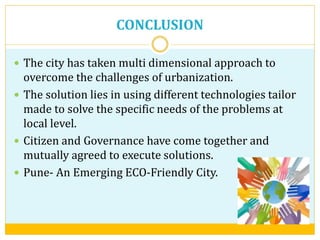

52. CONCLUSION
 The city has taken multi dimensional approach to
overcome the challenges of urbanization.
 The solution lies in using different technologies tailor
made to solve the specific needs of the problems at
local level.
 Citizen and Governance have come together and
mutually agreed to execute solutions.
 Pune- An Emerging ECO-Friendly City.

53. Thank You for patiently listening…
