TABLE OF CONTENTS
List of Figures ..........................................................................................................................................2
Indices.....................................................................................................................................................3
First Law:.............................................................................................................................................3
Second Law: ........................................................................................................................................3
Third Law:............................................................................................................................................3
Fourth Law: .........................................................................................................................................4
Fifth Law:.............................................................................................................................................4
Fractional Indices:...............................................................................................................................4
Examples:............................................................................................................................................5
Logarithm................................................................................................................................................6
Relation between indices and logarithm............................................................................................7
Logarithm rules...................................................................................................................................7
Examples:............................................................................................................................................7
Multiplication using logarithm..........................................................................................................11
Division using logarithm....................................................................................................................11
Calculation of Power using Logarithm ..............................................................................................12
Calculation of Root using Logarithm.................................................................................................12
Anti-Logarithms.....................................................................................................................................13
Examples:..........................................................................................................................................15
Quiz ...................................................................................................................................................16
LIST OF FIGURES
Figure 1...................................................................................................................................................9
Figure 2.................................................................................................................................................10
Figure 3.................................................................................................................................................10
Figure 4.................................................................................................................................................13
Figure 5.................................................................................................................................................14
Figure 6.................................................................................................................................................14
INDICES
The plural of index is known as indices, where an index is used to compactly write a product
or a number.
In the expression , the index or exponent or power is “a” and the number ” is called the
base. Laws of indices are used to manipulate the expressions with indices. There are total
four laws of indices, each one of them is explained one by one as follow;
First Law:
When expressions with the same base are multiplied, the indices of all the expressions are to
be added.
In general,
Let’s a = 4, b = 2 and x = 3;
Then
Second Law:
When expressions with the same base are divided, the index of the expression in the
denominator is subtracted from the index of the expression in the numerator.
In general,
Let’s a = 4, b = 2 and x = 3;
Then
Third Law:
When the index of the expression is 0 then the whole expression become equal to 1.
In general,
80
= 1
Fourth Law:
When the index of an expression is equal to a negative number, then the same expression
with a positive index is written in a fraction form, with numerator equal to 1 and denominator
equal to that specified expression. It can be explained with the following example;
In general,
Let’s a = 4 and x = 3;
Fifth Law:
When the power of the base is raised to another power then indices are to be multiplied.
In general, (am
)n
= amn
.
Here the power or index “m” of the base “a” is raised to the power “n”, thus both the power
are multiplied with each other.
Let’s m = 2, n = 2 and a = 3;
Fractional Indices:
Fractional indices are represented by a base number with a fractional index or power or
exponent. In general, a fractional index is in the form of . The index laws are also
applicable to the fractional indices, for example squaring the expression means
multiplying the index by 2.
The fractional index is also known as positive square root and is represented by the symbol
√. For example the square root of 4 is equal to 2. It can further be explained as follow;
√
In order to simplify the expression,
Thus
√
Similarly √ , and so on.
Examples:
Simplify
As ;
Thus
Simplify
First of all we will simplify the expression in parenthesis;
=
=
=
Simplify
Simplify √
√
Simplify
LOGARITHM
In the simplest way, Logarithm definition provides the answer of the following question.
“How many of one number do we multiply to get another number?”
For example: how many 4s do we multiply to get 64?
Answer: 4x4x4 = 64, so we needed to multiply 3 of the 4s to get 64.
Logarithm represents the above answer in the following format: log4 (64) = 3
The number we are multiplying is called the base. Thus we can rephrase our answer as, the
logarithm of 64 with base 4 is equal to 3 or the log base 4 of 64 is 3.
All Logarithms with the base 10 are known as common logarithms. There is no need to
mention the base.
For example: log 100 = 2
In other words, it can also be written as log10 100 = 2
Relation between indices and logarithm
As square root of a number is the inverse process to squaring a number; in the same way,
taking a logarithm is the inverse process to taking a power.
Considering previous example; log4(64) = 3 in exponential form can be written as 43
= 64.
4x4x4 = 43
= 64, the index of base 4 is 3, and it is equal to 64, while the same index 3 is the
answer of log base 4 of 64.
Logarithm rules
Total three rules of logarithm will be discussed here.
1. log (a*b) = log a + log b, where the base will remains the same on both sides of equation.
2. log (a/b) = log a - log b, where the base will remains the same on both sides of equation.
3. Log (ab
) = b*log a, where the base will remains the same on both sides of equation.
Examples:
Find the value of x;
log2 32 = x
In exponential form;
32 = 25
Thus
Log2 32 = 5, where x = 5
log2 x = 7
In exponential form;
27
= 128
Thus
log2 128 = 7, where x = 128
logx 25 = 2
In exponential form;
52
= 25
Thus
Log5 25= 2, where x = 5
Log x = 3
As the base is not mentioned, so it is understood to be a common logarithm, hence it can be
rewritten as;
Log10 x = 3
It can be transformed as 103
= x
In exponential form;
103
= 100
Thus the value of x=100
If we want to calculate the value of log105, then it can be written in a form of 10x
= 5, where x
lies between 0 and 1. In order to calculate such problems, we either need a calculator or a
logarithmic table.
Log table is based on common logarithm. Before discussing the log table, lets first discus the
properties of logarithm, then we will move on to the log tables, because some of the
properties are required for solving questions based on log table.
Let's say we want to find the log base 10 of 15 on a common log table. 15 lies between 10
(101
) and 100 (102
), so its logarithm will lie between 1 and 2, or be 1.something. 150 lies
between 100 (102
) and 1000 (103
), so its logarithm will lie between 2 and 3, or be
2.something. The .something is called the mantissa. What comes before the decimal point (1
in the first example, 2 in the second) is known as characteristic. In figure 1, the leftmost
column will show the first two or, for some large log tables, three digits of the number whose
logarithm you're looking up.

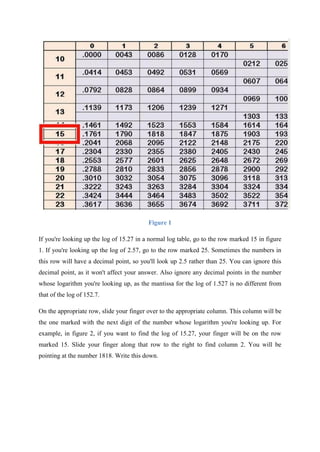

Figure 1
If you're looking up the log of 15.27 in a normal log table, go to the row marked 15 in figure
1. If you're looking up the log of 2.57, go to the row marked 25. Sometimes the numbers in
this row will have a decimal point, so you'll look up 2.5 rather than 25. You can ignore this
decimal point, as it won't affect your answer. Also ignore any decimal points in the number
whose logarithm you're looking up, as the mantissa for the log of 1.527 is no different from
that of the log of 152.7.
On the appropriate row, slide your finger over to the appropriate column. This column will be
the one marked with the next digit of the number whose logarithm you're looking up. For
example, in figure 2, if you want to find the log of 15.27, your finger will be on the row
marked 15. Slide your finger along that row to the right to find column 2. You will be
pointing at the number 1818. Write this down.
Figure 2
In figure 3, the log table has a mean difference table; hence slide your finger over to the
column in that table marked with the next digit of the number you're looking up. For 15.27,
this number is 7. Your finger is currently on row 15 and column 2. Slide it over to row 15 and
mean differences column 7. You will be pointing at the number 20. Write this down.
Figure 3

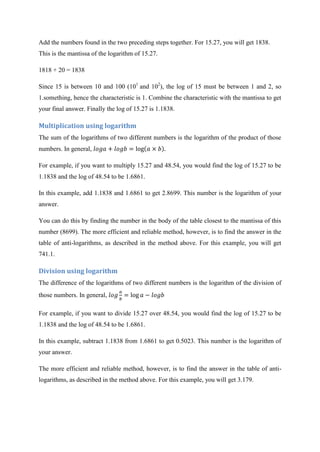

Add the numbers found in the two preceding steps together. For 15.27, you will get 1838.
This is the mantissa of the logarithm of 15.27.
1818 + 20 = 1838
Since 15 is between 10 and 100 (101
and 102
), the log of 15 must be between 1 and 2, so
1.something, hence the characteristic is 1. Combine the characteristic with the mantissa to get
your final answer. Finally the log of 15.27 is 1.1838.
Multiplication using logarithm
The sum of the logarithms of two different numbers is the logarithm of the product of those
numbers. In general,
For example, if you want to multiply 15.27 and 48.54, you would find the log of 15.27 to be
1.1838 and the log of 48.54 to be 1.6861.
In this example, add 1.1838 and 1.6861 to get 2.8699. This number is the logarithm of your
answer.
You can do this by finding the number in the body of the table closest to the mantissa of this
number (8699). The more efficient and reliable method, however, is to find the answer in the
table of anti-logarithms, as described in the method above. For this example, you will get
741.1.
Division using logarithm
The difference of the logarithms of two different numbers is the logarithm of the division of
those numbers. In general,
For example, if you want to divide 15.27 over 48.54, you would find the log of 15.27 to be
1.1838 and the log of 48.54 to be 1.6861.
In this example, subtract 1.1838 from 1.6861 to get 0.5023. This number is the logarithm of
your answer.
The more efficient and reliable method, however, is to find the answer in the table of anti-
logarithms, as described in the method above. For this example, you will get 3.179.
Calculation of Power using Logarithm
In general, log (a) = n or 10n
= a; In order to calculate the answer of 21.532
, first we take the
log of the number without its exponent or power using log table;
log ( 21.53) = 1.333
Now in exponential form, the expression becomes;
101.333
= 21.53
Squaring both sides of the equation;
(101.333
)2
= 21.532
Using the indices property; (ax
)y
= ax*y
Thus
102.666
= 21.532
Now the anti-log of 2.666 will give us the final answer of 21.532
, which is 463.44.
Calculation of Root using Logarithm
The same method of calculating power using logarithm is applicable to root calculation. A
simple root (√) is equal to power 1/2, while ( is equal to power 1/3 and so on.
Let’s have an example of using logarithm to calculate the value of 850.
First of all convert 850 into exponential form as;
850 = 8501/4
Now calculate the logarithm of 850 using log table;
log (850) = 2.9294
In exponential form, log (850) = 2.9294 can be written as 102.9294
= 850
Thus
850 = 8501/4
= (102.9294
)1/4
=102.9294
*1/4
= 100.73235
Finally the anti-log of 0.73235 is 5.3994, which is the final answer of 850.
ANTI-LOGARITHMS
Use Anti-log table, when you have the log of a number but not the number itself. In the
formula 10n
= x, n is the common log, or base-ten log, of x. If you have x, find n using the log
table. If you have n, find x using the anti-log table.
Characteristic is the number before the decimal point. If you're looking up the anti-log of
2.8699, the characteristic is 2. Mentally remove it from the number you're looking up, but
make sure to write it down so you don't forget it.
Find the row that matches the first part of the mantissa. In 2.8699, the mantissa is .8699. Most
anti-log tables, like most log tables, have two digits in the leftmost column as shown in figure
4, so run your finger down that column until you find .86.
Figure 4
Slide your finger over to the column marked with the next digit of the mantissa. For 2.8699,
slide your finger along the row marked .86 to find the intersection with column 9. This is
shown as 7396 in figure 5. Write this down.

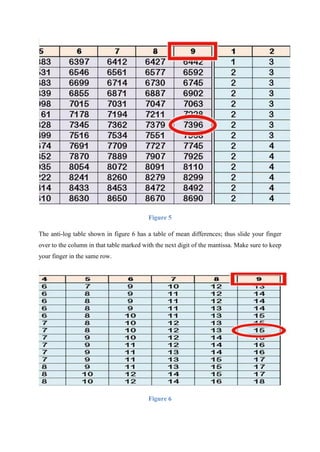

Figure 5
The anti-log table shown in figure 6 has a table of mean differences; thus slide your finger
over to the column in that table marked with the next digit of the mantissa. Make sure to keep
your finger in the same row.
Figure 6
In this case, you will slide your finger over to the last column in the table, column 9. The
intersection of row .86 and mean differences column 9 is 15. Write that down.
Add the two numbers from the two previous steps. In our example, these are 7396 and 15.
Add them together to get 7411.
Use the characteristic to place the decimal point. Our characteristic was 2. This means that
the answer is between 102
and 103
, or between 100 and 1000. In order for the number 7411 to
fall between 100 and 1000, the decimal point must go after three digits, so that the number is
about 700 rather than 70, which is too small, or 7000, which is too big. So the final answer is
741.1.
Thus the anti-log of 2.8699 is 741.1, i.e.
Anti-log (2.8699) = 741.1
Or
102.8699
= 741.1
Examples:
Calculate the anti-log of 2.80.
The characteristic here is 2, while the mantissa is 80. The .80 comes across 6310 under column 0. Use
the characteristic to place the decimal point. Our characteristic was 2. This means that the
answer is between 102
and 103
, or between 100 and 1000. In order for the number 6310 to fall
between 100 and 1000, the decimal point must go after three digits, thus the final answer is
631.0.
Calculate the anti-log of 1.943.
The characteristic here is 1, while the mantissa is 943. The .94 comes across 8770 under column 3.
Use the characteristic to place the decimal point. Our characteristic was 1. This means that
the answer is between 101
and 102
, or between 10 and 100. In order for the number 8770 to
fall between 10 and 100, the decimal point must go after two digits, thus the final answer is
87.70.

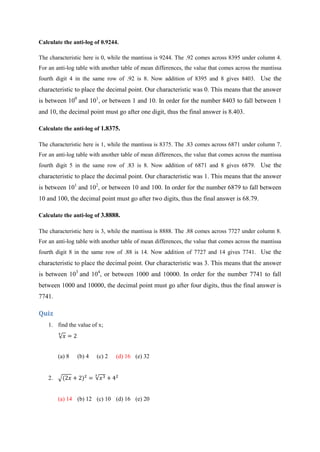

Calculate the anti-log of 0.9244.
The characteristic here is 0, while the mantissa is 9244. The .92 comes across 8395 under column 4.
For an anti-log table with another table of mean differences, the value that comes across the mantissa
fourth digit 4 in the same row of .92 is 8. Now addition of 8395 and 8 gives 8403. Use the
characteristic to place the decimal point. Our characteristic was 0. This means that the answer
is between 100
and 101
, or between 1 and 10. In order for the number 8403 to fall between 1
and 10, the decimal point must go after one digit, thus the final answer is 8.403.
Calculate the anti-log of 1.8375.
The characteristic here is 1, while the mantissa is 8375. The .83 comes across 6871 under column 7.
For an anti-log table with another table of mean differences, the value that comes across the mantissa
fourth digit 5 in the same row of .83 is 8. Now addition of 6871 and 8 gives 6879. Use the
characteristic to place the decimal point. Our characteristic was 1. This means that the answer
is between 101
and 102
, or between 10 and 100. In order for the number 6879 to fall between
10 and 100, the decimal point must go after two digits, thus the final answer is 68.79.
Calculate the anti-log of 3.8888.
The characteristic here is 3, while the mantissa is 8888. The .88 comes across 7727 under column 8.
For an anti-log table with another table of mean differences, the value that comes across the mantissa
fourth digit 8 in the same row of .88 is 14. Now addition of 7727 and 14 gives 7741. Use the
characteristic to place the decimal point. Our characteristic was 3. This means that the answer
is between 103
and 104
, or between 1000 and 10000. In order for the number 7741 to fall
between 1000 and 10000, the decimal point must go after four digits, thus the final answer is
7741.
Quiz
1. find the value of x;
√
(a) 8 (b) 4 (c) 2 (d) 16 (e) 32
2. √ √
(a) 14 (b) 12 (c) 10 (d) 16 (e) 20
3. The simplified form of
(a) (b) (c) (d) (e)
4. Which of the following represents
(a) (b) √ (c) √ (d) √ (e) √
5. Which of the following is the correct value of x in ?
(a) 50 (b) 100 (c) 10 (d) 1000 (e) 500
6. Using the log table, what is the value of 5.30?
(a) 0.7250 (b) 0.7242 (c) 0.7240 (d) 0.7252 (e) 0.7245
7. Solve for correct value of x.
(a) 15/2 (b) 15 (c) 2 (d) 2/15 (e) 3/15
8. Using anti-log table, which of the following is the correct value of 1.59333?
(a) 39 (b) 39.2 (c) 3.9 (d) 3.92 (e) 3.0
9. Using anti-log table, which of the following is the correct value of 0.21?
(a) 1.62 (b) 1.72 (c) 1.82 (d) 1.92 (e) 2.02
10. Using anti-log table, which of the following is the correct value of 0.1234?
(a) 1.3268 (b) 1.3286 (c) 1.32 (d) 1.86 (e) 1.8632

More Related Content

What's hot

Pascal triangle and binomial theorem
Pascal triangle and binomial theoremPascal triangle and binomial theorem
Pascal triangle and binomial theorem
rey castro

Sets PowerPoint Presentation
Sets PowerPoint PresentationSets PowerPoint Presentation
Sets PowerPoint Presentation
Ashna Rajput

Binary Operations.pptx
Binary Operations.pptxBinary Operations.pptx
Binary Operations.pptx
SoyaMathew1

Logarithm
LogarithmLogarithm
Logarithm
itutor

Complex number
Complex numberComplex number
Complex number
Anum Urooj

Linear algebra-Basis & Dimension
Linear algebra-Basis & DimensionLinear algebra-Basis & Dimension
Linear algebra-Basis & Dimension
Manikanta satyala

INFINITE SERIES AND SEQUENCES
INFINITE SERIES AND SEQUENCESINFINITE SERIES AND SEQUENCES
INFINITE SERIES AND SEQUENCES
Jitin Pillai

Maths Project Power Point Presentation
Maths Project Power Point PresentationMaths Project Power Point Presentation
Maths Project Power Point Presentation
Kullegg Maria Regina Boys' Junior Lyceum

Complex Number I - Presentation
Complex Number I - PresentationComplex Number I - Presentation
Complex Number I - Presentation
yhchung

The binomial theorem class 11 maths
The binomial theorem class 11 mathsThe binomial theorem class 11 maths
The binomial theorem class 11 maths
Dharmendra Dudi

Binomial
BinomialBinomial
Binomial
DEDESUDJADI

Angularmomentum
AngularmomentumAngularmomentum
Angularmomentum
Gabino Corona

Interpolation functions
Interpolation functionsInterpolation functions
Interpolation functions
Tarun Gehlot

Finite difference Matlab Code
Finite difference Matlab CodeFinite difference Matlab Code
Finite difference Matlab Code
Taimoor Muzaffar Gondal

Gaussian quadratures
Gaussian quadraturesGaussian quadratures
Gaussian quadratures
Tarun Gehlot

Exponential and logrithmic functions
Exponential and logrithmic functionsExponential and logrithmic functions
Exponential and logrithmic functions
Malikahmad105

Liner algebra-vector space-1 introduction to vector space and subspace
Liner algebra-vector space-1   introduction to vector space and subspace Liner algebra-vector space-1   introduction to vector space and subspace
Liner algebra-vector space-1 introduction to vector space and subspace
Manikanta satyala

5.4 mathematical induction
5.4 mathematical induction5.4 mathematical induction
5.4 mathematical induction
math260

Sequences And Series
Sequences And SeriesSequences And Series
Sequences And Series
goestoinfinity

GAUSS ELIMINATION METHOD
 GAUSS ELIMINATION METHOD GAUSS ELIMINATION METHOD
GAUSS ELIMINATION METHOD
reach2arkaELECTRICAL


What's hot (20)

Pascal triangle and binomial theorem
Pascal triangle and binomial theoremPascal triangle and binomial theorem
Pascal triangle and binomial theorem

Sets PowerPoint Presentation
Sets PowerPoint PresentationSets PowerPoint Presentation
Sets PowerPoint Presentation

Binary Operations.pptx
Binary Operations.pptxBinary Operations.pptx
Binary Operations.pptx

Logarithm
LogarithmLogarithm
Logarithm

Complex number
Complex numberComplex number
Complex number

Linear algebra-Basis & Dimension
Linear algebra-Basis & DimensionLinear algebra-Basis & Dimension
Linear algebra-Basis & Dimension

INFINITE SERIES AND SEQUENCES
INFINITE SERIES AND SEQUENCESINFINITE SERIES AND SEQUENCES
INFINITE SERIES AND SEQUENCES

Maths Project Power Point Presentation
Maths Project Power Point PresentationMaths Project Power Point Presentation
Maths Project Power Point Presentation

Complex Number I - Presentation
Complex Number I - PresentationComplex Number I - Presentation
Complex Number I - Presentation

The binomial theorem class 11 maths
The binomial theorem class 11 mathsThe binomial theorem class 11 maths
The binomial theorem class 11 maths

Binomial
BinomialBinomial
Binomial

Angularmomentum
AngularmomentumAngularmomentum
Angularmomentum

Interpolation functions
Interpolation functionsInterpolation functions
Interpolation functions

Finite difference Matlab Code
Finite difference Matlab CodeFinite difference Matlab Code
Finite difference Matlab Code

Gaussian quadratures
Gaussian quadraturesGaussian quadratures
Gaussian quadratures

Exponential and logrithmic functions
Exponential and logrithmic functionsExponential and logrithmic functions
Exponential and logrithmic functions

Liner algebra-vector space-1 introduction to vector space and subspace
Liner algebra-vector space-1   introduction to vector space and subspace Liner algebra-vector space-1   introduction to vector space and subspace
Liner algebra-vector space-1 introduction to vector space and subspace

5.4 mathematical induction
5.4 mathematical induction5.4 mathematical induction
5.4 mathematical induction

Sequences And Series
Sequences And SeriesSequences And Series
Sequences And Series

GAUSS ELIMINATION METHOD
 GAUSS ELIMINATION METHOD GAUSS ELIMINATION METHOD
GAUSS ELIMINATION METHOD


Similar to INDICES & LOGARITHMS

Quadratic Equations-Lesson Note
Quadratic Equations-Lesson NoteQuadratic Equations-Lesson Note
Quadratic Equations-Lesson Note
Puna Ripiye

Ib grade 11 physics lesson 1 measurements and uncertainities
Ib grade 11 physics lesson 1 measurements and uncertainitiesIb grade 11 physics lesson 1 measurements and uncertainities
Ib grade 11 physics lesson 1 measurements and uncertainities
MESUT MIZRAK

Mc ty-logarithms-2009-1
Mc ty-logarithms-2009-1Mc ty-logarithms-2009-1
Mc ty-logarithms-2009-1
sheetslibrary

Logarithms Text
Logarithms TextLogarithms Text
Logarithms Text
SifuDias

Logarithms
LogarithmsLogarithms
Computational skills
Computational skillsComputational skills
Computational skills
leoscotch

project on logarithm
project on logarithmproject on logarithm
project on logarithm
SCARYNOOB

Mathtest 01
Mathtest 01Mathtest 01
Mathtest 01
leoscotch

integral calculus.pdf
integral calculus.pdfintegral calculus.pdf
integral calculus.pdf
AudreyMendoza6

Ratio and Proportion, Indices and Logarithm Part 4
Ratio and Proportion, Indices and Logarithm Part 4Ratio and Proportion, Indices and Logarithm Part 4
Ratio and Proportion, Indices and Logarithm Part 4
FellowBuddy.com

Free221
Free221Free221
Free221
ziadabubeker

Tenth class state syllabus-text book-em-ap-ts-mathematics
Tenth class state syllabus-text book-em-ap-ts-mathematicsTenth class state syllabus-text book-em-ap-ts-mathematics
Tenth class state syllabus-text book-em-ap-ts-mathematics
NaukriTuts

1 1 number theory
1 1 number theory1 1 number theory
1 1 number theory
smillertx281

An applied approach to calculas
An applied approach to calculasAn applied approach to calculas
An applied approach to calculas
Tarun Gehlot

Business mathematics presentation
Business mathematics presentationBusiness mathematics presentation
Business mathematics presentation
Sourov Shaha Suvo

Secondary Lecture
Secondary LectureSecondary Lecture
Secondary Lecture
Amalia Indrawati Gunawan

Properties of logarithms
Properties of logarithmsProperties of logarithms
Properties of logarithms
Jessica Garcia

Algebra
AlgebraAlgebra
Real numbers
Real numbersReal numbers
Real numbers
Supriya Anand

Trabajo colaborativo algebra grupo 29
Trabajo colaborativo algebra  grupo 29Trabajo colaborativo algebra  grupo 29
Trabajo colaborativo algebra grupo 29
MARLENPARRA3


Similar to INDICES & LOGARITHMS (20)

Quadratic Equations-Lesson Note
Quadratic Equations-Lesson NoteQuadratic Equations-Lesson Note
Quadratic Equations-Lesson Note

Ib grade 11 physics lesson 1 measurements and uncertainities
Ib grade 11 physics lesson 1 measurements and uncertainitiesIb grade 11 physics lesson 1 measurements and uncertainities
Ib grade 11 physics lesson 1 measurements and uncertainities

Mc ty-logarithms-2009-1
Mc ty-logarithms-2009-1Mc ty-logarithms-2009-1
Mc ty-logarithms-2009-1

Logarithms Text
Logarithms TextLogarithms Text
Logarithms Text

Logarithms
LogarithmsLogarithms
Logarithms

Computational skills
Computational skillsComputational skills
Computational skills

project on logarithm
project on logarithmproject on logarithm
project on logarithm

Mathtest 01
Mathtest 01Mathtest 01
Mathtest 01

integral calculus.pdf
integral calculus.pdfintegral calculus.pdf
integral calculus.pdf

Ratio and Proportion, Indices and Logarithm Part 4
Ratio and Proportion, Indices and Logarithm Part 4Ratio and Proportion, Indices and Logarithm Part 4
Ratio and Proportion, Indices and Logarithm Part 4

Free221
Free221Free221
Free221

Tenth class state syllabus-text book-em-ap-ts-mathematics
Tenth class state syllabus-text book-em-ap-ts-mathematicsTenth class state syllabus-text book-em-ap-ts-mathematics
Tenth class state syllabus-text book-em-ap-ts-mathematics

1 1 number theory
1 1 number theory1 1 number theory
1 1 number theory

An applied approach to calculas
An applied approach to calculasAn applied approach to calculas
An applied approach to calculas

Business mathematics presentation
Business mathematics presentationBusiness mathematics presentation
Business mathematics presentation

Secondary Lecture
Secondary LectureSecondary Lecture
Secondary Lecture

Properties of logarithms
Properties of logarithmsProperties of logarithms
Properties of logarithms

Algebra
AlgebraAlgebra
Algebra

Real numbers
Real numbersReal numbers
Real numbers

Trabajo colaborativo algebra grupo 29
Trabajo colaborativo algebra  grupo 29Trabajo colaborativo algebra  grupo 29
Trabajo colaborativo algebra grupo 29


More from Puna Ripiye

Classification of Living & Non Living Things
Classification of Living & Non Living ThingsClassification of Living & Non Living Things
Classification of Living & Non Living Things
Puna Ripiye

Classification of Living and Non Living things/Plants & Animals
Classification of Living and Non Living things/Plants & AnimalsClassification of Living and Non Living things/Plants & Animals
Classification of Living and Non Living things/Plants & Animals
Puna Ripiye

Revision cards on financial mahts [autosaved]
Revision cards on financial mahts [autosaved]Revision cards on financial mahts [autosaved]
Revision cards on financial mahts [autosaved]
Puna Ripiye

Calculus revision card
Calculus  revision cardCalculus  revision card
Calculus revision card
Puna Ripiye

Full document (1)
Full document (1)Full document (1)
Full document (1)
Puna Ripiye

Surds revision card
Surds  revision cardSurds  revision card
Surds revision card
Puna Ripiye

Variation revision card
Variation  revision cardVariation  revision card
Variation revision card
Puna Ripiye

Probability revision card
Probability revision cardProbability revision card
Probability revision card
Puna Ripiye

Modular arithmetic revision card
Modular arithmetic  revision cardModular arithmetic  revision card
Modular arithmetic revision card
Puna Ripiye

Calculus revision card
Calculus  revision cardCalculus  revision card
Calculus revision card
Puna Ripiye

Pie charts revision card solved
Pie charts  revision card solvedPie charts  revision card solved
Pie charts revision card solved
Puna Ripiye

Mean,median and mode revision card
Mean,median and mode revision cardMean,median and mode revision card
Mean,median and mode revision card
Puna Ripiye

Histogram,frequency distribution revision card
Histogram,frequency distribution  revision cardHistogram,frequency distribution  revision card
Histogram,frequency distribution revision card
Puna Ripiye

Cumulative frequency revision card
Cumulative frequency revision cardCumulative frequency revision card
Cumulative frequency revision card
Puna Ripiye

Bar charts revision card
Bar charts  revision cardBar charts  revision card
Bar charts revision card
Puna Ripiye

Mean,Median and Mode Revision
Mean,Median and Mode Revision Mean,Median and Mode Revision
Mean,Median and Mode Revision
Puna Ripiye

Cumulative Frequency Revision
Cumulative Frequency RevisionCumulative Frequency Revision
Cumulative Frequency Revision
Puna Ripiye

Measures of spread revision
Measures of spread revision Measures of spread revision
Measures of spread revision
Puna Ripiye

Measures of Spread Revision
Measures of Spread Revision Measures of Spread Revision
Measures of Spread Revision
Puna Ripiye

Statistics & Probability
Statistics &  Probability Statistics &  Probability
Statistics & Probability
Puna Ripiye


More from Puna Ripiye (20)

Classification of Living & Non Living Things
Classification of Living & Non Living ThingsClassification of Living & Non Living Things
Classification of Living & Non Living Things

Classification of Living and Non Living things/Plants & Animals
Classification of Living and Non Living things/Plants & AnimalsClassification of Living and Non Living things/Plants & Animals
Classification of Living and Non Living things/Plants & Animals

Revision cards on financial mahts [autosaved]
Revision cards on financial mahts [autosaved]Revision cards on financial mahts [autosaved]
Revision cards on financial mahts [autosaved]

Calculus revision card
Calculus  revision cardCalculus  revision card
Calculus revision card

Full document (1)
Full document (1)Full document (1)
Full document (1)

Surds revision card
Surds  revision cardSurds  revision card
Surds revision card

Variation revision card
Variation  revision cardVariation  revision card
Variation revision card

Probability revision card
Probability revision cardProbability revision card
Probability revision card

Modular arithmetic revision card
Modular arithmetic  revision cardModular arithmetic  revision card
Modular arithmetic revision card

Calculus revision card
Calculus  revision cardCalculus  revision card
Calculus revision card

Pie charts revision card solved
Pie charts  revision card solvedPie charts  revision card solved
Pie charts revision card solved

Mean,median and mode revision card
Mean,median and mode revision cardMean,median and mode revision card
Mean,median and mode revision card

Histogram,frequency distribution revision card
Histogram,frequency distribution  revision cardHistogram,frequency distribution  revision card
Histogram,frequency distribution revision card

Cumulative frequency revision card
Cumulative frequency revision cardCumulative frequency revision card
Cumulative frequency revision card

Bar charts revision card
Bar charts  revision cardBar charts  revision card
Bar charts revision card

Mean,Median and Mode Revision
Mean,Median and Mode Revision Mean,Median and Mode Revision
Mean,Median and Mode Revision

Cumulative Frequency Revision
Cumulative Frequency RevisionCumulative Frequency Revision
Cumulative Frequency Revision

Measures of spread revision
Measures of spread revision Measures of spread revision
Measures of spread revision

Measures of Spread Revision
Measures of Spread Revision Measures of Spread Revision
Measures of Spread Revision

Statistics & Probability
Statistics &  Probability Statistics &  Probability
Statistics & Probability


Recently uploaded

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf
Dr. Mulla Adam Ali

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module
Celine George

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
PECB

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia

Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat  Leveraging AI for Diversity, Equity, and InclusionExecutive Directors Chat  Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
TechSoup

S1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptxS1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptx
tarandeep35

PIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf IslamabadPIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf Islamabad
AyyanKhan40

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Dr. Vinod Kumar Kanvaria

World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024
ak6969907

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT
simonomuemu

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology
paigestewart1632

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
IreneSebastianRueco1

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design
amberjdewit93

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
Priyankaranawat4


Recently uploaded (20)

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx

Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat  Leveraging AI for Diversity, Equity, and InclusionExecutive Directors Chat  Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion

S1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptxS1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptx

PIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf IslamabadPIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf Islamabad

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...

World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdfANATOMY AND BIOMECHANICS OF HIP JOINT.pdf
ANATOMY AND BIOMECHANICS OF HIP JOINT.pdf


INDICES & LOGARITHMS

  • 1. TABLE OF CONTENTS List of Figures ..........................................................................................................................................2 Indices.....................................................................................................................................................3 First Law:.............................................................................................................................................3 Second Law: ........................................................................................................................................3 Third Law:............................................................................................................................................3 Fourth Law: .........................................................................................................................................4 Fifth Law:.............................................................................................................................................4 Fractional Indices:...............................................................................................................................4 Examples:............................................................................................................................................5 Logarithm................................................................................................................................................6 Relation between indices and logarithm............................................................................................7 Logarithm rules...................................................................................................................................7 Examples:............................................................................................................................................7 Multiplication using logarithm..........................................................................................................11 Division using logarithm....................................................................................................................11 Calculation of Power using Logarithm ..............................................................................................12 Calculation of Root using Logarithm.................................................................................................12 Anti-Logarithms.....................................................................................................................................13 Examples:..........................................................................................................................................15 Quiz ...................................................................................................................................................16
  • 2. LIST OF FIGURES Figure 1...................................................................................................................................................9 Figure 2.................................................................................................................................................10 Figure 3.................................................................................................................................................10 Figure 4.................................................................................................................................................13 Figure 5.................................................................................................................................................14 Figure 6.................................................................................................................................................14
  • 3. INDICES The plural of index is known as indices, where an index is used to compactly write a product or a number. In the expression , the index or exponent or power is “a” and the number ” is called the base. Laws of indices are used to manipulate the expressions with indices. There are total four laws of indices, each one of them is explained one by one as follow; First Law: When expressions with the same base are multiplied, the indices of all the expressions are to be added. In general, Let’s a = 4, b = 2 and x = 3; Then Second Law: When expressions with the same base are divided, the index of the expression in the denominator is subtracted from the index of the expression in the numerator. In general, Let’s a = 4, b = 2 and x = 3; Then Third Law: When the index of the expression is 0 then the whole expression become equal to 1. In general, 80 = 1
  • 4. Fourth Law: When the index of an expression is equal to a negative number, then the same expression with a positive index is written in a fraction form, with numerator equal to 1 and denominator equal to that specified expression. It can be explained with the following example; In general, Let’s a = 4 and x = 3; Fifth Law: When the power of the base is raised to another power then indices are to be multiplied. In general, (am )n = amn . Here the power or index “m” of the base “a” is raised to the power “n”, thus both the power are multiplied with each other. Let’s m = 2, n = 2 and a = 3; Fractional Indices: Fractional indices are represented by a base number with a fractional index or power or exponent. In general, a fractional index is in the form of . The index laws are also applicable to the fractional indices, for example squaring the expression means multiplying the index by 2. The fractional index is also known as positive square root and is represented by the symbol √. For example the square root of 4 is equal to 2. It can further be explained as follow; √ In order to simplify the expression,
  • 5. Thus √ Similarly √ , and so on. Examples: Simplify As ; Thus Simplify First of all we will simplify the expression in parenthesis; = = = Simplify
  • 6. Simplify √ √ Simplify LOGARITHM In the simplest way, Logarithm definition provides the answer of the following question. “How many of one number do we multiply to get another number?” For example: how many 4s do we multiply to get 64? Answer: 4x4x4 = 64, so we needed to multiply 3 of the 4s to get 64. Logarithm represents the above answer in the following format: log4 (64) = 3 The number we are multiplying is called the base. Thus we can rephrase our answer as, the logarithm of 64 with base 4 is equal to 3 or the log base 4 of 64 is 3. All Logarithms with the base 10 are known as common logarithms. There is no need to mention the base. For example: log 100 = 2
  • 7. In other words, it can also be written as log10 100 = 2 Relation between indices and logarithm As square root of a number is the inverse process to squaring a number; in the same way, taking a logarithm is the inverse process to taking a power. Considering previous example; log4(64) = 3 in exponential form can be written as 43 = 64. 4x4x4 = 43 = 64, the index of base 4 is 3, and it is equal to 64, while the same index 3 is the answer of log base 4 of 64. Logarithm rules Total three rules of logarithm will be discussed here. 1. log (a*b) = log a + log b, where the base will remains the same on both sides of equation. 2. log (a/b) = log a - log b, where the base will remains the same on both sides of equation. 3. Log (ab ) = b*log a, where the base will remains the same on both sides of equation. Examples: Find the value of x; log2 32 = x In exponential form; 32 = 25 Thus Log2 32 = 5, where x = 5 log2 x = 7 In exponential form; 27 = 128 Thus log2 128 = 7, where x = 128
  • 8. logx 25 = 2 In exponential form; 52 = 25 Thus Log5 25= 2, where x = 5 Log x = 3 As the base is not mentioned, so it is understood to be a common logarithm, hence it can be rewritten as; Log10 x = 3 It can be transformed as 103 = x In exponential form; 103 = 100 Thus the value of x=100 If we want to calculate the value of log105, then it can be written in a form of 10x = 5, where x lies between 0 and 1. In order to calculate such problems, we either need a calculator or a logarithmic table. Log table is based on common logarithm. Before discussing the log table, lets first discus the properties of logarithm, then we will move on to the log tables, because some of the properties are required for solving questions based on log table. Let's say we want to find the log base 10 of 15 on a common log table. 15 lies between 10 (101 ) and 100 (102 ), so its logarithm will lie between 1 and 2, or be 1.something. 150 lies between 100 (102 ) and 1000 (103 ), so its logarithm will lie between 2 and 3, or be 2.something. The .something is called the mantissa. What comes before the decimal point (1 in the first example, 2 in the second) is known as characteristic. In figure 1, the leftmost column will show the first two or, for some large log tables, three digits of the number whose logarithm you're looking up.
  • 9. Figure 1 If you're looking up the log of 15.27 in a normal log table, go to the row marked 15 in figure 1. If you're looking up the log of 2.57, go to the row marked 25. Sometimes the numbers in this row will have a decimal point, so you'll look up 2.5 rather than 25. You can ignore this decimal point, as it won't affect your answer. Also ignore any decimal points in the number whose logarithm you're looking up, as the mantissa for the log of 1.527 is no different from that of the log of 152.7. On the appropriate row, slide your finger over to the appropriate column. This column will be the one marked with the next digit of the number whose logarithm you're looking up. For example, in figure 2, if you want to find the log of 15.27, your finger will be on the row marked 15. Slide your finger along that row to the right to find column 2. You will be pointing at the number 1818. Write this down.
  • 10. Figure 2 In figure 3, the log table has a mean difference table; hence slide your finger over to the column in that table marked with the next digit of the number you're looking up. For 15.27, this number is 7. Your finger is currently on row 15 and column 2. Slide it over to row 15 and mean differences column 7. You will be pointing at the number 20. Write this down. Figure 3
  • 11. Add the numbers found in the two preceding steps together. For 15.27, you will get 1838. This is the mantissa of the logarithm of 15.27. 1818 + 20 = 1838 Since 15 is between 10 and 100 (101 and 102 ), the log of 15 must be between 1 and 2, so 1.something, hence the characteristic is 1. Combine the characteristic with the mantissa to get your final answer. Finally the log of 15.27 is 1.1838. Multiplication using logarithm The sum of the logarithms of two different numbers is the logarithm of the product of those numbers. In general, For example, if you want to multiply 15.27 and 48.54, you would find the log of 15.27 to be 1.1838 and the log of 48.54 to be 1.6861. In this example, add 1.1838 and 1.6861 to get 2.8699. This number is the logarithm of your answer. You can do this by finding the number in the body of the table closest to the mantissa of this number (8699). The more efficient and reliable method, however, is to find the answer in the table of anti-logarithms, as described in the method above. For this example, you will get 741.1. Division using logarithm The difference of the logarithms of two different numbers is the logarithm of the division of those numbers. In general, For example, if you want to divide 15.27 over 48.54, you would find the log of 15.27 to be 1.1838 and the log of 48.54 to be 1.6861. In this example, subtract 1.1838 from 1.6861 to get 0.5023. This number is the logarithm of your answer. The more efficient and reliable method, however, is to find the answer in the table of anti- logarithms, as described in the method above. For this example, you will get 3.179.
  • 12. Calculation of Power using Logarithm In general, log (a) = n or 10n = a; In order to calculate the answer of 21.532 , first we take the log of the number without its exponent or power using log table; log ( 21.53) = 1.333 Now in exponential form, the expression becomes; 101.333 = 21.53 Squaring both sides of the equation; (101.333 )2 = 21.532 Using the indices property; (ax )y = ax*y Thus 102.666 = 21.532 Now the anti-log of 2.666 will give us the final answer of 21.532 , which is 463.44. Calculation of Root using Logarithm The same method of calculating power using logarithm is applicable to root calculation. A simple root (√) is equal to power 1/2, while ( is equal to power 1/3 and so on. Let’s have an example of using logarithm to calculate the value of 850. First of all convert 850 into exponential form as; 850 = 8501/4 Now calculate the logarithm of 850 using log table; log (850) = 2.9294 In exponential form, log (850) = 2.9294 can be written as 102.9294 = 850 Thus 850 = 8501/4 = (102.9294 )1/4 =102.9294 *1/4 = 100.73235 Finally the anti-log of 0.73235 is 5.3994, which is the final answer of 850.
  • 13. ANTI-LOGARITHMS Use Anti-log table, when you have the log of a number but not the number itself. In the formula 10n = x, n is the common log, or base-ten log, of x. If you have x, find n using the log table. If you have n, find x using the anti-log table. Characteristic is the number before the decimal point. If you're looking up the anti-log of 2.8699, the characteristic is 2. Mentally remove it from the number you're looking up, but make sure to write it down so you don't forget it. Find the row that matches the first part of the mantissa. In 2.8699, the mantissa is .8699. Most anti-log tables, like most log tables, have two digits in the leftmost column as shown in figure 4, so run your finger down that column until you find .86. Figure 4 Slide your finger over to the column marked with the next digit of the mantissa. For 2.8699, slide your finger along the row marked .86 to find the intersection with column 9. This is shown as 7396 in figure 5. Write this down.
  • 14. Figure 5 The anti-log table shown in figure 6 has a table of mean differences; thus slide your finger over to the column in that table marked with the next digit of the mantissa. Make sure to keep your finger in the same row. Figure 6
  • 15. In this case, you will slide your finger over to the last column in the table, column 9. The intersection of row .86 and mean differences column 9 is 15. Write that down. Add the two numbers from the two previous steps. In our example, these are 7396 and 15. Add them together to get 7411. Use the characteristic to place the decimal point. Our characteristic was 2. This means that the answer is between 102 and 103 , or between 100 and 1000. In order for the number 7411 to fall between 100 and 1000, the decimal point must go after three digits, so that the number is about 700 rather than 70, which is too small, or 7000, which is too big. So the final answer is 741.1. Thus the anti-log of 2.8699 is 741.1, i.e. Anti-log (2.8699) = 741.1 Or 102.8699 = 741.1 Examples: Calculate the anti-log of 2.80. The characteristic here is 2, while the mantissa is 80. The .80 comes across 6310 under column 0. Use the characteristic to place the decimal point. Our characteristic was 2. This means that the answer is between 102 and 103 , or between 100 and 1000. In order for the number 6310 to fall between 100 and 1000, the decimal point must go after three digits, thus the final answer is 631.0. Calculate the anti-log of 1.943. The characteristic here is 1, while the mantissa is 943. The .94 comes across 8770 under column 3. Use the characteristic to place the decimal point. Our characteristic was 1. This means that the answer is between 101 and 102 , or between 10 and 100. In order for the number 8770 to fall between 10 and 100, the decimal point must go after two digits, thus the final answer is 87.70.
  • 16. Calculate the anti-log of 0.9244. The characteristic here is 0, while the mantissa is 9244. The .92 comes across 8395 under column 4. For an anti-log table with another table of mean differences, the value that comes across the mantissa fourth digit 4 in the same row of .92 is 8. Now addition of 8395 and 8 gives 8403. Use the characteristic to place the decimal point. Our characteristic was 0. This means that the answer is between 100 and 101 , or between 1 and 10. In order for the number 8403 to fall between 1 and 10, the decimal point must go after one digit, thus the final answer is 8.403. Calculate the anti-log of 1.8375. The characteristic here is 1, while the mantissa is 8375. The .83 comes across 6871 under column 7. For an anti-log table with another table of mean differences, the value that comes across the mantissa fourth digit 5 in the same row of .83 is 8. Now addition of 6871 and 8 gives 6879. Use the characteristic to place the decimal point. Our characteristic was 1. This means that the answer is between 101 and 102 , or between 10 and 100. In order for the number 6879 to fall between 10 and 100, the decimal point must go after two digits, thus the final answer is 68.79. Calculate the anti-log of 3.8888. The characteristic here is 3, while the mantissa is 8888. The .88 comes across 7727 under column 8. For an anti-log table with another table of mean differences, the value that comes across the mantissa fourth digit 8 in the same row of .88 is 14. Now addition of 7727 and 14 gives 7741. Use the characteristic to place the decimal point. Our characteristic was 3. This means that the answer is between 103 and 104 , or between 1000 and 10000. In order for the number 7741 to fall between 1000 and 10000, the decimal point must go after four digits, thus the final answer is 7741. Quiz 1. find the value of x; √ (a) 8 (b) 4 (c) 2 (d) 16 (e) 32 2. √ √ (a) 14 (b) 12 (c) 10 (d) 16 (e) 20
  • 17. 3. The simplified form of (a) (b) (c) (d) (e) 4. Which of the following represents (a) (b) √ (c) √ (d) √ (e) √ 5. Which of the following is the correct value of x in ? (a) 50 (b) 100 (c) 10 (d) 1000 (e) 500 6. Using the log table, what is the value of 5.30? (a) 0.7250 (b) 0.7242 (c) 0.7240 (d) 0.7252 (e) 0.7245 7. Solve for correct value of x. (a) 15/2 (b) 15 (c) 2 (d) 2/15 (e) 3/15 8. Using anti-log table, which of the following is the correct value of 1.59333? (a) 39 (b) 39.2 (c) 3.9 (d) 3.92 (e) 3.0 9. Using anti-log table, which of the following is the correct value of 0.21? (a) 1.62 (b) 1.72 (c) 1.82 (d) 1.92 (e) 2.02 10. Using anti-log table, which of the following is the correct value of 0.1234? (a) 1.3268 (b) 1.3286 (c) 1.32 (d) 1.86 (e) 1.8632
