This document discusses the advancements in NVMe technology and its integration with Linux, highlighting performance metrics and the benefits of SSDs over traditional HDDs. It includes benchmarks comparing NVMe and SAS in terms of latency, CPU utilization, and IOPS, emphasizing the efficiency gains with appropriate hardware utilization. Additionally, it addresses NoSQL databases like Aerospike and Couchbase, illustrating their performance advantages with NVMe storage.

1. NvmExpressTM
inLinux*
Thenextstepforstorage
Keith Busch (NVMe architecture and implementation)
Frank Ober (Solution Results on NVMe)

2. 2
1
10
100
1000
10000
100000
1000000
1990 2000 2010 2020
RELATIVEPERFORMANCE
Logscale

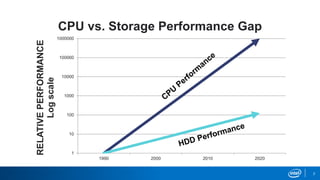

CPU vs. Storage Performance Gap

3. 3

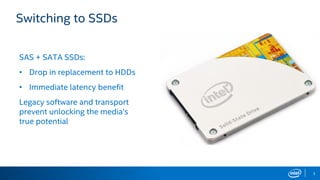

Switching to SSDs
SAS + SATA SSDs:
• Drop in replacement to HDDs
• Immediate latency benefit
Legacy software and transport
prevent unlocking the media’s
true potential

4. 4

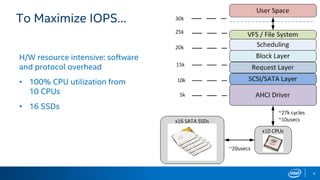

To Maximize IOPS…
H/W resource intensive: software
and protocol overhead
• 100% CPU utilization from
10 CPUs
• 16 SSDs

5. 5
PCIe* Storage Standardization (since 2009)
TM

6. 6
NVM ExpressTM
and Linux*
Integrated into mainline Linux*
kernel since 3.3 (March 2012)
Backports to previous Linux*
kernels supported by various OS
vendors
TM

7. 7

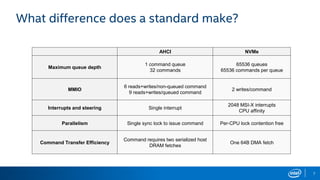

What difference does a standard make?
AHCI NVMe
Maximum queue depth
1 command queue
32 commands
65536 queues
65536 commands per queue
MMIO
6 reads+writes/non-queued command
9 reads+writes/queued command
2 writes/command
Interrupts and steering Single interrupt
2048 MSI-X interrupts
CPU affinity
Parallelism Single sync lock to issue command Per-CPU lock contention free
Command Transfer Efficiency
Command requires two serialized host
DRAM fetches
One 64B DMA fetch

8. 8

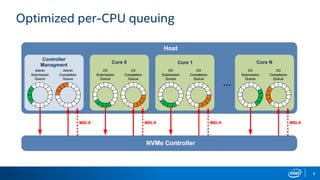

Optimized per-CPU queuing

9. 9

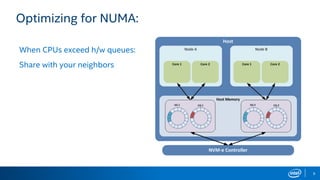

Optimizing for NUMA:
When CPUs exceed h/w queues:
Share with your neighbors

10. 10

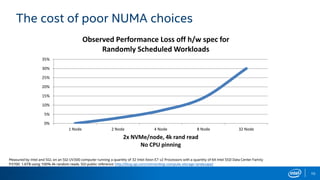

The cost of poor NUMA choices
0%
5%
10%
15%
20%
25%
30%
35%
1 Node 2 Node 4 Node 8 Node 32 Node
2x NVMe/node, 4k rand read
No CPU pinning
Observed Performance Loss off h/w spec for
Randomly Scheduled Workloads
Measured by Intel and SGI, on an SGI UV300 computer running a quantity of 32 Intel Xeon E7 v2 Processors with a quantity of 64 Intel SSD Data Center Family
P3700 1.6TB using 100% 4k random reads. SGI public reference: http://blog.sgi.com/reinventing-compute-storage-landscape/

11. 11

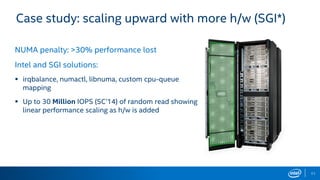

Case study: scaling upward with more h/w (SGI*)
NUMA penalty: >30% performance lost
Intel and SGI solutions:
 irqbalance, numactl, libnuma, custom cpu-queue
mapping
 Up to 30 Million IOPS (SC’14) of random read showing
linear performance scaling as h/w is added

12. 12

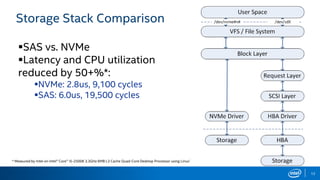

Storage Stack Comparison
SAS vs. NVMe
Latency and CPU utilization
reduced by 50+%*:
NVMe: 2.8us, 9,100 cycles
SAS: 6.0us, 19,500 cycles
* Measured by Intel on Intel® Core™ i5-2500K 3.3GHz 6MB L3 Cache Quad-Core Desktop Processor using Linux*

13. 13

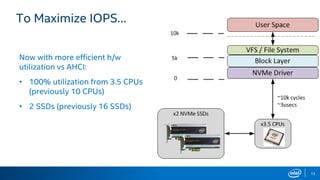

To Maximize IOPS…
Now with more efficient h/w
utilization vs AHCI:
• 100% utilization from 3.5 CPUs
(previously 10 CPUs)
• 2 SSDs (previously 16 SSDs)

14. 14

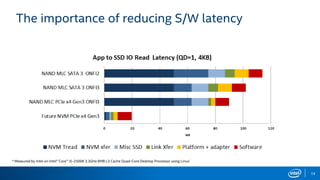

The importance of reducing S/W latency
* Measured by Intel on Intel® Core™ i5-2500K 3.3GHz 6MB L3 Cache Quad-Core Desktop Processor using Linux*

15. 15
Looking ahead: removing interrupts
6.21 6.67
4.91 5.01
1.47 1.42
4.57 3.33
4.1
2.63
2.91
1.48
10.78
10
9.01
7.64
4.38
2.9
0
2
4
6
8
10
12
4KB 512B 4KB 512B 4KB 512B
C-State Async Sync
I/OCompletionLatencyinusec
Hardware
Operating
System

16. NvmexpressTM
inLinux*
ModernNoSQLDatabasesFORSSDandFLASH
Frank Ober
http://communities.intel.com/people/FrankOber
@fxober / #IntelSSD

17. 17

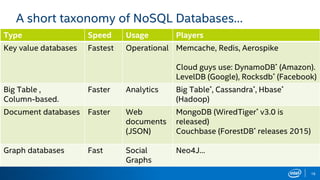

18. A short taxonomy of NoSQL Databases…
Type Speed Usage Players
Key value databases Fastest Operational Memcache, Redis, Aerospike
Cloud guys use: DynamoDB* (Amazon).
LevelDB (Google), Rocksdb* (Facebook)
Big Table ,
Column-based.
Faster Analytics Big Table*, Cassandra*, Hbase*
(Hadoop)
Document databases Faster Web
documents
(JSON)
MongoDB (WiredTiger* v3.0 is
released)
Couchbase (ForestDB* releases 2015)
Graph databases Fast Social
Graphs
Neo4J…
18

19. 19
Aerospike an In-Memory, Flash Optimized NoSQL database

20. Environment
3 Clients
You need to spread the load
Here Dell 620 dual sockets are used
DUAL 10Gbit
networks
Dell R730xd Server System
One primary (dual system with replication testing)
Dual CPU socket, rack mountable server system
Dell A03 Board, Product Name: 0599V5
CPU Model used
2 each - Intel(R) Xeon(R) CPU E5-2699 v3 @ 2.30GHz max frequency: 4Ghz
18 cores, 36 logical processors per CPU
36 cores, 72 logical processors total
DDR4 DRAM Memory
128GB installed
BIOS Version
Dell* 1.0.4 , 8/28/2014
Network Adapters
Intel® Ethernet Converged 10G X520 – DA2 (dual port PCIe add-in card)
1 – embedded 1G network adapter for management
2 – 10GB port for workload
Storage Adapters
None
Internal Drives and Volumes
/ (root) OS system – Intel SSD for Data Center Family S3500 – 480GB Capacity
/dev/nvme0n1 Intel SSD for Data Center Family P3700 – 1.6TB Capacity, x4 PCIe AIC
/dev/nvme1n1 Intel SSD for Data Center Family P3700 - 1.6TB Capacity, x4 PCIe AIC
/dev/nvme2n1 Intel SSD for Data Center Family P3700 - 1.6TB Capacity, x4 PCIe AIC
/dev/nvme3n1 Intel SSD for Data Center Family P3700 - 1.6TB Capacity, x4 PCIe AIC
6.4TB of raw capacity for Aerospike database namespaces
Aerospike
Community
Version 3.5.8
20

21. Aerospike results
The reason these tables on NVM are so fast is partially the small block. It
also affects network usage… and costs of clusters so be careful with
replication and object sizes.
Write mixes at 50/50 take the numbers down extensively.
https://communities.intel.com/community/itpeernetwork/blog/2015/02/17/r
eaching-one-million-database-transactions-per-second-aerospike-intel-ssd
Record Size
Aerospike
Number
of clients
threads
Total TPS Percent
below
1ms
(Reads)
Percent
below
1ms
(Writes)
Std Dev
of Read
Latency
(ms)
Std Dev
of Write
Latency
(ms)
Approx.
Database
size
1k 576 1,124,875 97.16 99.9 0.79 0.35 100G
2k 448 875,446 97.33 99.57 0.63 0.18 200G
4k 384 581,272 97.22 99.85 0.63 0.05 400G
1k
(replication)
512 1,003,471 96.11 98.98 0.87 0.30 200G
Record Size
iostat
Read MB/sec Write MB/sec Avg queue
size on SSD
Average
drive latency
CPU Busy %
1k 418 29 31 0.11 93
2k 547 43 27 0.13 81
4k 653 52 20 0.16 52
1k
(replication)
396 51 30 0.13 94
Results measured by Intel and Aerospike. For tests and configurations, see slide 22.
21

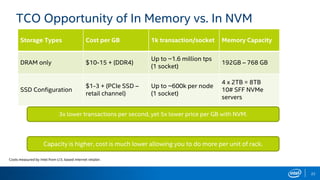

22. TCO Opportunity of In Memory vs. In NVM
Storage Types Cost per GB 1k transaction/socket Memory Capacity
DRAM only $10-15 + (DDR4)
Up to ~1.6 million tps
(1 socket)
192GB – 768 GB
SSD Configuration
$1-3 + (PCIe SSD –
retail channel)
Up to ~600k per node
(1 socket)
4 x 2TB = 8TB
10# SFF NVMe
servers
3x lower transactions per second, yet 5x lower price per GB with NVM.
Capacity is higher, cost is much lower allowing you to do more per unit of rack.
Costs measured by Intel from U.S. based internet retailer.
22

23. 23
Now let’s look at NoSQL – Web Document Store
And Couchbase 4.0…

24. 24

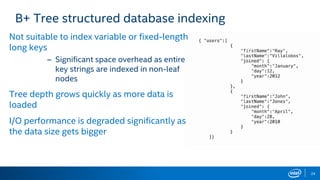

B+ Tree structured database indexing
Not suitable to index variable or fixed-length
long keys
– Significant space overhead as entire
key strings are indexed in non-leaf
nodes
Tree depth grows quickly as more data is
loaded
I/O performance is degraded significantly as
the data size gets bigger

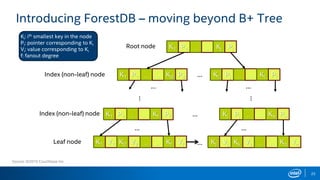

25. Introducing ForestDB – moving beyond B+ Tree
Ki: ith smallest key in the node
Pi: pointer corresponding to Ki
Vi: value corresponding to Ki
f: fanout degree
K1 P1 … … Kd Pd
K1 V1 K2 V2 … … Kf Vf …
Index (non-leaf) node
Leaf node
… Kj Pj … … Kl Pl
K1 P1 … … Kj Pj
Root node
…
…
K1 P1 … … Kf Pf Kj Pj … … Kn Pn
…
… …
… …
Kj Vj Kk Vk … … Kn Vn
Index (non-leaf) node
Source: ©2015 Couchbase Inc.
25

26. 26

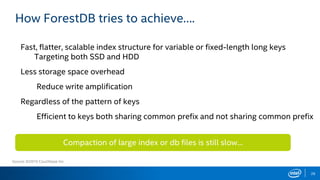

How ForestDB tries to achieve….
Fast, flatter, scalable index structure for variable or fixed-length long keys
Targeting both SSD and HDD
Less storage space overhead
Reduce write amplification
Regardless of the pattern of keys
Efficient to keys both sharing common prefix and not sharing common prefix
Compaction of large index or db files is still slow…
Source: ©2015 Couchbase Inc.

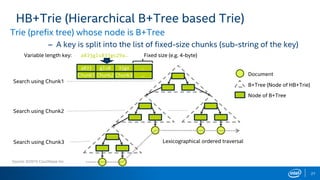

27. Trie (prefix tree) whose node is B+Tree
– A key is split into the list of fixed-size chunks (sub-string of the key)
HB+Trie (Hierarchical B+Tree based Trie)
Variable length key: Fixed size (e.g. 4-byte)a83jgls83jgo29a…
07/26
Lexicographical ordered traversal
Search using Chunk1
Document
B+Tree (Node of HB+Trie)
Node of B+Tree
Chunk1 Chunk2 Chunk3 …
a83j gls8 3jgo …
Search using Chunk2
Search using Chunk3
07/26
Source: ©2015 Couchbase Inc.
27

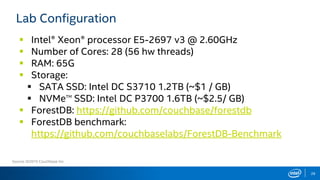

28.  Intel® Xeon® processor E5-2697 v3 @ 2.60GHz
 Number of Cores: 28 (56 hw threads)
 RAM: 65G
 Storage:
 SATA SSD: Intel DC S3710 1.2TB (~$1 / GB)
 NVMeTM
SSD: Intel DC P3700 1.6TB (~$2.5/ GB)
 ForestDB: https://github.com/couchbase/forestdb
 ForestDB benchmark:
https://github.com/couchbaselabs/ForestDB-Benchmark
28
Lab Configuration
Source: ©2015 Couchbase Inc.

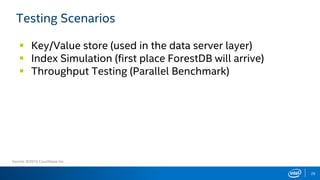

29. Testing Scenarios
 Key/Value store (used in the data server layer)
 Index Simulation (first place ForestDB will arrive)
 Throughput Testing (Parallel Benchmark)
Source: ©2015 Couchbase Inc.
29

30. Summary
K/V Store Indexing
Parallel
Throughput
Benefits
SATA NVMe SATA NVMe SATA NVMe
Read
Throughput
16678 25302 13987 20341 30755 47345 Up to 50%
Write
Throughput
4170 6325 3497 5209 7282 63946 Up 9x
95% Read
Latency
1.745 1.136 1.853 1.254 4.0 7.5 Some work
95% Write
Latency
264 188 276 216 1934 270 Awesome
Results measured by Intel and Couchbase Inc. For tests and configurations, see slide 30.
30

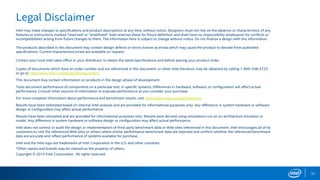

31. Legal Disclaimer
