- 1. FLASH FOR THEREAL WORLD SEPARATE HYPE FROM REALITY

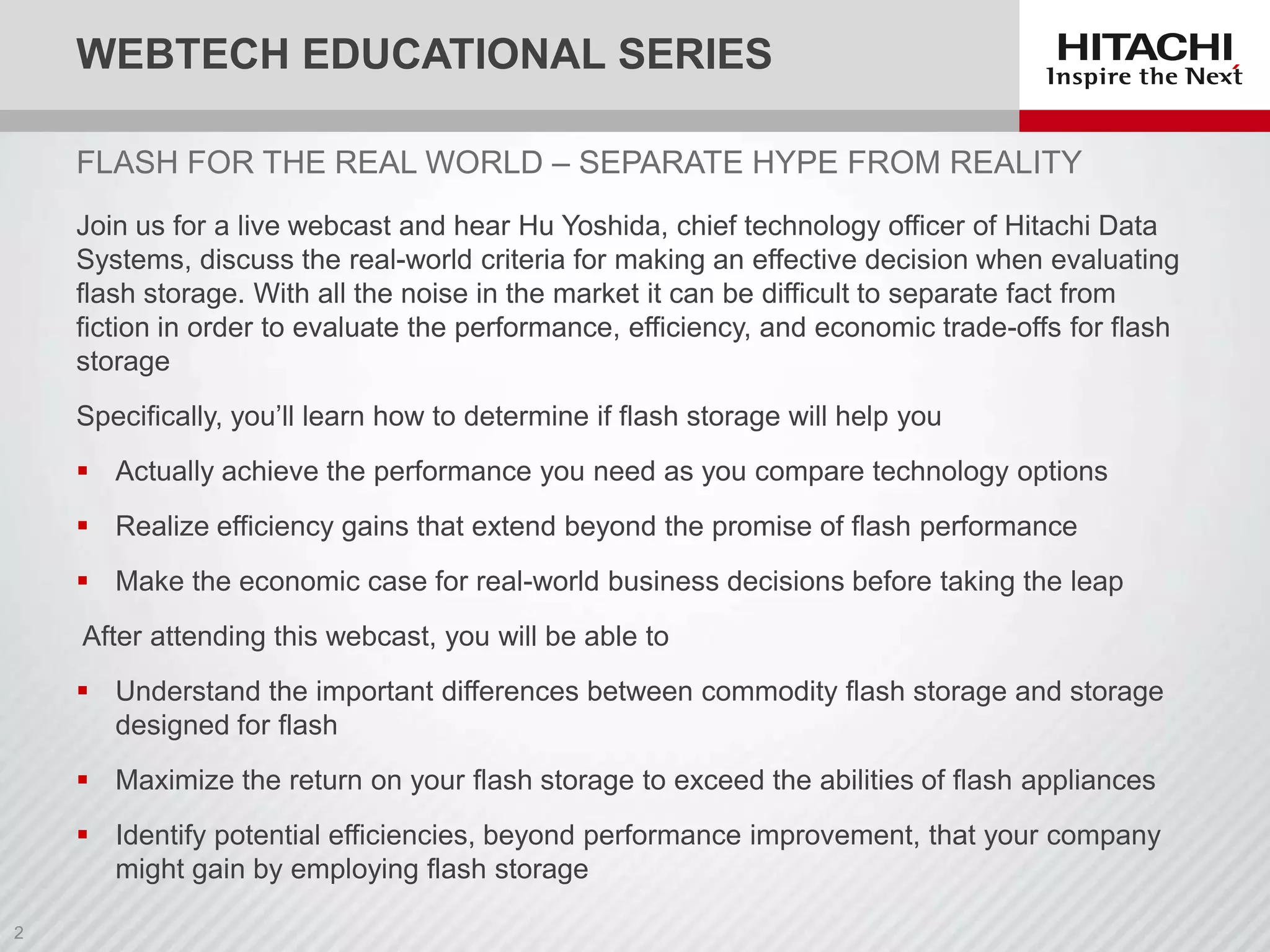

- 2. WEBTECH EDUCATIONAL SERIES FLASHFOR THE REAL WORLD – SEPARATE HYPE FROM REALITY Join us for a live webcast and hear Hu Yoshida, chief technology officer of Hitachi Data Systems, discuss the real-world criteria for making an effective decision when evaluating flash storage. With all the noise in the market it can be difficult to separate fact from fiction in order to evaluate the performance, efficiency, and economic trade-offs for flash storage Specifically, you’ll learn how to determine if flash storage will help you Actually achieve the performance you need as you compare technology options Realize efficiency gains that extend beyond the promise of flash performance Make the economic case for real-world business decisions before taking the leap After attending this webcast, you will be able to Understand the important differences between commodity flash storage and storage designed for flash Maximize the return on your flash storage to exceed the abilities of flash appliances Identify potential efficiencies, beyond performance improvement, that your company might gain by employing flash storage

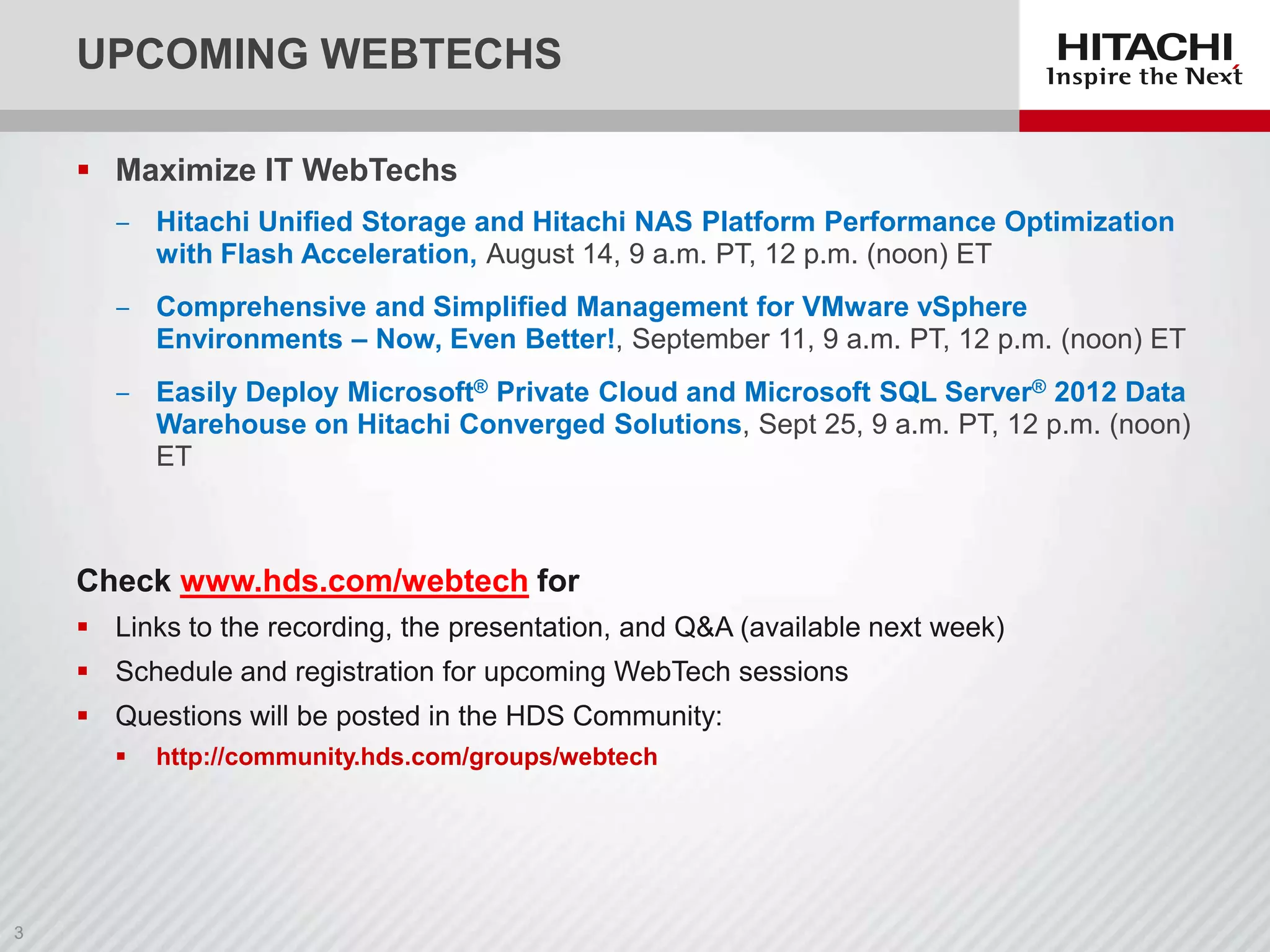

- 3. UPCOMING WEBTECHS MaximizeIT WebTechs ‒ Hitachi Unified Storage and Hitachi NAS Platform Performance Optimization with Flash Acceleration, August 14, 9 a.m. PT, 12 p.m. (noon) ET ‒ Comprehensive and Simplified Management for VMware vSphere Environments – Now, Even Better!, September 11, 9 a.m. PT, 12 p.m. (noon) ET ‒ Easily Deploy Microsoft® Private Cloud and Microsoft SQL Server® 2012 Data Warehouse on Hitachi Converged Solutions, Sept 25, 9 a.m. PT, 12 p.m. (noon) ET Check www.hds.com/webtech for Links to the recording, the presentation, and Q&A (available next week) Schedule and registration for upcoming WebTech sessions Questions will be posted in the HDS Community: http://community.hds.com/groups/webtech
- 4. FLASH FOR THEREAL WORLD SEPARATE HYPE FROM REALITY

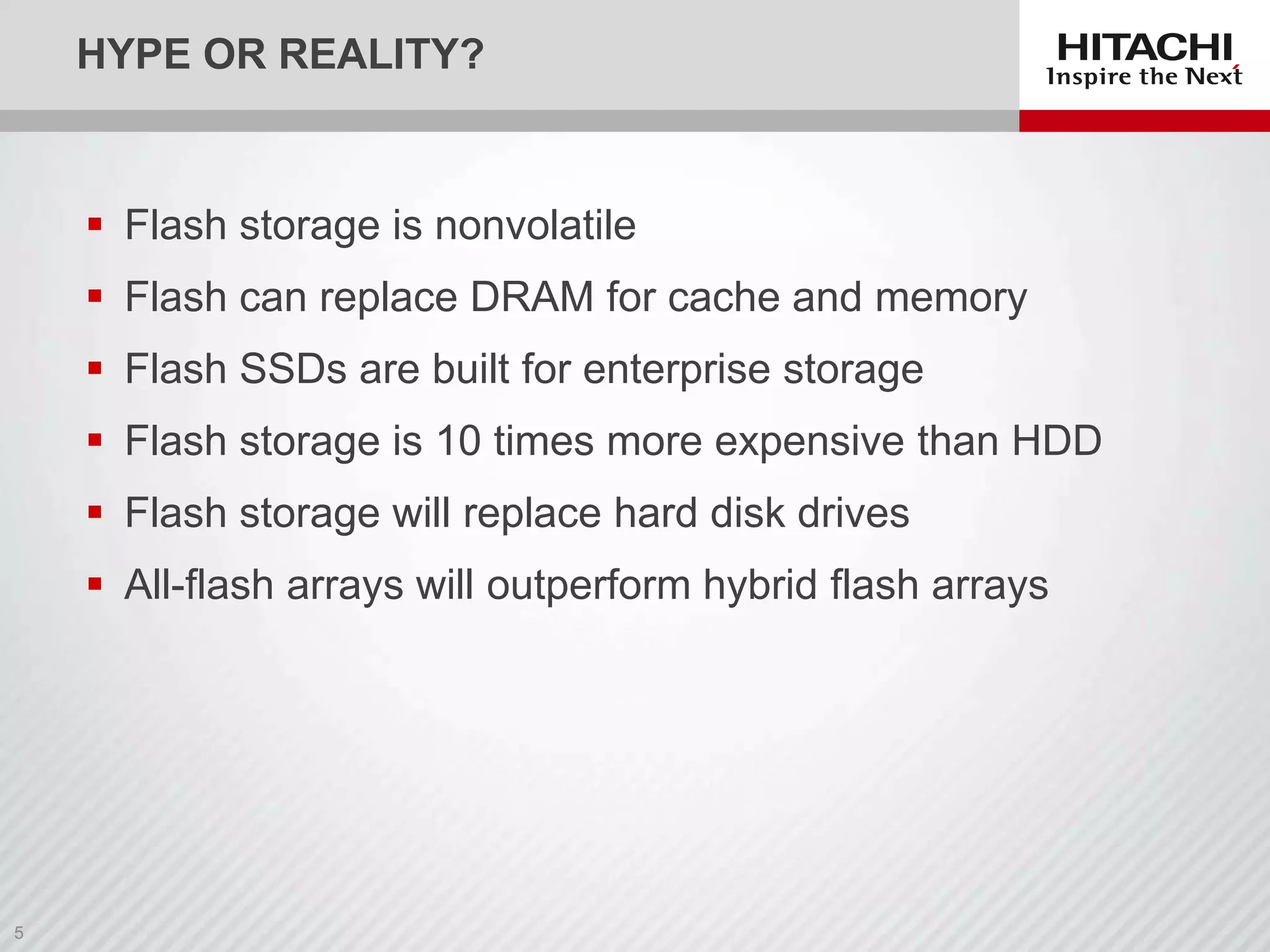

- 5. HYPE OR REALITY? Flash storage is nonvolatile Flash can replace DRAM for cache and memory Flash SSDs are built for enterprise storage Flash storage is 10 times more expensive than HDD Flash storage will replace hard disk drives All-flash arrays will outperform hybrid flash arrays

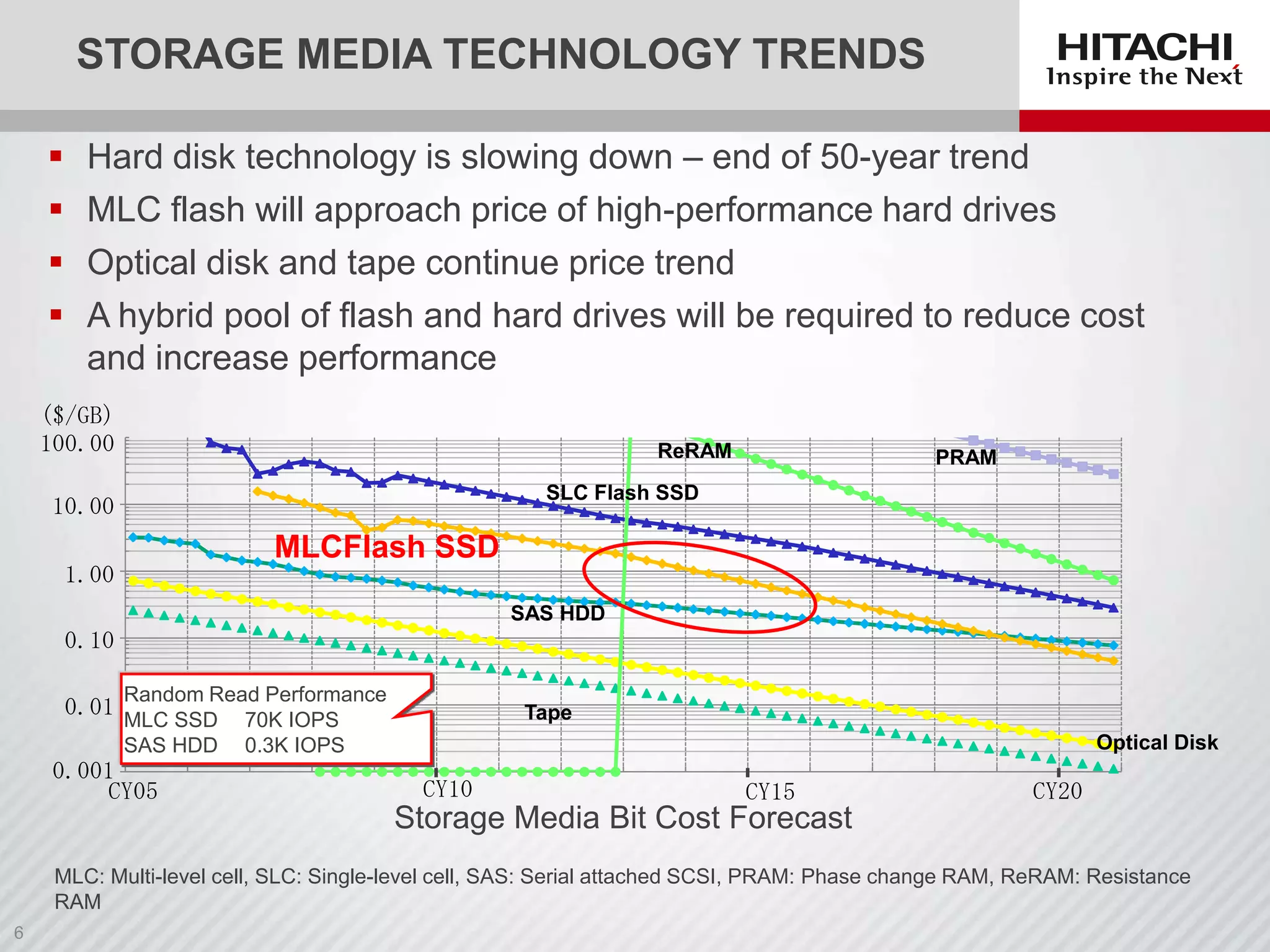

- 6. STORAGE MEDIA TECHNOLOGYTRENDS Hard disk technology is slowing down – end of 50-year trend MLC flash will approach price of high-performance hard drives Optical disk and tape continue price trend A hybrid pool of flash and hard drives will be required to reduce cost and increase performance ($/GB) 100.00 ReRAM PRAM SLC Flash SSD 10.00 MLCFlash SSD 1.00 SAS HDD 0.10 Random Read Performance 70K IOPS SAS HDD 0.3K IOPS 0.01 MLC SSD 0.001 CY05 Tape Optical Disk CY10 CY15 CY20 Storage Media Bit Cost Forecast MLC: Multi-level cell, SLC: Single-level cell, SAS: Serial attached SCSI, PRAM: Phase change RAM, ReRAM: Resistance RAM

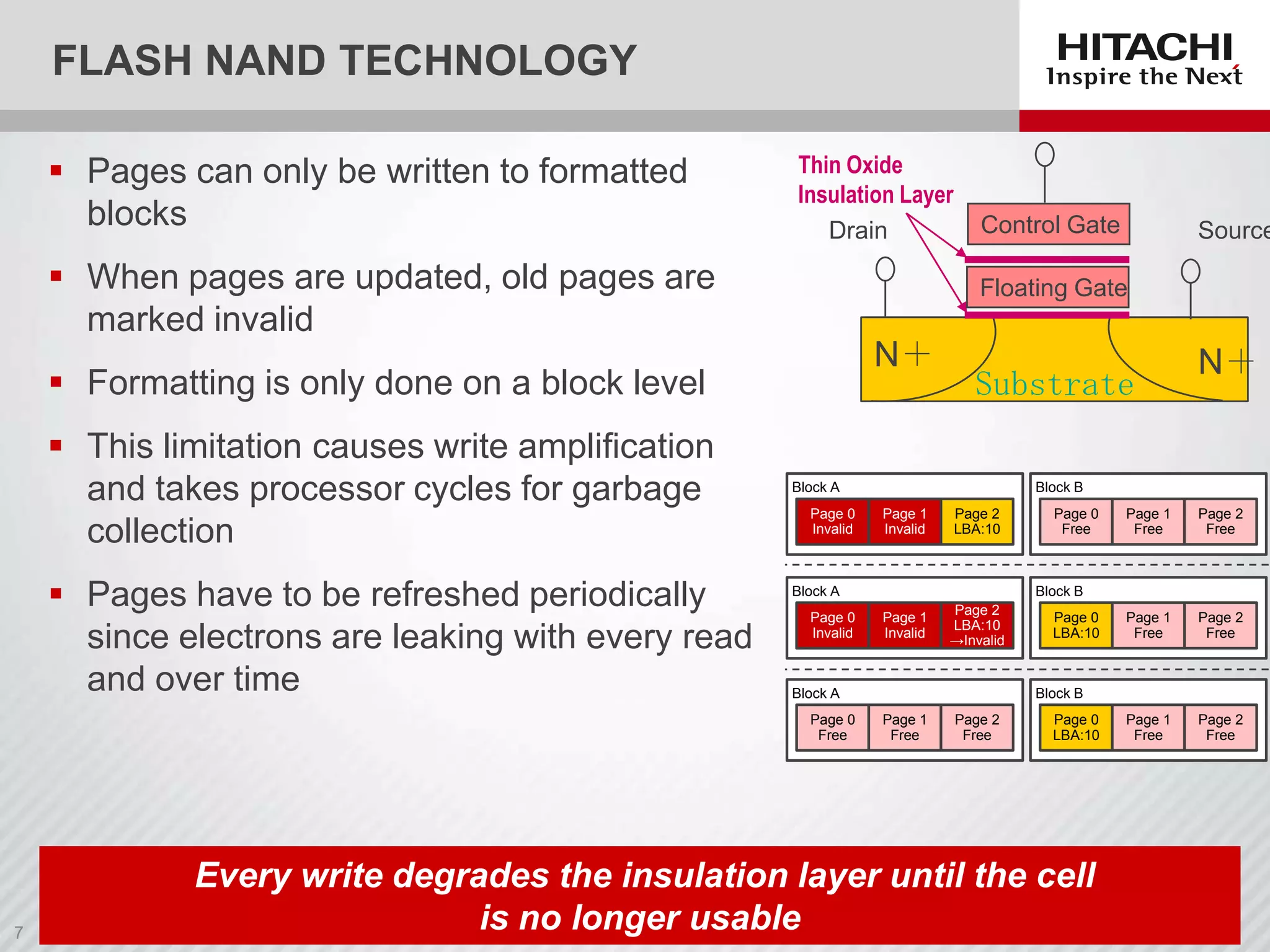

- 7. FLASH NAND TECHNOLOGY Pages can only be written to formatted blocks Thin Oxide Insulation Layer Drain When pages are updated, old pages are marked invalid Pages have to be refreshed periodically since electrons are leaking with every read and over time Source Floating Gate N＋ Formatting is only done on a block level This limitation causes write amplification and takes processor cycles for garbage collection Control Gate Substrate Block A Page 0 Invalid Block B Page 1 Invalid Page 2 LBA:10 Page 1 Invalid Page 2 LBA:10 →Invalid Block A Page 0 Invalid Page 0 Free Page 1 Free Page 2 Free Page 1 Free Page 2 Free Page 1 Free Page 2 Free Block B Block A Page 0 Free N＋ Page 0 LBA:10 Block B Page 1 Free Page 2 Free Page 0 LBA:10 Every write degrades the insulation layer until the cell is no longer usable

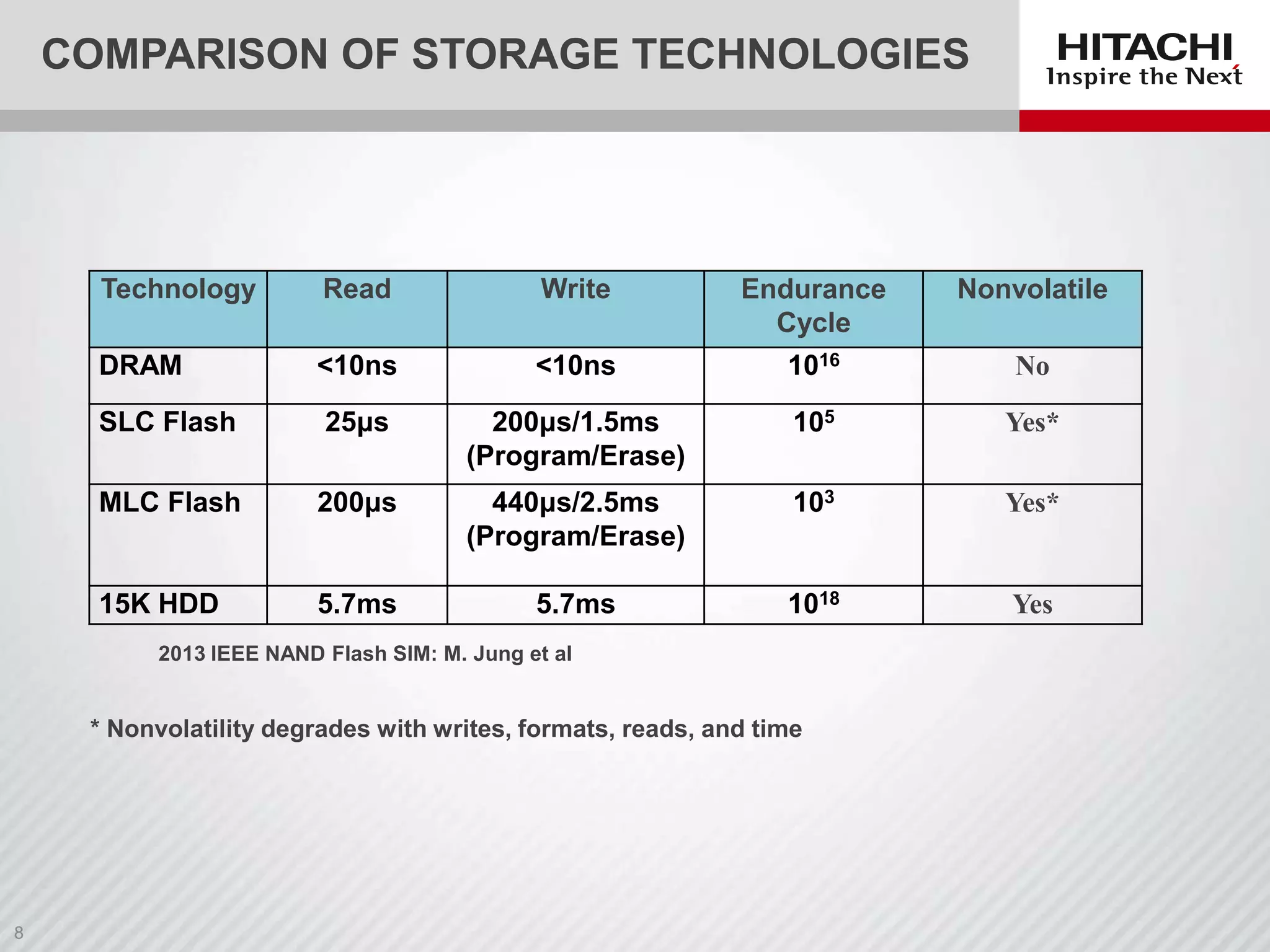

- 8. COMPARISON OF STORAGETECHNOLOGIES Technology Read Write Endurance Cycle Nonvolatile DRAM <10ns <10ns 1016 No SLC Flash 25μs 200μs/1.5ms (Program/Erase) 105 Yes* MLC Flash 200μs 440μs/2.5ms (Program/Erase) 103 Yes* 15K HDD 5.7ms 5.7ms 1018 Yes 2013 IEEE NAND Flash SIM: M. Jung et al * Nonvolatility degrades with writes, formats, reads, and time

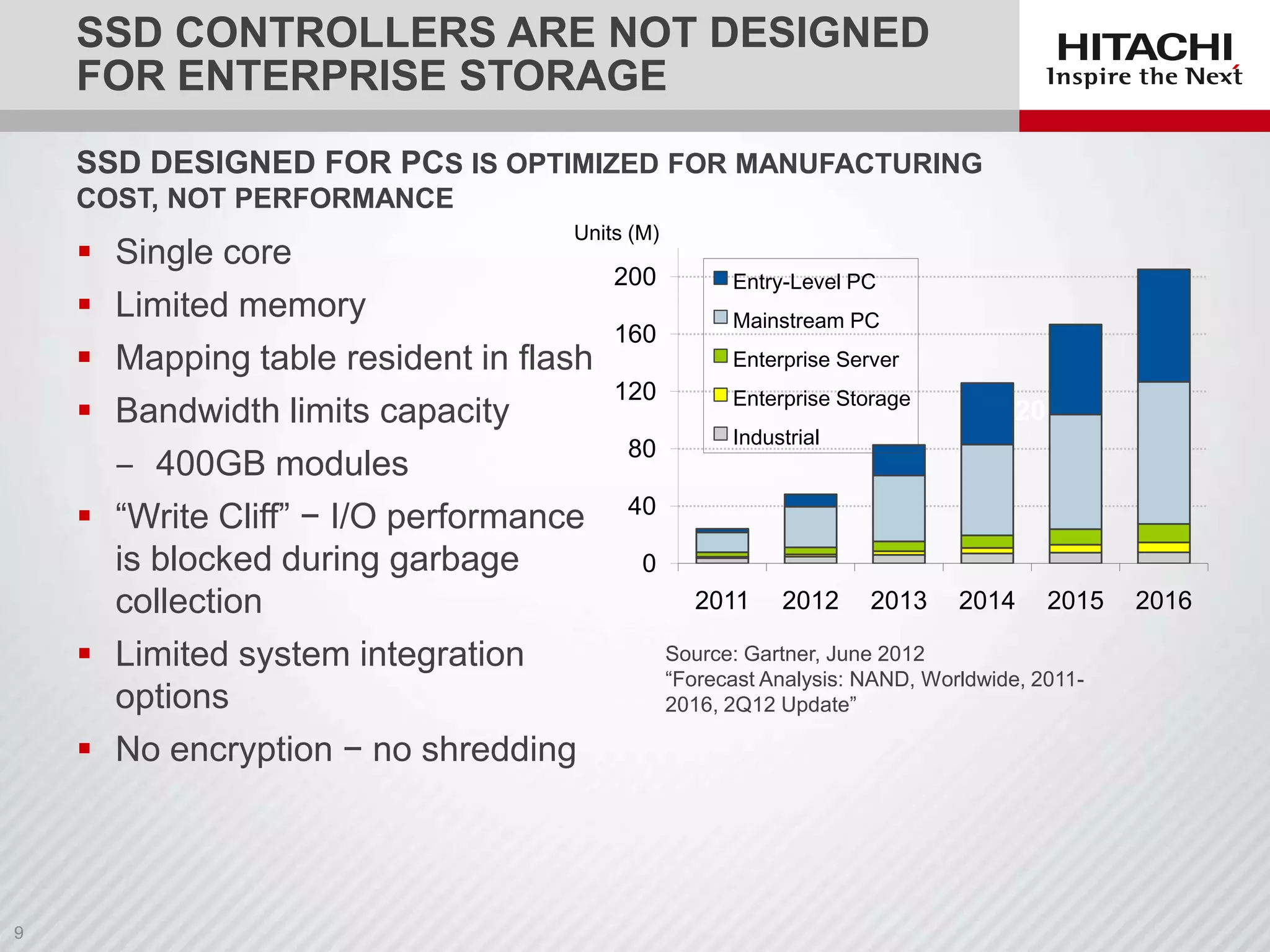

- 9. SSD CONTROLLERS ARENOT DESIGNED FOR ENTERPRISE STORAGE SSD DESIGNED FOR PCS IS OPTIMIZED FOR MANUFACTURING COST, NOT PERFORMANCE Units (M) Single core Limited memory Mapping table resident in flash Bandwidth limits capacity ‒ 400GB modules “Write Cliff” − I/O performance is blocked during garbage collection Limited system integration options No encryption − no shredding 200 160 120 80 Entry-Level PC Mainstream PC Enterprise Server Enterprise Storage Industrial 2012 40 0 2011 2012 2013 2014 2015 Source: Gartner, June 2012 “Forecast Analysis: NAND, Worldwide, 20112016, 2Q12 Update” 2016

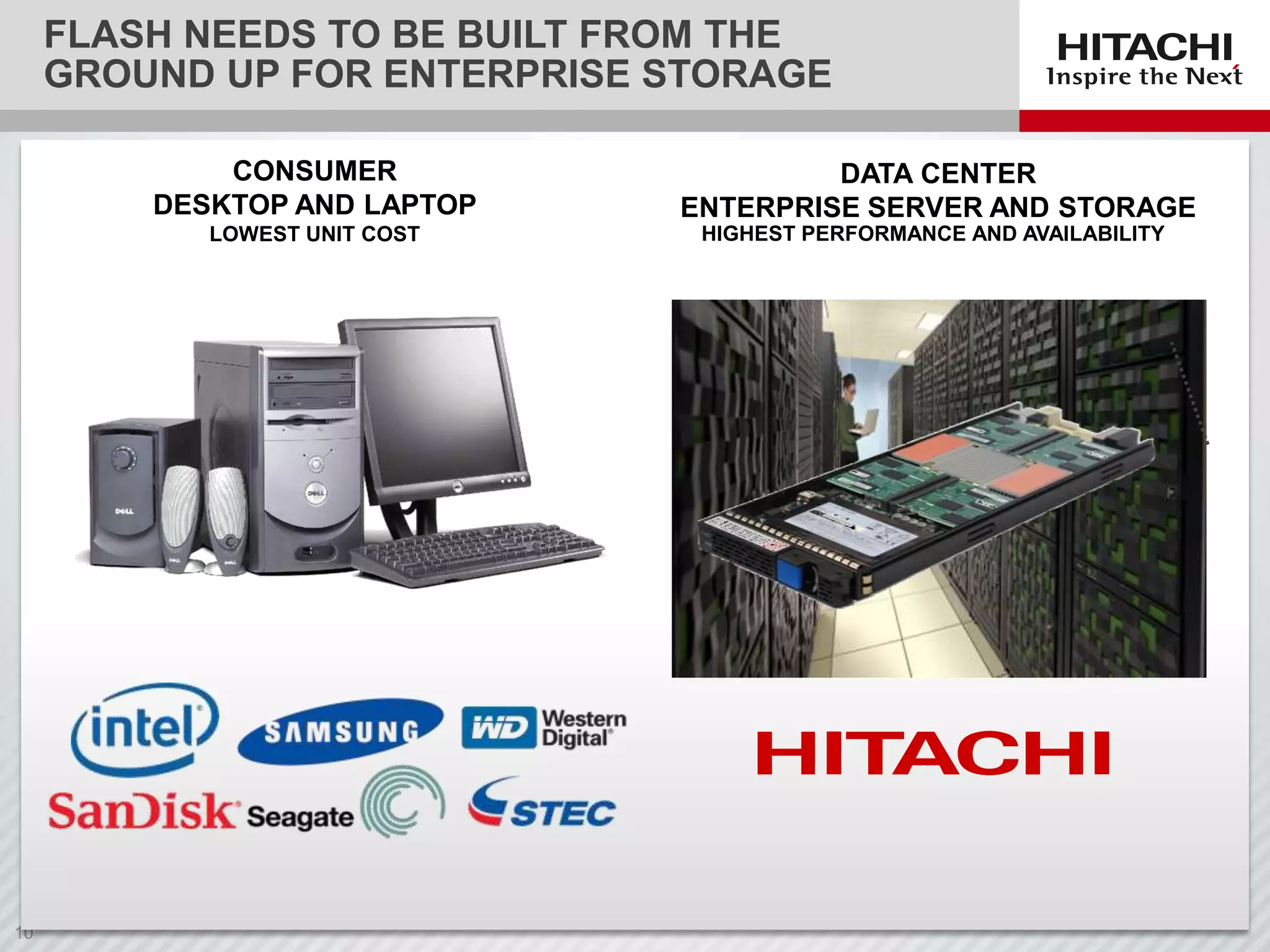

- 10. FLASH NEEDS TOBE BUILT FROM THE GROUND UP FOR ENTERPRISE STORAGE CONSUMER DESKTOP AND LAPTOP DATA CENTER ENTERPRISE SERVER AND STORAGE LOWEST UNIT COST HIGHEST PERFORMANCE AND AVAILABILITY

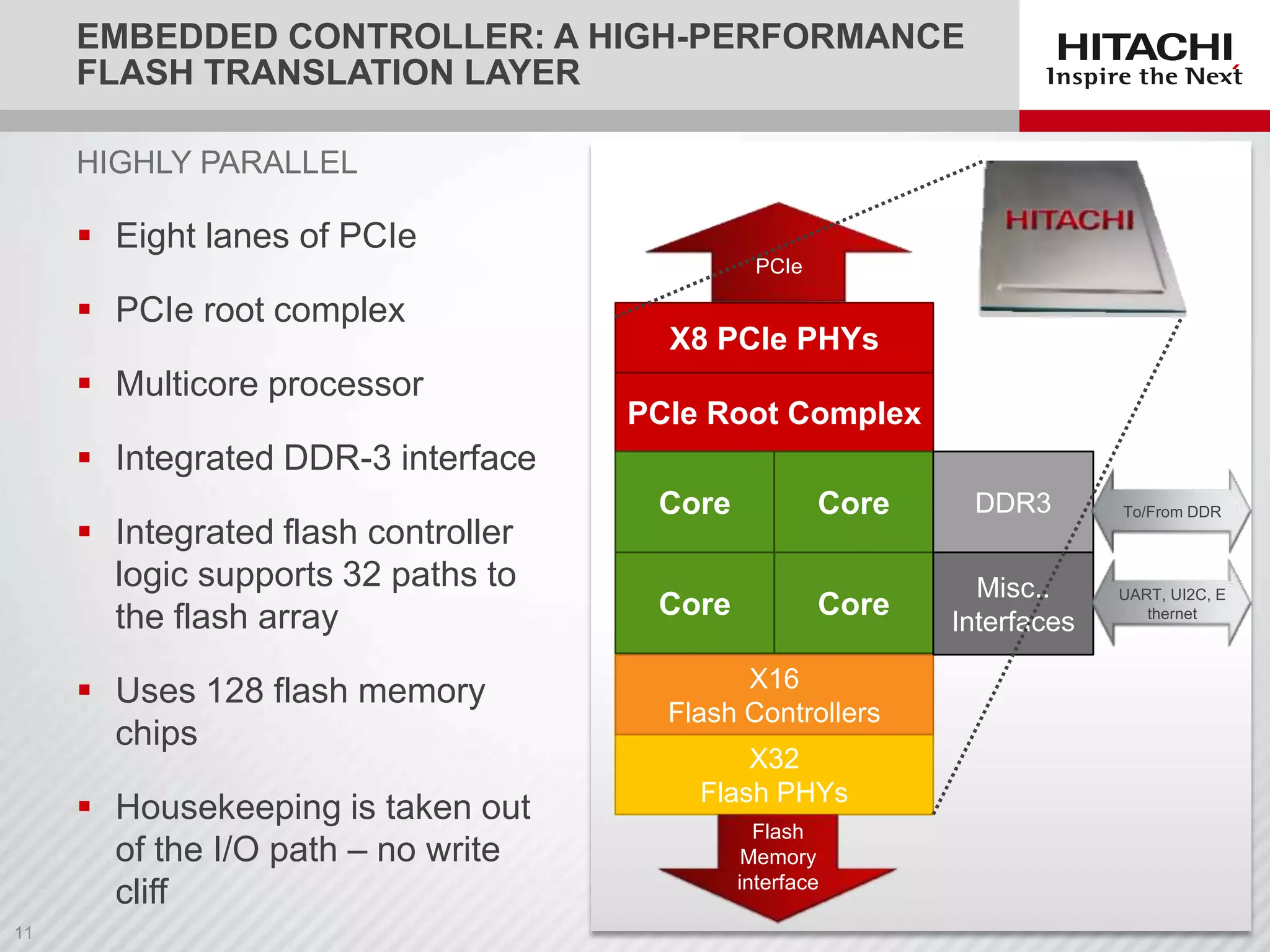

- 11. EMBEDDED CONTROLLER: AHIGH-PERFORMANCE FLASH TRANSLATION LAYER HIGHLY PARALLEL Eight lanes of PCIe PCIe PCIe root complex Multicore processor X8 PCIe PHYs PCIe Root Complex Integrated DDR-3 interface Integrated flash controller logic supports 32 paths to the flash array Uses 128 flash memory chips Housekeeping is taken out of the I/O path – no write cliff Core Core DDR3 To/From DDR Core Core Misc.. Interfaces UART, UI2C, E thernet X16 Flash Controllers X32 Flash PHYs Flash Memory interface

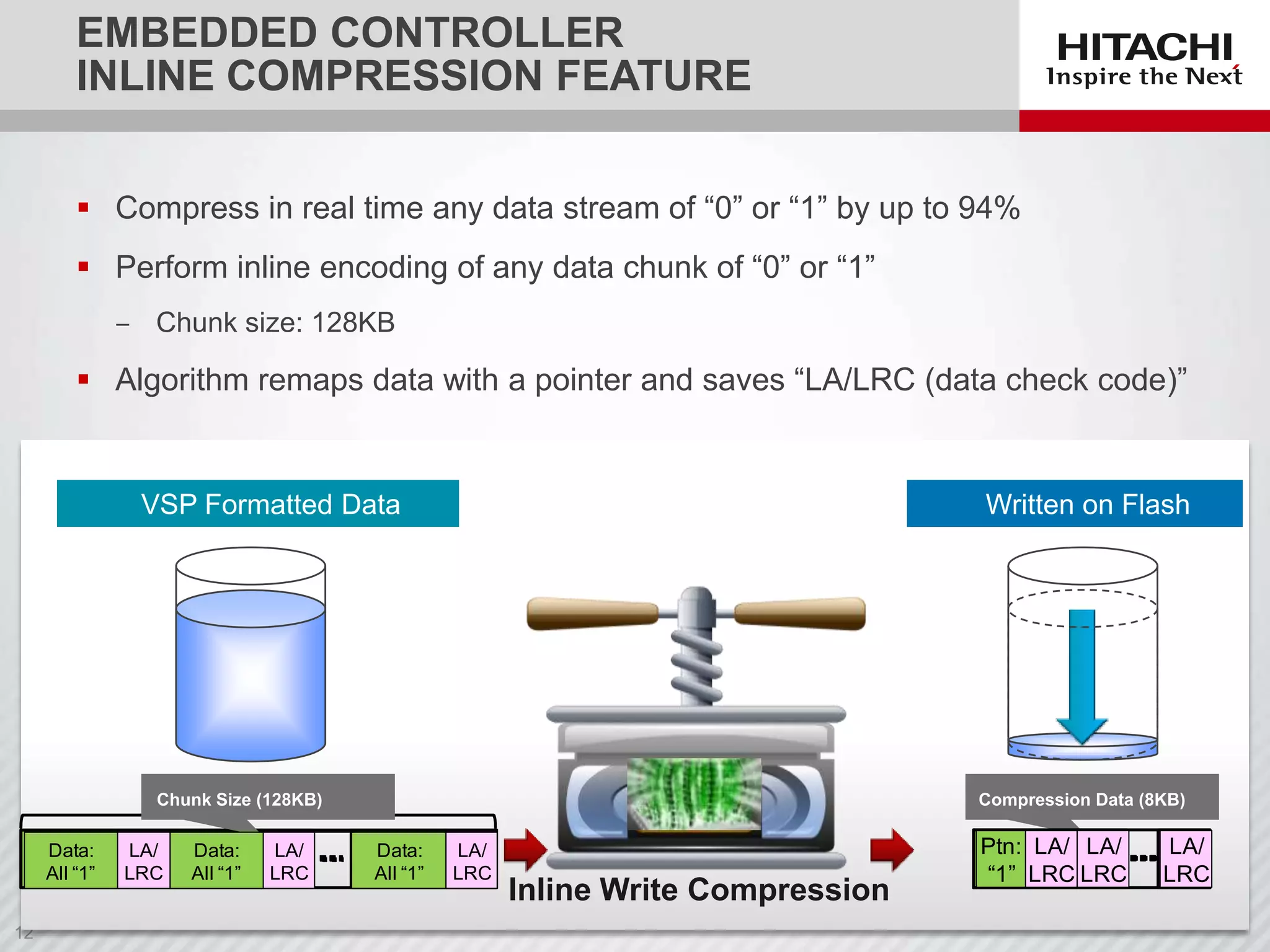

- 12. EMBEDDED CONTROLLER INLINE COMPRESSIONFEATURE Compress in real time any data stream of “0” or “1” by up to 94% Perform inline encoding of any data chunk of “0” or “1” ‒ Chunk size: 128KB Algorithm remaps data with a pointer and saves “LA/LRC (data check code)” VSP Formatted Data Written on Flash Chunk Size (128KB) Data: Data: All “1” All “0” LA/ LA/ LRC LRC Data: Data: All “1” All “0” LA/ LRC Compression Data (8KB) Data: “1” All “0” LA/ LRC Inline Write Compression Ptn: LA/ LA/ Ptn: LA/ LA/ “1” LRC LRC “0” LRC LRC LA/ LA/ LRC LRC

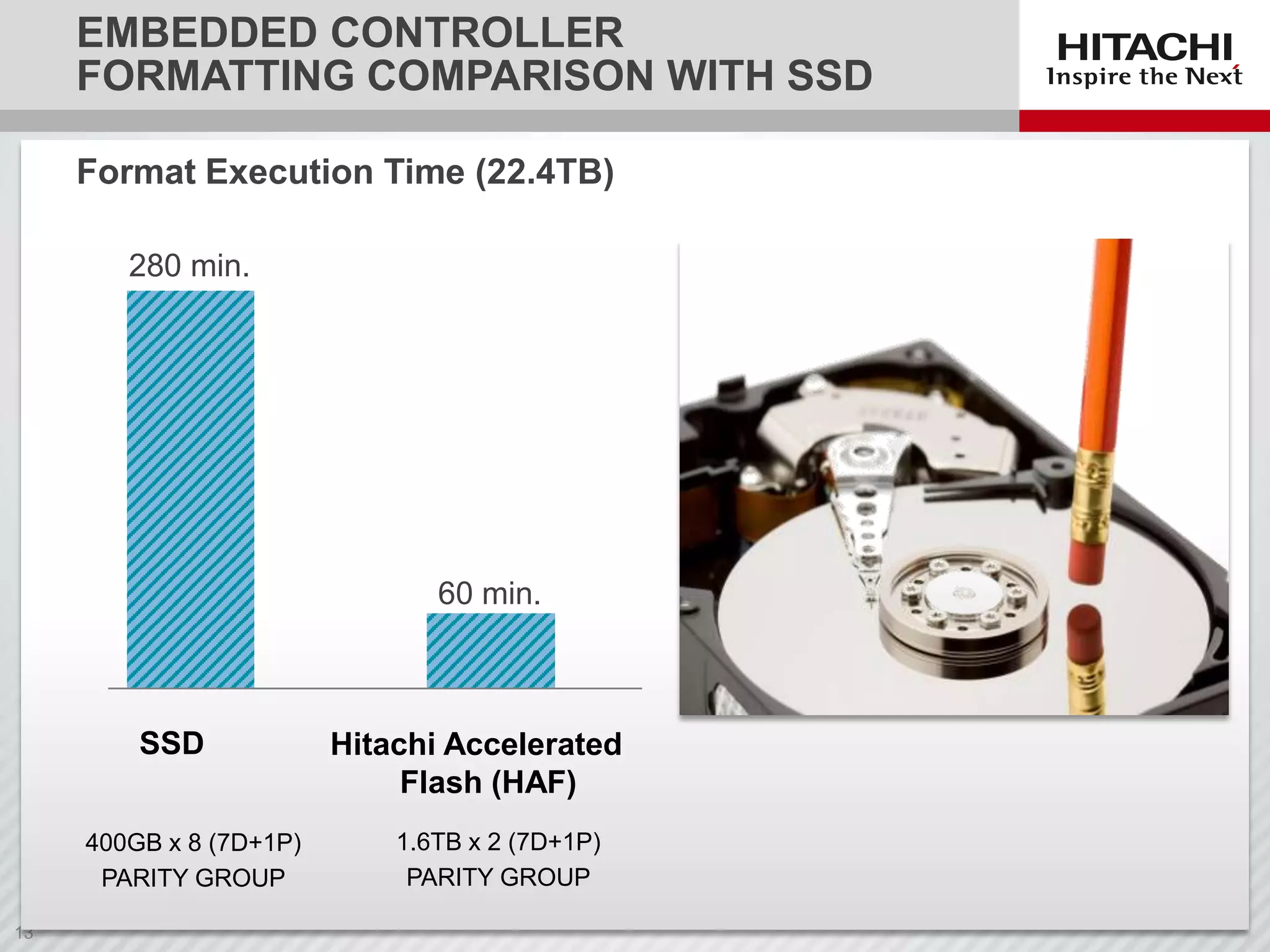

- 13. EMBEDDED CONTROLLER FORMATTING COMPARISONWITH SSD Format Execution Time (22.4TB) 280 min. 60 min. SSD 400GB x 8 (7D+1P) PARITY GROUP Hitachi Accelerated Flash (HAF) 1.6TB x 2 (7D+1P) PARITY GROUP

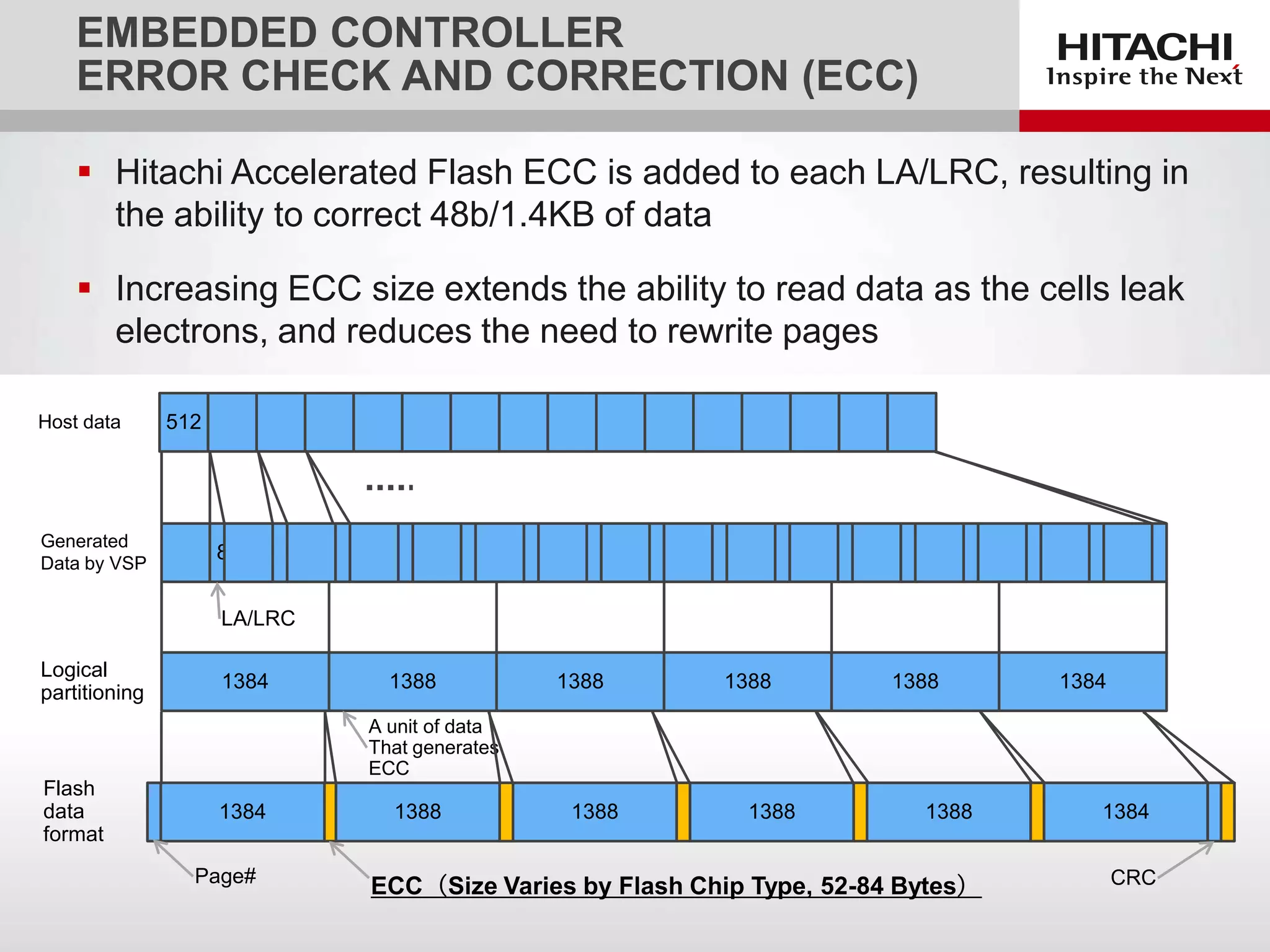

- 14. EMBEDDED CONTROLLER ERROR CHECKAND CORRECTION (ECC) Hitachi Accelerated Flash ECC is added to each LA/LRC, resulting in the ability to correct 48b/1.4KB of data Increasing ECC size extends the ability to read data as the cells leak electrons, and reduces the need to rewrite pages Host data Generated Data by VSP 512 8 LA/LRC Logical partitioning 1384 1388 1388 1388 1388 1384 A unit of data That generates ECC Flash data format 1384 Page# 1388 1388 1388 1388 ECC（Size Varies by Flash Chip Type, 52-84 Bytes） 1384 CRC

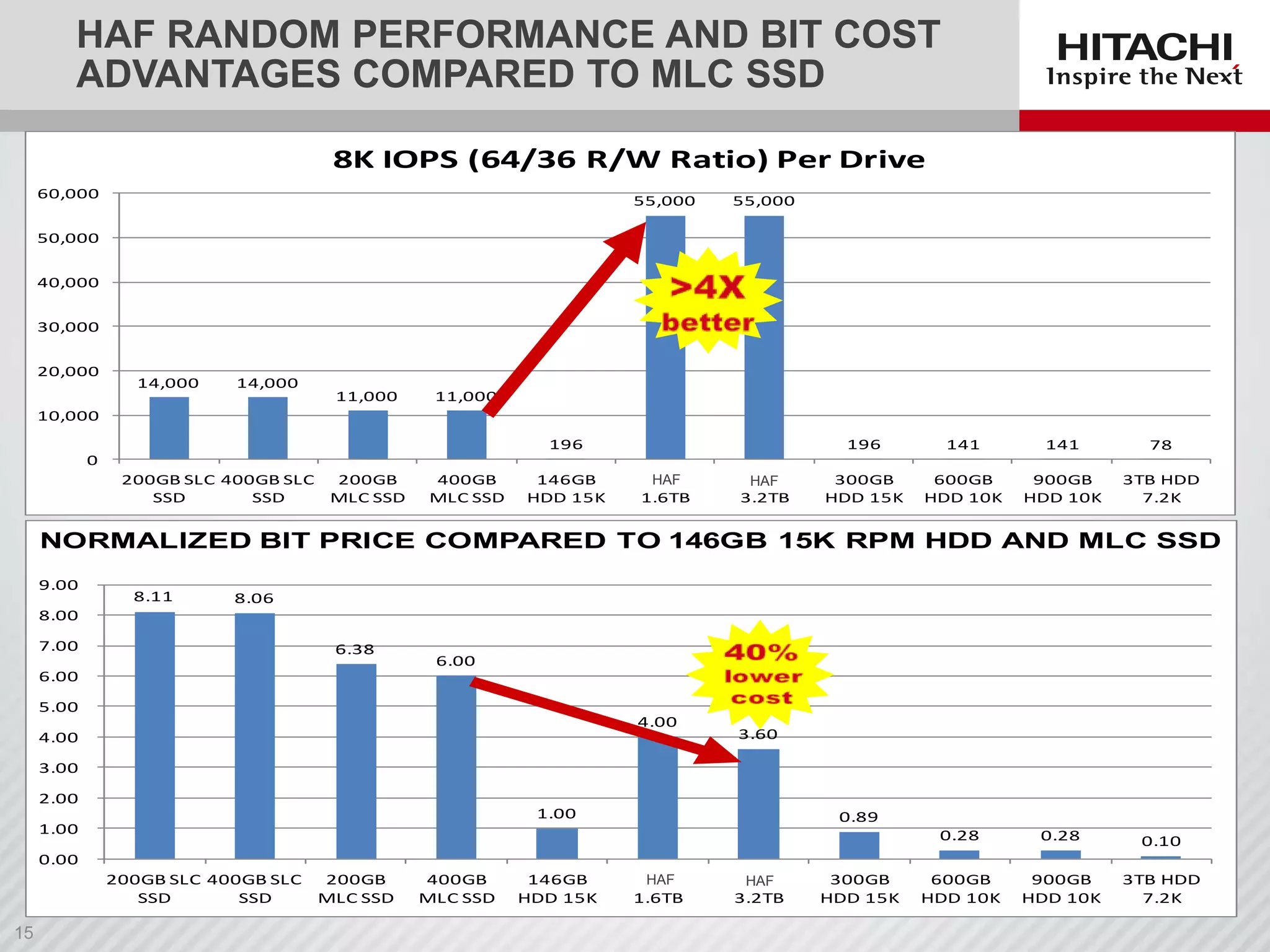

- 15. HAF RANDOM PERFORMANCEAND BIT COST ADVANTAGES COMPARED TO MLC SSD 8K IOPS (64/36 R/W Ratio) Per Drive 60,000 55,000 55,000 50,000 40,000 30,000 20,000 14,000 14,000 11,000 11,000 10,000 196 196 141 141 78 600GB HDD 10K 900GB HDD 10K 3TB HDD 7.2K 0 200GB SLC 400GB SLC SSD SSD 200GB MLC SSD 400GB MLC SSD 146GB Tomahawk Tomahawk 300GB HAF HAF HDD 15K 1.6TB 3.2TB HDD 15K NORMALIZED BIT PRICE COMPARED TOvs 146GB 15K Relative Bit Cost 146GB 15K RPM HDD AND MLC SSD 9.00 8.11 8.06 8.00 7.00 6.38 6.00 6.00 5.00 4.00 4.00 3.60 3.00 2.00 1.00 1.00 0.89 0.28 0.28 0.10 600GB HDD 10K 900GB HDD 10K 3TB HDD 7.2K 0.00 200GB SLC 400GB SLC SSD SSD 200GB MLC SSD 400GB MLC SSD 146GB Tomahawk Tomahawk 300GB HAF HAF HDD 15K 1.6TB 3.2TB HDD 15K

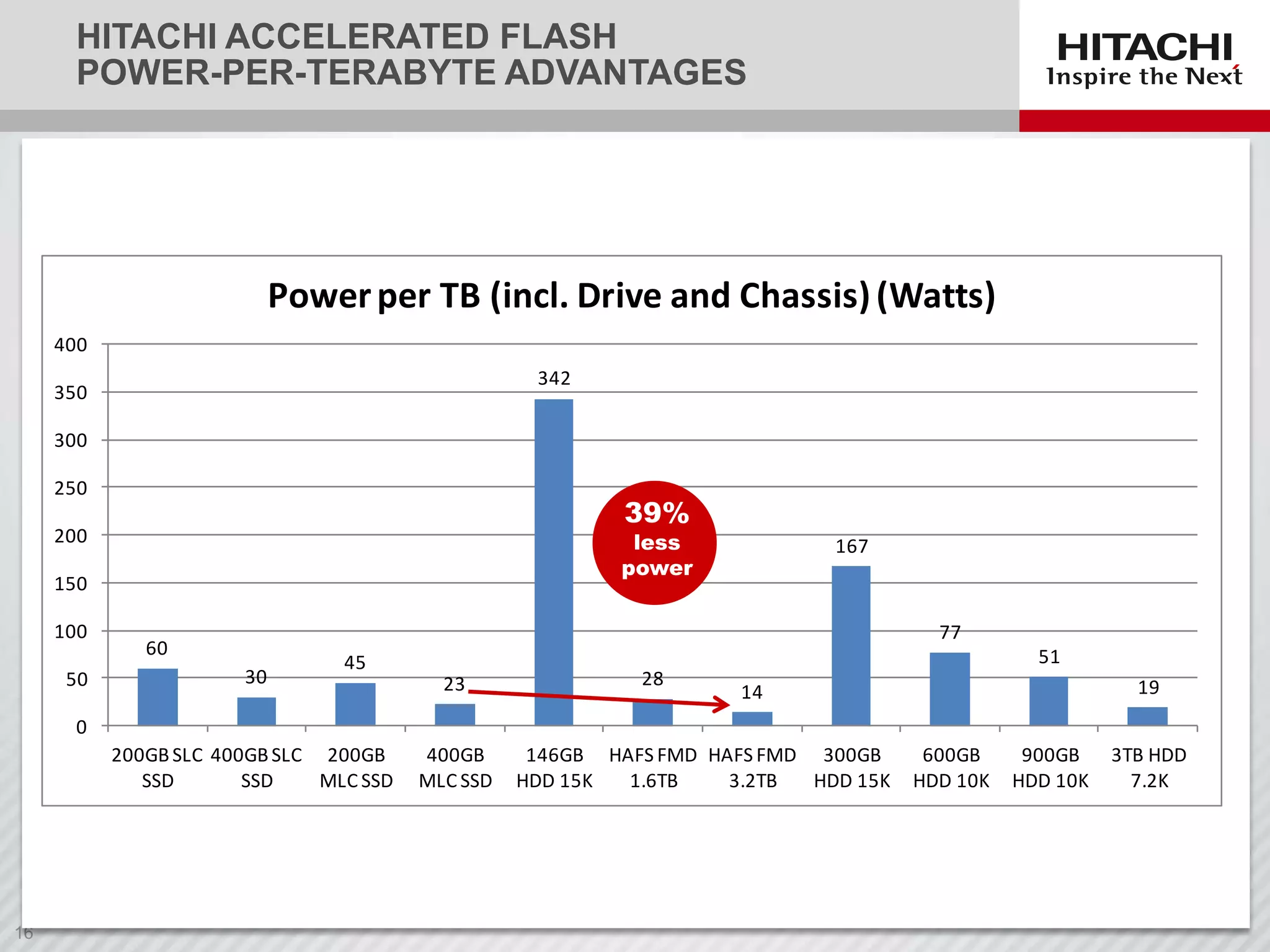

- 16. HITACHI ACCELERATED FLASH POWER-PER-TERABYTEADVANTAGES Power per TB (incl. Drive and Chassis) (Watts) 400 342 350 300 250 39% less power 200 150 100 50 167 77 60 30 51 45 23 28 19 14 0 200GB SLC 400GB SLC 200GB SSD SSD MLC SSD 400GB MLC SSD 146GB HAFS FMD HAFS FMD 300GB HDD 15K 1.6TB 3.2TB HDD 15K 600GB HDD 10K 900GB HDD 10K 3TB HDD 7.2K

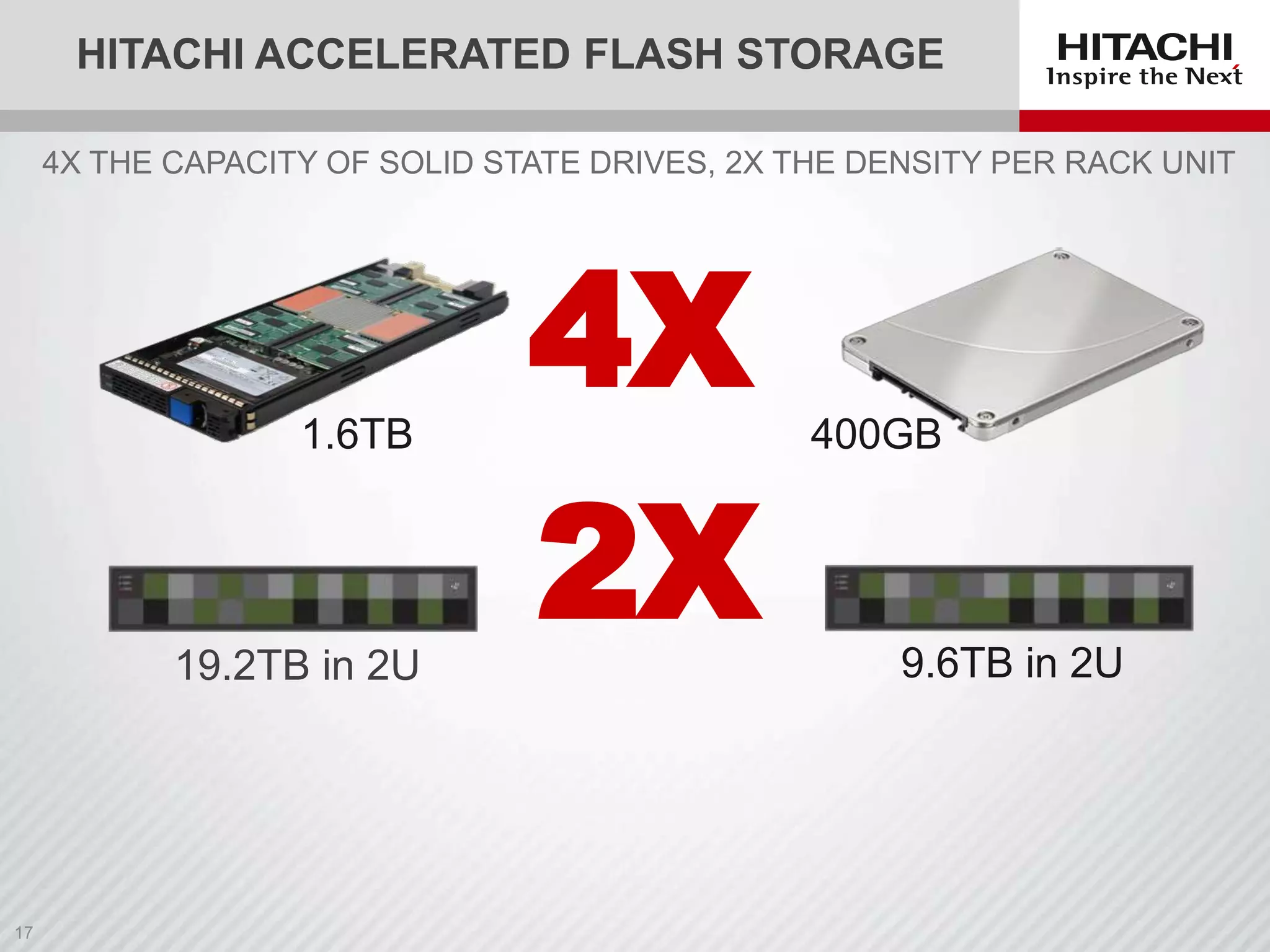

- 17. HITACHI ACCELERATED FLASHSTORAGE 4X THE CAPACITY OF SOLID STATE DRIVES, 2X THE DENSITY PER RACK UNIT 1.6TB 19.2TB in 2U 4X 2X 400GB 9.6TB in 2U

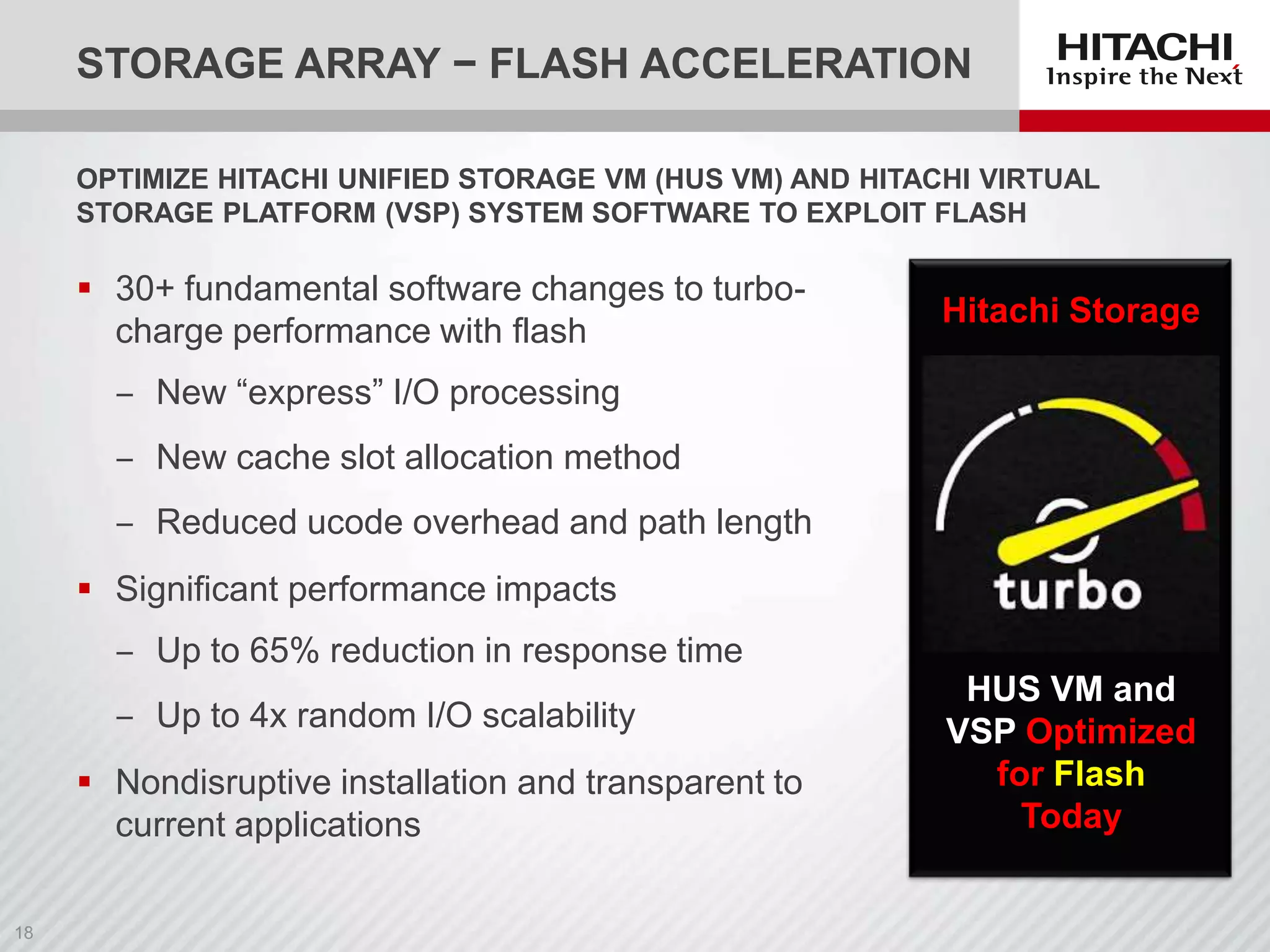

- 18. STORAGE ARRAY −FLASH ACCELERATION OPTIMIZE HITACHI UNIFIED STORAGE VM (HUS VM) AND HITACHI VIRTUAL STORAGE PLATFORM (VSP) SYSTEM SOFTWARE TO EXPLOIT FLASH 30+ fundamental software changes to turbocharge performance with flash Hitachi Storage ‒ New “express” I/O processing ‒ New cache slot allocation method ‒ Reduced ucode overhead and path length Significant performance impacts ‒ Up to 65% reduction in response time ‒ Up to 4x random I/O scalability Nondisruptive installation and transparent to current applications HUS VM and VSP Optimized for Flash Today

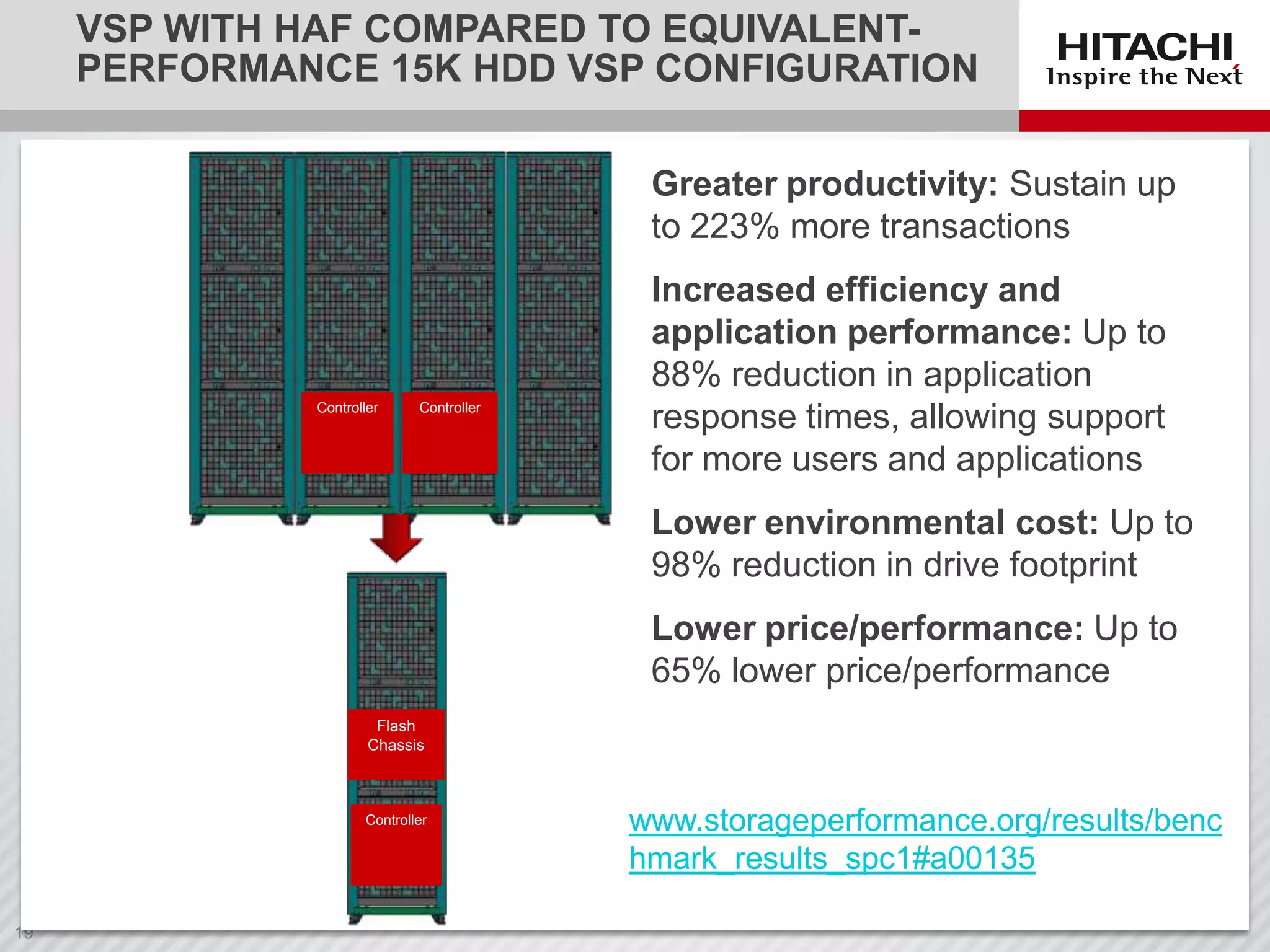

- 19. VSP WITH HAFCOMPARED TO EQUIVALENTPERFORMANCE 15K HDD VSP CONFIGURATION Greater productivity: Sustain up to 223% more transactions Controller Controller Increased efficiency and application performance: Up to 88% reduction in application response times, allowing support for more users and applications Lower environmental cost: Up to 98% reduction in drive footprint Hitachi Accelerated Flash storage and VSP flash acceleration Lower price/performance: Up to 65% lower price/performance Flash Chassis Controller www.storageperformance.org/results/benc hmark_results_spc1#a00135

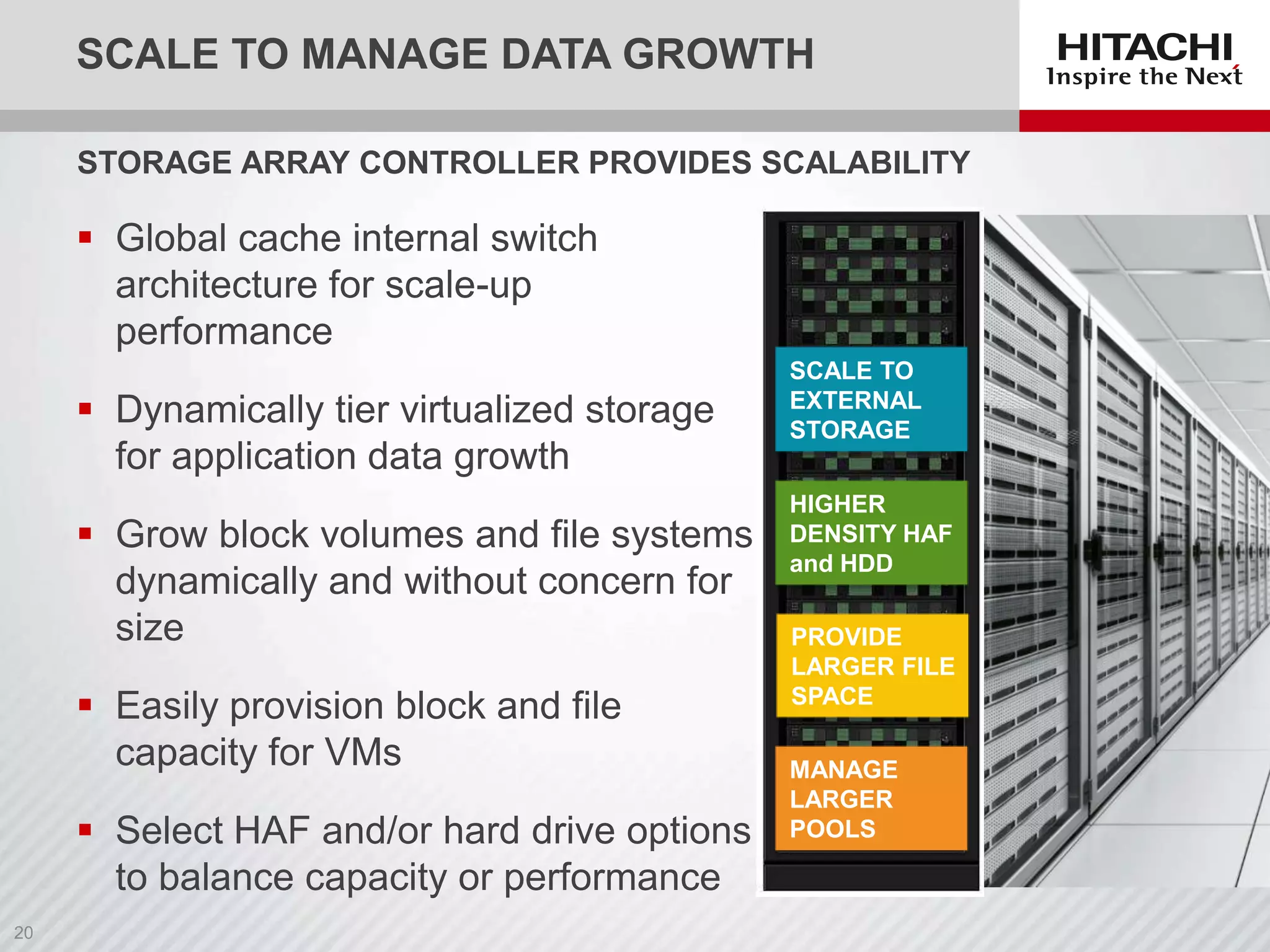

- 20. SCALE TO MANAGEDATA GROWTH STORAGE ARRAY CONTROLLER PROVIDES SCALABILITY Global cache internal switch architecture for scale-up performance Dynamically tier virtualized storage for application data growth Grow block volumes and file systems dynamically and without concern for size Easily provision block and file capacity for VMs Select HAF and/or hard drive options to balance capacity or performance SCALE TO EXTERNAL STORAGE HIGHER DENSITY HAF and HDD PROVIDE LARGER FILE SPACE MANAGE LARGER POOLS

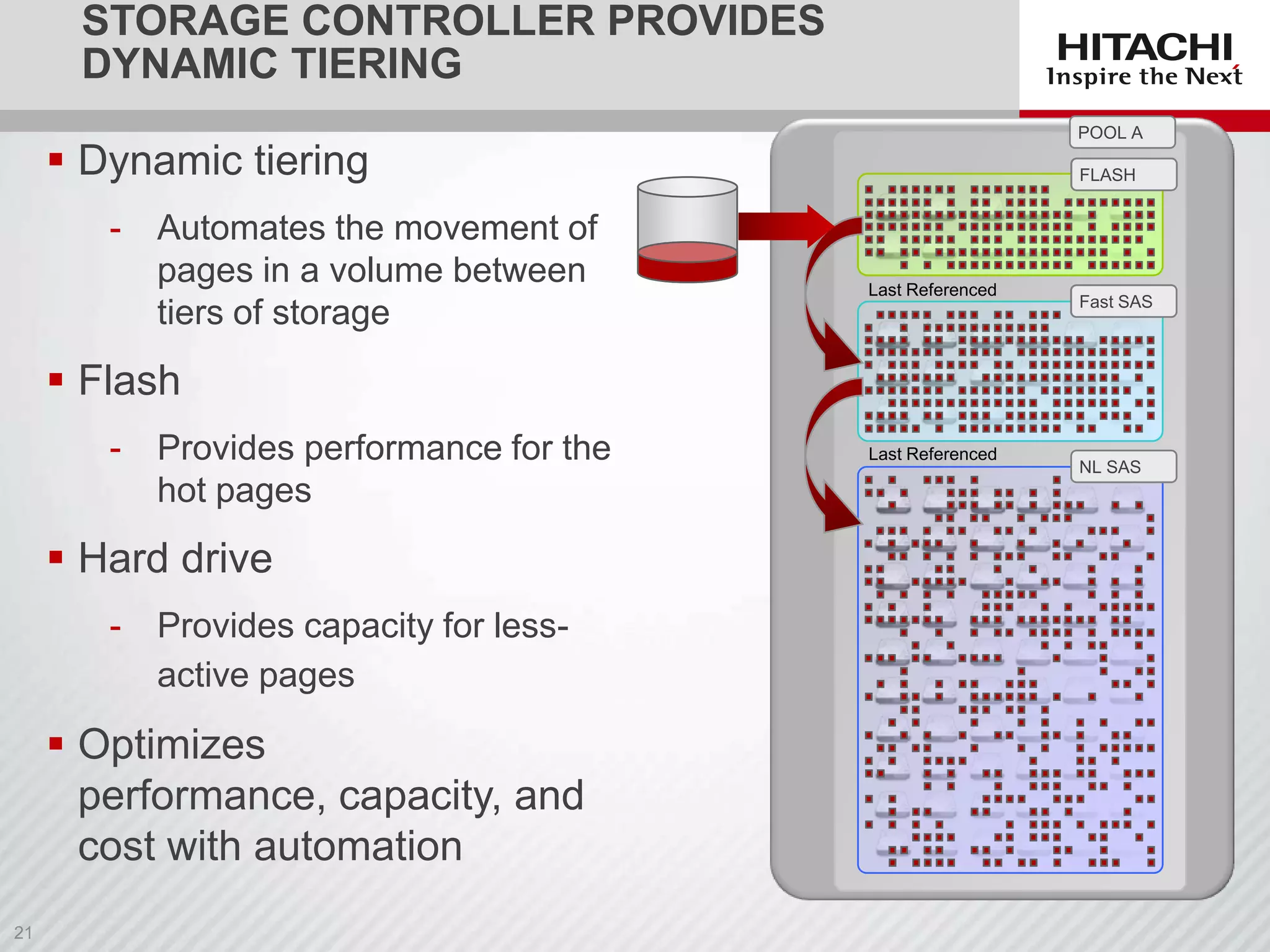

- 21. STORAGE CONTROLLER PROVIDES DYNAMICTIERING POOL A Dynamic tiering - Automates the movement of pages in a volume between tiers of storage EFD/Flash FLASH Last Referenced SAS SAS Fast Flash - Provides performance for the hot pages Hard drive - Provides capacity for lessactive pages Optimizes performance, capacity, and cost with automation Last Referenced NL SAS

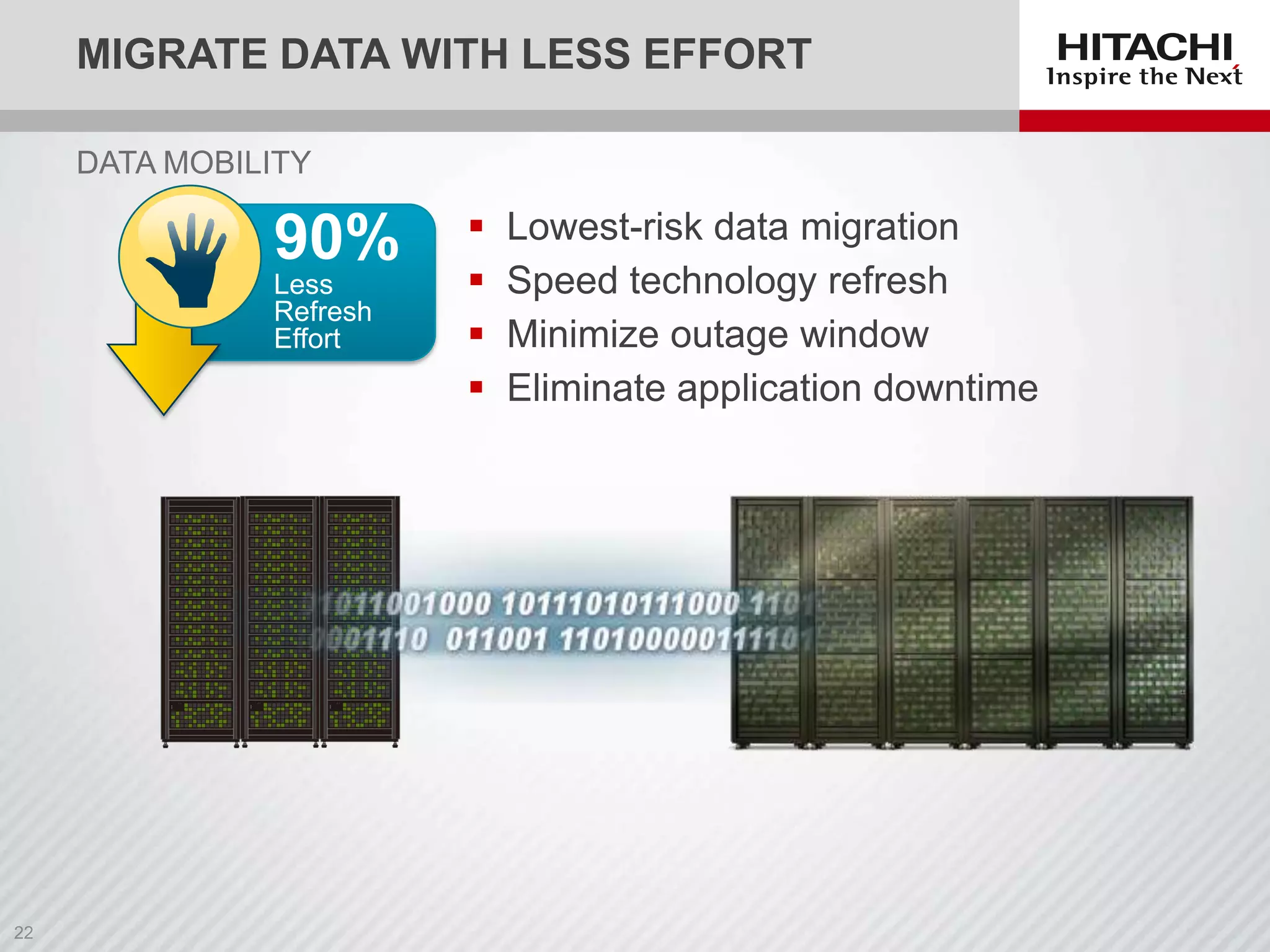

- 22. MIGRATE DATA WITHLESS EFFORT DATA MOBILITY 90% Less Refresh Effort Lowest-risk data migration Speed technology refresh Minimize outage window Eliminate application downtime

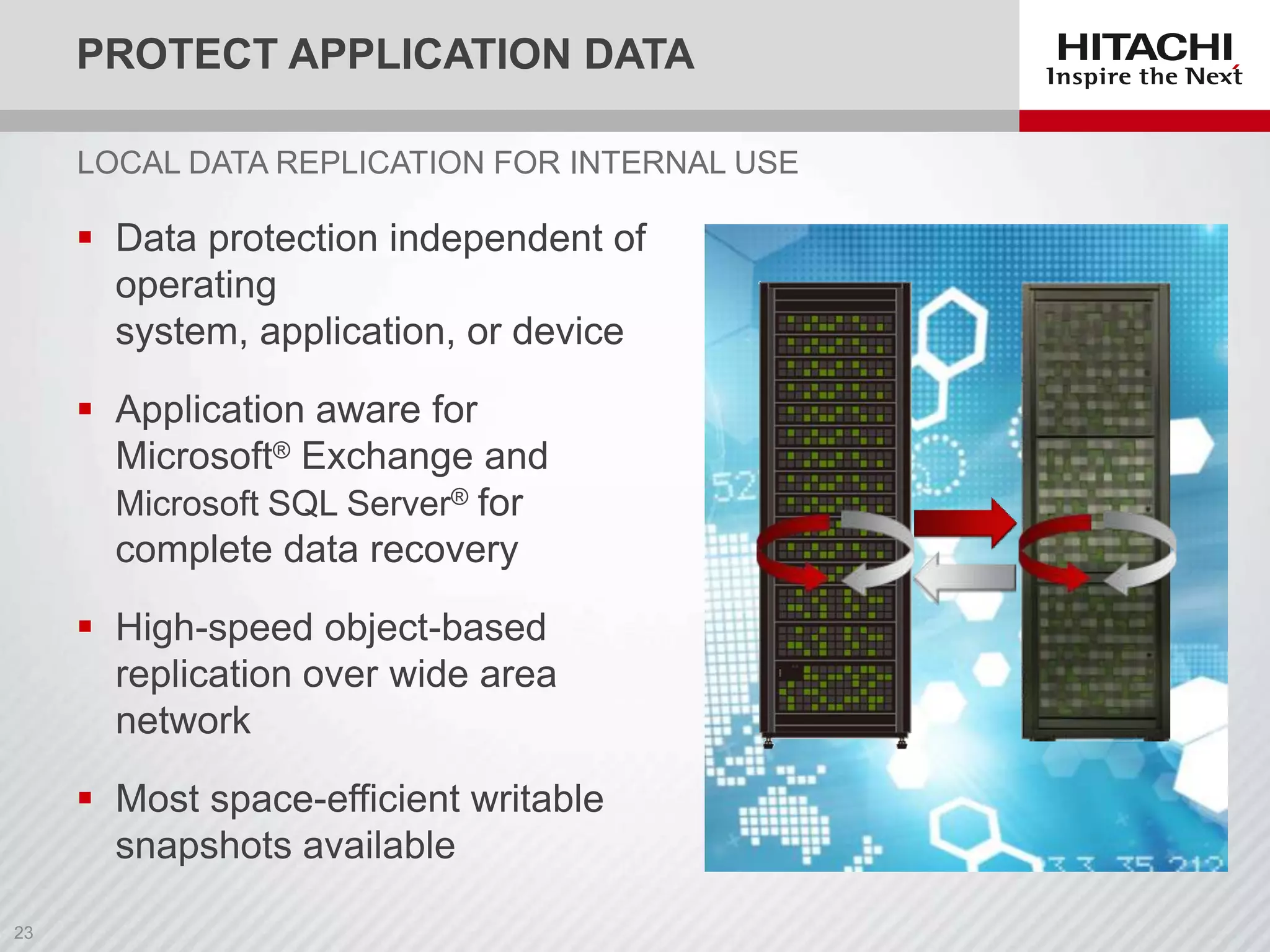

- 23. PROTECT APPLICATION DATA LOCALDATA REPLICATION FOR INTERNAL USE Data protection independent of operating system, application, or device Application aware for Microsoft® Exchange and Microsoft SQL Server® for complete data recovery High-speed object-based replication over wide area network Most space-efficient writable snapshots available
- 24. SHARE ANY DATAANY TIME ANYWHERE REMOTE DATA REPLICATION Move data from any storage system across any distance Automate recovery to resume business in minutes, not hours or days Deploy locally and remotely for disaster recovery with no interruption in service Replicate data from Hitachi or other virtualized storage

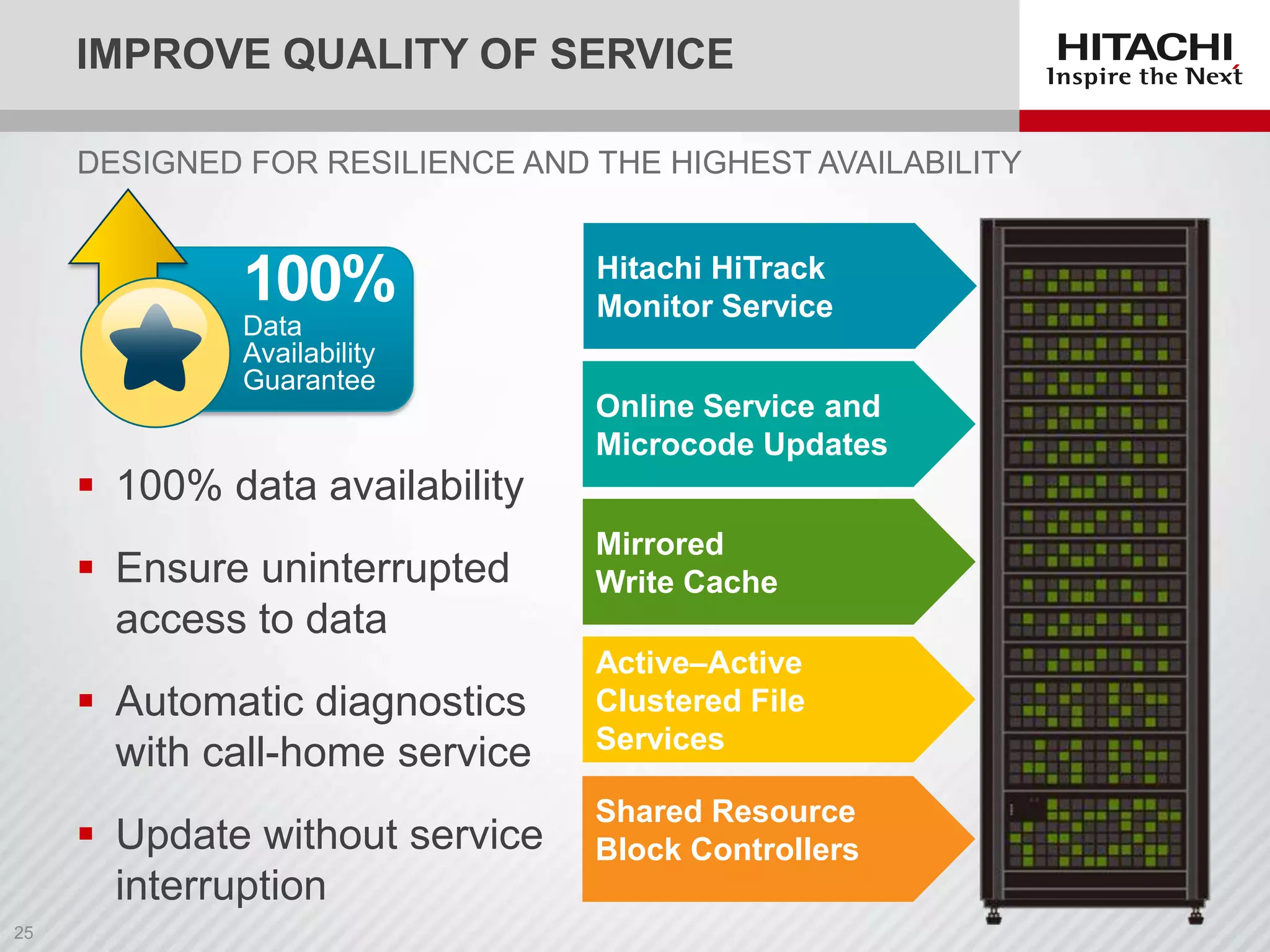

- 25. IMPROVE QUALITY OFSERVICE DESIGNED FOR RESILIENCE AND THE HIGHEST AVAILABILITY 100% Data Availability Guarantee Hitachi HiTrack Monitor Service Online Service and Microcode Updates 100% data availability Ensure uninterrupted access to data Automatic diagnostics with call-home service Update without service interruption Mirrored Write Cache Active–Active Clustered File Services Shared Resource Block Controllers

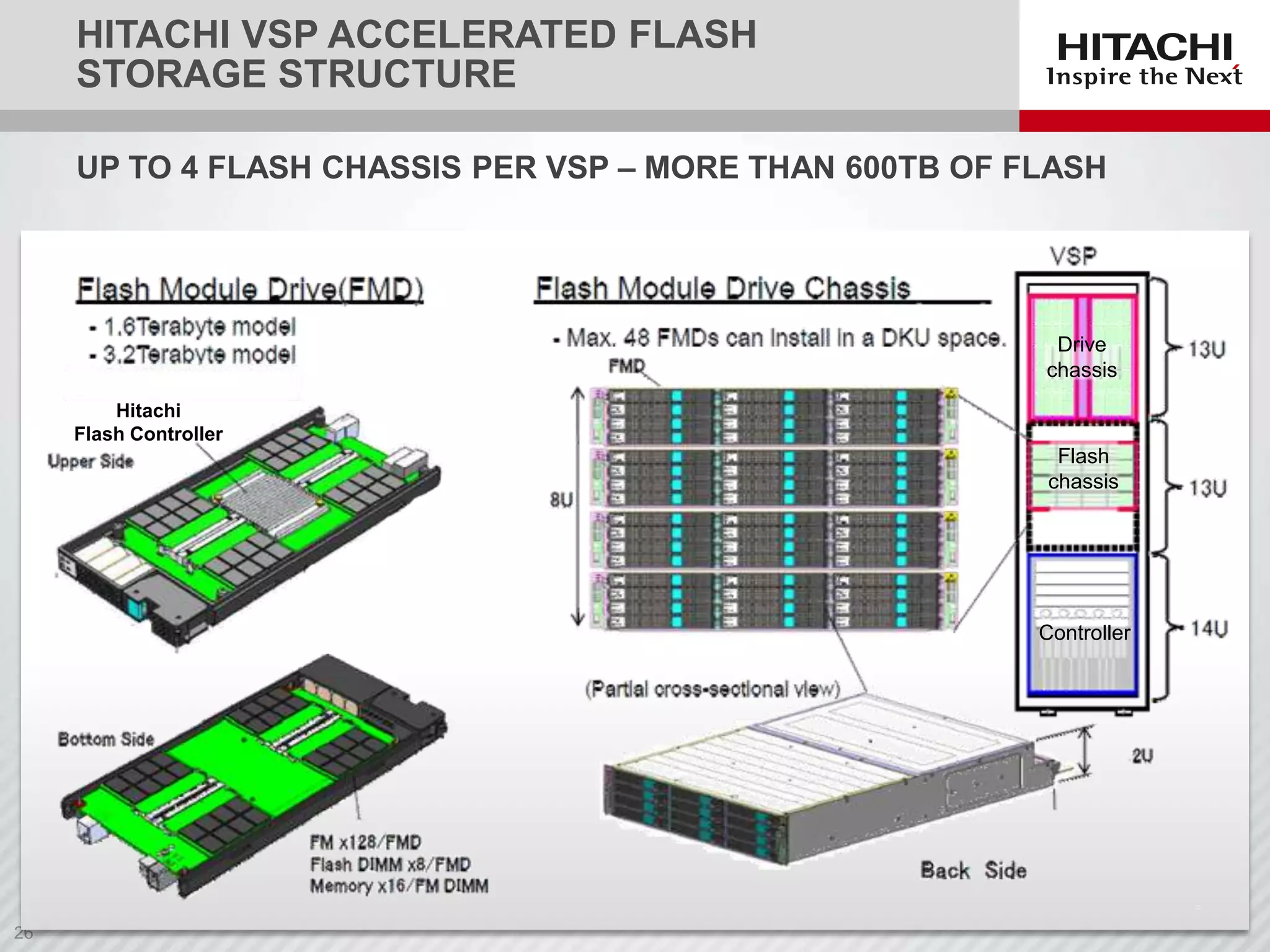

- 26. HITACHI VSP ACCELERATEDFLASH STORAGE STRUCTURE UP TO 4 FLASH CHASSIS PER VSP – MORE THAN 600TB OF FLASH Drive chassis Hitachi Flash Controller Flash chassis Controller

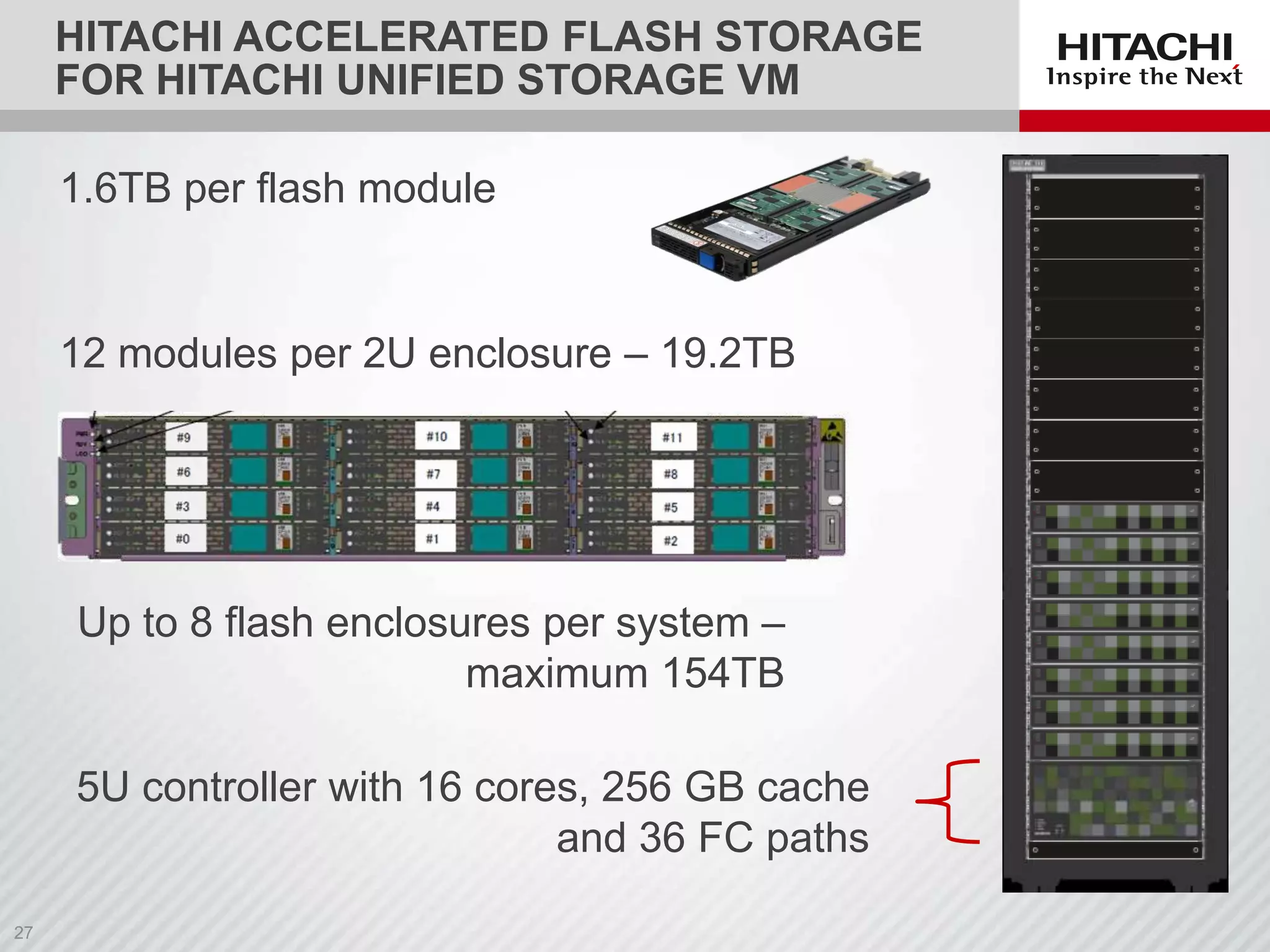

- 27. HITACHI ACCELERATED FLASHSTORAGE FOR HITACHI UNIFIED STORAGE VM 1.6TB per flash module 12 modules per 2U enclosure – 19.2TB Up to 8 flash enclosures per system – maximum 154TB 5U controller with 16 cores, 256 GB cache and 36 FC paths

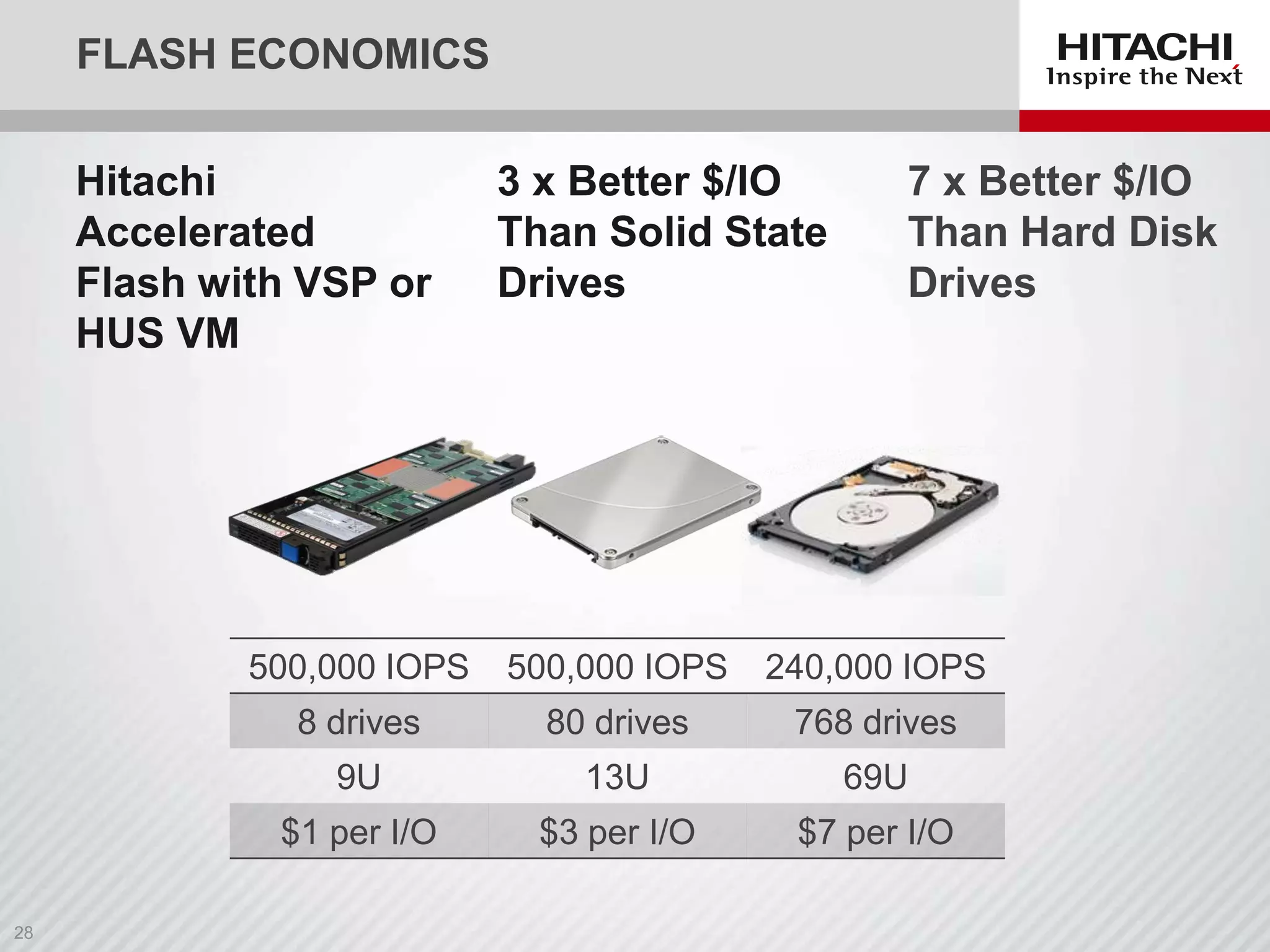

- 28. FLASH ECONOMICS Hitachi Accelerated Flash withVSP or HUS VM 3 x Better $/IO Than Solid State Drives 7 x Better $/IO Than Hard Disk Drives 500,000 IOPS 500,000 IOPS 240,000 IOPS 8 drives 80 drives 768 drives 9U 13U 69U $1 per I/O $3 per I/O $7 per I/O

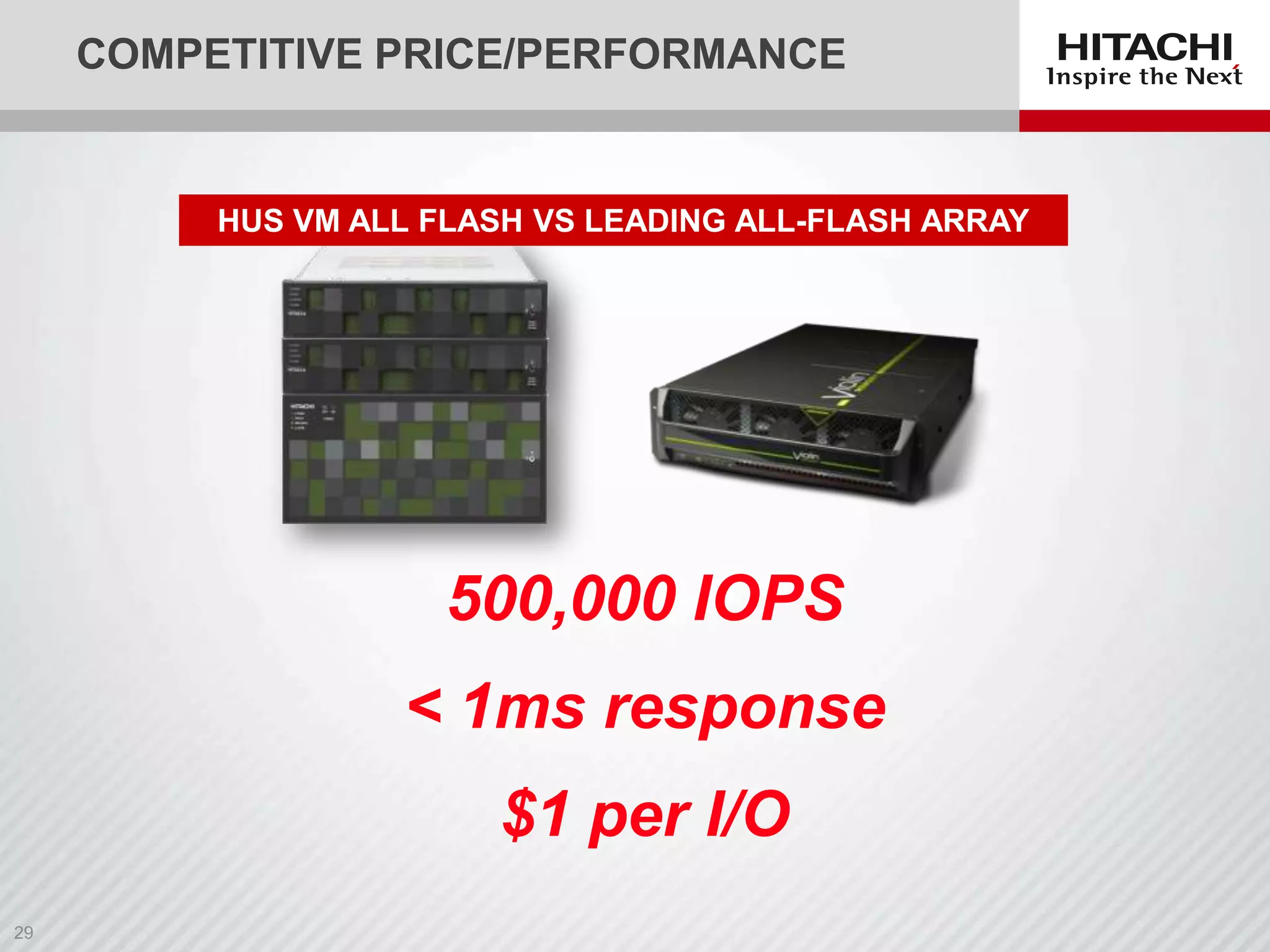

- 29. COMPETITIVE PRICE/PERFORMANCE HUS VMALL FLASH VS LEADING ALL-FLASH ARRAY 500,000 IOPS < 1ms response $1 per I/O

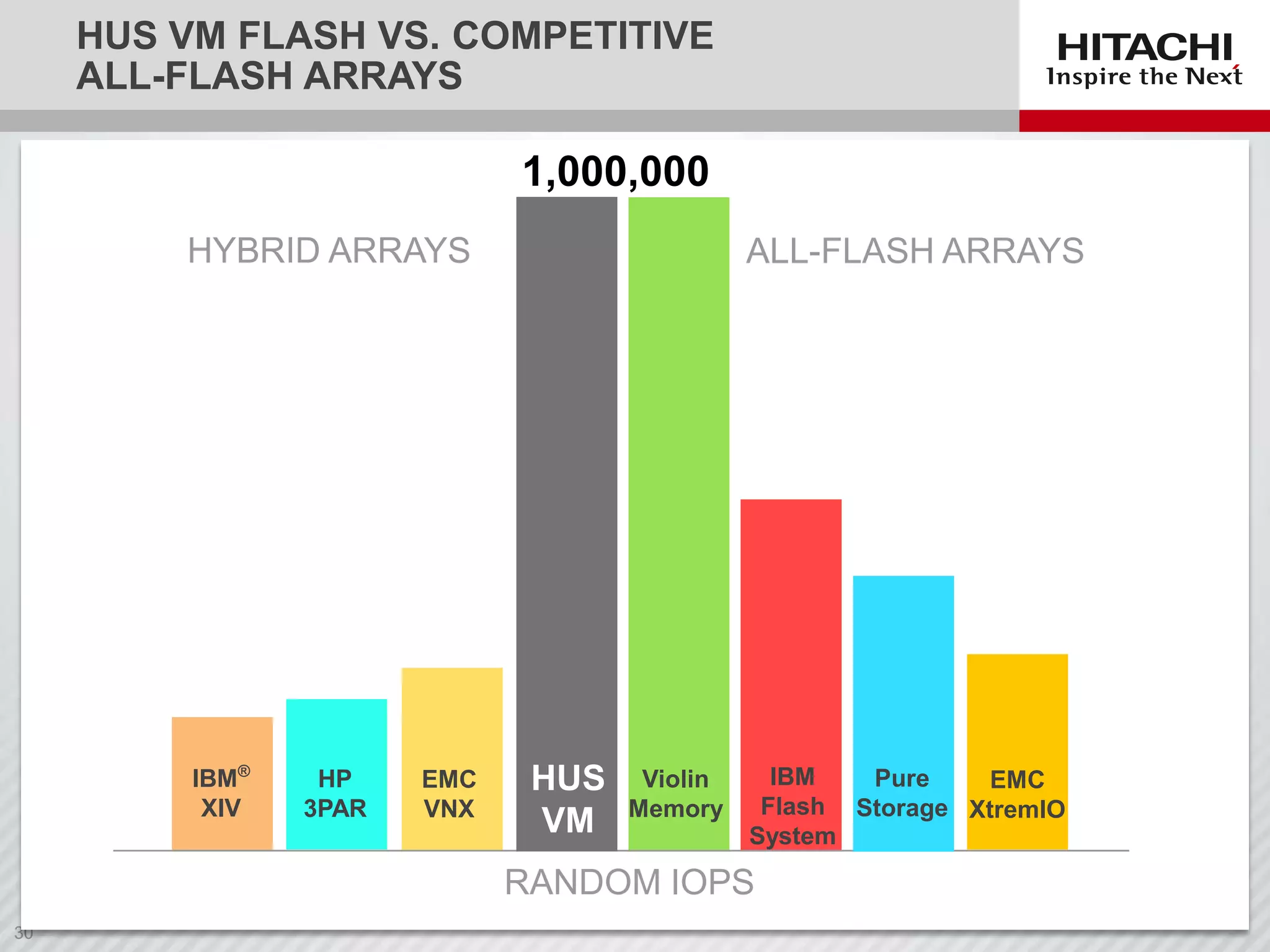

- 30. HUS VM FLASHVS. COMPETITIVE ALL-FLASH ARRAYS 1,000,000 HYBRID ARRAYS IBM® XIV HP 3PAR EMC VNX ALL-FLASH ARRAYS HUS VM Violin Memory IBM Pure EMC Flash Storage XtremIO System RANDOM IOPS

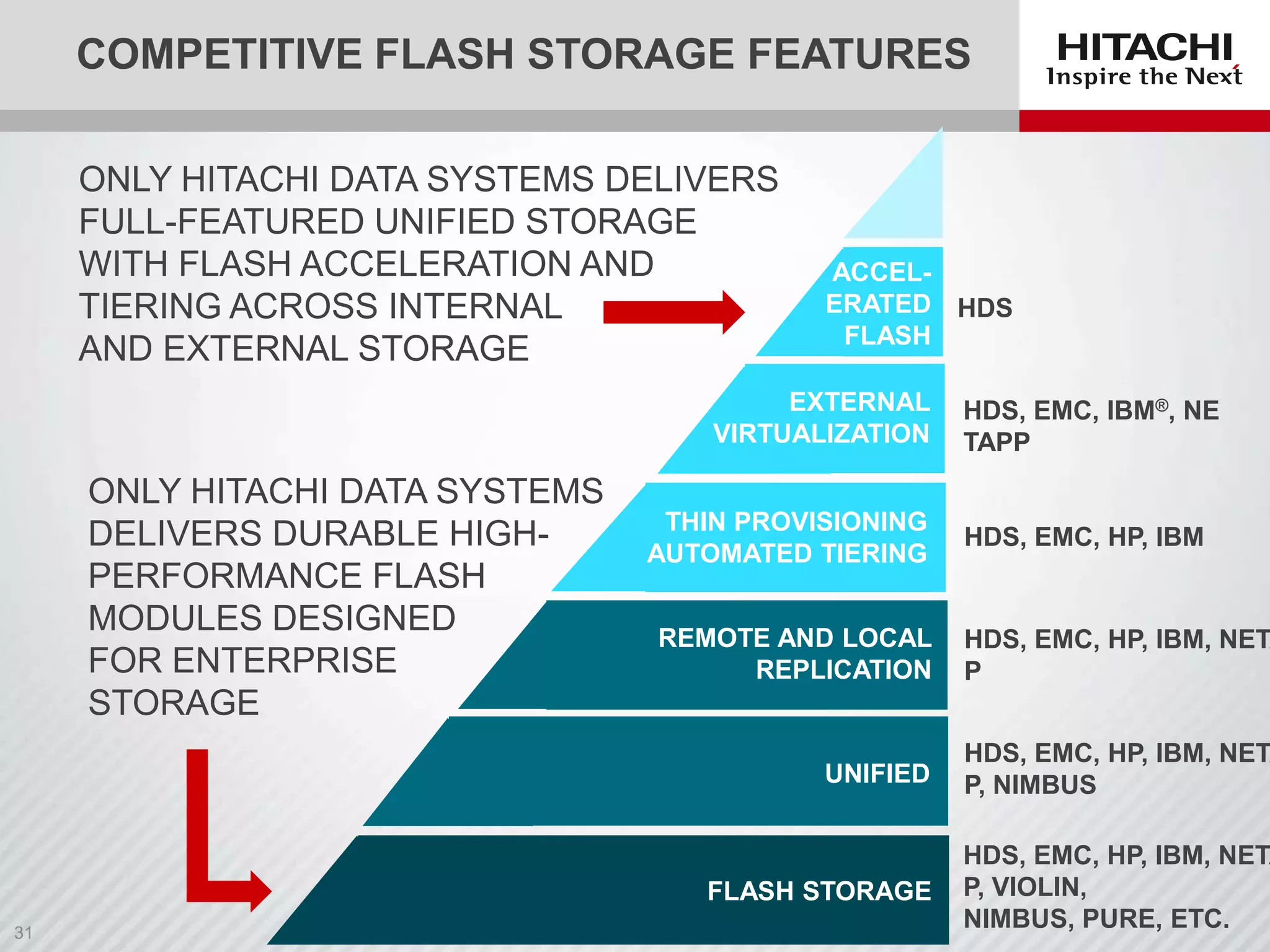

- 31. COMPETITIVE FLASH STORAGEFEATURES ONLY HITACHI DATA SYSTEMS DELIVERS FULL-FEATURED UNIFIED STORAGE WITH FLASH ACCELERATION AND TIERING ACROSS INTERNAL AND EXTERNAL STORAGE ACCELERATED HDS FLASH EXTERNAL VIRTUALIZATION ONLY HITACHI DATA SYSTEMS DELIVERS DURABLE HIGHPERFORMANCE FLASH MODULES DESIGNED FOR ENTERPRISE STORAGE THIN PROVISIONING AUTOMATED TIERING HDS, EMC, IBM®, NE TAPP HDS, EMC, HP, IBM REMOTE AND LOCAL REPLICATION HDS, EMC, HP, IBM, NETA P UNIFIED HDS, EMC, HP, IBM, NETA P, NIMBUS FLASH STORAGE HDS, EMC, HP, IBM, NETA P, VIOLIN, NIMBUS, PURE, ETC.

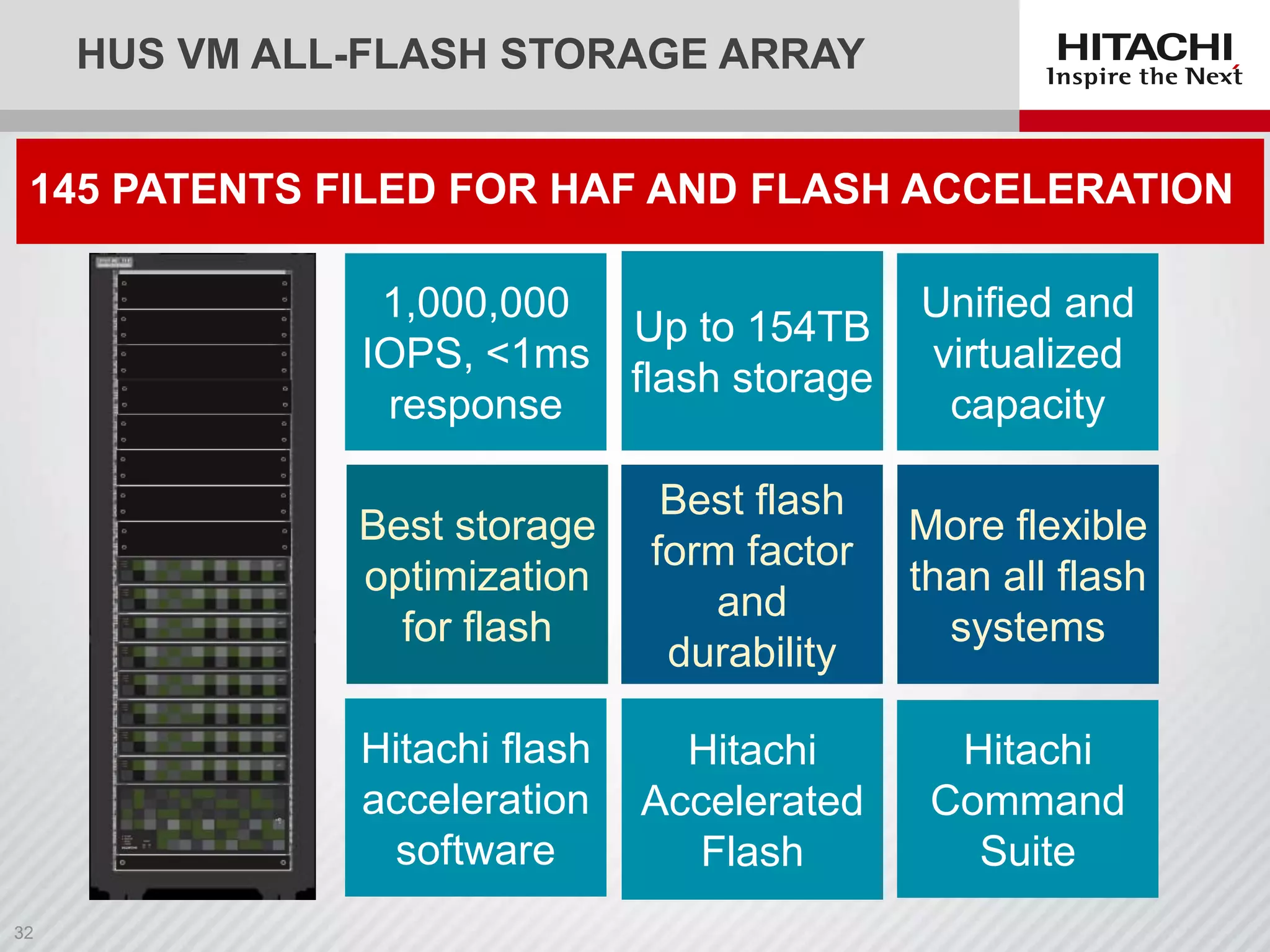

- 32. HUS VM ALL-FLASHSTORAGE ARRAY 145 PATENTS FILED FOR HAF AND FLASH ACCELERATION 1,000,000 Up to 154TB IOPS, <1ms flash storage response Unified and virtualized capacity Best storage optimization for flash Best flash form factor and durability More flexible than all flash systems Hitachi flash acceleration software Hitachi Accelerated Flash Hitachi Command Suite

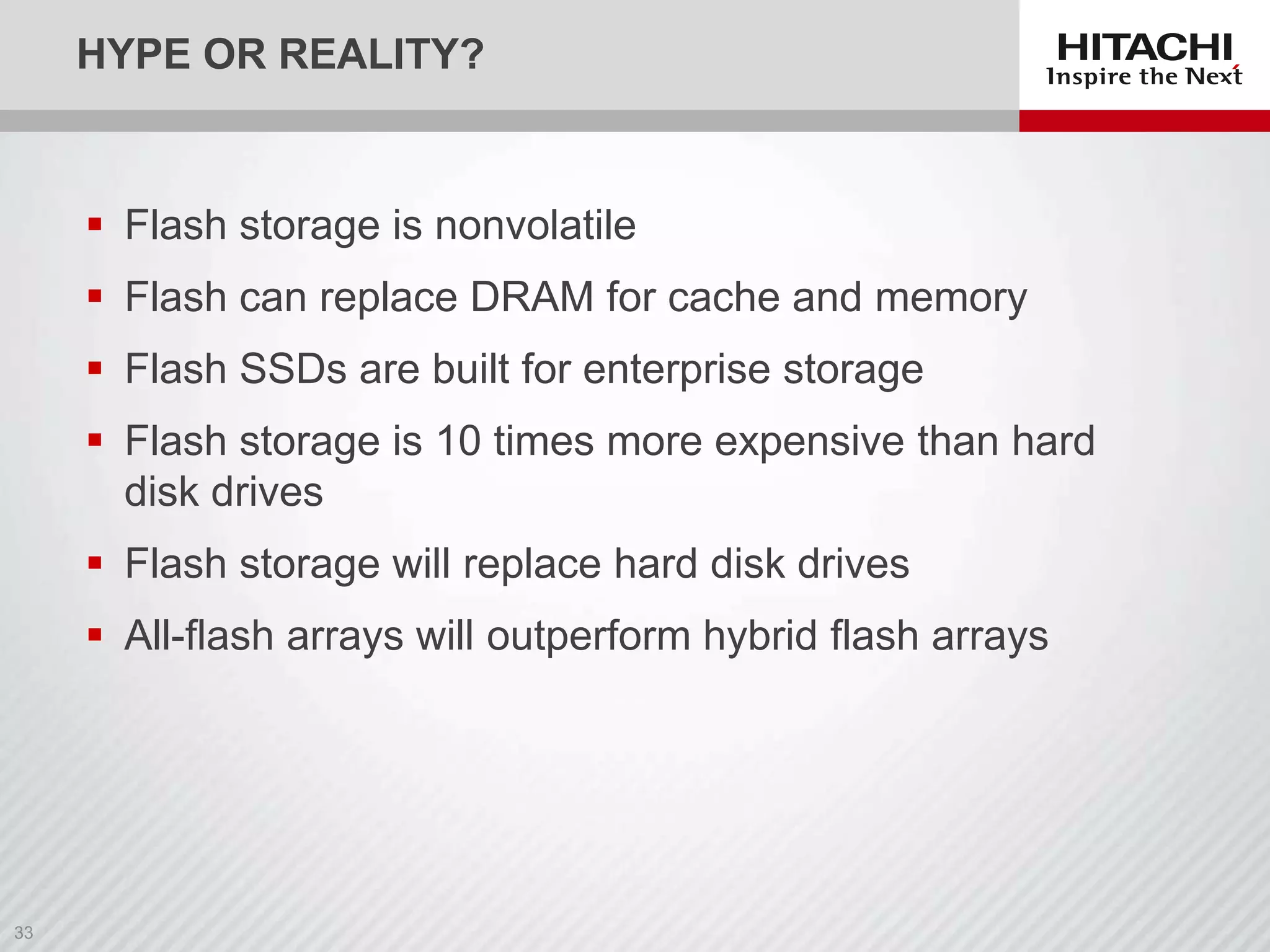

- 33. HYPE OR REALITY? Flash storage is nonvolatile Flash can replace DRAM for cache and memory Flash SSDs are built for enterprise storage Flash storage is 10 times more expensive than hard disk drives Flash storage will replace hard disk drives All-flash arrays will outperform hybrid flash arrays
- 34. QUESTIONS AND DISCUSSION Questions willbe posted to: http://community.hds.com/groups/webtech
- 35. UPCOMING WEBTECHS MaximizeIT WebTechs ‒ Hitachi Unified Storage and Hitachi NAS Platform Performance Optimization with Flash Acceleration, August 14, 9 a.m. PT, 12 p.m. (noon) ET ‒ Comprehensive and Simplified Management for VMware vSphere Environments – Now, Even Better!, September 11, 9 a.m. PT, 12 p.m. (noon) ET ‒ Easily Deploy Microsoft® Private Cloud and Microsoft SQL Server® 2012 Data Warehouse on Hitachi Converged Solutions, Sept 25, 9 a.m. PT, 12 p.m. (noon) ET Check www.hds.com/webtech for Links to the recording, the presentation, and Q&A (available next week) Schedule and registration for upcoming WebTech sessions Questions will be posted in the HDS Community: http://community.hds.com/groups/webtech
- 36.
