Enterprise Storage NAS - Dual Controller
- 1. Internal Announcement Enterprise StorageNAS Enterprise-Class, Unified, Hybrid, Optimized For VM Waterball Liu Platform PM Team Enterprise Storage Division
- 2. Question & Answer SomeThinking Behind Brand New Product Line Inquiring Minds Like Yours FILEBLOCK VMware ESX VMware ESX Virtualization Unified Storage Deduplication Compression Unlimited Snap Shot Snap Sync Dual Active System Controller

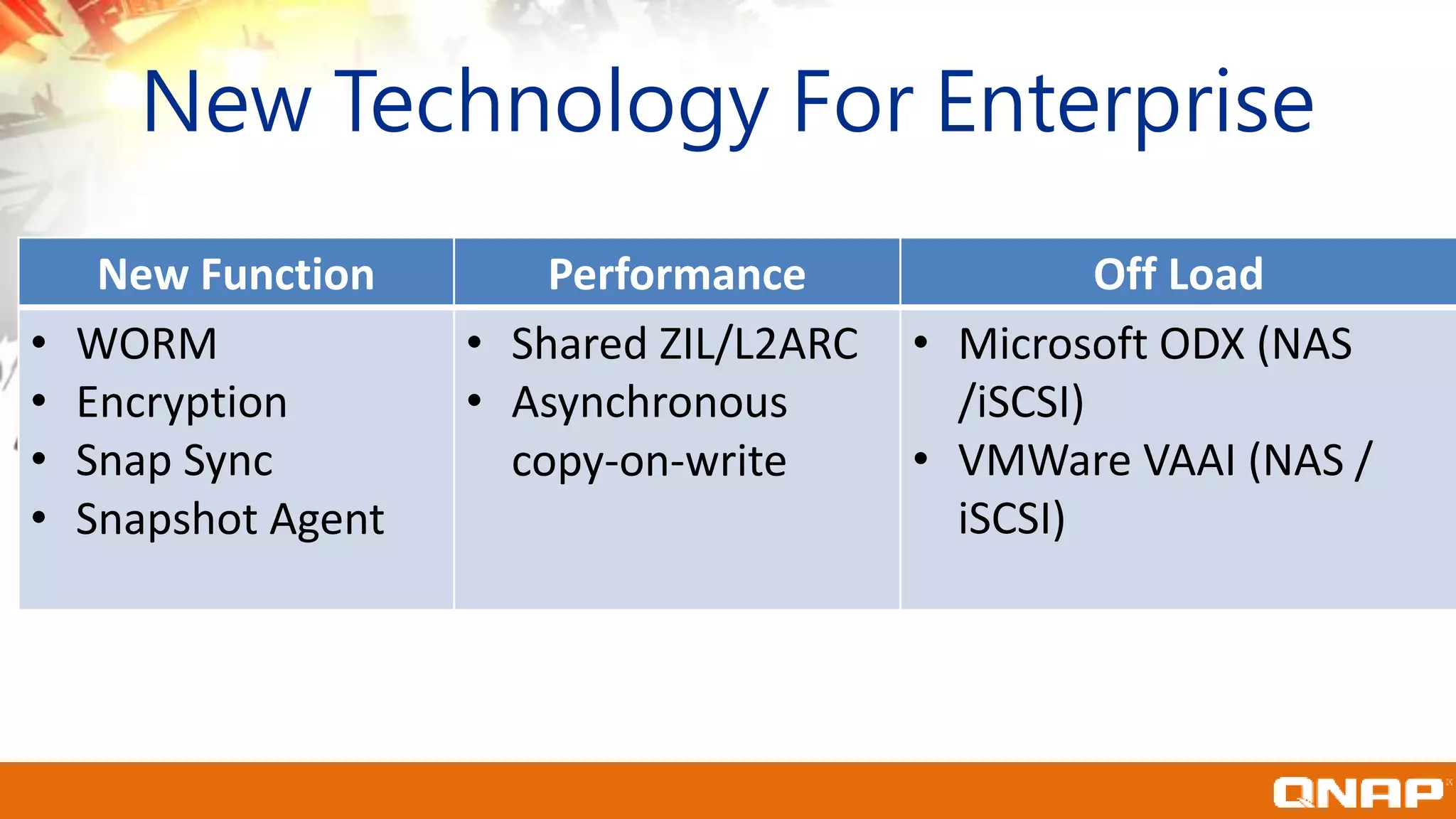

- 3. New Function PerformanceOff Load • WORM • Encryption • Snap Sync • Snapshot Agent • Shared ZIL/L2ARC • Asynchronous copy-on-write • Microsoft ODX (NAS /iSCSI) • VMWare VAAI (NAS / iSCSI) New Technology For Enterprise

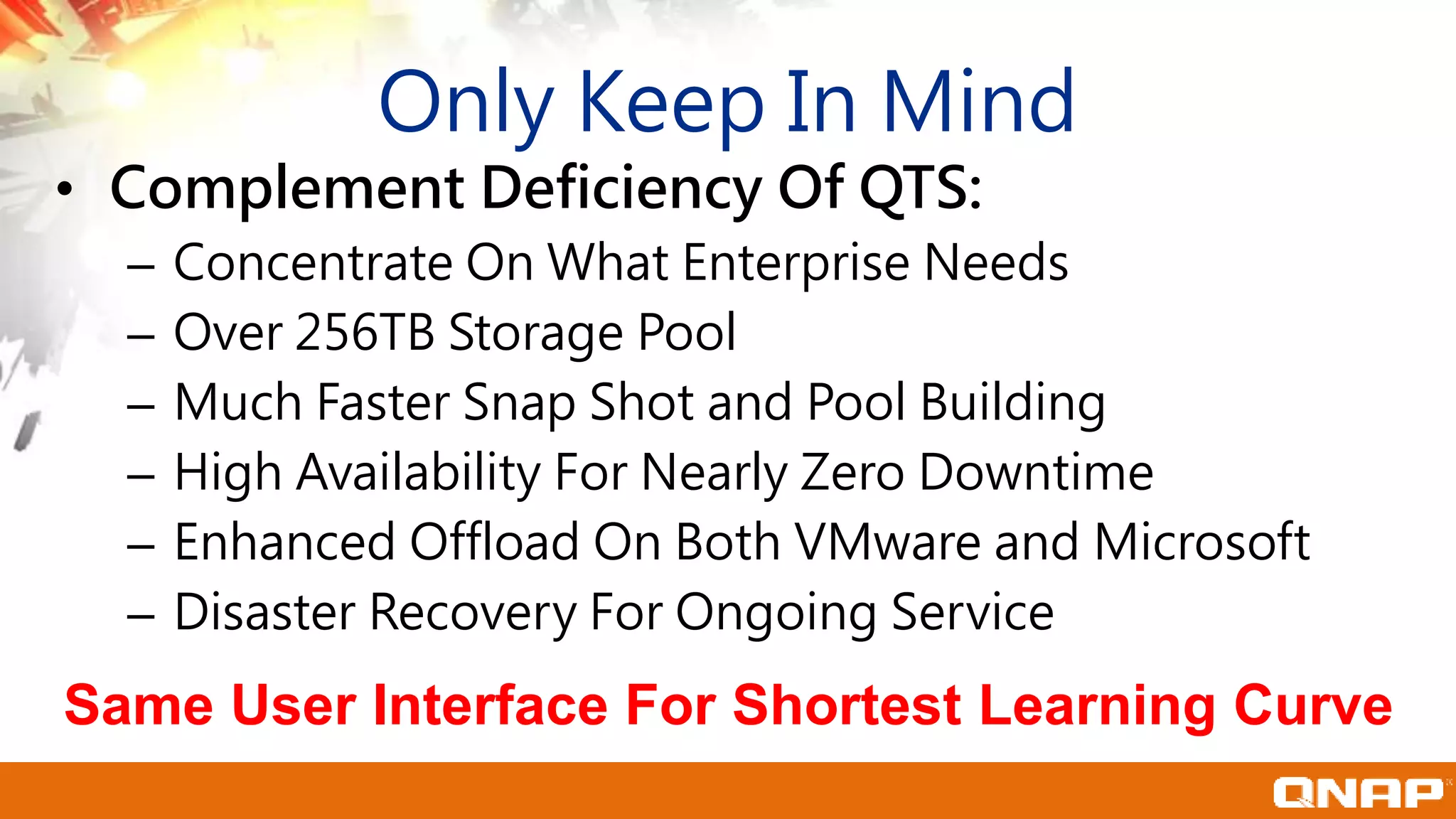

- 4. Only Keep InMind • Complement Deficiency Of QTS: – Concentrate On What Enterprise Needs – Over 256TB Storage Pool – Much Faster Snap Shot and Pool Building – High Availability For Nearly Zero Downtime – Enhanced Offload On Both VMware and Microsoft – Disaster Recovery For Ongoing Service Same User Interface For Shortest Learning Curve

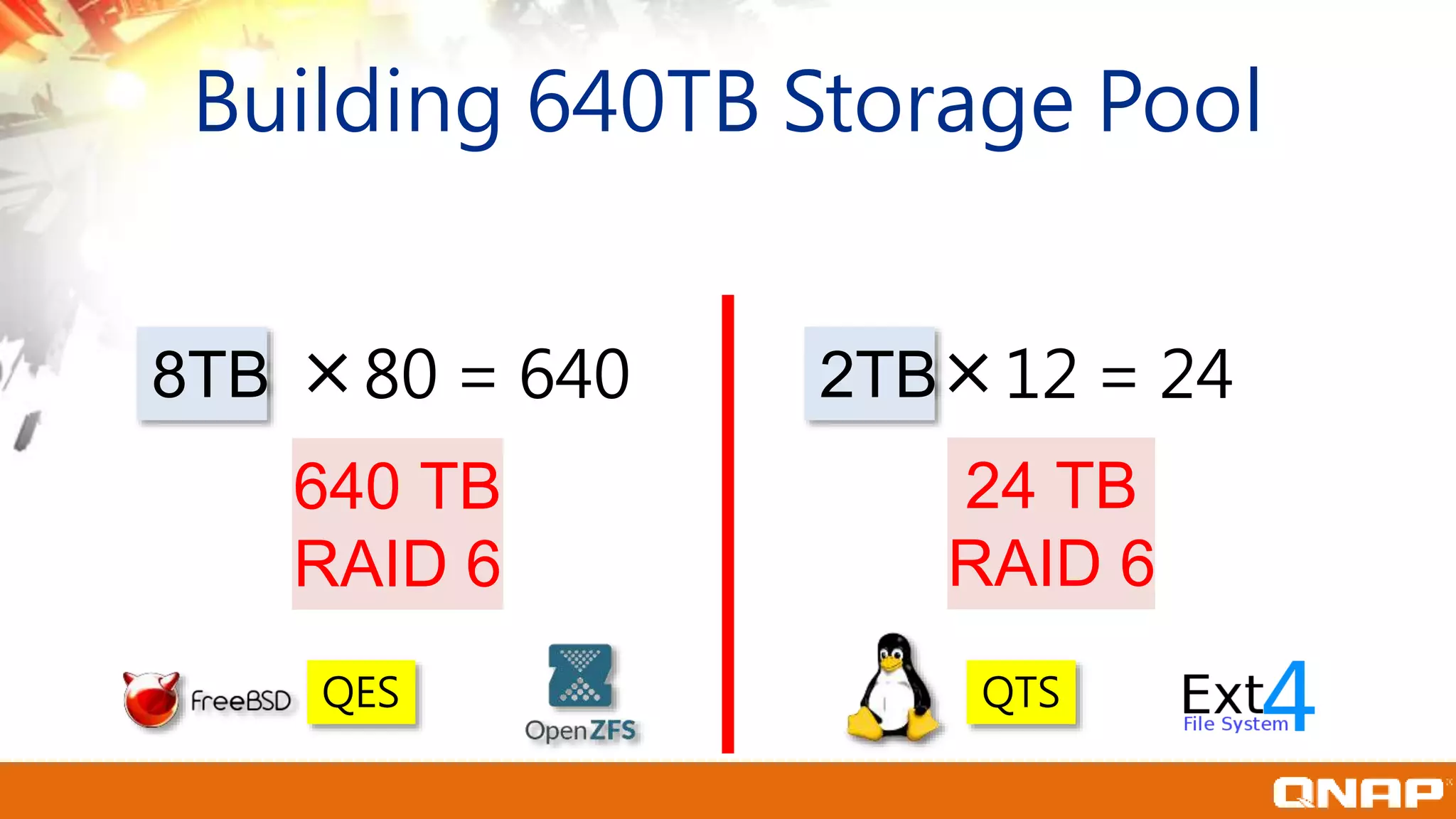

- 5. 8TB 2TB QES QTS ╳80 = 640 ╳ 12 = 24 640 TB RAID 6 24 TB RAID 6 Building 640TB Storage Pool

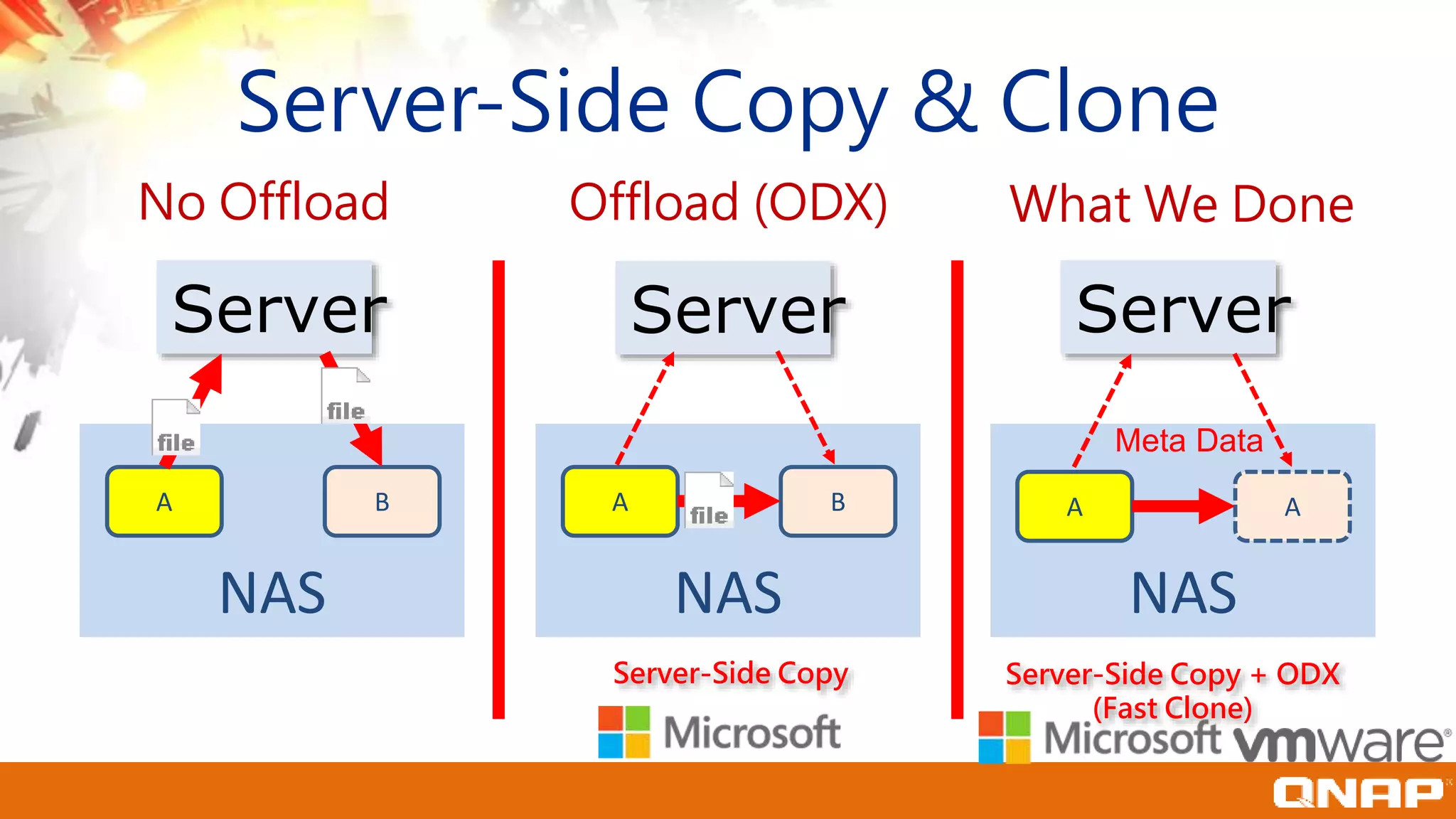

- 6. Pool / IP Server-SideCopy & Clone Server Server Server NAS NAS NAS A B A B A A Server-Side Copy Server-Side Copy + ODX (Fast Clone) Meta Data No Offload Offload (ODX) What We Done

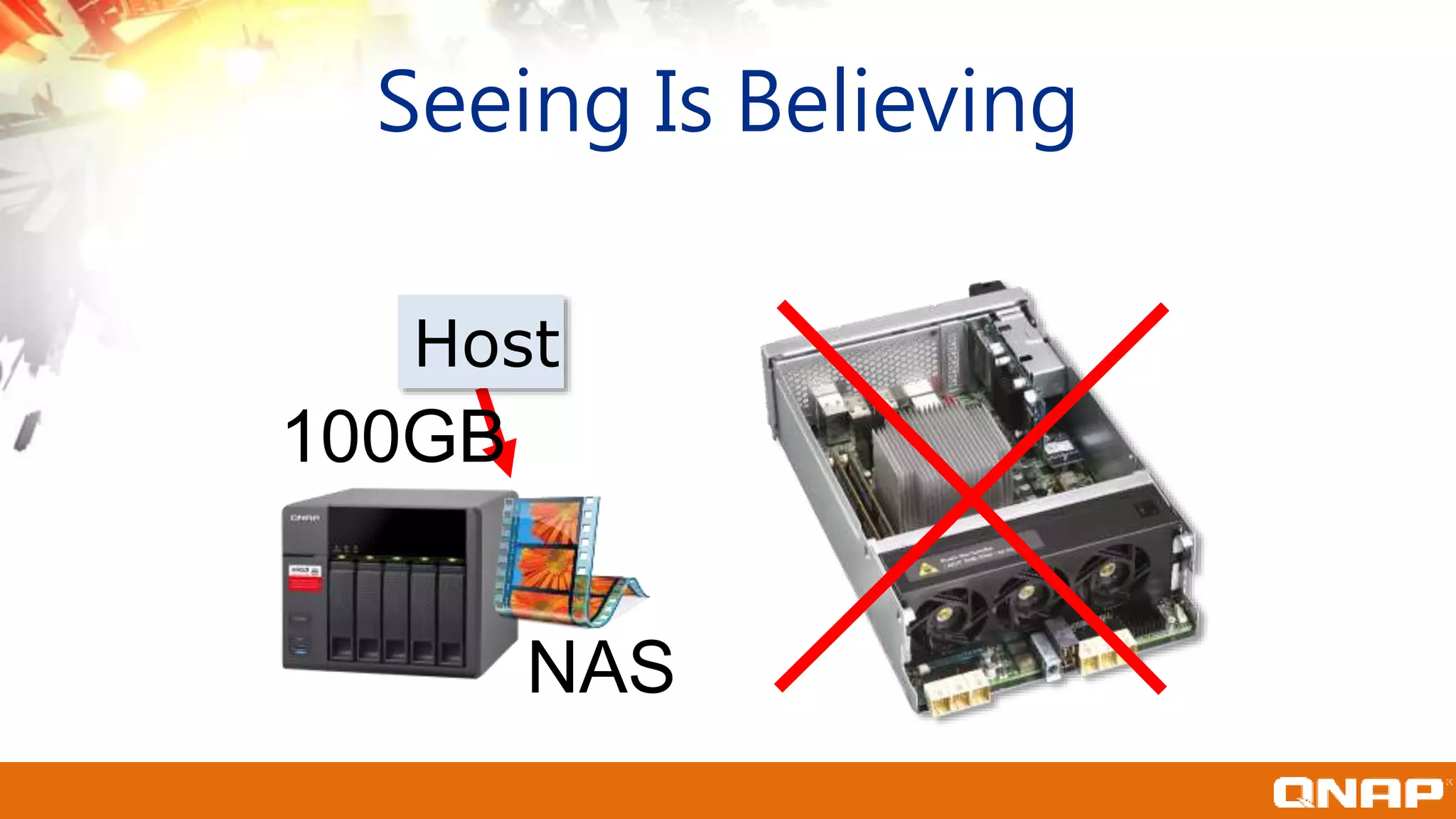

- 7.

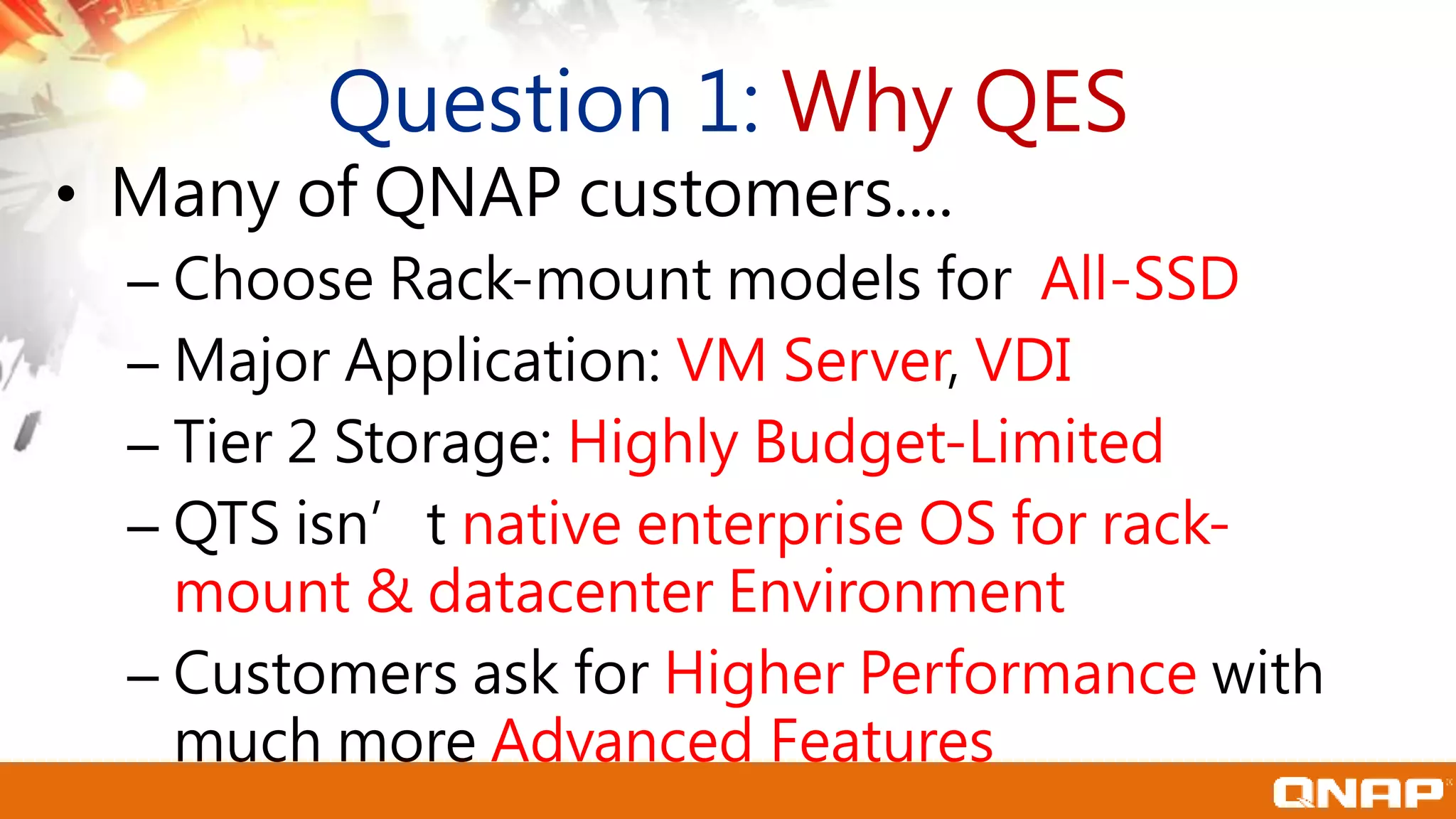

- 8. Question 1: WhyQES • Many of QNAP customers.... – Choose Rack-mount models for All-SSD – Major Application: VM Server, VDI – Tier 2 Storage: Highly Budget-Limited – QTS isn’t native enterprise OS for rack- mount & datacenter Environment – Customers ask for Higher Performance with much more Advanced Features

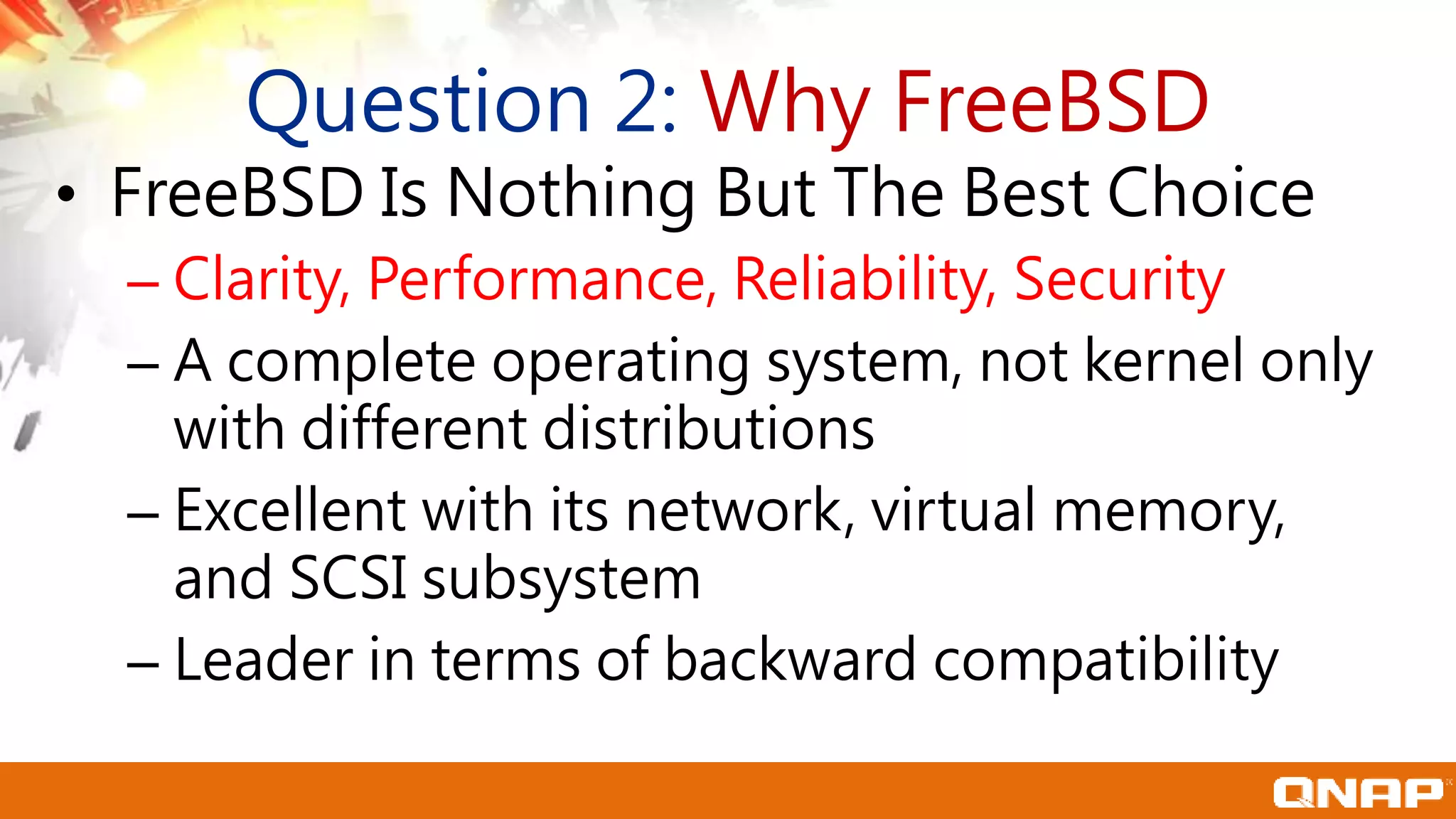

- 9. Question 2: WhyFreeBSD • FreeBSD Is Nothing But The Best Choice – Clarity, Performance, Reliability, Security – A complete operating system, not kernel only with different distributions – Excellent with its network, virtual memory, and SCSI subsystem – Leader in terms of backward compatibility

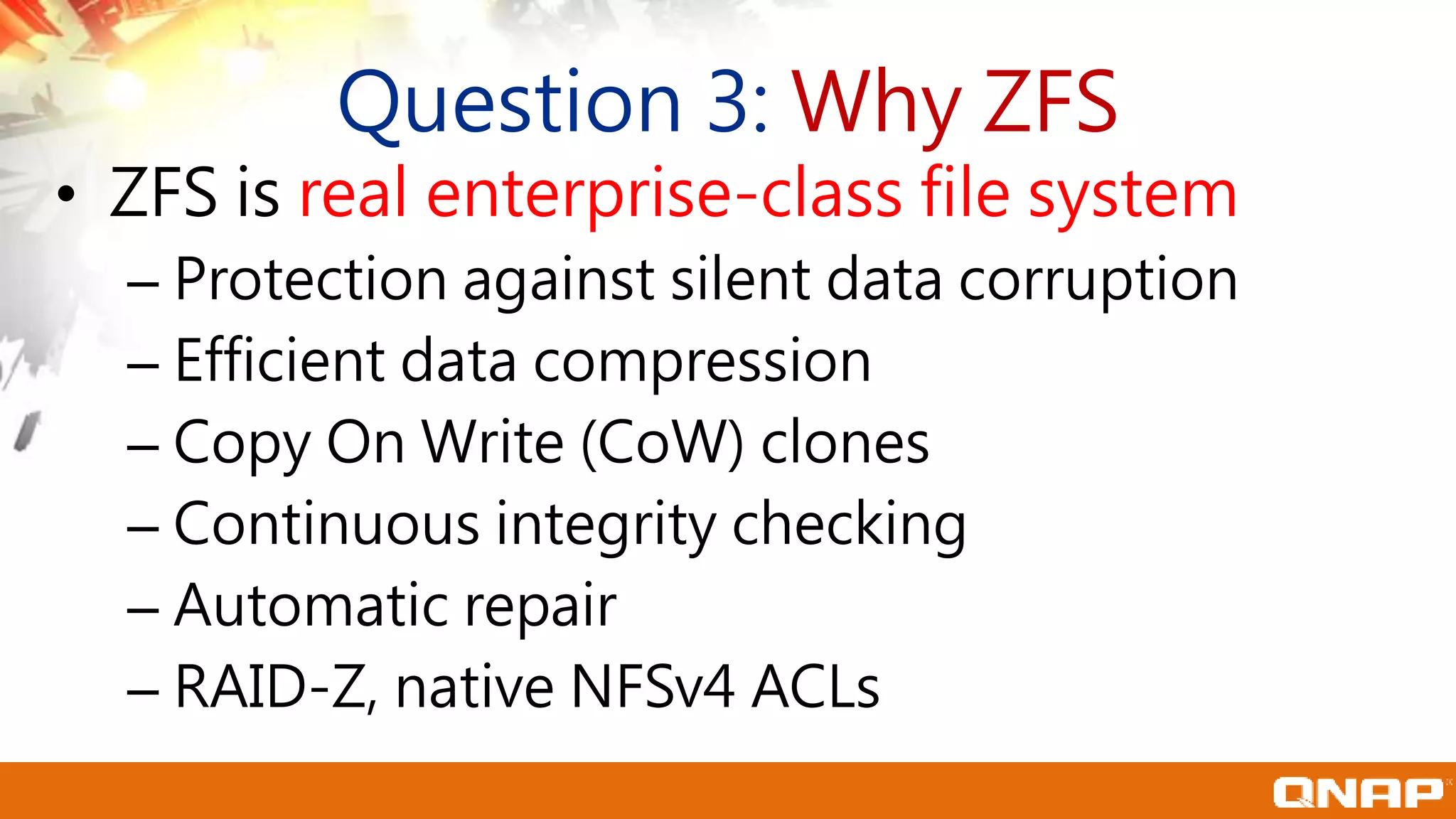

- 10. Question 3: WhyZFS • ZFS is real enterprise-class file system – Protection against silent data corruption – Efficient data compression – Copy On Write (CoW) clones – Continuous integrity checking – Automatic repair – RAID-Z, native NFSv4 ACLs

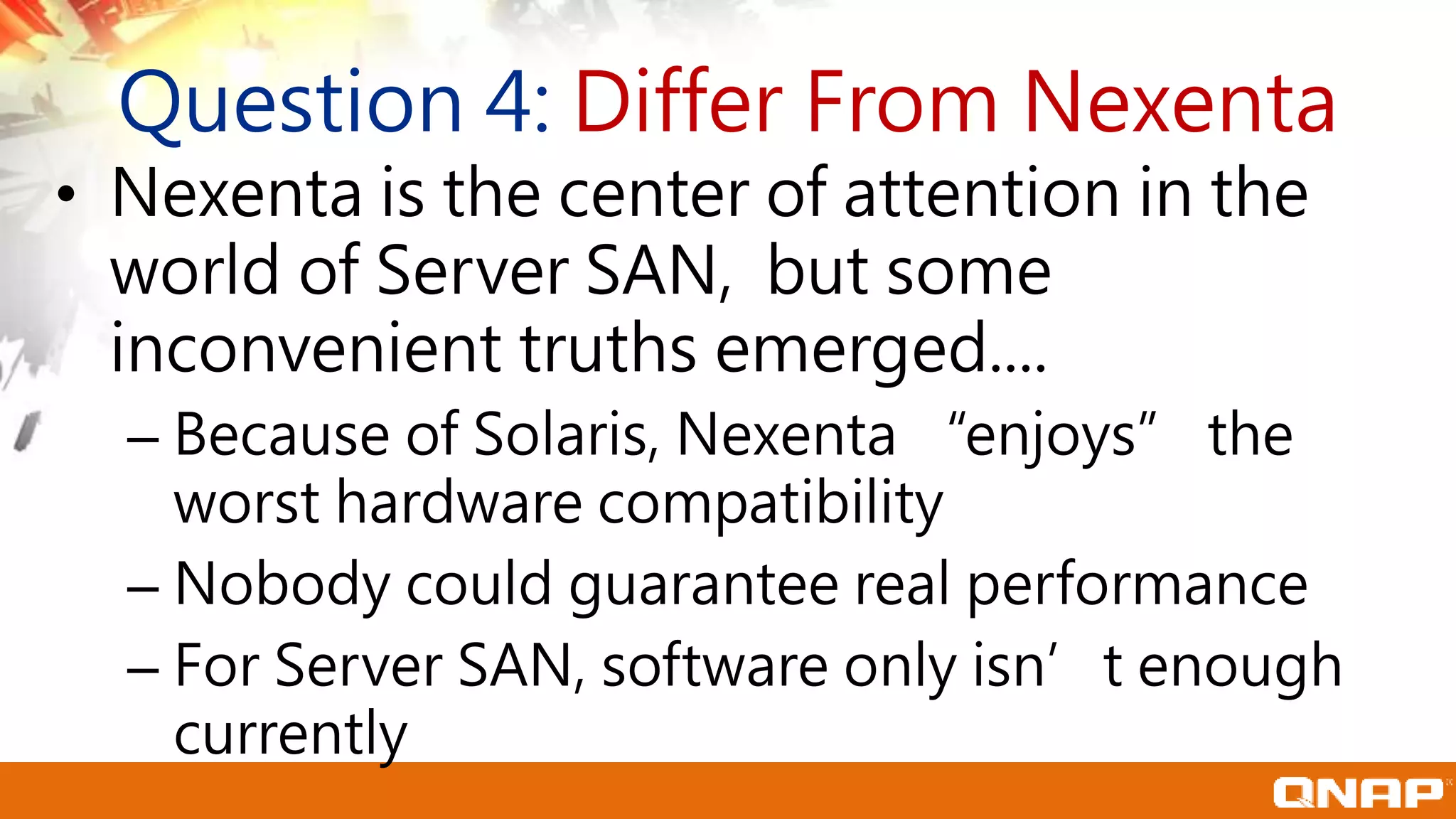

- 11. Question 4: DifferFrom Nexenta • Nexenta is the center of attention in the world of Server SAN, but some inconvenient truths emerged.... – Because of Solaris, Nexenta “enjoys” the worst hardware compatibility – Nobody could guarantee real performance – For Server SAN, software only isn’t enough currently

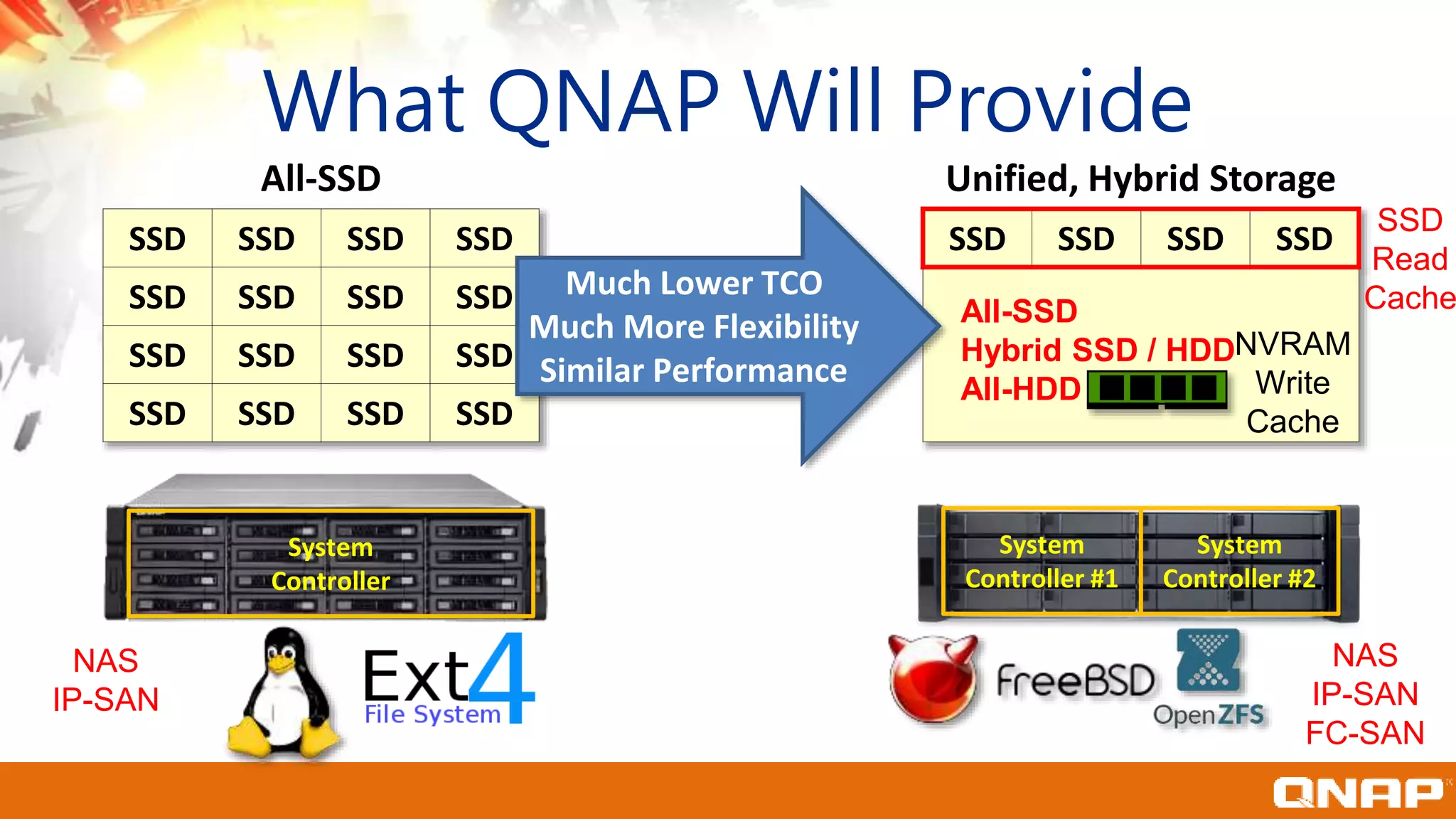

- 12. What QNAP WillProvide All-SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD SSD Unified, Hybrid Storage SSD SSD SSD SSD NVRAM Write Cache SSD Read Cache System Controller #1 System Controller #2 Much Lower TCO Much More Flexibility Similar Performance NAS IP-SAN NAS IP-SAN FC-SAN All-SSD Hybrid SSD / HDD All-HDD System Controller

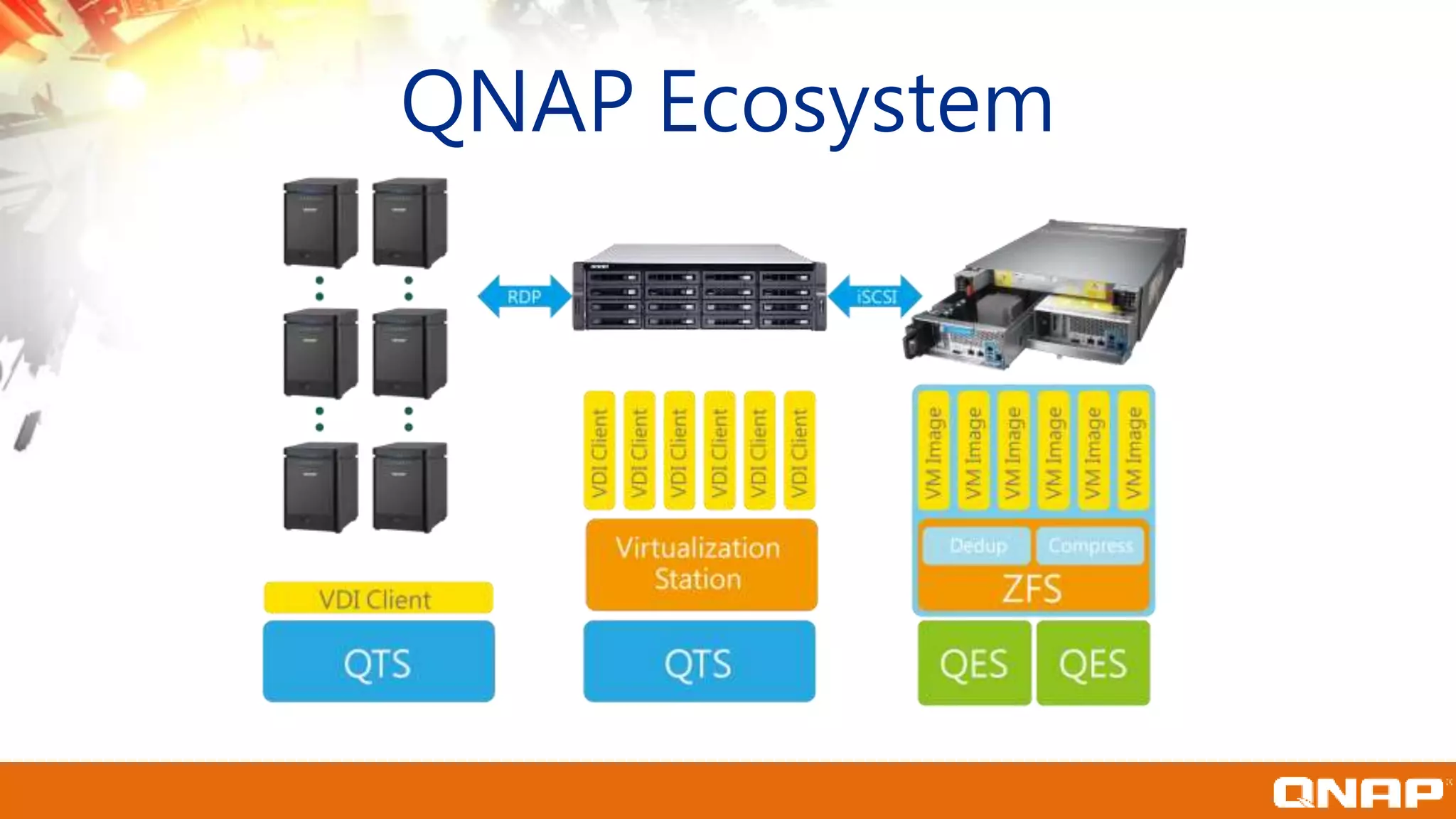

- 13.

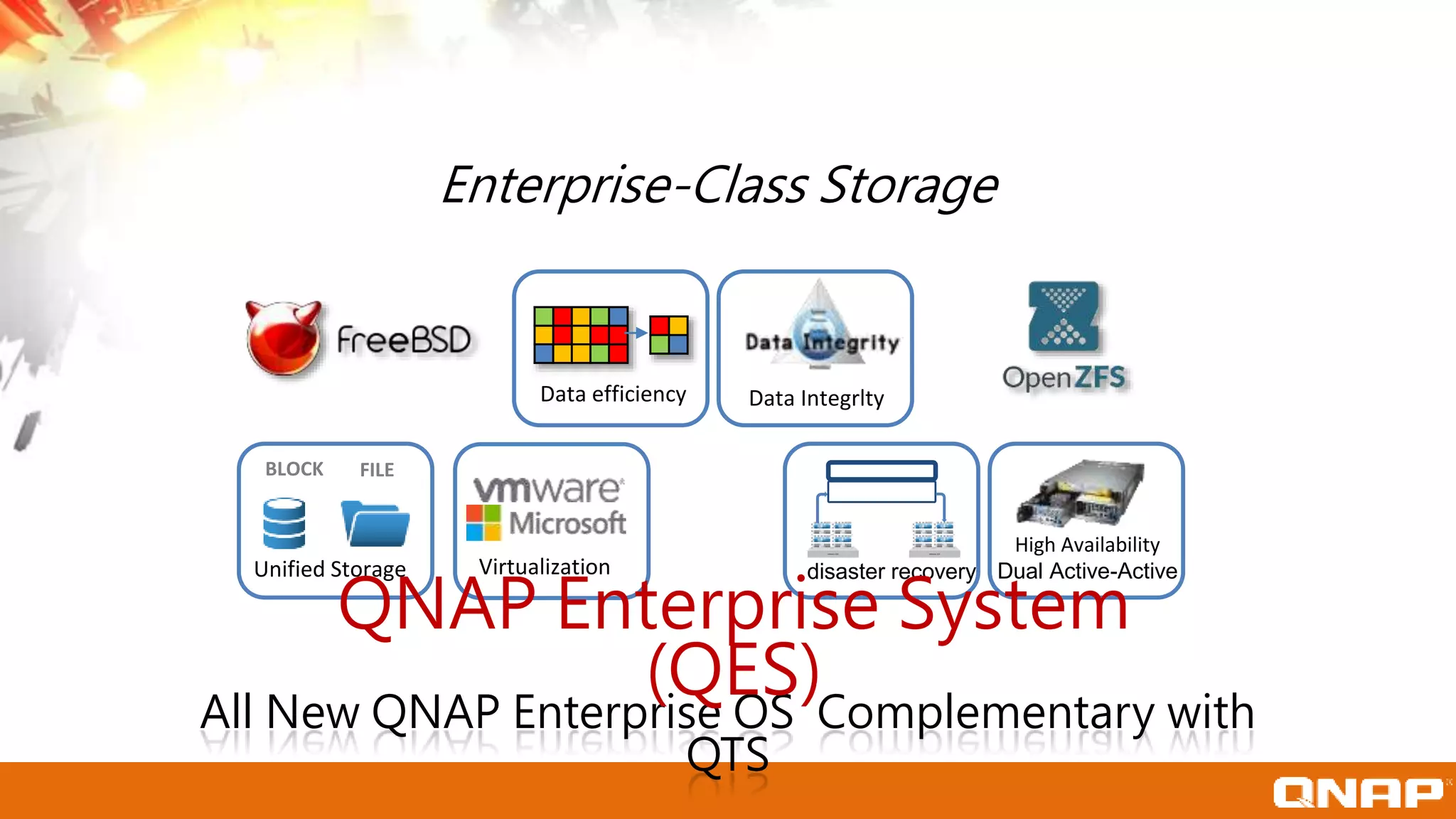

- 14. Data efficiency FILEBLOCK Unified StorageVirtualization VMware ESX VMware ESX disaster recovery High Availability Dual Active-Active Data Integrlty Enterprise-Class Storage All New QNAP Enterprise OS Complementary with QTS QNAP Enterprise System (QES)

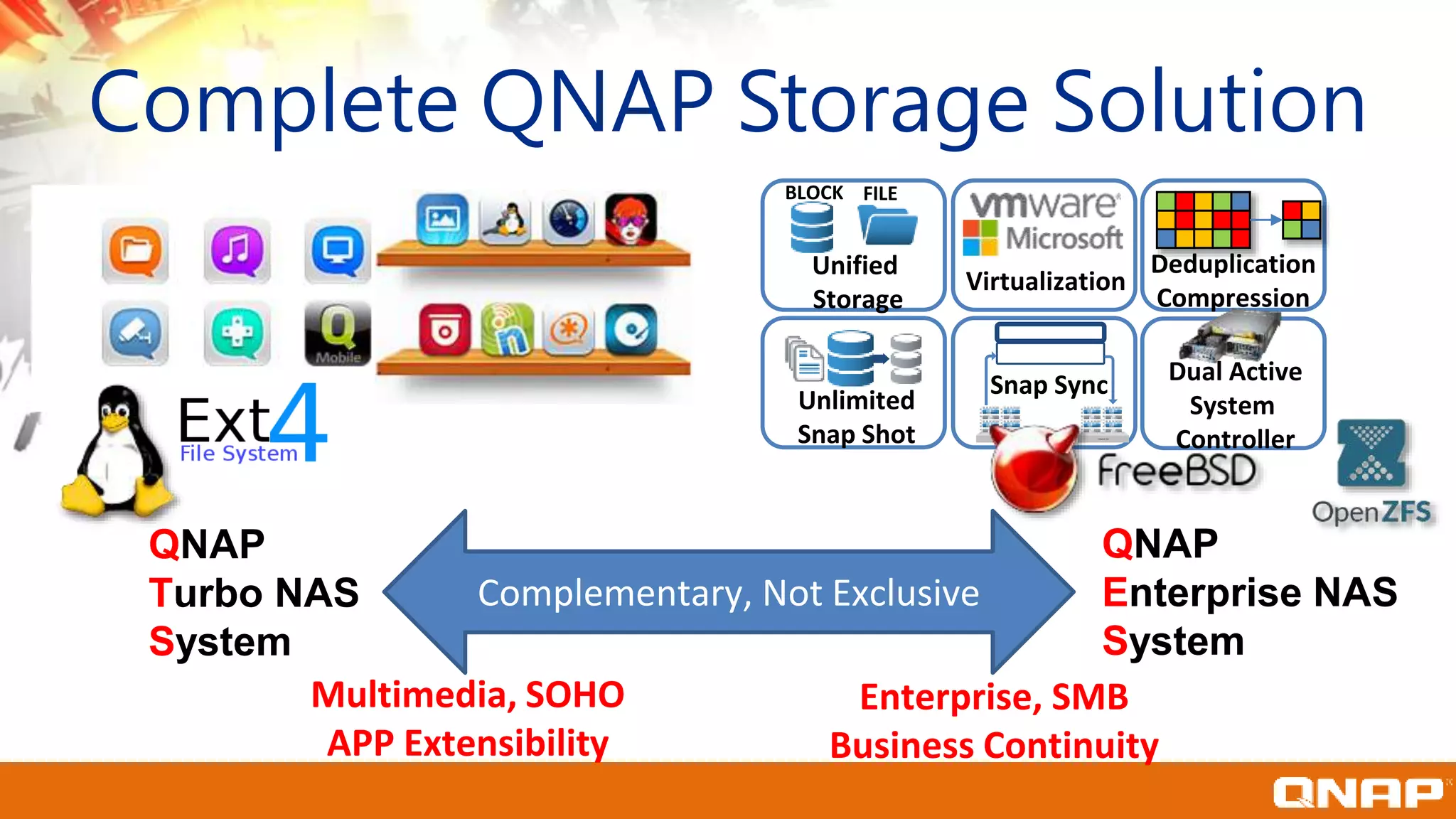

- 15. Complete QNAP StorageSolution FILEBLOCK VMware ESX VMware ESX QNAP Turbo NAS System QNAP Enterprise NAS System Virtualization Unified Storage Deduplication Compression Unlimited Snap Shot Snap Sync Dual Active System Controller Complementary, Not Exclusive Multimedia, SOHO APP Extensibility Enterprise, SMB Business Continuity

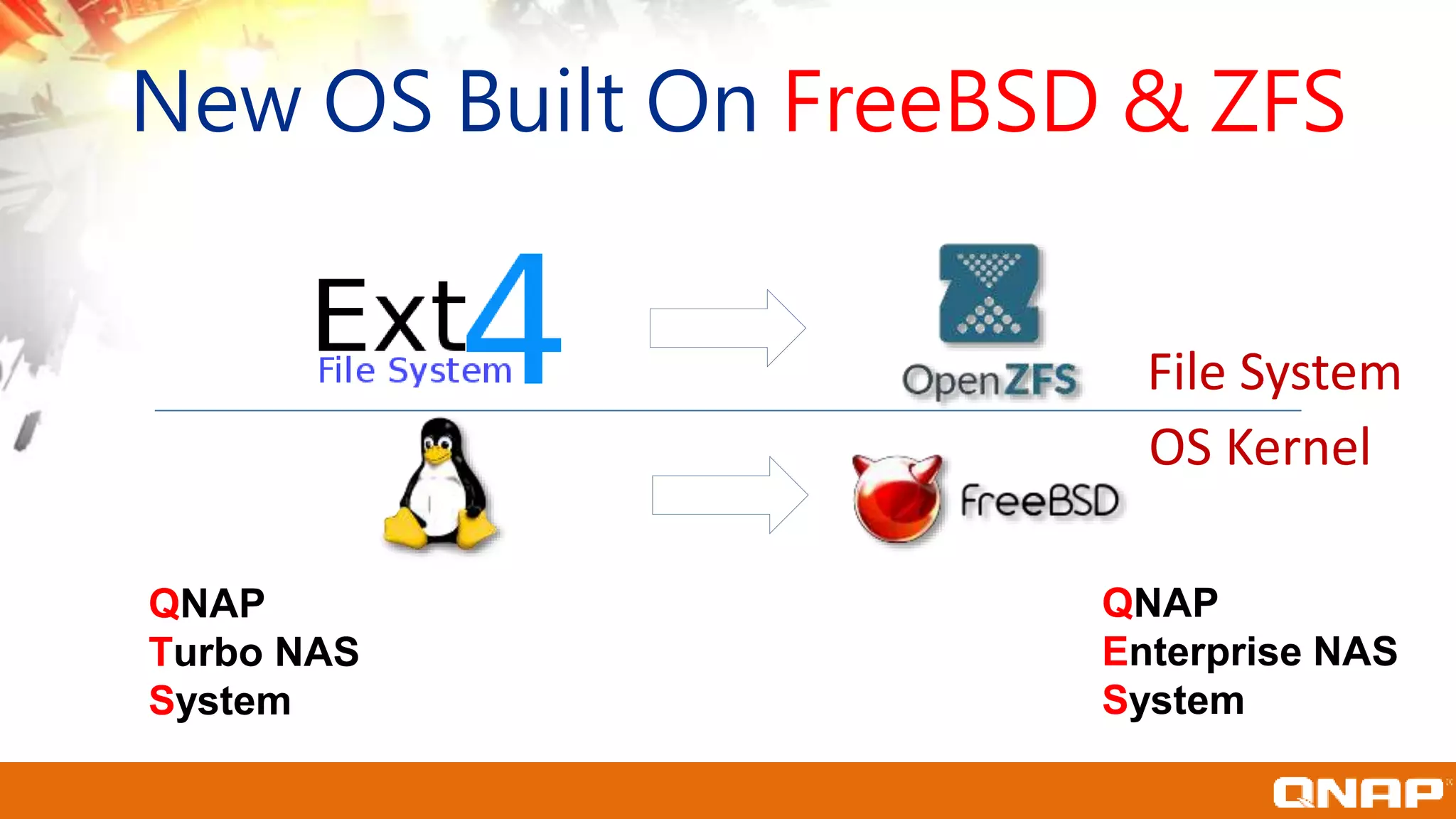

- 16. New OS BuiltOn FreeBSD & ZFS OS Kernel File System QNAP Turbo NAS System QNAP Enterprise NAS System

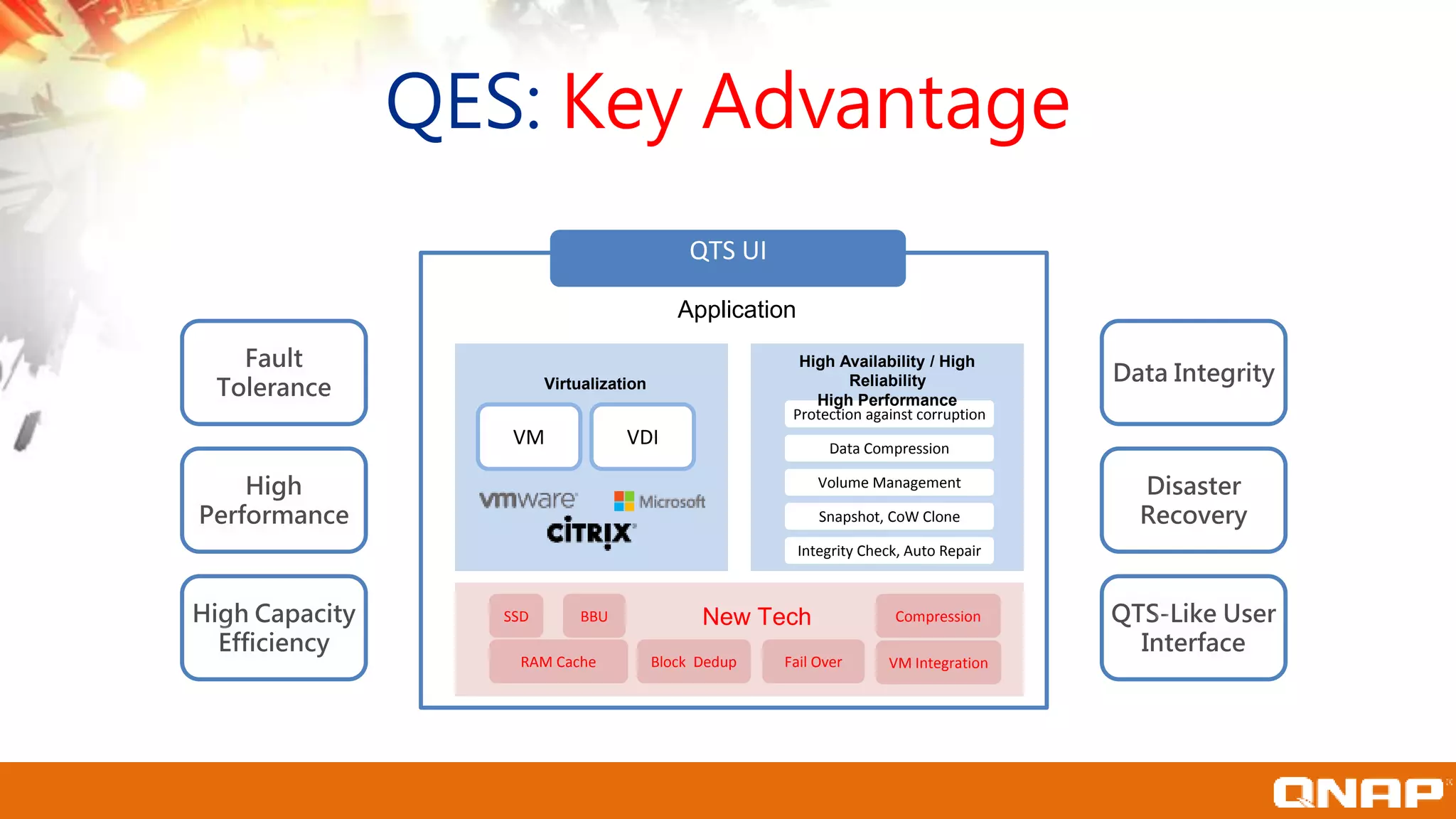

- 17. QES: Key Advantage SSD BlockDedup BBU Fail Over VDI Protection against corruption Data Compression Volume Management Snapshot, CoW Clone Integrity Check, Auto Repair VM RAM Cache Compression VM Integration QTS UI Data Integrity Disaster Recovery QTS-Like User Interface Fault Tolerance High Performance High Capacity Efficiency Application High Availability / High Reliability High Performance Virtualization New Tech

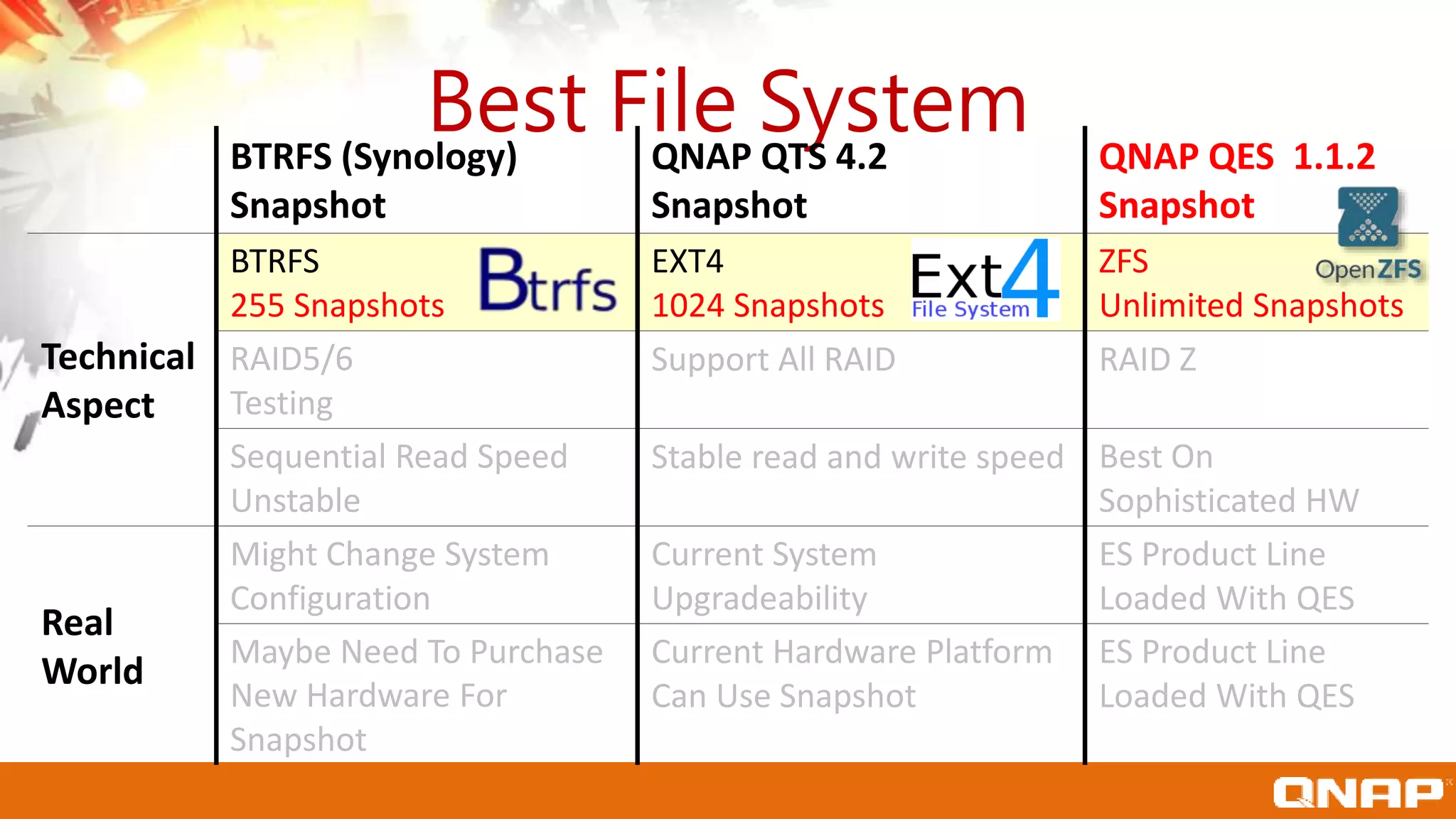

- 18. Best File SystemBTRFS(Synology) Snapshot QNAP QTS 4.2 Snapshot QNAP QES 1.1.2 Snapshot Technical Aspect BTRFS 255 Snapshots EXT4 1024 Snapshots ZFS Unlimited Snapshots RAID5/6 Testing Support All RAID RAID Z Sequential Read Speed Unstable Stable read and write speed Best On Sophisticated HW Real World Might Change System Configuration Current System Upgradeability ES Product Line Loaded With QES Maybe Need To Purchase New Hardware For Snapshot Current Hardware Platform Can Use Snapshot ES Product Line Loaded With QES

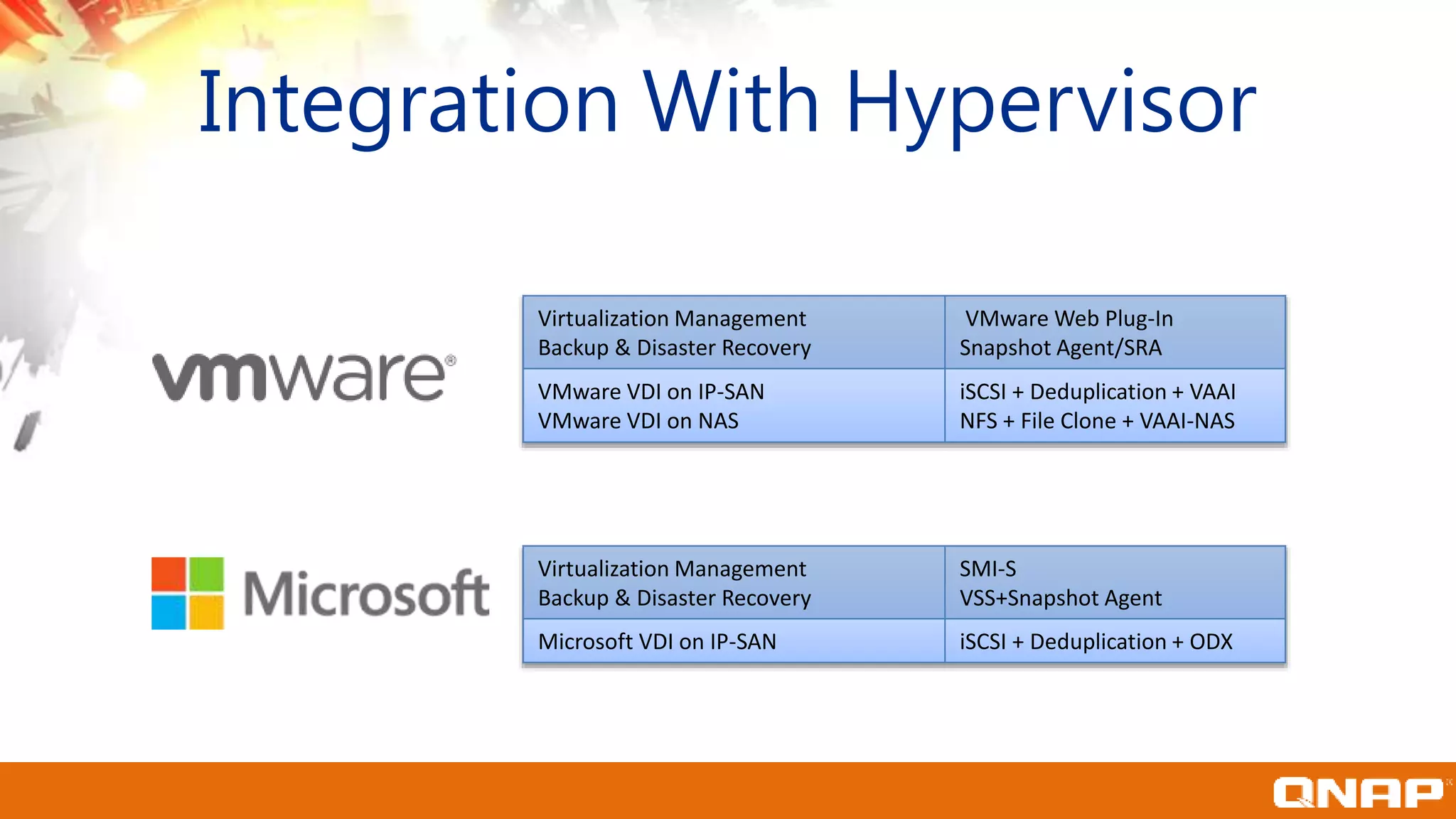

- 19. Virtualization Management Backup &Disaster Recovery SMI-S VSS+Snapshot Agent Microsoft VDI on IP-SAN iSCSI + Deduplication + ODX Virtualization Management Backup & Disaster Recovery VMware Web Plug-In Snapshot Agent/SRA VMware VDI on IP-SAN VMware VDI on NAS iSCSI + Deduplication + VAAI NFS + File Clone + VAAI-NAS Integration With Hypervisor

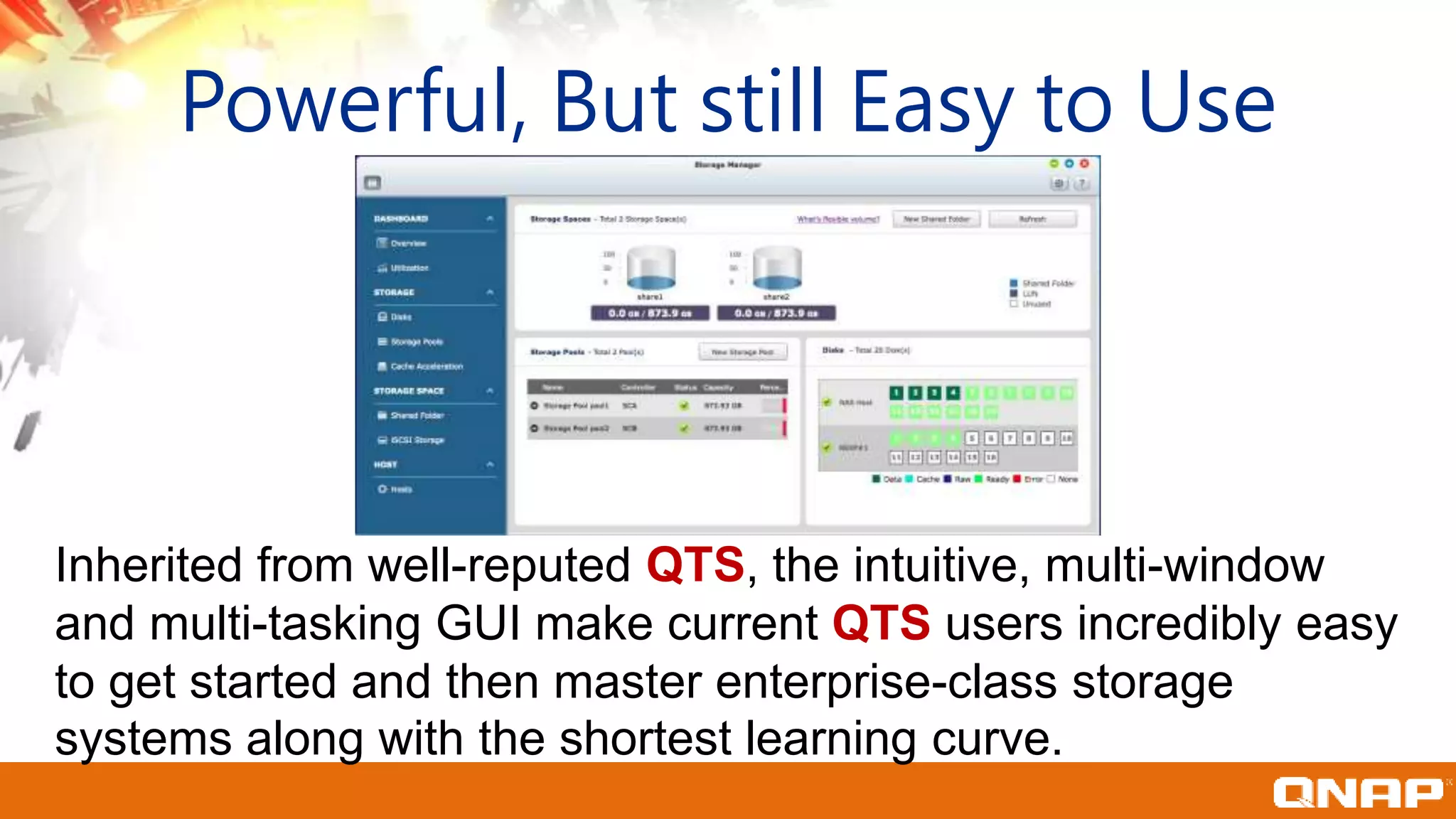

- 20. Powerful, But stillEasy to Use Inherited from well-reputed QTS, the intuitive, multi-window and multi-tasking GUI make current QTS users incredibly easy to get started and then master enterprise-class storage systems along with the shortest learning curve.
- 21. Efficiency: Data Deduplication CA B C D B A B A A D B B C A A B C D Deduplication Deduplication rates for VM deployments can range as high as 95% savings. Deduplicated data is cached for much better performance by reducing disk access! NVRAM Cache Repeatability

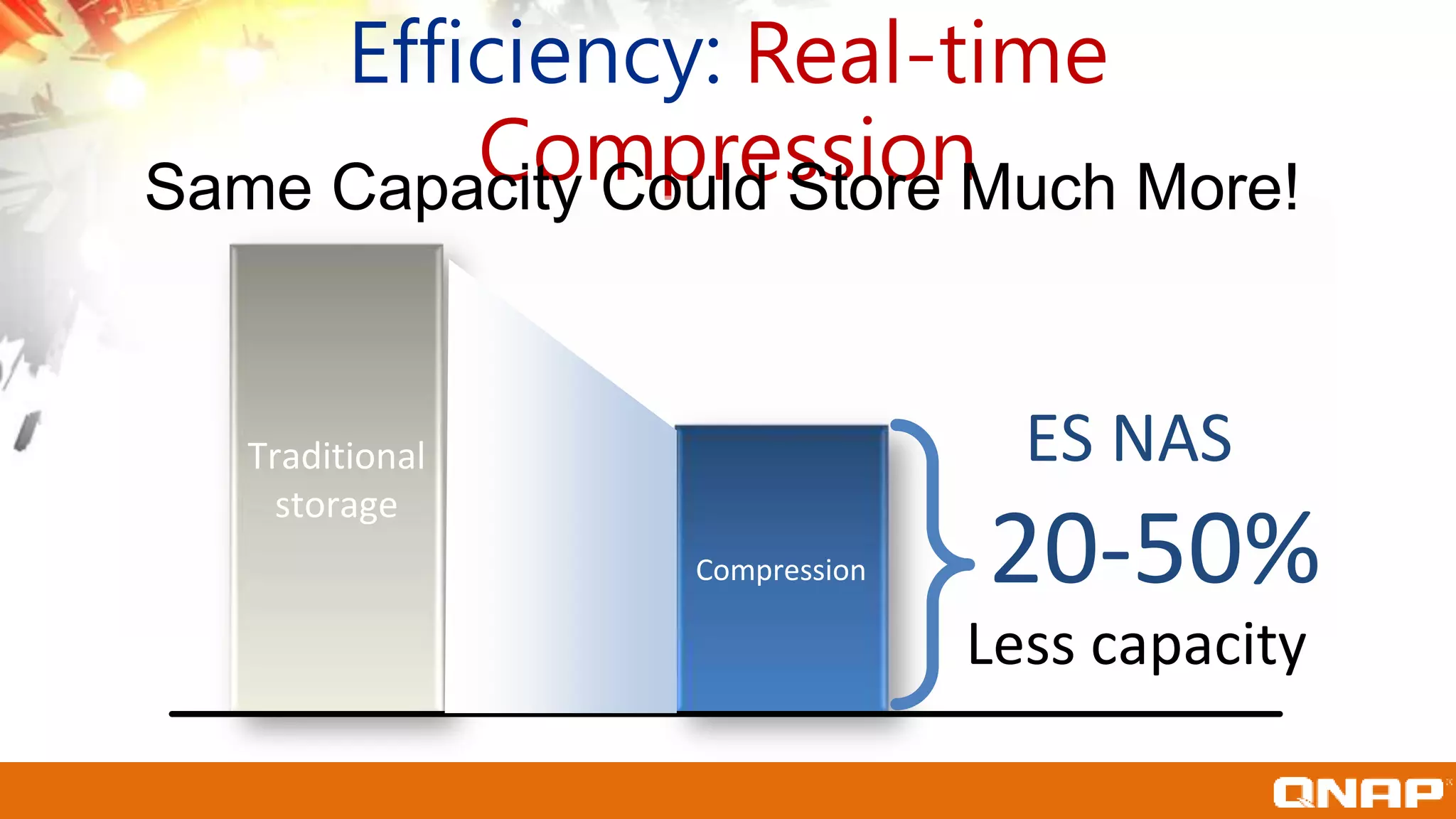

- 22. Efficiency: Real-time Compression Compression Traditional storage 20-50% Less capacity ESNAS Same Capacity Could Store Much More!
- 23. High Performance NVRAMCache Both SSD Read Cache (RAID 0+1) and NVRAM Write Cache protected by Copy-To-Flash (C2F) provide best performance. BBU Read Write C2F Write Cache Read Cache Copy To Flash mSATA / M.2 SSD (32GB) Battery Backup Unit NVRAM

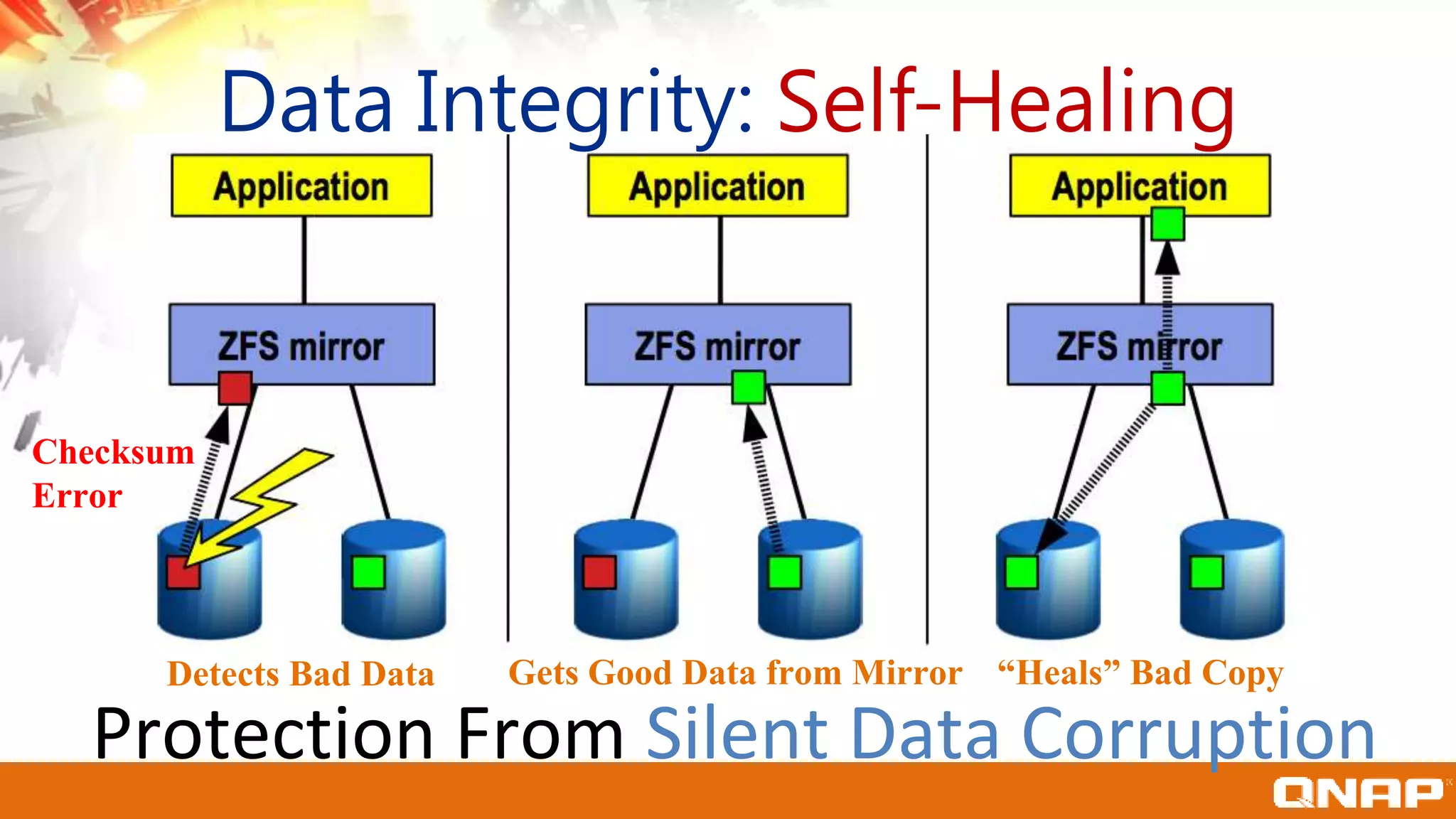

- 24. Protection From SilentData Corruption Data Integrity: Self-Healing Detects Bad Data Gets Good Data from Mirror “Heals” Bad Copy Checksum Error
- 25. Data Integrity: NVRAMMirroring BBU BBU Mirroring Read Read Read Read Copy To Flash Copy To Flash Write Back Cache Write Back Cache Power Supply Power Supply Main Memory Write Cache Mirroring for HA SSD Read Cache mSATA M.2 SSD Copy To Flash
- 26. Disaster Recovery: SnapSync + Snap Shot Agent for VM Backup Snap Sync Turbo NAS Snapshot RSYNC ES NAS ES NAS File Level Block Level Snap Agent
- 27. Enterprise-Class Storage All NewQNAP Enterprise Platform Beyond Turbo NAS QNAP ES NAS Series FILEBLOCK VMware ESX VMware ESX Virtualization Unified Storage Deduplication Compression Unlimited Snap Shot Snap Sync Dual Active System Controller
- 28. ES NAS: Unified,Hybrid Storage QTS User Interface VMware Ready Windows Ready Unified Hybrid NVRAM SSD Cache Unlimited Snapshots Unified MostAffordable Unified, HybridStorage
- 29. SAS 12Gb/s SAS6Gb/s ES NAS ES JBOD ES1640dc EJ1602 EJ1600 ES1642dc QNAP ES NAS: First Wave
- 30. ES1640dc: Dual ActiveController Redundant PSU BBU (C2F) PCIe x8 Slot *2 (One x8, One x4 Signal) For Optional SAS HBA, FC HBA • 10G Base-T *2 • SAS 6Gb/s *1 • USB 3.0 *2 • 1G Base-T *1 (Mgt) • RJ-11 *1 (Console)
- 31. Disk Interconnect Cache Processor Host Interconnect (iSCSI,NFS, etc.) Processor SAS Drives Controller1 PCI PCI SAN DMA Controller 2 (1) Host initiates write command DMA W-ack Mirror Cache (2) Controller acknowledges successful write SAN W W Cache Host Interconnect (iSCSI,NFS, etc.) Disk Interconnect Dual Active-Active Controller

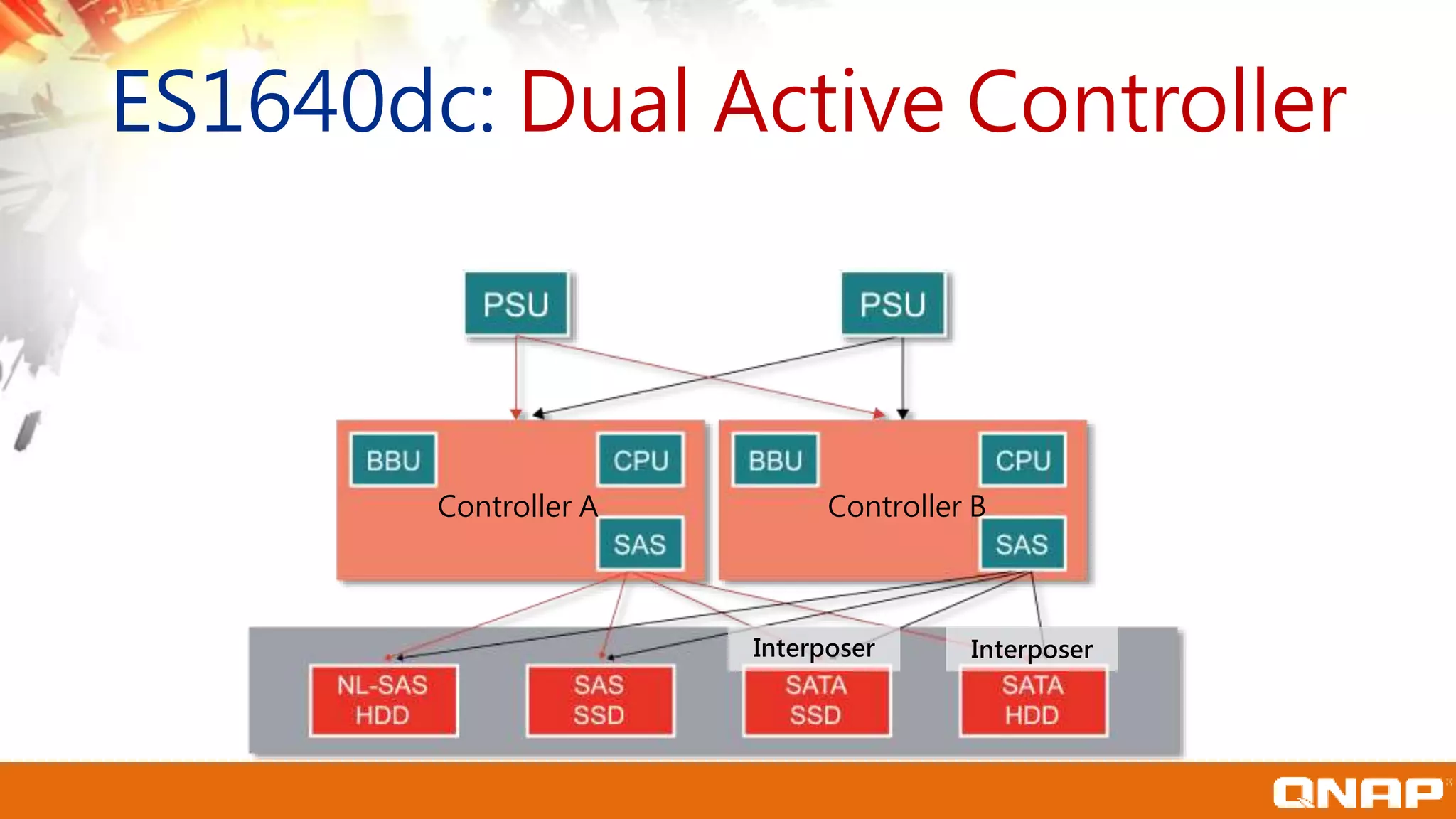

- 32. Controller BController A InterposerInterposer ES1640dc: Dual Active Controller
- 33. Fault-Tolerance: Dual PathDesign, Assure Data Availability activeactive Switch ES NAS ES JBOD

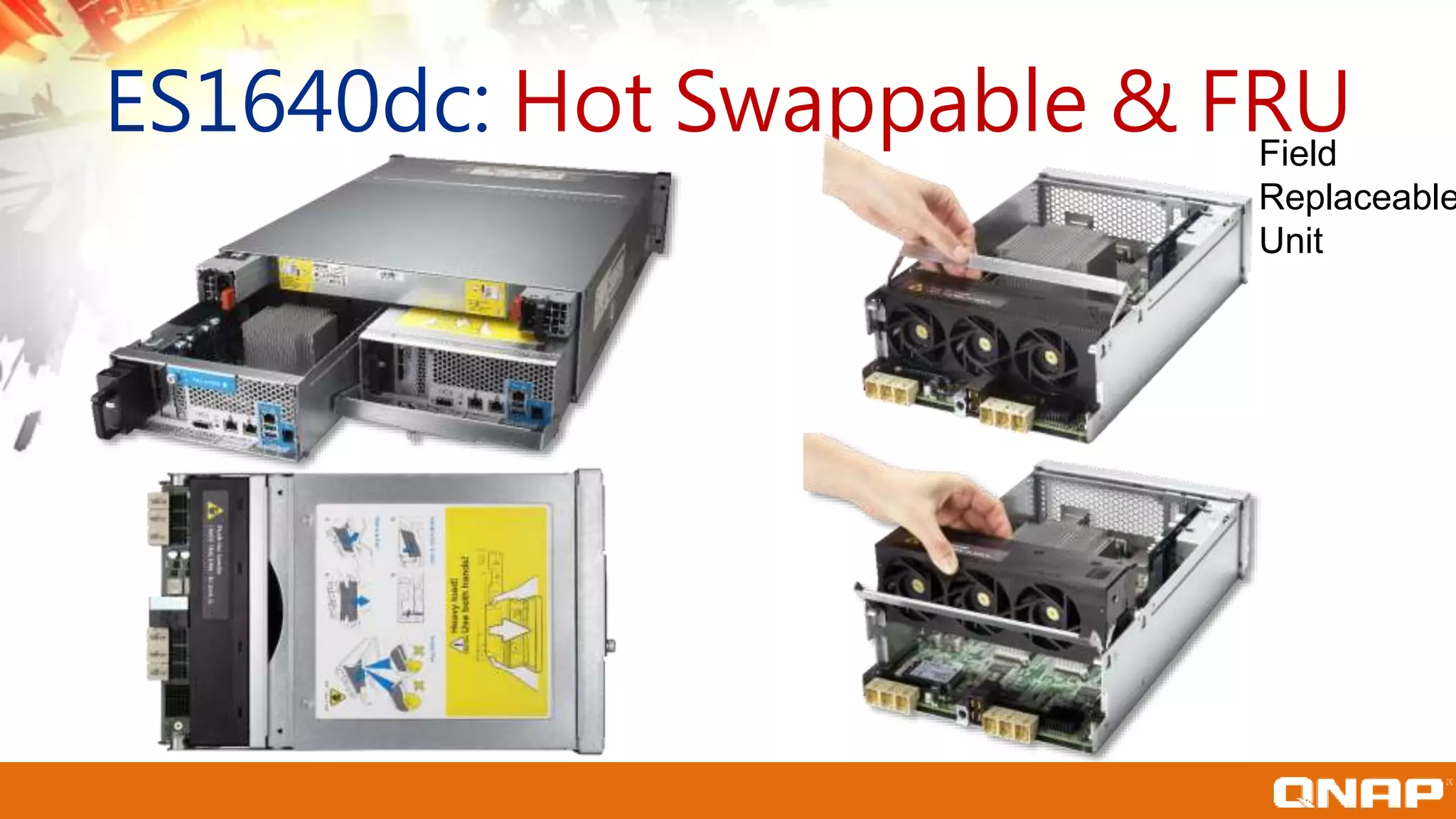

- 34. ES1640dc: Hot Swappable& FRUField Replaceable Unit
- 35. FlashOne Specific DIMMas Write Cache BBU Data Integrity: Copy-To-Flash (NVRAM) Battery Backup Unit mSATA SSD (32GB)
- 36. Thank You ForYour Attention!
- 37. QES Internal Release ImpeccableDisaster Backup Solution Unlimit Snapshot x SnapSync x 3rd Parties Backup Support Ason Hu Application PM Team Enterprise Storage Division

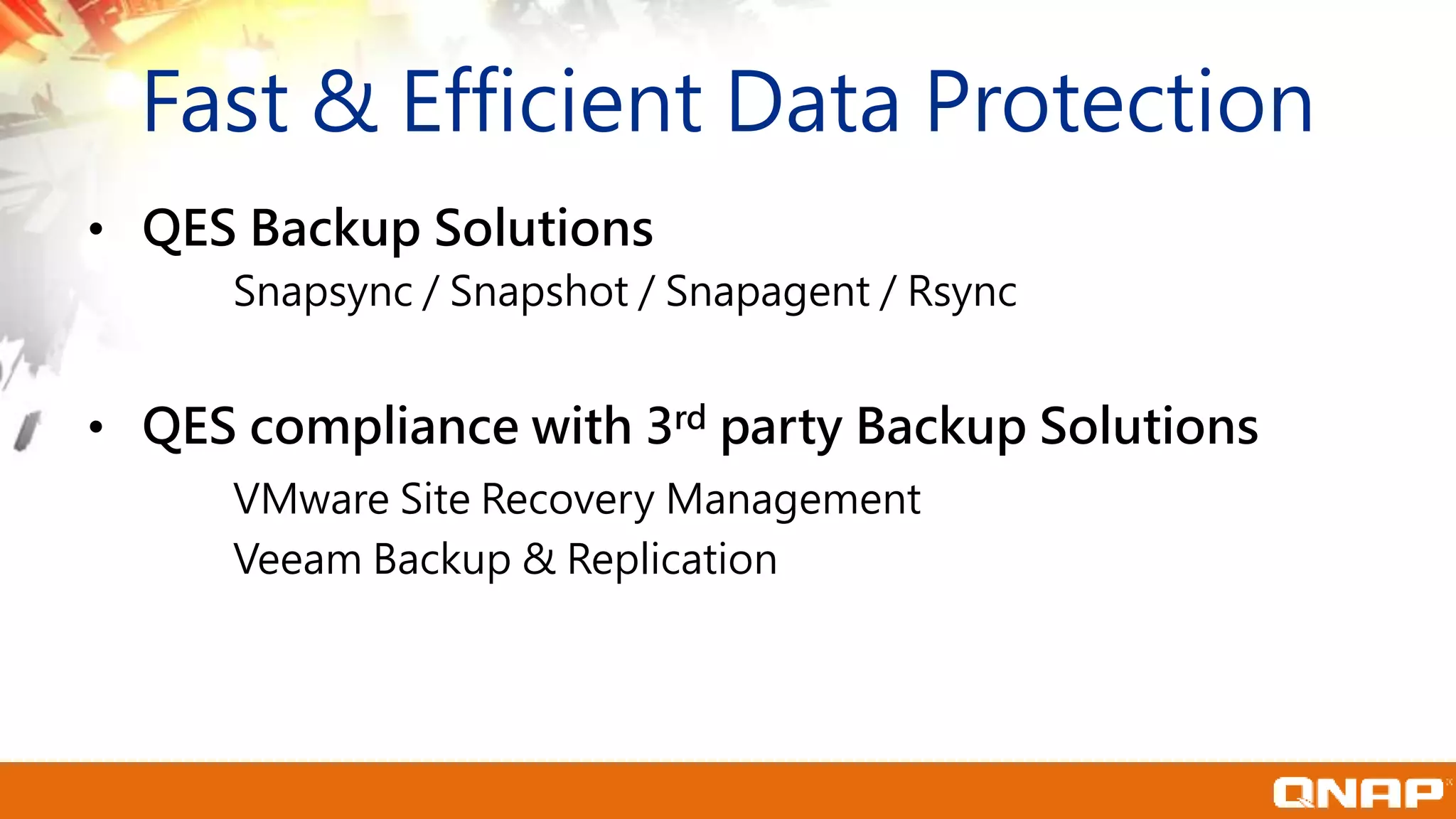

- 38. • QES BackupSolutions Snapsync / Snapshot / Snapagent / Rsync • QES compliance with 3rd party Backup Solutions VMware Site Recovery Management Veeam Backup & Replication Fast & Efficient Data Protection

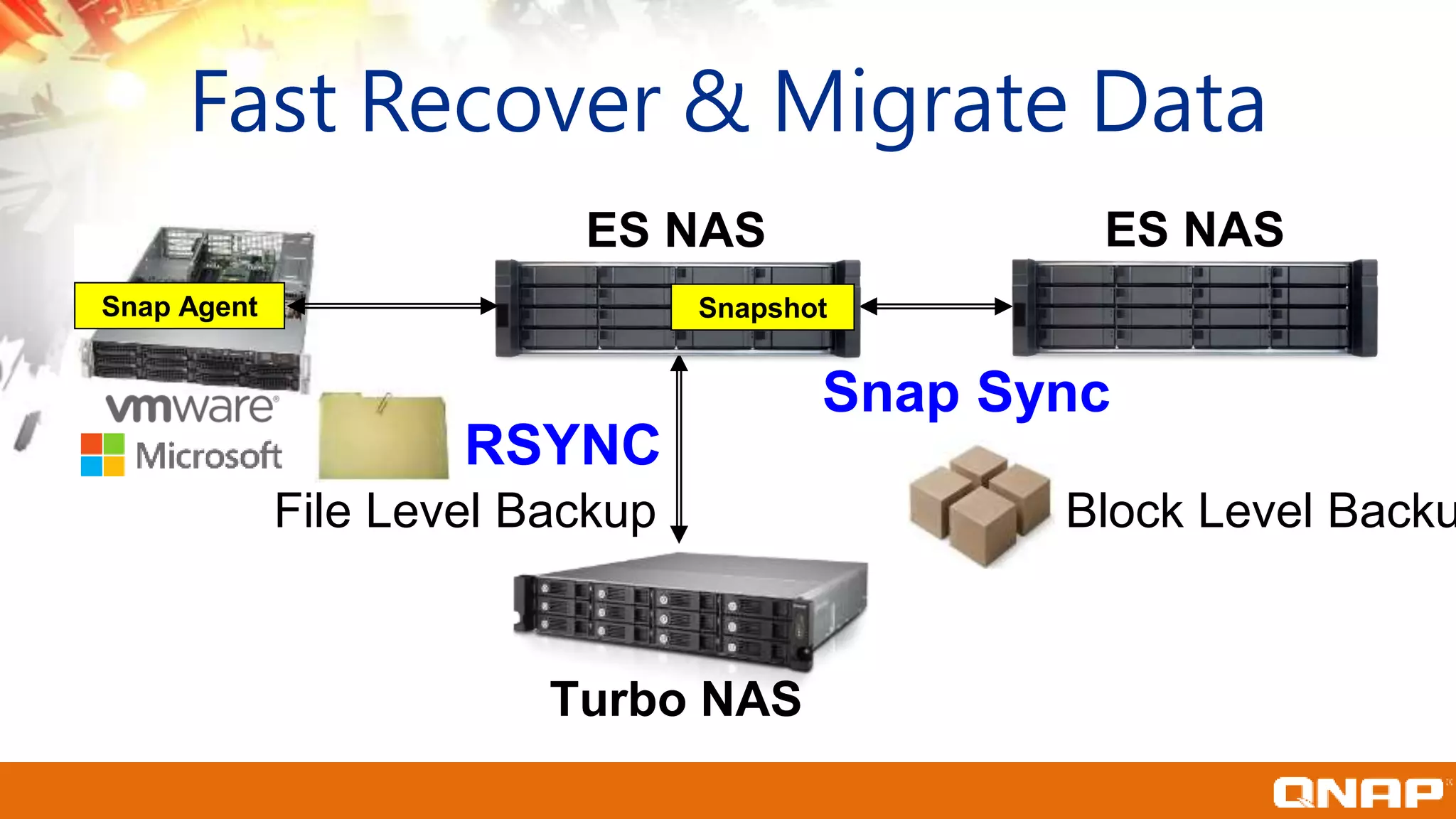

- 39. Fast Recover &Migrate Data Snap Sync Turbo NAS Snapshot RSYNC ES NAS ES NAS File Level Backup Block Level Backu Snap Agent

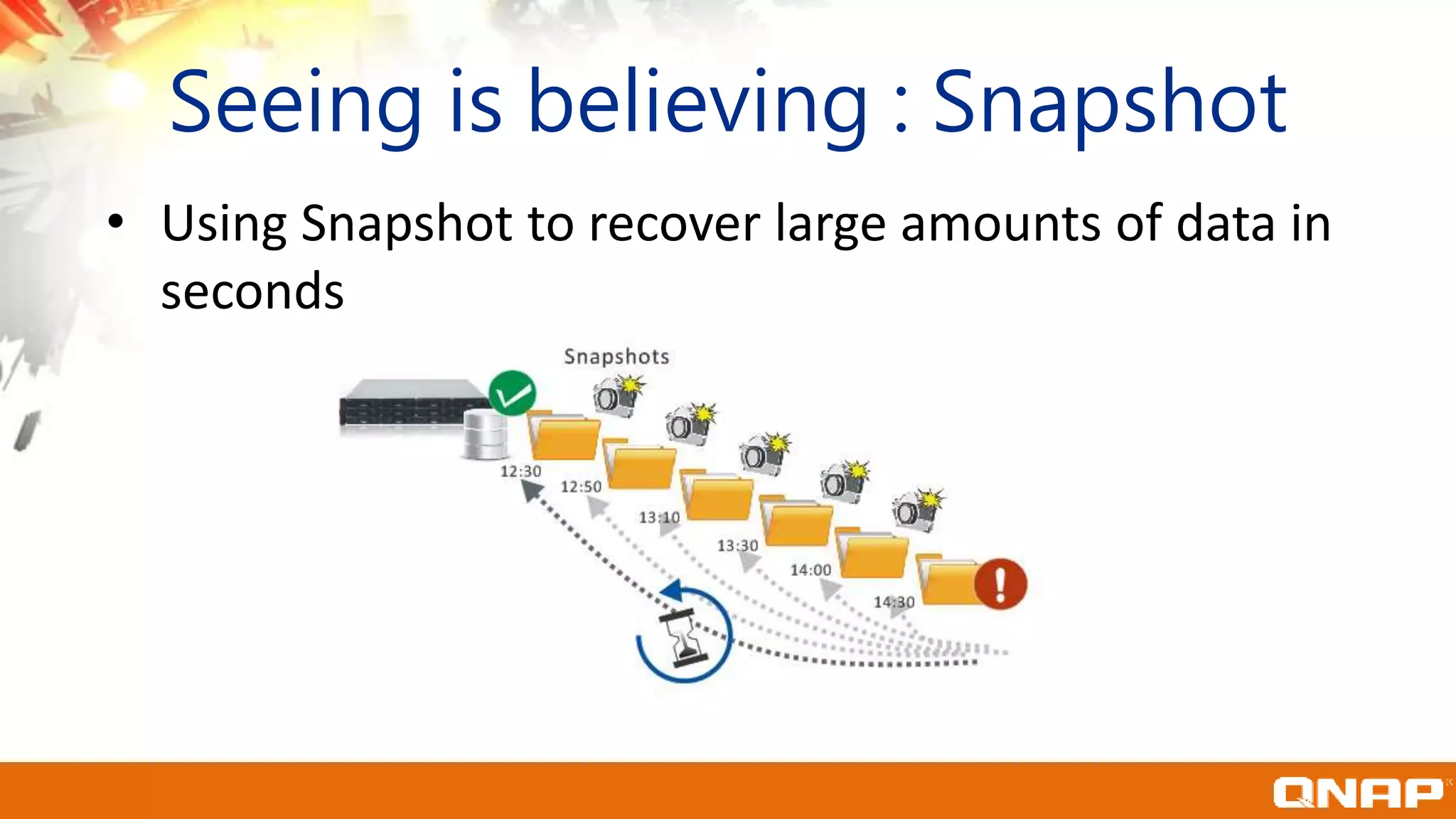

- 40. Seeing is believing: Snapshot • Using Snapshot to recover large amounts of data in seconds

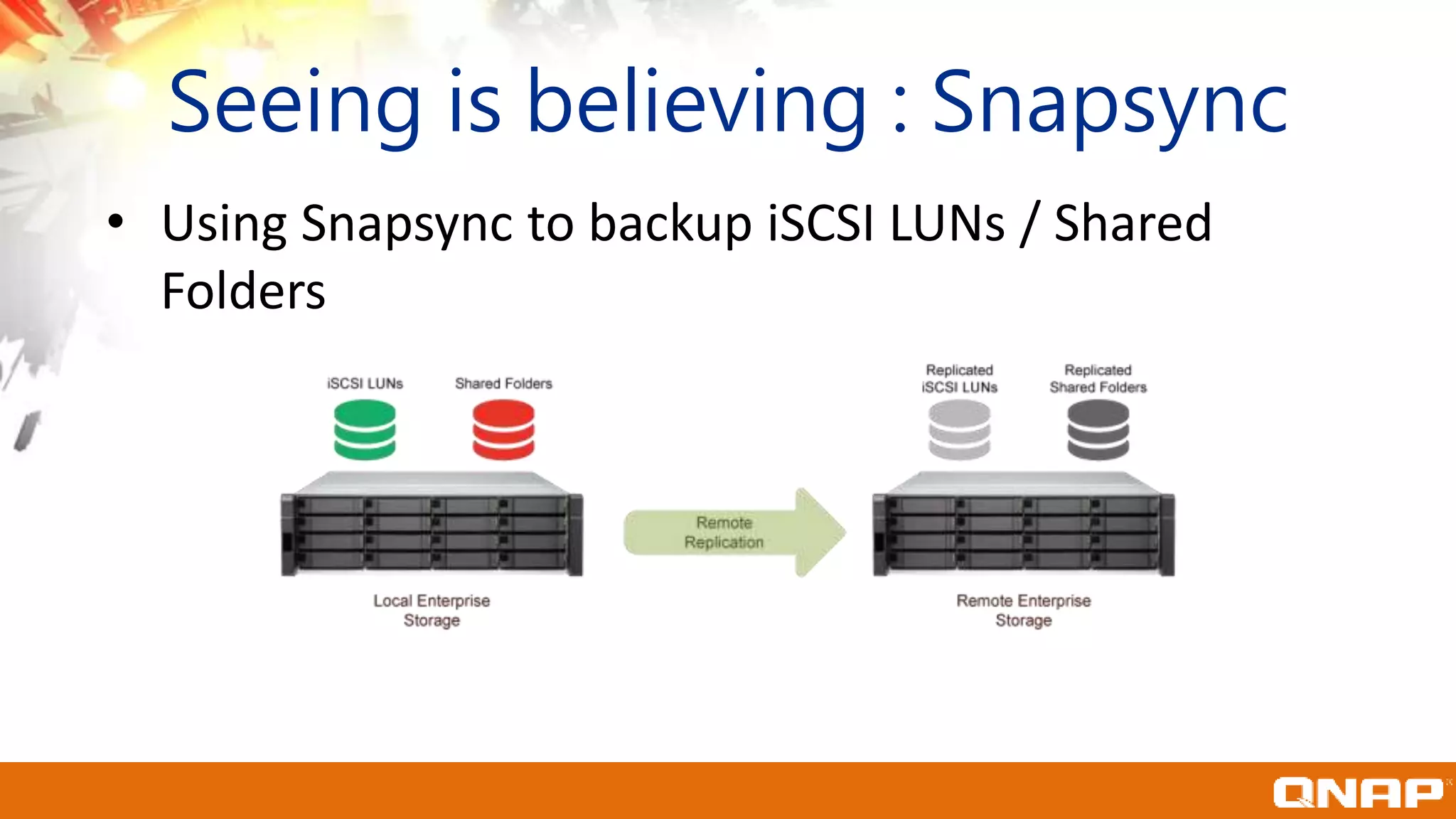

- 41. Seeing is believing: Snapsync • Using Snapsync to backup iSCSI LUNs / Shared Folders
- 42. Seeing is believing: Snapagent • Using QNAP Snapagent to guarantee application consistency
- 43. Seeing is believing: Rsync • Using file level backup Turbo NAS RSYNC ES NAS
- 44. QNAP Snapsync WithVMware SRM To Make Offsite Backup Easy & Quick ES1640DC ES1640DC Site A (Primary) Site B (Recovery) Exchange Server Servers VMware vSphere VMware vCenter Server Site Recovery Manager Servers VMware vSphere Site Recovery Manager VMware vCenter Server Exchange Server vSphere Replication Array Based Replication Snapsync StorageReplicationAdapter（SRA） StorageReplicationAdapter（SRA） CREATE iSCSI LUN OR SHARED FOLDER SNAPSHOT iSCSI LUN OR SHARED FOLDER REPLICATED AND STORED SCHEDULE BACKUPS VIA SNAPSYNC SERVER

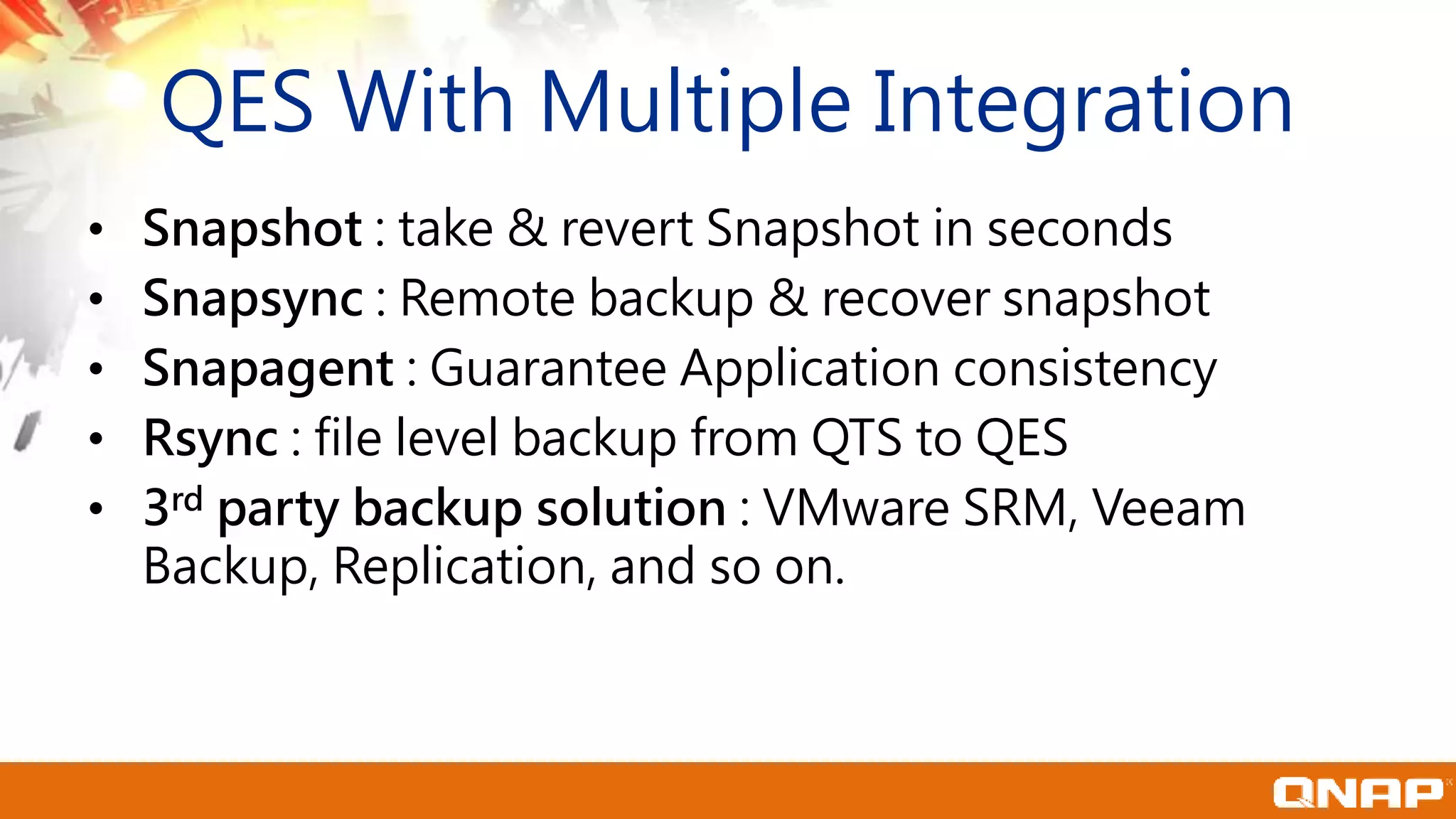

- 45. • Snapshot :take & revert Snapshot in seconds • Snapsync : Remote backup & recover snapshot • Snapagent : Guarantee Application consistency • Rsync : file level backup from QTS to QES • 3rd party backup solution : VMware SRM, Veeam Backup, Replication, and so on. QES With Multiple Integration
- 46.

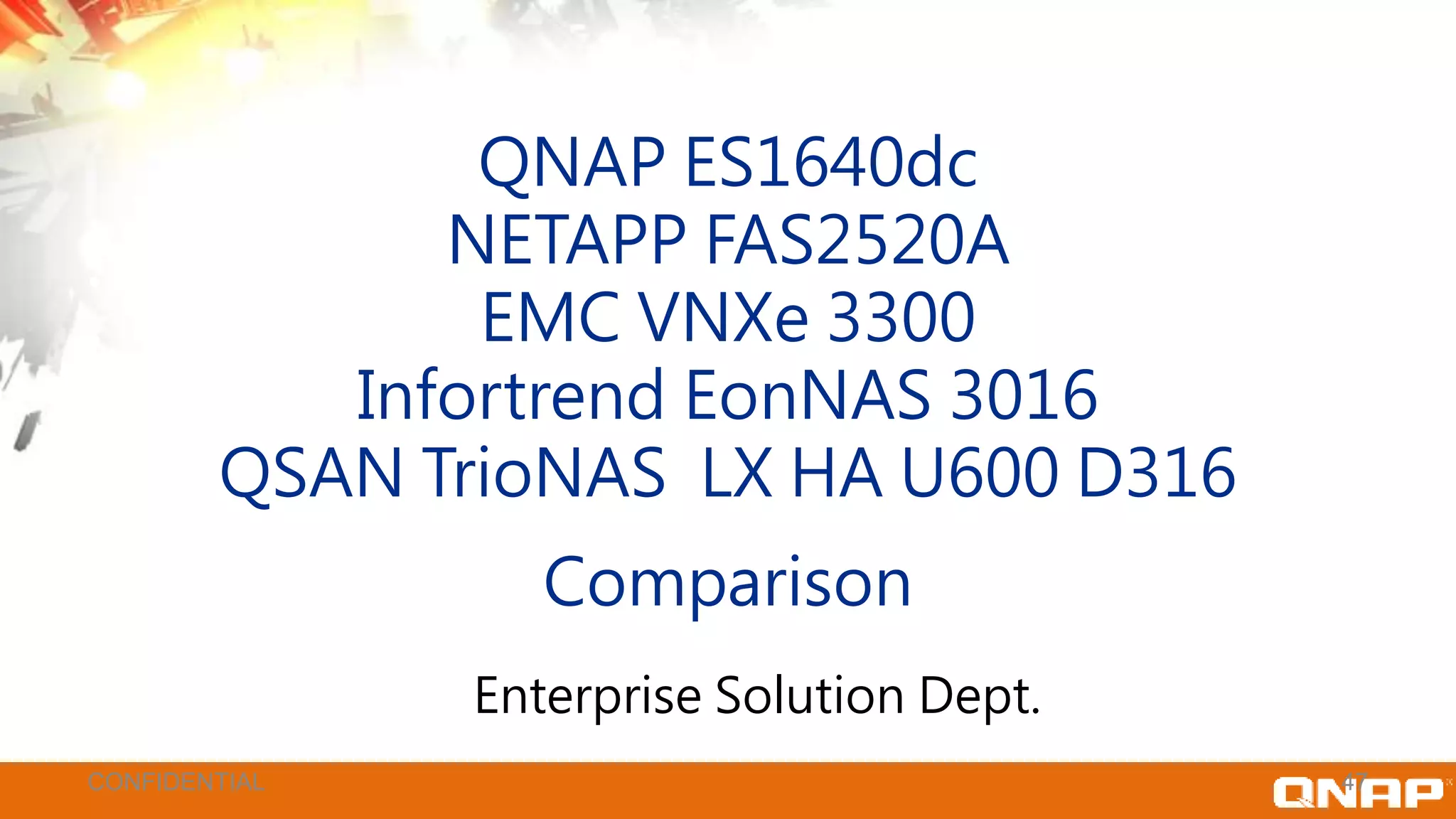

- 47. Agenda • Hardware Comparison •Software Feature Comparison • Performance Compariso 47CONFIDENTIAL QNAP ES1640dc NETAPP FAS2520A EMC VNXe 3300 Infortrend EonNAS 3016 QSAN TrioNAS LX HA U600 D316 Comparison Enterprise Solution Dept.

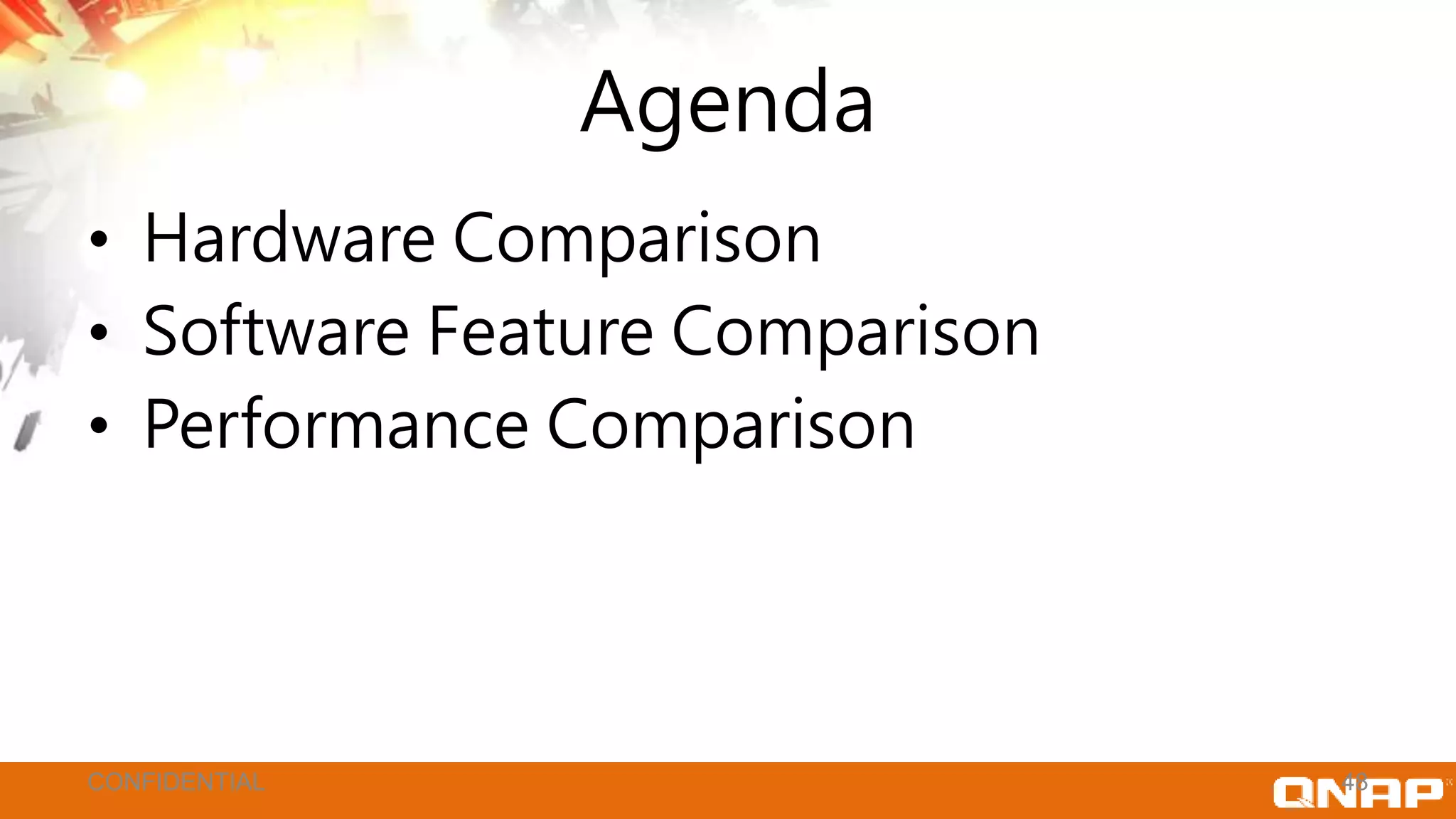

- 48. Agenda • Hardware Comparison •Software Feature Comparison • Performance Comparison 48CONFIDENTIAL
- 49. Agenda • Hardware Comparison •Software Feature Comparison • Performance Compariso 49CONFIDENTIAL Hardware Comparison
- 50. Hardware Comparison (1) QNAP ES1640dc QSANTrioNAS LX U600Q S-316 Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Controllers Dual Dual Dual Dual Dual Form factor 3U 16 bay 3U 16bay 3U 16 bay 3U 15 bay 2U 12 bay CPU Intel Xeon E5-2420 v2 2.20GHz 6C12T Intel Xeon C3528 1.73GHz 2C4T Intel Xeon E3-1225 v3 3.20GHz 4C4T Intel Xeon E5- 2407 v2 2.40GHz 4C4T Intel Xeon LC3528 1.73GHz 2C4T Memory per controller 32 GB (up to 64 GB) 16 GB 32 GB (up to 64 GB) 12GB 16GB Write Cache per controller 16G NVRAM SSD SSD 1G NVRAM 2G NVRAM Read Cache SSD (global) SSD (dedicate) SSD (dedicate) 256M RAM FAST Cache (SSD, option) Flash Cache (HW, option) Flash Pool (SSD) 50CONFIDENTIAL
- 51. Hardware Comparison (2) QNAP ES1640dc QSANTrioNAS LX U600Q S-316 Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Host channel per controller 10Gb port X 2 1Gb port X 1 10Gb port X 2 1Gb port X 3 10Gb port X 2 1Gb port X 4 1Gb port X 5 10Gb port X 4* 1Gb port X 2 FC Support NO NO YES(option) NO YES (option) 40 GbE Support YES(option) NO NO NO NO SAS expander per controller 6G SAS port X 3 6G SAS port X 1 6G SAS port X 2 6G SAS port X 2 6G SAS port X 2 Power Supply 700W X 2 550W X 2 750W X 2 875W x 2 750W x 2 Front Panel LED LCD display LED LED LED * FAS2520A use two 10GbE ports as HA heartbeat 51CONFIDENTIAL

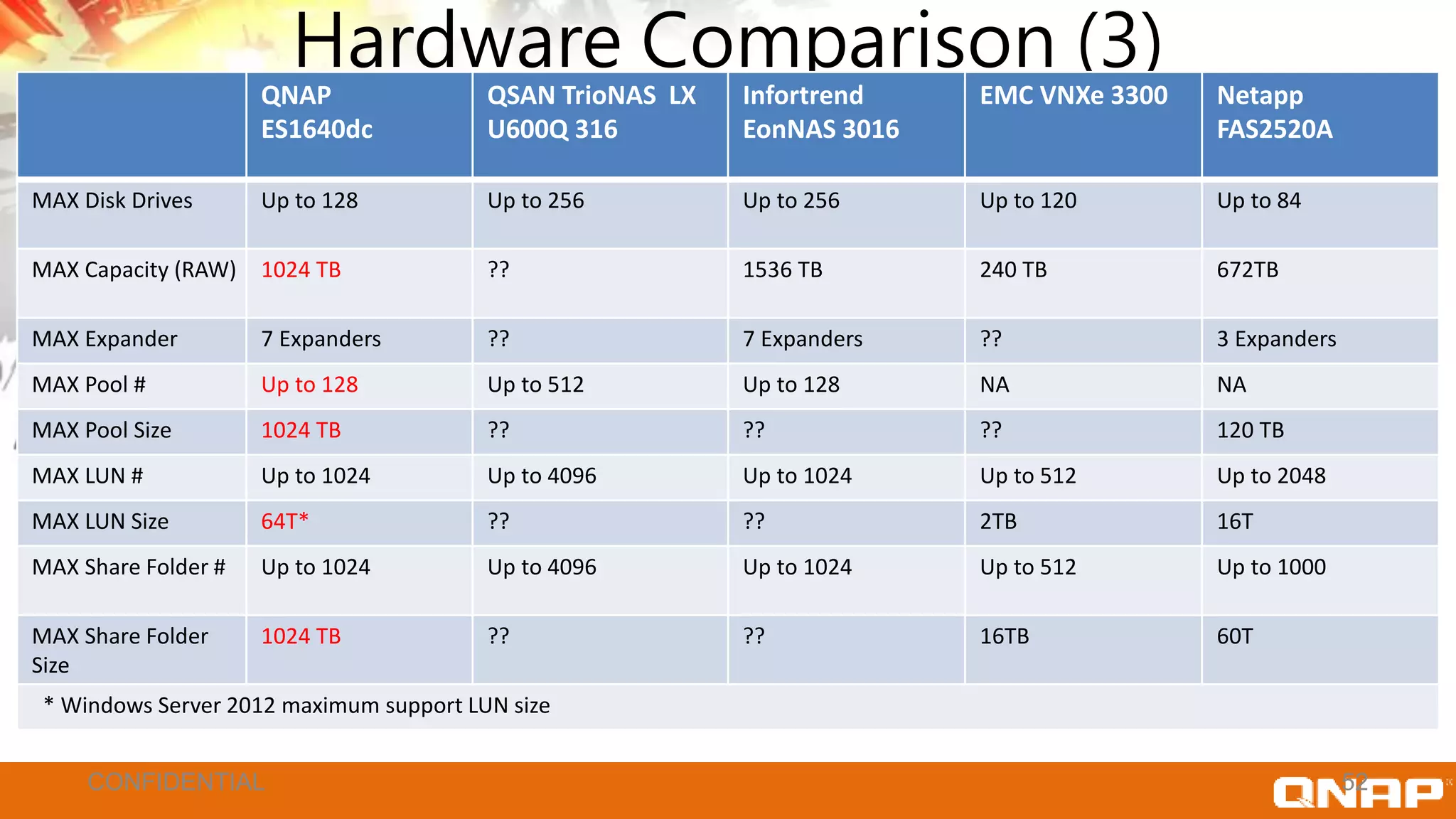

- 52. Hardware Comparison (3) QNAP ES1640dc QSANTrioNAS LX U600Q 316 Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A MAX Disk Drives Up to 128 Up to 256 Up to 256 Up to 120 Up to 84 MAX Capacity (RAW) 1024 TB ?? 1536 TB 240 TB 672TB MAX Expander 7 Expanders ?? 7 Expanders ?? 3 Expanders MAX Pool # Up to 128 Up to 512 Up to 128 NA NA MAX Pool Size 1024 TB ?? ?? ?? 120 TB MAX LUN # Up to 1024 Up to 4096 Up to 1024 Up to 512 Up to 2048 MAX LUN Size 64T* ?? ?? 2TB 16T MAX Share Folder # Up to 1024 Up to 4096 Up to 1024 Up to 512 Up to 1000 MAX Share Folder Size 1024 TB ?? ?? 16TB 60T * Windows Server 2012 maximum support LUN size 52CONFIDENTIAL
- 53. Agenda • Hardware Comparison •Software Feature Comparison • Performance Compariso 53CONFIDENTIAL Software Feature Comparison

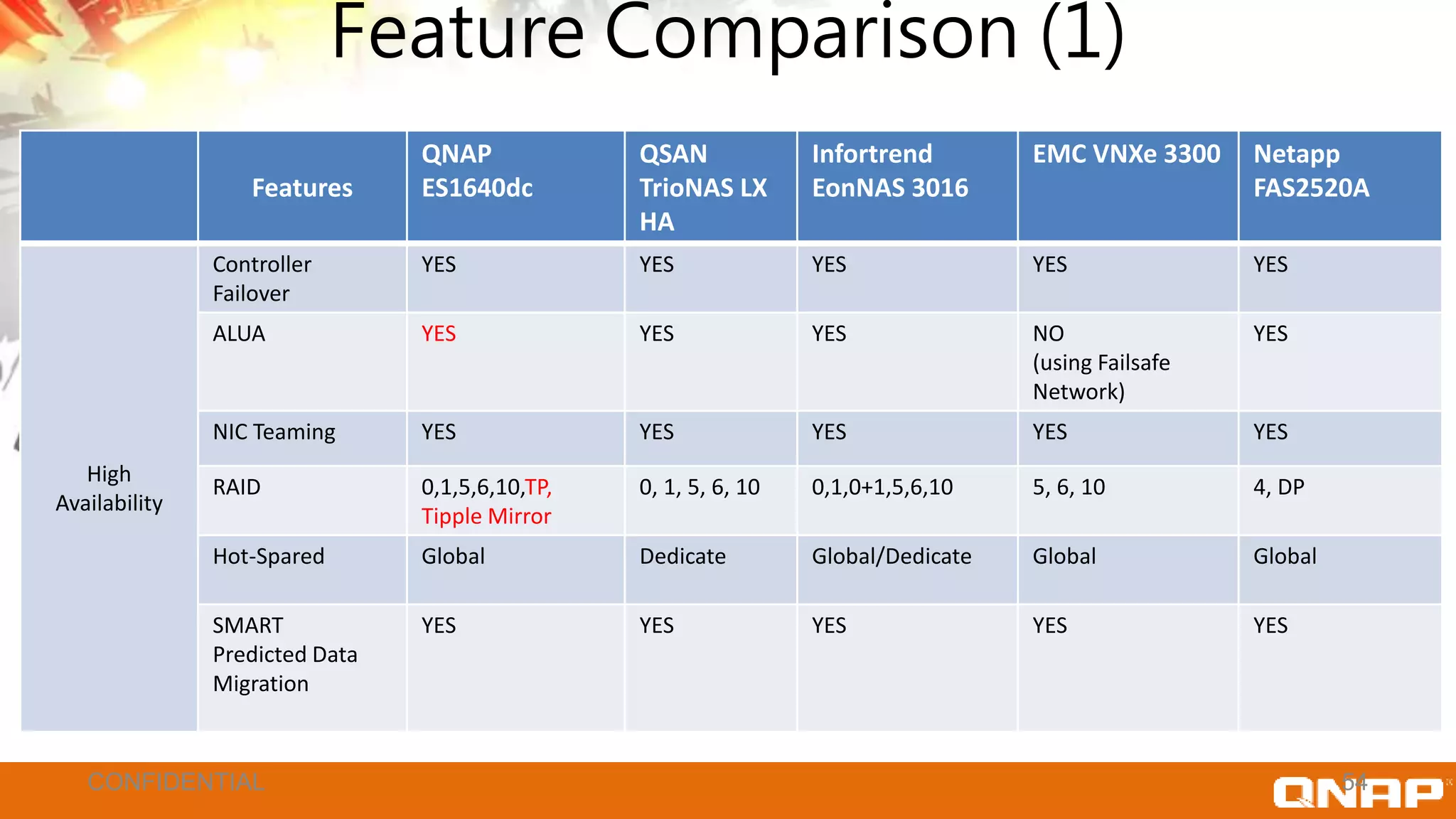

- 54. Feature Comparison (1) Features QNAP ES1640dc QSAN TrioNASLX HA Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A High Availability Controller Failover YES YES YES YES YES ALUA YES YES YES NO (using Failsafe Network) YES NIC Teaming YES YES YES YES YES RAID 0,1,5,6,10,TP, Tipple Mirror 0, 1, 5, 6, 10 0,1,0+1,5,6,10 5, 6, 10 4, DP Hot-Spared Global Dedicate Global/Dedicate Global Global SMART Predicted Data Migration YES YES YES YES YES 54CONFIDENTIAL

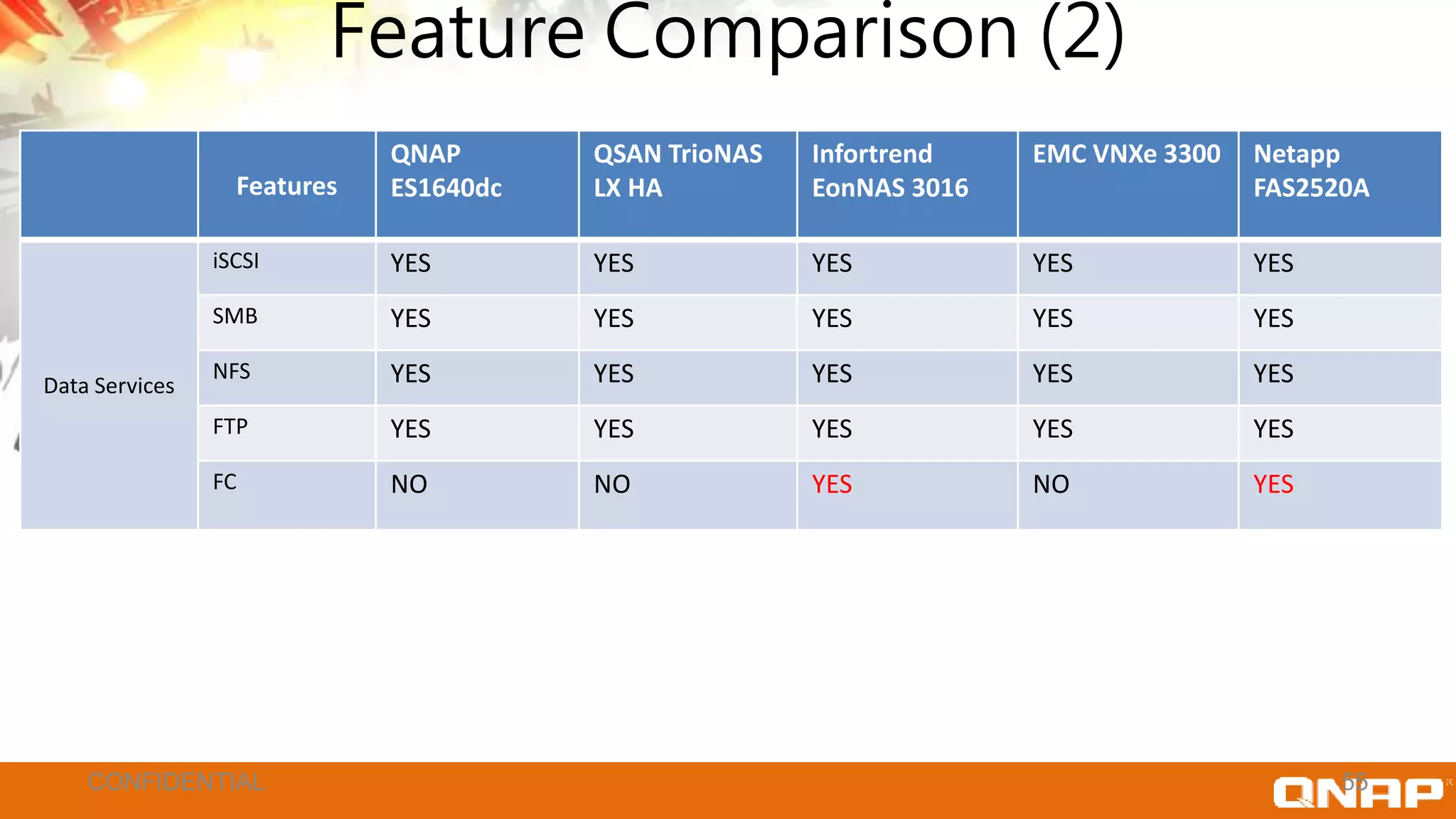

- 55. Feature Comparison (2) Features QNAP ES1640dc QSANTrioNAS LX HA Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Data Services iSCSI YES YES YES YES YES SMB YES YES YES YES YES NFS YES YES YES YES YES FTP YES YES YES YES YES FC NO NO YES NO YES 55CONFIDENTIAL

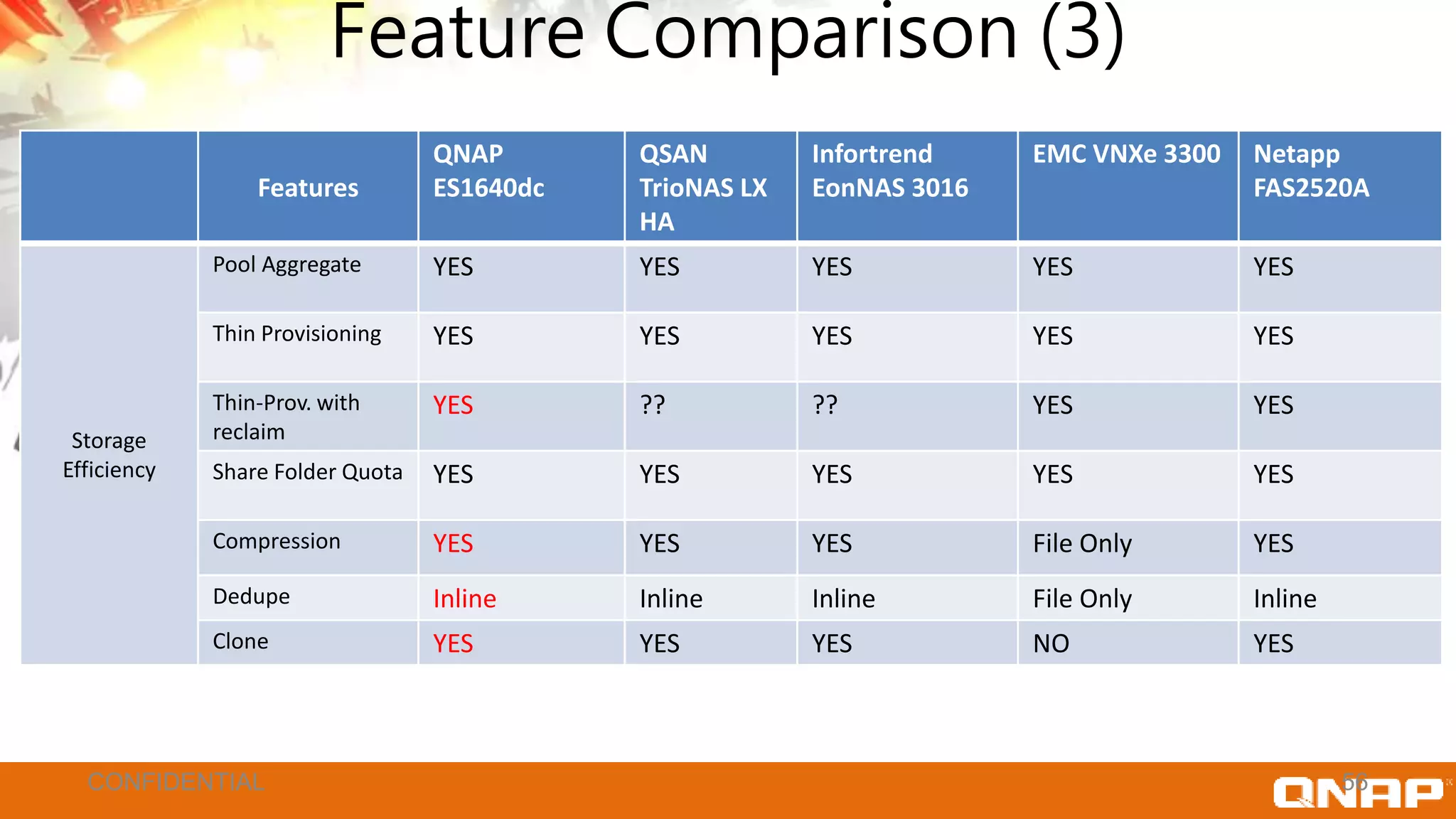

- 56. Feature Comparison (3) Features QNAP ES1640dc QSAN TrioNASLX HA Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Storage Efficiency Pool Aggregate YES YES YES YES YES Thin Provisioning YES YES YES YES YES Thin-Prov. with reclaim YES ?? ?? YES YES Share Folder Quota YES YES YES YES YES Compression YES YES YES File Only YES Dedupe Inline Inline Inline File Only Inline Clone YES YES YES NO YES 56CONFIDENTIAL

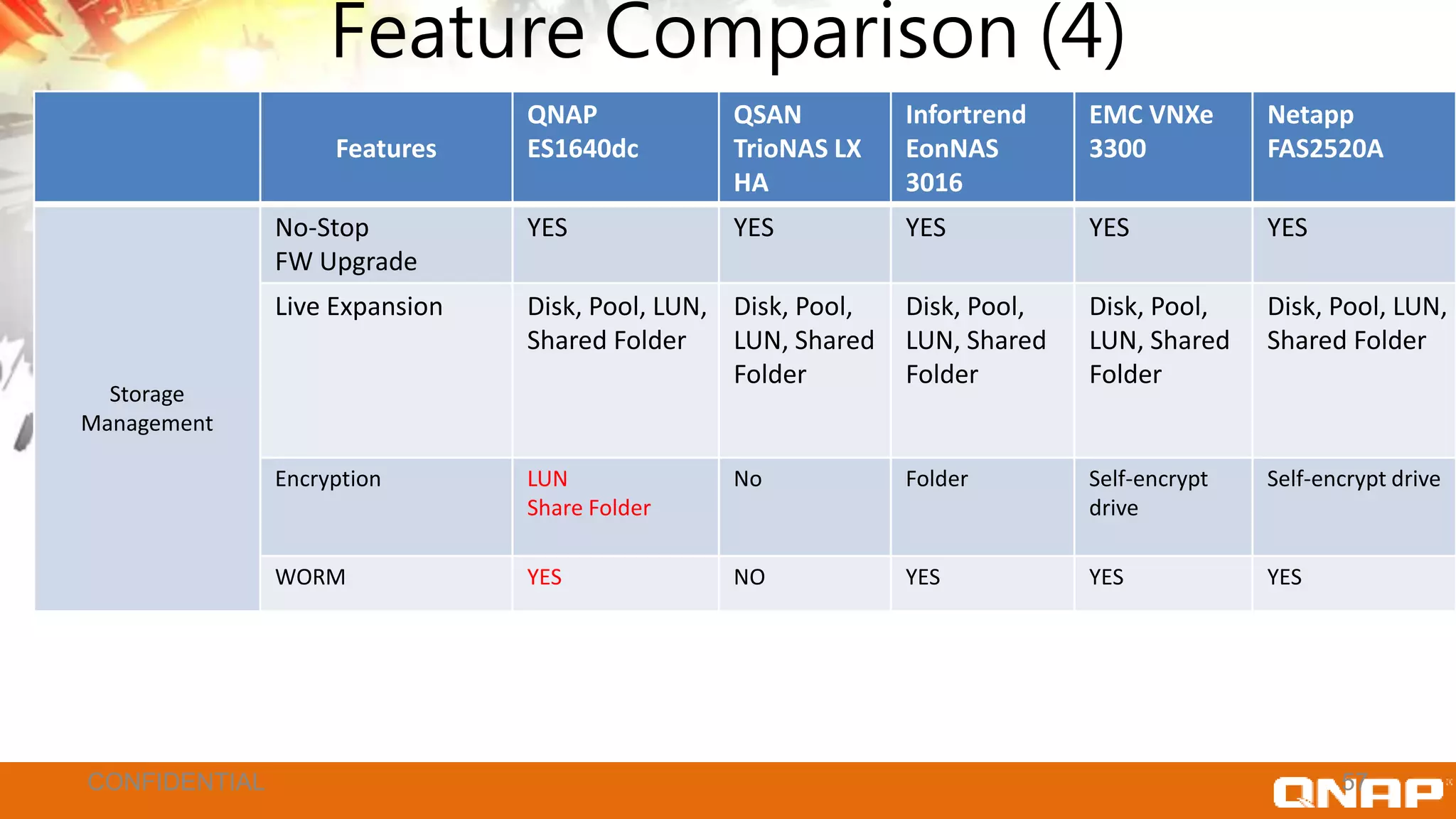

- 57. Feature Comparison (4) Features QNAP ES1640dc QSAN TrioNASLX HA Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Storage Management No-Stop FW Upgrade YES YES YES YES YES Live Expansion Disk, Pool, LUN, Shared Folder Disk, Pool, LUN, Shared Folder Disk, Pool, LUN, Shared Folder Disk, Pool, LUN, Shared Folder Disk, Pool, LUN, Shared Folder Encryption LUN Share Folder No Folder Self-encrypt drive Self-encrypt drive WORM YES NO YES YES YES 57CONFIDENTIAL
- 58. Feature Comparison (5) Features QNAP ES1640dc QSAN TrioNASLX HA Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Data Protection RAID Level 0,1,5,6,10,TP, Tripple Mirror 0, 1, 5, 6, 10 0,1,0+1,5,6,10 5, 6, 10 4, DP Hot-Spared Global Dedicate Global/Dedicat e Global Global Snapshot YES (65536) YES YES YES (256) YES Snapshot Rollback YES YES YES YES YES* Remote Replication YES YES YES YES YES Checksum YES YES YES ?? ?? Self-Healing YES YES YES ?? ?? Pool Scrub YES YES YES ?? ?? * need licence 58CONFIDENTIAL

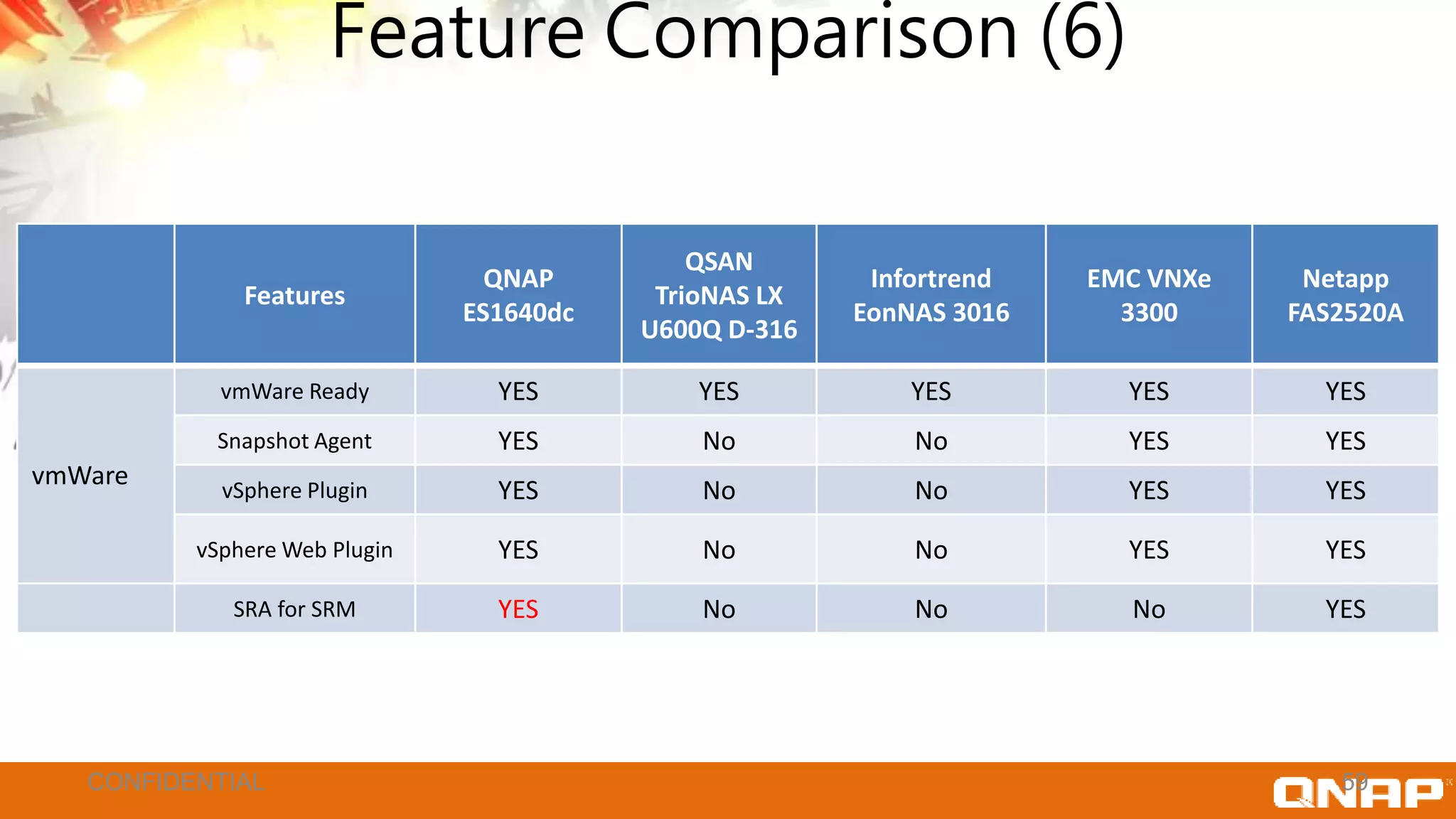

- 59. Feature Comparison (6) Features QNAP ES1640dc QSAN TrioNASLX U600Q D-316 Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A vmWare vmWare Ready YES YES YES YES YES Snapshot Agent YES No No YES YES vSphere Plugin YES No No YES YES vSphere Web Plugin YES No No YES YES SRA for SRM YES No No No YES 59CONFIDENTIAL
- 60. Feature Comparison (7) QNAP ES1640dc QSAN TrioNASLX U600Q D-316 Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A vmWare Block VAAI Thin Provisioning YES No YES No YES Block Zero YES No YES No YES Full Copy YES No YES No YES HW Assisted Locking YES No YES No YES NAS VAAI Space Reserve YES No No YES YES File Cloning YES No No YES YES Extended Stats YES No No YES No Native Snapshot for Linked Clones YES No No No YES 60CONFIDENTIAL

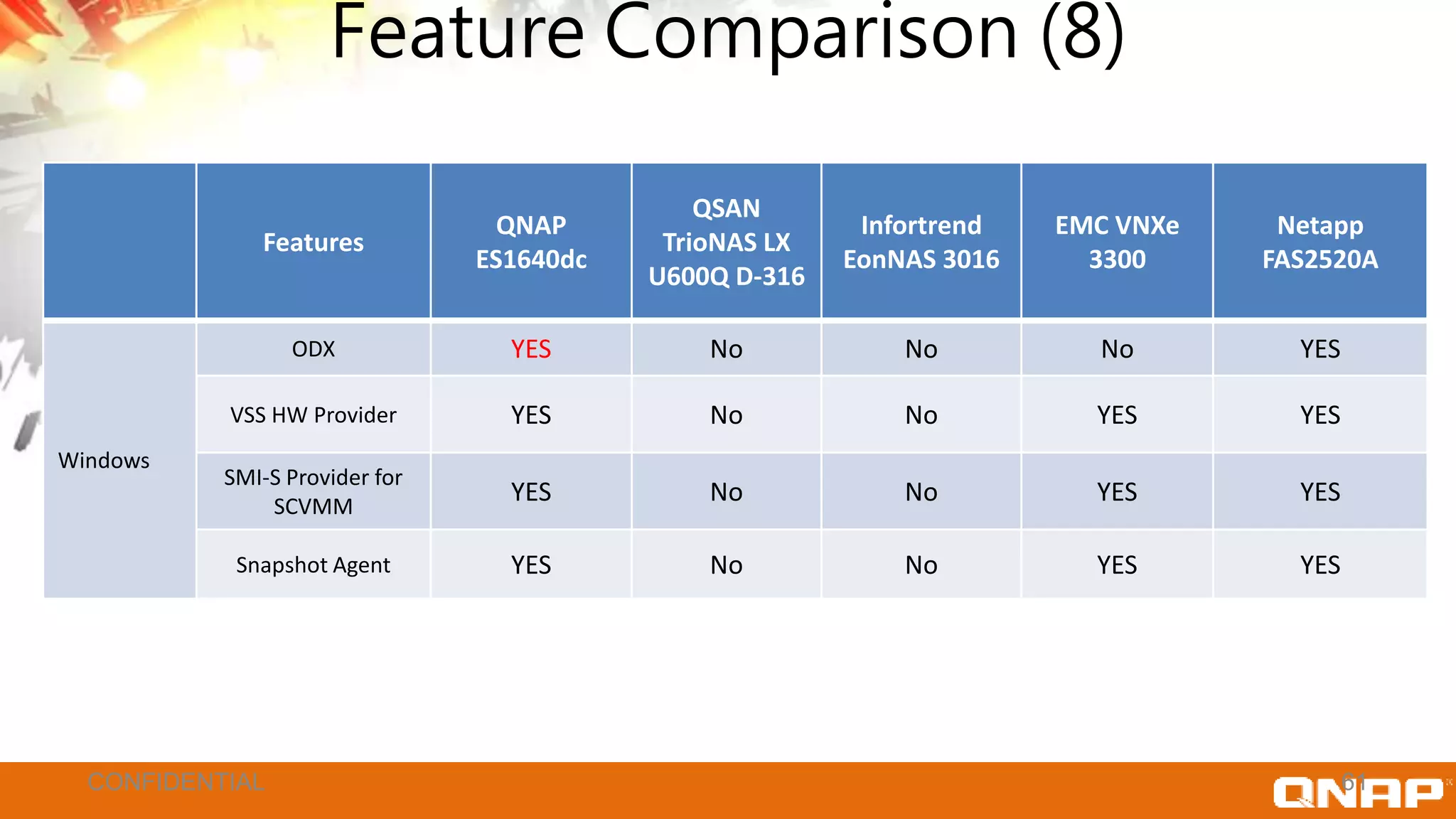

- 61. Feature Comparison (8) Features QNAP ES1640dc QSAN TrioNASLX U600Q D-316 Infortrend EonNAS 3016 EMC VNXe 3300 Netapp FAS2520A Windows ODX YES No No No YES VSS HW Provider YES No No YES YES SMI-S Provider for SCVMM YES No No YES YES Snapshot Agent YES No No YES YES 61CONFIDENTIAL
- 62. Agenda • Hardware Comparison •Software Feature Comparison • Performance Compariso 62CONFIDENTIAL Performance Comparison
- 63. ES1640dc Set 63CONFIDENTIAL 4 SSDRead Cache for 2 controller (global) 6 Disks RAID 6 Pool for Controller A 6 Disks RAID 6 Pool for Controller B QSAN/Infortrend 1 SSD Read Cache 6 Disks RAID 6 Pool for Controller A 6 Disks RAID 6 Pool for Controller B 1 SSD Write Cache (no mirror) 1 SSD Read Cache 1 SSD Write Cache (no mirror) 16G NVRAM Write Cache per Controller

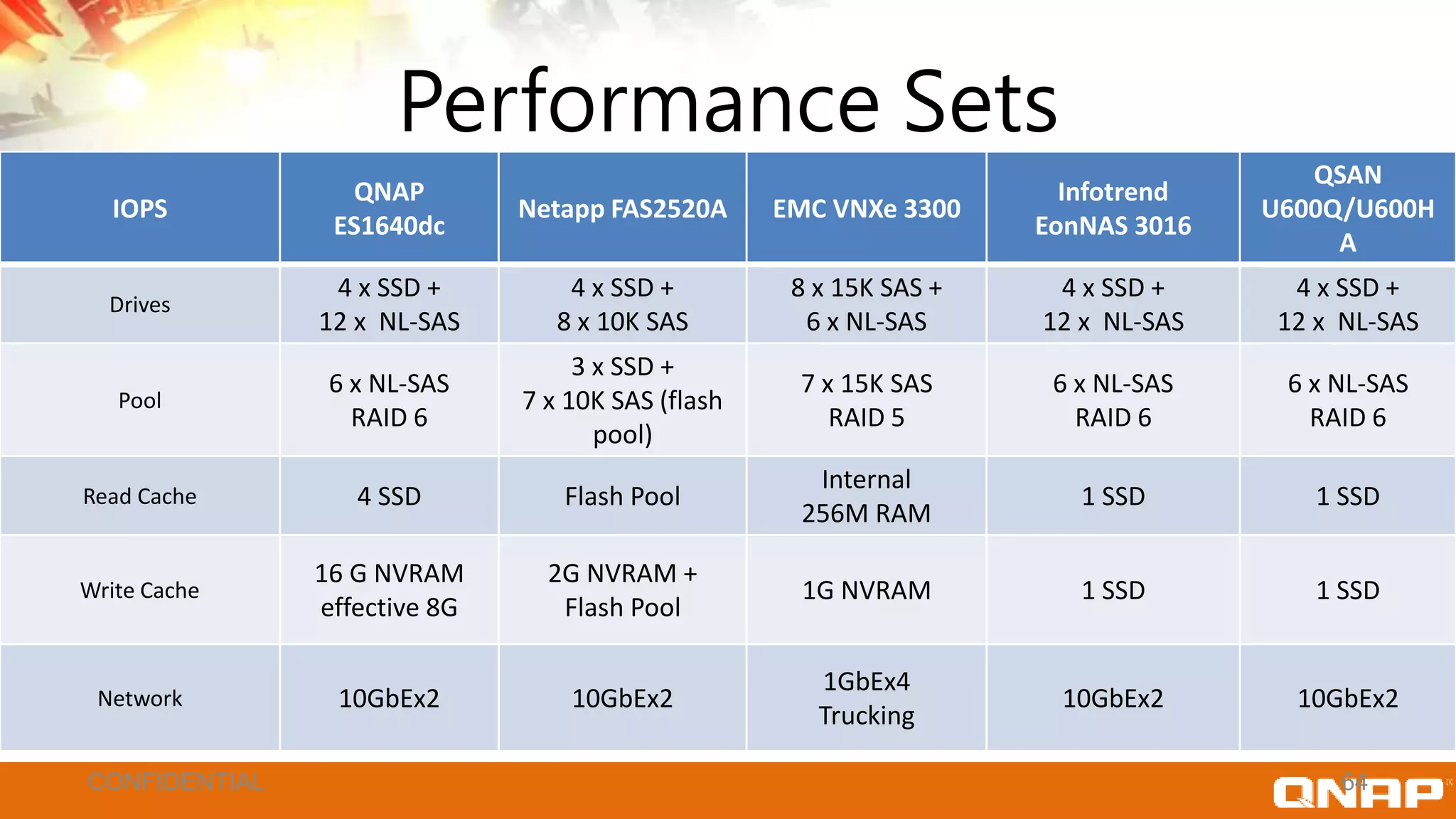

- 64. Performance Sets IOPS QNAP ES1640dc Netapp FAS2520AEMC VNXe 3300 Infotrend EonNAS 3016 QSAN U600Q/U600H A Drives 4 x SSD + 12 x NL-SAS 4 x SSD + 8 x 10K SAS 8 x 15K SAS + 6 x NL-SAS 4 x SSD + 12 x NL-SAS 4 x SSD + 12 x NL-SAS Pool 6 x NL-SAS RAID 6 3 x SSD + 7 x 10K SAS (flash pool) 7 x 15K SAS RAID 5 6 x NL-SAS RAID 6 6 x NL-SAS RAID 6 Read Cache 4 SSD Flash Pool Internal 256M RAM 1 SSD 1 SSD Write Cache 16 G NVRAM effective 8G 2G NVRAM + Flash Pool 1G NVRAM 1 SSD 1 SSD Network 10GbEx2 10GbEx2 1GbEx4 Trucking 10GbEx2 10GbEx2 64CONFIDENTIAL
- 65. Performance Test Bed 65CONFIDENTIAL QNAPES1640dc NETAPP FAS25250A EMC VNXe 3300 Infortrend EonNAS QSAN U600HA ES1640dc_LUN_N ES1640dc_LUN_C 100G 100G NETAPP_LUN_N NETAPP_LUN_C 100G 100G EMC_LUN_N 100G Infortrend_LUN_N Infortrend_LUN_C 100G 100G QSAN_LUN_N QSAN_LUN_C 100G 100G Window Server 2012 R2 Software iSCSI Initiator MPIO (Round Robin with Subset) IOMeter 1.1.0 Test File: 50GB Worker: 1 Outstanding IOs: 32 Test Pattern: 4K 100% Random Read or Write 10GbE x 2 10GbE Switch 10GbE 10GbE 1GbE x 4 trucking 10GbE 10GbE

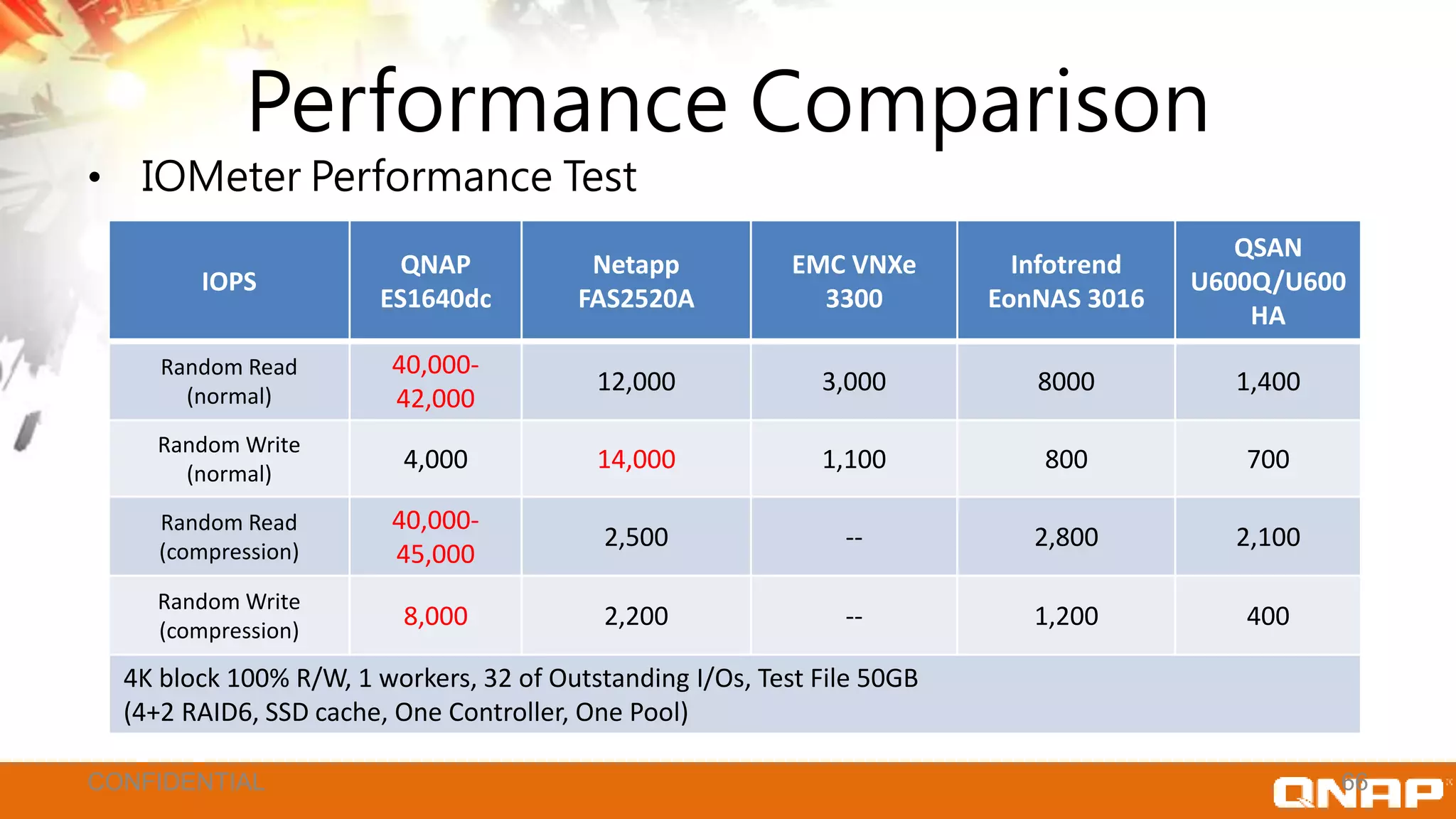

- 66. Performance Comparison • IOMeterPerformance Test IOPS QNAP ES1640dc Netapp FAS2520A EMC VNXe 3300 Infotrend EonNAS 3016 QSAN U600Q/U600 HA Random Read (normal) 40,000- 42,000 12,000 3,000 8000 1,400 Random Write (normal) 4,000 14,000 1,100 800 700 Random Read (compression) 40,000- 45,000 2,500 -- 2,800 2,100 Random Write (compression) 8,000 2,200 -- 1,200 400 4K block 100% R/W, 1 workers, 32 of Outstanding I/Os, Test File 50GB (4+2 RAID6, SSD cache, One Controller, One Pool) 66CONFIDENTIAL

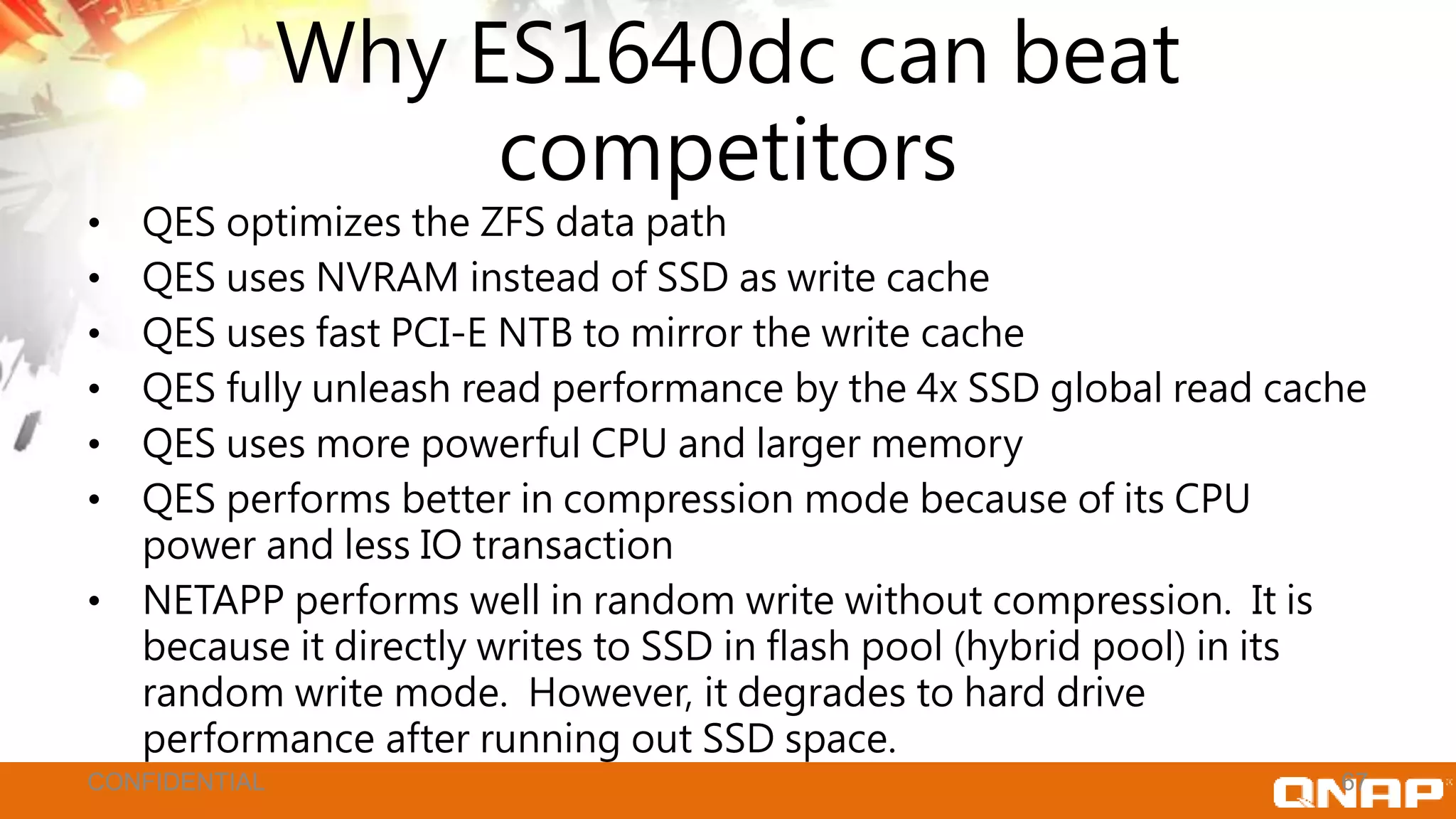

- 67. Why ES1640dc canbeat competitors • QES optimizes the ZFS data path • QES uses NVRAM instead of SSD as write cache • QES uses fast PCI-E NTB to mirror the write cache • QES fully unleash read performance by the 4x SSD global read cache • QES uses more powerful CPU and larger memory • QES performs better in compression mode because of its CPU power and less IO transaction • NETAPP performs well in random write without compression. It is because it directly writes to SSD in flash pool (hybrid pool) in its random write mode. However, it degrades to hard drive performance after running out SSD space. 67CONFIDENTIAL

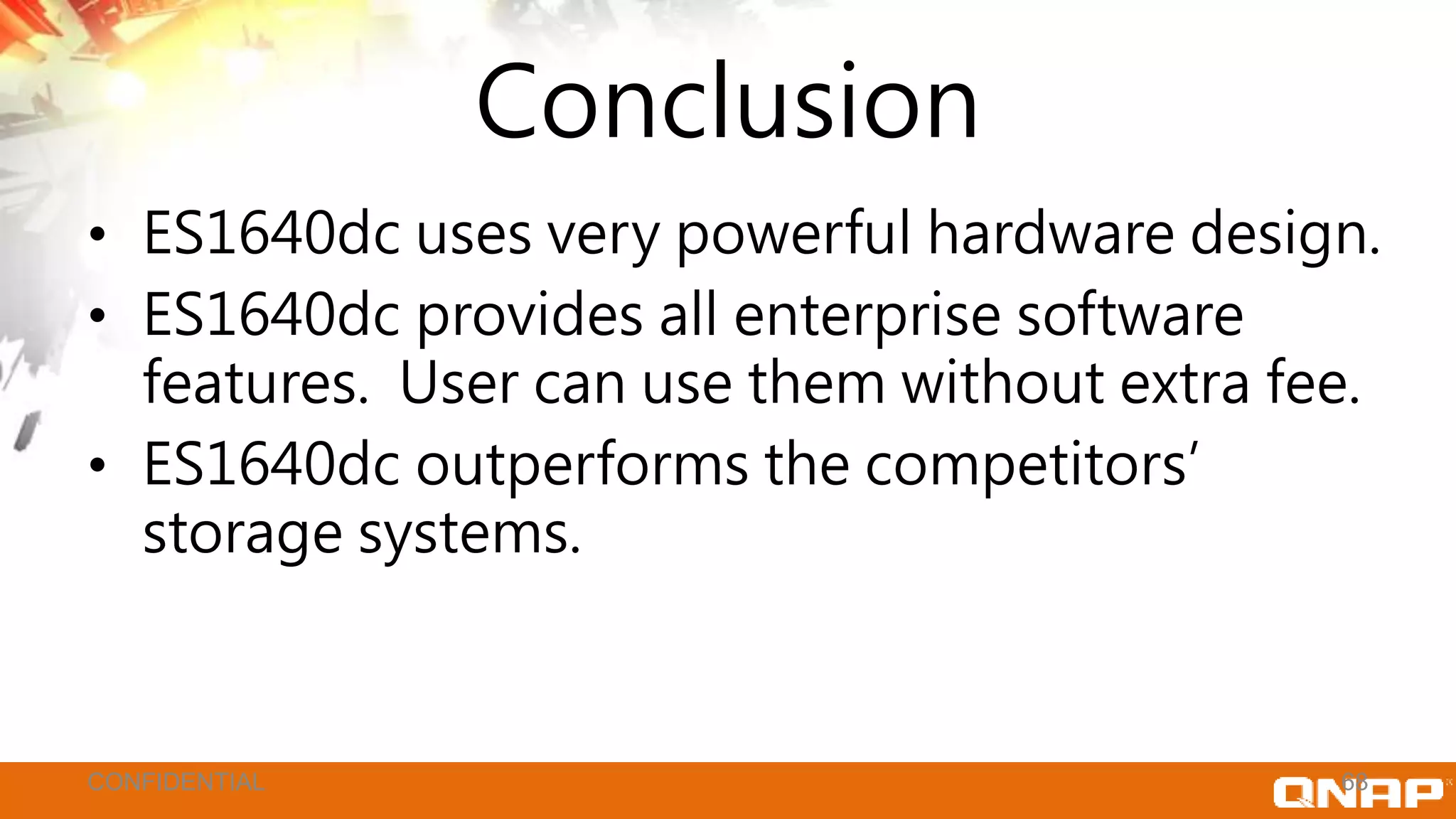

- 68. Conclusion • ES1640dc usesvery powerful hardware design. • ES1640dc provides all enterprise software features. User can use them without extra fee. • ES1640dc outperforms the competitors’ storage systems. 68CONFIDENTIAL
- 69. Quick Start PoCguide Enterprise Storage NAS Enterprise-Class, Unified, Hybrid, Optimized For VM Kevin C.C. Cheng Application PM Team Enterprise Storage Division
- 70. • Cluster forfault tolerant • Storage Cluster • Create an ESXi datastore on ES Storage Agenda

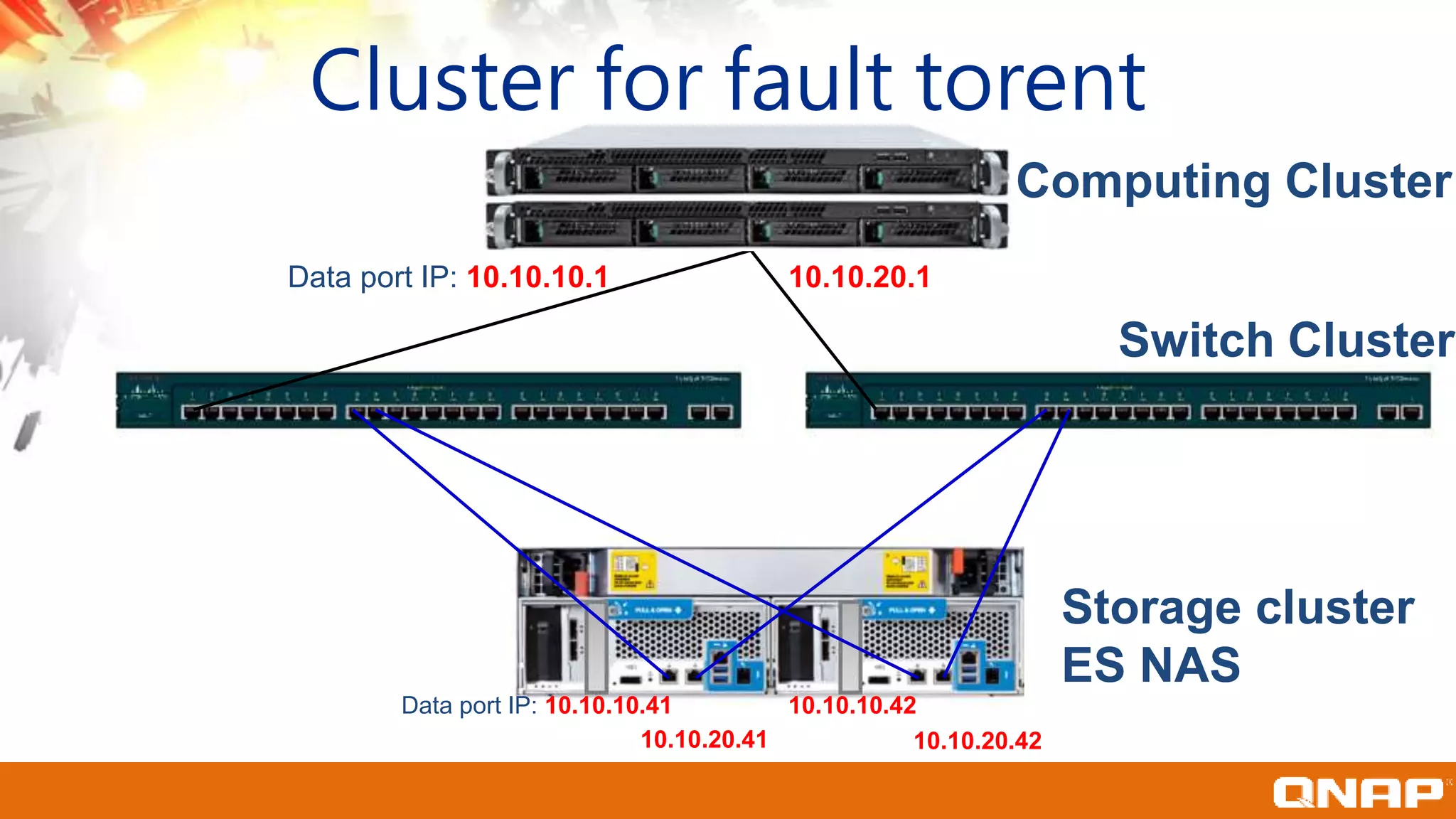

- 71. Cluster for faulttorent Switch Cluster Storage cluster ES NAS Computing Cluster Data port IP: 10.10.10.1 10.10.20.1 Data port IP: 10.10.10.41 10.10.20.41 10.10.10.42 10.10.20.42

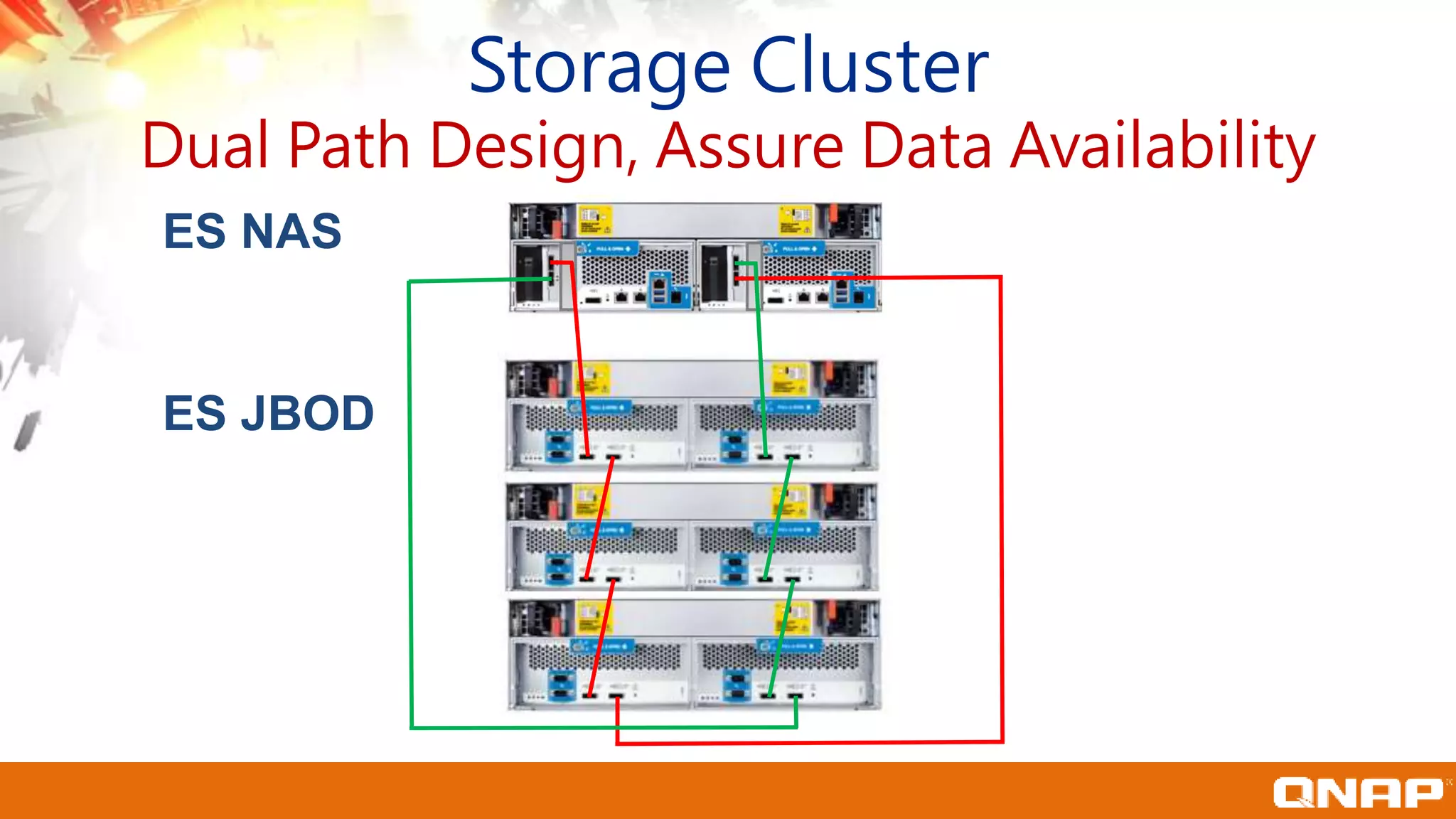

- 72. Storage Cluster Dual PathDesign, Assure Data Availability ES NAS ES JBOD

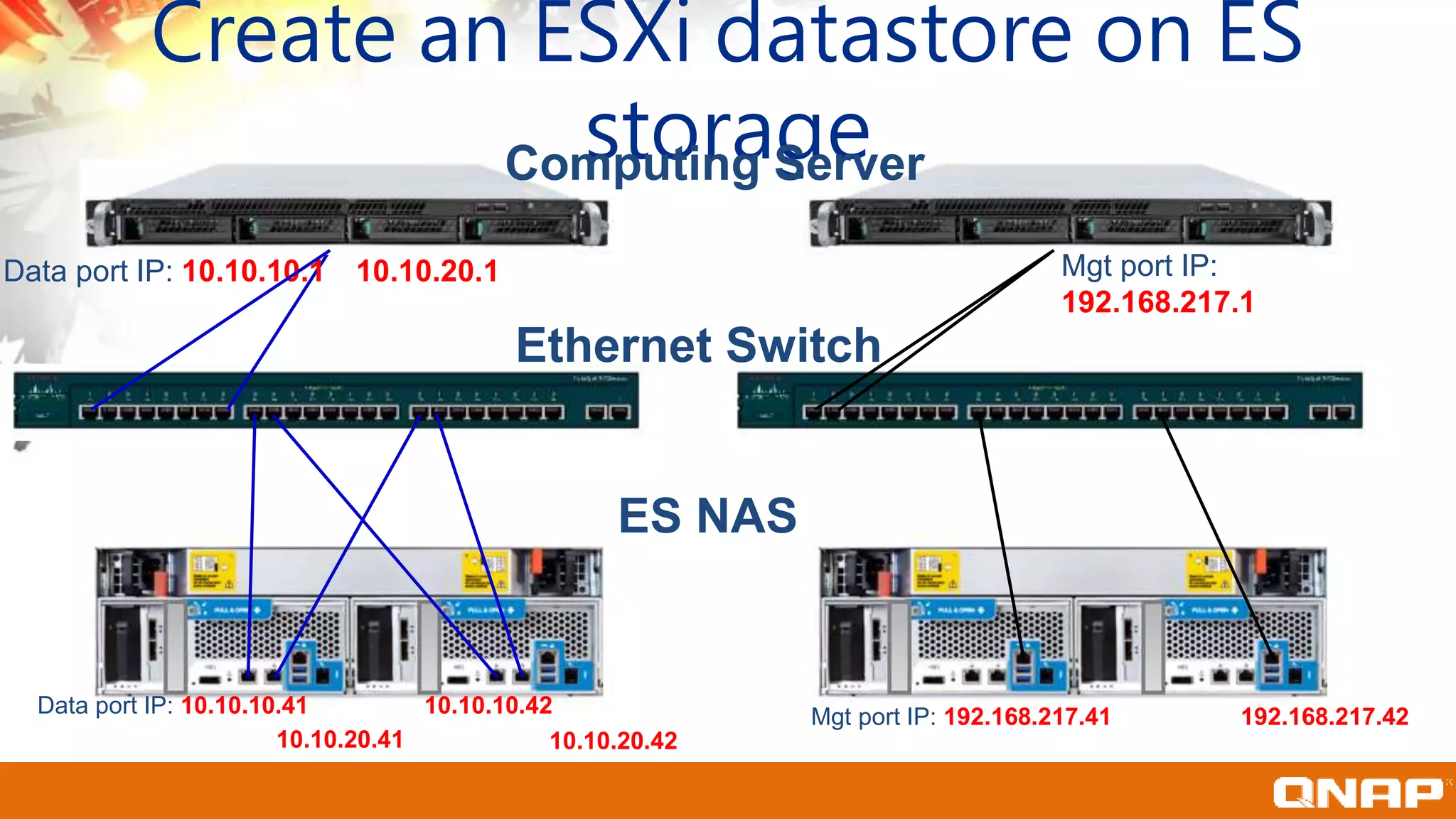

- 73. Create an ESXidatastore on ES storage Ethernet Switch ES NAS Data port IP: 10.10.10.1 10.10.20.1 Data port IP: 10.10.10.41 10.10.20.41 10.10.10.42 10.10.20.42 Mgt port IP: 192.168.217.1 Mgt port IP: 192.168.217.41 192.168.217.42 Computing Server
