1. Intel® Solid-State Drive Data Center Family for PCIe
NVM Solutions Group (NSG)
Alan Frost, NSG Marketing & Communications Director
Steven Neebe, NSG Data Center Product Line Manager
Tahmid Rahman, NSG Sr. Technical Marketing Engineer
UNDER EMBARGO UNTIL (11 PM PT) on June 2 , 2014
2. INTEL CONFIDENTIAL2
• Data Center, Server, Storage, & Embedded SSD
Solutions
• SATA & PCIe solutions, multiple endurance levels,
and enterprise class RAS features
Intel®
SSD
Data Center
Family
• Corporate & SMB Client SSD Solutions
• Stable platform solution with Industry leading TCO,
superior manageability and security features
Intel® SSD
Professional
Family
• Enthusiast & Consumer SSD Solutions
• Performance-optimized SSDs for enthusiasts
• Top performance at an affordable price
Intel® SSD
Consumer
Family
Intel is designing, optimizing and validating
SSD solutions for target market segments
Intel® Solid-State Drives
3. INTEL CONFIDENTIAL3

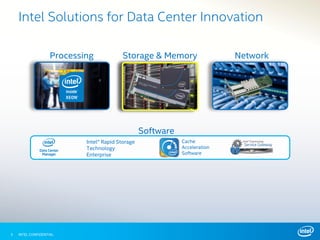

Intel Solutions for Data Center Innovation
Software
NetworkStorage & MemoryProcessing
Cache
Acceleration
Software
Intel® Rapid Storage
Technology
Enterprise
4. INTEL CONFIDENTIAL
Data Center Storage Trends
Today’s Data Storage Needs are Evolving
Intel® Solid-State Drive Data Center P3700, P3600, and P3500 Series
Breakthrough performance, Low Latency, Cost Effective
IT CHALLENGES OPPORTUNITY
Limited IT Budgets
Low cost per IOP and higher
IOPS per watt vs. HDD and SATA
SSDs.
SAN latency from HBAs,
Switches, Networks, and
Controllers restrict storage
performance while CPU
demands increase
Native NVMe*/PCIe server-
based storage reduces latency,
removing bandwidth restrictions
Transactional data and
virtualization randomizes
workloads
High, consistent IOPS combined
with low latency accelerates
applications
4
* Other names and brands are property of their respective owners
5. INTEL CONFIDENTIAL

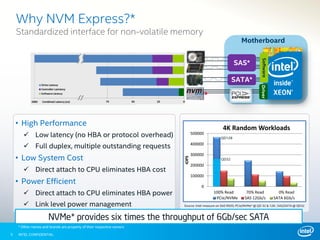

Why NVM Express?*
Standardized interface for non-volatile memory
• High Performance
Low latency (no HBA or protocol overhead)
Full duplex, multiple outstanding requests
• Low System Cost
Direct attach to CPU eliminates HBA cost
• Power Efficient
Direct attach to CPU eliminates HBA power
Link level power management
SAS*
SATA*
Motherboard
SoftwareDriver
Source: Intel measure on Dell R920, PCIe/NVMe* @ QD 32 & 128 ; SAS/SATA @ QD32
0
100000
200000
300000
400000
500000
100% Read 70% Read 0% Read
IOPS
4K Random Workloads
PCIe/NVMe SAS 12Gb/s SATA 6Gb/s
QD32
QD128
* Other names and brands are property of their respective owners
5
NVMe* provides six times the throughput of 6Gb/sec SATA
6. INTEL CONFIDENTIAL6

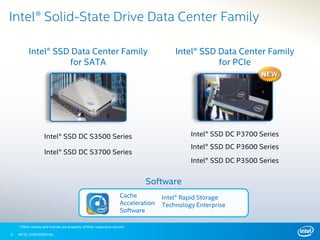

Intel® Solid-State Drive Data Center Family
Intel® SSD Data Center Family
for SATA
Intel® SSD DC S3700 Series
Intel® SSD DC S3500 Series
Software
Cache
Acceleration
Software
Intel® Rapid Storage
Technology Enterprise
* Other names and brands are property of their respective owners
Intel® SSD Data Center Family
for PCIe
Intel® SSD DC P3500 Series
Intel® SSD DC P3600 Series
Intel® SSD DC P3700 Series
7. INTEL CONFIDENTIAL

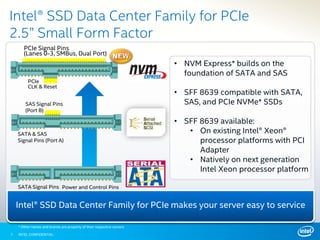

Intel® SSD Data Center Family for PCIe makes your server easy to service
7
Intel® SSD Data Center Family for PCIe
2.5” Small Form Factor
SATA Signal Pins Power and Control Pins
SATA & SAS
Signal Pins (Port A)
SAS Signal Pins
(Port B)
PCIe Signal Pins
(Lanes 0-3, SMBus, Dual Port)
PCIe
CLK & Reset
• NVM Express* builds on the
foundation of SATA and SAS
• SFF 8639 compatible with SATA,
SAS, and PCIe NVMe* SSDs
• SFF 8639 available:
• On existing Intel® Xeon®
processor platforms with PCI
Adapter
• Natively on next generation
Intel Xeon processor platform
* Other names and brands are property of their respective owners
8. INTEL CONFIDENTIAL

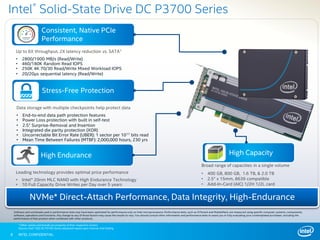

Intel® Solid-State Drive DC P3700 Series
Consistent, Native PCIe
Performance
Up to 6X throughput, 2X latency reduction vs. SATA1
• 2800/1900 MB/s (Read/Write)
• 460/180K Random Read IOPS
• 250K 4K 70/30 Read/Write Mixed Workload IOPS
• 20/20µs sequential latency (Read/Write)
Stress-Free Protection
Data storage with multiple checkpoints help protect data
• End-to-end data path protection features
• Power Loss protection with built in self-test
• 2.5” Surprise-Removal and Insertion
• Integrated die parity protection (XOR)
• Uncorrectable Bit Error Rate (UBER): 1 sector per 1017 bits read
• Mean Time Between Failures (MTBF): 2,000,000 hours, 230 yrs
High Endurance
Leading technology provides optimal price performance
• Intel® 20nm MLC NAND with High Endurance Technology
• 10 Full Capacity Drive Writes per Day over 5 years
8
Broad range of capacities in a single volume
• 400 GB, 800 GB, 1.6 TB, & 2.0 TB
• 2.5” x 15mm, 8639 compatible
• Add-In-Card (AIC) 1/2H 1/2L card
High Capacity
* Other names and brands are property of their respective owners
Source: Intel® SSD DC P3700 Series datasheet based upon internal Intel testing.
NVMe* Direct-Attach Performance, Data Integrity, High-Endurance
Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components,
software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the
performance of that product when combined with other products.
9. INTEL CONFIDENTIAL
Intel SSD DC Family for PCIe
Product Feature Comparison
Capacity
Interface
4K Random R/W Performance
(figures are “up to”)
Average Latency (Read/Write)
Data Integrity
Limited Warranty
Endurance (PB data written)
Power Loss Protection
Features & Self Test
Intel® SSD DC P3500 SeriesIntel® SSD DC P3700 Series
460/180K IOPS
400GB, 800GB, 1.6TB and
2.0 TB
PCIe 3.0 x 4 (4GB/s) NVMe*
20/20µs
End-to-end data
protection
Five years
Yes
400 GB MSRP $1207
HET, Up to 36.5
PBW 10 DWPD
Intel® SSD DC P3600 Series
450/70K IOPS
400GB, 800GB, 1.2TB,
1.6TB and 2.0TB
20/20µs
End-to-end data
protection
Five years
Yes
$783
Mid, Up to 10.95 PBW
3DWPD
450/35K IOPS
400GB, 1.2TB and 2.0TB
20/20µs
End-to-end data
protection
Five years
Yes
$599
Std, Up to 1 PBW
0.3 DWPD
PCIe 3.0 x 4 (4GB/s) NVMe* PCIe 3.0 x 4 (4GB/s) NVMe*
4K 70/30 Mixed R/W Performance
(figures are “up to”)
64KB Sequential R/W
Performance (figures are “up to”)
250K IOPS 170K IOPS 85K IOPS
2800/1900MBps 2600/1700MBps 2500/1700MBps
* Other names and brands are property of their respective owners
1 Intel® SSD DC P3700 data sheet specification, subject to change
9
10. INTEL CONFIDENTIAL10
Intel® SSD DC P3700 Series
Consistently Amazing
Designed for Real Data Center Applications
High consistency enables scalable performance across RAID sets
Right balance of read/write performance optimizes mixed workloads
Low latency at low queue depths delivers high performance
Vendor A
Source: Intel measured on Dell R920, Microsoft Server 2012, DC P3700 1.6TB vs Vendor A NVMe* 1.6TB, 70% Rd/30% Wr, 4KB transfer, queue depth = 4
* Other names and brands are property of their respective owners
Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are
measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other
information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products.
11. INTEL CONFIDENTIAL
Intel® SSD Data Center Family for PCIe
compared with multiple SATA SSDs
Example: One Intel® SSD DC P3700 Series delivers
equivalent performance of 6 to 8 SATA SSDs
Use Intel® SSD Data Center Family
for PCIe to increase system
utilization
• Direct-attach low latency, tight IOPS
distribution keep CPUs at top
performance
• Storage transfers to memory and I/O
devices speed up
• Saves space, power and $$ over
multiple SATA SSDs or SAS HDDs
Data Centers limited by fixed space,
power, and dollar budgets
Issue
Solution
11
0
100000
200000
300000
400000
500000
600000
100% read 50% read 0% read
6x Intel SSD DC S3700 (SATA)
1x Intel SSD DC P3700 (NVMe)
4K RANDOM Workload (IOPS)
1 Source: Intel. Measurements made on Hanlan Creek (Intel S5520HC) system with two Intel Xeon X5560@ 2.93GHz and 12GB (per CPU) Mem running RHEL6.4
O/S, Intel S3700 SATA Gen3 SSDs are connected to LSI* HBA 9211, NVMe SSD is under development, data collected by FIO* tool
* Other names and brands are property of their respective owners
Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are
measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other
information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products.
12. INTEL CONFIDENTIAL12

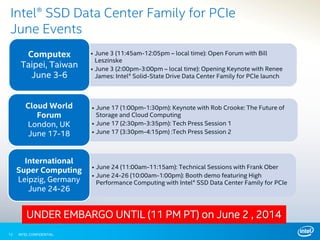

Intel® SSD Data Center Family for PCIe
June Events
• June 3 (11:45am-12:05pm – local time): Open Forum with Bill
Leszinske
• June 3 (2:00pm-3:00pm – local time): Opening Keynote with Renee
James: Intel® Solid-State Drive Data Center Family for PCIe launch
Computex
Taipei, Taiwan
June 3-6
• June 17 (1:00pm-1:30pm): Keynote with Rob Crooke: The Future of
Storage and Cloud Computing
• June 17 (2:30pm-3:35pm): Tech Press Session 1
• June 17 (3:30pm-4:15pm) :Tech Press Session 2
Cloud World
Forum
London, UK
June 17-18
• June 24 (11:00am-11:15am): Technical Sessions with Frank Ober
• June 24-26 (10:00am-1:00pm): Booth demo featuring High
Performance Computing with Intel® SSD Data Center Family for PCIe
International
Super Computing
Leipzig, Germany
June 24-26
UNDER EMBARGO UNTIL (11 PM PT) on June 2 , 2014
13. INTEL CONFIDENTIAL

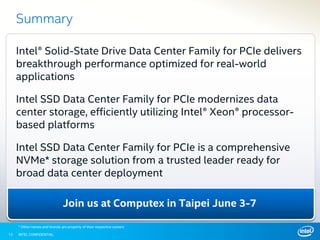

Join us at Computex in Taipei June 3-7
13
Summary
Intel® Solid-State Drive Data Center Family for PCIe delivers
breakthrough performance optimized for real-world
applications
Intel SSD Data Center Family for PCIe modernizes data
center storage, efficiently utilizing Intel® Xeon® processor-
based platforms
Intel SSD Data Center Family for PCIe is a comprehensive
NVMe* storage solution from a trusted leader ready for
broad data center deployment
* Other names and brands are property of their respective owners
14. INTEL CONFIDENTIAL
Intel® Solid-State Drive DC P3700 Series
Consistent, Native PCIe
Performance
Up to 6X throughput, 2X latency reduction vs. SATA1
• 2800/1900 MB/s (Read/Write)
• 460/180K Random Read IOPS
• 250K 4K 70/30 Read/Write Mixed Workload IOPS
• 20/20µs sequential latency (Read/Write)
Stress-Free Protection
Data storage with multiple checkpoints help protect data
• End-to-end data path protection features
• Power Loss protection with built in self-test
• 2.5” Surprise-Removal and Insertion
• Integrated die parity protection (XOR)
• Uncorrectable Bit Error Rate (UBER): 1 sector per 1017 bits read
• Mean Time Between Failures (MTBF): 2,000,000 hours, 230 yrs
High Endurance
Leading technology provides optimal price performance
• Intel® 20nm MLC NAND with High Endurance Technology
• 10 Full Capacity Drive Writes per Day over 5 years
14
Broad range of capacities in a single volume
• 400 GB, 800 GB, 1.6 TB, & 2.0 TB
• 2.5” x 15mm, 8639 compatible
• Add-In-Card (AIC) 1/2H 1/2L card
High Capacity
* Other names and brands are property of their respective owners
Source: Intel® SSD DC P3700 Series datasheet based upon internal Intel testing.
NVMe* Direct-Attach Performance, Data Integrity, High-Endurance
Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components,
software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the
performance of that product when combined with other products.
UNDER EMBARGO UNTIL (11 PM PT) on June 2 , 2014
