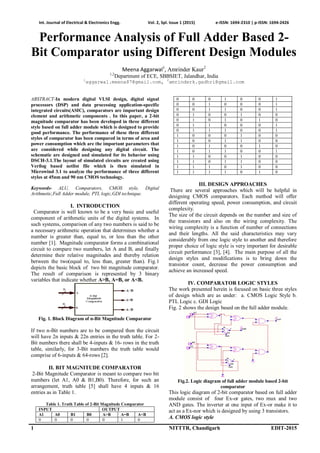

Performance Analysis of Full Adder Based 2-
Bit Comparator using Different Design Modules
Meena Aggarwal1
, Amrinder Kaur2
1,2
Department of ECE, SBBSIET, Jalandhar, India
1
aggarwal.meena87@gmail.com, 2
amrinderk.gadhri@gmail.com
ABSTRACT-In modern digital VLSI design, digital signal
processors (DSP) and data processing application-specific
integrated circuits(ASIC), comparators are important design
element and arithmetic components . In this paper, a 2-bit
magnitude comparator has been developed in three different
style based on full adder module which is designed to provide
good performance. The performance of these three different
styles of comparator has been compared in terms of area and
power consumption which are the important parameters that
are considered while designing any digital circuit. The
schematic are designed and simulated for its behavior using
DSCH-3.1.The layout of simulated circuits are created using
Verilog based netlist file which is then simulated in
Microwind 3.1 to analyze the performance of three different
styles at 45nm and 90 nm CMOS technology.
Keywords- ALU, Comparators, CMOS style, Digital
Arithmetic,Full Adder module, PTL logic,GDI technique.
I. INTRODUCTION
Comparator is well known to be a very basic and useful
component of arithmetic units of the digital systems. In
such systems, comparison of any two numbers is said to be
a necessary arithmetic operation that determines whether a
number is greater than, equal to, or less than the other
number [1]. Magnitude comparator forms a combinational
circuit to compare two numbers, let A and B, and finally
determine their relative magnitudes and thereby relation
between the two(equal to, less than, greater than). Fig.1
depicts the basic block of two bit magnitude comparator.
The result of comparison is represented by 3 binary
variables that indicate whether A>B, A=B, or A<B.
Fig. 1. Block Diagram of n-Bit Magnitude Comparator
If two n-Bit numbers are to be compared then the circuit
will have 2n inputs & 22n entries in the truth table. For 2-
Bit numbers there shall be 4-inputs & 16- rows in the truth
table, similarly, for 3-Bit numbers the truth table would
comprise of 6-inputs & 64-rows [2].
II. BIT MAGNITUDE COMPARATOR
2-Bit Magnitude Comparator is meant to compare two bit
numbers (let A1, A0 & B1,B0). Therefore, for such an
arrangement, truth table [5] shall have 4 inputs & 16
entries as in Table 1.
Table 1. Truth Table of 2-Bit Magnitude Comparator
INPUT OUTPUT
A1 A0 B1 B0 A>B A=B A<B
0 0 0 0 0 1 0
0 0 0 1 0 0 1
0 0 1 0 0 0 1
0 0 1 1 0 0 1
0 1 0 0 1 0 0
0 1 0 1 0 1 0
0 1 1 0 0 0 1
0 1 1 1 0 0 1
1 0 0 0 1 0 0
1 0 0 1 1 0 0
1 0 1 0 0 1 0
1 0 1 1 0 0 1
1 1 0 0 1 0 0
1 1 0 1 1 0 0
1 1 1 0 1 0 0
1 1 1 1 0 1 0
III. DESIGN APPROACHES
There are several approaches which will be helpful in
designing CMOS comparators. Each method will offer
different operating speed, power consumption, and circuit
complexity.
The size of the circuit depends on the number and size of
the transistors and also on the wiring complexity. The
wiring complexity is a function of number of connections
and their lengths. All the said characteristics may vary
considerably from one logic style to another and therefore
proper choice of logic style is very important for desirable
circuit performance [3], [4]. The main purpose of all the
design styles and modifications is to bring down the
transistor count, decrease the power consumption and
achieve an increased speed.
IV. COMPARATOR LOGIC STYLES
The work presented herein is focused on basic three styles
of design which are as under: a. CMOS Logic Style b.
PTL Logic c. GDI Logic
Fig. 2 shows the design based on the full adder module.
Fig.2. Logic diagram of full adder module based 2-bit
comparator
This logic diagram of 2-bit comparator based on full adder
module consist of four Ex-or gates, two mux and two
AND gates. The inverter at one input of Ex-or make it to
act as a Ex-nor which is designed by using 3 transistors.
A. CMOS logic style

2. Int. Journal of Electrical & Electronics Engg. Vol. 2, Spl. Issue 1 (2015) e-ISSN: 1694-2310 | p-ISSN: 1694-2426
NITTTR, Chandigarh EDIT -2015 2

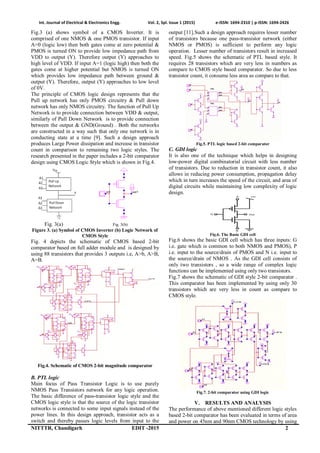

Fig.3 (a) shows symbol of a CMOS Inverter. It is
comprised of one NMOS & one PMOS transistor. If input
A=0 (logic low) then both gates come at zero potential &
PMOS is turned ON to provide low impedance path from
VDD to output (Y). Therefore output (Y) approaches to
high level of VDD. If input A=1 (logic high) then both the
gates come at higher potential but NMOS is turned ON
which provides low impedance path between ground &
output (Y). Therefore, output (Y) approaches to low level
of 0V.
The principle of CMOS logic design represents that the
Pull up network has only PMOS circuitry & Pull down
network has only NMOS circuitry. The function of Pull Up
Network is to provide connection between VDD & output,
similarly of Pull Down Network is to provide connection
between the output & GND(Ground) . Both the networks
are constructed in a way such that only one network is in
conducting state at a time [9]. Such a design approach
produces Large Power dissipation and increase in transistor
count in comparison to remaining two logic styles. The
research presented in the paper includes a 2-bit comparator
design using CMOS Logic Style which is shown in Fig.4.
Fig. 3(a) Fig. 3(b)
Figure 3. (a) Symbol of CMOS Inverter (b) Logic Network of
CMOS Style
Fig. 4 depicts the schematic of CMOS based 2-bit
comparator based on full adder module and is designed by
using 88 transistors that provides 3 outputs i.e, A>b, A>B,
A=B.
Fig.4. Schematic of CMOS 2-bit magnitude comparator
B. PTL logic
Main focus of Pass Transistor Logic is to use purely
NMOS Pass Transistors network for any logic operation.
The basic difference of pass-transistor logic style and the
CMOS logic style is that the source of the logic transistor
networks is connected to some input signals instead of the
power lines. In this design approach, transistor acts as a
switch and thereby passes logic levels from input to the
output [11].Such a design approach requires lesser number
of transistors because one pass-transistor network (either
NMOS or PMOS) is sufficient to perform any logic
operation. Lesser number of transistors result in increased
speed. Fig.5 shows the schematic of PTL based style. It
requires 28 transistors which are very less in numbers as
compare to CMOS style based comparator. So due to less
transistor count, it consume less area as compare to that.
Fig.5. PTL logic based 2-bit comparator
C. GDI logic
It is also one of the technique which helps in designing
low-power digital combinatorial circuit with less number
of transistors. Due to reduction in transistor count, it also
allows in reducing power consumption, propagation delay
which in turn increases the speed of the circuit, and area of
digital circuits while maintaining low complexity of logic
design.
Fig.6. The Basic GDI cell
Fig.6 shows the basic GDI cell which has three inputs: G
i.e. gate which is common to both NMOS and PMOS), P
i.e. input to the source/drain of PMOS and N i.e. input to
the source/drain of NMOS . As the GDI cell consists of
only two transistors , so a wide range of complex logic
functions can be implemented using only two transistors.
Fig.7 shows the schematic of GDI style 2-bit comparator .
This comparator has been implemented by using only 30
transistors which are very less in count as compare to
CMOS style.
Fig.7. 2-bit comparator using GDI logic
V. RESULTS AND ANALYSIS
The performance of above mentioned different logic styles
based 2-bit comparator has been evaluated in terms of area
and power on 45nm and 90nm CMOS technology by using

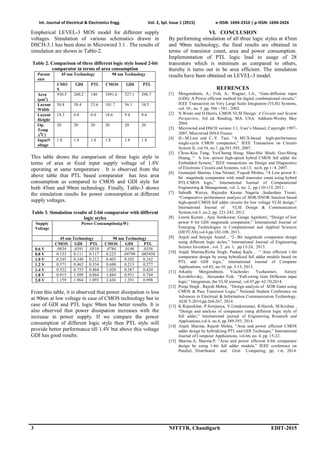

3. Int. Journal of Electrical & Electronics Engg. Vol. 2, Spl. Issue 1 (2015) e-ISSN: 1694-2310 | p-ISSN: 1694-2426
3 NITTTR, Chandigarh EDIT-2015
Empherical LEVEL-3 MOS model for different supply
voltages. Simulation of various schematics drawn in
DSCH-3.1 has been done in Microwind 3.1 . The results of
simulation are shown in Table-2.
Table 2. Comparison of three different logic style based 2-bit
comparator in terms of area consumption
Param
etes
45 nm Technology 90 nm Technology
CMO
S
GDI PTL CMOS GDI PTL
Area
(µm2
)
930.5 260.2 140 1891.6 527.1 296.7
Layout
Width
50.8 38.4 23.6 101.7 56.1 34.5
Layout
Height
18.3 6.8 6.0 18.6 9.4 8.6
Op.
Temp
.(0
C)
20 20 20 20 20 20
InputV
oltage
1.8 1.8 1.8 1.8 1.8 1.8
This table shows the comparison of three logic style in
terms of area at fixed input supply voltage of 1.8V
operating at same temperature . It is observed from the
above table that PTL based comparator has less area
consumption as compared to CMOS and GDI style for
both 45nm and 90nm technology. Finally, Table-3 shows
the simulation results for power consumption at different
supply voltages.
Table 3. Simulation results of 2-bit comparator with different
logic styles
Supply
Voltage
Power Consumption(µW)
45 nm Technology 90 nm Technology
CMOS GDI PTL CMOS GDI PTL
0.6 V .0834 .0391 .0518 .0784 .0148 .0358
0.8 V 0.153 0.111 0.117 0.225 .04798 .085454
1.0 V 0.245 0.248 0.212 0.403 0.102 0.162
1.2 V 0.371 0.462 0.334 0.688 0.213 0.277
1.4 V 0.522 0.753 0.484 1.020 0.387 0.424
1.8 V 0.915 1.509 0.864 1.884 0.931 0.784
2.0 V 1.159 1.964 1.093 2.436 1.291 0.998
From this table, it is observed that power dissipation is less
at 90nm at low voltage in case of CMOS technology but in
case of GDI and PTL logic 90nm has better results. It is
also observed that power dissipation increases with the
increase in power supply. If we compare the power
consumption of different logic style then PTL style will
provide better performance till 1.4V but above this voltage
GDI has good results.
VI. CONCLUSION
By performing simulation of all three logic styles at 45nm
and 90nm technology, the final results are obtained in
terms of transistor count, area and power consumption.
Implementation of PTL logic lead to usage of 28
transistors which is minimum as compared to others,
thereby it turns out to be area efficient. The simulation
results have been obtained on LEVEL-3 model.
REFRENCES
[1] Morgenshtein, A.; Fish, A.; Wagner, I.A., “Gate-diffusion input
(GDI): A Power efficient method for digital combinational circuits,”
IEEE Transaction on Very Large Scale Integration (VLSI) Systems,
vol. 10 , no. 5 ,pp. 566 - 581 , 2002.
[2] N.Weste and D.Harris, CMOS VLSI Design: A Circuits and System
Perspective, 3rd ed. Reading, MA, USA: Addison-Wesley May
2004.
[3] Microwind and DSCH version 3.1, User’s Manual, Copyright 1997-
2007, Microwind INSA France.
[4] H.-.M.Lam and C.-Y. Tsui, “A MUX-based high-performance
single-cycle CMOS comparator,” IEEE Transaction on Circuits
System II, vol.54, no.7, pp.591-595, 2007.
[5] Chiou-Kou Tung; Yu-Cherng Hung; Shao-Hui Shieh; Guo-Shing
Huang, “ A low -power high-speed hybrid CMOS full adder for
Embedded System,” IEEE transactions on Design and Diagnostics
of Electronic Circuits and Systems, vol.13, no.6, pp.1- 4, 2007.
[6] Geetanjali Sharma, Uma Nirmal, Yogesh Mishra, “A Low power 8-
bit magnitude comparator with small transistor count using hybrid
PTL/CMOS logic,” International Journal of Computational
Engineering & Management, vol. 2, no. 2, pp.110-115, 2011.
[7] Subodh Wairya, Rajendra Kumar Nagaria ,Sudarshan Tiwari,
“Comparative performance analysis of XOR/XNOR function based
high-speed CMOS full adder circuits for low voltage VLSI design,”
International Journal of VLSI Design & Communication
System,vol.3, no.2, pp. 221-242, 2012.
[8] Laxmi Kumre , Ajay Somkuwar, Ganga Agnihotri, “Design of low
power 8 bit GDI magnitude comparator,” International Journal of
Emerging Technologies in Computational and Applied Sciences
(IJETCAS),vol.4,pp.102-108, 2013.
[9] Anjuli and Satyajit Anand , “2- Bit magnitude comparator design
using different logic styles,” International Journal of Engineering
Science Invention , vol. 2 ,no. 1, pp.13-24, 2013.
[10] Anjali Sharma,Richa Singh, Pankaj Kajla , “ Area efficient 1-bit
comparator design by using hybridized full adder module based on
PTL and GDI logic,” International Journal of Computer
Applications, vol.82, no.10, pp. 5-13, 2013.
[11] Arkadiy Morgenshtein, Viacheslav Yuzhaninov, Alexey
Kovshilovsky, Alexander Fish, “Full-swing Gate Diffusion input
logic,” Integration, the VLSI journal, vol.47,pp. 62-70,2014.
[12] Pooja Singh , Rajesh Mehra, “Design analysis of XOR Gates using
CMOS & Pass Transistor Logic,” National Student Conference on
Advances in Electrical & Information Communication Technology,
AEICT-2014,pp.264-267, 2014.
[13] K.Rajasekhar, P.Sowjanya, V.Umakiranmai, R.Harish, M.Krishna ,
“Design and analysis of comparator using different logic style of
full adder,” International journal of Engineering Research and
Applications,vol.4, no.4, pp.389-393, 2014.
[14] Anjali Sharma, Rajesh Mehra, “Area and power efficient CMOS
adder design by hybridizing PTL and GDI Technique,” International
Journal of Computer Applications, vol.66, no. 4, pp. 15-22.
[15] Sharma.A, Sharma.P, “Area and power efficient 4-bit comparator
design by using 1-bit full adder module,” IEEE conference on
Parallel, Distributed and Grid Computing, pp. 1-6, 2014.
