Area and Power Efficient Up-Down counter Design by Using Full Adder Module
1. Int. Journal of Electrical & Electronics Engg. Vol. 2, Spl. Issue 1 (2015) e-ISSN: 1694-2310 | p-ISSN: 1694-2426
11 NITTTR, Chandigarh EDIT-2015
Area and Power Efficient Up-Down counter
Design by Using Full Adder Module
1
Anjali Sharma, 2
Richa Singh
1
PHD Scholar Chitkara University, Punjab, India,
2
Assistant Professor Department of Electronics and communication Engineering, VSGOI Unnao,U.P. India
1
anjali.iitt@gmail.com, 2
singhricha51@gmail.com
Abstract- In this paper an area and power efficient 98T Up-
Down counter design has been presented by using Pass
transistor logic designing technique. The proposed Up-Down
counter design consist of 53 NMOS and 45 PMOS. Four PTL
full adder modules has been used to design this Up-Down
counter which consumes less area and power at 120 nm as
compared to CMOS, TG and GDI full adder designs. The
proposed Up-Down counter design is based on this area and
power efficient 10 transistors PTL full adder module. The
proposed Up-Down counter has been designed and simulated
using DSCH 3.1 and Microwind 3.1 on 120nm. For proposed
design Power variation with respect to the supply voltage has
been performed on BSIM-4 and LEVEL-3 using 120nm
technology. Results show that Area of proposed PTL Up-
Down counter design is 1288.4 µm2
on 120nm technology. At
1.2V input supply voltage the proposed Up-Down counter
design consumes 111µW power at BSIM-4.
Keywords- BSIM, CMOS, Gate Diffusion Input, NMOS,
PMOS, PTL, Transmission Gate, VLSI.
I. INTRODUCTION
In present technology world use of portable devices has
been increased and measurement of power and area
consumption is major concern in schematic design of these
portable devices before their actual implementation in the
layout. Large power and area consumption is a key
limitation in many electronic devices and these parameters
also act as show stopper for VLSI applications. So there is
need of new VLSI designing techniques and
methodologies to control and limit power and area
consumption [1]-[2]. In digital processing, there is
requirement of area and power efficient counter design.
The critical path in VLSI circuit design is increased no of
transistors that produce the delay in the output signal [3]. It
is also the speed limiting and more power consuming
element of many VLSI applications. The design of faster,
smaller and more efficient counter architecture should be
there for VLSI applications. Two most important
properties of the counter architectures are power
consumption and propagation which basically are against
each other. Decrease in the power consumption can cause
delay in the circuit and vice versa, hence, most
architectures referring to one of those important properties.
Traditional CMOS technology, results in full voltage
swing but consume large area. Transmission gate
technology consumes less area as compare to CMOS
technology because it consumes less no of transistors. One
another logic that consumes less power is PTL - pass-
transistor logic. Advantages of PTL over standard CMOS
logic design are: High speed - due to the small node
capacitances, Low power dissipation - as a result of the
reduced number of transistors, Lower interconnection
effects - due to a small area [5]. But implementations of
circuit by PTL logic have two basic problems [6] i.e.
threshold drop across the single-channel pass transistors
and static power dissipation. Logic design which can
overcome this problem is Complementary pass-transistor
logic (CPL) which features complementary inputs/outputs
using NMOS pass-transistor logic.
II. 4- BIT UP-DOWN COUNTER
In digital processing and computing applications,
a counter is a device which stores and displays that with
any clock input how many times a
particular event or process has been occurred. A most
common type of counter is a sequential digital logic circuit
with a clock input line and multiple output lines. The
values on the output lines represent a number in
the binary or BCD number system. Each pulse applied to
the clock input increments or decrements the number in the
counter. A counter circuit can be constructed by number
of flip-flops connected in cascade. Counters is most widely
used digital component in digital circuits which are further
used in the various digital processing applications, and are
manufactured as separate integrated circuits and also
incorporated as parts of larger integrated circuits. Up-
Down counter design by using full adder module has been
shown in Fig.1.
Fig.1 Up-Down Counter by using Full adder modules
III. SCHEMATICS DESIGNS OF 1-BIT FULL
ADDER
Full adder is one of the basic building blocks of
arithmetic unit used in various digital electronic devices.
Full adder can be designed by using different logics. Area
consumption, speed and power consumption are the main
parameter estimation criteria’s and should be investigated
and analyzed for the efficient performance of the digital
circuits [7].
2. Int. Journal of Electrical & Electronics Engg. Vol. 2, Spl. Issue 1 (2015) e-ISSN: 1694-2310 | p-ISSN: 1694-2426
NITTTR, Chandigarh EDIT -2015 12

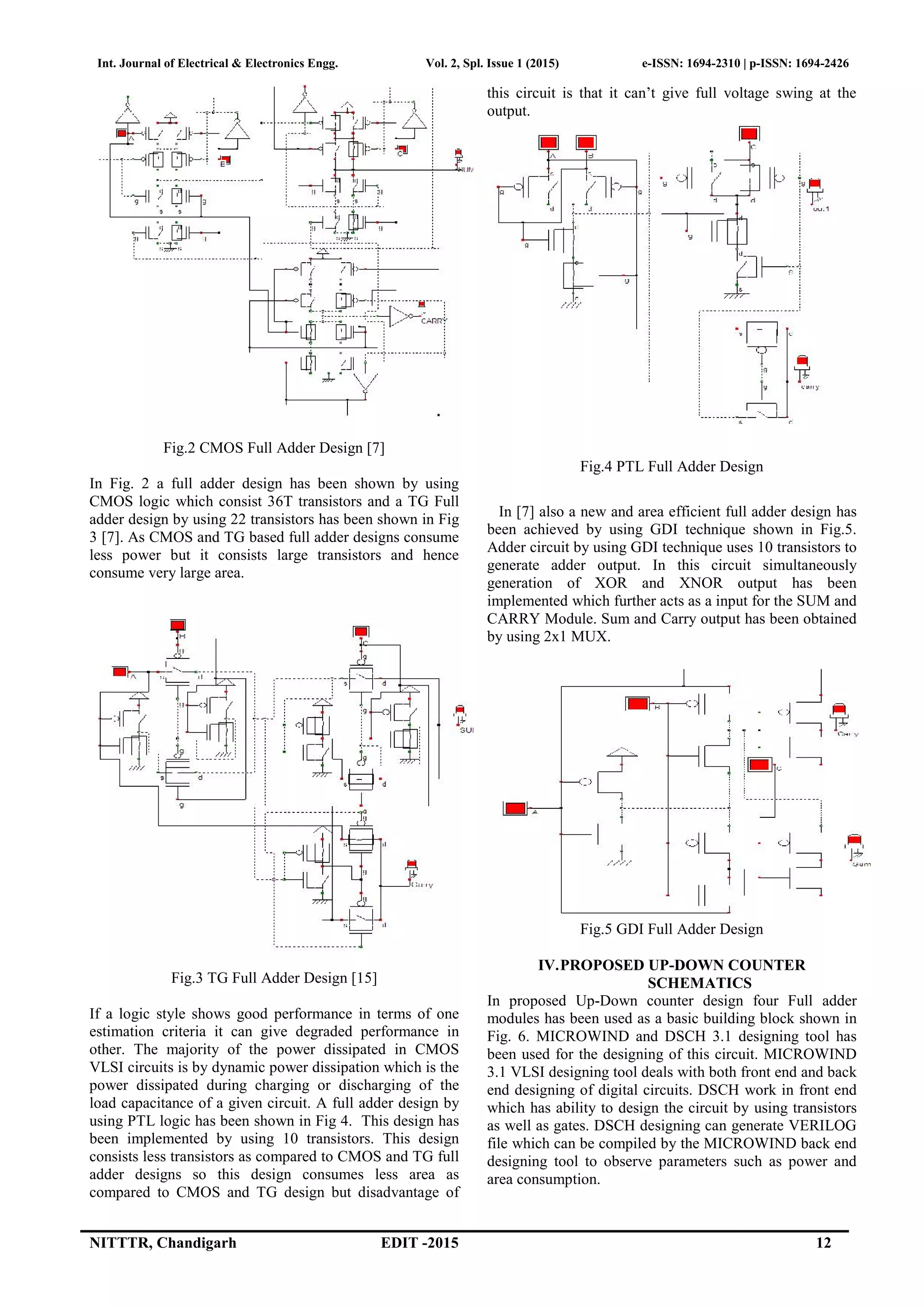

Fig.2 CMOS Full Adder Design [7]
In Fig. 2 a full adder design has been shown by using
CMOS logic which consist 36T transistors and a TG Full
adder design by using 22 transistors has been shown in Fig
3 [7]. As CMOS and TG based full adder designs consume
less power but it consists large transistors and hence
consume very large area.
Fig.3 TG Full Adder Design [15]
If a logic style shows good performance in terms of one
estimation criteria it can give degraded performance in
other. The majority of the power dissipated in CMOS
VLSI circuits is by dynamic power dissipation which is the
power dissipated during charging or discharging of the
load capacitance of a given circuit. A full adder design by
using PTL logic has been shown in Fig 4. This design has
been implemented by using 10 transistors. This design
consists less transistors as compared to CMOS and TG full
adder designs so this design consumes less area as
compared to CMOS and TG design but disadvantage of
this circuit is that it can’t give full voltage swing at the
output.
Fig.4 PTL Full Adder Design
In [7] also a new and area efficient full adder design has
been achieved by using GDI technique shown in Fig.5.
Adder circuit by using GDI technique uses 10 transistors to
generate adder output. In this circuit simultaneously
generation of XOR and XNOR output has been
implemented which further acts as a input for the SUM and
CARRY Module. Sum and Carry output has been obtained
by using 2x1 MUX.
Fig.5 GDI Full Adder Design
IV.PROPOSED UP-DOWN COUNTER
SCHEMATICS
In proposed Up-Down counter design four Full adder
modules has been used as a basic building block shown in
Fig. 6. MICROWIND and DSCH 3.1 designing tool has
been used for the designing of this circuit. MICROWIND
3.1 VLSI designing tool deals with both front end and back
end designing of digital circuits. DSCH work in front end
which has ability to design the circuit by using transistors
as well as gates. DSCH designing can generate VERILOG
file which can be compiled by the MICROWIND back end
designing tool to observe parameters such as power and
area consumption.
3. Int. Journal of Electrical & Electronics Engg. Vol. 2, Spl. Issue 1 (2015) e-ISSN: 1694-2310 | p-ISSN: 1694-2426
13 NITTTR, Chandigarh EDIT-2015
Fig.6 Design of Proposed Up-Down Counter
Proposed PTL Up-Down counter is best in terms of area
as compared to CMOS, TG and GDI Up-Down counter
design. Comparative analysis of various Up-Down counter
designs on 120nm has been shown in Table.1. Up-Down
counter by conventional CMOS consist 202 transistors, TG
Up-Down counter consists 146 transistors and GDI and
PTL Up-Down counter consists 98 transistors.
V. LAYOUT ANALYSIS
For a very complex circuit it is not possible to conduct the
manual layout so an automatic layout generation approach
is preferred. Required schematic diagram has been firstly
designed and logically validated using DSCH tool at logic
level. Although at logic level DSCH have feature to
analyze timing simulation as well as power consumption
but accurate layout information is still missing. A
VERILOG file is generated by the DSCH 3.1 designing
tool which is understandable by the MICROWIND 3.1
designing tool to construct the corresponding layout with
exact desired design rules. Another way to create the
design is by NMOS and PMOS devices using cell
generator provided by the MICROWIND. The advantage
of this approach is to avoid any design rule error. W/L can
be adjusted by the MOS generator option on
MICROWIND tool [8]. Layout of Up-Down Counter has
been shown in Fig. 7.
Fig.7 Layout of Up-Down Counter
3D view of proposed Up-Down counters design has been
shown in Fig.8. Various steps used for the creation of this
structure are- initial substrate creation, N- diffusion, SiO2
isolation, thin oxide growth, thin oxide reduction,
polysilicon deposit, N+ implant, P+ implant, 2nd
polysilicon deposit, contact creation, metal layers
deposition and via hole creation, passivation oxide
deposition and passivation etching. This layout consist 6
metal layers and 2 polysilicon layers.
Fig.8 3D view of proposed Up-Down counters design
VI. SIMULATION RESULTS
Area and power consumption of proposed Up-Down
counters has been evaluated on 120nm technology by
using MICROWIND designing tool. Simulation of
proposed Up-Down counters has been performed to get
power and current variation with respect to the supply
voltage. Parametric analyses of proposed Up-Down
counters have been performed using the MOS Empherical
model Level-3 and BSIM Model-4 at different power five
different supply voltages.
Up-Down
Counter
design
CMO
S
TG GDI Propose
d PTL
NMOS 105 77 53 53
PMOS 97 69 45 45
Width
(µm)
213.2 178.
7
109.
6
109.6
Height
(µm)
13.7 11.3 12.2 11.8
Area (µm2
)
2917.
1
2015
.5
134.
1
1288.4
4. Int. Journal of Electrical & Electronics Engg. Vol. 2, Spl. Issue 1 (2015) e-ISSN: 1694-2310 | p-ISSN: 1694-2426
NITTTR, Chandigarh EDIT -2015 14
Fig.9 Power vs. Supply Voltage on BSIM-4
Threshold voltage has been taken as 0.4V for both levels
which is the voltage above which the power and current
starts increasing with the increase in supply voltage.
Operating temperature has been taken 270
C for both
LEVEL-3 and BSIM-4.MOS Empherical model Level-3
and BSIM Model-4 provides the feature of different curve
fitting parameters which is useful in parametric analysis.
Fig.10 Power vs. Supply Voltage on LEVEL-3
MOS Empherical model Level-3 has features of 10
different curve fitting parameters whereas BSIM Model-4
works with 19 different parameters. Graph for variation in
power with respect to Vdd has been shown in Fig.9 for
BSIM-4 and in and Fig. 10 for LEVEL-3.
VII. CONCLUSION
An alternative Up-Down counters design by using PTL
approach has been proposed which consists 98 transistors.
Proposed Up-Down counters have been implemented by
using 58 NMOS and 45 PMOS transistors. Proposed Up-
Down counters have been designed using an area efficient
PTL Full adder module which has been implemented by
using only 10 transistors. Area and power consumption of
proposed Up-Down counters has been shown on120nm
using LEVEL-3 and BSIM-4 analytical models. Area of
proposed Up-Down counters design is 1288.4µm2
on
120nm technology. At 1.2V input supply voltage the
proposed Up-Down counters consumes 62.197µW power
at BSIM-4 and 32.824 µW power at LEVEL-3. The
proposed Up-Down counters circuit can work efficiently
with minimum voltage supply of 0.4V and can work on
wide range of frequency range between 2MHz to 400MHz.
REFERENCES
N. Weste and K. Eshraghian, (2002) “Principles of CMOSVLSI Design”
A System Perspective Reading, Pearson Education, Addison–Wesley.
Anjali Sharma, Richa Singh, Pankaj Kajla “Area Efficient 1-Bit
Comparator Design by using Hybridized Full Adder Module based on
PTL and GDI Logic,” International Journal of Computer Applications,
Vol.82, No. 10, pp. 5-13.
Chiou-Kou Tung; Yu-Cherng Hung; Shao-Hui Shieh; Guo-Shing Huang,”
A Low -Power High-speed Hybrid CMOS Full Adder For Embedded
System,” IEEE transactions on Design and Diagnostics of Electronic
Circuits and Systems, vol.13, No.6, pp.-1 – 4, 2007.
Anjali Sharma, Richa Singh, Pankaj Kajla “Area Efficient 1-Bit
Comparator Design by using Hybridized Full Adder Module based on
PTL and GDI Logic,” International Journal of Computer Applications,
Vol.82, No. 10, pp. 5-13.
A Morgenshtein, Fish, Wagner, “Gate - Diffusion input (GDI) - A novel
power efficient method for digital circuits: A Design Methodology ,”
IEEE International Conference, pp. 39 – 43, 2001.
Morgenshtein, A.; Fish, A.; Wagner, I.A., “Gate-diffusion input (GDI): A
Power Efficient Method For Digital Combinational circuits,” IEEE
Transaction on Very Large Scale Integration Systems, Vol. 10 , No . 5,
pp. 566 - 581, 2002.
Anjali Sharma, Rajesh Mehra, “Area and Power Efficient CMOS Adder
Design by Hybridizing PTL and GDI Technique,” International Journal
of Computer Applications, Vol.66, No. 4, pp. 15-22.
Etienne Sicard, Sonia Delmas Bendhia, Basic of CMOS Cell Design, tata
mc graw-hill, pp. 51-90, 2007.
