2012-07-28 ICML2012読み会 Scaling Up Coordinate Descent Algorithms for Large L1 regularization Problems の発表資料

1. ICML2012読み会:
Scaling Up Coordinate Descent Algorithms for
Large L1 regularization Problems
2012-07-28
Yoshihiko Suhara
@sleepy_yoshi

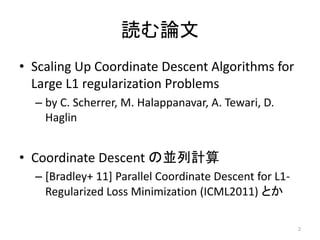

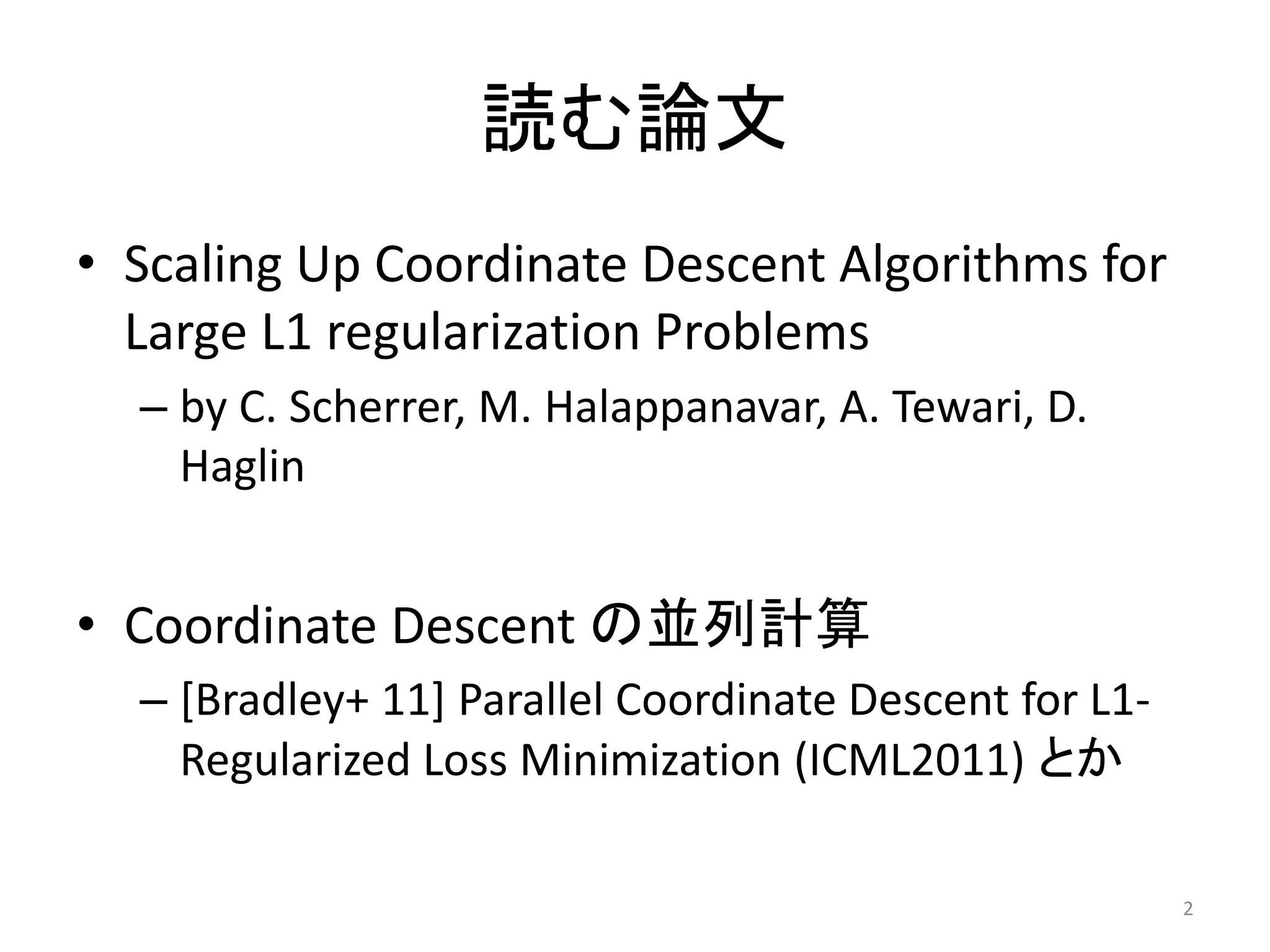

2. 読む論文
• Scaling Up Coordinate Descent Algorithms for
Large L1 regularization Problems
– by C. Scherrer, M. Halappanavar, A. Tewari, D.
Haglin
• Coordinate Descent の並列計算
– [Bradley+ 11] Parallel Coordinate Descent for L1-
Regularized Loss Minimization (ICML2011) とか
2

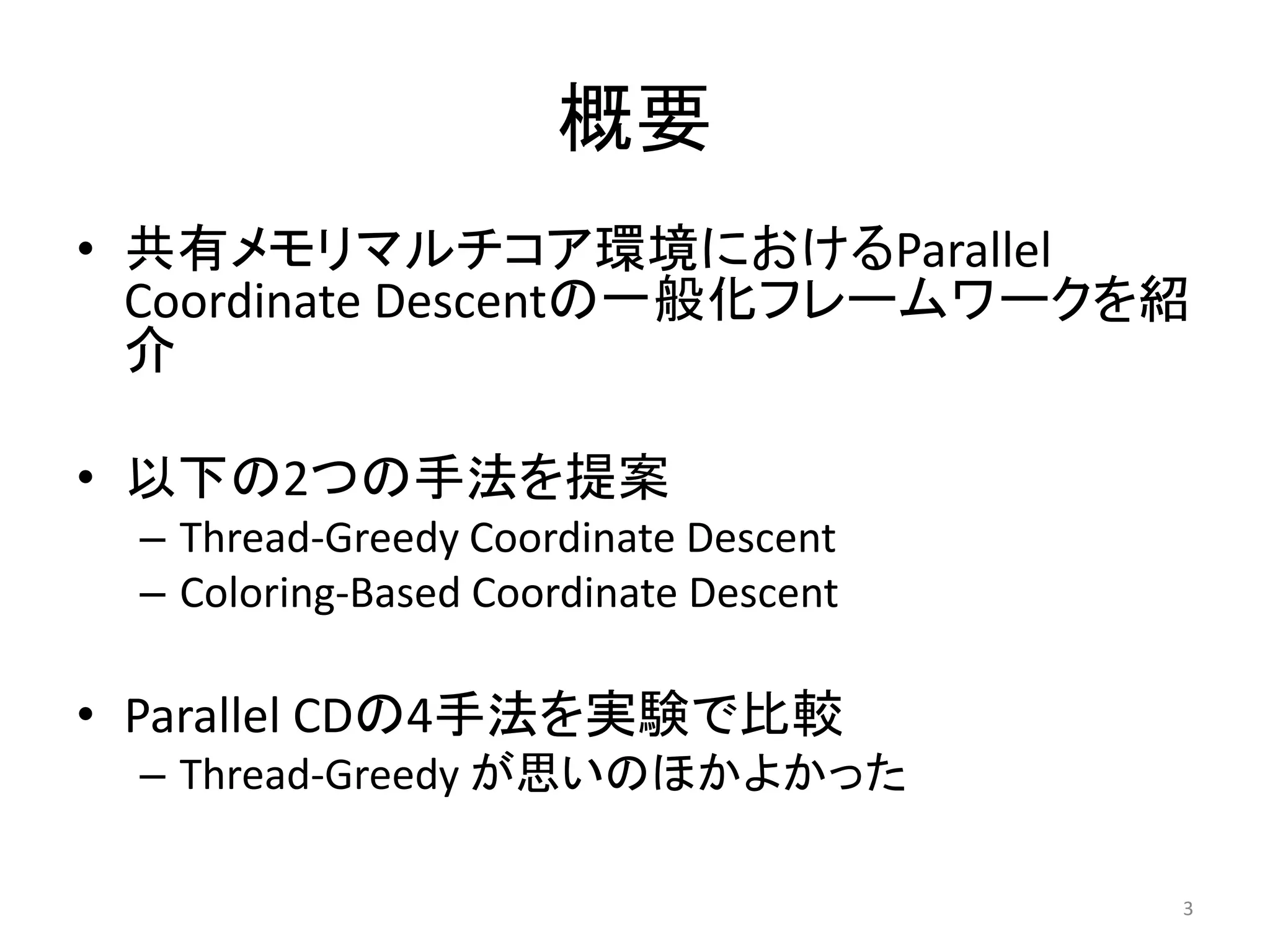

3. 概要
• 共有メモリマルチコア環境におけるParallel
Coordinate Descentの一般化フレームワークを紹
介
• 以下の2つの手法を提案
– Thread-Greedy Coordinate Descent
– Coloring-Based Coordinate Descent
• Parallel CDの4手法を実験で比較
– Thread-Greedy が思いのほかよかった
3

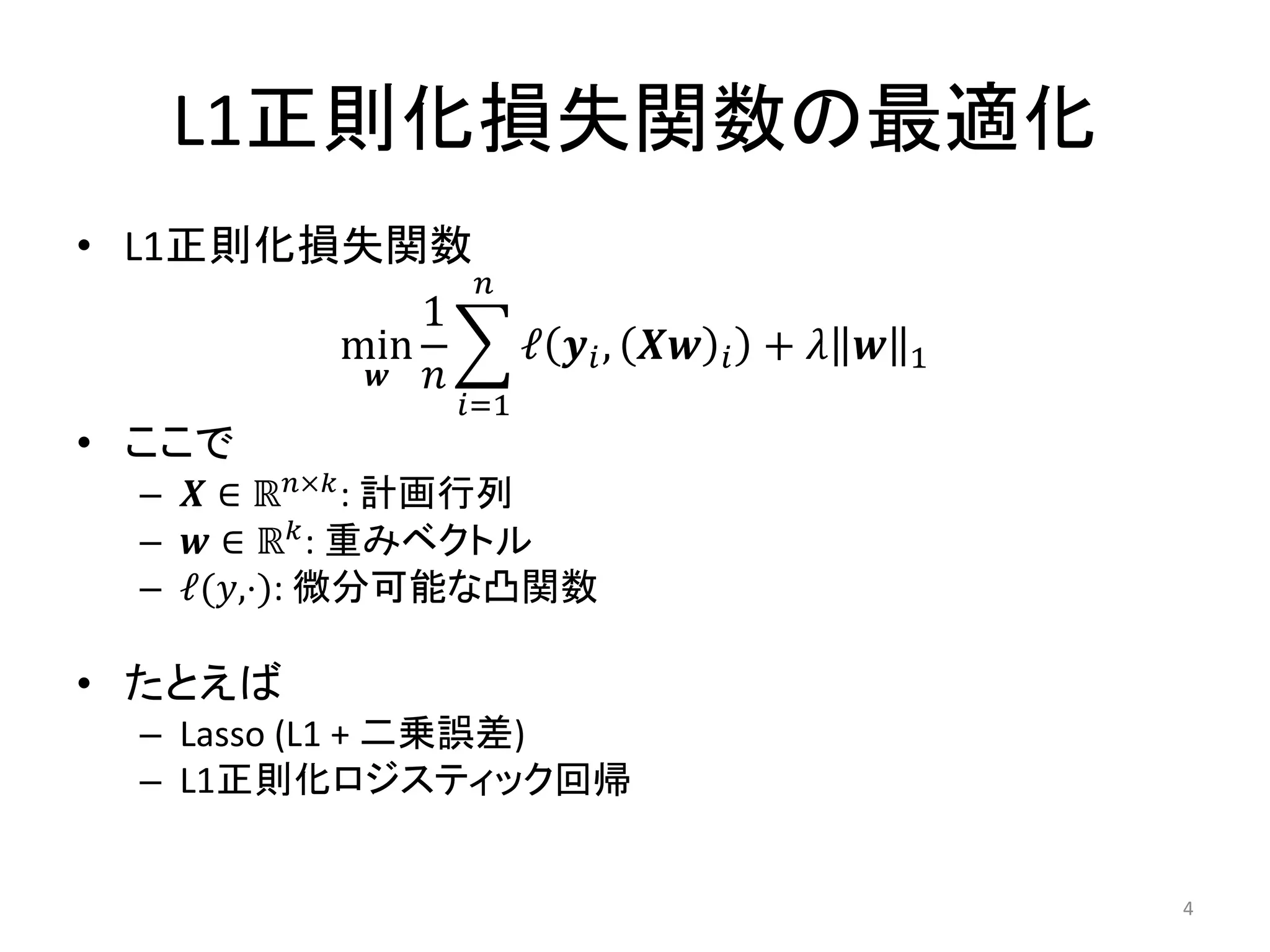

4. L1正則化損失関数の最適化
• L1正則化損失関数
𝑛
1
min ℓ 𝒚 𝑖 , 𝑿𝒘 𝑖 + 𝜆 𝒘 1
𝒘 𝑛
𝑖=1
• ここで
– 𝑿 ∈ ℝ 𝑛×𝑘 : 計画行列
– 𝒘 ∈ ℝ 𝑘 : 重みベクトル
– ℓ(𝑦,⋅): 微分可能な凸関数
• たとえば
– Lasso (L1 + 二乗誤差)
– L1正則化ロジスティック回帰
4

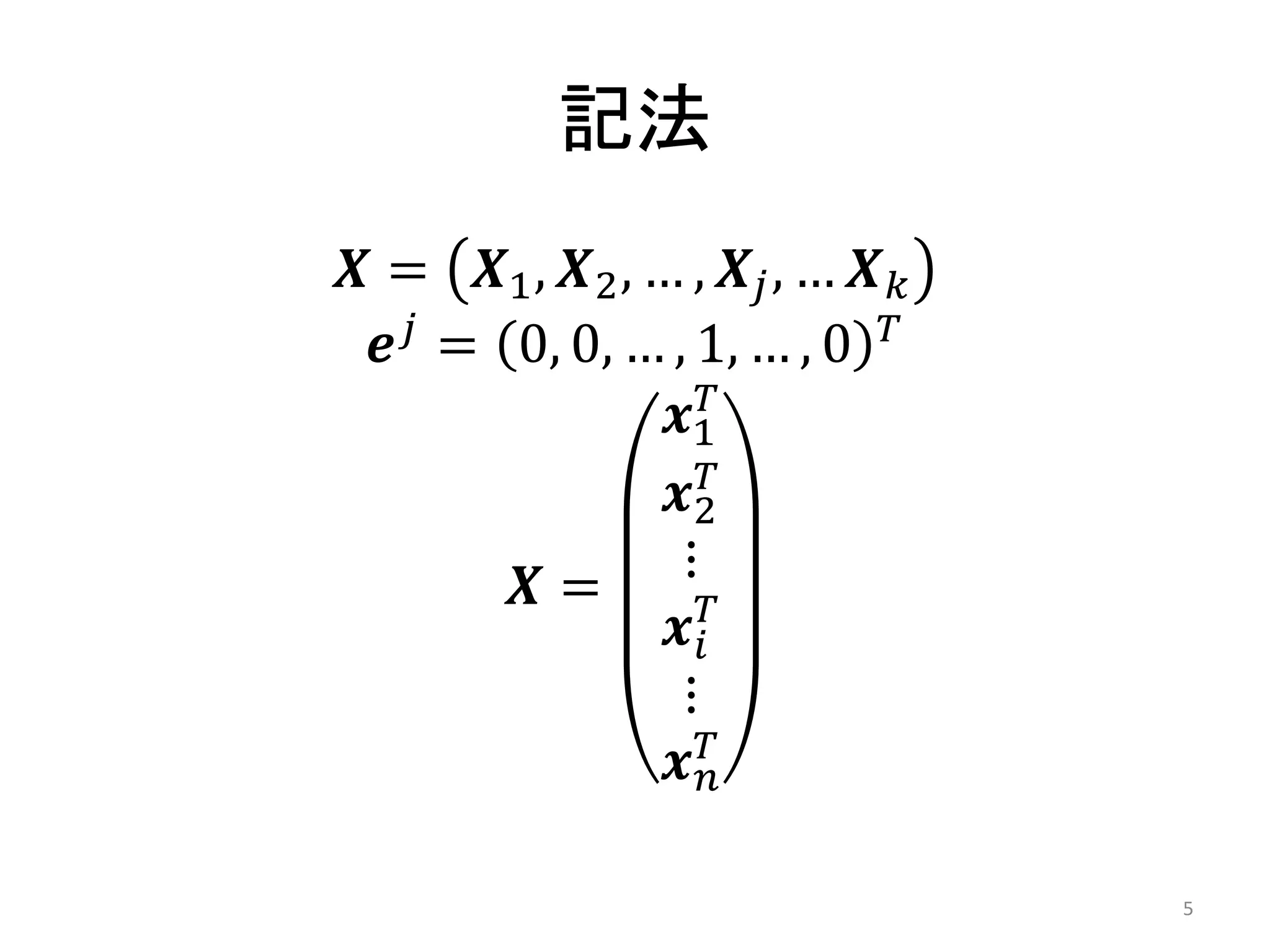

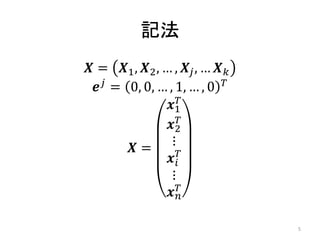

5. 記法
𝑿 = 𝑿1 , 𝑿2 , … , 𝑿 𝑗 , … 𝑿 𝑘
𝒆 𝑗 = 0, 0, … , 1, … , 0 𝑇
𝒙1𝑇
𝒙2𝑇
𝑿= ⋮
𝒙 𝑖𝑇
⋮
𝒙𝑇 𝑛
5

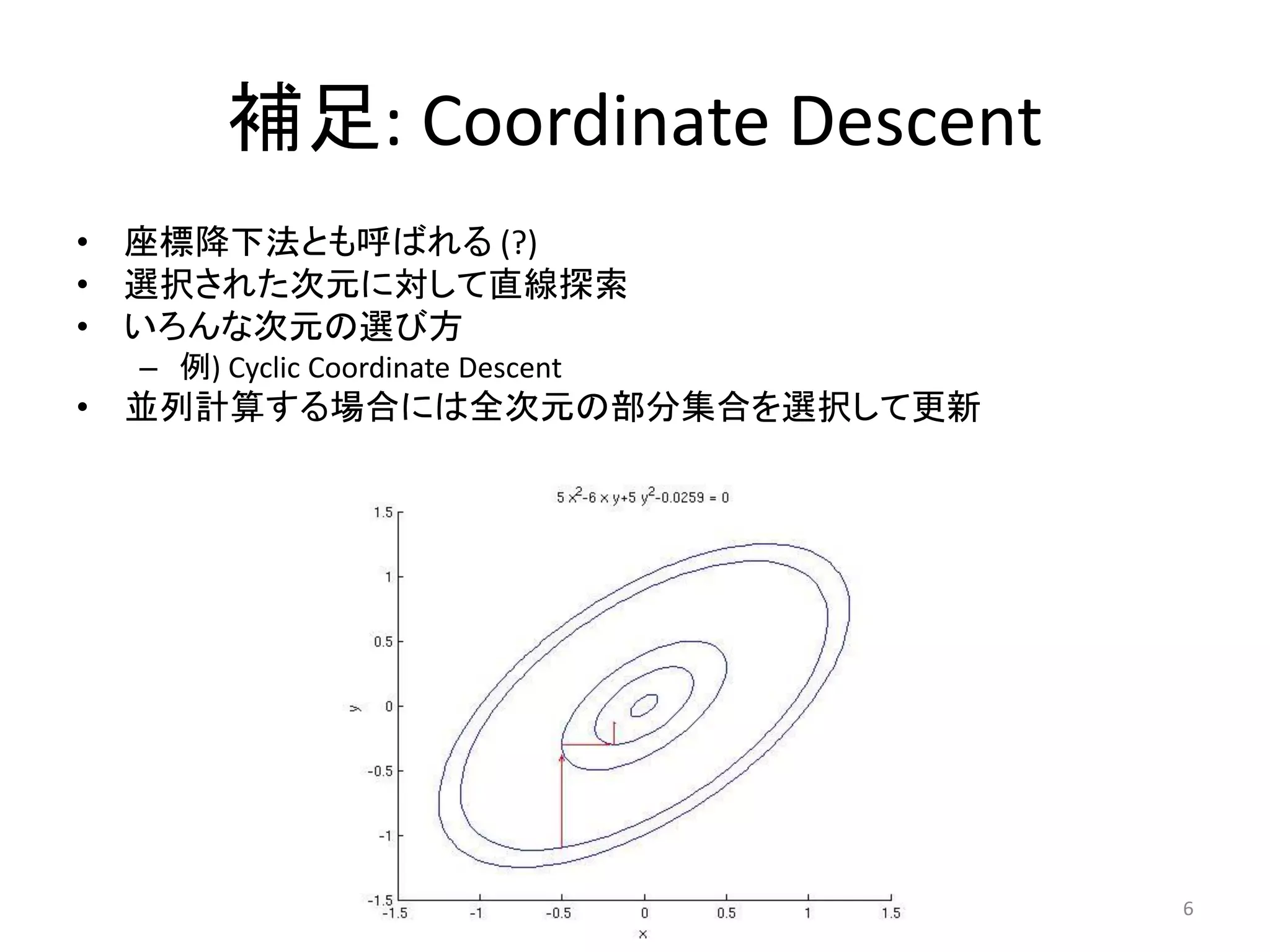

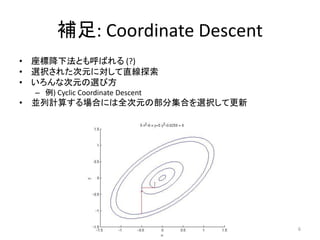

6. 補足: Coordinate Descent
• 座標降下法とも呼ばれる (?)
• 選択された次元に対して直線探索
• いろんな次元の選び方
– 例) Cyclic Coordinate Descent
• 並列計算する場合には全次元の部分集合を選択して更新
6

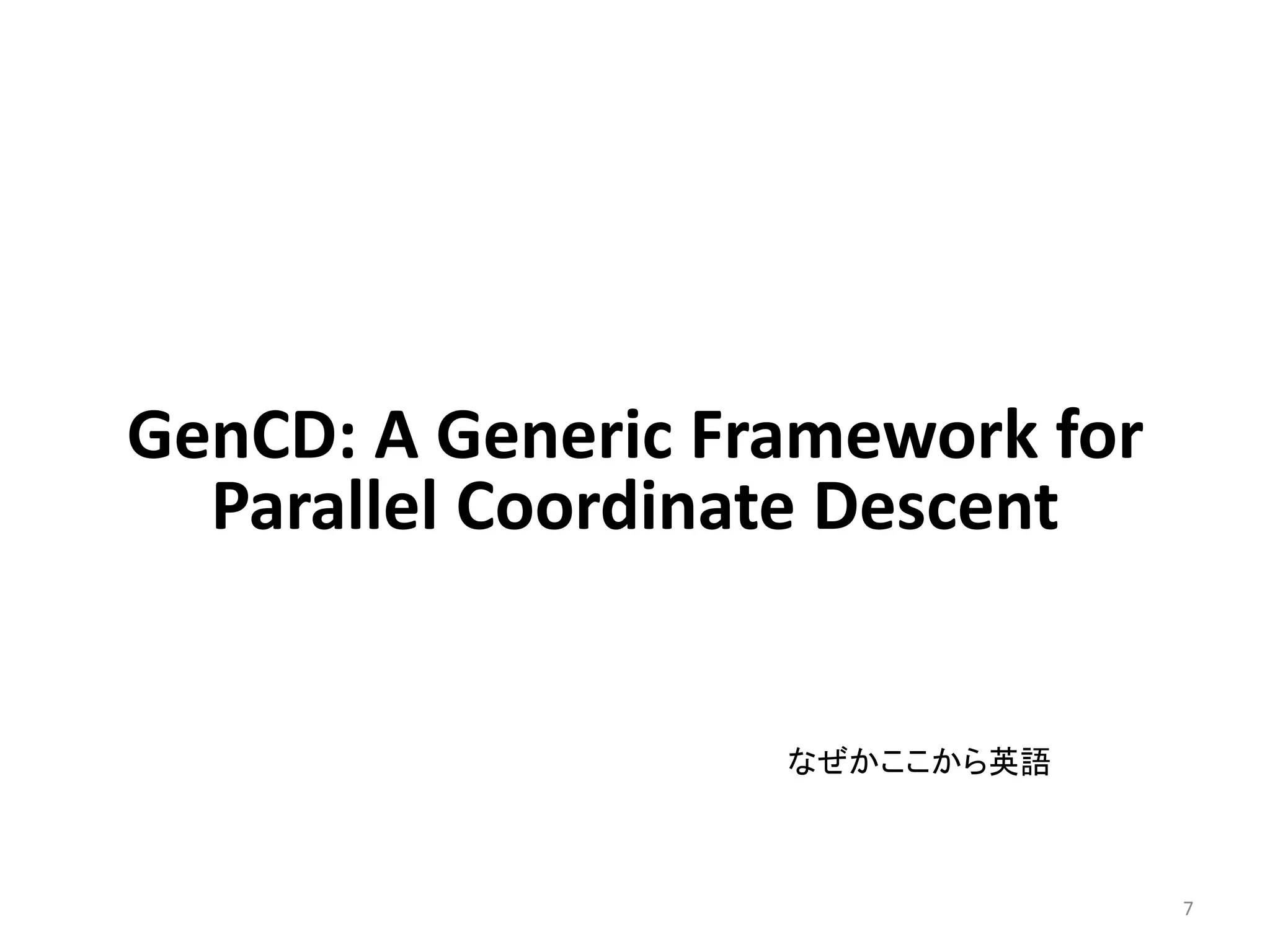

7. GenCD: A Generic Framework for
Parallel Coordinate Descent
なぜかここから英語
7

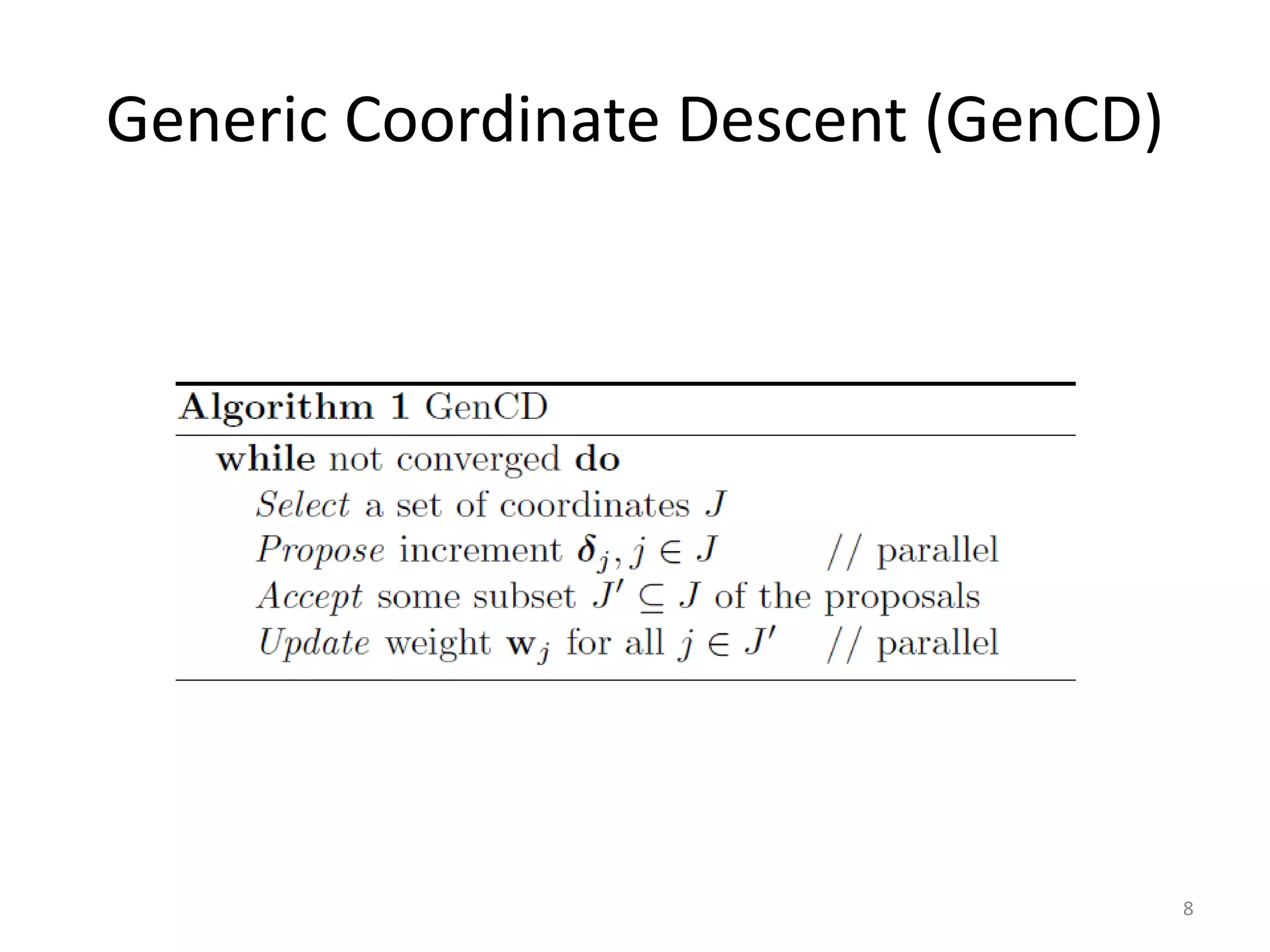

8. Generic Coordinate Descent (GenCD)
8

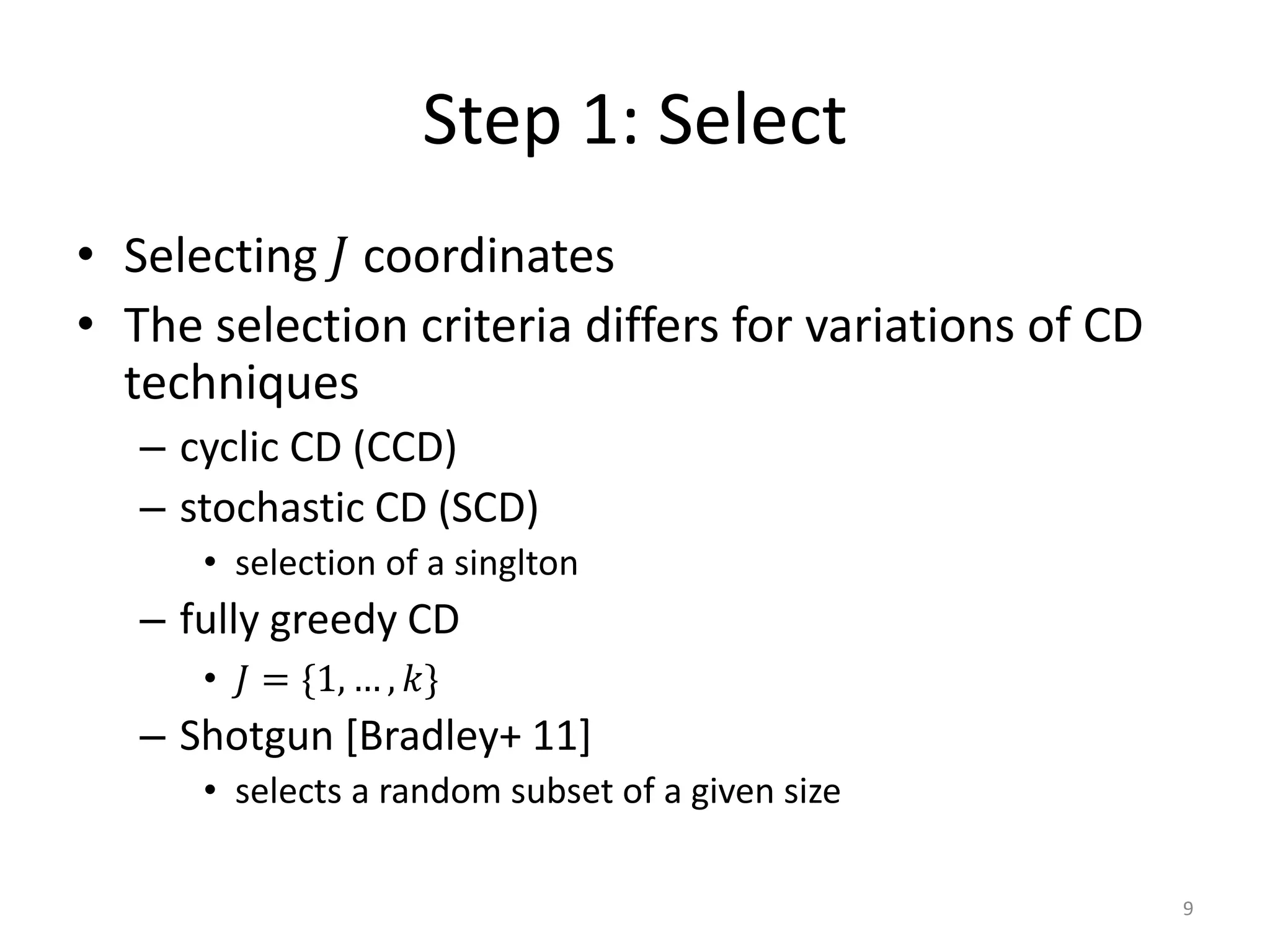

9. Step 1: Select
• Selecting 𝐽 coordinates
• The selection criteria differs for variations of CD
techniques
– cyclic CD (CCD)
– stochastic CD (SCD)
• selection of a singlton
– fully greedy CD
• 𝐽 = {1, … , 𝑘}
– Shotgun [Bradley+ 11]
• selects a random subset of a given size
9

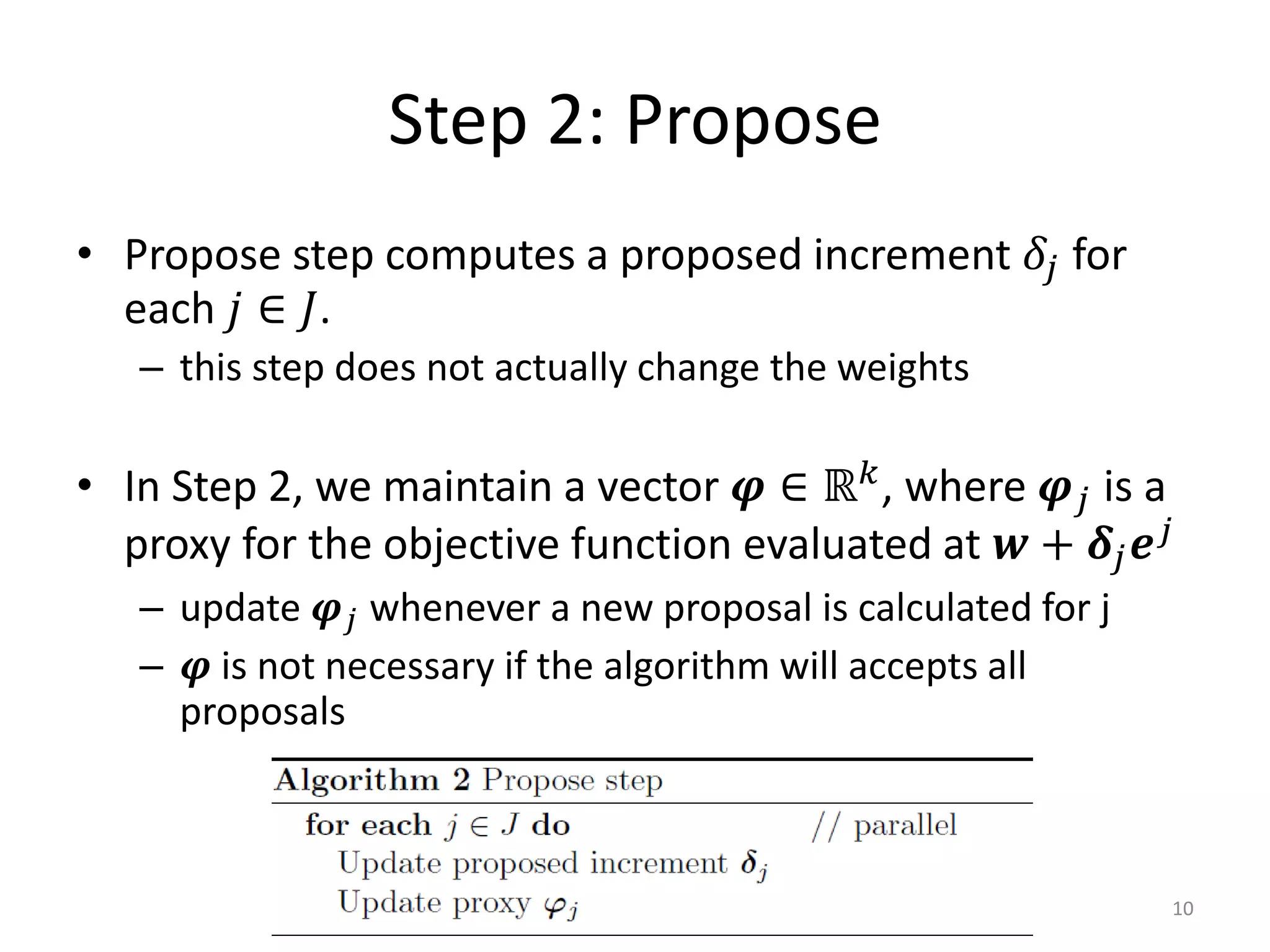

10. Step 2: Propose
• Propose step computes a proposed increment 𝛿 𝑗 for
each 𝑗 ∈ 𝐽.
– this step does not actually change the weights
• In Step 2, we maintain a vector 𝝋 ∈ ℝ 𝑘 , where 𝝋 𝑗 is a
proxy for the objective function evaluated at 𝒘 + 𝜹 𝑗 𝒆 𝑗
– update 𝝋 𝑗 whenever a new proposal is calculated for j
– 𝝋 is not necessary if the algorithm will accepts all
proposals
10

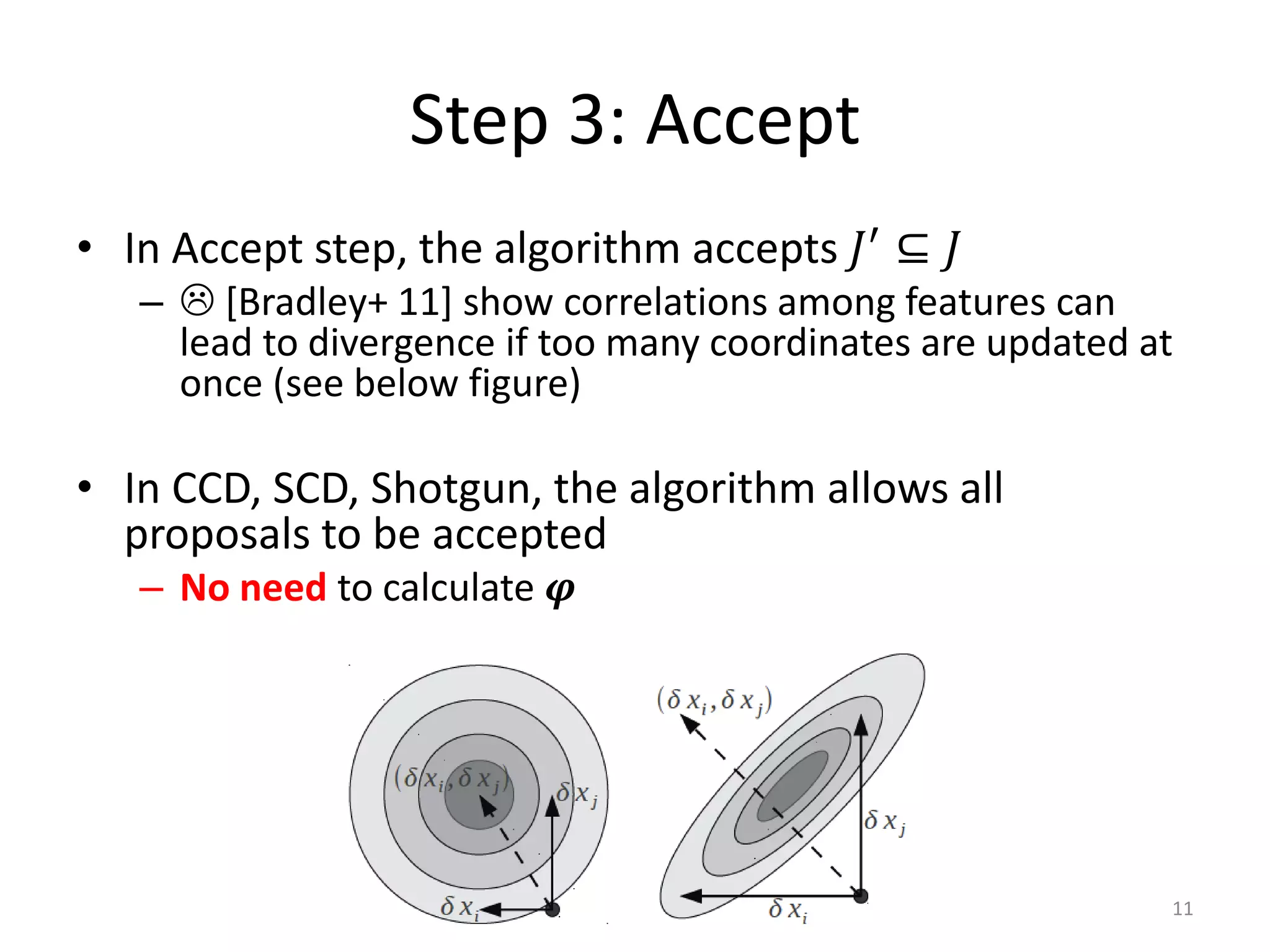

11. Step 3: Accept
• In Accept step, the algorithm accepts 𝐽′ ⊆ 𝐽
–  [Bradley+ 11] show correlations among features can
lead to divergence if too many coordinates are updated at
once (see below figure)
• In CCD, SCD, Shotgun, the algorithm allows all
proposals to be accepted
– No need to calculate 𝝋
11

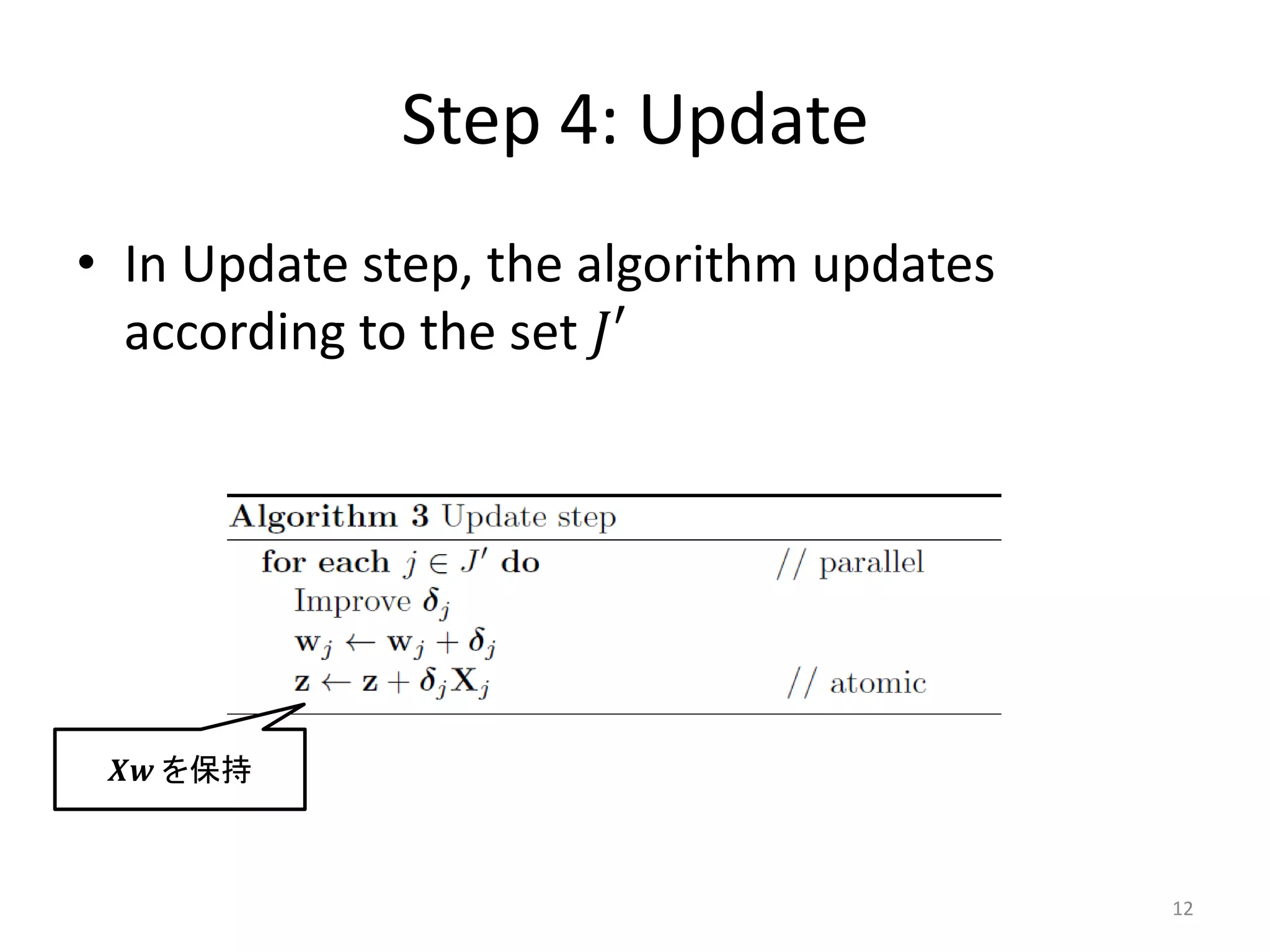

12. Step 4: Update
• In Update step, the algorithm updates
according to the set 𝐽′
𝑿𝒘 を保持
12

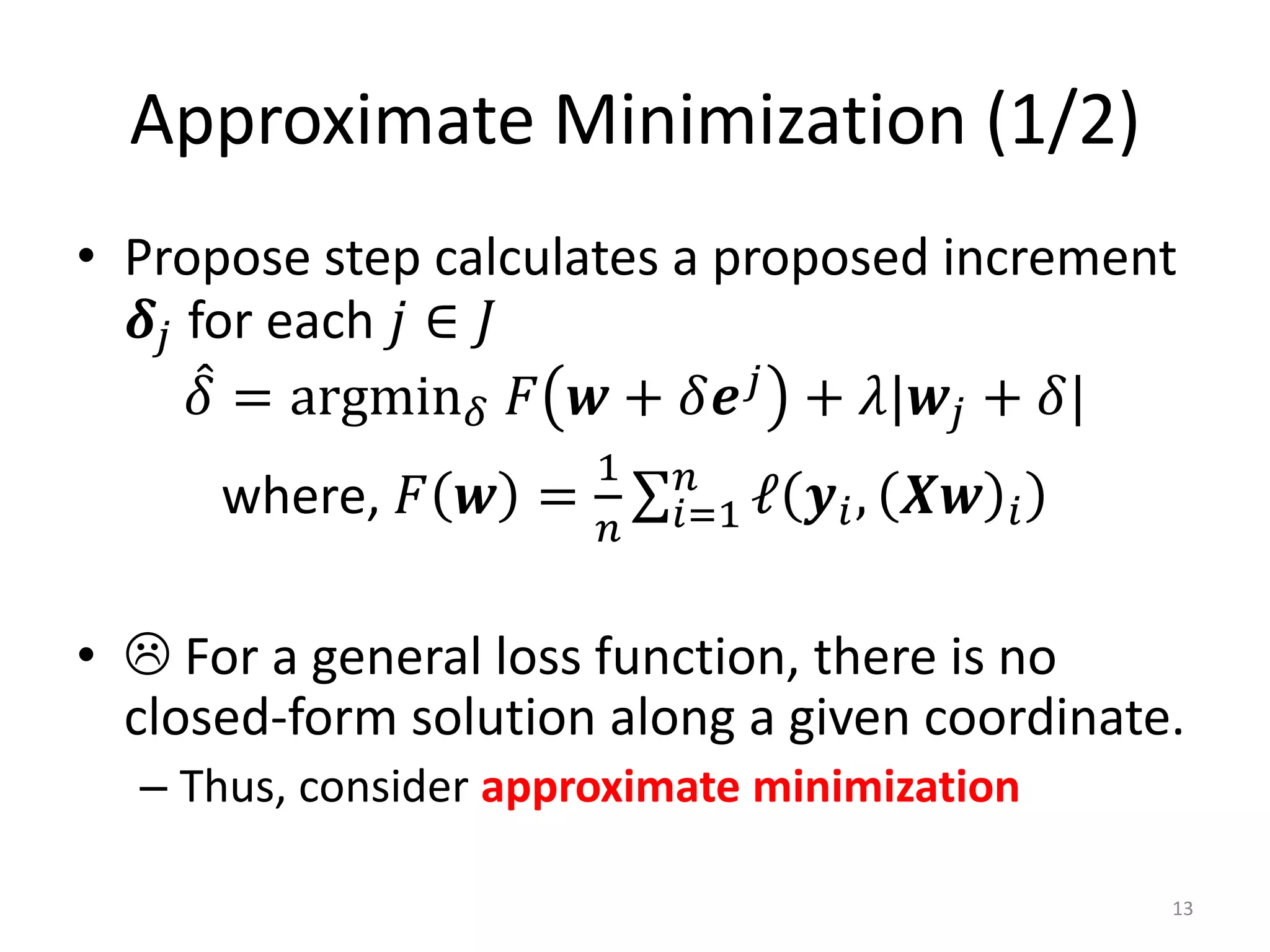

13. Approximate Minimization (1/2)
• Propose step calculates a proposed increment
𝜹 𝑗 for each 𝑗 ∈ 𝐽
𝛿 = argmin 𝛿 𝐹 𝒘 + 𝛿𝒆 𝑗 + 𝜆|𝒘 𝑗 + 𝛿|
1 𝑛
where, 𝐹 𝒘 = 𝑖=1 ℓ 𝒚 𝑖 , 𝑿𝒘 𝑖
𝑛
•  For a general loss function, there is no
closed-form solution along a given coordinate.
– Thus, consider approximate minimization
13

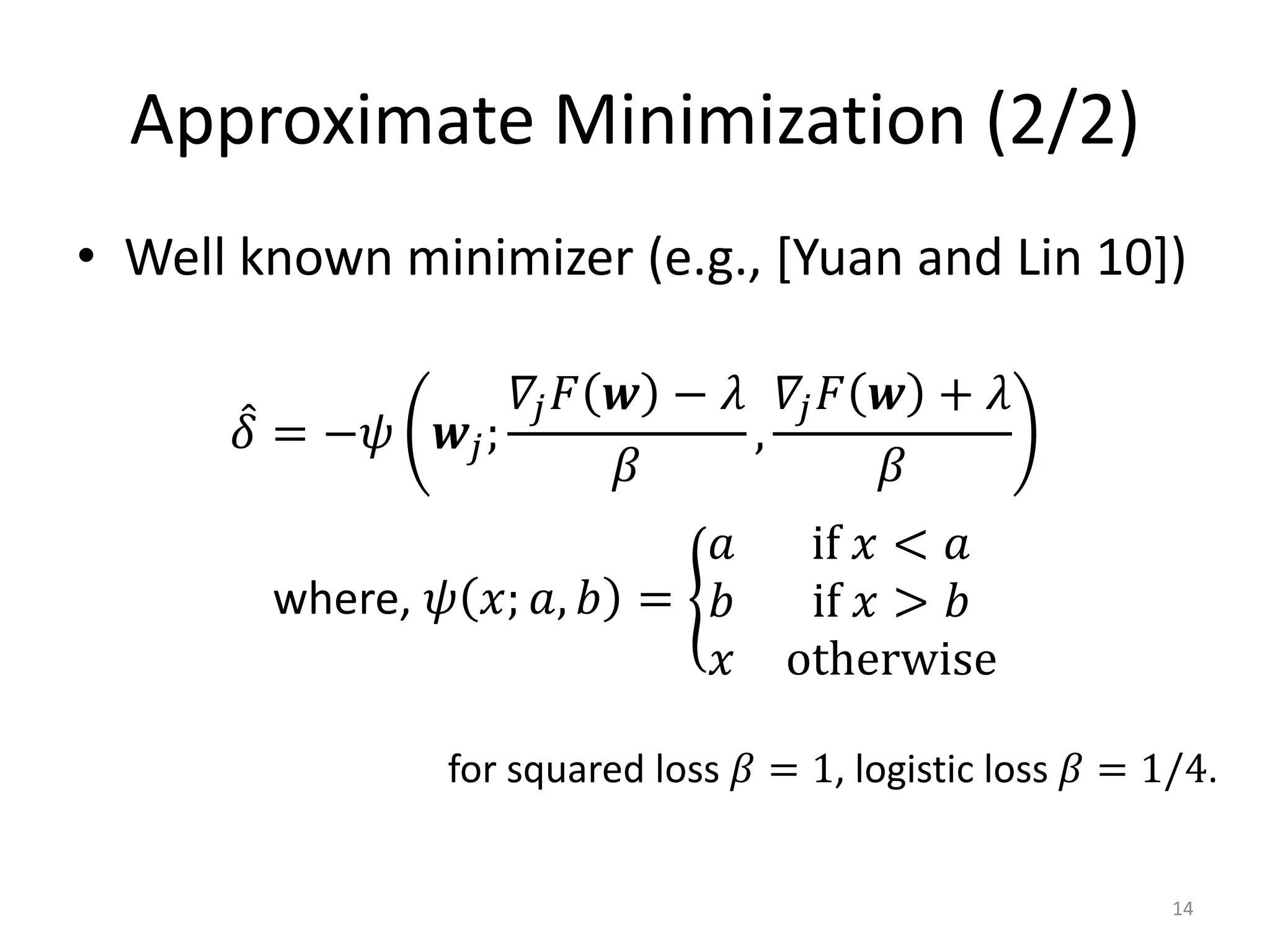

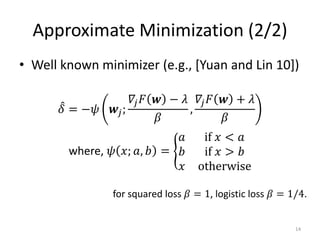

14. Approximate Minimization (2/2)
• Well known minimizer (e.g., [Yuan and Lin 10])
𝛻𝑗 𝐹 𝒘 − 𝜆 𝛻𝑗 𝐹 𝒘 + 𝜆
𝛿 = −𝜓 𝒘𝑗; ,
𝛽 𝛽
𝑎 if 𝑥 < 𝑎
where, 𝜓 𝑥; 𝑎, 𝑏 = 𝑏 if 𝑥 > 𝑏
𝑥 otherwise
for squared loss 𝛽 = 1, logistic loss 𝛽 = 1/4.
14

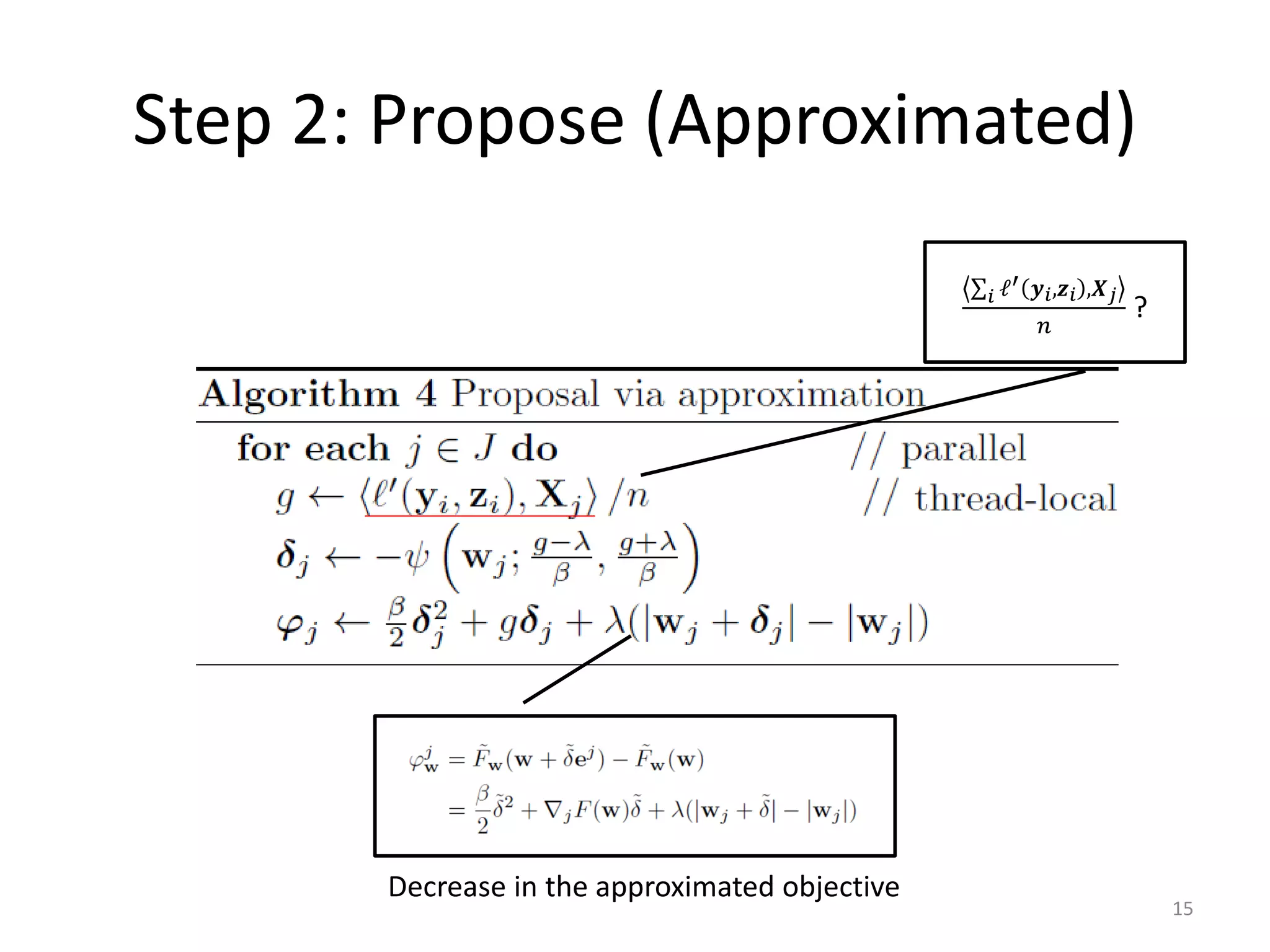

15. Step 2: Propose (Approximated)
′
𝑖ℓ 𝒚 𝑖 ,𝒛 𝑖 ,𝑿 𝑗
?
𝑛
Decrease in the approximated objective
15

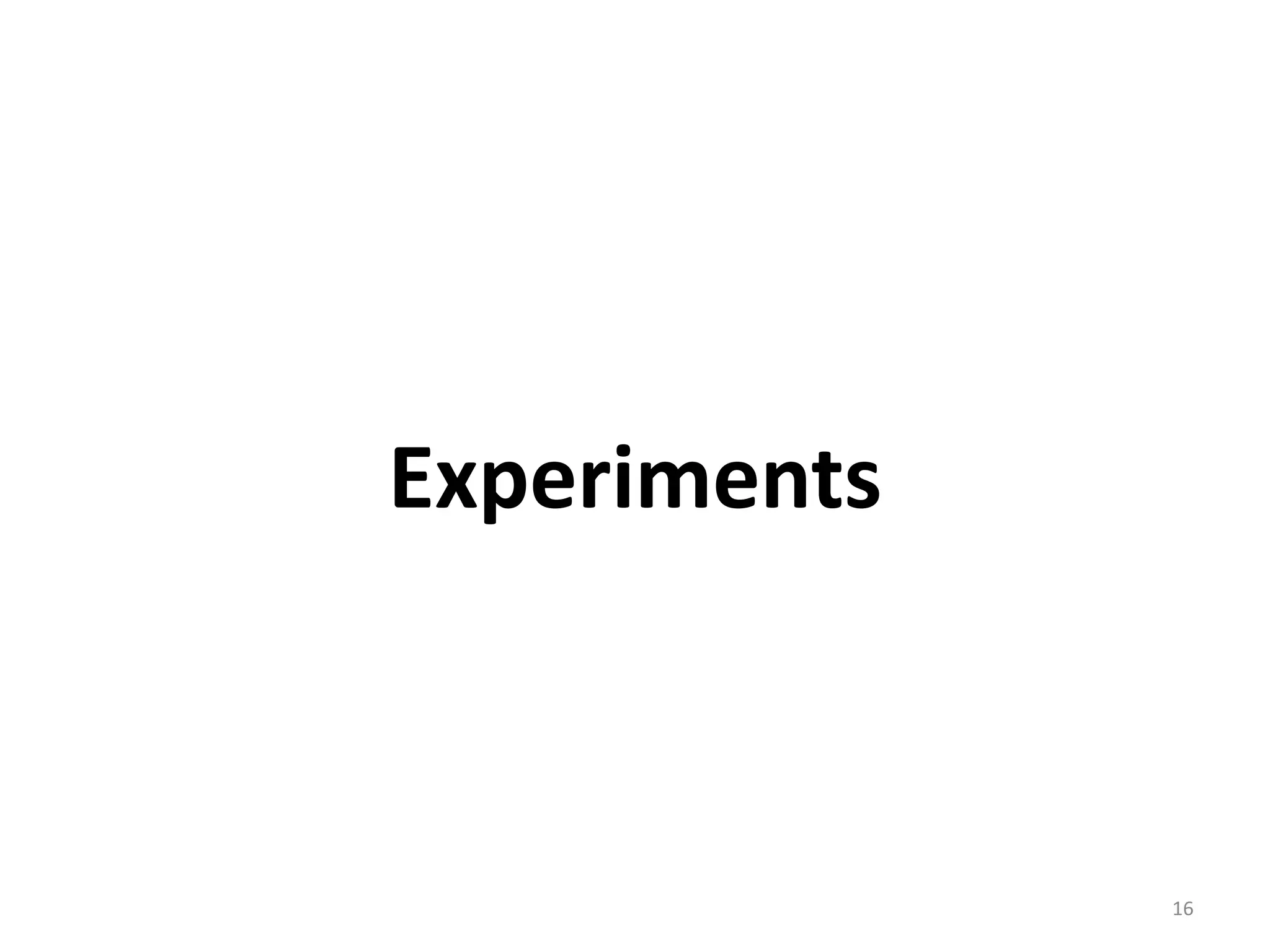

16. Experiments
16

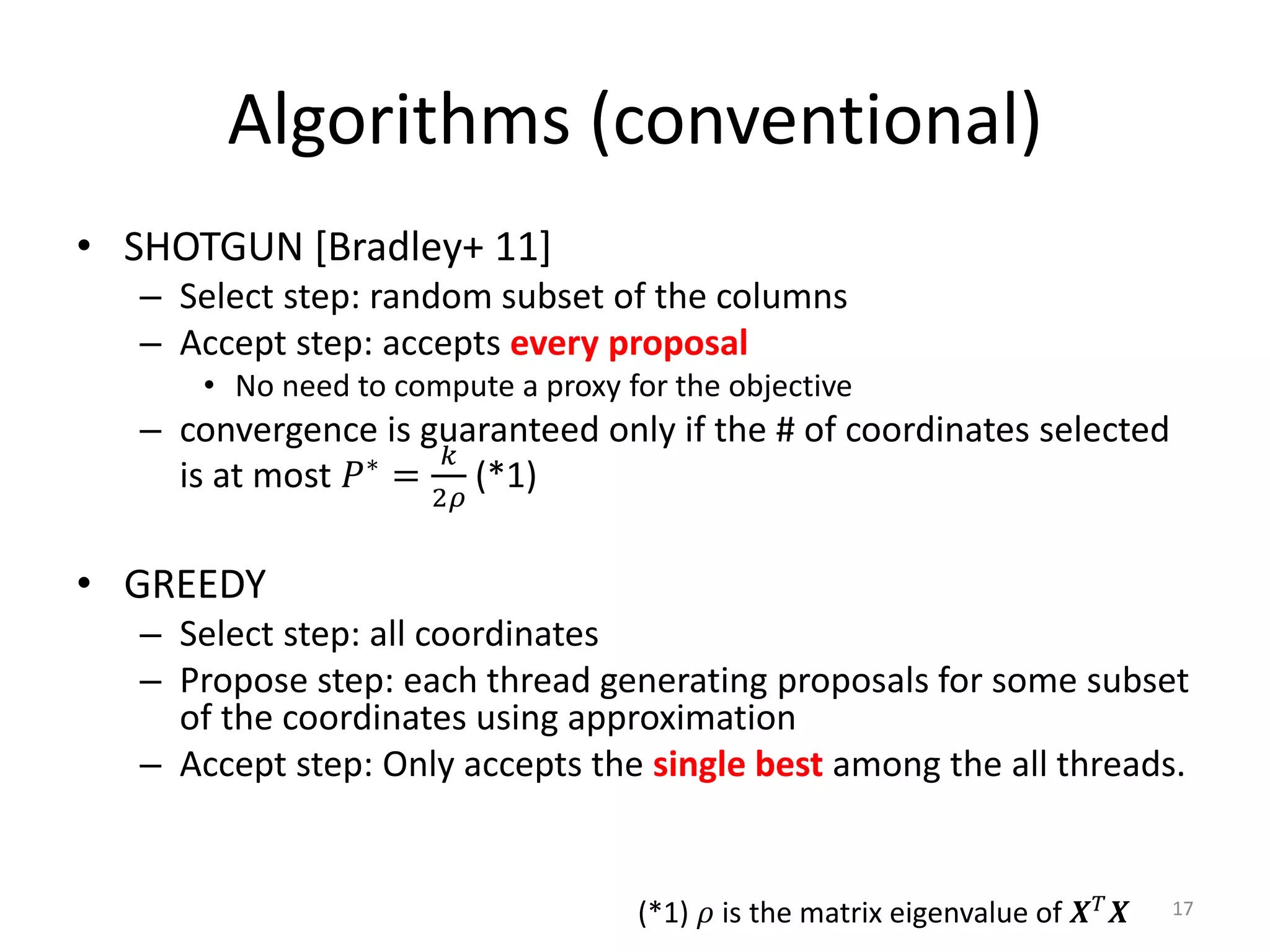

17. Algorithms (conventional)
• SHOTGUN [Bradley+ 11]
– Select step: random subset of the columns
– Accept step: accepts every proposal
• No need to compute a proxy for the objective
– convergence is guaranteed only if the # of coordinates selected
is at most 𝑃 ∗ = 𝑘 (*1)
2𝜌
• GREEDY
– Select step: all coordinates
– Propose step: each thread generating proposals for some subset
of the coordinates using approximation
– Accept step: Only accepts the single best among the all threads.
(*1) 𝜌 is the matrix eigenvalue of 𝑿 𝑇 𝑿 17

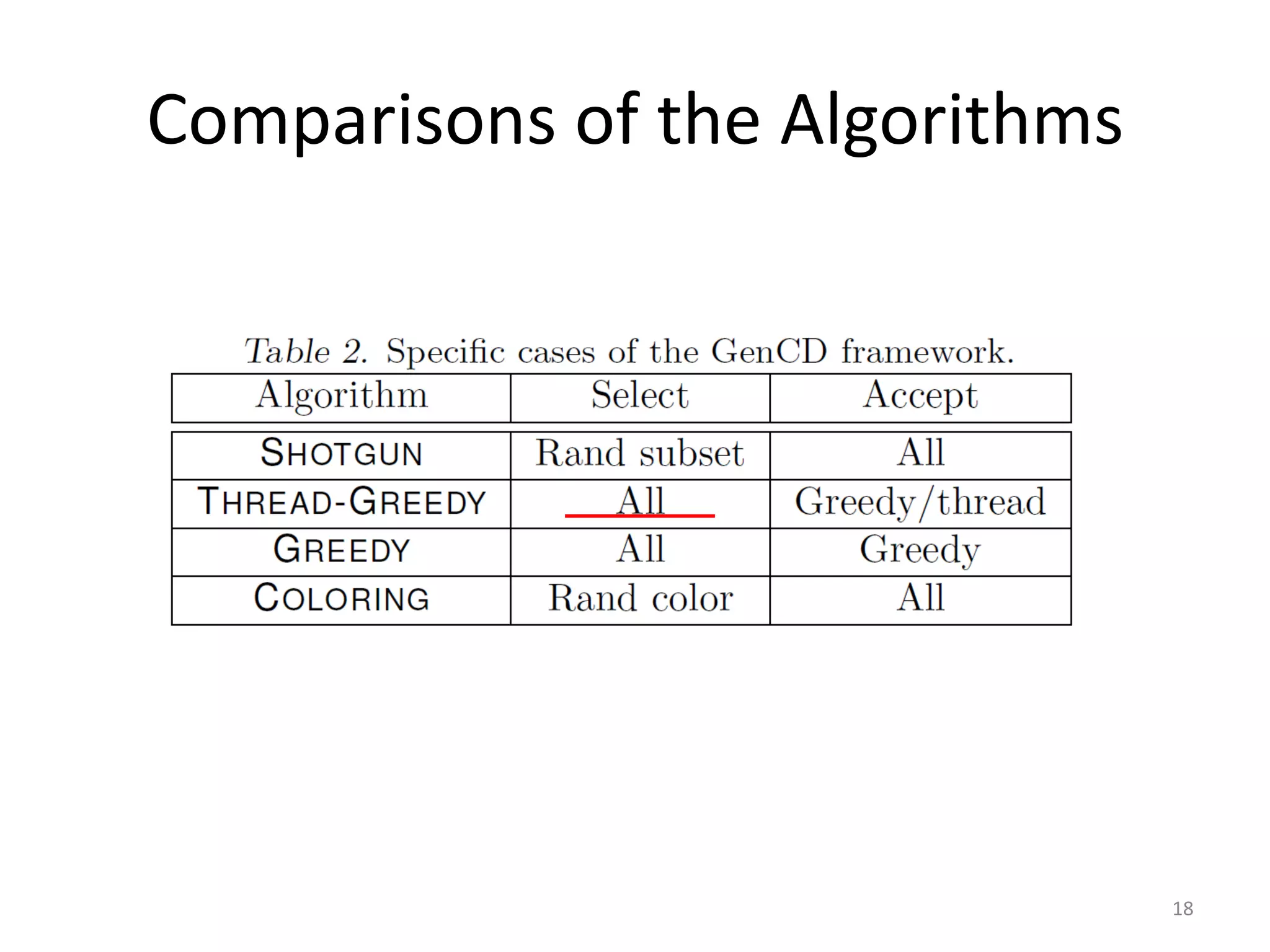

18. Comparisons of the Algorithms
18

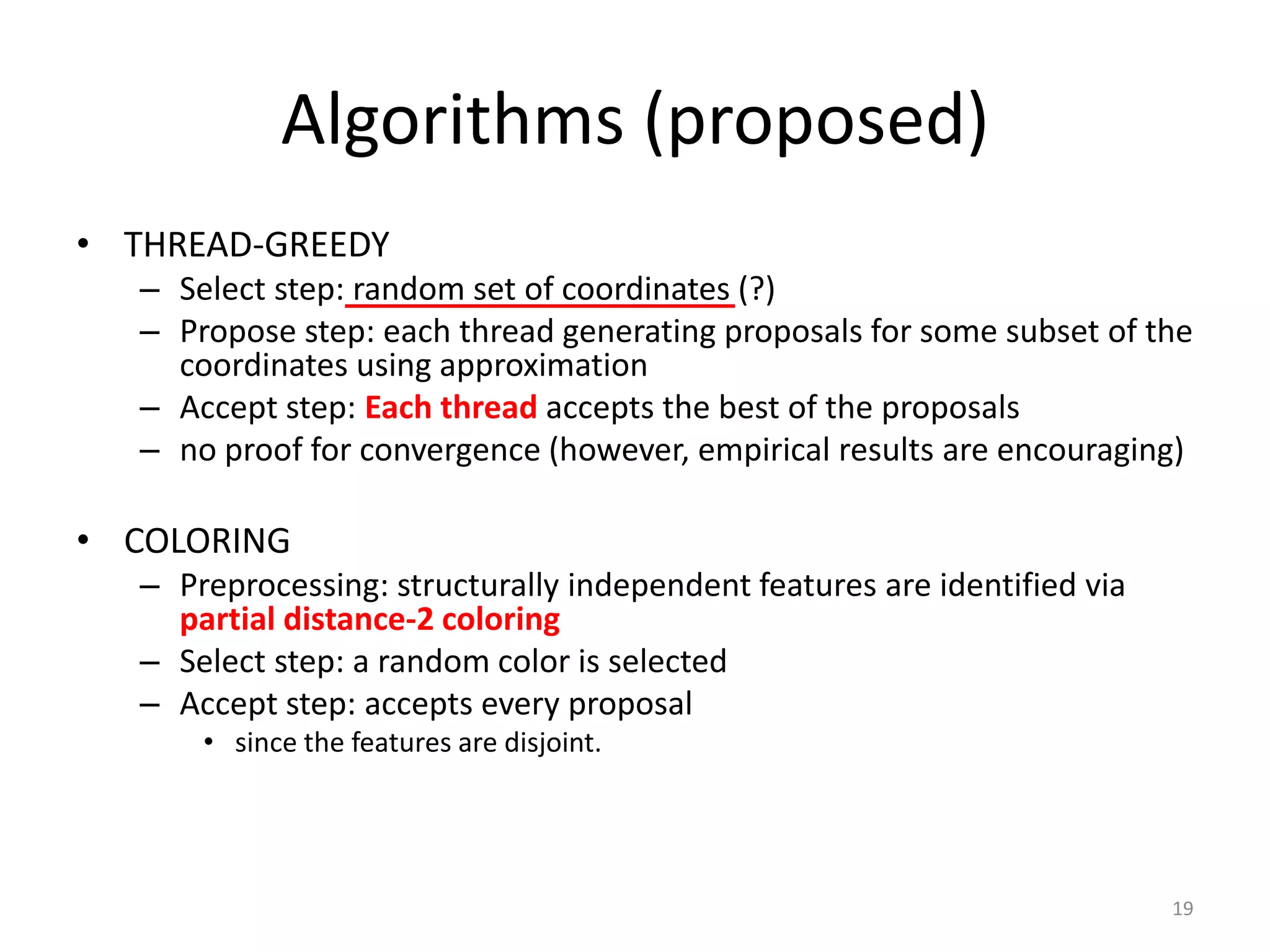

19. Algorithms (proposed)
• THREAD-GREEDY
– Select step: random set of coordinates (?)
– Propose step: each thread generating proposals for some subset of the
coordinates using approximation
– Accept step: Each thread accepts the best of the proposals
– no proof for convergence (however, empirical results are encouraging)
• COLORING
– Preprocessing: structurally independent features are identified via
partial distance-2 coloring
– Select step: a random color is selected
– Accept step: accepts every proposal
• since the features are disjoint.
19

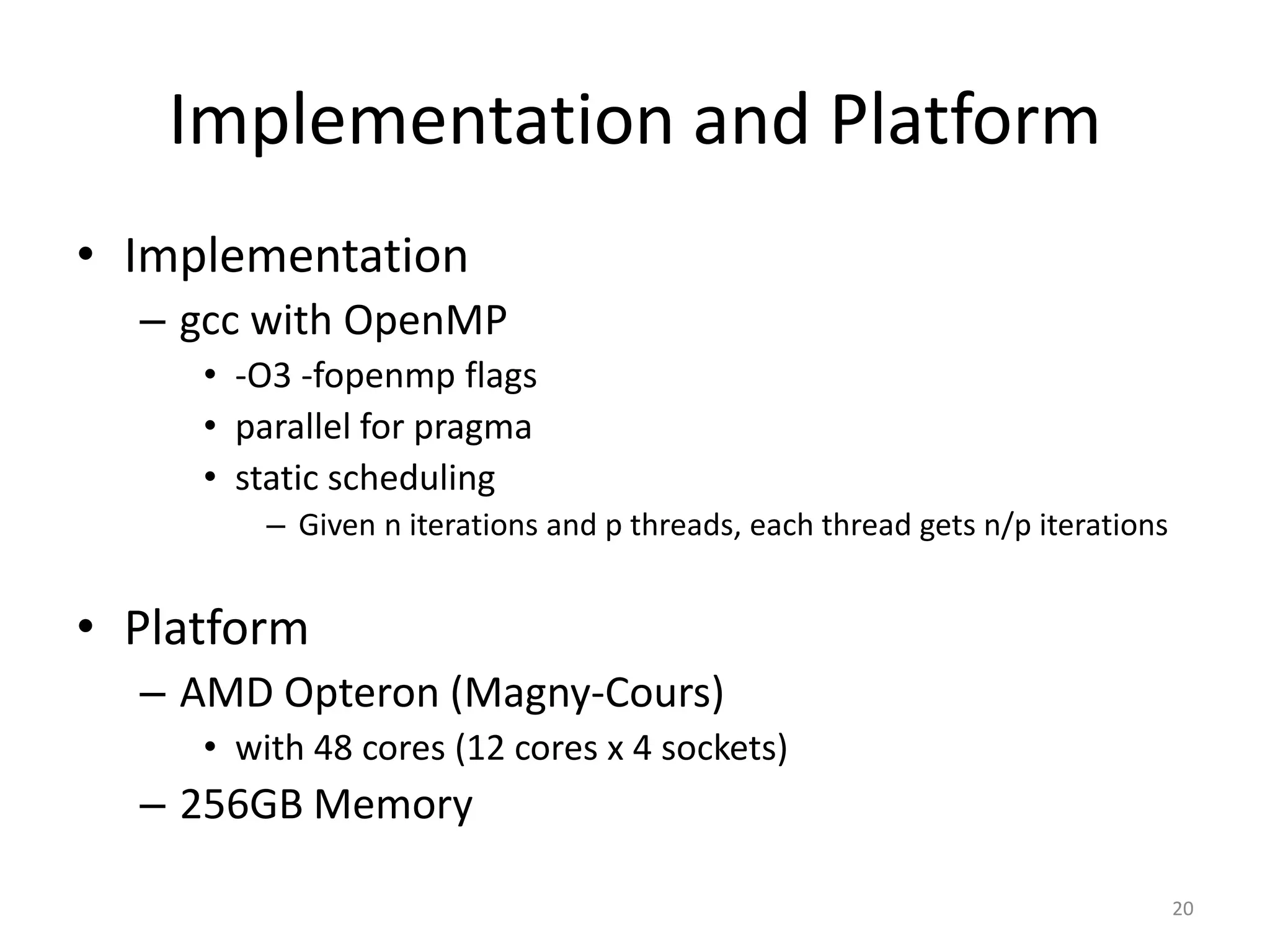

20. Implementation and Platform
• Implementation
– gcc with OpenMP
• -O3 -fopenmp flags
• parallel for pragma
• static scheduling
– Given n iterations and p threads, each thread gets n/p iterations
• Platform
– AMD Opteron (Magny-Cours)
• with 48 cores (12 cores x 4 sockets)
– 256GB Memory
20

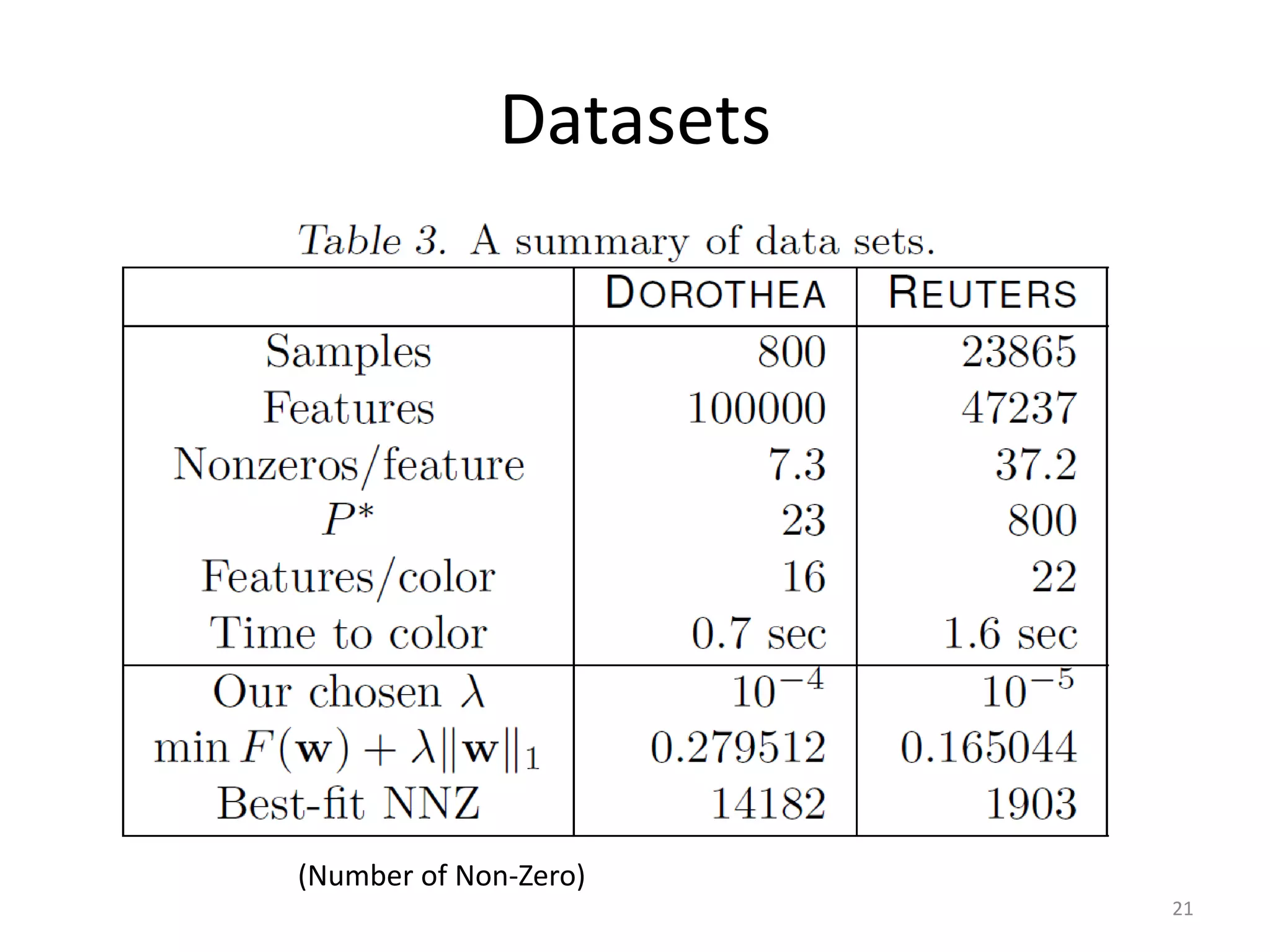

21. Datasets
(Number of Non-Zero)
21

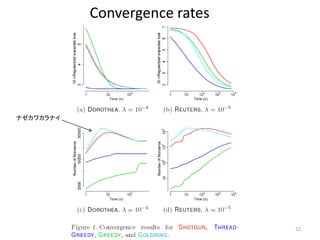

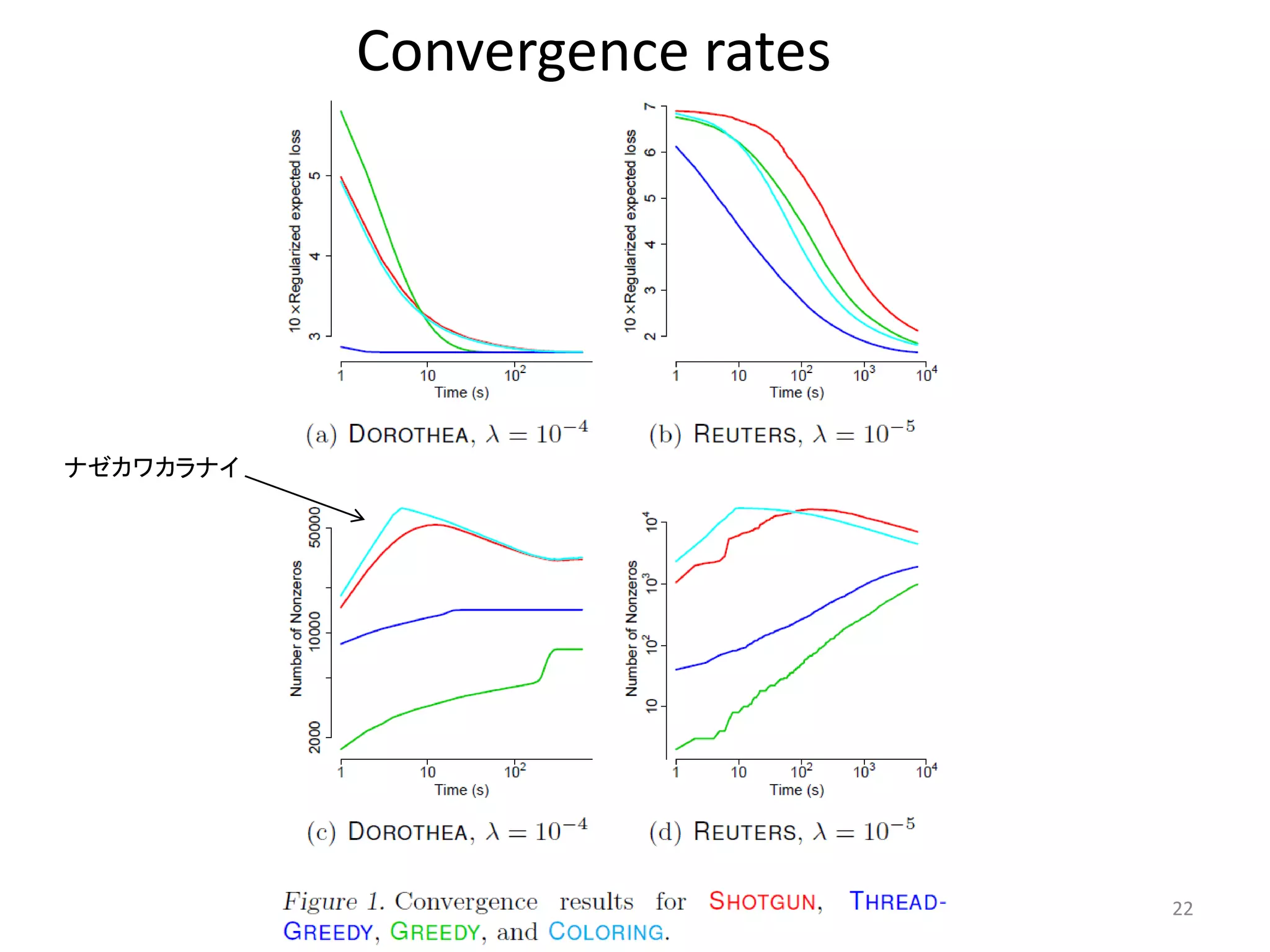

22. Convergence rates
ナゼカワカラナイ
22

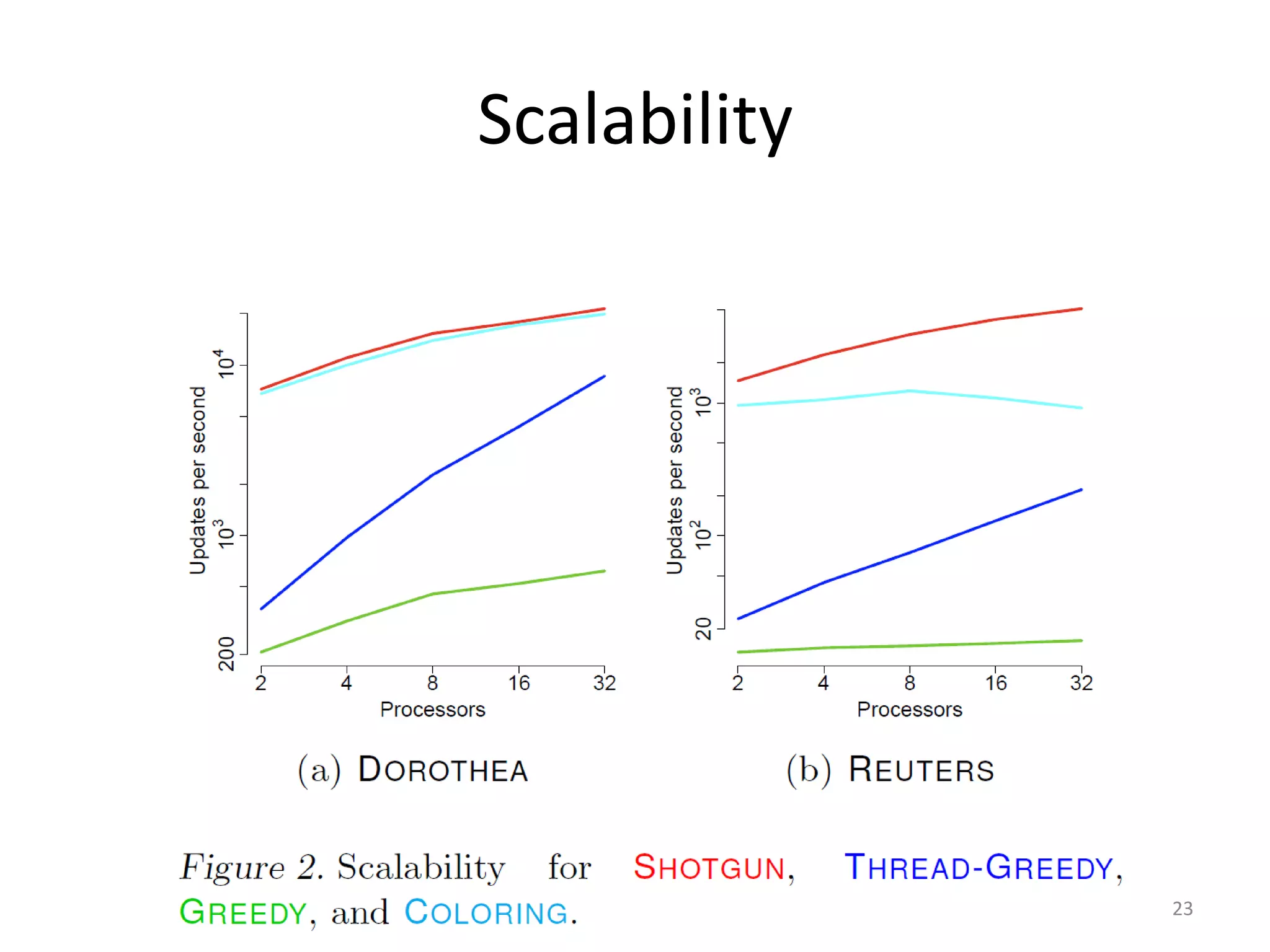

23. Scalability
23

24. Summary
• Presented GenCD, a generic framework for
expressing parallel coordinate descent
– Select, Propose, Accept, Upadte
• Performs convergence and scalability tests for the
four algorithms
– but the authors do not favor any of these algorithms
over the others
• The condition for convergence of the THREAD-
GREEDY algorithm is an open question
24

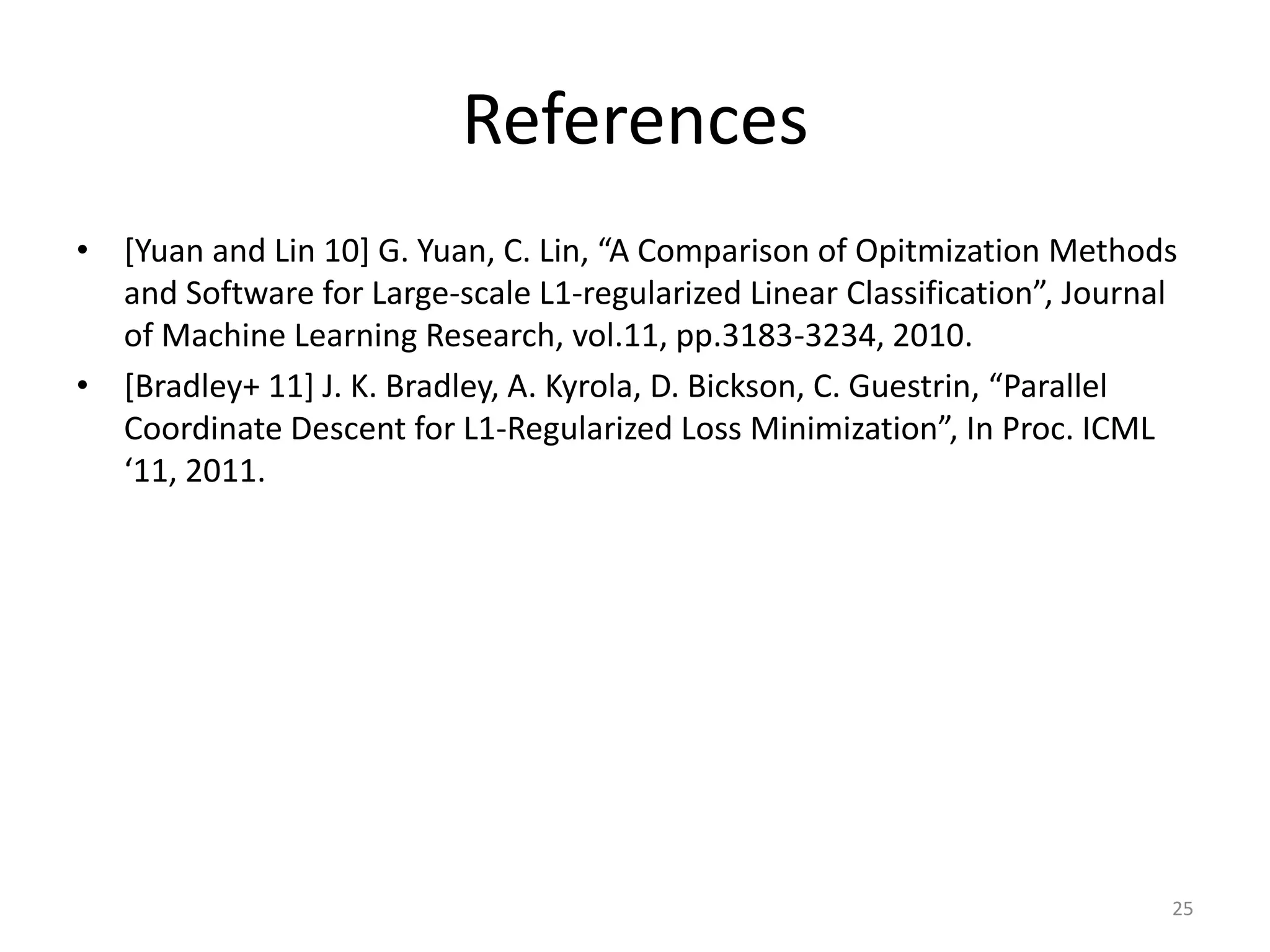

25. References
• [Yuan and Lin 10] G. Yuan, C. Lin, “A Comparison of Opitmization Methods
and Software for Large-scale L1-regularized Linear Classification”, Journal
of Machine Learning Research, vol.11, pp.3183-3234, 2010.
• [Bradley+ 11] J. K. Bradley, A. Kyrola, D. Bickson, C. Guestrin, “Parallel
Coordinate Descent for L1-Regularized Loss Minimization”, In Proc. ICML
‘11, 2011.
25

26. おわり
26
