Hydraulic beginner
- 1. HYDRAULIC Understanding the basic of hydraulic Aditya@poltekom.ac.id
- 2. Comparison Pneumatic Electric Cylinders Motors, linear motor Directional valve Transistors/contactors Logic valves Op amps Button valve Button / switch Oil pump Battery
- 3. 1 bar =1x105 𝑁 𝑚2 1 𝑚𝑚2 = 1x10 −6 𝑚2
- 4. Hydraulic fluid transmission Let: F = Force (N) P = Pressure (N/m2) A = Area (m2)
- 5. Hydraulic fluid compensation Let: S = Displacement(m) A = Area (m2)
- 6. HYDRAULIC SYSTEM Actuator Directional control Power pack valve
- 7. POWER PACK Power element Actuators Directionalcontrol valves Flow control Pressure control Measuring unit
- 8. POWER PACK Pump
- 9. POWER PACK Pump
- 10. POWER PACK Pump
- 11. WORKING ELEMENTS /ACTUATING DEVICES Single / double acting cylinder
- 12. WORKING ELEMENTS /ACTUATING DEVICES Single / double acting cylinder
- 13. SINGLE ACTING CYLINDER Forcible surface waste port Spring return Pressurized chamber DEpressurized chamber supply port
- 14. SINGLE ACTING CYLINDER Spring return Forcible surface waste port Pressurized DEpressurized chamber chamber supply port
- 15. DOUBLE ACTING CYLINDER waste supply port Forcible surface port DEpressurized chamber
- 16. DOUBLE ACTING CYLINDER supply waste port Forcible surface port DEpressurized chamber
- 17. DOUBLE ROD CYLINDER wasteport supply Forcible surface port DEpressurized chamber
- 18.
- 19.
- 20.
- 21. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 22. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 23. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 24. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 25. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 26. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 27. CONTROL ELEMENTS /ACTUATING DEVICES Directional valves
- 28.
- 29.
- 30.
- 31.
- 32. One way flowcontrol valve
- 33. One way flowcontrol valve
- 34. One way flowcontrol valve
- 35.

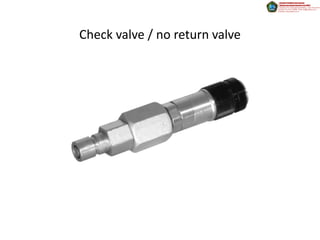

- 36. Check valve /no return valve
- 37. Check valve /no return valve
- 38. Check valve /no return valve
- 39. 3 way pressureregulation valve
- 40. 3 way pressureregulation valve
- 41. 3 way pressureregulation valve
- 42. DRAWING SYMBOLS ISO 1219-2
- 43.
- 44.
- 45. SYMBOLS Fixed Adjustable 1 way motor 2 way motor
- 46.
- 47.
- 48. SYMBOLS Valve name Initial position Symbol
- 49. SYMBOLS Valve name Initial position Symbol
- 50. SYMBOLS Valve name Initial position Symbol
- 51. SYMBOLS Pressure reliev valve/pressure limitervalve 2 way Pressure regulator P-A-T 3 way Pressure regulator P-T
- 52. SYMBOLS Fixed Adjustable
- 53. SYMBOLS Check valve Check valvespring loaded
- 54.
- 55.
- 56.
