1. Hotspot Menggunakan Manajemen Bandwidth
Queue Tree

2. Simple vs Tree

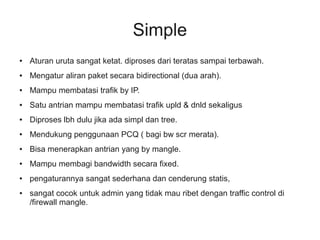

3. Simple
● Aturan uruta sangat ketat. diproses dari teratas sampai terbawah.
● Mengatur aliran paket secara bidirectional (dua arah).
● Mampu membatasi trafik by IP.
● Satu antrian mampu membatasi trafik upld & dnld sekaligus
● Diproses lbh dulu jika ada simpl dan tree.
● Mendukung penggunaan PCQ ( bagi bw scr merata).
● Bisa menerapkan antrian yang by mangle.
● Mampu membagi bandwidth secara fixed.
● pengaturannya sangat sederhana dan cenderung statis,
● sangat cocok untuk admin yang tidak mau ribet dengan traffic control di
/firewall mangle.

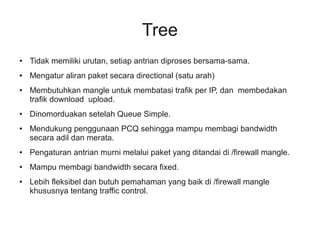

4. Tree
● Tidak memiliki urutan, setiap antrian diproses bersama-sama.
● Mengatur aliran paket secara directional (satu arah)
● Membutuhkan mangle untuk membatasi trafik per IP, dan membedakan
trafik download upload.
● Dinomorduakan setelah Queue Simple.
● Mendukung penggunaan PCQ sehingga mampu membagi bandwidth
secara adil dan merata.
● Pengaturan antrian murni melalui paket yang ditandai di /firewall mangle.
● Mampu membagi bandwidth secara fixed.
● Lebih fleksibel dan butuh pemahaman yang baik di /firewall mangle
khususnya tentang traffic control.

5. Hotspot QOS
● Built-in limiter
– menggunakan parameer rate-limit di server-profile
– otomatis dan mudah tetapi tidak memungkinkan
implementasi HTB.
● Custom limitation
– Memanfaatkan parameter Incoming-packet-mark
dan outgoing-packet-mark pada user-profile.
– bisa implementasi HTB dan melakukan limitasi
berdasarkan kriteria koneksi yang lebih beragam

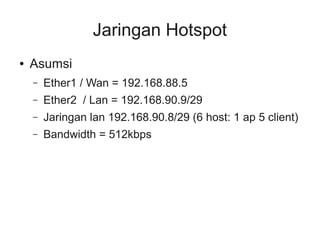

6. Jaringan Hotspot
● Asumsi
– Ether1 / Wan = 192.168.88.5
– Ether2 / Lan = 192.168.90.9/29
– Jaringan lan 192.168.90.8/29 (6 host: 1 ap 5 client)
– Bandwidth = 512kbps

7. SETTING INTERFACE
● /interface ethernet
● set 0 name=wan
● set 1 name=lan

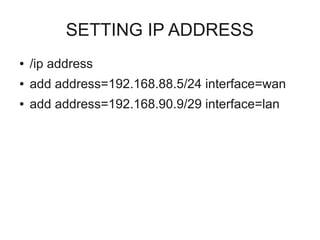

8. SETTING IP ADDRESS
● /ip address
● add address=192.168.88.5/24 interface=wan
● add address=192.168.90.9/29 interface=lan

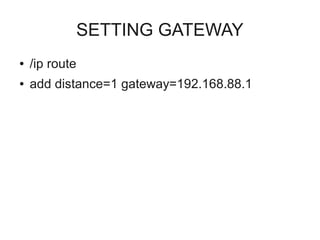

9. SETTING GATEWAY
● /ip route
● add distance=1 gateway=192.168.88.1

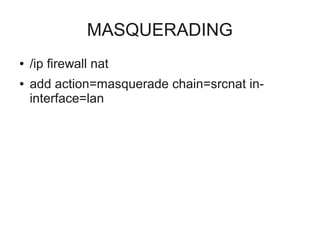

10. MASQUERADING
● /ip firewall nat
● add action=masquerade chain=srcnat in-interface=
lan

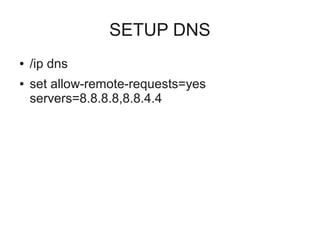

11. SETUP DNS
● /ip dns
● set allow-remote-requests=yes
servers=8.8.8.8,8.8.4.4

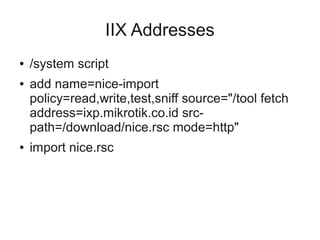

12. IIX Addresses
● /system script
● add name=nice-import
policy=read,write,test,sniff source="/tool fetch
address=ixp.mikrotik.co.id src-path=/
download/nice.rsc mode=http"
● import nice.rsc

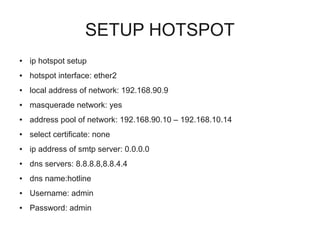

13. SETUP HOTSPOT
● ip hotspot setup
● hotspot interface: ether2
● local address of network: 192.168.90.9
● masquerade network: yes
● address pool of network: 192.168.90.10 – 192.168.10.14
● select certificate: none
● ip address of smtp server: 0.0.0.0
● dns servers: 8.8.8.8,8.8.4.4
● dns name:hotline
● Username: admin
● Password: admin

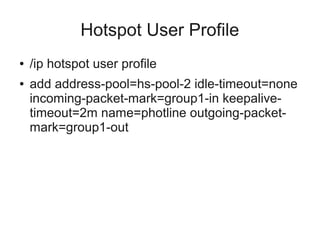

14. Hotspot User Profile
● /ip hotspot user profile
● add address-pool=hs-pool-2 idle-timeout=none
incoming-packet-mark=group1-in keepalive-timeout=
2m name=photline outgoing-packet-mark=
group1-out

15. HOTSPOT USER
● /ip hotspot user
● add name=amad password=amad
profile=photline
● add name=eri password=eri profile=photline
● add name=yasin password=yasin
profile=photline
● add name=nugi password=nugraha
profile=photline

16. SETTING MANGLE

17. HOTSPOT JUMP
● /ip firewall mangle
● add action=jump chain=prerouting
comment=jumping jump-target=hotspot
● add action=jump chain=postrouting jump-target=
hotspot

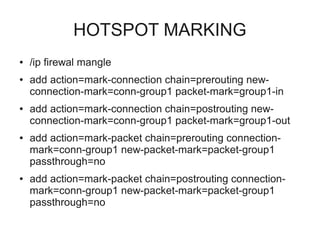

18. HOTSPOT MARKING
● /ip firewal mangle
● add action=mark-connection chain=prerouting new-connection-
mark=conn-group1 packet-mark=group1-in
● add action=mark-connection chain=postrouting new-connection-
mark=conn-group1 packet-mark=group1-out
● add action=mark-packet chain=prerouting connection-mark=
conn-group1 new-packet-mark=packet-group1
passthrough=no
● add action=mark-packet chain=postrouting connection-mark=
conn-group1 new-packet-mark=packet-group1
passthrough=no

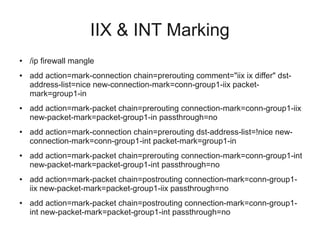

19. IIX & INT Marking
● /ip firewall mangle
● add action=mark-connection chain=prerouting comment="iix ix differ" dst-address-
list=nice new-connection-mark=conn-group1-iix packet-mark=
group1-in
● add action=mark-packet chain=prerouting connection-mark=conn-group1-iix
new-packet-mark=packet-group1-in passthrough=no
● add action=mark-connection chain=prerouting dst-address-list=!nice new-connection-
mark=conn-group1-int packet-mark=group1-in
● add action=mark-packet chain=prerouting connection-mark=conn-group1-int
new-packet-mark=packet-group1-int passthrough=no
● add action=mark-packet chain=postrouting connection-mark=conn-group1-
iix new-packet-mark=packet-group1-iix passthrough=no
● add action=mark-packet chain=postrouting connection-mark=conn-group1-
int new-packet-mark=packet-group1-int passthrough=no

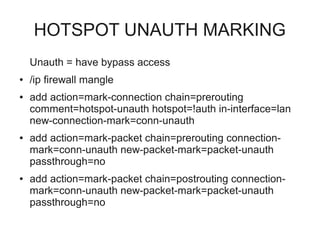

20. HOTSPOT UNAUTH MARKING
Unauth = have bypass access
● /ip firewall mangle
● add action=mark-connection chain=prerouting
comment=hotspot-unauth hotspot=!auth in-interface=lan
new-connection-mark=conn-unauth
● add action=mark-packet chain=prerouting connection-mark=
conn-unauth new-packet-mark=packet-unauth
passthrough=no
● add action=mark-packet chain=postrouting connection-mark=
conn-unauth new-packet-mark=packet-unauth
passthrough=no

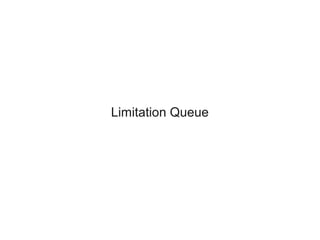

21. Limitation Queue

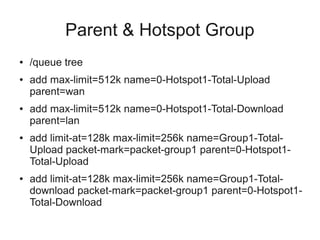

22. Parent & Hotspot Group
● /queue tree
● add max-limit=512k name=0-Hotspot1-Total-Upload
parent=wan
● add max-limit=512k name=0-Hotspot1-Total-Download
parent=lan
● add limit-at=128k max-limit=256k name=Group1-Total-
Upload packet-mark=packet-group1 parent=0-Hotspot1-
Total-Upload
● add limit-at=128k max-limit=256k name=Group1-Total-download
packet-mark=packet-group1 parent=0-Hotspot1-
Total-Download

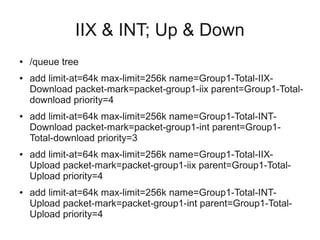

23. IIX & INT; Up & Down
● /queue tree
● add limit-at=64k max-limit=256k name=Group1-Total-IIX-Download
packet-mark=packet-group1-iix parent=Group1-Total-download
priority=4
● add limit-at=64k max-limit=256k name=Group1-Total-INT-Download
packet-mark=packet-group1-int parent=Group1-
Total-download priority=3
● add limit-at=64k max-limit=256k name=Group1-Total-IIX-Upload
packet-mark=packet-group1-iix parent=Group1-Total-
Upload priority=4
● add limit-at=64k max-limit=256k name=Group1-Total-INT-Upload
packet-mark=packet-group1-int parent=Group1-Total-
Upload priority=4

24. Hotspot unauth
● /queue tree
● add limit-at=16k max-limit=64k
name=Hotspot1-Unauth-Download packet-mark=
packet-unauth parent=0-Hotspot1-Total-
Download
● add limit-at=8k max-limit=64k name=Hotspot1-
Unauth-Upload packet-mark=packet-unauth
parent=0-Hotspot1-Total-Upload

25. SCREEN SHOTS!

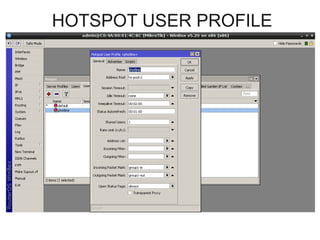

26. HOTSPOT USER PROFILE

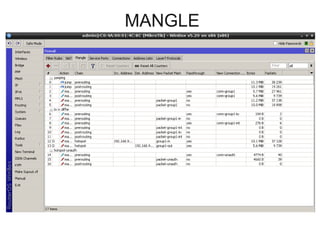

27. MANGLE

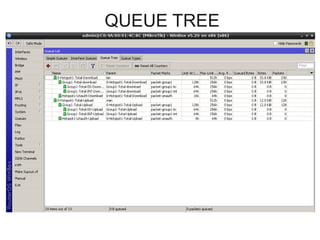

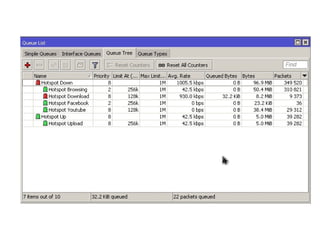

28. QUEUE TREE

29. kAMSIa

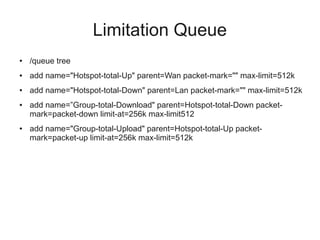

30. Limitation Queue
● /queue tree
● add name="Hotspot-total-Up" parent=Wan packet-mark="" max-limit=512k
● add name="Hotspot-total-Down" parent=Lan packet-mark="" max-limit=512k
● add name=”Group-total-Download" parent=Hotspot-total-Down packet-mark=
packet-down limit-at=256k max-limit512
● add name="Group-total-Upload" parent=Hotspot-total-Up packet-mark=
packet-up limit-at=256k max-limit=512k

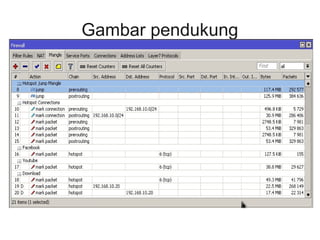

31. Gambar pendukung
