Switch olt config

This document contains the configuration of a network device. It configures interfaces, VLANs, SNMP, NTP, and access control lists. Interfaces include Ethernet and EPON ports. VLANs 1 and 10-12, 100, and 111 are defined. NTP and SNMP are enabled for management. Access control lists restrict traffic to the management network and allow DHCP and client traffic.

Embed presentation

Download to read offline

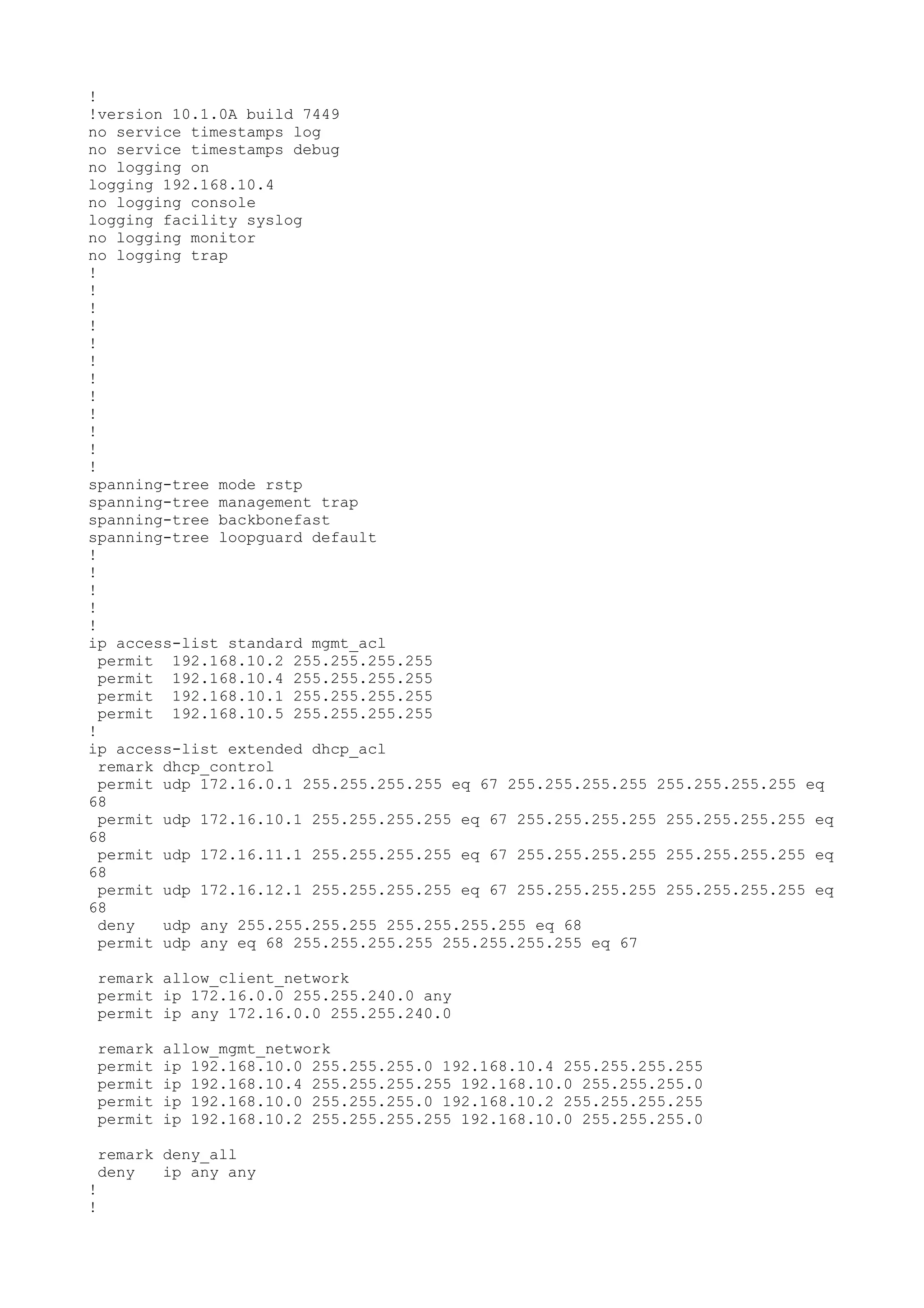

! !version 10.1.0A build 7449 no service timestamps log no service timestamps debug no logging on logging 192.168.10.4 no logging console logging facility syslog no logging monitor no logging trap ! ! ! ! ! ! ! ! ! ! ! ! spanning-tree mode rstp spanning-tree management trap spanning-tree backbonefast spanning-tree loopguard default ! ! ! ! ! ip access-list standard mgmt_acl permit 192.168.10.2 255.255.255.255 permit 192.168.10.4 255.255.255.255 permit 192.168.10.1 255.255.255.255 permit 192.168.10.5 255.255.255.255 ! ip access-list extended dhcp_acl remark dhcp_control permit udp 172.16.0.1 255.255.255.255 eq 67 255.255.255.255 255.255.255.255 eq 68 permit udp 172.16.10.1 255.255.255.255 eq 67 255.255.255.255 255.255.255.255 eq 68 permit udp 172.16.11.1 255.255.255.255 eq 67 255.255.255.255 255.255.255.255 eq 68 permit udp 172.16.12.1 255.255.255.255 eq 67 255.255.255.255 255.255.255.255 eq 68 deny udp any 255.255.255.255 255.255.255.255 eq 68 permit udp any eq 68 255.255.255.255 255.255.255.255 eq 67 remark allow_client_network permit ip 172.16.0.0 255.255.240.0 any permit ip any 172.16.0.0 255.255.240.0 remark allow_mgmt_network permit ip 192.168.10.0 255.255.255.0 192.168.10.4 255.255.255.255 permit ip 192.168.10.4 255.255.255.255 192.168.10.0 255.255.255.0 permit ip 192.168.10.0 255.255.255.0 192.168.10.2 255.255.255.255 permit ip 192.168.10.2 255.255.255.255 192.168.10.0 255.255.255.0 remark deny_all deny ip any any ! !

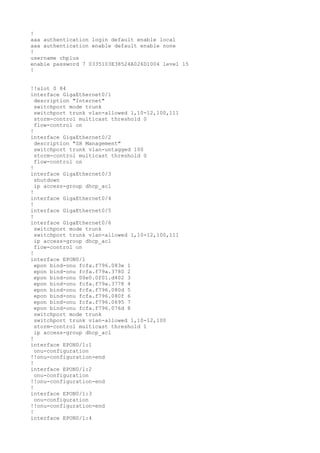

! aaa authentication login default enable local aaa authentication enable default enable none ! username chplus enable password 7 0335103E38524A026D1004 level 15 ! !!slot 0 84 interface GigaEthernet0/1 description "Internet" switchport mode trunk switchport trunk vlan-allowed 1,10-12,100,111 storm-control multicast threshold 0 flow-control on ! interface GigaEthernet0/2 description "SH Management" switchport trunk vlan-untagged 100 storm-control multicast threshold 0 flow-control on ! interface GigaEthernet0/3 shutdown ip access-group dhcp_acl ! interface GigaEthernet0/4 ! interface GigaEthernet0/5 ! interface GigaEthernet0/6 switchport mode trunk switchport trunk vlan-allowed 1,10-12,100,111 ip access-group dhcp_acl flow-control on ! interface EPON0/1 epon bind-onu fcfa.f796.083e 1 epon bind-onu fcfa.f79a.3780 2 epon bind-onu 00e0.0f01.d402 3 epon bind-onu fcfa.f79a.3778 4 epon bind-onu fcfa.f796.080d 5 epon bind-onu fcfa.f796.080f 6 epon bind-onu fcfa.f796.0695 7 epon bind-onu fcfa.f796.076d 8 switchport mode trunk switchport trunk vlan-allowed 1,10-12,100 storm-control multicast threshold 1 ip access-group dhcp_acl ! interface EPON0/1:1 onu-configuration !!onu-configuration-end ! interface EPON0/1:2 onu-configuration !!onu-configuration-end ! interface EPON0/1:3 onu-configuration !!onu-configuration-end ! interface EPON0/1:4

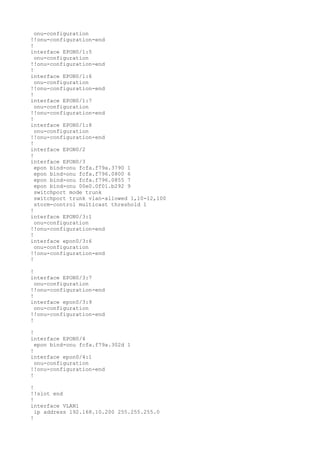

onu-configuration !!onu-configuration-end ! interface EPON0/1:5 onu-configuration !!onu-configuration-end ! interface EPON0/1:6 onu-configuration !!onu-configuration-end ! interface EPON0/1:7 onu-configuration !!onu-configuration-end ! interface EPON0/1:8 onu-configuration !!onu-configuration-end ! interface EPON0/2 ! interface EPON0/3 epon bind-onu fcfa.f79a.3790 1 epon bind-onu fcfa.f796.0800 6 epon bind-onu fcfa.f796.0855 7 epon bind-onu 00e0.0f01.b292 9 switchport mode trunk switchport trunk vlan-allowed 1,10-12,100 storm-control multicast threshold 1 ! interface EPON0/3:1 onu-configuration !!onu-configuration-end ! interface epon0/3:6 onu-configuration !!onu-configuration-end ! ! interface EPON0/3:7 onu-configuration !!onu-configuration-end ! interface epon0/3:9 onu-configuration !!onu-configuration-end ! ! interface EPON0/4 epon bind-onu fcfa.f79a.302d 1 ! interface epon0/4:1 onu-configuration !!onu-configuration-end ! ! !!slot end ! interface VLAN1 ip address 192.168.10.200 255.255.255.0 !

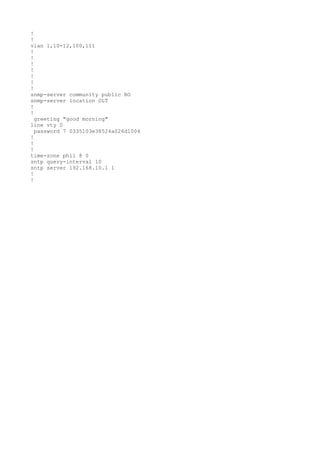

! ! vlan 1,10-12,100,111 ! ! ! ! ! ! ! snmp-server community public RO snmp-server location OLT ! ! greeting "good morning" line vty 0 password 7 0335103e38524a026d1004 ! ! ! time-zone phil 8 0 sntp query-interval 10 sntp server 192.168.10.1 1 ! !
