This document contains configuration steps for setting up VLANs, trunk ports, access ports, IP addresses, and spanning tree settings on multiple switches. Key steps include: 1. Creating VLANs for different departments and assigning IP addresses to each VLAN interface. 2. Configuring trunk ports and allowed VLANs to pass traffic between switches. 3. Configuring access ports with VLAN assignments and IP addresses for host connections. 4. Enabling Rapid PVST+ mode, adjusting STP settings per VLAN, and enabling portfast on access ports. 5. Configuring one switch as the VTP server for the BRANCH domain and another as the VTP client.

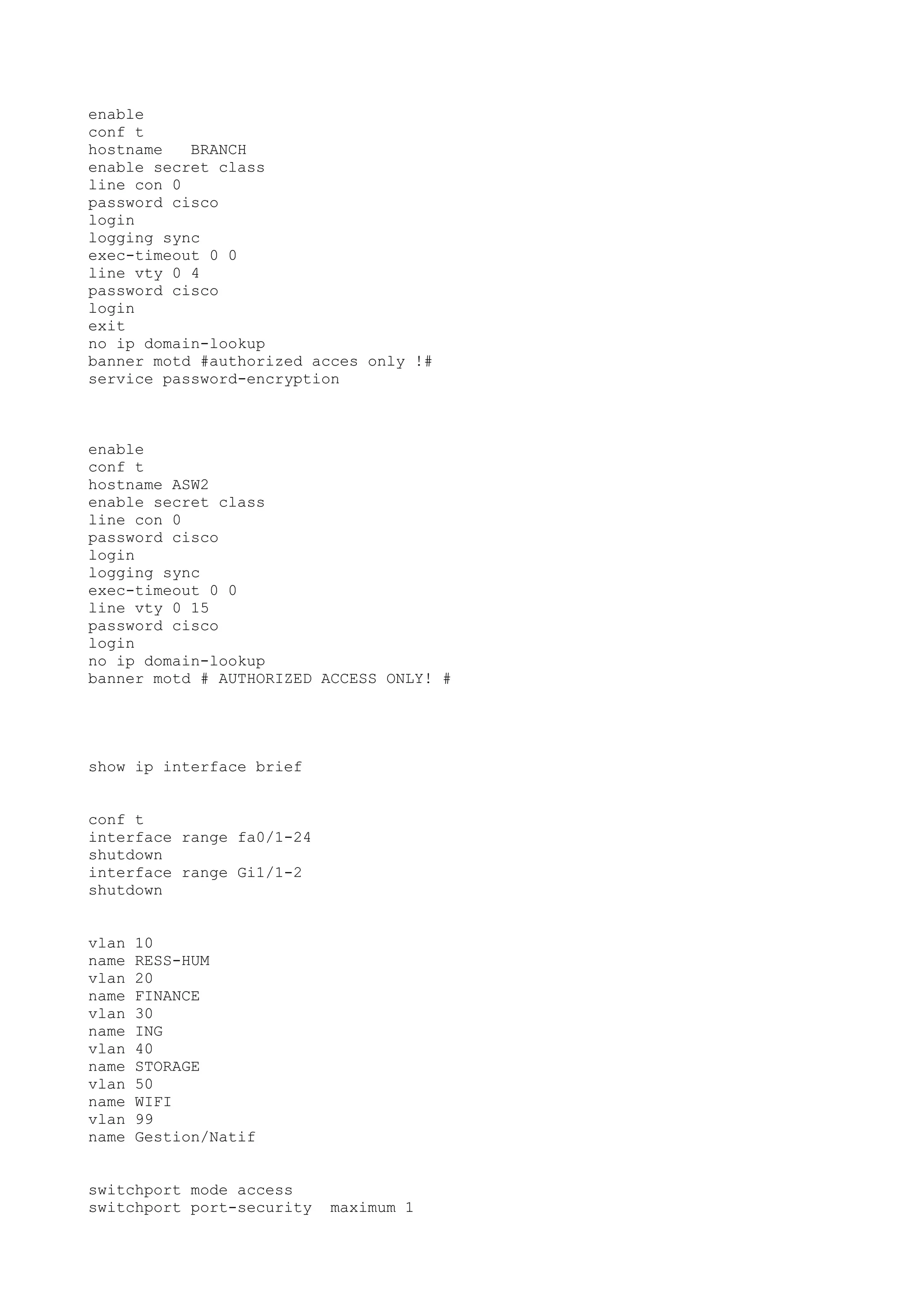

1. enable
conf t
hostname BRANCH
enable secret class
line con 0
password cisco
login
logging sync
exec-timeout 0 0
line vty 0 4
password cisco
login
exit
no ip domain-lookup
banner motd #authorized acces only !#
service password-encryption
enable
conf t
hostname ASW2
enable secret class
line con 0
password cisco
login
logging sync
exec-timeout 0 0
line vty 0 15
password cisco
login
no ip domain-lookup
banner motd # AUTHORIZED ACCESS ONLY! #
show ip interface brief
conf t
interface range fa0/1-24
shutdown
interface range Gi1/1-2
shutdown
vlan 10
name RESS-HUM
vlan 20
name FINANCE
vlan 30
name ING
vlan 40
name STORAGE
vlan 50
name WIFI
vlan 99
name Gestion/Natif
switchport mode access
switchport port-security maximum 1

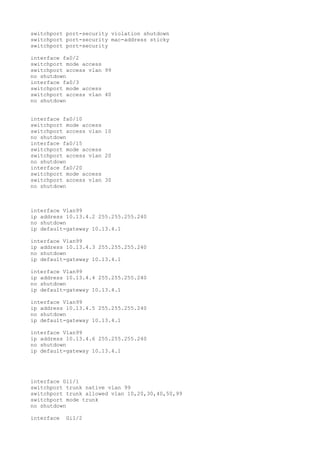

2. switchport port-security violation shutdown
switchport port-security mac-address sticky
switchport port-security
interface fa0/2
switchport mode access
switchport access vlan 99
no shutdown
interface fa0/3
switchport mode access
switchport access vlan 40
no shutdown
interface fa0/10
switchport mode access
switchport access vlan 10
no shutdown
interface fa0/15
switchport mode access
switchport access vlan 20
no shutdown
interface fa0/20
switchport mode access
switchport access vlan 30
no shutdown
interface Vlan99
ip address 10.13.4.2 255.255.255.240
no shutdown
ip default-gateway 10.13.4.1
interface Vlan99
ip address 10.13.4.3 255.255.255.240
no shutdown
ip default-gateway 10.13.4.1
interface Vlan99
ip address 10.13.4.4 255.255.255.240
no shutdown
ip default-gateway 10.13.4.1
interface Vlan99
ip address 10.13.4.5 255.255.255.240
no shutdown
ip default-gateway 10.13.4.1
interface Vlan99
ip address 10.13.4.6 255.255.255.240
no shutdown
ip default-gateway 10.13.4.1
interface Gi1/1
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,40,50,99
switchport mode trunk
no shutdown
interface Gi1/2

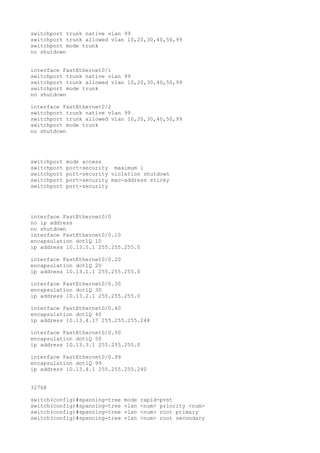

3. switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,40,50,99
switchport mode trunk
no shutdown
interface FastEthernet0/1
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,40,50,99
switchport mode trunk
no shutdown
interface FastEthernet0/2
switchport trunk native vlan 99
switchport trunk allowed vlan 10,20,30,40,50,99
switchport mode trunk
no shutdown
switchport mode access
switchport port-security maximum 1
switchport port-security violation shutdown
switchport port-security mac-address sticky
switchport port-security
interface FastEthernet0/0
no ip address
no shutdown
interface FastEthernet0/0.10
encapsulation dot1Q 10
ip address 10.13.0.1 255.255.255.0
interface FastEthernet0/0.20
encapsulation dot1Q 20
ip address 10.13.1.1 255.255.255.0
interface FastEthernet0/0.30
encapsulation dot1Q 30
ip address 10.13.2.1 255.255.255.0
interface FastEthernet0/0.40
encapsulation dot1Q 40
ip address 10.13.4.17 255.255.255.248
interface FastEthernet0/0.50
encapsulation dot1Q 50
ip address 10.13.3.1 255.255.255.0
interface FastEthernet0/0.99
encapsulation dot1Q 99
ip address 10.13.4.1 255.255.255.240
32768
switch(config)#spanning-tree mode rapid-pvst
switch(config)#spanning-tree vlan <num> priority <num>
switch(config)#spanning-tree vlan <num> root primary
switch(config)#spanning-tree vlan <num> root secondary

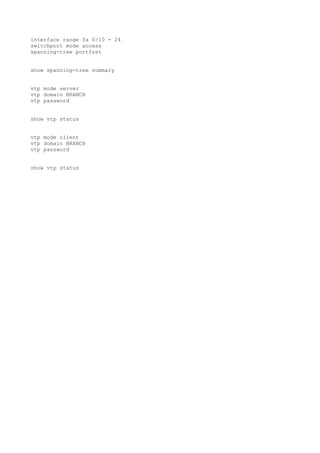

4. interface range fa 0/10 - 24
switchport mode access
spanning-tree portfast
show spanning-tree summary
vtp mode server
vtp domain BRANCH
vtp password
show vtp status
vtp mode client
vtp domain BRANCH
vtp password
show vtp status
