1. Advanced Algorithms – COMS31900
Hashing part two
Static Perfect Hashing
Benjamin Sach

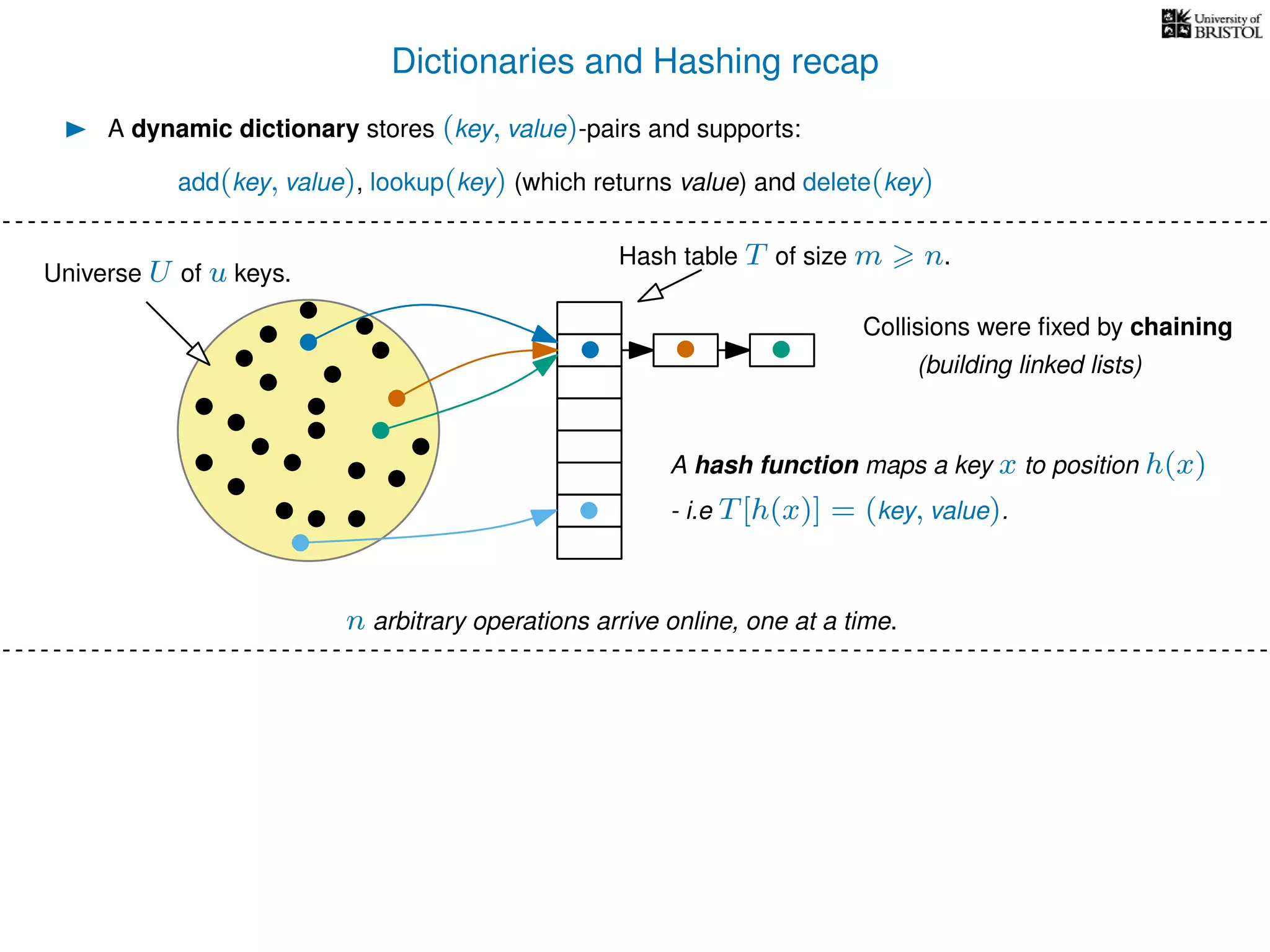

2. Dictionaries and Hashing recap
A dynamic dictionary stores (key, value)-pairs and supports:
Universe U of u keys.
Hash table T of size m n.
Collisions were fixed by chaining
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
n arbitrary operations arrive online, one at a time.
add(key, value), lookup(key) (which returns value) and delete(key)
(building linked lists)
3. Dictionaries and Hashing recap
A dynamic dictionary stores (key, value)-pairs and supports:
Universe U of u keys.
Hash table T of size m n.
Collisions were fixed by chaining
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
A set H of hash functions is weakly universal if for any
two keys x, y ∈ U (with x = y),
Pr h(x) = h(y)
1
m
(h is picked uniformly at random from H)
n arbitrary operations arrive online, one at a time.
add(key, value), lookup(key) (which returns value) and delete(key)
(building linked lists)
4. Dictionaries and Hashing recap
A dynamic dictionary stores (key, value)-pairs and supports:
Universe U of u keys.
Hash table T of size m n.
Collisions were fixed by chaining
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
A set H of hash functions is weakly universal if for any
two keys x, y ∈ U (with x = y),
Pr h(x) = h(y)
1
m
(h is picked uniformly at random from H)
For any n operations, the expected
run-time is O(1) per operation.
Using weakly universal hashing:
n arbitrary operations arrive online, one at a time.
add(key, value), lookup(key) (which returns value) and delete(key)
(building linked lists)
5. Dictionaries and Hashing recap
A dynamic dictionary stores (key, value)-pairs and supports:
Universe U of u keys.
Hash table T of size m n.
Collisions were fixed by chaining
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
A set H of hash functions is weakly universal if for any
two keys x, y ∈ U (with x = y),
Pr h(x) = h(y)
1
m
(h is picked uniformly at random from H)
For any n operations, the expected
run-time is O(1) per operation.
But this doesn’t tell us much about the
worst-case behaviour
Using weakly universal hashing:
n arbitrary operations arrive online, one at a time.
add(key, value), lookup(key) (which returns value) and delete(key)
(building linked lists)
6. Static Dictionaries and Perfect hashing
A static dictionary stores (key, value)-pairs and supports:
Hash table T of size m n.
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
we are given n different (key, value)-pairs and want to pick a good h
lookup(key) (which returns value) - no inserts or deletes are allowed
Universe U of u keys.
Collisions were fixed by chaining
(building linked lists)
7. Static Dictionaries and Perfect hashing
A static dictionary stores (key, value)-pairs and supports:
Hash table T of size m n.
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
we are given n different (key, value)-pairs and want to pick a good h
lookup(key) (which returns value) - no inserts or deletes are allowed
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
Universe U of u keys.
Collisions were fixed by chaining
(building linked lists)
8. Static Dictionaries and Perfect hashing
A static dictionary stores (key, value)-pairs and supports:
Hash table T of size m n.
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
we are given n different (key, value)-pairs and want to pick a good h
lookup(key) (which returns value) - no inserts or deletes are allowed
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
The rest of this lecture is devoted to the
FKS scheme
Universe U of u keys.
Collisions were fixed by chaining
(building linked lists)
9. Static Dictionaries and Perfect hashing
A static dictionary stores (key, value)-pairs and supports:
Hash table T of size m n.
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
we are given n different (key, value)-pairs and want to pick a good h
lookup(key) (which returns value) - no inserts or deletes are allowed
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
The rest of this lecture is devoted to the
FKS scheme
The construction is based on weak
universal hashing
Universe U of u keys.
Collisions were fixed by chaining
(building linked lists)
10. Static Dictionaries and Perfect hashing
A static dictionary stores (key, value)-pairs and supports:
Hash table T of size m n.
A hash function maps a key x to position h(x)
- i.e T[h(x)] = (key, value).
we are given n different (key, value)-pairs and want to pick a good h
lookup(key) (which returns value) - no inserts or deletes are allowed
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
The rest of this lecture is devoted to the
FKS scheme
The construction is based on weak
universal hashing
(with an O(1) time hash function)
Universe U of u keys.
Collisions were fixed by chaining
(building linked lists)
11. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
12. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
n
13. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
n
(where any h(x) can be computed in O(1) time)
14. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
n
15. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
n
16. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Profit!
n
17. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n
18. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
n
19. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
20. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
21. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
n
Linearity of Expectation
Let Y1, Y2, . . . , Yk be k random variables. Then
E
k
i=1
Yi =
k
i=1
E(Yi)
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
22. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
23. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
24. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
25. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
E(Ix,y) = 1 · Pr(Ix,y = 1) + 0 · Pr(Ix,y = 0)
1
m
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
By the definition of expectation. . .
26. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
27. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
28. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation
n
2
=
n(n − 1)
2
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
29. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
30. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
n2
2m
31. Perfect hashing - a first attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
Step 1: Insert everything into a hash table of size m = n
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
n
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
n2
2m
n
2
.
32. Perfect hashing - a second attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n2
Step 1: Insert everything into a hash table of size m = n2
33. Perfect hashing - a second attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n2
Step 1: Insert everything into a hash table of size m = n2
How many collisions do we get on average?
34. Perfect hashing - a second attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n2
Step 1: Insert everything into a hash table of size m = n2
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
n2
2m
35. Perfect hashing - a second attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n2
Step 1: Insert everything into a hash table of size m = n2
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
n2
2m
1
2
36. Perfect hashing - a second attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n2
Step 1: Insert everything into a hash table of size m = n2
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
n2
2m
1
2
much
better!
37. Perfect hashing - a second attempt
A set H of hash functions is weakly universal if for any two keys x, y ∈ U (x = y),
Pr h(x) = h(y)
1
m
where h is picked uniformly at random from H
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if necessary
n2
Step 1: Insert everything into a hash table of size m = n2
How many collisions do we get on average?
where indicator random variable Ix,y = 1 iff h(x) = h(y).
number of
collisions
linearity of
expectation
definition of
expectation n2/2
E(C) = E
x,y∈T,x<y
Ix,y =
x,y∈T, x<y
E(Ix,y)
x,y∈T, x<y
1
m
=
n
2
·
1
m
n2
2m
1
2
much
(except we cheated)
better!
38. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
39. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
40. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
The probability of at least one collision: Pr(C 1) 1
2
41. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
The probability of at least one collision: Pr(C 1) 1
2
Markov’s inequality
If X is a non-negative r.v., then for all a > 0,
Pr(X a)
E(X)
a
.
42. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
The probability of at least one collision: Pr(C 1) 1
2
Markov’s inequality
43. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
The probability of at least one collision: Pr(C 1) 1
2
The probability of zero collisions is at least 1
2
Markov’s inequality
44. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
The probability of at least one collision: Pr(C 1) 1
2
The probability of zero collisions is at least 1
2
i.e. at least as good as tossing a heads on a fair coin
Markov’s inequality
45. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
E(runs) E(coin tosses to get a heads) = 2
The probability of at least one collision: Pr(C 1) 1
2
The probability of zero collisions is at least 1
2
i.e. at least as good as tossing a heads on a fair coin
Markov’s inequality
46. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
E(runs) E(coin tosses to get a heads) = 2
The probability of at least one collision: Pr(C 1) 1
2
The probability of zero collisions is at least 1
2
i.e. at least as good as tossing a heads on a fair coin
E(construction time) = O(m)·E(runs) = O(m) = O(n2)
Markov’s inequality
47. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
E(runs) E(coin tosses to get a heads) = 2
The probability of at least one collision: Pr(C 1) 1
2
The probability of zero collisions is at least 1
2
i.e. at least as good as tossing a heads on a fair coin
E(construction time) = O(m)·E(runs) = O(m) = O(n2)
. . . and then the look-up time is always O(1)
Markov’s inequality
48. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there was a collision
Step 1: Insert everything into a hash table of size m = n2
How many times do we repeat on average?
The expected number of collisions: E(C) 1
2
E(runs) E(coin tosses to get a heads) = 2
The probability of at least one collision: Pr(C 1) 1
2
The probability of zero collisions is at least 1
2
i.e. at least as good as tossing a heads on a fair coin
E(construction time) = O(m)·E(runs) = O(m) = O(n2)
. . . and then the look-up time is always O(1)
(because any h(x) can be computed in O(1) time)
Markov’s inequality
49. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
50. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
This looks rubbish but
it will be useful in a bit!
51. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
How many times do we repeat on average?
The expected number of collisions: E(C) n
2
The probability of at least n collisions: Pr(C n) 1
2
This looks rubbish but
it will be useful in a bit!
52. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
How many times do we repeat on average?
The expected number of collisions: E(C) n
2
The probability of at least n collisions: Pr(C n) 1
2
This looks rubbish but
it will be useful in a bit!
(where a = n)
Markov’s inequality
If X is a non-negative r.v., then for all a > 0,
Pr(X a)
E(X)
a
.
53. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
How many times do we repeat on average?
The expected number of collisions: E(C) n
2
The probability of at least n collisions: Pr(C n) 1
2
This looks rubbish but
it will be useful in a bit!
54. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
How many times do we repeat on average?
The expected number of collisions: E(C) n
2
E(runs) E(coin tosses to get a heads) = 2
The probability of at least n collisions: Pr(C n) 1
2
i.e. at least as good as tossing a heads on a fair coin
E(construction time) = O(m)·E(runs) = O(m) = O(n)
This looks rubbish but
it will be useful in a bit!
The probability of at most n collisions is at least 1
2
55. Expected construction time
using a weakly universal hash function
Step 2: Check for collisions
Step 3: Repeat if there are more than n collisions
Step 1: Insert everything into a hash table of size m = n
How many times do we repeat on average?
The expected number of collisions: E(C) n
2
E(runs) E(coin tosses to get a heads) = 2
The probability of at least n collisions: Pr(C n) 1
2
i.e. at least as good as tossing a heads on a fair coin
E(construction time) = O(m)·E(runs) = O(m) = O(n)
. . . but the look-up time could be rubbish (lots of collisions)
This looks rubbish but
it will be useful in a bit!
The probability of at most n collisions is at least 1
2
56. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
T
57. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
Let ni be the number of items in T[i]
T
58. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
Let ni be the number of items in T[i]
T
n1 = 2
n5 = 2
n8 = 3
59. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
60. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
61. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
(Step 3) Immediately repeat a step if either
a) T has more than n collisions
b) some Ti has a collision
62. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
(Step 3) Immediately repeat a step if either
a) T has more than n collisions
b) some Ti has a collision
i.e. check (and if necessary rebuild)
each table immediately after building it
63. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
(Step 3) Immediately repeat a step if either
a) T has more than n collisions
b) some Ti has a collision
64. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
(Step 3) Immediately repeat a step if either
a) T has more than n collisions
The look-up time is always O(1)
1. Compute i = h(x) (x is the key)
2. Compute j = hi(x)
3. The item is in Ti[j]
b) some Ti has a collision
65. Perfect hashing - attempt three
n
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal hash function, h
. . . but don’t use chaining
Step 2: The ni items in T[i] are inserted into
another hash table Ti of size n2
i
using another weakly universal hash function
Let ni be the number of items in T[i]
T
denoted hi (there is one for each i)
n2
i
(Step 3) Immediately repeat a step if either
a) T has more than n collisions
What is the expected construction time?
What is the space usage?
The look-up time is always O(1)
1. Compute i = h(x) (x is the key)
2. Compute j = hi(x)
3. The item is in Ti[j]
Two questions remain:
b) some Ti has a collision
66. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
67. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
68. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
69. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
Storing hi uses O(1) space
70. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
71. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
Storing hi uses O(1) space
72. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
73. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
74. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
75. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i]
76. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
77. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
78. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
i
n2
i
4
i
ni
2
n
79. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
i
n2
i
4
i
ni
2
n
80. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
ni
2 =
ni(ni−1)
2
n2
i
4
i
n2
i
4
i
ni
2
n
81. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
i
n2
i
4
i
ni
2
n
82. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
i
n2
i
4
i
ni
2
n
i
n2
i 4nor
83. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
how big is this?
How big is i n2
i ?
There are
ni
2 collisions in T[i] so there are i
ni
2 collisions in T
but we know that there are at most n collisions in T . . .
i
n2
i
4
i
ni
2
n
i
n2
i 4nor
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
= O(n)
84. Perfect Hashing - Space usage
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
How much space does this use?
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The size of T is O(n)
The size of Ti is O(ni
2)
So the total space is. . .
Storing hi uses O(1) space
O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
= O(n)
85. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
86. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
(we considered this on a previous slide)
87. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
(we considered this on a previous slide)
The expected construction time for each Ti is O(ni
2)
88. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
(we considered this on a previous slide)
The expected construction time for each Ti is O(ni
2)
- we insert ni items into a table of size m = n2
i
- then repeat if there was a collision
89. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
(we considered this on a previous slide)
The expected construction time for each Ti is O(ni
2)
- we insert ni items into a table of size m = n2
i
(we also considered this on a previous slide)
- then repeat if there was a collision
90. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
(we considered this on a previous slide)
The expected construction time for each Ti is O(ni
2)
- we insert ni items into a table of size m = n2
i
(we also considered this on a previous slide)
- then repeat if there was a collision
The overall expected constuction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
91. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
The expected construction time for each Ti is O(ni
2)
The overall expected construction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
92. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
The expected construction time for each Ti is O(ni
2)
The overall expected construction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
= E construction time of T)+
i
E(construction time of Ti
93. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
The expected construction time for each Ti is O(ni
2)
The overall expected construction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
= E construction time of T)+
i
E(construction time of Ti
= O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
94. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
The expected construction time for each Ti is O(ni
2)
The overall expected construction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
= E construction time of T)+
i
E(construction time of Ti
= O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
= O(n)
95. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
The expected construction time for each Ti is O(ni
2)
The overall expected construction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
= E construction time of T)+
i
E(construction time of Ti
= O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
= O(n)
i
n2
i 4n
96. Perfect Hashing - Expected construction time
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
The expected construction time for T is O(n)
The expected construction time for each Ti is O(ni
2)
The overall expected construction time is therefore:
E(construction time) = E
construction time of T +
i
construction time of Ti
= E construction time of T)+
i
E(construction time of Ti
= O(n)+
i
O(n2
i ) = O(n)+O
i
n2
i
= O(n)
97. Perfect Hashing - Summary
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
The look-up time is always O(1)
1. Compute i = h(x) (x is the key)
2. Compute j = hi(x)
3. The item is in Ti[j]
98. Perfect Hashing - Summary
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
The look-up time is always O(1)
1. Compute i = h(x) (x is the key)
2. Compute j = hi(x)
3. The item is in Ti[j]
99. Perfect Hashing - Summary
n n2
i
Step 1: Insert everything into a hash table, T, of size n
using a weakly universal (w.u.) hash function, h
Step 2: The ni items in T[i] are inserted into another hash table Ti
of size n2
i using w.u hash function hi
(Step 3) Immediately repeat if either
a) T has more than n collisions
b) some Ti has a collision
T
Ti
THEOREM
The FKS hashing scheme:
• Has no collisions
• Every lookup takes O(1) worst-case time,
• Uses O(n) space,
• Can be built in O(n) expected time.
The look-up time is always O(1)
1. Compute i = h(x) (x is the key)
2. Compute j = hi(x)
3. The item is in Ti[j]
