The document discusses half adders and full adders. A half adder performs addition of two bits and has two inputs and two outputs - the sum and carry. A full adder performs addition of three bits, taking two input bits and the previous carry as input, and outputting the sum and new carry. It uses XOR and AND gates. Full adders are used as components in cascading adders to add binary numbers with multiple bits.
Adder
Types of Adder
Half Adder
Exclusive OR gate and AND Gate
Block diagram
Logic circuit
Truth Table
Full Adder
OR Gate
Block diagram
Logic circuit
Truth Table
An adder is a digital logic circuit in electronics that implements addition of numbers. In many computers and other types of processors, adders are used to calculate addresses, similar operations and table indices in the ALU and also in other parts of the processors. These can be built for many numerical representations like excess-3 or binary coded decimal
An adder is a digital circuit that performs addition of numbers. It can be constructed for many numerical representations, such as binary-coded decimal. The most common adders operate on binary numbers.
Adder
Types of Adder
Half Adder
Exclusive OR gate and AND Gate
Block diagram
Logic circuit
Truth Table
Full Adder
OR Gate
Block diagram
Logic circuit
Truth Table
An adder is a digital logic circuit in electronics that implements addition of numbers. In many computers and other types of processors, adders are used to calculate addresses, similar operations and table indices in the ALU and also in other parts of the processors. These can be built for many numerical representations like excess-3 or binary coded decimal
An adder is a digital circuit that performs addition of numbers. It can be constructed for many numerical representations, such as binary-coded decimal. The most common adders operate on binary numbers.
In electronics, an adder is a digital circuit that performs addition of numbers.
In modern computers and other kinds of processors, adders are used in the arithmetic logic unit (ALU), but also in other parts of the processor, where they are used to calculate addresses, table indices, and similar operations.
In electronics, an adder is a digital circuit that performs addition of numbers.
In modern computers and other kinds of processors, adders are used in the arithmetic logic unit (ALU), but also in other parts of the processor, where they are used to calculate addresses, table indices, and similar operations.
Half & Full Adder Adder Logic Circuit.pptxReduan Ahmad
The half adder circuit performs binary addition on two single-bit binary numbers. The SUM output is the least significant bit (LSB) of the result, while the CARRY output is the most significant bit (MSB) of the result, indicating whether there was a carry-over from the addition of the two inputs.
A full adder is a fundamental digital circuit used in the field of electronics and computer science. It is an essential component in building more complex arithmetic and logical operations.
Explain Half Adder and Full Adder with Truth Tableelprocus
An adder is a digital logic circuit in electronics that implements addition of numbers. In many computers and other types of processors, adders are used to calculate addresses, similar operations and table indices in the ALU and also in other parts of the processors. These can be built for many numerical representations like excess-3 or binary coded decimal.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
block diagram and signal flow graph representation
Half adder and full adder
1. HALF ADDER AND FULL
ADDER
By: Rohan Kaushik
161310109051
Rohit Chawda
161310109052

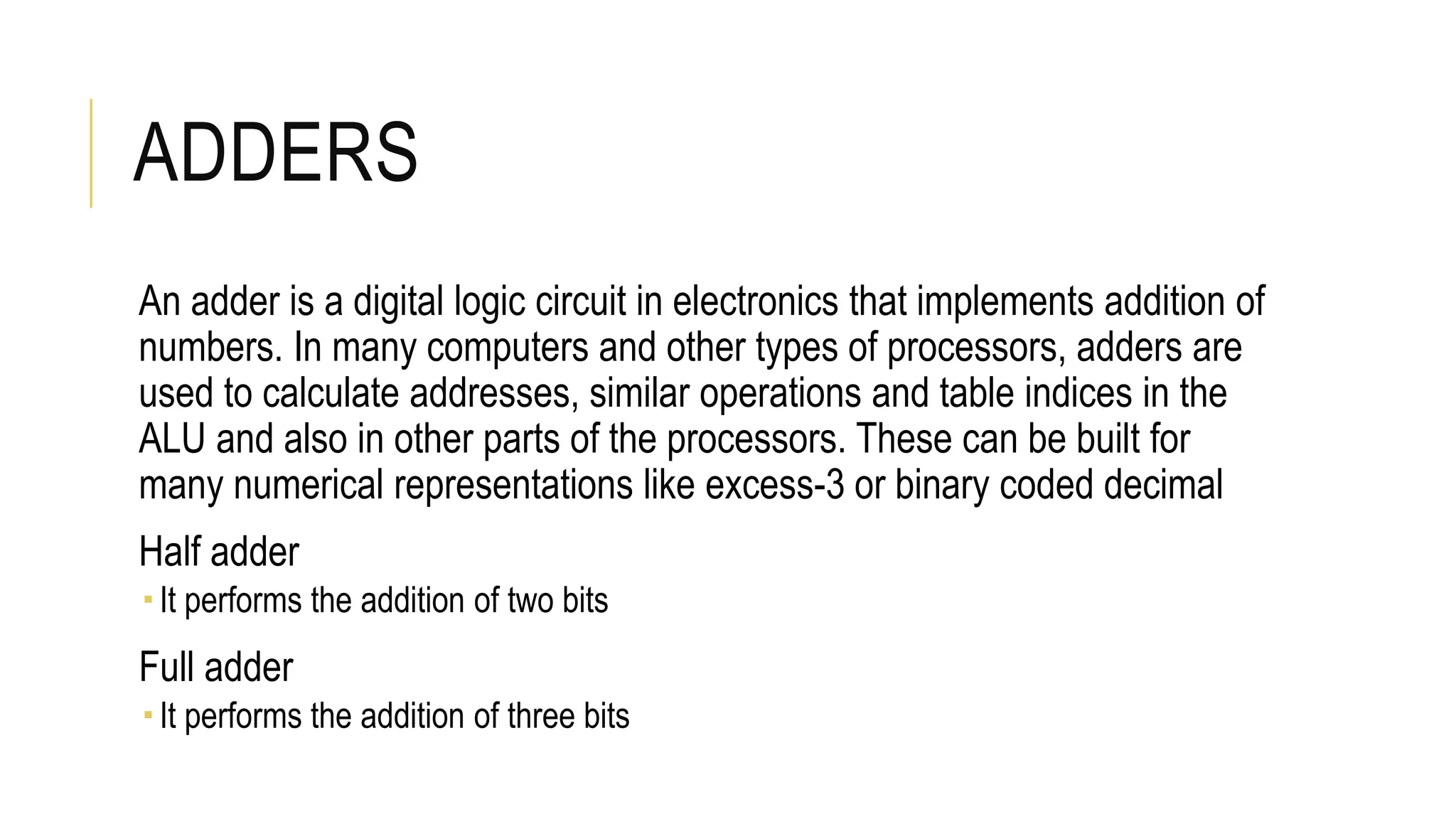

2. ADDERS
An adder is a digital logic circuit in electronics that implements addition of
numbers. In many computers and other types of processors, adders are
used to calculate addresses, similar operations and table indices in the
ALU and also in other parts of the processors. These can be built for
many numerical representations like excess-3 or binary coded decimal
Half adder
It performs the addition of two bits
Full adder
It performs the addition of three bits
3. HALF-ADDER
Half Adder: is a combinational circuit that
performs the addition of two bits, this circuit
needs two binary inputs and two binary outputs.
The simplified Boolean
function from the truth
table:
Where S is the sum and C is the carry.
(Using XOR and AND Gates)
5. FULL-ADDER
Full Adder is a combinational circuit that performs the addition of
three bits (two significant bits and previous carry).
It consists of three inputs and two outputs, two inputs are the bits to
be added, the third input represents the carry form the previous
position.
The full adder is usually a component in a cascade of adders, which
add 8, 16, etc, binary numbers.

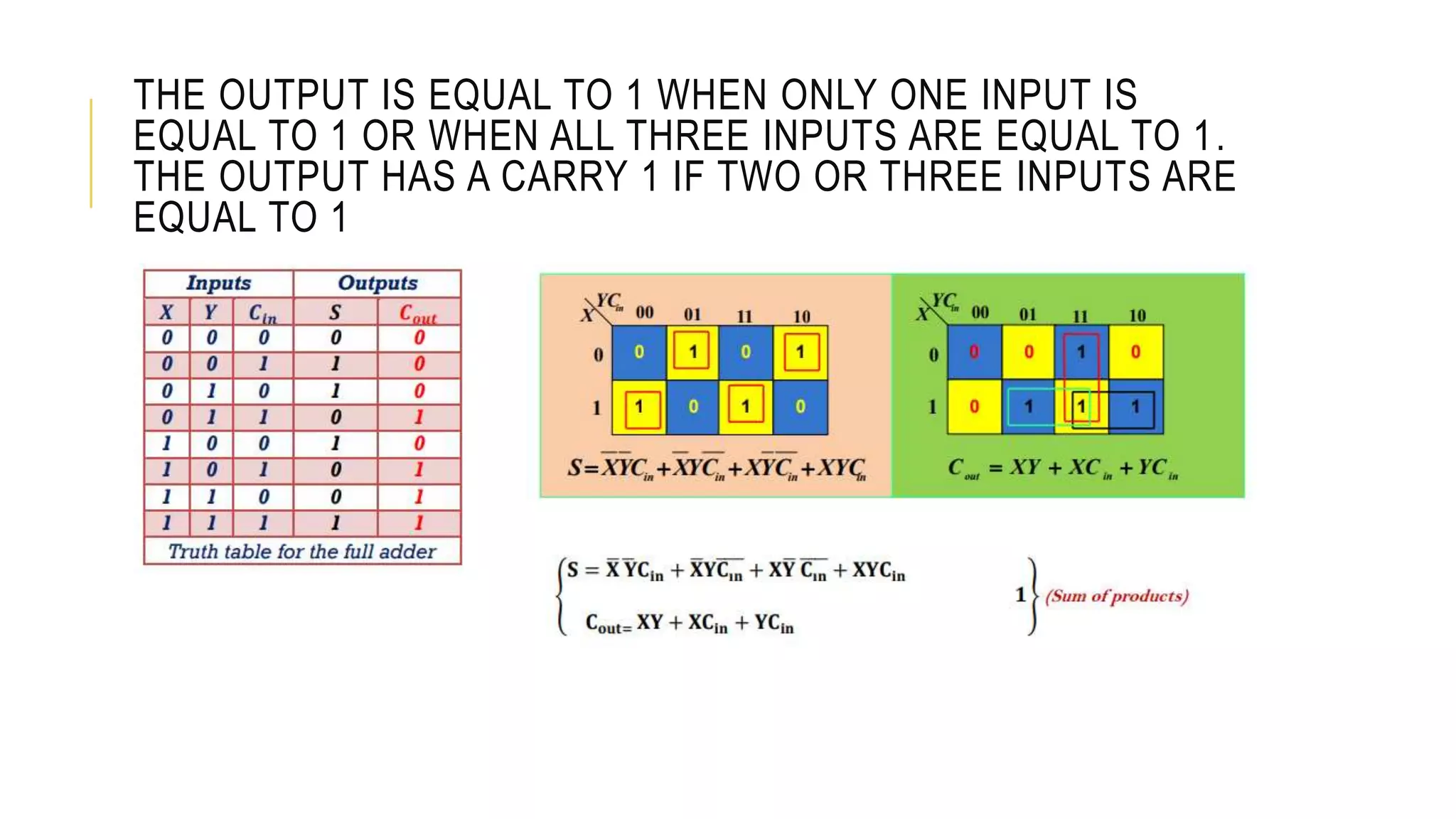

6. THE OUTPUT IS EQUAL TO 1 WHEN ONLY ONE INPUT IS
