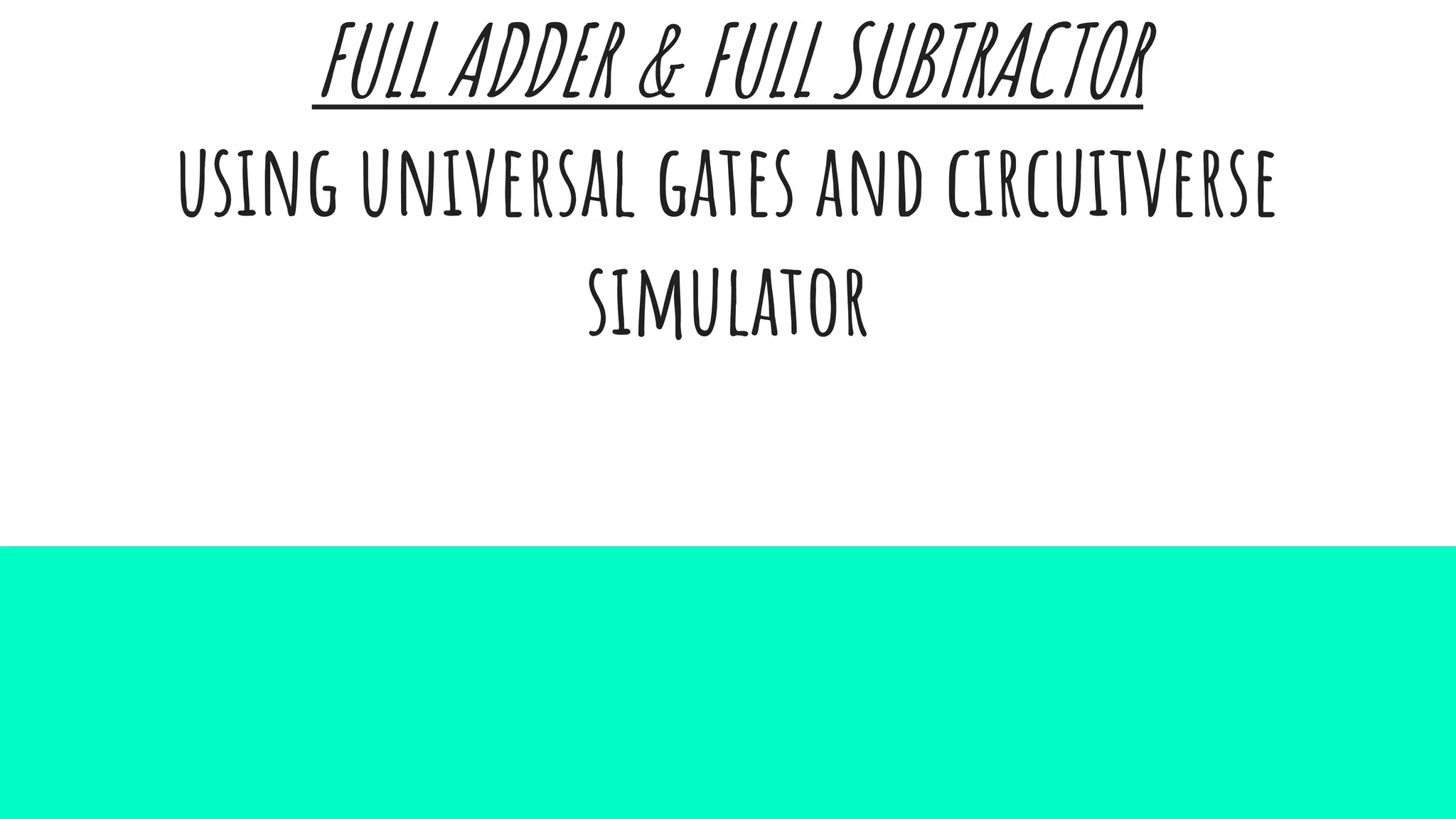

FULL ADDER & FULL SUBTRACTOR
using universal gates and circuitverse
simulator
FULL ADDER:

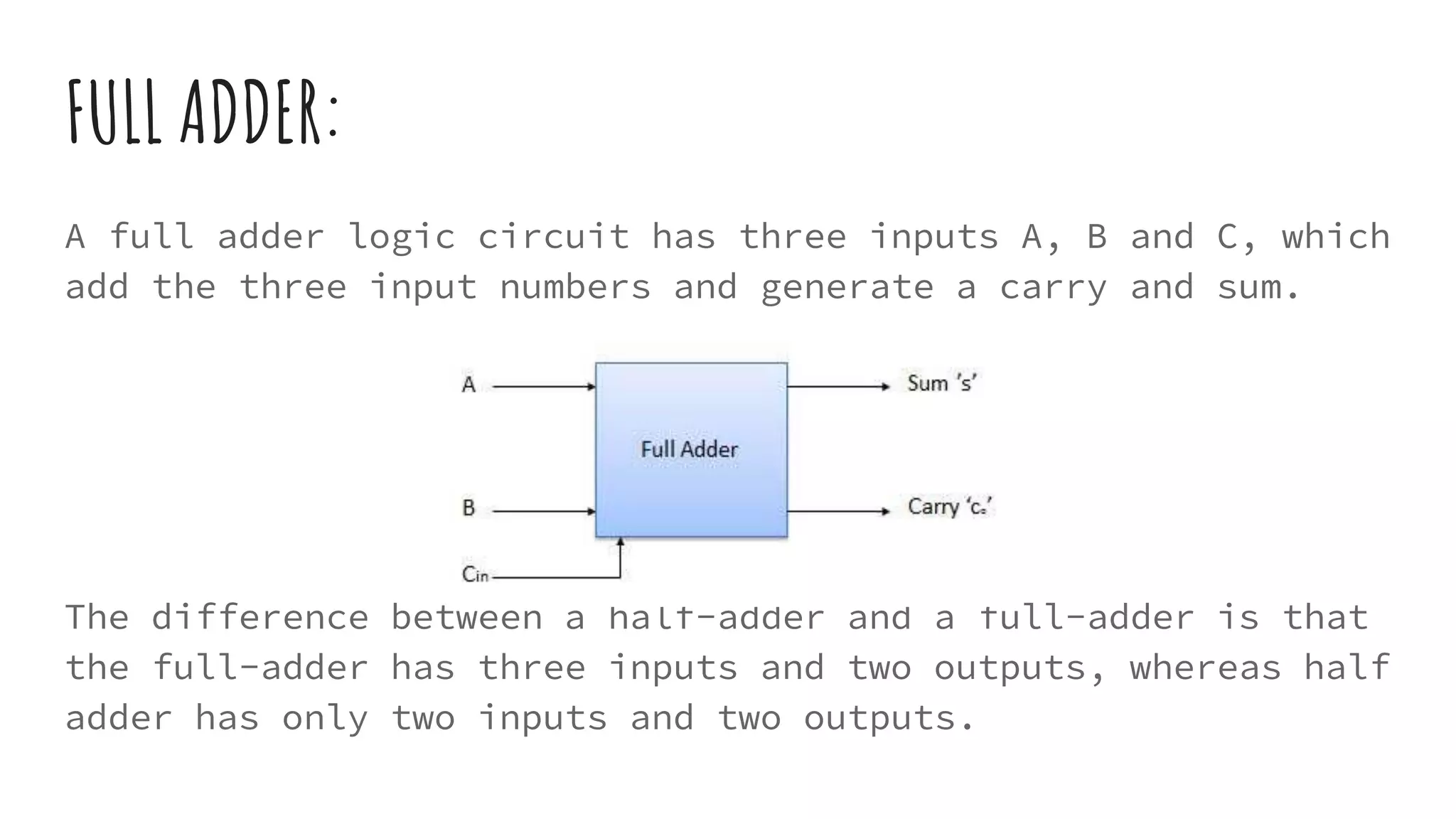

A full adder logic circuit has three inputs A, B and C, which
add the three input numbers and generate a carry and sum.
The difference between a half-adder and a full-adder is that
the full-adder has three inputs and two outputs, whereas half
adder has only two inputs and two outputs.

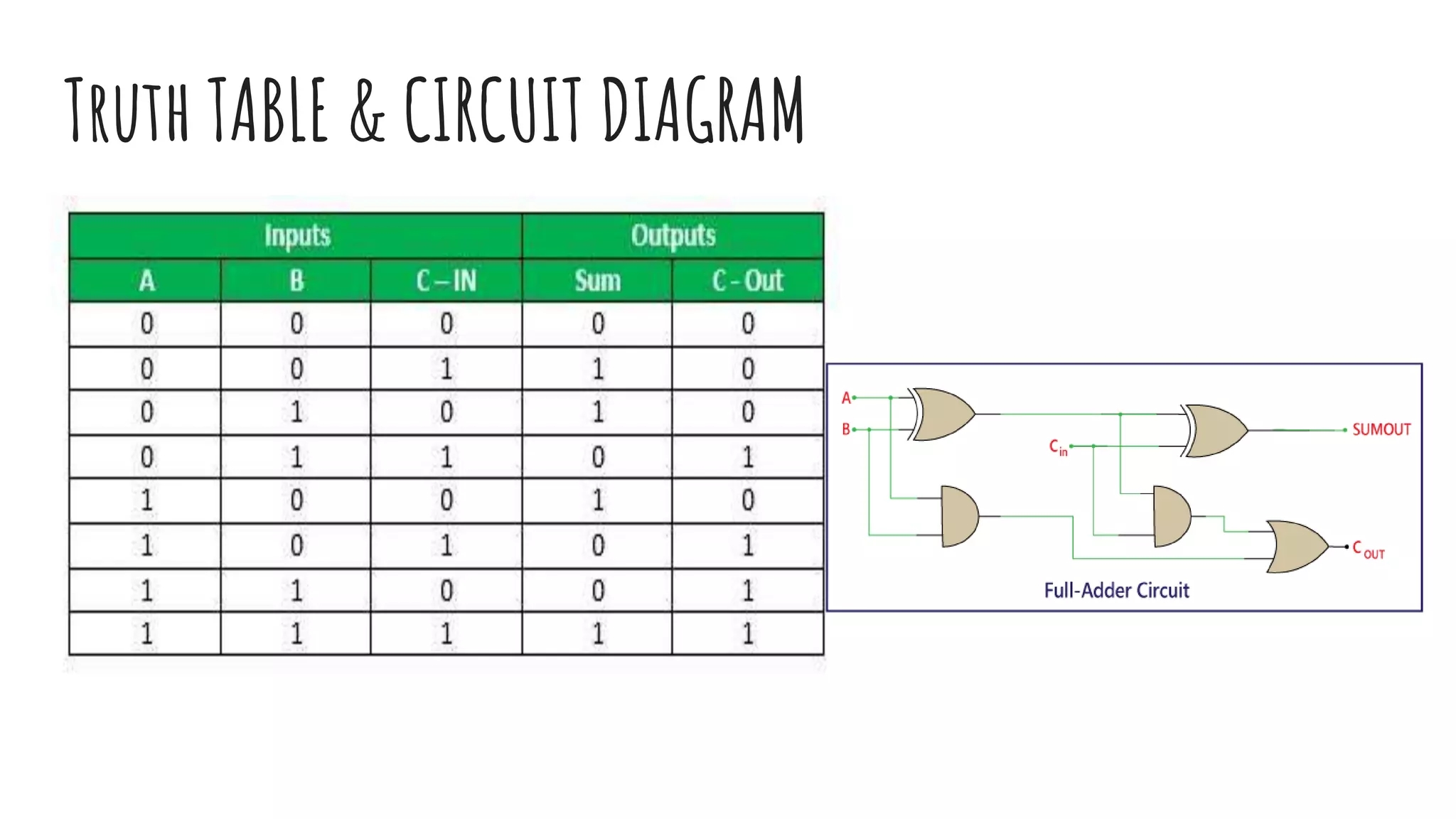

Truth TABLE & CIRCUIT DIAGRAM
Full adder using universal gates
Circuit diagram

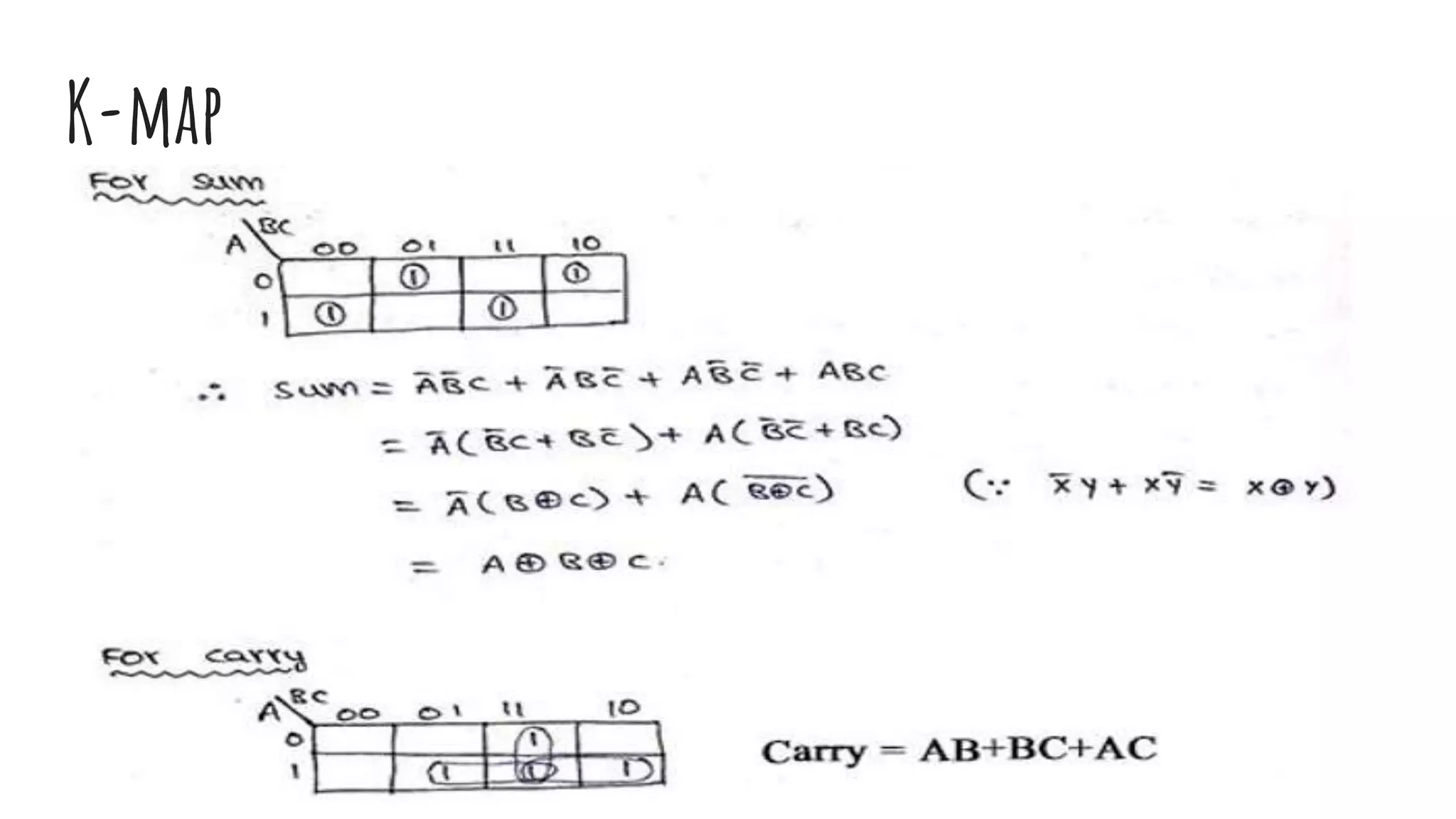

K-map

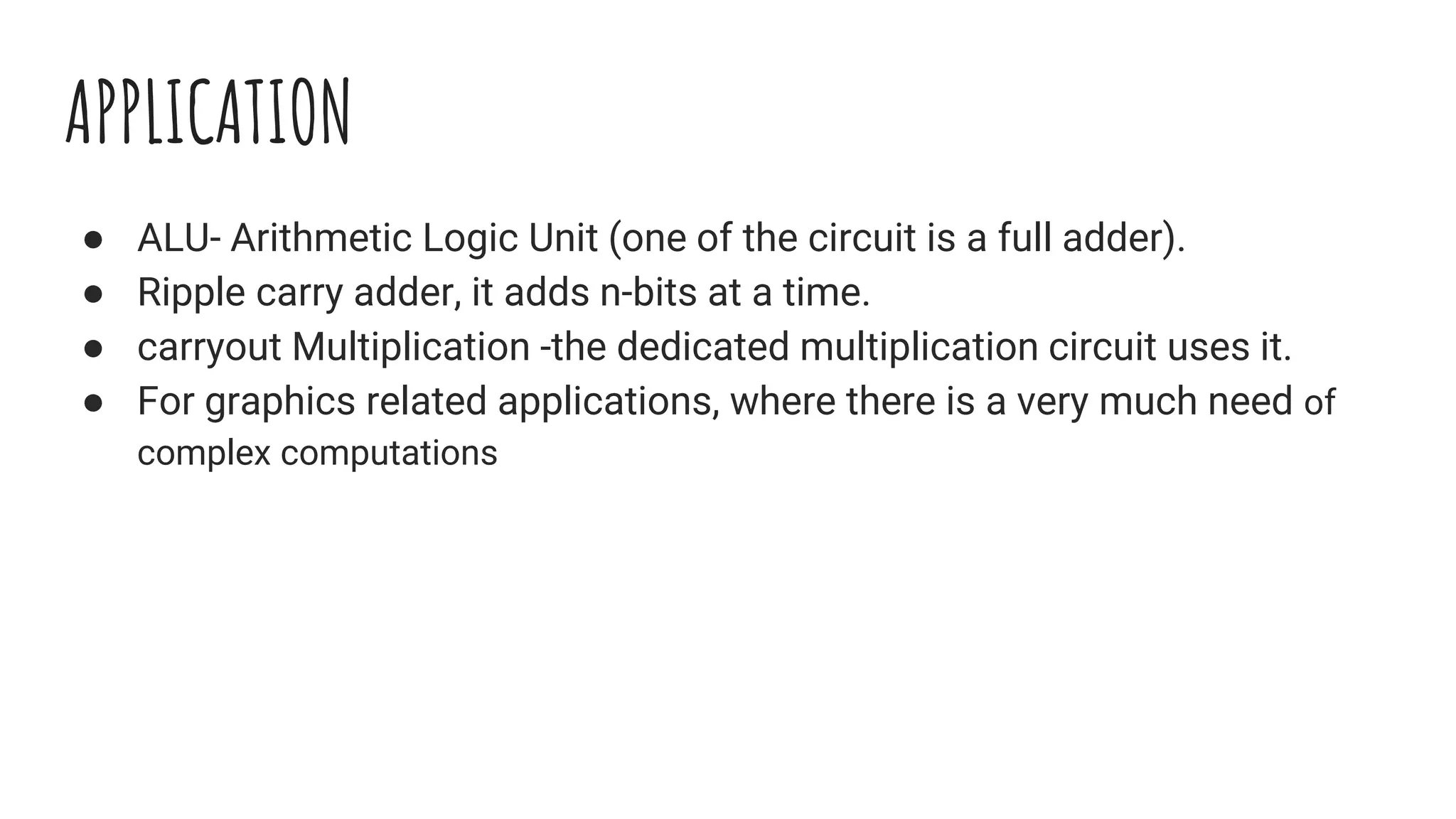

APPLICATION
● ALU- Arithmetic Logic Unit (one of the circuit is a full adder).
● Ripple carry adder, it adds n-bits at a time.
● carryout Multiplication -the dedicated multiplication circuit uses it.
● For graphics related applications, where there is a very much need of
complex computations
FULL SUBTRACTOR

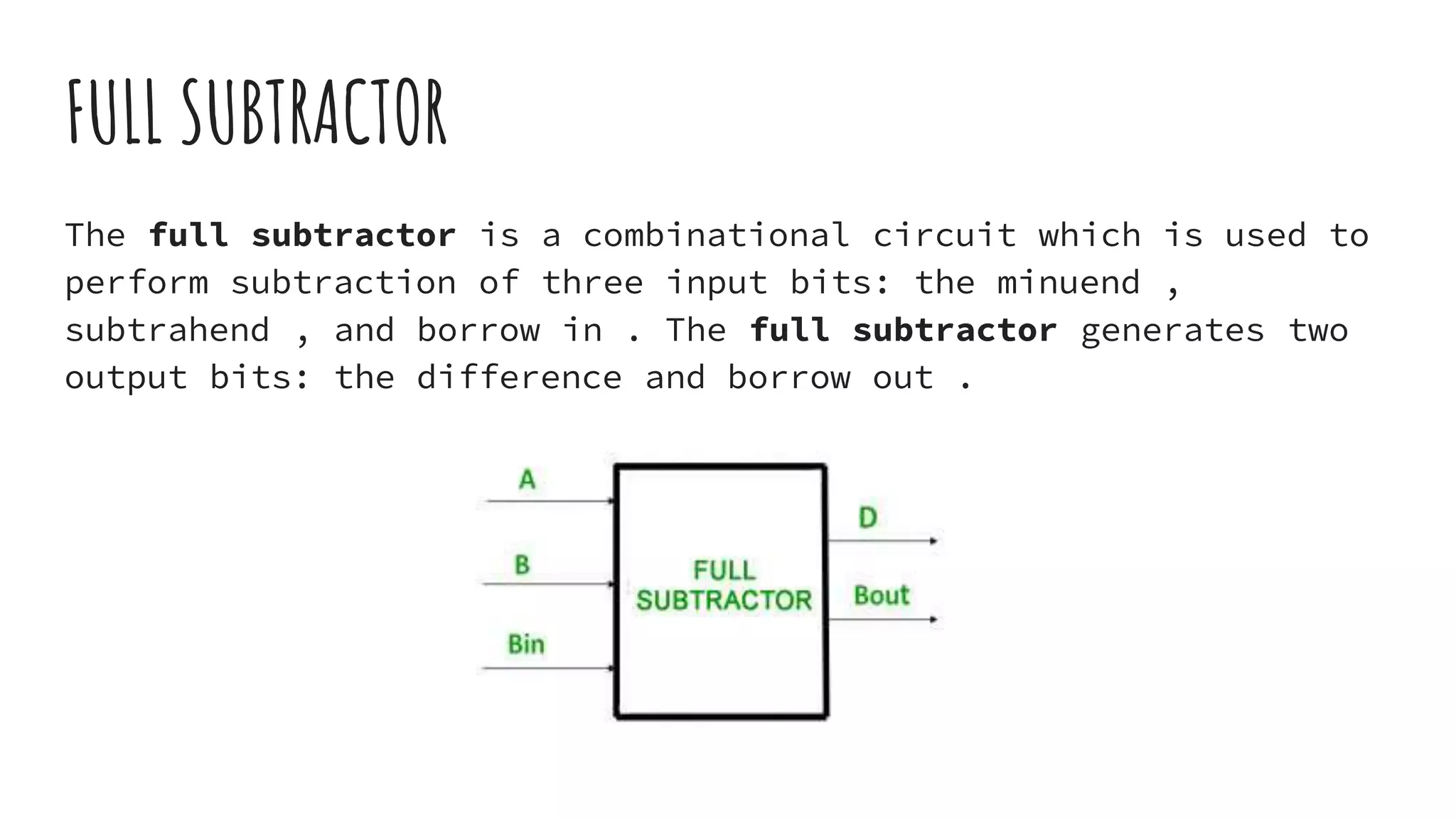

The full subtractor is a combinational circuit which is used to
perform subtraction of three input bits: the minuend ,
subtrahend , and borrow in . The full subtractor generates two
output bits: the difference and borrow out .

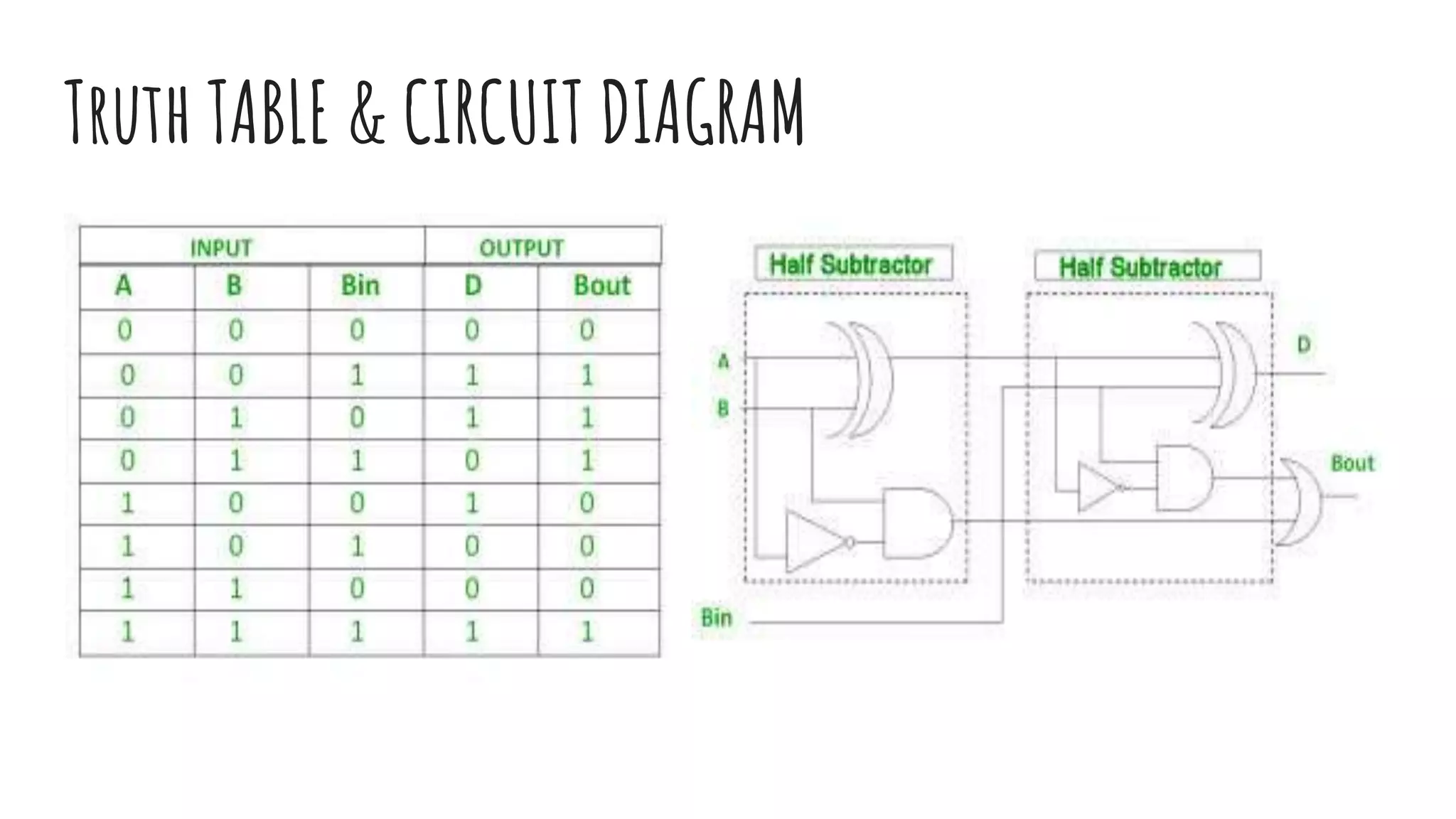

Truth TABLE & CIRCUIT DIAGRAM
Full subtractor using universal gates
Circuit diagram

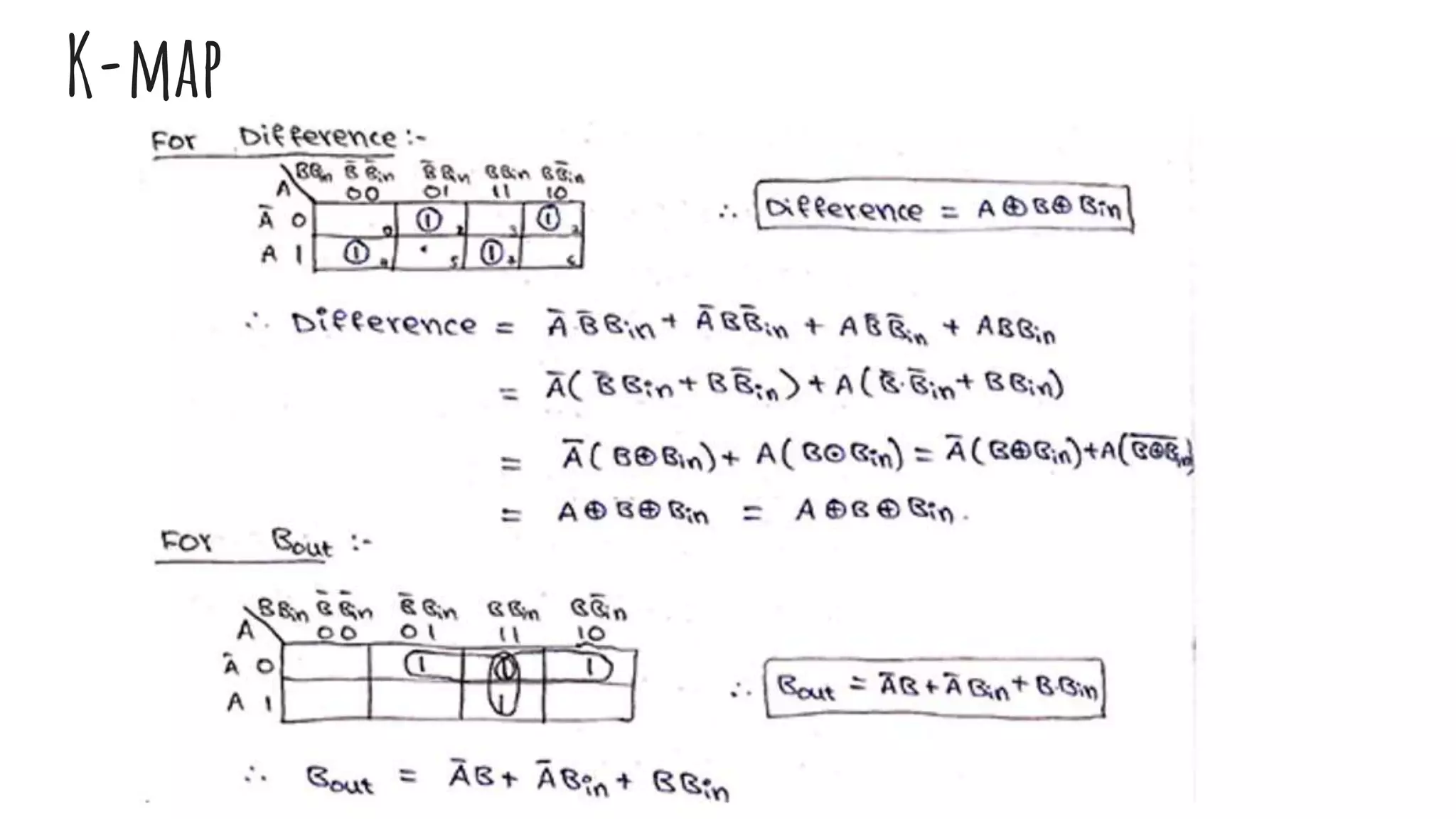

K-map
APPLICATION
● These are generally employed for ALU in computers to subtract as CPU and
GPU for applications of graphics to decrease the circuit difficulty
● Subtractors are mostly used for performing arithmetical functions like
subtraction in electronic calculators and digital devices
● These are also applicable for different microcontrollers for arithmetic
subtraction, timers and program counter (PC)
● Subtractors are used in processors to compute tables, address, etc.
FULL ADDER & FULL SUBTRACTOR.pptx

FULL ADDER & FULL SUBTRACTOR.pptx

  • 1.
    FULL ADDER &FULL SUBTRACTOR using universal gates and circuitverse simulator
  • 2.
    FULL ADDER: A fulladder logic circuit has three inputs A, B and C, which add the three input numbers and generate a carry and sum. The difference between a half-adder and a full-adder is that the full-adder has three inputs and two outputs, whereas half adder has only two inputs and two outputs.
  • 3.
    Truth TABLE &CIRCUIT DIAGRAM
  • 4.
    Full adder usinguniversal gates Circuit diagram
  • 5.
  • 6.
    APPLICATION ● ALU- ArithmeticLogic Unit (one of the circuit is a full adder). ● Ripple carry adder, it adds n-bits at a time. ● carryout Multiplication -the dedicated multiplication circuit uses it. ● For graphics related applications, where there is a very much need of complex computations
  • 7.
    FULL SUBTRACTOR The fullsubtractor is a combinational circuit which is used to perform subtraction of three input bits: the minuend , subtrahend , and borrow in . The full subtractor generates two output bits: the difference and borrow out .
  • 8.
    Truth TABLE &CIRCUIT DIAGRAM
  • 9.
    Full subtractor usinguniversal gates Circuit diagram
  • 10.
  • 11.
    APPLICATION ● These aregenerally employed for ALU in computers to subtract as CPU and GPU for applications of graphics to decrease the circuit difficulty ● Subtractors are mostly used for performing arithmetical functions like subtraction in electronic calculators and digital devices ● These are also applicable for different microcontrollers for arithmetic subtraction, timers and program counter (PC) ● Subtractors are used in processors to compute tables, address, etc.
