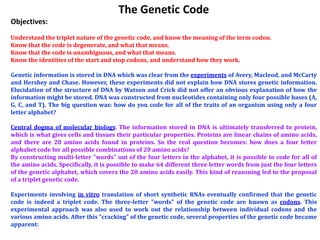

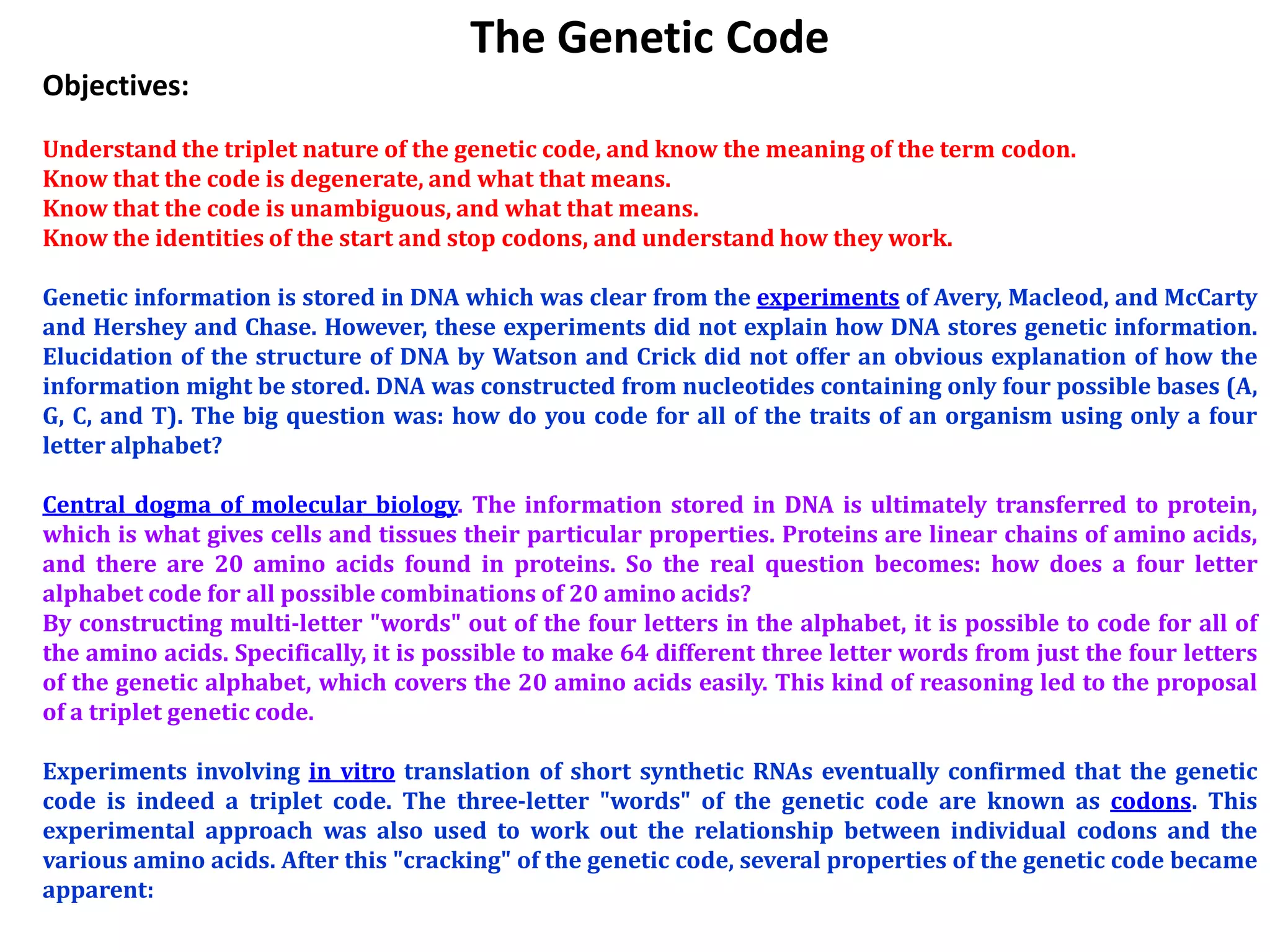

The Genetic Code
Objectives:
Understand the triplet nature of the genetic code, and know the meaning of the term codon.
Know that the code is degenerate, and what that means.
Know that the code is unambiguous, and what that means.
Know the identities of the start and stop codons, and understand how they work.

Genetic information is stored in DNA which was clear from the experiments of Avery, Macleod, and McCarty
and Hershey and Chase. However, these experiments did not explain how DNA stores genetic information.
Elucidation of the structure of DNA by Watson and Crick did not offer an obvious explanation of how the
information might be stored. DNA was constructed from nucleotides containing only four possible bases (A,
G, C, and T). The big question was: how do you code for all of the traits of an organism using only a four
letter alphabet?

Central dogma of molecular biology. The information stored in DNA is ultimately transferred to protein,
which is what gives cells and tissues their particular properties. Proteins are linear chains of amino acids,
and there are 20 amino acids found in proteins. So the real question becomes: how does a four letter
alphabet code for all possible combinations of 20 amino acids?
By constructing multi-letter "words" out of the four letters in the alphabet, it is possible to code for all of
the amino acids. Specifically, it is possible to make 64 different three letter words from just the four letters
of the genetic alphabet, which covers the 20 amino acids easily. This kind of reasoning led to the proposal
of a triplet genetic code.

Experiments involving in vitro translation of short synthetic RNAs eventually confirmed that the genetic
code is indeed a triplet code. The three-letter "words" of the genetic code are known as codons. This
experimental approach was also used to work out the relationship between individual codons and the
various amino acids. After this "cracking" of the genetic code, several properties of the genetic code became
apparent:
The Genetic Code
• The genetic code is composed of nucleotide triplets. In other words, three
nucleotides in mRNA (a codon) specify one amino acid in a protein.
• The code is non-overlapping. This means that successive triplets are read in order.
Each nucleotide is part of only one triplet codon.
• The genetic code is unambiguous. Each codon specifies a particular amino acid, and
only one amino acid. In other words, the codon ACG codes for the amino acid
threonine, and only threonine.
• The genetic code is degenerate. In contrast, each amino acid can be specified by
more than one codon.
• The code is nearly universal. Almost all organisms in nature (from bacteria to
humans) use exactly the same genetic code. The rare exceptions include some
changes in the code in mitochondria, and in a few protozoan species.
•Some of these properties will be examined in more detail.
A Non-overlapping Code The genetic code is read in groups (or "words") of three
nucleotides. After reading one triplet, the "reading frame" shifts over three letters,
not just one or two. In the following example, the code would not be read

GAC ACU CUG UGA

Rather, the code would be read
GAC, UGA, CUG, ACU...
                         GAC UGA CUG ACU...
Degeneracy of the Genetic Code
There are 64 different triplet codons, and only 20 amino acids. Unless some
amino acids are specified by more than one codon, some codons would be
completely meaningless. Therefore, some redundancy is built into the
system: some amino acids are coded for by multiple codons. In some cases,
the redundant codons are related to each other by sequence; for example,
leucine is specified by the codons CUU, CUA, CUC, and CUG. Note how the
codons are the same except for the third nucleotide position. This third
position is known as the "wobble" position of the codon. This is because in
a number of cases, the identity of the base at the third position can wobble,
and the same amino acid will still be specified. This property allows some
protection against mutation - if a mutation occurs at the third position of a
codon, there is a good chance that the amino acid specified in the encoded
protein won't change.
Reading Frames
Because the genetic code is triplet based, there are three possible ways
a particular message can be read, as shown in the following figure:




Clearly, each of these would yield completely different results.
To illustrate the point using an analogy, consider the following set of
letters:     theredfoxatethehotdog

If this string of letters is read three letters at a time, there is one reading
frame that works:     the red fox ate the hot dog

and two reading frames that produce nonsense:
                   t her edf oxa tet heh otd og
                   th ere dfo xat eth eho tdo g
Genetic messages work much the same way: there is one reading frame
that makes sense, and two reading frames that are nonsense
So how is the reading frame chosen for a particular mRNA?

 The answer is found in the genetic code itself. The code contains
signals for starting and stopping translation of the code. The start
codon is AUG. AUG also codes for the amino acid methionine, but the
first AUG encountered signals for translation to begin. The start codon
sets the reading frame: AUG is the first triplet, and subsequent triplets
are read in the same reading frame. Translation continues until a stop
codon is encountered. There are three stop codons: UAA, UAG, and
UGA. To be recognized as a stop codon, the triplet must be in the same
reading frame as the start codon. A reading frame between a start codon
and an in-frame stop codon is called an open reading frame. Let's see
how a sequence would be translated by considering the following
sequence:
5'-GUCCCGUGAUGCCGAGUUGGAGUCGAUAACUCAGAAU-3‘

First, the code is read in a 5' to 3' direction. The first AUG read in that
direction sets the reading frame, and subsequent codons are read in
frame, until the stop codon, UAA, is encountered.
5'-GUCCCGUGAUGCCGAGUUGGAGUCGAUAACUCAGAAU-3
             Met Pro Ser Trp Ser Arg Stop

In this sequence, there are nucleotides at either end that are outside of
the open reading frame. Because they are outside of the open reading
frame, these nucleotides are not used to code for amino acids. This is a
common situation in mRNA molecules. The region at the 5' end that is
not translated is called the 5' untranslated region, or 5' UTR. The region
at the 3' end is called the 3' UTR. These sequences, even though they do
not encode any polypeptide sequence, are not wasted: in eukaryotes
these regions typically contain regulatory sequences that can affect
when a message gets translated, where in a cell an mRNA is localized,
and how long an mRNA lasts in a cell before it is destroyed
Through the experiments it has been proved that the mRNA codons of the
genetic code have the following properties :

The code is triplet : Triplet code consists of 4x4x4 = 66 codons may code
for 20 essential amino acids. The triple code of mRNA has been accepted.

The code is degenerate : There are 64 codons in the genetic code for 20
amino acids of which 4 codons are the signals. Therefore, 61 codons are to
code for amino acids.It means that more than one codon may be coding
for individual amino acid.

The code is non-overlapping : The genetic code is non-overlapping which
means that the same letter does not take part in the formation of more than
one codon.

The code is non-ambiguous : A particular codon will always code for the
same amino acid. It may also be that the same amino acid may be coded
by two different codons. However, when one codon codes for two amino
acids, it is called ambiguous.
1.All 64 codons are used. 61 of them can be assigned to certain
amino acids, the other three are stop signals. One of the codons can
act both as an amino acid codon and as a start signal.

2.The different amino acids have different numbers of accompanying
codons. For some, like Met or Trp exists just one codon, for others
two or four and for some (Ser, Arg) even six. The frequency of the
codons and the frequency of their amino acid is correlated. An
exception is Arg, that has six codons but is underrated regarding its
frequency in proteins.

3.The codons are not assigned randomly. The first two nucleotides of
a codon have a higher informational value than the third one, GUU,
GUC, GUA and GUG, for example, do all encode Val. Codons rich in
UC encode hydrophobic, such rich in AG hydrophilic amino acids.
Many (nearly 30%) of all base substitutions do not change the encoding
 properties, for example:

     UUU > UUC: Phe > Phe

Even if a base substitution causes an amino acid exchange is the
chemical character of the side chain in most cases conserved
(conservative exchanges). The genetic code can consequently be
regarded as extremely conservative:

UUU > UUG: Phe > Leu

CUC > AUC: Leu > Ile

AAA > AGA: Lys+ > Arg+

AAA > GAA: Lys+ > Asp-

Exceptions exist (radical exchanges):

GAG > GUG: Glu- > Val

GAA> GUA: Glu- > Val
The code is comma less : The genetic code is without comma i.e. no
punctuations are required between the two codons. There are no
demarcating signals between two codons. This result is continuous
coding of amino acid without interruption . No codons are left uncoded
which will be like UUUCUCGUAUCC.

The code has polarity : The code has polarity which is read between the
fixed start and stop codons. The start codon is also known as initiation
codon, and stop codon as termination codon.

The code is Universal : Though the genetic code has been worked out by
using in vitro systems of microorganisms, yet there is no doubt of being
its universal for all groups of micro organisms.
Different organisms exhibit different statistical preferences of triplet codon
usage, as well as using the amino acids in widely varying proportions.
See Of URFs and ORFs' by Russell Doolittle, University Science Books
(1986) ISBN 0-935702-54-7.

The Mitochondrial Genetic Code
Human mitochondrial DNA encodes only 22 tRNA species and these are
the only tRNAs used for the translation of mitochondrial mRNAs. This is
accomplished by an extreme form of wobble in which U of the anticodon in
tRNA can pair with any of the four bases in the third codon position of the
mRNA, allowing four codons to be recognized by a single tRNA. In addition
some codons specify different amino acids in mitochondria than in the
universal code.
Differences between the Universal and Mitochondrial Genetic Codes

                                    Human
             Codon Universal code
                                    mitochondrial code
             UGA     Stop            Trp
             AGA     Arg             Stop
             AGG     Arg             Stop
             AUA     Ile             Met
The "Wobble" Hypothesis
Even before the genetic code had been elucidated, Francis Crick
postulated that base pairing of the mRNA codons with the tRNA
anticodons would require precision in the first two nucleotide positions
but not so in the third position (the precise conformation of base pairs,
which refers to the hydrogen bonding between A-T (A-U in RNA) and C-G
pairs is known as Watson-Crick base pairing). The third position, in
general, would need to be only a purine (A or G) or a pyrimidine (C or U).
Crick called this phenomenon "wobble."
This less-than-precise base pairing would require fewer tRNA species.
For example, tRNAGlu could pair with either GAA or GAG codons. In
looking at the codon table, one can see that, for the most part, the first
two letters are important to specify the particular amino acid. The only
exceptions are AUG (Met) and UGG (Trp) which, as indicated above, have
only one codon each.
The Wobble Hypothesis - 1966, Francis Crick
The genetic code is degenerate: one amino acid may be encoded by several
different codons.
unmixed codon families - first two bases always code for the same amino
acid (there's practically no need to read the third base of the codon) e.g. - leu,
val, ser, rpo, thr, ala etc.
mixed codon families - first two bases may be included in the code for more
than one different amino acid or for an amino acid and a start or stop codon.
Crick termed this redundancy "wobble": the code was not rigid, and there
was room for error.
Similar codons code for amino acids with similar physical properties. For
example:

a "U" in the center position always encodes a hydrophobic aa. A mutation at
the two outer positions will not change that.

negatively charged aa's (e.g. aspartate, glutamate) always begin with GA. A
mutation in the 3rd position will not change that.

This is evidence that a triplet code not only allows for more diversity, but
also provides a margin of error in terms of deleterious mutations.
EXCEPTIONS TO THE UNIVERSAL GENETIC CODE

Organism           Normal codon     Usual meaning   New meaning

Mammalian          AGA, AGG         Arginine        Stop codon
mitochondria       AUA              Isoleucine      Methionine
                   UGA              Stop codon      Tryptophan
Drosophila         AGA, AGG         Arginine        Serine
mitochondria       AUA              Isoleucine      Methionine
                   UGA              Stop codon      Tryptophan
Yeast              AUA              Isoleucine      Methionine
mitochondria       UGA              Stop codon      Tryptophan
                   CUA, CUC, CUG,
                                    Leucine         Threonine
                   CUU
Higher plant       UGA              Stop codon      Tryptophan
mitochondria       CGG              Arginine        Tryptophan

Protozoan nuclei   UAA, UAG         Stop codons     Glutamine

Mycoplasma
capricolum         UGA              Stop codon      Tryptophan
bacteria

More Related Content

What's hot

Genetic Code
Genetic CodeGenetic Code
Genetic Code
Balaji Thorat

Genetic code features and character
Genetic code features and characterGenetic code features and character
Genetic code features and character
AnuKiruthika

Eukaryotic transcription
Eukaryotic transcription Eukaryotic transcription
Eukaryotic transcription
Nethravathi Siri

MODELS OF REPLICATION
MODELS OF REPLICATIONMODELS OF REPLICATION
MODELS OF REPLICATION
Kristu Jayanti College

Chromatin Structure and Function
Chromatin Structure and FunctionChromatin Structure and Function
Chromatin Structure and Function
Balkrushna Ghodake

RNA PROCESSING
RNA  PROCESSINGRNA  PROCESSING
RNA PROCESSING
MOHDNADEEM68

Dna replication in prokaryotes
Dna replication in prokaryotesDna replication in prokaryotes
Dna replication in prokaryotes
Fatima Parvez

TRANSCRIPTION IN EUKARYOTES
TRANSCRIPTION IN EUKARYOTES TRANSCRIPTION IN EUKARYOTES
TRANSCRIPTION IN EUKARYOTES
Rachana Choudhary

Genetic code
Genetic codeGenetic code
Genetic code
IMma Khan

Translation and post translational modifications
Translation and post translational modificationsTranslation and post translational modifications
Translation and post translational modifications
BASALINGAPPA GUTTEDAR

transposons
transposonstransposons
transposons
Cheshta Vashishtha

Replication In Eukaryotes and Prokaryotes
Replication In Eukaryotes and ProkaryotesReplication In Eukaryotes and Prokaryotes
Replication In Eukaryotes and Prokaryotes
M Nadeem Akram

Dna replication
Dna replicationDna replication
Dna replication
Muhammadasif909

Rna processing
Rna processingRna processing
Rna processing
IndrajaDoradla

Griffith experiment
Griffith experimentGriffith experiment
Griffith experiment
SiddhantChitale

prokaryotic translation mechinry
prokaryotic translation mechinryprokaryotic translation mechinry
prokaryotic translation mechinry
KAUSHAL SAHU

Translation in prokaryotes
Translation in prokaryotesTranslation in prokaryotes
Translation in prokaryotes
Navdeep Singh

Dna replication in prokaryotes
Dna replication in prokaryotesDna replication in prokaryotes
Dna replication in prokaryotes
Ashish Pratim Mahanta

Genetic code
Genetic codeGenetic code
TRANSLATION
TRANSLATIONTRANSLATION
TRANSLATION
Surender Rawat


What's hot (20)

Genetic Code
Genetic CodeGenetic Code
Genetic Code

Genetic code features and character
Genetic code features and characterGenetic code features and character
Genetic code features and character

Eukaryotic transcription
Eukaryotic transcription Eukaryotic transcription
Eukaryotic transcription

MODELS OF REPLICATION
MODELS OF REPLICATIONMODELS OF REPLICATION
MODELS OF REPLICATION

Chromatin Structure and Function
Chromatin Structure and FunctionChromatin Structure and Function
Chromatin Structure and Function

RNA PROCESSING
RNA  PROCESSINGRNA  PROCESSING
RNA PROCESSING

Dna replication in prokaryotes
Dna replication in prokaryotesDna replication in prokaryotes
Dna replication in prokaryotes

TRANSCRIPTION IN EUKARYOTES
TRANSCRIPTION IN EUKARYOTES TRANSCRIPTION IN EUKARYOTES
TRANSCRIPTION IN EUKARYOTES

Genetic code
Genetic codeGenetic code
Genetic code

Translation and post translational modifications
Translation and post translational modificationsTranslation and post translational modifications
Translation and post translational modifications

transposons
transposonstransposons
transposons

Replication In Eukaryotes and Prokaryotes
Replication In Eukaryotes and ProkaryotesReplication In Eukaryotes and Prokaryotes
Replication In Eukaryotes and Prokaryotes

Dna replication
Dna replicationDna replication
Dna replication

Rna processing
Rna processingRna processing
Rna processing

Griffith experiment
Griffith experimentGriffith experiment
Griffith experiment

prokaryotic translation mechinry
prokaryotic translation mechinryprokaryotic translation mechinry
prokaryotic translation mechinry

Translation in prokaryotes
Translation in prokaryotesTranslation in prokaryotes
Translation in prokaryotes

Dna replication in prokaryotes
Dna replication in prokaryotesDna replication in prokaryotes
Dna replication in prokaryotes

Genetic code
Genetic codeGenetic code
Genetic code

TRANSLATION
TRANSLATIONTRANSLATION
TRANSLATION


Similar to Genetic code2

genetic code.pptx
genetic code.pptxgenetic code.pptx
genetic code.pptx
Nageen3

Concept of genetic code and its properties
Concept of genetic code and its propertiesConcept of genetic code and its properties
Concept of genetic code and its properties
Vishrut Ghare

Genetic code.pptx
Genetic code.pptxGenetic code.pptx
Genetic code.pptx
Aliya Fathima Ilyas

Genetic code and transcription
Genetic code and transcriptionGenetic code and transcription
Genetic code and transcription
Anfal Izaldeen AL KATEEB

Genetic code and transcription
Genetic code and transcriptionGenetic code and transcription
Genetic code and transcription
Anfal Izaldeen AL KATEEB

GENETIC CODE.pptx
GENETIC CODE.pptxGENETIC CODE.pptx
GENETIC CODE.pptx
GRThapliyal

Genetic code
Genetic codeGenetic code
Genetic code
Rinaldo John

Genetic code a presentation on genetic code how a gene express themselves
Genetic code  a presentation on genetic code how a gene express themselvesGenetic code  a presentation on genetic code how a gene express themselves
Genetic code a presentation on genetic code how a gene express themselves
rushinstagoor

Genetic code
Genetic codeGenetic code
Genetic code
SHALINIBARA

Genetic code
Genetic codeGenetic code
Genetic code
IqraSami3

General characteristic of genetic code
General characteristic of genetic codeGeneral characteristic of genetic code
General characteristic of genetic code
Akshay Wakte

Genetic code
Genetic codeGenetic code
Genetic code
Rachana Choudhary

Genetic Information Transfer (Biology for Engineers)
Genetic Information Transfer (Biology for Engineers)Genetic Information Transfer (Biology for Engineers)
Genetic Information Transfer (Biology for Engineers)
Dr. Arun Sharma

Genetic code deciphering propertie and code dictionary.
Genetic code deciphering propertie and code dictionary.Genetic code deciphering propertie and code dictionary.
Genetic code deciphering propertie and code dictionary.
HEENA KAUSAR

Genetic code and its properties
Genetic code and its propertiesGenetic code and its properties
Genetic code and its properties
Anup Bajracharya

Genetic code slide
Genetic code  slideGenetic code  slide
Genetic code slide
Dr.M.SANKARESWARAN

STRUCTURE OF GENE and genetic code in animals ppt
STRUCTURE OF GENE and genetic code in animals pptSTRUCTURE OF GENE and genetic code in animals ppt
STRUCTURE OF GENE and genetic code in animals ppt
IrfanBhat44

Genetic code.pptx
Genetic code.pptxGenetic code.pptx
Genetic code.pptx
ShubhangiJain77

GENETIC CODE Class XII Biology NCERT based.pptx
GENETIC CODE Class XII Biology NCERT based.pptxGENETIC CODE Class XII Biology NCERT based.pptx
GENETIC CODE Class XII Biology NCERT based.pptx
DrUpadhyay


Similar to Genetic code2 (20)

genetic code.pptx
genetic code.pptxgenetic code.pptx
genetic code.pptx

Concept of genetic code and its properties
Concept of genetic code and its propertiesConcept of genetic code and its properties
Concept of genetic code and its properties

Genetic code.pptx
Genetic code.pptxGenetic code.pptx
Genetic code.pptx

Genetic code and transcription
Genetic code and transcriptionGenetic code and transcription
Genetic code and transcription

Genetic code and transcription
Genetic code and transcriptionGenetic code and transcription
Genetic code and transcription

GENETIC CODE.pptx
GENETIC CODE.pptxGENETIC CODE.pptx
GENETIC CODE.pptx

Genetic code
Genetic codeGenetic code
Genetic code

Genitic code
Genitic codeGenitic code
Genitic code

Genetic code a presentation on genetic code how a gene express themselves
Genetic code  a presentation on genetic code how a gene express themselvesGenetic code  a presentation on genetic code how a gene express themselves
Genetic code a presentation on genetic code how a gene express themselves

Genetic code
Genetic codeGenetic code
Genetic code

Genetic code
Genetic codeGenetic code
Genetic code

General characteristic of genetic code
General characteristic of genetic codeGeneral characteristic of genetic code
General characteristic of genetic code

Genetic code
Genetic codeGenetic code
Genetic code

Genetic Information Transfer (Biology for Engineers)
Genetic Information Transfer (Biology for Engineers)Genetic Information Transfer (Biology for Engineers)
Genetic Information Transfer (Biology for Engineers)

Genetic code deciphering propertie and code dictionary.
Genetic code deciphering propertie and code dictionary.Genetic code deciphering propertie and code dictionary.
Genetic code deciphering propertie and code dictionary.

Genetic code and its properties
Genetic code and its propertiesGenetic code and its properties
Genetic code and its properties

Genetic code slide
Genetic code  slideGenetic code  slide
Genetic code slide

STRUCTURE OF GENE and genetic code in animals ppt
STRUCTURE OF GENE and genetic code in animals pptSTRUCTURE OF GENE and genetic code in animals ppt
STRUCTURE OF GENE and genetic code in animals ppt

Genetic code.pptx
Genetic code.pptxGenetic code.pptx
Genetic code.pptx

GENETIC CODE Class XII Biology NCERT based.pptx
GENETIC CODE Class XII Biology NCERT based.pptxGENETIC CODE Class XII Biology NCERT based.pptx
GENETIC CODE Class XII Biology NCERT based.pptx


Recently uploaded

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering
Jemma Hussein Allen

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Tobias Schneck

Knowledge engineering: from people to machines and back
Knowledge engineering: from people to machines and backKnowledge engineering: from people to machines and back
Knowledge engineering: from people to machines and back
Elena Simperl

From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
Product School

When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...
Elena Simperl

How world-class product teams are winning in the AI era by CEO and Founder, P...
How world-class product teams are winning in the AI era by CEO and Founder, P...How world-class product teams are winning in the AI era by CEO and Founder, P...
How world-class product teams are winning in the AI era by CEO and Founder, P...
Product School

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
Product School

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
DanBrown980551

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3
DianaGray10

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales
Laura Byrne

Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Product School

JMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and GrafanaJMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and Grafana
RTTS

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching
Thijs Feryn

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support
Alan Dix

Assuring Contact Center Experiences for Your Customers With ThousandEyes
Assuring Contact Center Experiences for Your Customers With ThousandEyesAssuring Contact Center Experiences for Your Customers With ThousandEyes
Assuring Contact Center Experiences for Your Customers With ThousandEyes
ThousandEyes

UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4
DianaGray10

To Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMsTo Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMs
Paul Groth


Recently uploaded (20)

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024

Knowledge engineering: from people to machines and back
Knowledge engineering: from people to machines and backKnowledge engineering: from people to machines and back
Knowledge engineering: from people to machines and back

From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...

When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...When stars align: studies in data quality, knowledge graphs, and machine lear...
When stars align: studies in data quality, knowledge graphs, and machine lear...

How world-class product teams are winning in the AI era by CEO and Founder, P...
How world-class product teams are winning in the AI era by CEO and Founder, P...How world-class product teams are winning in the AI era by CEO and Founder, P...
How world-class product teams are winning in the AI era by CEO and Founder, P...

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales

Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...

JMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and GrafanaJMeter webinar - integration with InfluxDB and Grafana
JMeter webinar - integration with InfluxDB and Grafana

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support

Assuring Contact Center Experiences for Your Customers With ThousandEyes
Assuring Contact Center Experiences for Your Customers With ThousandEyesAssuring Contact Center Experiences for Your Customers With ThousandEyes
Assuring Contact Center Experiences for Your Customers With ThousandEyes

UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4

To Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMsTo Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMs


Genetic code2

  • 1. The Genetic Code Objectives: Understand the triplet nature of the genetic code, and know the meaning of the term codon. Know that the code is degenerate, and what that means. Know that the code is unambiguous, and what that means. Know the identities of the start and stop codons, and understand how they work. Genetic information is stored in DNA which was clear from the experiments of Avery, Macleod, and McCarty and Hershey and Chase. However, these experiments did not explain how DNA stores genetic information. Elucidation of the structure of DNA by Watson and Crick did not offer an obvious explanation of how the information might be stored. DNA was constructed from nucleotides containing only four possible bases (A, G, C, and T). The big question was: how do you code for all of the traits of an organism using only a four letter alphabet? Central dogma of molecular biology. The information stored in DNA is ultimately transferred to protein, which is what gives cells and tissues their particular properties. Proteins are linear chains of amino acids, and there are 20 amino acids found in proteins. So the real question becomes: how does a four letter alphabet code for all possible combinations of 20 amino acids? By constructing multi-letter "words" out of the four letters in the alphabet, it is possible to code for all of the amino acids. Specifically, it is possible to make 64 different three letter words from just the four letters of the genetic alphabet, which covers the 20 amino acids easily. This kind of reasoning led to the proposal of a triplet genetic code. Experiments involving in vitro translation of short synthetic RNAs eventually confirmed that the genetic code is indeed a triplet code. The three-letter "words" of the genetic code are known as codons. This experimental approach was also used to work out the relationship between individual codons and the various amino acids. After this "cracking" of the genetic code, several properties of the genetic code became apparent:
  • 3. • The genetic code is composed of nucleotide triplets. In other words, three nucleotides in mRNA (a codon) specify one amino acid in a protein. • The code is non-overlapping. This means that successive triplets are read in order. Each nucleotide is part of only one triplet codon. • The genetic code is unambiguous. Each codon specifies a particular amino acid, and only one amino acid. In other words, the codon ACG codes for the amino acid threonine, and only threonine. • The genetic code is degenerate. In contrast, each amino acid can be specified by more than one codon. • The code is nearly universal. Almost all organisms in nature (from bacteria to humans) use exactly the same genetic code. The rare exceptions include some changes in the code in mitochondria, and in a few protozoan species. •Some of these properties will be examined in more detail. A Non-overlapping Code The genetic code is read in groups (or "words") of three nucleotides. After reading one triplet, the "reading frame" shifts over three letters, not just one or two. In the following example, the code would not be read GAC ACU CUG UGA Rather, the code would be read GAC, UGA, CUG, ACU... GAC UGA CUG ACU...
  • 4. Degeneracy of the Genetic Code There are 64 different triplet codons, and only 20 amino acids. Unless some amino acids are specified by more than one codon, some codons would be completely meaningless. Therefore, some redundancy is built into the system: some amino acids are coded for by multiple codons. In some cases, the redundant codons are related to each other by sequence; for example, leucine is specified by the codons CUU, CUA, CUC, and CUG. Note how the codons are the same except for the third nucleotide position. This third position is known as the "wobble" position of the codon. This is because in a number of cases, the identity of the base at the third position can wobble, and the same amino acid will still be specified. This property allows some protection against mutation - if a mutation occurs at the third position of a codon, there is a good chance that the amino acid specified in the encoded protein won't change.
  • 5. Reading Frames Because the genetic code is triplet based, there are three possible ways a particular message can be read, as shown in the following figure: Clearly, each of these would yield completely different results. To illustrate the point using an analogy, consider the following set of letters: theredfoxatethehotdog If this string of letters is read three letters at a time, there is one reading frame that works: the red fox ate the hot dog and two reading frames that produce nonsense: t her edf oxa tet heh otd og th ere dfo xat eth eho tdo g Genetic messages work much the same way: there is one reading frame that makes sense, and two reading frames that are nonsense
  • 6. So how is the reading frame chosen for a particular mRNA? The answer is found in the genetic code itself. The code contains signals for starting and stopping translation of the code. The start codon is AUG. AUG also codes for the amino acid methionine, but the first AUG encountered signals for translation to begin. The start codon sets the reading frame: AUG is the first triplet, and subsequent triplets are read in the same reading frame. Translation continues until a stop codon is encountered. There are three stop codons: UAA, UAG, and UGA. To be recognized as a stop codon, the triplet must be in the same reading frame as the start codon. A reading frame between a start codon and an in-frame stop codon is called an open reading frame. Let's see how a sequence would be translated by considering the following sequence: 5'-GUCCCGUGAUGCCGAGUUGGAGUCGAUAACUCAGAAU-3‘ First, the code is read in a 5' to 3' direction. The first AUG read in that direction sets the reading frame, and subsequent codons are read in frame, until the stop codon, UAA, is encountered.
  • 7. 5'-GUCCCGUGAUGCCGAGUUGGAGUCGAUAACUCAGAAU-3 Met Pro Ser Trp Ser Arg Stop In this sequence, there are nucleotides at either end that are outside of the open reading frame. Because they are outside of the open reading frame, these nucleotides are not used to code for amino acids. This is a common situation in mRNA molecules. The region at the 5' end that is not translated is called the 5' untranslated region, or 5' UTR. The region at the 3' end is called the 3' UTR. These sequences, even though they do not encode any polypeptide sequence, are not wasted: in eukaryotes these regions typically contain regulatory sequences that can affect when a message gets translated, where in a cell an mRNA is localized, and how long an mRNA lasts in a cell before it is destroyed
  • 8.
  • 9. Through the experiments it has been proved that the mRNA codons of the genetic code have the following properties : The code is triplet : Triplet code consists of 4x4x4 = 66 codons may code for 20 essential amino acids. The triple code of mRNA has been accepted. The code is degenerate : There are 64 codons in the genetic code for 20 amino acids of which 4 codons are the signals. Therefore, 61 codons are to code for amino acids.It means that more than one codon may be coding for individual amino acid. The code is non-overlapping : The genetic code is non-overlapping which means that the same letter does not take part in the formation of more than one codon. The code is non-ambiguous : A particular codon will always code for the same amino acid. It may also be that the same amino acid may be coded by two different codons. However, when one codon codes for two amino acids, it is called ambiguous.
  • 10. 1.All 64 codons are used. 61 of them can be assigned to certain amino acids, the other three are stop signals. One of the codons can act both as an amino acid codon and as a start signal. 2.The different amino acids have different numbers of accompanying codons. For some, like Met or Trp exists just one codon, for others two or four and for some (Ser, Arg) even six. The frequency of the codons and the frequency of their amino acid is correlated. An exception is Arg, that has six codons but is underrated regarding its frequency in proteins. 3.The codons are not assigned randomly. The first two nucleotides of a codon have a higher informational value than the third one, GUU, GUC, GUA and GUG, for example, do all encode Val. Codons rich in UC encode hydrophobic, such rich in AG hydrophilic amino acids.
  • 11. Many (nearly 30%) of all base substitutions do not change the encoding properties, for example: UUU > UUC: Phe > Phe Even if a base substitution causes an amino acid exchange is the chemical character of the side chain in most cases conserved (conservative exchanges). The genetic code can consequently be regarded as extremely conservative: UUU > UUG: Phe > Leu CUC > AUC: Leu > Ile AAA > AGA: Lys+ > Arg+ AAA > GAA: Lys+ > Asp- Exceptions exist (radical exchanges): GAG > GUG: Glu- > Val GAA> GUA: Glu- > Val
  • 12. The code is comma less : The genetic code is without comma i.e. no punctuations are required between the two codons. There are no demarcating signals between two codons. This result is continuous coding of amino acid without interruption . No codons are left uncoded which will be like UUUCUCGUAUCC. The code has polarity : The code has polarity which is read between the fixed start and stop codons. The start codon is also known as initiation codon, and stop codon as termination codon. The code is Universal : Though the genetic code has been worked out by using in vitro systems of microorganisms, yet there is no doubt of being its universal for all groups of micro organisms.
  • 13. Different organisms exhibit different statistical preferences of triplet codon usage, as well as using the amino acids in widely varying proportions. See Of URFs and ORFs' by Russell Doolittle, University Science Books (1986) ISBN 0-935702-54-7. The Mitochondrial Genetic Code Human mitochondrial DNA encodes only 22 tRNA species and these are the only tRNAs used for the translation of mitochondrial mRNAs. This is accomplished by an extreme form of wobble in which U of the anticodon in tRNA can pair with any of the four bases in the third codon position of the mRNA, allowing four codons to be recognized by a single tRNA. In addition some codons specify different amino acids in mitochondria than in the universal code. Differences between the Universal and Mitochondrial Genetic Codes Human Codon Universal code mitochondrial code UGA Stop Trp AGA Arg Stop AGG Arg Stop AUA Ile Met
  • 14. The "Wobble" Hypothesis Even before the genetic code had been elucidated, Francis Crick postulated that base pairing of the mRNA codons with the tRNA anticodons would require precision in the first two nucleotide positions but not so in the third position (the precise conformation of base pairs, which refers to the hydrogen bonding between A-T (A-U in RNA) and C-G pairs is known as Watson-Crick base pairing). The third position, in general, would need to be only a purine (A or G) or a pyrimidine (C or U). Crick called this phenomenon "wobble." This less-than-precise base pairing would require fewer tRNA species. For example, tRNAGlu could pair with either GAA or GAG codons. In looking at the codon table, one can see that, for the most part, the first two letters are important to specify the particular amino acid. The only exceptions are AUG (Met) and UGG (Trp) which, as indicated above, have only one codon each.
  • 15. The Wobble Hypothesis - 1966, Francis Crick The genetic code is degenerate: one amino acid may be encoded by several different codons. unmixed codon families - first two bases always code for the same amino acid (there's practically no need to read the third base of the codon) e.g. - leu, val, ser, rpo, thr, ala etc. mixed codon families - first two bases may be included in the code for more than one different amino acid or for an amino acid and a start or stop codon.
  • 16. Crick termed this redundancy "wobble": the code was not rigid, and there was room for error. Similar codons code for amino acids with similar physical properties. For example: a "U" in the center position always encodes a hydrophobic aa. A mutation at the two outer positions will not change that. negatively charged aa's (e.g. aspartate, glutamate) always begin with GA. A mutation in the 3rd position will not change that. This is evidence that a triplet code not only allows for more diversity, but also provides a margin of error in terms of deleterious mutations.
  • 17.
  • 18. EXCEPTIONS TO THE UNIVERSAL GENETIC CODE Organism Normal codon Usual meaning New meaning Mammalian AGA, AGG Arginine Stop codon mitochondria AUA Isoleucine Methionine UGA Stop codon Tryptophan Drosophila AGA, AGG Arginine Serine mitochondria AUA Isoleucine Methionine UGA Stop codon Tryptophan Yeast AUA Isoleucine Methionine mitochondria UGA Stop codon Tryptophan CUA, CUC, CUG, Leucine Threonine CUU Higher plant UGA Stop codon Tryptophan mitochondria CGG Arginine Tryptophan Protozoan nuclei UAA, UAG Stop codons Glutamine Mycoplasma capricolum UGA Stop codon Tryptophan bacteria
