This document discusses graphics and game development in Java ME. It covers the class hierarchy for graphics elements, using the Canvas class to draw graphics, handling events, and using the Game API including the GameCanvas class, layers, sprites and animation. Key topics include drawing with the Graphics object, coordinates, repainting, handling input events, implementing a game loop to control frame rate, and using the LayerManager and Sprite classes to implement layers and sprite animation.

1. Crea%ng
Games
for
Asha
-­‐
Pla3orm
Jussi
Pohjolainen
TAMK
University
of
Applied
Sciences

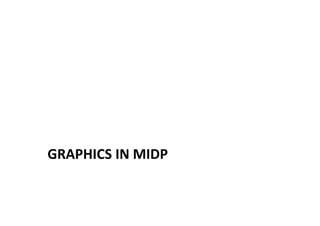

2. GRAPHICS
IN
MIDP

3. Class
Hierarchy
javax.microedi9on.lcdui
javax.microedi9on.lcdui.game
Displayable
Canvas
Screen
Alert
List
Form
TextBox
GameCanvas

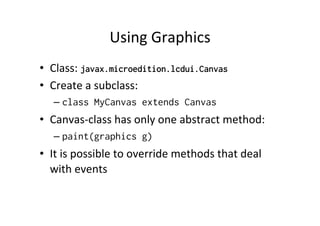

4. Using
Graphics
• Class:
javax.microedition.lcdui.Canvas
• Create
a
subclass:
– class MyCanvas extends Canvas
• Canvas-­‐class
has
only
one
abstract
method:
– paint(graphics g)
• It
is
possible
to
override
methods
that
deal
with
events

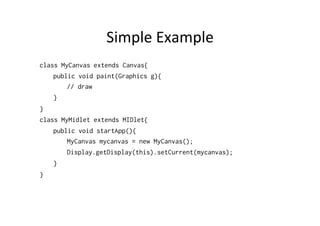

5. Simple
Example
class MyCanvas extends Canvas {
public void paint(Graphics g){
// draw
}
}
class MyMidlet extends MIDlet{
public void startApp(){
MyCanvas mycanvas = new MyCanvas();
Display.getDisplay(this).setCurrent(mycanvas);
}
}

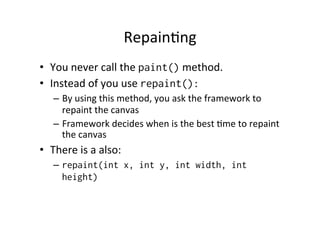

6. Repain%ng
• You
never
call
the
paint()
method.
• Instead
of
you
use
repaint():
– By
using
this
method,
you
ask
the
framework
to
repaint
the
canvas
– Framework
decides
when
is
the
best
%me
to
repaint
the
canvas
• There
is
a
also:
– repaint(int x, int y, int width, int
height)

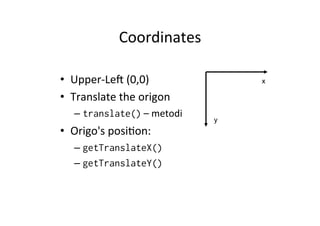

7. Coordinates
• Upper-­‐LeS
(0,0)
• Translate
the
origon
– translate()
–
metodi
• Origo's
posi%on:
– getTranslateX()
– getTranslateY()
x"
y"

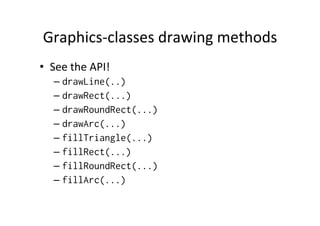

8. Graphics-­‐classes
drawing
methods
• See
the
API!
– drawLine(..)
– drawRect(...)
– drawRoundRect(...)
– drawArc(...)
– fillTriangle(...)
– fillRect(...)
– fillRoundRect(...)
– fillArc(...)

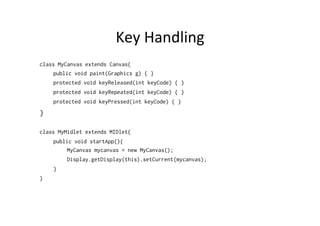

9. Key
Handling
class MyCanvas extends Canvas{
public void paint(Graphics g) { }
protected void keyReleased(int keyCode) { }
protected void keyRepeated(int keyCode) { }
protected void keyPressed(int keyCode) { }
}
class MyMidlet extends MIDlet{
public void startApp(){
MyCanvas mycanvas = new MyCanvas();
Display.getDisplay(this).setCurrent(mycanvas);
}
}

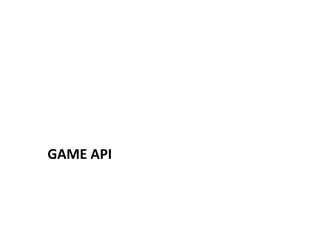

10. GAME
API

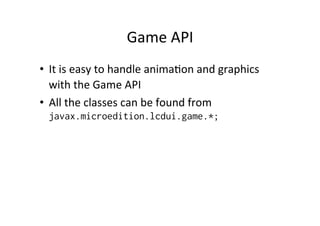

11. Game
API
• It
is
easy
to
handle
anima%on
and
graphics
with
the
Game
API
• All
the
classes
can
be
found
from
javax.microedition.lcdui.game.*;

12. GameCanvas
• Using
the
tradi%onal
Canvas-­‐class
– You
inherit
the
Canvas
and
override
paint-­‐method.
– repaint()
– Event
handling
is
done
by
using
methods
like
keypressed,
keyreleased
• Using
the
GameCanvas-­‐class
– You
inherit
the
GameCanvas-­‐class
– There
is
no
need
for
paint-­‐method,
you
can
draw
anywhere!
– flushGraphics()
– Two
ways
of
doing
event
handling!

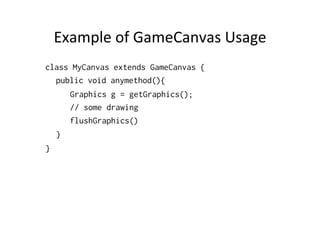

13. Example
of
GameCanvas
Usage
class MyCanvas extends GameCanvas {
public void anymethod(){
Graphics g = getGraphics();
// some drawing
flushGraphics()
}
}

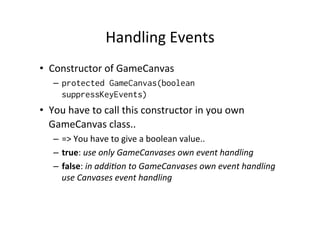

14. Handling
Events
• Constructor
of
GameCanvas
– protected GameCanvas(boolean
suppressKeyEvents)
• You
have
to
call
this
constructor
in
you
own
GameCanvas
class..
– =>
You
have
to
give
a
boolean
value..
– true:
use
only
GameCanvases
own
event
handling
– false:
in
addi4on
to
GameCanvases
own
event
handling
use
Canvases
event
handling

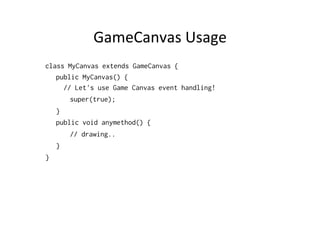

15. GameCanvas
Usage
class MyCanvas extends GameCanvas {
public MyCanvas() {
// Let's use Game Canvas event handling!
super(true);
}
public void anymethod() {
// drawing..
}
}

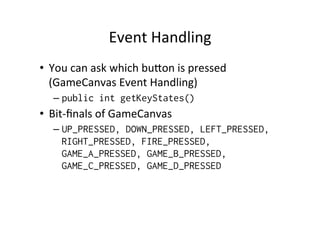

16. Event
Handling
• You
can
ask
which
bu]on
is
pressed
(GameCanvas
Event
Handling)
– public int getKeyStates()
• Bit-­‐finals
of
GameCanvas
– UP_PRESSED, DOWN_PRESSED, LEFT_PRESSED,
RIGHT_PRESSED, FIRE_PRESSED,
GAME_A_PRESSED, GAME_B_PRESSED,
GAME_C_PRESSED, GAME_D_PRESSED

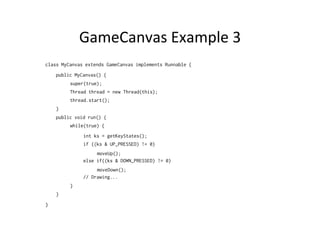

17. GameCanvas
Example
3
class MyCanvas extends GameCanvas implements Runnable {
public MyCanvas() {
super(true);
Thread thread = new Thread(this);
thread.start();
}
public void run() {
while(true) {
int ks = getKeyStates();
if ((ks & UP_PRESSED) != 0)
moveUp();
else if((ks & DOWN_PRESSED) != 0)
moveDown();
// Drawing...
}
}
}

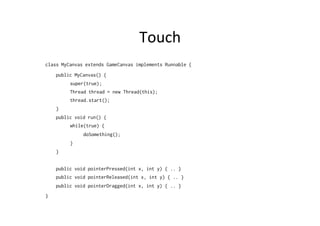

18. Touch
class MyCanvas extends GameCanvas implements Runnable {
public MyCanvas() {
super(true);
Thread thread = new Thread(this);
thread.start();
}
public void run() {
while(true) {
doSomething();
}
}
public void pointerPressed(int x, int y) { .. }
public void pointerReleased(int x, int y) { .. }
public void pointerDragged(int x, int y) { .. }
}

19. GameLoop
and
FPS
class MyCanvas extends GameCanvas implements Runnable {
public MyCanvas() {
super(true);
Thread thread = new Thread(this);
thread.start();
}
public void run() {
// THIS WILL LOOP AS FAST AS IT CAN!
while(true) {
doSomething();
}
}
}

20. GameLoop
and
FPS
class MyCanvas extends GameCanvas implements Runnable {
private int fps = 1;
public MyCanvas() {
super(true);
Thread thread = new Thread(this);
thread.start();
}
public void run() {
// Now iteration is 1 frames per sec
while(true) {
doSomething();
try {
Thread.sleep(1000 / fps);
} catch (InterruptedException e) { .. }
}
}
}

21. GameLoop
and
FPS
class MyCanvas extends GameCanvas implements Runnable {
private int fps = 30;
public MyCanvas() {
super(true);
Thread thread = new Thread(this);
thread.start();
}
public void run() {
// Problem, what if the mobile phone can keep up with the pace?
while(true) {
// This takes second…
doSomethingHeavyAndMagical3DStuff();
try {
Thread.sleep(1000 / fps); // and after the second, we will wait more!
} catch (InterruptedException e) { .. }
}
}
}

22. class MyCanvas extends GameCanvas implements Runnable {
private int fps = 30;
public
long
long
long
long
void run() {
time = 0;
elapsedTime = 0;
interval = 0;
sleepTime = 0;
while(true) {
// Get current time
time = System.currentTimeMillis();
doSomethingHeavyAndMagical3DStuff();
// Elapsed time
elapsedTime = System.currentTimeMillis() - time;
// Do we need to sleep?
sleepTime = 0;
// If elapsed time was 100 millisecs, then
//
1000 / 30 - 100 = -66,66. Sleep is not needed (= 0)!
// If elapsed time was 1 millisecs, then sleepTime:
//
1000 / 30 - 1 = 32,333.
// If elapsed time was 20 millisecs, then sleepTime:
//
1000 / 30 - 20 = 13,333..
interval = (int) ((1000.0 / fps) - elapsedTime);
if(interval > 0) {
sleepTime = interval;
}
try {
}
}
}
Thread.sleep(sleepTime);
} catch (InterruptedException e) { }

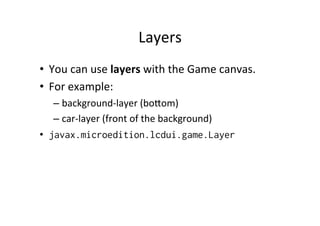

23. Layers
• You
can
use
layers
with
the
Game
canvas.
• For
example:
– background-­‐layer
(bo]om)
– car-­‐layer
(front
of
the
background)
• javax.microedition.lcdui.game.Layer

24. Layer-­‐class
• Layer
class
is
abstract
and
it
has
two
concrete
subclasses:
1)
TiledLayer,
2)
Sprite
• Layer's
methods
– int getX()
– int getY()
– int getWidth()
– int getHeight()
– void setPosition(..)
– move(..)

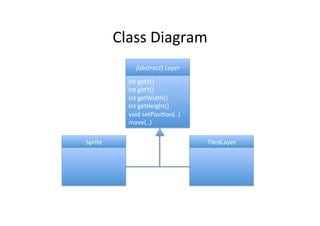

25. Class
Diagram
{abstract}
Layer
int
getX()
int
getY()
int
getWidth()
int
getHeight()
void
setPosi%on(..)
move(..)
Sprite
TiledLayer

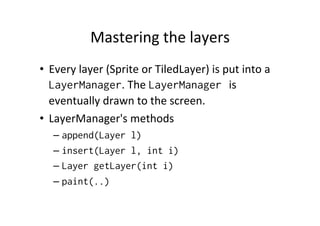

26. Mastering
the
layers
• Every
layer
(Sprite
or
TiledLayer)
is
put
into
a
LayerManager.
The
LayerManager is
eventually
drawn
to
the
screen.
• LayerManager's
methods
– append(Layer l)
– insert(Layer l, int i)
– Layer getLayer(int i)
– paint(..)

27. Class
Diagram
LayerManager
{abstract}
Layer
append(Layer
l)
insert(Layer
l,
int
i)
Layer
getLayer(int
i)
paint(..)
int
getX()
*
int
getY()
int
getWidth()
int
getHeight()
void
setPosi%on(..)
move(..)
Sprite
TiledLayer

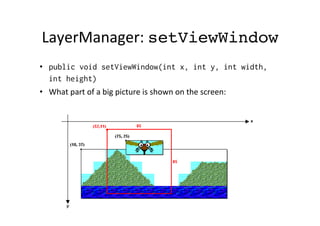

28. LayerManager:
setViewWindow!
• public void setViewWindow(int x, int y, int width,
int height)
• What
part
of
a
big
is
shown
on
the
screen:

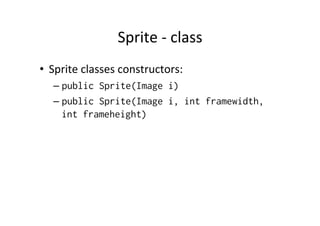

29. Sprite
-­‐
class
• Sprite
classes
constructors:
– public Sprite(Image i)
– public Sprite(Image i, int framewidth,
int frameheight)

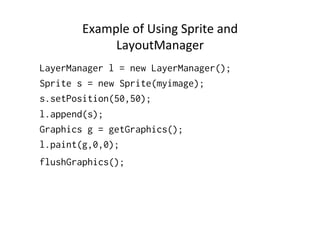

30. Example
of
Using
Sprite
and
LayoutManager
LayerManager l = new LayerManager();
Sprite s = new Sprite(myimage);
s.setPosition(50,50);
l.append(s);
Graphics g = getGraphics();
l.paint(g,0,0);
flushGraphics();

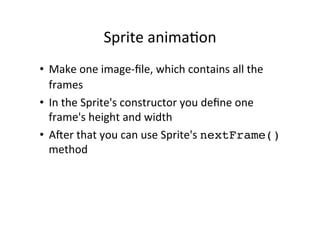

31. Sprite
anima%on
• Make
one
image-­‐file,
which
contains
all
the
frames
• In
the
Sprite's
constructor
you
define
one
frame's
height
and
width
• ASer
that
you
can
use
Sprite's
nextFrame()
method

32. Example
Sprite x = new Sprite(image, 540/18, 30);
layermanager.append(x);
.
.
x.nextFrame();

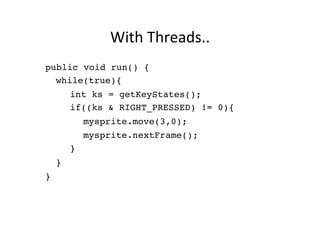

33. With
Threads..
public void run() {!
while(true){!
int ks = getKeyStates();!
if((ks & RIGHT_PRESSED) != 0){!
mysprite.move(3,0);!
mysprite.nextFrame();!
}!
}!
}!

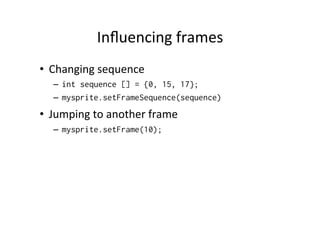

34. Influencing
frames
• Changing
sequence
– int sequence [] = {0, 15, 17};
– mysprite.setFrameSequence(sequence)
• Jumping
to
another
frame
– mysprite.setFrame(10);

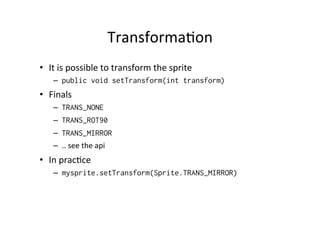

35. Transforma%on
• It
is
possible
to
transform
the
sprite
– public void setTransform(int transform)
• Finals
– TRANS_NONE
– TRANS_ROT90
– TRANS_MIRROR
– ..
see
the
api
• In
prac%ce
– mysprite.setTransform(Sprite.TRANS_MIRROR)

36. Reference
Pixel
Reference pixel"

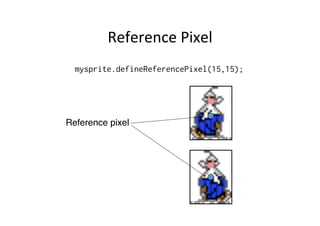

37. Reference
Pixel
mysprite.defineReferencePixel(15,15);
Reference pixel"

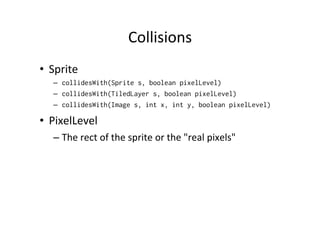

38. Collisions
• Sprite
– collidesWith(Sprite s, boolean pixelLevel)
– collidesWith(TiledLayer s, boolean pixelLevel)
– collidesWith(Image s, int x, int y, boolean pixelLevel)
• PixelLevel
– The
rect
of
the
sprite
or
the
"real
pixels"

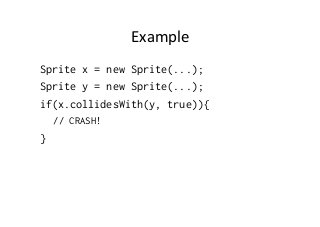

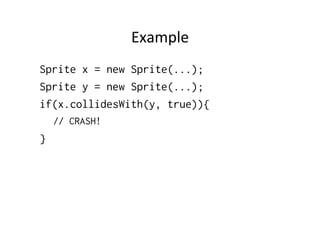

39. Example
Sprite x = new Sprite(...);
Sprite y = new Sprite(...);
if(x.collidesWith(y, true)){
// CRASH!
}

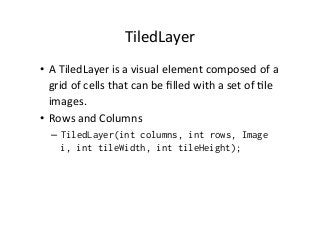

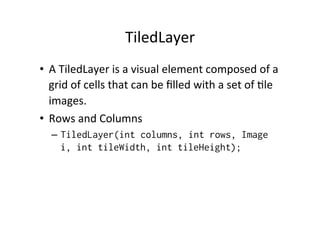

40. TiledLayer
• A
TiledLayer
is
a
visual
element
composed
of
a
grid
of
cells
that
can
be
filled
with
a
set
of
%le
images.
• Rows
and
Columns
– TiledLayer(int columns, int rows, Image
i, int tileWidth, int tileHeight);

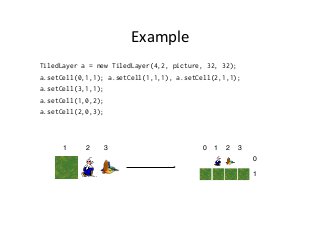

41. Example
TiledLayer a = new TiledLayer(4,2, picture, 32, 32);
a.setCell(0,1,1); a.setCell(1,1,1), a.setCell(2,1,1);
a.setCell(3,1,1);
a.setCell(1,0,2);
a.setCell(2,0,3);
1"
2"
3"
0" 1" 2" 3"
0"
1"
