1. Java™Platform, Micro EditionPart 5 – Game API1Andreas Jakl, 2009v3.0a – 19 April 2009

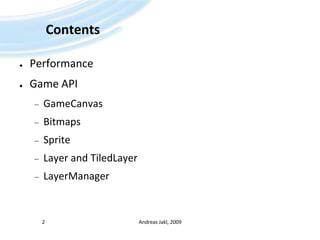

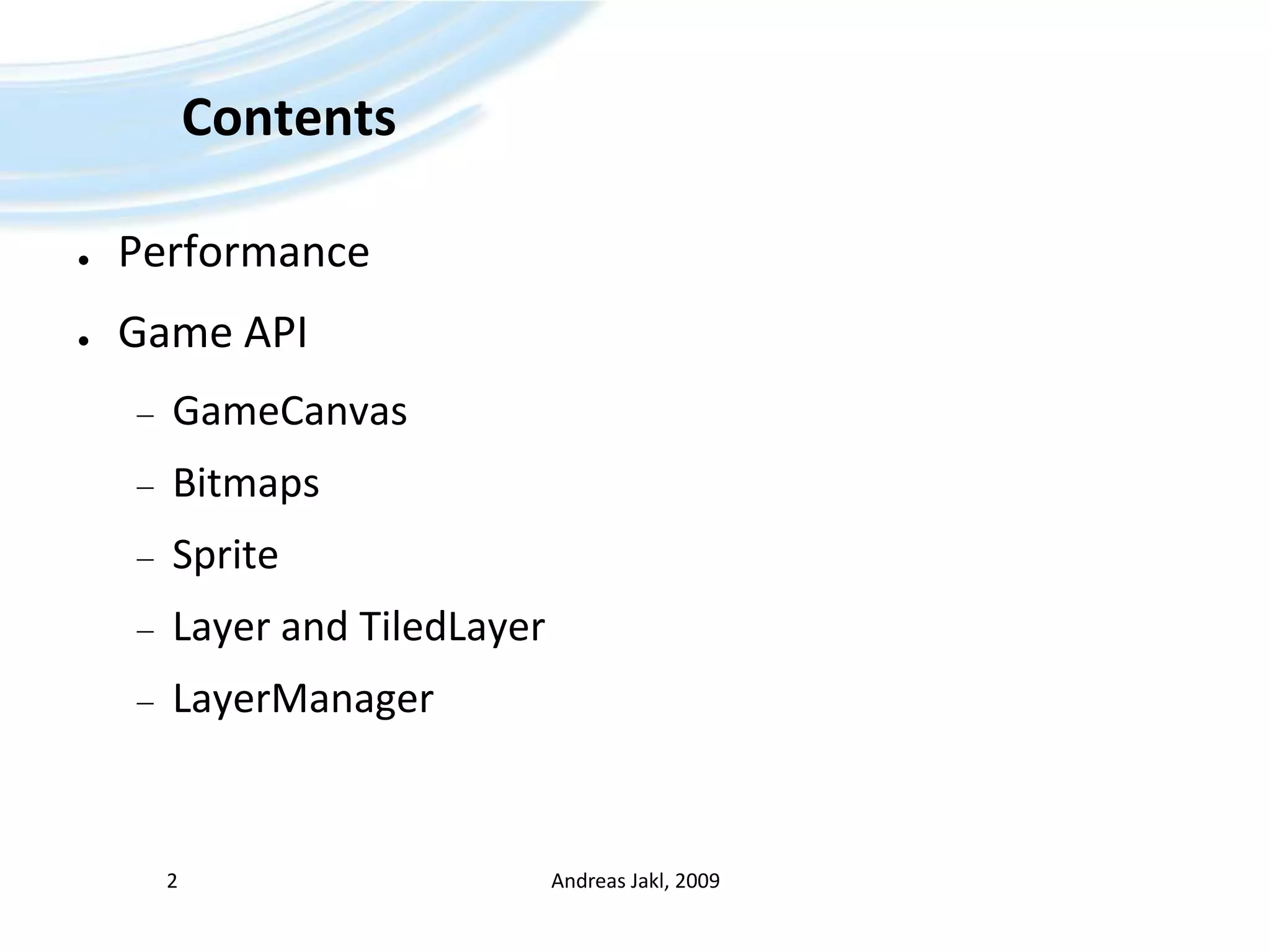

2. ContentsPerformanceGame APIGameCanvasBitmapsSpriteLayer andTiledLayerLayerManagerAndreas Jakl, 20092

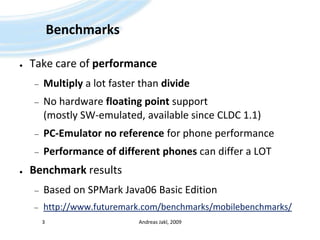

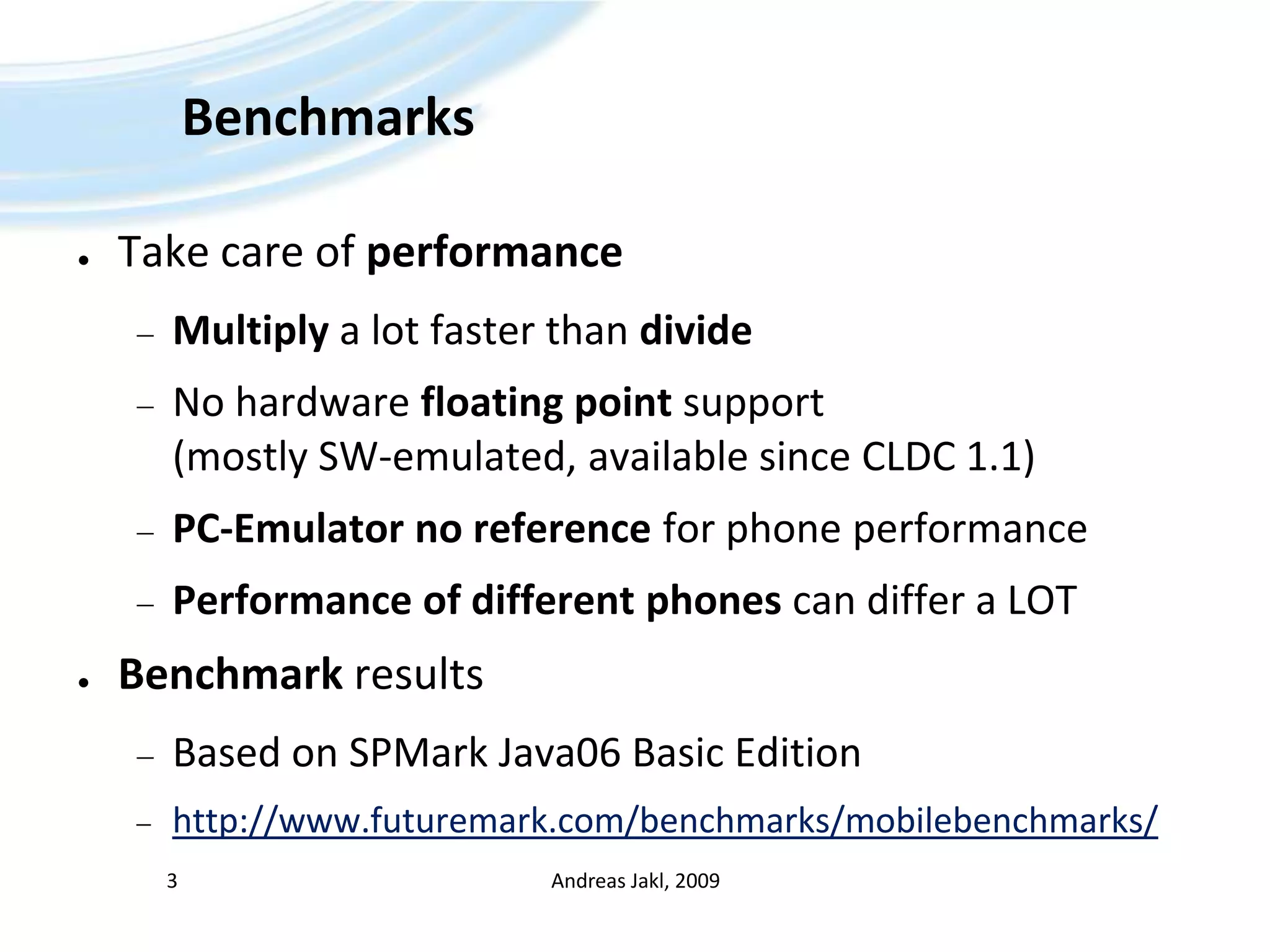

3. BenchmarksTake care of performanceMultiply a lot faster than divideNo hardware floating point support (mostly SW-emulated, available since CLDC 1.1)PC-Emulator no reference for phone performancePerformance of different phones can differ a LOTBenchmark resultsBased on SPMark Java06 Basic Editionhttp://www.futuremark.com/benchmarks/mobilebenchmarks/Andreas Jakl, 20093

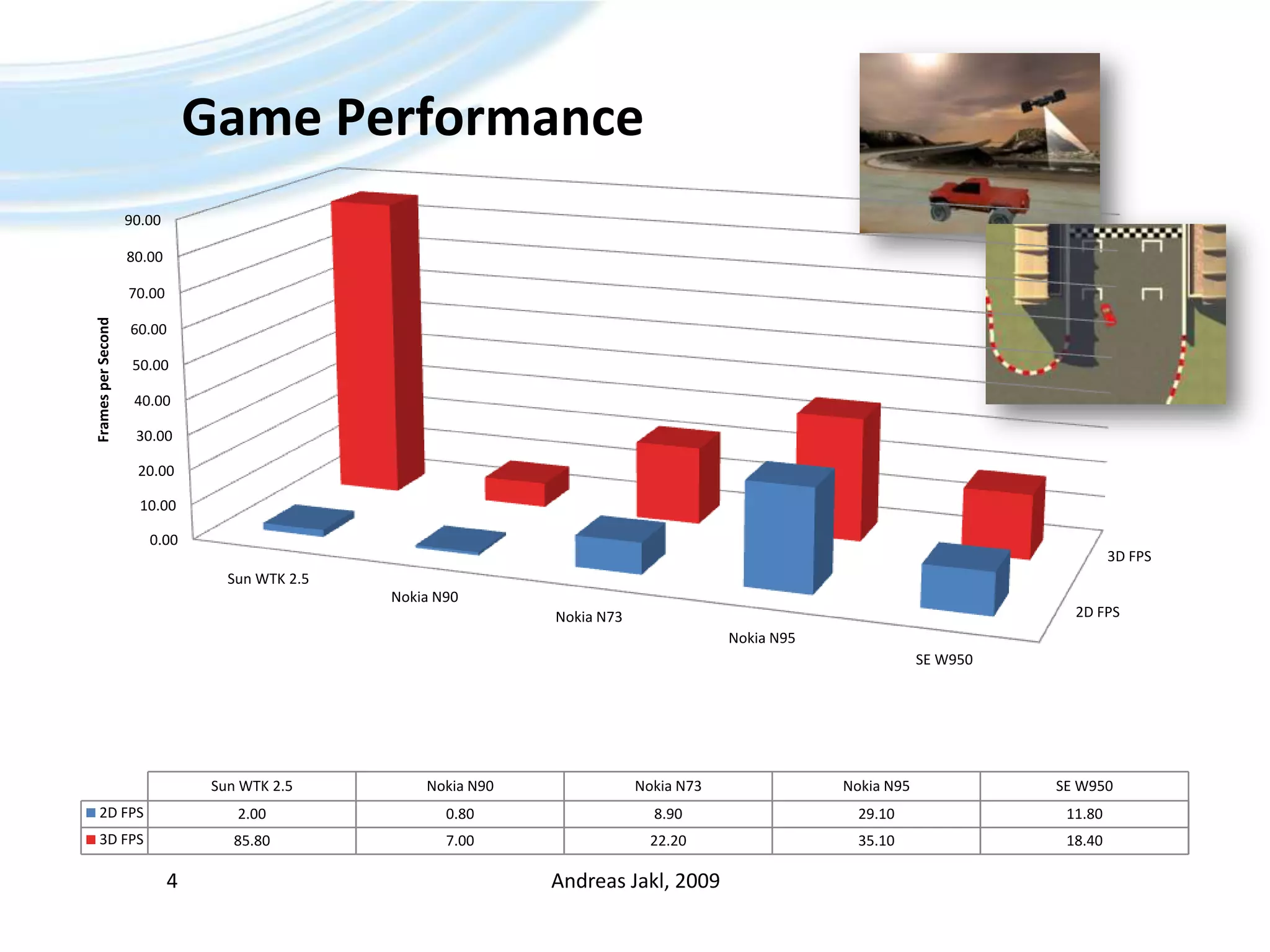

4. Game PerformanceAndreas Jakl, 20094

5. Calculation PerformanceAndreas Jakl, 20095

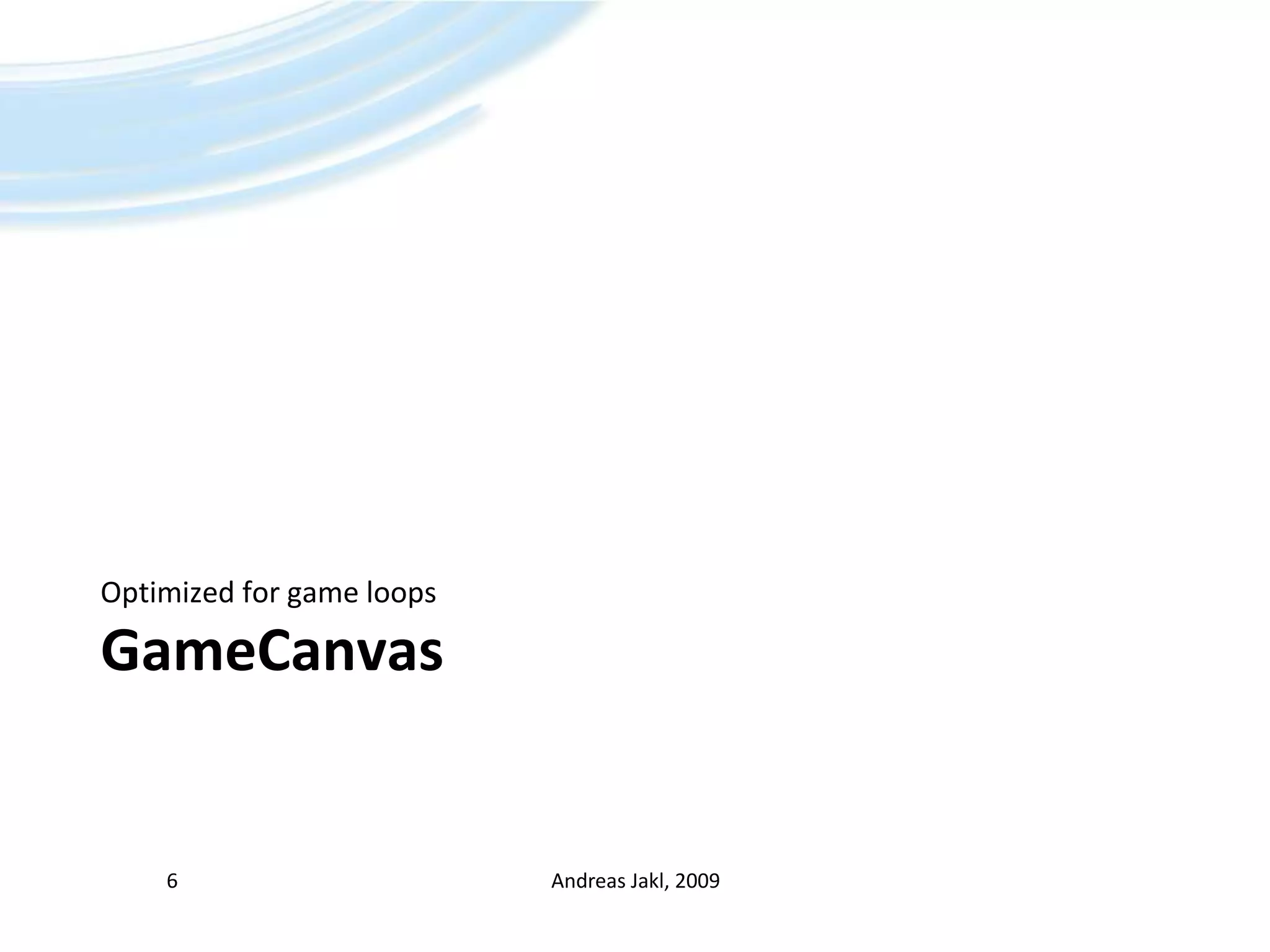

6. GameCanvasOptimized for game loopsAndreas Jakl, 20096

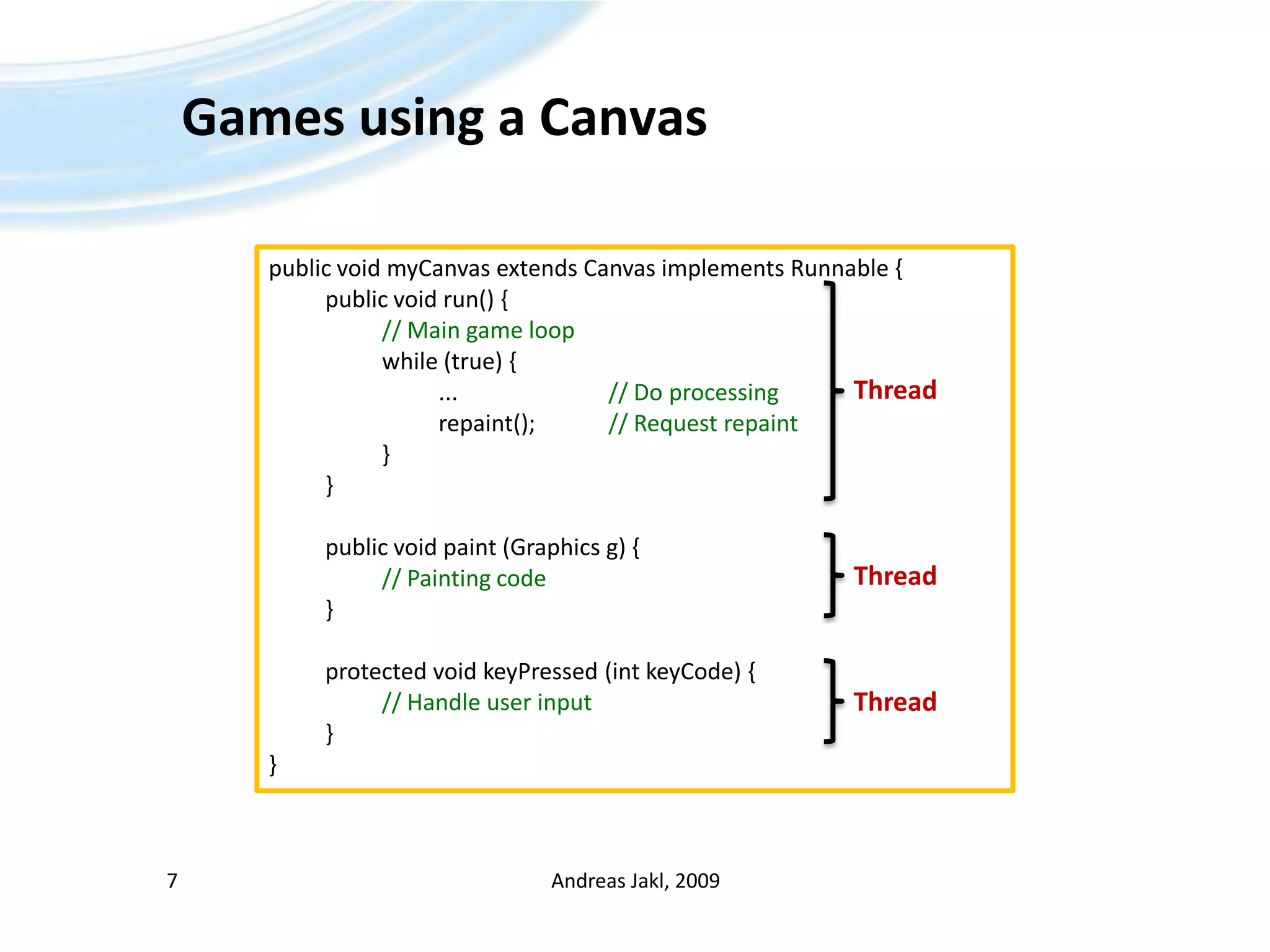

7. Games using a CanvasAndreas Jakl, 20097public void myCanvas extends Canvas implements Runnable { public void run() {// Main game loop while (true) { ... // Do processing repaint(); // Request repaint } } public void paint (Graphics g) {// Painting code } protected void keyPressed (intkeyCode) {// Handle user input }}ThreadThreadThread

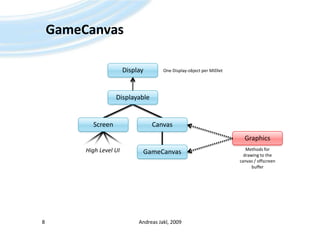

8. GameCanvasAndreas Jakl, 20098DisplayOne Display-object per MIDletDisplayableCanvasScreenGraphicsMethodsfordrawingtothecanvas / offscreenbufferGameCanvasHigh Level UI

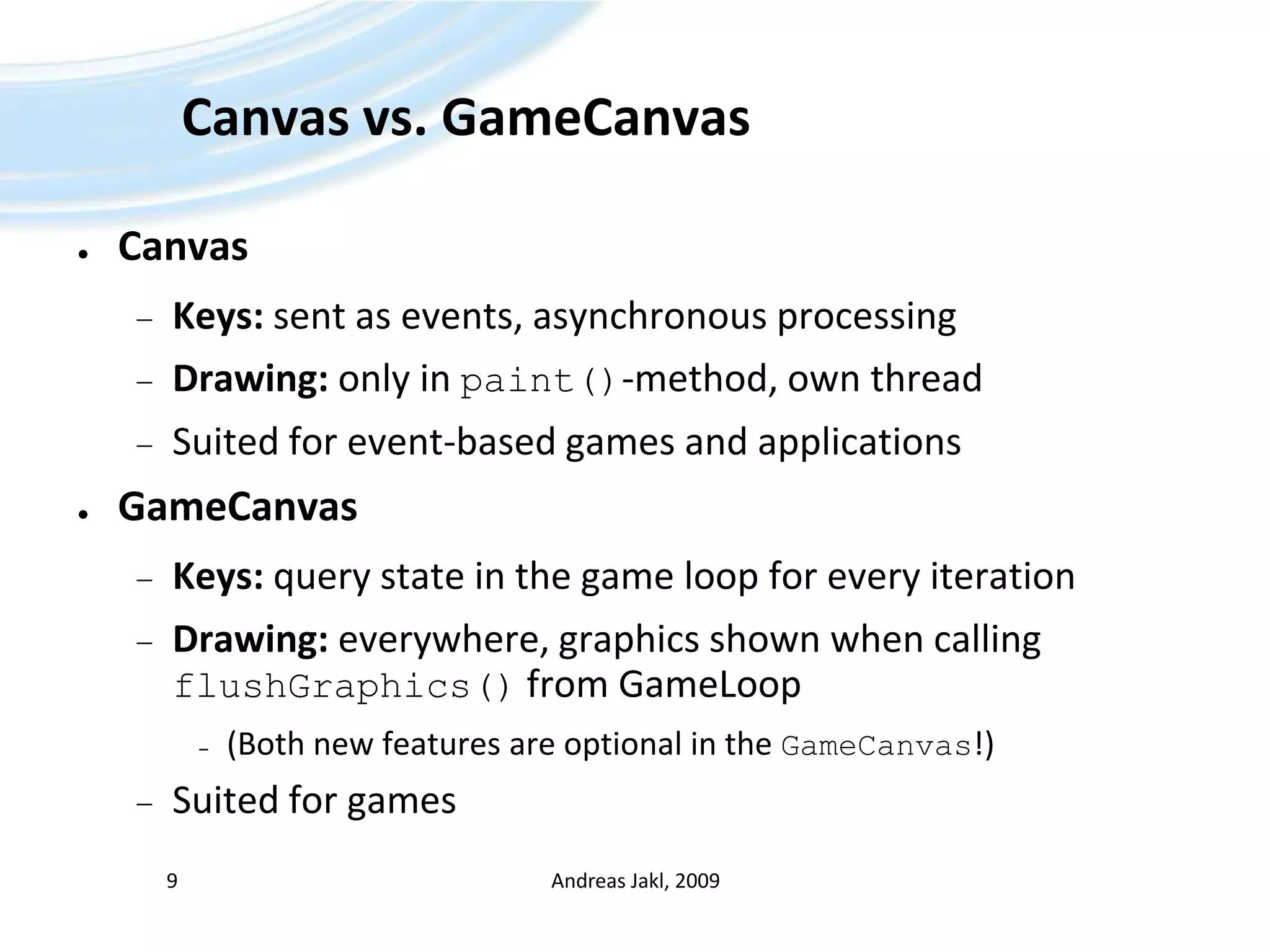

9. Canvas vs. GameCanvasCanvasKeys: sent as events, asynchronous processingDrawing: only in paint()-method, own threadSuited for event-based games and applicationsGameCanvasKeys: query state in the game loop for every iterationDrawing: everywhere, graphics shown when calling flushGraphics() from GameLoop(Both new features are optional in the GameCanvas!)Suited for gamesAndreas Jakl, 20099

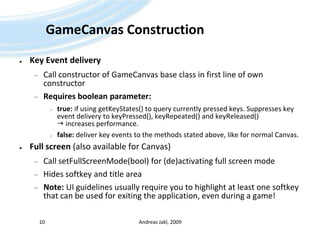

10. GameCanvas ConstructionKey Event deliveryCall constructor of GameCanvas base class in first line of own constructorRequires boolean parameter:true: if using getKeyStates() to query currently pressed keys. Suppresses key event delivery to keyPressed(), keyRepeated() and keyReleased()  increases performance.false: deliver key events to the methods stated above, like for normal Canvas.Full screen (also available for Canvas)Call setFullScreenMode(bool) for (de)activating full screen modeHides softkey and title areaNote: UI guidelines usually require you to highlight at least one softkey that can be used for exiting the application, even during a game!Andreas Jakl, 200910

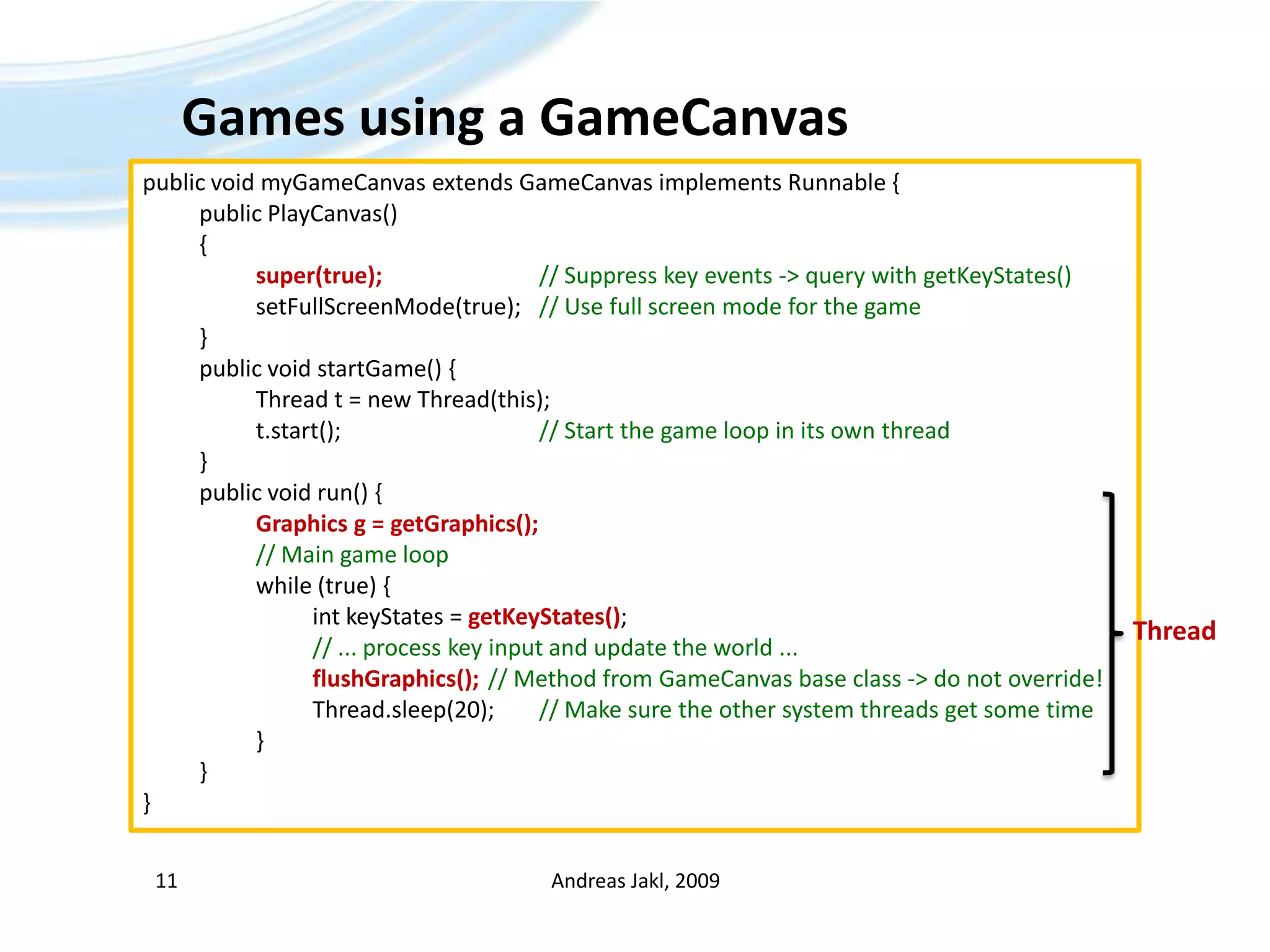

11. Games using a GameCanvasAndreas Jakl, 200911public void myGameCanvas extends GameCanvas implements Runnable { public PlayCanvas() {super(true);// Suppress key events -> query with getKeyStates()setFullScreenMode(true); // Use full screen mode for the game } public void startGame() { Thread t = new Thread(this);t.start(); // Start the game loop in its own thread } public void run() { Graphics g = getGraphics(); // Main game loop while (true) {intkeyStates = getKeyStates();// ... process key input and update the world ...flushGraphics(); // Method from GameCanvas base class -> do not override!Thread.sleep(20); // Make sure the other system threads get some time } }}Thread

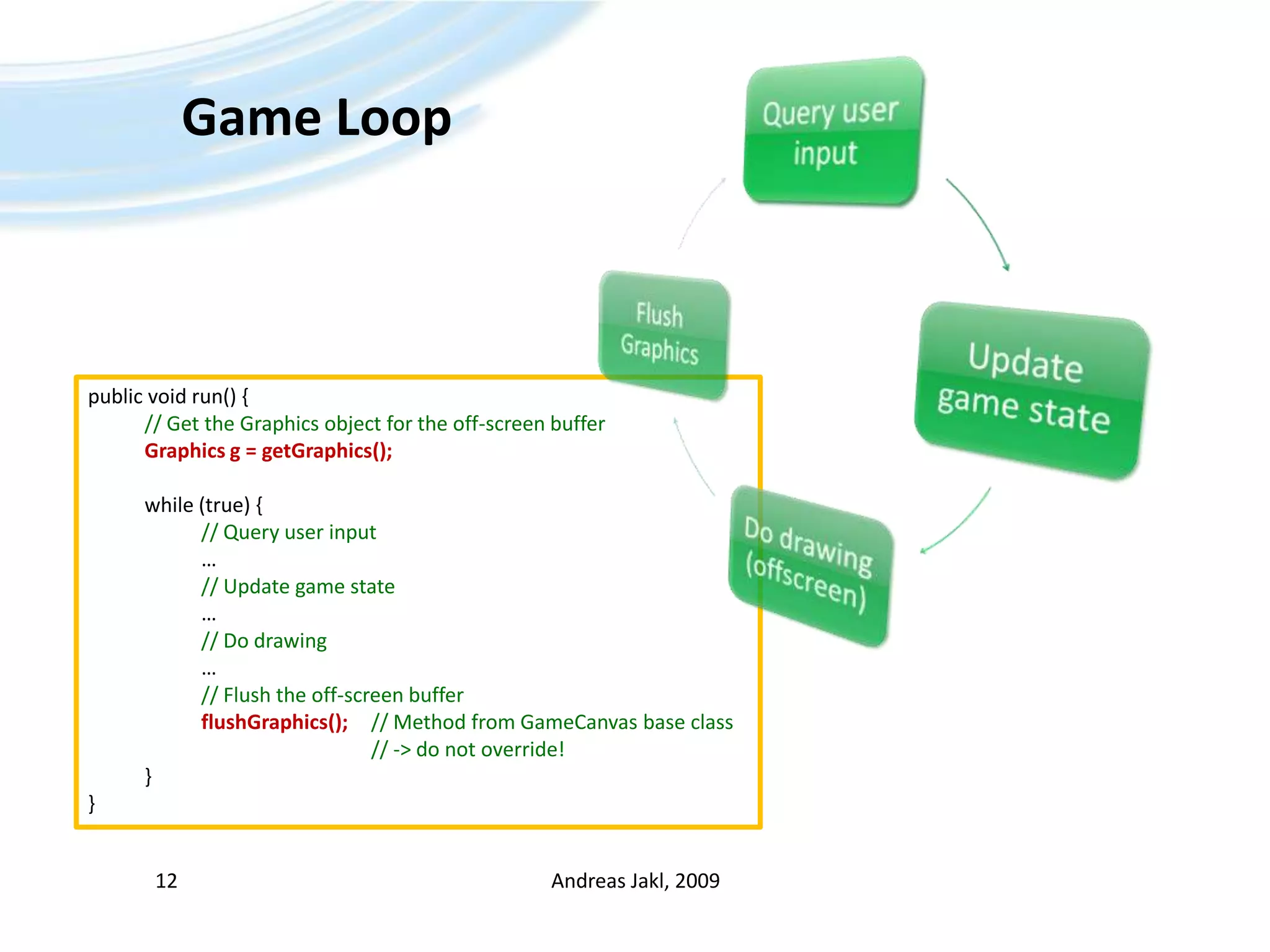

12. Game LoopAndreas Jakl, 200912public void run() {// Get the Graphics object for the off-screen bufferGraphics g = getGraphics(); while (true) {// Query user input …// Update game state …// Do drawing …// Flush the off-screen bufferflushGraphics(); // Method from GameCanvas base class // -> do not override! }}

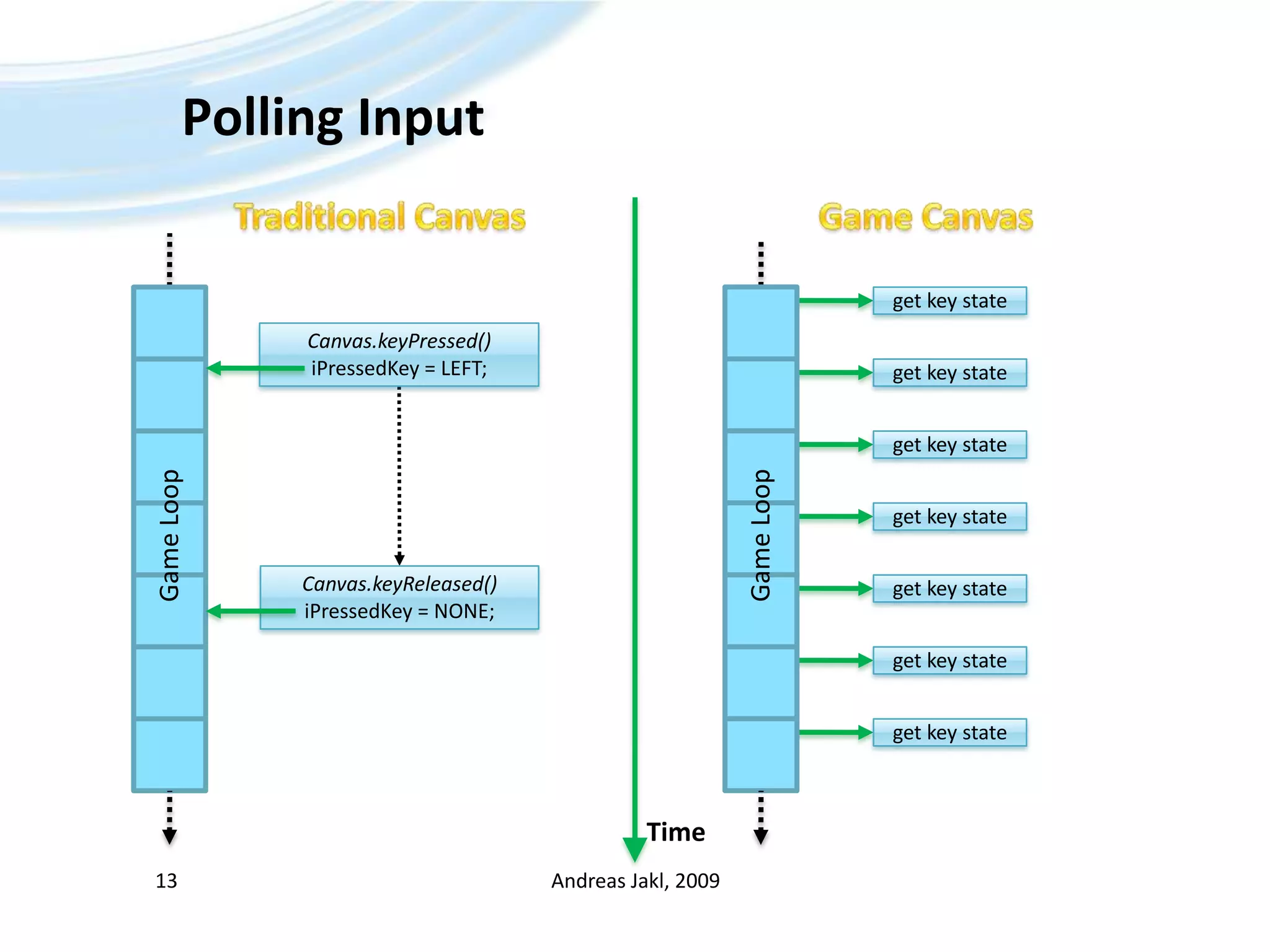

13. Polling InputAndreas Jakl, 200913Traditional CanvasGame Canvasget key stateCanvas.keyPressed()iPressedKey = LEFT;get key stateget key stateGame LoopGame Loopget key stateCanvas.keyReleased()iPressedKey = NONE;get key stateget key stateget key stateTime

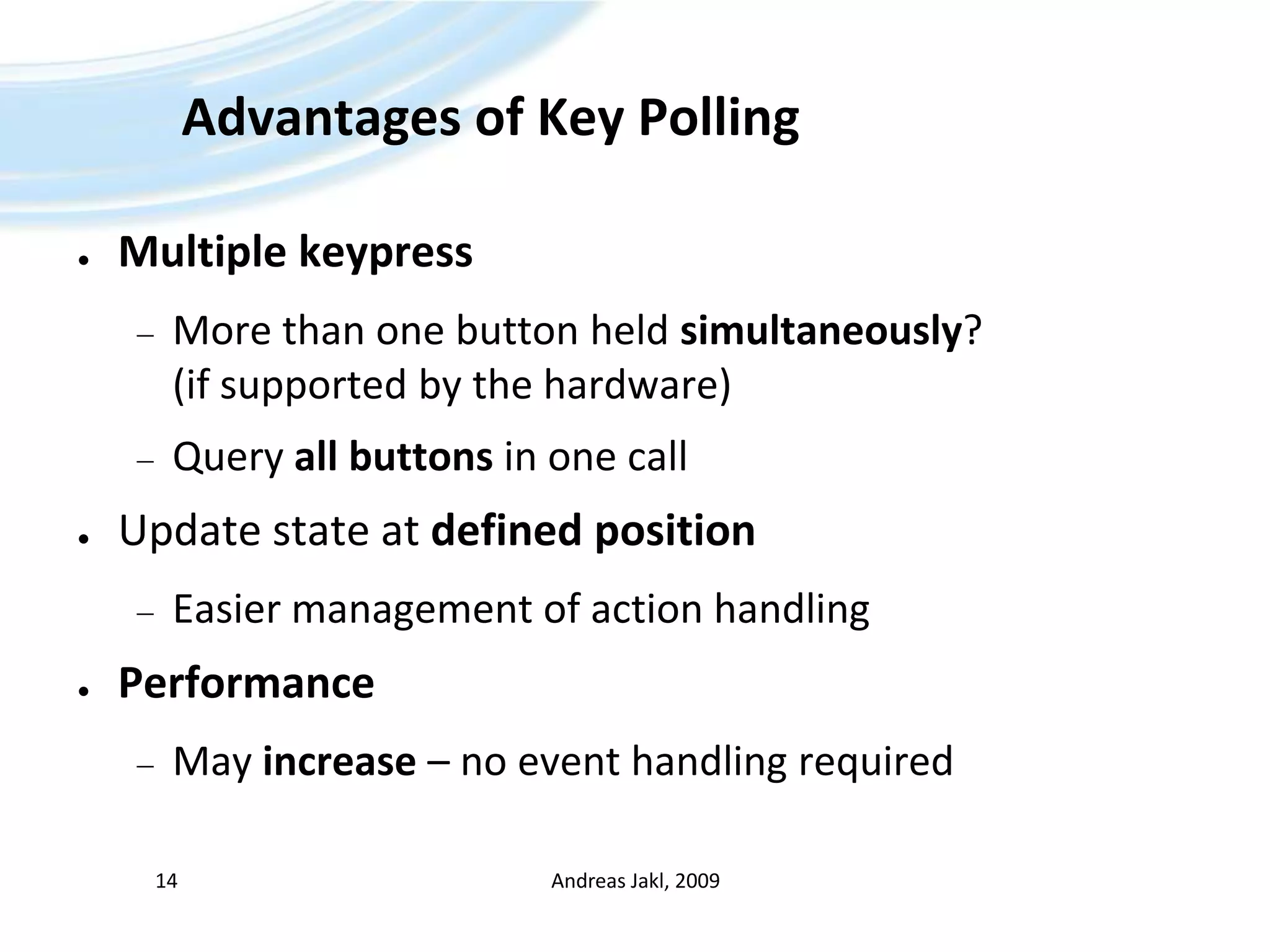

14. Advantages of Key PollingMultiple keypressMore than one button held simultaneously? (if supported by the hardware)Query all buttons in one callUpdate state at defined positionEasier management of action handlingPerformanceMay increase – no event handling requiredAndreas Jakl, 200914

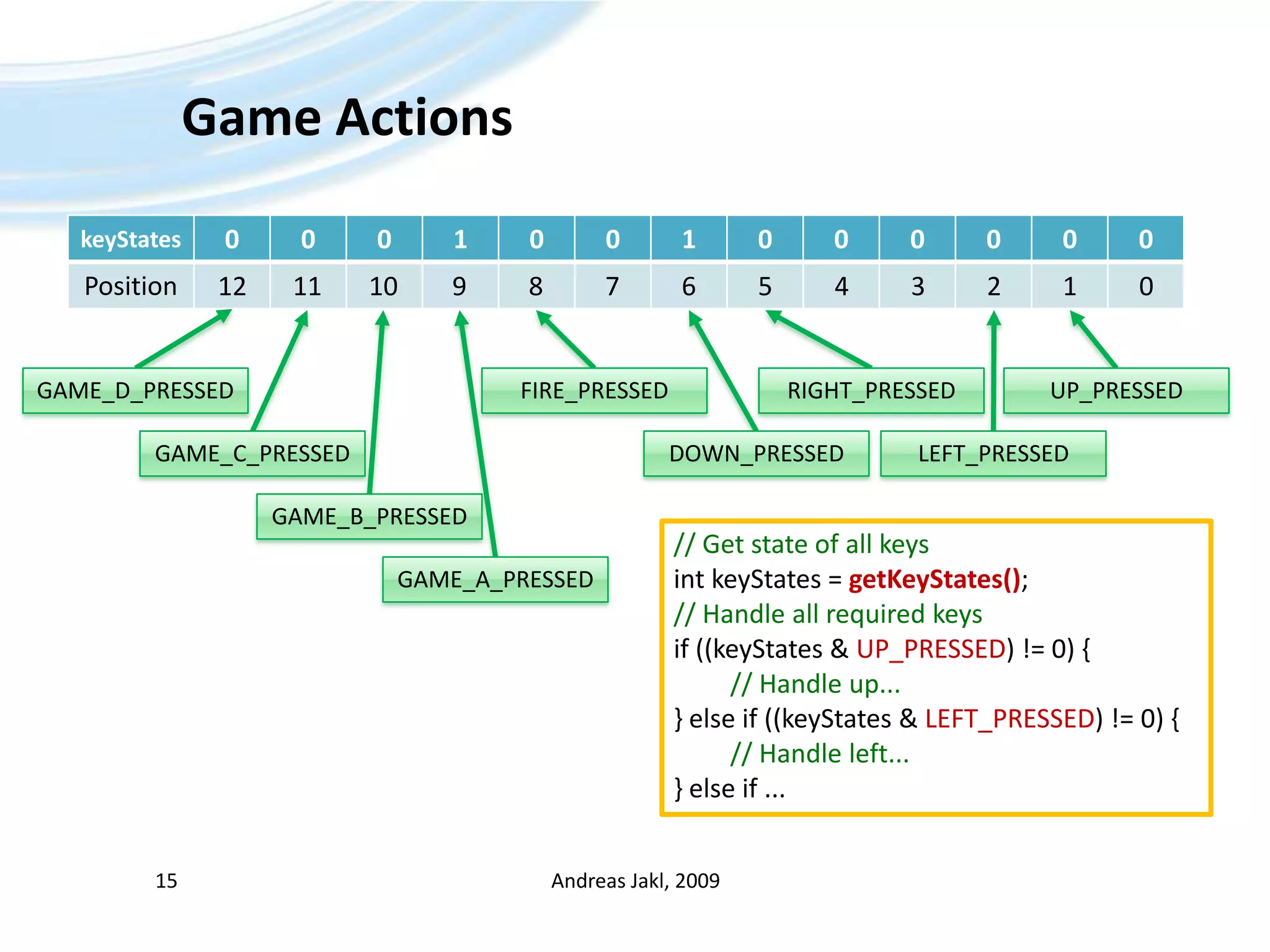

15. Game ActionsAndreas Jakl, 2009150123456789101112GAME_D_PRESSEDUP_PRESSEDRIGHT_PRESSEDFIRE_PRESSEDGAME_C_PRESSEDDOWN_PRESSEDLEFT_PRESSEDGAME_B_PRESSED// Get state of all keysintkeyStates = getKeyStates();// Handle all required keysif ((keyStates & UP_PRESSED) != 0) { // Handle up...} else if ((keyStates & LEFT_PRESSED) != 0) {// Handle left...} else if ...GAME_A_PRESSED

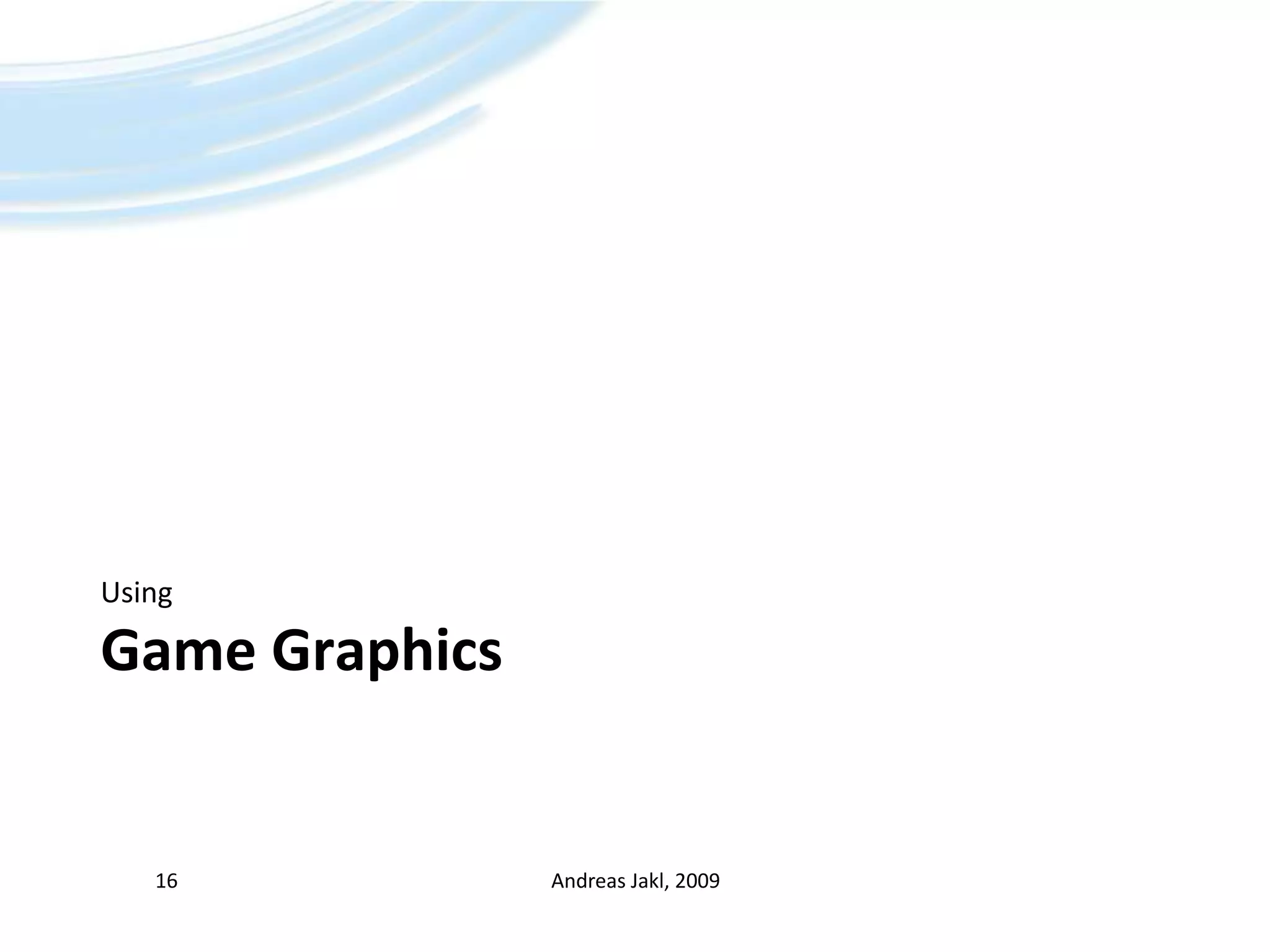

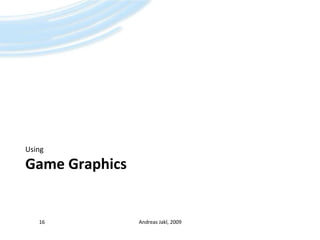

16. Game GraphicsUsingAndreas Jakl, 200916

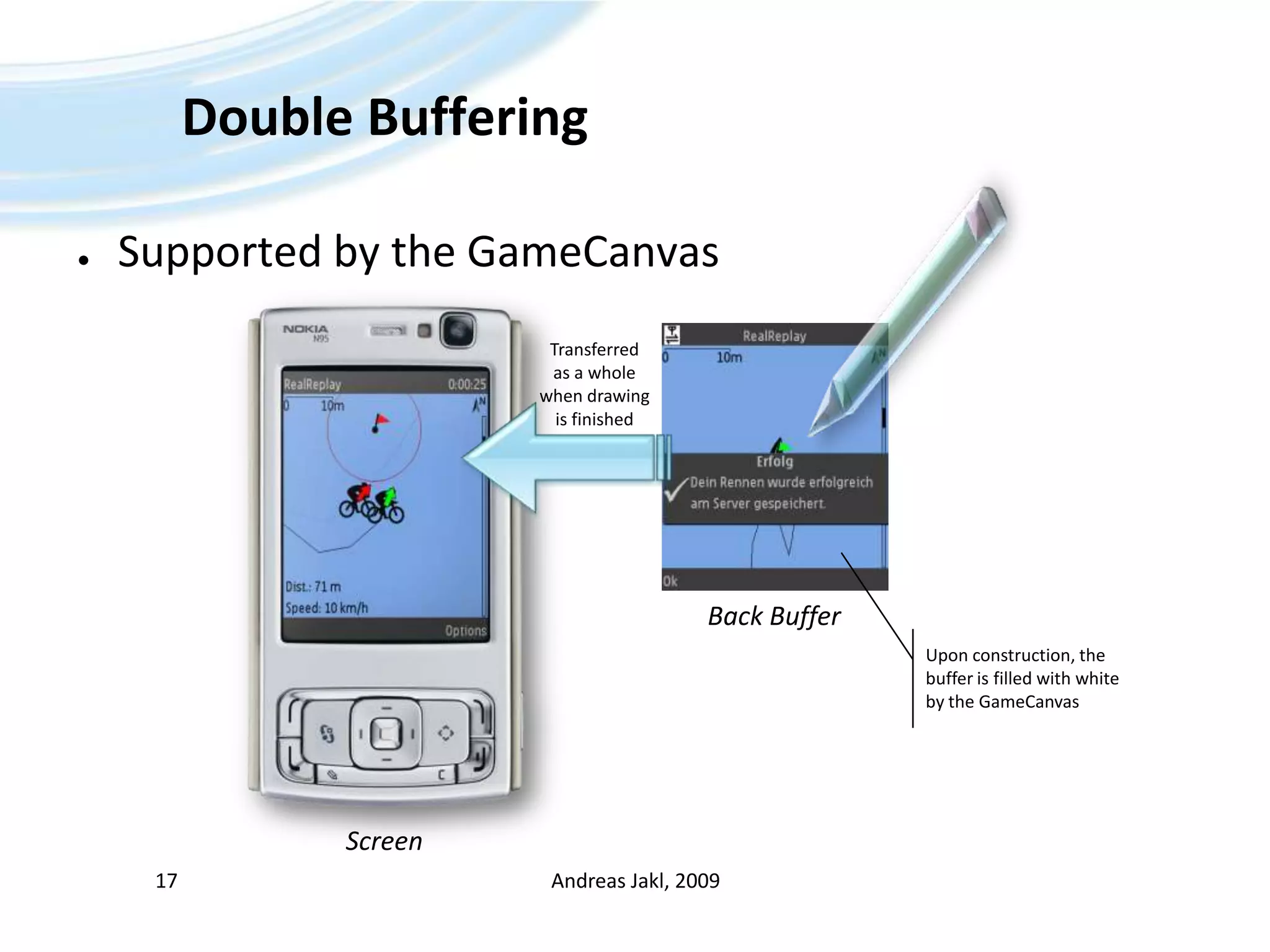

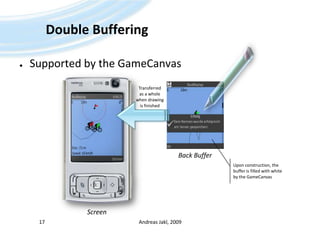

17. Double BufferingSupportedbytheGameCanvasAndreas Jakl, 200917Transferredas a wholewhen drawingis finishedBack BufferUpon construction, the buffer is filled with white by the GameCanvasScreen

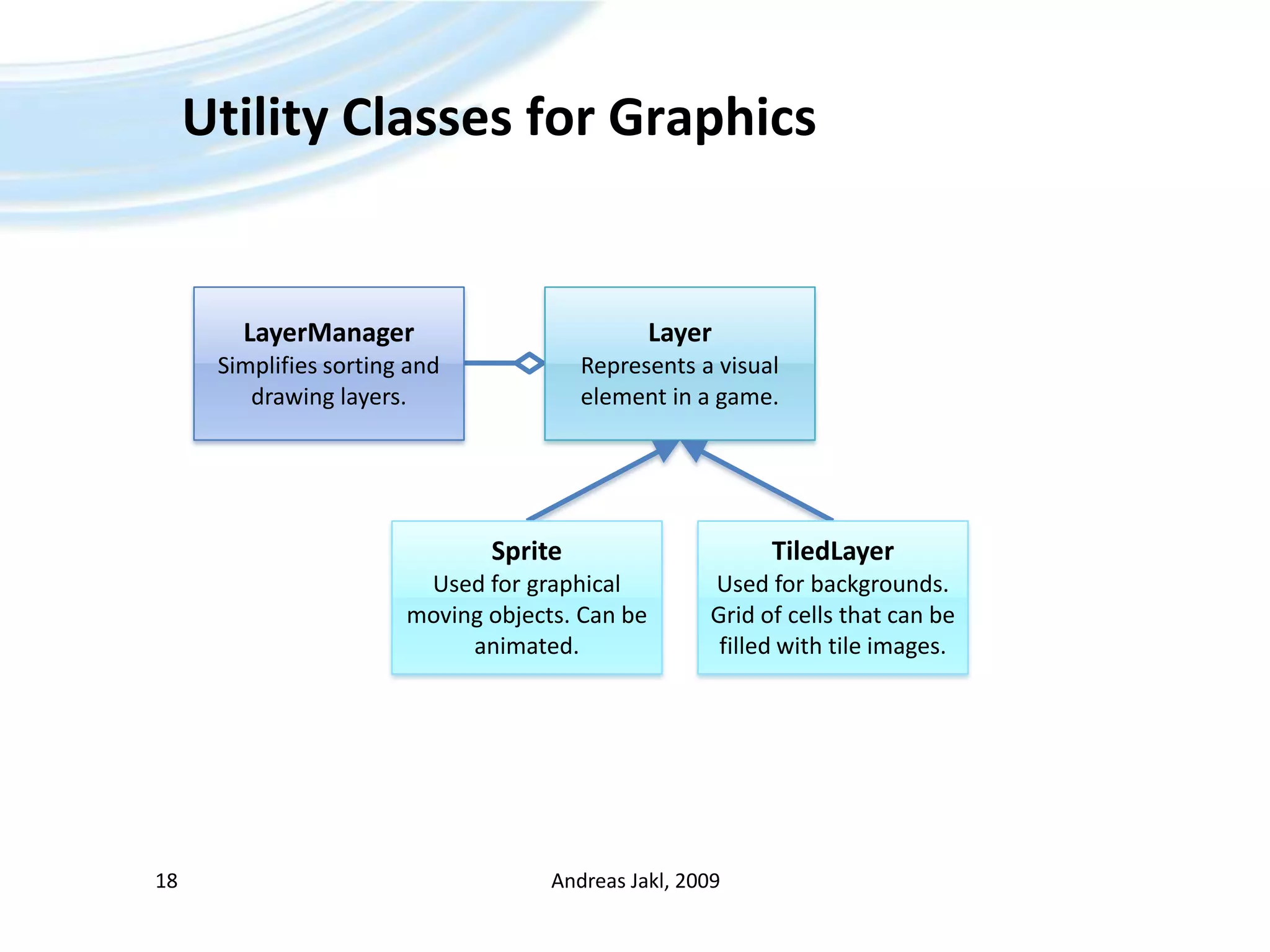

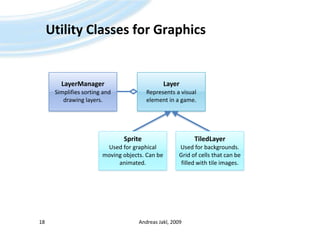

18. Utility Classes for GraphicsAndreas Jakl, 200918LayerRepresents a visual element in a game.LayerManagerSimplifies sorting and drawing layers.SpriteUsed for graphical moving objects. Can be animated.TiledLayerUsed for backgrounds. Grid of cells that can be filled with tile images.

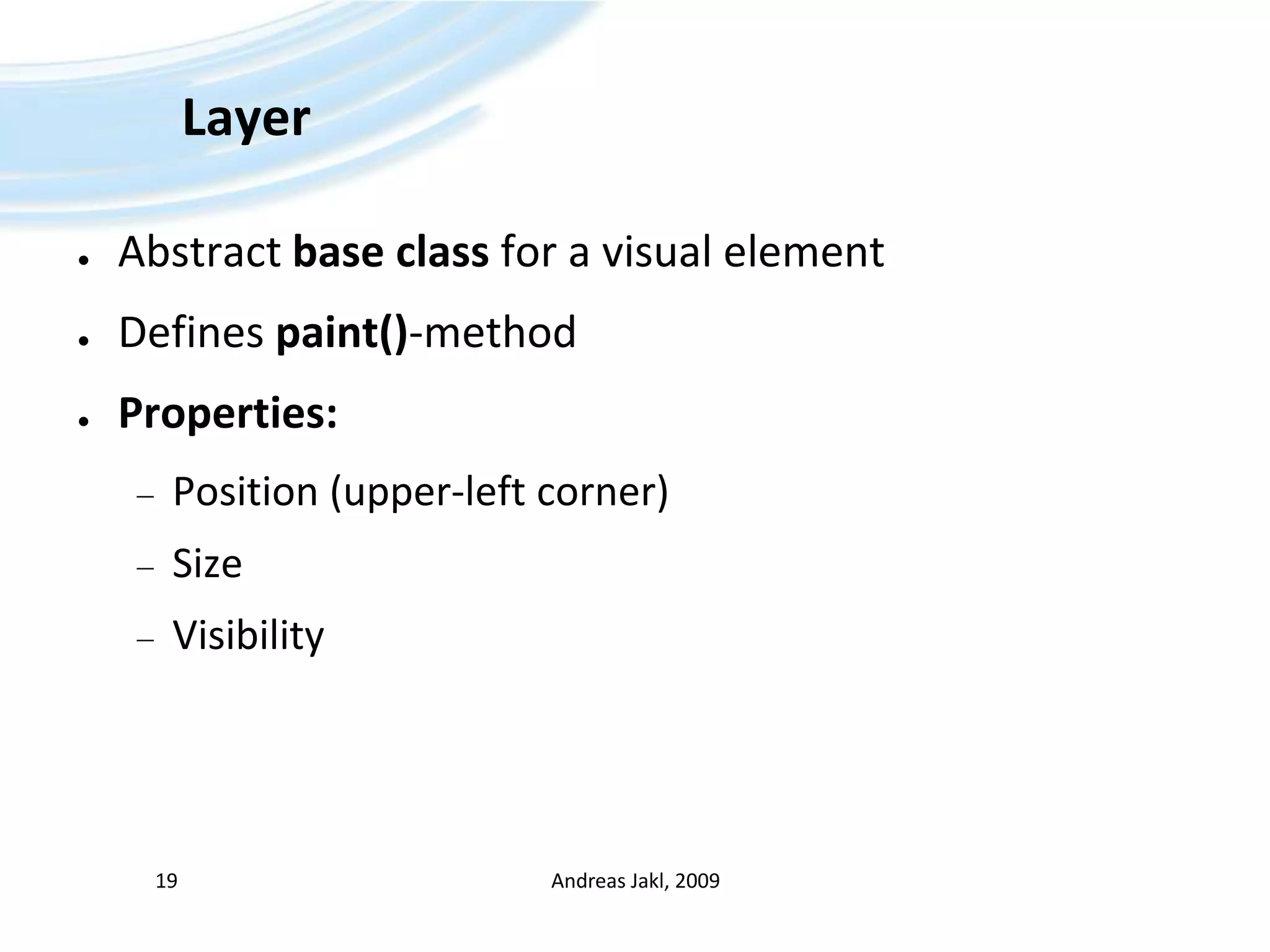

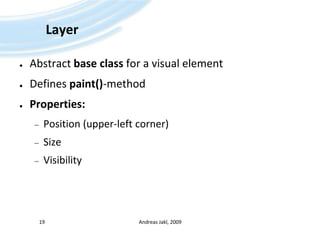

19. LayerAbstract base class for a visual elementDefines paint()-methodProperties:Position (upper-left corner)SizeVisibilityAndreas Jakl, 200919

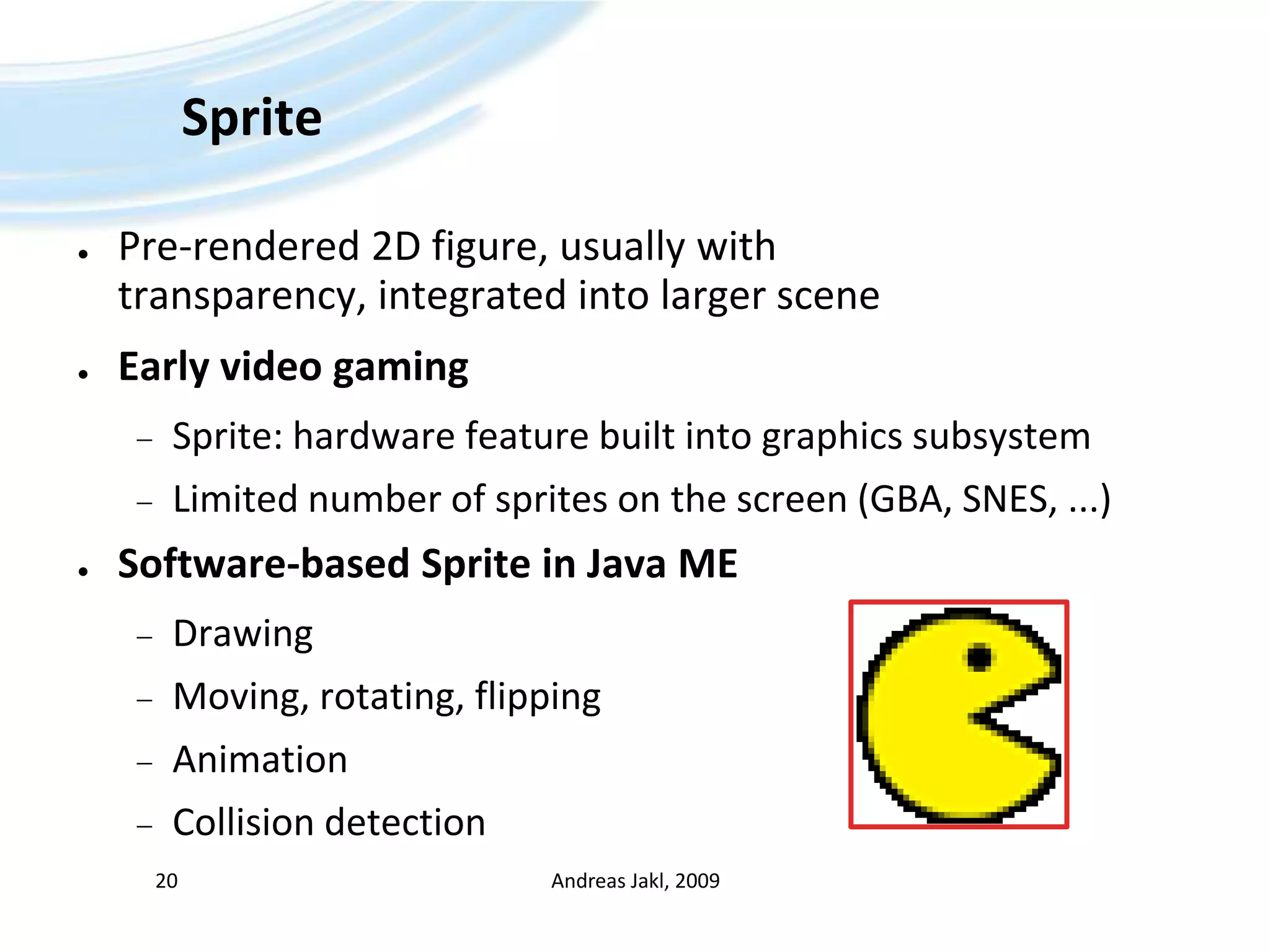

20. SpritePre-rendered 2D figure, usually with transparency, integrated into larger sceneEarly video gamingSprite: hardware feature built into graphics subsystemLimited number of sprites on the screen (GBA, SNES, ...)Software-based Sprite in Java MEDrawingMoving, rotating, flippingAnimationCollision detectionAndreas Jakl, 200920

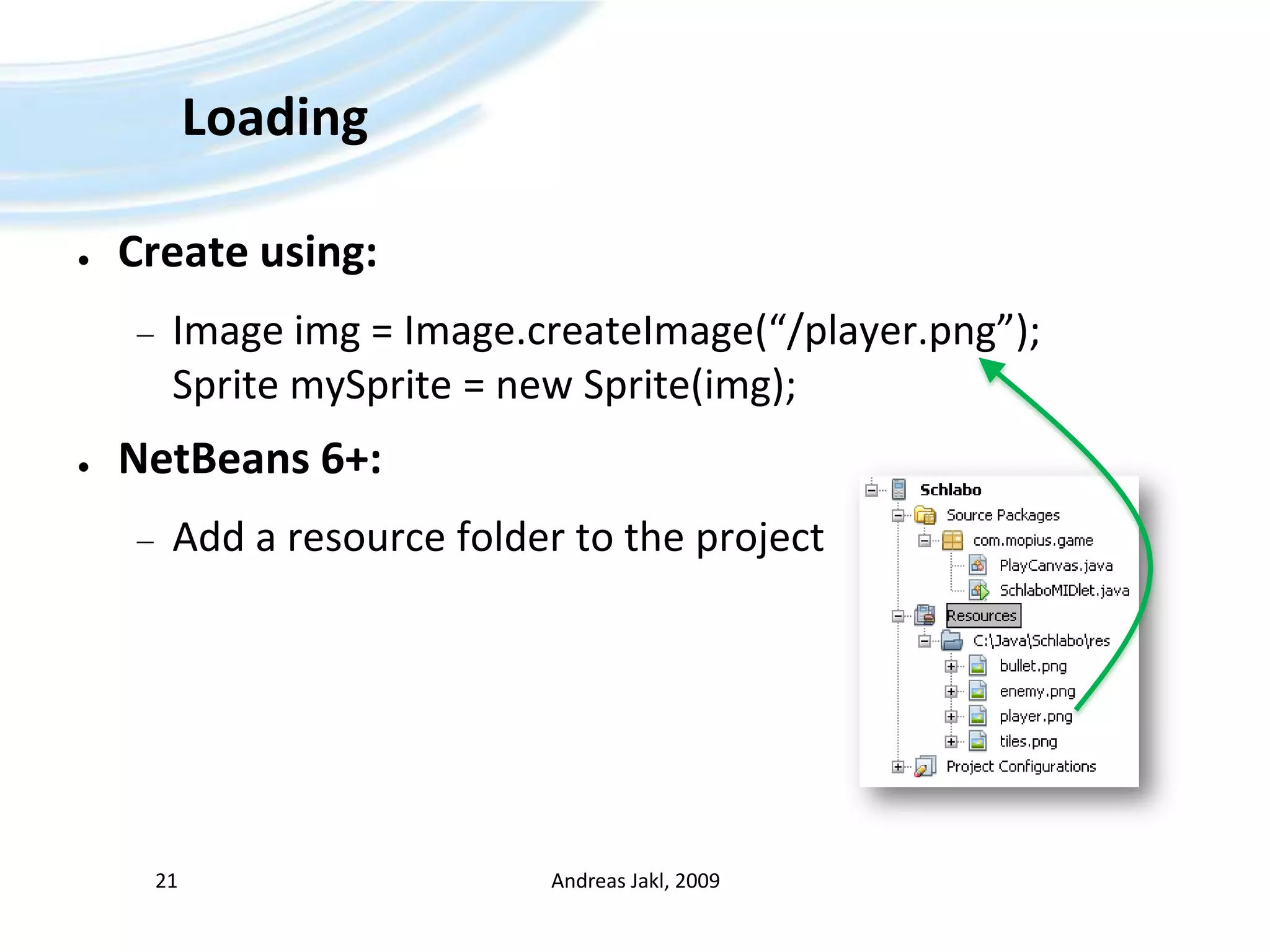

21. LoadingCreate using:Image img = Image.createImage(“/player.png”);Sprite mySprite = new Sprite(img);NetBeans 6+:Add a resource folder to the project Andreas Jakl, 200921

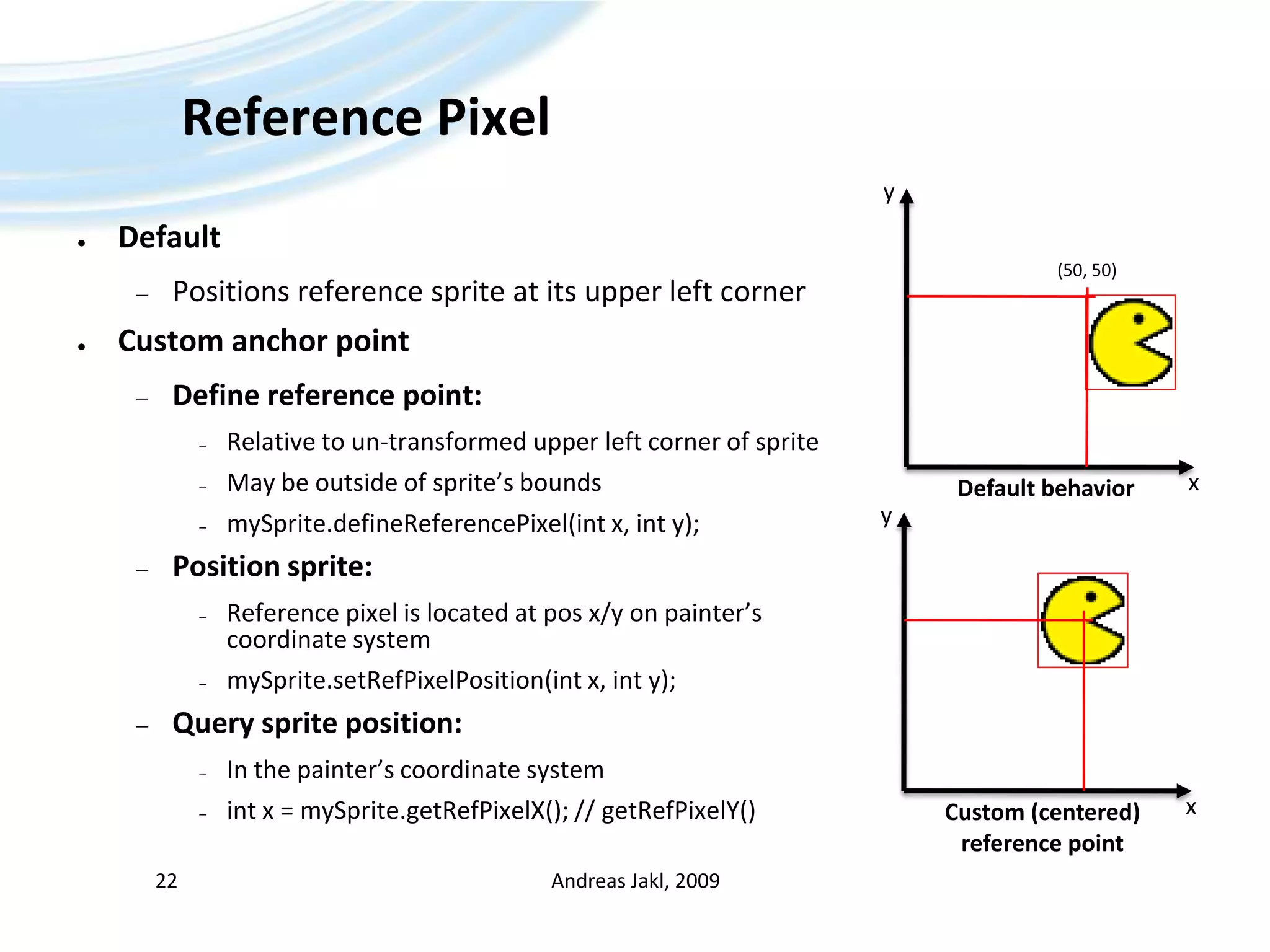

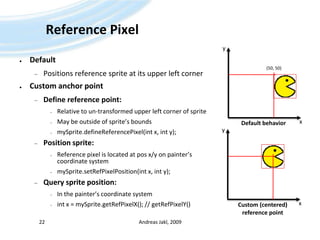

22. Reference PixelAndreas Jakl, 200922yDefaultPositions reference sprite at its upper left cornerCustom anchor pointDefine reference point:Relative to un-transformed upper left corner of spriteMay be outside of sprite’s boundsmySprite.defineReferencePixel(int x, int y);Position sprite:Reference pixel is located at pos x/y on painter’s coordinate systemmySprite.setRefPixelPosition(intx, int y);Query sprite position:In the painter’s coordinate systemint x = mySprite.getRefPixelX(); // getRefPixelY()(50, 50)xDefault behavioryxCustom (centered)reference point

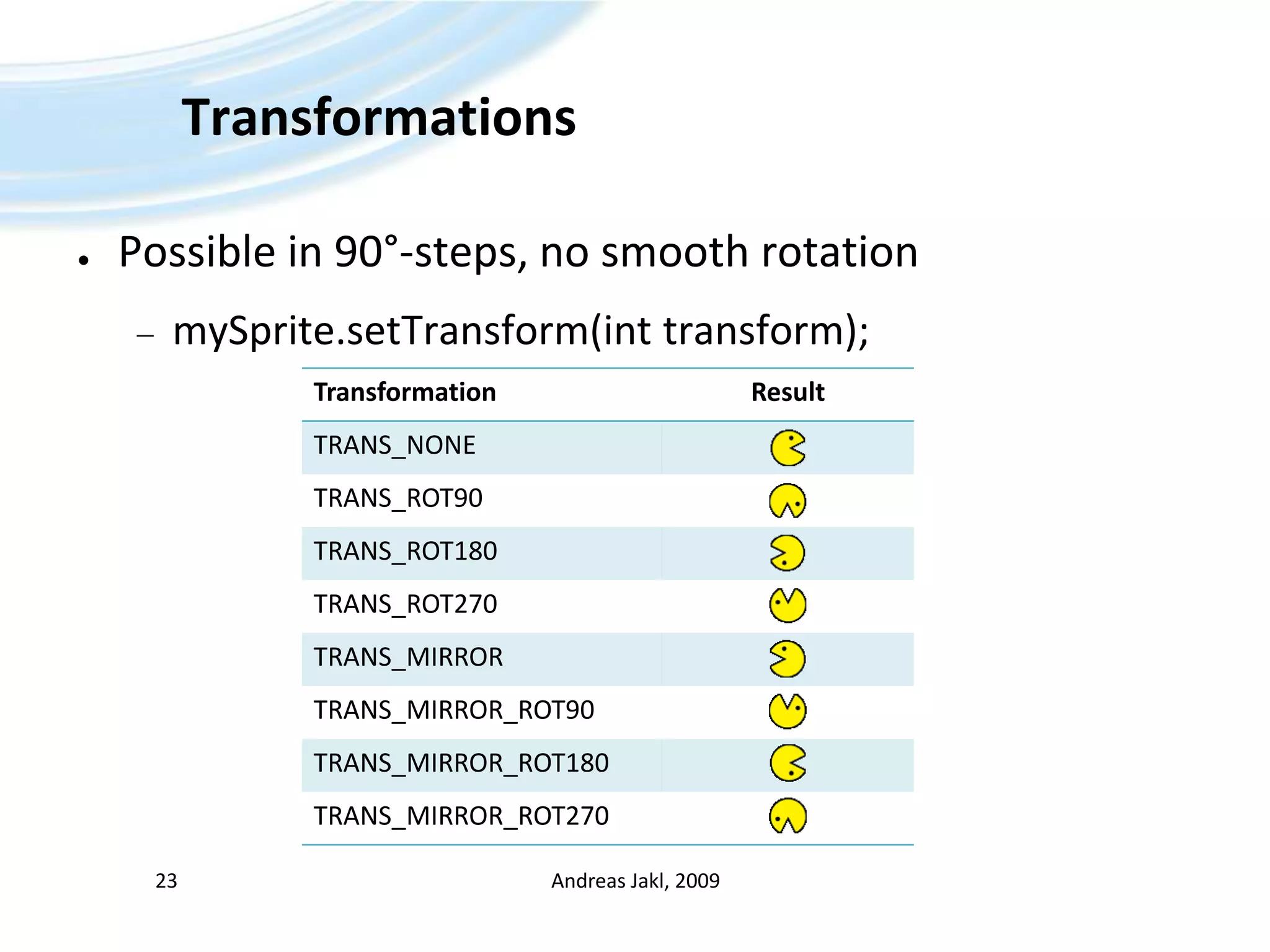

23. TransformationsPossible in 90°-steps, no smooth rotationmySprite.setTransform(int transform);Andreas Jakl, 200923

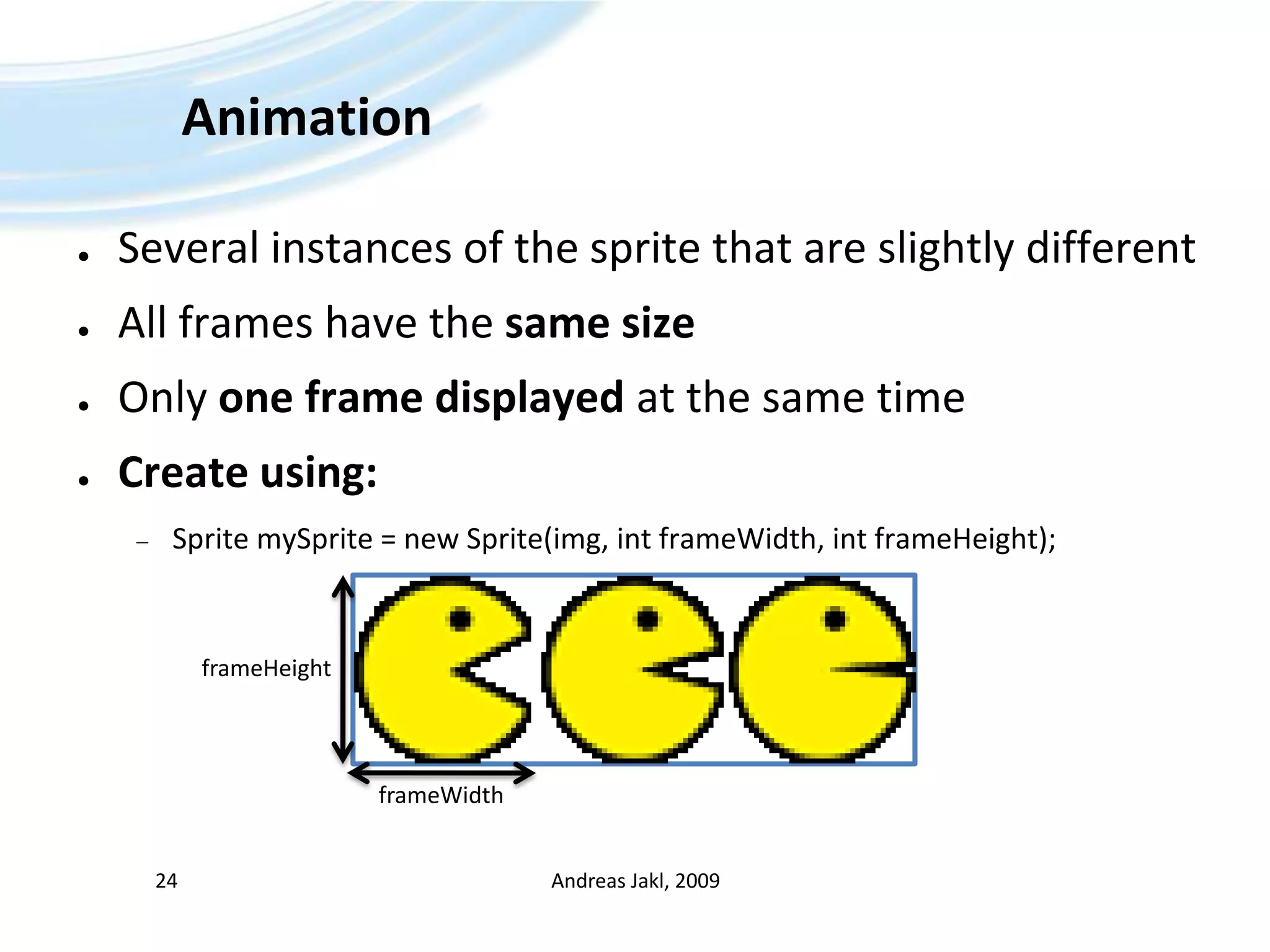

24. AnimationSeveral instances of the sprite that are slightly differentAll frames have the same sizeOnly one frame displayed at the same timeCreate using:Sprite mySprite = new Sprite(img, intframeWidth, intframeHeight);Andreas Jakl, 200924frameHeightframeWidth

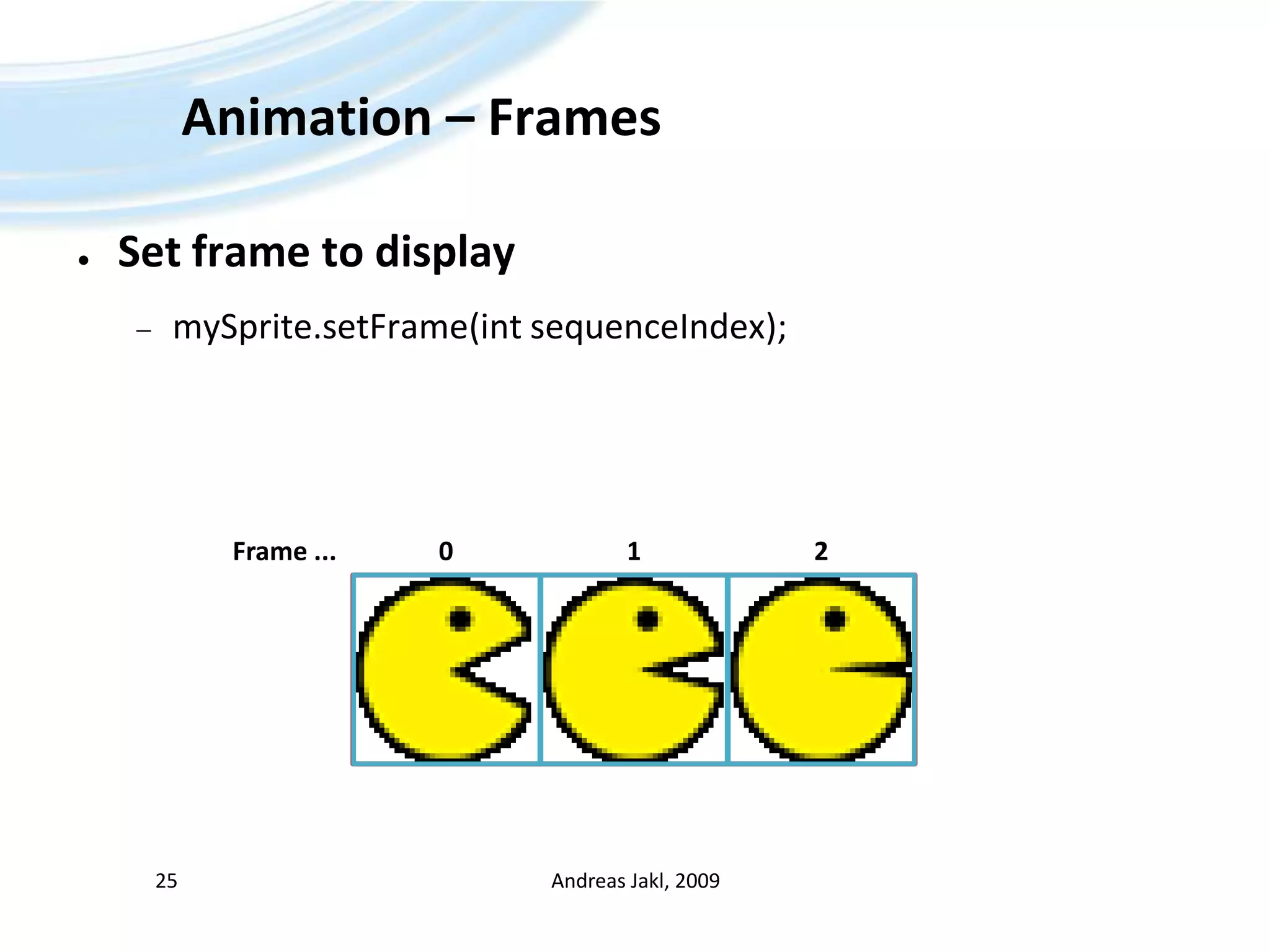

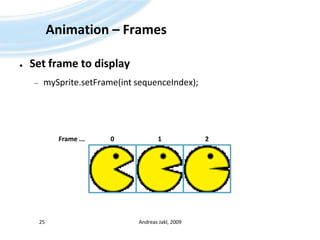

25. Animation – FramesSet frame to displaymySprite.setFrame(intsequenceIndex);Andreas Jakl, 200925Frame ...012

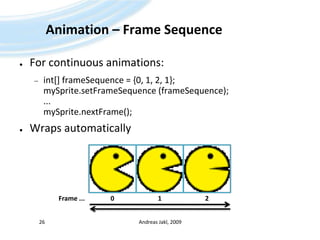

26. Animation – Frame SequenceFor continuous animations:int[] frameSequence = {0, 1, 2, 1};mySprite.setFrameSequence (frameSequence);...mySprite.nextFrame();Wraps automaticallyAndreas Jakl, 200926Frame ...012

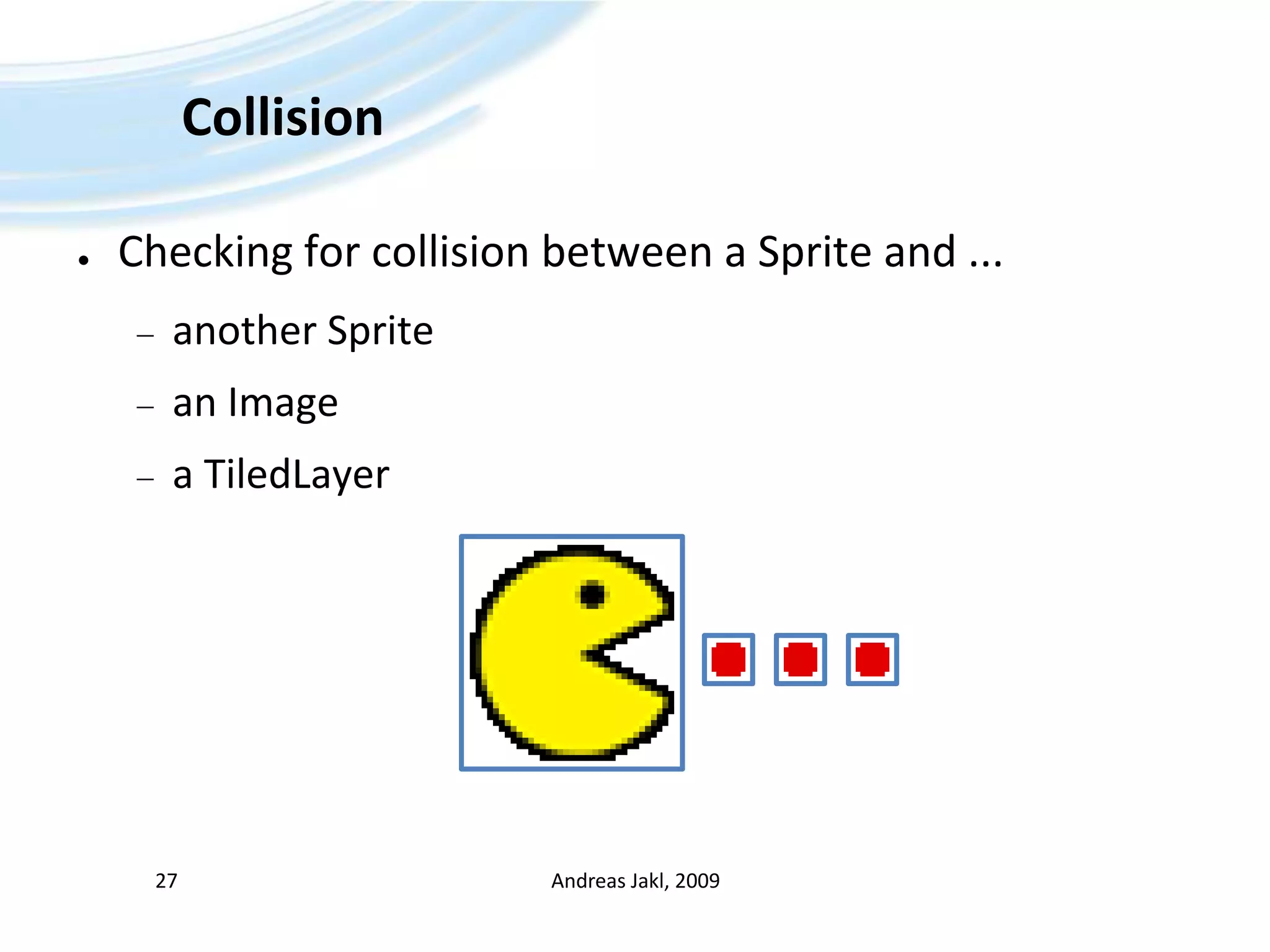

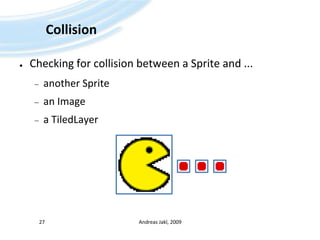

27. CollisionChecking for collision between a Sprite and ...another Spritean Imagea TiledLayerAndreas Jakl, 200927

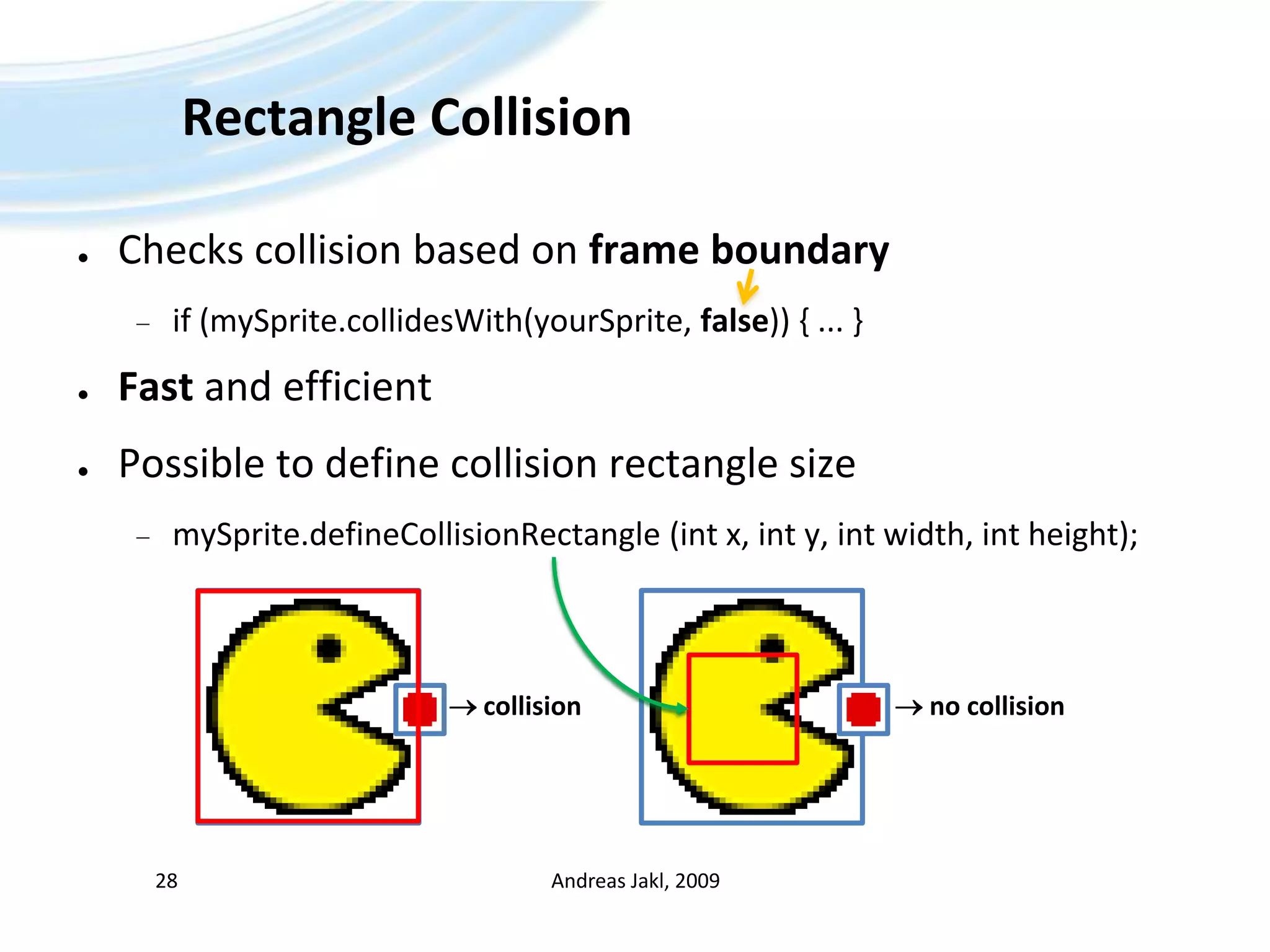

28. Rectangle CollisionChecks collision based on frame boundaryif (mySprite.collidesWith(yourSprite, false)) { ... }Fast and efficientPossible to define collision rectangle sizemySprite.defineCollisionRectangle (int x, int y, int width, int height);Andreas Jakl, 200928 collision no collision

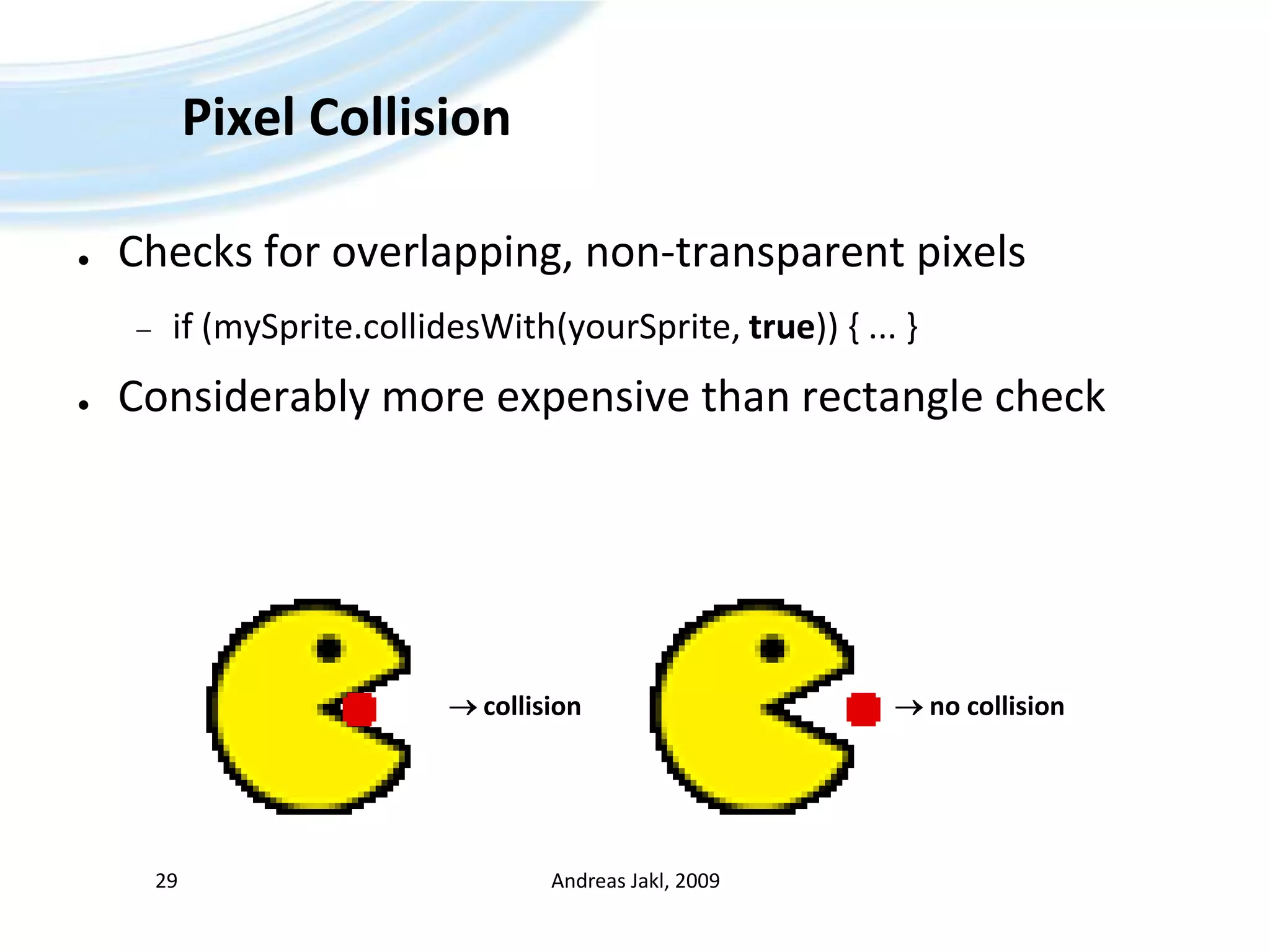

29. Pixel CollisionChecks for overlapping, non-transparent pixelsif (mySprite.collidesWith(yourSprite, true)) { ... }Considerably more expensive than rectangle checkAndreas Jakl, 200929 collision no collision

30. TiledLayerCreate beautiful backgroundsAndreas Jakl, 200930

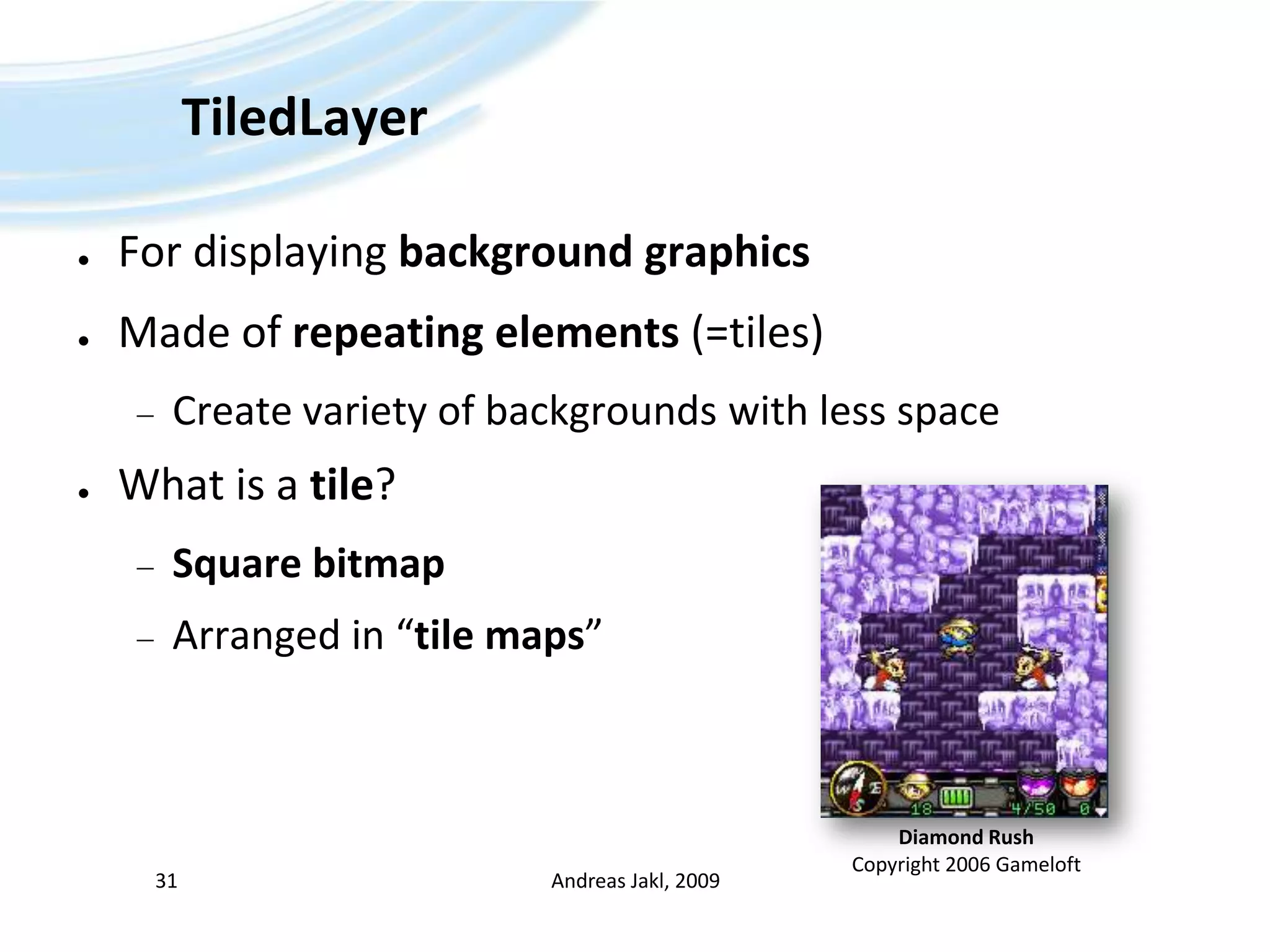

31. TiledLayerFor displaying background graphicsMade of repeating elements (=tiles)Create variety of backgrounds with less spaceWhat is a tile?Square bitmapArranged in “tile maps”Andreas Jakl, 200931Diamond RushCopyright 2006 Gameloft

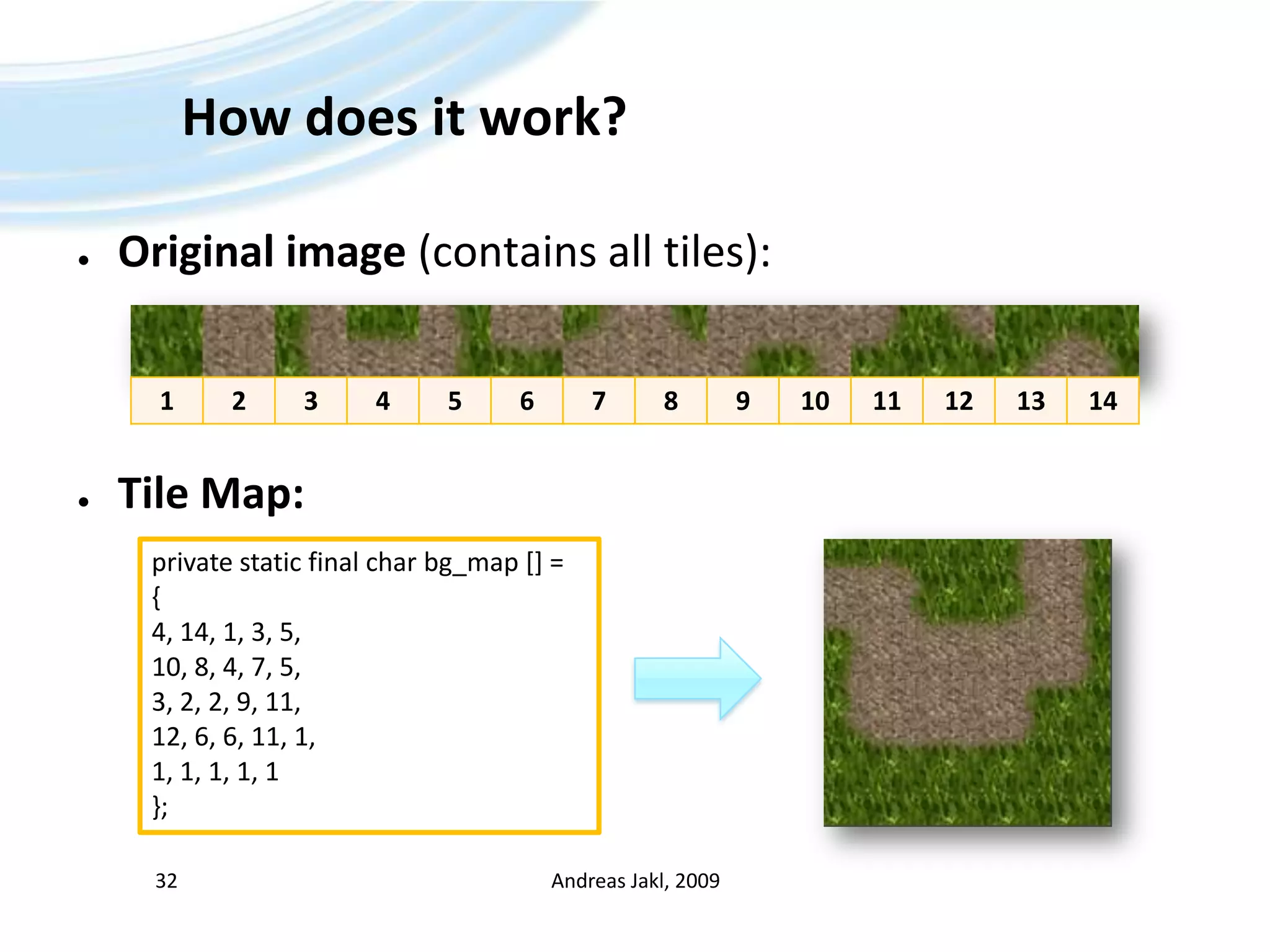

32. How does it work?Original image (contains all tiles):Tile Map:Andreas Jakl, 200932private static final char bg_map [] = {4, 14, 1, 3, 5,10, 8, 4, 7, 5,3, 2, 2, 9, 11,12, 6, 6, 11, 1,1, 1, 1, 1, 1};

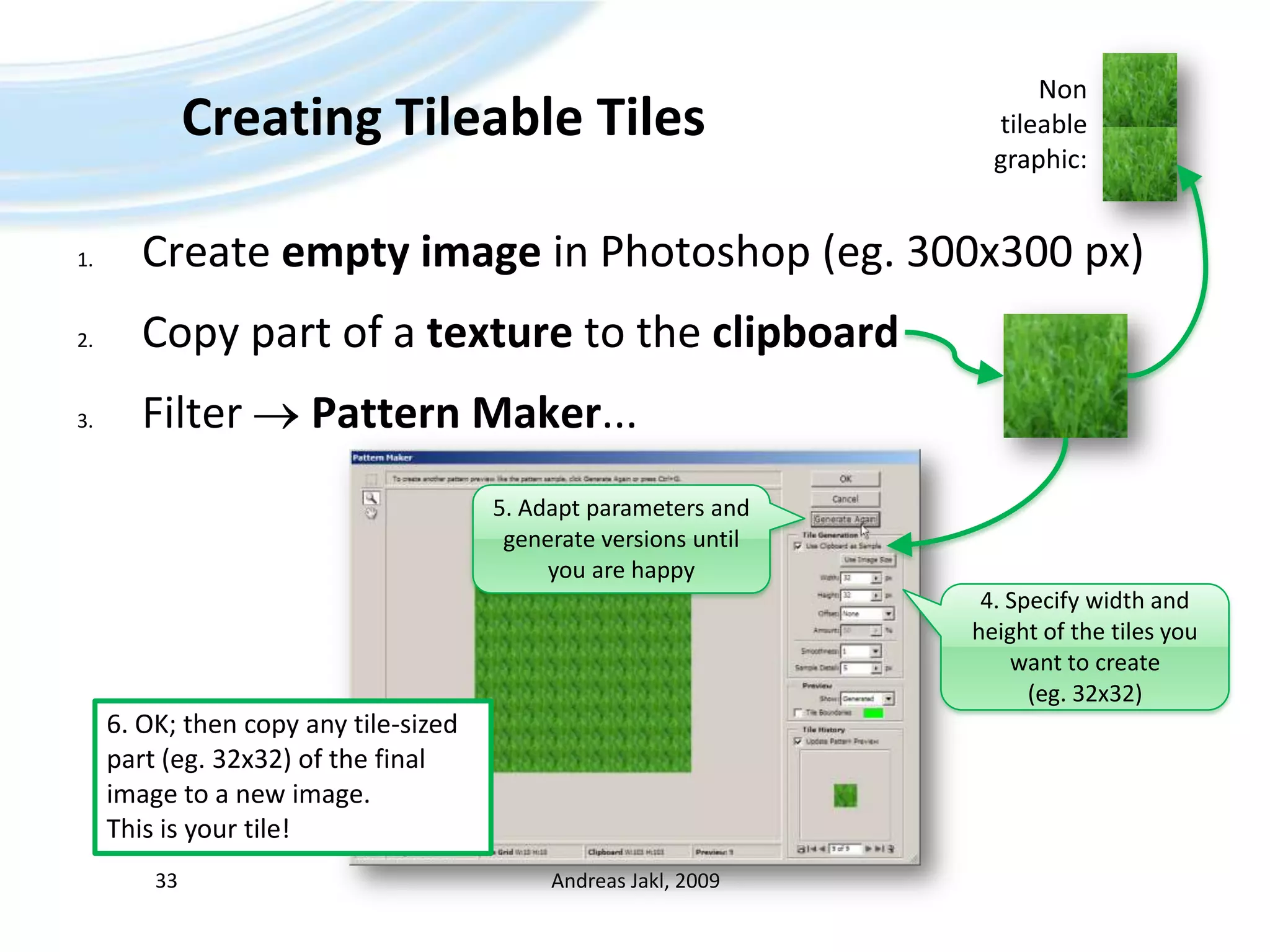

33. Creating Tileable TilesCreate empty image in Photoshop (eg. 300x300 px)Copy part of a texture to the clipboardFilter  Pattern Maker...Andreas Jakl, 200933Non tileable graphic:5. Adapt parameters and generate versions until you are happy4. Specify width and height of the tiles you want to create (eg. 32x32)6. OK; then copy any tile-sized part (eg. 32x32) of the final image to a new image. This is your tile!

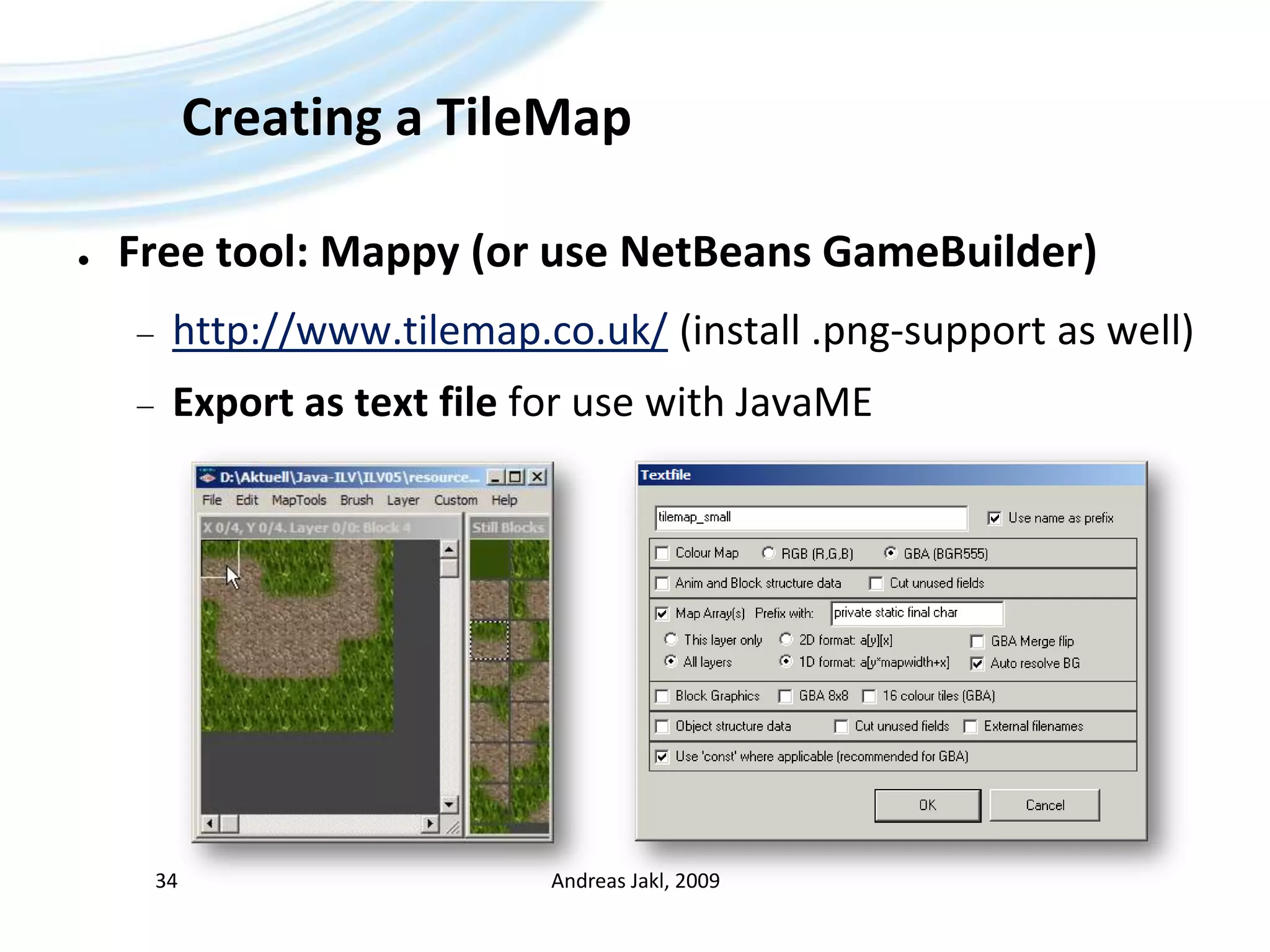

34. Creating a TileMapFree tool: Mappy (or use NetBeansGameBuilder)http://www.tilemap.co.uk/ (install .png-support as well)Export as text file for use with JavaMEAndreas Jakl, 200934

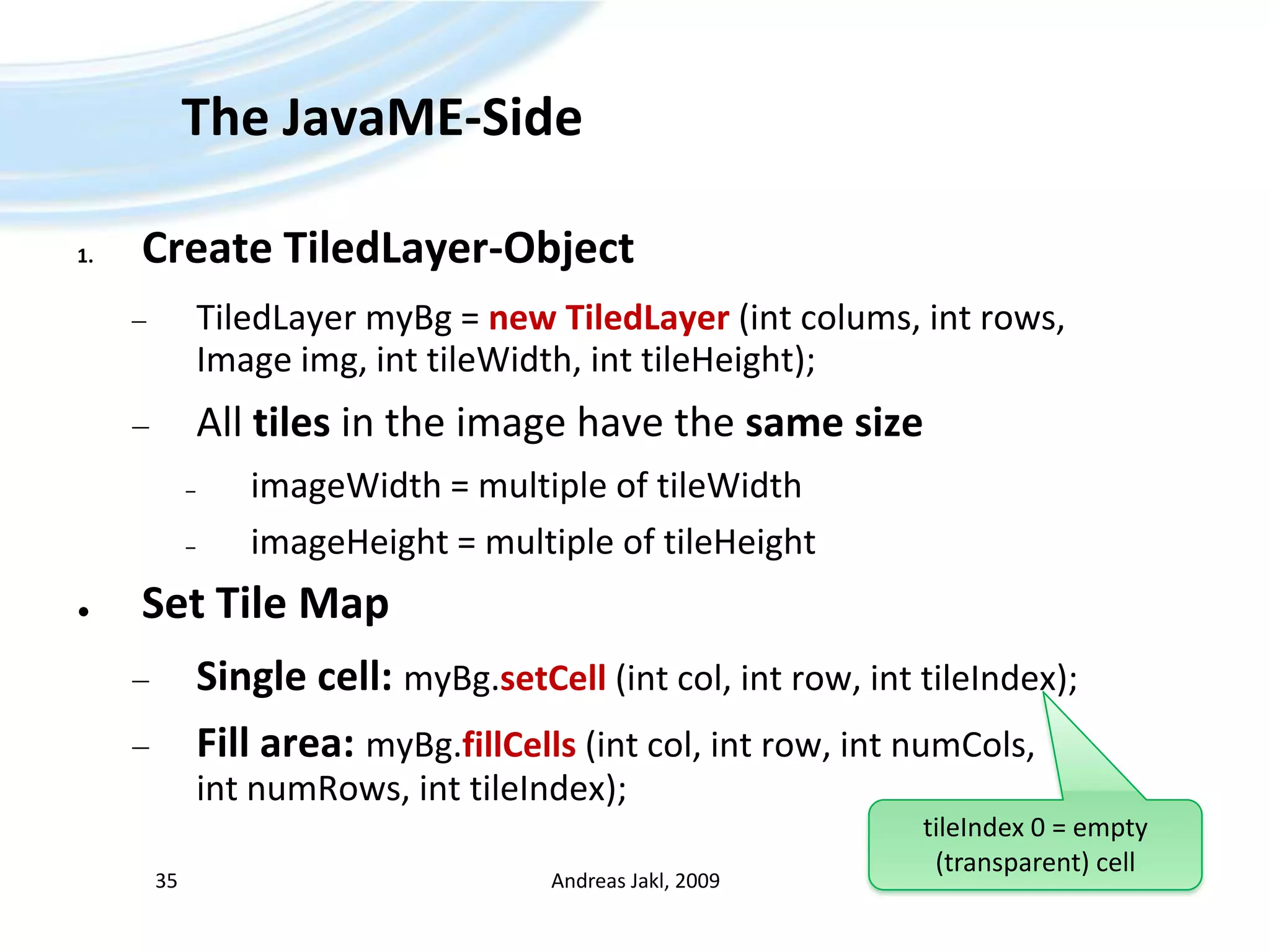

35. The JavaME-SideCreate TiledLayer-ObjectTiledLayermyBg = new TiledLayer(intcolums, int rows, Image img, inttileWidth, inttileHeight);All tiles in the image have the same sizeimageWidth = multiple of tileWidthimageHeight = multiple of tileHeightSet Tile MapSingle cell: myBg.setCell (intcol, int row, inttileIndex);Fill area: myBg.fillCells (intcol, int row, intnumCols, intnumRows, inttileIndex);Andreas Jakl, 200935tileIndex 0 = empty (transparent) cell

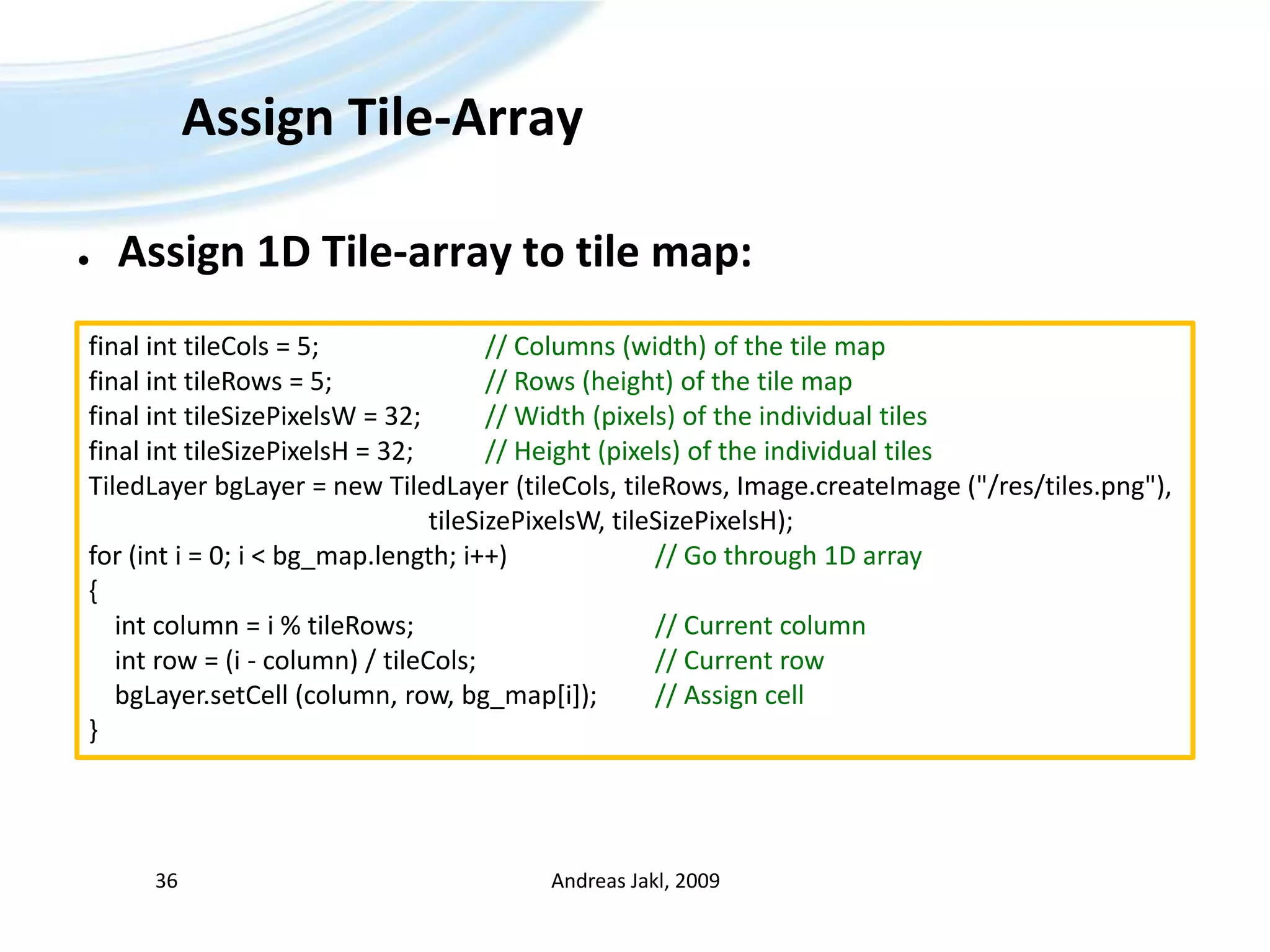

36. Assign Tile-ArrayAssign 1D Tile-array to tile map:Andreas Jakl, 200936final inttileCols = 5; // Columns (width) of the tile mapfinal inttileRows = 5; // Rows (height) of the tile mapfinal inttileSizePixelsW = 32; // Width (pixels) of the individual tilesfinal inttileSizePixelsH = 32; // Height (pixels) of the individual tilesTiledLayerbgLayer = new TiledLayer(tileCols, tileRows, Image.createImage ("/res/tiles.png"),tileSizePixelsW, tileSizePixelsH);for (inti = 0; i < bg_map.length; i++) // Go through 1D array{int column = i % tileRows;// Current columnint row = (i - column) / tileCols;// Current rowbgLayer.setCell (column, row, bg_map[i]); // Assign cell}

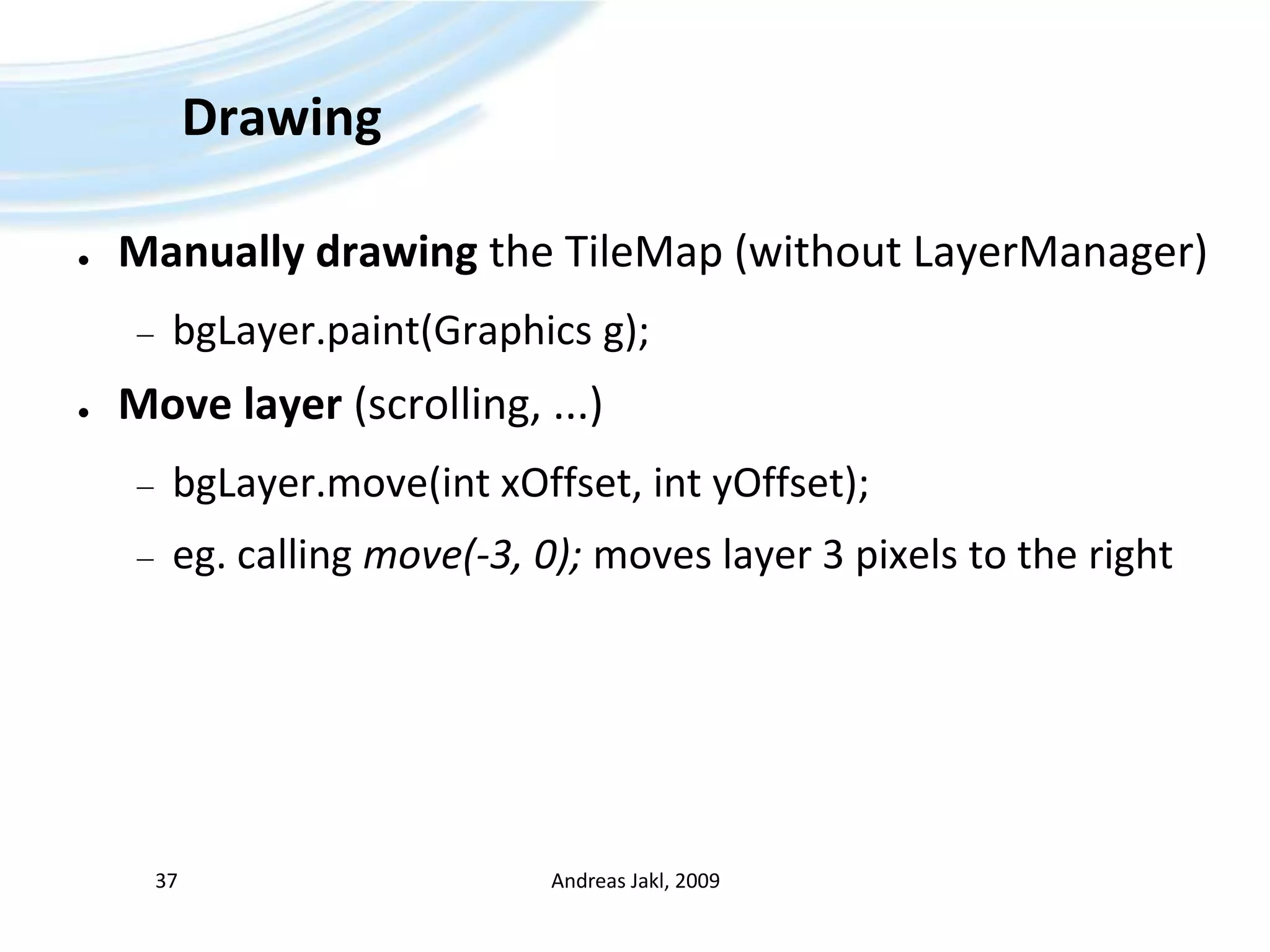

37. DrawingManually drawing the TileMap (without LayerManager)bgLayer.paint(Graphics g);Move layer (scrolling, ...)bgLayer.move(intxOffset, intyOffset);eg. calling move(-3, 0); moves layer 3 pixels to the rightAndreas Jakl, 200937

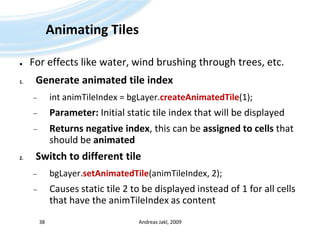

38. Animating TilesFor effects like water, wind brushing through trees, etc.Generate animated tile indexintanimTileIndex = bgLayer.createAnimatedTile(1);Parameter: Initial static tile index that will be displayedReturns negative index, this can be assigned to cells that should be animatedSwitch to different tilebgLayer.setAnimatedTile(animTileIndex, 2);Causes static tile 2 to be displayed instead of 1 for all cells that have the animTileIndex as contentAndreas Jakl, 200938

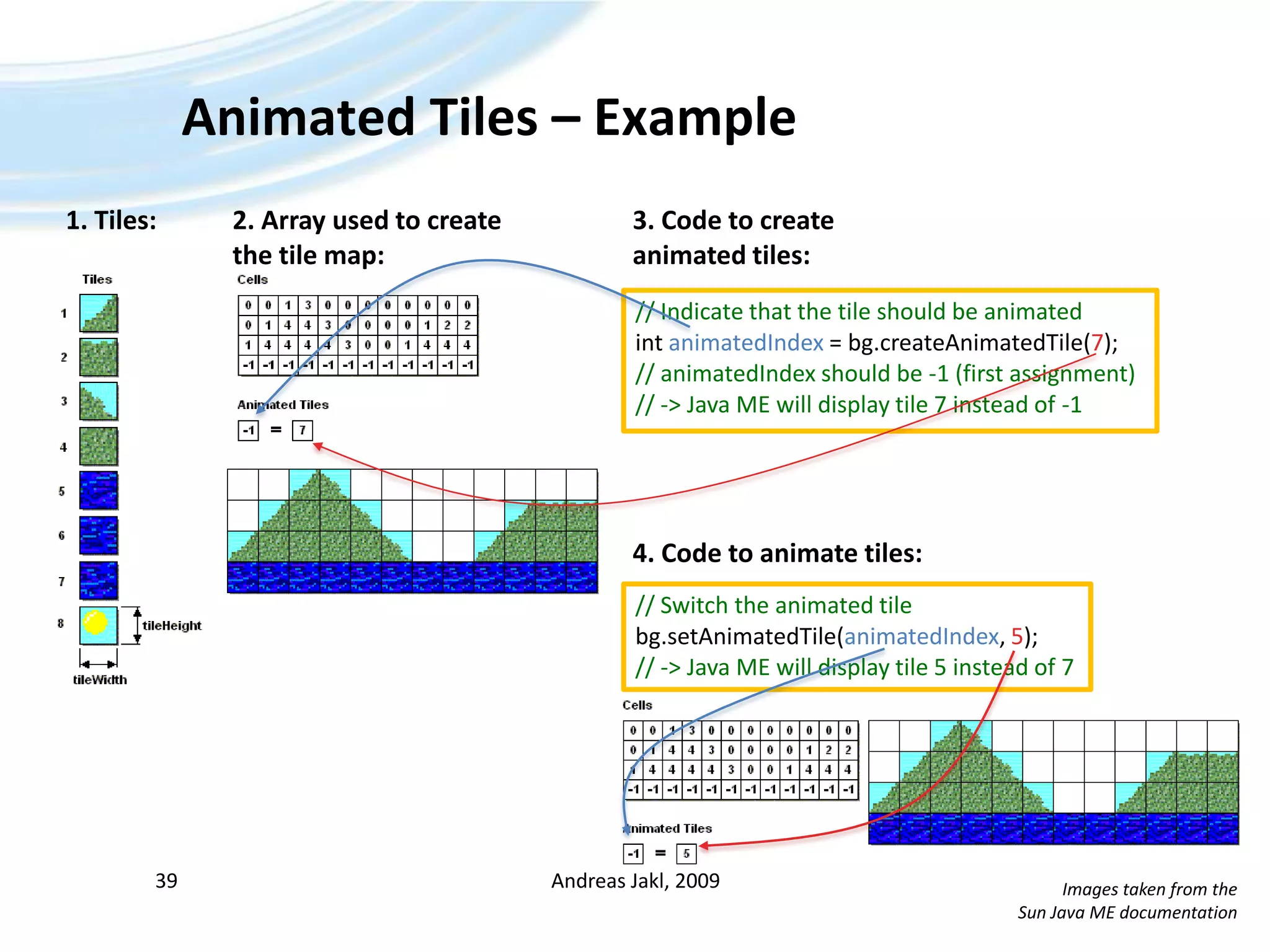

39. Animated Tiles – Example Andreas Jakl, 2009391. Tiles:2. Array used to createthe tile map:3. Code to create animated tiles:// Indicate that the tile should be animatedintanimatedIndex = bg.createAnimatedTile(7);// animatedIndex should be -1 (first assignment)// -> Java ME will display tile 7 instead of -14. Code to animate tiles:// Switch the animated tilebg.setAnimatedTile(animatedIndex, 5);// -> Java ME will display tile 5 instead of 7Images taken from theSun Java ME documentation

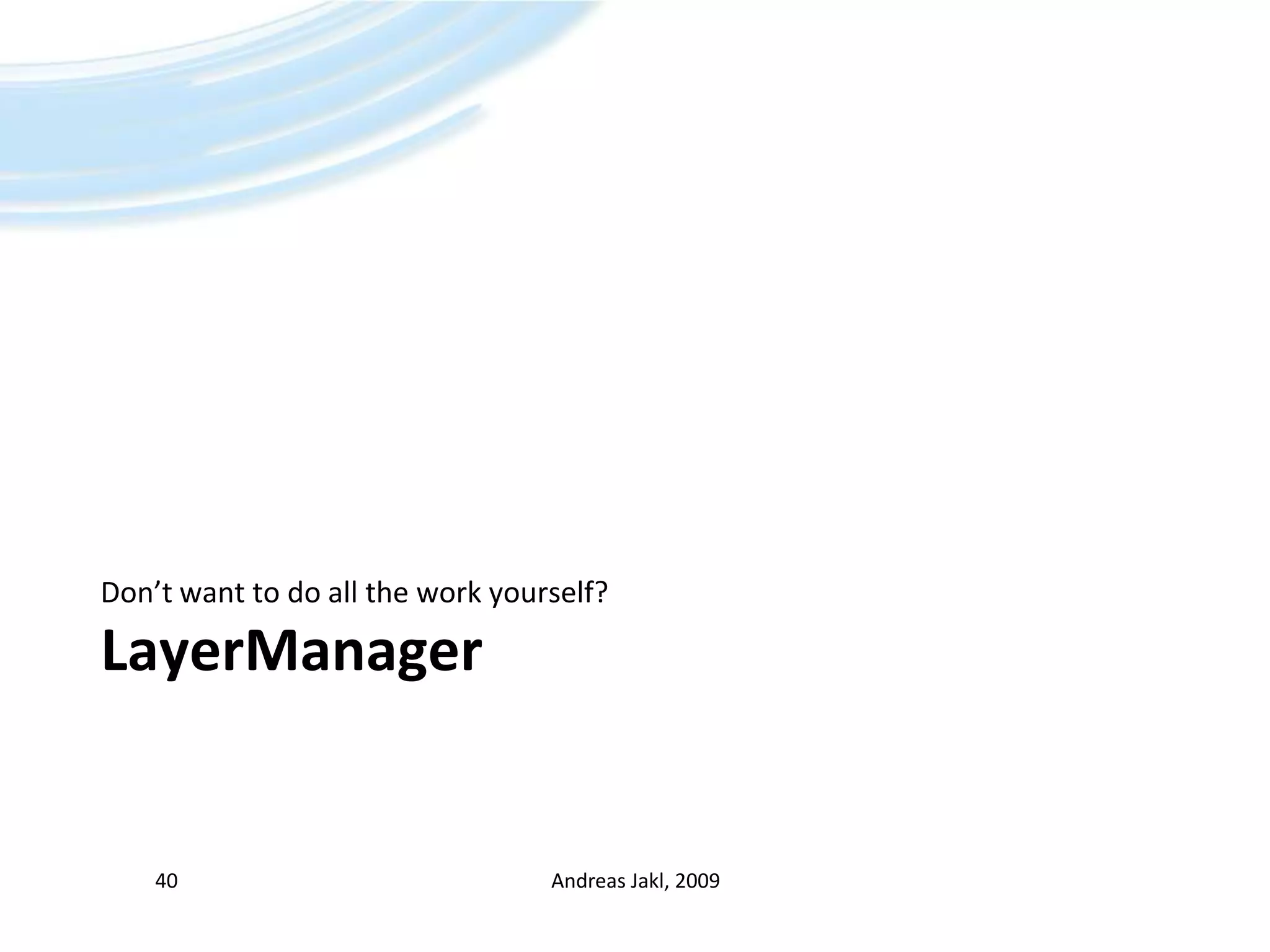

40. LayerManagerDon’t want to do all the work yourself?Andreas Jakl, 200940

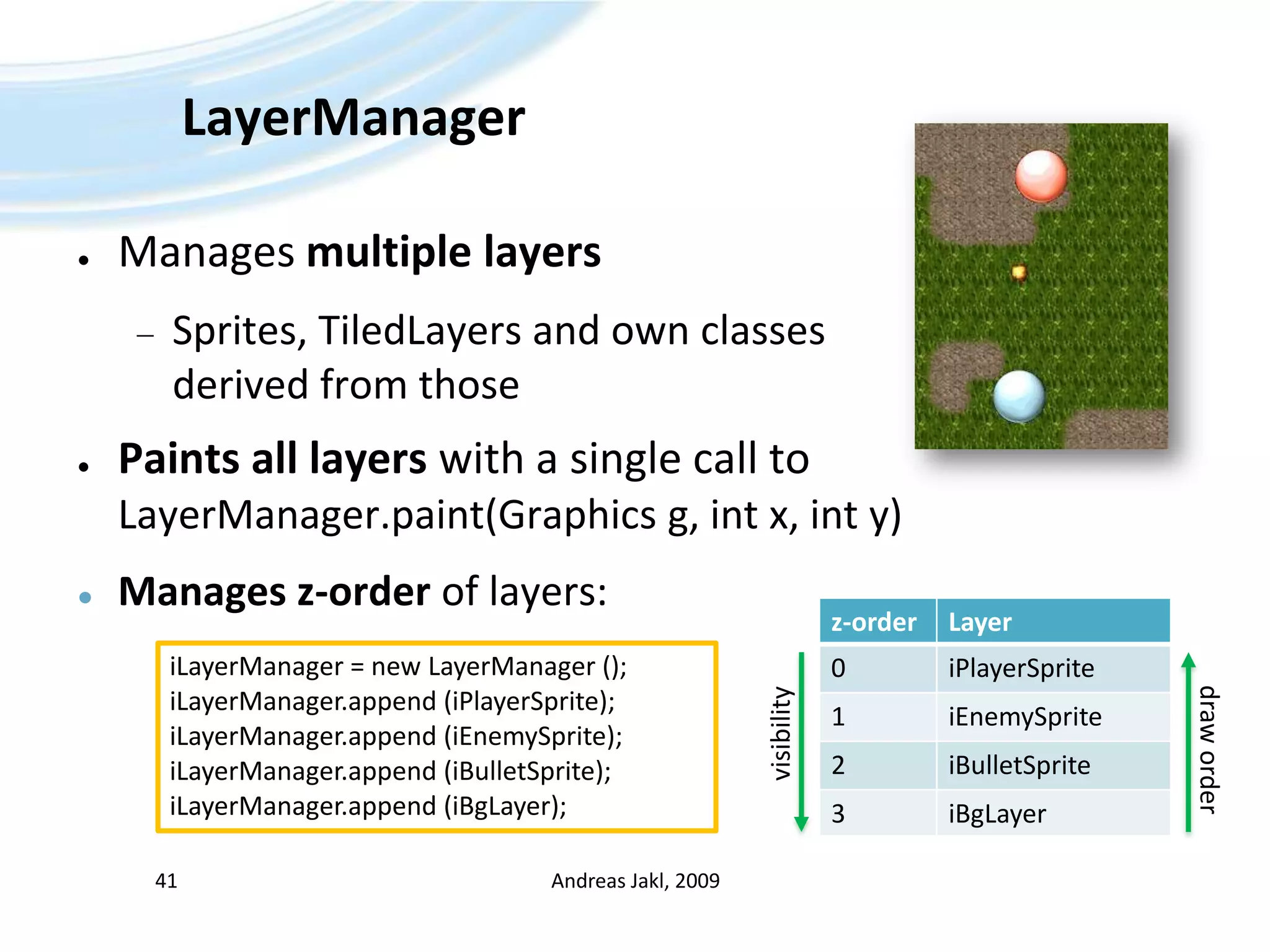

41. LayerManagerManages multiple layersSprites, TiledLayers and own classes derived from thosePaints all layers with a single call to LayerManager.paint(Graphics g, int x, int y)Manages z-order of layers:Andreas Jakl, 200941iLayerManager = new LayerManager ();iLayerManager.append (iPlayerSprite);iLayerManager.append (iEnemySprite);iLayerManager.append (iBulletSprite);iLayerManager.append (iBgLayer);visibilitydraw order

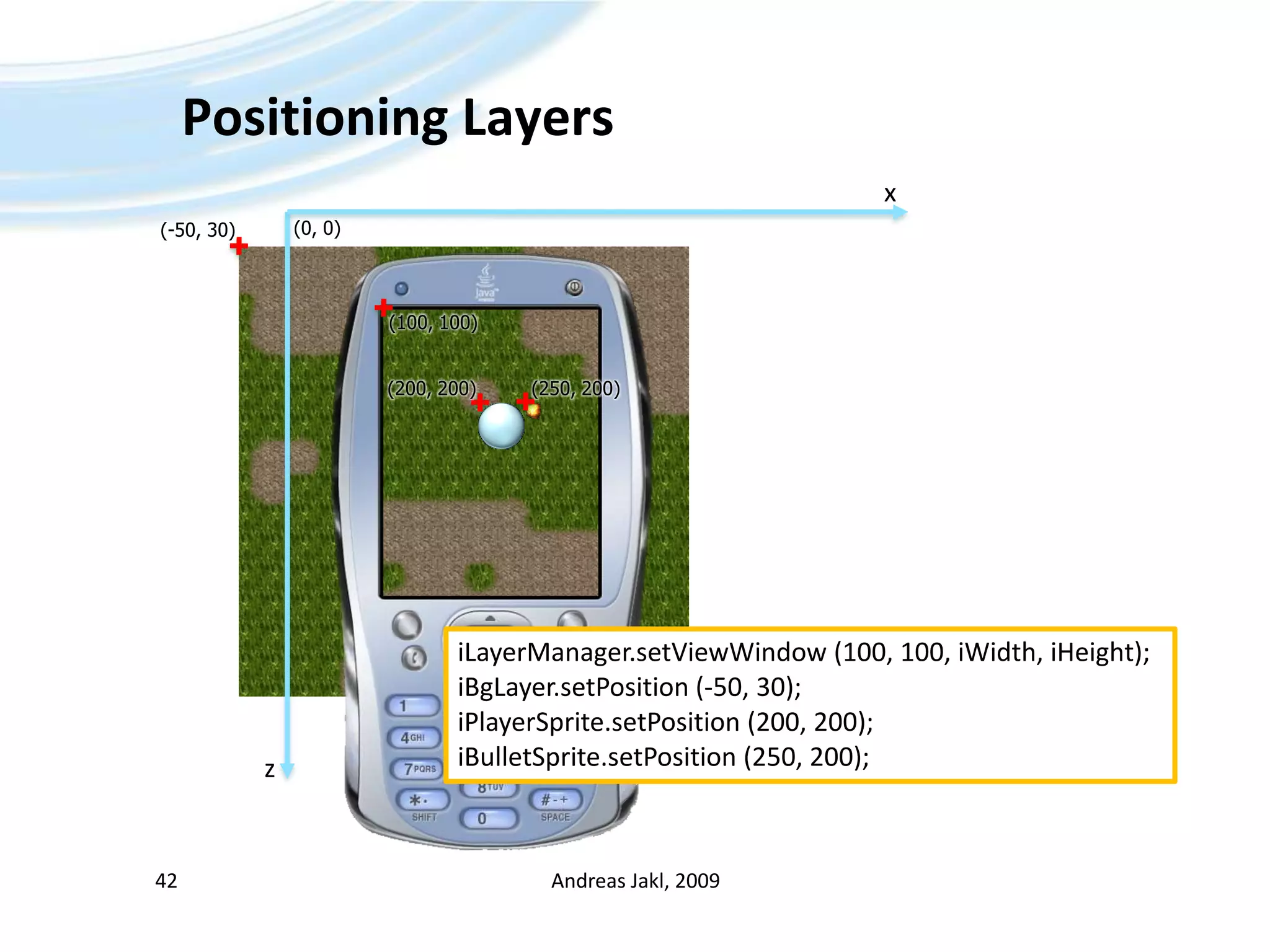

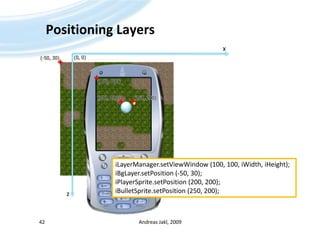

42. Positioning LayersAndreas Jakl, 200942x(0, 0)(-50, 30)(100, 100)(200, 200)(250, 200)iLayerManager.setViewWindow (100, 100, iWidth, iHeight);iBgLayer.setPosition (-50, 30);iPlayerSprite.setPosition (200, 200);iBulletSprite.setPosition (250, 200);z

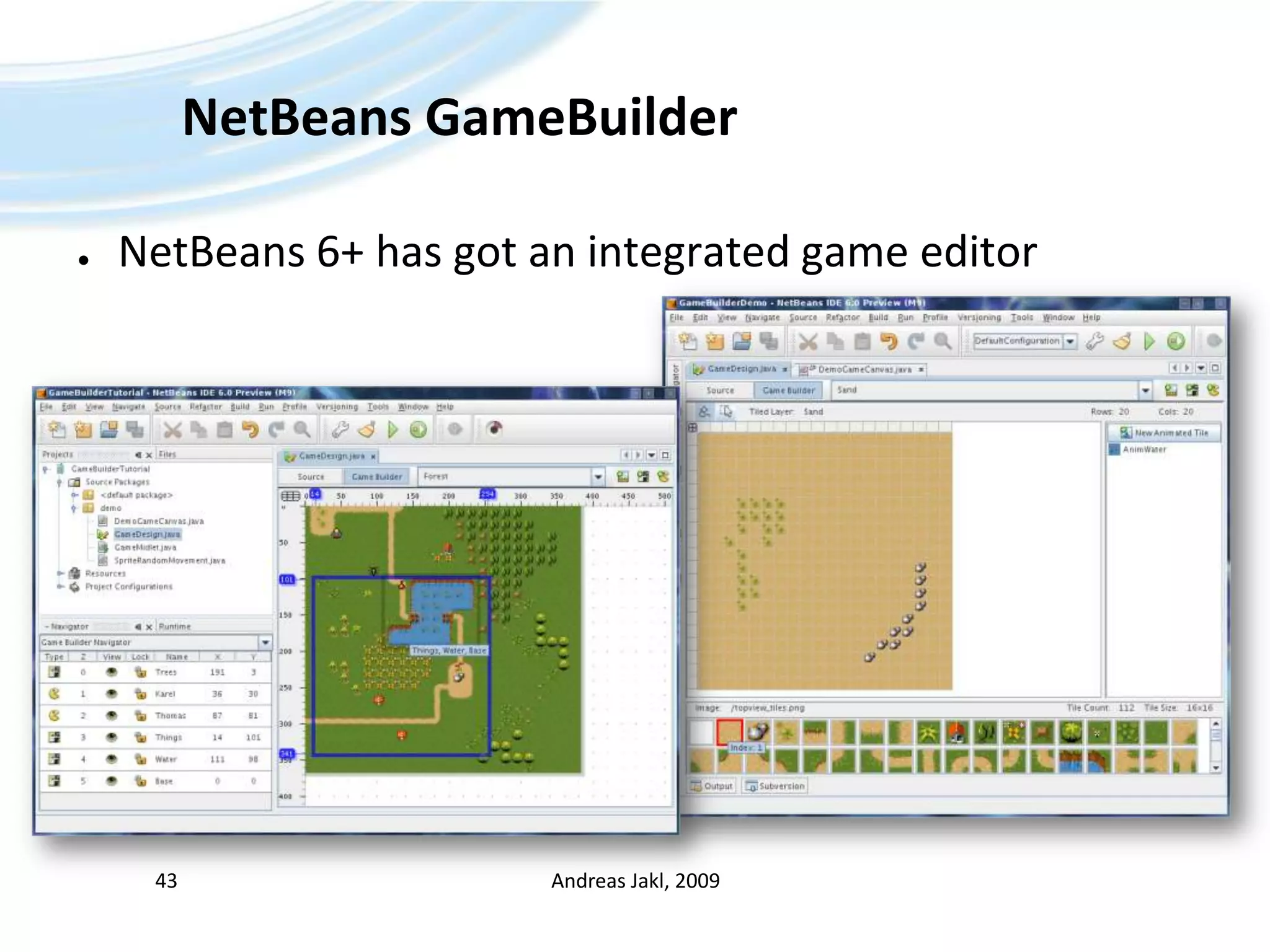

43. NetBeansGameBuilderNetBeans 6+ has got an integrated game editorAndreas Jakl, 200943

44. Thanks for your attentionThat’s it!Andreas Jakl, 200944
