Flow charts of Textile and garments
This document contains several textile manufacturing process flow charts, including: - A flow chart showing the wet processing steps from grey fabric inspection to final delivery. - Individual flow charts for weft knitting, warp knitting, jute yarn manufacturing, and garment finishing. - Additional flow charts for specific processes like ring spinning, jute spinning, printing, dyeing, weaving, knitting, and garment manufacturing.
More Related Content
Similar to Flow charts of Textile and garments
More from Mazadul Hasan Shishir
Flow charts of Textile and garments
- 1.
- 2. Name : MAZADULHASAN SHESHIR ID: 2010000400008 Batch: 13th Batch (Session 2009-2013) Department: Wet Processing Technology Email: mazadulhasan@yahoo.com Blog: www. Textilelab.blogspot.com Southeast University Department of Textile Engineering PREPARED BY ©right

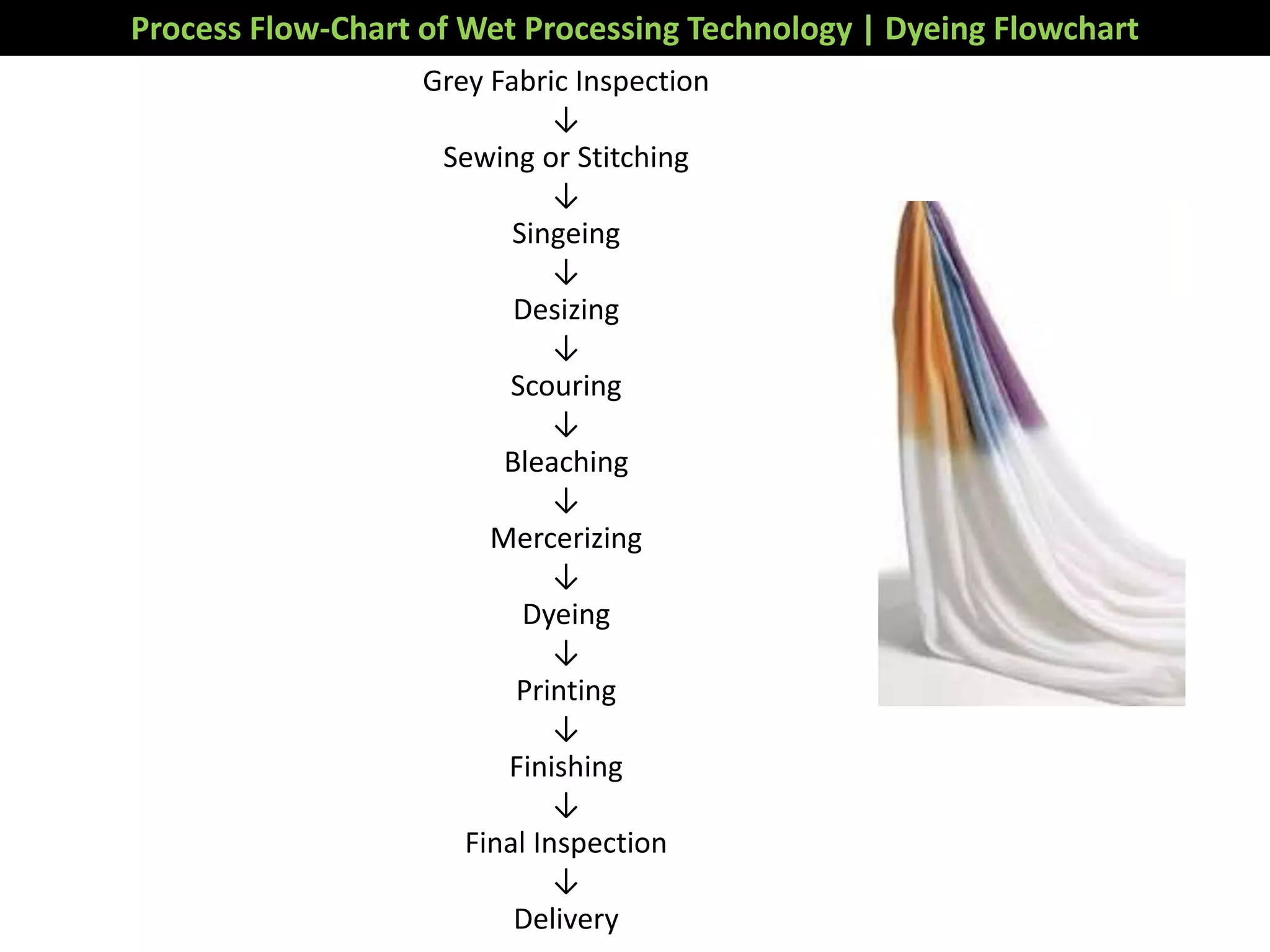

- 3. Process Flow-Chart ofWet Processing Technology | Dyeing Flowchart Grey Fabric Inspection ↓ Sewing or Stitching ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Mercerizing ↓ Dyeing ↓ Printing ↓ Finishing ↓ Final Inspection ↓ Delivery

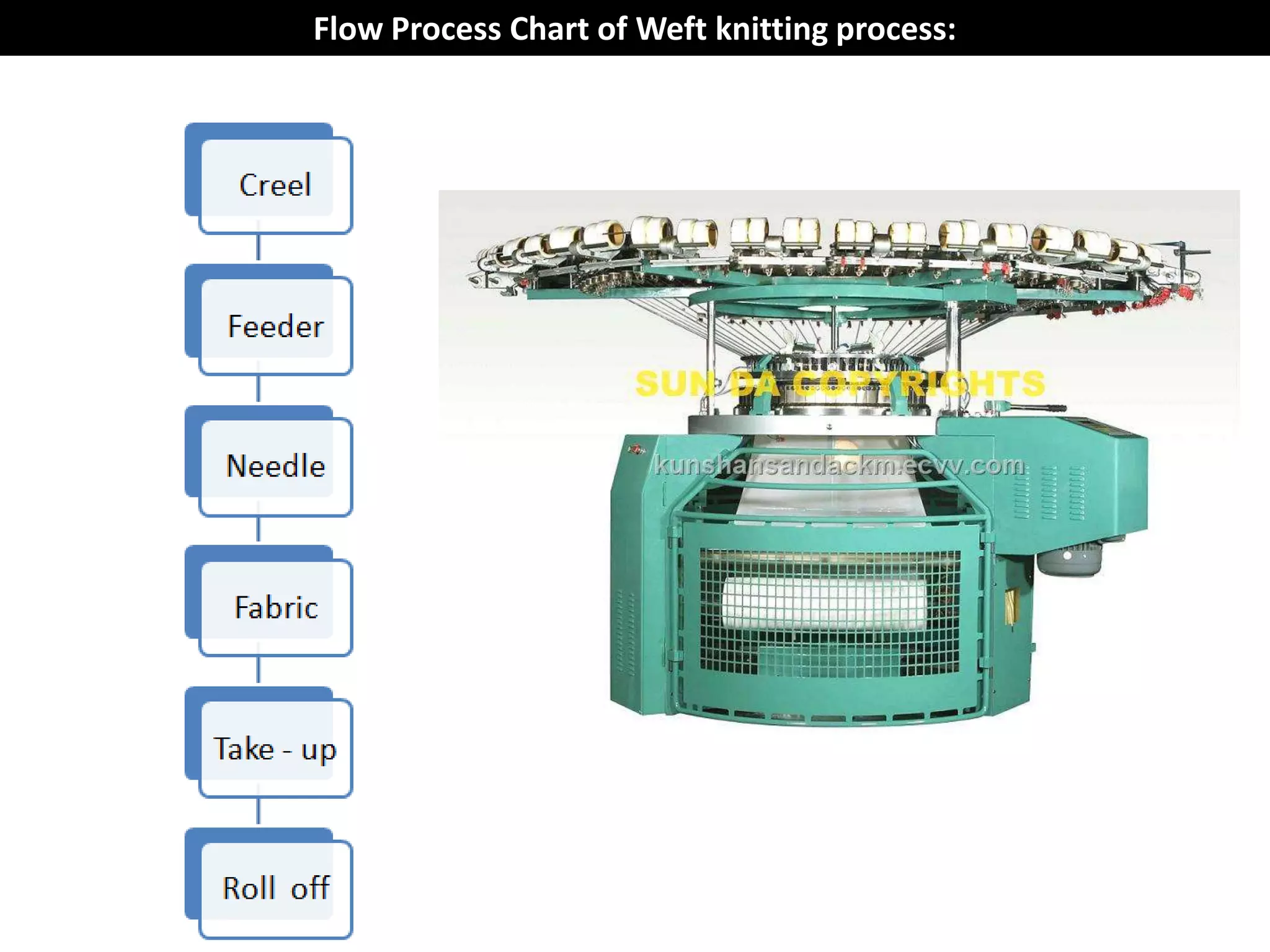

- 4. Flow Process Chartof Weft knitting process:

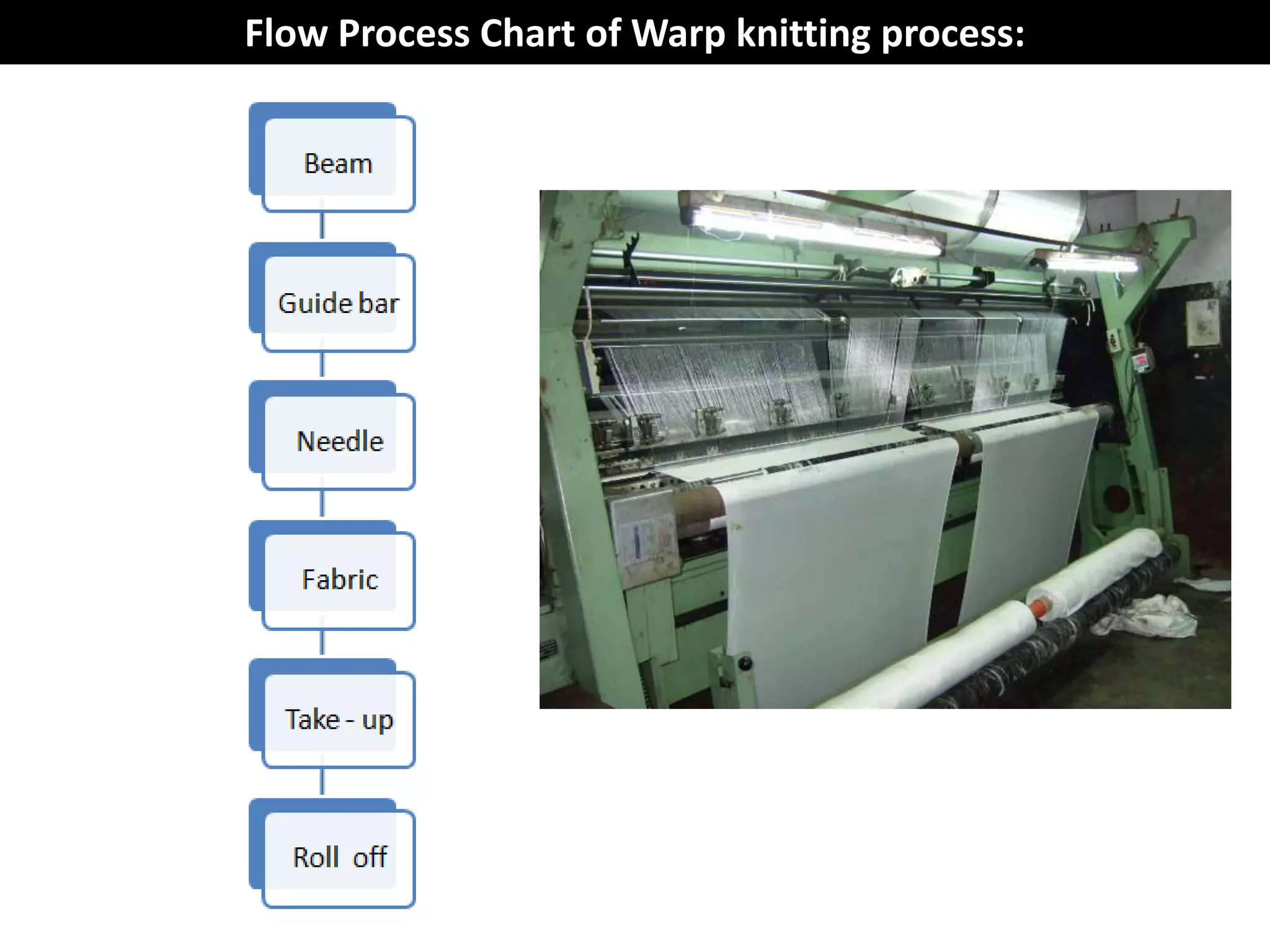

- 5. Flow Process Chartof Warp knitting process:

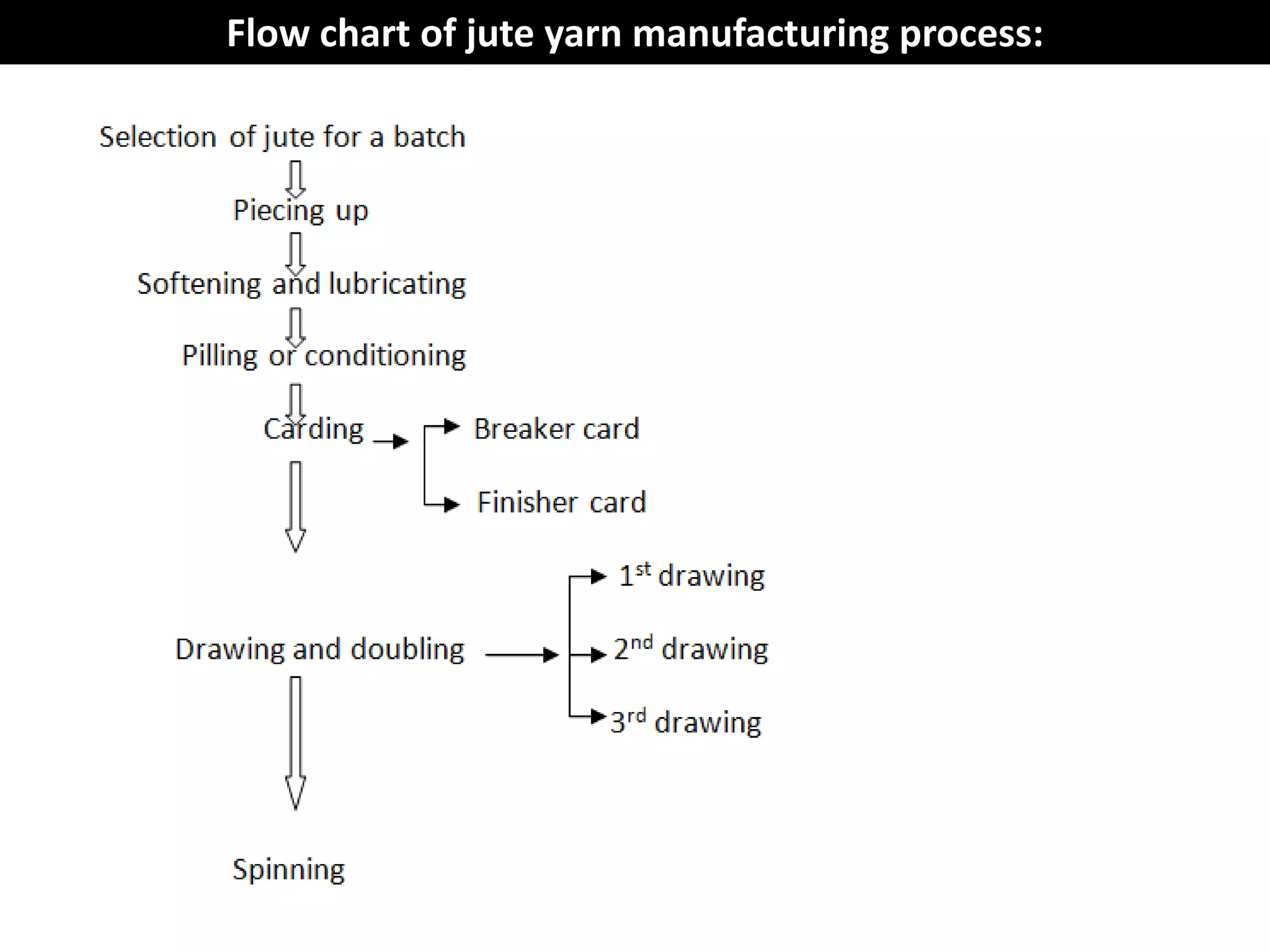

- 6. Flow chart ofjute yarn manufacturing process:

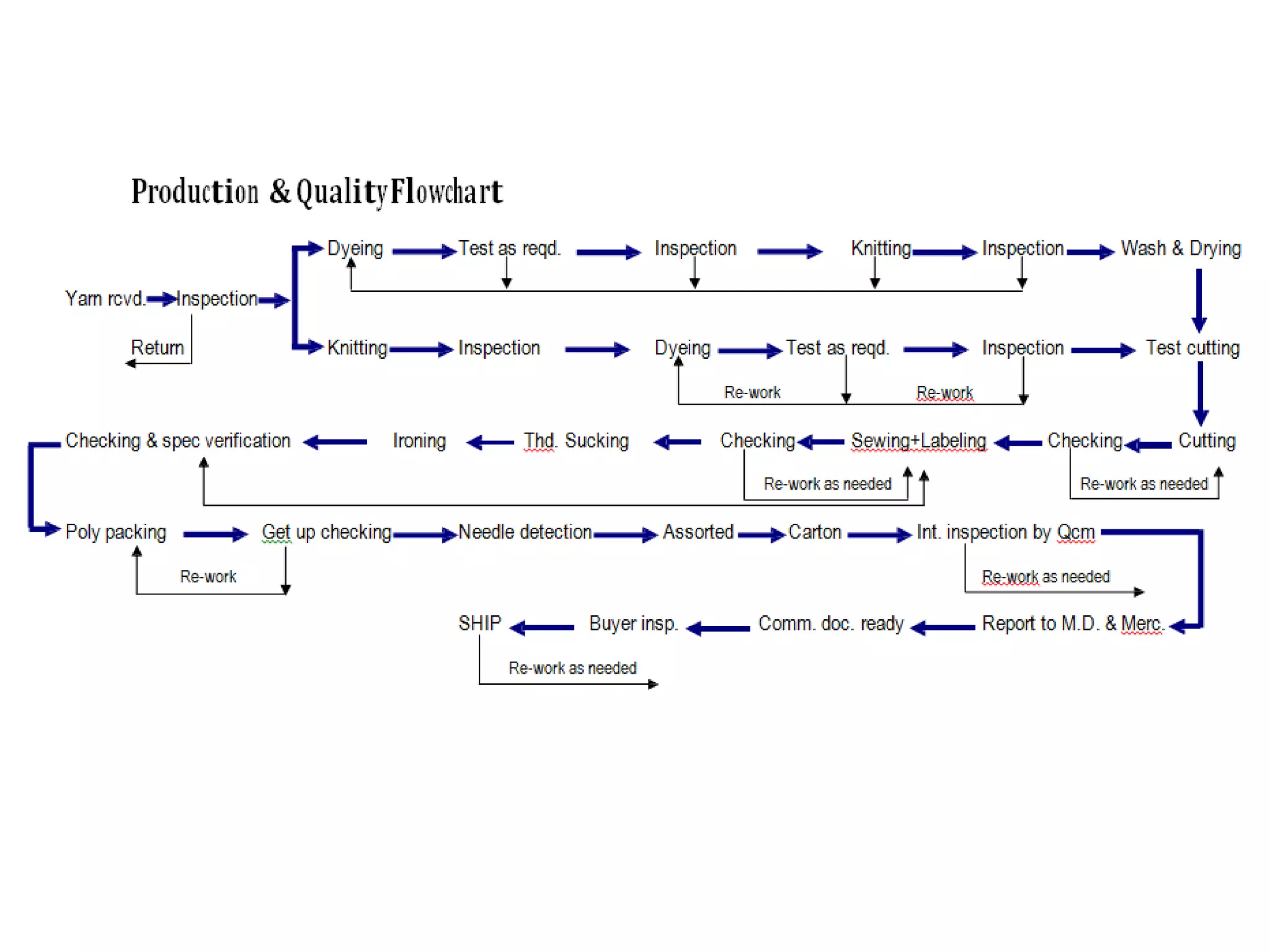

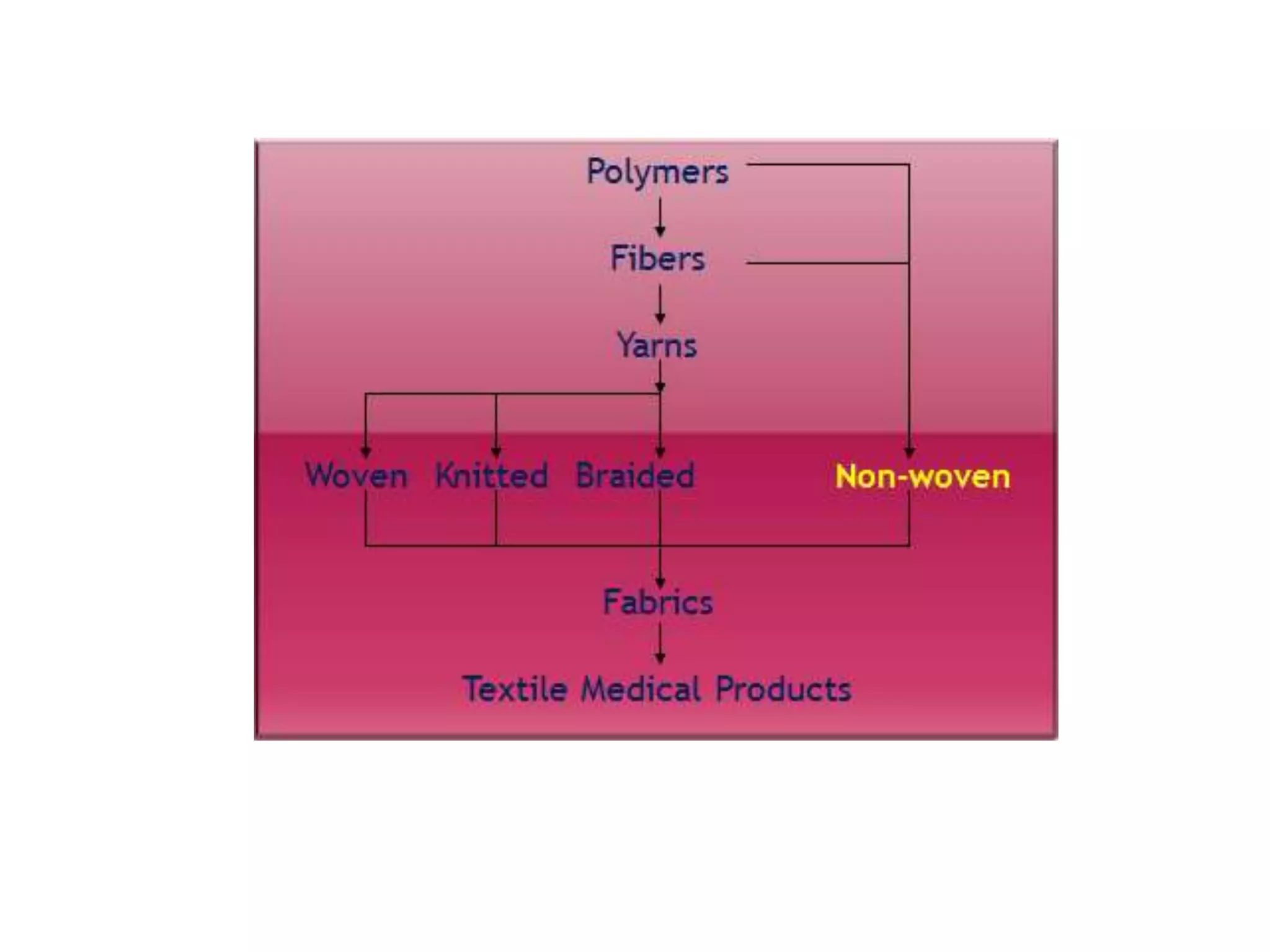

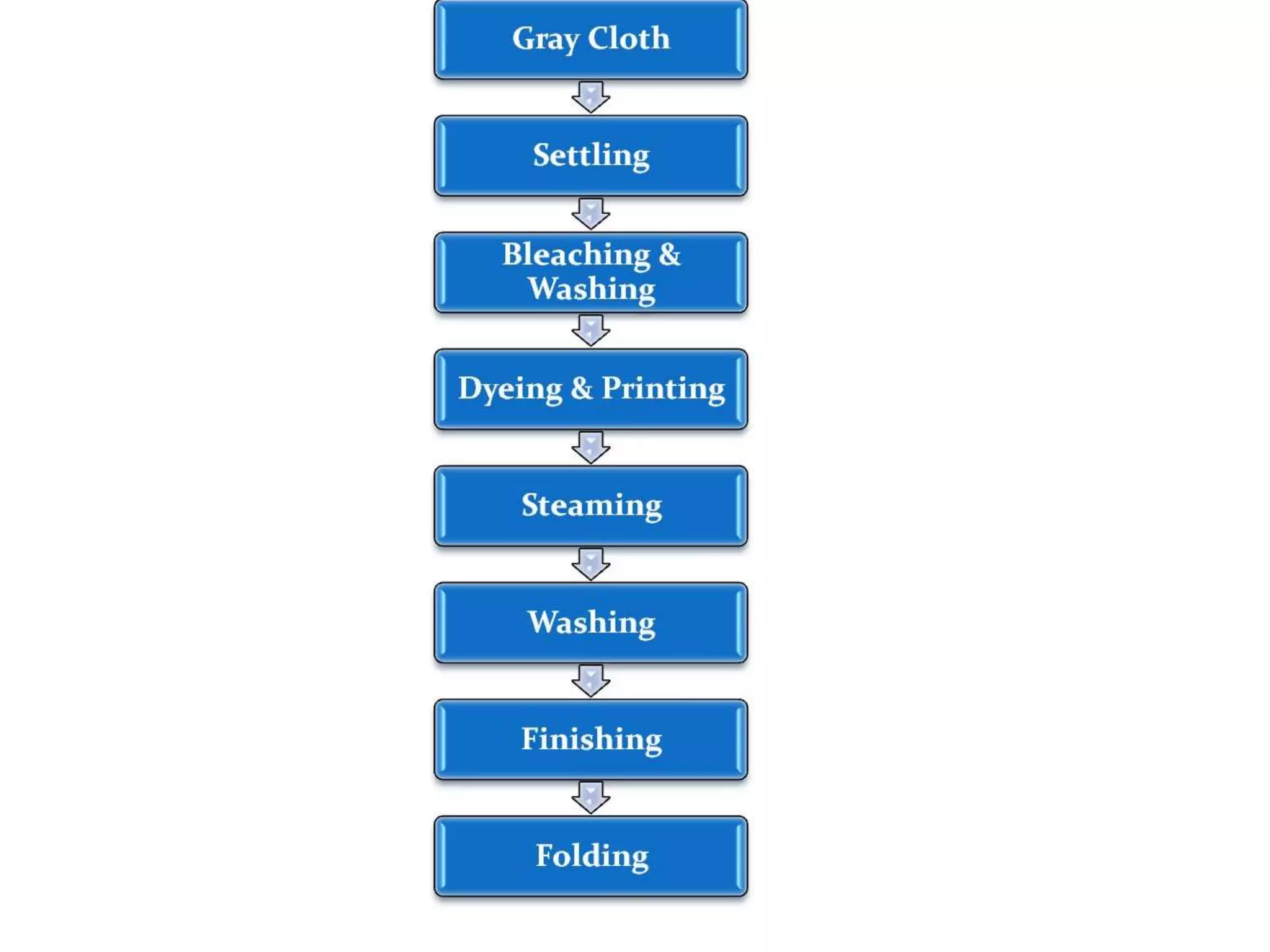

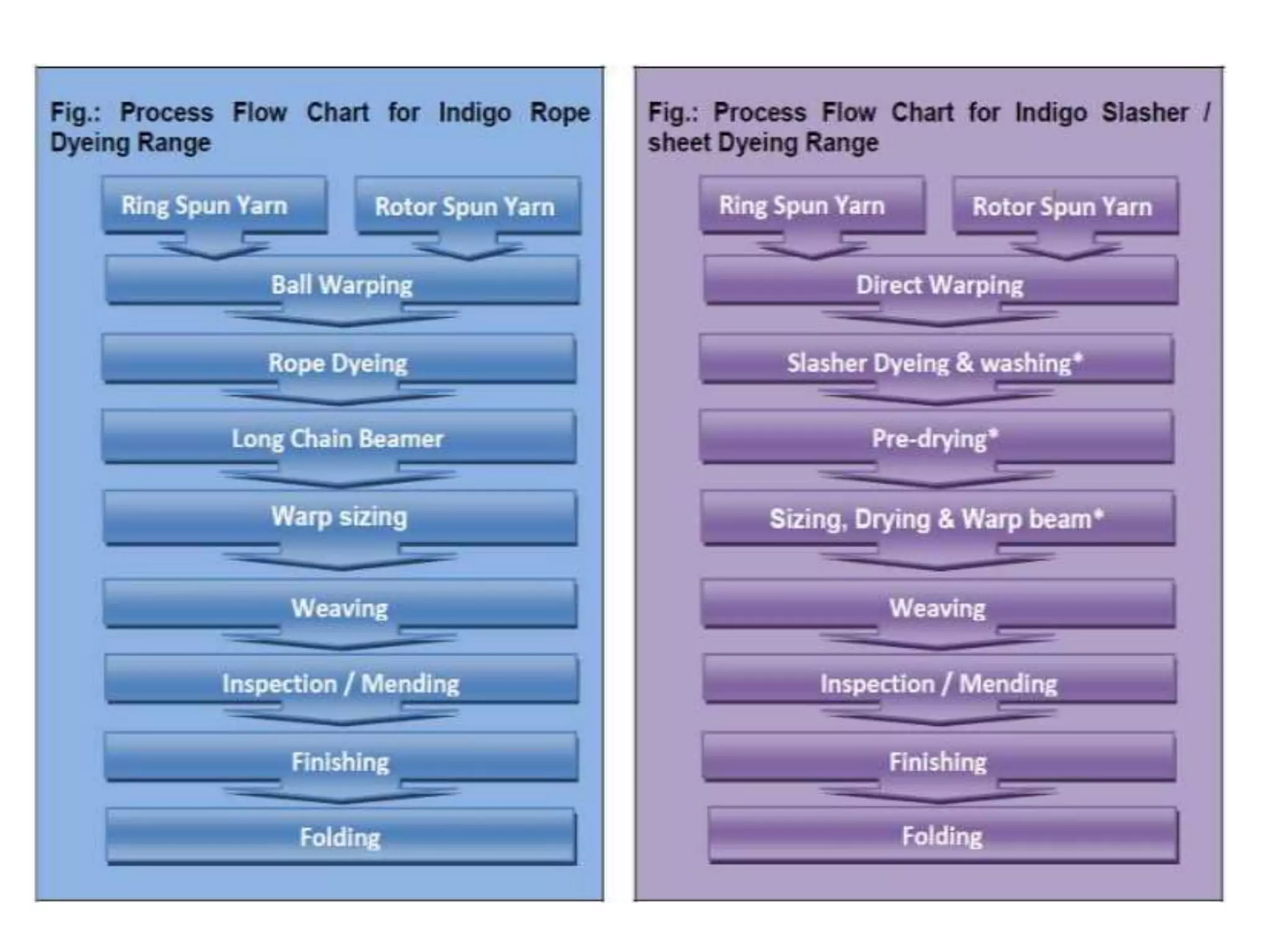

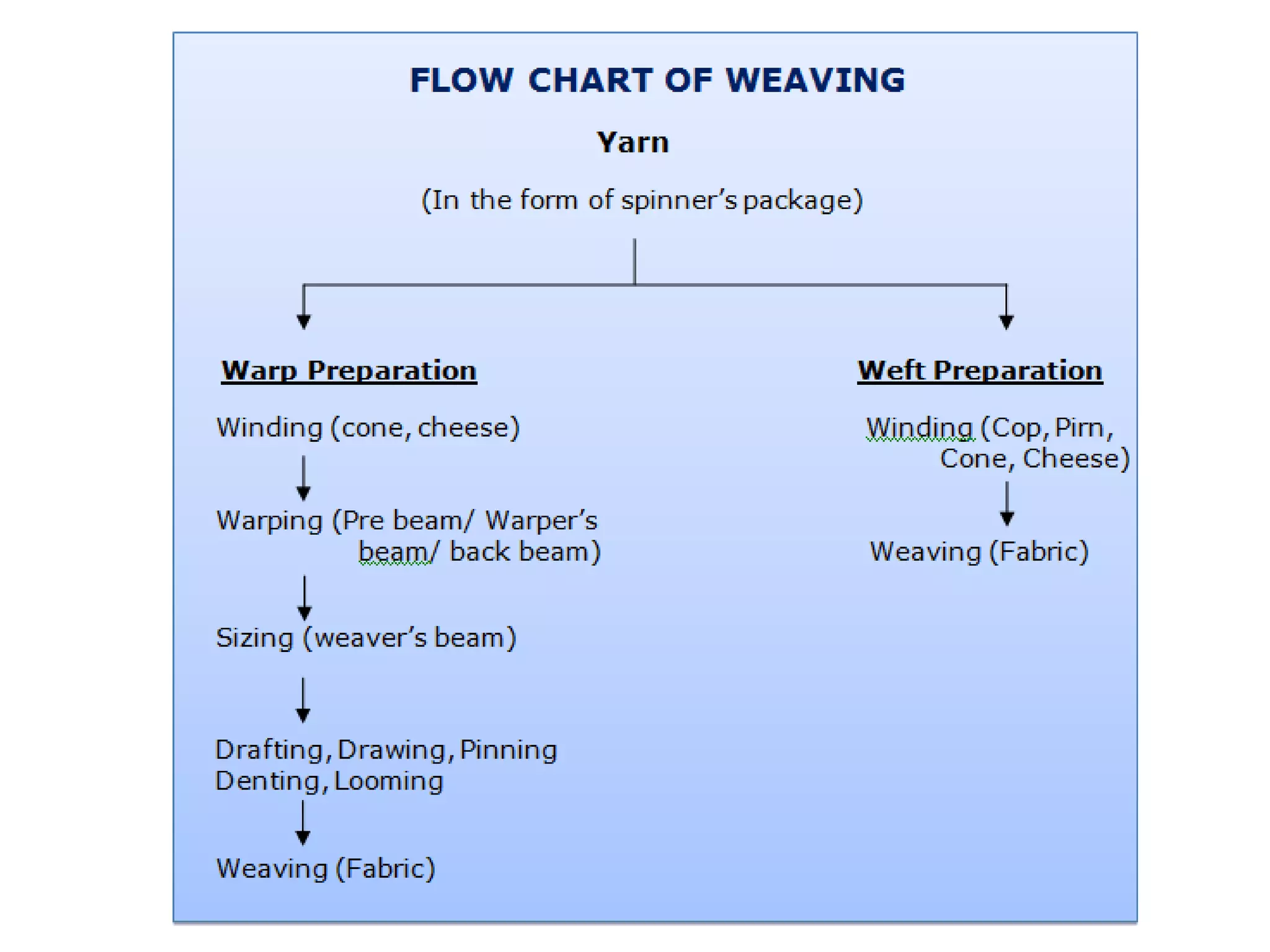

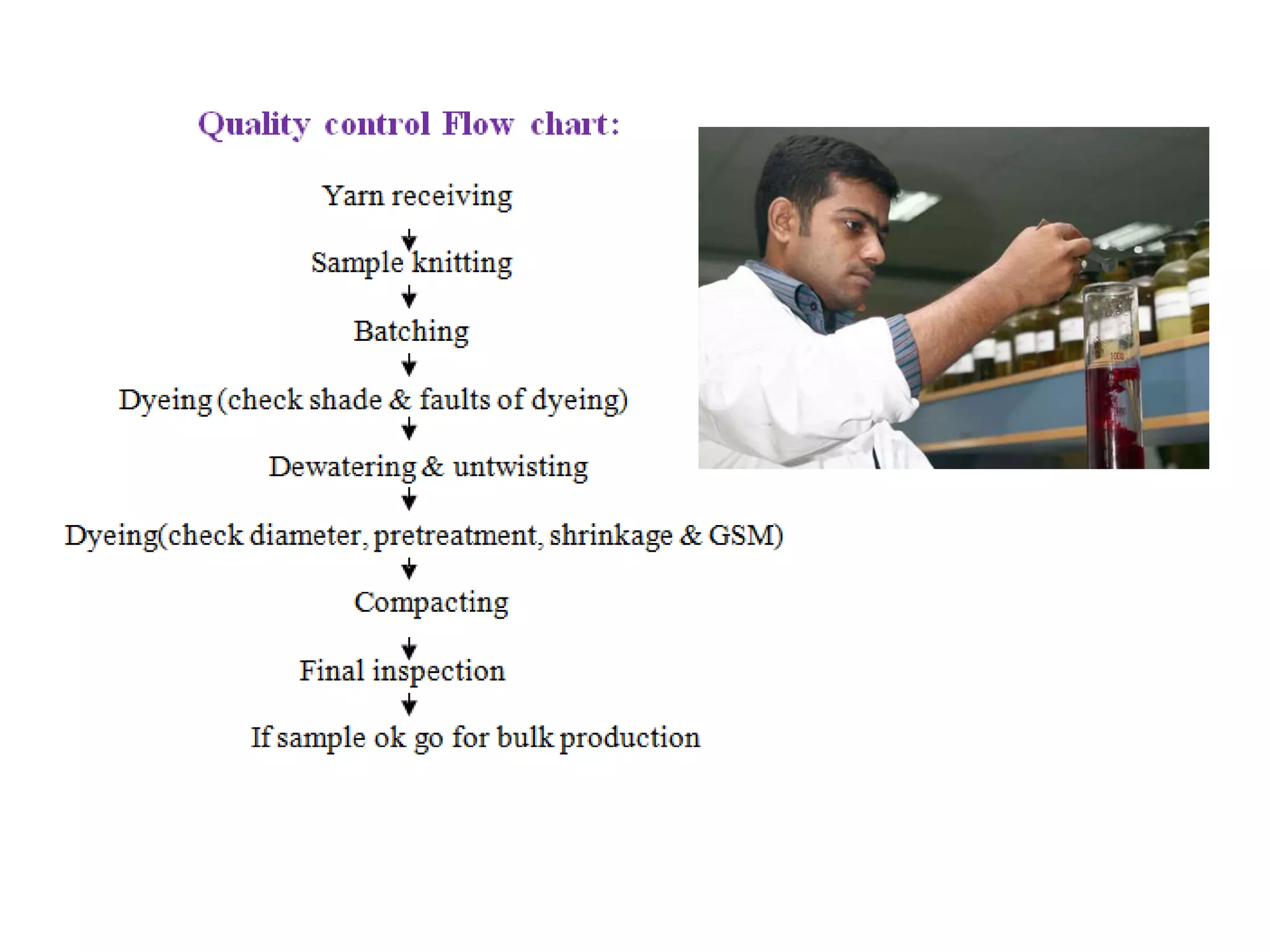

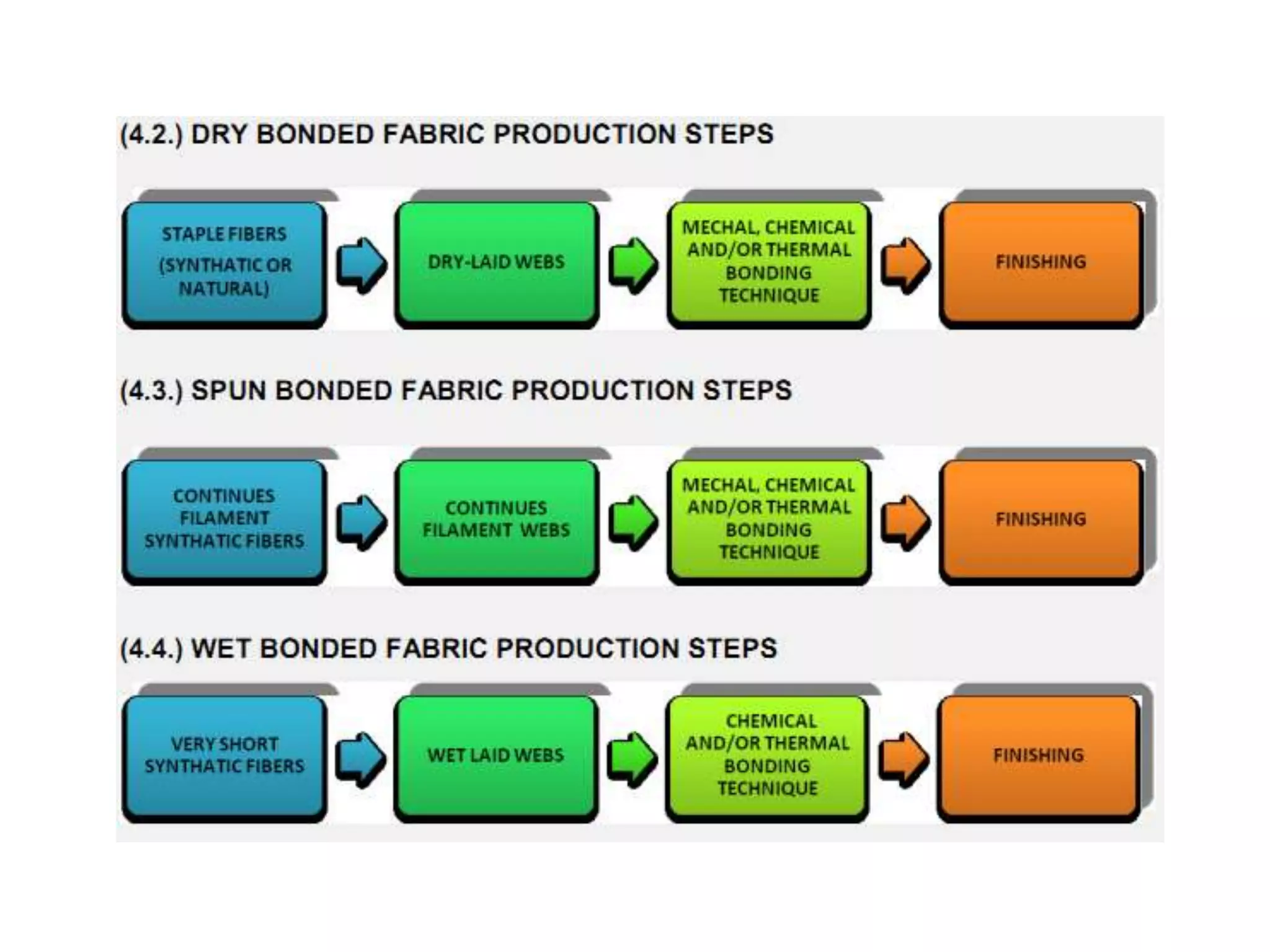

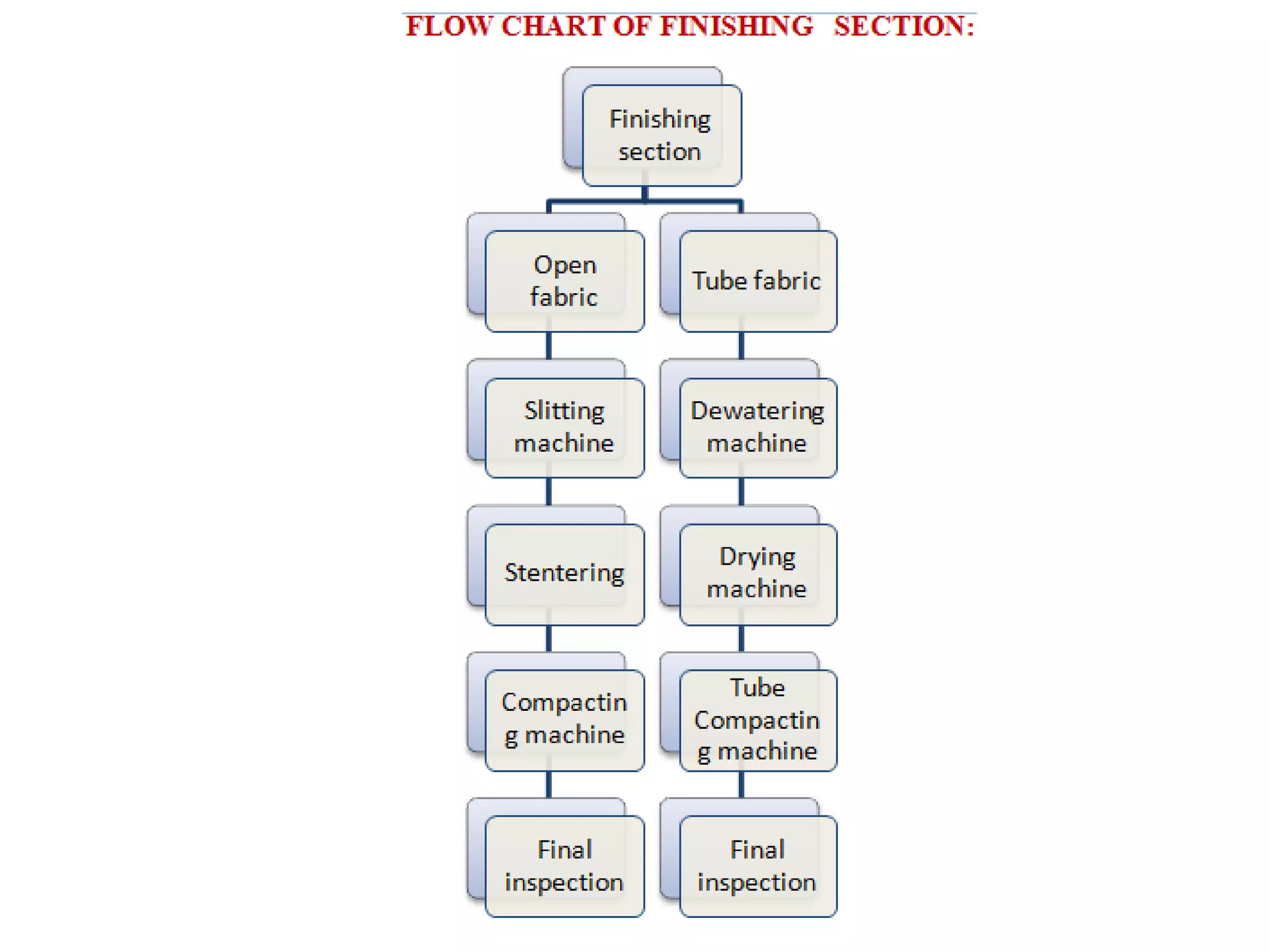

- 17. garment finishing processflow chart

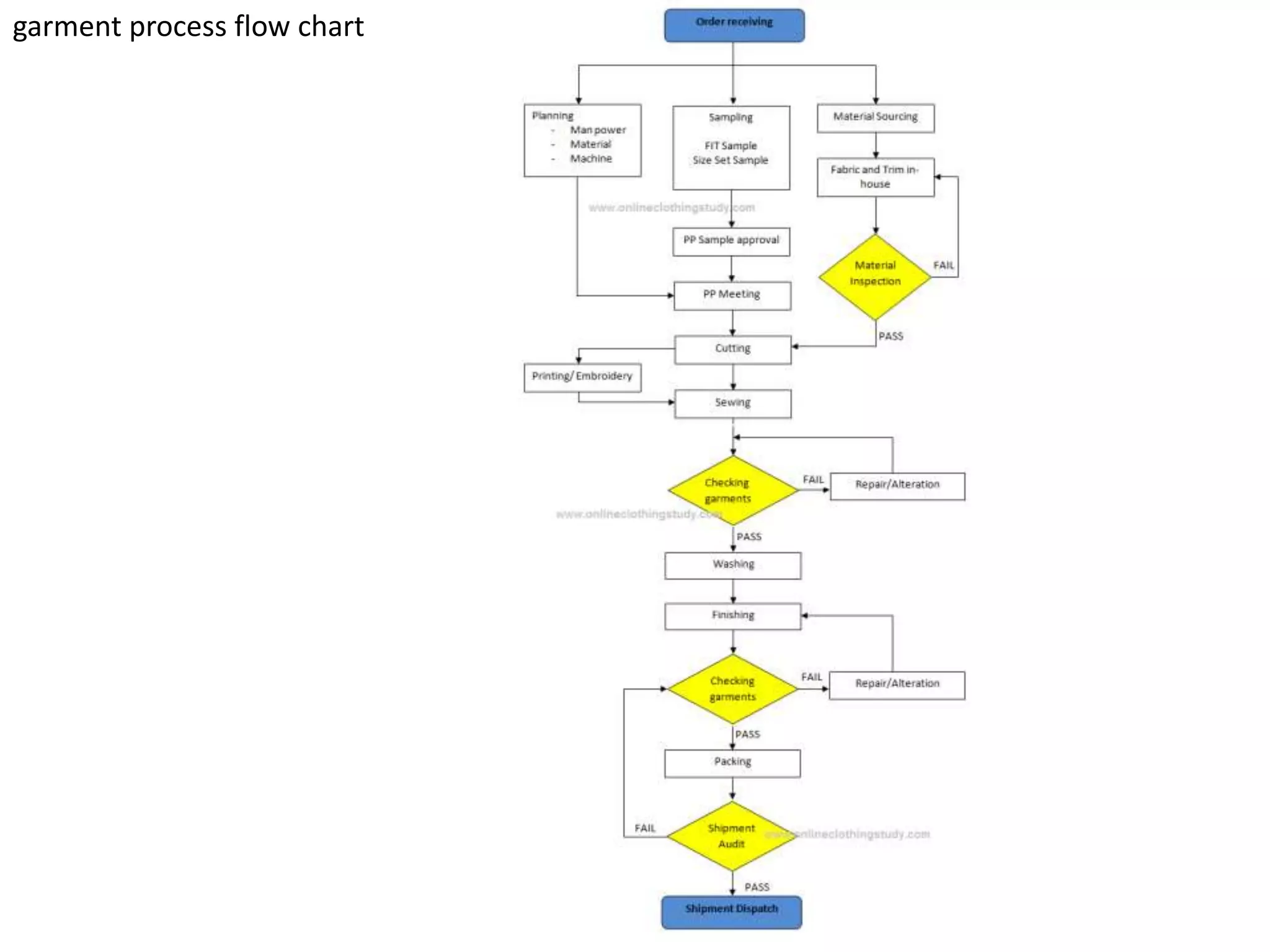

- 18. garment process flowchart
- 19. Merchandiser ↓ Negotiation with buyer& collect order ↓ Costing ↓ Sample making (according to buyer requirement) ↓ Get approval &Placement of order ↓ Getting started (In-house preparation of accessories) ↓ Line balancing ↓ Commencing production ↓ Production Monitoring ↓ Inspection ↓ Buyer’s Inspection (After Finishing) ↓ Preparation of banking & documentation ↓ Shipment/delivery Process Flow-Chart of Merchandising

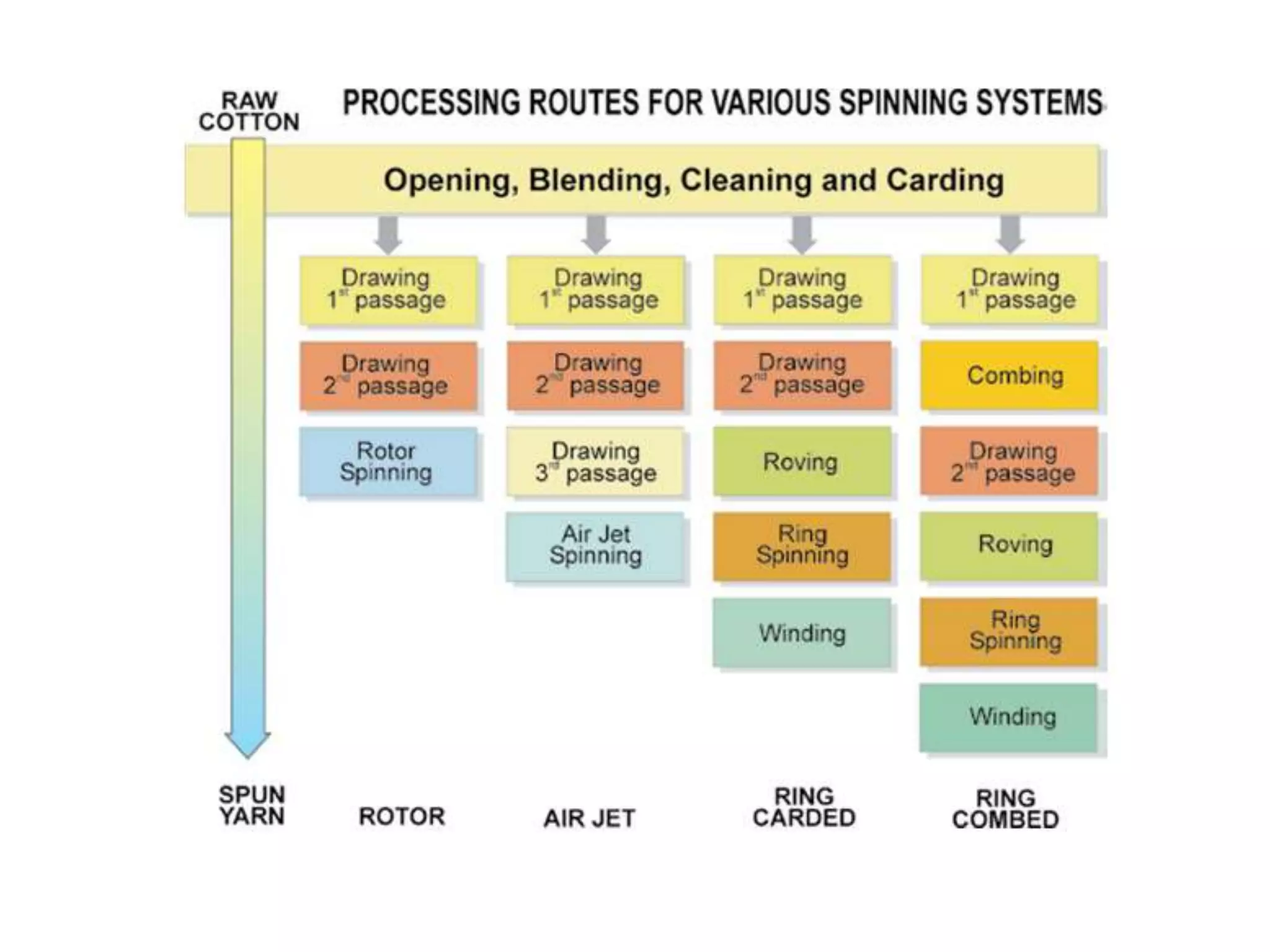

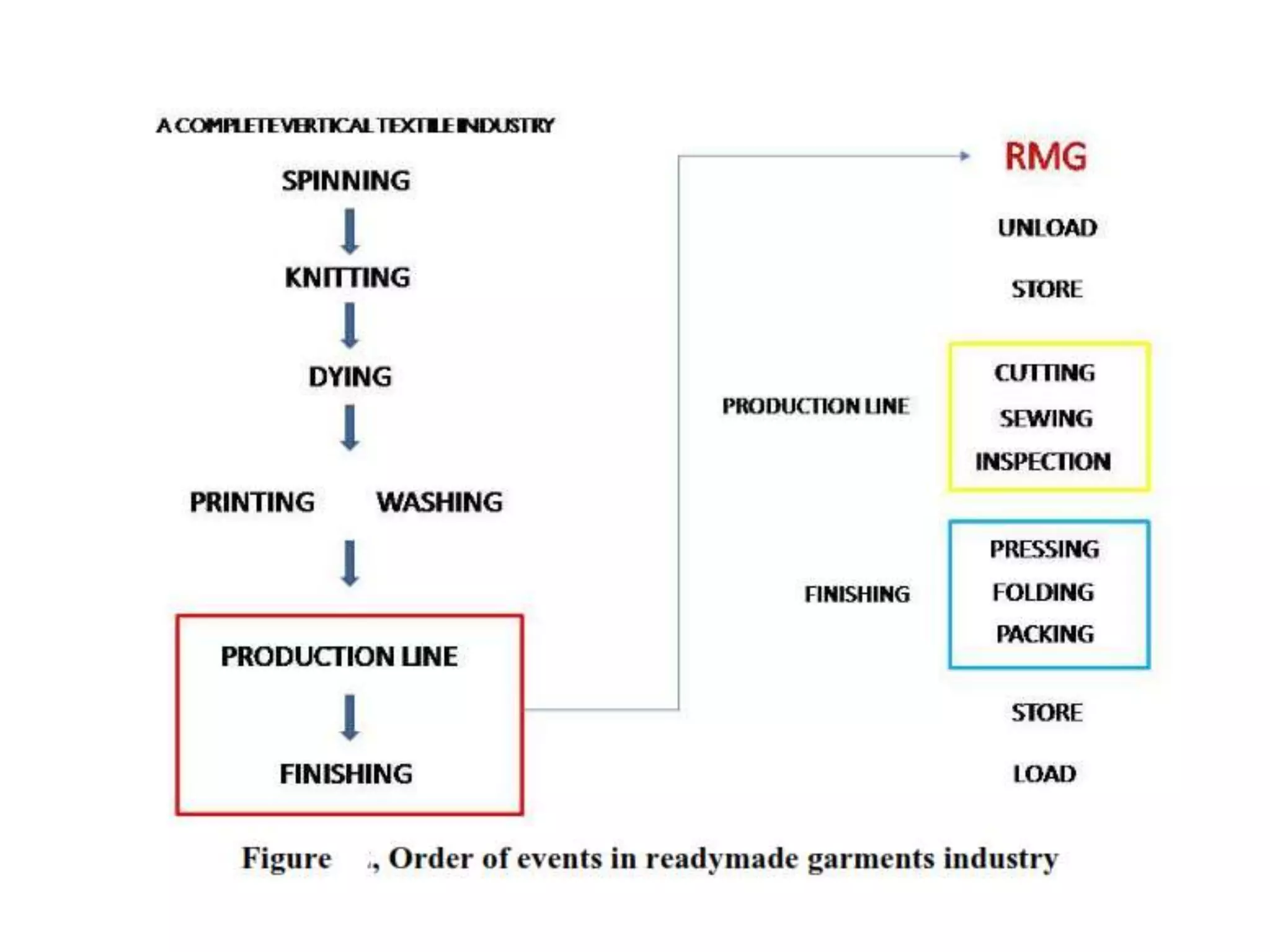

- 22. Flow Chart ofWeaving Yarn from spinning section ↓ Doubling and Twisting ↓ Winding ↓ Creeling ↓ Warping ↓ Sizing ↓ Winding on weavers beam ↓ Weaving

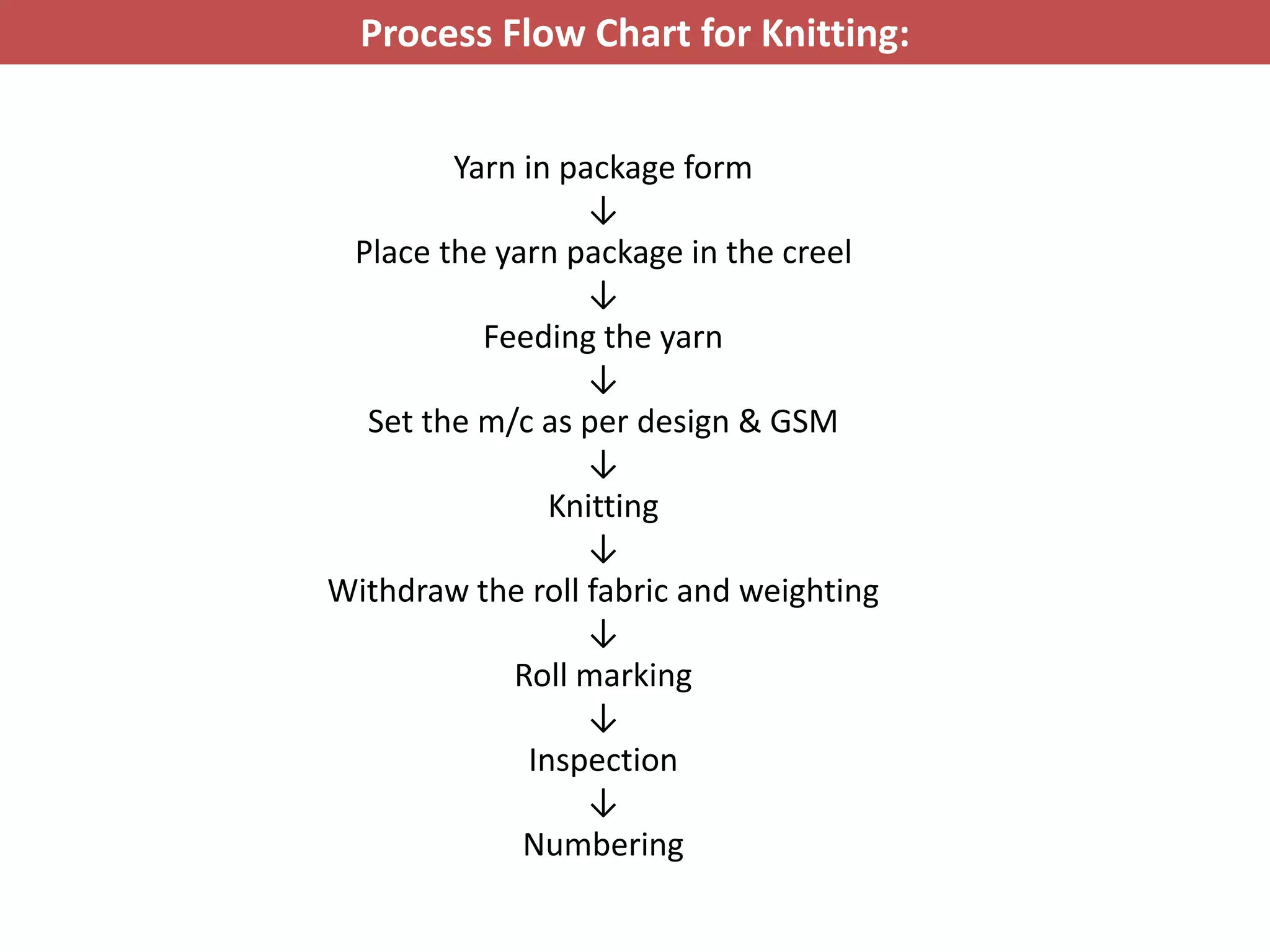

- 23. Process Flow Chartfor Knitting: Yarn in package form ↓ Place the yarn package in the creel ↓ Feeding the yarn ↓ Set the m/c as per design & GSM ↓ Knitting ↓ Withdraw the roll fabric and weighting ↓ Roll marking ↓ Inspection ↓ Numbering

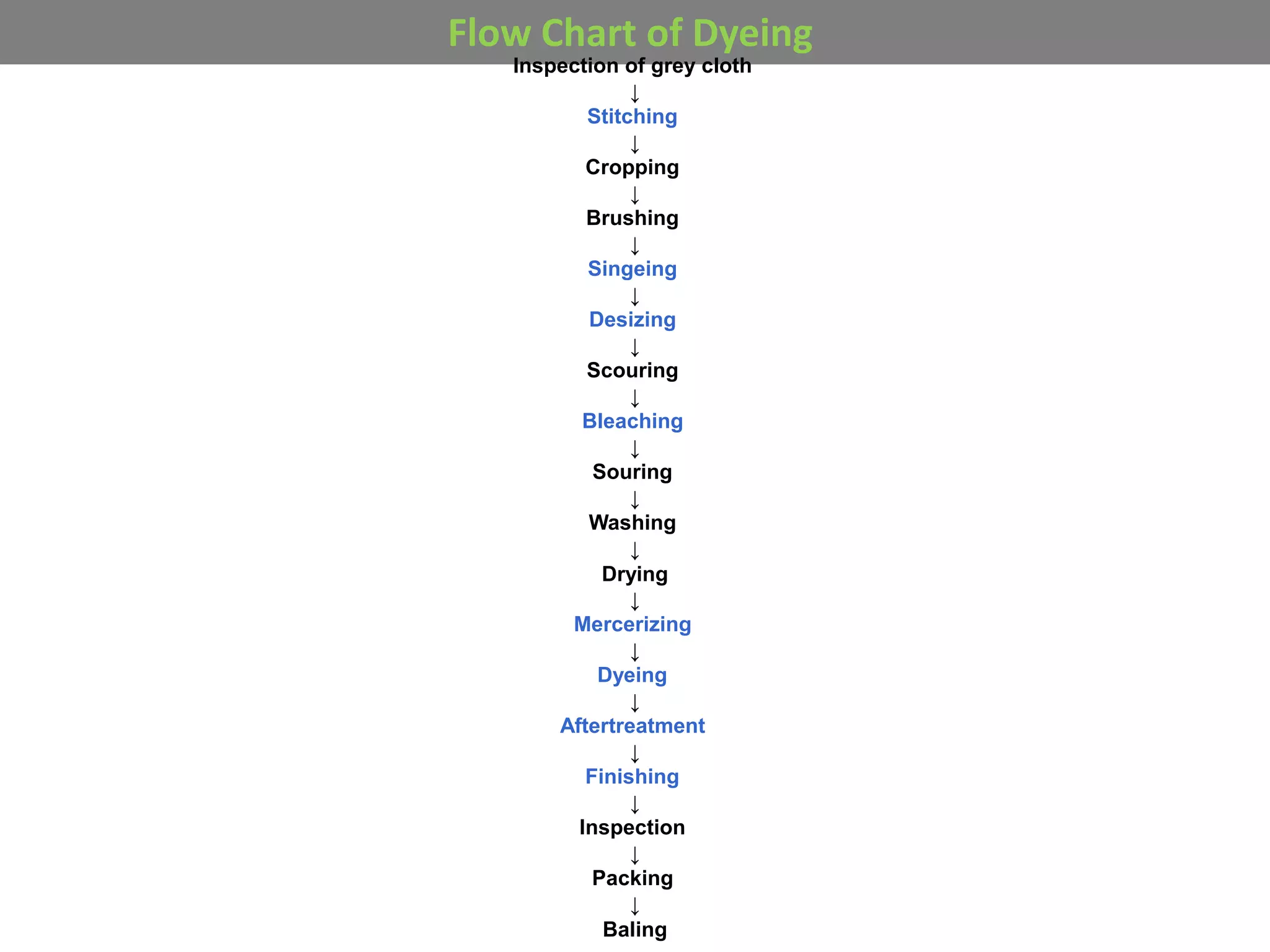

- 24. Flow Chart ofDyeing Inspection of grey cloth ↓ Stitching ↓ Cropping ↓ Brushing ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Souring ↓ Washing ↓ Drying ↓ Mercerizing ↓ Dyeing ↓ Aftertreatment ↓ Finishing ↓ Inspection ↓ Packing ↓ Baling

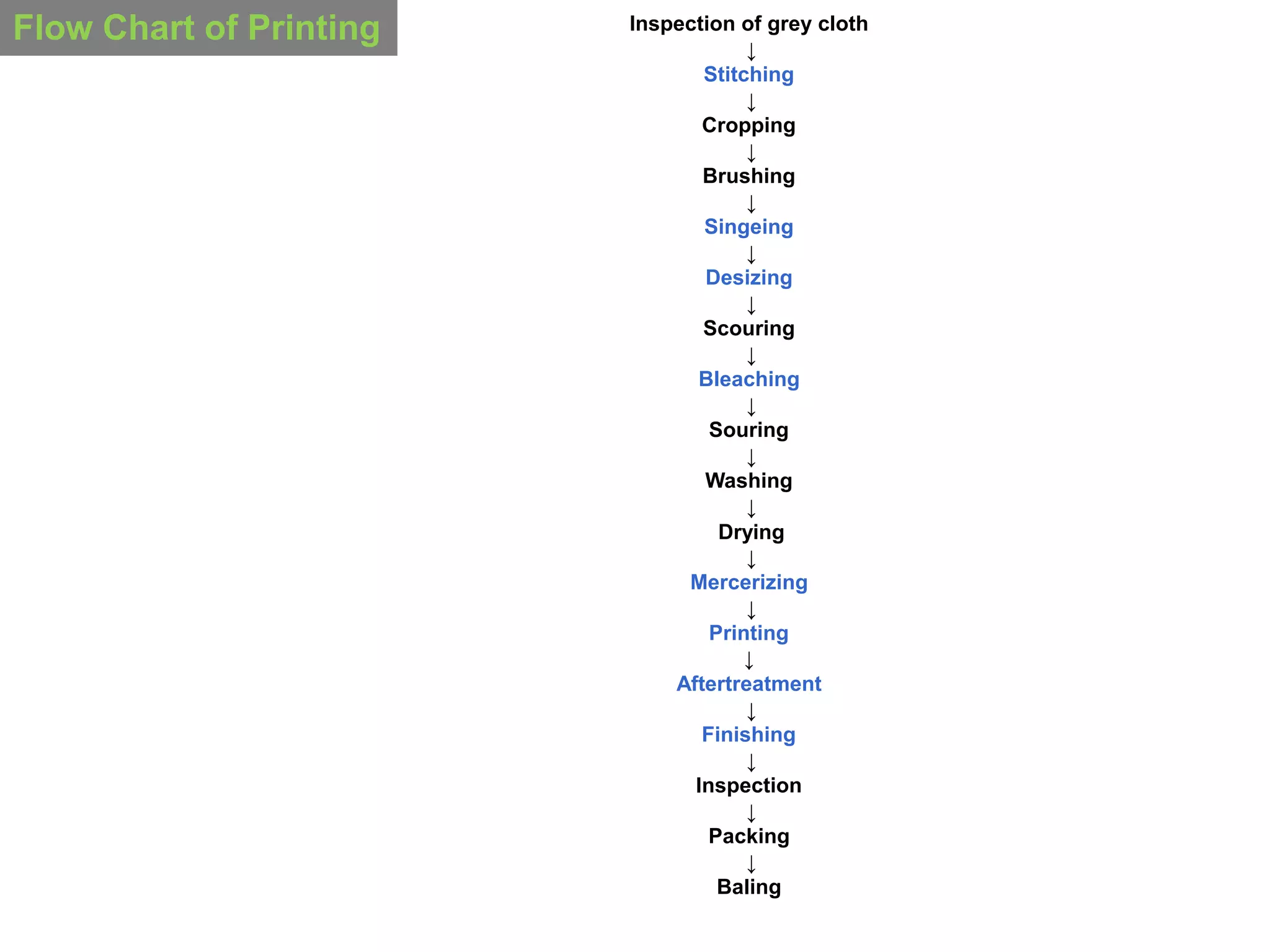

- 25. Inspection of greycloth ↓ Stitching ↓ Cropping ↓ Brushing ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Souring ↓ Washing ↓ Drying ↓ Mercerizing ↓ Printing ↓ Aftertreatment ↓ Finishing ↓ Inspection ↓ Packing ↓ Baling Flow Chart of Printing
- 26. Flow Chart ofGarment Manufacturing Design / Sketch ↓ Pattern Design ↓ Sample Making ↓ Production Pattern ↓ Grading ↓ Marker Making ↓ Spreading ↓ Cutting ↓ Sorting/Bundling ↓ Sewing/Assembling ↓ Inspection ↓ Pressing/ Finishing ↓ Final Inspection ↓ Packing ↓ Despatch
- 27. Process line ofRing Spinning
- 28. Flow Process chartof Jute Spinning
- 29. Flow Process chartof Jute Spinning

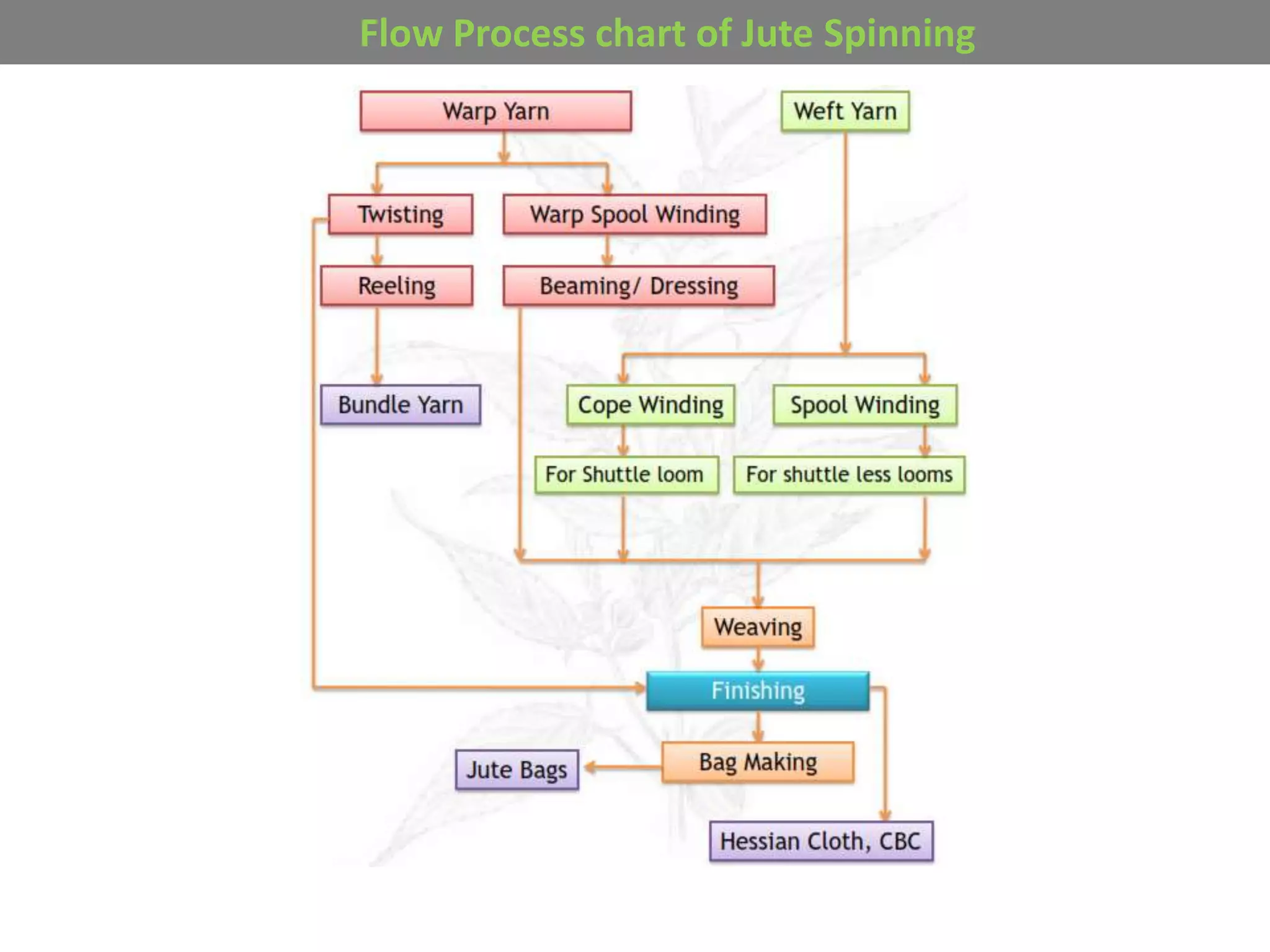

- 30. Flow Process chartof Jute Spinning

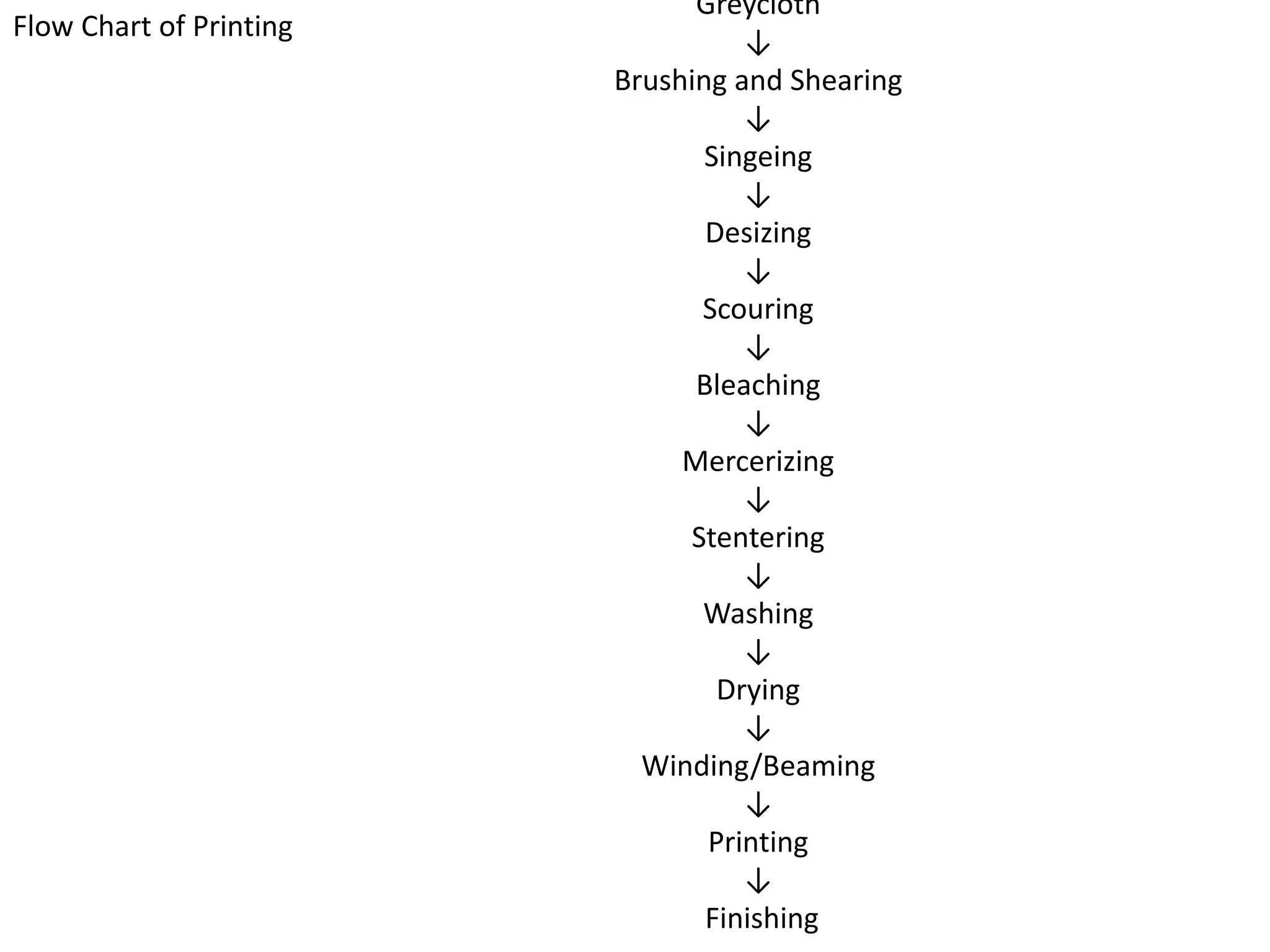

- 31. Flow Chart ofPrinting Greycloth ↓ Brushing and Shearing ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Mercerizing ↓ Stentering ↓ Washing ↓ Drying ↓ Winding/Beaming ↓ Printing ↓ Finishing
- 32. Production Flow Chartof Wet Processing for Woven Fabric
- 33. Flow chart ofsynthetic process of man-made fiber:

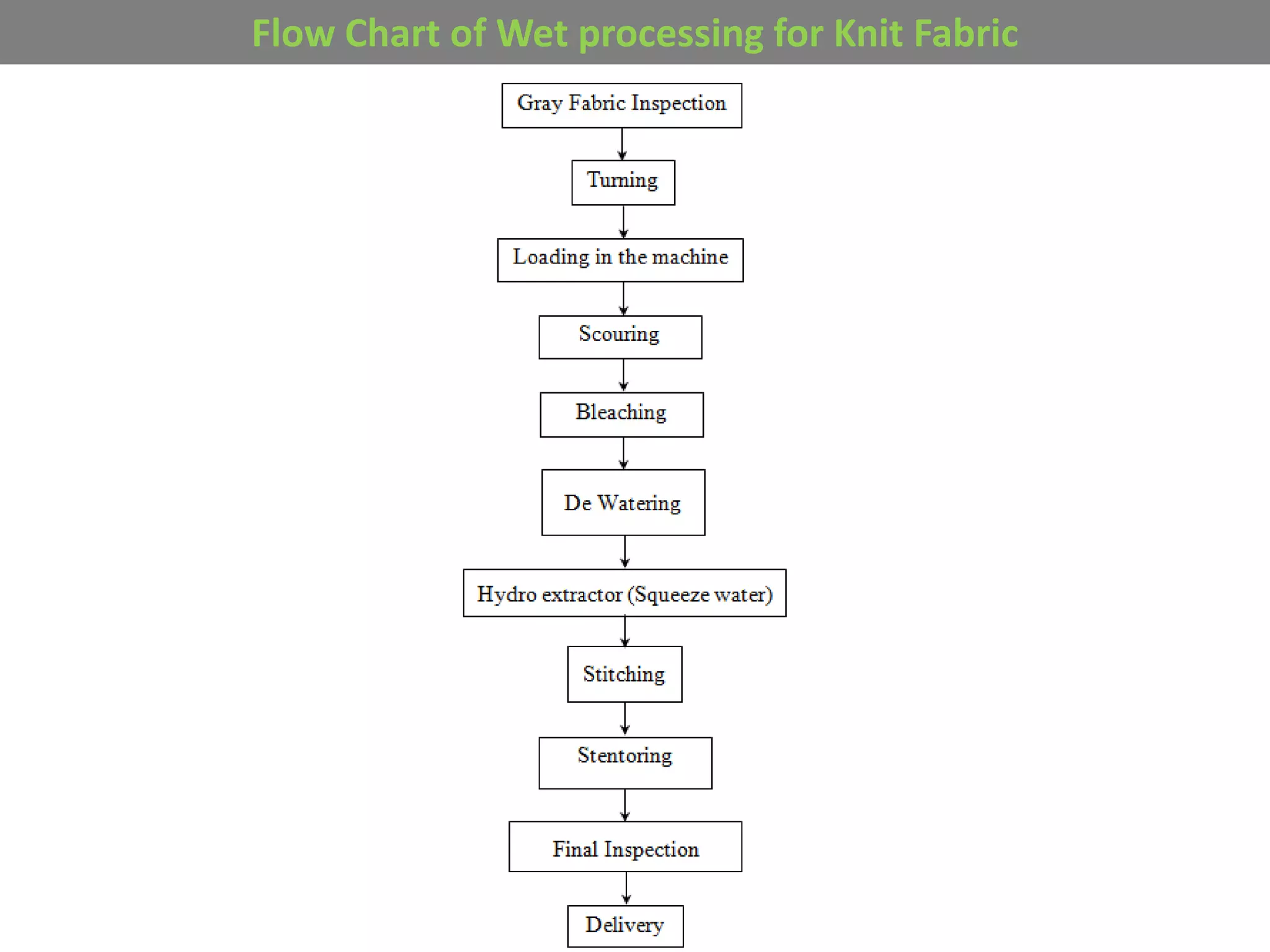

- 34. Flow Chart ofWet processing for Knit Fabric

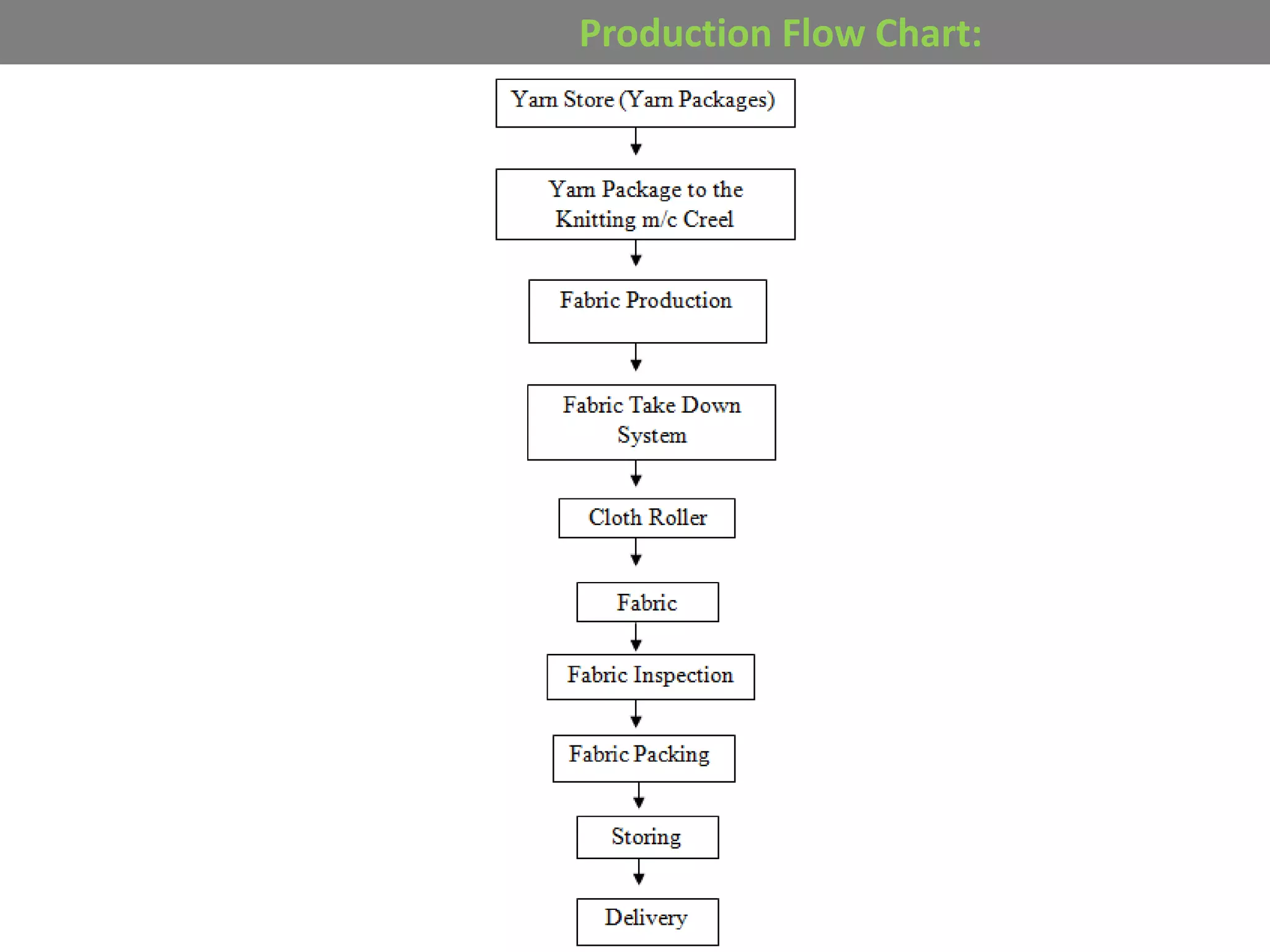

- 35.

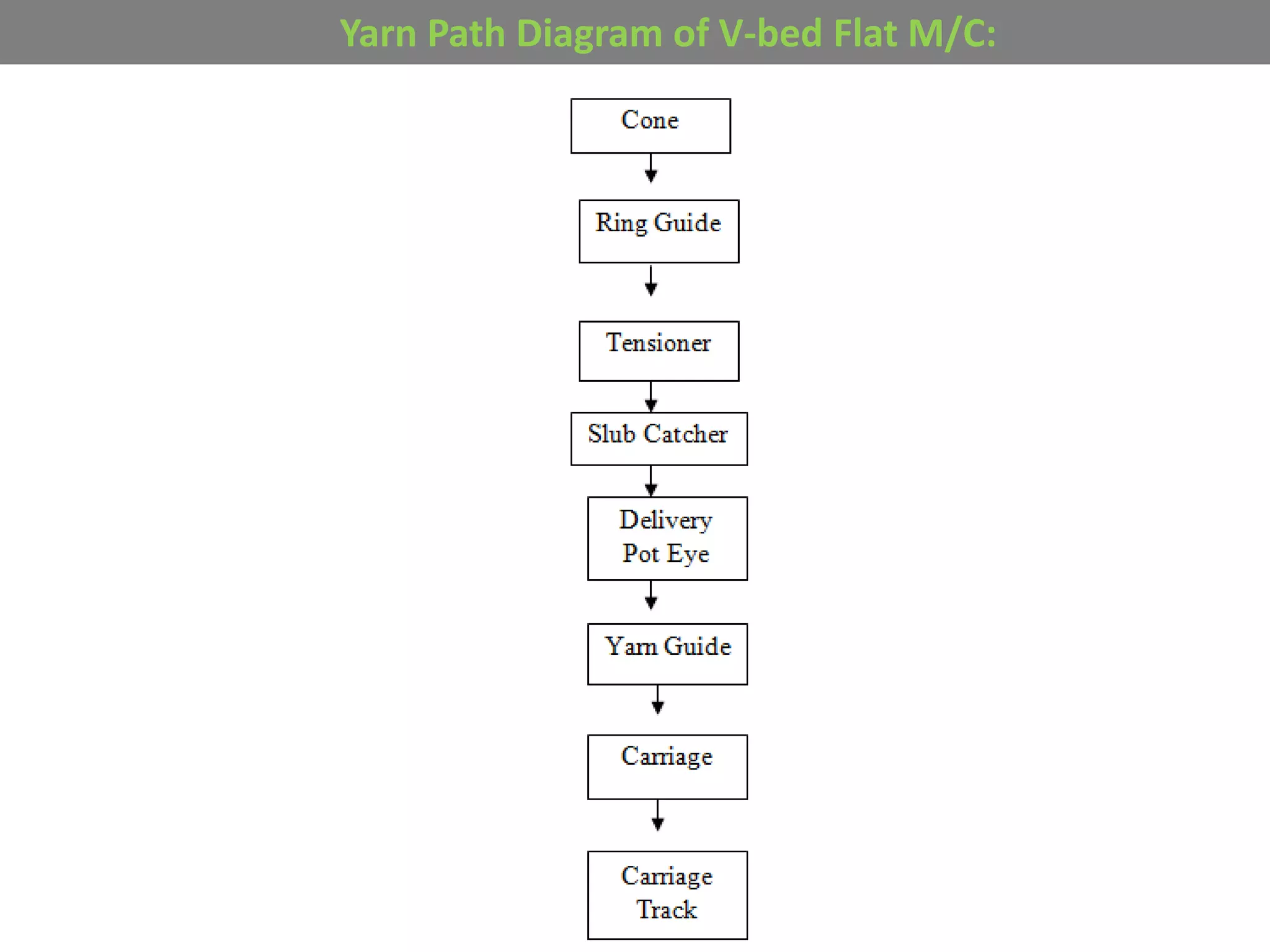

- 36. Yarn Path Diagramof V-bed Flat M/C:

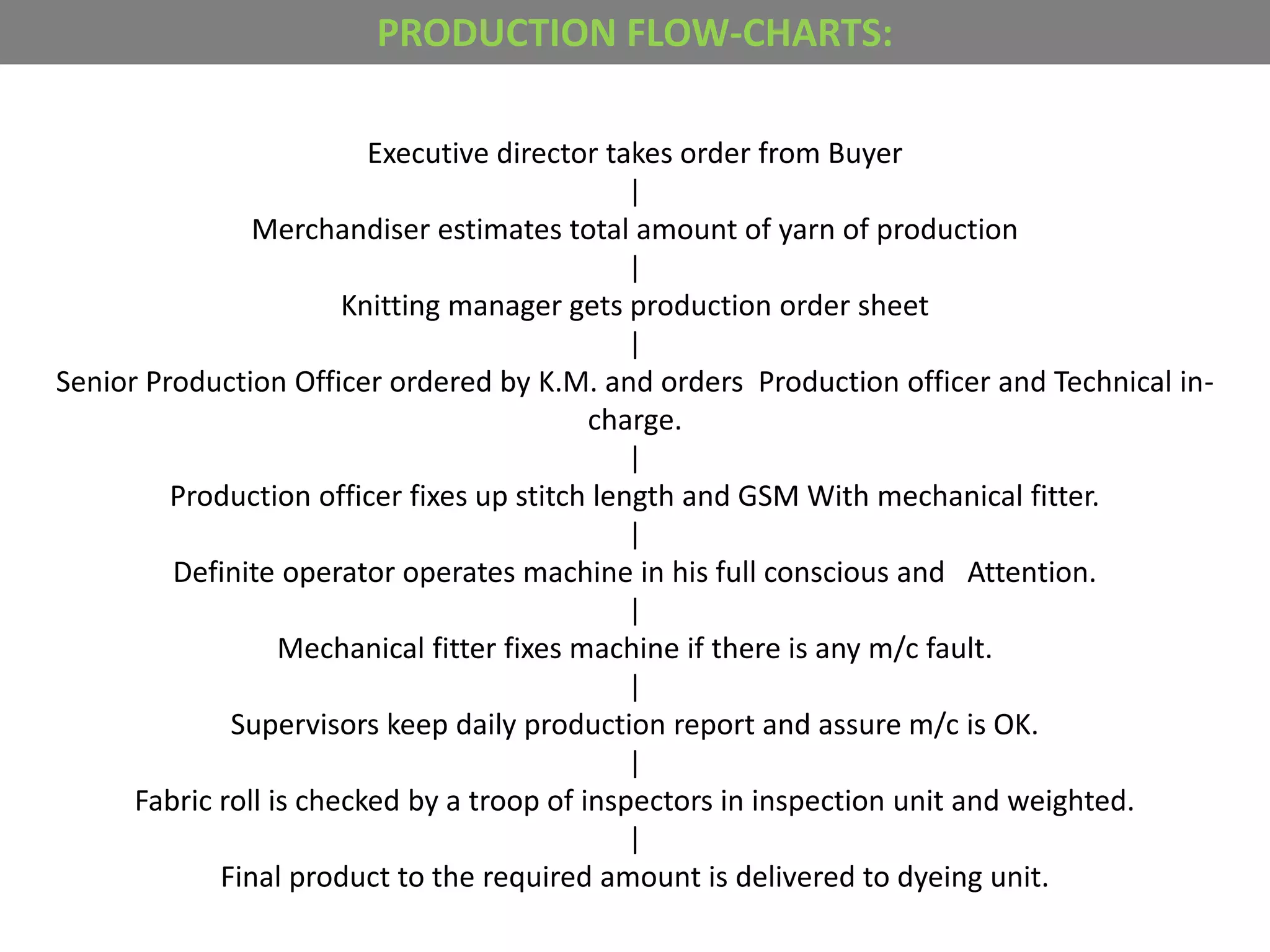

- 37. PRODUCTION FLOW-CHARTS: Executive directortakes order from Buyer | Merchandiser estimates total amount of yarn of production | Knitting manager gets production order sheet | Senior Production Officer ordered by K.M. and orders Production officer and Technical in- charge. | Production officer fixes up stitch length and GSM With mechanical fitter. | Definite operator operates machine in his full conscious and Attention. | Mechanical fitter fixes machine if there is any m/c fault. | Supervisors keep daily production report and assure m/c is OK. | Fabric roll is checked by a troop of inspectors in inspection unit and weighted. | Final product to the required amount is delivered to dyeing unit.
- 38.
- 39. Finishing input (style,color & size wise) Ironing Inspection Hang tag Get up change Folding Poly Bar code (buyer wise sticker) Metal check Cartooning Final inspection by buyer Process flowchart of garment finishing:

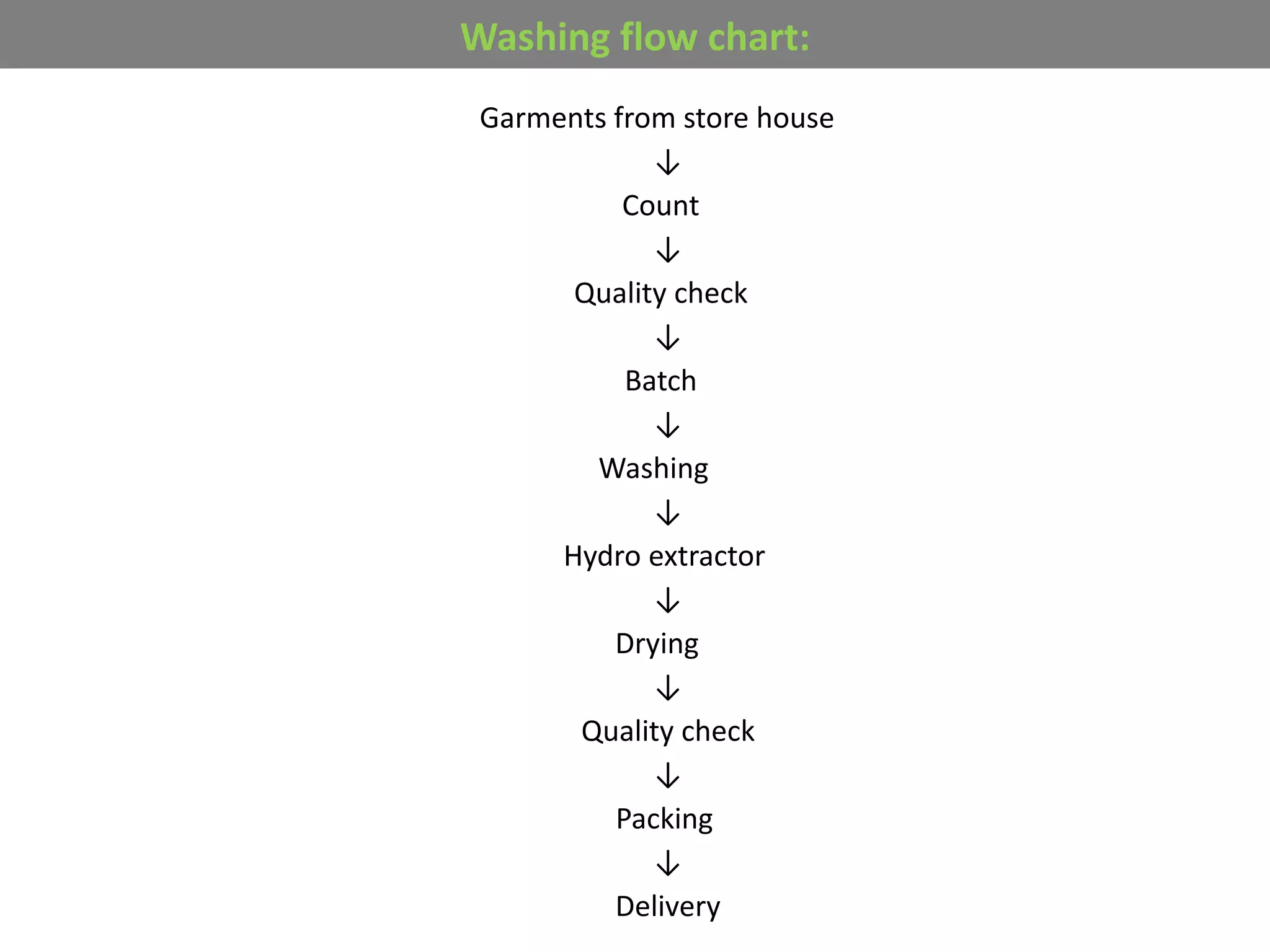

- 40. Garments from storehouse ↓ Count ↓ Quality check ↓ Batch ↓ Washing ↓ Hydro extractor ↓ Drying ↓ Quality check ↓ Packing ↓ Delivery Washing flow chart:
