Textile flow chart
This document contains numerous flow charts describing processes in the textile industry, including wet processing, knitting, dyeing, printing, garment manufacturing, and finishing. The charts use arrows and labels to illustrate the sequential steps and material flows for various textile and apparel production processes.
In this document
Powered by AI
Covers various textile production processes, including wet processing, knitting, jute manufacturing, and garment finishing, highlighting the flowcharts of different processes.
Covers various textile production processes, including wet processing, knitting, jute manufacturing, and garment finishing, highlighting the flowcharts of different processes.
Covers various textile production processes, including wet processing, knitting, jute manufacturing, and garment finishing, highlighting the flowcharts of different processes.
Covers various textile production processes, including wet processing, knitting, jute manufacturing, and garment finishing, highlighting the flowcharts of different processes.
Covers various textile production processes, including wet processing, knitting, jute manufacturing, and garment finishing, highlighting the flowcharts of different processes.
More Related Content
Similar to Textile flow chart
Textile flow chart
- 1.
- 2. Name : AZIZULHAQUE JUEL ID: 112-23-2538 Batch: 18th Batch (Session 2011-2015) Major: Fabric Manufacturing Email: azizulhaque230@gmail.com Blog: www.textilestudypoint.blogspot.com Department of Textile Engineering PREPARED BY Copyright © All Rights Reserve DAFFODIL INTERNATIONAL UNIVERSITY DEPARTMENT OF TEXTILE ENGINEERING 102, SHUKRABAD, MIRPUR ROAD, DHANMONDI, DHAKA-1207 BANGLADESH
- 3. Process Flow-Chart ofWet Processing Technology | Dyeing Flowchart Grey Fabric Inspection ↓ Sewing or Stitching ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Mercerizing ↓ Dyeing ↓ Printing ↓ Finishing ↓ Final Inspection ↓ Delivery

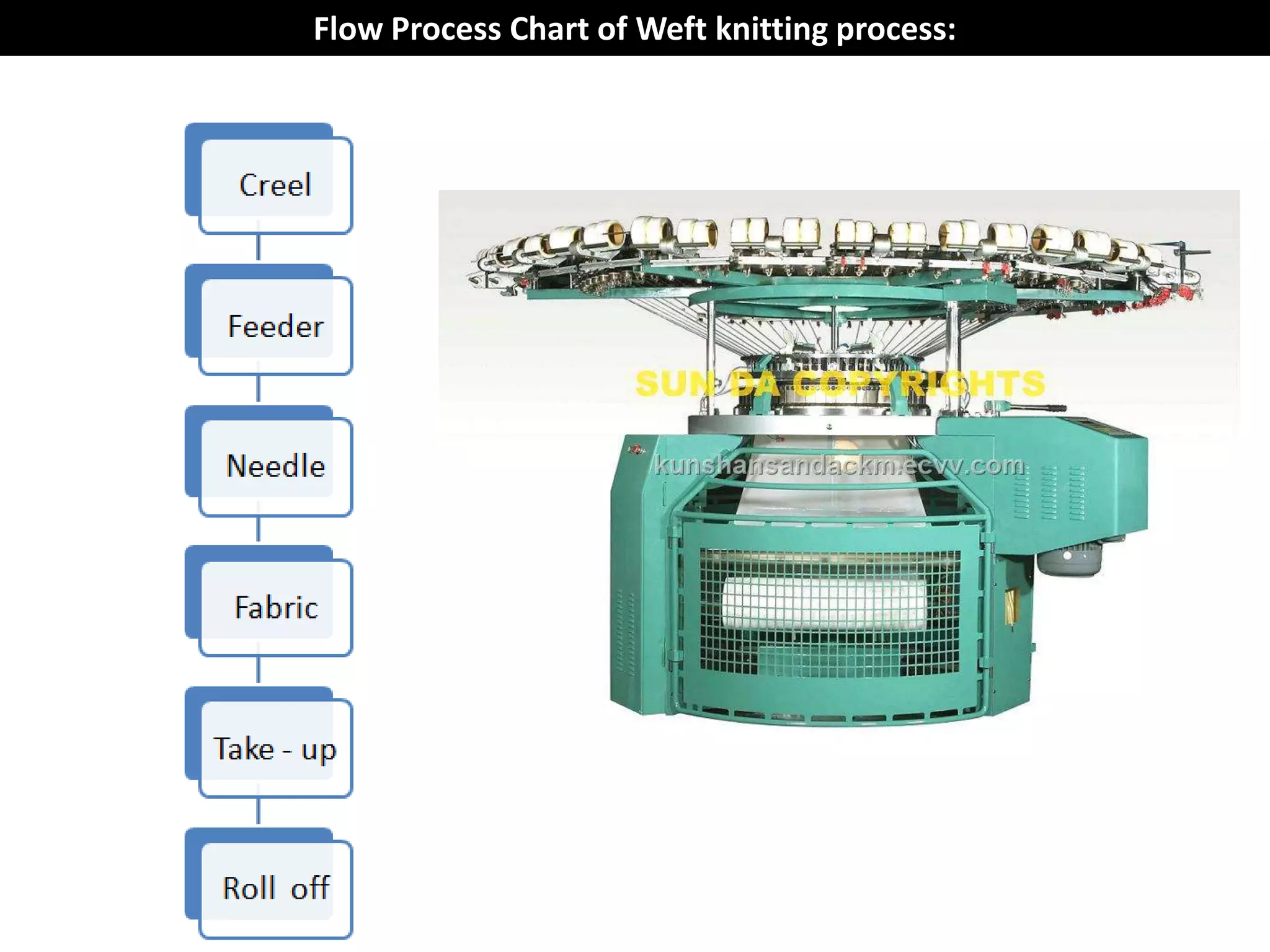

- 4. Flow Process Chartof Weft knitting process:

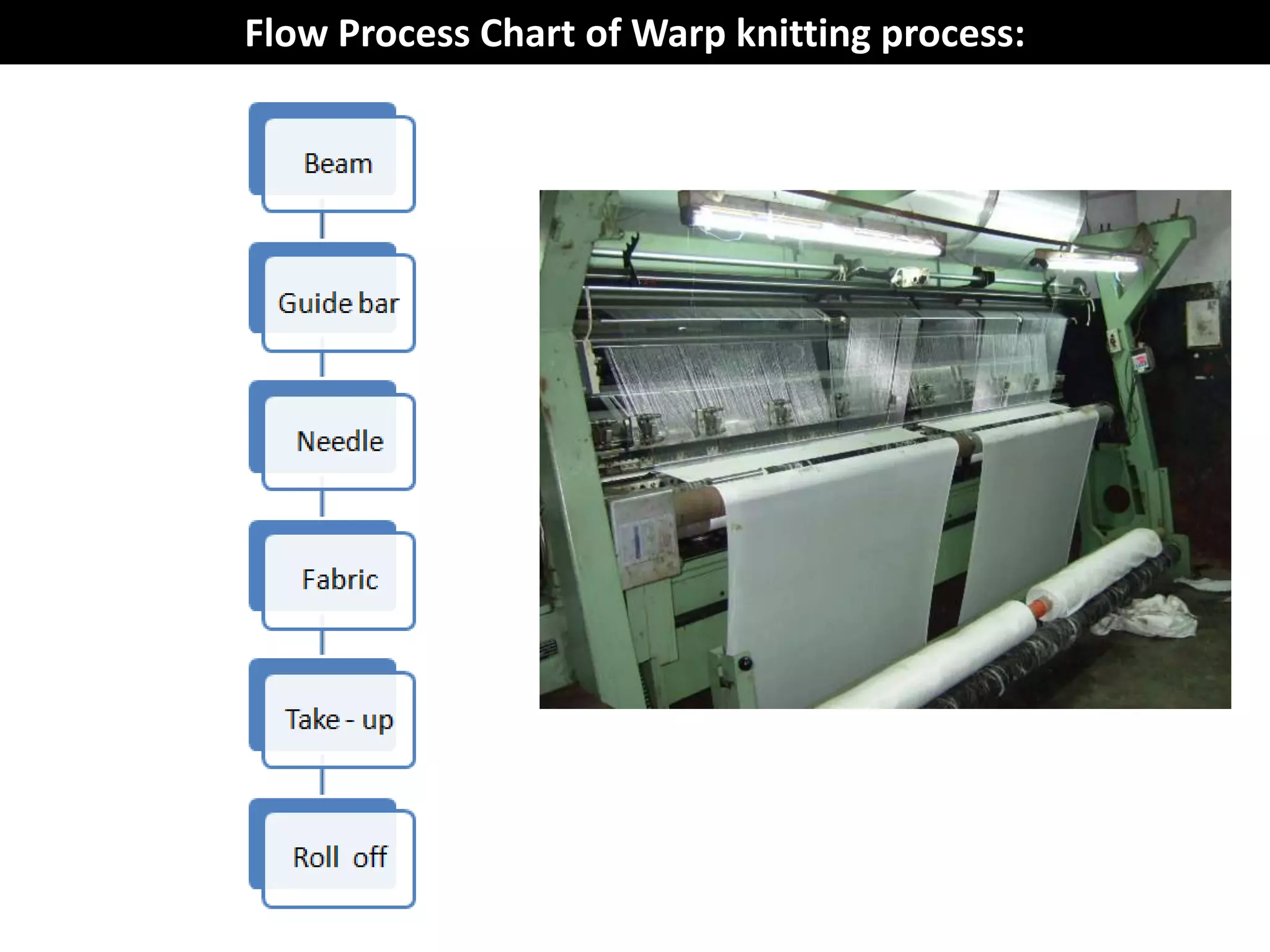

- 5. Flow Process Chartof Warp knitting process:

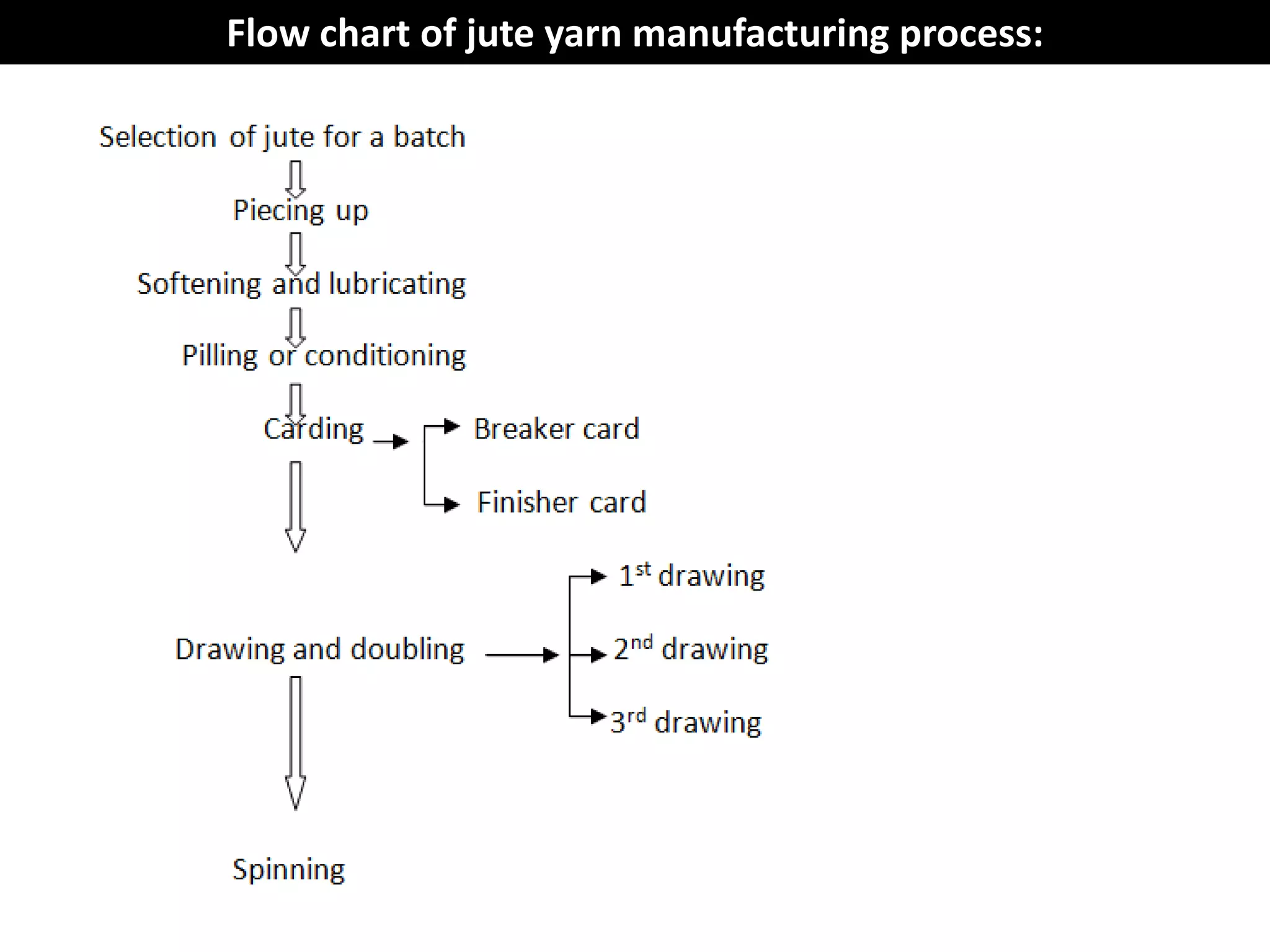

- 6. Flow chart ofjute yarn manufacturing process:

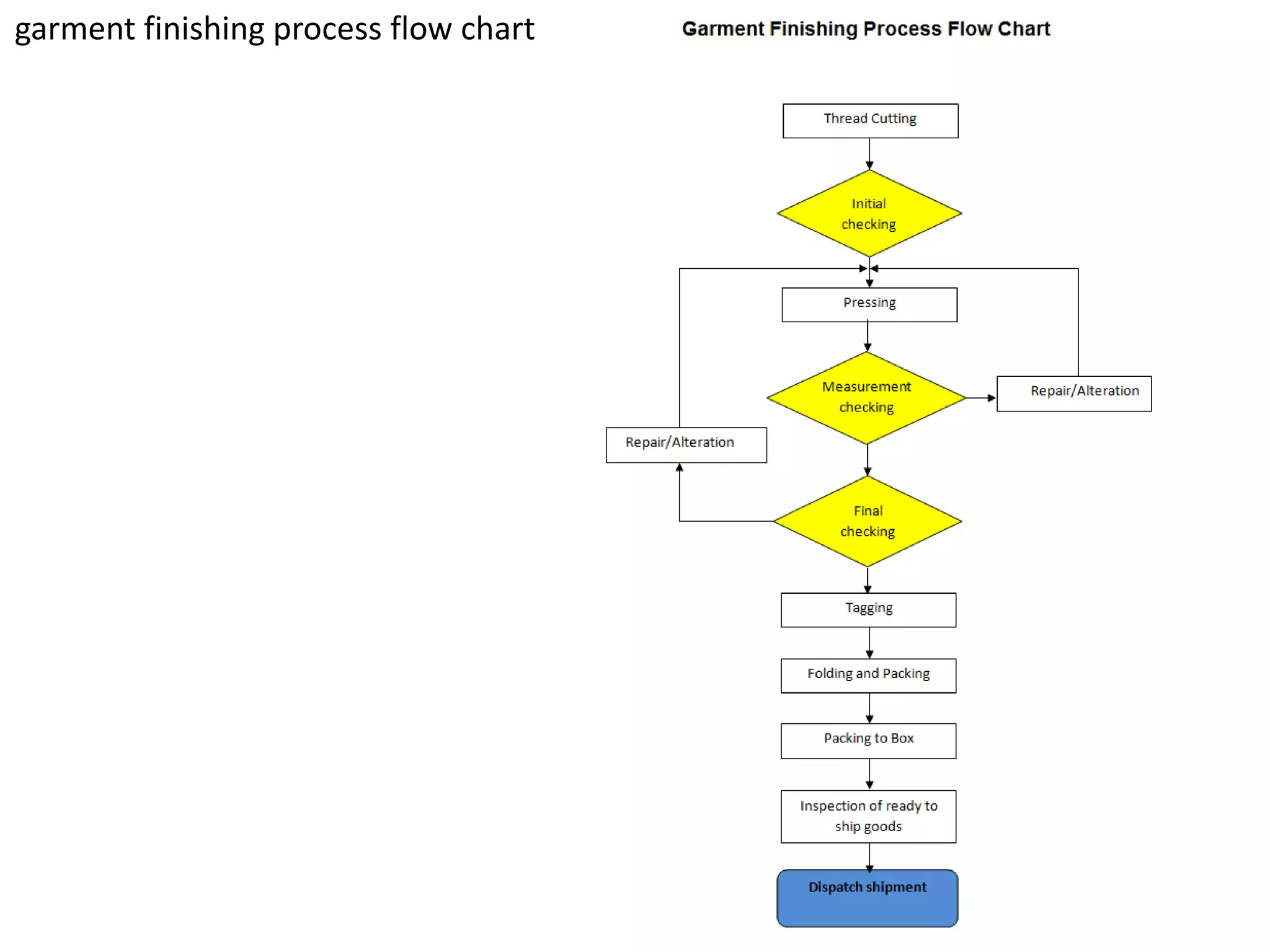

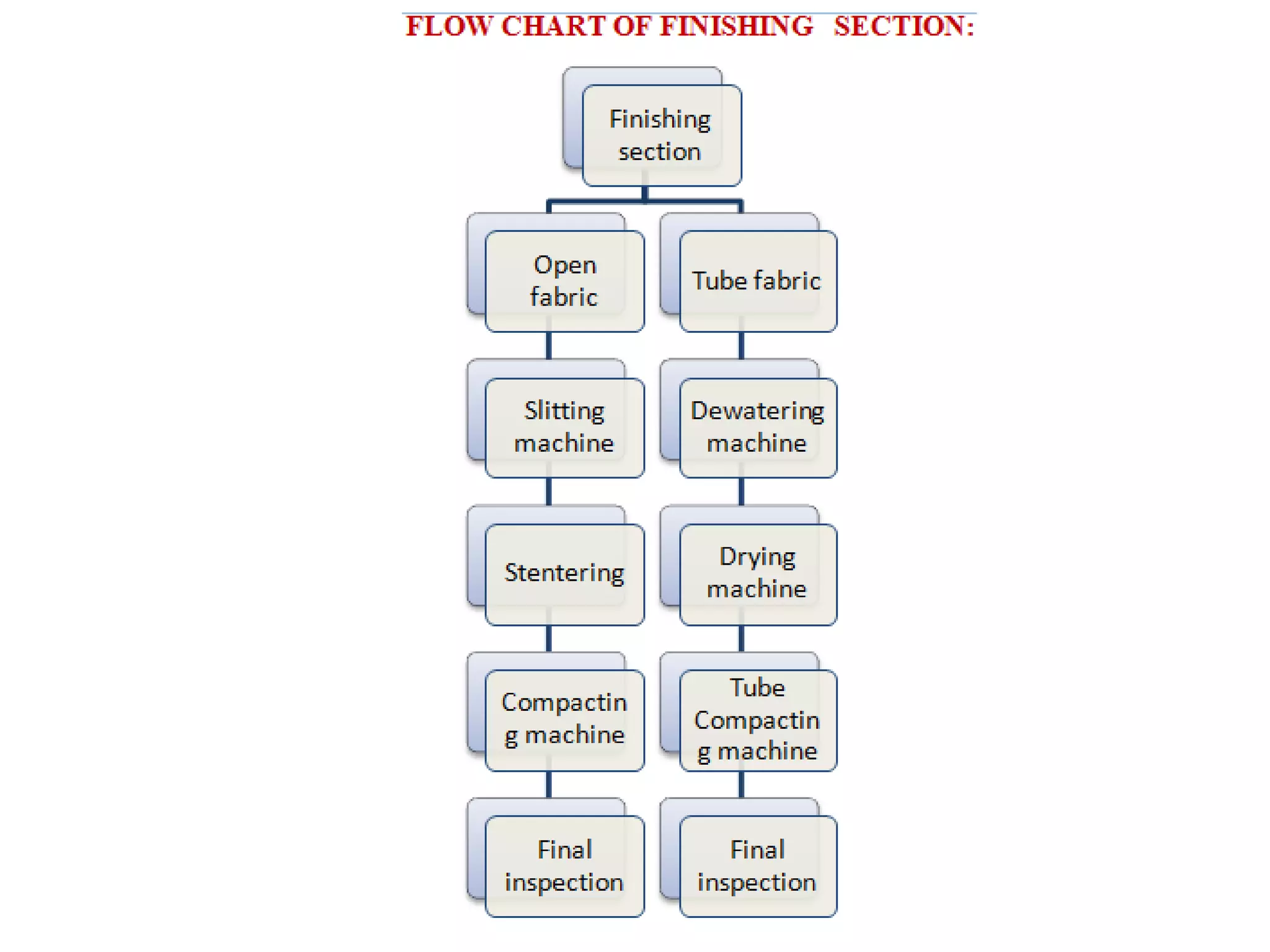

- 17. garment finishing processflow chart

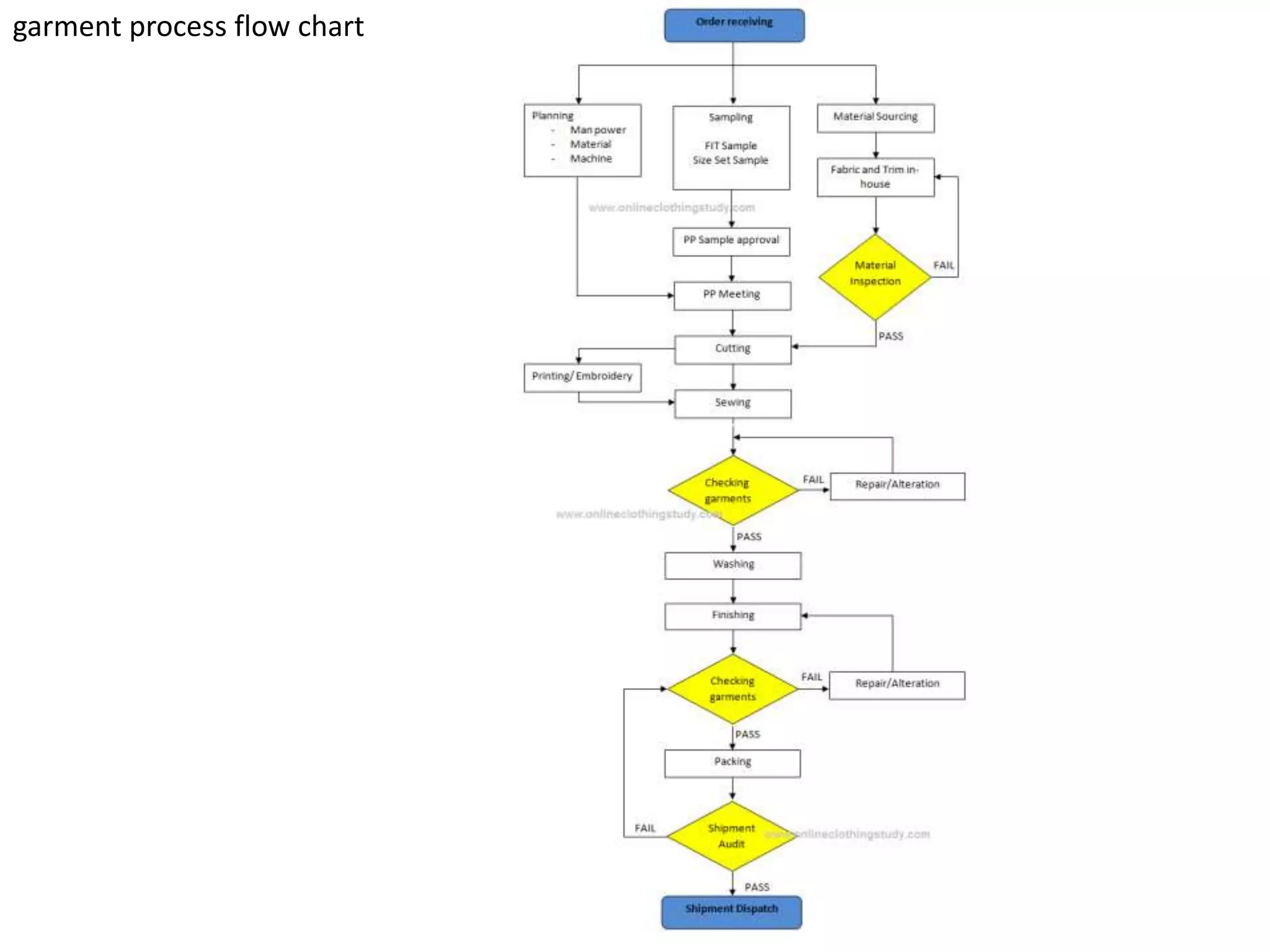

- 18. garment process flowchart

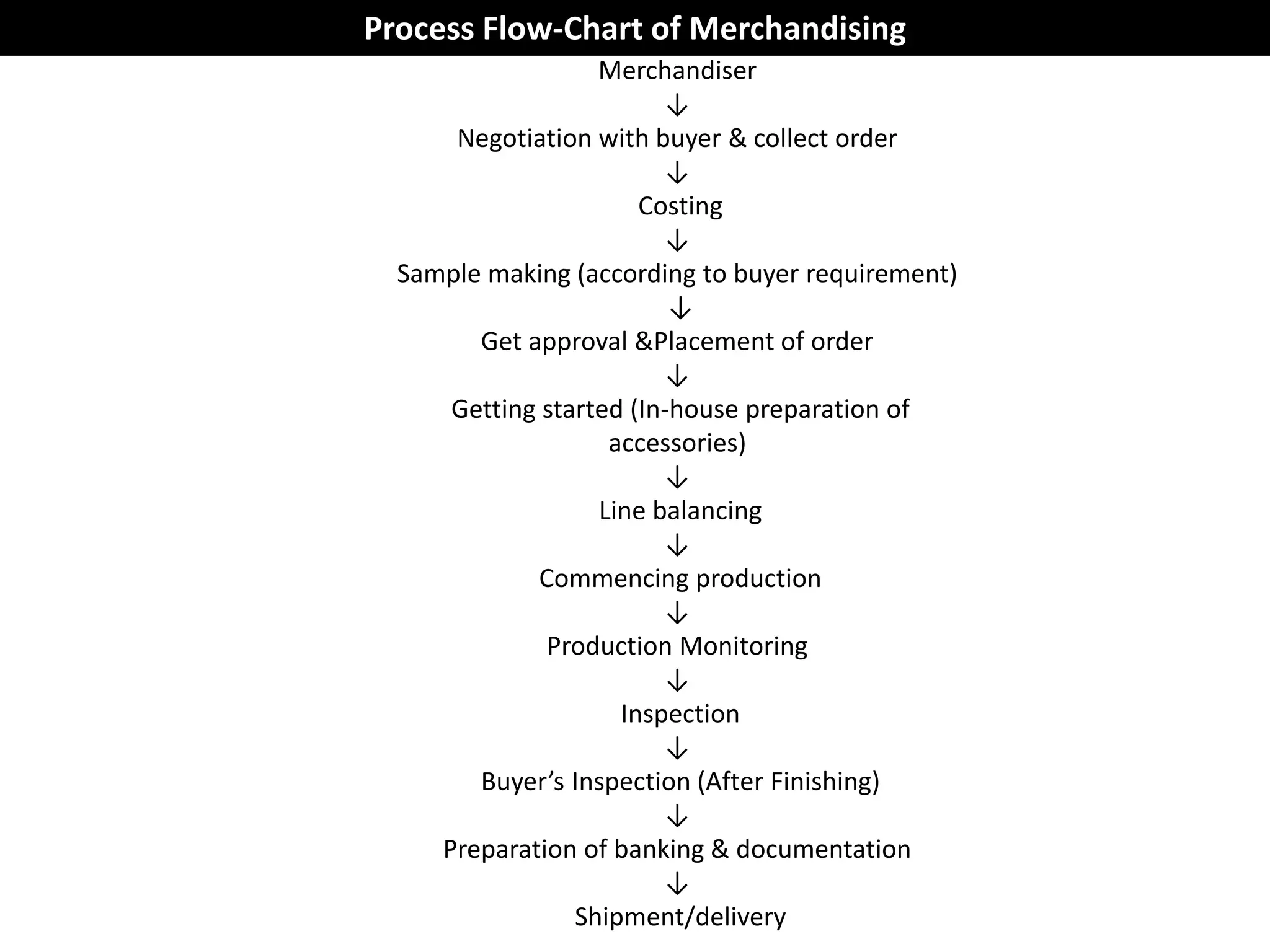

- 19. Merchandiser ↓ Negotiation with buyer& collect order ↓ Costing ↓ Sample making (according to buyer requirement) ↓ Get approval &Placement of order ↓ Getting started (In-house preparation of accessories) ↓ Line balancing ↓ Commencing production ↓ Production Monitoring ↓ Inspection ↓ Buyer’s Inspection (After Finishing) ↓ Preparation of banking & documentation ↓ Shipment/delivery Process Flow-Chart of Merchandising

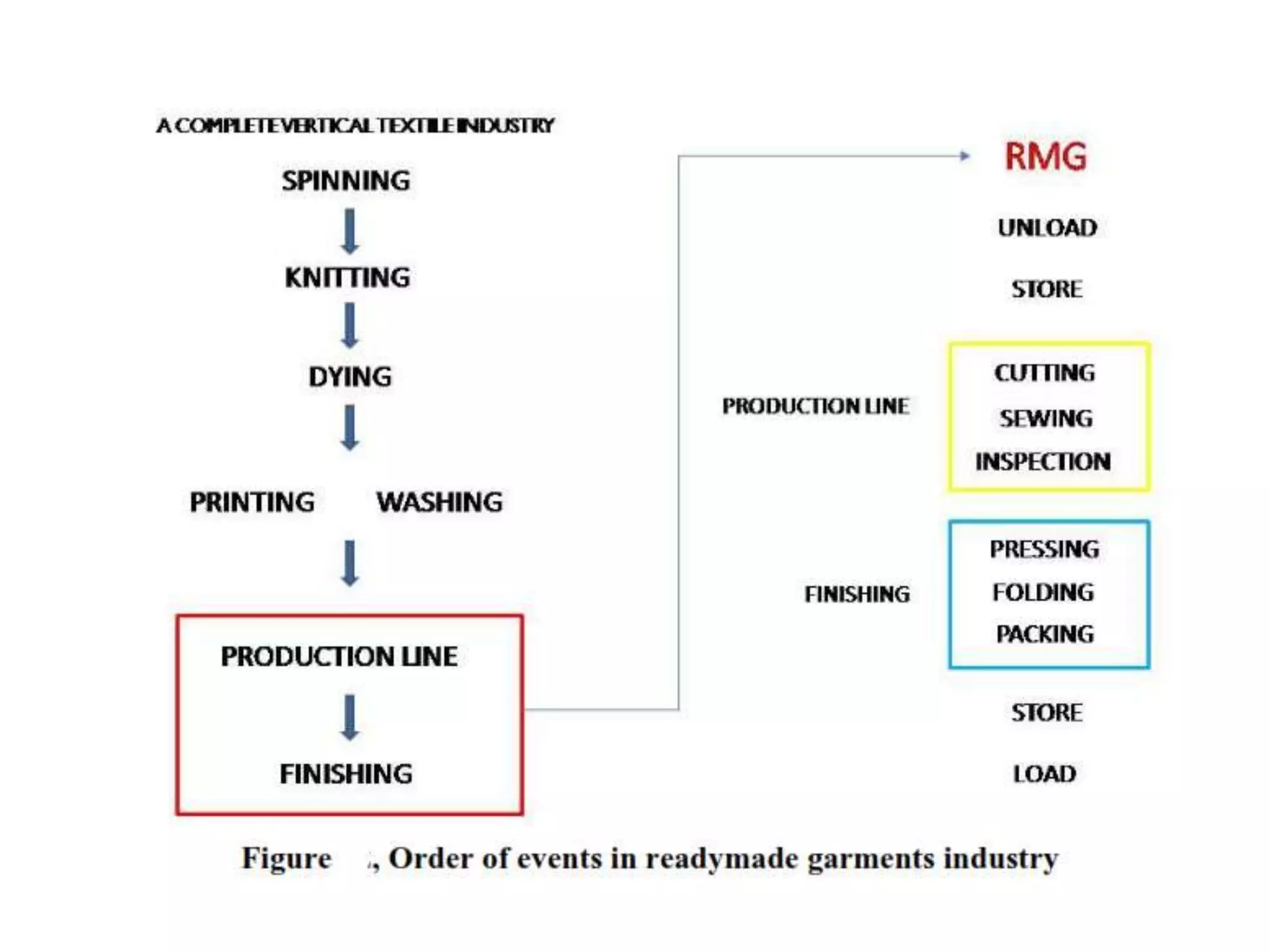

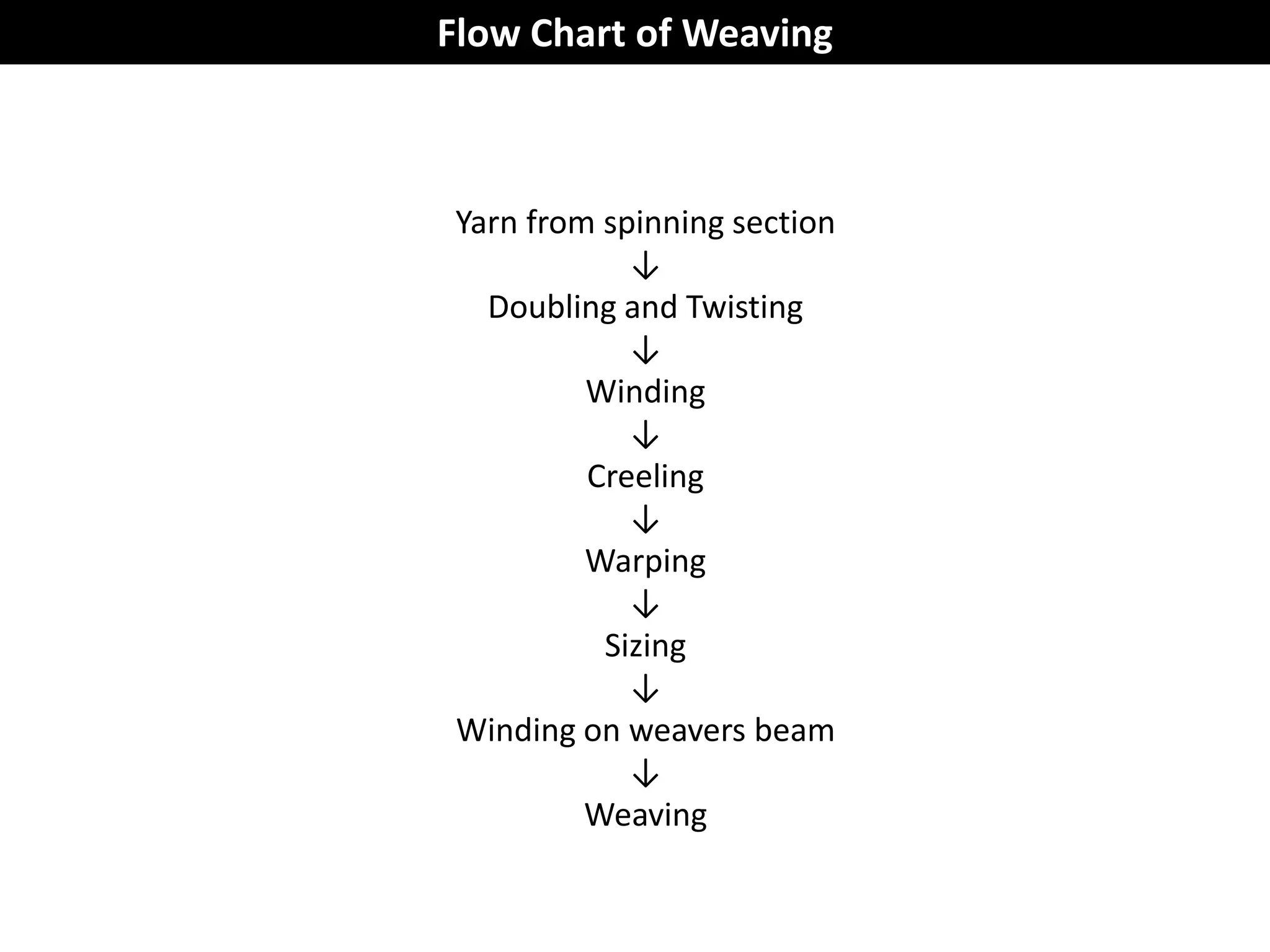

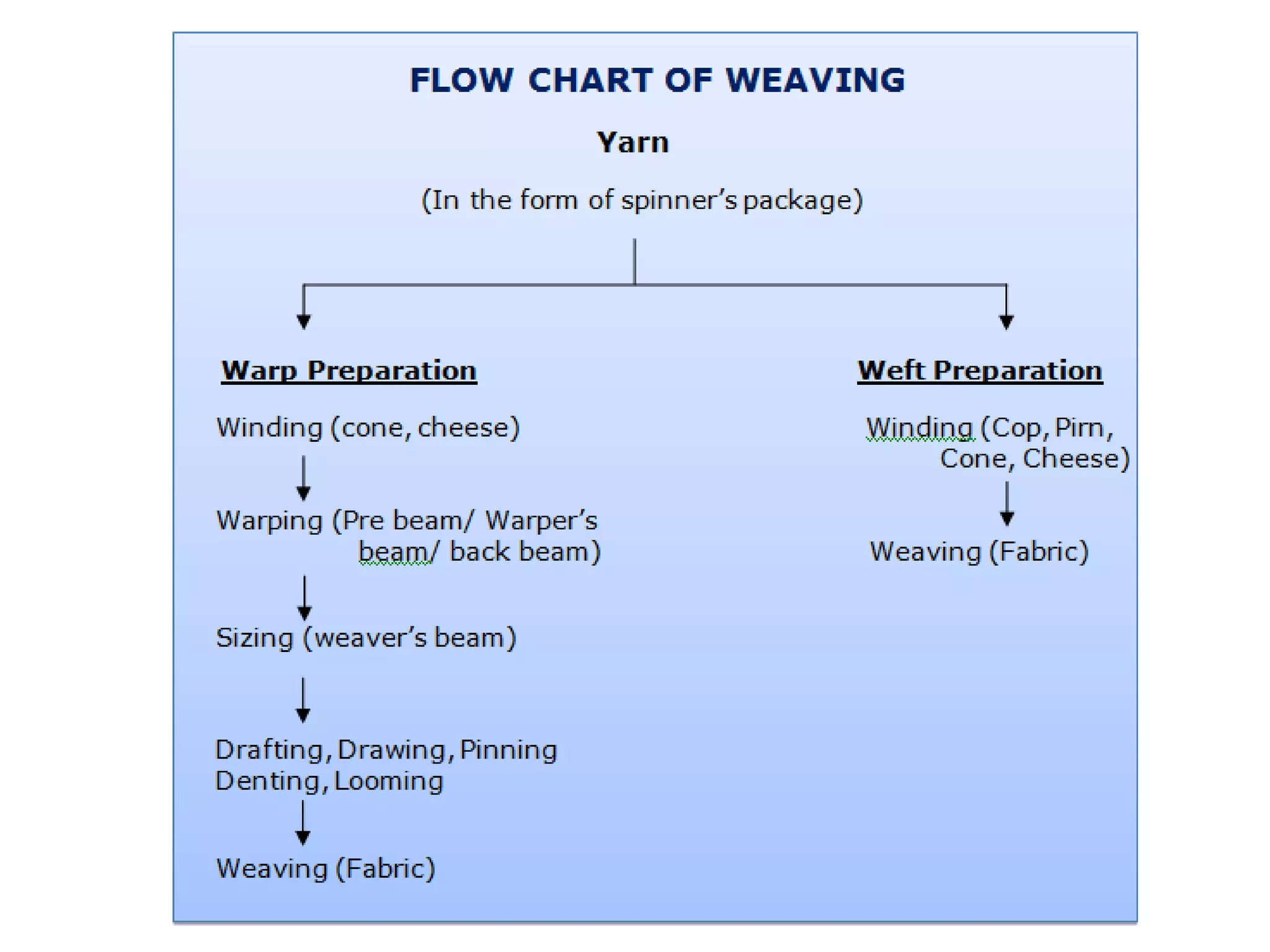

- 22. Flow Chart ofWeaving Yarn from spinning section ↓ Doubling and Twisting ↓ Winding ↓ Creeling ↓ Warping ↓ Sizing ↓ Winding on weavers beam ↓ Weaving

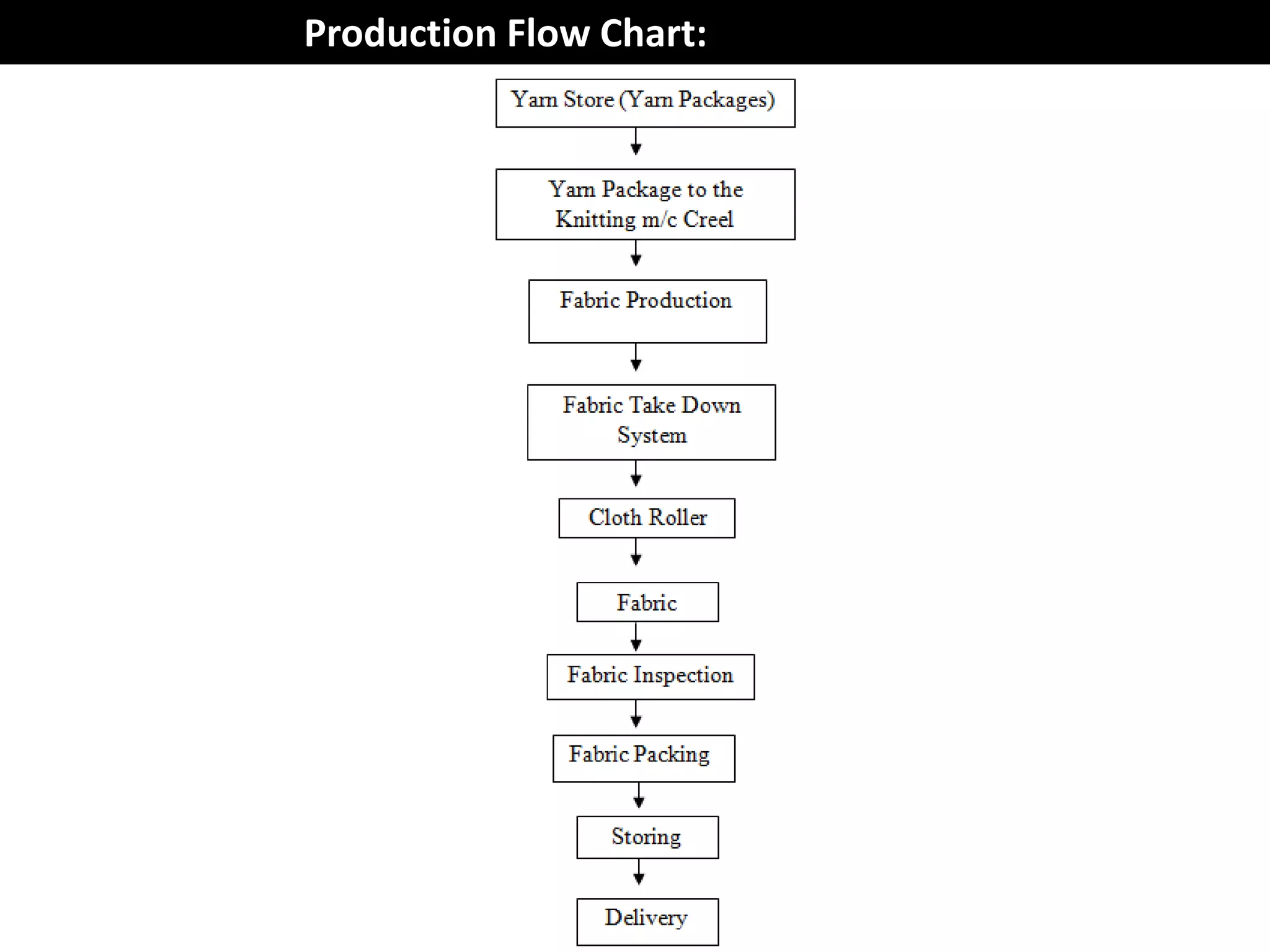

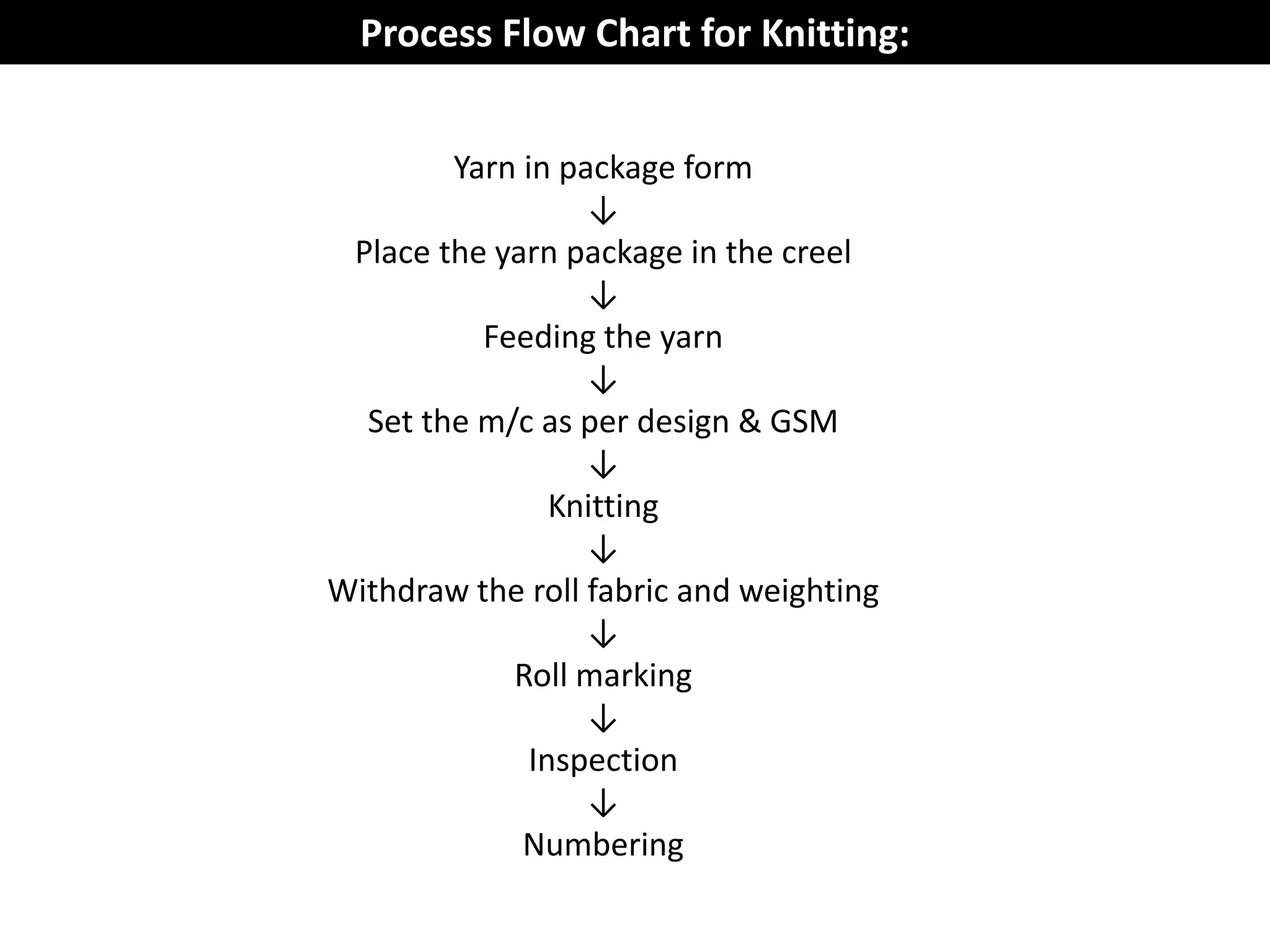

- 23. Process Flow Chartfor Knitting: Yarn in package form ↓ Place the yarn package in the creel ↓ Feeding the yarn ↓ Set the m/c as per design & GSM ↓ Knitting ↓ Withdraw the roll fabric and weighting ↓ Roll marking ↓ Inspection ↓ Numbering

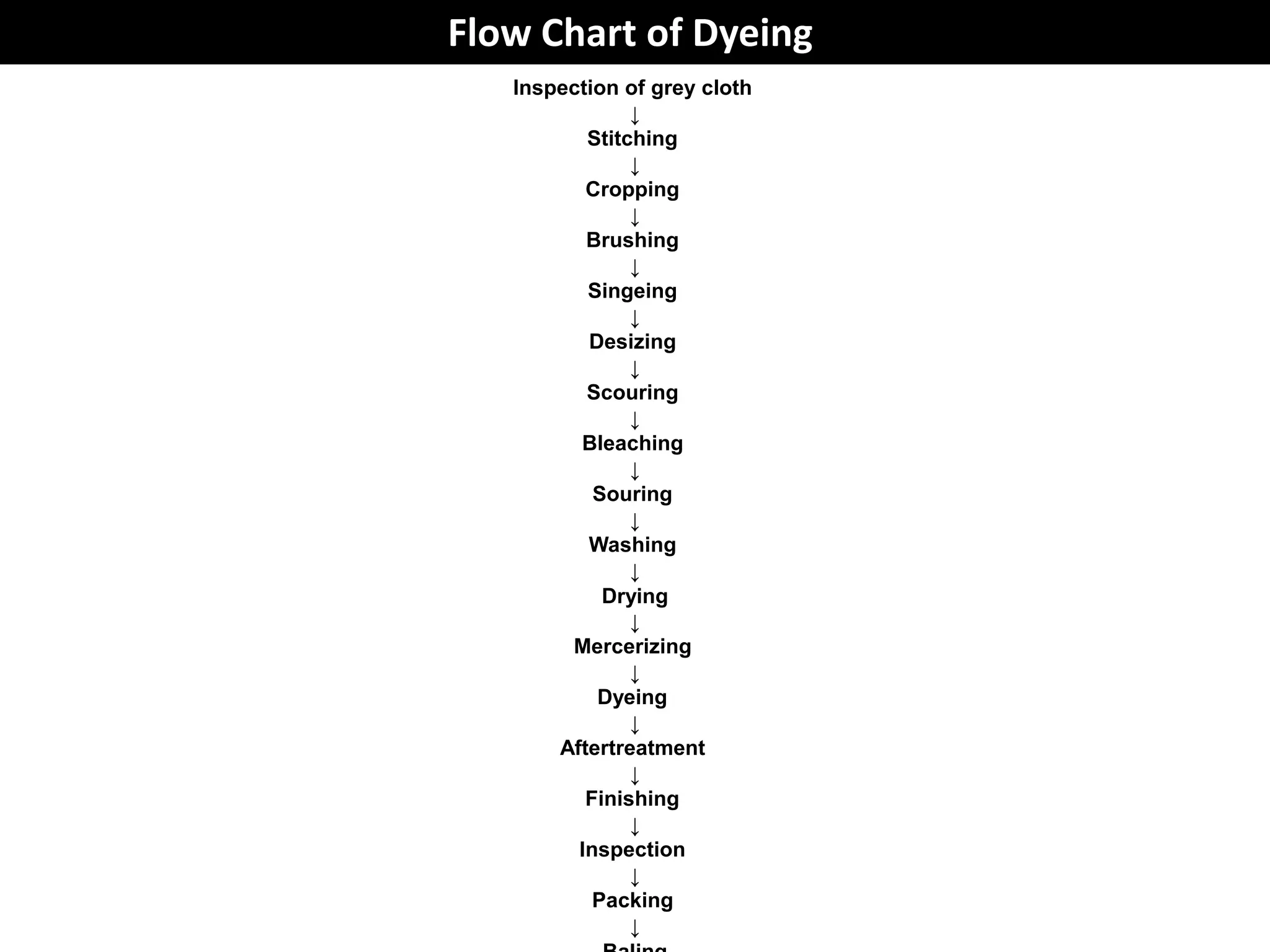

- 24. Flow Chart ofDyeing Inspection of grey cloth ↓ Stitching ↓ Cropping ↓ Brushing ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Souring ↓ Washing ↓ Drying ↓ Mercerizing ↓ Dyeing ↓ Aftertreatment ↓ Finishing ↓ Inspection ↓ Packing ↓

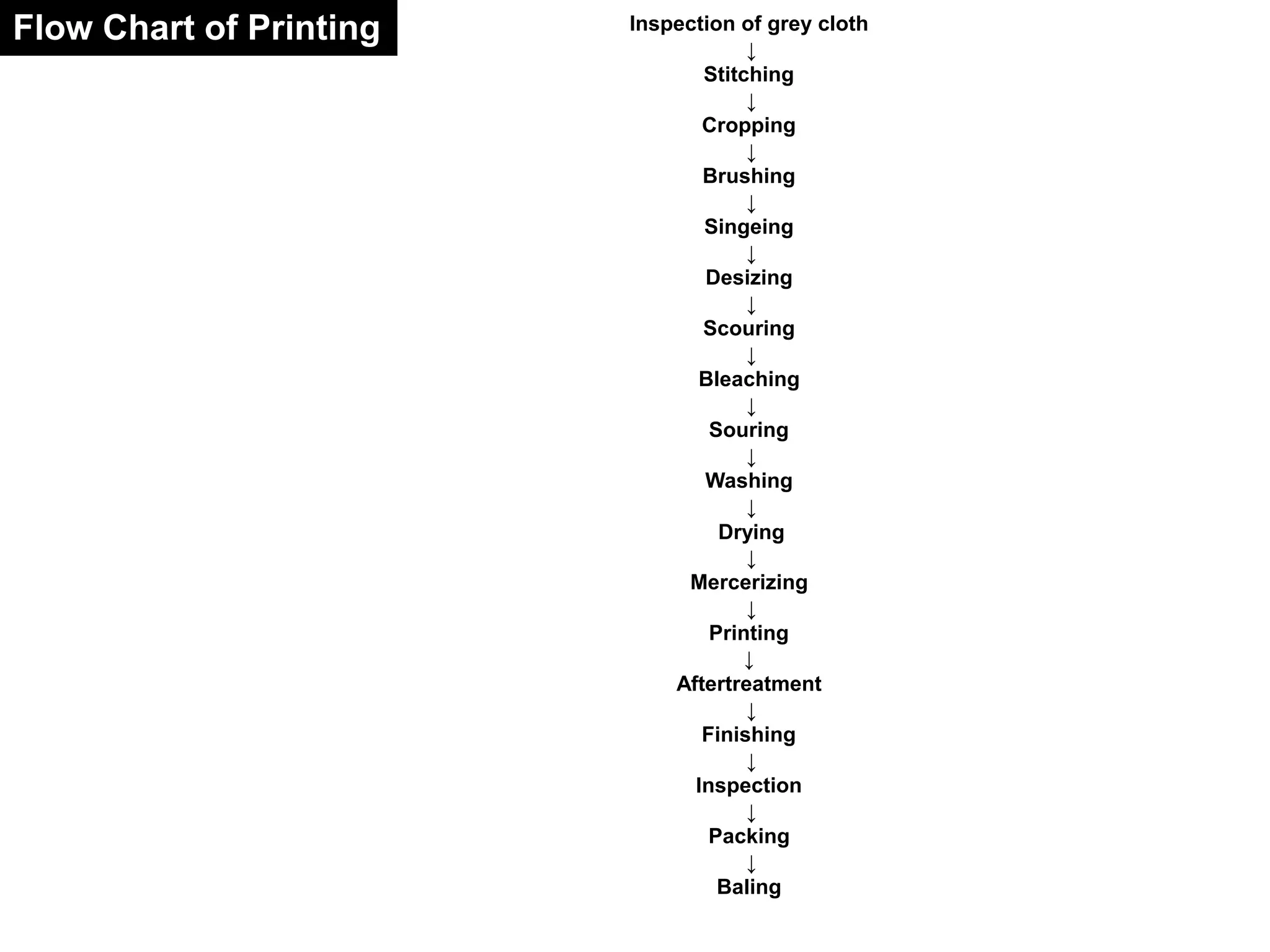

- 25. Inspection of greycloth ↓ Stitching ↓ Cropping ↓ Brushing ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Souring ↓ Washing ↓ Drying ↓ Mercerizing ↓ Printing ↓ Aftertreatment ↓ Finishing ↓ Inspection ↓ Packing ↓ Baling Flow Chart of Printing
- 26. Flow Chart ofGarment Manufacturing Design / Sketch ↓ Pattern Design ↓ Sample Making ↓ Production Pattern ↓ Grading ↓ Marker Making ↓ Spreading ↓ Cutting ↓ Sorting/Bundling ↓ Sewing/Assembling ↓ Inspection ↓ Pressing/ Finishing ↓ Final Inspection ↓ Packing ↓ Despatch

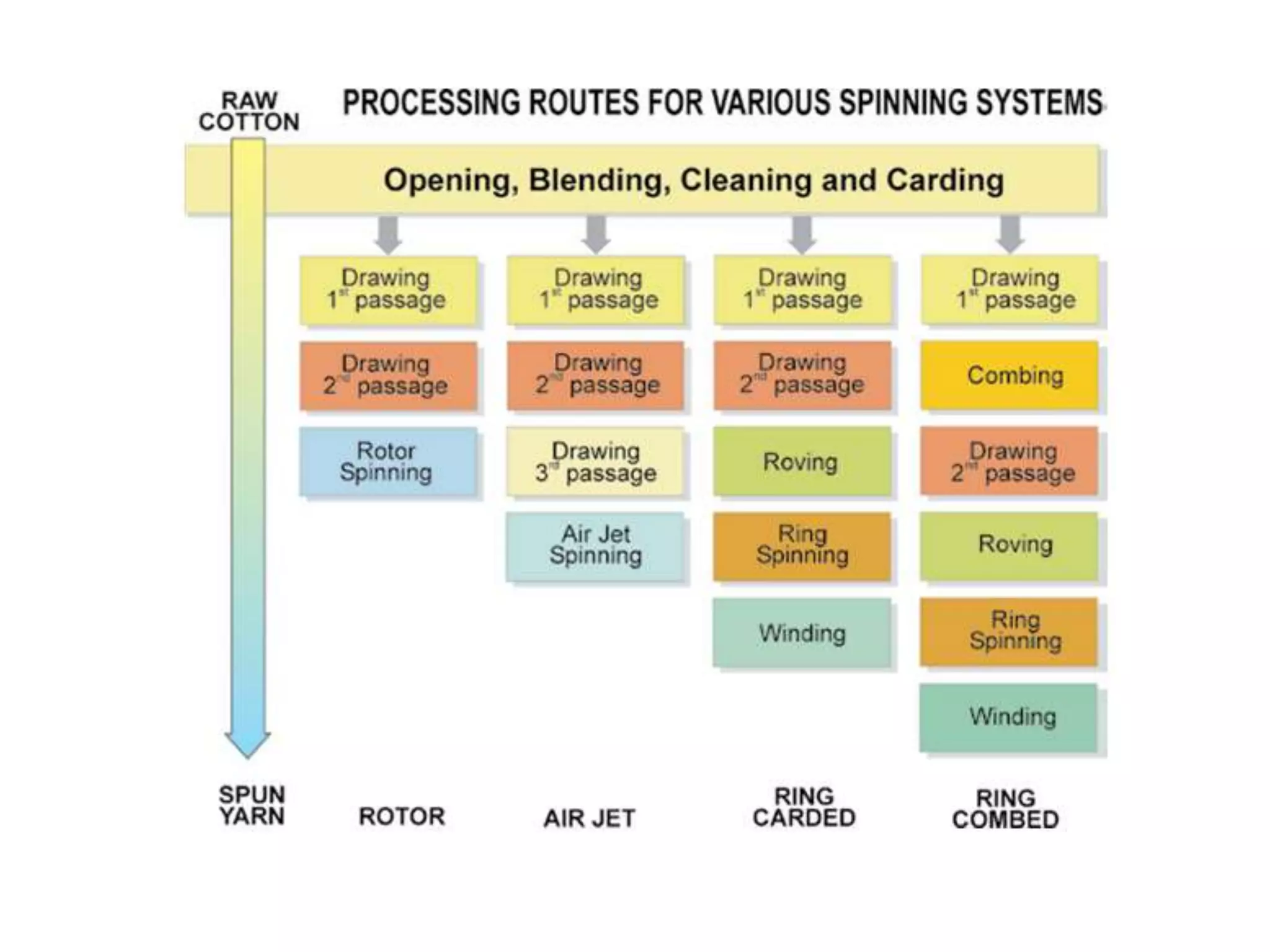

- 27. Process line ofRing Spinning

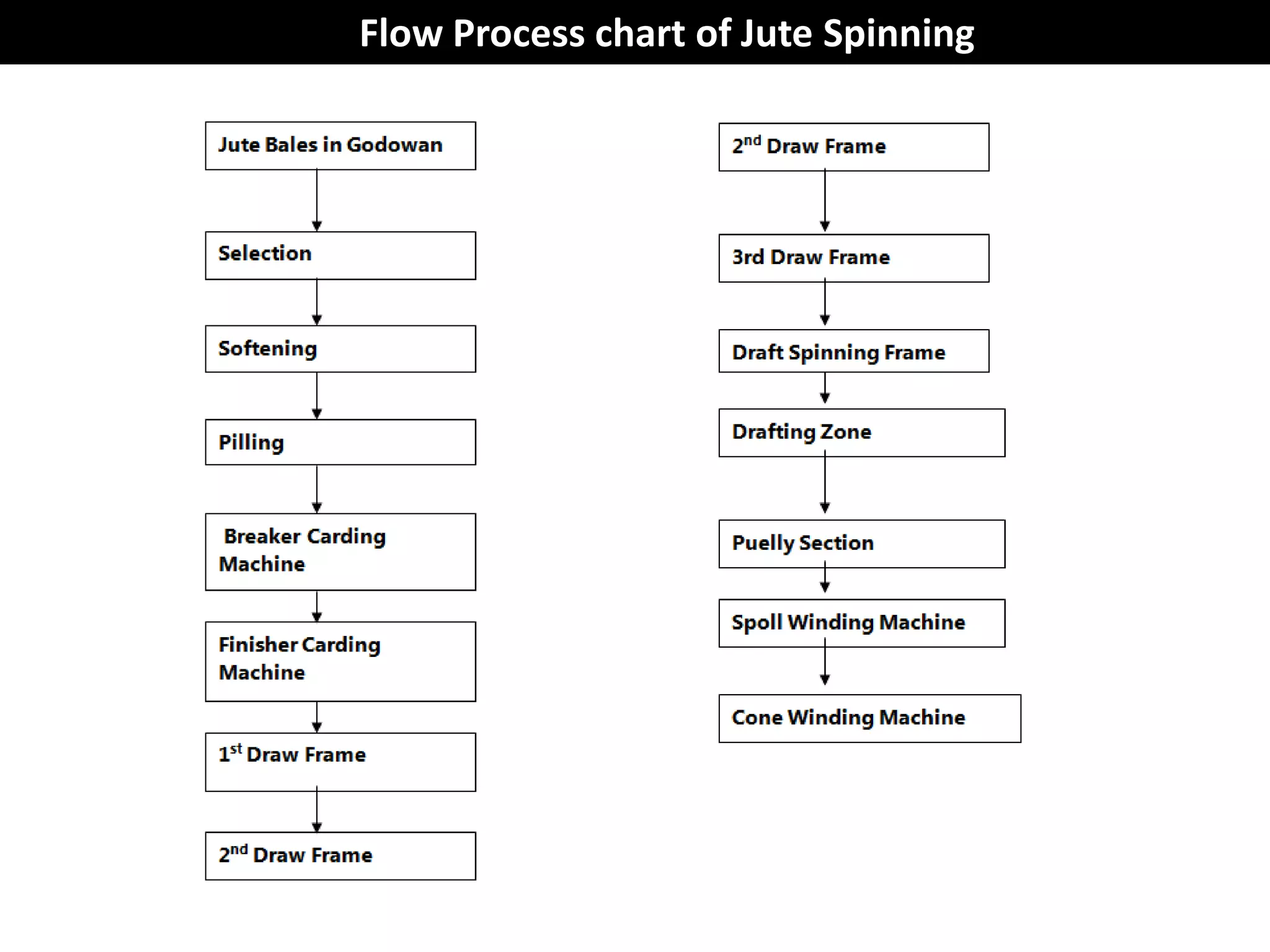

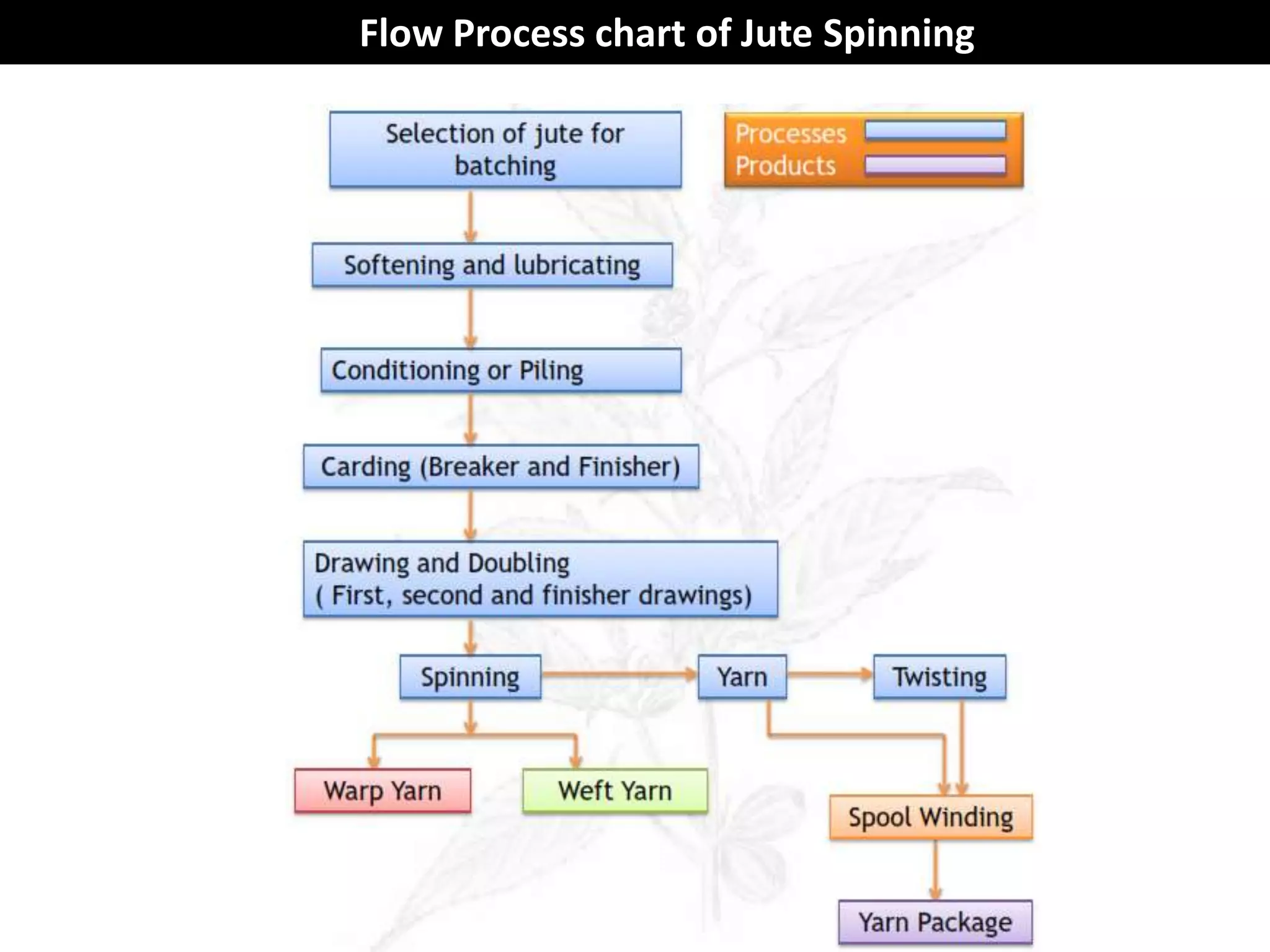

- 28. Flow Process chartof Jute Spinning
- 29. Flow Process chartof Jute Spinning
- 30. Flow Process chartof Jute Spinning

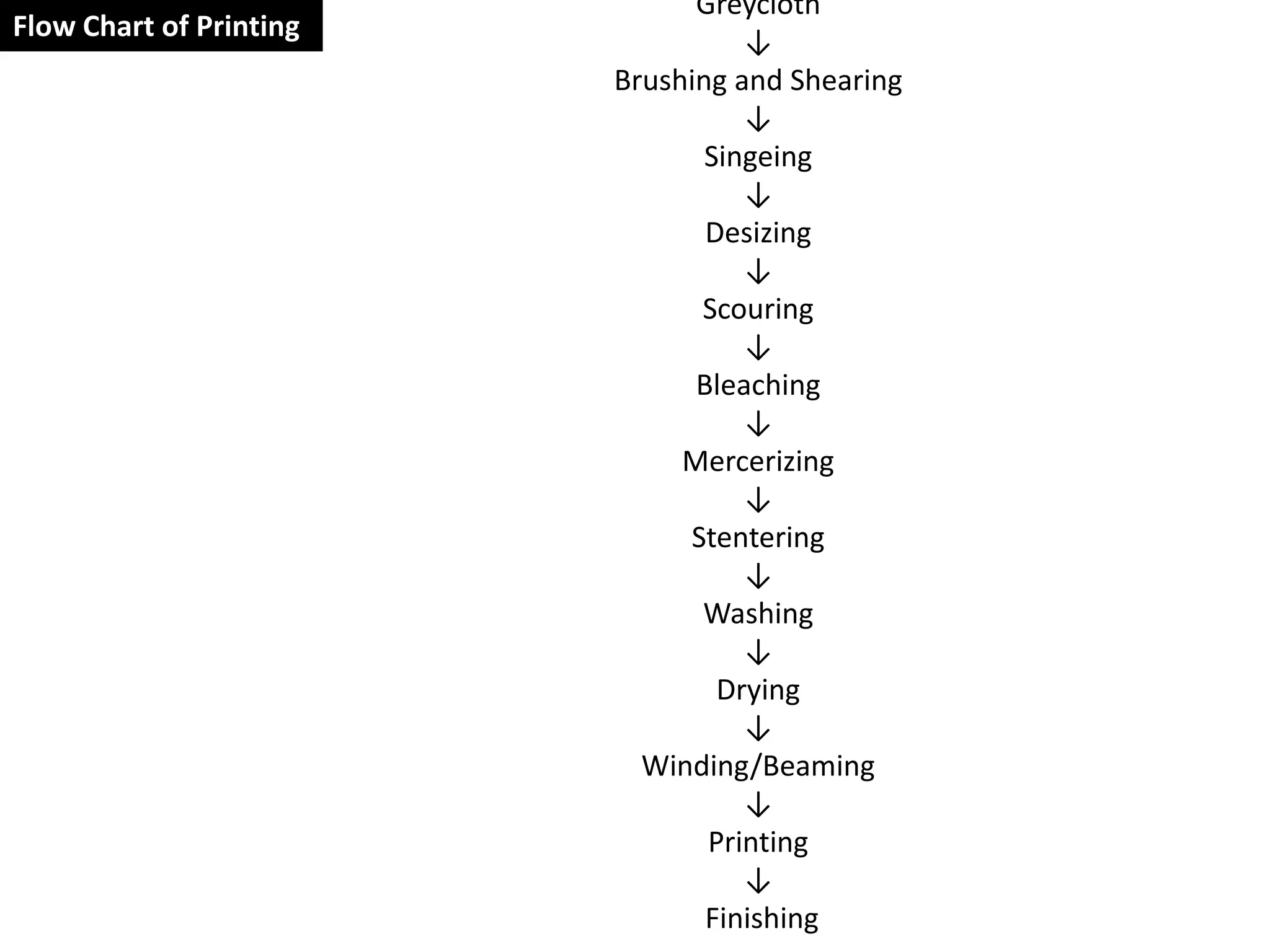

- 31. Flow Chart ofPrinting Greycloth ↓ Brushing and Shearing ↓ Singeing ↓ Desizing ↓ Scouring ↓ Bleaching ↓ Mercerizing ↓ Stentering ↓ Washing ↓ Drying ↓ Winding/Beaming ↓ Printing ↓ Finishing

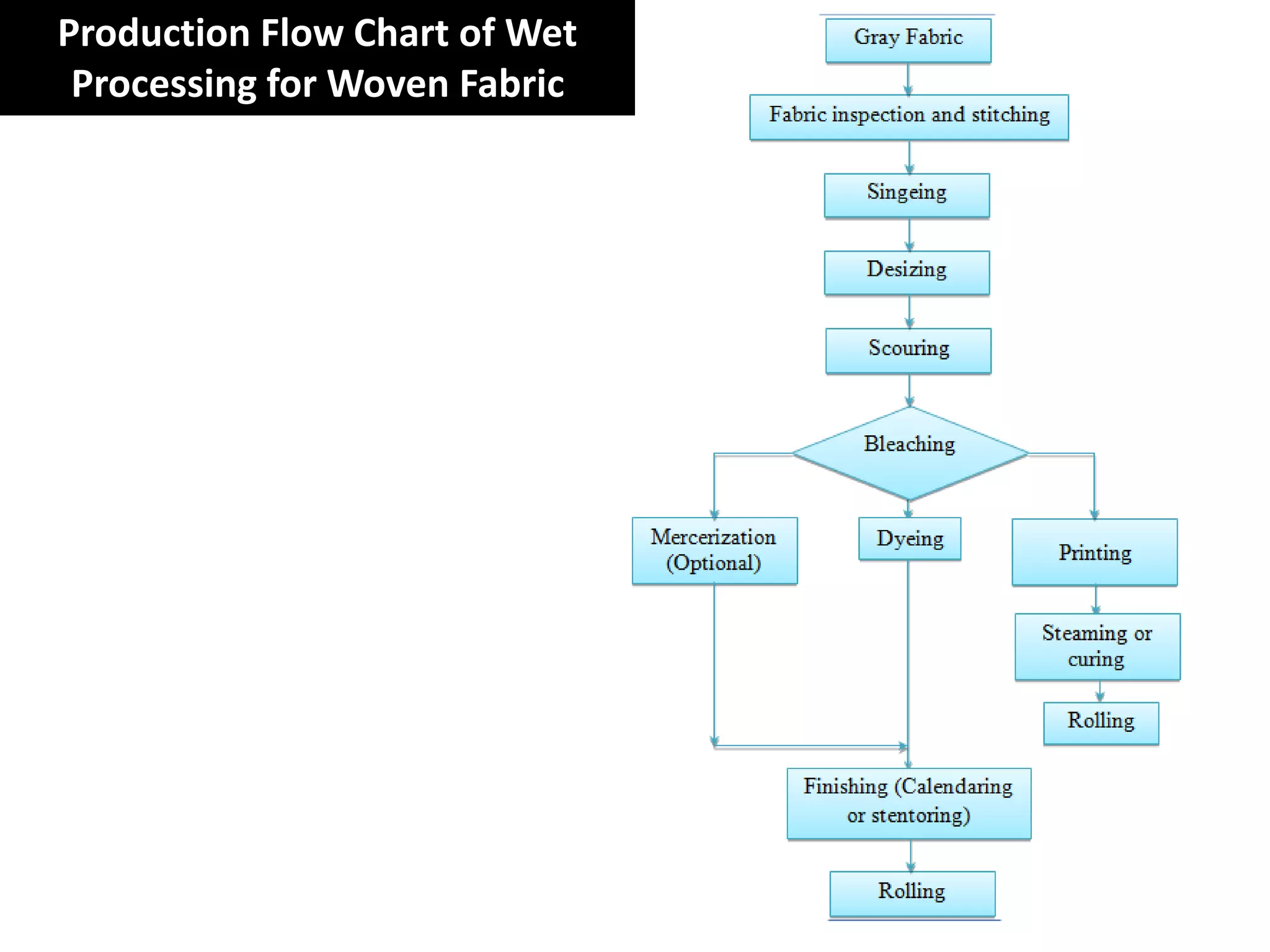

- 32. Production Flow Chartof Wet Processing for Woven Fabric

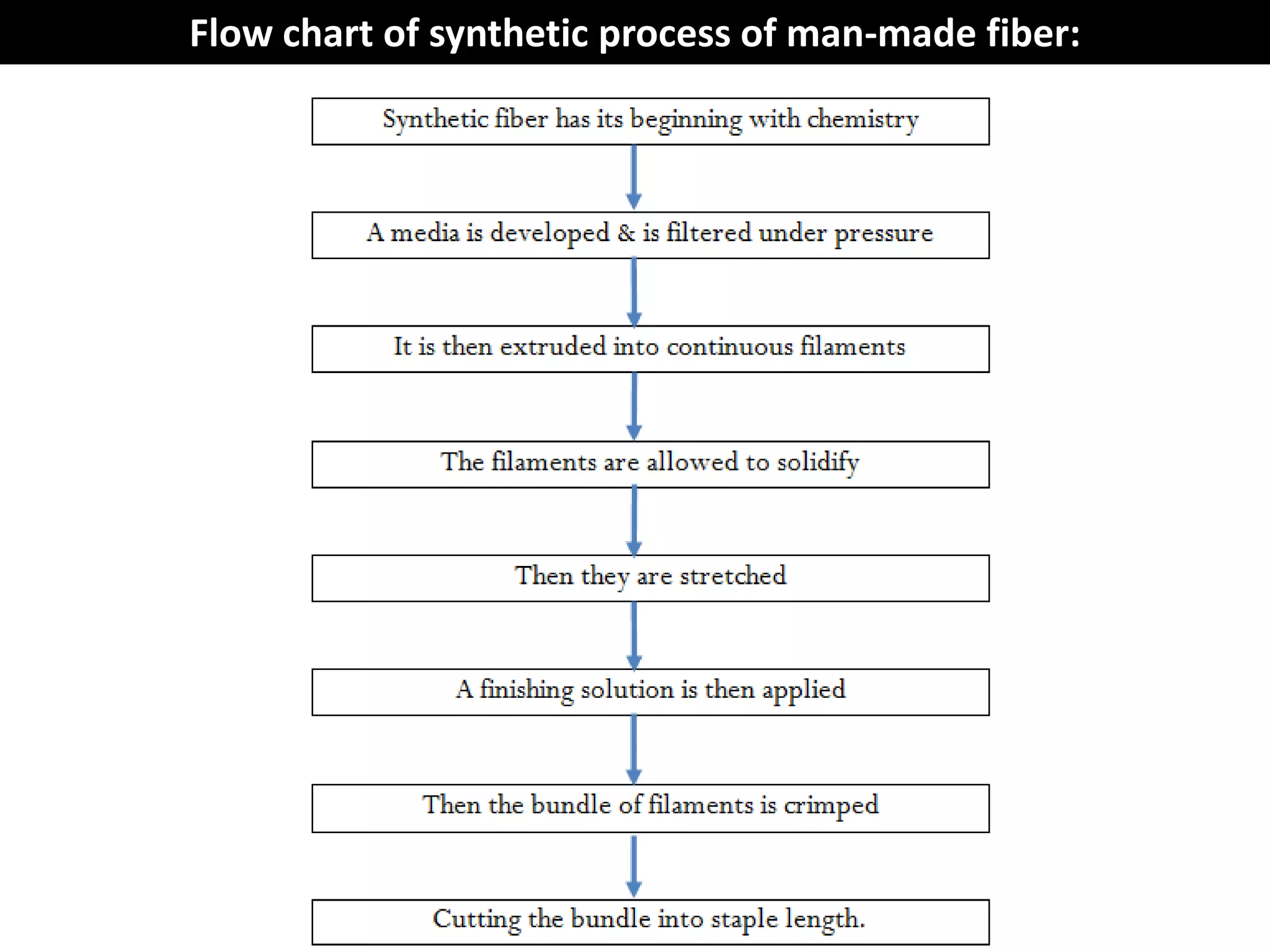

- 33. Flow chart ofsynthetic process of man-made fiber:
- 34. Flow Chart ofWet processing for Knit Fabric
- 35.

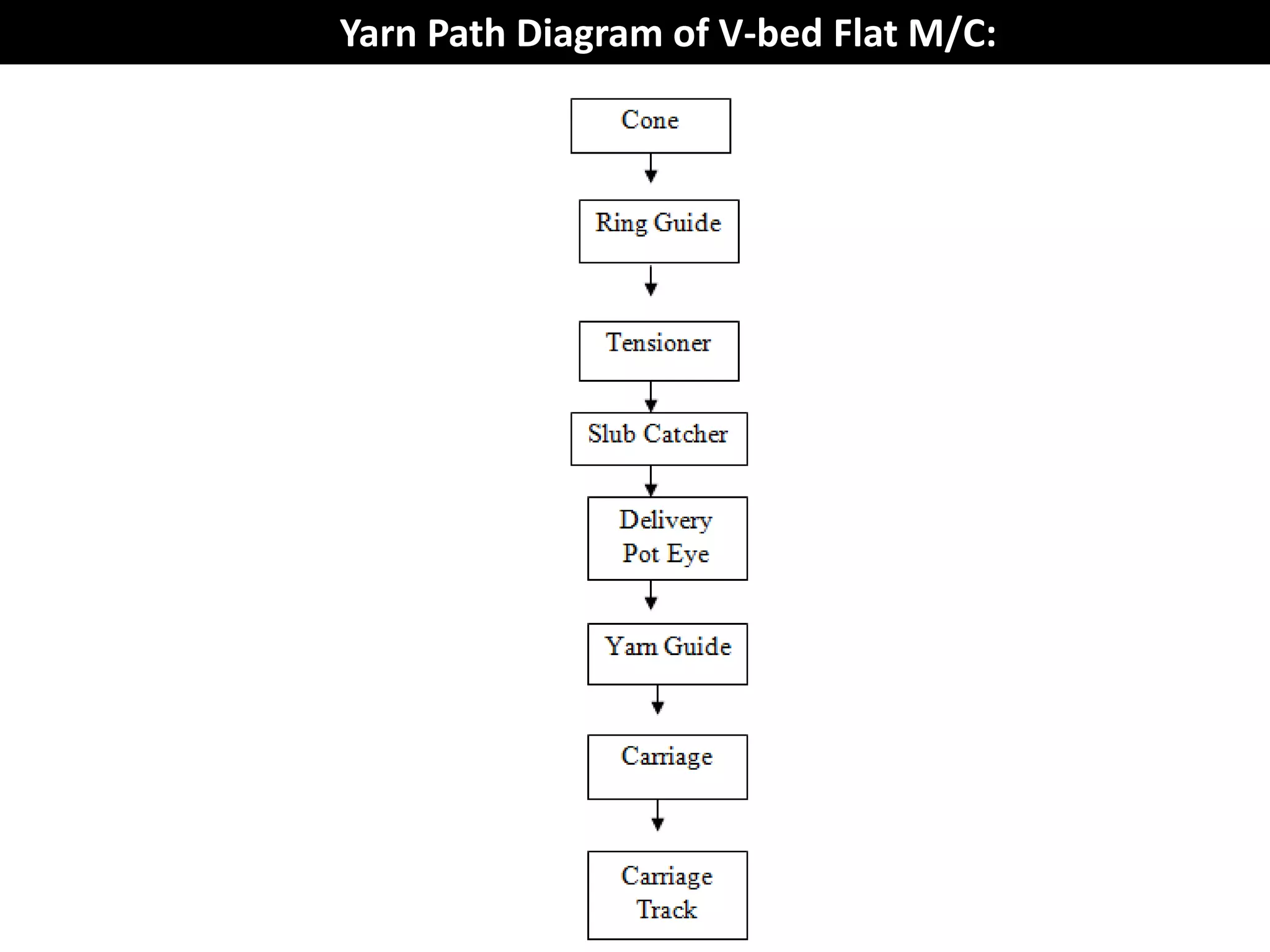

- 36. Yarn Path Diagramof V-bed Flat M/C:

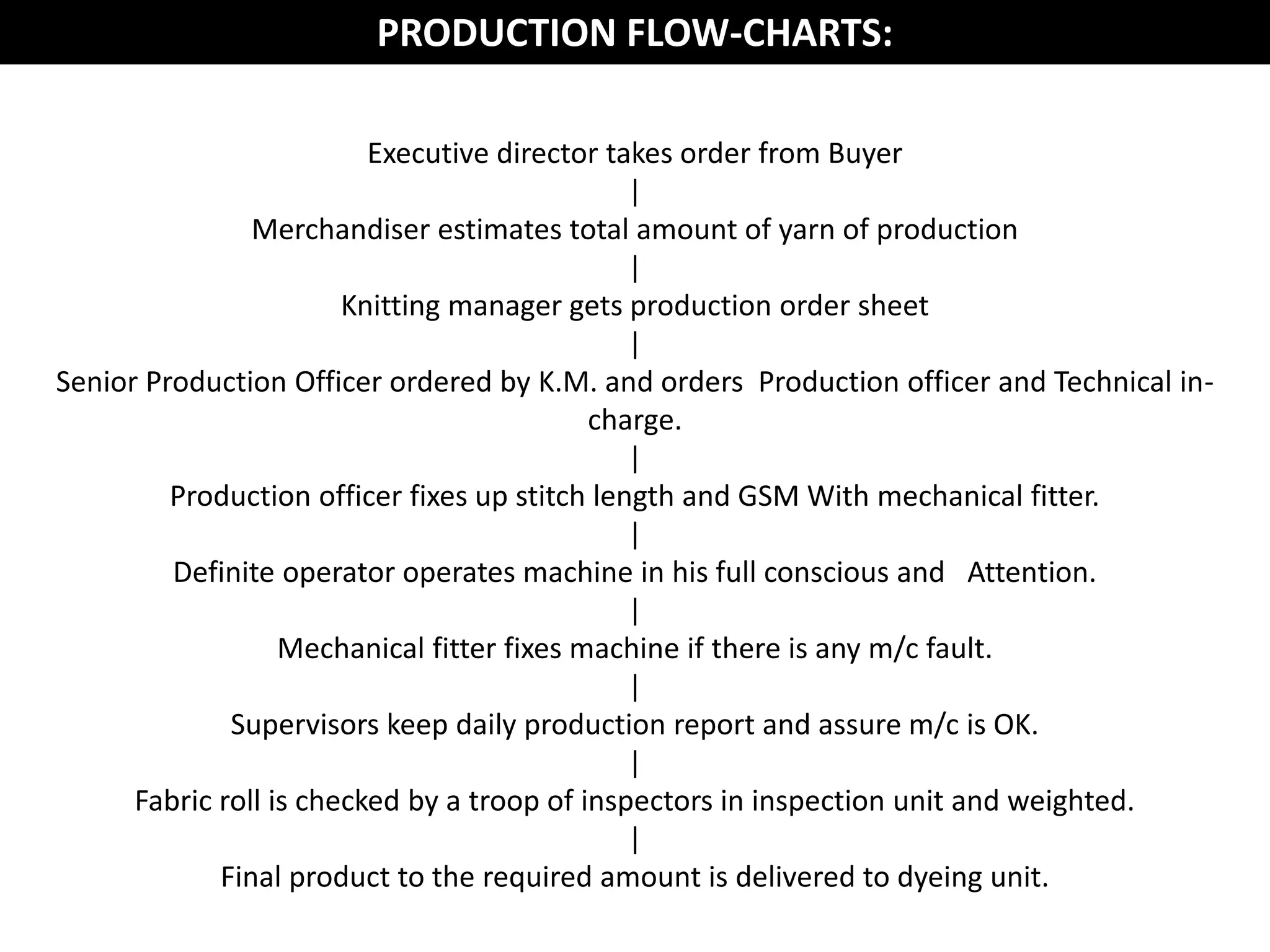

- 37. PRODUCTION FLOW-CHARTS: Executive directortakes order from Buyer | Merchandiser estimates total amount of yarn of production | Knitting manager gets production order sheet | Senior Production Officer ordered by K.M. and orders Production officer and Technical in- charge. | Production officer fixes up stitch length and GSM With mechanical fitter. | Definite operator operates machine in his full conscious and Attention. | Mechanical fitter fixes machine if there is any m/c fault. | Supervisors keep daily production report and assure m/c is OK. | Fabric roll is checked by a troop of inspectors in inspection unit and weighted. | Final product to the required amount is delivered to dyeing unit.

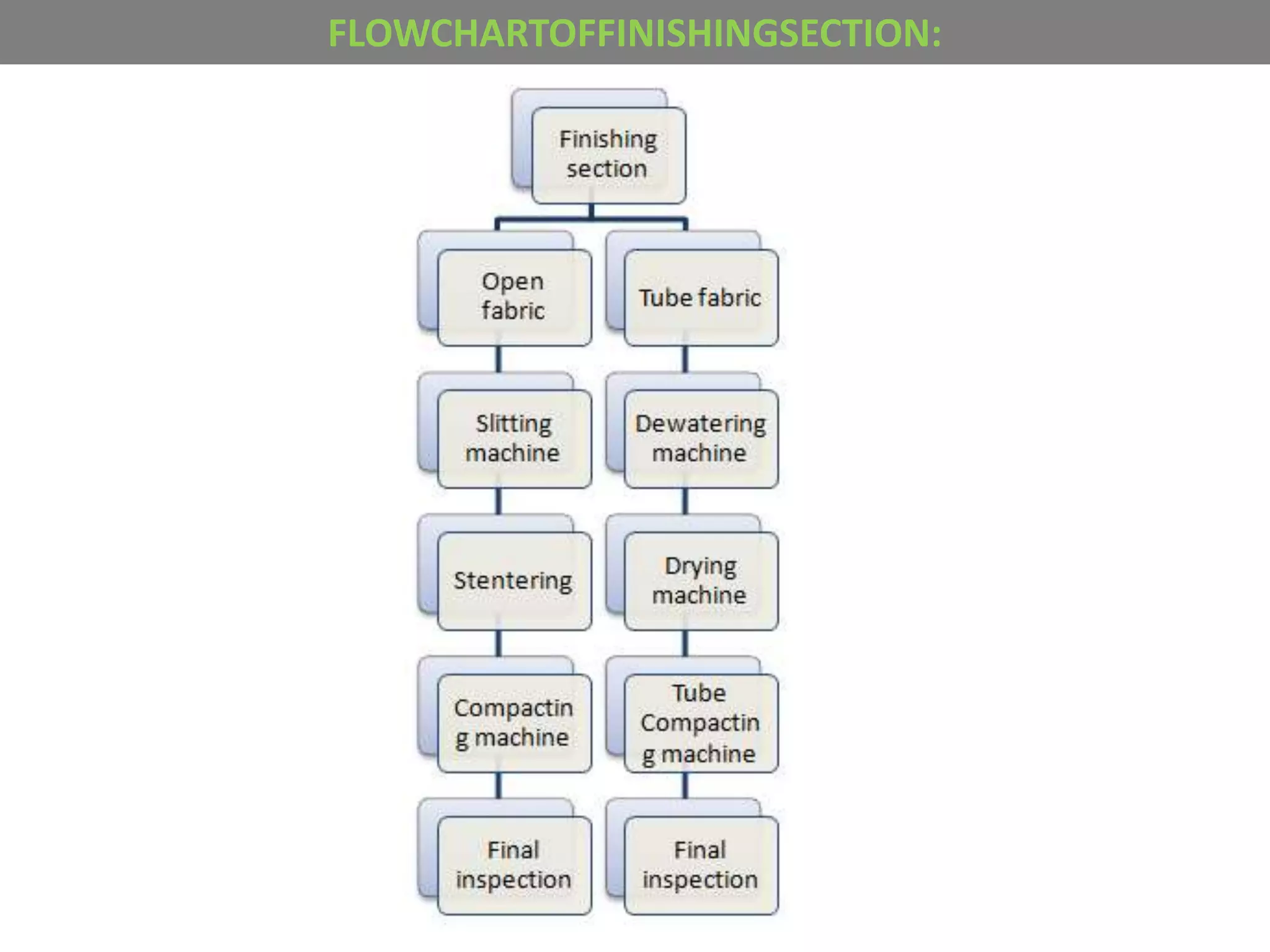

- 38.

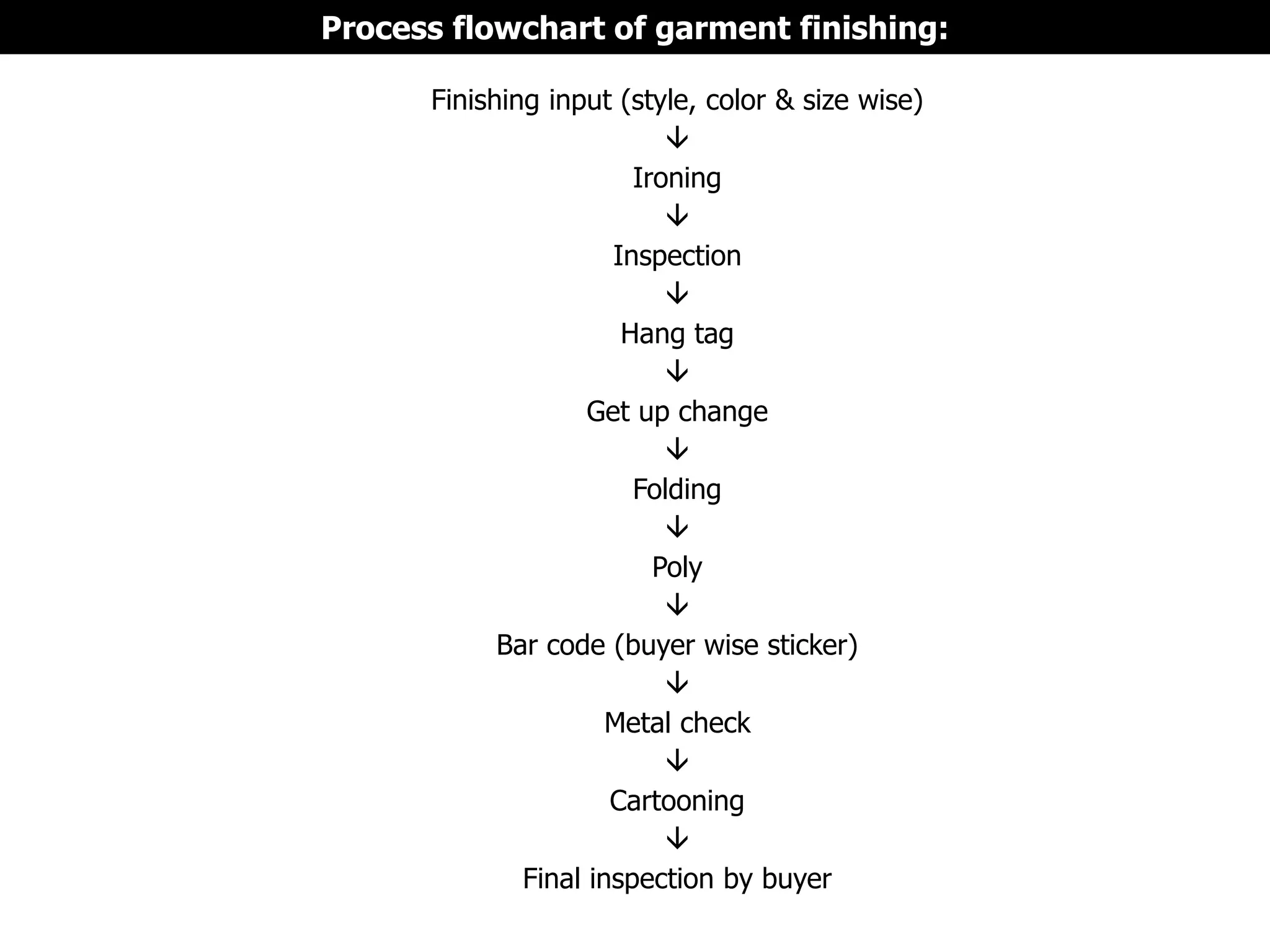

- 39. Finishing input (style,color & size wise) Ironing Inspection Hang tag Get up change Folding Poly Bar code (buyer wise sticker) Metal check Cartooning Final inspection by buyer Process flowchart of garment finishing:

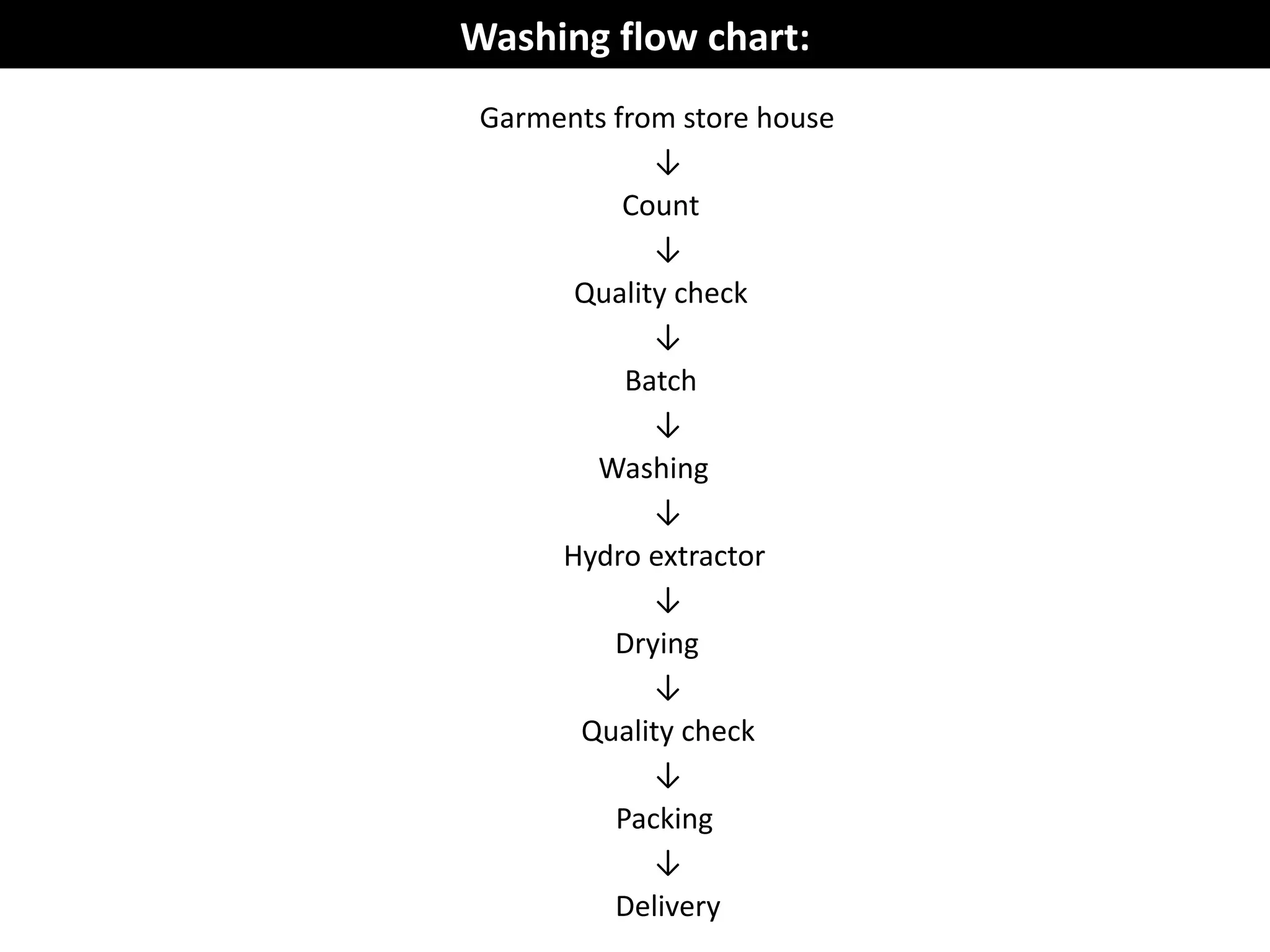

- 40. Garments from storehouse ↓ Count ↓ Quality check ↓ Batch ↓ Washing ↓ Hydro extractor ↓ Drying ↓ Quality check ↓ Packing ↓ Delivery Washing flow chart:
