The Fizeau interferometer uses reflected light from a reference plate and a test flat to create interference patterns, allowing for analysis of the test surface's characteristics. It consists of a monochromatic light source, collimating lens, and a high-quality reference flat, which is adjusted to eliminate interference patterns from the pinhole image. This tool is widely used in testing optical components, including applications in space instrumentation and experiments related to the speed of light.

1. FIZEAU INTERFEROMETER
SHUBHAM MAURYA

2. Principle

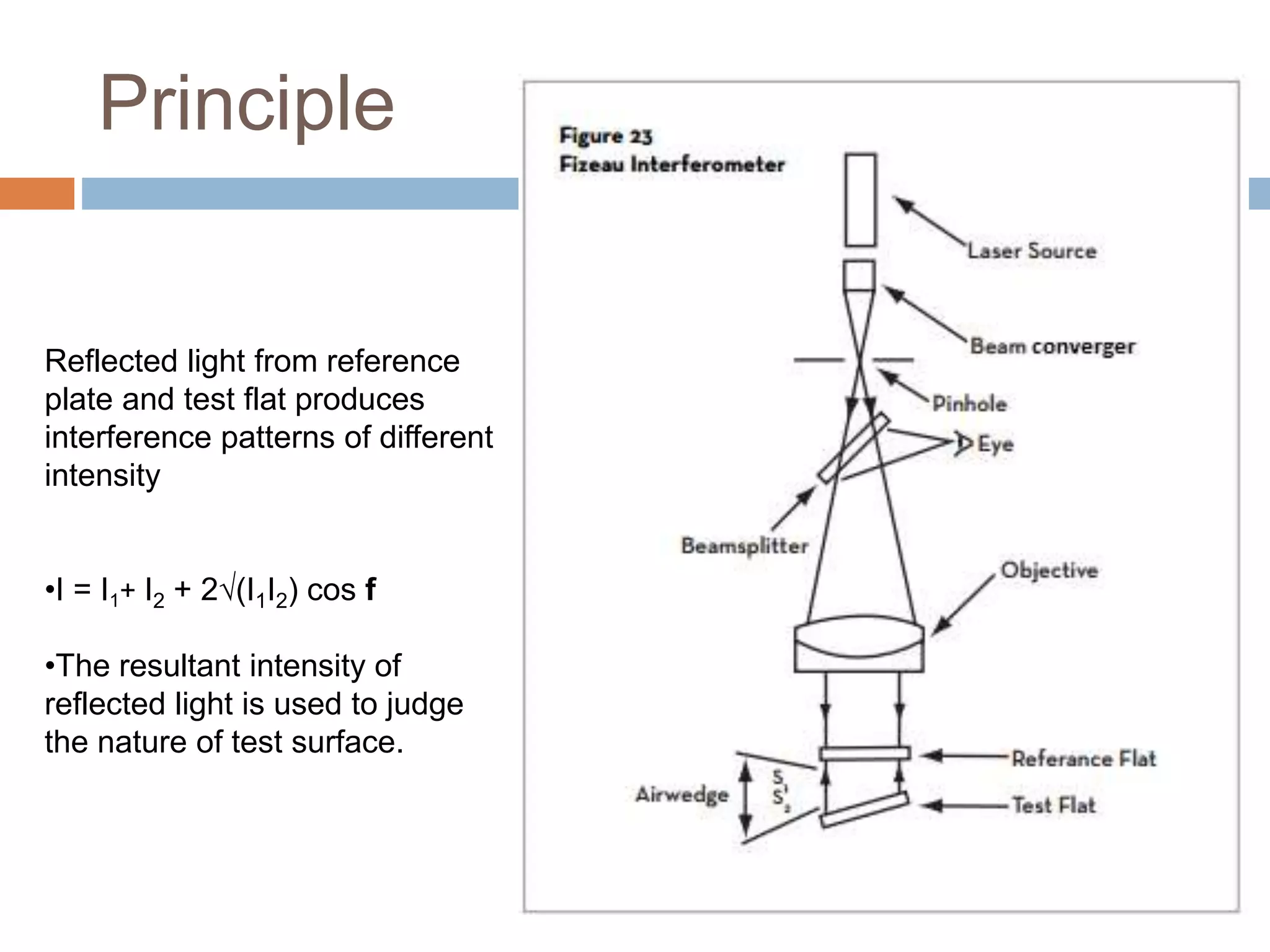

Reflected light from reference
plate and test flat produces
interference patterns of different
intensity
•I = I1+ I2 + 2√(I1I2) cos f
•The resultant intensity of
reflected light is used to judge
the nature of test surface.

3. Working and construction

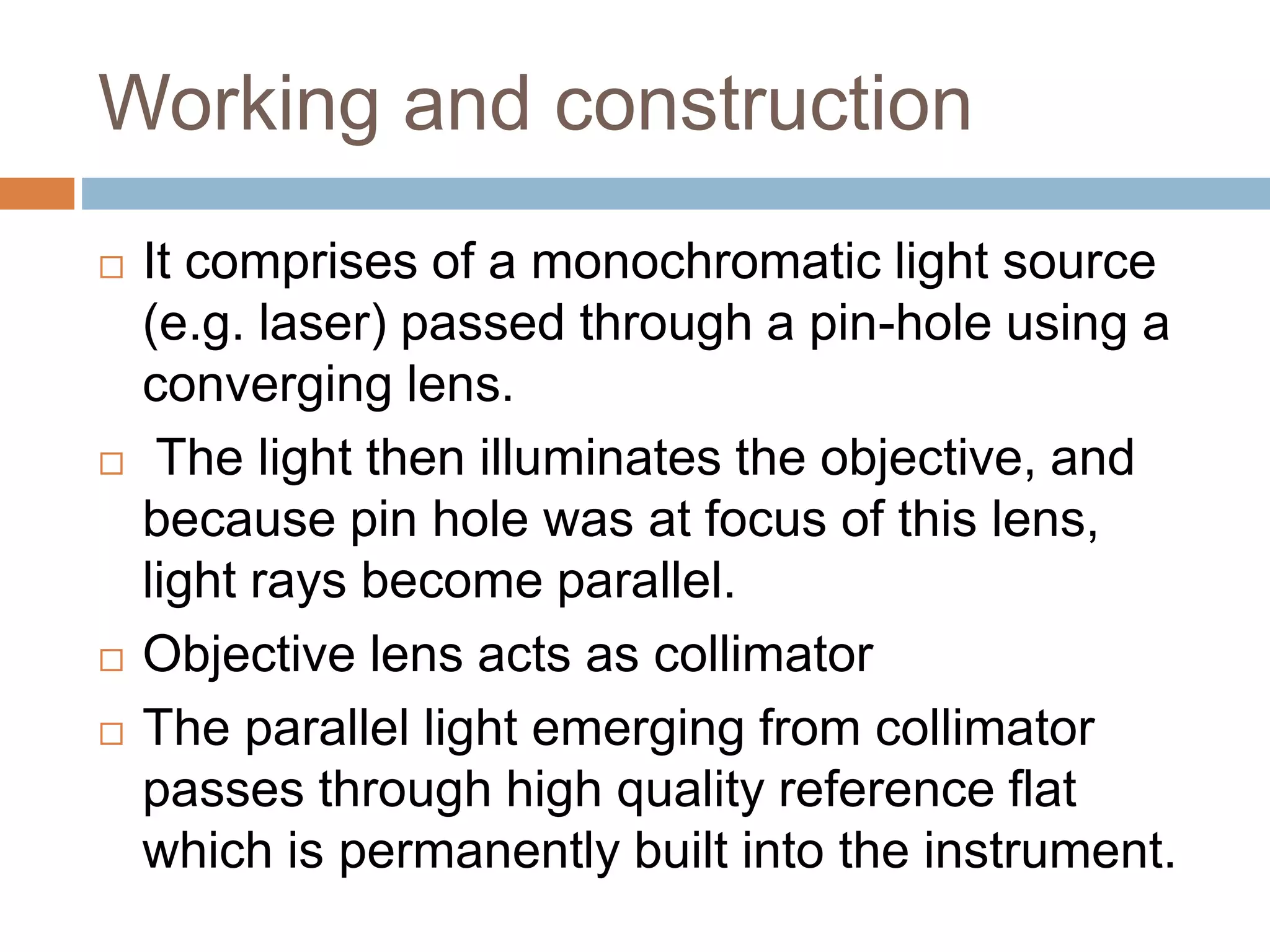

 It comprises of a monochromatic light source
(e.g. laser) passed through a pin-hole using a
converging lens.
 The light then illuminates the objective, and
because pin hole was at focus of this lens,
light rays become parallel.
 Objective lens acts as collimator
 The parallel light emerging from collimator
passes through high quality reference flat
which is permanently built into the instrument.

4. Working and construction
(cont.)

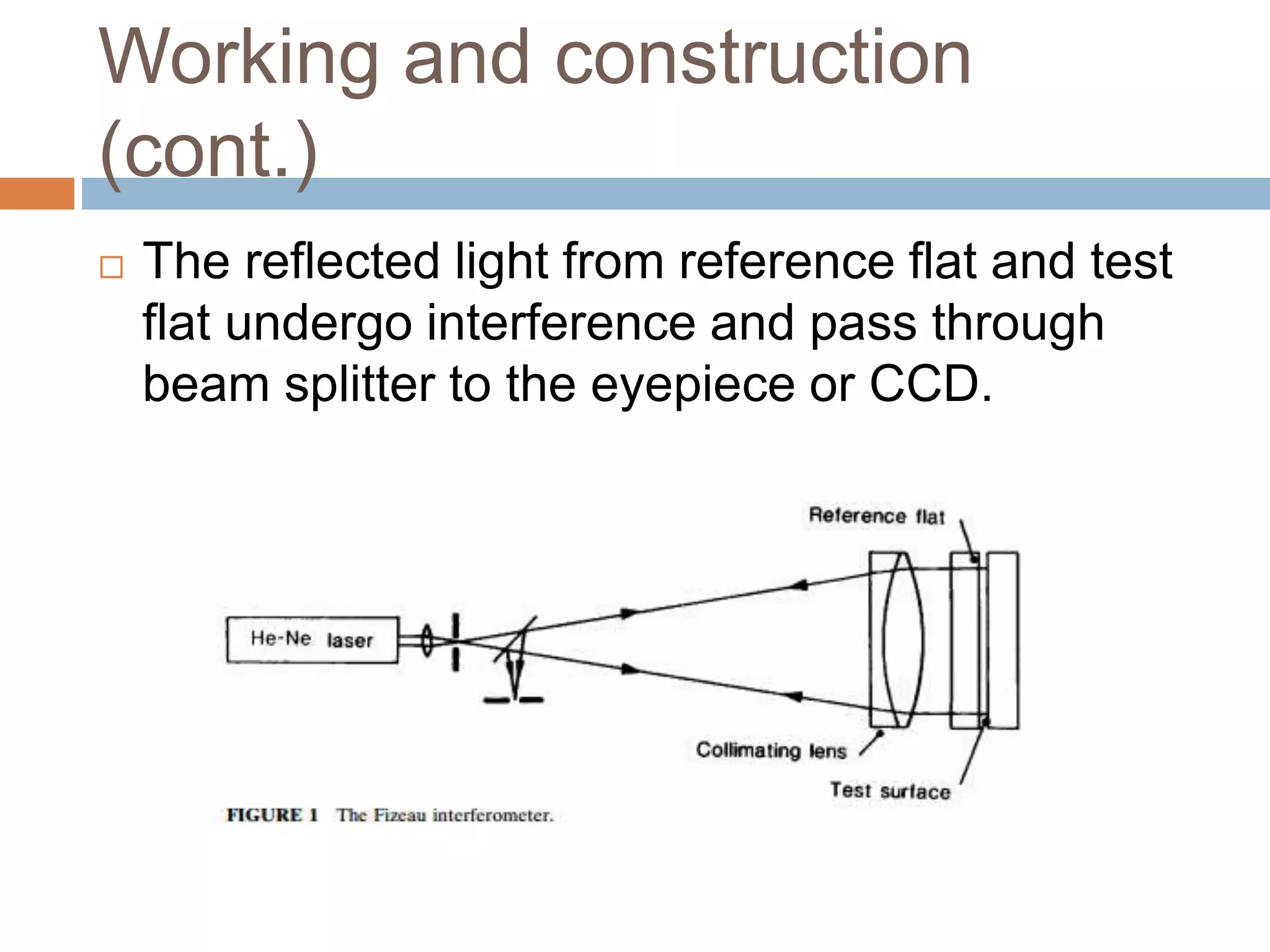

 The reflected light from reference flat and test
flat undergo interference and pass through
beam splitter to the eyepiece or CCD.

5. Guidelines and modifications
 The reference flat is adjusted
till the image of pinhole
disappears from
screen/eyepiece.
 It is done so that reference flat
is perpendicular to the parallel
light beams.

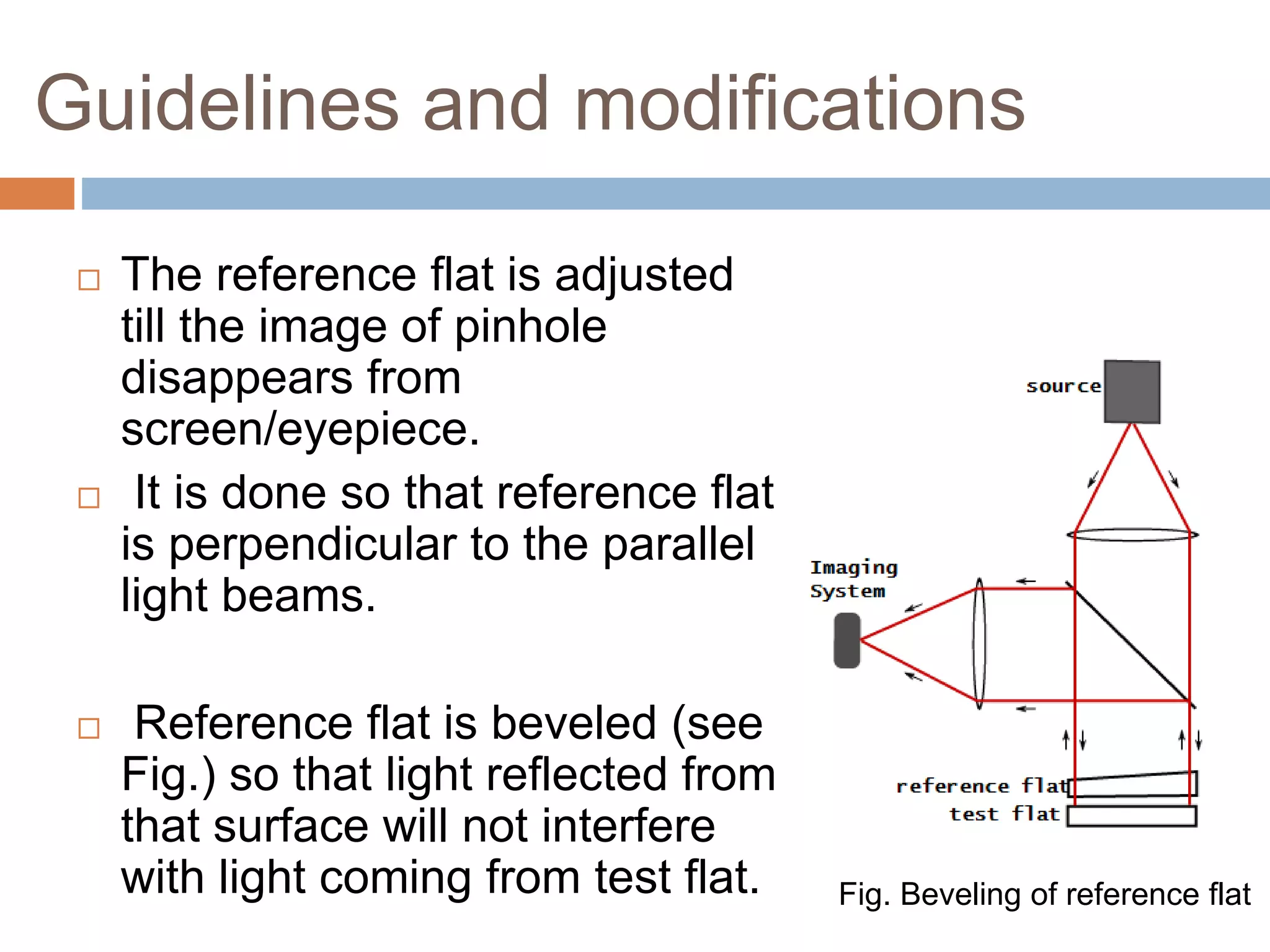

 Reference flat is beveled (see
Fig.) so that light reflected from
that surface will not interfere
with light coming from test flat. Fig. Beveling of reference flat

6. Applications

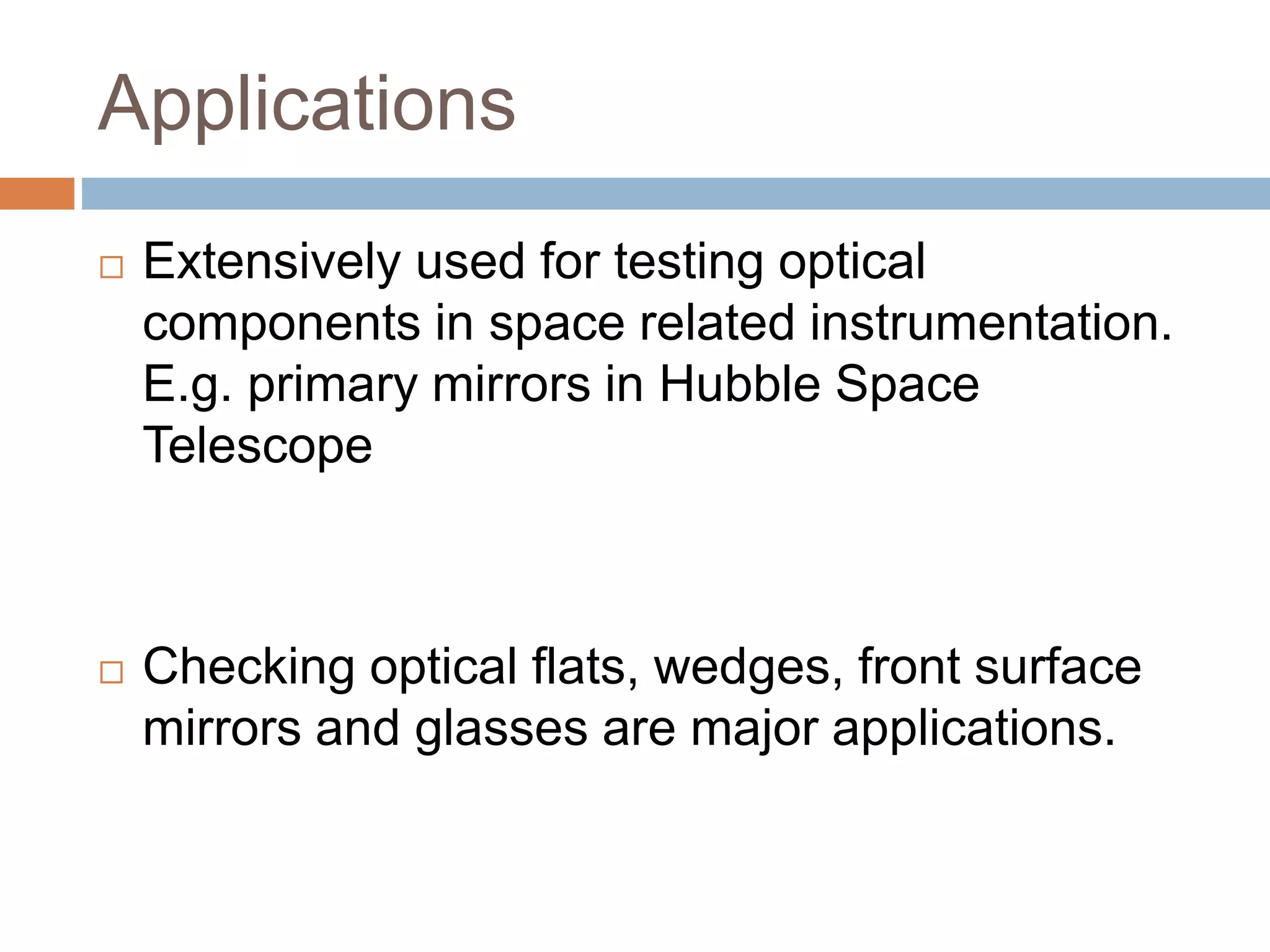

 Extensively used for testing optical
components in space related instrumentation.
E.g. primary mirrors in Hubble Space
Telescope
 Checking optical flats, wedges, front surface
mirrors and glasses are major applications.

7. Applications

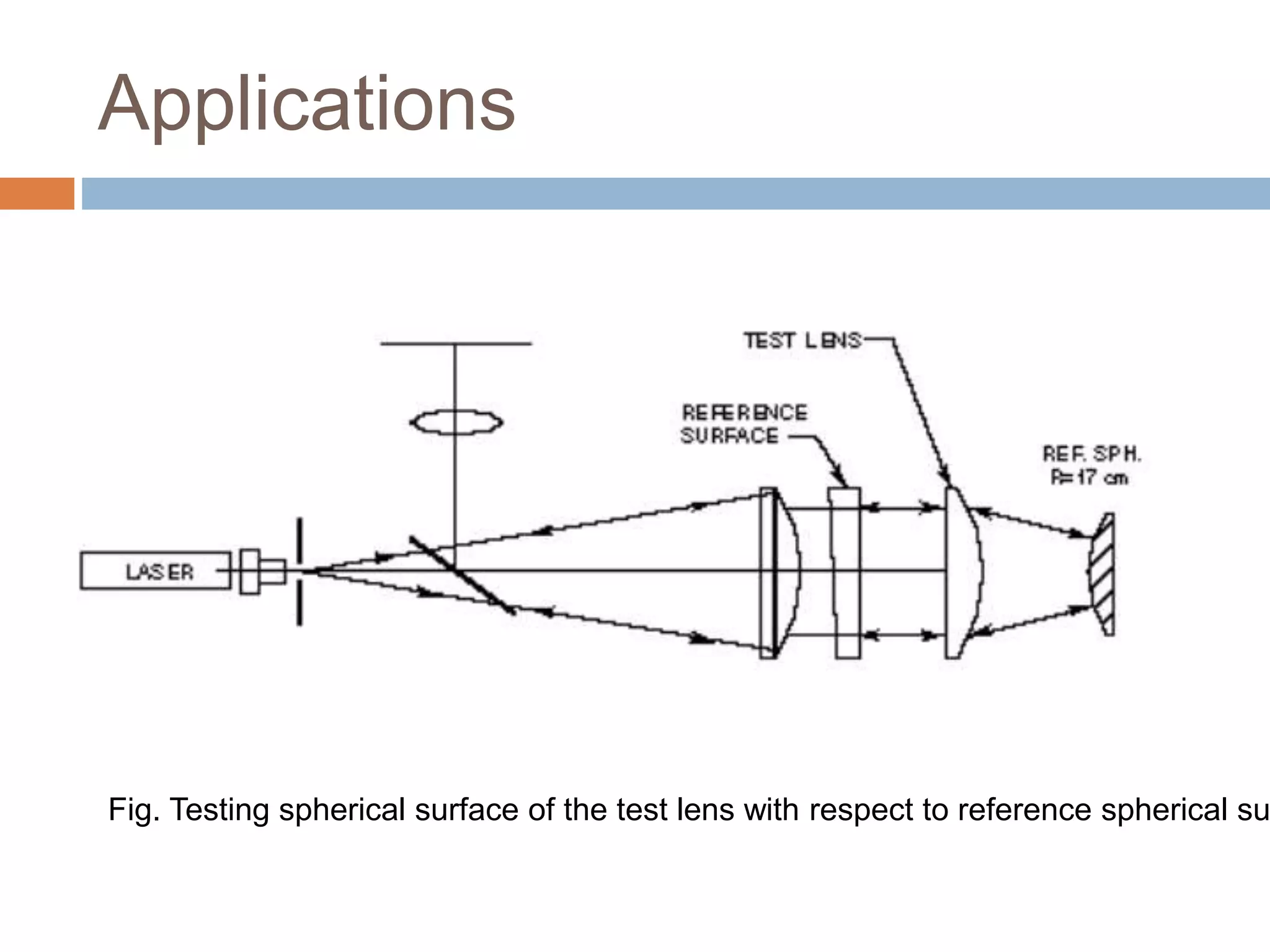

Fig. Testing spherical surface of the test lens with respect to reference spherical su

8. Applications

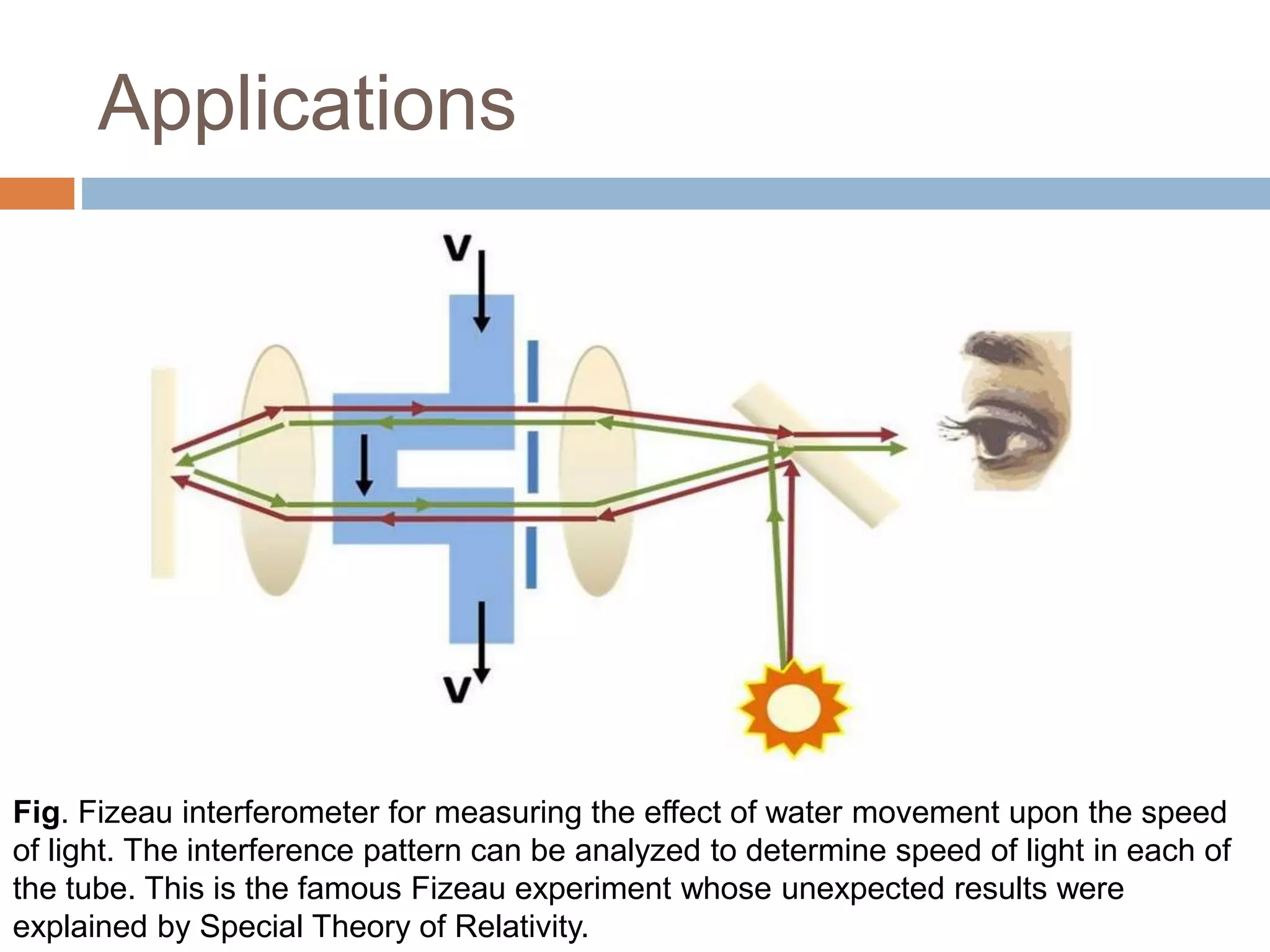

Fig. Fizeau interferometer for measuring the effect of water movement upon the speed
of light. The interference pattern can be analyzed to determine speed of light in each of
the tube. This is the famous Fizeau experiment whose unexpected results were
explained by Special Theory of Relativity.
